1. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 1 AliRoot - Pub/Sub Framework Analysis Component Interface Matthias Richter, Sebastian Kalcher, Jochen Thäder & Timm M. Steinbeck

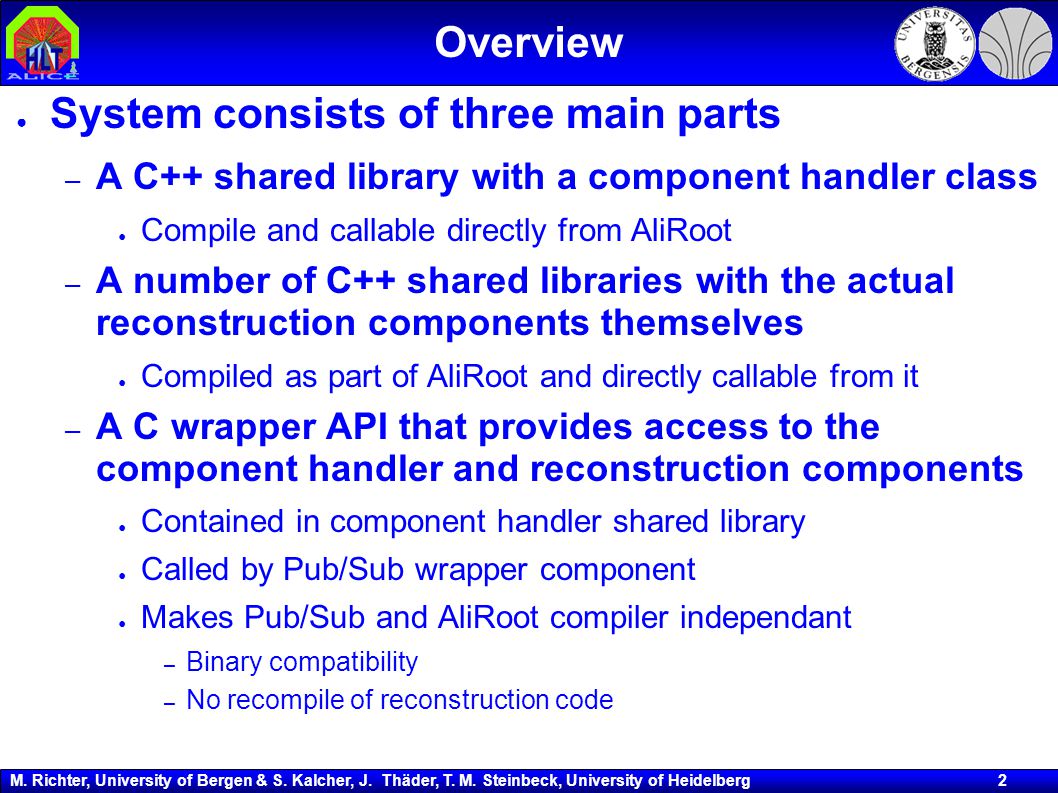

2. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 2 Overview ● System consists of three main parts – A C++ shared library with a component handler class ● Compile and callable directly from AliRoot – A number of C++ shared libraries with the actual reconstruction components themselves ● Compiled as part of AliRoot and directly callable from it – A C wrapper API that provides access to the component handler and reconstruction components ● Contained in component handler shared library ● Called by Pub/Sub wrapper component ● Makes Pub/Sub and AliRoot compiler independant – Binary compatibility – No recompile of reconstruction code

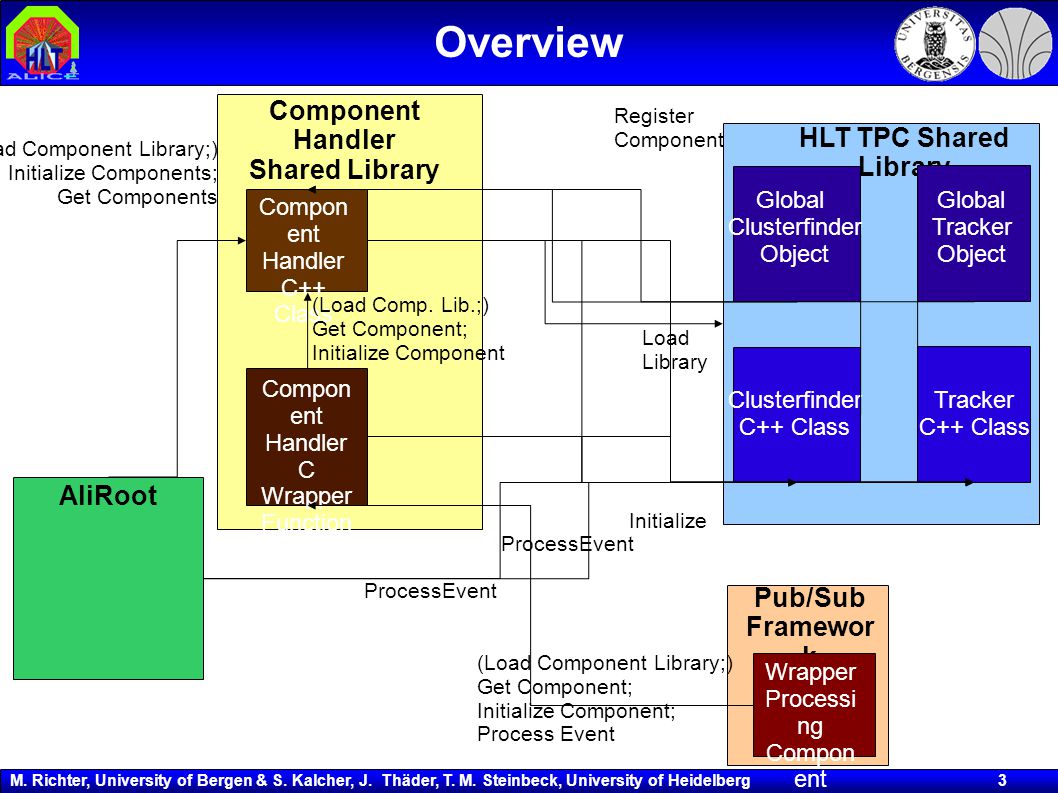

3. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 3 Overview HLT TPC Shared Library Clusterfinder C++ Class Tracker C++ Class Component Handler Shared Library Compon ent Handler C++ Class Load Library Initialize Compon ent Handler C Wrapper Function s (Load Comp. Lib.;) Get Component; Initialize Component Pub/Sub Framewor k Wrapper Processi ng Compon ent (Load Component Library;) Get Component; Initialize Component; Process Event AliRoot (Load Component Library;) Initialize Components; Get Components Global Clusterfinder Object Global Tracker Object Register Component ProcessEvent

4. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 4 Components ● Components have to implement a set of abstract functions – Return ID (string) – Return set of required input data types – Return produced output data type(s) – Process one event – Close to what is needed for Pub/Sub components ● But simplified ● One global instance of each component has to be present in shared component library – Automagic registration with global component handler object

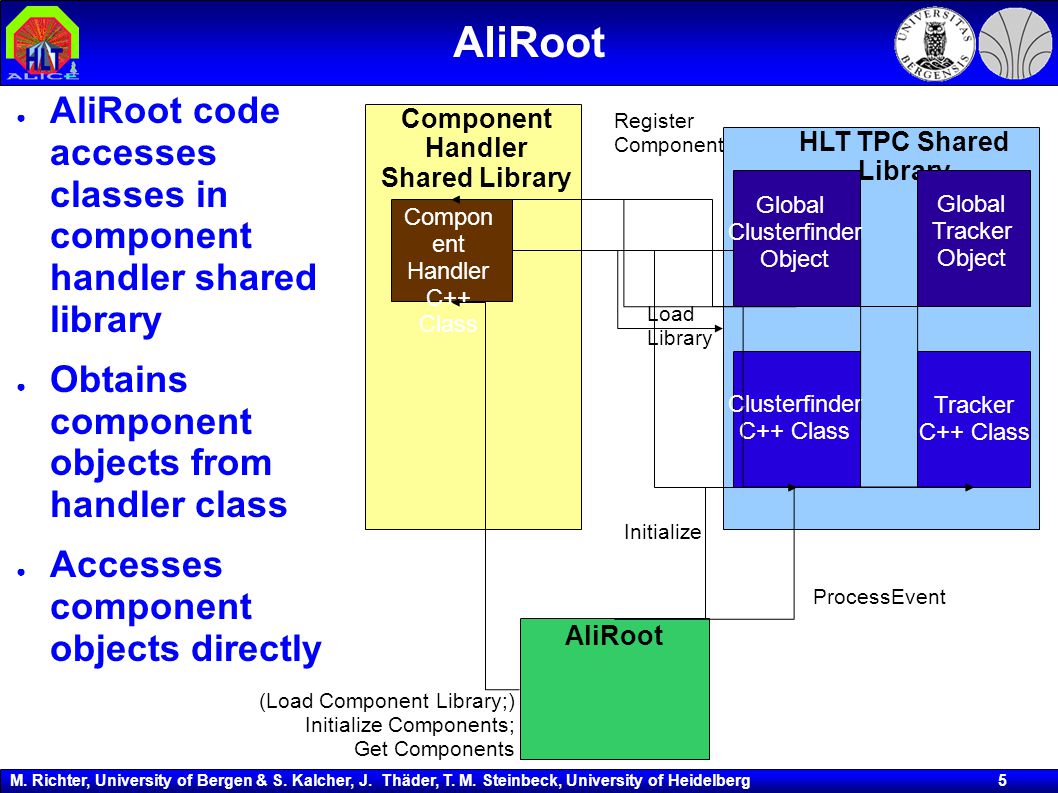

5. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 5 AliRoot ● AliRoot code accesses classes in component handler shared library ● Obtains component objects from handler class ● Accesses component objects directly HLT TPC Shared Library Clusterfinder C++ Class Tracker C++ Class Component Handler Shared Library Compon ent Handler C++ Class Load Library Initialize AliRoot (Load Component Library;) Initialize Components; Get Components Global Clusterfinder Object Global Tracker Object Register Component ProcessEvent

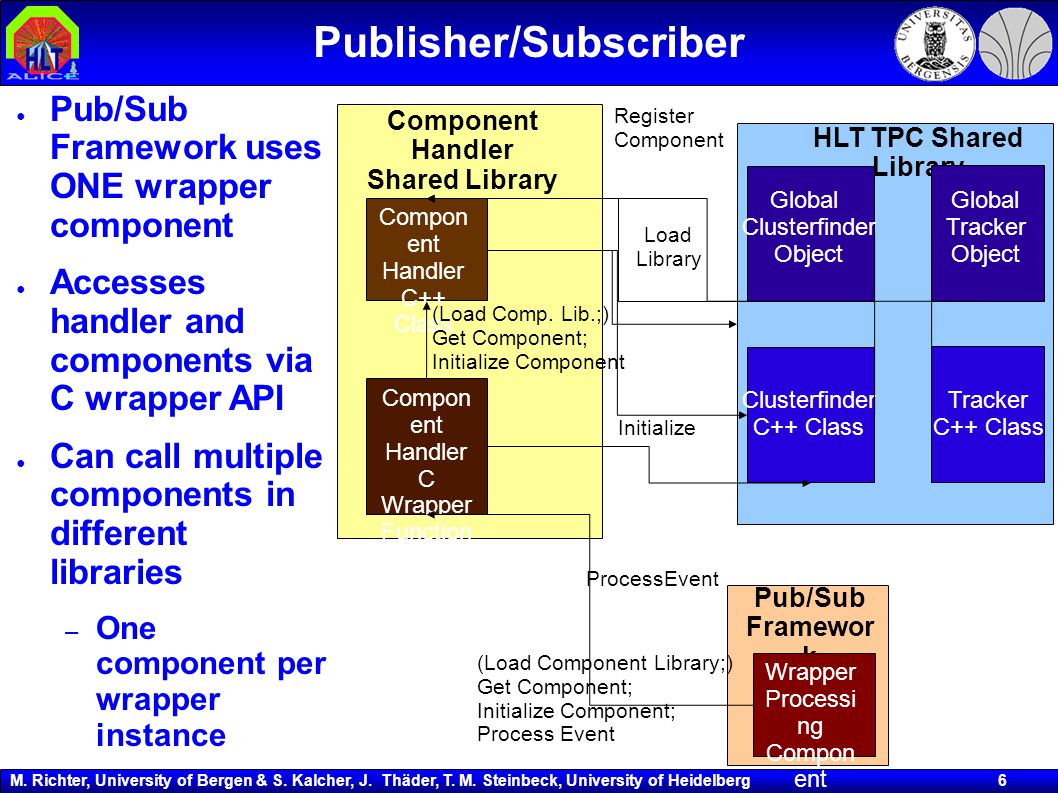

6. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 6 Publisher/Subscriber ● Pub/Sub Framework uses ONE wrapper component ● Accesses handler and components via C wrapper API ● Can call multiple components in different libraries – One component per wrapper instance HLT TPC Shared Library Clusterfinder C++ Class Tracker C++ Class Component Handler Shared Library Compon ent Handler C++ Class Load Library Initialize Compon ent Handler C Wrapper Function s (Load Comp. Lib.;) Get Component; Initialize Component Pub/Sub Framewor k Wrapper Processi ng Compon ent (Load Component Library;) Get Component; Initialize Component; Process Event Global Clusterfinder Object Global Tracker Object Register Component ProcessEvent

7. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 7 Publisher/Subscriber : AliRootWrapperSubscri ber : C Wrapper : AliHLTComponen t : AliHLTComponentHan dler Initialization Sequence

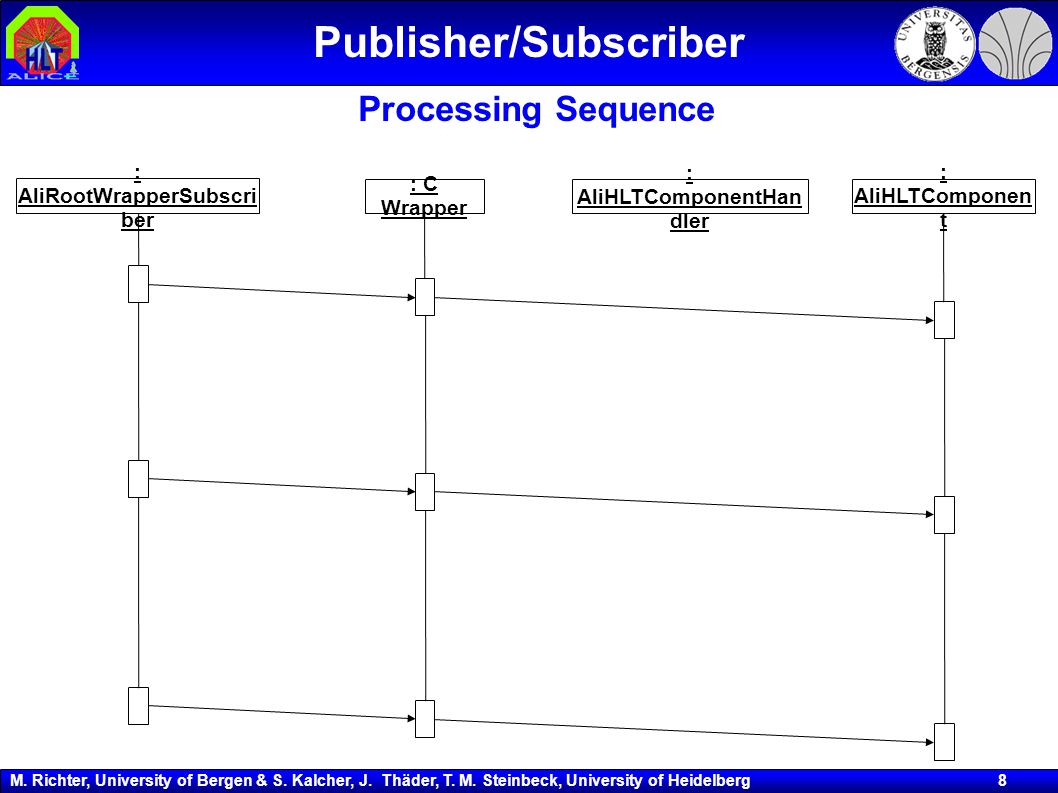

8. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 8 Publisher/Subscriber : AliRootWrapperSubscri ber : C Wrapper : AliHLTComponen t : AliHLTComponentHan dler Processing Sequence

9. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 9 Publisher/Subscriber : AliRootWrapperSubscri ber : C Wrapper : AliHLTComponen t : AliHLTComponentHan dler Termination Sequence

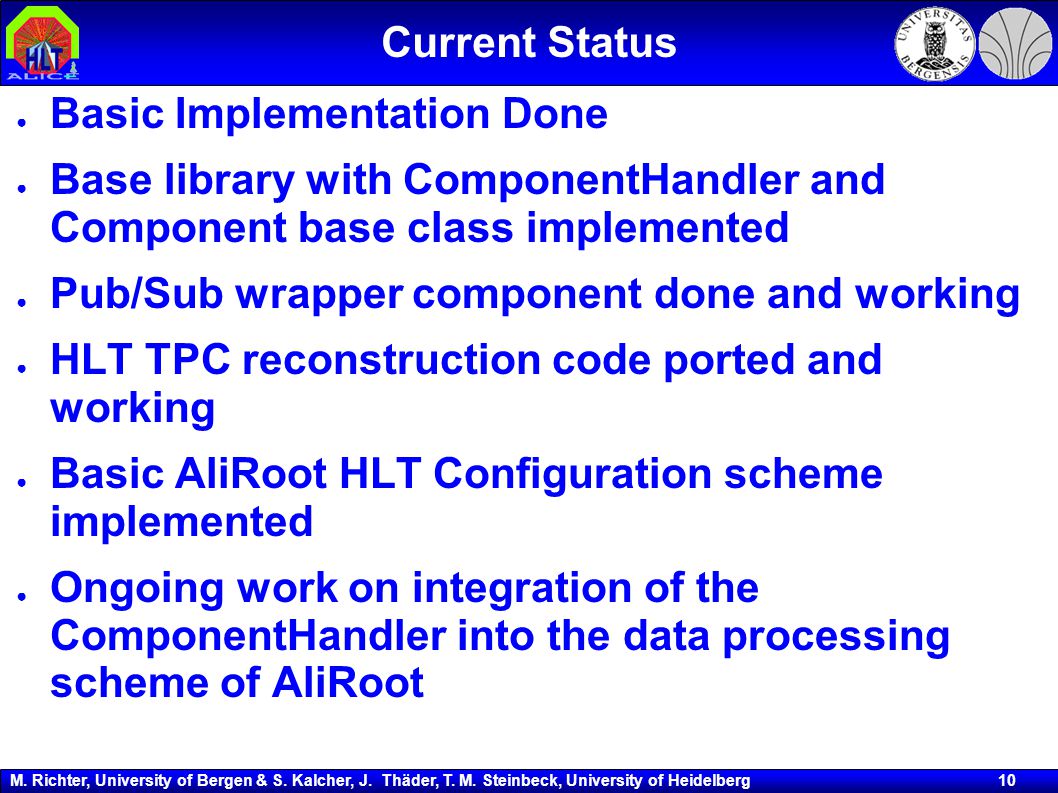

10. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 10 Current Status ● Basic Implementation Done ● Base library with ComponentHandler and Component base class implemented ● Pub/Sub wrapper component done and working ● HLT TPC reconstruction code ported and working ● Basic AliRoot HLT Configuration scheme implemented ● Ongoing work on integration of the ComponentHandler into the data processing scheme of AliRoot

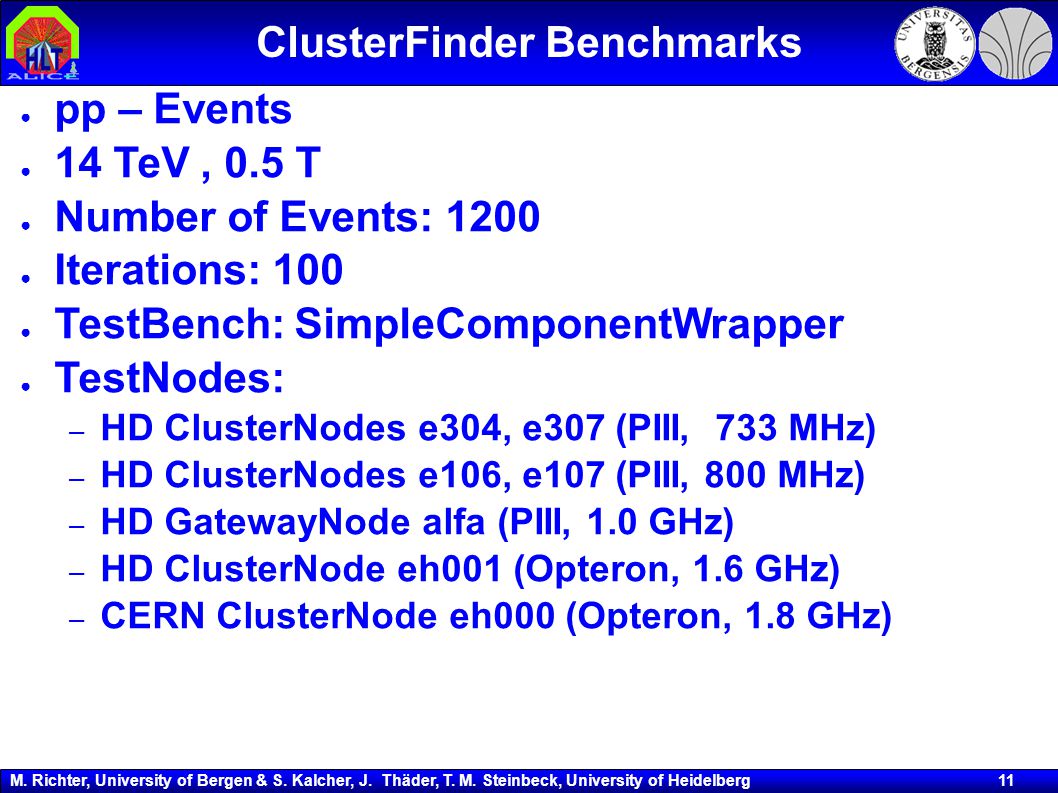

11. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 11 ● pp – Events ● 14 TeV, 0.5 T ● Number of Events: 1200 ● Iterations: 100 ● TestBench: SimpleComponentWrapper ● TestNodes: – HD ClusterNodes e304, e307 (PIII, 733 MHz) – HD ClusterNodes e106, e107 (PIII, 800 MHz) – HD GatewayNode alfa (PIII, 1.0 GHz) – HD ClusterNode eh001 (Opteron, 1.6 GHz) – CERN ClusterNode eh000 (Opteron, 1.8 GHz) ClusterFinder Benchmarks

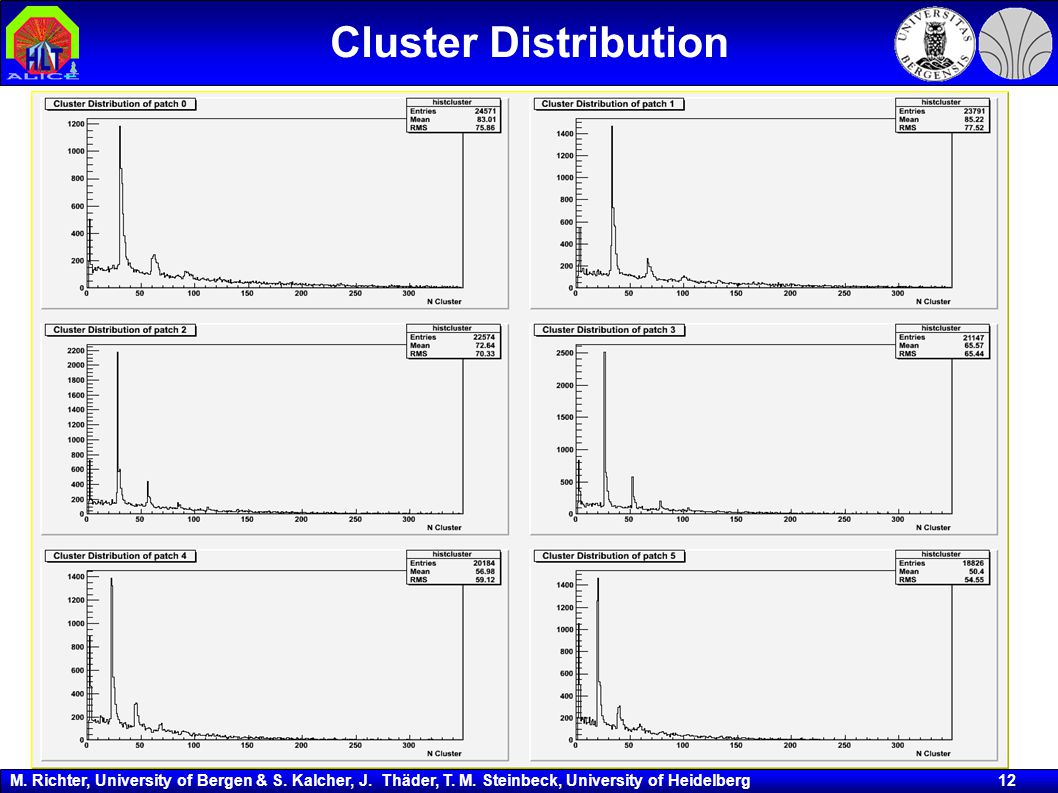

12. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 12 Cluster Distribution

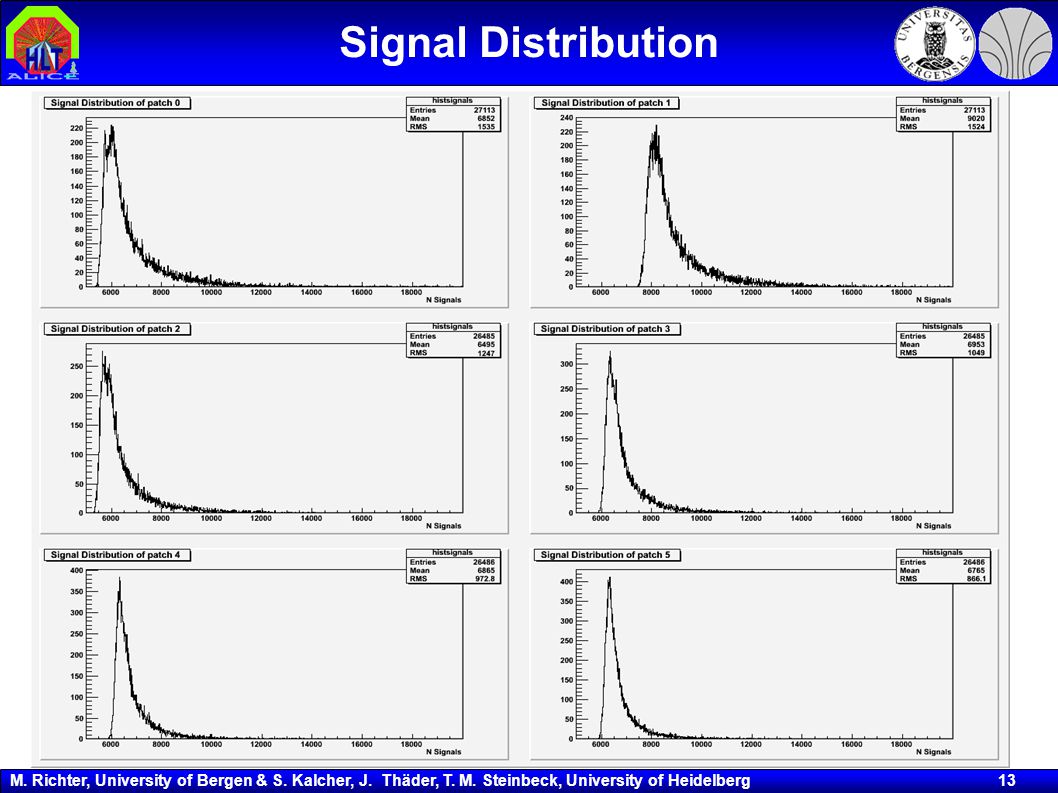

13. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 13 Signal Distribution

14. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 14 File Size Distribution

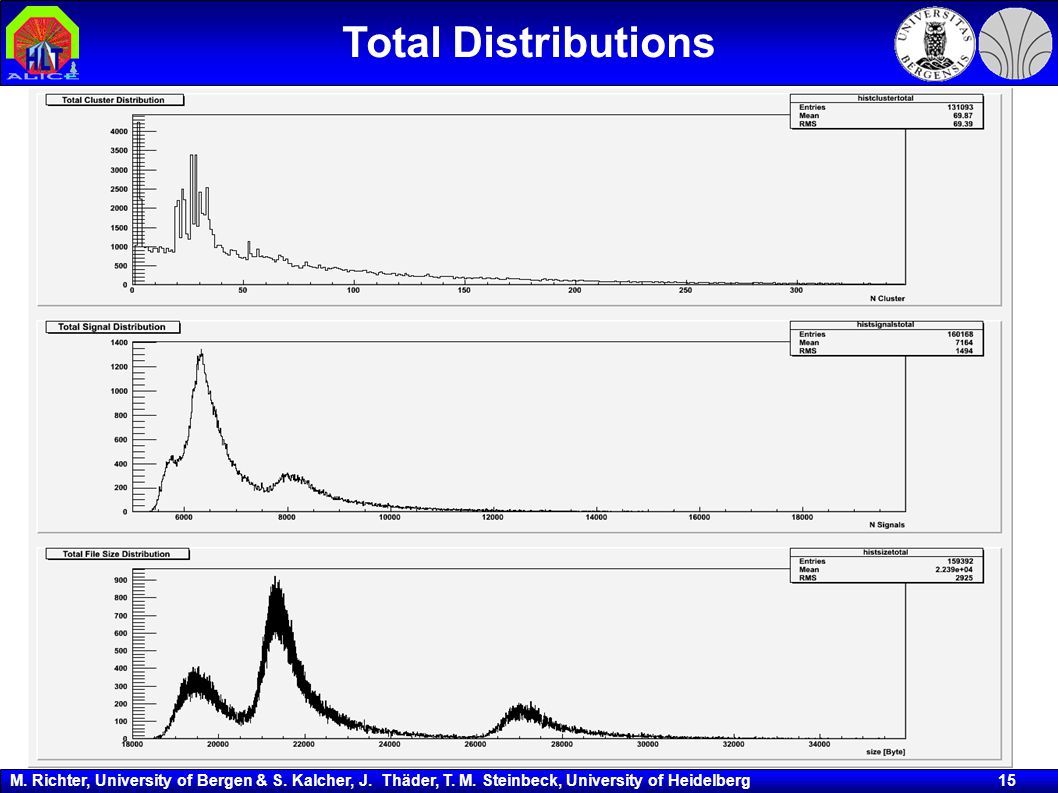

15. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 15 Total Distributions

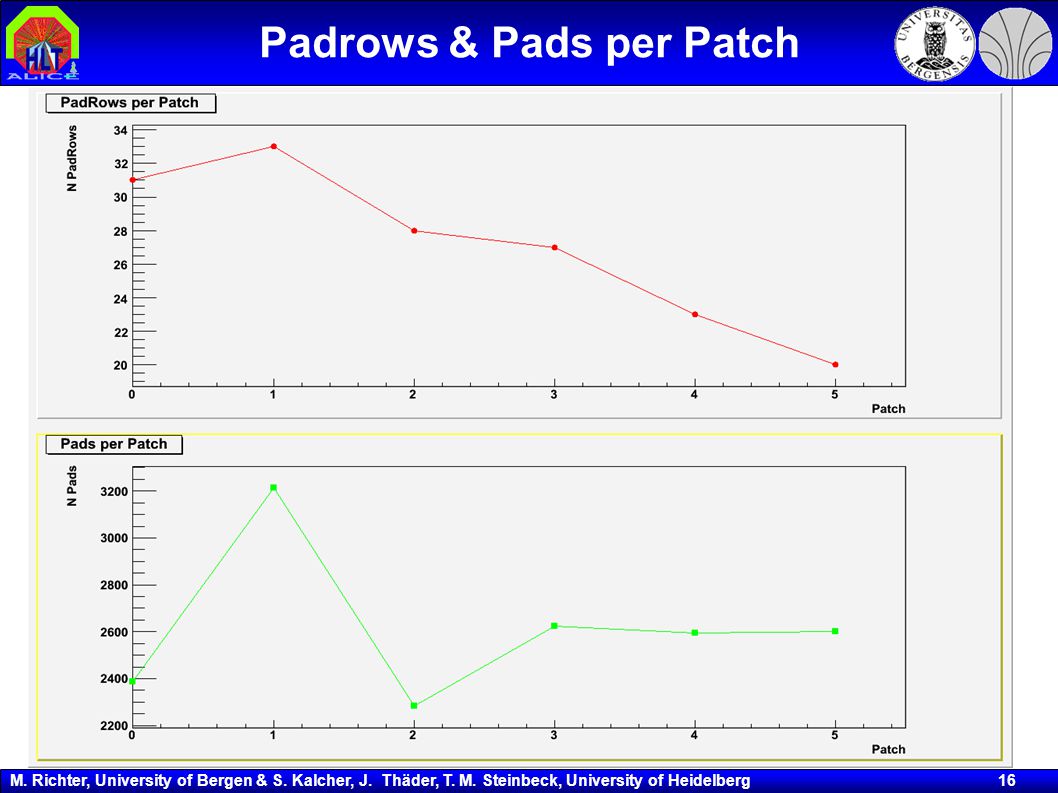

16. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 16 Padrows & Pads per Patch

17. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 17 13797443442Average Per patch, event 134374264353 122333985442 175255683611 133124149235 133844210294 128924313600 Filesize [Byte]# Signals# Cluster Patch Basic Results

18. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 18 6,54 6,01 4,81 3,99 2,90 Patch 5 [ms] 6,906,616,676,148,826,57PIII 733MHz 6,336,066,125,648,106,04PIII 800 MHz 5,114,874,904,516,654,95PIII 1,0 GHz 4,133,943,983,665,323,96Opteron 1,8 GHz 3,06 2,93 2,962,733,922,93Opteron 1,6 GHz Average [ms] Patch 4 [ms] Patch 3 [ms] Patch 2 [ms] Patch 1 [ms] Patch 0 [ms] CPU Xeon IV 3.2 GHz2.112.791.982.142.132.112.21 Timing Results

19. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 19 Timing Results

20. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 20 Timing Results ● Memory streaming benchmarks: – 1.6 GHz Opteron system ● ca. 4.3 GB/s – 1.8 GHz Opteron system ● ca. 3 GB/s ● Reason for performance drop of 1.8 GHz system compared to 1.6 GHz system ● Cause of memory performance difference unknown, currently being investigated ● Maybe related to NUMA parameter (cf. slice 23)

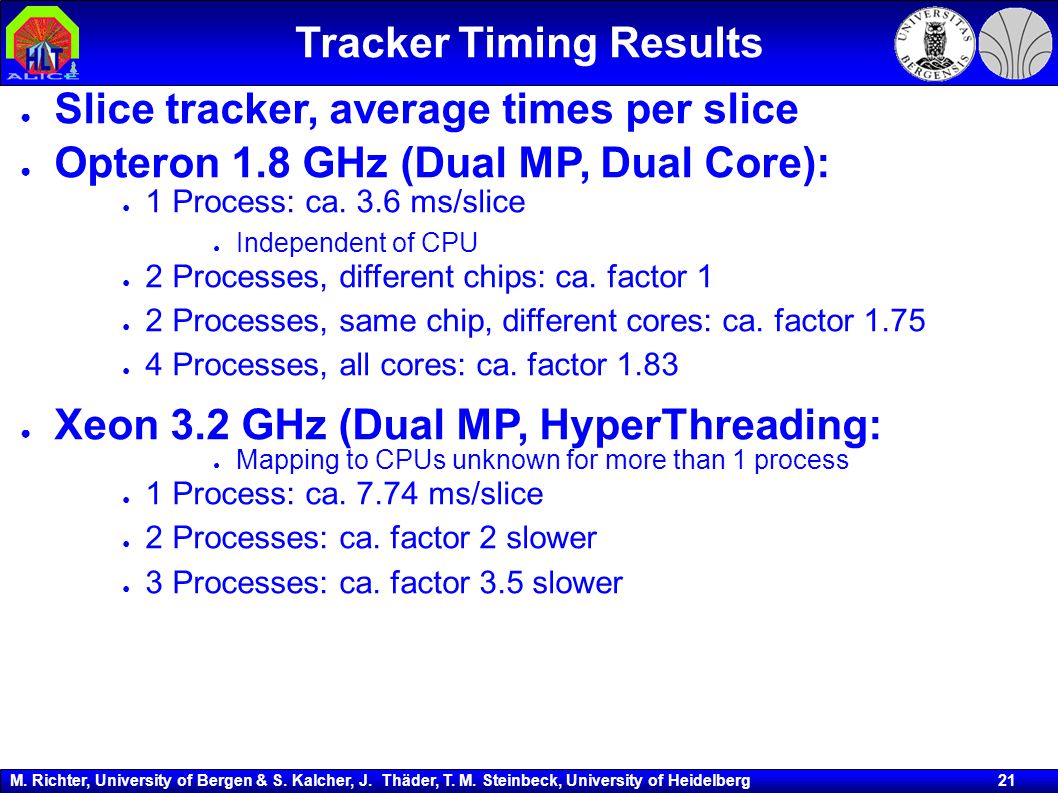

21. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 21 Tracker Timing Results ● Slice tracker, average times per slice ● Opteron 1.8 GHz (Dual MP, Dual Core): ● 1 Process: ca. 3.6 ms/slice ● Independent of CPU ● 2 Processes, different chips: ca. factor 1 ● 2 Processes, same chip, different cores: ca. factor 1.75 ● 4 Processes, all cores: ca. factor 1.83 ● Xeon 3.2 GHz (Dual MP, HyperThreading: ● Mapping to CPUs unknown for more than 1 process ● 1 Process: ca. 7.74 ms/slice ● 2 Processes: ca. factor 2 slower ● 3 Processes: ca. factor 3.5 slower

22. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 22 Timing Results – Opteron Memory ● Floating Point/Memory Microbenchmarks ● CPU loop: No effect w. multiple processes ● Linear memory read: Almost no effect ● Random memory read: – Runtime Factors: 1.33, 1.01, 1.43 ● Linear memory read and write: – Runtime Factors: 1.57, 1.12, 2.31 ● Random memory read and write: – Runtime Factors: 1.91, 1.92, 2.78 ● Linear memory write: – Runtime Factors: 1.71, 1.72, 3.48 ● Random memory write: – Runtime Factors: 1.97, 1.90, 3.76 Runtime Factors are for two processes on same chip, two processes on different chips, four processes on all cores, relative to single process

23. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 23 Timing Results – Opteron Memory ● Floating Point/Memory Microbenchmarks – Memory results, in particular memory writes, likely explanation f. tracker behaviour – Tasks ● Examine system memory parameters (e.g. BIOS, Linux kernel) – One critical parameter: Kernel NUMA-Awareness found not activated ● Re-evaluate/optimize tracker code wrt. memory writes – Likely problem already found, Conformal Mapping uses large memory array with widely (quasi) randomly distributed write and read accesses – Lesson for system procurement ● If possible evaluate systems/architectures wrt. pure performance AND scalability

24. M. Richter, University of Bergen & S. Kalcher, J. Thäder, T. M. Steinbeck, University of Heidelberg 24 Price Comparison ● Opteron 1.8 GHz: – Single Core: ca. 180,- € – Dual Core: ca. 350,- € ● Xeon 3.2 GHz: – Single Core: ca. 330,- € – Dual Core: ca. 350,- € ● Mainboard prices comparable – ca. 350-450 for dual MP, dual core capable ● For Opterons, per core prizes for full systems: – Assumption: 1 GB memory per core – 1.8 GHz Single/Dual Core, Dual MP: ca. 800/600,- € – 2.4 GHz Single/Dual Core, Dual MP: ca. 1000/880,- € – 2.4 GHz Single/Dual Core, Quad MP: ca. 1700/1250,- €
