1 Chemical Reaction Engineering (CRE) is the field that studies the rates and mechanisms of chemical reactions and the design of the reactors in which they take place. Lecture 7

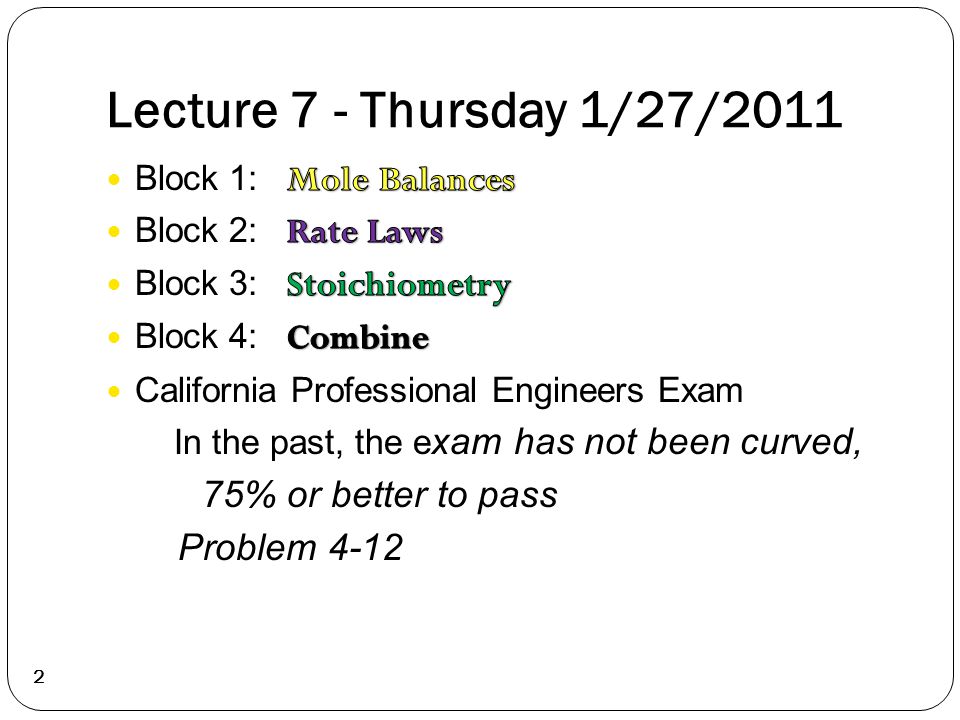

2 Lecture 7 - Thursday 1/27/2011 2

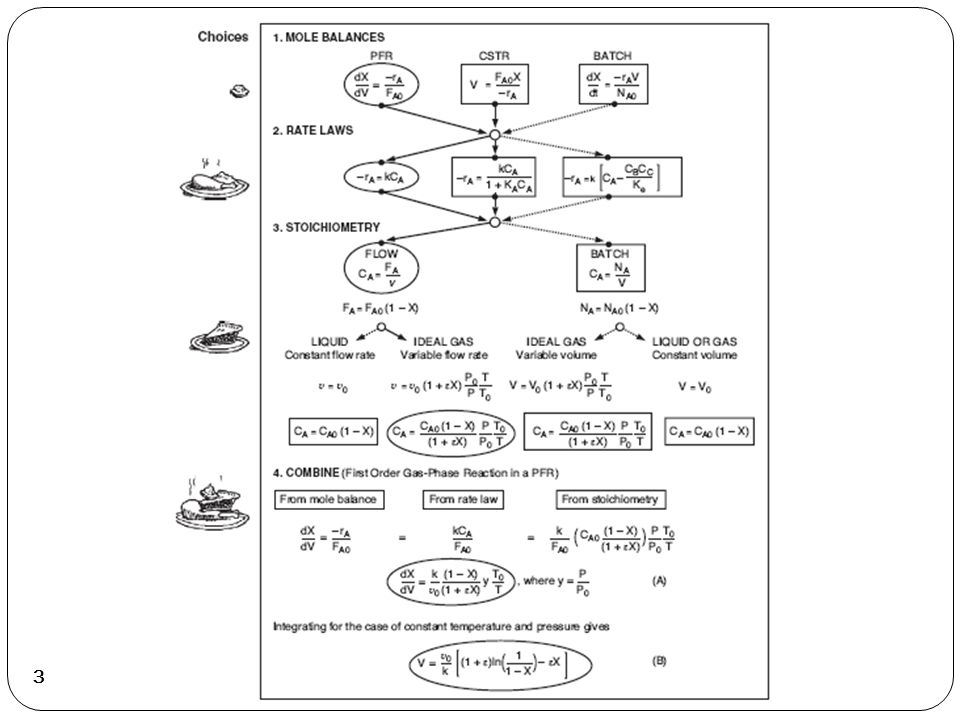

3 3

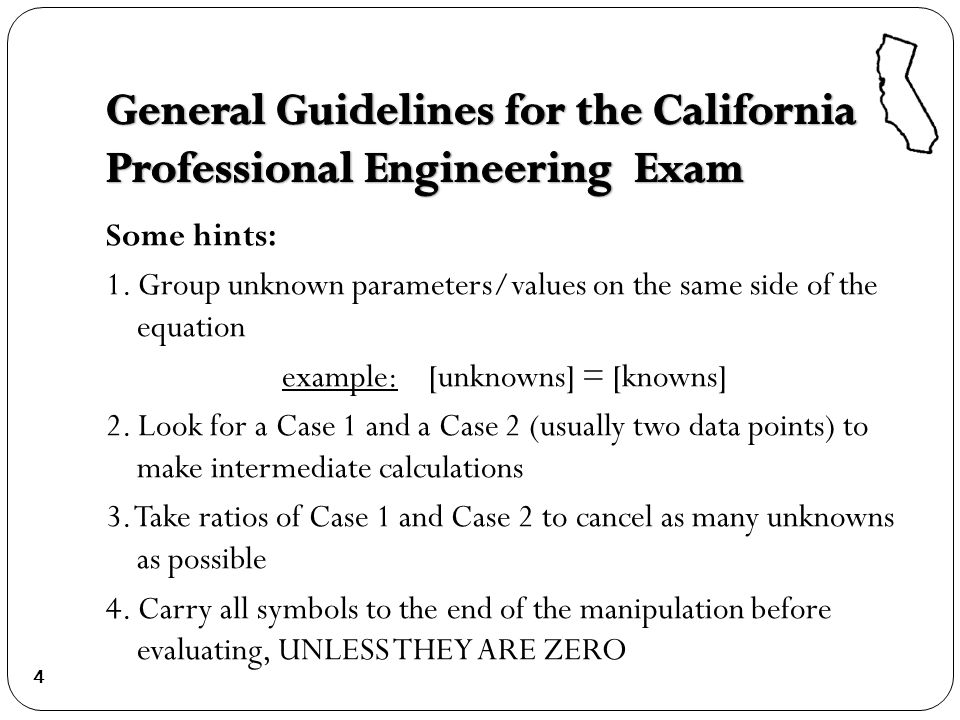

4 Some hints: 1. Group unknown parameters/values on the same side of the equation example: [unknowns] = [knowns] 2. Look for a Case 1 and a Case 2 (usually two data points) to make intermediate calculations 3. Take ratios of Case 1 and Case 2 to cancel as many unknowns as possible 4. Carry all symbols to the end of the manipulation before evaluating, UNLESS THEY ARE ZERO 4

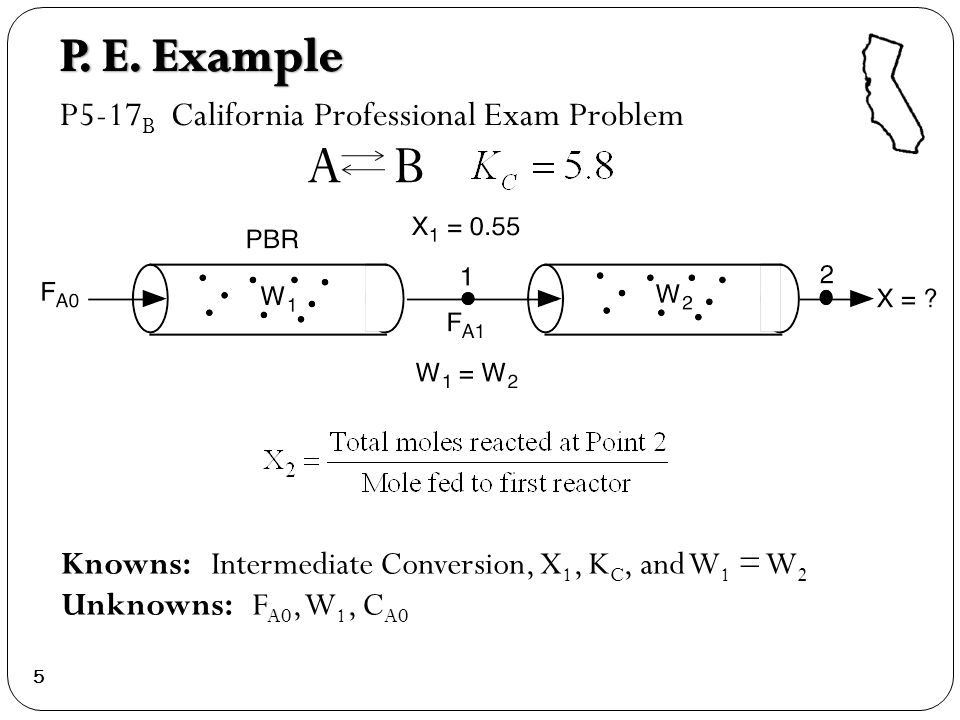

5 5 Knowns: Intermediate Conversion, X 1, K C, and W 1 = W 2 Unknowns: F A0, W 1, C A0 P5-17 B California Professional Exam Problem A B

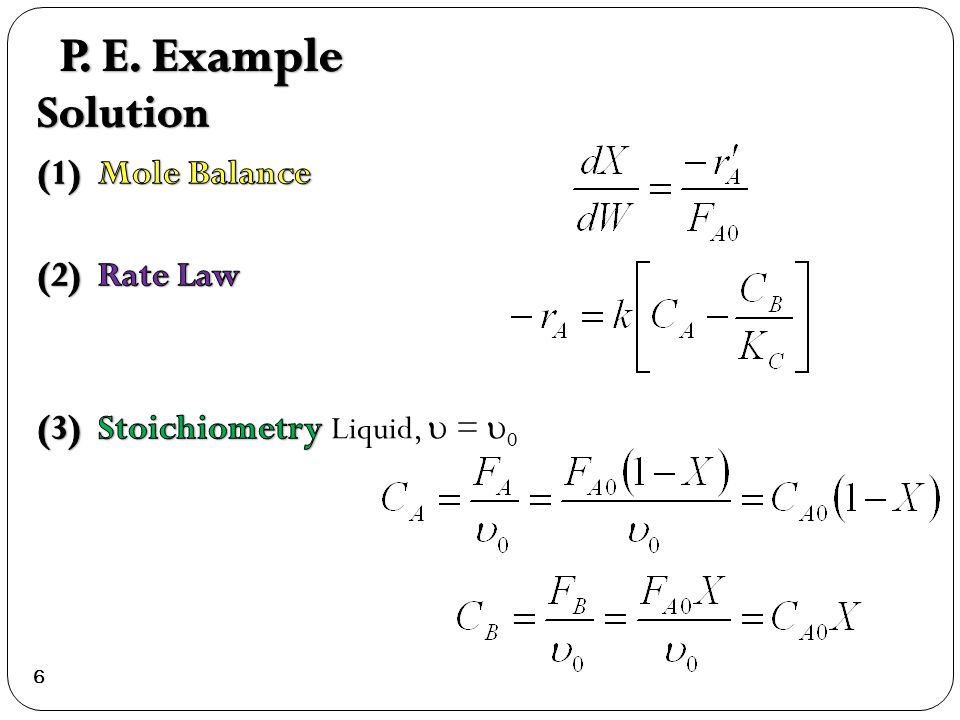

6 6

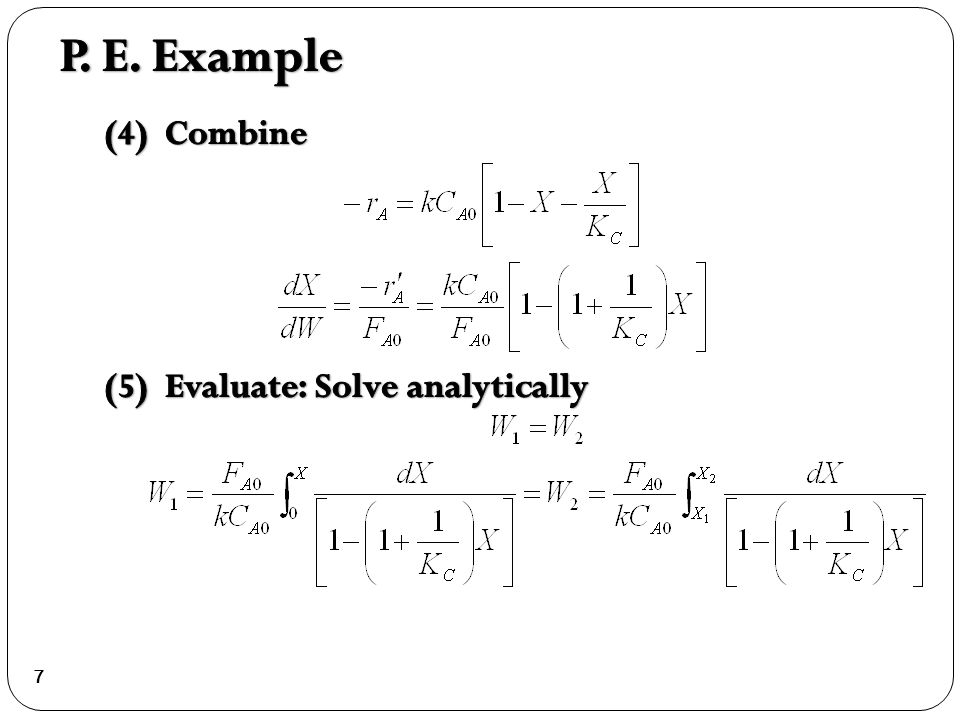

7 7

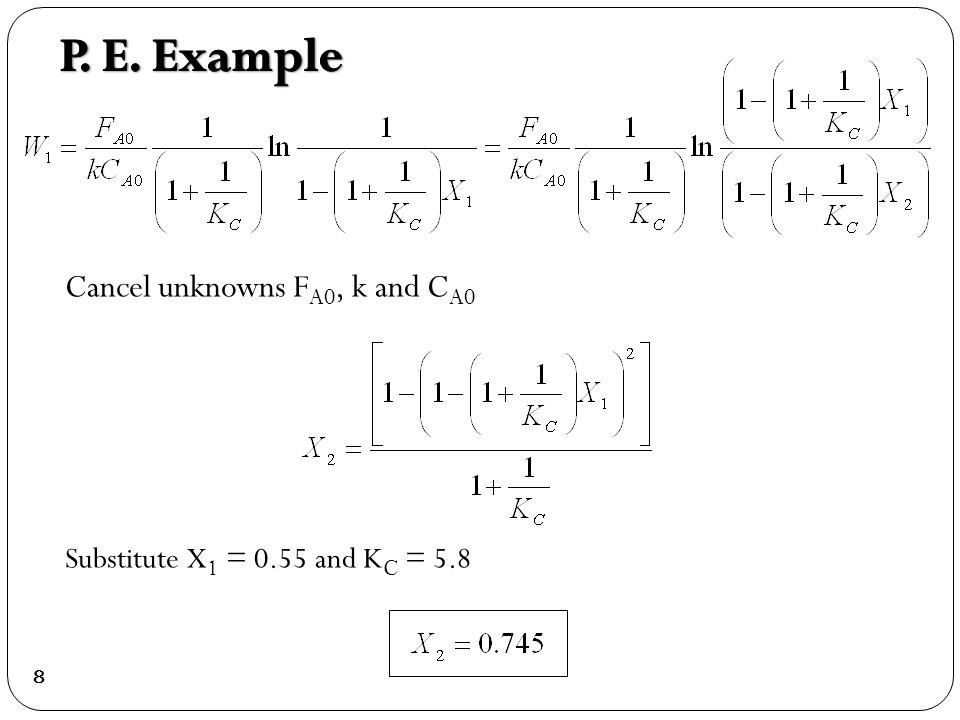

8 8 Cancel unknowns F A0, k and C A0 Substitute X 1 = 0.55 and K C = 5.8

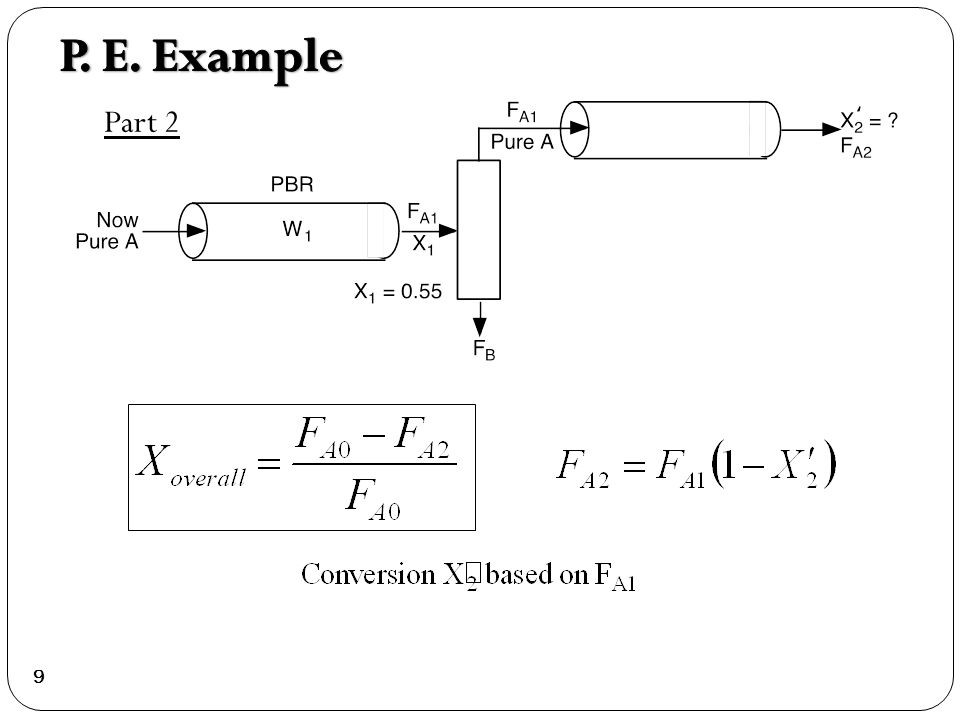

9 9 Part 2

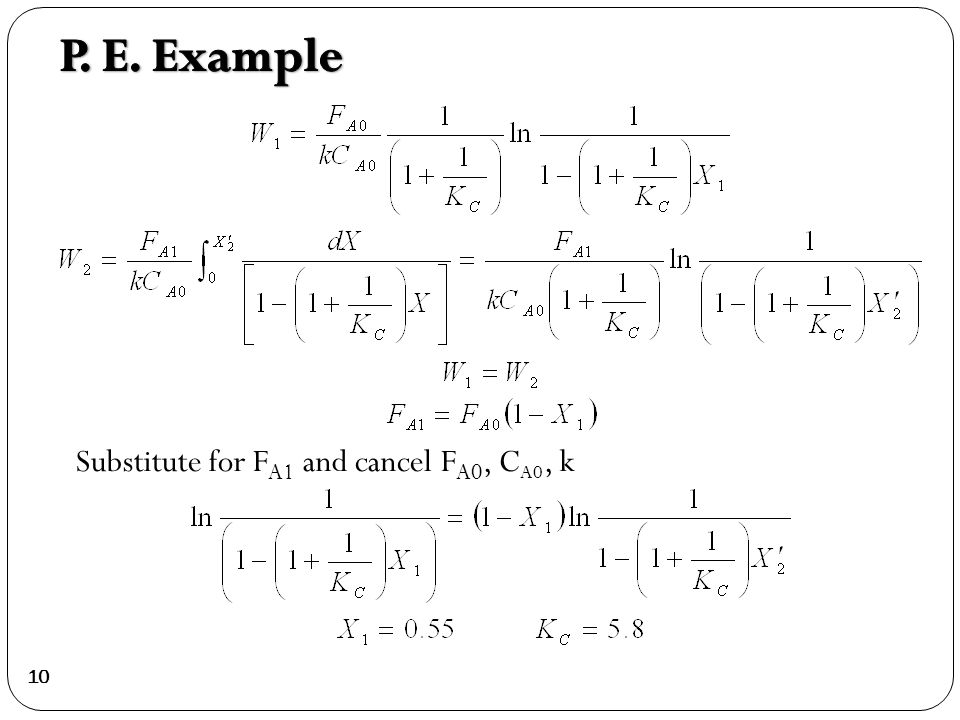

10 10 Substitute for F A1 and cancel F A0, C A0, k

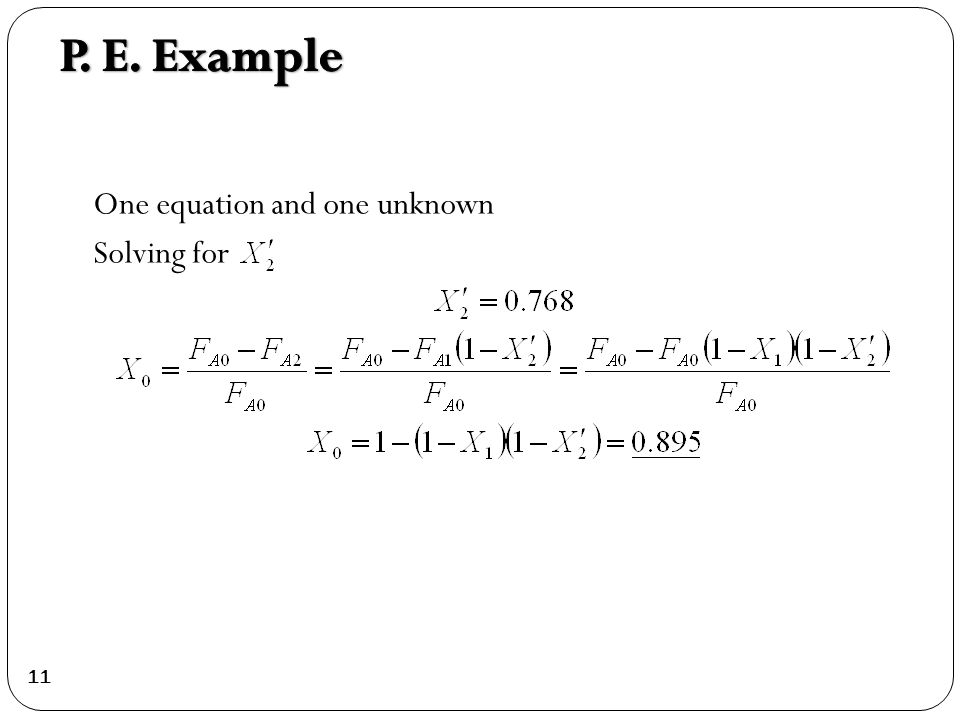

11 11 One equation and one unknown Solving for

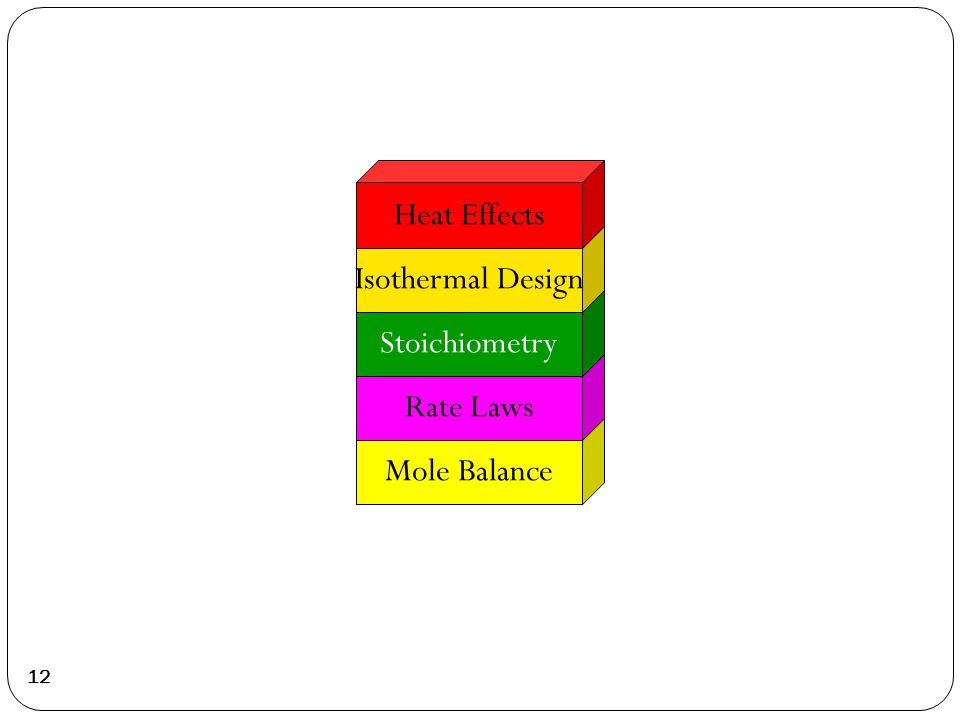

12 Mole Balance Rate Laws Stoichiometry Isothermal Design Heat Effects 12

13 End of Lecture 7 13
