1. DUSD(Labs) GSRC bX update March 2003 Aaron Ng, Marius Eriksen and Igor Markov University of Michigan

2. 2 12/09/02 Outline u Motivation, issues in benchmarking u bX in the picture u Sample application: Evaluation of tools u Future focus u Contact info, links

3. 3 12/09/02 Motivation, issues in benchmarking 1. Evaluation independent reproduction of results and experiments independent reproduction of results and experiments explicit methods required explicit methods required  minimum room for misinterpretation of results evaluation of algorithms across entire problem space evaluation of algorithms across entire problem space  conflicting and correlating optimization objectives  separation of placement and routing tasks

4. 4 12/09/02 Motivation, issues in benchmarking (cont’d) 2. Availability of results raw experimental results raw experimental results availability allows verification availability allows verification results provide insight into the performance of a tool results provide insight into the performance of a tool

5. 5 12/09/02 Motivation, issues in benchmarking (cont’d) 3. Standard formats meaningful comparison of results meaningful comparison of results compatibility between tools and benchmarks compatibility between tools and benchmarks correct interpretation of benchmarks correct interpretation of benchmarks

6. 6 12/09/02 bX in the picture 1. Automation ‘live’ repository ‘live’ repository  support for execution of tools on benchmarks  distributed network of computational hosts online reporting of results online reporting of results  automatic updates when changes in dependencies occur

7. 7 12/09/02 bX in the picture (cont’d) 2. Scripts and flows reproduction of results reproduction of results  scripts and flows describe experiments  scripts can be saved, shared and reused representation of entire problem space representation of entire problem space  relationship between optimization objectives  e.g. the effect of placement results on routing

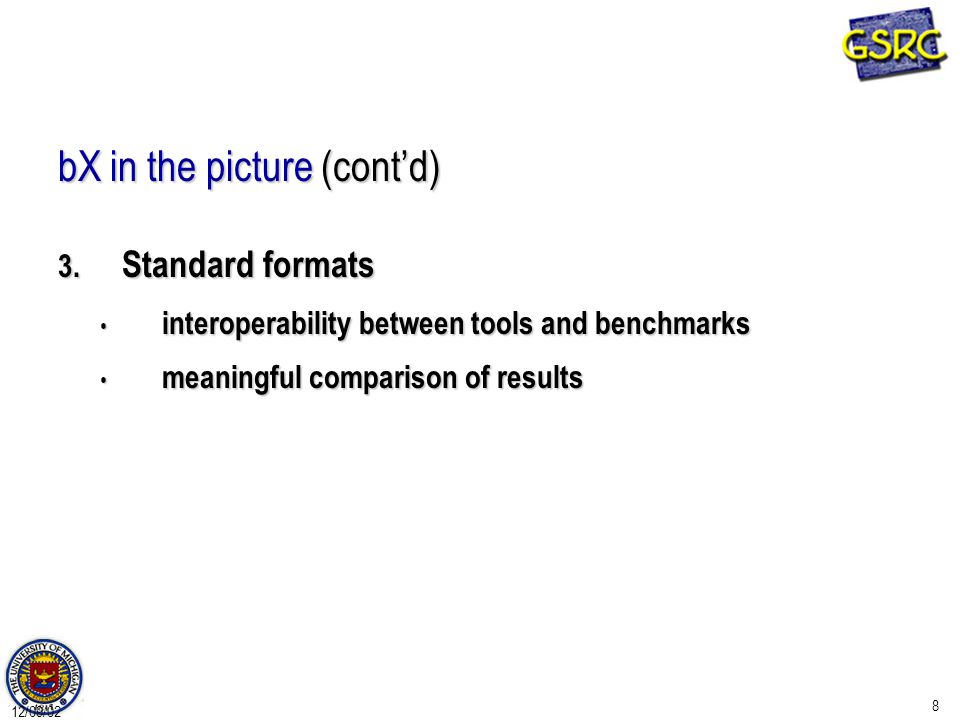

8. 8 12/09/02 bX in the picture (cont’d) 3. Standard formats interoperability between tools and benchmarks interoperability between tools and benchmarks meaningful comparison of results meaningful comparison of results

9. 9 12/09/02 Sample application: Evaluation of tools 1. Placers Capo Capo  randomized  fixed die placer  emphasis on routability  tuned on proprietary Cadence benchmarks

10. 10 12/09/02 Sample application: Evaluation of tools (cont’d) 1. Placers (cont’d) Dragon Dragon  randomized  variable-die placer  tuned on IBM-Place benchmarks

11. 11 12/09/02 Sample application: Evaluation of tools (cont’d) 1. Placers (cont’d) KraftWerk KraftWerk  deterministic  fixed-die placer  results typically have cell overlaps  additional legalization step by DOMINO

12. 12 12/09/02 Sample application: Evaluation of tools (cont’d) 2. Benchmarks PEKO PEKO  artificial netlists  designed to match statistical parameters of IBM netlists  known optimal wirelength  concern that they are not representative of industry circuits

13. 13 12/09/02 Sample application: Evaluation of tools (cont’d) 2. Benchmarks (cont’d) grids grids  4 fixed vertices, n 2 1x1 movables  tests placers on datapath-like circuits  known optimal placement  results are easily visualized for debugging

14. 14 12/09/02 Sample application: Evaluation of tools (cont’d) 3. Example flow placer benchmark parameters evaluator placement evaluation post-processing post-processor A script in bX serves as a template describing an experiment, and can be saved and shared. Scripts are instantiated by defining the individual components of the script. Flows are instantiated scripts. Flows can be re-executed to reproduce results.

15. 15 12/09/02 Sample application: Evaluation of tools (cont’d) 3. Example flow (cont’d) placer benchmark parameters evaluator placement evaluation post-processing post-processor Flow parameters: Capo PEKO (default) placement map overlap/legality & wirelength placer benchmark parameters evaluator post-processor After completion, the results of the jobs will be automatically posted online. In the case of the placement job, the results include wirelength and runtime.

16. 16 12/09/02 Sample application: Evaluation of tools (cont’d) 3. Example flow (cont’d) post-processing post-processor Flow parameters: Capo PEKO (default) placement map overlap/legality & wirelength placer benchmark parameters evaluator post-processor

17. 17 12/09/02 Sample application: Evaluation of tools (cont’d) 3. Example flow (cont’d) If we swapped Capo with Dragon: Capo PEKO (default) placement map overlap/legality & wirelength placer benchmark parameters evaluator post-processor

18. 18 12/09/02 Sample application: Evaluation of tools (cont’d) 3. Example flow (cont’d) If we swapped Capo with Dragon: Dragon PEKO (default) placement map overlap/legality & wirelength placer benchmark parameters evaluator post-processor

19. 19 12/09/02 Sample application: Evaluation of tools (cont’d) 3. Example flow (cont’d) If we swapped Capo with Dragon: Dragon PEKO (default) placement map overlap/legality & wirelength placer benchmark parameters evaluator post-processor

20. 20 12/09/02 Sample application: Evaluation of tools (cont’d) 3. Example flow (cont’d) placer benchmark parameters evaluator placement evaluation post-processing post-processor Capo PEKO (default) placement map overlap/legality & wirelength placer benchmark parameters evaluator post-processor

21. 21 12/09/02 Sample application: Evaluation of tools (cont’d) 3. Example flow (cont’d) placer benchmark parameters evaluator placement evaluation post-processing post-processor Modify the flow: Capo PEKO (default) placement map overlap/legality & wirelength placer benchmark parameters evaluator post-processor

22. 22 12/09/02 Sample application: Evaluation of tools (cont’d) 3. Example flow (cont’d) placer benchmark parameters evaluator placement evaluation post-processing post-processor Modify the flow: Capo grid (default) placement map overlap/legality & wirelength placer benchmark parameters evaluator post-processor
