Wireless Terminal and PC Interface Using VLSI EE452 - Senior Project Members: Chris Brophy Matt Olinger Advisor: Dr. V. Prasad 5/2/02
Uses ISA (Industry Standard Architecture) interface and off-the- shelf wireless RF module Design and testing accomplished with Logic Works, Emac 8051 Development Board, Renoir, ModelSim, Xilinx CPLD, and L-EDIT Provides alternative to costly internet providers – low cost, short range transmissions Abstract
Design Overview Two interfaces are required: ISA bus (from computer) Proprietary bus interface (RF device) A method of buffering is also necessary, since the data rates of both interfaces are unequal. A status register is also necessary to provide feedback to the computer when to send and receive. Timing is critical!
Pin Count 26 / 34 pins used ISA interface Data D0-D7 Address A0-A9 IOW, IOR, INT, BCLK RF module (Linx Tech) RX enable, TX enable Serial Data (RX and TX) Typical MOSIS Pad

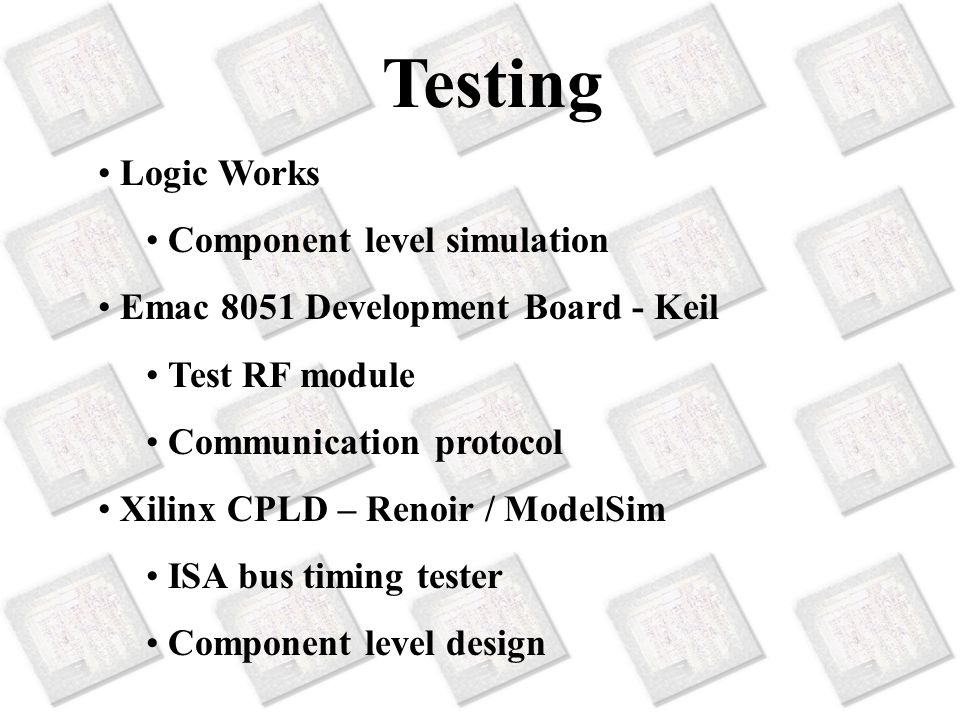

Computer ISA development board and Xilinx CPLD Linx RF transceiver VHDL Testing
EMAC Testing Serial Transmission Testing Assembly code emulates serial transmission to and from the RF module

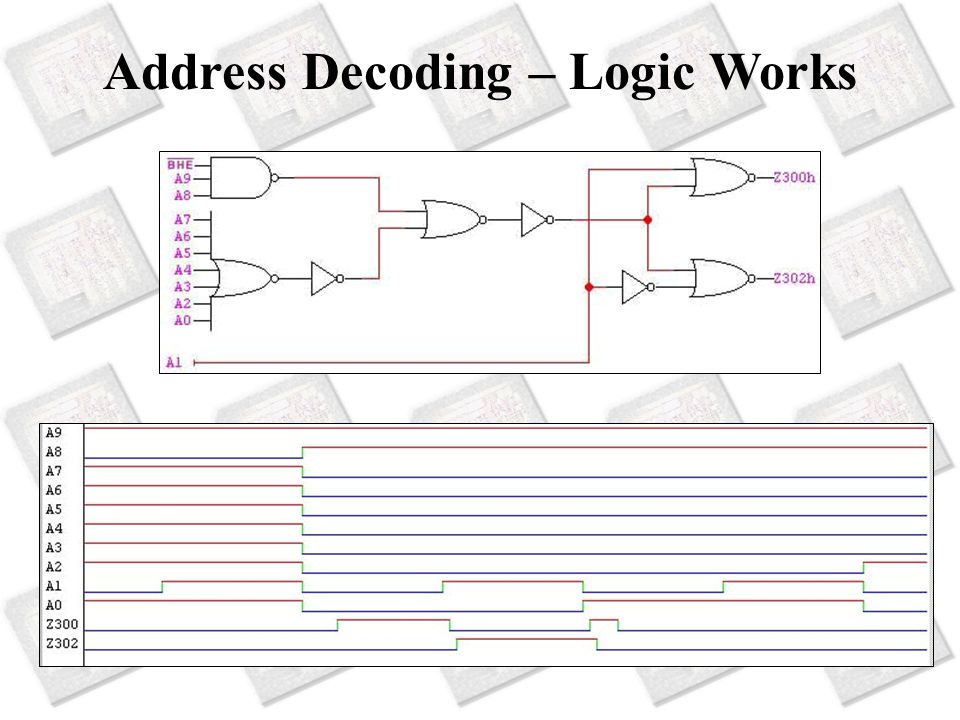

Implementation / Problems EMAC Transmitter and Receiver Code Renoir / FPGA Large learning curve using Renoir Xilinx XC4200 cannot implement flip flops with both asynchronous set and reset CPLD implementation Software deficiencies, Address line loading, grounding
Future Improvements Newer bus PCI (Peripheral Component Interconnect) or USB (Universal Serial Bus) ISA bus is obsolete Plug and Play allows easy configuration Hardware Error Detection / Correction Take software responsibility from CPU Larger Buffer / Shift Register Send information as packets Less time wasted during TX/RX transitions
Proposed Schedule Dec – Jan (Break) More “preliminary” design work (Begin Logic Gates) Feb Finish Logic Design Begin Simulation March Finish Simulation / Begin drawing in LEDIT Implement design on FPGA / CPLD April Finish drawing gates in LEDIT / Present at Expo

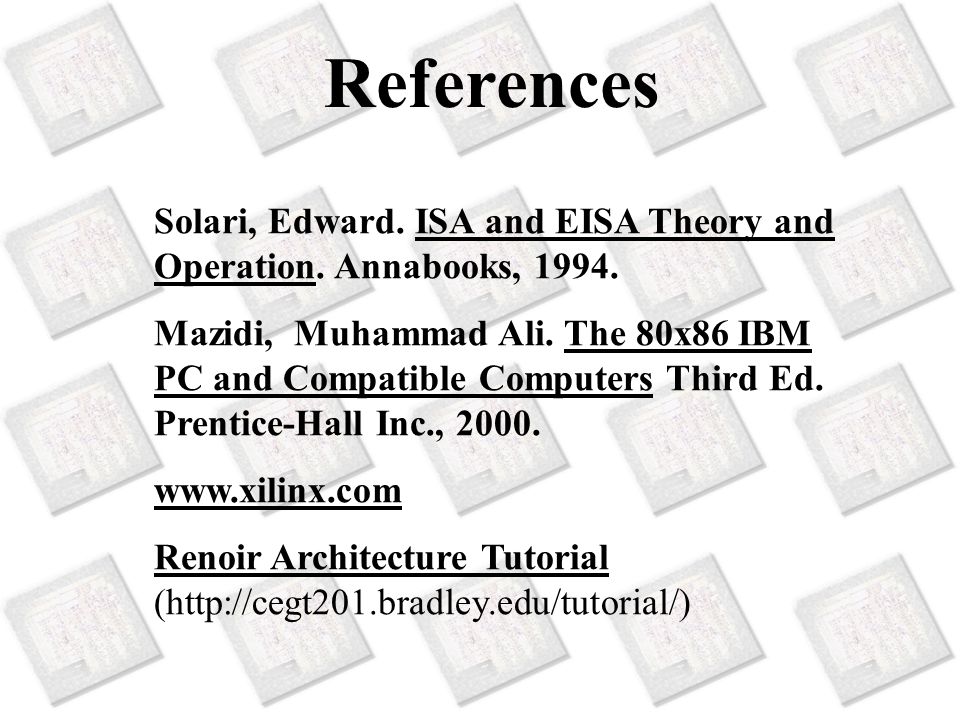

Solari, Edward. ISA and EISA Theory and Operation. Annabooks, 1994. Mazidi, Muhammad Ali. The 80x86 IBM PC and Compatible Computers Third Ed. Prentice-Hall Inc., 2000. www.xilinx.com Renoir Architecture Tutorial (http://cegt201.bradley.edu/tutorial/) References
