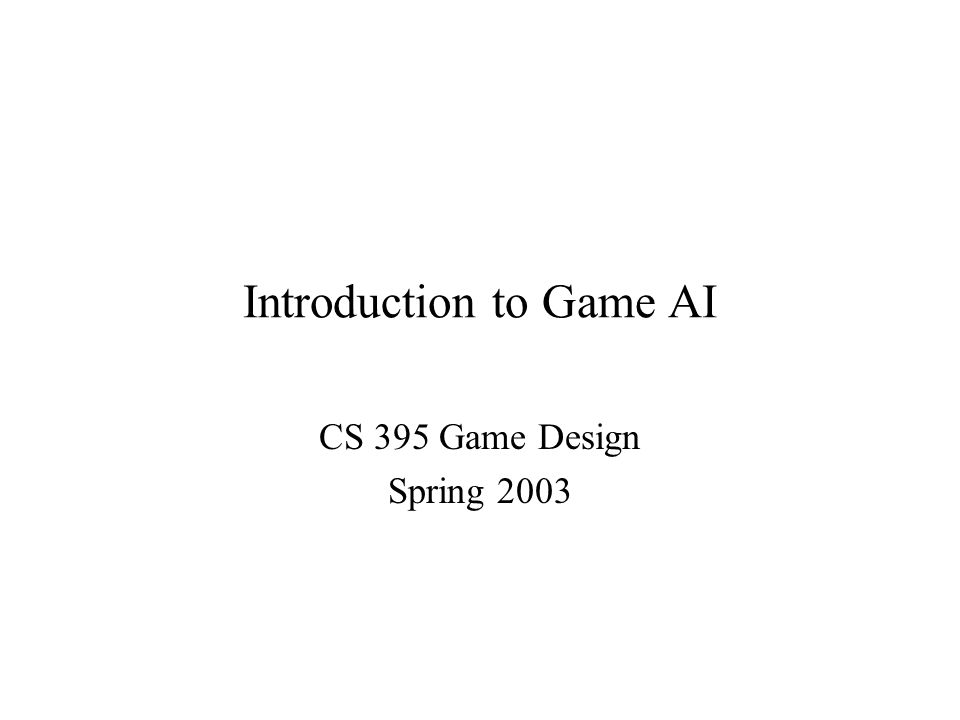

1. Introduction to Game AI CS 395 Game Design Spring 2003

2. Expectations on term projects Designing and implementing a full game from scratch can be too hard Exceptions: Text-based interactive fiction, arcade games, … What to do?

3. Solution One: Leverage –We’re supplying toolkits and resources for some projects Neverworld3 Self-explanatory simulator compiler –There are lots of resources around if you look Game engines Graphics frameworks Games with available source code (e.g., FreeCiv) –Building on top of such software is strongly recommended.

4. Solution Two: Extension an existing game Extensions to existing games can be acceptable (aka “mods”) –Must involve significant design work, including analysis of tradeoffs and portfolio of experiments generated in the course of design –Must be substantially larger than a typical homework problem

5. Term Project To Do List Identify your teammates early Identify your project area early Request for Proposals will be made very soon (Thursday)

6. Overview Why AI is important for games –And why it needs improving Roles for AIs in games –The opponent –Characters –The World Example credits: –Spatial reasoning in MOO3 Thanks to Kevin Dill for screenshots and example –Tactical decision making in first-person shooters Thanks to John Laird, Mike VanLent, for their GDC 2001 tutorial material

7. Why AI is important for games Essential to the modeled world –NPC’s of all types: opponents, helpers, extras, … –Unrealistic characters  reduced immersion –Stupid, lame behaviors  reduced fun –Superhuman behaviors  reduced fun Until recently, given short shrift by developers –Graphics ate almost all the resources –Can’t start developing the AI until the modeled world was ready to run AI development always late in development cycle Situation rapidly changing –AI now viewed as helpful in selling the product –Still one of the key constraints on game design

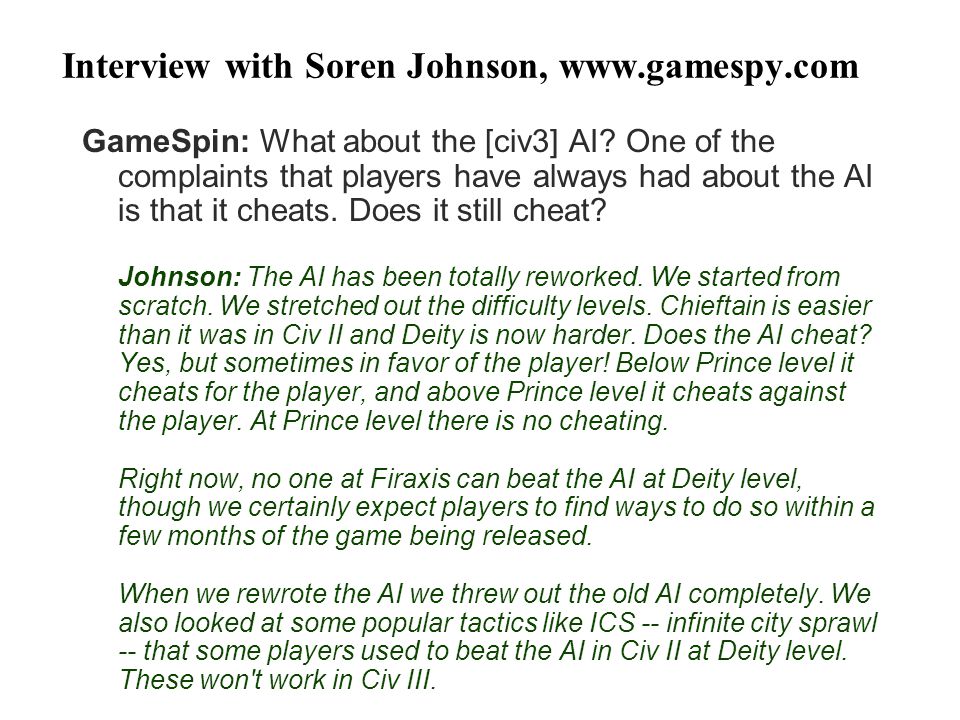

8. Interview with Soren Johnson, www.gamespy.com GameSpin: What about the [civ3] AI? One of the complaints that players have always had about the AI is that it cheats. Does it still cheat? Johnson: The AI has been totally reworked. We started from scratch. We stretched out the difficulty levels. Chieftain is easier than it was in Civ II and Deity is now harder. Does the AI cheat? Yes, but sometimes in favor of the player! Below Prince level it cheats for the player, and above Prince level it cheats against the player. At Prince level there is no cheating. Right now, no one at Firaxis can beat the AI at Deity level, though we certainly expect players to find ways to do so within a few months of the game being released. When we rewrote the AI we threw out the old AI completely. We also looked at some popular tactics like ICS -- infinite city sprawl -- that some players used to beat the AI in Civ II at Deity level. These won't work in Civ III.

9. AI in game marketing “It may be hard to believe that the future of 21st century art is represented by a giant bipedal tiger who farts, break dances and flings livestock around when he's bored.” –Review of Black and White in Salon.com, 4/10/2000 “The most versatile 3D Batman yet, with over 500 animated movements, special fighting moves and a multi-functional cape with its own A.I.” –from www.xbox.com

10. Game flaws engendered by bad AI Mindless hordes of opponents –“ Life is much, much easier thanks to random numbers ” Rampant cheating by computer opponents Focus on violence as principle mode of interaction

11. Roles for AIs in games The opponent Characters The world

12. The opponent Emphasis: Outsmarting you Example: Classic board games Questions: –What problems do they have to solve? –How do they work?

13. Opponents in classic board games Move generator figures out what moves are possible Static evaluator figures out how good each move is, based on changes in board position Search algorithms look ahead, in a simple form of mental simulation, to figure out the best alternative based counter-moves and counter- moves

14. Example Current board position

15. Example Your possible moves, as produced by move generator How good each move looks in terms of its immediate results, as computed by the static evaluator 618-2

16. Example Your opponent’s possible countermoves 8 2-100 25 1812 What position these countermoves leave you in

17. Example This process can be continued until resources run out Use minimax to estimate your best move

18. Minimax Example -9821010882218-12-40-1035 Run static evaluator on leaves

19. Minimax Example -9821010882218-12-40-1035 Propagate scores upward by taking max when your turn 85-98 210 22 18

20. Minimax Example -9821010882218-12-40-1035 85-98 210 22 18 Propagate scores upward taking min when opponent’s turn 5 -98 18

21. Minimax Example -9821010882218-12-40-1035 85-98 210 22 18 Select best option based on deeper estimate 5 -98 18

22. Search issues Lots of techniques for more efficient search –Alpha-beta pruning, “book” openings, stability measures, conspiracy numbers Basic problem is still exponential –Search and brute force only go so far –Q: Why did Deep Blue win? Knowledge/search tradeoff –Simon & Chase experiments: Chess experts use spatial memory for board positions –Standard patterns as encoding lessons from experience/deeper search?

23. Opponents in turn-based strategy games Examples: Many strategy war games, Civilization- style games What problems do they have to solve? How are they similar to, and different from, board games?

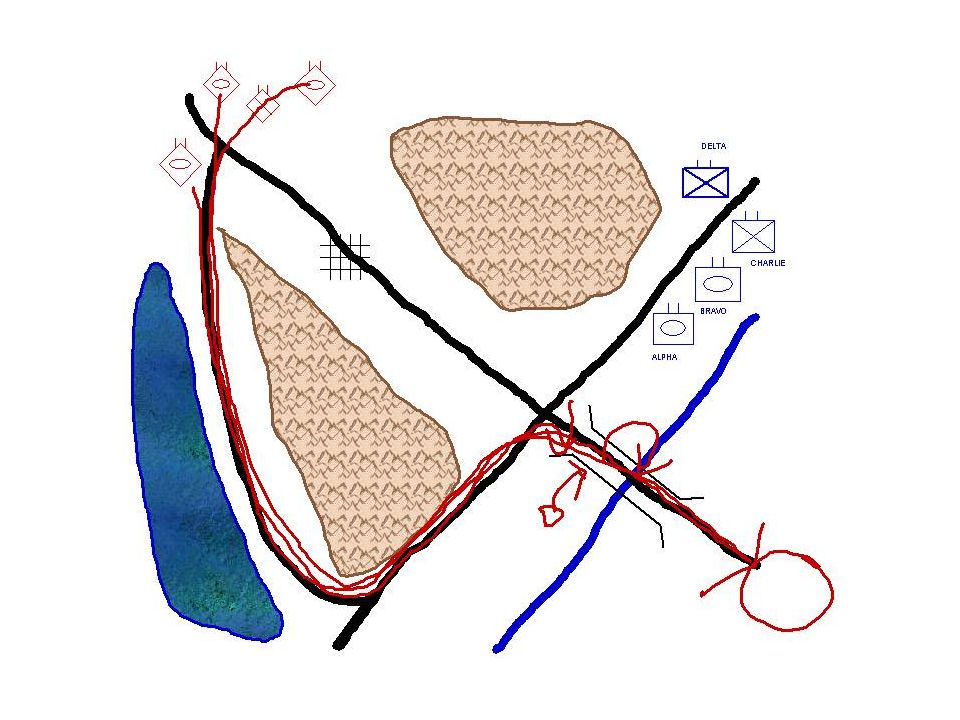

24. nuSketch Battlespace

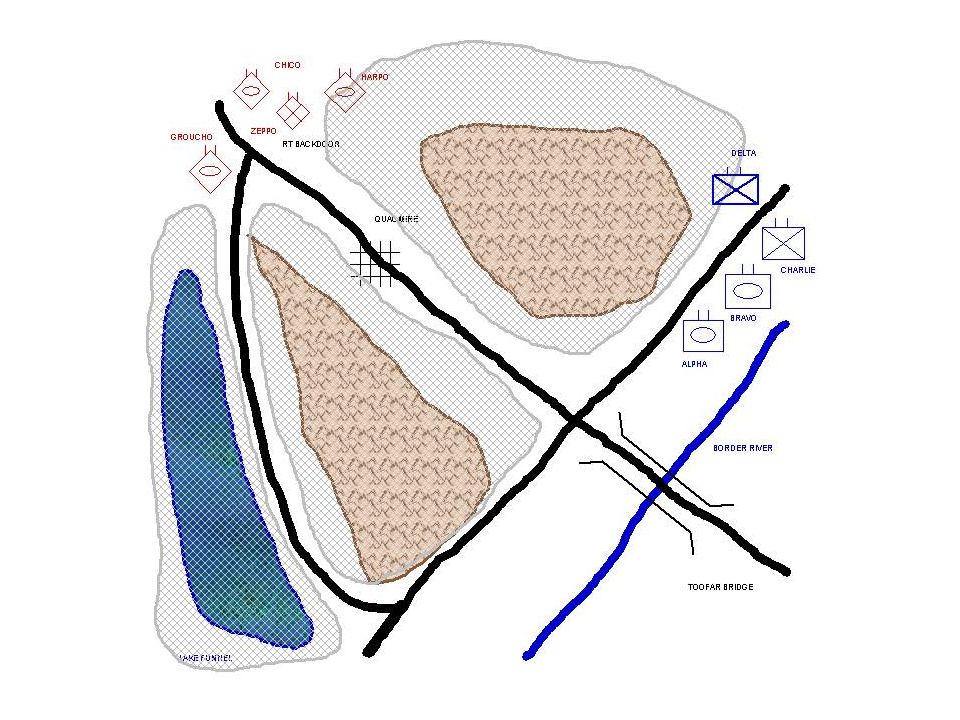

28. Comic Graphs provide visualization of alternatives, support for AAR

29. Example from MOO3 Homeworld Colony Enemy Colony Where should you put your next colony?

30. Understanding your terrain is key Homeworld Colony Enemy Colony Inside your empire

31. Understanding borders prioritizes threats Homeworld Colony Enemy Colony Good choice for blocking threats

32. Multiple ways to deal with threats Homeworld Colony Enemy Colony

33. Example: eTDG10 Map

34. SR Regions for eTDG10 map (hand- sketched)

35. Hard constraints from SR regions

36. Voronoi diagram for free space

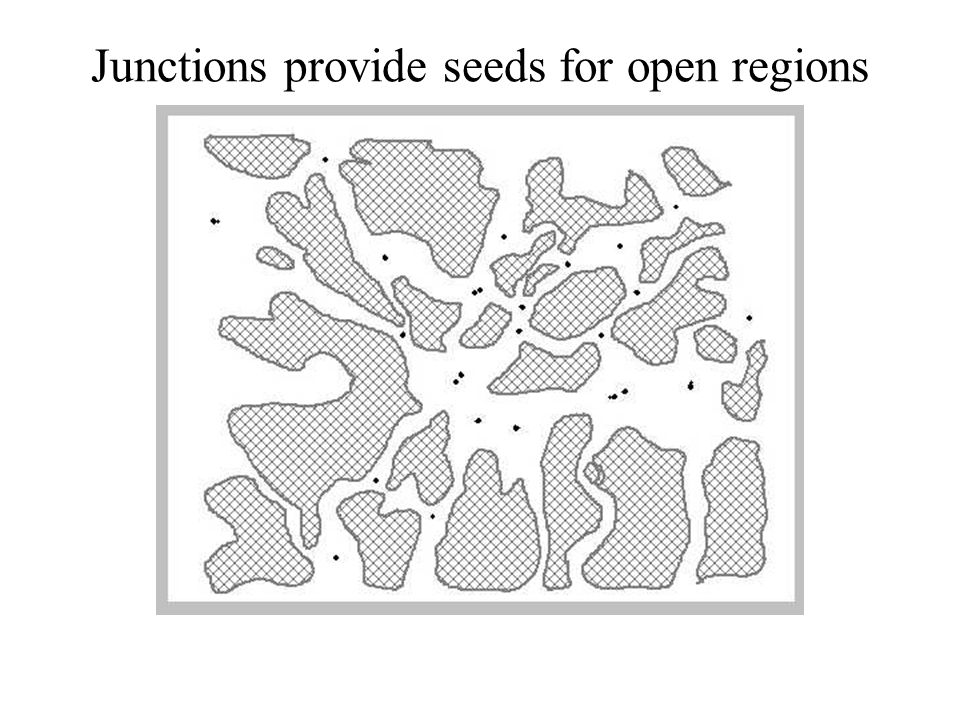

37. Junctions provide seeds for open regions

38. Regions extended from seeds

39. Edges outside regions form corridor seeds

40. Combined results for eTDG10

41. The coordination problem Telling your brigades to attack Scum Division will generally lead to them all being slaughtered

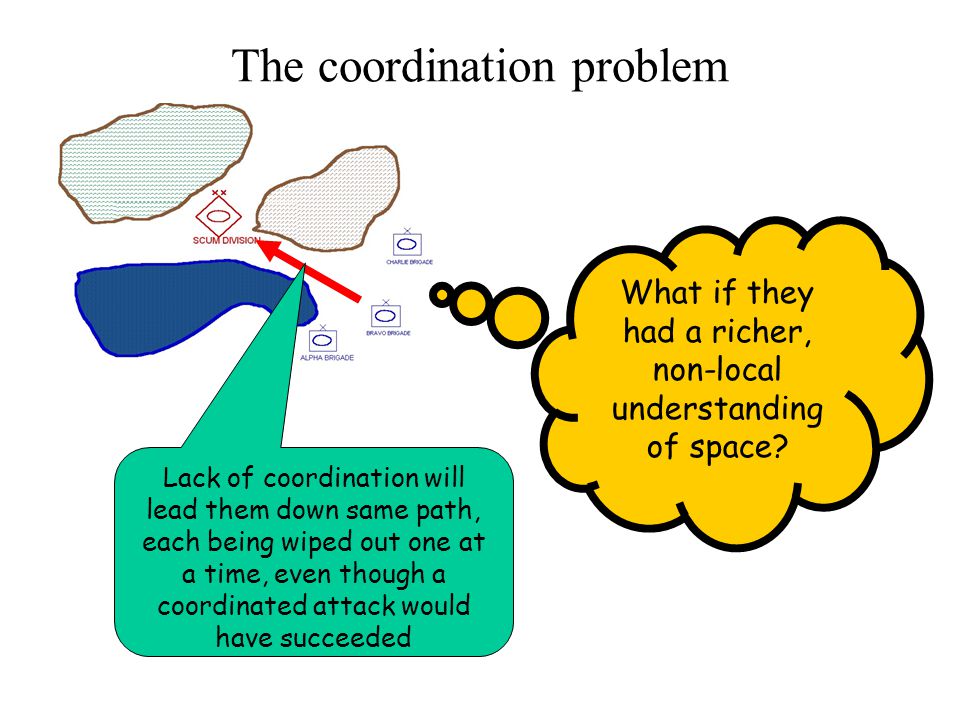

42. The coordination problem Lack of coordination will lead them down same path, each being wiped out one at a time, even though a coordinated attack would have succeeded What if they had a richer, non-local understanding of space?

43. The coordination problem Enable player to communicate intent via sketching and language, specifying paths and synchronization Visually identify paths (mobility corridors, avenues of approach) as part of terrain analysis

44. Richer spatial reasoning will lead to better opponents

45. Narrow route with no side ways out Funnel for focusing combat power

46. Characters Examples: First-person shooters, adventure/action games What problems do they have to solve?

47. The World Common trick: Share AI computations between computer characters –Pathfinding and navigation –Awareness of player actions and alignment –Strategic thinking Examples: More than you might think

48. Types of Behavior to Capture Wander randomly if don’t see or hear an enemy. When see enemy, attack When hear an enemy, chase enemy When die, respawn When health is low and see an enemy, retreat Extensions: –When see power-ups during wandering, collect them.

49. Execution Flow of an AI Engine Sense Think Act GAMEGAME ? Finite-state machines Decision trees Neural nets Fuzzy logic Rule-based systems Planning systems

50. Conflicting Goals for AI in Games Goal Driven Reactive Human Characteristics Knowledge Intensive Low CPU & Memory Usage Fast & Easy Development

51. Complexity Complexity of Execution –How fast does it run as more knowledge is added? –How much memory is required as more knowledge is added? Complexity of Specification –How hard is it to write the code? –As more “knowledge” is added, how much more code needs to be added?

52. Expressiveness of Specification What can easily be written? Propositional: –Statements about specific objects in the world – no variables –Jim is in room7, Jim has the rocket launcher, the rocket launcher does splash damage. –Go to room8 if you are in room7 through door14. Predicate Logic: –Allows general statement – using variables –All rooms have doors –All splash damage weapons can be used around corners –All rocket launchers do splash damage –Go to a room connected to the current room.

53. Example FSM Events: E=Enemy Seen S=Sound Heard D=Die Spawn D Wander -E, -S, -D D -E E -S Attack E, -D E -E Chase S, -E, -D S D E D S Action (callback) performed when a transition occurs Code …

54. Example FSM Events: E=Enemy Seen S=Sound Heard D=Die Spawn D Wander -E, -S, -D D -E E -S Attack E, -D E -E Chase S, -E, -D S D E D S Problem: No transition from attack to chase

55. Example FSM - Better Events: E=Enemy Seen S=Sound Heard D=Die Attack-S E, -D, S S -E -S S E Attack E, -D, -S E -E Spawn D Wander -E, -S, -D D -E Chase S, -E, -D D D S ED

56. Example FSM with Retreat Spawn D (-E,-S,-L) Wander -E,-D,-S,-L E -S Attack-E E,-D,-S,-L E Chase -E,-D,S,-L S D S D Events: E=Enemy Seen S=Sound Heard D=Die L=Low Health Each feature with N values can require N times as many states D Retreat-E E,-D,-S,L L -E Retreat-S -E,-D,S,L Wander-L -E,-D,-S,L Retreat-ES E,-D,S,L Attack-ES E,-D,S,-L E E -E -L S -S L -E E L -L L D

57. Hierarchical FSM Expand a state into its own FSM Wander Die S/-S E/-E Attack Chase Spawn Start Turn Right Go-through Door Pick-up Powerup

58. Non-Deterministic Hierarchical FSM (Markov Model) Attack Die No enemy Wander Start Approach Aim & Jump & Shoot Aim & Slide Left & Shoot Aim & Slide Right & Shoot.3.4.3.4

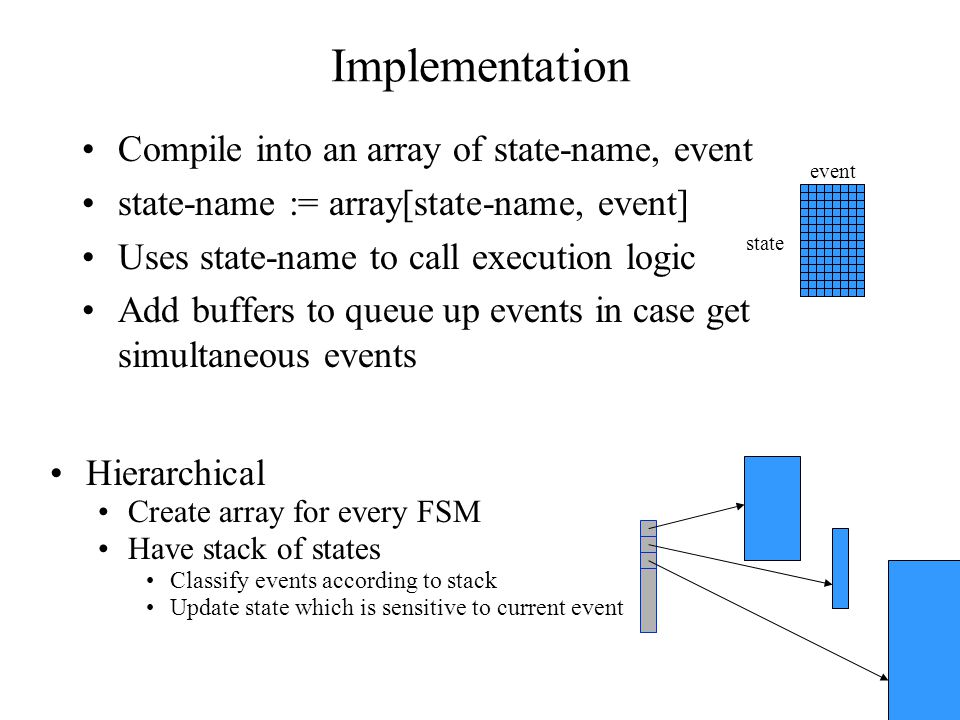

59. Implementation Compile into an array of state-name, event state-name := array[state-name, event] Uses state-name to call execution logic Add buffers to queue up events in case get simultaneous events event state Hierarchical Create array for every FSM Have stack of states Classify events according to stack Update state which is sensitive to current event

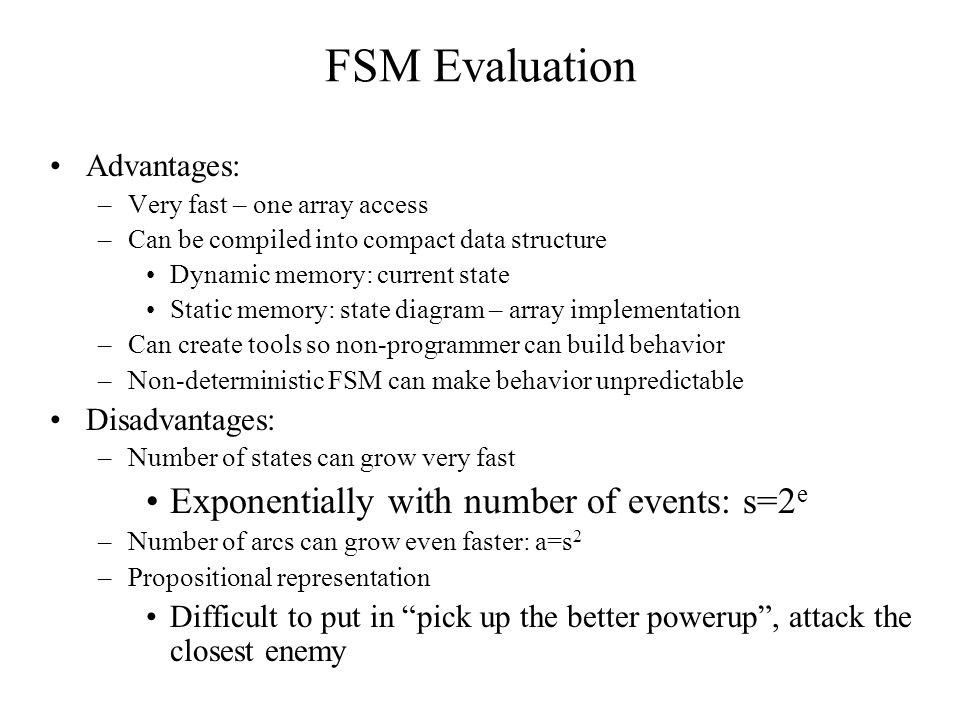

60. FSM Evaluation Advantages: –Very fast – one array access –Can be compiled into compact data structure Dynamic memory: current state Static memory: state diagram – array implementation –Can create tools so non-programmer can build behavior –Non-deterministic FSM can make behavior unpredictable Disadvantages: –Number of states can grow very fast Exponentially with number of events: s=2 e –Number of arcs can grow even faster: a=s 2 –Propositional representation Difficult to put in “pick up the better powerup”, attack the closest enemy

61. References Web references: –www.gamasutra.com/features/19970601/build_brains_into_games. htm –csr.uvic.ca/~mmania/machines/intro.htm –www.erlang/se/documentation/doc- 4.7.3/doc/design_principles/fsm.html –www.microconsultants.com/tips/fsm/fsmartcl.htmwww.microconsultants.com/tips/fsm/fsmartcl.htm –http://www.qrg.nwu.edu/papers/Files/How_QSR_can_improve_str ategy_game_AIs_A3ISS_2001.PDFhttp://www.qrg.nwu.edu/papers/Files/How_QSR_can_improve_str ategy_game_AIs_A3ISS_2001.PDF Deloura, Game Programming Gems, Charles River Media, 2000, Section 3.0 & 3.1, pp. 221- 248.
