1. Key Detection In Musical Signals Philip Brown, ’07 Advisor: Dr. Shane Cotter

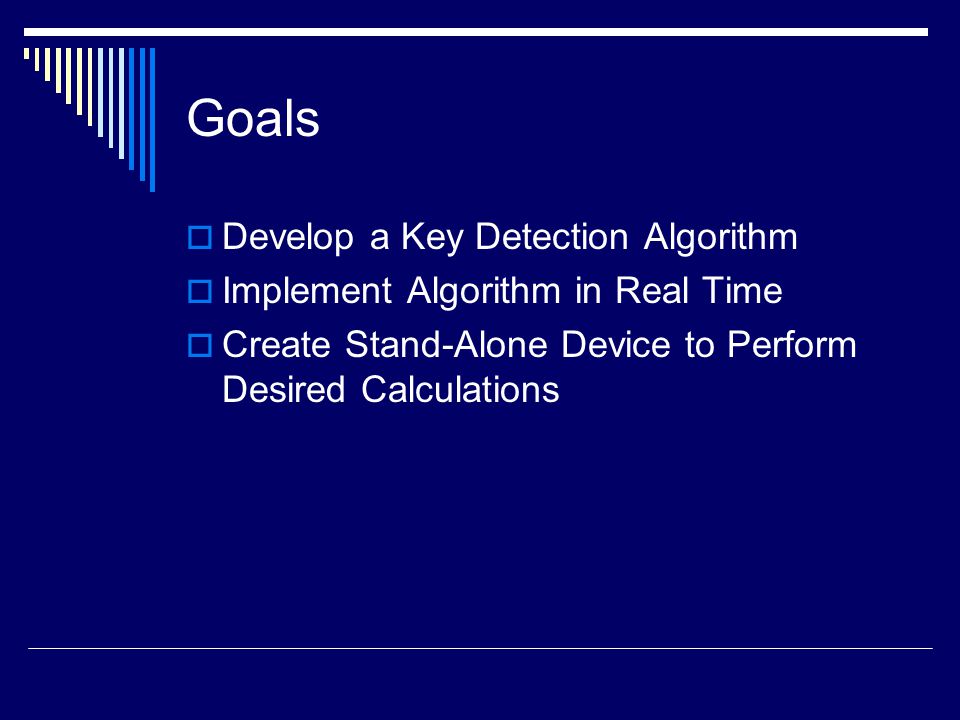

2. Goals  Develop a Key Detection Algorithm  Implement Algorithm in Real Time  Create Stand-Alone Device to Perform Desired Calculations

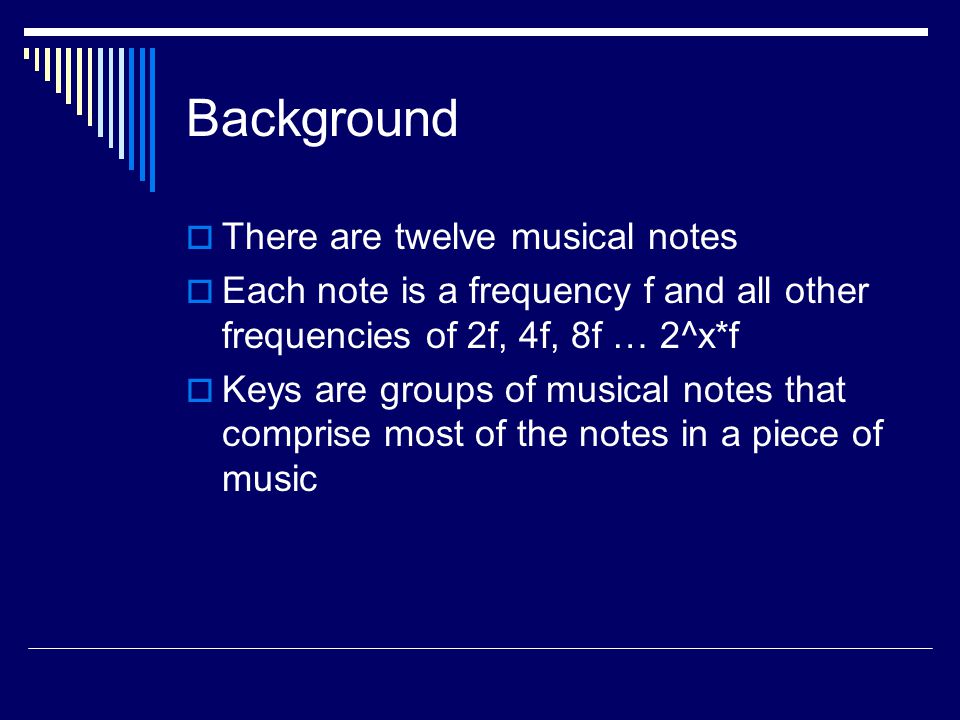

3. Background  There are twelve musical notes  Each note is a frequency f and all other frequencies of 2f, 4f, 8f … 2^x*f  Keys are groups of musical notes that comprise most of the notes in a piece of music

4. Key Detection SignalWindow Spectrum Analysis Function Peak Finding Note Identification Data Storage Data Manipulation Data Summation Logic Statements Key Identification

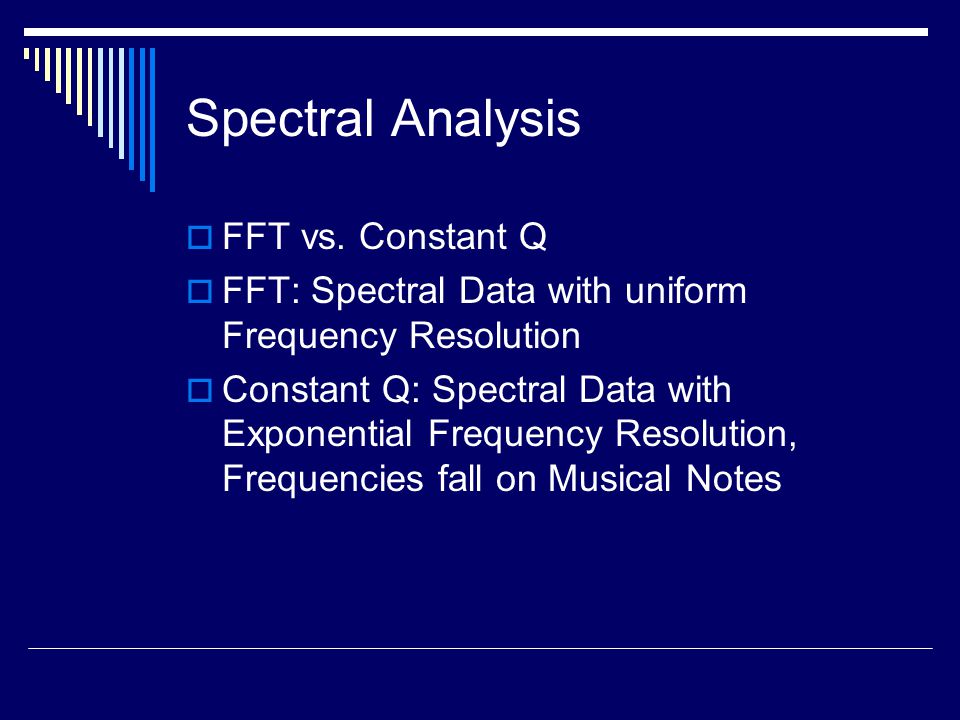

5. Spectral Analysis  FFT vs. Constant Q  FFT: Spectral Data with uniform Frequency Resolution  Constant Q: Spectral Data with Exponential Frequency Resolution, Frequencies fall on Musical Notes

6. Problems With FFT 60 Hz 90-94.5 Hz150Hz Intended Frequencies: 61.74 Hz, 92.5 Hz, 146.83Hz FFT: 0.2s Window 44100 Samples/ second

7. Constant Q Intended Frequencies: 61.74 Hz, 92.5 Hz, 146.83Hz Constant Q: b = 24 fo = 27.5 fmax = 3520 44100 Samples/second 62.5Hz 92.5Hz146.83Hz

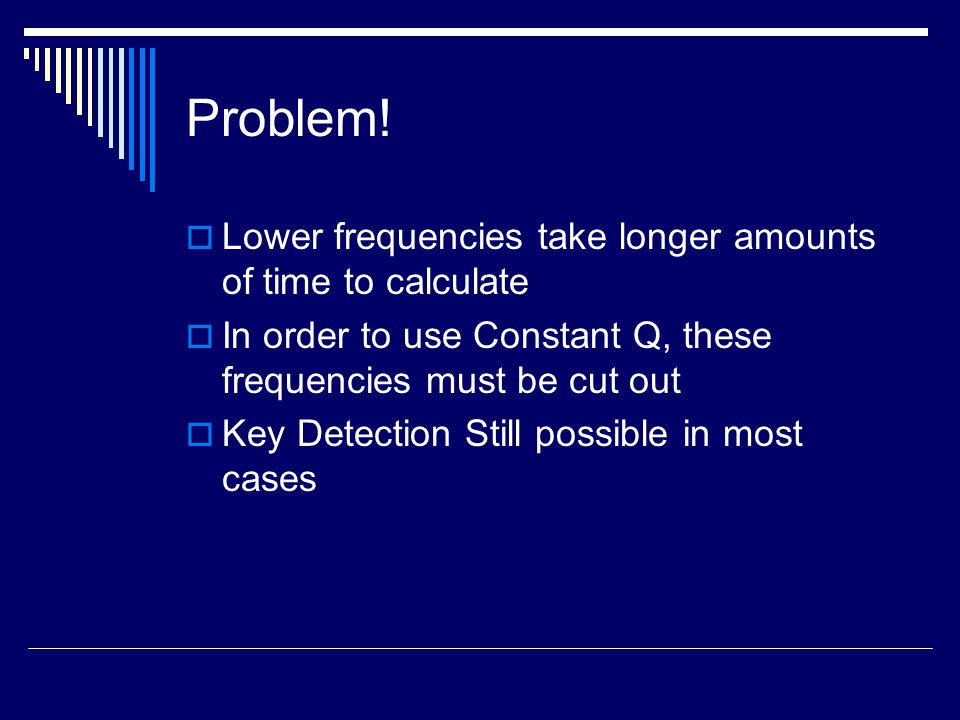

8. Problem!  Lower frequencies take longer amounts of time to calculate  In order to use Constant Q, these frequencies must be cut out  Key Detection Still possible in most cases

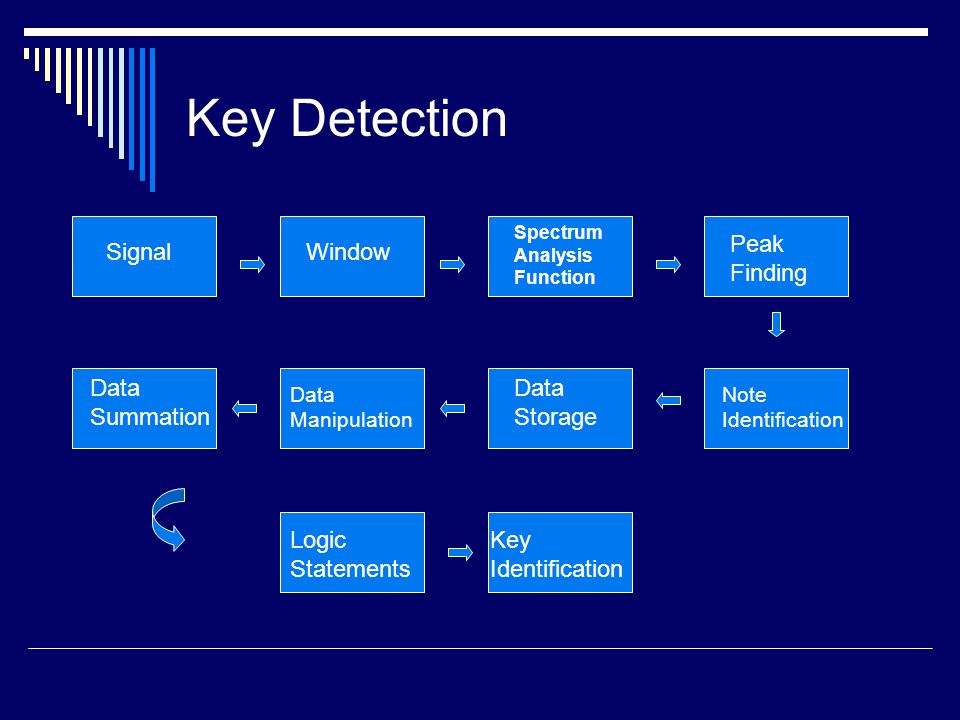

9. Key Detection SignalWindow Spectrum Analysis Function Peak Finding Note Identification Data Storage Data Manipulation Data Summation Logic Statements Key Identification

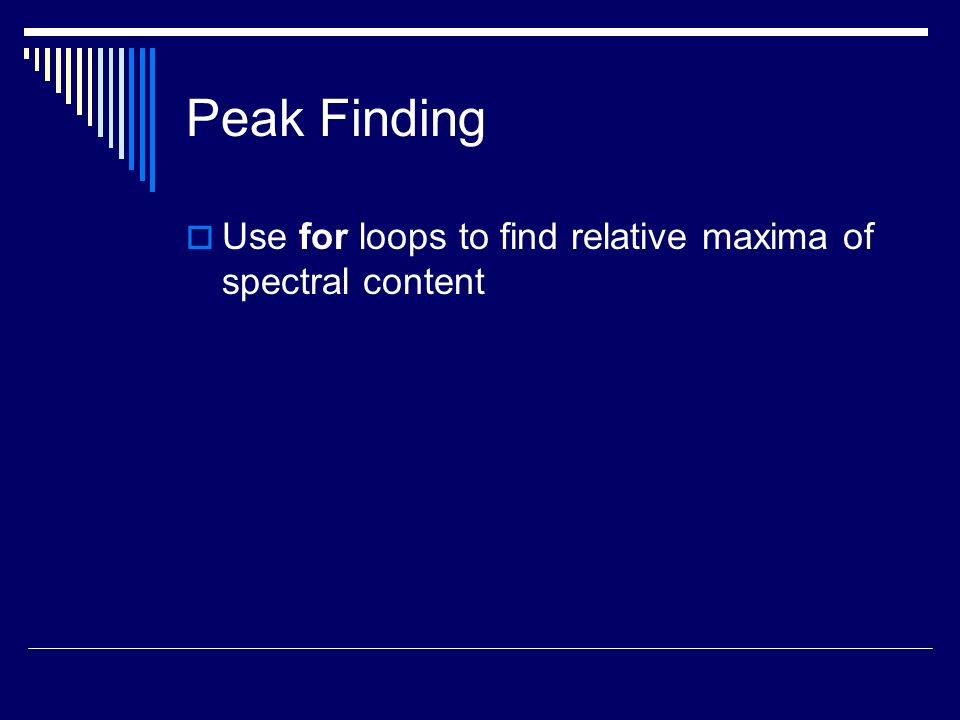

10. Peak Finding  Use for loops to find relative maxima of spectral content

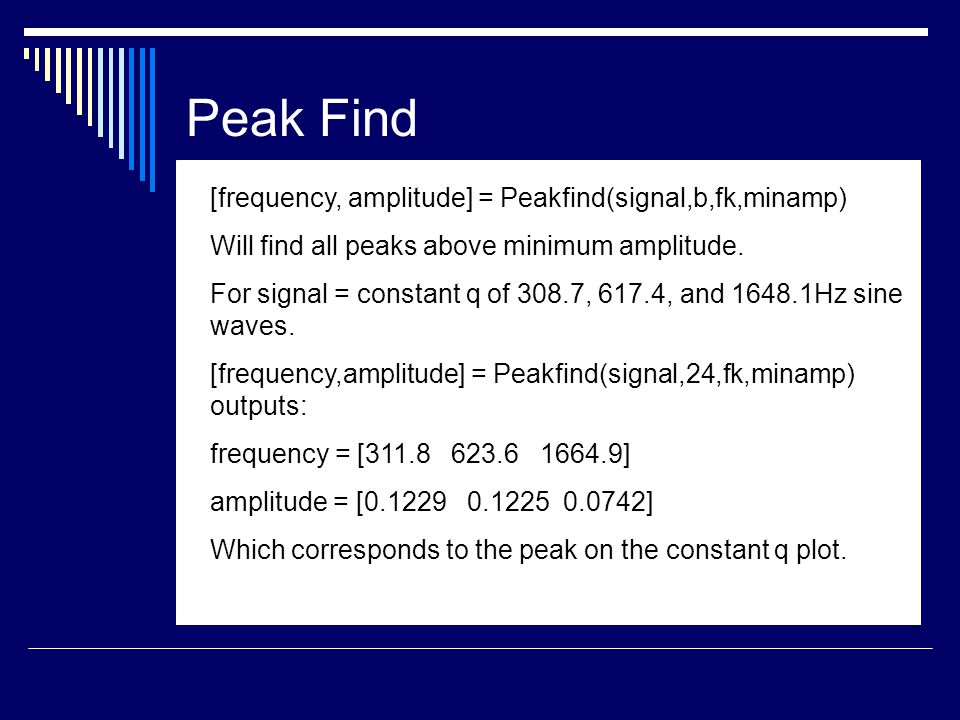

11. Peak Find [frequency, amplitude] = Peakfind(signal,b,fk,minamp) Will find all peaks above minimum amplitude. For signal = constant q of 308.7, 617.4, and 1648.1Hz sine waves. [frequency,amplitude] = Peakfind(signal,24,fk,minamp) outputs: frequency = [311.8 623.6 1664.9] amplitude = [0.1229 0.1225 0.0742] Which corresponds to the peak on the constant q plot.

12. Key Detection SignalWindow Spectrum Analysis Function Peak Finding Note Identification Data Storage Data Manipulation Data Summation Logic Statements Key Identification

13. Note Identification  Peak Finder outputs array of frequencies  Sorts through array of musical frequencies and find closest one  Takes amplitude of that note and add it to corresponding note in note matrix: [A Bb B C C# D Eb E F F# G G#]

14. Note Identification [notestrengths] = noteid(frequency,amplitude) Take previous example Will output: notestrengths = [0 0 0 0 0 0 0.2455 0 0 0 0 0.0742]

15. Key Detection Music Signal Window Spectrum Analysis Function Peak Finding Note Identification Data Storage Data Manipulation Data Summation Logic Statements Key Identification

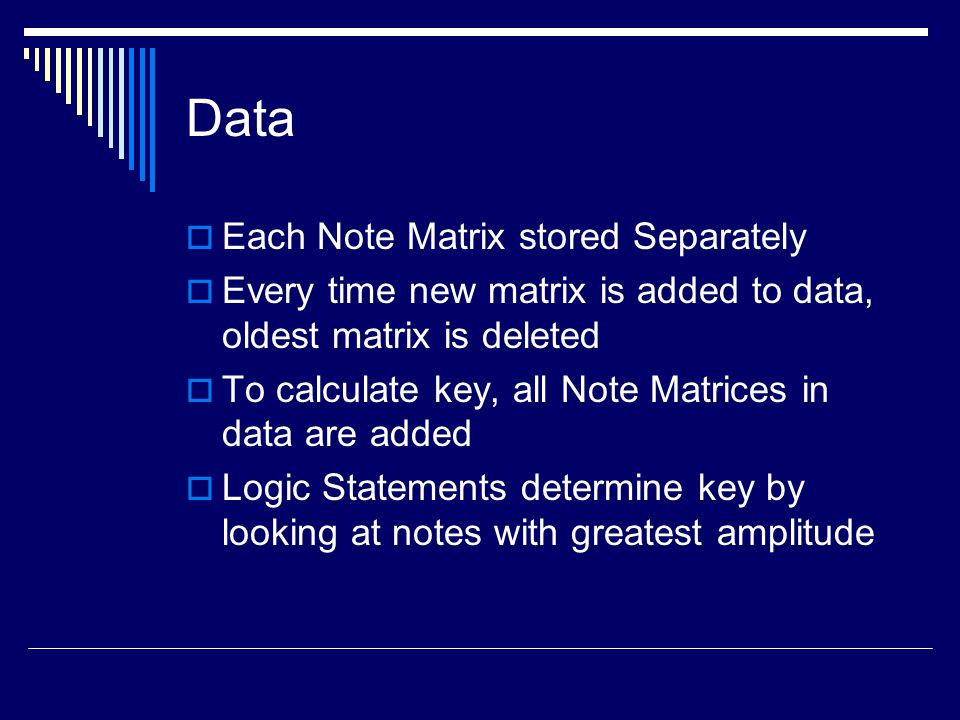

16. Data  Each Note Matrix stored Separately  Every time new matrix is added to data, oldest matrix is deleted  To calculate key, all Note Matrices in data are added  Logic Statements determine key by looking at notes with greatest amplitude

17. Key Detection Start with output of summation of note strengths: [12 1 6 2 10 9 3 11 4 7 5 8] Set the 5 lowest to 0 [12 0 6 0 10 9 0 11 0 7 0 8] Set the rest to 1 [ 1 0 1 0 1 1 0 1 0 1 0 1] See if this matches any stored keys YES! Key is A.

18. Putting It All Together  MATLAB Program Implements All of these processes together to output Key vs. Time

19. Sample Data Key vs. Time Numbers Correspond to Different Keys Expected Keys: A, Key Change to Dm Keys Approximated: A,D,Dm

20. Problems  Key isn’t always correct  In some pop pieces, key is arguable  However, incorrect keys are generally 5ths of the expected key (as close as possible)  Some pieces have too many accidentals (notes outside of key)

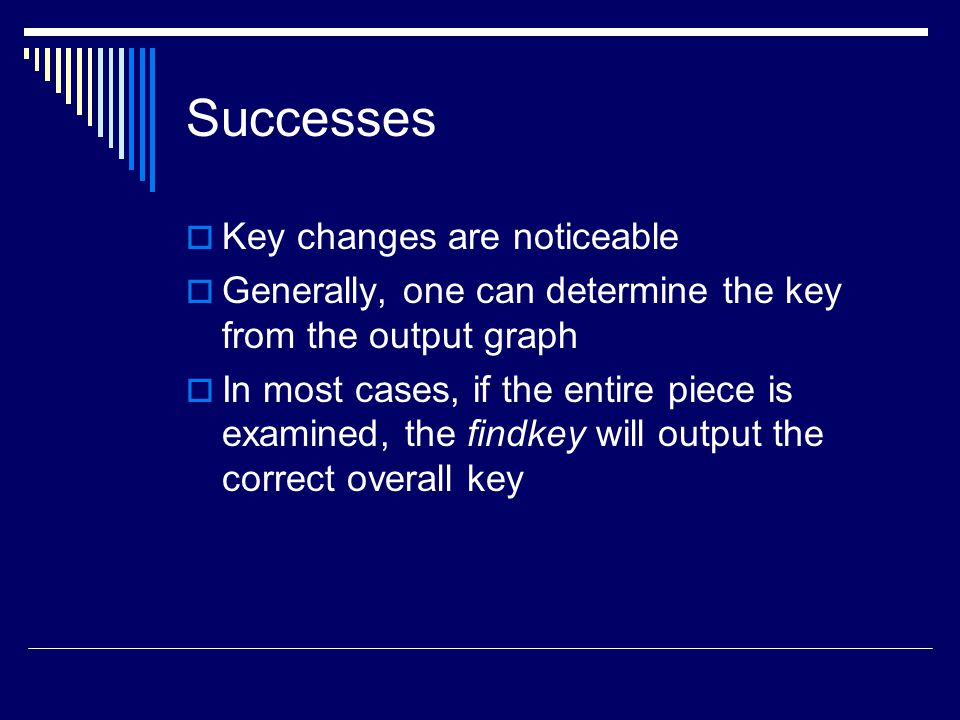

21. Successes  Key changes are noticeable  Generally, one can determine the key from the output graph  In most cases, if the entire piece is examined, the findkey will output the correct overall key

22. Real Time  A 3 minute song takes 10 minutes to output key vs. time  Constant Q is very much like DFT  In order to process Constant Q in real time, need to relate it to FFT (possible future project)

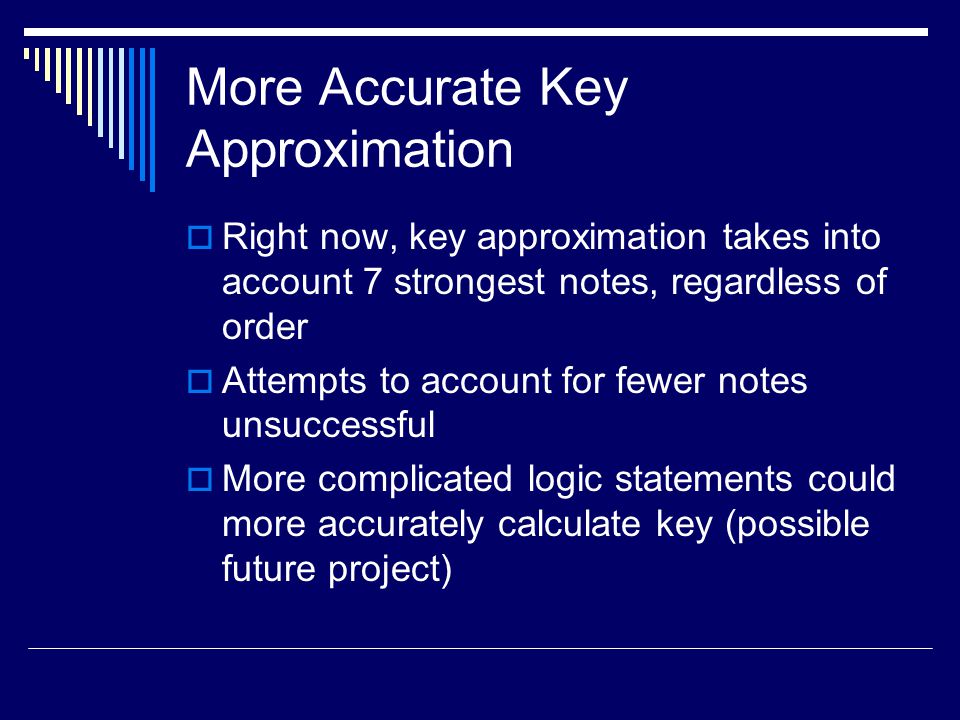

23. More Accurate Key Approximation  Right now, key approximation takes into account 7 strongest notes, regardless of order  Attempts to account for fewer notes unsuccessful  More complicated logic statements could more accurately calculate key (possible future project)

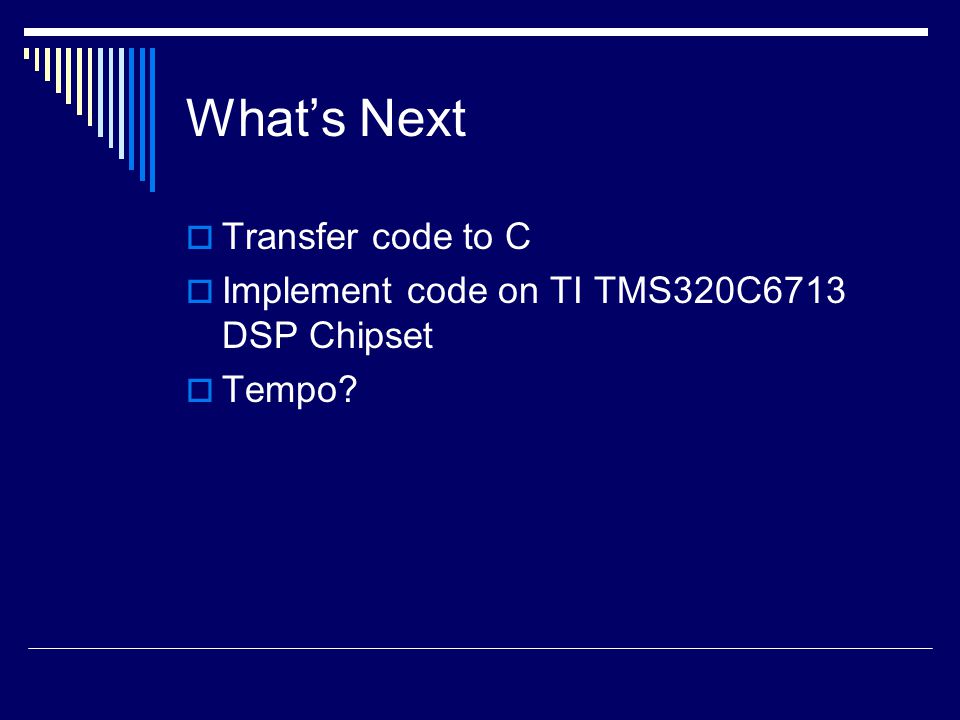

24. What’s Next  Transfer code to C  Implement code on TI TMS320C6713 DSP Chipset  Tempo?

25. Acknowledgements and Questions  Thanks to Prof. Catravas for help on music theory  Any Questions?
