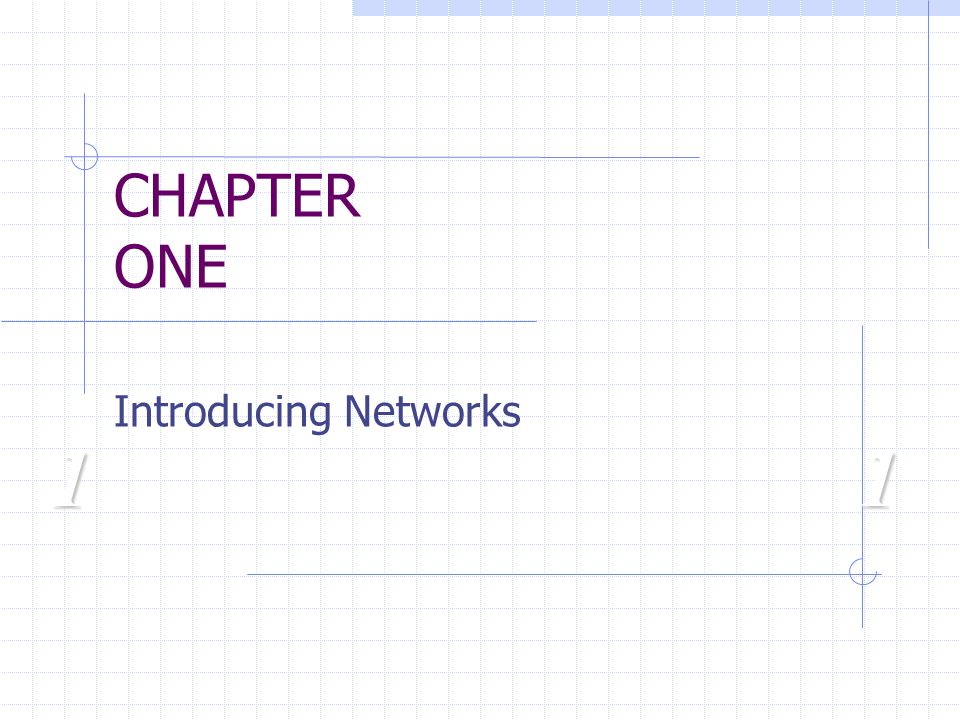

1 11 CHAPTER ONE Introducing Networks

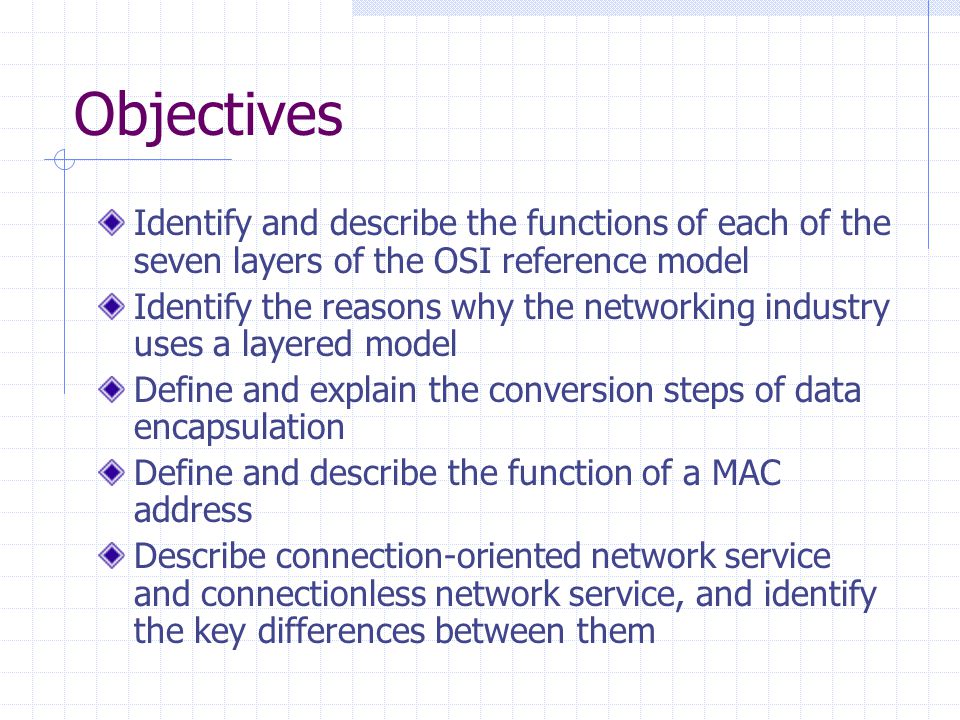

2 Objectives Identify and describe the functions of each of the seven layers of the OSI reference model Identify the reasons why the networking industry uses a layered model Define and explain the conversion steps of data encapsulation Define and describe the function of a MAC address Describe connection-oriented network service and connectionless network service, and identify the key differences between them

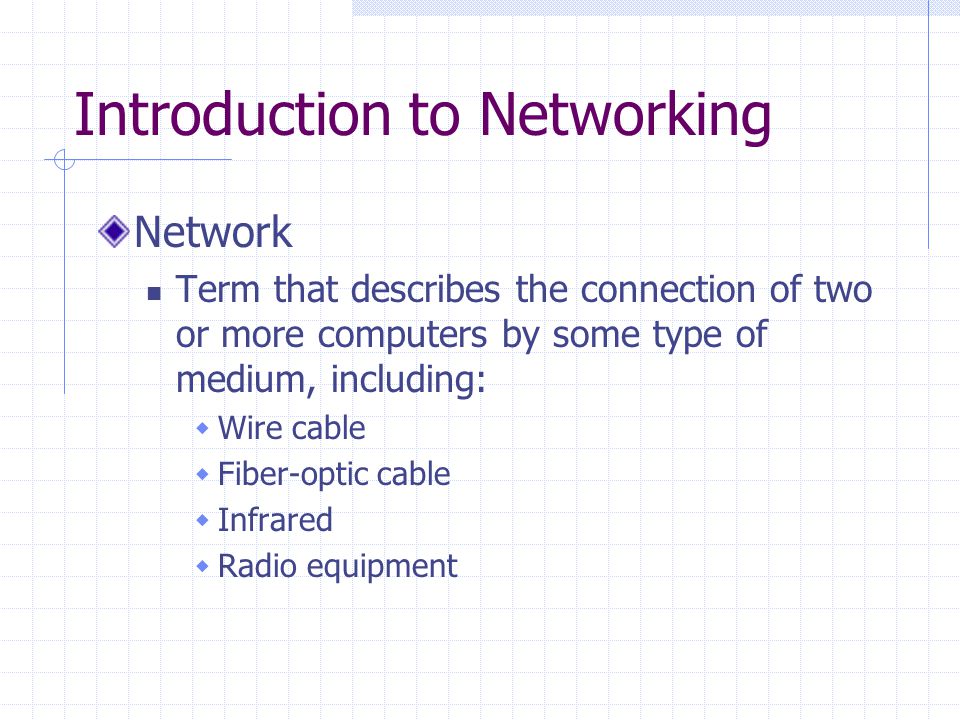

3 Introduction to Networking Network Term that describes the connection of two or more computers by some type of medium, including:  Wire cable  Fiber-optic cable  Infrared  Radio equipment

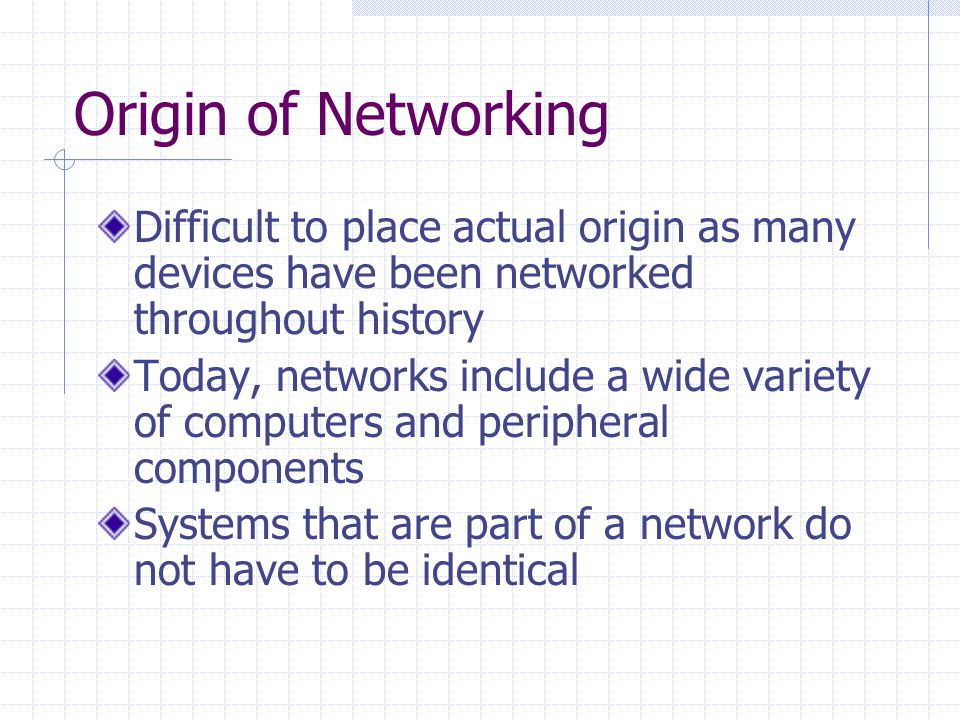

4 Origin of Networking Difficult to place actual origin as many devices have been networked throughout history Today, networks include a wide variety of computers and peripheral components Systems that are part of a network do not have to be identical

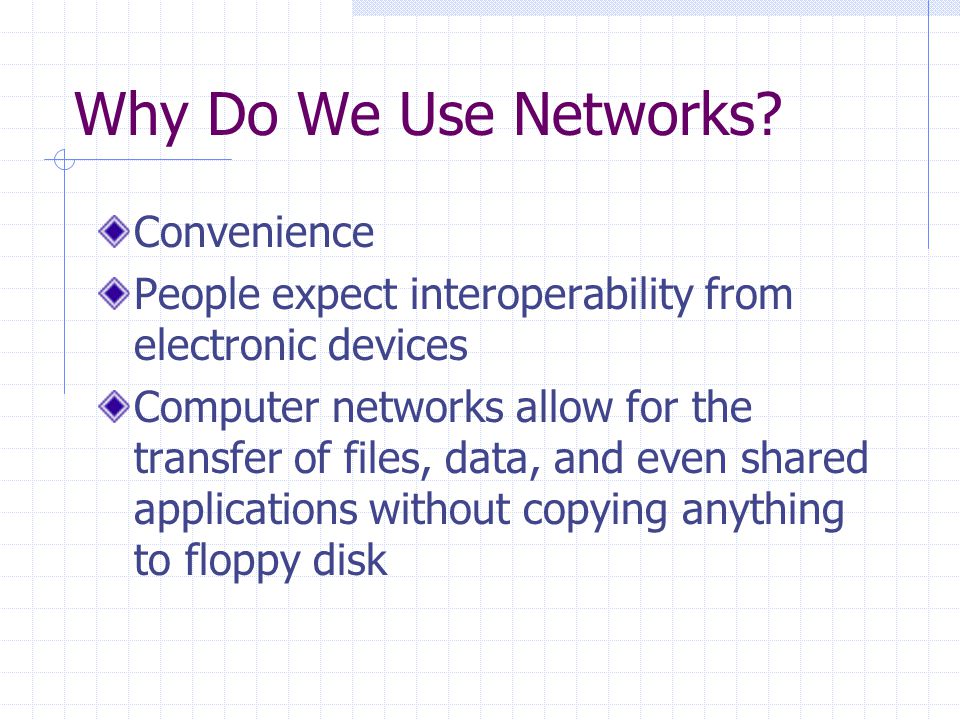

5 Why Do We Use Networks? Convenience People expect interoperability from electronic devices Computer networks allow for the transfer of files, data, and even shared applications without copying anything to floppy disk

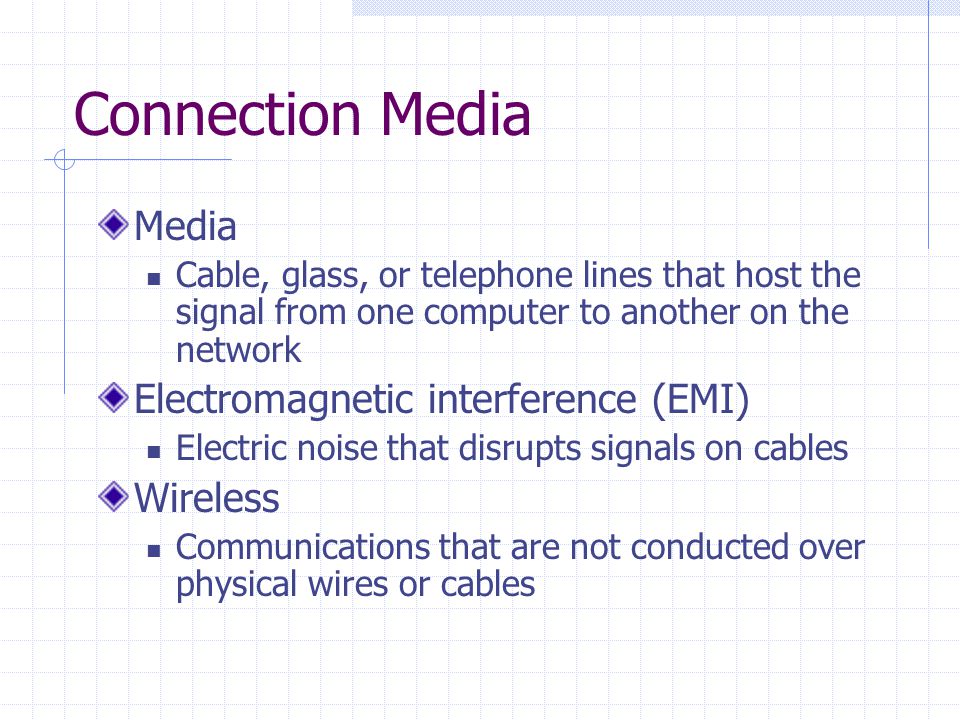

6 Connection Media Media Cable, glass, or telephone lines that host the signal from one computer to another on the network Electromagnetic interference (EMI) Electric noise that disrupts signals on cables Wireless Communications that are not conducted over physical wires or cables

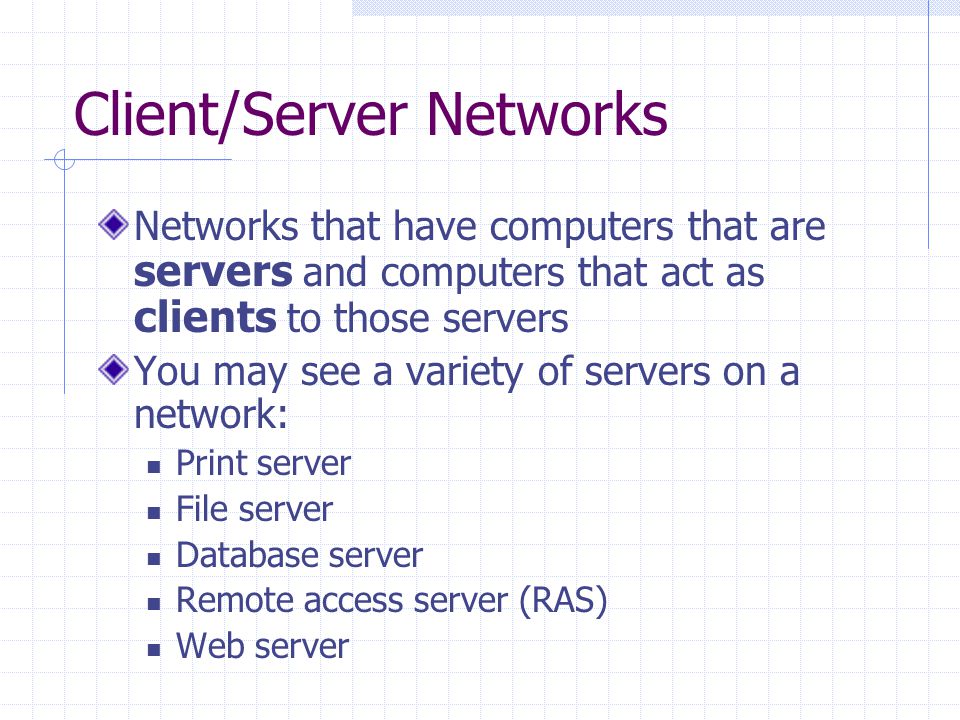

7 Client/Server Networks Networks that have computers that are servers and computers that act as clients to those servers You may see a variety of servers on a network: Print server File server Database server Remote access server (RAS) Web server

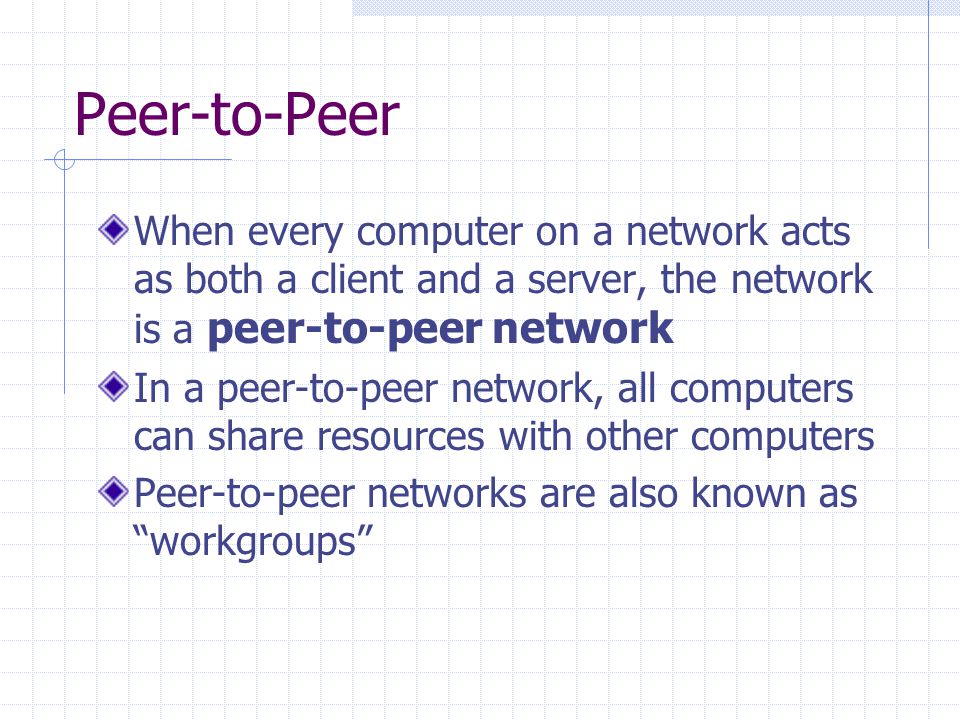

8 Peer-to-Peer When every computer on a network acts as both a client and a server, the network is a peer-to-peer network In a peer-to-peer network, all computers can share resources with other computers Peer-to-peer networks are also known as “workgroups”

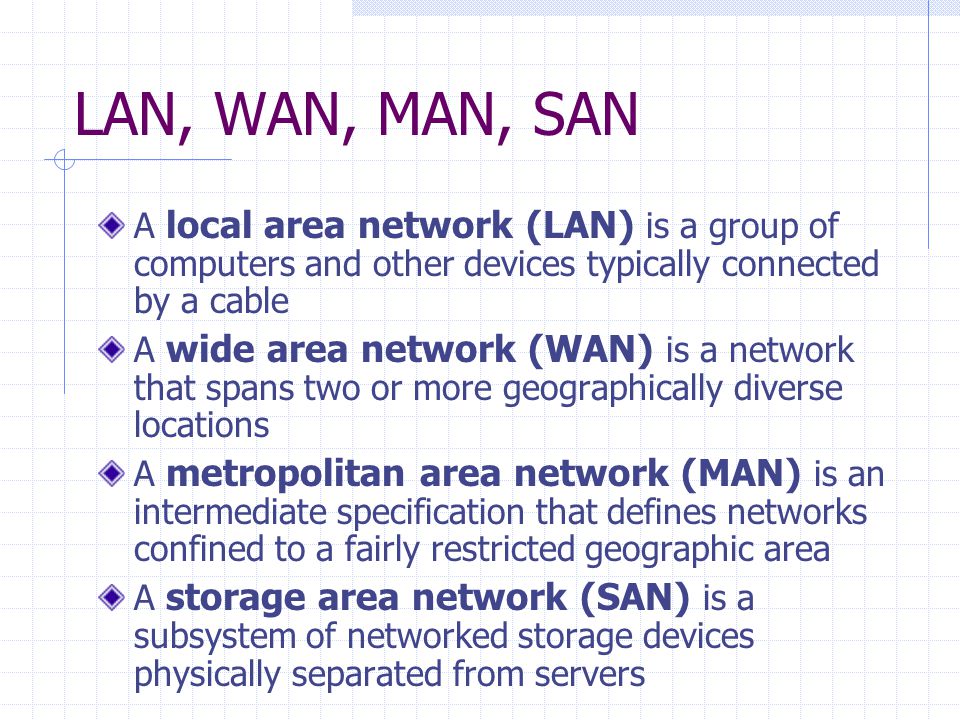

9 LAN, WAN, MAN, SAN A local area network (LAN) is a group of computers and other devices typically connected by a cable A wide area network (WAN) is a network that spans two or more geographically diverse locations A metropolitan area network (MAN) is an intermediate specification that defines networks confined to a fairly restricted geographic area A storage area network (SAN) is a subsystem of networked storage devices physically separated from servers

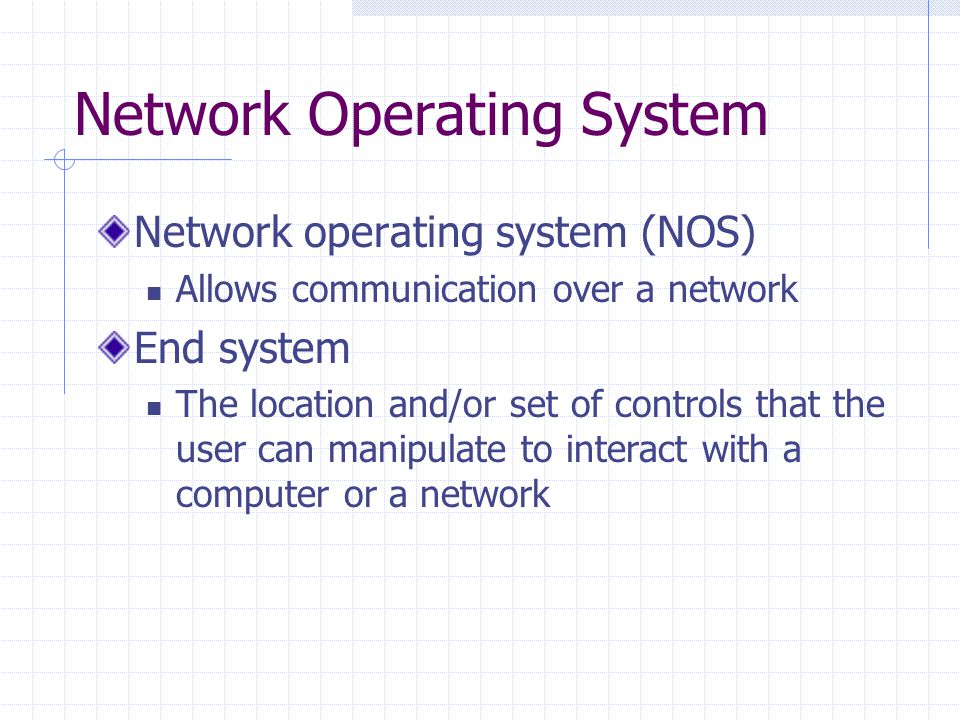

10 Network Operating System Network operating system (NOS) Allows communication over a network End system The location and/or set of controls that the user can manipulate to interact with a computer or a network

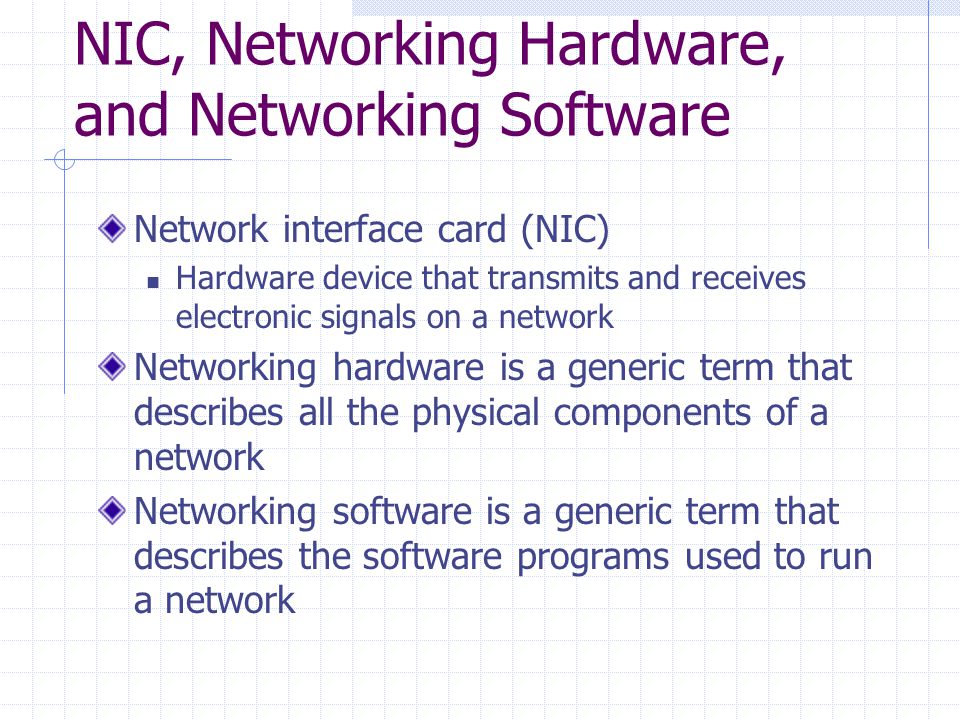

11 NIC, Networking Hardware, and Networking Software Network interface card (NIC) Hardware device that transmits and receives electronic signals on a network Networking hardware is a generic term that describes all the physical components of a network Networking software is a generic term that describes the software programs used to run a network

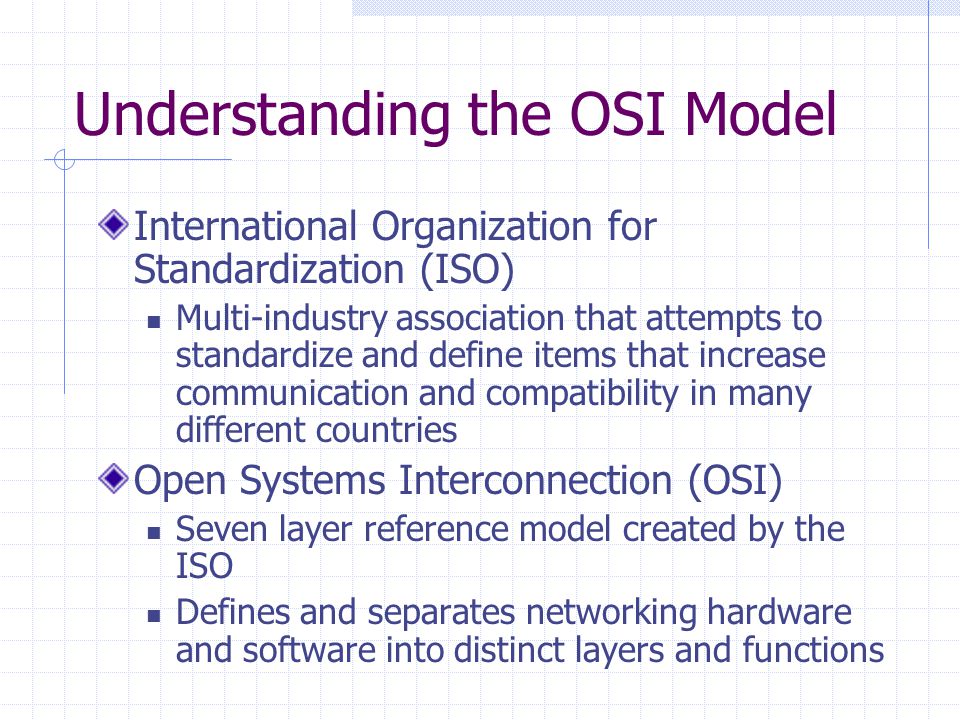

12 Understanding the OSI Model International Organization for Standardization (ISO) Multi-industry association that attempts to standardize and define items that increase communication and compatibility in many different countries Open Systems Interconnection (OSI) Seven layer reference model created by the ISO Defines and separates networking hardware and software into distinct layers and functions

13 Reasons for Layering Simplifies the network model Enables programmers to specialize in a particular level or layer of the networking model Provides design modularity Encourages interoperability Allows for standardized interfaces to be produced by networking vendors

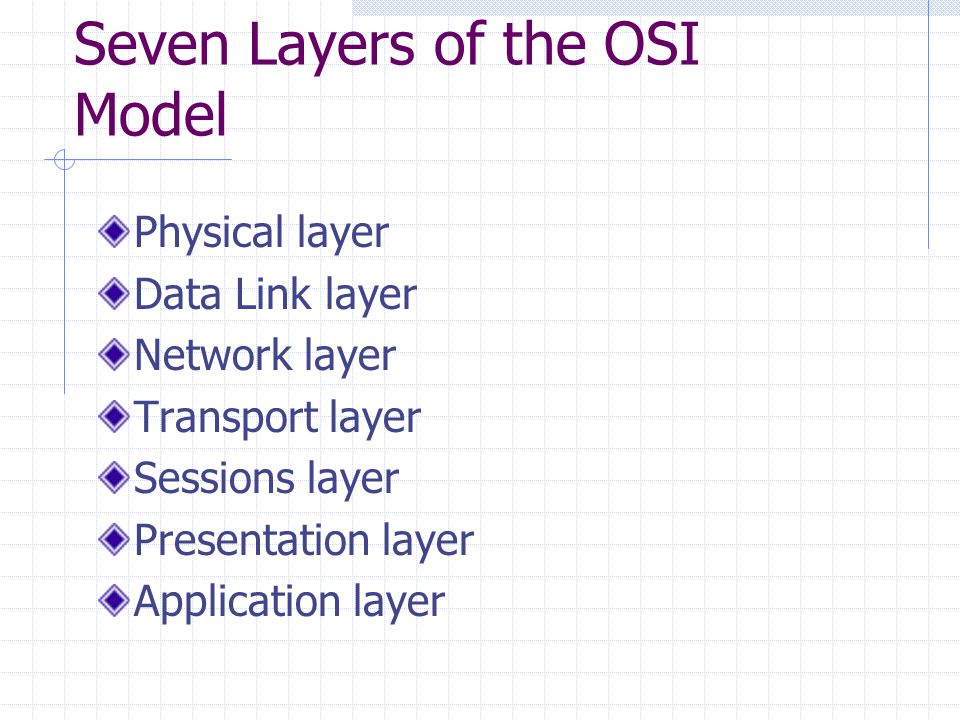

14 Seven Layers of the OSI Model Physical layer Data Link layer Network layer Transport layer Sessions layer Presentation layer Application layer

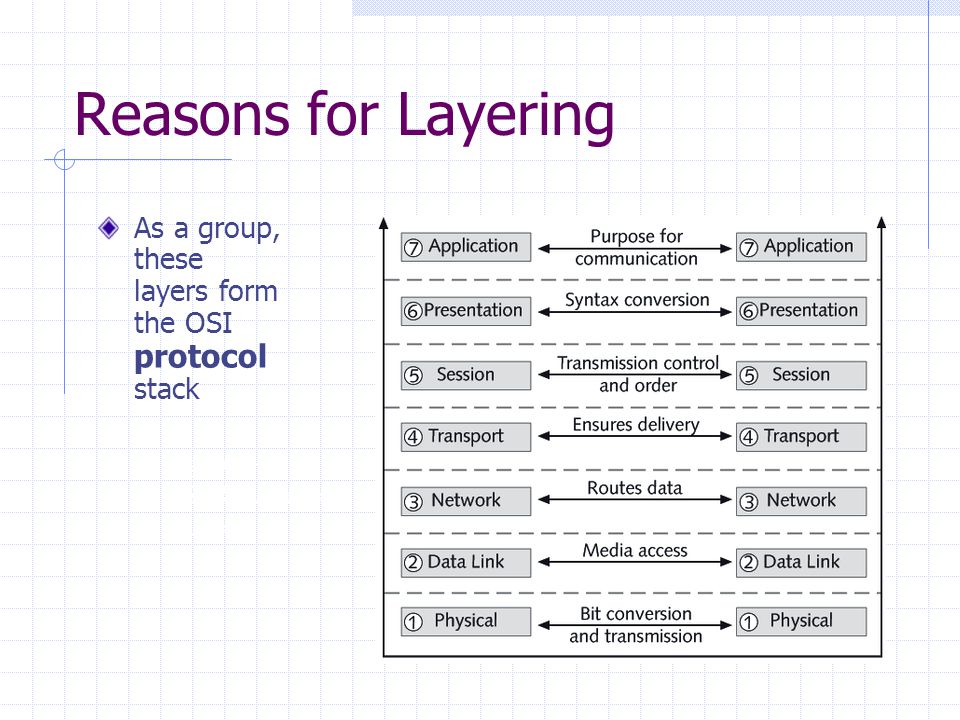

15 Reasons for Layering As a group, these layers form the OSI protocol stack Figure 1-1: OSI Reference Model

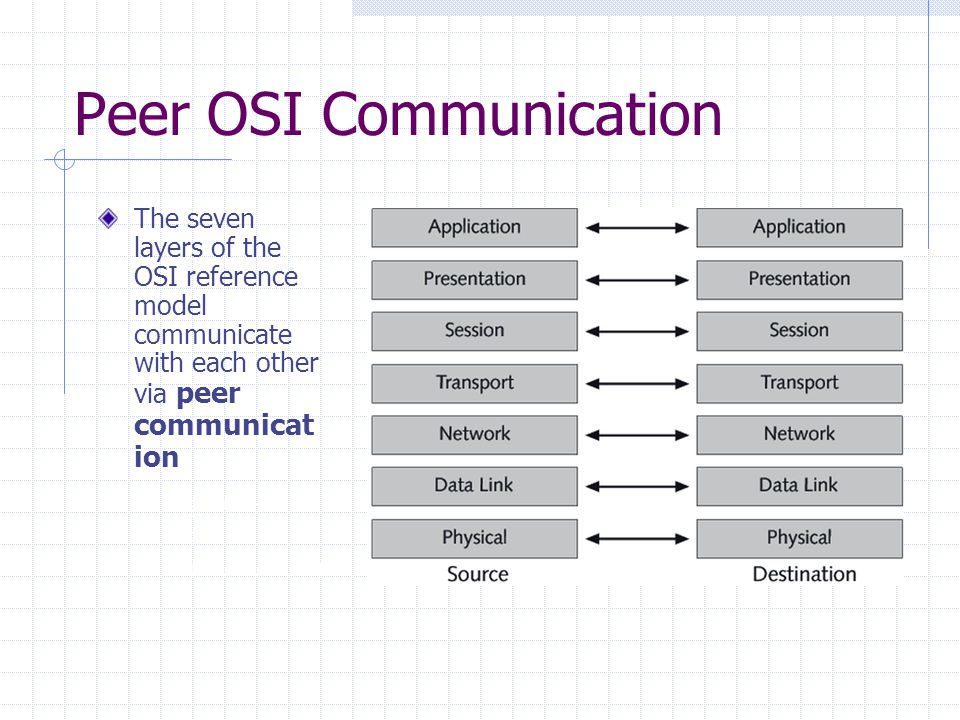

16 Peer OSI Communication The seven layers of the OSI reference model communicate with each other via peer communicat ion Figure 1-2: Peer communication

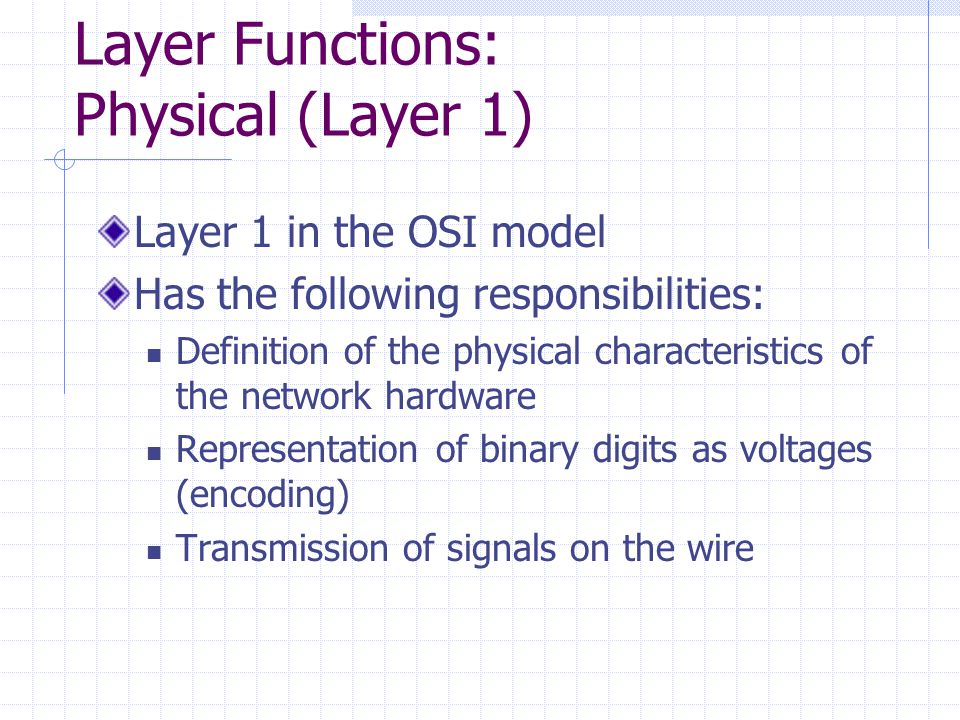

17 Layer Functions: Physical (Layer 1) Layer 1 in the OSI model Has the following responsibilities: Definition of the physical characteristics of the network hardware Representation of binary digits as voltages (encoding) Transmission of signals on the wire

18 Layer Functions: Physical (Layer 1) Figure 1-3: 568B twisted pair wiring scheme

19 Layer Functions: Physical (Layer 1) Connectors, cables, and devices like repeaters and hubs can be associated with the physical layer When choosing cable, consider the following: Expense Physical location Distance Security requirements Transmission speed required

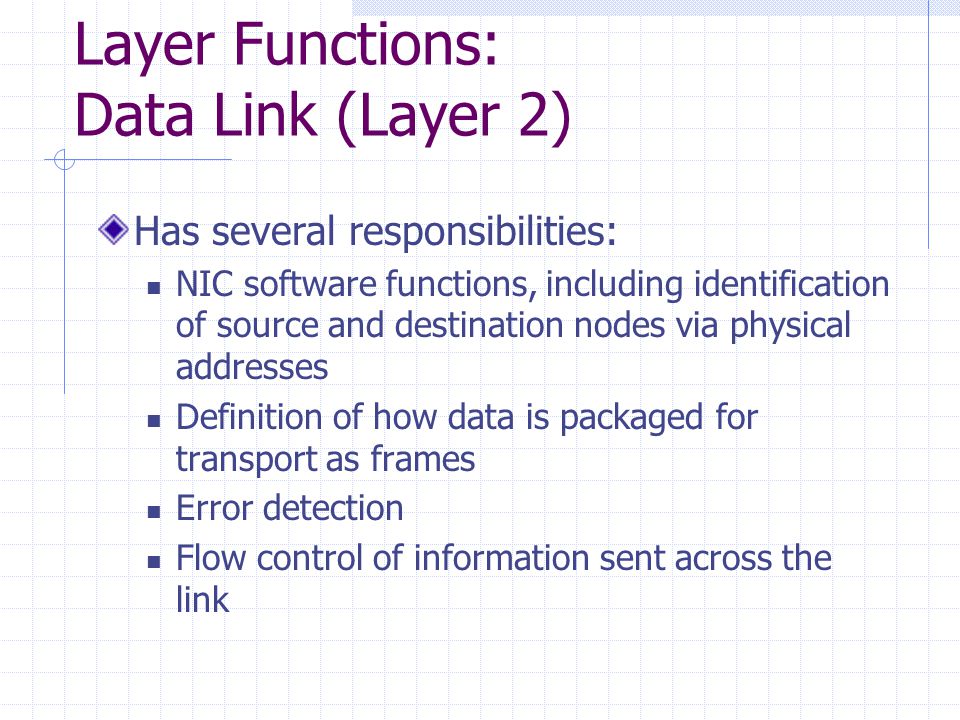

20 Layer Functions: Data Link (Layer 2) Has several responsibilities: NIC software functions, including identification of source and destination nodes via physical addresses Definition of how data is packaged for transport as frames Error detection Flow control of information sent across the link

21 Layer Functions: Data Link (Layer 2) Data Link layer has two sublayers that further articulate its function: Logical Link Control (LLC) layer Media Access Control (MAC) layer The Institute of Electrical and Electronics Engineers (IEEE) created these sublayers to identify and isolate the separate responsibilities required at this level of the protocol stack

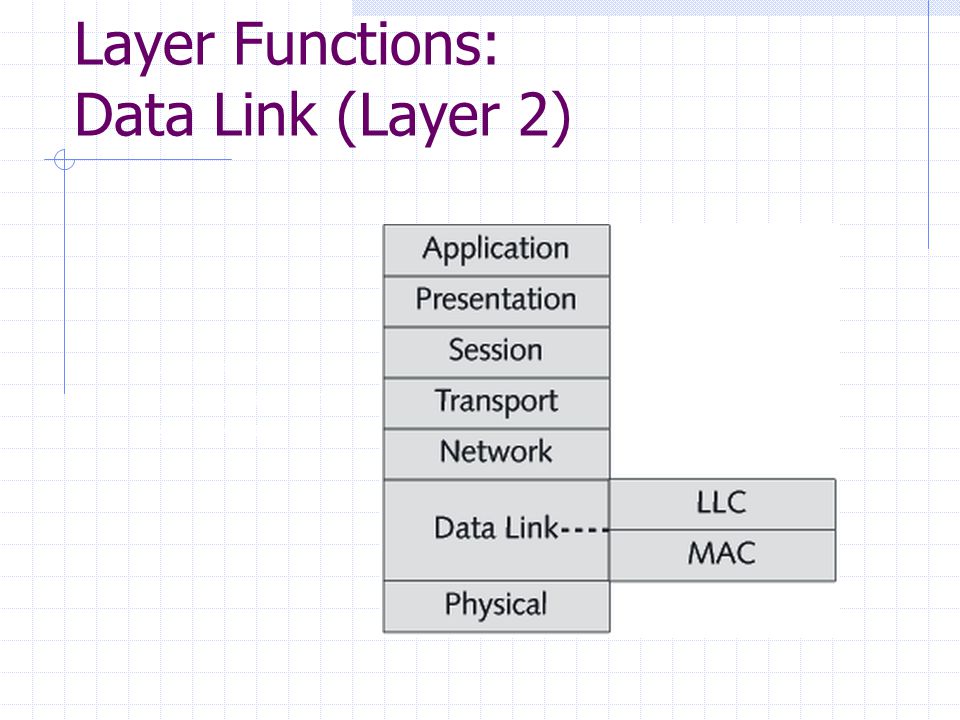

22 Layer Functions: Data Link (Layer 2) Figure 1-4: Data Link layer subdivision

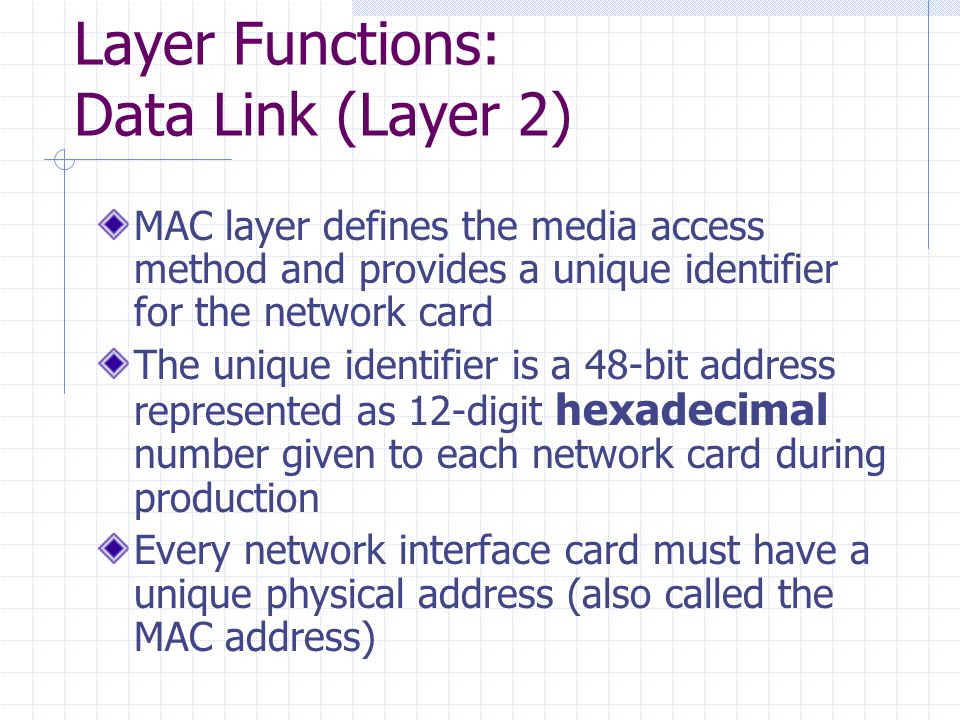

23 Layer Functions: Data Link (Layer 2) MAC layer defines the media access method and provides a unique identifier for the network card The unique identifier is a 48-bit address represented as 12-digit hexadecimal number given to each network card during production Every network interface card must have a unique physical address (also called the MAC address)

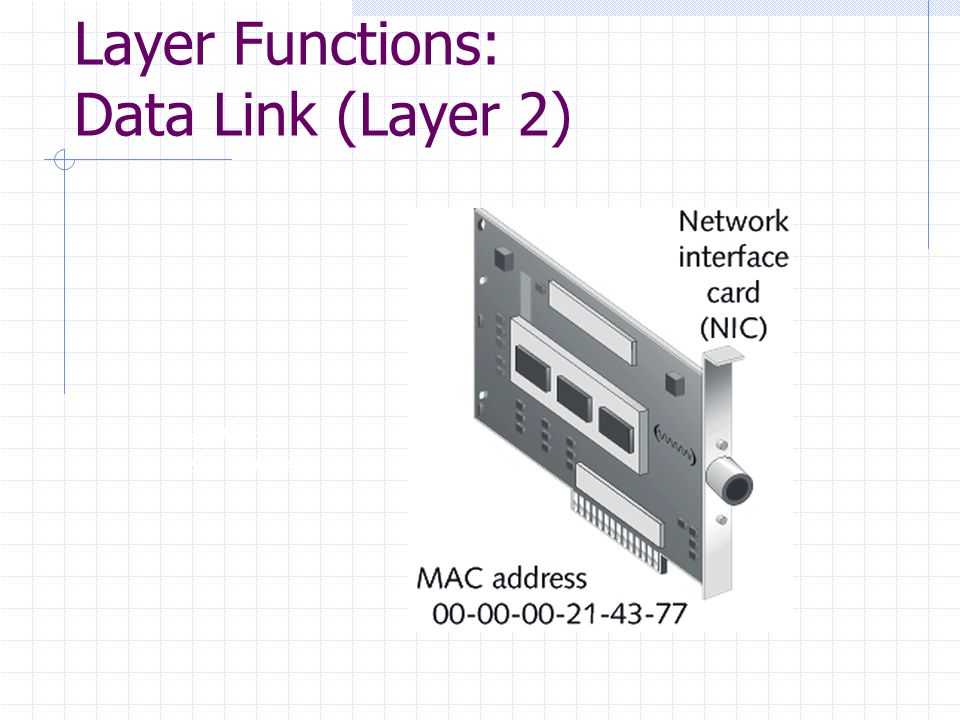

24 Layer Functions: Data Link (Layer 2) Figure 1-5: MAC address

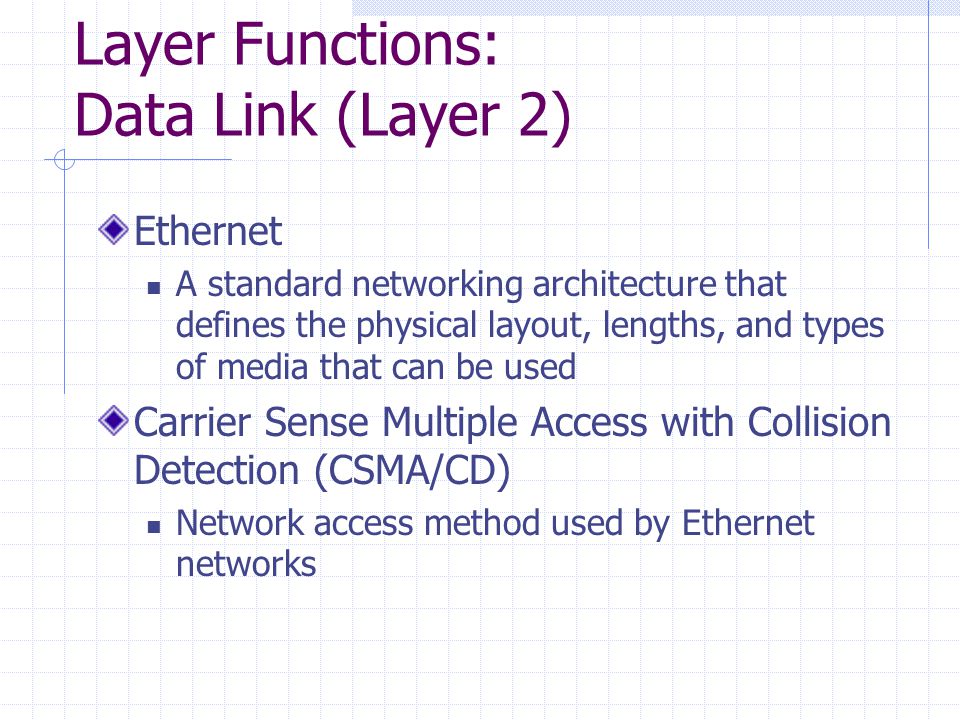

25 Layer Functions: Data Link (Layer 2) Ethernet A standard networking architecture that defines the physical layout, lengths, and types of media that can be used Carrier Sense Multiple Access with Collision Detection (CSMA/CD) Network access method used by Ethernet networks

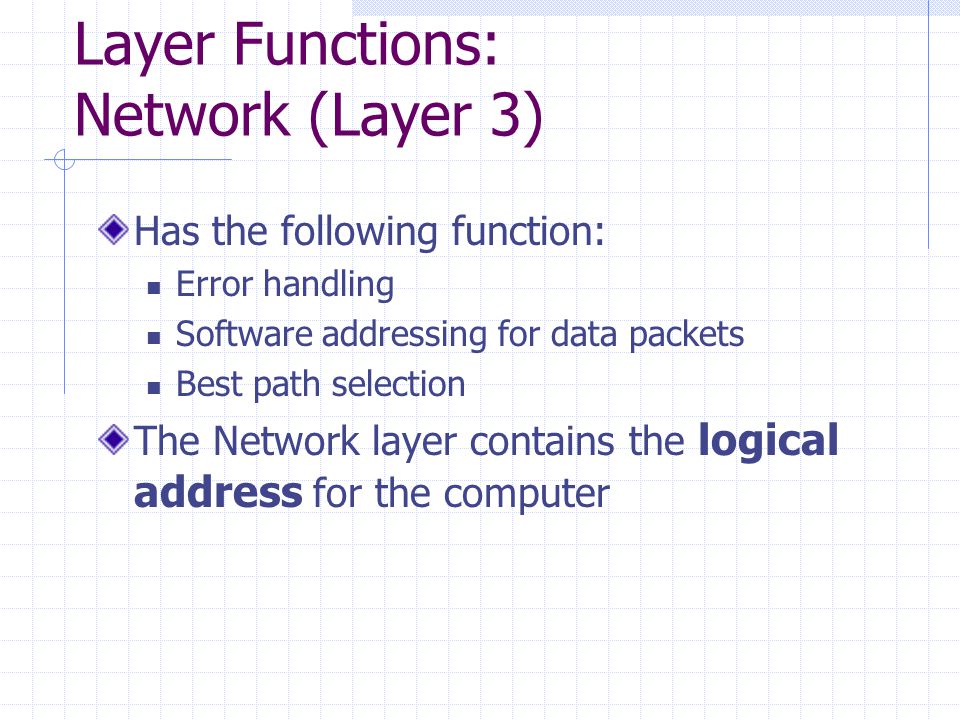

26 Layer Functions: Network (Layer 3) Has the following function: Error handling Software addressing for data packets Best path selection The Network layer contains the logical address for the computer

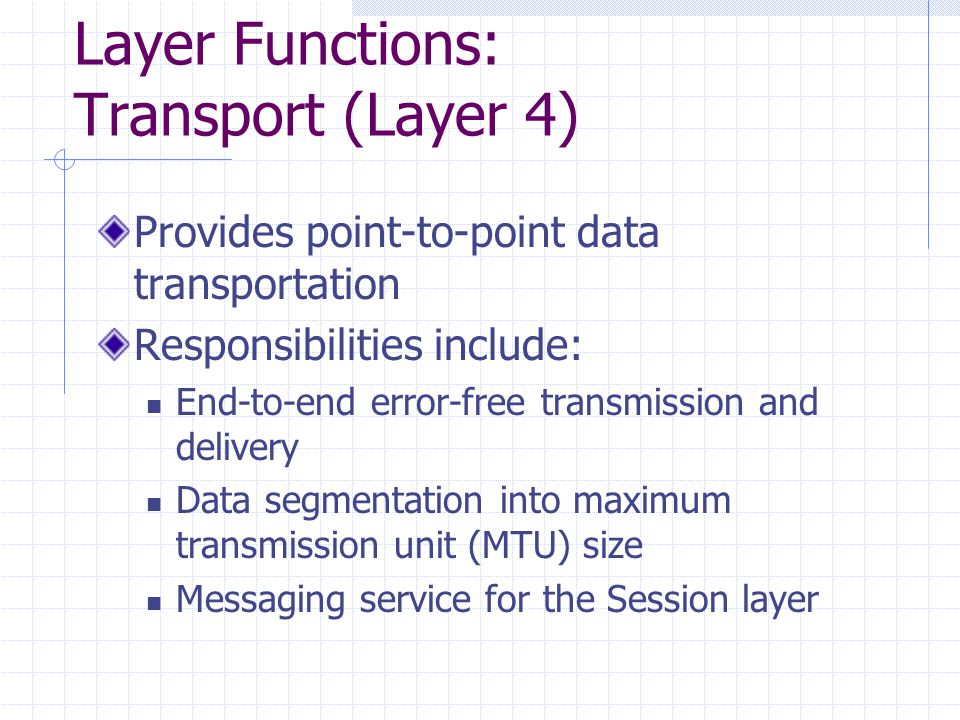

27 Layer Functions: Transport (Layer 4) Provides point-to-point data transportation Responsibilities include: End-to-end error-free transmission and delivery Data segmentation into maximum transmission unit (MTU) size Messaging service for the Session layer

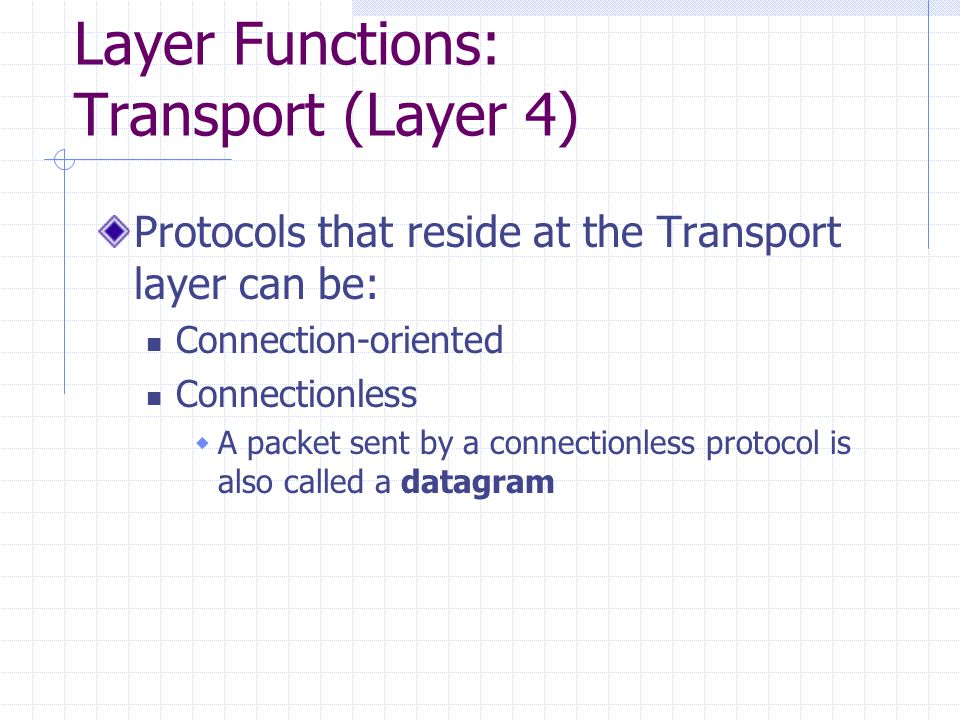

28 Layer Functions: Transport (Layer 4) Protocols that reside at the Transport layer can be: Connection-oriented Connectionless  A packet sent by a connectionless protocol is also called a datagram

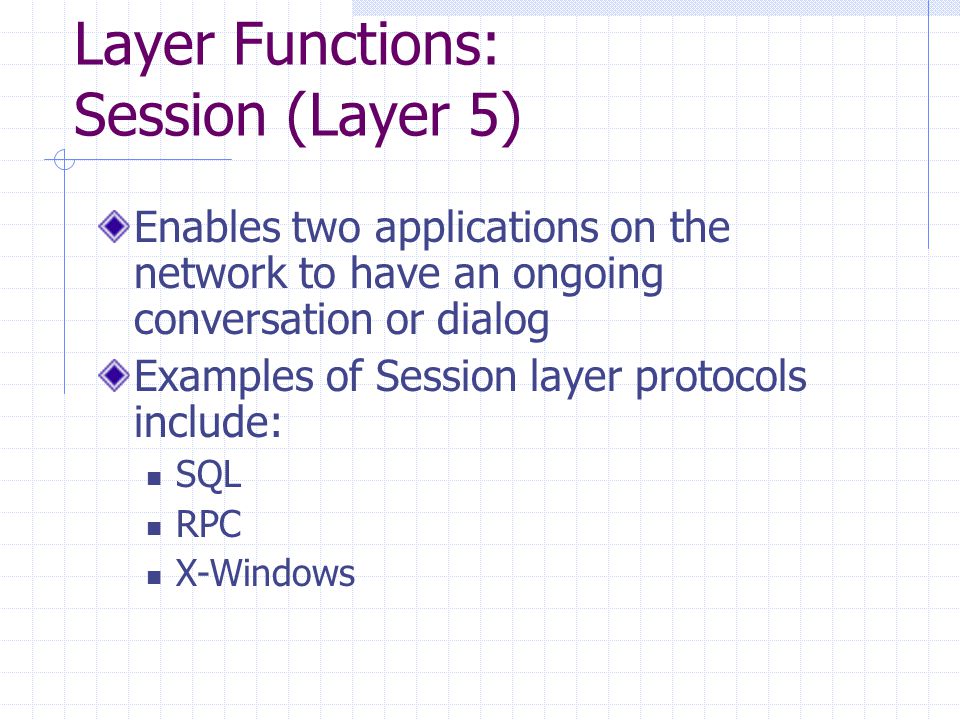

29 Layer Functions: Session (Layer 5) Enables two applications on the network to have an ongoing conversation or dialog Examples of Session layer protocols include: SQL RPC X-Windows

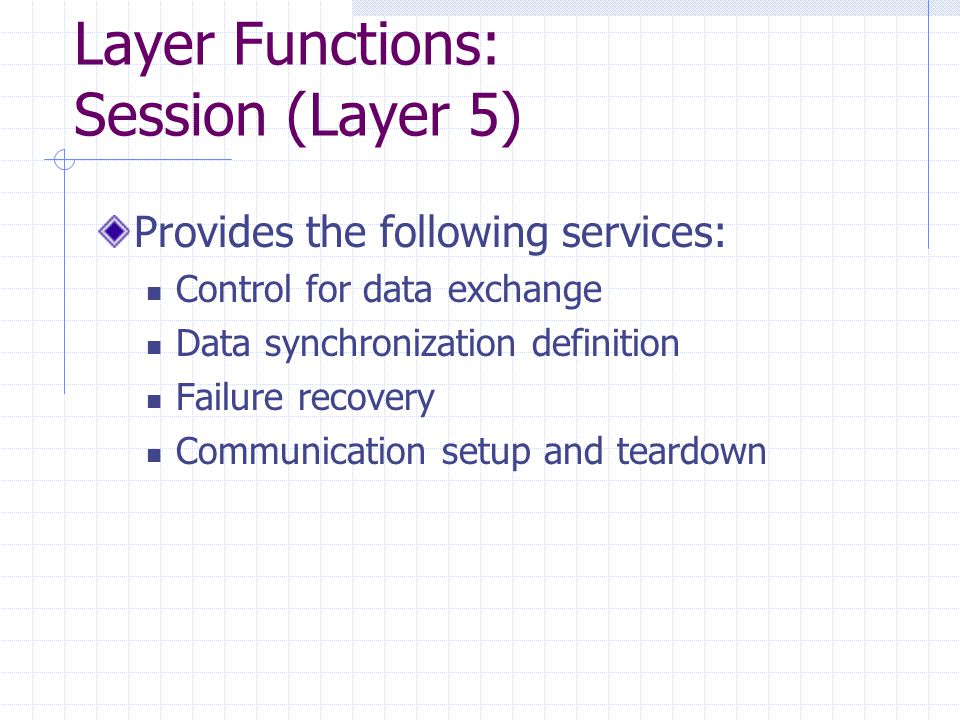

30 Layer Functions: Session (Layer 5) Provides the following services: Control for data exchange Data synchronization definition Failure recovery Communication setup and teardown

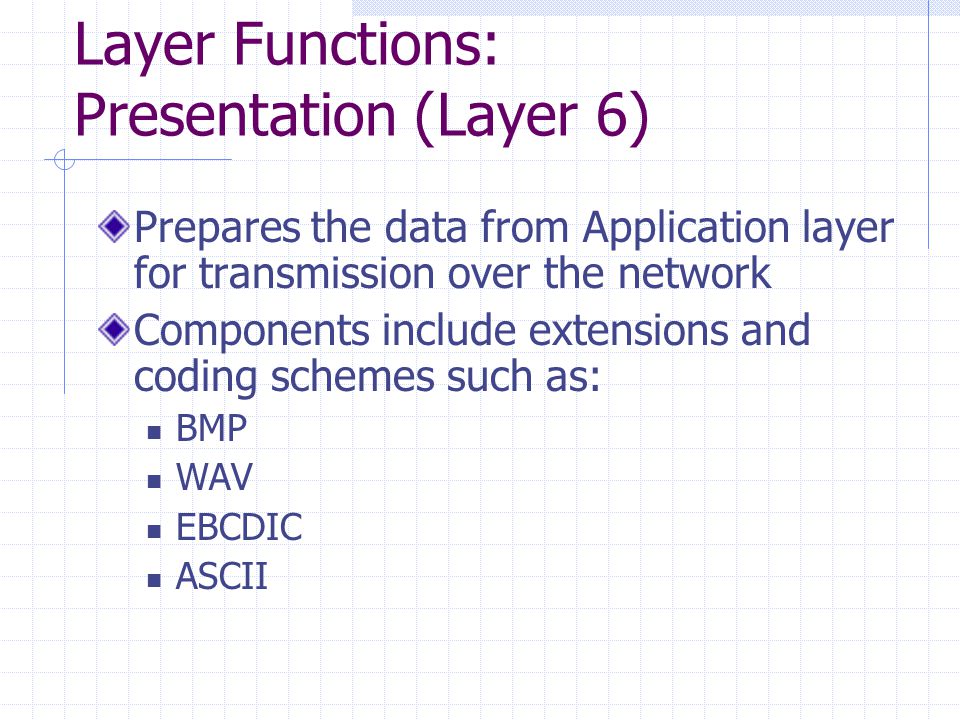

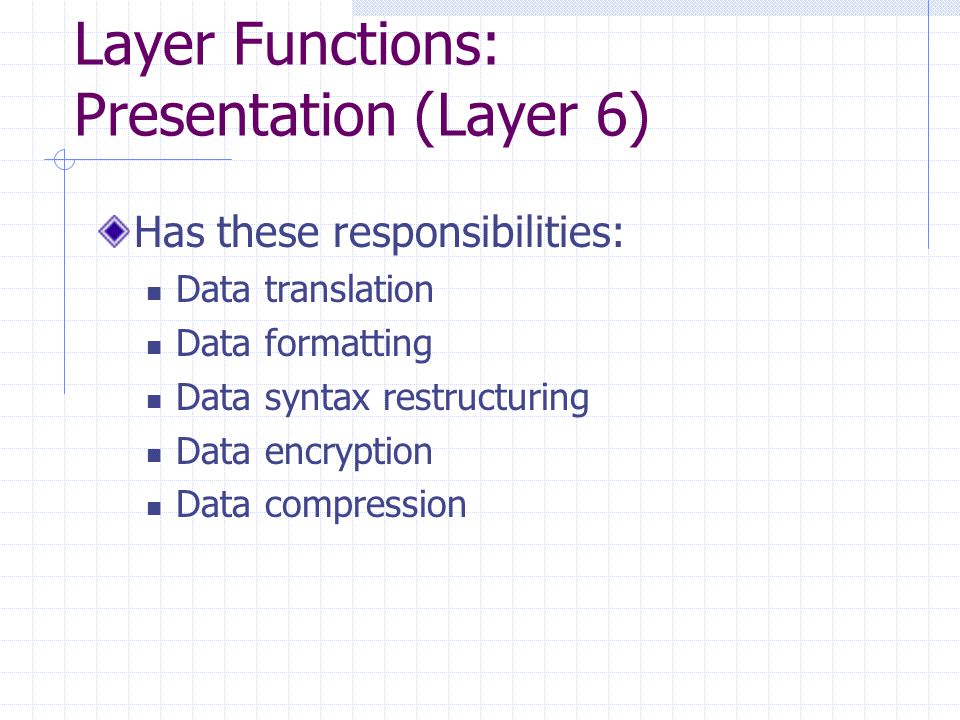

31 Layer Functions: Presentation (Layer 6) Prepares the data from Application layer for transmission over the network Components include extensions and coding schemes such as: BMP WAV EBCDIC ASCII

32 Layer Functions: Presentation (Layer 6) Has these responsibilities: Data translation Data formatting Data syntax restructuring Data encryption Data compression

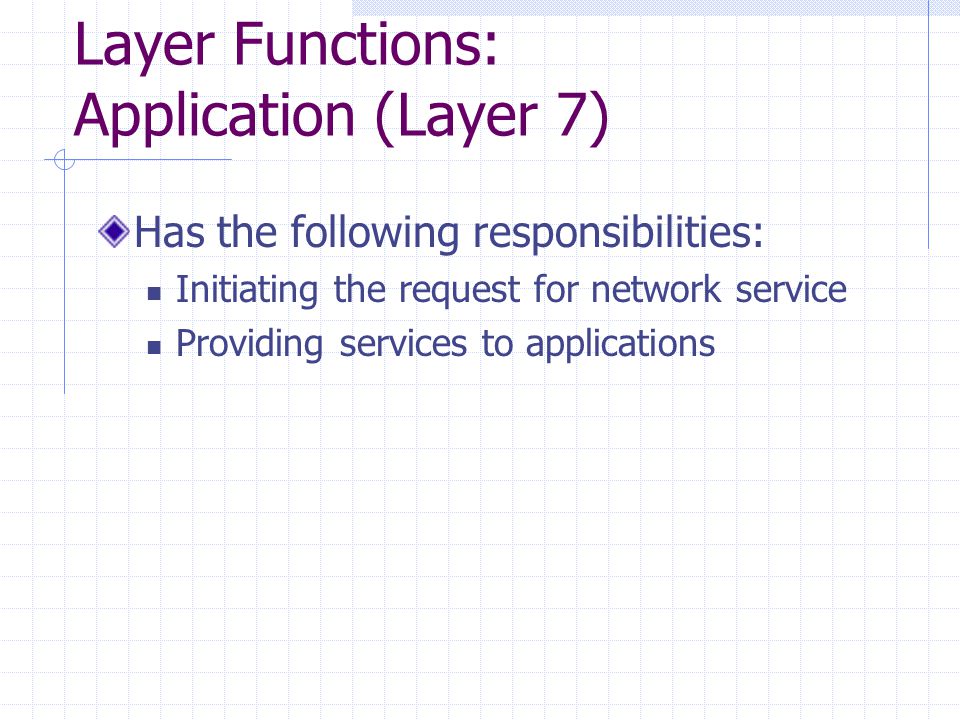

33 Layer Functions: Application (Layer 7) Has the following responsibilities: Initiating the request for network service Providing services to applications

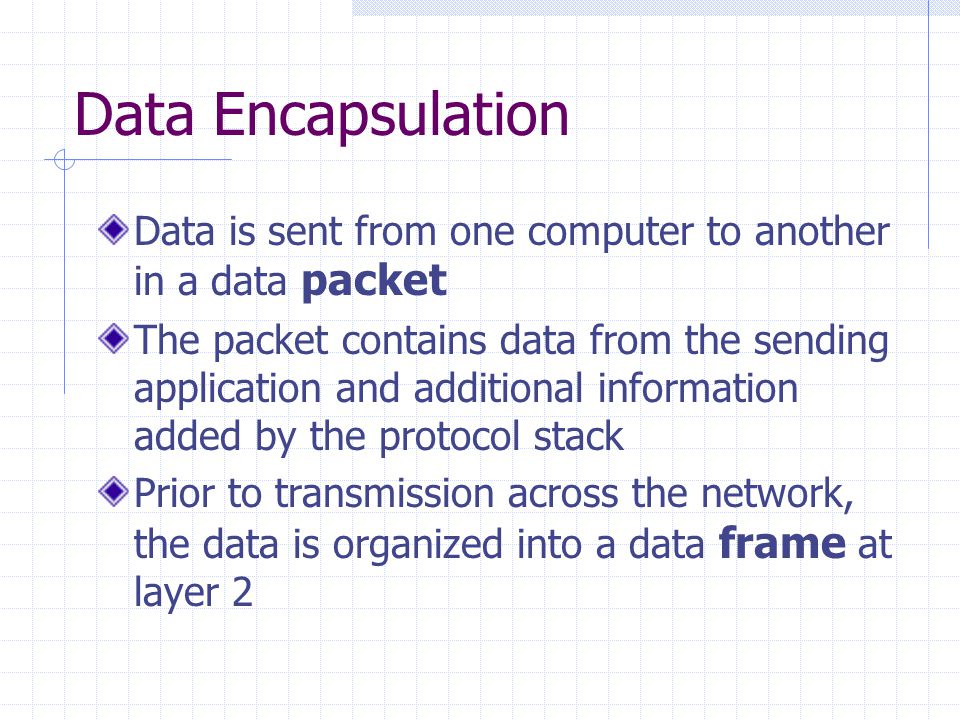

34 Data Encapsulation Data is sent from one computer to another in a data packet The packet contains data from the sending application and additional information added by the protocol stack Prior to transmission across the network, the data is organized into a data frame at layer 2

35 Data Encapsulation Protocol data unit (PDU) Information added to a data packet by the layers of the protocol stack Encapsulation Process that occurs during transmission through the protocol stack in which data from the higher layers is wrapped in a protocol header and/or trailer

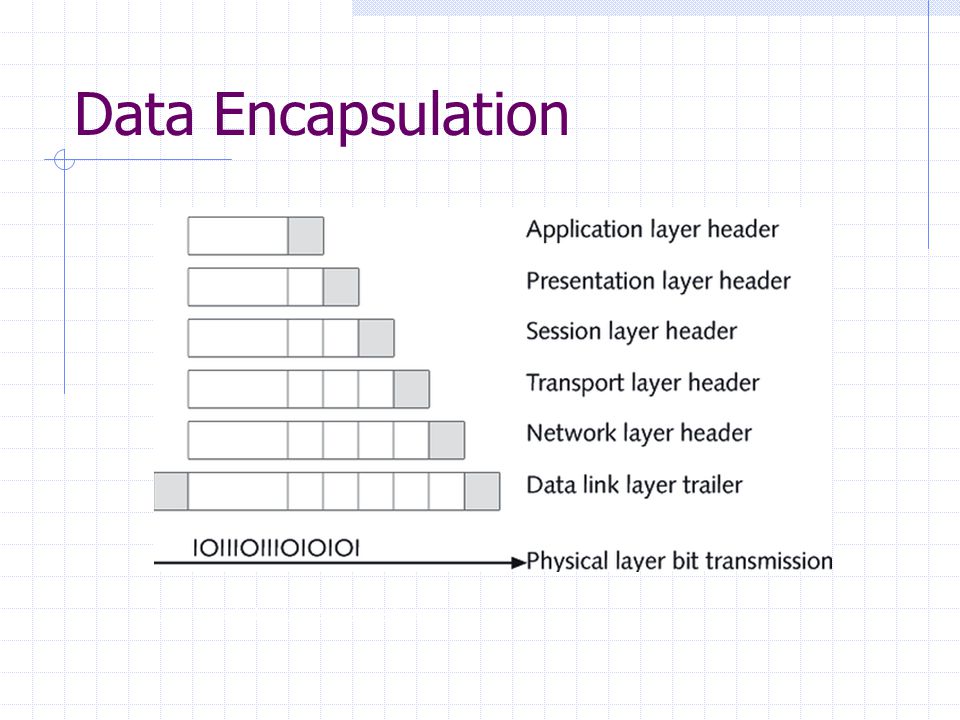

36 Data Encapsulation Figure 1-6: Encapsulation

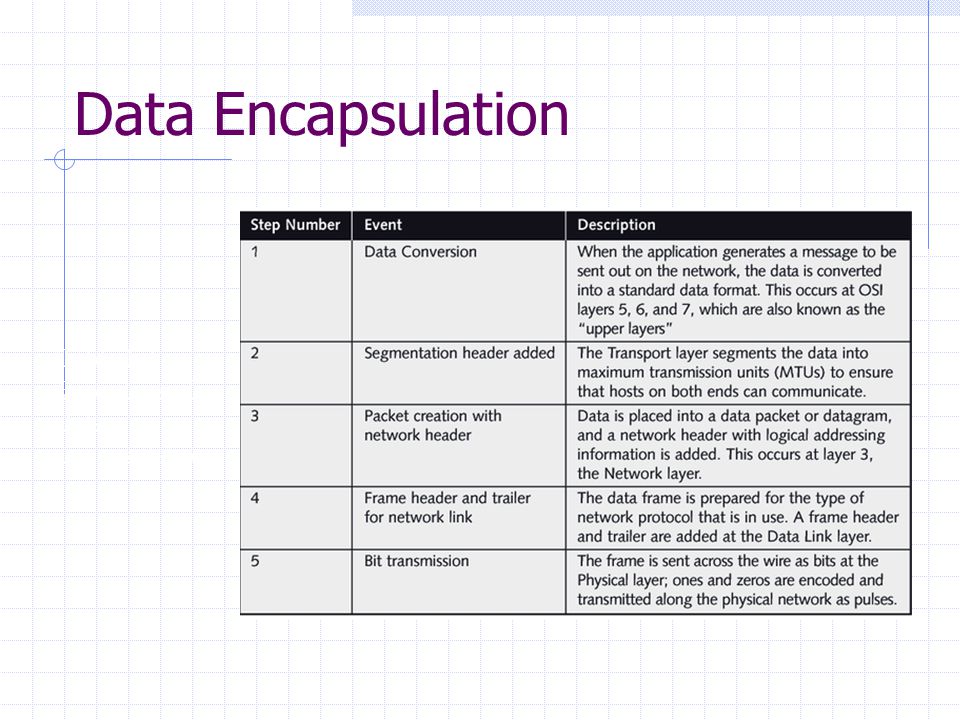

37 Data Encapsulation Table 1-1: Five steps of data encapsulation

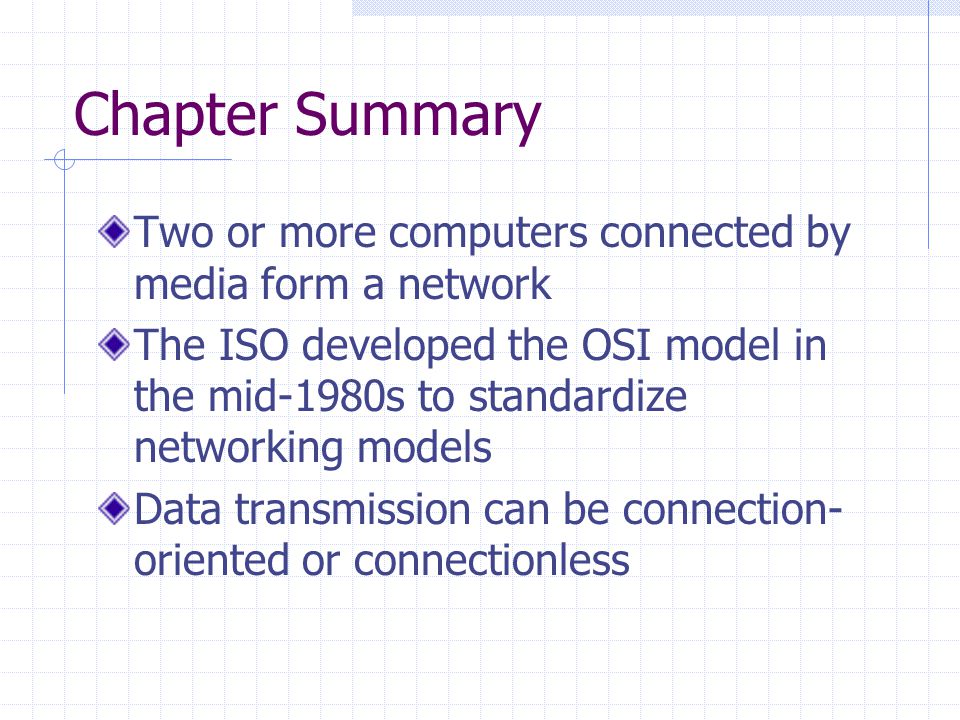

38 Chapter Summary Two or more computers connected by media form a network The ISO developed the OSI model in the mid-1980s to standardize networking models Data transmission can be connection- oriented or connectionless

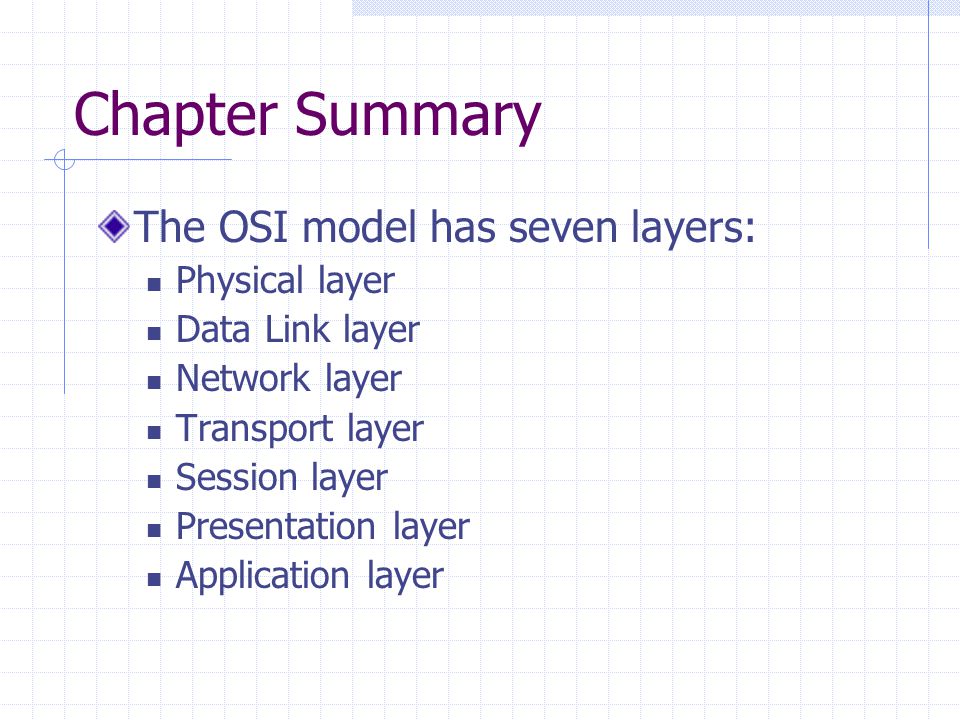

39 Chapter Summary The OSI model has seven layers: Physical layer Data Link layer Network layer Transport layer Session layer Presentation layer Application layer

40 Chapter Summary When the network user sends data to the network, it goes through a five-step data encapsulation process This process takes place as the data packet travels down the OSI stack
