1. FSC Channeling in the Corona of Fast Ignition Targets G. Li, R. Yan, and C. Ren, UR/LLE T. Wang, J. Tonge, and W. B. Mori, UCLA

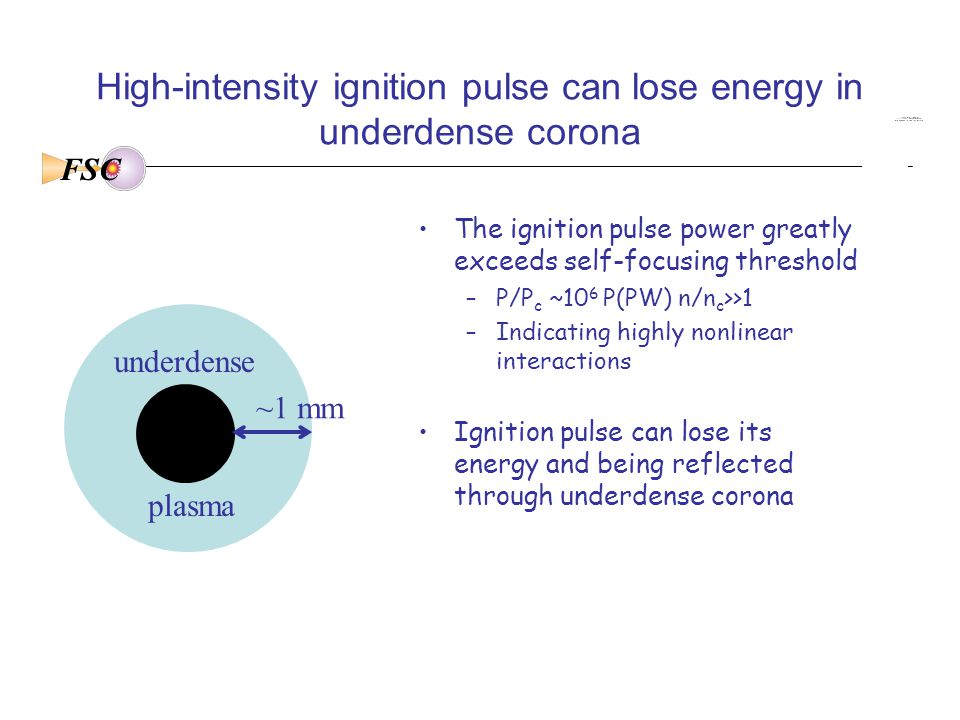

2. FSC High-intensity ignition pulse can lose energy in underdense corona The ignition pulse power greatly exceeds self-focusing threshold –P/P c ~10 6 P(PW) n/n c >>1 –Indicating highly nonlinear interactions Ignition pulse can lose its energy and being reflected through underdense corona underdense plasma ~1 mm

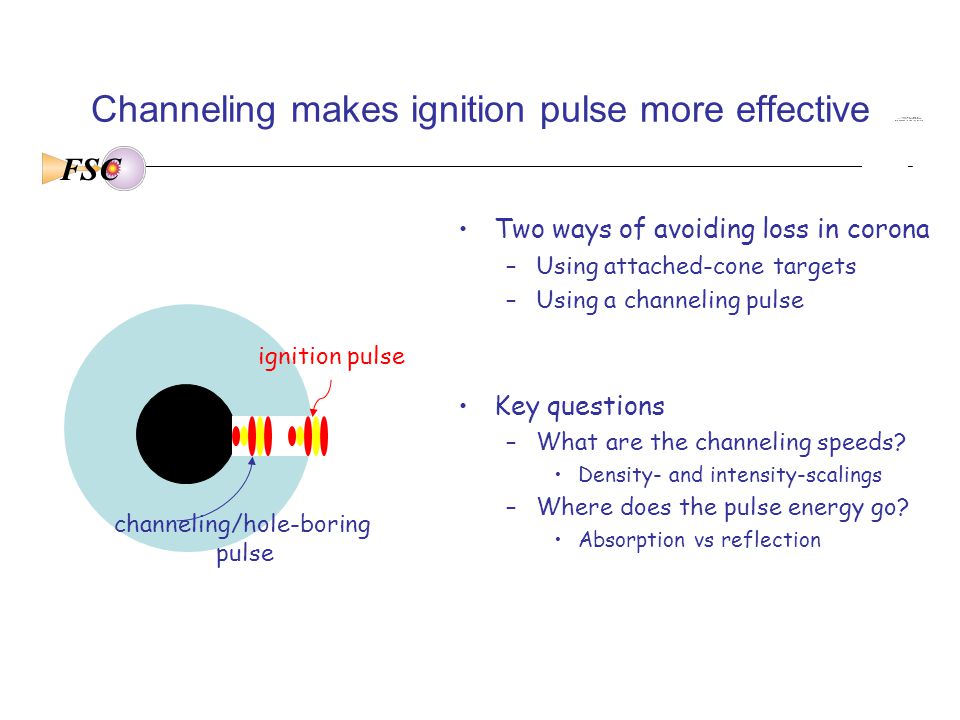

3. FSC Channeling makes ignition pulse more effective Two ways of avoiding loss in corona –Using attached-cone targets –Using a channeling pulse Key questions –What are the channeling speeds? Density- and intensity-scalings –Where does the pulse energy go? Absorption vs reflection channeling/hole-boring pulse ignition pulse

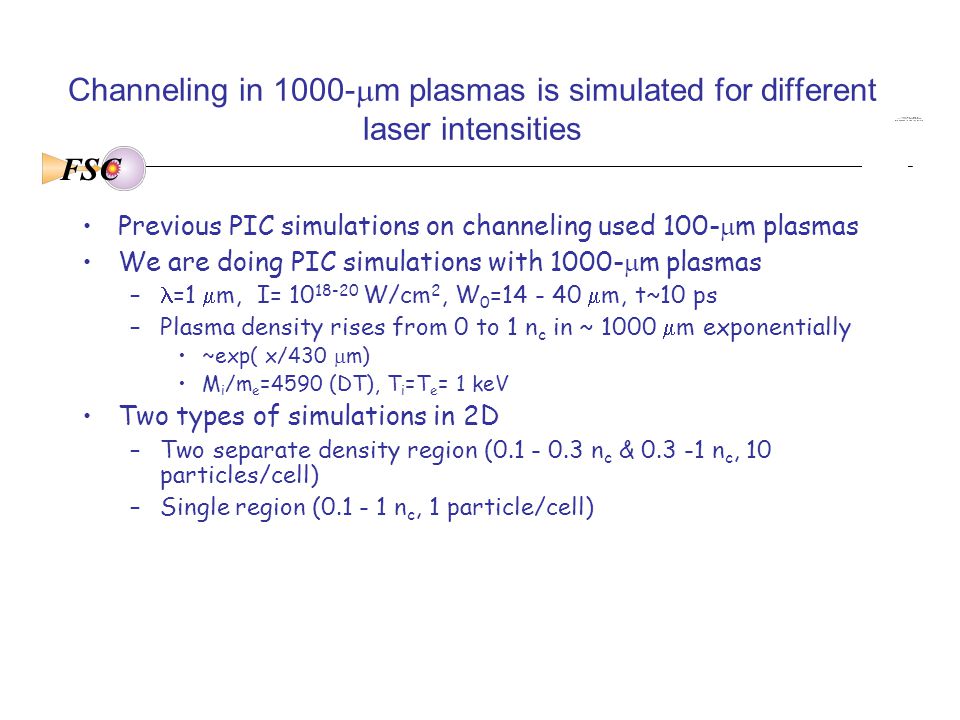

4. FSC Channeling in 1000-  m plasmas is simulated for different laser intensities Previous PIC simulations on channeling used 100-  m plasmas We are doing PIC simulations with 1000-  m plasmas – =1  m, I= 10 18-20 W/cm 2, W 0 =14 - 40  m, t~10 ps –Plasma density rises from 0 to 1 n c in ~ 1000  m exponentially ~exp( x/430  m) M i /m e =4590 (DT), T i =T e = 1 keV Two types of simulations in 2D –Two separate density region (0.1 - 0.3 n c & 0.3 -1 n c, 10 particles/cell) –Single region (0.1 - 1 n c, 1 particle/cell)

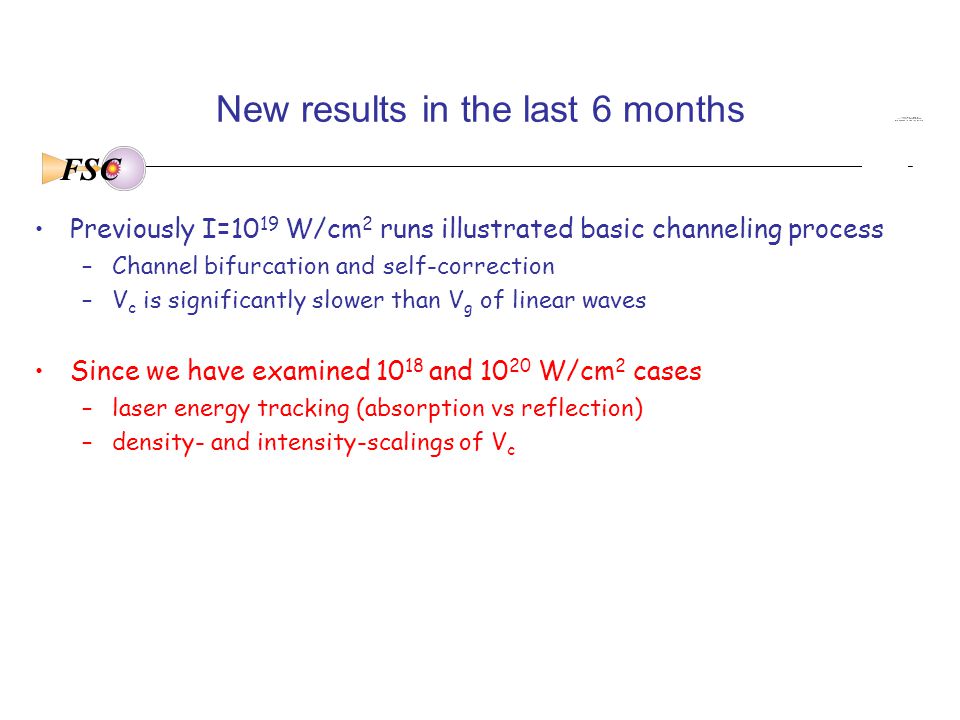

5. FSC New results in the last 6 months Previously I=10 19 W/cm 2 runs illustrated basic channeling process –Channel bifurcation and self-correction –V c is significantly slower than V g of linear waves Since we have examined 10 18 and 10 20 W/cm 2 cases –laser energy tracking (absorption vs reflection) –density- and intensity-scalings of V c

6. FSC Channeling process at different intensities is similar Ion density plot (n 0 =0.3-1 n c ), I=10 20 W/cm 2, ~6.4 ps 250  m 500  m

7. FSC At I=10 18 W/cm 2, channeling is much slower 250  m 500  m Ion density plot (n 0 =0.3-1 n c ), I=10 18 W/cm 2, ~9.2 ps

8. FSC How do we measure V c ? x1x1 ncnc Density at channel center Define channel as n<n r

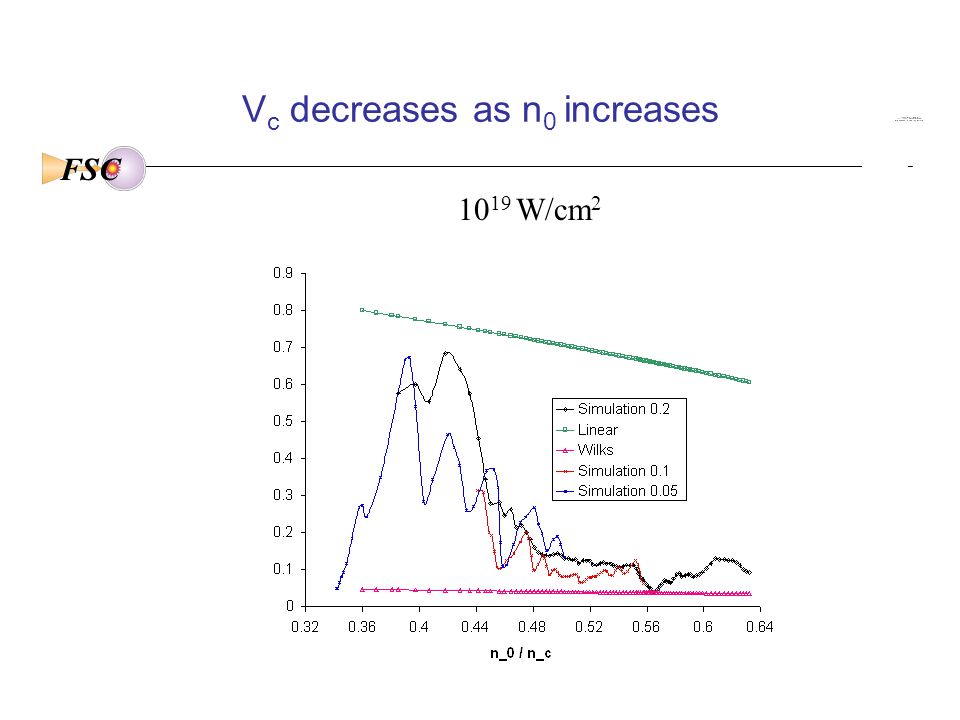

9. FSC V c decreases as n 0 increases 10 19 W/cm 2

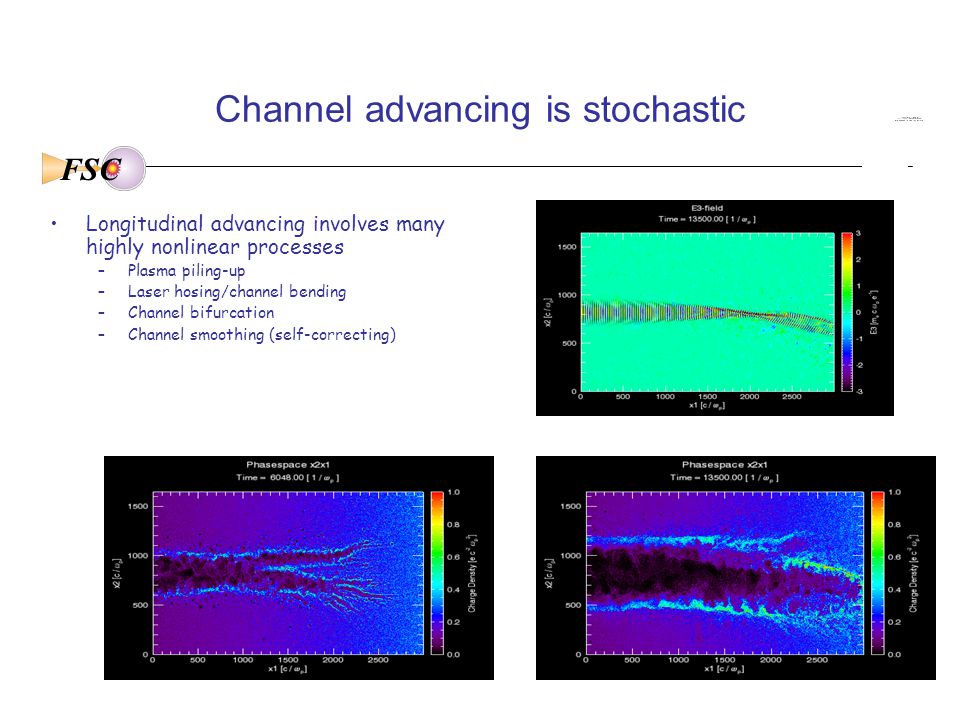

10. FSC Channel advancing is stochastic Longitudinal advancing involves many highly nonlinear processes –Plasma piling-up –Laser hosing/channel bending –Channel bifurcation –Channel smoothing (self-correcting)

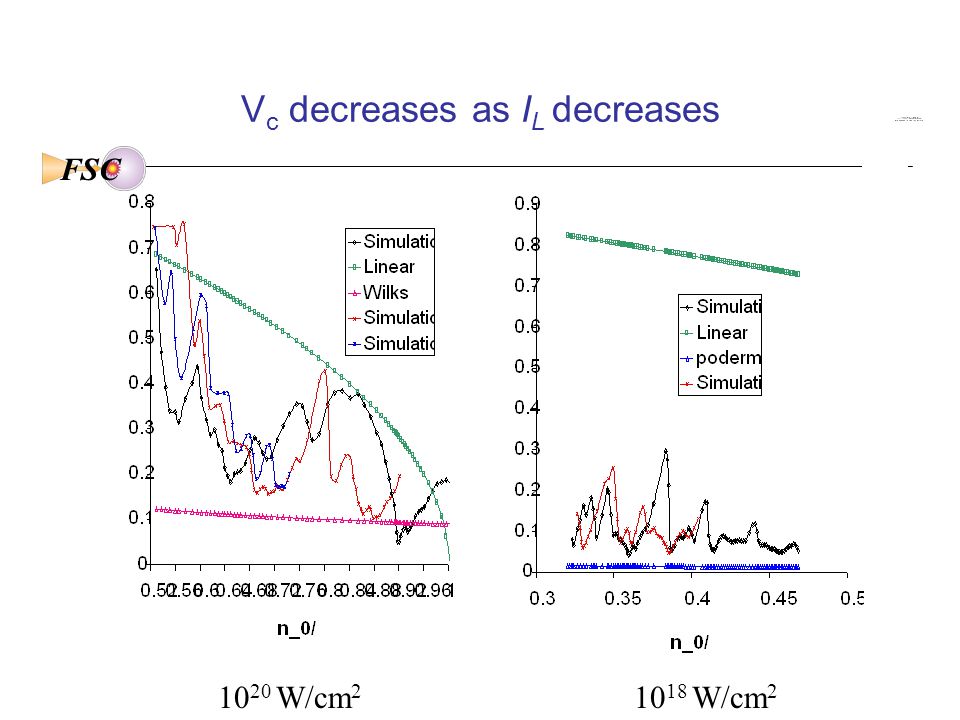

11. FSC V c decreases as I L decreases 10 18 W/cm 2 10 20 W/cm 2

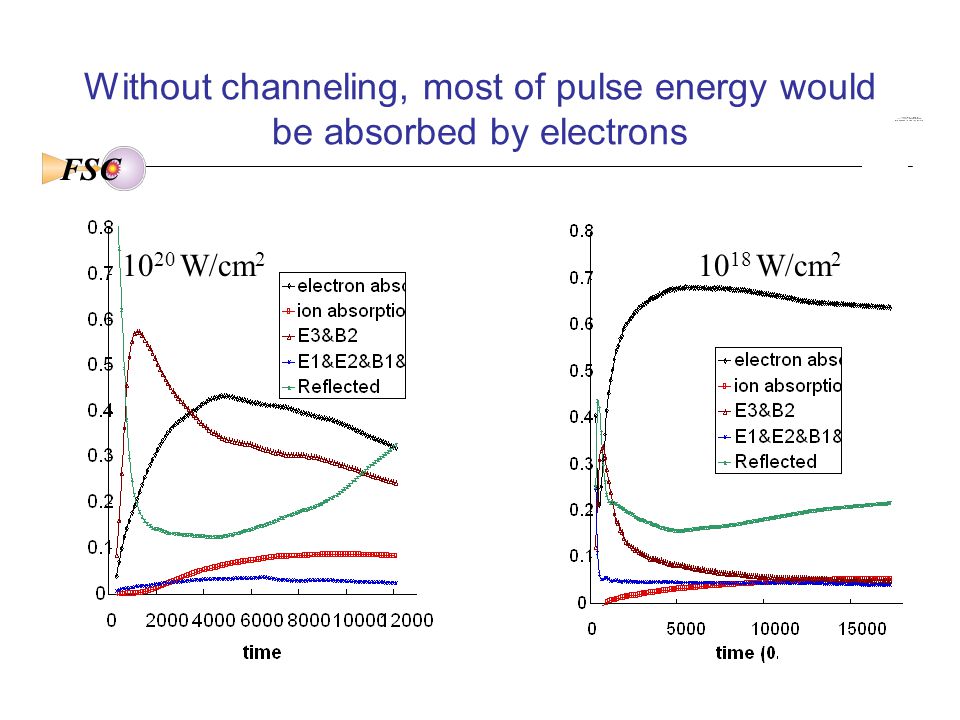

12. FSC Without channeling, most of pulse energy would be absorbed by electrons 10 18 W/cm 2 10 20 W/cm 2

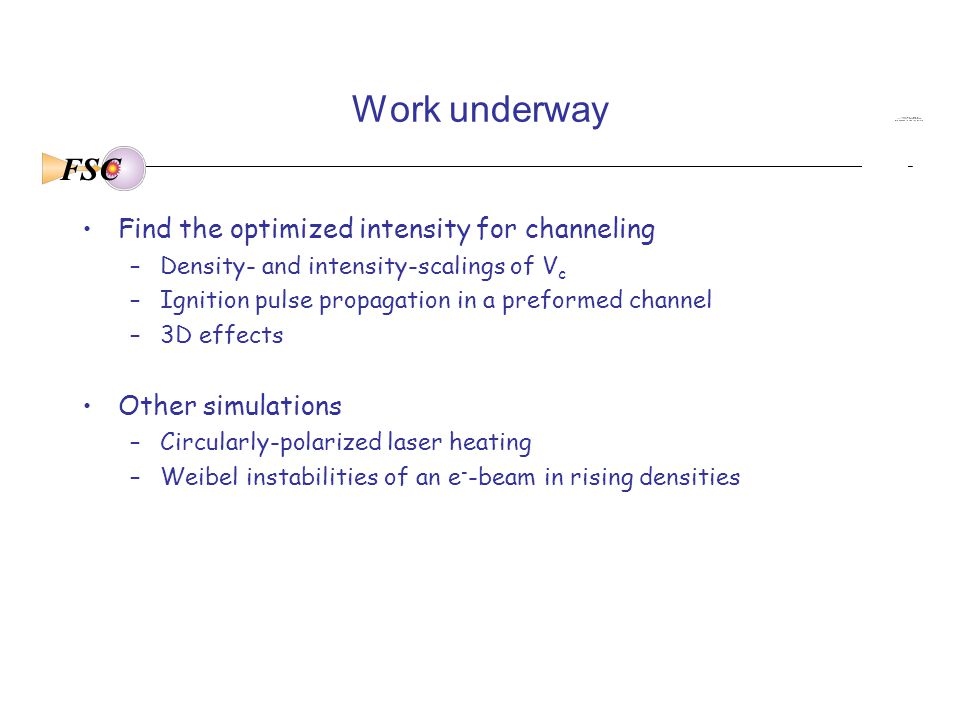

13. FSC Work underway Find the optimized intensity for channeling –Density- and intensity-scalings of V c –Ignition pulse propagation in a preformed channel –3D effects Other simulations –Circularly-polarized laser heating –Weibel instabilities of an e - -beam in rising densities

14. FSC Clean channel can be established (0.1-0.3 n c ) Ion density plot, CW laser, ~8 ps 250  m 500  m

15. FSC Laser can propagate unperturbed in channel (0.1-0.3 n c ) Laser e-field (s-pol)

16. FSC Clean channel can be established (0.3-1 n c ) electron density plot, CW laser, ~7.8 ps

17. FSC Clean channel can be established (0.1-1 n c ) electron density plot, CW laser, ~12 ps 1000  m

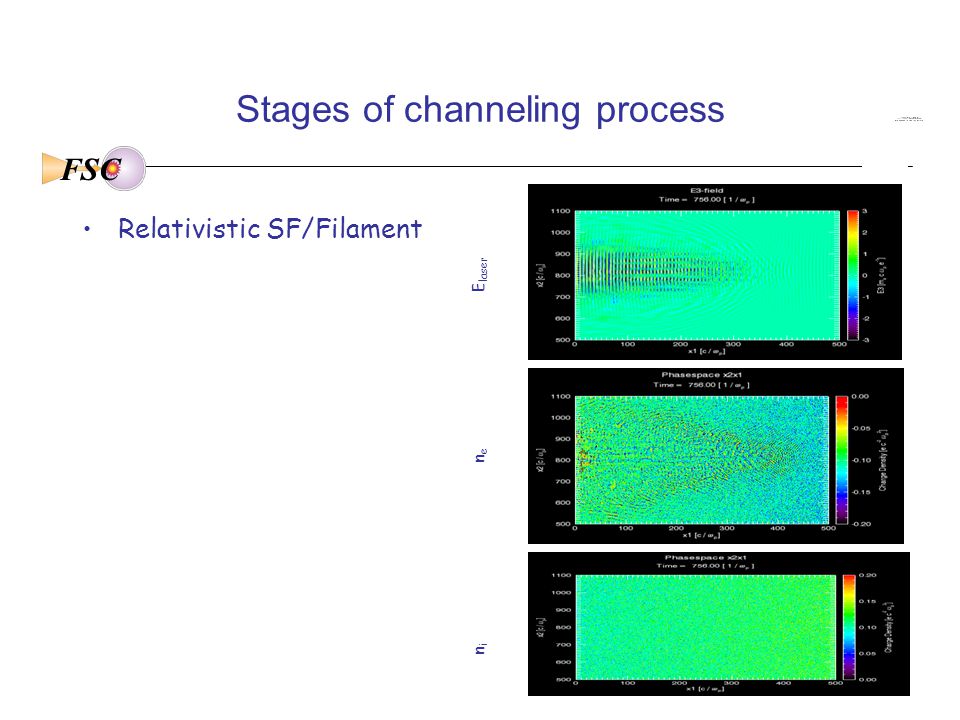

18. FSC Relativistic SF/Filament Stages of channeling process E laser nene nini

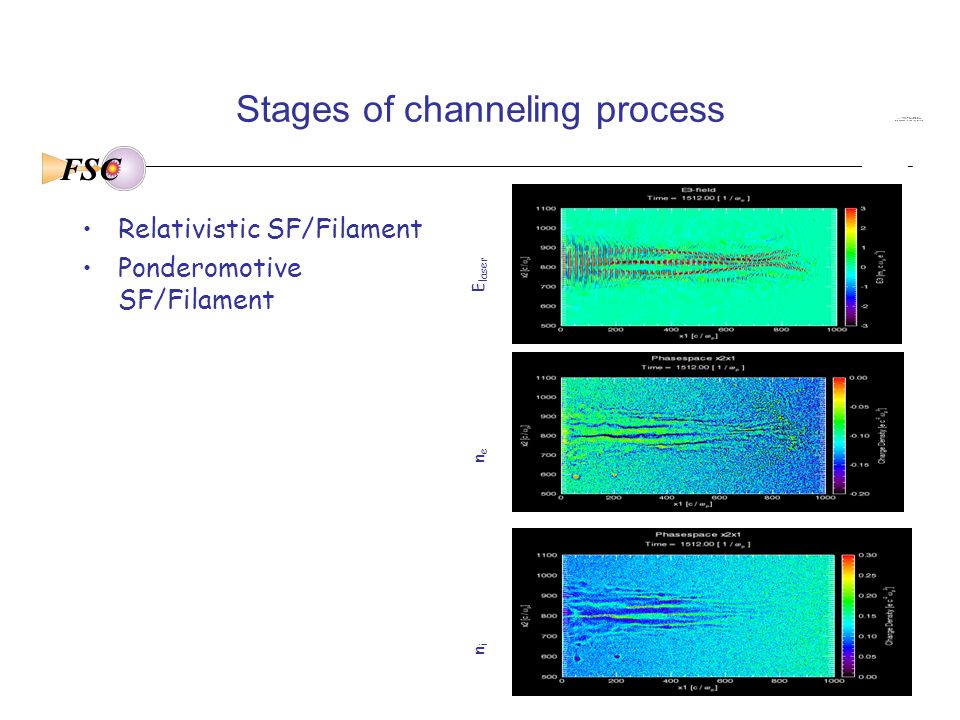

19. FSC Relativistic SF/Filament Ponderomotive SF/Filament Stages of channeling process E laser nene nini

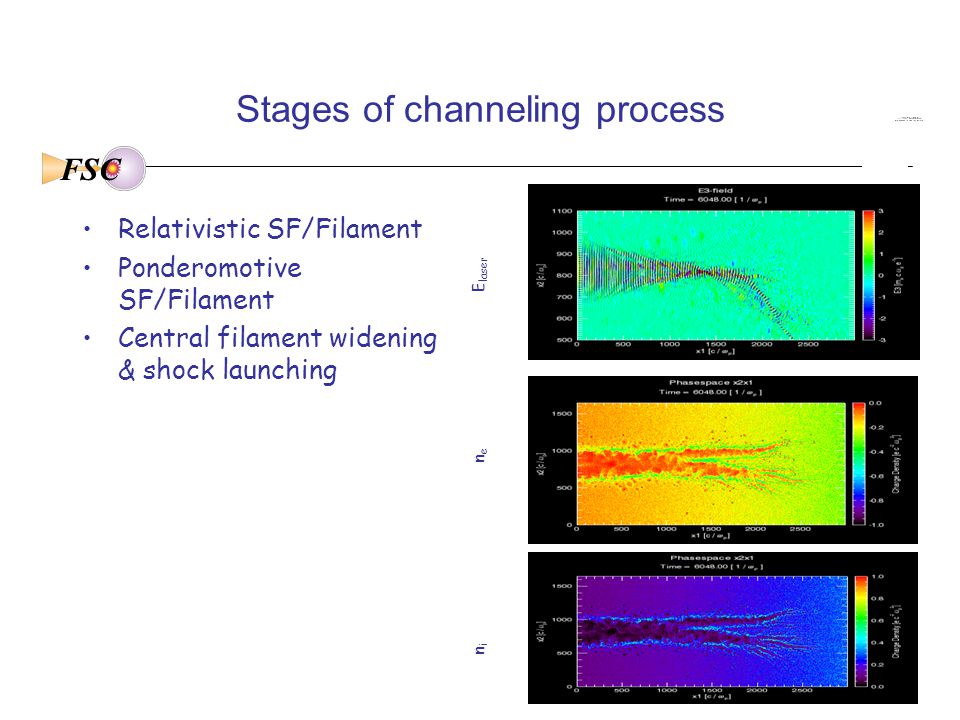

20. FSC Relativistic SF/Filament Ponderomotive SF/Filament Central filament widening & shock launching Stages of channeling process E laser nene nini

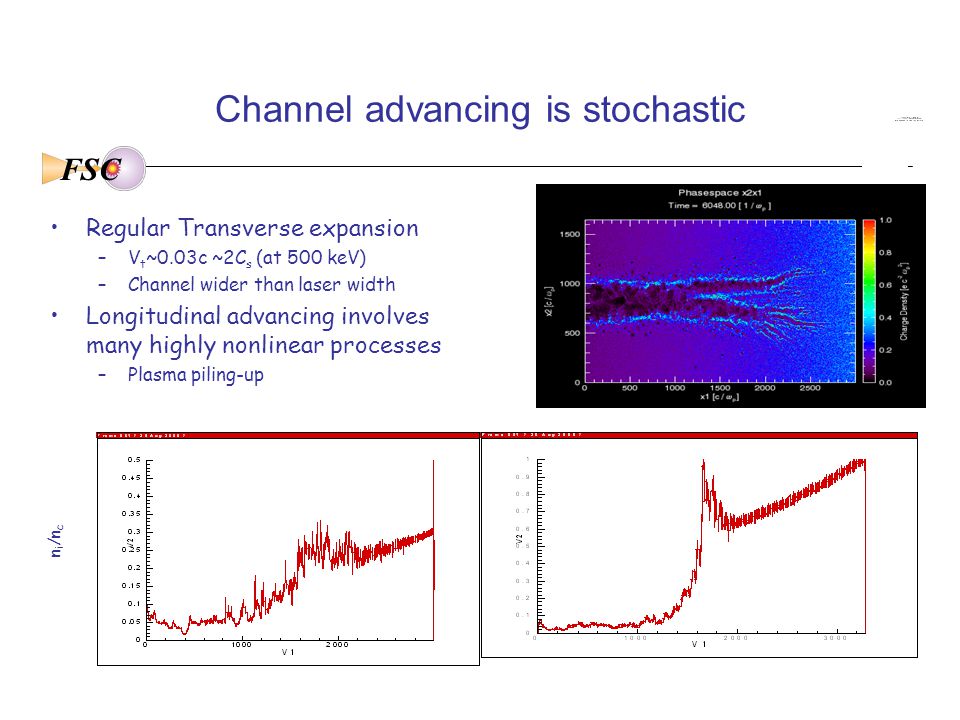

21. FSC Channel advancing is stochastic Regular Transverse expansion –V t ~0.03c ~2C s (at 500 keV) –Channel wider than laser width Longitudinal advancing involves many highly nonlinear processes –Plasma piling-up n i /n c

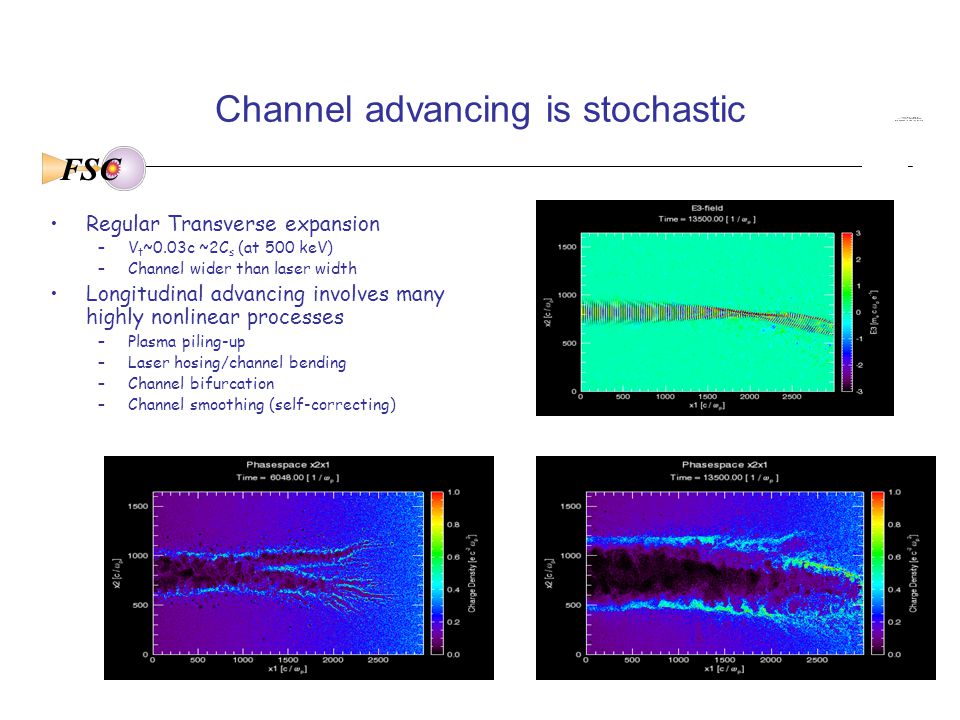

22. FSC Channel advancing is stochastic Regular Transverse expansion –V t ~0.03c ~2C s (at 500 keV) –Channel wider than laser width Longitudinal advancing involves many highly nonlinear processes –Plasma piling-up –Laser hosing/channel bending –Channel bifurcation –Channel smoothing (self-correcting)

23. FSC How long does it to take to get to 1n c ? p-pol s-pol The 14  m-wide beam shows uneven advancing speed –V  0.1c->t=30 ps –V>(mn c /Mn) 1/2 a=0.04c (for n=n c ) t<80 ps 3D effects (p-pol vs s-pol) –V s >V p –W s <W p

24. FSC It will take blue light to channel to 10 22 cm -3 Hole-boring from 1n c to 10 n c takes >300 ps Tripling the frequency of channeling pulse can channel to 10 22 cm -3

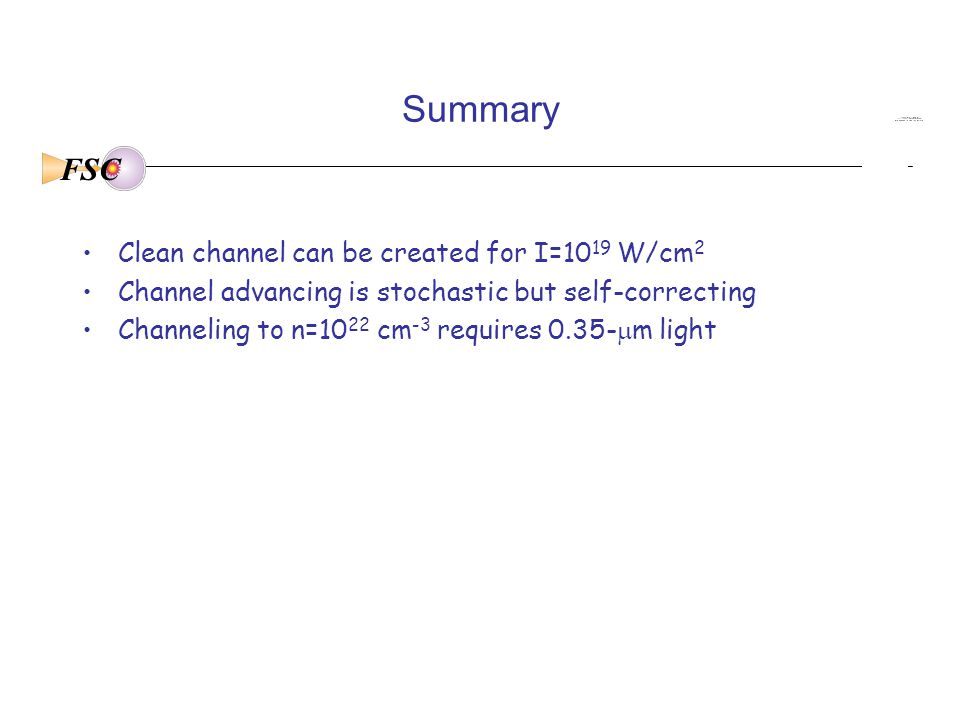

25. FSC Summary Clean channel can be created for I=10 19 W/cm 2 Channel advancing is stochastic but self-correcting Channeling to n=10 22 cm -3 requires 0.35-  m light
