1. A TUTORIAL Stefano Nolfi Neural Systems & Artificial Life National Research Council Roma, Italy nolfi@ip.rm.cnr.it Dario Floreano Microengineering Dept. Swiss Federal Institute of Technology Lausanne, Switzerland dario.floreano@epfl.ch

2. TUTORIALStefano Nolfi & Dario Floreano, 2000 The method fitness function genotype-to-phenotype mapping

3. TUTORIALStefano Nolfi & Dario Floreano, 2000 Behavior-Based Robotics & ER locomote avoid hitting things explore manipulate the world build maps sensorsactuators behavior-based robotics [Brooks, 1986] evolutionary robotics ? ? ? ? ? sensorsactuators

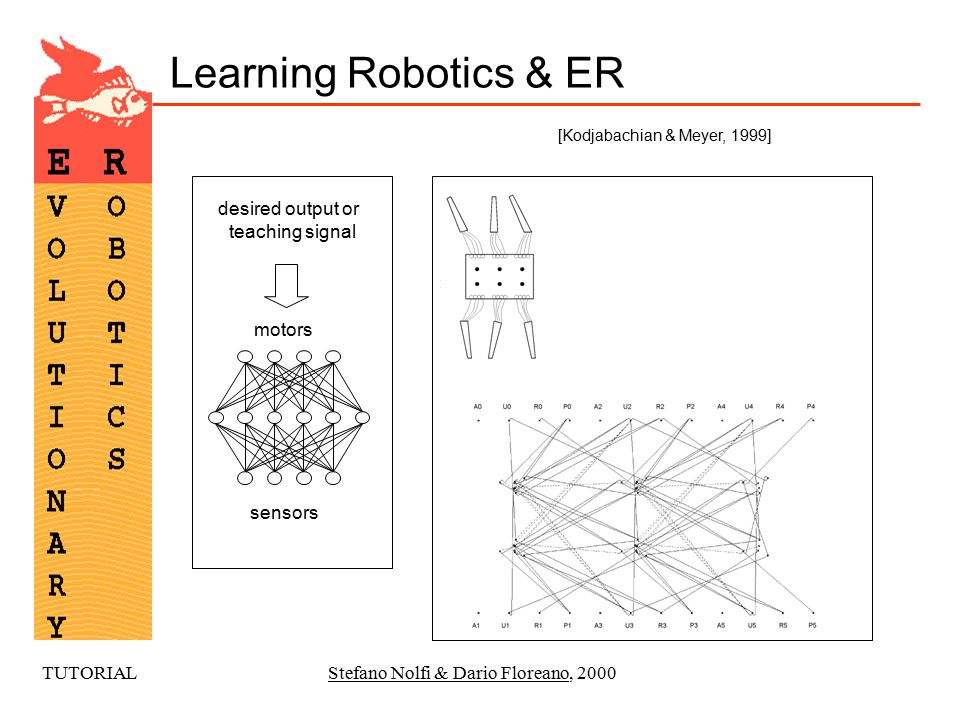

4. TUTORIALStefano Nolfi & Dario Floreano, 2000 Learning Robotics & ER sensors motors desired output or teaching signal [Kodjabachian & Meyer, 1999]

5. TUTORIALStefano Nolfi & Dario Floreano, 2000 Artificial Life & ER [Menczer and Belew, 1997] [Floreano and Mondada 1994]

6. TUTORIALStefano Nolfi & Dario Floreano, 2000 How to Evolve Robots evolution on the real world [Floreano and Nolfi, 1998] evolution on simulation + test on the real robot [Nolfi, Floreano, Miglino, Mondada 1994]

7. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolution in the Real World mechanical robustness energy supply analysis [© K-Team SA] [Floreano and Mondada, 1994]

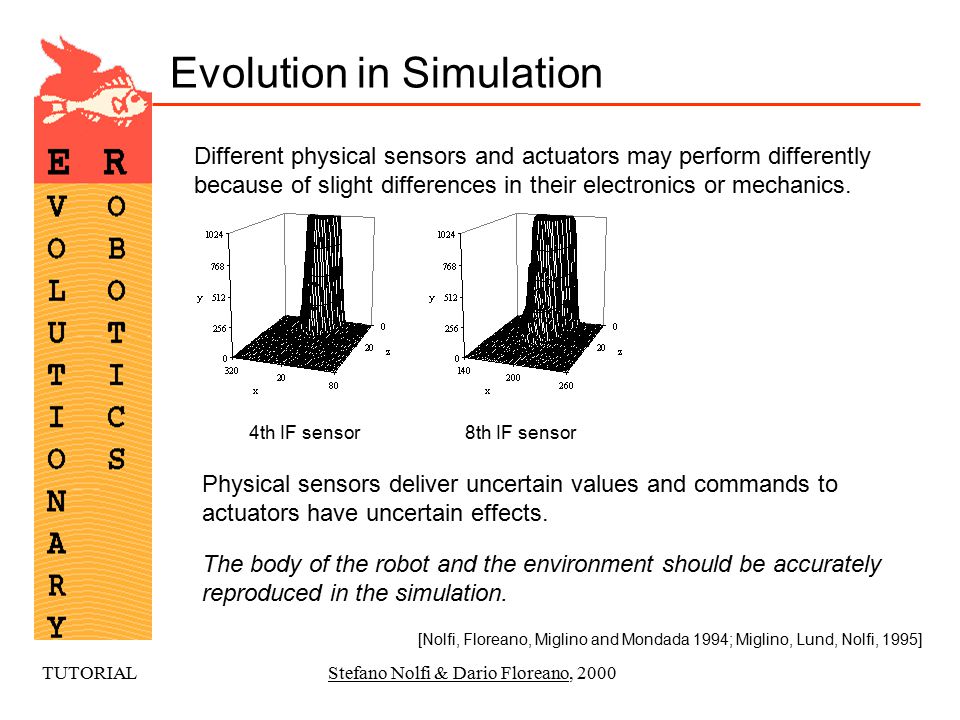

8. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolution in Simulation Different physical sensors and actuators may perform differently because of slight differences in their electronics or mechanics. Physical sensors deliver uncertain values and commands to actuators have uncertain effects. The body of the robot and the environment should be accurately reproduced in the simulation. 4th IF sensor8th IF sensor [Nolfi, Floreano, Miglino and Mondada 1994; Miglino, Lund, Nolfi, 1995]

9. TUTORIALStefano Nolfi & Dario Floreano, 2000 Designing the Fitness Function FEE functions that describe how the controller should work (functional), rate the system on the basis of several variables and constraints (explicit), and employ precise external measuring devices (external) are appropriate to optimize a set of parameters for complex but well defined control problem in a well-controlled environment. BII functions that rate only the behavioral outcome of an evolutionary controller (behavioral), rely on few variables and constraints (implicit) that be computed on-board (internal) are suitable for developing adaptive robots capable of autonomous operation in partially unknown and unpredictable environments without human intervention. [Floreano et al, 2000]

10. TUTORIALStefano Nolfi & Dario Floreano, 2000 Genetic Encoding Evolvability Expressive power Compactess Simplicity [Gruau, 1994, Nolfi and Floreano 2000]

11. TUTORIALStefano Nolfi & Dario Floreano, 2000 Adaptation is more Powerful than Decomposition and Integration The main strategy followed to develop mobile robots has been that of Divide and Conquer: 1) divide the problem into a list of hopefully simpler sub-problems 2) build a set of modules or layers able to solve each sub-problem 3) integrate the modules so to solve the whole problem Unfortunately, it is not clear how a desired behavior should be broken down

12. TUTORIALStefano Nolfi & Dario Floreano, 2000 Proximal and Distal Descriptions of Behaviors [Nolfi, 1997]

13. TUTORIALStefano Nolfi & Dario Floreano, 2000 Discrimination Task (1) explore avoid approach discriminate sensorsactuators decomposition and integration walls and cylinders small and large cylinders [Nolfi, 1996,1999]

14. TUTORIALStefano Nolfi & Dario Floreano, 2000 Discrimination Task (2) explore avoid approach discriminate sensorsactuators [Nolfi, 1996]

15. TUTORIALStefano Nolfi & Dario Floreano, 2000 Discrimination Task (3) [Scheier, Pfeifer, and Kuniyoshi, 1998] Evolved robots act so to select sensory patterns that are easy to discriminate

16. TUTORIALStefano Nolfi & Dario Floreano, 2000 The Importance of Self-organization Operating a decomposition at the level of the distal description of behavior does not necessarily simplify the challenge By allowing individuals to self-organise, artificial evolution tends to find simple solutions that exploit the interaction between the robot and the environment and between the different internal mechanism of the control system. [Nolfi, 1996,1997]

17. TUTORIALStefano Nolfi & Dario Floreano, 2000 Modularity and Behaviors Is modularity useful in ER ? What is the relation between self-organized neural modules and behaviors ? [Nolfi, 1997]

18. TUTORIALStefano Nolfi & Dario Floreano, 2000 The Garbage Collecting Task (1) [Nolfi, 1997]

19. TUTORIALStefano Nolfi & Dario Floreano, 2000 The Garbage Collecting Task (2) There is not a correspondence between self-organized neural modules and sub-behaviors Modular neural controller able to self-organize outperform other architectures [Nolfi, 1997]

20. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolving “complex” behaviors Bootstrap problem: selecting individuals directly for their ability to solve a task only works for simple tasks Incremental Evolution: starting with a simplified version of the task and then progressively increasing complexity Including in the selection criterion also a reward for sub-components of the desired behavior Start with a simplified version of the task and then progressively increase its complexity by modifying the selection criterion

21. TUTORIALStefano Nolfi & Dario Floreano, 2000 Visually-Guided Robots [Cliff et al. 1993; Harvey et al. 1994]

22. TUTORIALStefano Nolfi & Dario Floreano, 2000 Learning & Evolution: Interactions Different time scales, different mechanisms, similar effects Learning Advantages in Evolution [Nolfi & Floreano, 1999] : –Adapt to changes that occur faster than a generation –Extract information that might channel the course of evolution –Help and guide evolution –Reduce genetic complexity and increase population diversity Learning Costs in Evolution [Mayley, 1997] : –Delay in the ability to achieve fit behaviors –Increased unreliability (learning wrong things) –Physical damages, energy waste, tutoring Baldwin effect [Baldwin, 1896; Morgan, 1896; Waddington, 1942]

23. TUTORIALStefano Nolfi & Dario Floreano, 2000 Hinton & Nowlan model [1987] Learning samples space in the surrounding of the individual Fitness landscape is smoothed and evolution becomes faster Baldwin effect (assimilation of features normally « learnt ») Model constraints: –Learning task and evolutionary task are the same –Learning is a random process –Environment is static –Genotype and Phenotype space are correlated 00?11???0111?0?1?0?1 1 1 ? 0 ? 0 Fitness=correct combination of weights

24. TUTORIALStefano Nolfi & Dario Floreano, 2000 Different Tasks [Nolfi, Elman, Parisi, 1994] -Evolving for food -Learning predictions -Learning mechanism=BP -Increased speed & fitness -Genetic assimilation

25. TUTORIALStefano Nolfi & Dario Floreano, 2000 Perspectives on Landscape Correlated landscapes [Parisi & Nolfi, 1996] Relearning effects to compensate mutations [Harvey, 1997] (it may hold only in few cases) A C B1 Q P B2 A=weights evolved for food finding C=weights trained for prediction B1, B2= new position after mutation Fitness=higher when closer to A

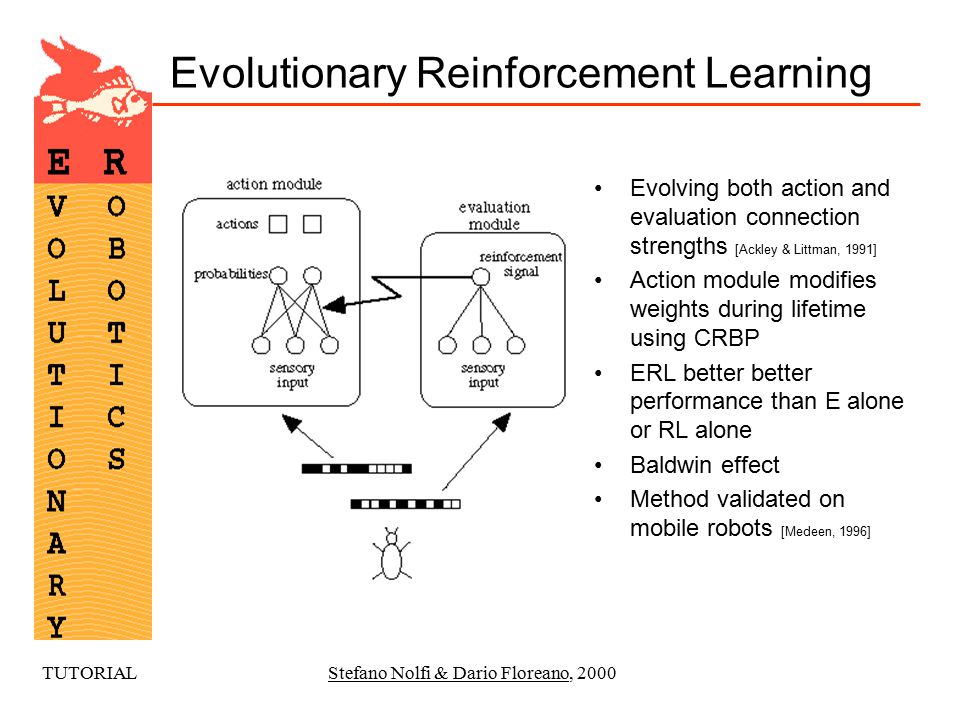

26. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolutionary Reinforcement Learning Evolving both action and evaluation connection strengths [Ackley & Littman, 1991] Action module modifies weights during lifetime using CRBP ERL better better performance than E alone or RL alone Baldwin effect Method validated on mobile robots [Medeen, 1996]

27. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolutionary Auto-teaching All weights genetically encoded, but one half teaches the other half using Delta rule [Nolfi & Parisi, 1991] Individuals can live in one of two environments, randomly determined at birth Learning individuals adapt strategy to environment and display higher fitness Learning No learning

28. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolution of Learning Mechanisms (1) Encoding learning rules, NOT learning weights [Floreano & Mondada, 1994] Weights always initialized to random values Different weights can use different rules within same network Adaptive method can be applied to node encoding (short genotypes) 1 synapse synapse sign synapse strength Genetically-determined 1 synapse synapse sign learning rule - hebb - postsynaptic - presynaptic - covariance learning rate Adaptive

29. TUTORIALStefano Nolfi & Dario Floreano, 2000 Sequential task & unpredictable change Faster and better results [Floreano & Urzelai, 2000] Automatic decomposition of sequential task Synapses continuously change Evolved robots adapt online to upredictable change [Urzelai & Floreano, 2000] : –Illumination –From simulations to robots –Environmental layout –Different robotic platform –Lesions to motor gears [Eggenberge et al., 1999] Genetically-determined Adaptive

30. TUTORIALStefano Nolfi & Dario Floreano, 2000 Summary Learning is very useful for robotic evolution: –accelerates and boosts evolutionary performance –can cope with fast changing environments –can adapt to unpredictable sources of change Lamarck evolution (inherit learned properties) may provide short- term gains [Lund, 1999], but it does not display all the advantages listed above [Sasaki & Tokoro, 1997, 1999] Distinction between learning and adaptation [Floreano & Urzelai, 2000] : –Adaptation does not necessary develops and capitalize upon new skills and knowledge –Learning is an incremental process whereby new skills and knowledge are gradually acquired and integrated

31. TUTORIALStefano Nolfi & Dario Floreano, 2000 Competitive Co-evolution Fitness of each population depends on fitness of opponent population. Examples: –Predator-prey –Host-parasite It may increase adaptive power by producing an evolutionary arms race [Dawkins & Krebs, 1979] More complex solutions may incrementally emerge as each population tries to win over the opponent It may be a solution to the boostrap problem Fitness function plays a less important role Continuously changing fitness landscape may help to prevent stagnation in local minima [Hillis, 1990]

32. TUTORIALStefano Nolfi & Dario Floreano, 2000 Co-evolutionary Pitfalls The same set of solutions may be discovered over and over again. This cycling behavior may end up in very simple solutions. Solution: Retain best individuals of last few gens (Hall-of-Fame->all gens). Whereas in conventional evolution the fitness landscape is static and fitness is a monotonic function of progress, in competitive co-evolution the fitness landscape can be modified by the competitor and fitness function is no longer an indicator of progress. Solution: Master Fitness (after evolution test each best against all best), CIAO graphs (test each best against all previous best).

33. TUTORIALStefano Nolfi & Dario Floreano, 2000 Examples of Co-evolutionary Agents Simulated predator-prey [Cliff & Miller, 1997] Distance-based fitness 100s generations CIAO method et al. Evolution of sensors Ball-catching agents [Sims, 1994] Distance-based fitness Rare good results

34. TUTORIALStefano Nolfi & Dario Floreano, 2000 Co-evolutionary Robots Energetically autonomous Predator-prey scenarion Time-based fitness Controllers downloaded to increase reaction speed Retain last best 5 controllers for testing individuals Predators=vision+proximity Prey=proximity+faster Predator genotype longer Prey has initial position advantage Floreano, Nolfi, & Mondada, 1998

35. TUTORIALStefano Nolfi & Dario Floreano, 2000 Co-evolutionary Results Predators do not attempt to minimize distance Prey maximize distance progressbestfun

36. TUTORIALStefano Nolfi & Dario Floreano, 2000 Increasing Environmental Complexity 36  240  …prevents premature cycling [Nolfi & Floreano, 1999]

37. TUTORIALStefano Nolfi & Dario Floreano, 2000 Summary Competitive co-evolution is challenging because: –Fitness landscape is continuously changing –Hard to monitor progress online –Cycling local minima When environment is sufficiently complex, or Hall-of-Fame method is used, the system develops increasing more complex solutions It can work and capitalize on very implicit, internal, and behavioral fitness functions by exploring a large range of behaviors triggered by opponents When co-evolving adaptive mechanisms, prey resort to random actions whereas predators adapt online to the prey strategy and report better performance [Floreano & Nolfi, 1997]

38. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolvable Hardware Evolution of electronic circuits http://www.cogs.susx.ac.uk/users/adrianth/EHW_groups.html Evolution of body morphologies (including sensors) Why evolve hardware? –Hardware choice constrains environmental interactions and the course of evolution –Evolved solutions can be more efficient than those designed by humans –Develope new adaptive materials with self-configuration and self-repair abilities

39. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolutionary Control Circuits Thompson’s unconstrained evolution Xilinx, family 6000, overwrite global synchronization Tone reproduction Robot control Fitness landscape studies (very rugged, neutral networks) Evolvable Hardware Module for Khepera http://www.aai.ca

40. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolutionary Control Circuits Keymeulen: evolution of vision based controllers Find ball while avoiding obstacles Constrained evolution, entirely on physical robot De Garis: CAM Brain, composed of tens of Xilinx FPGAs, 6000 family Growth of neural circuits using CA with evolved rules Willing to evolve brain for kitten robot. Pitfall: speed limited by sensory- motor loop.

41. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evolutionary Morphologies Evolution of Lego Structures [Funes et al,, 1997] Bridges Cranes Extended to objects and robot bodies see www.demo.cs.brandeis.edu Example of evolved crane [Funes et al,, 1997]

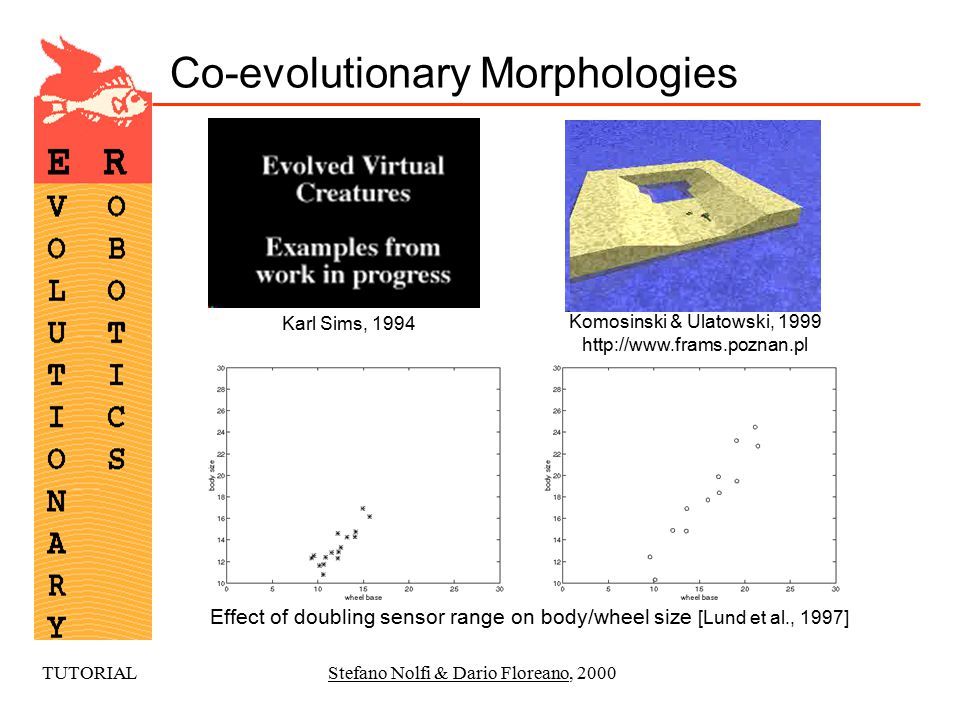

42. TUTORIALStefano Nolfi & Dario Floreano, 2000 Co-evolutionary Morphologies Karl Sims, 1994 Komosinski & Ulatowski, 1999 http://www.frams.poznan.pl Effect of doubling sensor range on body/wheel size [Lund et al., 1997]

43. TUTORIALStefano Nolfi & Dario Floreano, 2000 Suggestions for Further Research Encoding and mapping of control systems Exploration of alternative building blocks Integration of growth, learning, and maturation Incremental and open-ended evolution Morphology and sensory co-evolution Application to large-scale circuits User-directed evolution Comparison with other adaptive techniques Further readings: –Nolfi, S. & Floreano, D. Evolutionary Robotics. The Biology, Technoloy, and Intelligence of Self-Organizing Machines. MIT Press, October 2000 –Husbands, P. & Meyer, J-A. (Eds.) Evolutionary Robotics. Proceedings of the 1 st European Workshop, Springer Verlag, 1998 –Gomi, T. (Ed.) Evolutionary Robotics. Volume series: I (1997), II (1998), III (2000), AAI Books.

44. TUTORIALStefano Nolfi & Dario Floreano, 2000 Evorobot Simulator Sources, binaries, and documentation files freely available at: http://gral.ip.rm.cnr.it/evorobot/simulator.html [Nolfi, 2000]
