1. 1 EE 188L Lab #2 Test Bench Photos

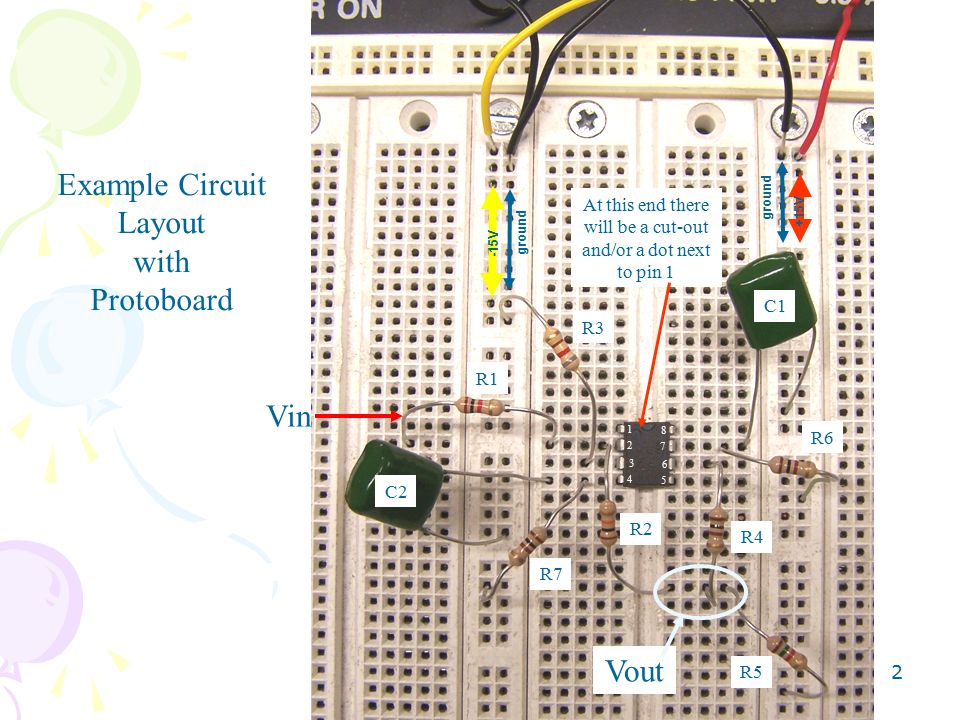

2. 2 Vout R1 R5 R4 R3 R2 1 2 3 4 5 6 8 7 C2 C1 R7 R6 At this end there will be a cut-out and/or a dot next to pin 1 -15V ground +15V ground Vin Example Circuit Layout with Protoboard

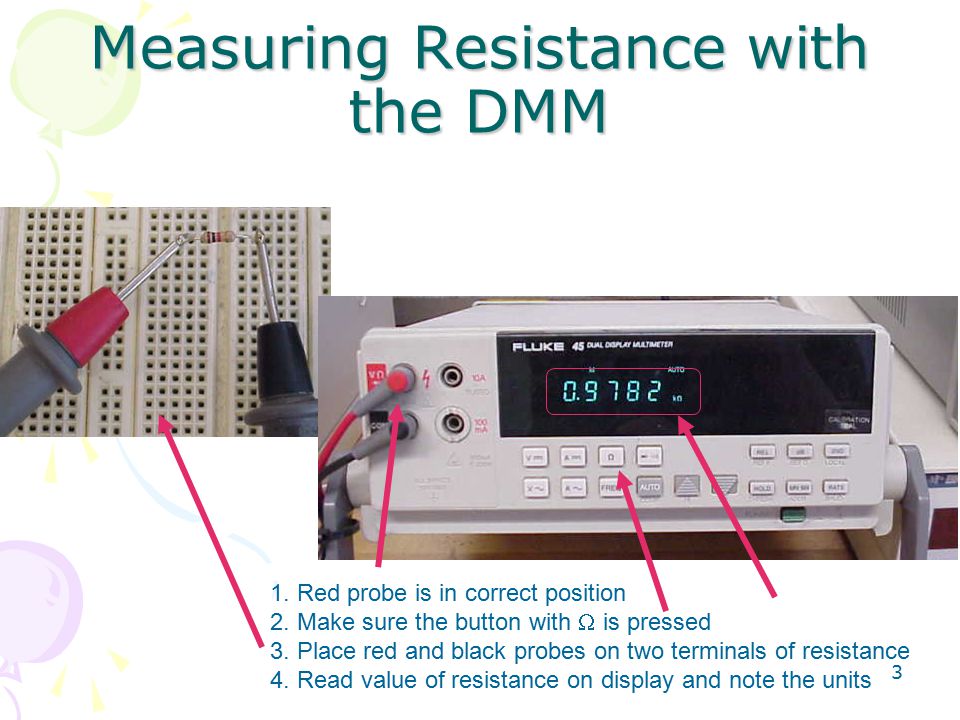

3. 3 Measuring Resistance with the DMM 1. Red probe is in correct position 2. Make sure the button with  is pressed 3. Place red and black probes on two terminals of resistance 4. Read value of resistance on display and note the units

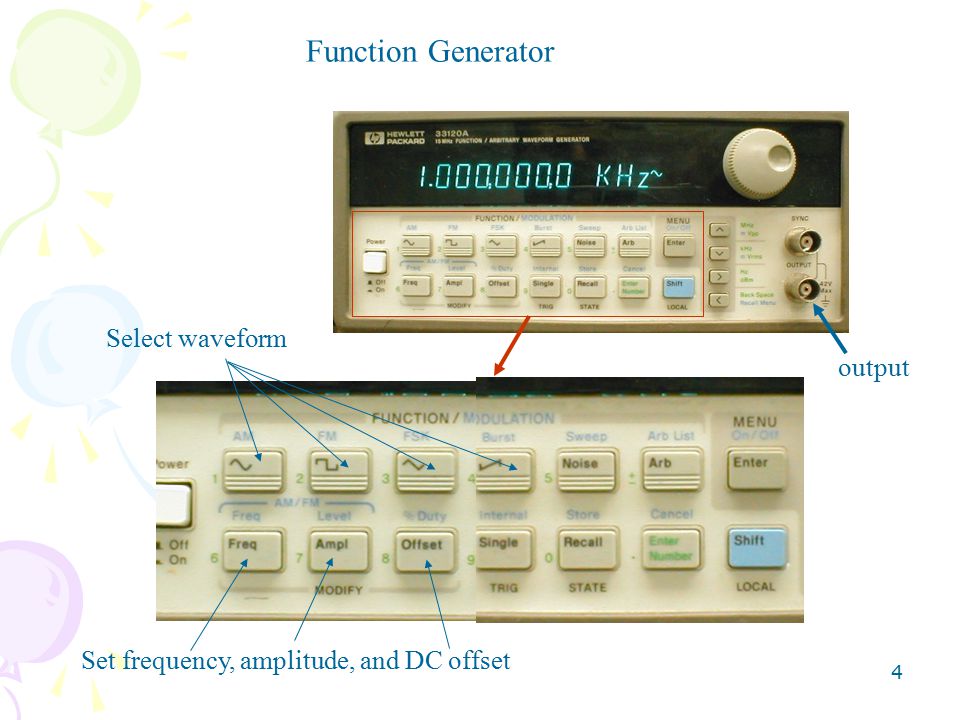

4. 4 Function Generator output Select waveform Set frequency, amplitude, and DC offset

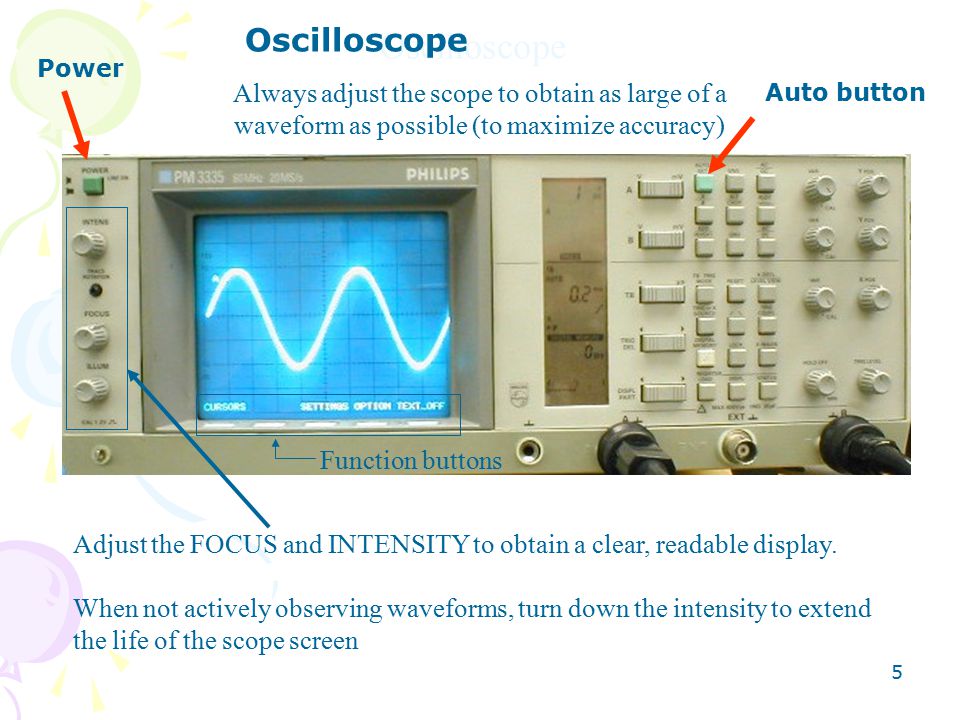

5. 5 Oscilloscope Always adjust the scope to obtain as large of a waveform as possible (to maximize accuracy) Adjust the FOCUS and INTENSITY to obtain a clear, readable display. When not actively observing waveforms, turn down the intensity to extend the life of the scope screen Function buttons Oscilloscope Power Auto button
