SUNY Morrisville-Norwich Campus-Week 12 CITA 130 Advanced Computer Applications II Spring 2005 Prof. Tom Smith.

Similar presentations

Presentation on theme: "SUNY Morrisville-Norwich Campus-Week 12 CITA 130 Advanced Computer Applications II Spring 2005 Prof. Tom Smith."— Presentation transcript:

1 SUNY Morrisville-Norwich Campus-Week 12 CITA 130 Advanced Computer Applications II Spring 2005 Prof. Tom Smith

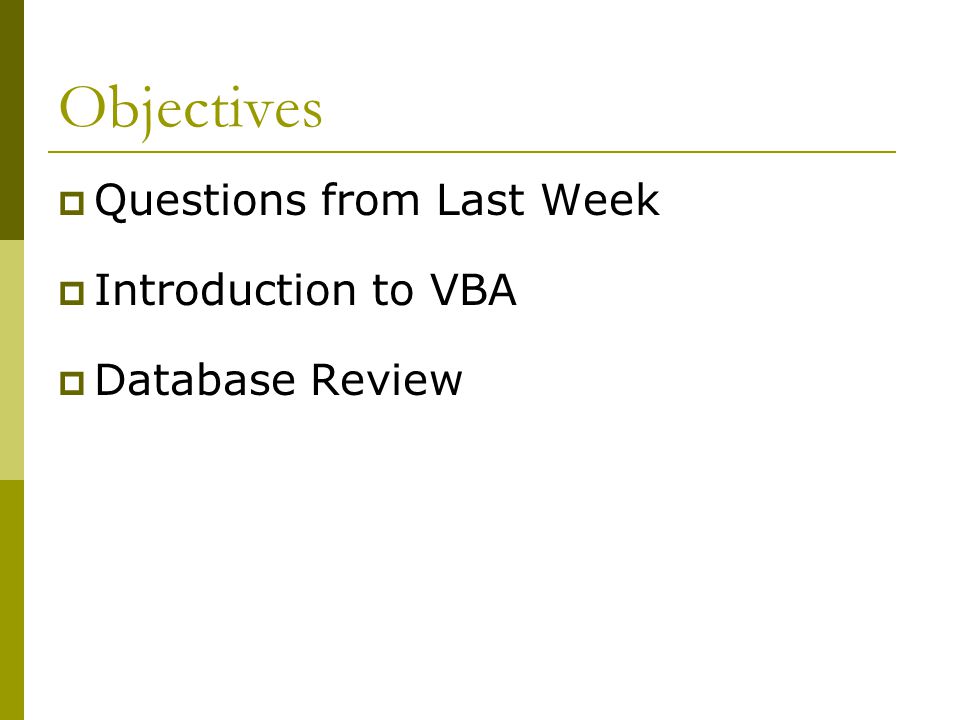

2 Objectives  Questions from Last Week  Introduction to VBA  Database Review

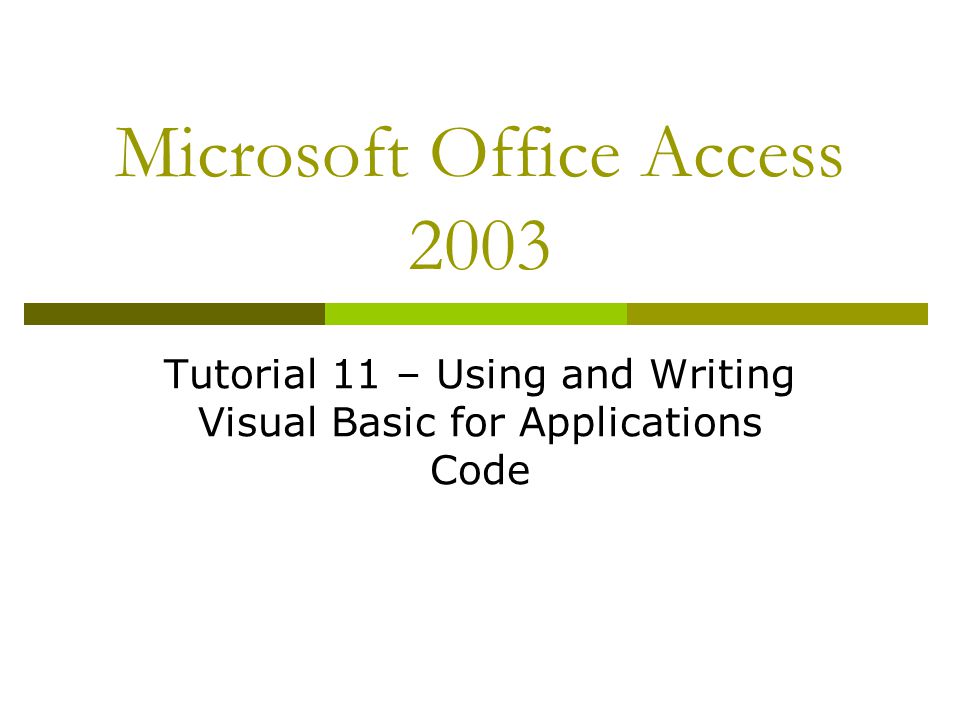

3 Microsoft Office Access 2003 Tutorial 11 – Using and Writing Visual Basic for Applications Code

4 Learn about VBA  When you work in Access, in the background, Visual Basic for Applications (VBA) code is being created.  You can also write your own VBA code that will alter the properties of objects, perform calculations, and many other custom actions.  Recall that an event is something that happens while using the database.  You can write a statement that, when an event occurs, responds by executing a series of VBA statements.

5 Function procedures, Sub procedures, and modules  Statements are grouped together into procedures, which can be either a function or a Sub procedure.  Common procedures are usually stored together into a module.  A module can be a standard module (stored in memory with other database objects) or it can be a class module (stored in association with a particular form or report).  With class modules, the procedures are available by the form or report for which the class module was created.

6 The structure of a VBA module

7 Learning VBA takes time and effort  Learning to write VBA code efficiently and accurately is the hardest part of learning to use Access.  In this tutorial, you are getting just a small view of VBA code.  You should keep in mind that you will not be considered a proficient VBA programmer following this tutorial.  Rather, if you want to be a database developer, you should probably take another course geared towards VBA programming.

8 Review and modify an existing Sub procedure in an event procedure  When a class module already exists, you can view the code for the procedures in the VBA editor: Open the property sheets for the object and then locate the event for which the procedure is written Click the Build button to open the Visual Basic window, which reveals the code stored in the class module  The window in which the code appears is called the Code window.

9 Use assignment statements  Procedures are enclosed between the Sub statement and the End Sub statement.  Within a procedure, you will see statements that work together called control structures.  Assignment statements assign a value to a field or property.  In some cases, an assignment statement might assign a new value to an object property.  You can make changes to VBA code in the Code window.

10 Event properties for a form

11 The Visual Basic Code window

12 Recognize VBA statements  In the Code window (shown in the previous slide) you would view, edit, and test your VBA statements.  You will probably not understand the statements that appear in this window.  However, there are a couple of statements that you will recognize: The first statement is the Private Sub statement The last statement is the End Sub statement  In this sample code, the ForeColor is changed under certain circumstances. The code used the RGB function, which will return a specified colored by using combinations of Red, Green, and Blue

13 A function that modifies an object’s color

14 RGB values for some colors

15 Create Function procedures in a standard module  To create new procedures click Modules on the objects bar and then click New.  This will open the Code window in the Visual Basic window.  To write a Sub procedure,begin with the Sub statement.  To write a Function procedure, begin with the Function statement.  The Function will end with the End Function statement.

16 Assign a name to a function  The Function statement is then followed with the name of the function.  If you will be passing values to the Function, the Function name is followed by a Parameter list (which could be just one item).  When you pass a value to a Function, it is called an argument.  When naming a Sub procedure or a function, you must follow the rules for naming objects.

17 Define a function in the Code window

18 Name and save your module  Once you have written your Function, you will need to save the module that holds the function.  When you click the Save button, you will be prompted to supply a name for the module.  This is not the same as naming the Function and you do not have to follow the name rules mentioned previously.  Recall that a module will hold a collection of procedures so you will want to name the module something that will indicate what is inside the module.

19 Use comments in your functions

20 Create event procedures  VBA is an event-driven language, meaning that when events takes place, procedures are triggered.  All event procedures are Sub procedures.  Access will automatically name the event in a standard way, which includes: The name of the control An underscore The event name

21 Add an event procedure  To add an event procedure to a class module: Open the object to which it will be attached Open its property sheet On the Event tab, select the event that will trigger the function  This will open the code window for the object you have selected.  Before you run your procedure, it must first be compiled.  The process of compilation is the process of converting the code to a format the computer can understand.

22 Use the If statement  A commonly used control structure is the If statement  The If statement provides a condition and then if the condition is true, a set of statements is executed; if it is false, a different set of statements is executed.  The If statement created in your tutorial incorporates the IsNull function into it.  The IsNull function returns a True value if the argument is empty (no text) and it returns a False value if the argument is not empty.

23 An example of an If statement

24 The function execution process

25 An example of an event procedure

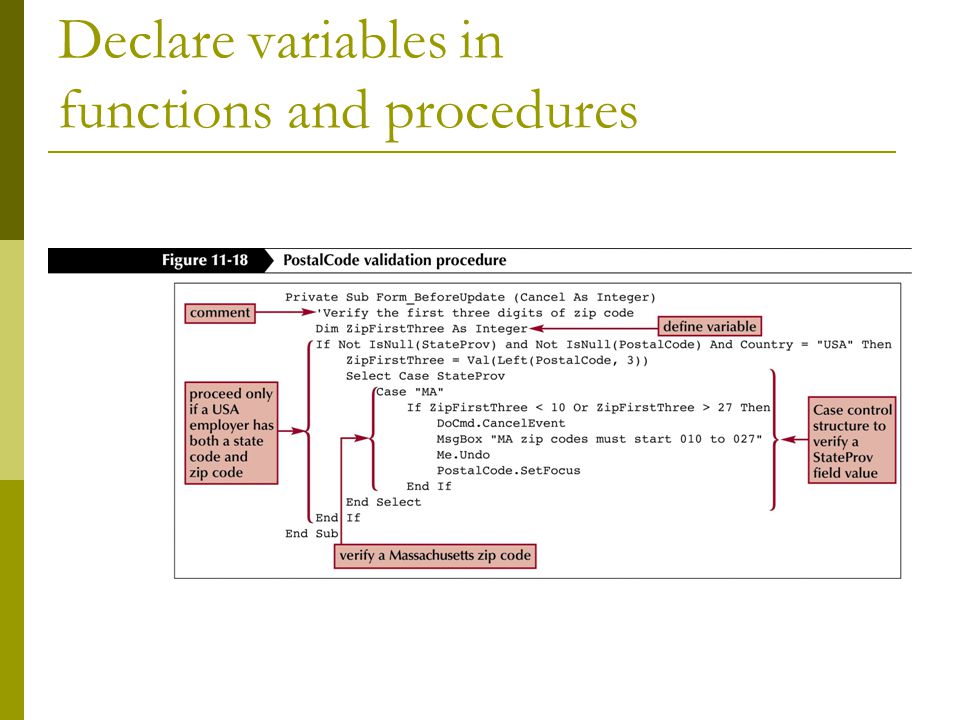

26 Declare variables in functions and procedures

27 Primary VBA Data Types

28 Compile and test Function procedures, Sub procedures and event procedures  When you compile a module, Access will look for errors in syntax.  If any errors are found, an error message will display. You will need to fix all syntax errors before the modules can complete compilation.  When no errors exist, Access will translate the procedure.  You should compile a module any time you make changes to make sure there are no syntax errors in its procedures.  You should also test each procedure to make sure it performs as you expect.

29 Database Review  Questions?  Databases/Tables  Queries  Reports  Forms  VBA
