1. Advanced Computer Architecture 5MD00 / 5Z033 MIPS Design data path and control Henk Corporaal www.ics.ele.tue.nl/~heco/courses/aca TUEindhoven 2007

2. H.Corporaal ACA 5MD002 Topics n Building a datapath u support a subset of the MIPS-I instruction-set n A single cycle processor datapath u all instruction actions in one (long) cycle n A multi-cycle processor datapath u each instructions takes multiple (shorter) cycles n Exception support n For details see book (ch 5):

3. H.Corporaal ACA 5MD003 Datapath and Control DatapathControl Registers & Memories Multiplexors Buses ALUs FSM or Micro- programming

4. H.Corporaal ACA 5MD004 n Simplified MIPS implementation to contain only:  memory-reference instructions: lw, sw  arithmetic-logical instructions: add, sub, and, or, slt  control flow instructions: beq, j n Generic Implementation: u use the program counter (PC) to supply instruction address u get the instruction from memory u read registers u use the instruction to decide exactly what to do n All instructions use the ALU after reading the registers Why? F memory-reference? F arithmetic? F control flow? The Processor: Datapath & Control

5. H.Corporaal ACA 5MD005 n Abstract / Simplified View: n Two types of functional units: u elements that operate on data values (combinational) u elements that contain state (sequential) More Implementation Details

6. H.Corporaal ACA 5MD006 Our Implementation n An edge triggered methodology n Typical execution: u read contents of some state elements, u send values through some combinational logic, u write results to one or more state elements Clock cycle State element 1 Combinational logic State element 2

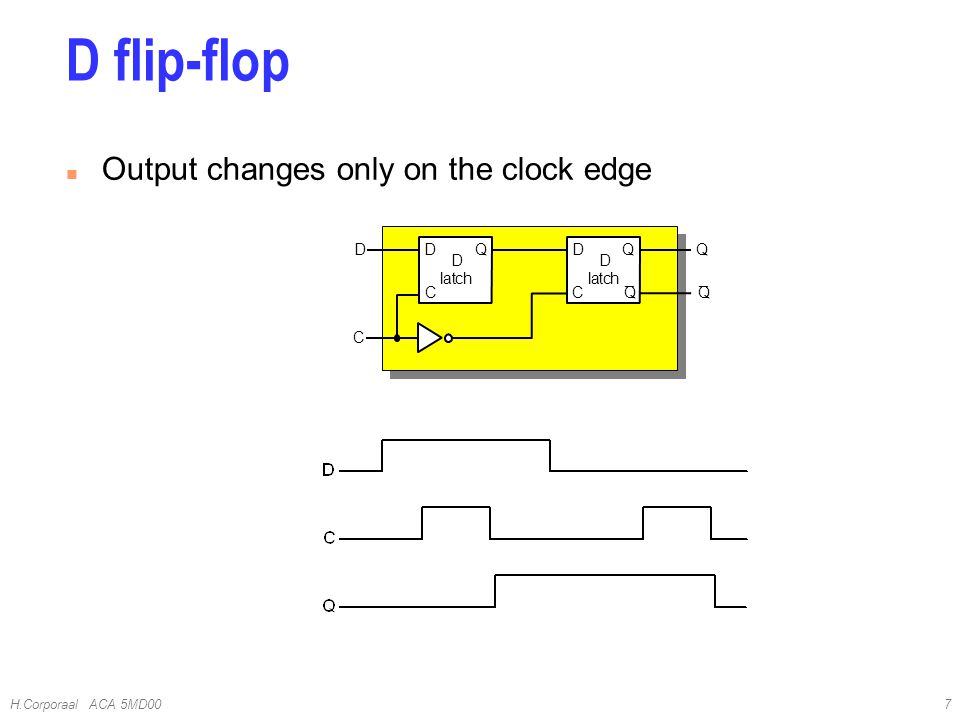

7. H.Corporaal ACA 5MD007 D flip-flop n Output changes only on the clock edge QQ _ Q Q _ Q D latch D C D latch DD C C

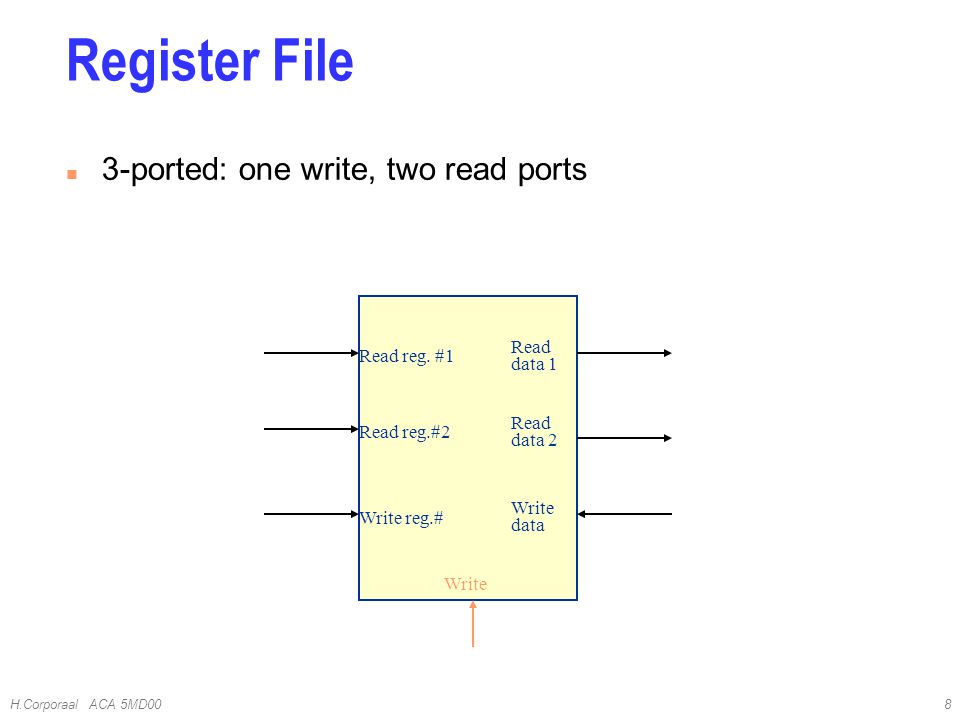

8. H.Corporaal ACA 5MD008 n 3-ported: one write, two read ports Register File Read reg. #1 Read reg.#2 Write reg.# Read data 1 Read data 2 Write data

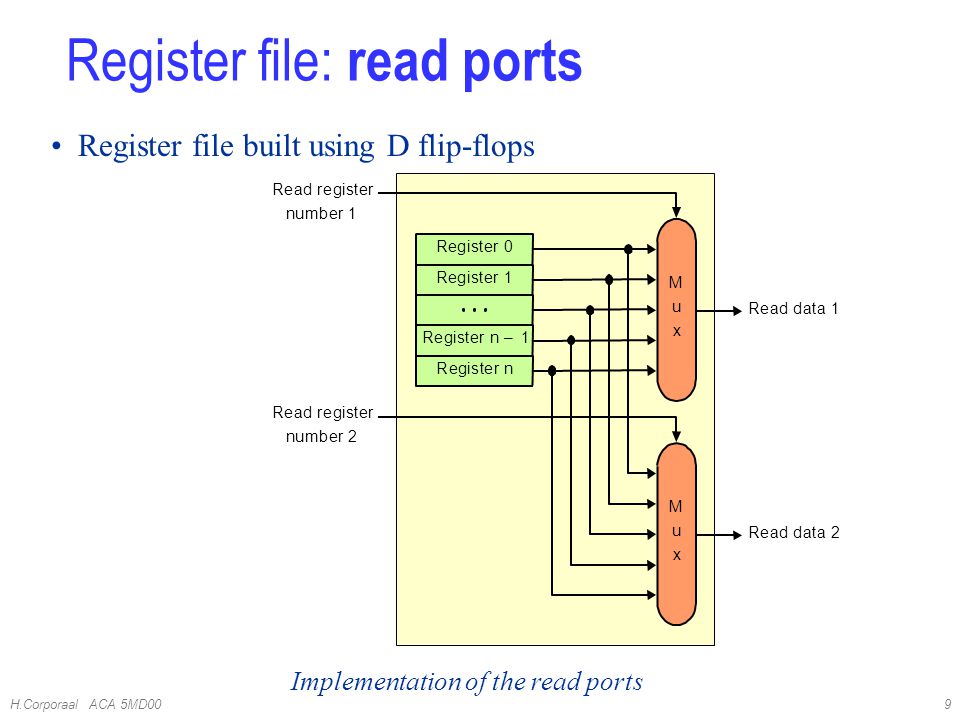

9. H.Corporaal ACA 5MD009 Register file: read ports Register file built using D flip-flops

10. H.Corporaal ACA 5MD0010 Register file: write port n Note: we still use the real clock to determine when to write

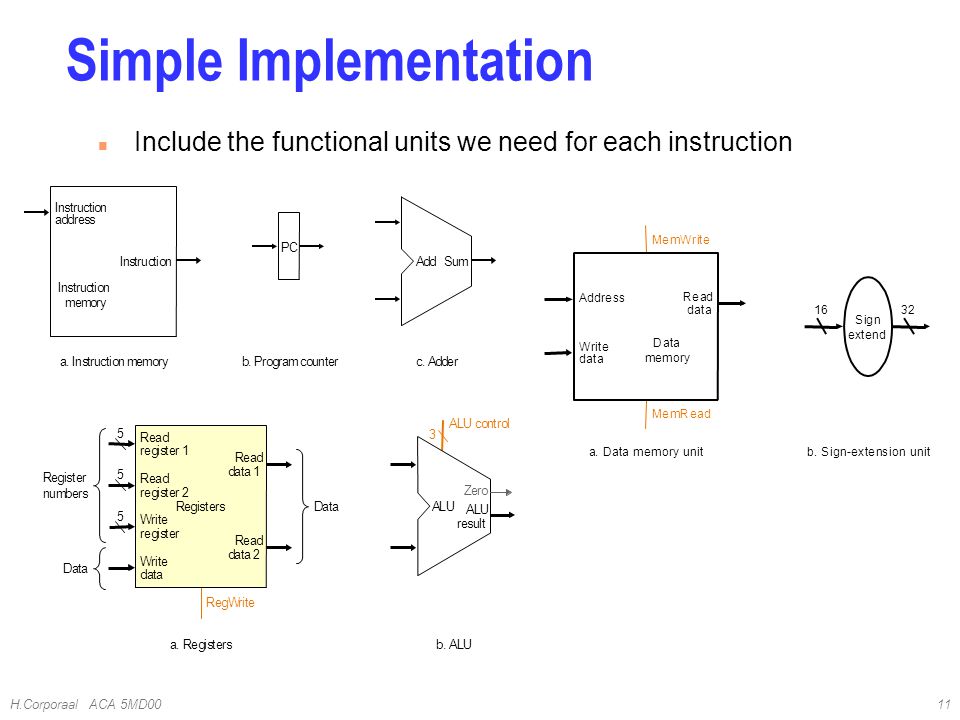

11. H.Corporaal ACA 5MD0011 Simple Implementation n Include the functional units we need for each instruction ALU control RegWrite Registers Write register Read data 1 Read data 2 Read register 1 Read register 2 Write data ALU result ALU Data Data Register numbers a. Registersb. ALU Zero 5 5 5 3

12. H.Corporaal ACA 5MD0012 Building the Datapath n Use multiplexors to stitch them together PC Instruction memory Read address Instruction 16 32 Add ALU result M u x Registers Write register Write data Read data 1 Read data 2 Read register 1 Read register 2 Shift left 2 4 M u x ALU operation 3 RegWrite MemRead MemWrite PCSrc ALUSrc MemtoReg ALU result Zero ALU Data memory Address Write data Read data M u x Sign extend Add

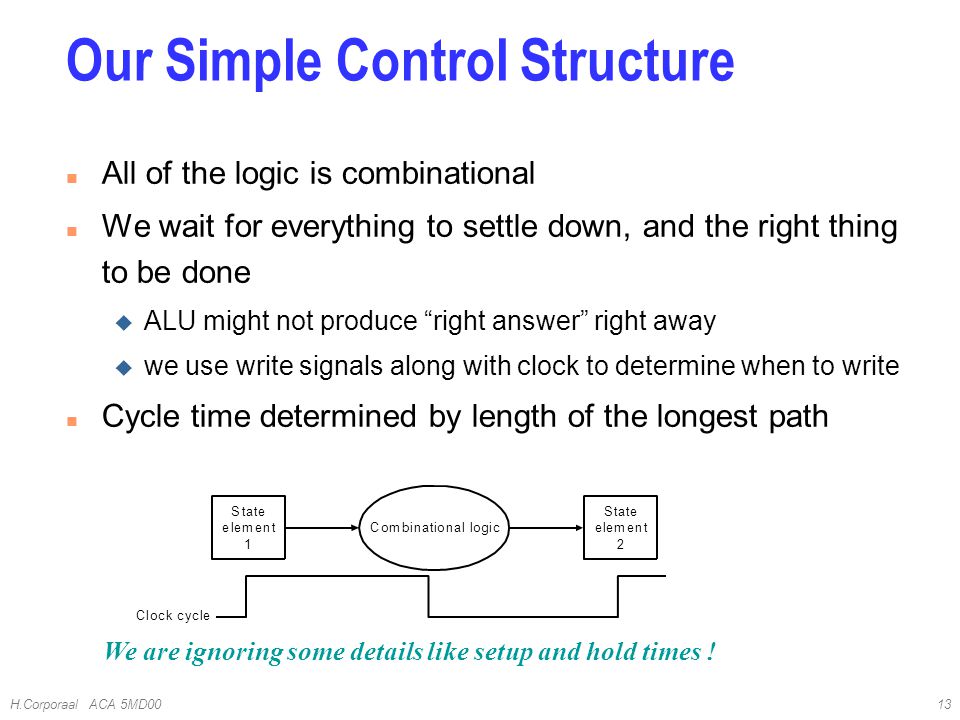

13. H.Corporaal ACA 5MD0013 n All of the logic is combinational n We wait for everything to settle down, and the right thing to be done u ALU might not produce “right answer” right away u we use write signals along with clock to determine when to write n Cycle time determined by length of the longest path Our Simple Control Structure We are ignoring some details like setup and hold times ! Clock cycle State element 1 Combinational logic State element 2

14. H.Corporaal ACA 5MD0014 Control n Selecting the operations to perform (ALU, read/write, etc.) n Controlling the flow of data (multiplexor inputs) n Information comes from the 32 bits of the instruction Example: add $8, $17, $18 Instruction Format: 000000 10001 10010 01000 00000 100000 op rs rt rd shamt funct n ALU's operation based on instruction type and function code

15. H.Corporaal ACA 5MD0015 Control: 2 level implementation instruction register ALUop ALUcontrol Opcode Funct. 31 26 0 5 bit Control 1 Control 2 ALU 00: lw, sw 01: beq 10: add, sub, and, or, slt 000: and 001: or 010: add 110: sub 111: set on less than 6 6 2 3

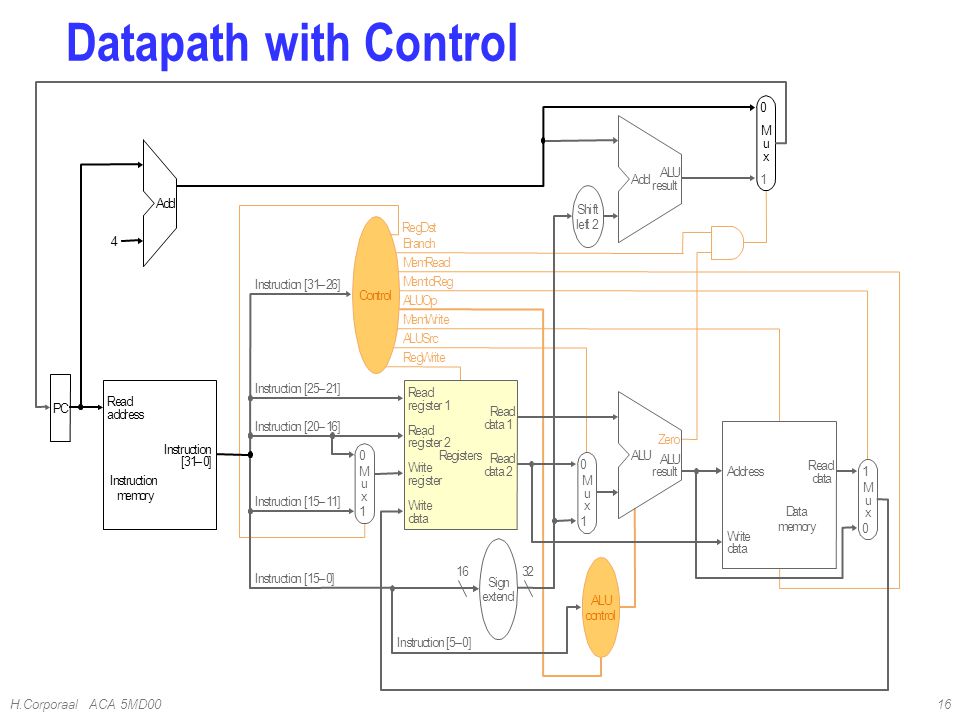

16. H.Corporaal ACA 5MD0016 Datapath with Control

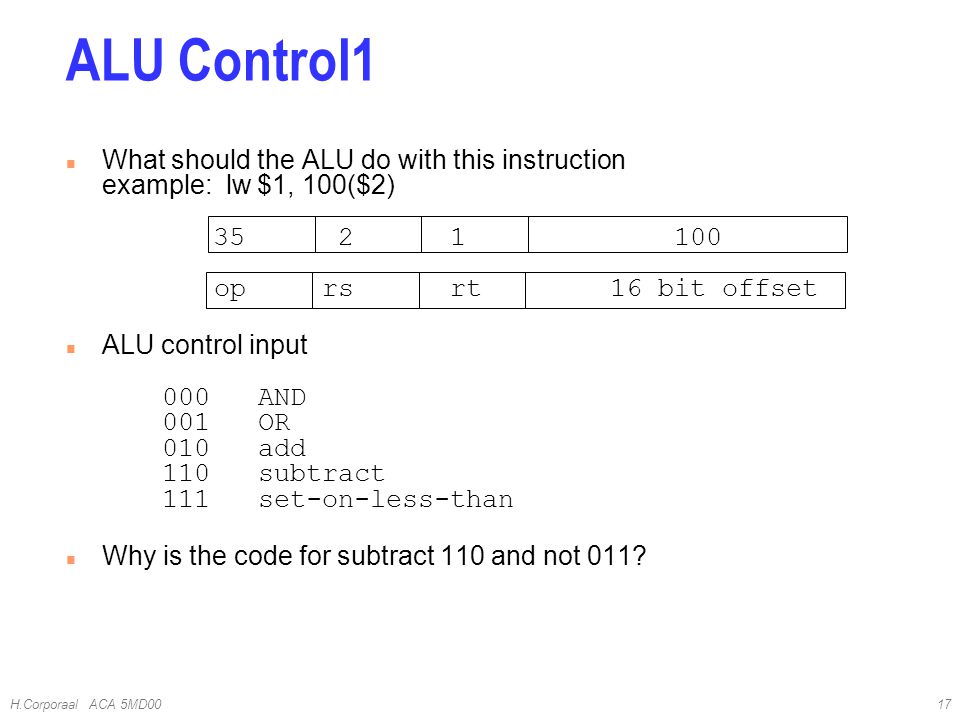

17. H.Corporaal ACA 5MD0017 What should the ALU do with this instruction example: lw $1, 100($2) 35 21 100 op rsrt 16 bit offset ALU control input 000 AND 001OR 010add 110subtract 111set-on-less-than n Why is the code for subtract 110 and not 011? ALU Control1

18. H.Corporaal ACA 5MD0018 n Must describe hardware to compute 3-bit ALU control input u given instruction type 00 = lw, sw 01 = beq, 10 = arithmetic u function code for arithmetic n Describe it using a truth table (can turn into gates): ALU Operation class, computed from instruction type ALU Control1 outputs intputs

19. H.Corporaal ACA 5MD0019 ALU Control1 n Simple combinational logic (truth tables)

20. H.Corporaal ACA 5MD0020 Deriving Control2 signals 9 control (output) signals Determine these control signals directly from the opcodes: R-format: 0 lw: 35 sw: 43 beq: 4 Input 6-bits

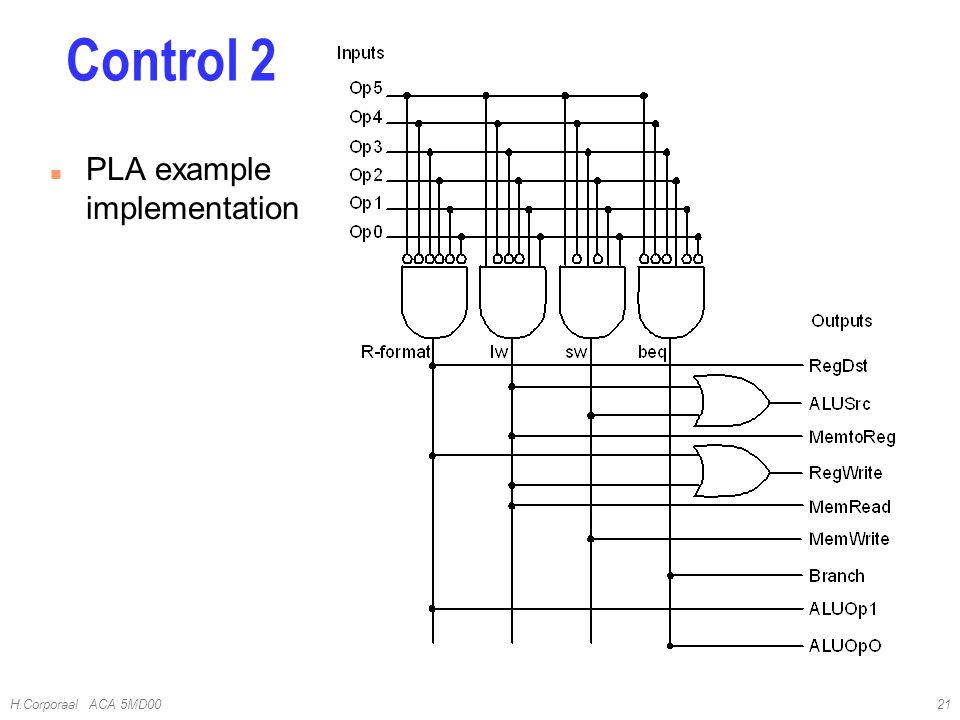

21. H.Corporaal ACA 5MD0021 Control 2 n PLA example implementation

22. H.Corporaal ACA 5MD0022 Single Cycle Implementation n Calculate cycle time assuming negligible delays except: u memory (2ns), ALU and adders (2ns), register file access (1ns)

23. H.Corporaal ACA 5MD0023 Single Cycle Implementation n Memory (2ns), ALU & adders (2ns), reg. file access (1ns) n Fixed length clock: longest instruction is the ‘lw’ which requires 8 ns n Variable clock length (not realistic, just as exercise): u R-instr: 6 ns u Load: 8 ns u Store: 7 ns u Branch: 5 ns u Jump: 2 ns n Average depends on instruction mix (see pg 374)

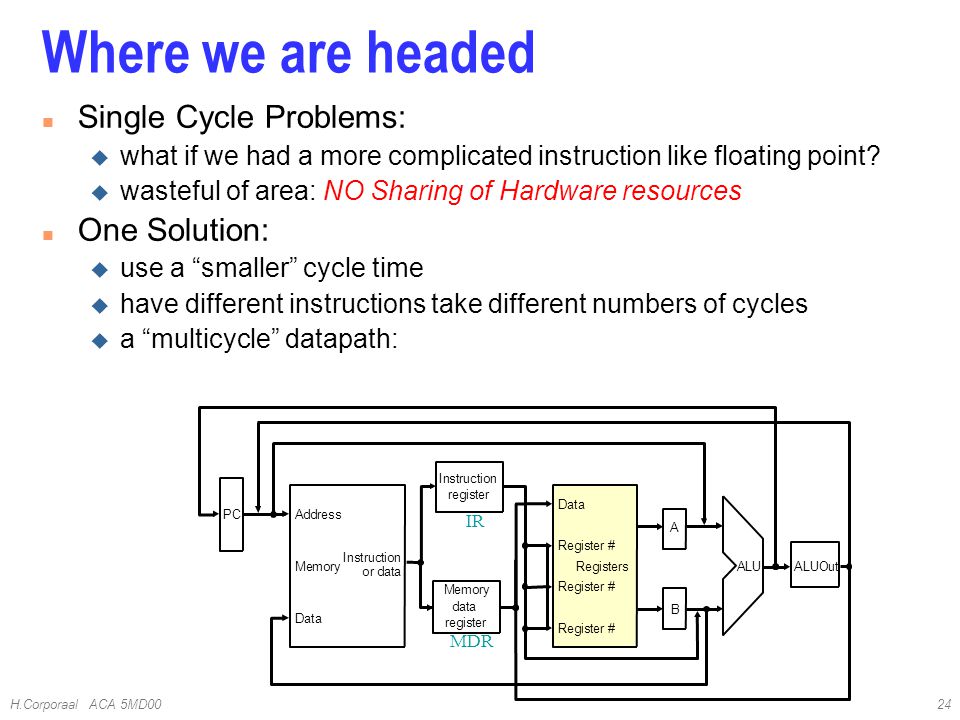

24. H.Corporaal ACA 5MD0024 Where we are headed n Single Cycle Problems: u what if we had a more complicated instruction like floating point? u wasteful of area: NO Sharing of Hardware resources n One Solution: u use a “smaller” cycle time u have different instructions take different numbers of cycles u a “multicycle” datapath: IR MDR

25. H.Corporaal ACA 5MD0025 n We will be reusing functional units u ALU used to compute address and to increment PC u Memory used for instruction and data n Add registers after every major functional unit n Our control signals will not be determined solely by instruction u e.g., what should the ALU do for a “subtract” instruction? n We’ll use a finite state machine (FSM) or microcode for control Multicycle Approach

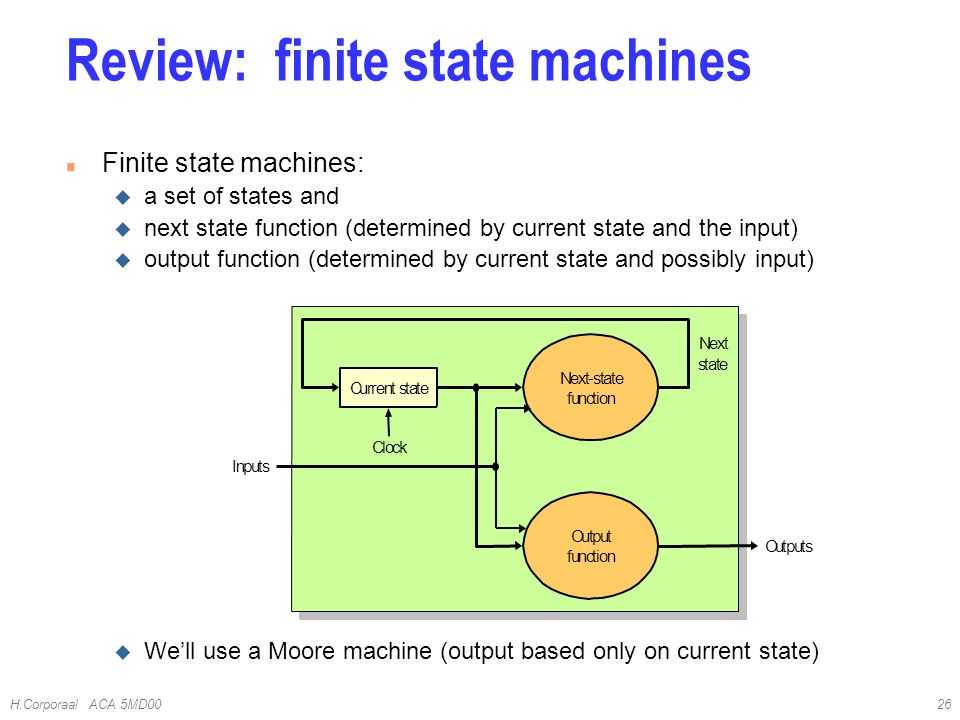

26. H.Corporaal ACA 5MD0026 n Finite state machines: u a set of states and u next state function (determined by current state and the input) u output function (determined by current state and possibly input) u We’ll use a Moore machine (output based only on current state) Review: finite state machines Next-state function Current state Clock Output function Next state Outputs Inputs

27. H.Corporaal ACA 5MD0027 n Break up the instructions into steps, each step takes a cycle u balance the amount of work to be done u restrict each cycle to use only one major functional unit n At the end of a cycle u store values for use in later cycles (easiest thing to do) u introduce additional “internal” registers n Notice: we distinguish u processor state: programmer visible registers u internal state: programmer invisible registers (like IR, MDR, A, B, and ALUout) Multicycle Approach

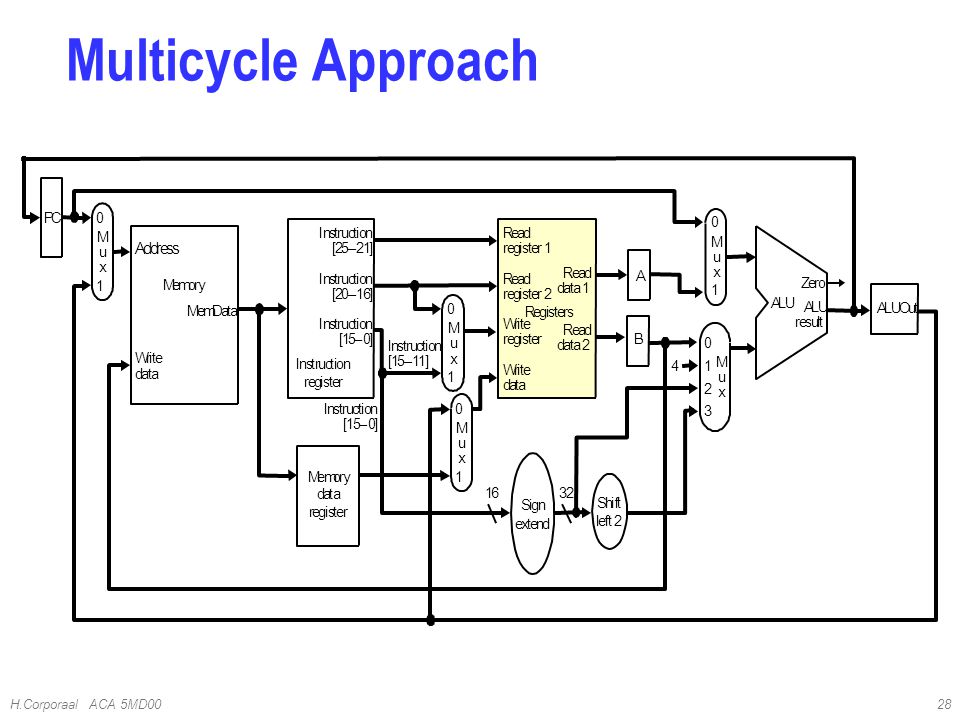

28. H.Corporaal ACA 5MD0028 Multicycle Approach Shift left 2 PC Memory MemData Write data M u x 0 1 Registers Write register Write data Read data 1 Read data 2 Read register 1 Read register 2 M u x 0 1 M u x 0 1 4 Instruction [15–0] Sign extend 3216 Instruction [25–21] Instruction [20–16] Instruction [15–0] Instruction register 1 M u x 0 3 2 M u x ALU result ALU Zero Memory data register Instruction [15–11] A B ALUOut 0 1 Address

29. H.Corporaal ACA 5MD0029 Multicycle Approach n Note that previous picture does not include: u branch support u jump support u Control lines and logic n Tclock > max (ALU delay, Memory access, Regfile access) n See book for complete picture

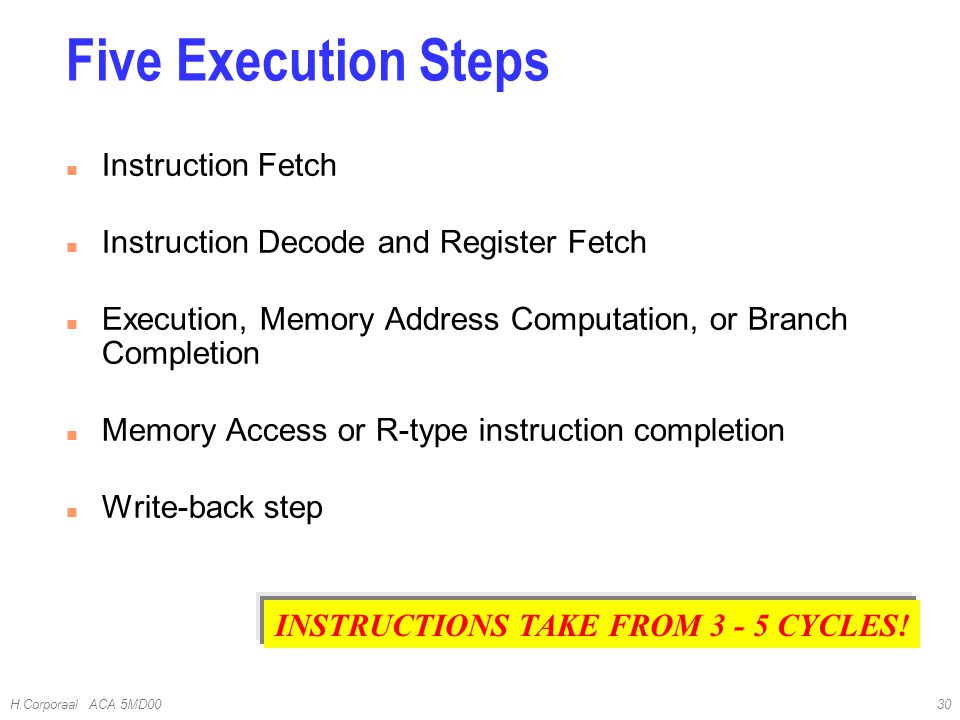

30. H.Corporaal ACA 5MD0030 n Instruction Fetch n Instruction Decode and Register Fetch n Execution, Memory Address Computation, or Branch Completion n Memory Access or R-type instruction completion n Write-back step Five Execution Steps INSTRUCTIONS TAKE FROM 3 - 5 CYCLES!

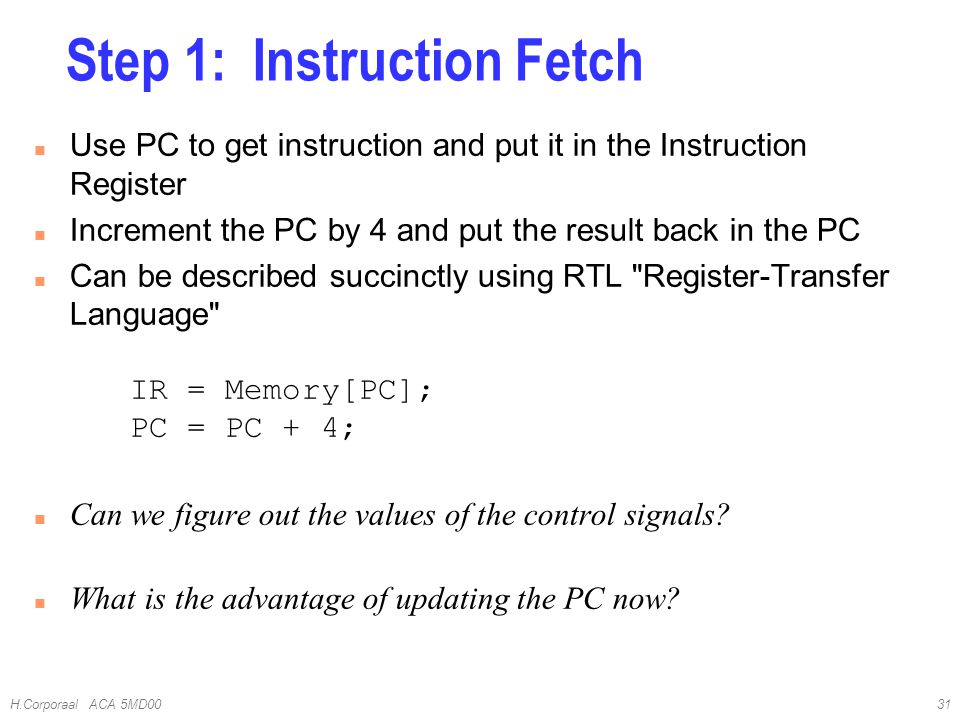

31. H.Corporaal ACA 5MD0031 n Use PC to get instruction and put it in the Instruction Register n Increment the PC by 4 and put the result back in the PC Can be described succinctly using RTL "Register-Transfer Language" IR = Memory[PC]; PC = PC + 4; n Can we figure out the values of the control signals? n What is the advantage of updating the PC now? Step 1: Instruction Fetch

32. H.Corporaal ACA 5MD0032 n Read registers rs and rt in case we need them n Compute the branch address in case the instruction is a branch n Previous two actions are done optimistically!! RTL: A = Reg[IR[25-21]]; B = Reg[IR[20-16]]; ALUOut = PC+(sign-extend(IR[15-0])<< 2); n We aren't setting any control lines based on the instruction type (we are busy "decoding" it in our control logic) Step 2: Instruction Decode and Register Fetch

33. H.Corporaal ACA 5MD0033 n ALU is performing one of four functions, based on instruction type Memory Reference: ALUOut = A + sign-extend(IR[15-0]); R-type: ALUOut = A op B; Branch: if (A==B) PC = ALUOut; n Jump: PC = PC[31-28] || (IR[25-0]<<2) Step 3 (instruction dependent)

34. H.Corporaal ACA 5MD0034 Loads and stores access memory MDR = Memory[ALUOut]; or Memory[ALUOut] = B; R-type instructions finish Reg[IR[15-11]] = ALUOut; The write actually takes place at the end of the cycle on the edge Step 4 (R-type or memory-access)

35. H.Corporaal ACA 5MD0035 Memory read completion step Reg[IR[20-16]]= MDR; What about all the other instructions? Write-back step

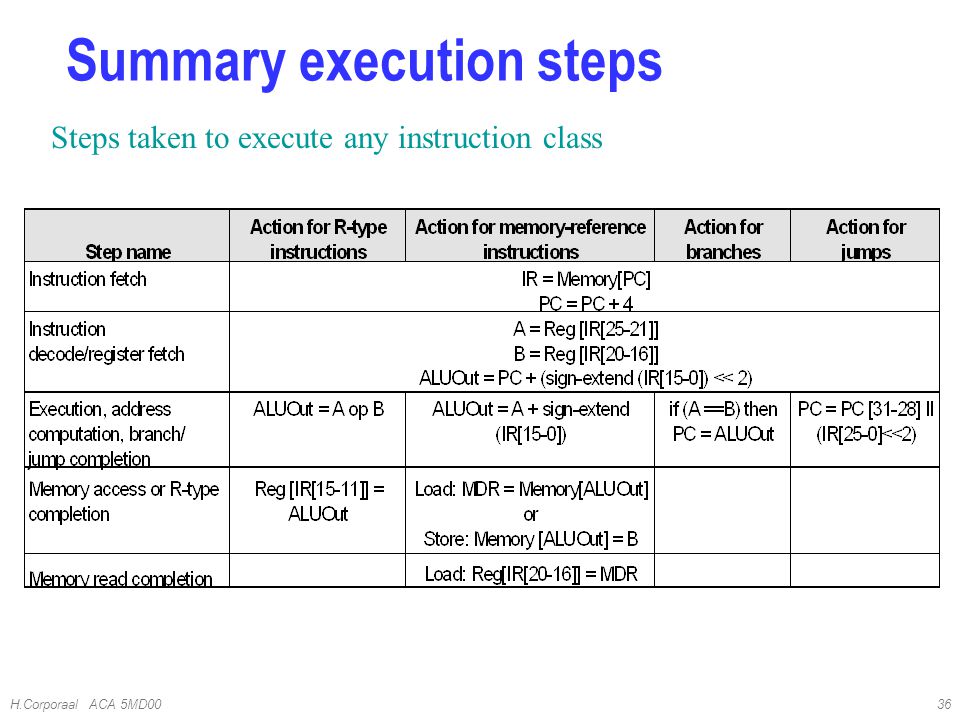

36. H.Corporaal ACA 5MD0036 Steps taken to execute any instruction class Summary execution steps

37. H.Corporaal ACA 5MD0037 How many cycles will it take to execute this code? lw $t2, 0($t3) lw $t3, 4($t3) beq $t2, $t3, L1 #assume not taken add $t5, $t2, $t3 sw $t5, 8($t3) L1:... n What is going on during the 8th cycle of execution? In what cycle does the actual addition of $t2 and $t3 takes place? Simple Questions

38. H.Corporaal ACA 5MD0038 n Value of control signals is dependent upon: u what instruction is being executed u which step is being performed n Use the information we have accumulated to specify a finite state machine (FSM) u specify the finite state machine graphically, or u use microprogramming n Implementation can be derived from specification Implementing the Control

39. H.Corporaal ACA 5MD0039 FSM: high level view Start/reset Instruction fetch, decode and register fetch Memory access instructions R-type instructions Branch instruction Jump instruction

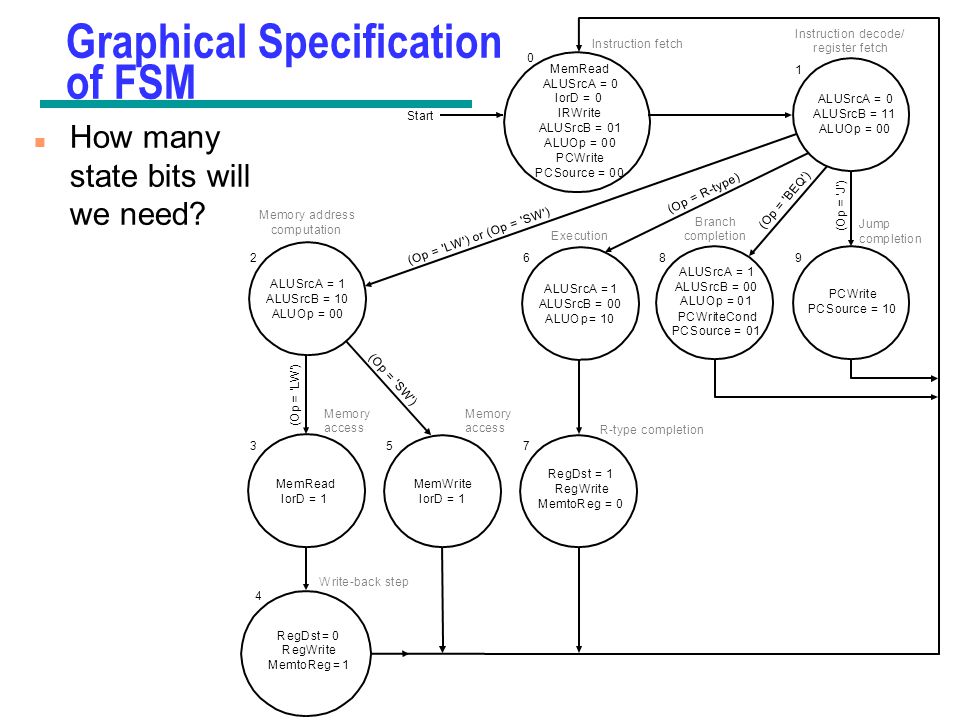

40. n How many state bits will we need? Graphical Specification of FSM PCWrite PCSource = 10 ALUSrcA = 1 ALUSrcB = 00 ALUOp = 01 PCWriteCond PCSource = 01 ALUSrcA =1 ALUSrcB = 00 ALUOp= 10 RegDst = 1 RegWrite MemtoReg = 0 MemWrite IorD = 1 MemRead IorD = 1 ALUSrcA = 1 ALUSrcB = 10 ALUOp = 00 RegDst=0 RegWrite MemtoReg=1 ALUSrcA = 0 ALUSrcB = 11 ALUOp = 00 MemRead ALUSrcA = 0 IorD = 0 IRWrite ALUSrcB = 01 ALUOp = 00 PCWrite PCSource = 00 Instruction fetch Instruction decode/ register fetch Jump completion Branch completionExecution Memory address computation Memory access Memory access R-type completion Write-back step ( O p = ' L W ' ) o r ( O p = ' S W ' ) ( O p = R - t y p e ) ( O p = ' B E Q ' ) ( O p = ' J ' ) ( O p = ' S W ' ) ( O p = ' L W ' ) 4 0 1 9862 753 Start

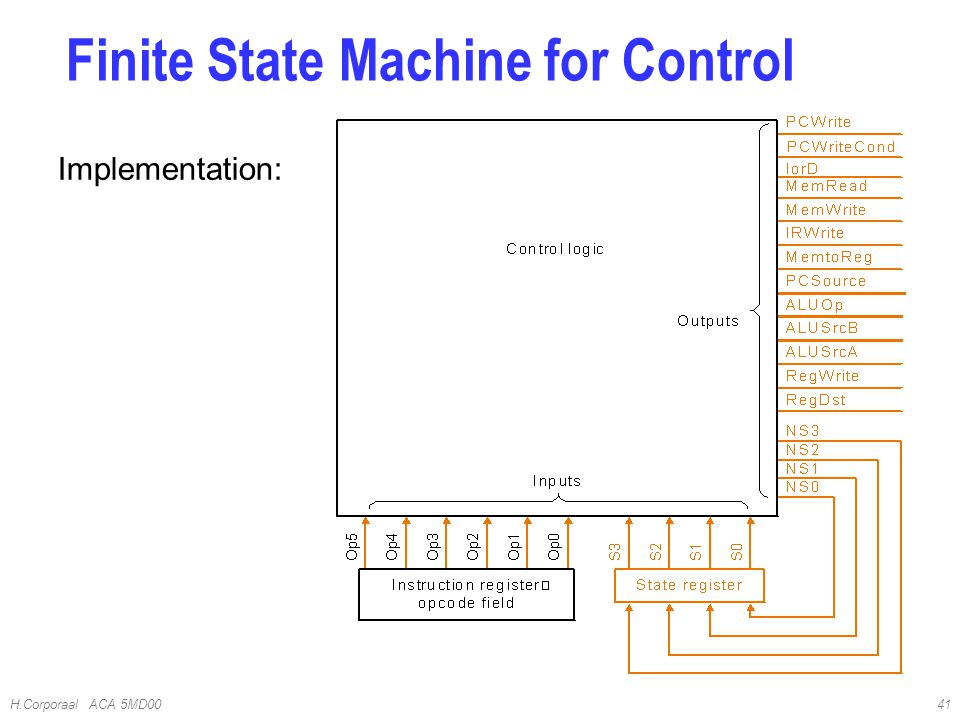

41. H.Corporaal ACA 5MD0041 Implementation: Finite State Machine for Control

42. H.Corporaal ACA 5MD0042 PLA Implemen- tation n If I picked a horizontal or vertical line could you explain it ? n What type of FSM is used? Mealy or Moore? (see fig C.14) next state current state datapath control opcode

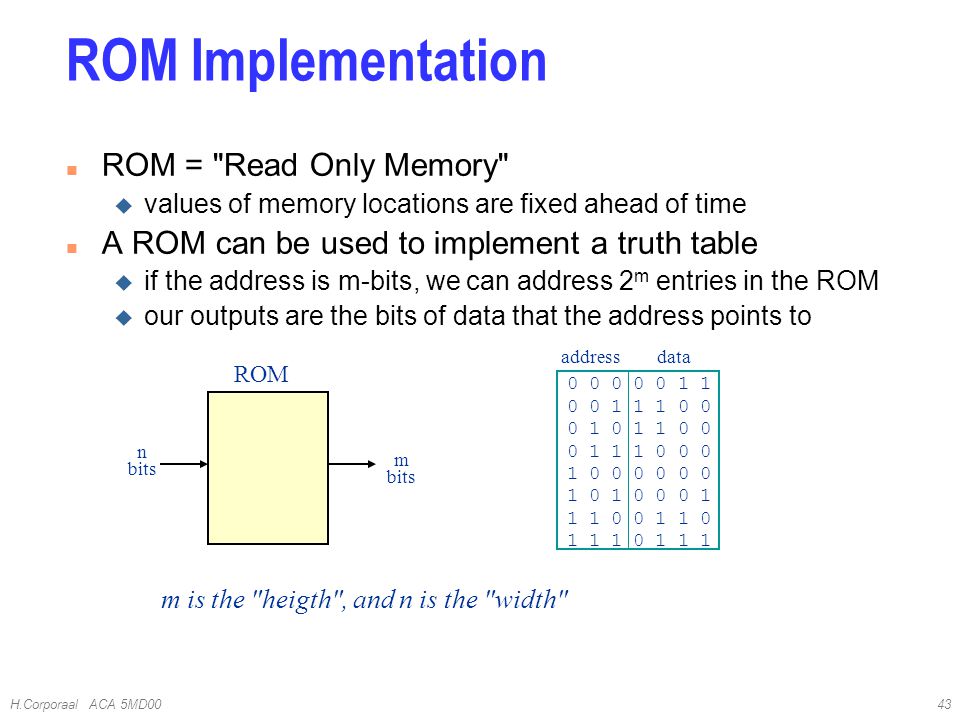

43. H.Corporaal ACA 5MD0043 n ROM = "Read Only Memory" u values of memory locations are fixed ahead of time n A ROM can be used to implement a truth table u if the address is m-bits, we can address 2 m entries in the ROM u our outputs are the bits of data that the address points to ROM Implementation 0 0 0 0 0 1 1 0 0 1 1 1 0 0 0 1 0 1 1 0 0 0 1 1 1 0 0 0 1 0 0 0 0 0 0 1 0 1 0 0 0 1 1 1 0 0 1 1 0 1 1 1 0 1 1 1 m is the "heigth", and n is the "width" m bits n bits ROM addressdata

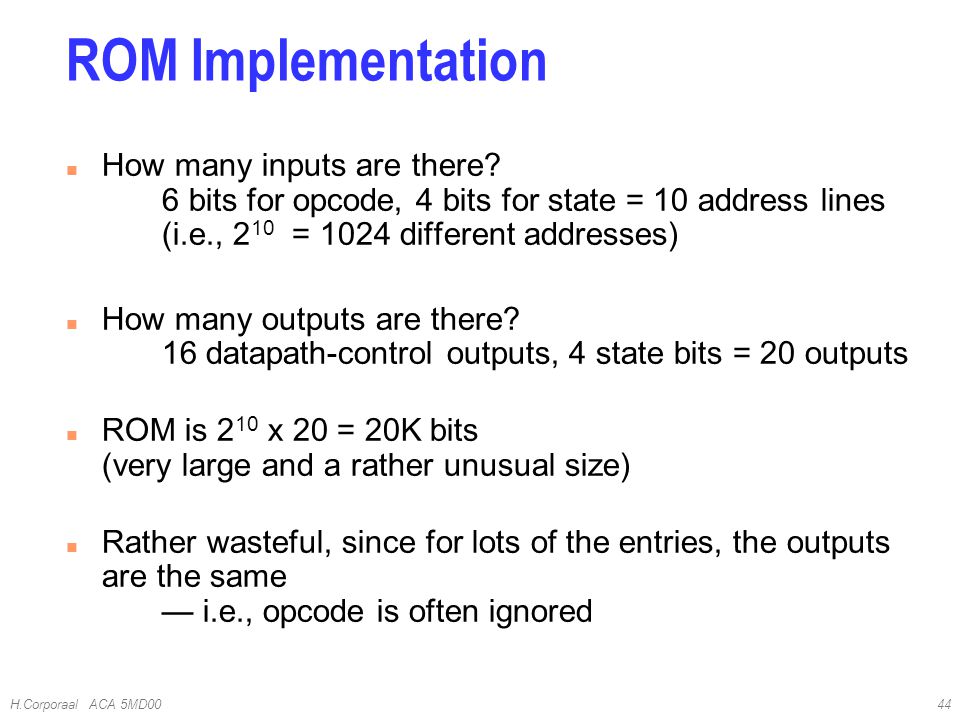

44. H.Corporaal ACA 5MD0044 n How many inputs are there? 6 bits for opcode, 4 bits for state = 10 address lines (i.e., 2 10 = 1024 different addresses) n How many outputs are there? 16 datapath-control outputs, 4 state bits = 20 outputs n ROM is 2 10 x 20 = 20K bits (very large and a rather unusual size) n Rather wasteful, since for lots of the entries, the outputs are the same — i.e., opcode is often ignored ROM Implementation

45. H.Corporaal ACA 5MD0045 ROM Implementation Cheaper implementation: n Exploit the fact that the FSM is a Moore machine ==> u Control outputs only depend on current state and not on other incoming control signals ! u Next state depends on all inputs n Break up the table into two parts — 4 state bits tell you the 16 outputs, 2 4 x 16 bits of ROM — 10 bits tell you the 4 next state bits, 2 10 x 4 bits of ROM — Total number of bits: 4.3K bits of ROM

46. H.Corporaal ACA 5MD0046 n PLA is much smaller u can share product terms (ROM has an entry (=address) for every product term u only need entries that produce an active output u can take into account don't cares Size of PLA: (#inputs  #product-terms) + (#outputs  #product-terms) u For this example: (10x17)+(20x17) = 460 PLA cells n PLA cells usually slightly bigger than the size of a ROM cell ROM vs PLA

47. H.Corporaal ACA 5MD0047 Exceptions n Unexpected events n External: interrupt u e.g. I/O request n Internal: exception u e.g. Overflow, Undefined instruction opcode, Software trap, Page fault n How to handle exception? u Jump to general entry point (record exception type in status register) u Jump to vectored entry point u Address of faulting instruction has to be recorded !

48. H.Corporaal ACA 5MD0048 Exceptions Changes needed: see fig. 5.48 / 5.49 / 5.50 n Extend PC input mux with extra entry with fixed address: “C000000hex” n Add EPC register containing old PC (we’ll use the ALU to decrement PC with 4) u extra input ALU src2 needed with fixed value 4 n Cause register (one bit in our case) containing: u 0: undefined instruction u 1: ALU overflow n Add 2 states to FSM u undefined instr. state #10 u overflow state #11

49. H.Corporaal ACA 5MD0049 Exceptions 2 New states: Legend: IntCause =0/1type of exception CauseWritewrite Cause register ALUSrcA = 0select PC ALUSrcB = 01select constant 4 ALUOp = 01subtract operation EPCWritewrite EPC register with current PC PCWritewrite PC with exception address PCSource =11select exception address: C000000hex Legend: IntCause =0/1type of exception CauseWritewrite Cause register ALUSrcA = 0select PC ALUSrcB = 01select constant 4 ALUOp = 01subtract operation EPCWritewrite EPC register with current PC PCWritewrite PC with exception address PCSource =11select exception address: C000000hex IntCause =0 CauseWrite ALUSrcA = 0 ALUSrcB = 01 ALUOp = 01 EPCWrite PCWrite PCSource =11 IntCause =1 CauseWrite ALUSrcA = 0 ALUSrcB = 01 ALUOp = 01 EPCWrite PCWrite PCSource =11 #10 undefined instruction#11 overflow To state 0 (begin of next instruction)
