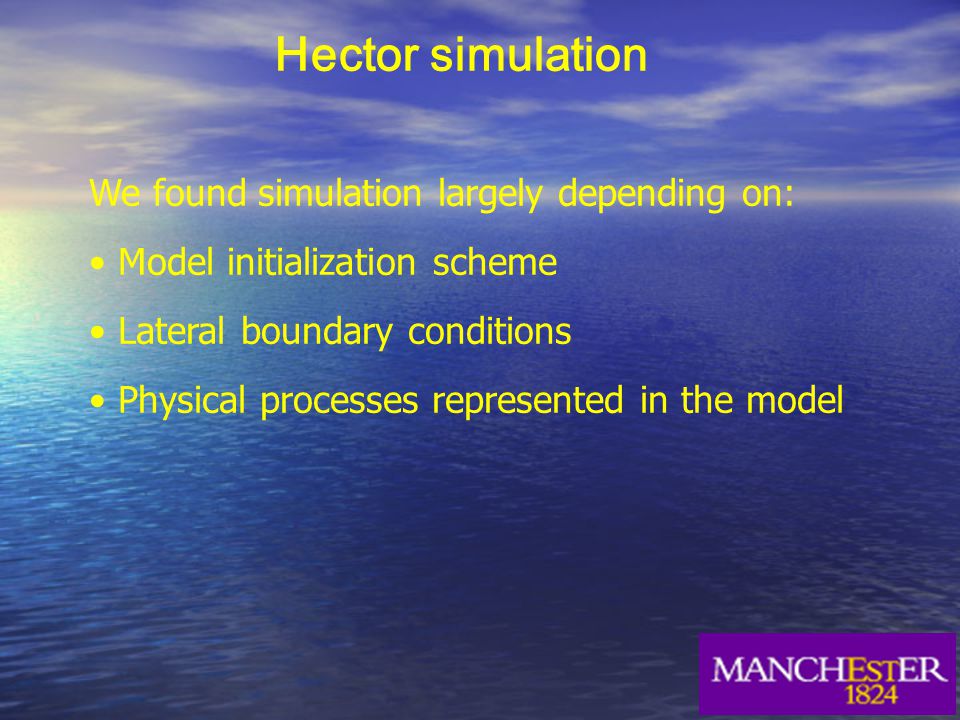

1. Hector simulation We found simulation largely depending on: Model initialization scheme Lateral boundary conditions Physical processes represented in the model

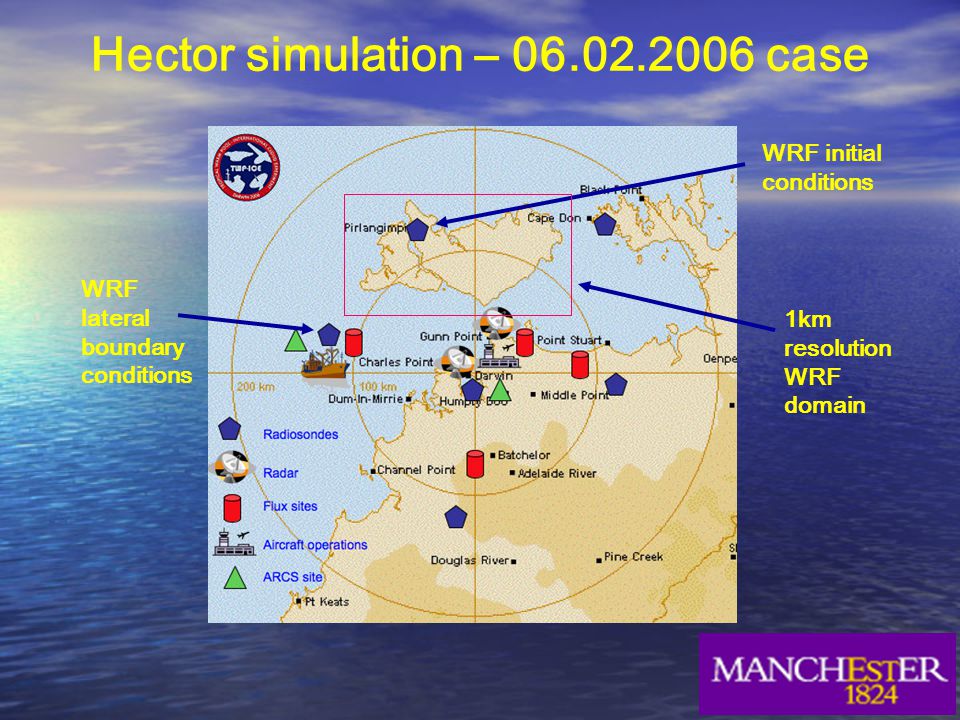

2. Hector simulation – 06.02.2006 case WRF initial conditions 1km resolution WRF domain WRF lateral boundary conditions

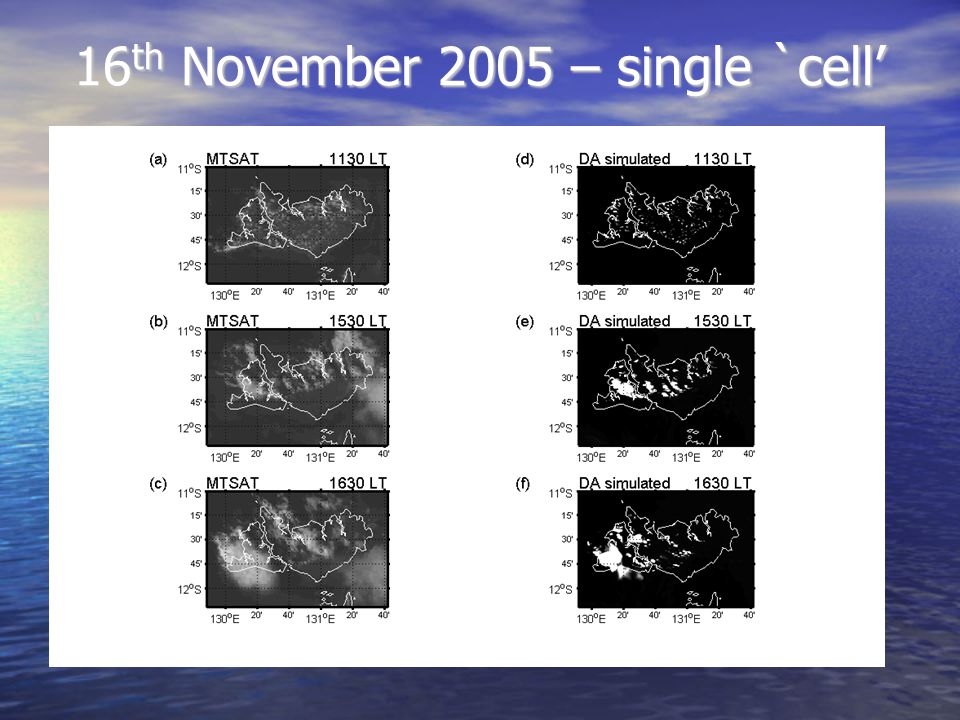

4. 16 th November 2005 – single `cell’

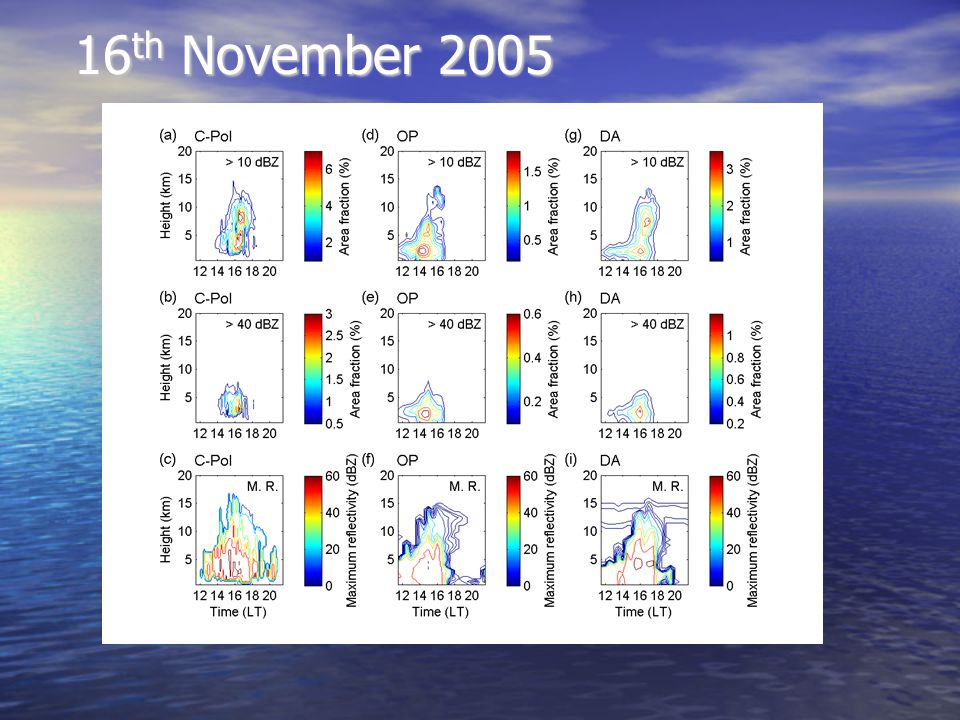

5. 16 th November 2005

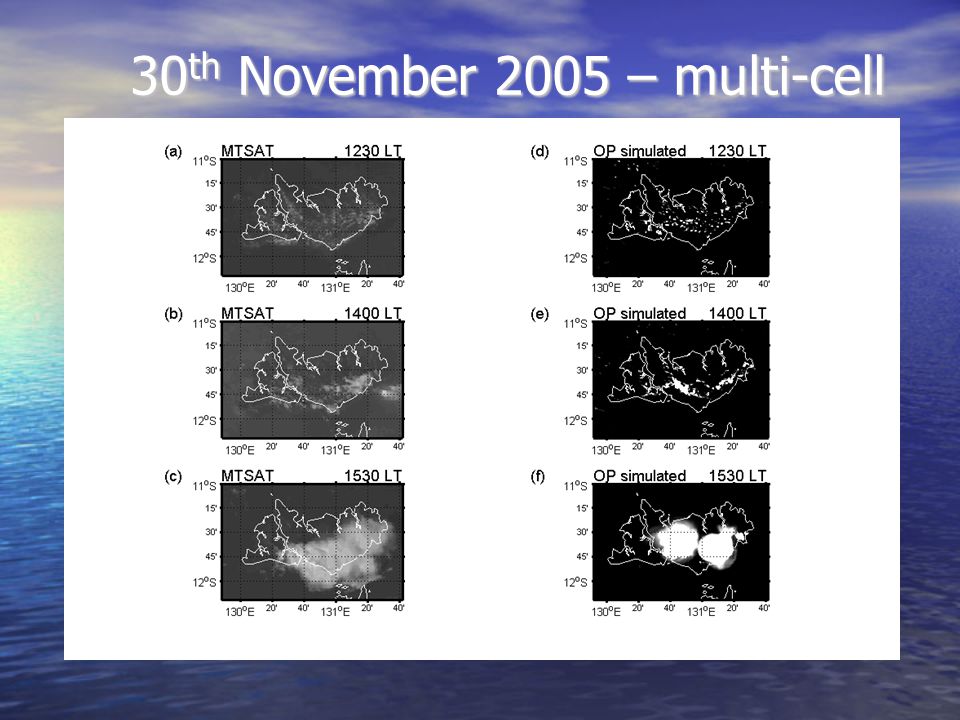

6. 30 th November 2005 – multi-cell

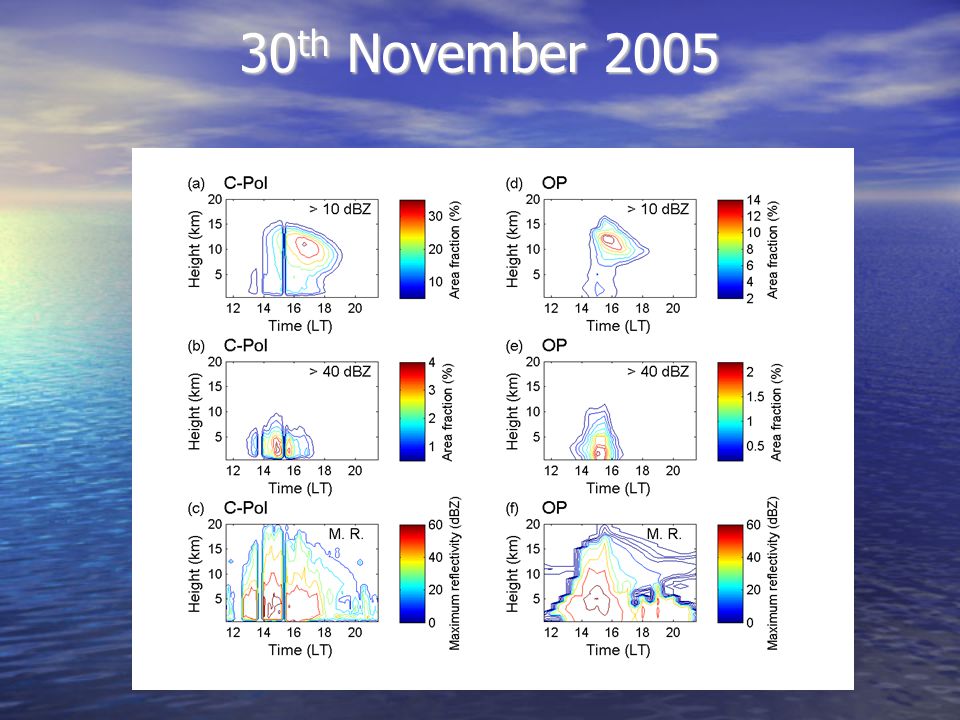

7. 30 th November 2005

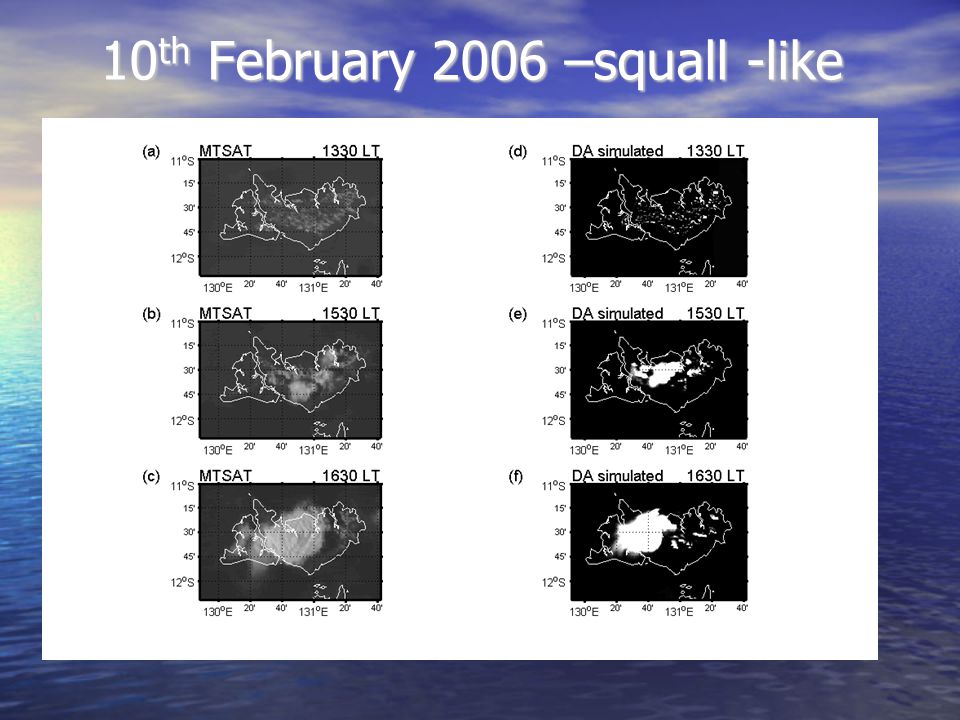

8. 10 th February 2006 –squall -like

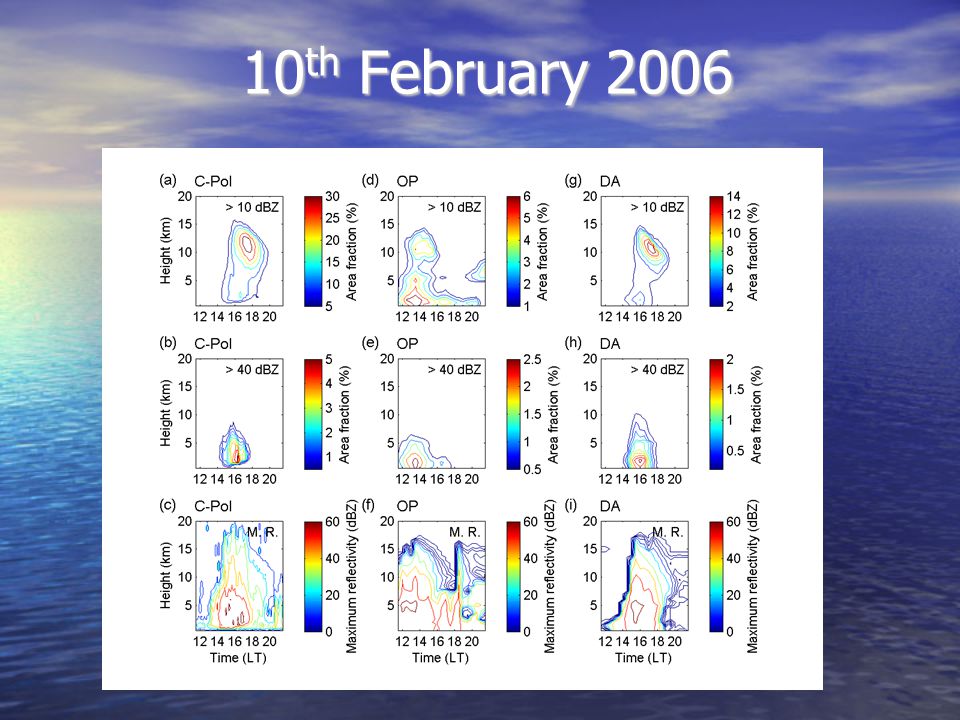

9. 10 th February 2006

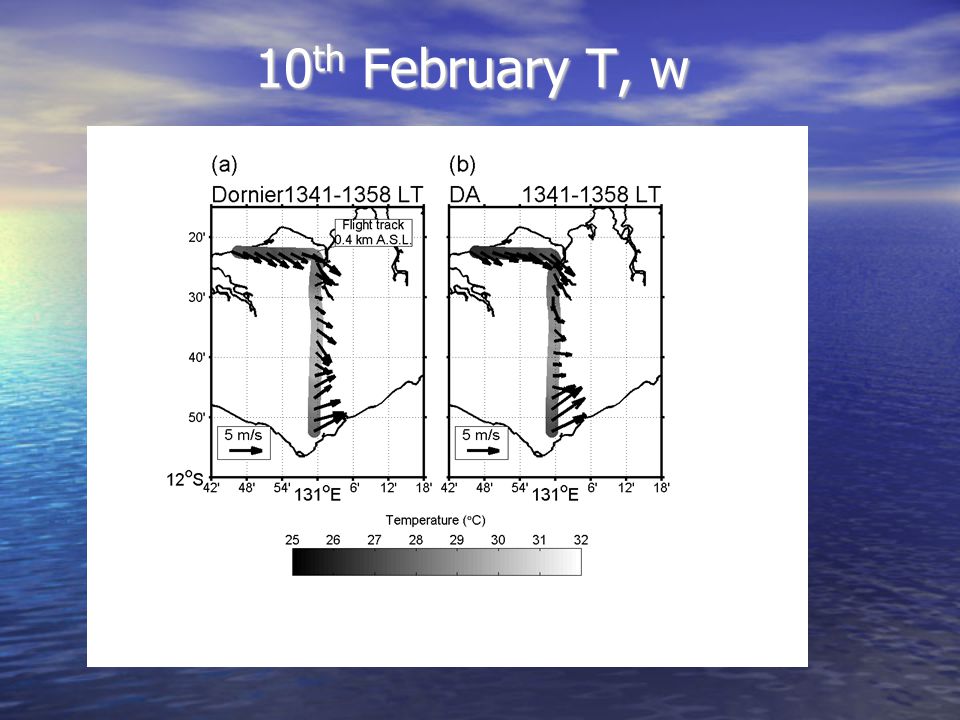

10. 10 th February T, w

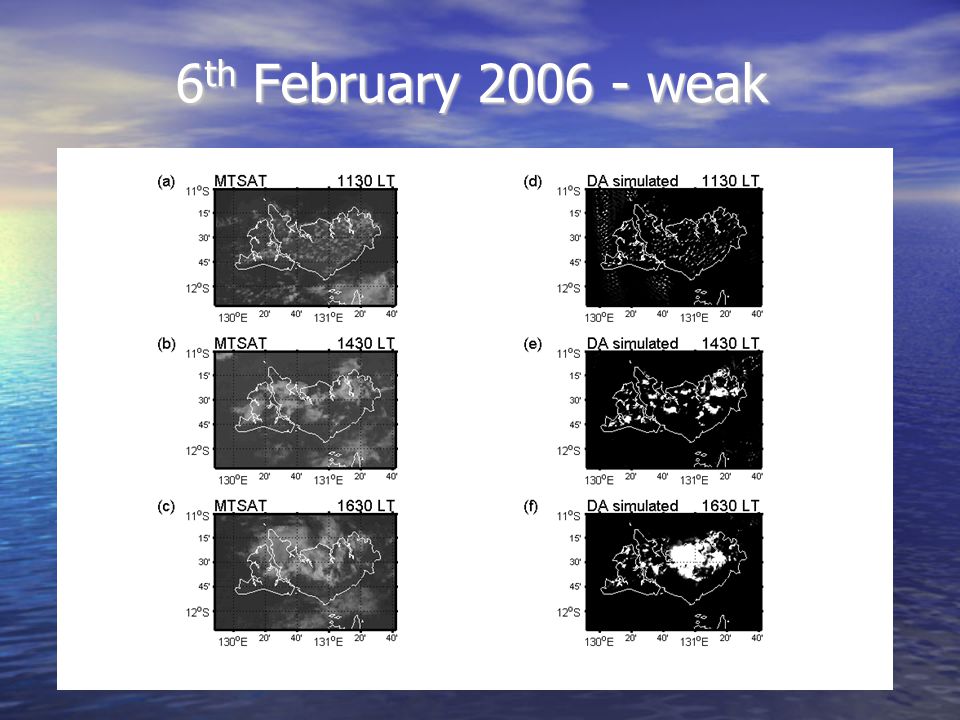

11. 6 th February 2006 - weak

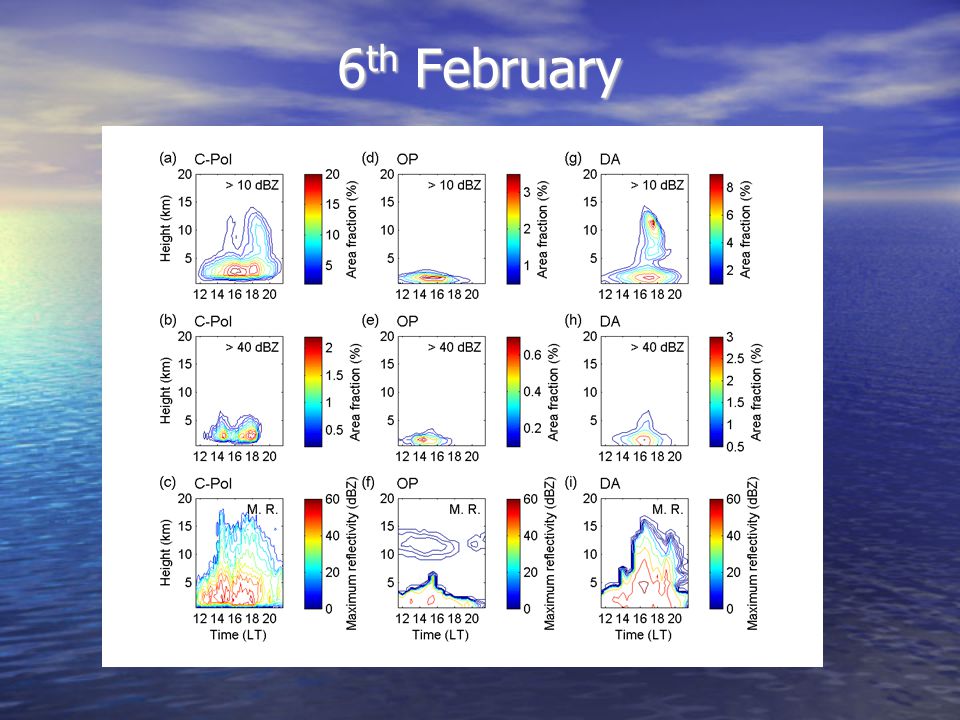

12. 6 th February

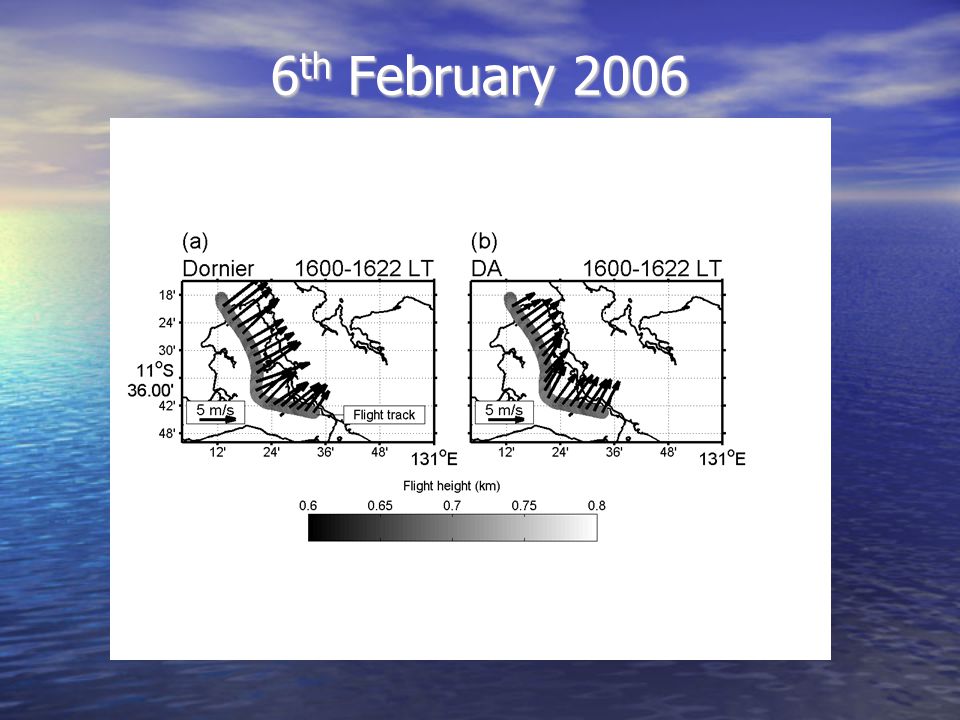

13. 6 th February 2006

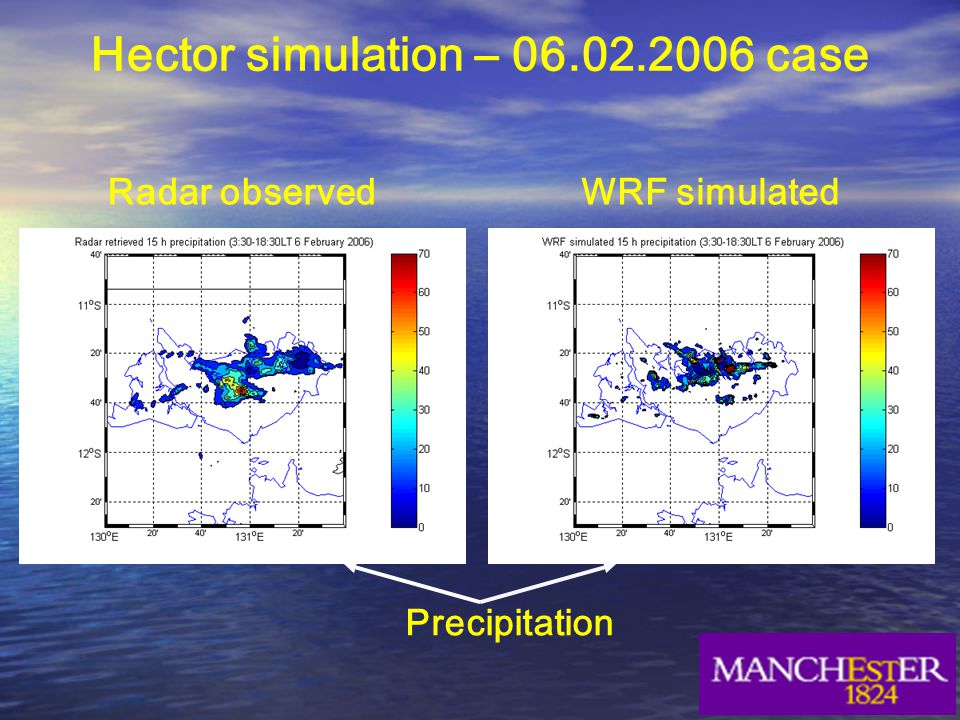

14. Hector simulation – 06.02.2006 case Radar observedWRF simulated Precipitation

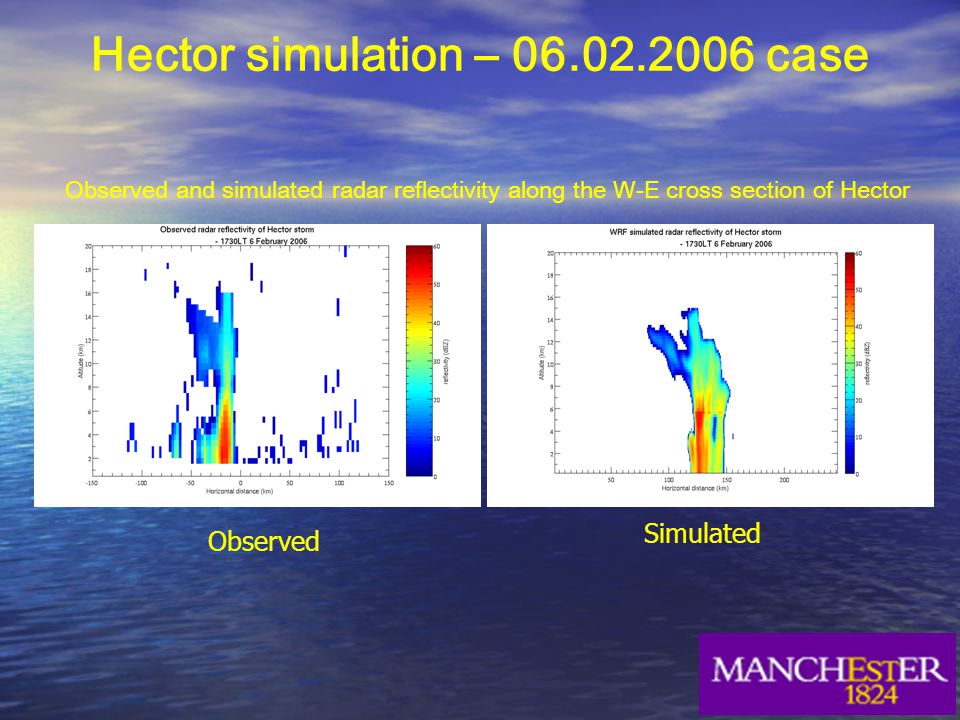

15. Hector simulation – 06.02.2006 case Observed and simulated radar reflectivity along the W-E cross section of Hector Observed Simulated

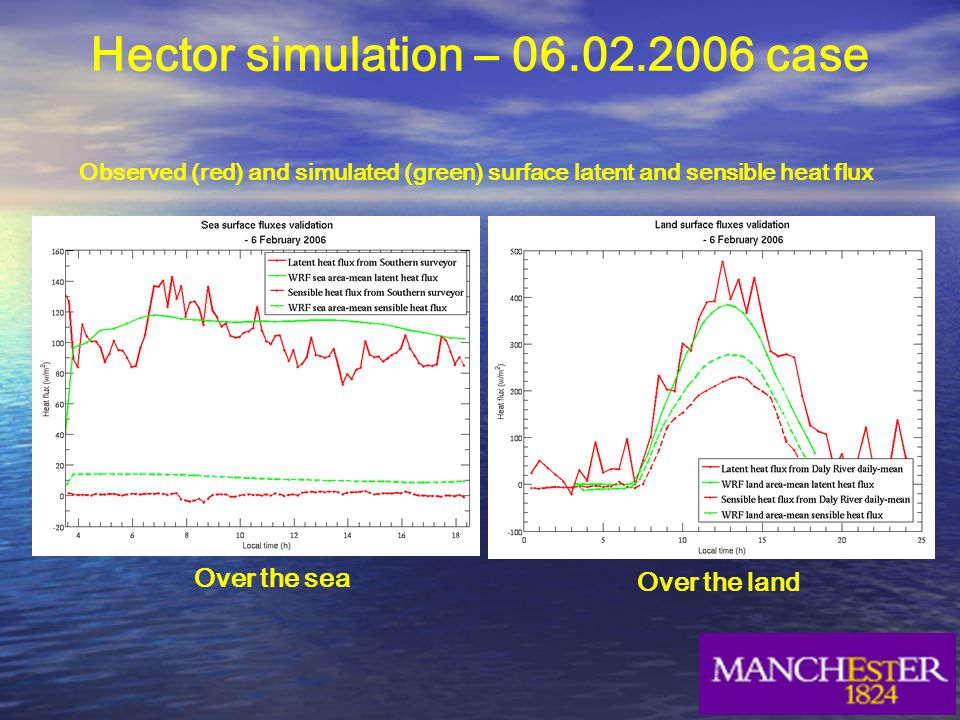

16. Hector simulation – 06.02.2006 case Observed (red) and simulated (green) surface latent and sensible heat flux Over the sea Over the land

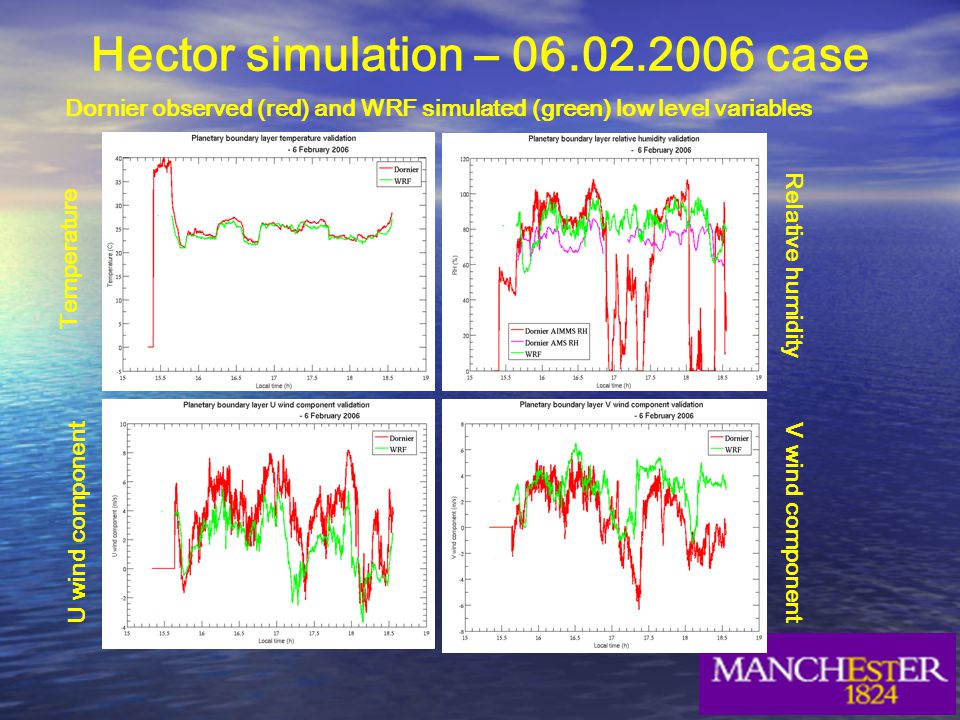

17. Hector simulation – 06.02.2006 case Dornier observed (red) and WRF simulated (green) low level variables Temperature Relative humidity U wind component V wind component

18. Hector simulation – 06.02.2006 case Egret observed (red) and WRF simulated (green) high level variables Temperature U wind component V wind component

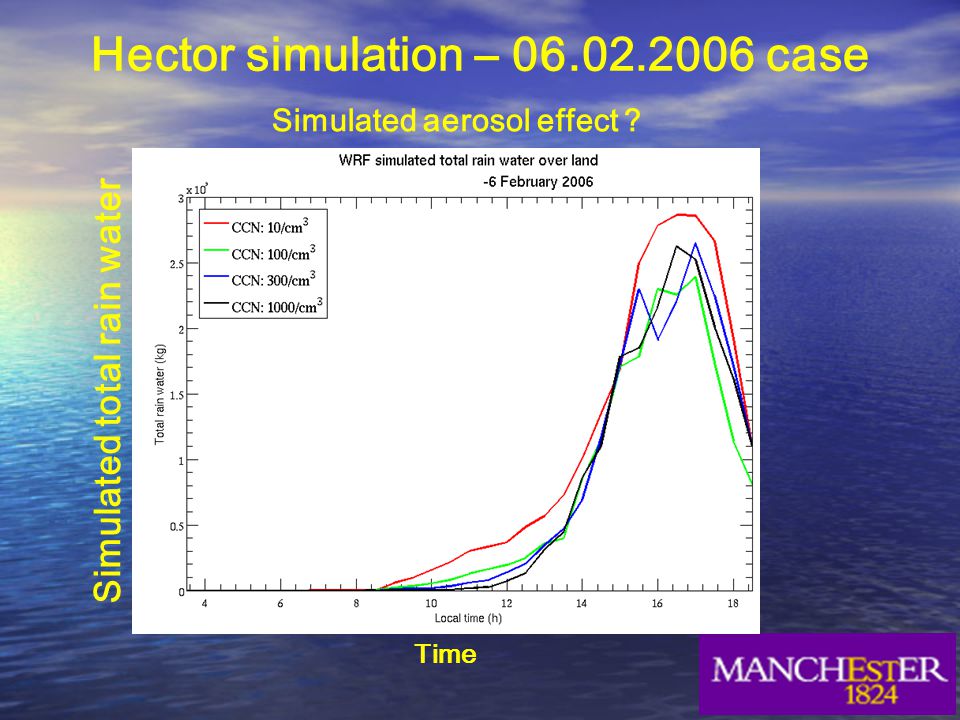

19. Hector simulation – 06.02.2006 case Simulated aerosol effect ? Simulated total rain water Time

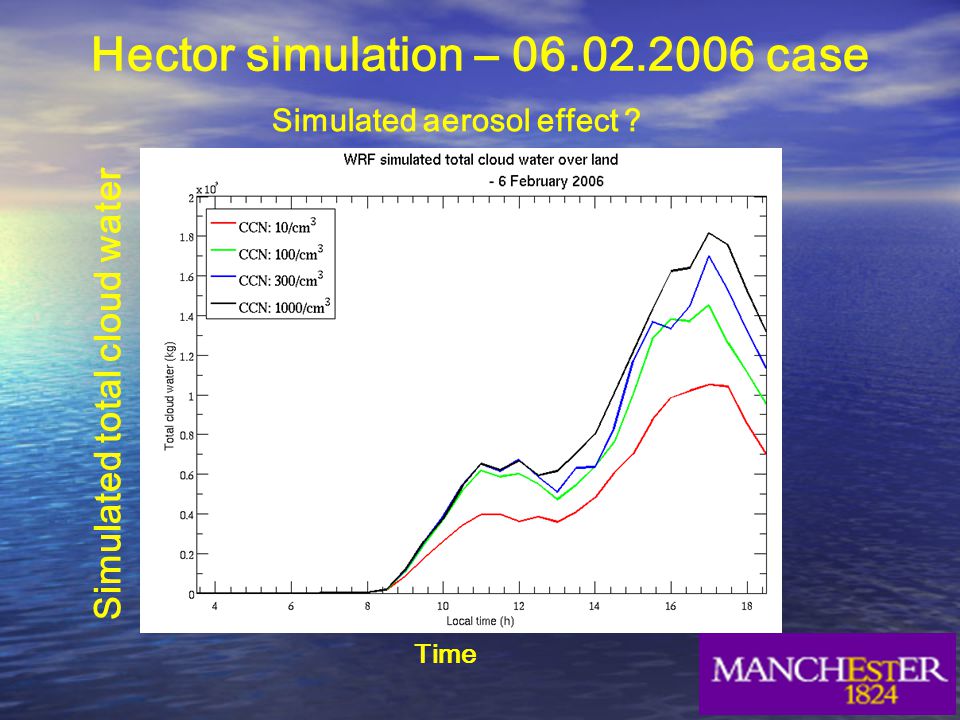

20. Hector simulation – 06.02.2006 case Simulated aerosol effect ? Simulated total cloud water Time

21. Hector simulation – 06.02.2006 case Simulated aerosol effect ? Simulated total cloud ice Time

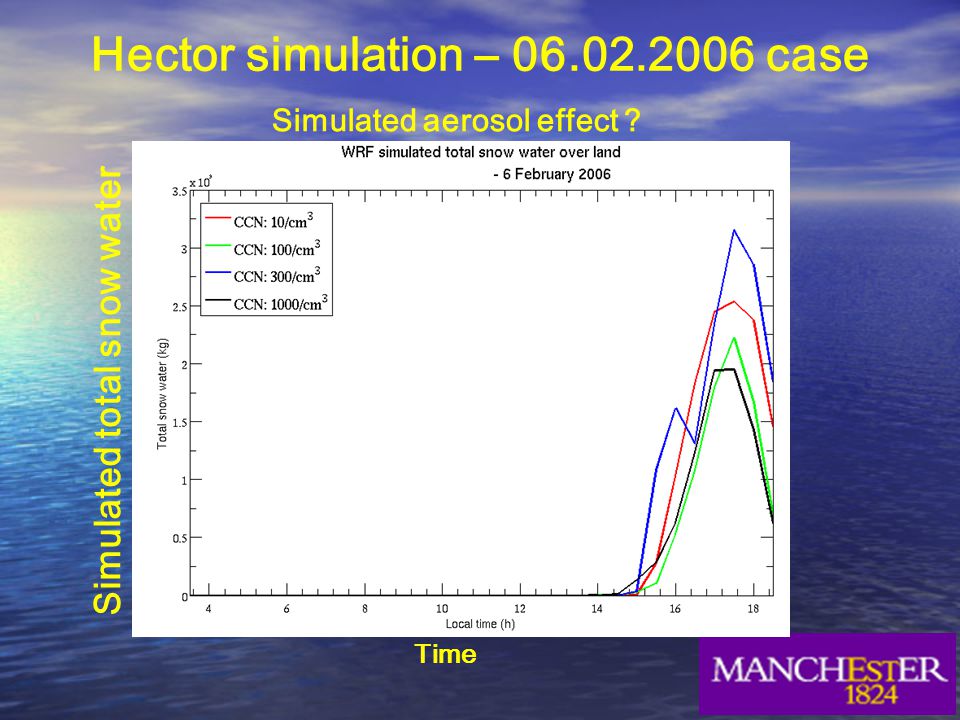

22. Hector simulation – 06.02.2006 case Simulated aerosol effect ? Simulated total snow water Time

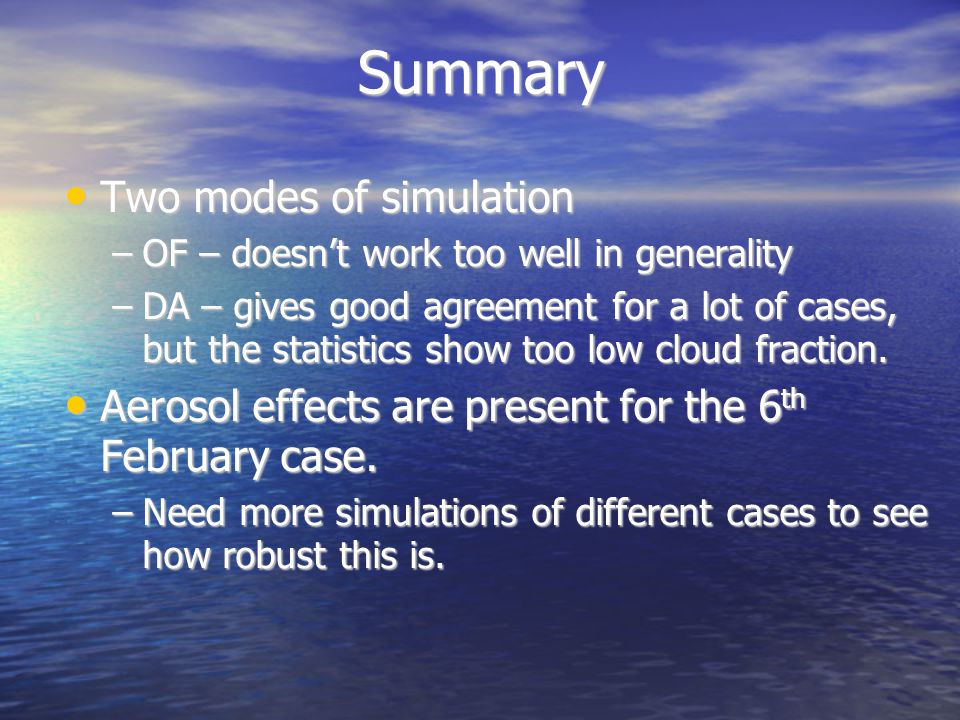

23. Summary Two modes of simulation Two modes of simulation –OF – doesn’t work too well in generality –DA – gives good agreement for a lot of cases, but the statistics show too low cloud fraction. Aerosol effects are present for the 6 th February case. Aerosol effects are present for the 6 th February case. –Need more simulations of different cases to see how robust this is.
