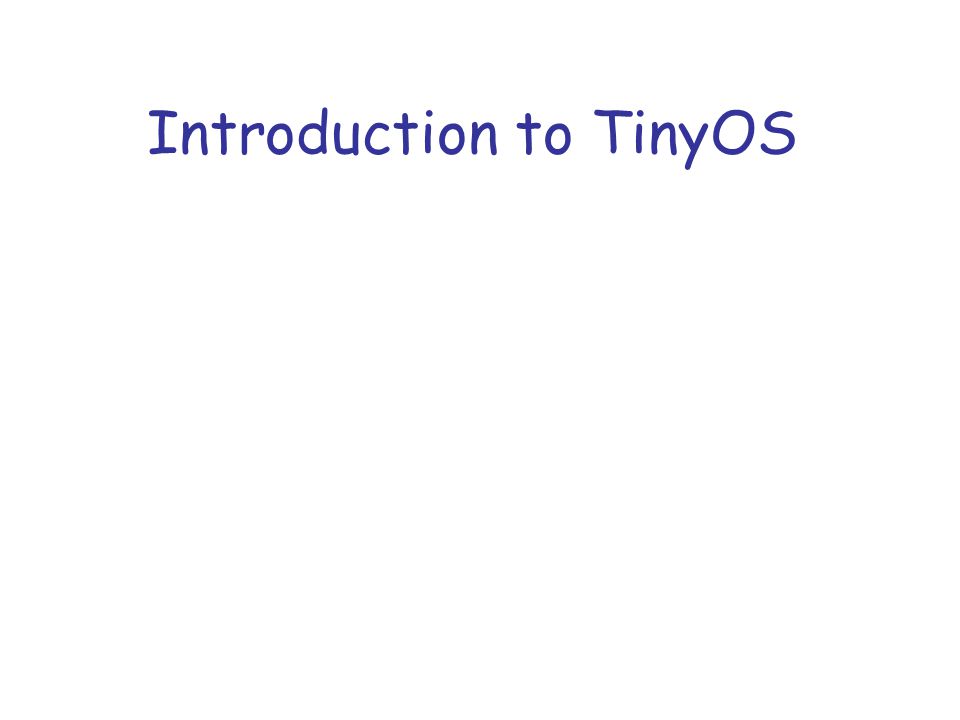

1. Introduction to TinyOS

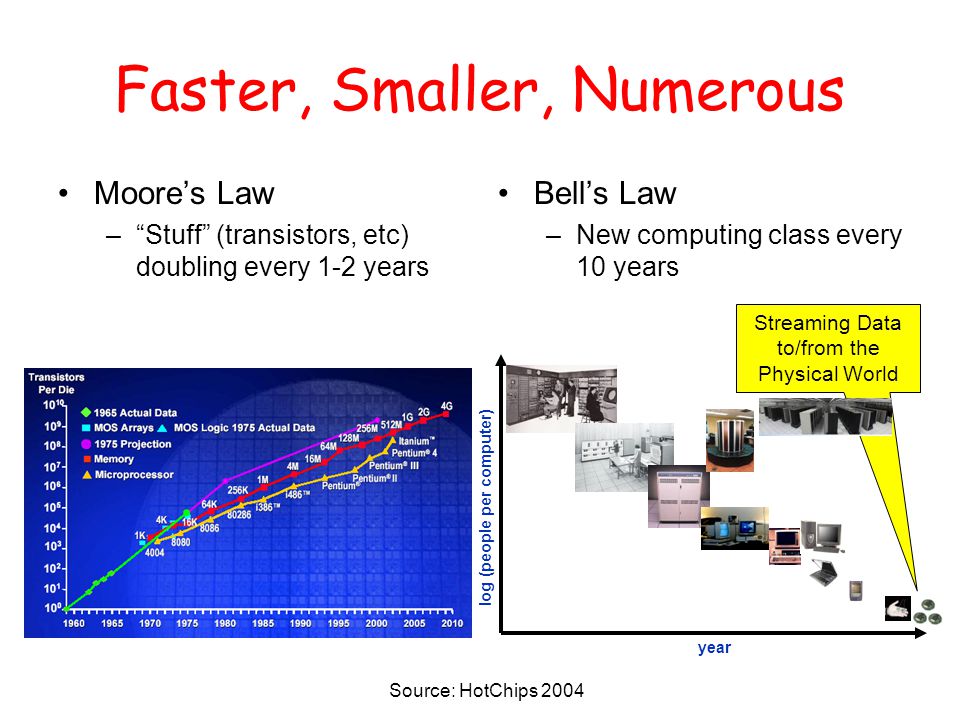

2. Faster, Smaller, Numerous Moore’s Law –“Stuff” (transistors, etc) doubling every 1-2 years Bell’s Law –New computing class every 10 years year log (people per computer) Streaming Data to/from the Physical World Source: HotChips 2004

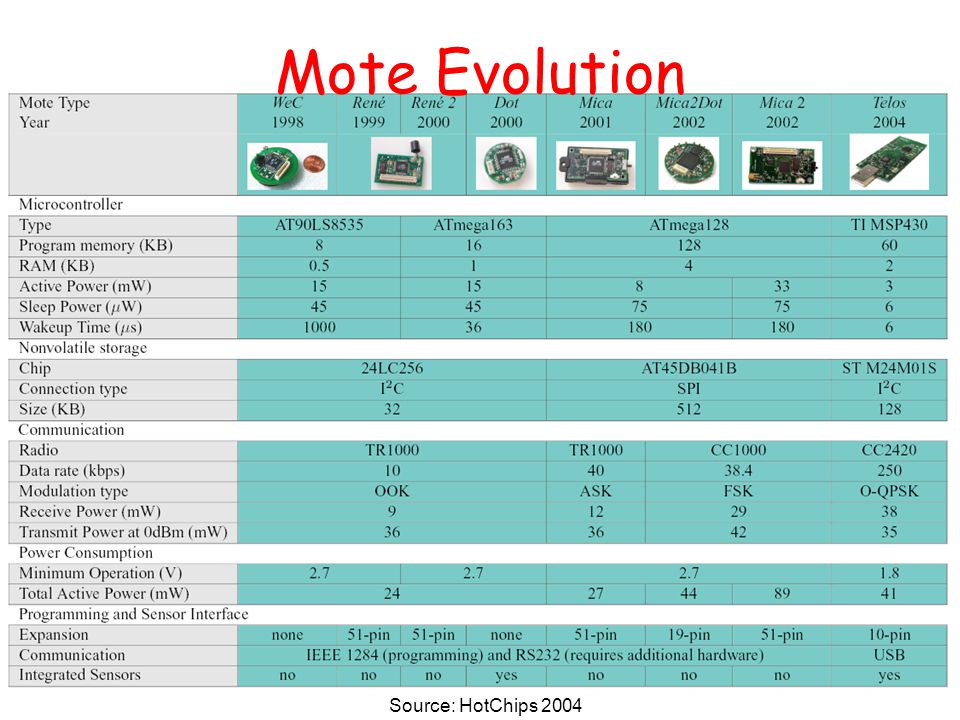

3. Mote Evolution Source: HotChips 2004

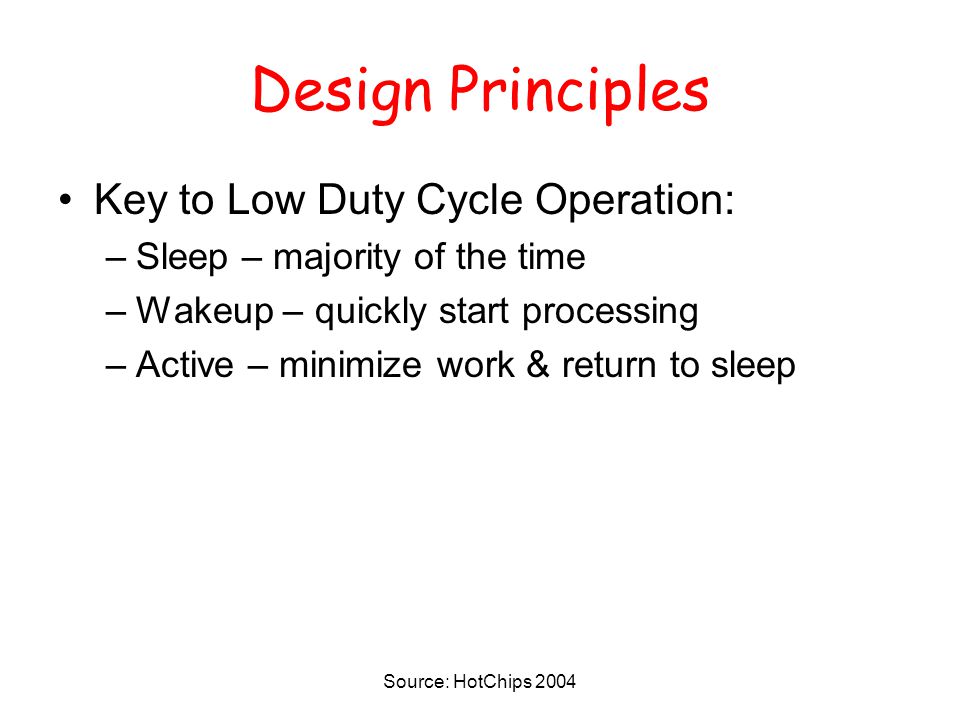

4. Design Principles Key to Low Duty Cycle Operation: –Sleep – majority of the time –Wakeup – quickly start processing –Active – minimize work & return to sleep Source: HotChips 2004

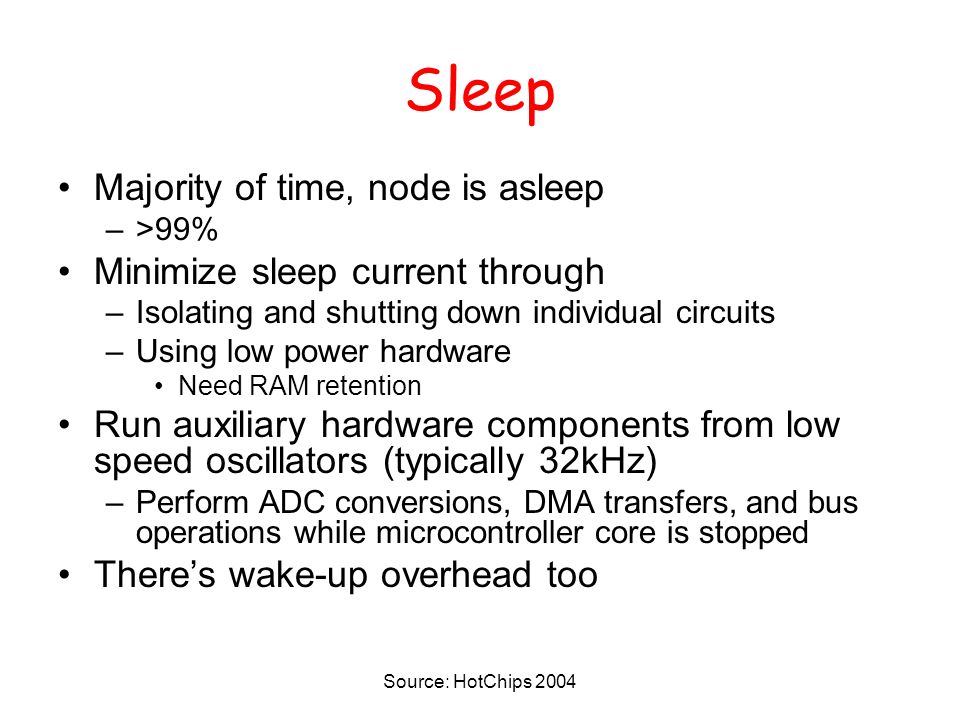

5. Sleep Majority of time, node is asleep –>99% Minimize sleep current through –Isolating and shutting down individual circuits –Using low power hardware Need RAM retention Run auxiliary hardware components from low speed oscillators (typically 32kHz) –Perform ADC conversions, DMA transfers, and bus operations while microcontroller core is stopped There’s wake-up overhead too Source: HotChips 2004

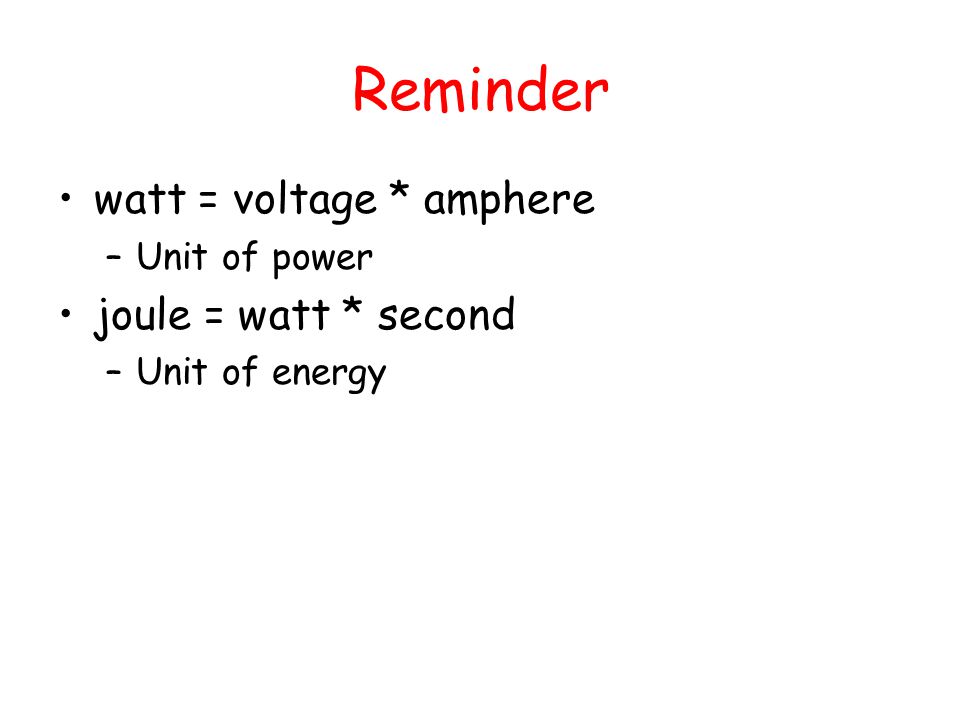

6. Reminder watt = voltage * amphere –Unit of power joule = watt * second –Unit of energy

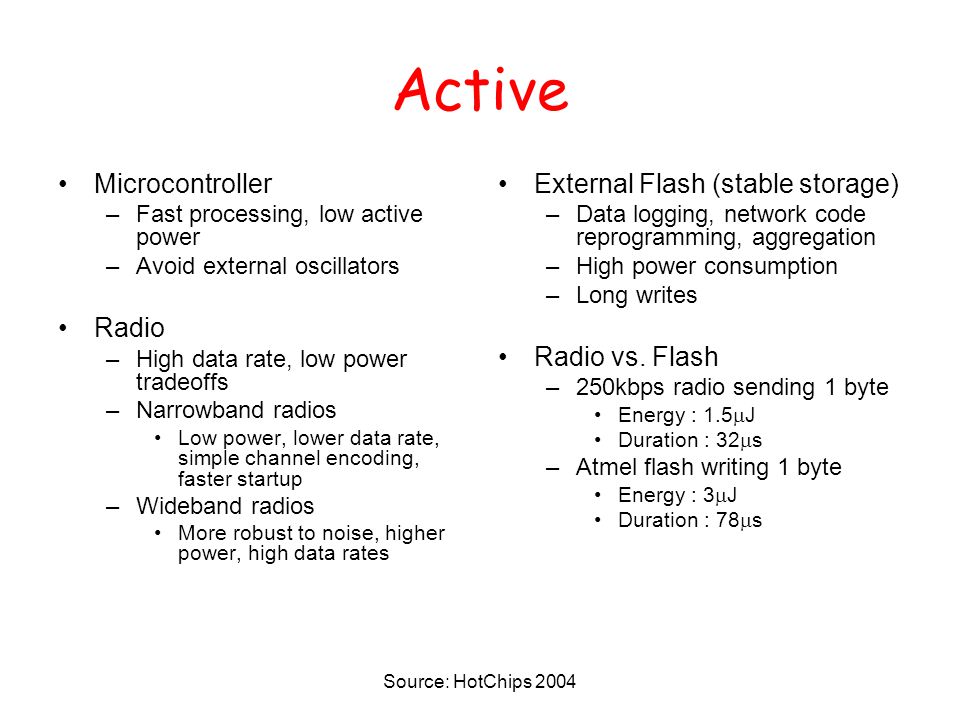

7. Active Microcontroller –Fast processing, low active power –Avoid external oscillators Radio –High data rate, low power tradeoffs –Narrowband radios Low power, lower data rate, simple channel encoding, faster startup –Wideband radios More robust to noise, higher power, high data rates External Flash (stable storage) –Data logging, network code reprogramming, aggregation –High power consumption –Long writes Radio vs. Flash –250kbps radio sending 1 byte Energy : 1.5  J Duration : 32  s –Atmel flash writing 1 byte Energy : 3  J Duration : 78  s Source: HotChips 2004

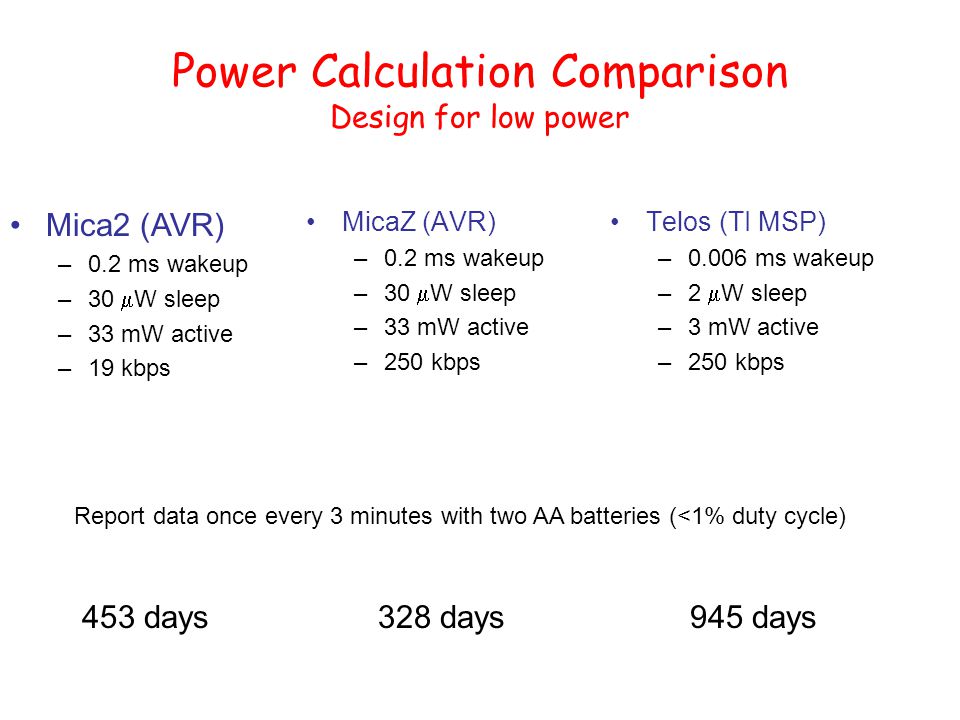

8. Mica2 (AVR) –0.2 ms wakeup –30  W sleep –33 mW active –19 kbps Power Calculation Comparison Design for low power MicaZ (AVR) –0.2 ms wakeup –30  W sleep –33 mW active –250 kbps Telos (TI MSP) –0.006 ms wakeup –2  W sleep –3 mW active –250 kbps Report data once every 3 minutes with two AA batteries (<1% duty cycle) 328 days945 days453 days

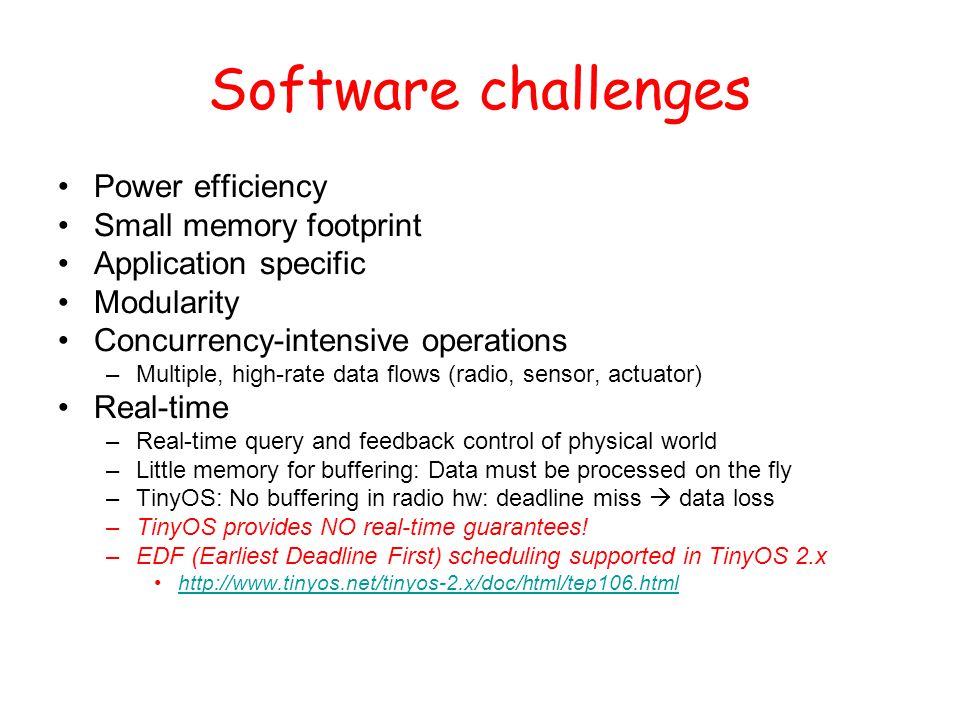

9. Software challenges Power efficiency Small memory footprint Application specific Modularity Concurrency-intensive operations –Multiple, high-rate data flows (radio, sensor, actuator) Real-time –Real-time query and feedback control of physical world –Little memory for buffering: Data must be processed on the fly –TinyOS: No buffering in radio hw: deadline miss  data loss –TinyOS provides NO real-time guarantees! –EDF (Earliest Deadline First) scheduling supported in TinyOS 2.x http://www.tinyos.net/tinyos-2.x/doc/html/tep106.html

10. “General-Purpose” OS? MANY functionalities & programming APIs Protection between “untrusted” applications and kernel –Overhead for crossing kernel/user boundary & interrupt handling Multi-threaded architecture –Large number of threads  large memory –Context switch overhead I/O model –Blocking I/O: waste memory on blocked threads –Polling: waste CPU cycles and power Need a new OS architecture!

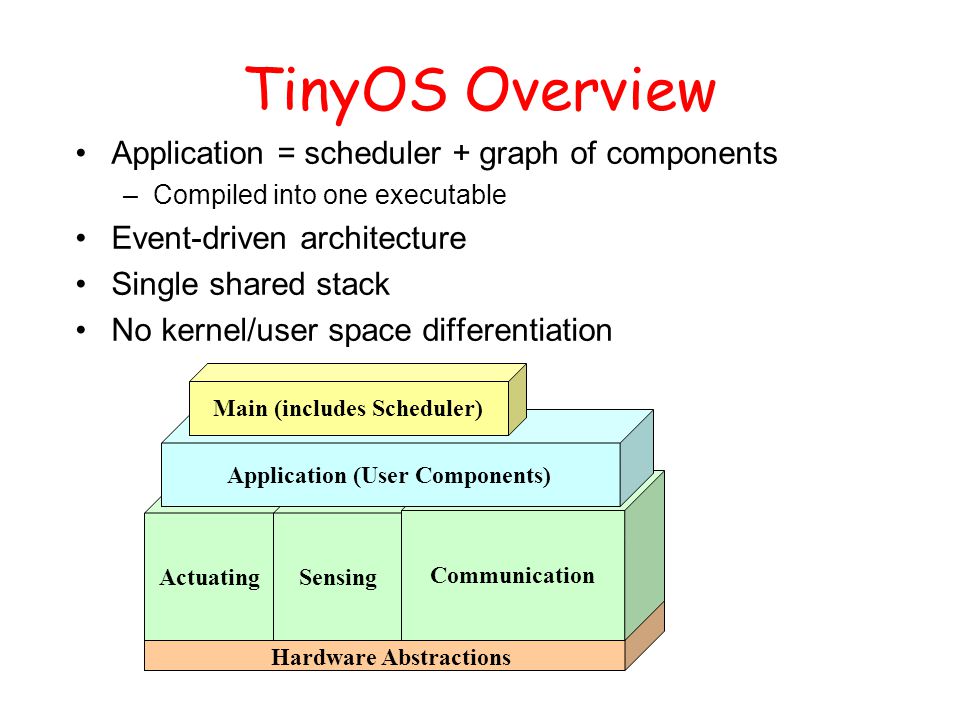

11. TinyOS Overview Application = scheduler + graph of components –Compiled into one executable Event-driven architecture Single shared stack No kernel/user space differentiation Communication ActuatingSensing Communication Application (User Components) Main (includes Scheduler) Hardware Abstractions

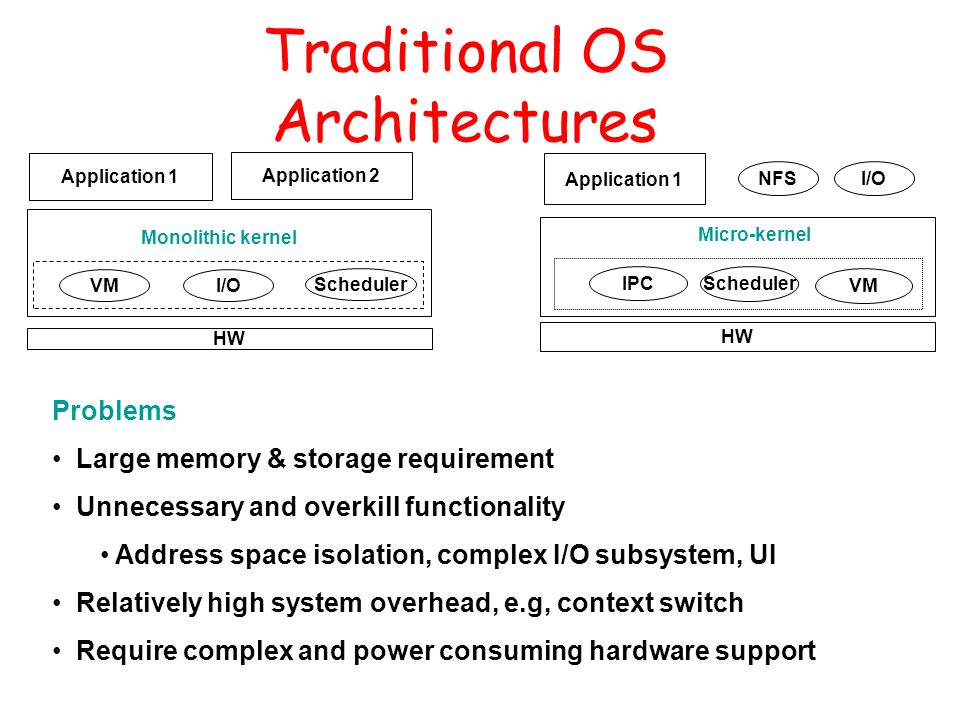

12. Traditional OS Architectures Problems Large memory & storage requirement Unnecessary and overkill functionality Address space isolation, complex I/O subsystem, UI Relatively high system overhead, e.g, context switch Require complex and power consuming hardware support VMI/O Scheduler Application 1 Application 2 Monolithic kernel HW NFSI/O Scheduler Application 1 Micro-kernel HW IPC VM

13. Desirable OS architecture Extremely small footprint Extremely low system overhead Extremely low power consumption

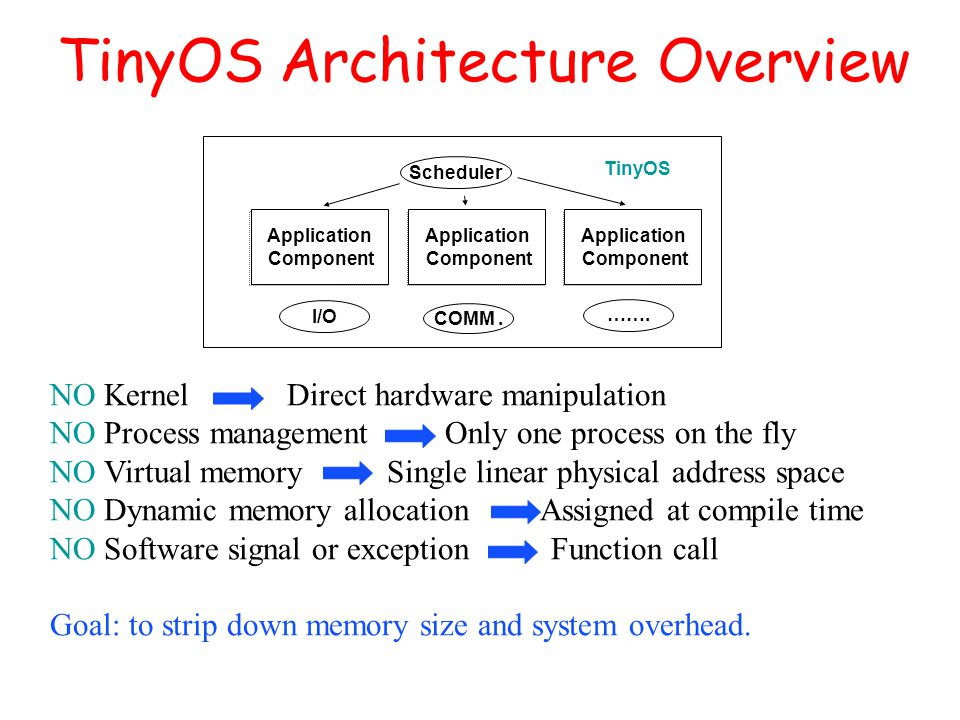

14. NO Kernel Direct hardware manipulation NO Process management Only one process on the fly NO Virtual memory Single linear physical address space NO Dynamic memory allocation Assigned at compile time NO Software signal or exception Function call Goal: to strip down memory size and system overhead. TinyOS Architecture Overview I/O COMM. ……. Scheduler TinyOS Application Component Application Component Application Component

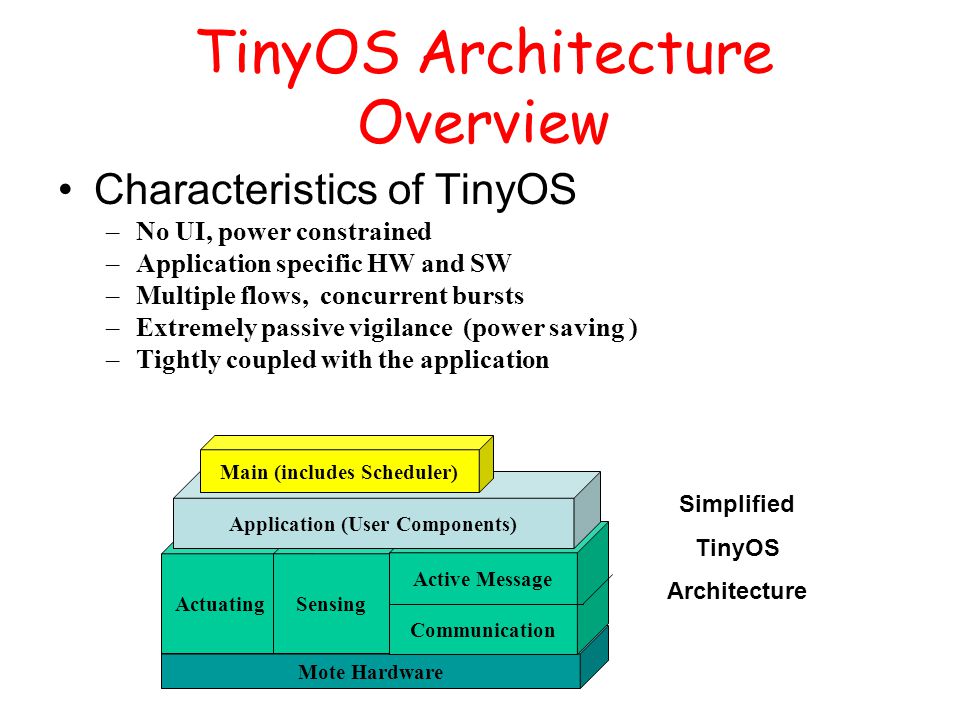

15. TinyOS Architecture Overview Characteristics of TinyOS –No UI, power constrained –Application specific HW and SW –Multiple flows, concurrent bursts –Extremely passive vigilance (power saving ) –Tightly coupled with the application Mote Hardware ActuatingSensing Simplified TinyOS Architecture Active Message Communication Application (User Components) Main (includes Scheduler)

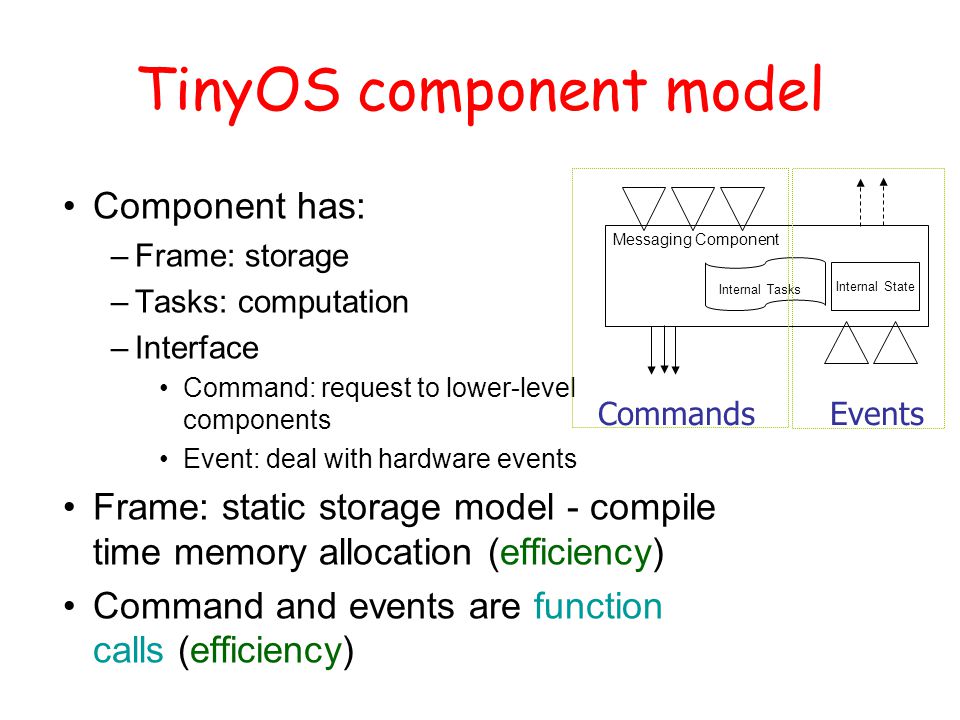

16. TinyOS component model Component has: –Frame: storage –Tasks: computation –Interface Command: request to lower-level components Event: deal with hardware events Frame: static storage model - compile time memory allocation (efficiency) Command and events are function calls (efficiency) Messaging Component Internal State Internal Tasks CommandsEvents

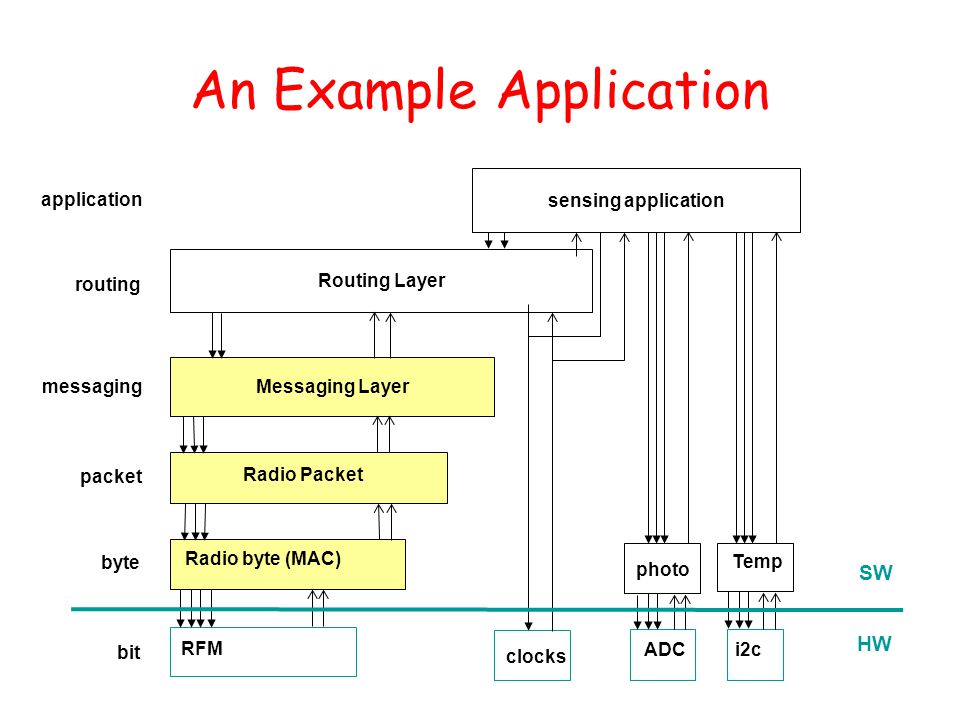

17. An Example Application RFM Radio byte (MAC) Radio Packet i2c Temp photo Messaging Layer clocks bit byte packet Routing Layer sensing application application HW SW ADC messaging routing

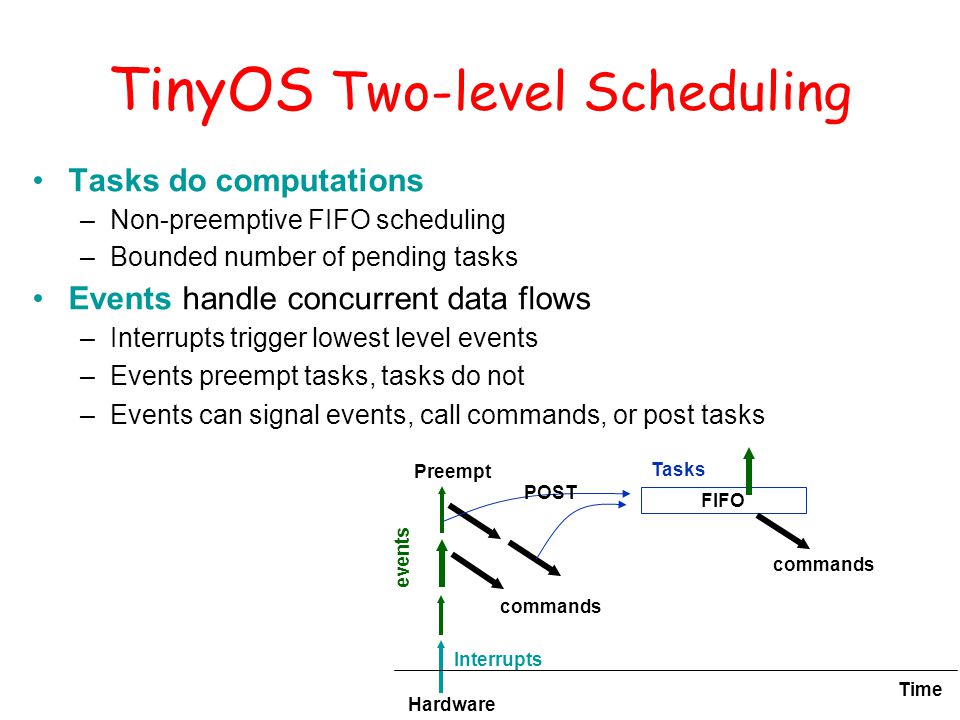

18. TinyOS Two-level Scheduling Tasks do computations –Non-preemptive FIFO scheduling –Bounded number of pending tasks Events handle concurrent data flows –Interrupts trigger lowest level events –Events preempt tasks, tasks do not –Events can signal events, call commands, or post tasks Hardware Interrupts events commands FIFO Tasks POST Preempt Time commands

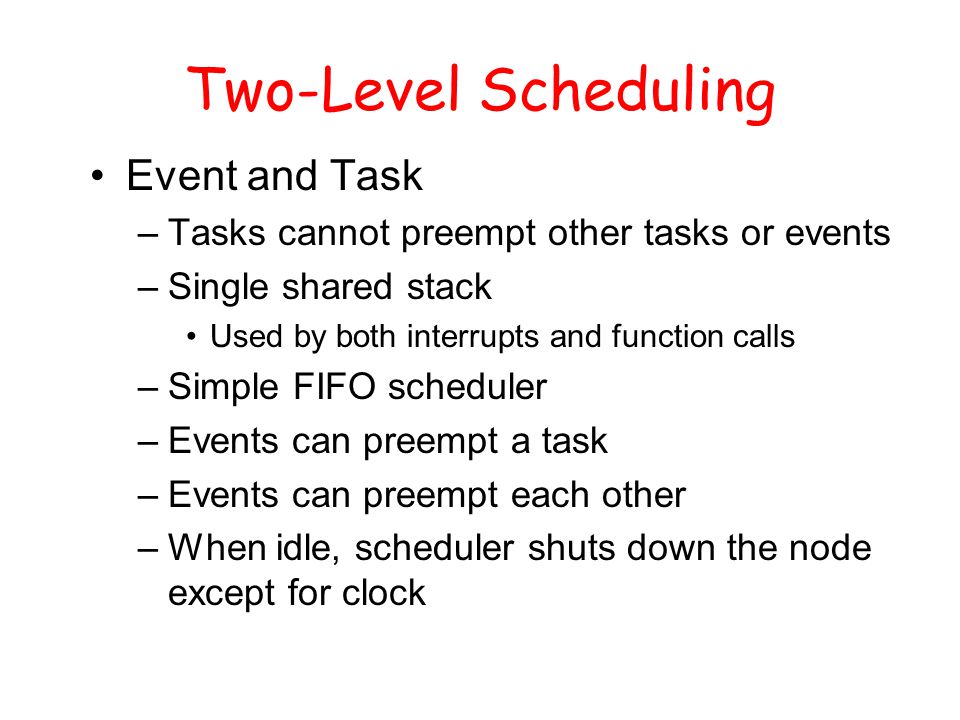

19. Two-Level Scheduling Event and Task –Tasks cannot preempt other tasks or events –Single shared stack Used by both interrupts and function calls –Simple FIFO scheduler –Events can preempt a task –Events can preempt each other –When idle, scheduler shuts down the node except for clock

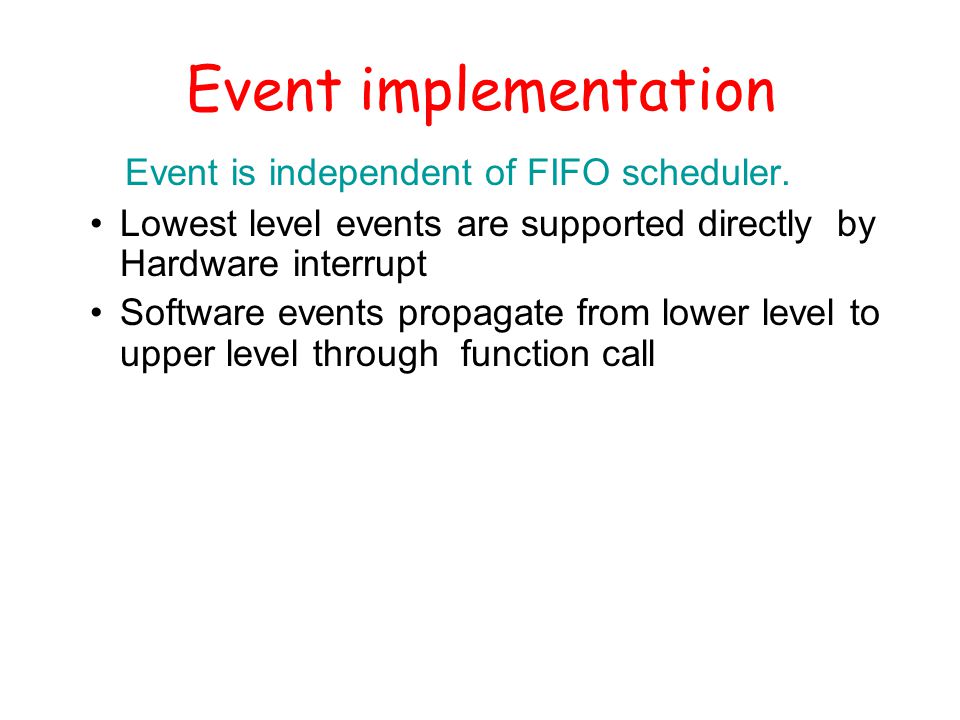

20. Event implementation Event is independent of FIFO scheduler. Lowest level events are supported directly by Hardware interrupt Software events propagate from lower level to upper level through function call

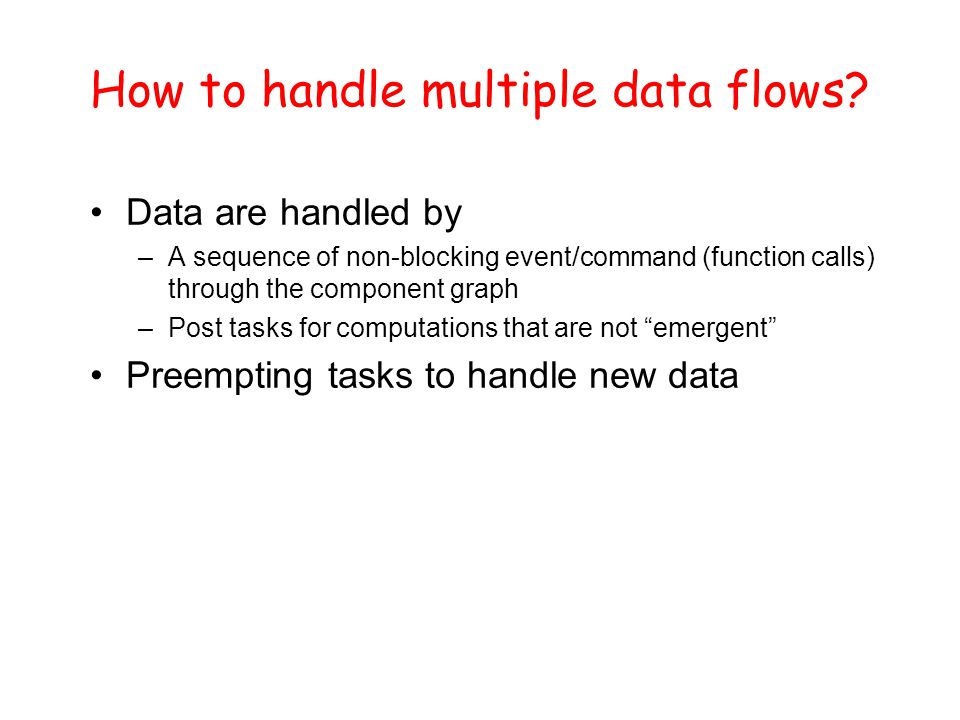

21. How to handle multiple data flows? Data are handled by –A sequence of non-blocking event/command (function calls) through the component graph –Post tasks for computations that are not “emergent” Preempting tasks to handle new data

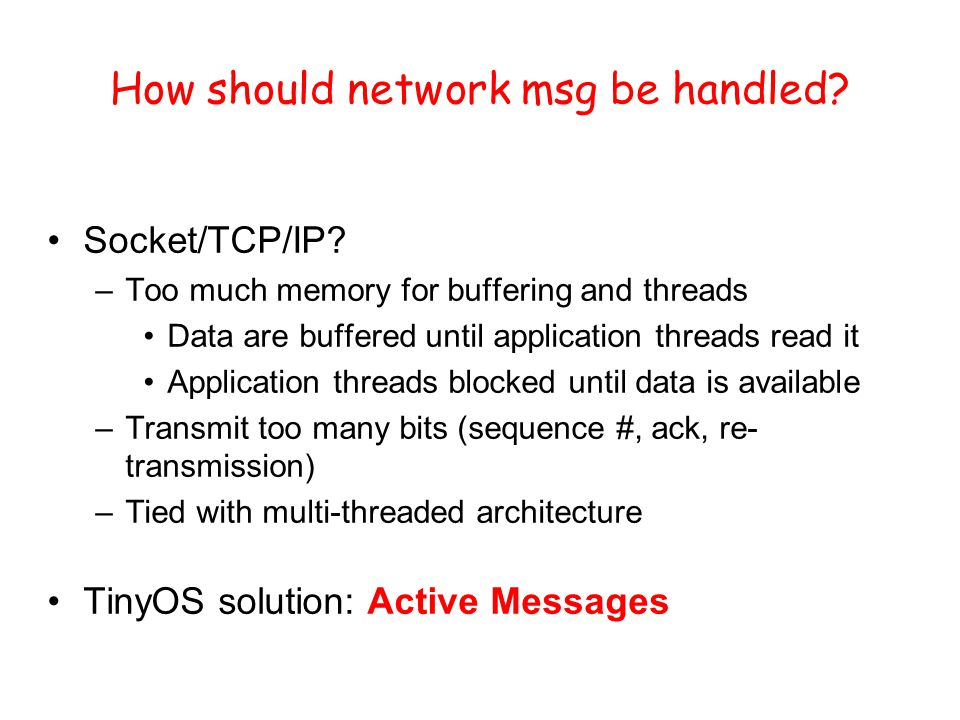

22. How should network msg be handled? Socket/TCP/IP? –Too much memory for buffering and threads Data are buffered until application threads read it Application threads blocked until data is available –Transmit too many bits (sequence #, ack, re- transmission) –Tied with multi-threaded architecture TinyOS solution: Active Messages

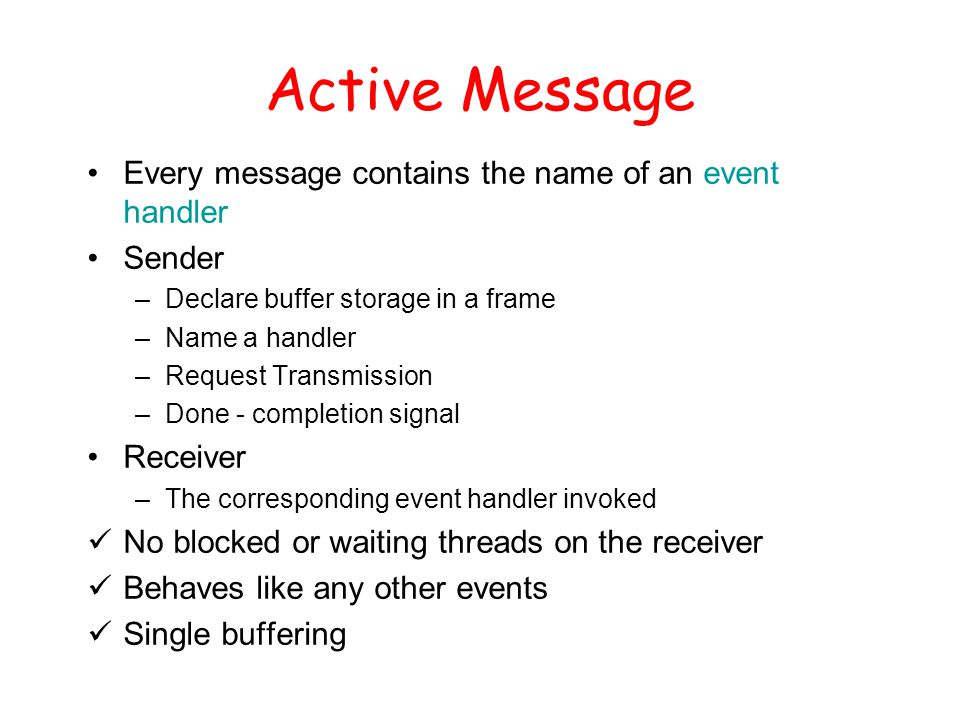

23. Active Message Every message contains the name of an event handler Sender –Declare buffer storage in a frame –Name a handler –Request Transmission –Done - completion signal Receiver –The corresponding event handler invoked No blocked or waiting threads on the receiver Behaves like any other events Single buffering

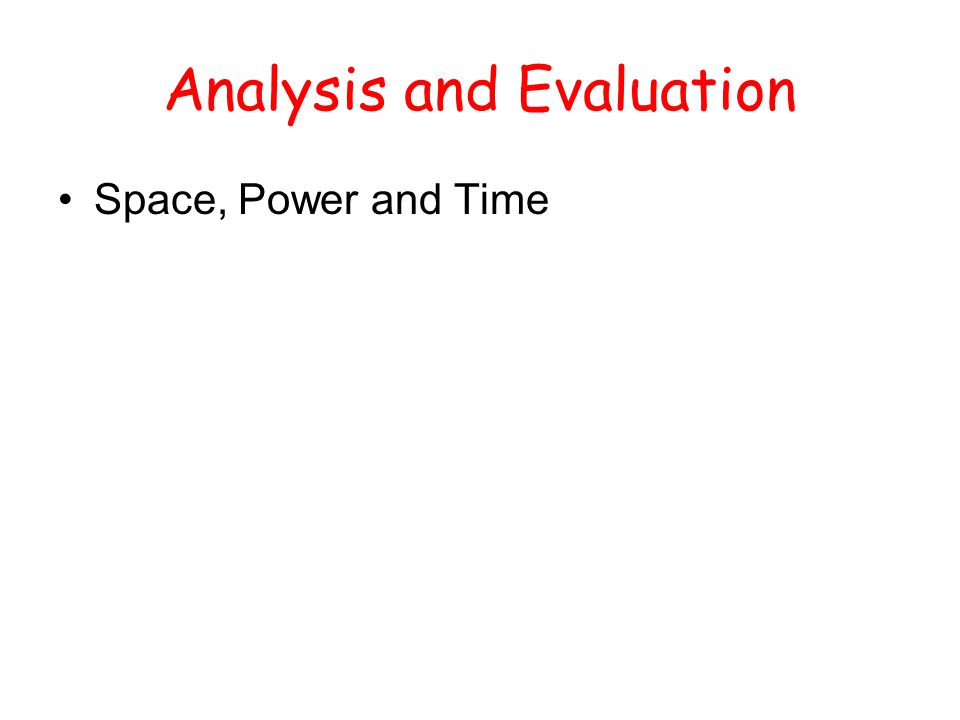

24. Analysis and Evaluation Space, Power and Time

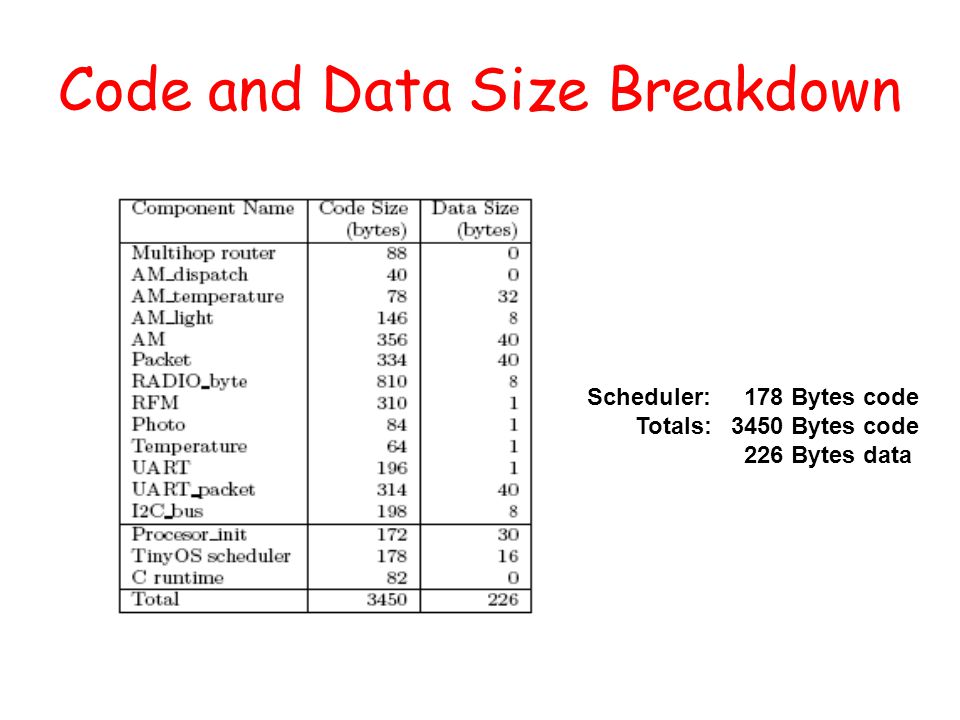

25. Code and Data Size Breakdown Scheduler: 178 Bytes code Totals: 3450 Bytes code 226 Bytes data

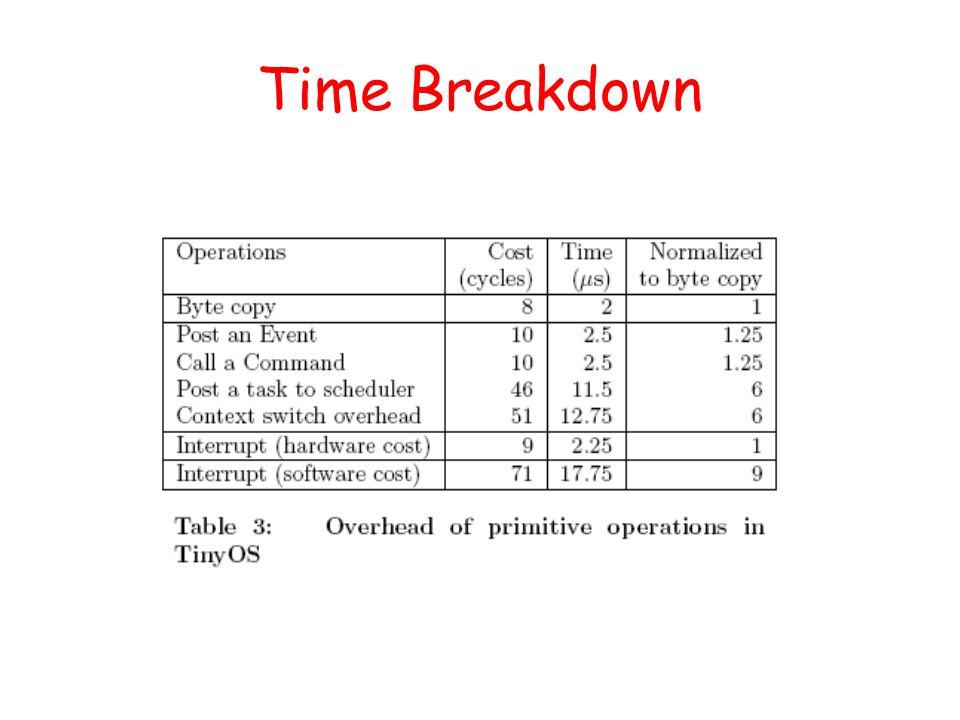

26. Time Breakdown

27. Power Breakdown…

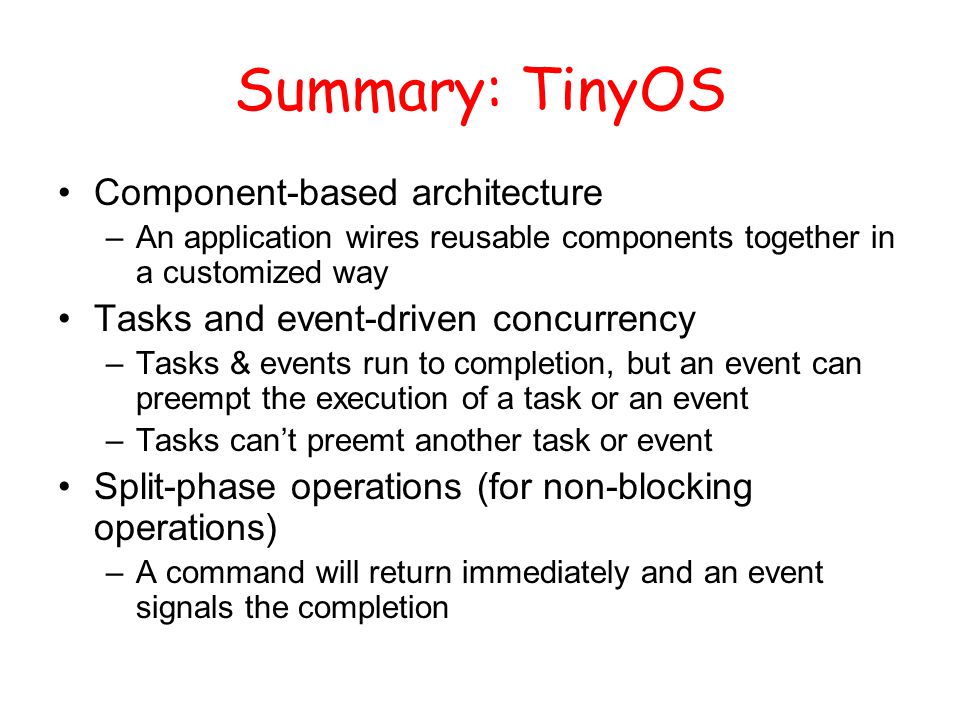

28. Summary: TinyOS Component-based architecture –An application wires reusable components together in a customized way Tasks and event-driven concurrency –Tasks & events run to completion, but an event can preempt the execution of a task or an event –Tasks can’t preemt another task or event Split-phase operations (for non-blocking operations) –A command will return immediately and an event signals the completion

29. A quick look at nesC [O2] D. Gay, P. Levis, R. von Behren, M. Welsh, E. Brewer, and D. Culler, The nesC Language: A Holistic Approach to Networked Embedded Systems, ACM Conference on Programming Language Design and Implementation (PLDI), June 2003.The nesC Language: A Holistic Approach to Networked Embedded Systems,

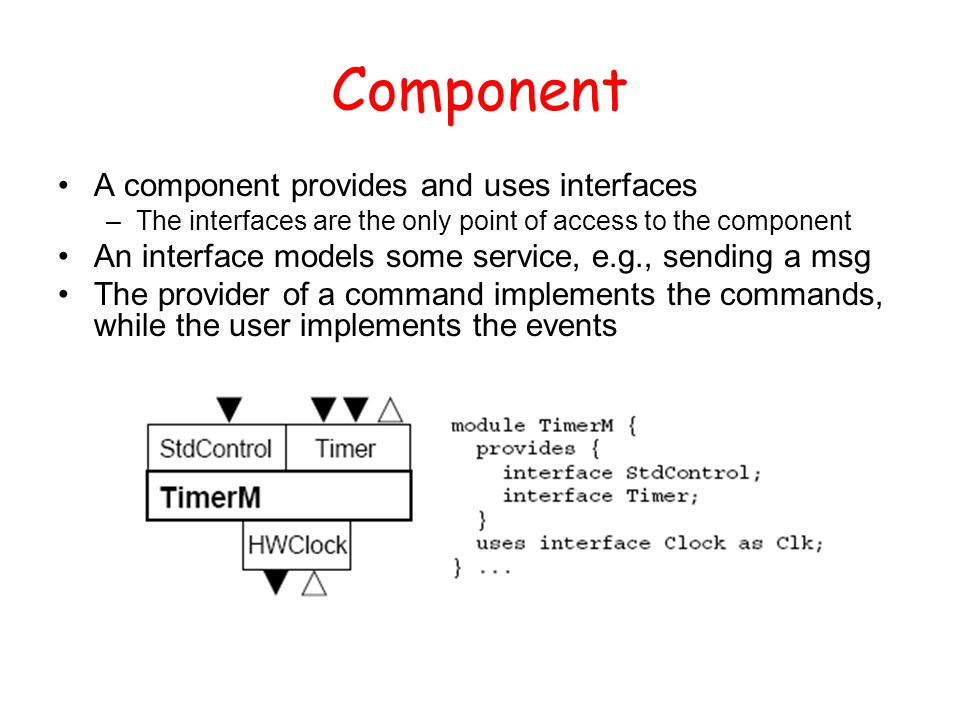

30. Component A component provides and uses interfaces –The interfaces are the only point of access to the component An interface models some service, e.g., sending a msg The provider of a command implements the commands, while the user implements the events

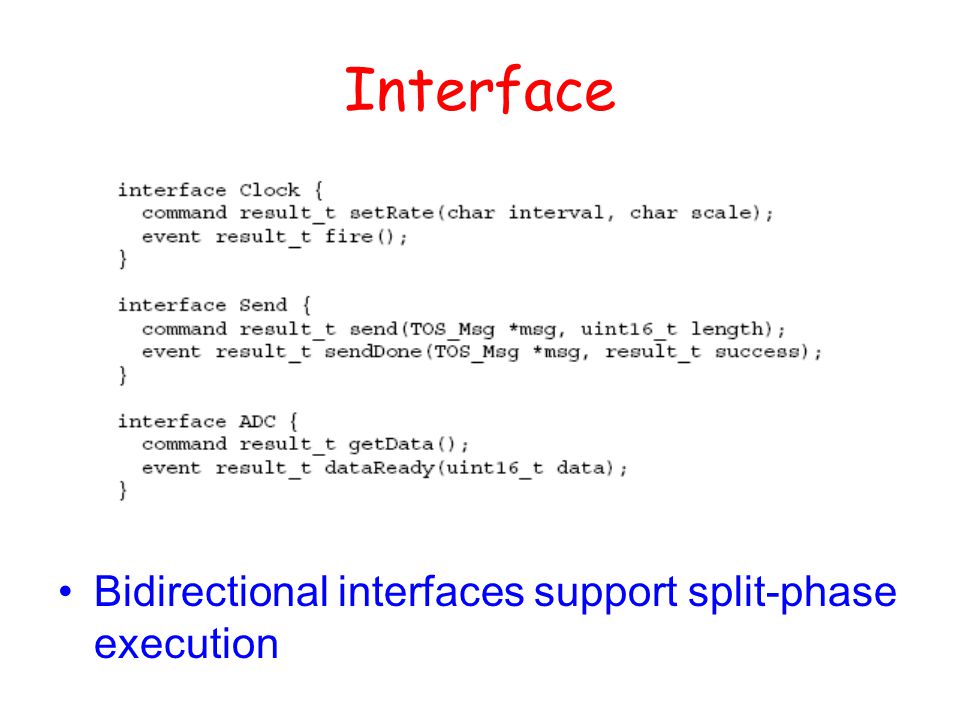

31. Interface Bidirectional interfaces support split-phase execution

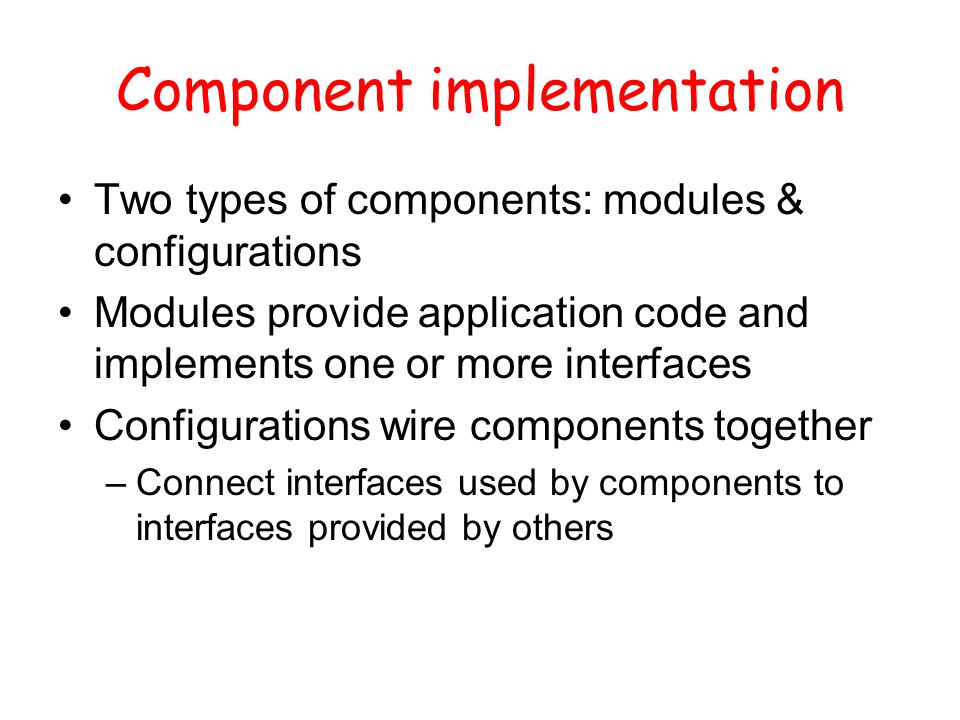

32. Component implementation Two types of components: modules & configurations Modules provide application code and implements one or more interfaces Configurations wire components together –Connect interfaces used by components to interfaces provided by others

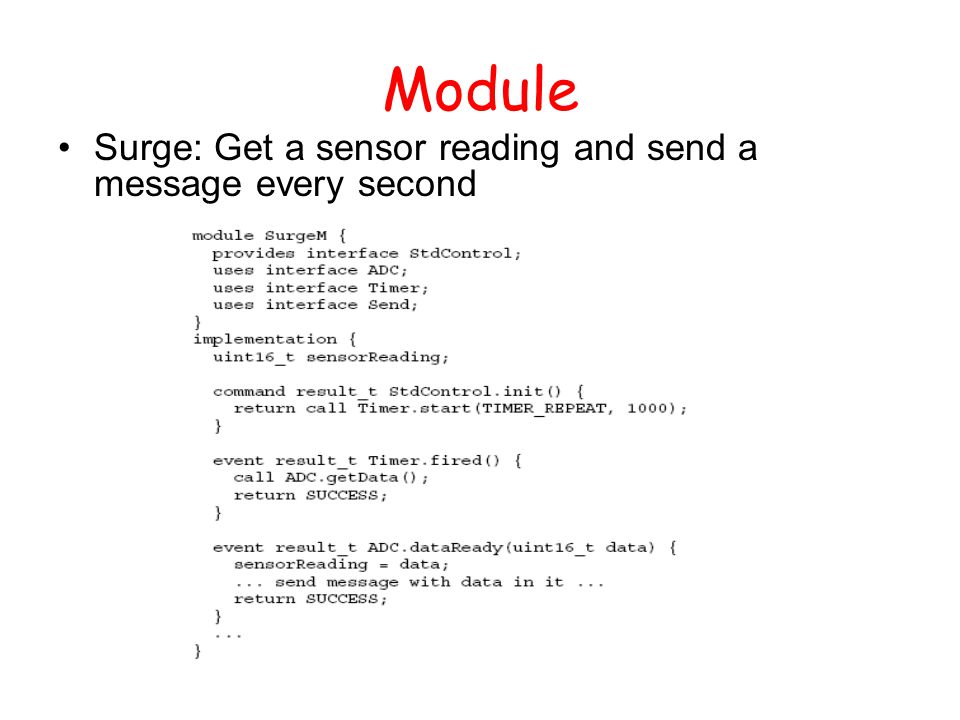

33. Module Surge: Get a sensor reading and send a message every second

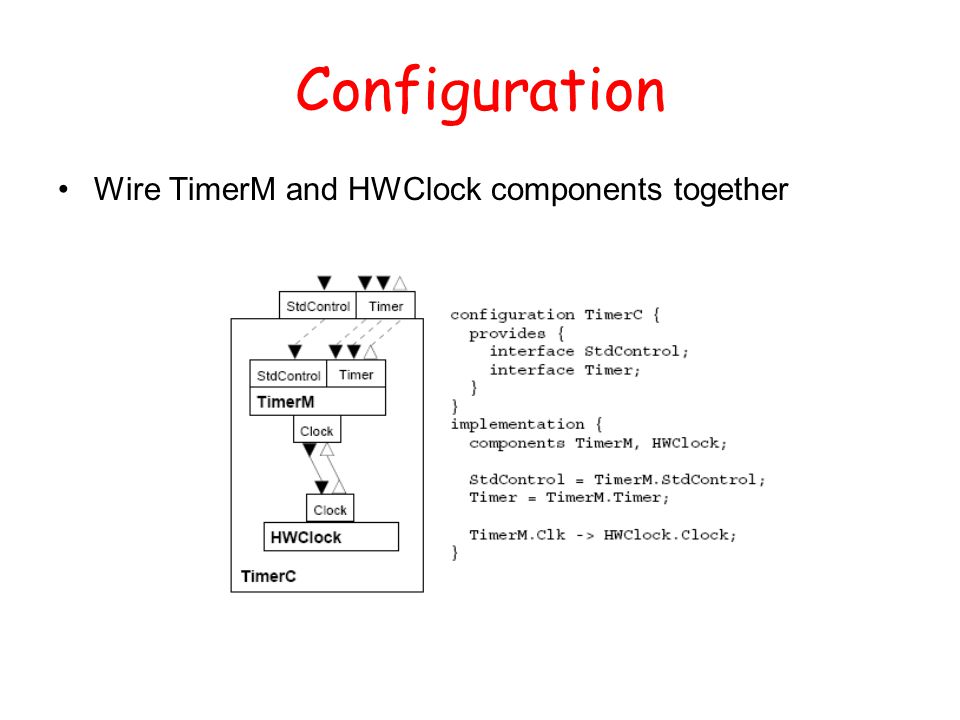

34. Configuration Wire TimerM and HWClock components together

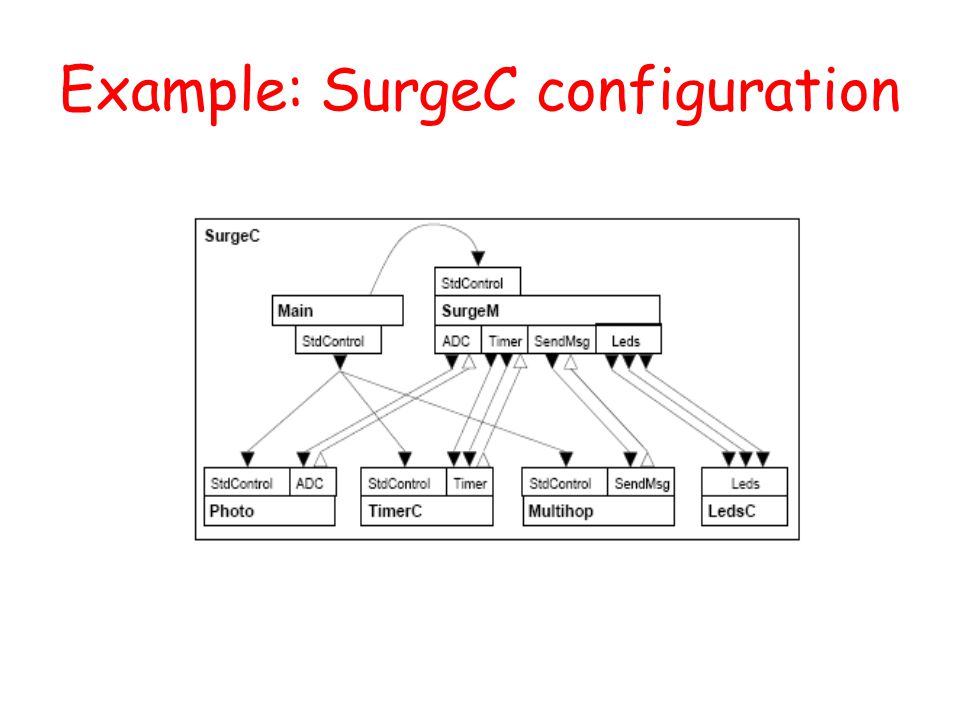

35. Example: SurgeC configuration

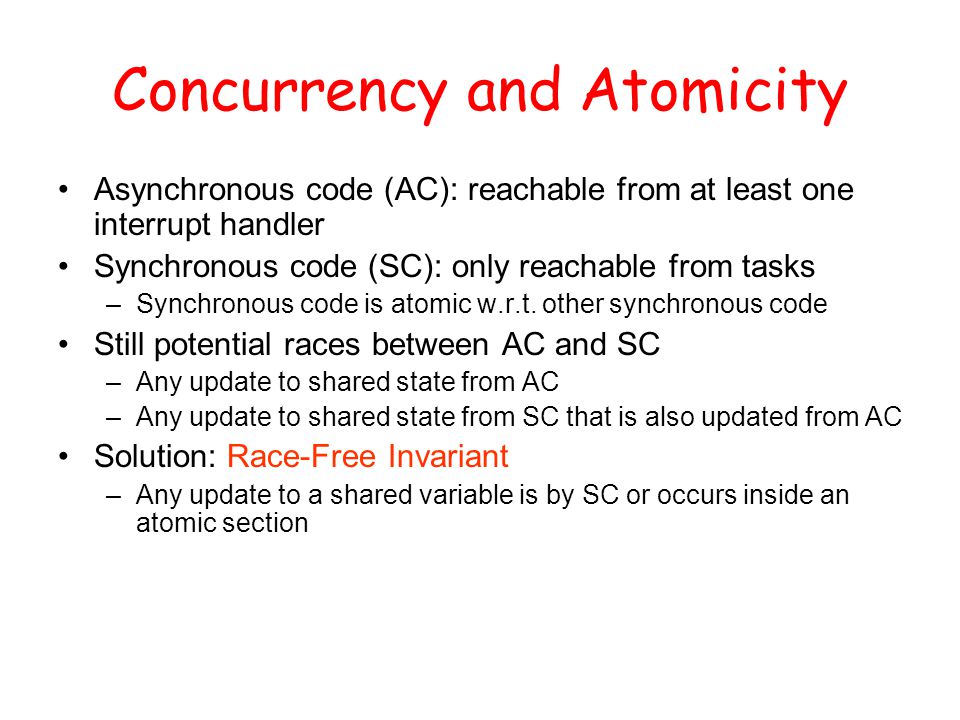

36. Concurrency and Atomicity Asynchronous code (AC): reachable from at least one interrupt handler Synchronous code (SC): only reachable from tasks –Synchronous code is atomic w.r.t. other synchronous code Still potential races between AC and SC –Any update to shared state from AC –Any update to shared state from SC that is also updated from AC Solution: Race-Free Invariant –Any update to a shared variable is by SC or occurs inside an atomic section

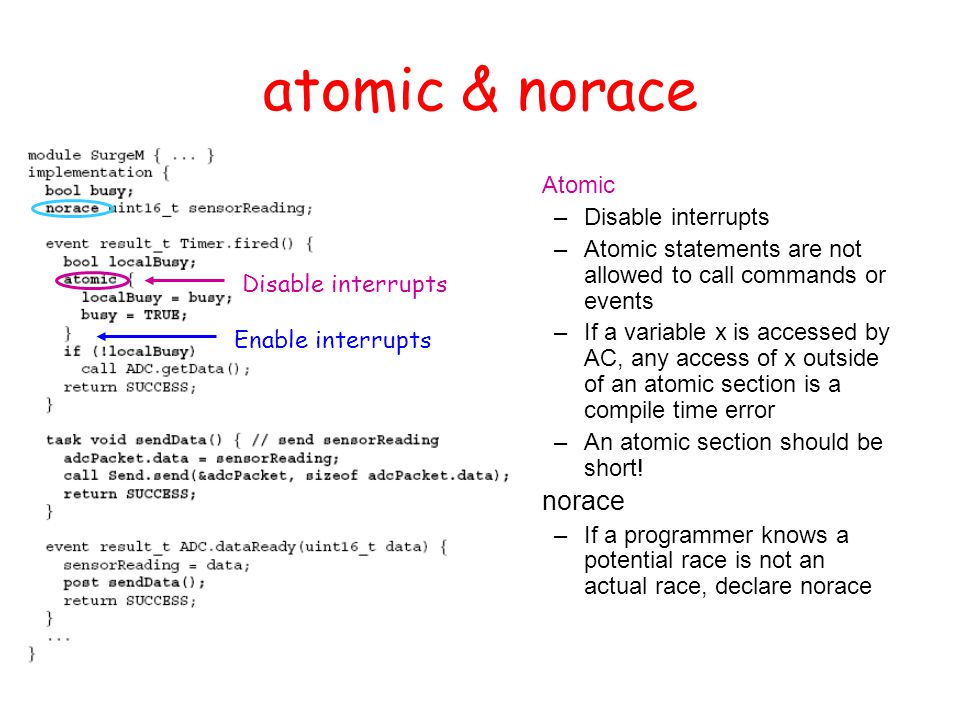

37. atomic & norace Atomic –Disable interrupts –Atomic statements are not allowed to call commands or events –If a variable x is accessed by AC, any access of x outside of an atomic section is a compile time error –An atomic section should be short! norace –If a programmer knows a potential race is not an actual race, declare norace Disable interrupts Enable interrupts

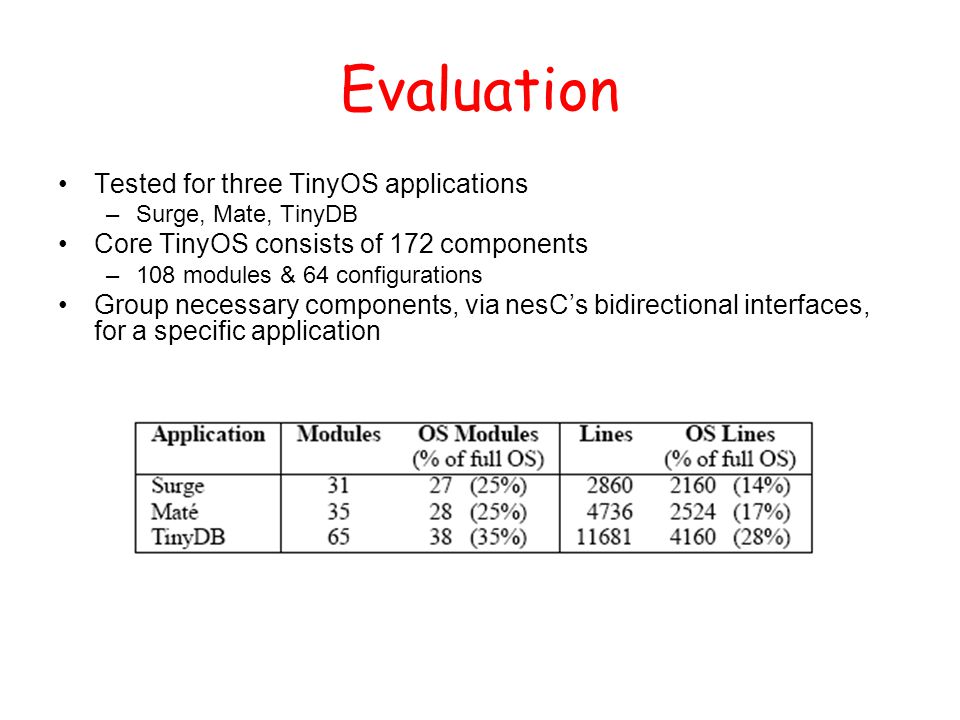

38. Evaluation Tested for three TinyOS applications –Surge, Mate, TinyDB Core TinyOS consists of 172 components –108 modules & 64 configurations Group necessary components, via nesC’s bidirectional interfaces, for a specific application

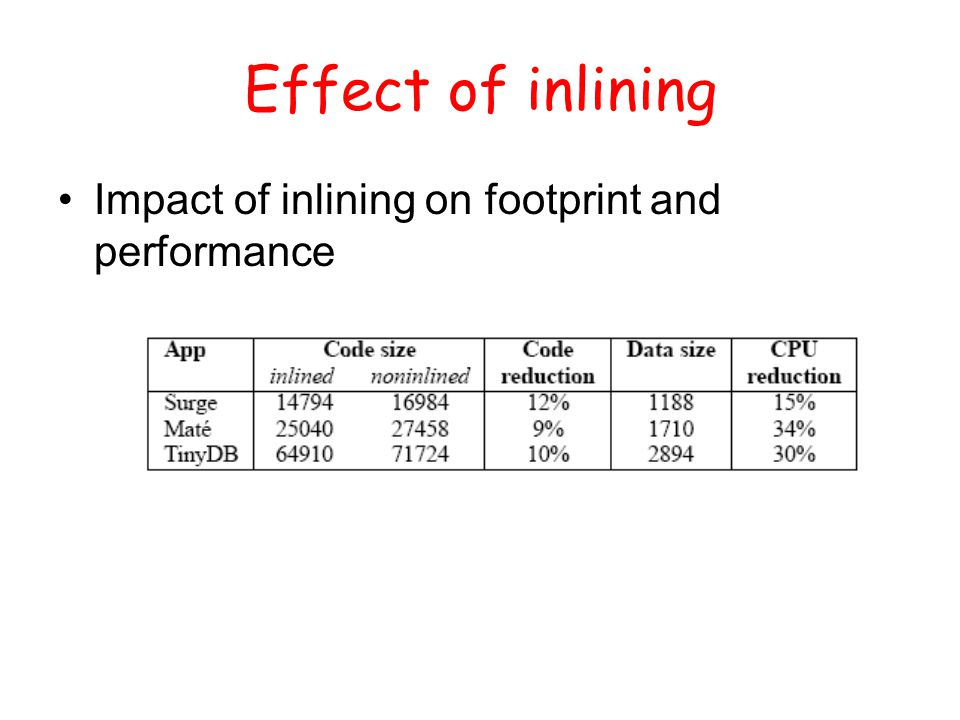

39. Effect of inlining Impact of inlining on footprint and performance

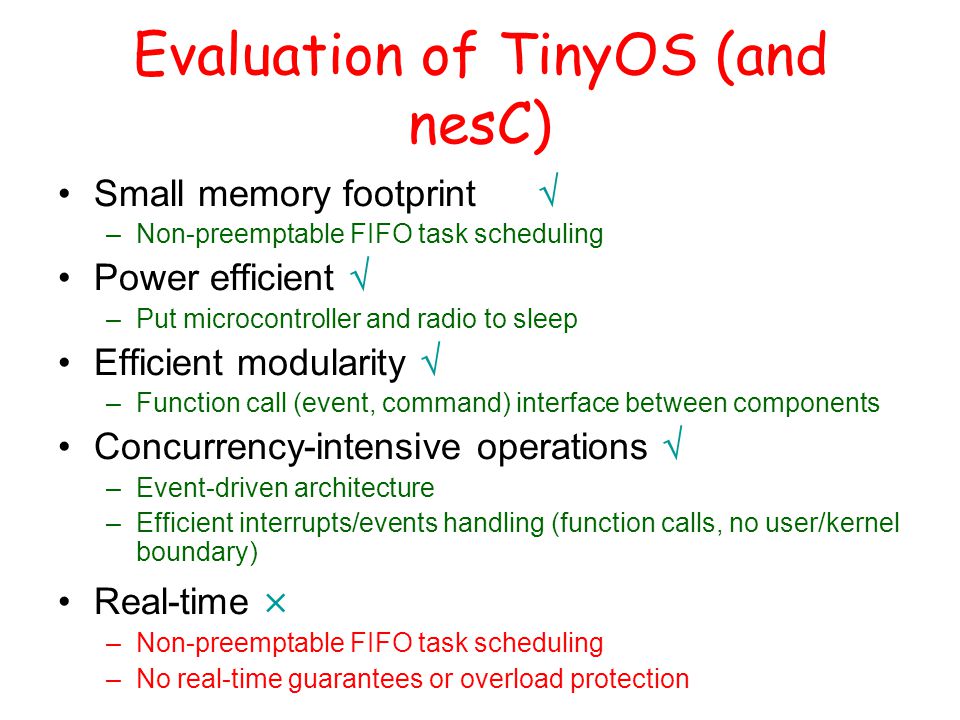

40. Evaluation of TinyOS (and nesC) Small memory footprint  –Non-preemptable FIFO task scheduling Power efficient  –Put microcontroller and radio to sleep Efficient modularity  –Function call (event, command) interface between components Concurrency-intensive operations  –Event-driven architecture –Efficient interrupts/events handling (function calls, no user/kernel boundary) Real-time  –Non-preemptable FIFO task scheduling –No real-time guarantees or overload protection

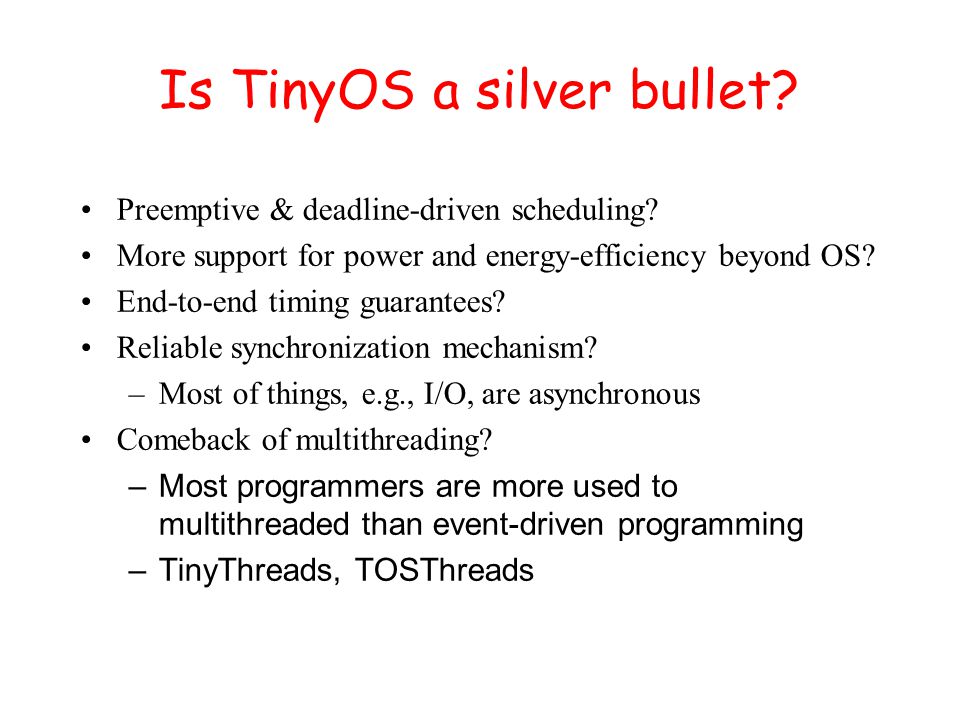

41. Is TinyOS a silver bullet? Preemptive & deadline-driven scheduling? More support for power and energy-efficiency beyond OS? End-to-end timing guarantees? Reliable synchronization mechanism? –Most of things, e.g., I/O, are asynchronous Comeback of multithreading? –Most programmers are more used to multithreaded than event-driven programming –TinyThreads, TOSThreads

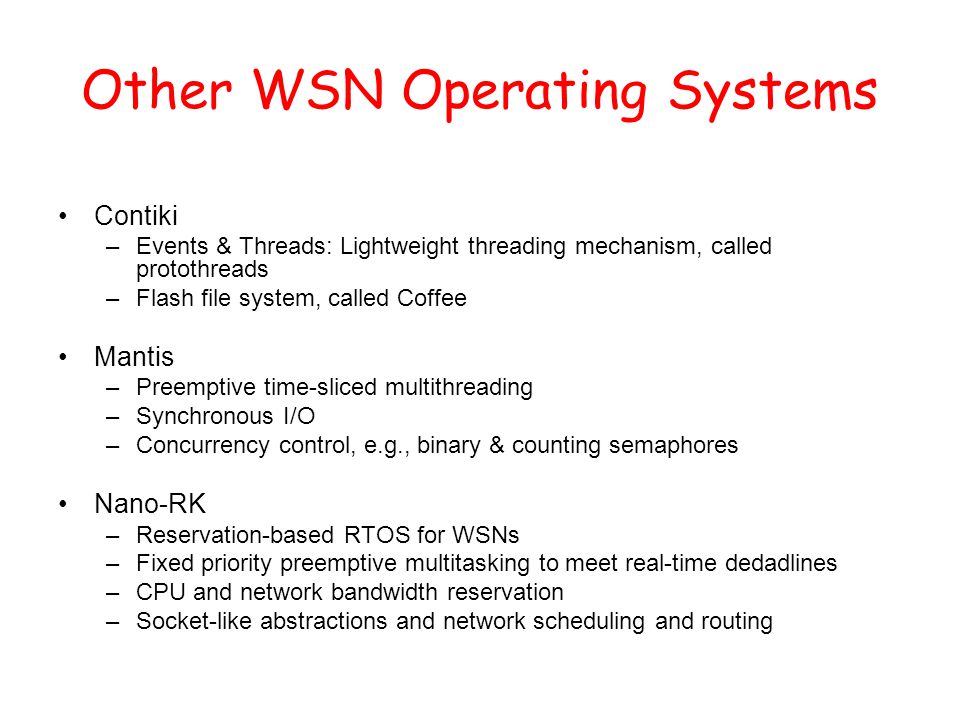

42. Other WSN Operating Systems Contiki –Events & Threads: Lightweight threading mechanism, called protothreads –Flash file system, called Coffee Mantis –Preemptive time-sliced multithreading –Synchronous I/O –Concurrency control, e.g., binary & counting semaphores Nano-RK –Reservation-based RTOS for WSNs –Fixed priority preemptive multitasking to meet real-time dedadlines –CPU and network bandwidth reservation –Socket-like abstractions and network scheduling and routing

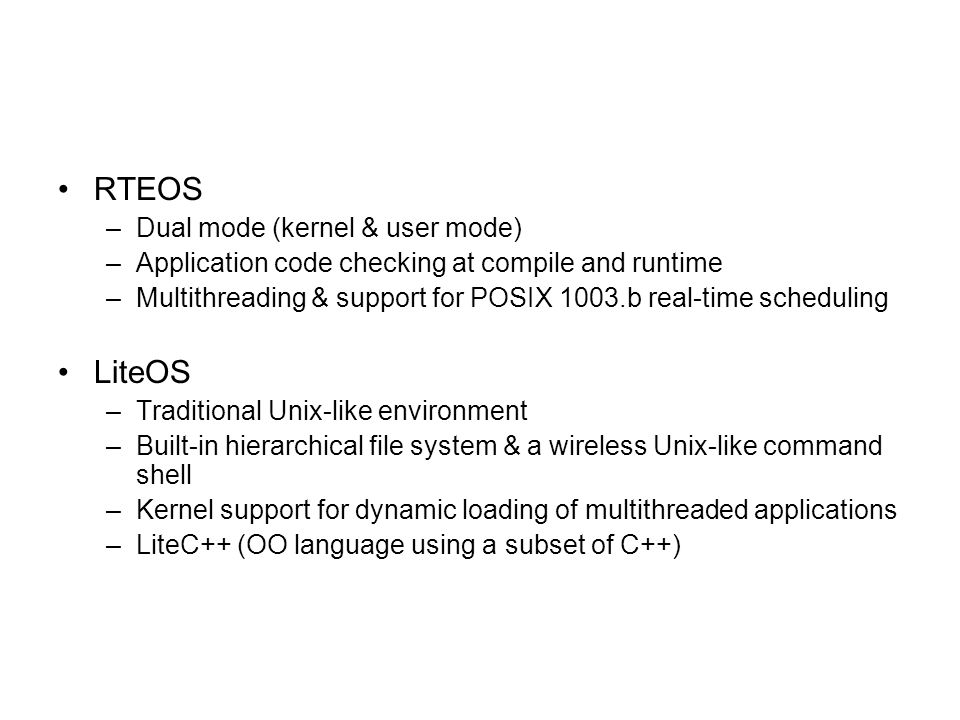

43. RTEOS –Dual mode (kernel & user mode) –Application code checking at compile and runtime –Multithreading & support for POSIX 1003.b real-time scheduling LiteOS –Traditional Unix-like environment –Built-in hierarchical file system & a wireless Unix-like command shell –Kernel support for dynamic loading of multithreaded applications –LiteC++ (OO language using a subset of C++)

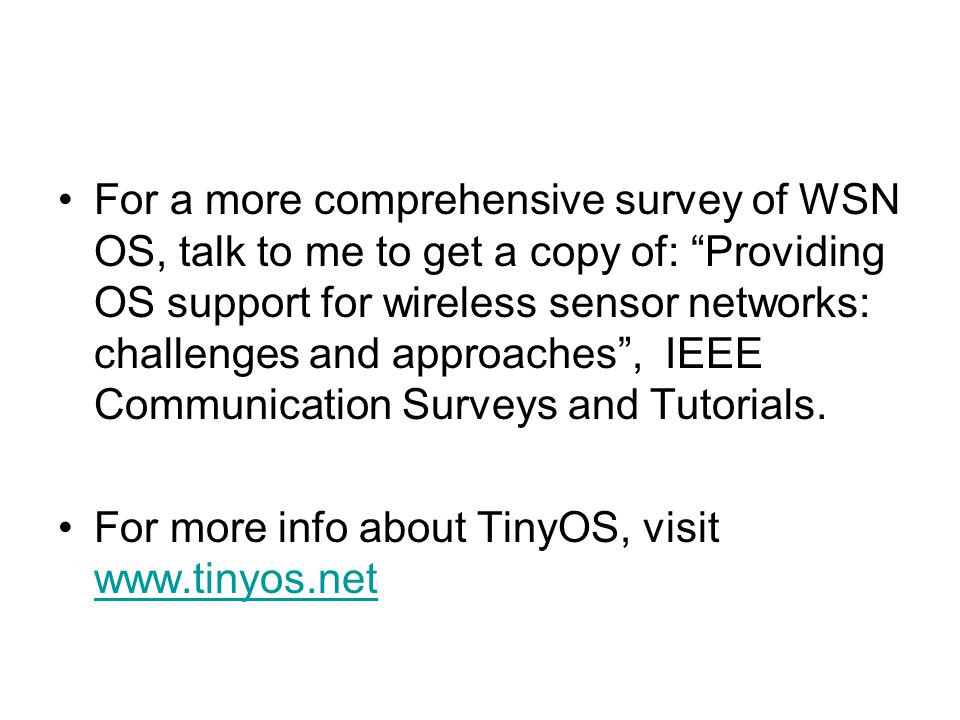

44. For a more comprehensive survey of WSN OS, talk to me to get a copy of: “Providing OS support for wireless sensor networks: challenges and approaches”, IEEE Communication Surveys and Tutorials. For more info about TinyOS, visit www.tinyos.net www.tinyos.net

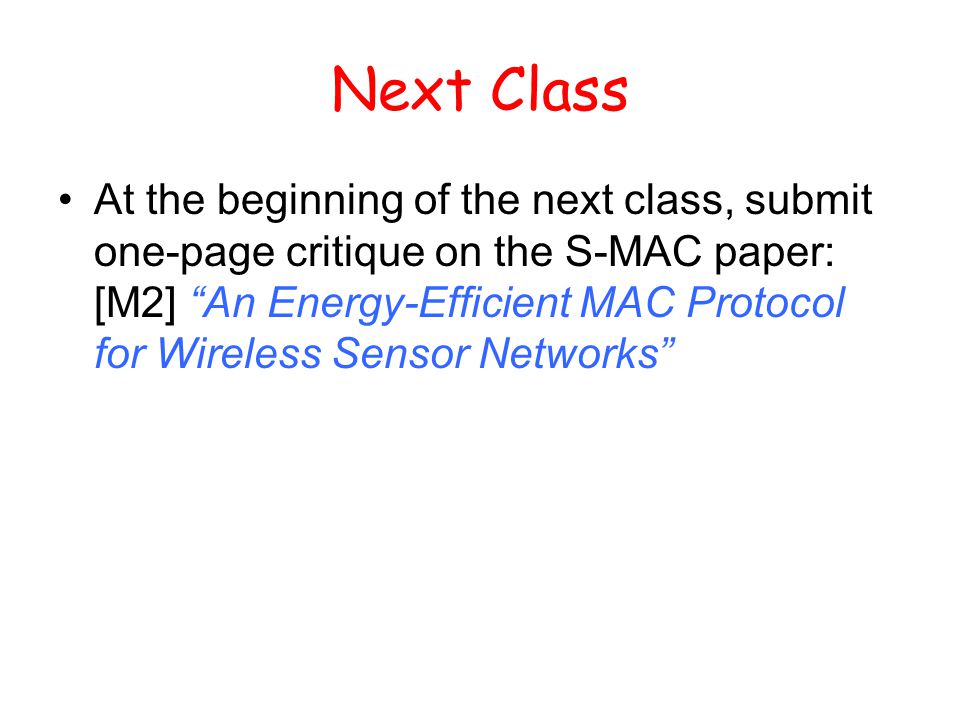

45. Next Class At the beginning of the next class, submit one-page critique on the S-MAC paper: [M2] “An Energy-Efficient MAC Protocol for Wireless Sensor Networks”
