1. Applied Cryptography1 Applied Cryptography Week 9 Java Tools Michael McCarthy

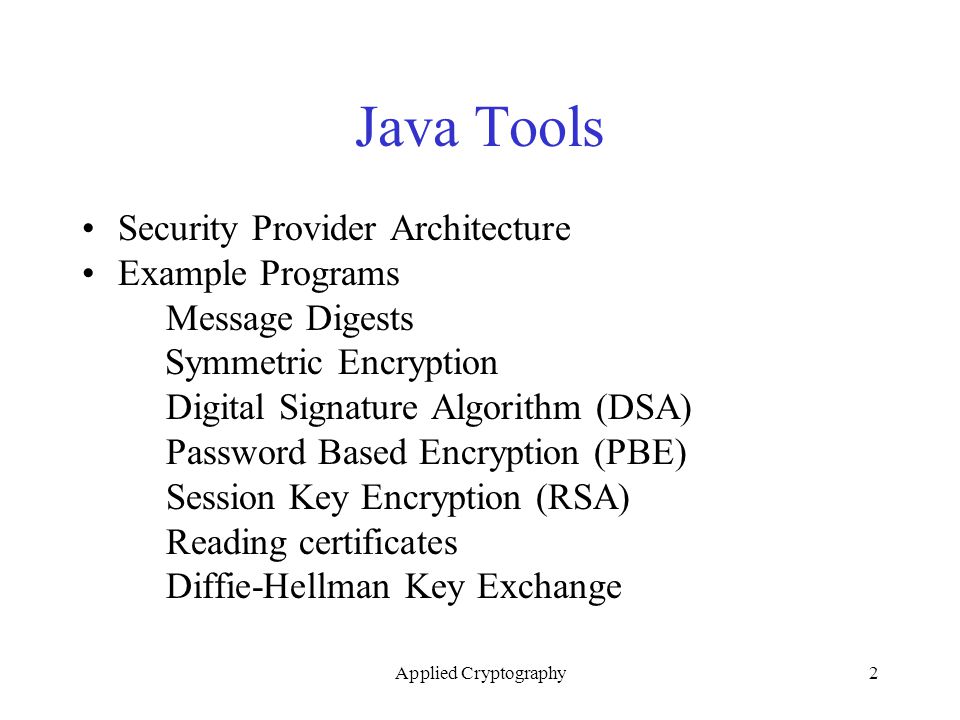

2. Applied Cryptography2 Java Tools Security Provider Architecture Example Programs Message Digests Symmetric Encryption Digital Signature Algorithm (DSA) Password Based Encryption (PBE) Session Key Encryption (RSA) Reading certificates Diffie-Hellman Key Exchange

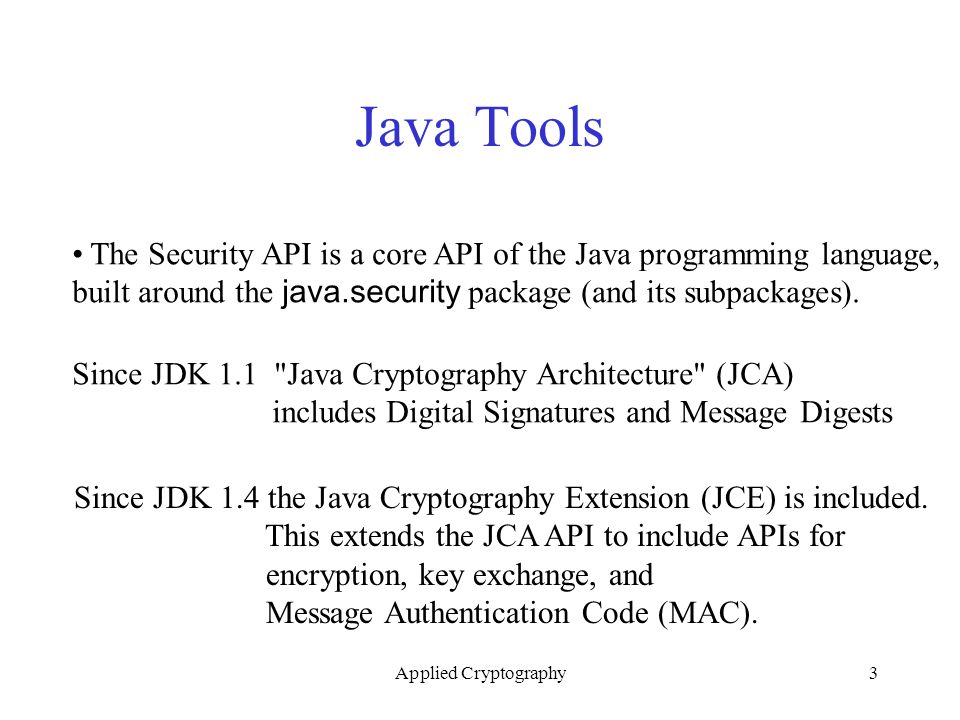

3. Applied Cryptography3 Java Tools The Security API is a core API of the Java programming language, built around the java.security package (and its subpackages). Since JDK 1.1 "Java Cryptography Architecture" (JCA) includes Digital Signatures and Message Digests Since JDK 1.4 the Java Cryptography Extension (JCE) is included. This extends the JCA API to include APIs for encryption, key exchange, and Message Authentication Code (MAC).

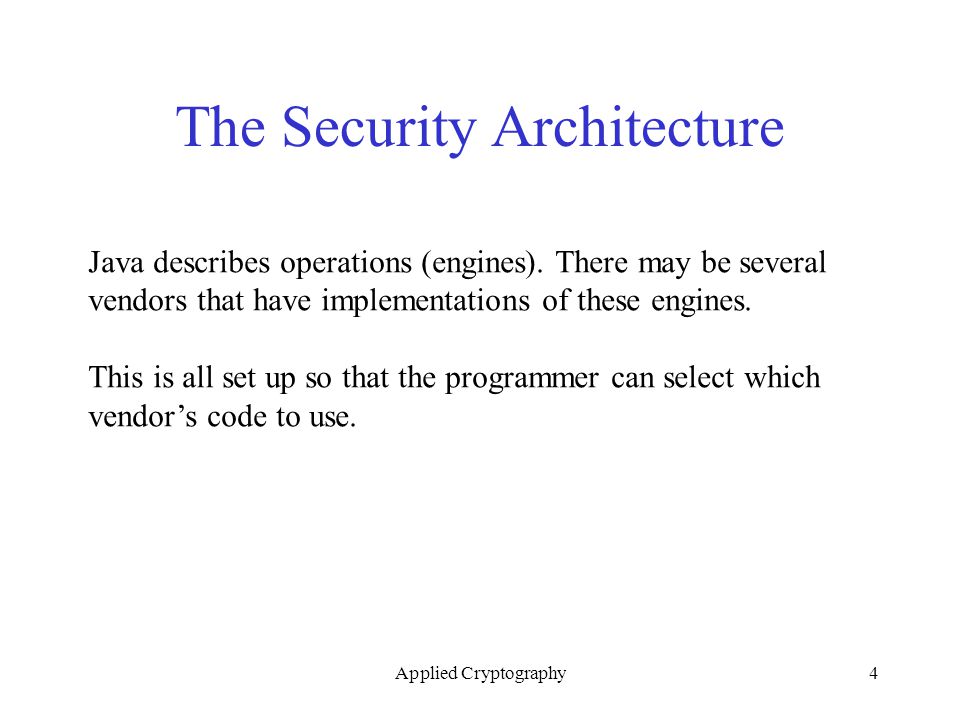

4. Applied Cryptography4 The Security Architecture Java describes operations (engines). There may be several vendors that have implementations of these engines. This is all set up so that the programmer can select which vendor’s code to use.

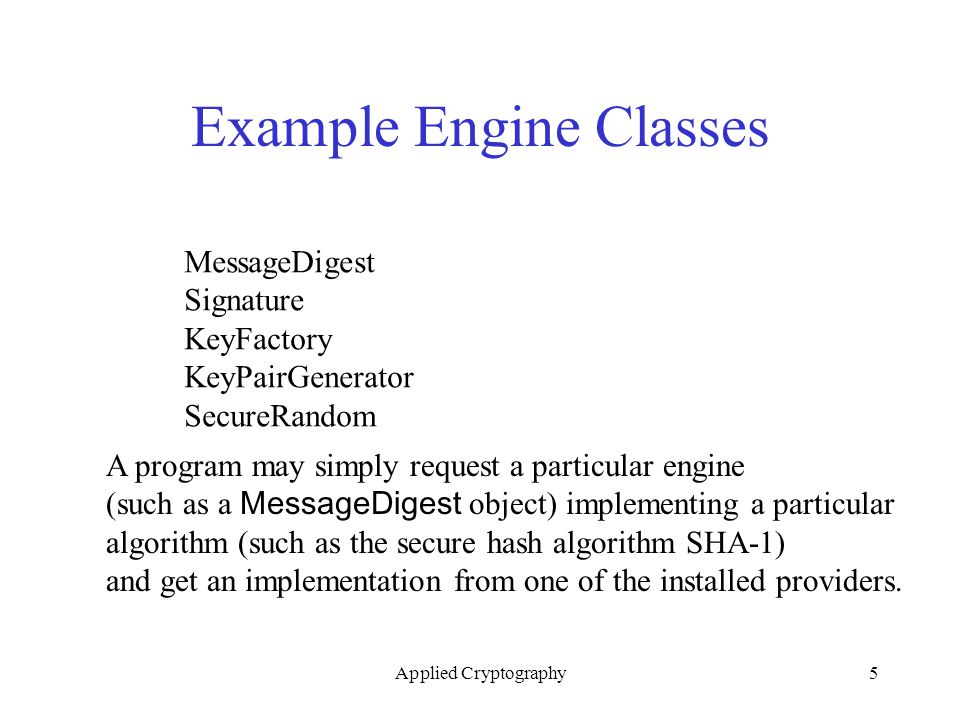

5. Applied Cryptography5 Example Engine Classes MessageDigest Signature KeyFactory KeyPairGenerator SecureRandom A program may simply request a particular engine (such as a MessageDigest object) implementing a particular algorithm (such as the secure hash algorithm SHA-1) and get an implementation from one of the installed providers.

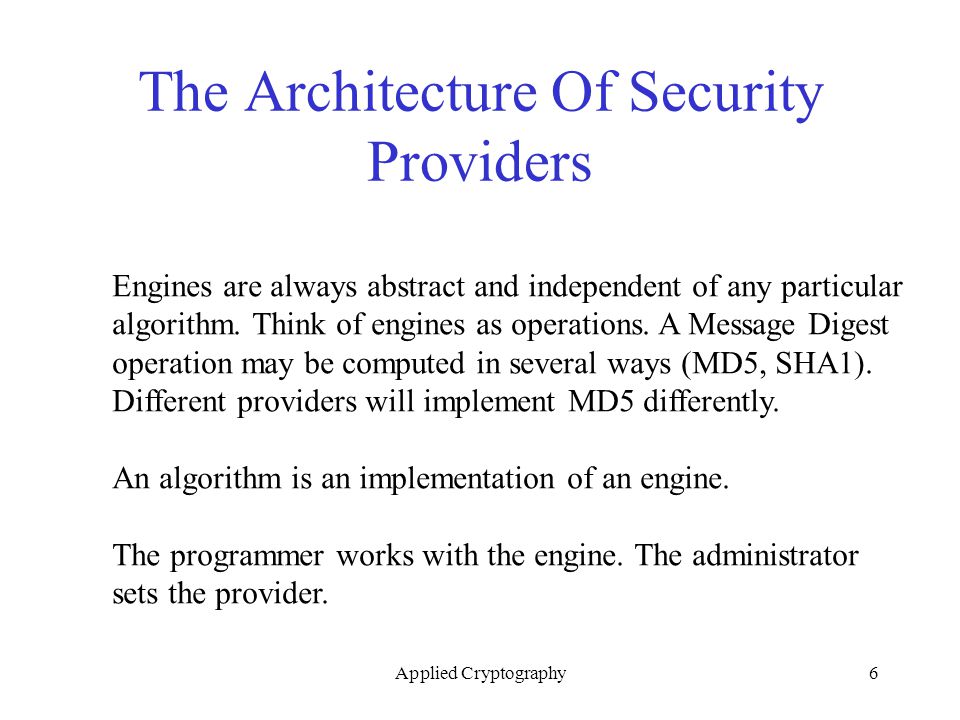

6. Applied Cryptography6 The Architecture Of Security Providers Engines are always abstract and independent of any particular algorithm. Think of engines as operations. A Message Digest operation may be computed in several ways (MD5, SHA1). Different providers will implement MD5 differently. An algorithm is an implementation of an engine. The programmer works with the engine. The administrator sets the provider.

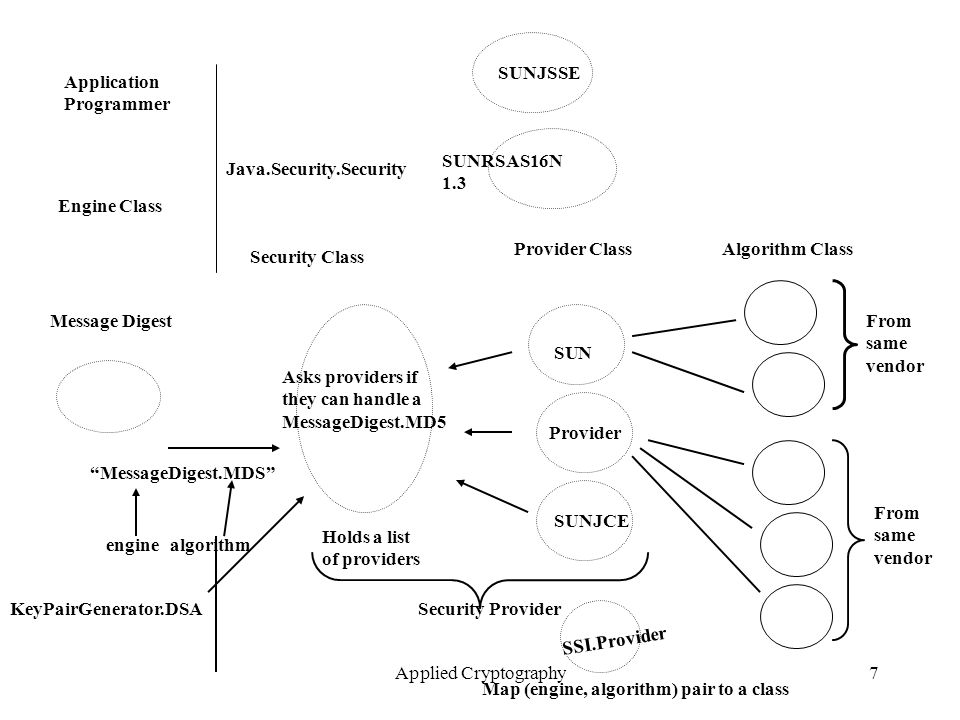

7. Applied Cryptography7 Application Programmer Engine Class Java.Security.Security Security Class SUNJSSE SUNRSAS16N 1.3 Provider ClassAlgorithm Class Message Digest Asks providers if they can handle a MessageDigest.MD5 Provider SUN SUNJCE “MessageDigest.MDS” enginealgorithm Holds a list of providers KeyPairGenerator.DSASecurity Provider Map (engine, algorithm) pair to a class SSI.Provider From same vendor From same vendor

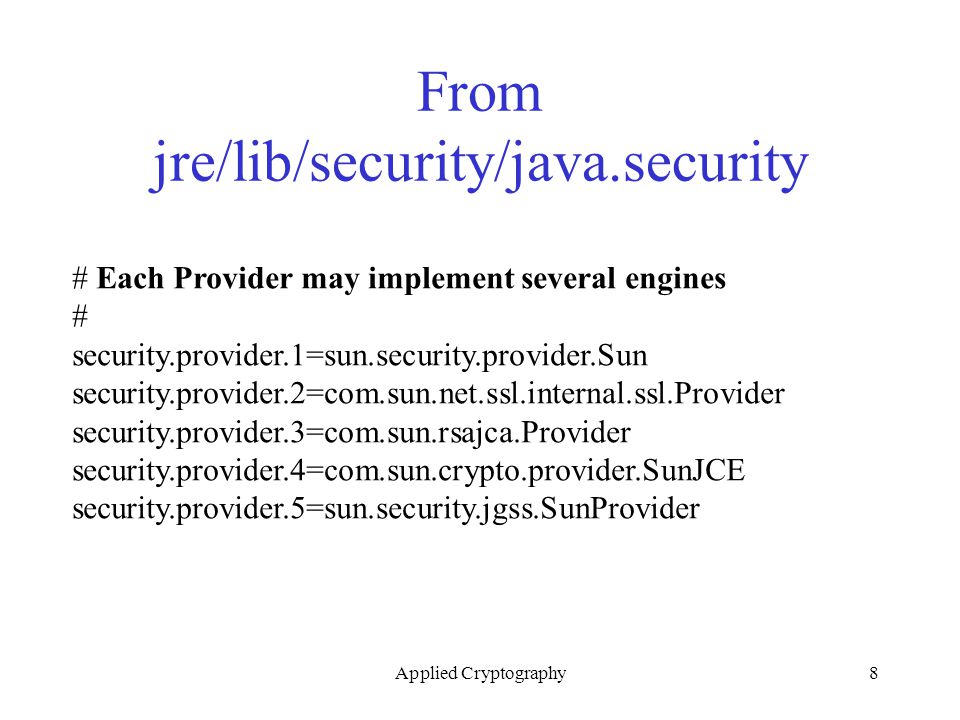

8. Applied Cryptography8 From jre/lib/security/java.security # Each Provider may implement several engines # security.provider.1=sun.security.provider.Sun security.provider.2=com.sun.net.ssl.internal.ssl.Provider security.provider.3=com.sun.rsajca.Provider security.provider.4=com.sun.crypto.provider.SunJCE security.provider.5=sun.security.jgss.SunProvider

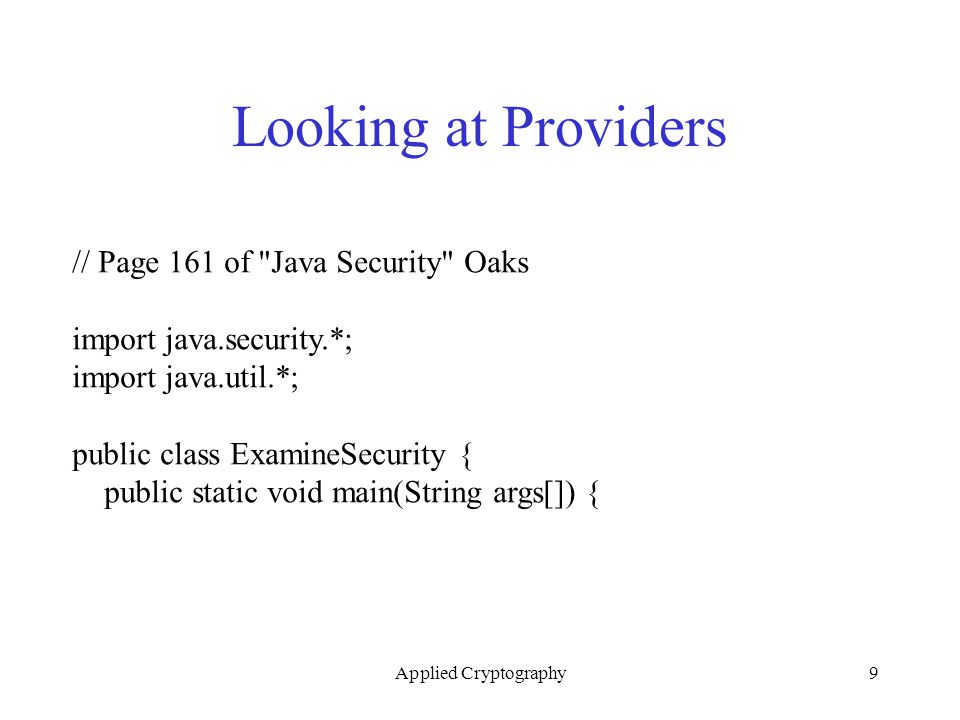

9. Applied Cryptography9 Looking at Providers // Page 161 of "Java Security" Oaks import java.security.*; import java.util.*; public class ExamineSecurity { public static void main(String args[]) {

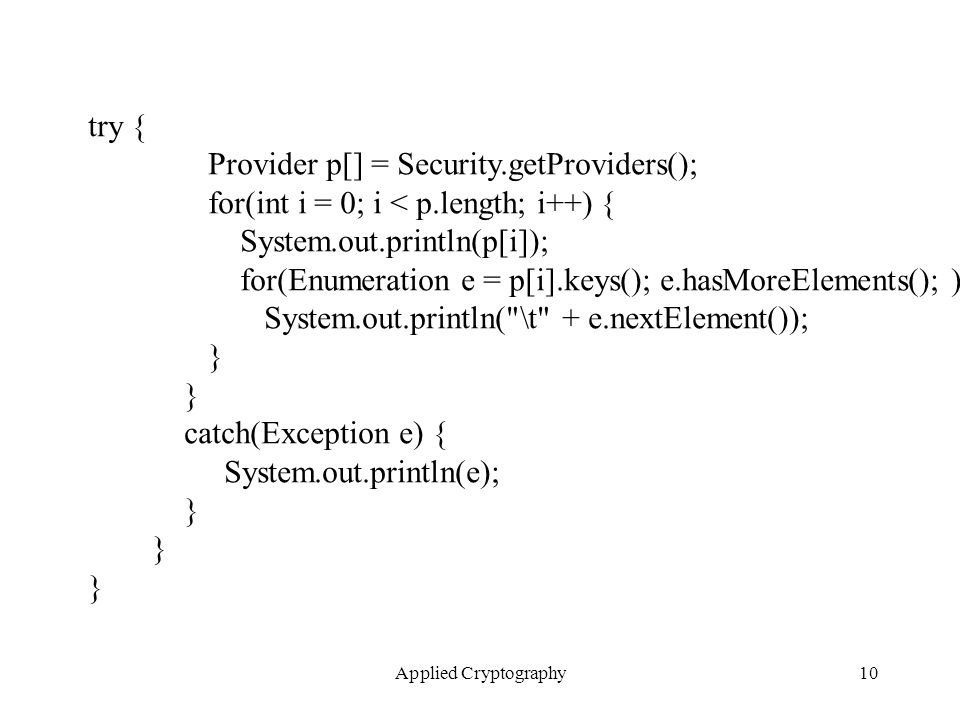

10. Applied Cryptography10 try { Provider p[] = Security.getProviders(); for(int i = 0; i < p.length; i++) { System.out.println(p[i]); for(Enumeration e = p[i].keys(); e.hasMoreElements(); ) System.out.println("\t" + e.nextElement()); } catch(Exception e) { System.out.println(e); }

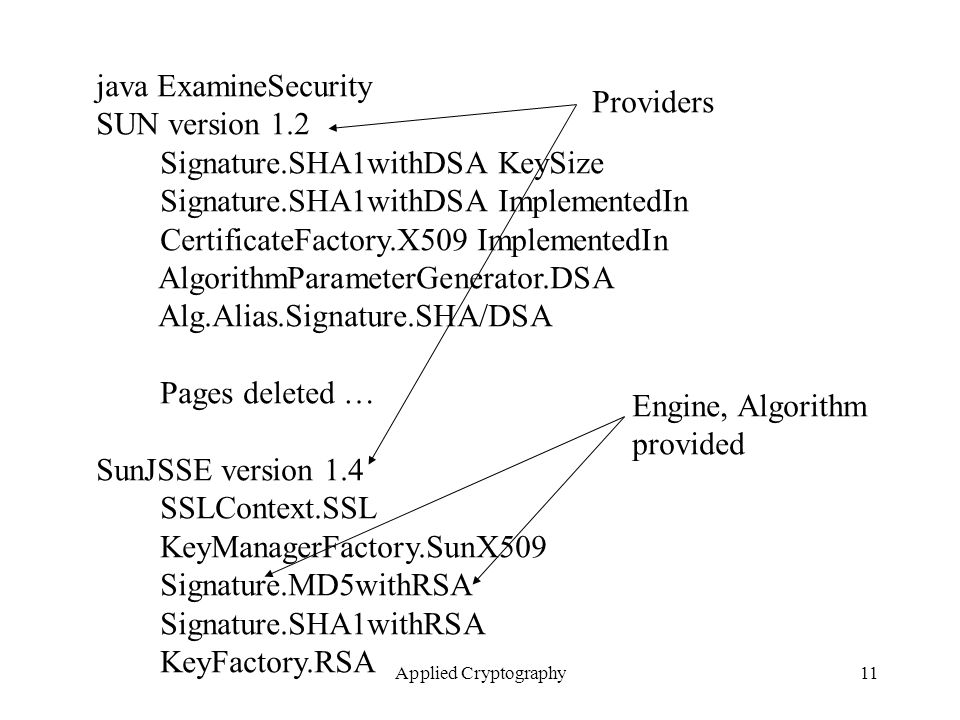

11. Applied Cryptography11 java ExamineSecurity SUN version 1.2 Signature.SHA1withDSA KeySize Signature.SHA1withDSA ImplementedIn CertificateFactory.X509 ImplementedIn AlgorithmParameterGenerator.DSA Alg.Alias.Signature.SHA/DSA Pages deleted … SunJSSE version 1.4 SSLContext.SSL KeyManagerFactory.SunX509 Signature.MD5withRSA Signature.SHA1withRSA KeyFactory.RSA Providers Engine, Algorithm provided

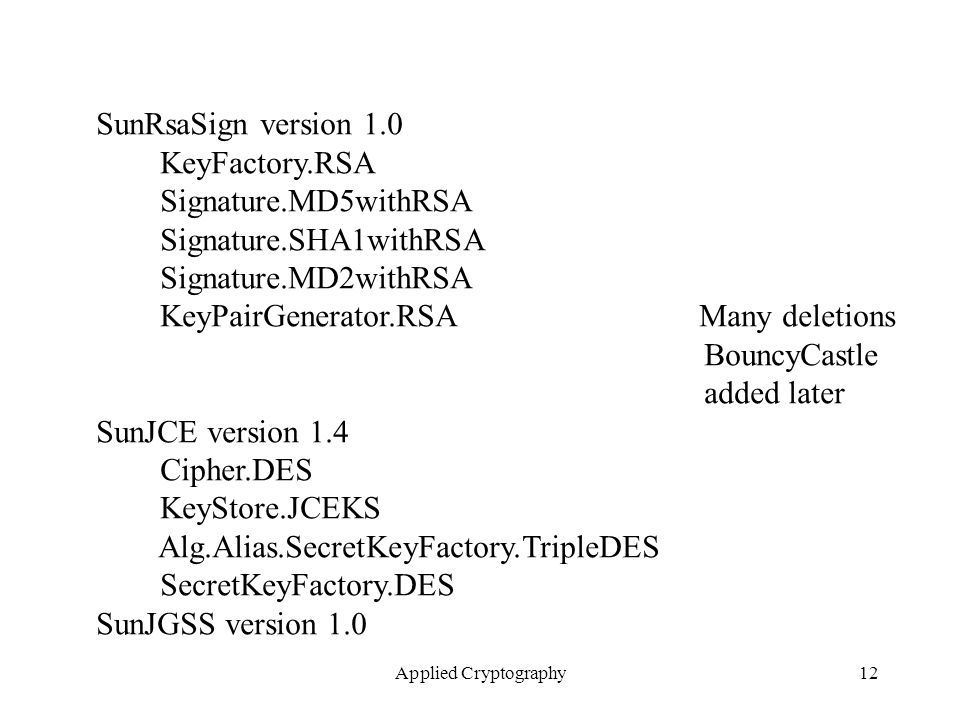

12. Applied Cryptography12 SunRsaSign version 1.0 KeyFactory.RSA Signature.MD5withRSA Signature.SHA1withRSA Signature.MD2withRSA KeyPairGenerator.RSA Many deletions BouncyCastle added later SunJCE version 1.4 Cipher.DES KeyStore.JCEKS Alg.Alias.SecretKeyFactory.TripleDES SecretKeyFactory.DES SunJGSS version 1.0

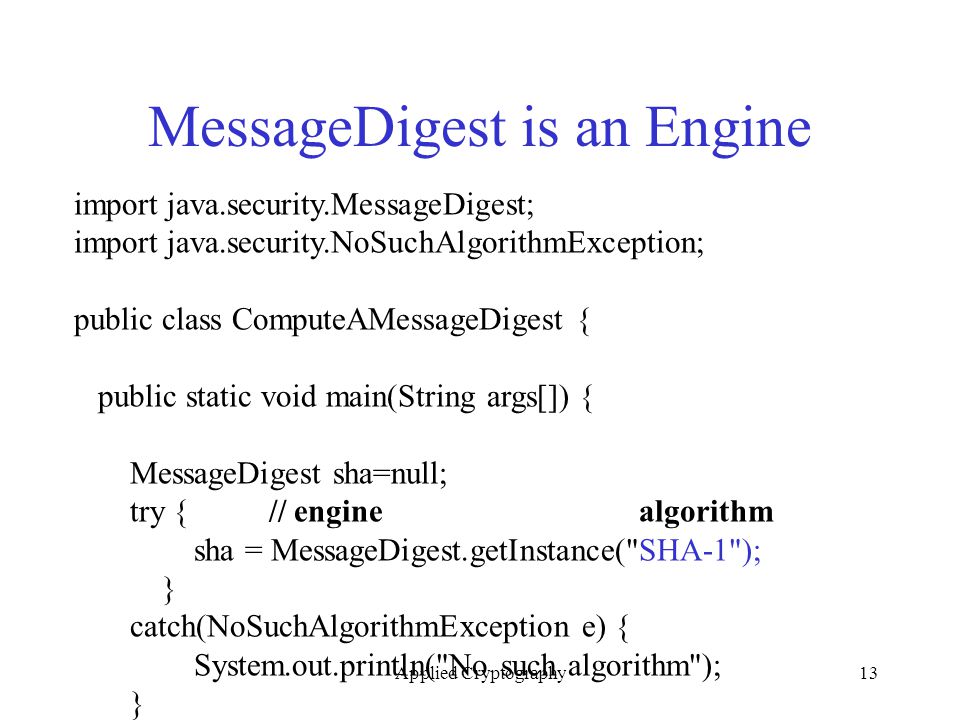

13. Applied Cryptography13 MessageDigest is an Engine import java.security.MessageDigest; import java.security.NoSuchAlgorithmException; public class ComputeAMessageDigest { public static void main(String args[]) { MessageDigest sha=null; try { // engine algorithm sha = MessageDigest.getInstance("SHA-1"); } catch(NoSuchAlgorithmException e) { System.out.println("No such algorithm"); }

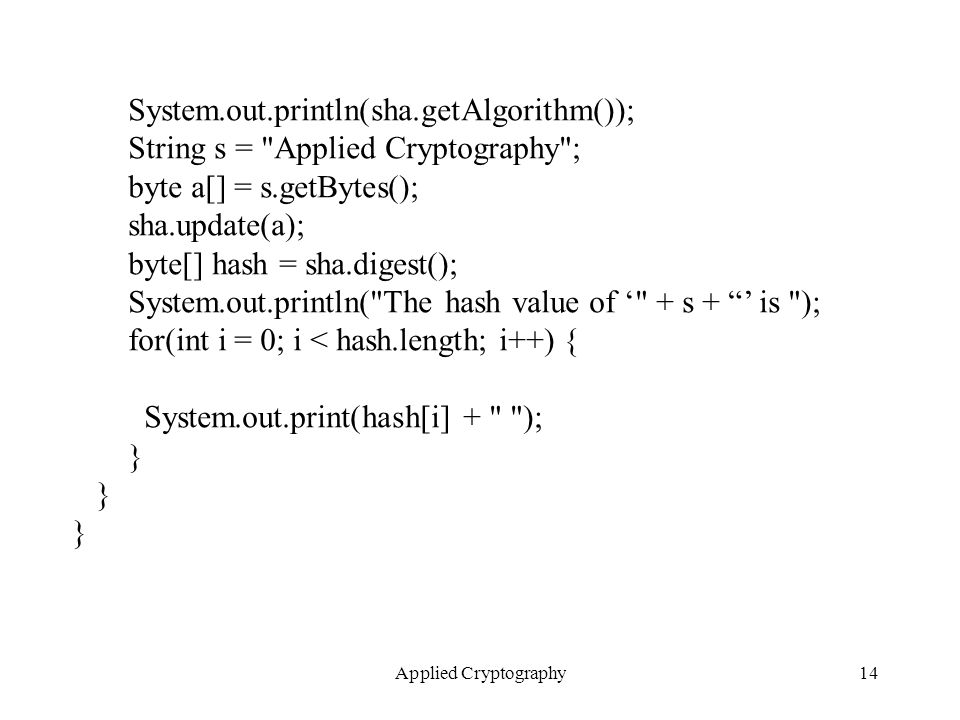

14. Applied Cryptography14 System.out.println(sha.getAlgorithm()); String s = "Applied Cryptography"; byte a[] = s.getBytes(); sha.update(a); byte[] hash = sha.digest(); System.out.println("The hash value of ‘" + s + “’ is "); for(int i = 0; i < hash.length; i++) { System.out.print(hash[i] + " "); }

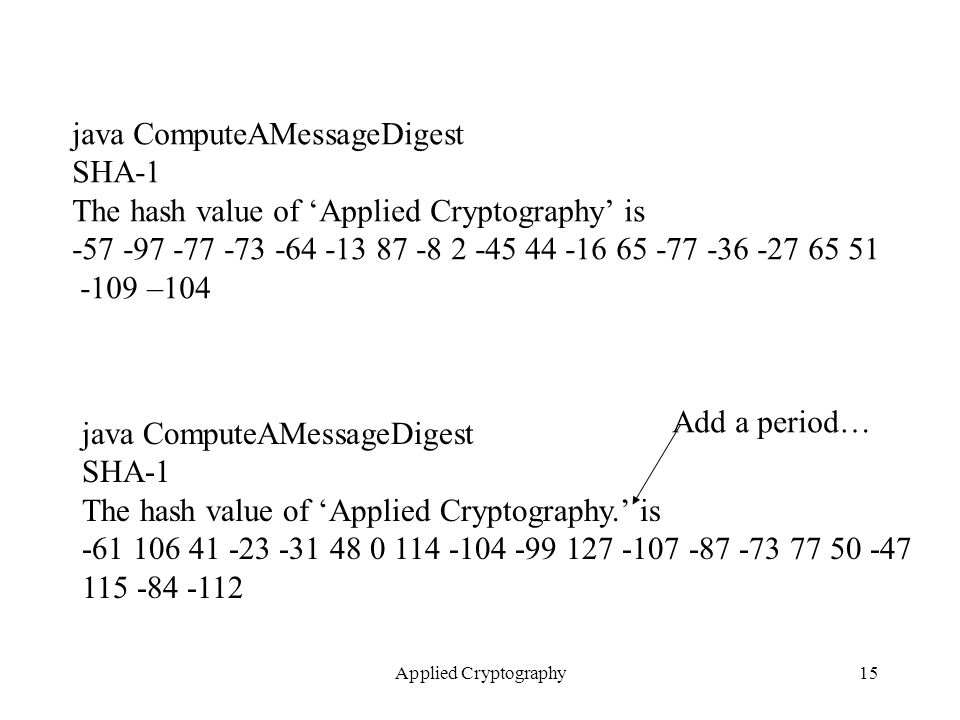

15. Applied Cryptography15 java ComputeAMessageDigest SHA-1 The hash value of ‘Applied Cryptography’ is -57 -97 -77 -73 -64 -13 87 -8 2 -45 44 -16 65 -77 -36 -27 65 51 -109 –104 java ComputeAMessageDigest SHA-1 The hash value of ‘Applied Cryptography.’ is -61 106 41 -23 -31 48 0 114 -104 -99 127 -107 -87 -73 77 50 -47 115 -84 -112 Add a period…

16. Applied Cryptography16 We Can Choose an Algorithm import java.security.MessageDigest; import java.security.NoSuchAlgorithmException; public class ComputeAMessageDigest { public static void main(String args[]) { MessageDigest sha=null; try { // engine algorithm sha = MessageDigest.getInstance("MD5"); } catch(NoSuchAlgorithmException e) { System.out.println("No such algorithm"); }

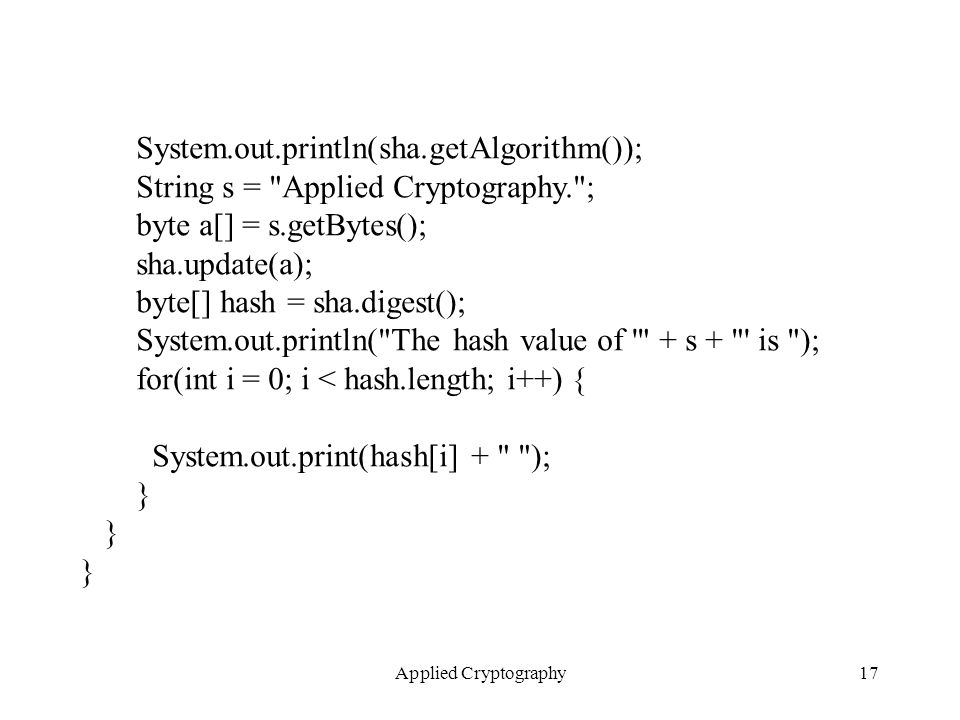

17. Applied Cryptography17 System.out.println(sha.getAlgorithm()); String s = "Applied Cryptography."; byte a[] = s.getBytes(); sha.update(a); byte[] hash = sha.digest(); System.out.println("The hash value of '" + s + "' is "); for(int i = 0; i < hash.length; i++) { System.out.print(hash[i] + " "); }

18. Applied Cryptography18 java ComputeAMessageDigest MD5 The hash value of 'Applied Cryptography.' is 16 -26 -44 -19 -78 23 13 88 12 -49 17 6 126 -66 -1 -84

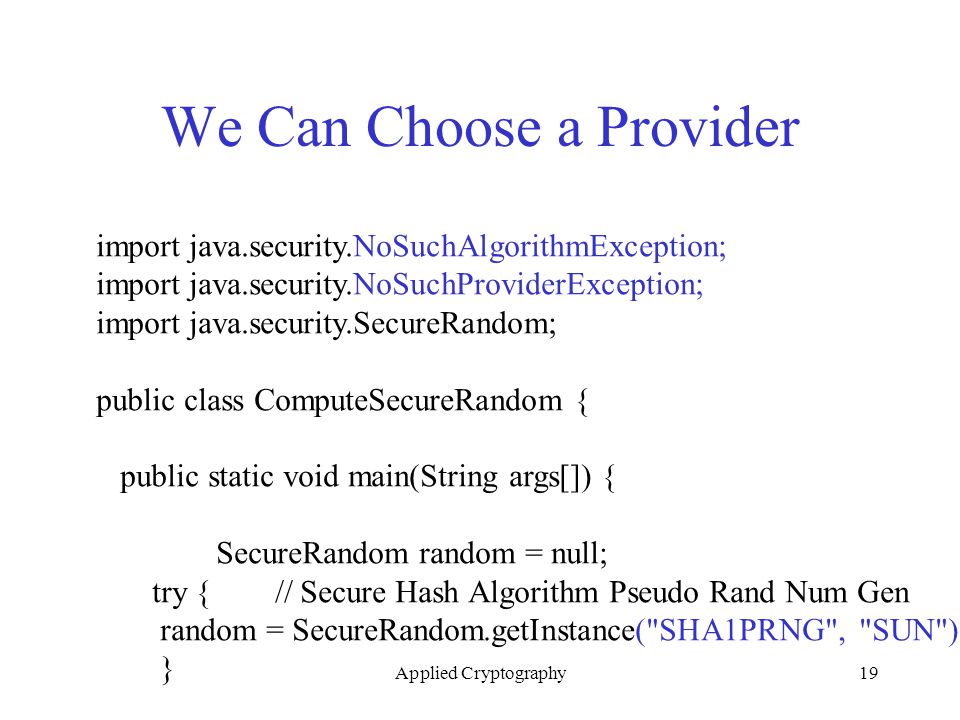

19. Applied Cryptography19 We Can Choose a Provider import java.security.NoSuchAlgorithmException; import java.security.NoSuchProviderException; import java.security.SecureRandom; public class ComputeSecureRandom { public static void main(String args[]) { SecureRandom random = null; try { // Secure Hash Algorithm Pseudo Rand Num Gen random = SecureRandom.getInstance("SHA1PRNG", "SUN"); }

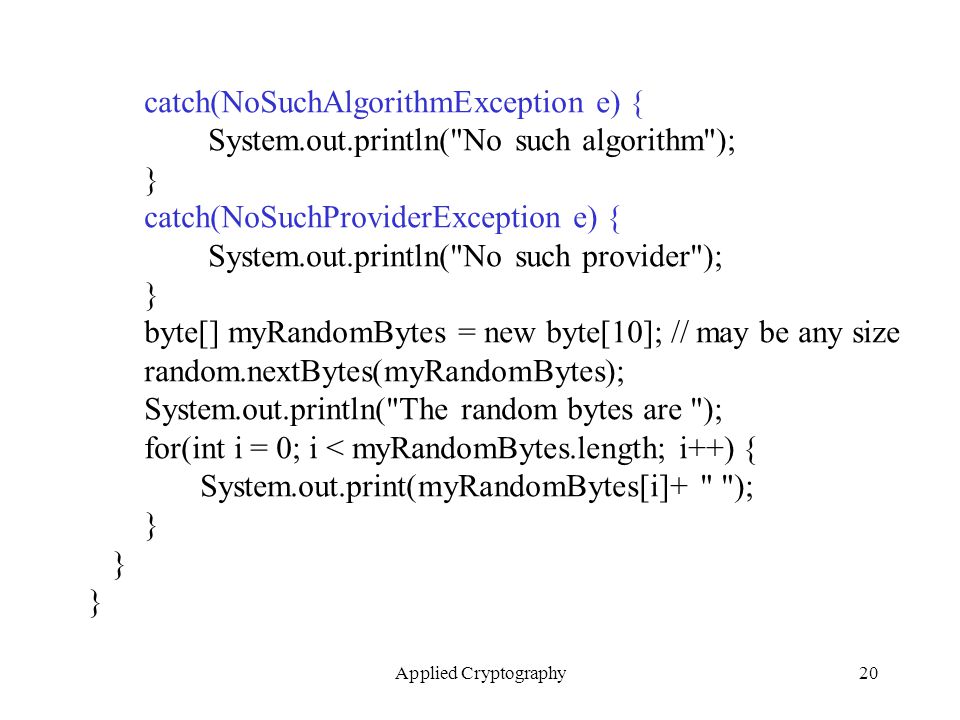

20. Applied Cryptography20 catch(NoSuchAlgorithmException e) { System.out.println("No such algorithm"); } catch(NoSuchProviderException e) { System.out.println("No such provider"); } byte[] myRandomBytes = new byte[10]; // may be any size random.nextBytes(myRandomBytes); System.out.println("The random bytes are "); for(int i = 0; i < myRandomBytes.length; i++) { System.out.print(myRandomBytes[i]+ " "); }

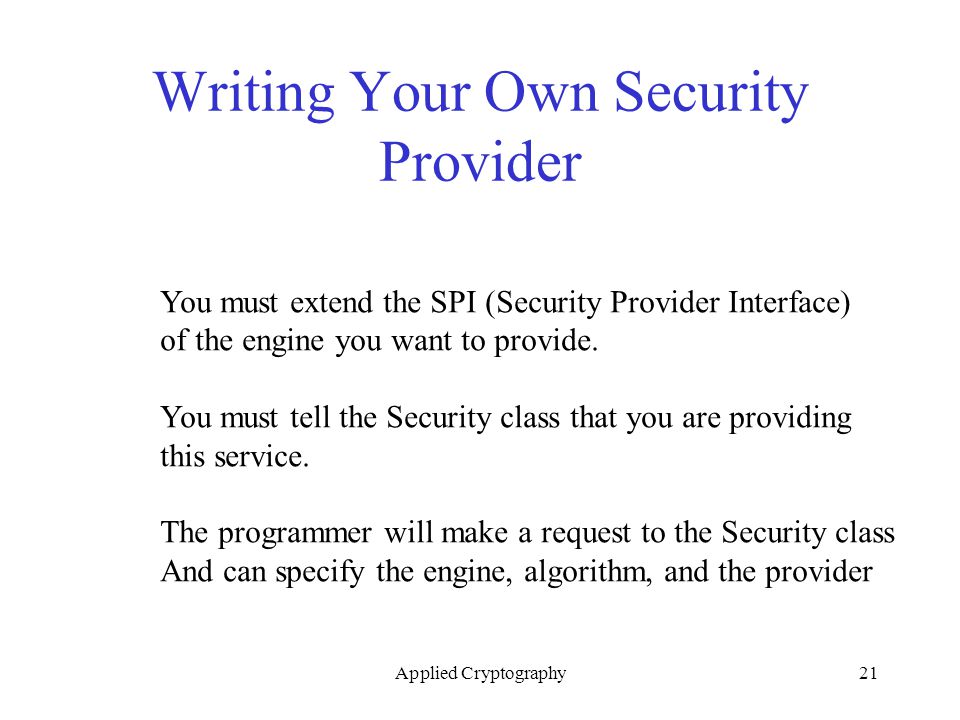

21. Applied Cryptography21 Writing Your Own Security Provider You must extend the SPI (Security Provider Interface) of the engine you want to provide. You must tell the Security class that you are providing this service. The programmer will make a request to the Security class And can specify the engine, algorithm, and the provider

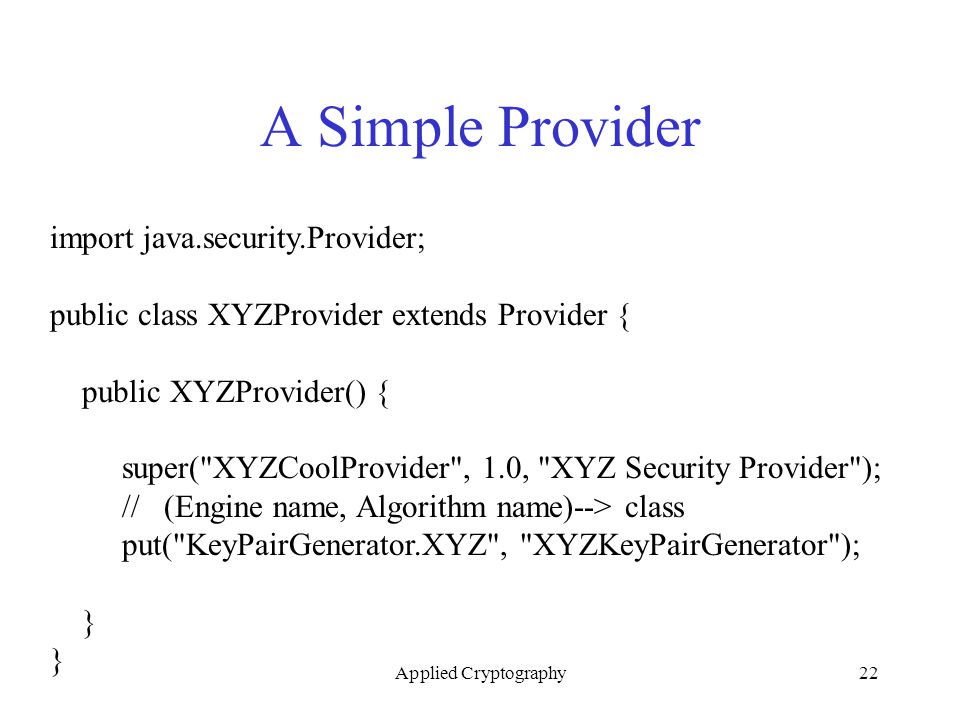

22. Applied Cryptography22 A Simple Provider import java.security.Provider; public class XYZProvider extends Provider { public XYZProvider() { super("XYZCoolProvider", 1.0, "XYZ Security Provider"); // (Engine name, Algorithm name)--> class put("KeyPairGenerator.XYZ", "XYZKeyPairGenerator"); }

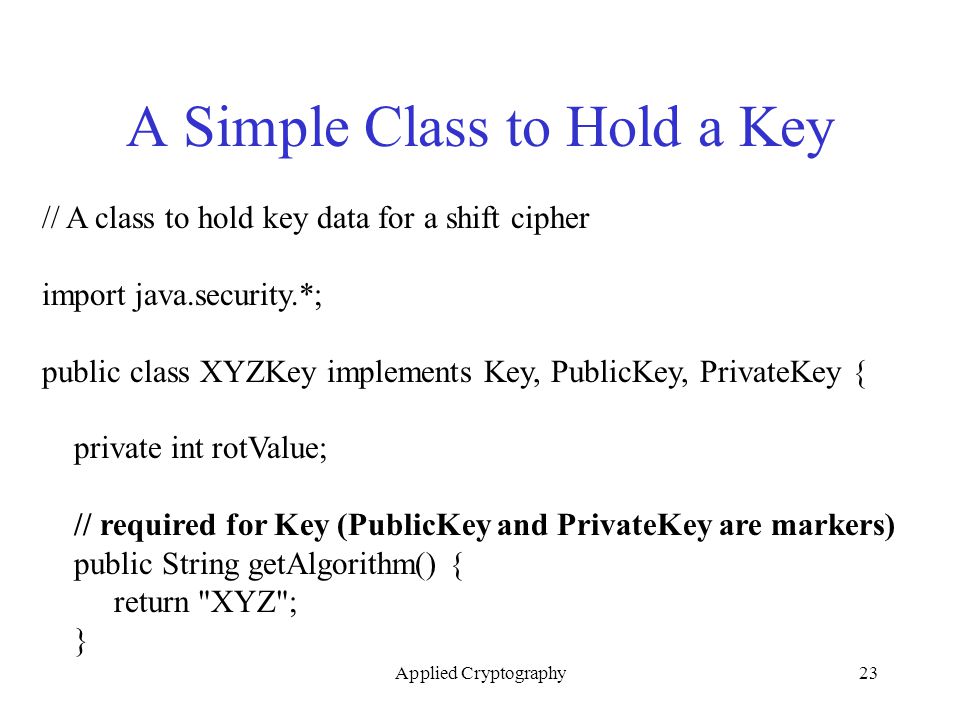

23. Applied Cryptography23 A Simple Class to Hold a Key // A class to hold key data for a shift cipher import java.security.*; public class XYZKey implements Key, PublicKey, PrivateKey { private int rotValue; // required for Key (PublicKey and PrivateKey are markers) public String getAlgorithm() { return "XYZ"; }

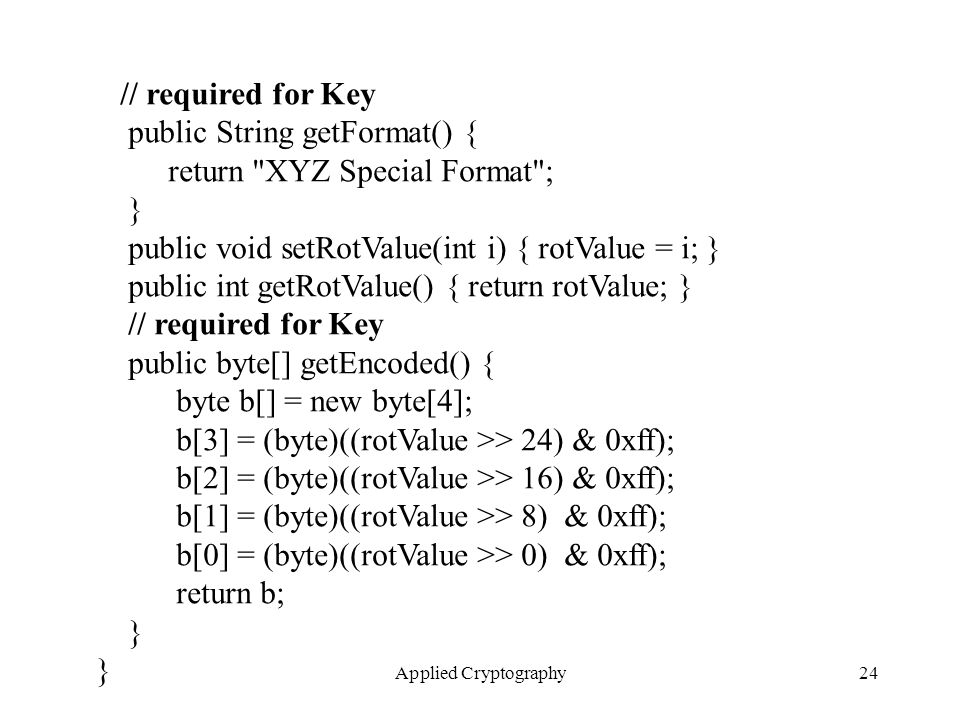

24. Applied Cryptography24 // required for Key public String getFormat() { return "XYZ Special Format"; } public void setRotValue(int i) { rotValue = i; } public int getRotValue() { return rotValue; } // required for Key public byte[] getEncoded() { byte b[] = new byte[4]; b[3] = (byte)((rotValue >> 24) & 0xff); b[2] = (byte)((rotValue >> 16) & 0xff); b[1] = (byte)((rotValue >> 8) & 0xff); b[0] = (byte)((rotValue >> 0) & 0xff); return b; }

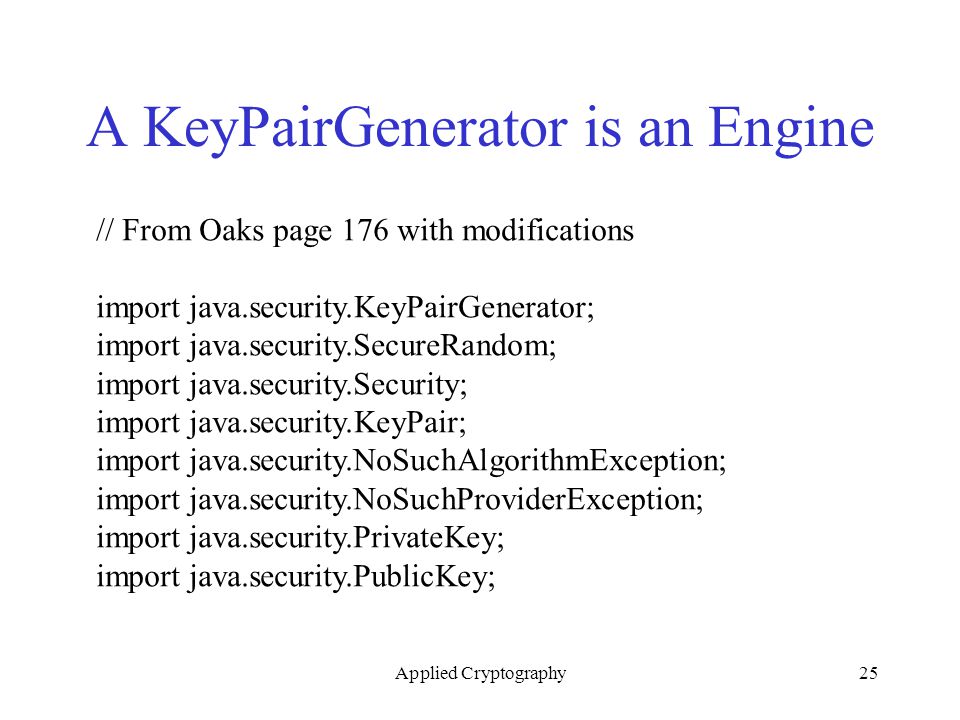

25. Applied Cryptography25 A KeyPairGenerator is an Engine // From Oaks page 176 with modifications import java.security.KeyPairGenerator; import java.security.SecureRandom; import java.security.Security; import java.security.KeyPair; import java.security.NoSuchAlgorithmException; import java.security.NoSuchProviderException; import java.security.PrivateKey; import java.security.PublicKey;

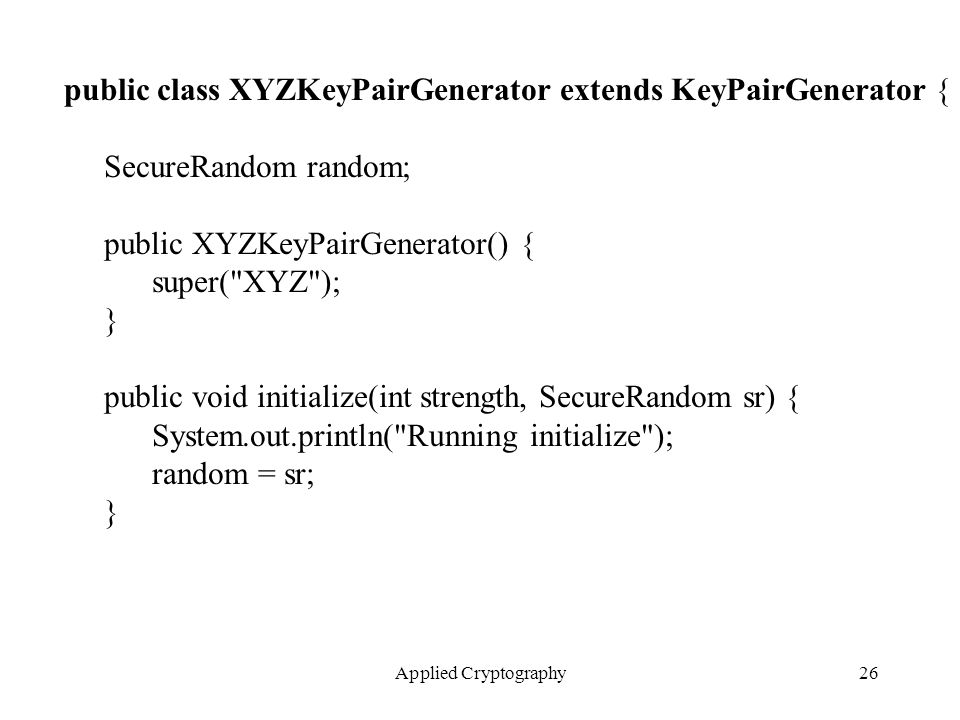

26. Applied Cryptography26 public class XYZKeyPairGenerator extends KeyPairGenerator { SecureRandom random; public XYZKeyPairGenerator() { super("XYZ"); } public void initialize(int strength, SecureRandom sr) { System.out.println("Running initialize"); random = sr; }

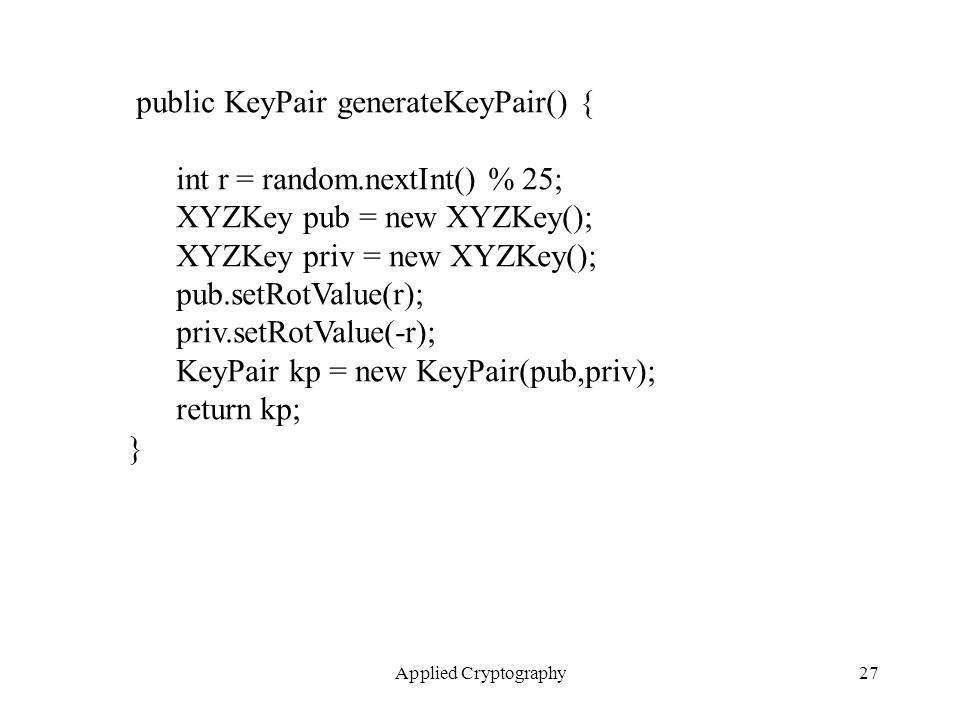

27. Applied Cryptography27 public KeyPair generateKeyPair() { int r = random.nextInt() % 25; XYZKey pub = new XYZKey(); XYZKey priv = new XYZKey(); pub.setRotValue(r); priv.setRotValue(-r); KeyPair kp = new KeyPair(pub,priv); return kp; }

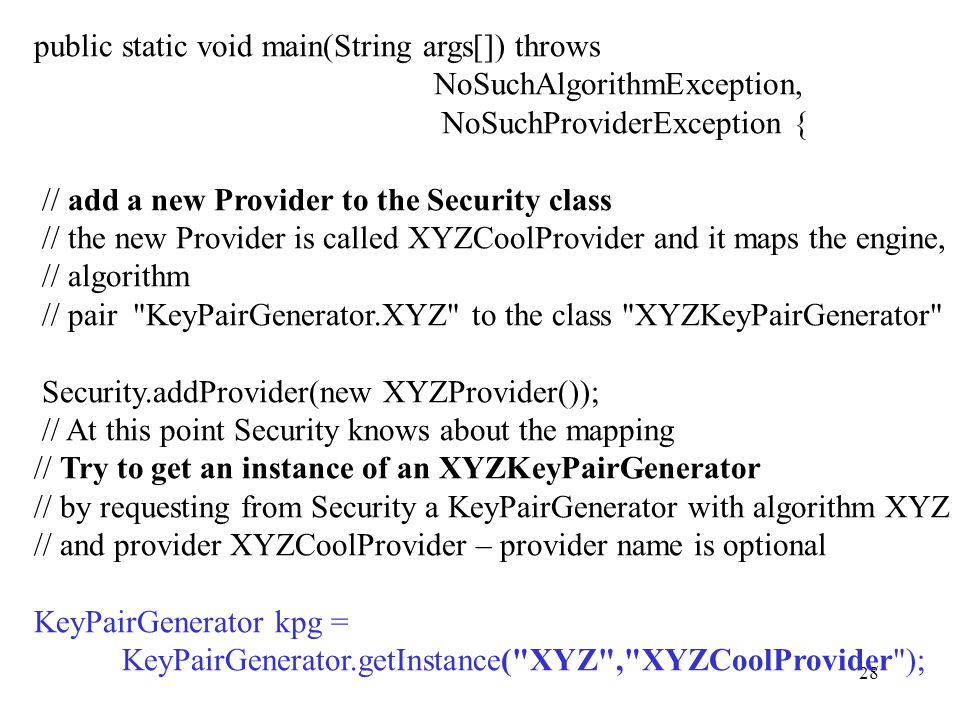

28. 28 public static void main(String args[]) throws NoSuchAlgorithmException, NoSuchProviderException { // add a new Provider to the Security class // the new Provider is called XYZCoolProvider and it maps the engine, // algorithm // pair "KeyPairGenerator.XYZ" to the class "XYZKeyPairGenerator" Security.addProvider(new XYZProvider()); // At this point Security knows about the mapping // Try to get an instance of an XYZKeyPairGenerator // by requesting from Security a KeyPairGenerator with algorithm XYZ // and provider XYZCoolProvider – provider name is optional KeyPairGenerator kpg = KeyPairGenerator.getInstance("XYZ","XYZCoolProvider");

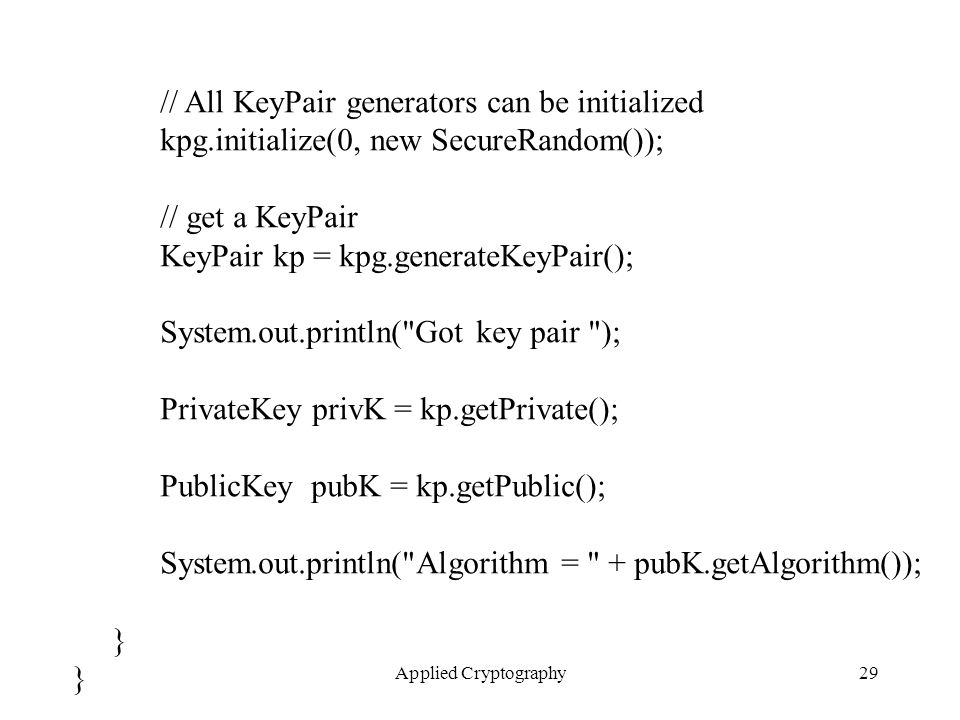

29. Applied Cryptography29 // All KeyPair generators can be initialized kpg.initialize(0, new SecureRandom()); // get a KeyPair KeyPair kp = kpg.generateKeyPair(); System.out.println("Got key pair "); PrivateKey privK = kp.getPrivate(); PublicKey pubK = kp.getPublic(); System.out.println("Algorithm = " + pubK.getAlgorithm()); }

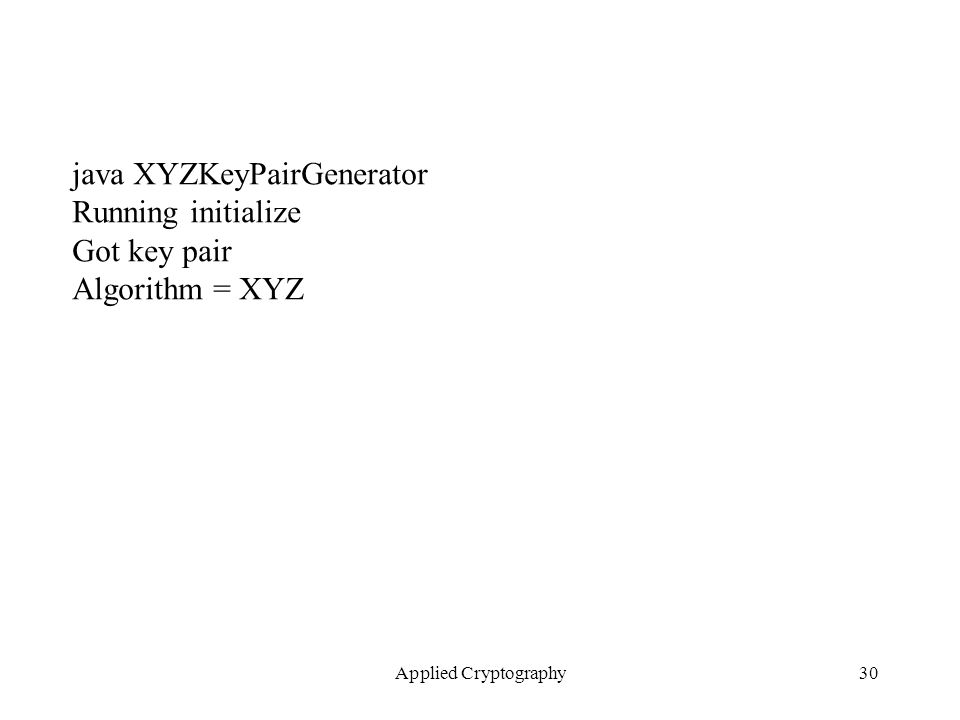

30. Applied Cryptography30 java XYZKeyPairGenerator Running initialize Got key pair Algorithm = XYZ

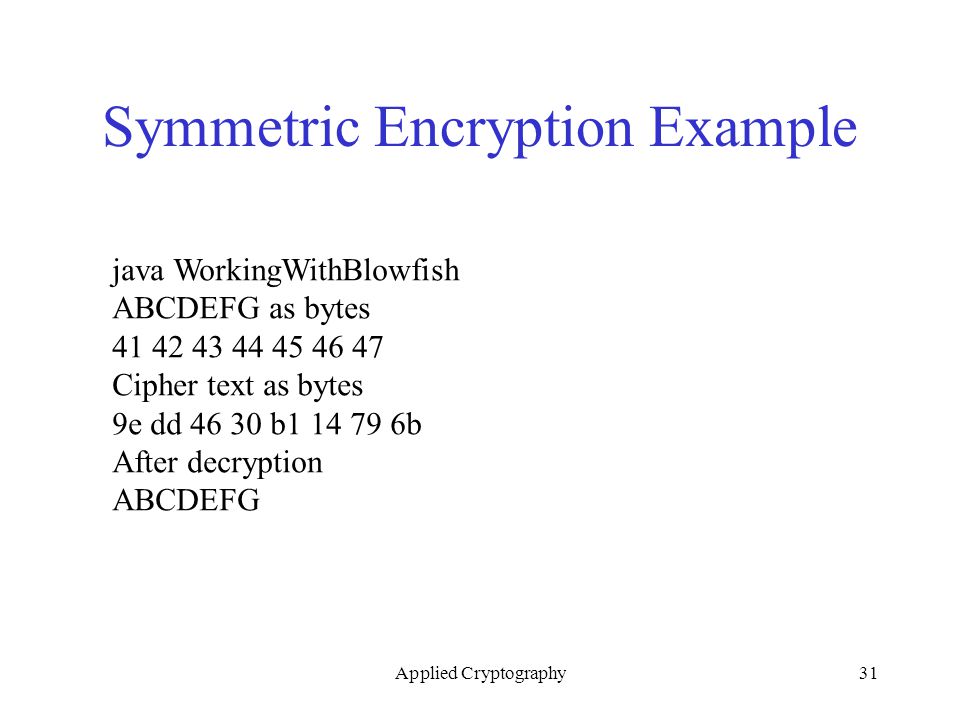

31. Applied Cryptography31 Symmetric Encryption Example java WorkingWithBlowfish ABCDEFG as bytes 41 42 43 44 45 46 47 Cipher text as bytes 9e dd 46 30 b1 14 79 6b After decryption ABCDEFG

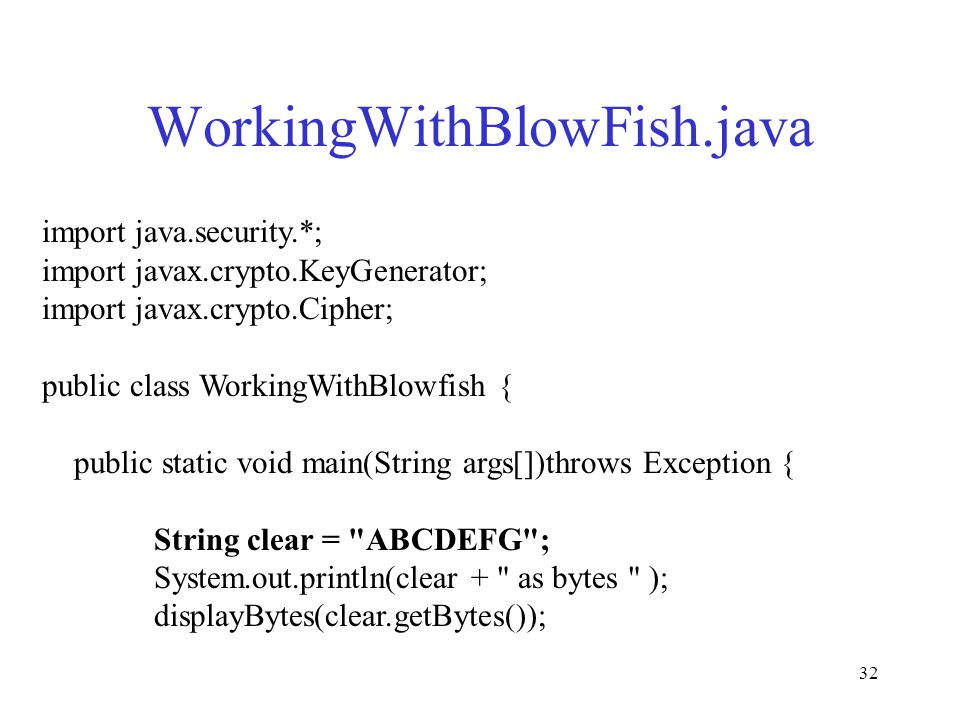

32. 32 WorkingWithBlowFish.java import java.security.*; import javax.crypto.KeyGenerator; import javax.crypto.Cipher; public class WorkingWithBlowfish { public static void main(String args[])throws Exception { String clear = "ABCDEFG"; System.out.println(clear + " as bytes " ); displayBytes(clear.getBytes());

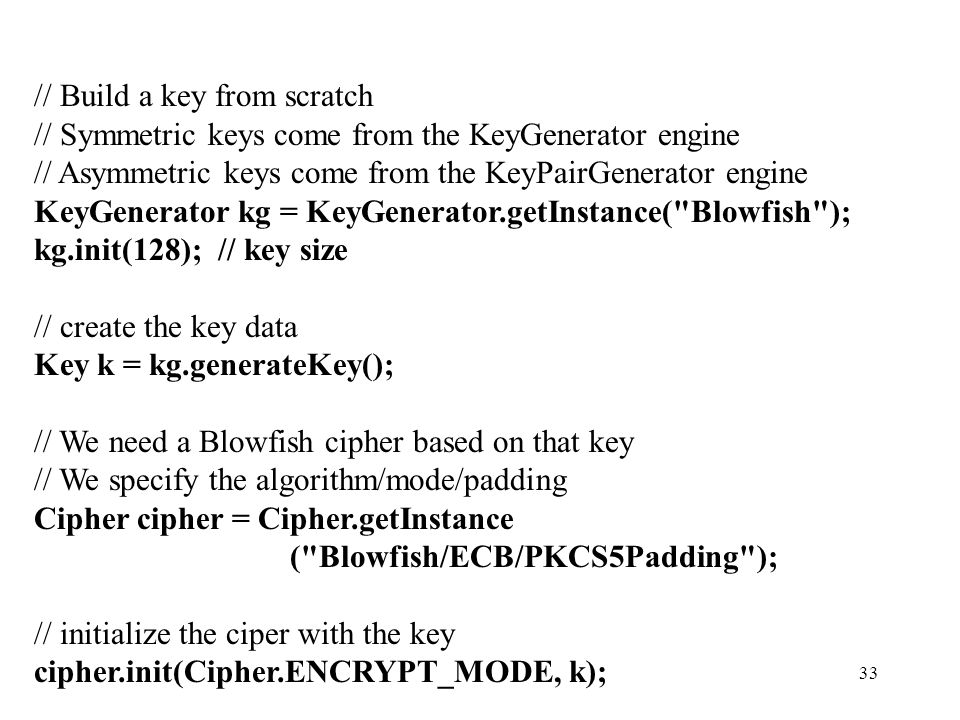

33. 33 // Build a key from scratch // Symmetric keys come from the KeyGenerator engine // Asymmetric keys come from the KeyPairGenerator engine KeyGenerator kg = KeyGenerator.getInstance("Blowfish"); kg.init(128); // key size // create the key data Key k = kg.generateKey(); // We need a Blowfish cipher based on that key // We specify the algorithm/mode/padding Cipher cipher = Cipher.getInstance ("Blowfish/ECB/PKCS5Padding"); // initialize the ciper with the key cipher.init(Cipher.ENCRYPT_MODE, k);

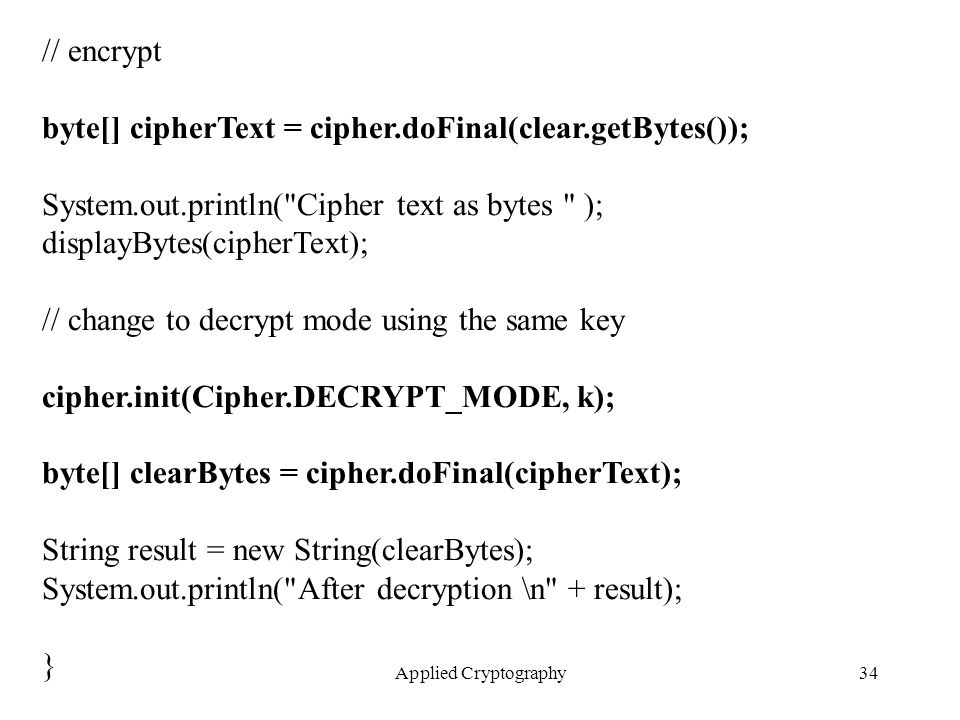

34. Applied Cryptography34 // encrypt byte[] cipherText = cipher.doFinal(clear.getBytes()); System.out.println("Cipher text as bytes " ); displayBytes(cipherText); // change to decrypt mode using the same key cipher.init(Cipher.DECRYPT_MODE, k); byte[] clearBytes = cipher.doFinal(cipherText); String result = new String(clearBytes); System.out.println("After decryption \n" + result); }

35. Applied Cryptography35 // display a byte in hex public static void displayBytes(byte [] b) { for (int i = 0; i < b.length; i++) { byte aByte = b[i]; String hexLo = Integer.toHexString( aByte & 0x0F ); String hexHi = Integer.toHexString( (aByte >> 4) & 0x0F ); System.out.print(hexHi + hexLo + " "); } System.out.println(); }

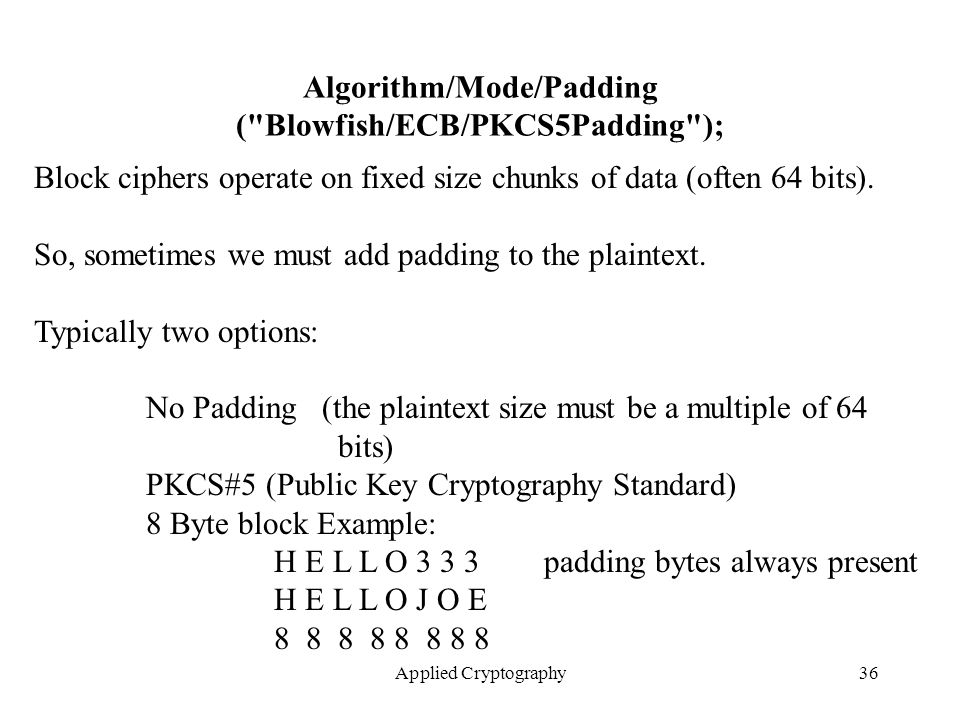

36. Applied Cryptography36 Algorithm/Mode/Padding ("Blowfish/ECB/PKCS5Padding"); Block ciphers operate on fixed size chunks of data (often 64 bits). So, sometimes we must add padding to the plaintext. Typically two options: No Padding (the plaintext size must be a multiple of 64 bits) PKCS#5 (Public Key Cryptography Standard) 8 Byte block Example: H E L L O 3 3 3 padding bytes always present H E L L O J O E 8 8 8 8 8 8 8 8

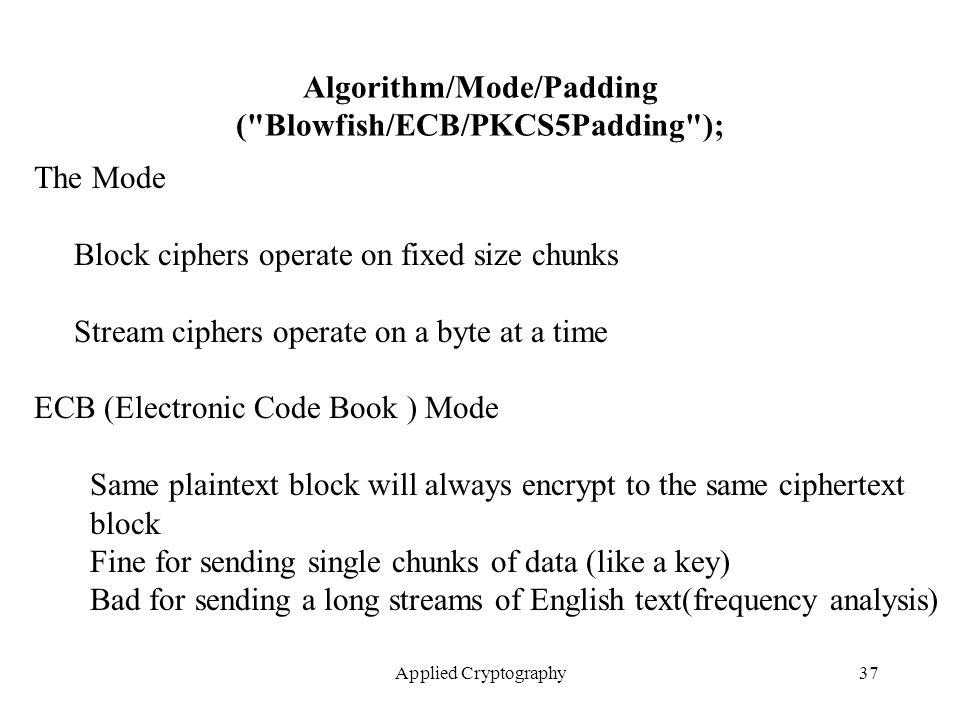

37. Applied Cryptography37 Algorithm/Mode/Padding ("Blowfish/ECB/PKCS5Padding"); The Mode Block ciphers operate on fixed size chunks Stream ciphers operate on a byte at a time ECB (Electronic Code Book ) Mode Same plaintext block will always encrypt to the same ciphertext block Fine for sending single chunks of data (like a key) Bad for sending a long streams of English text(frequency analysis)

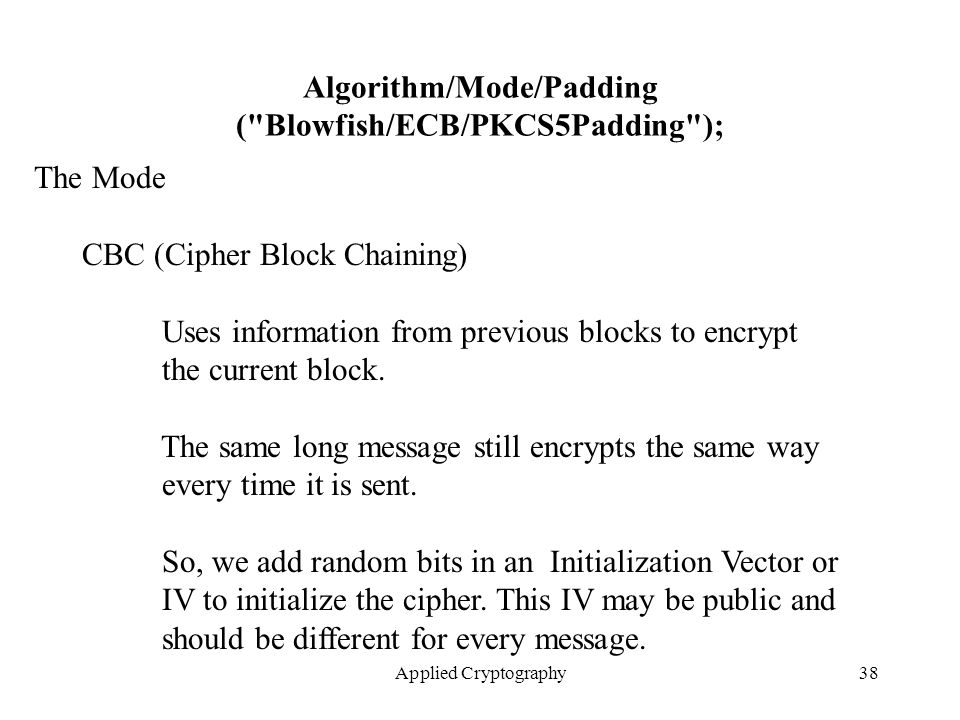

38. Applied Cryptography38 Algorithm/Mode/Padding ("Blowfish/ECB/PKCS5Padding"); The Mode CBC (Cipher Block Chaining) Uses information from previous blocks to encrypt the current block. The same long message still encrypts the same way every time it is sent. So, we add random bits in an Initialization Vector or IV to initialize the cipher. This IV may be public and should be different for every message.

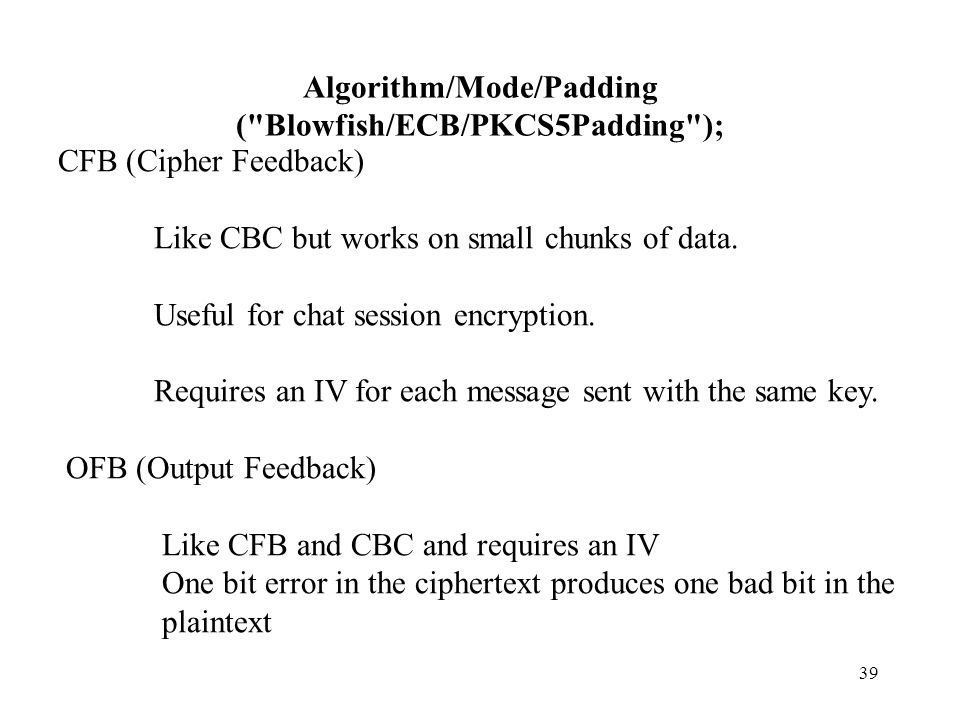

39. 39 Algorithm/Mode/Padding ("Blowfish/ECB/PKCS5Padding"); CFB (Cipher Feedback) Like CBC but works on small chunks of data. Useful for chat session encryption. Requires an IV for each message sent with the same key. OFB (Output Feedback) Like CFB and CBC and requires an IV One bit error in the ciphertext produces one bad bit in the plaintext

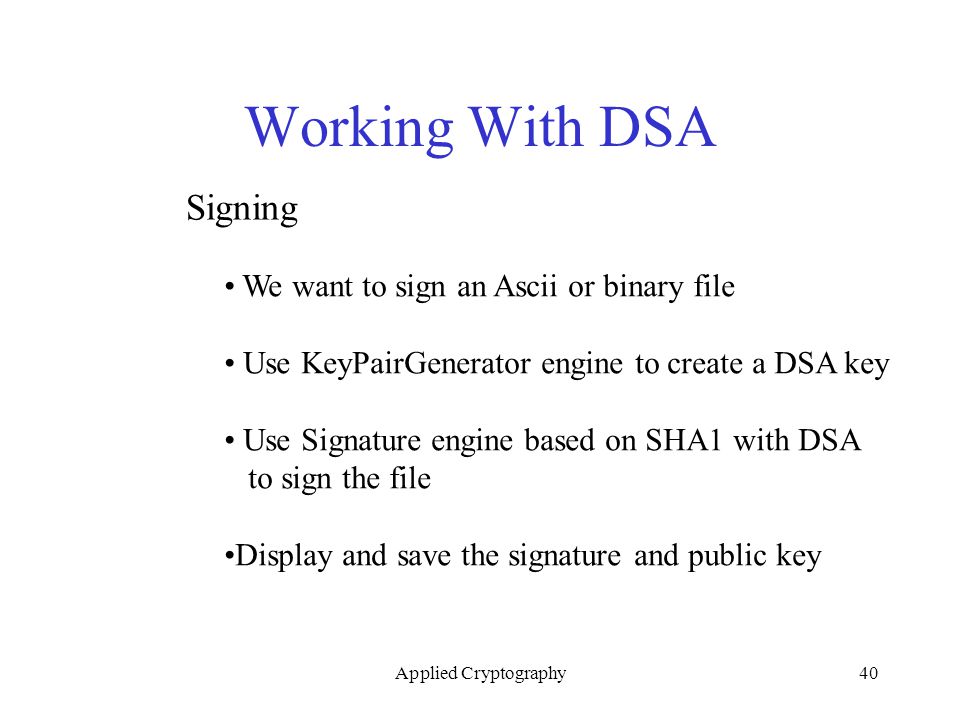

40. Applied Cryptography40 Working With DSA We want to sign an Ascii or binary file Use KeyPairGenerator engine to create a DSA key Use Signature engine based on SHA1 with DSA to sign the file Display and save the signature and public key Signing

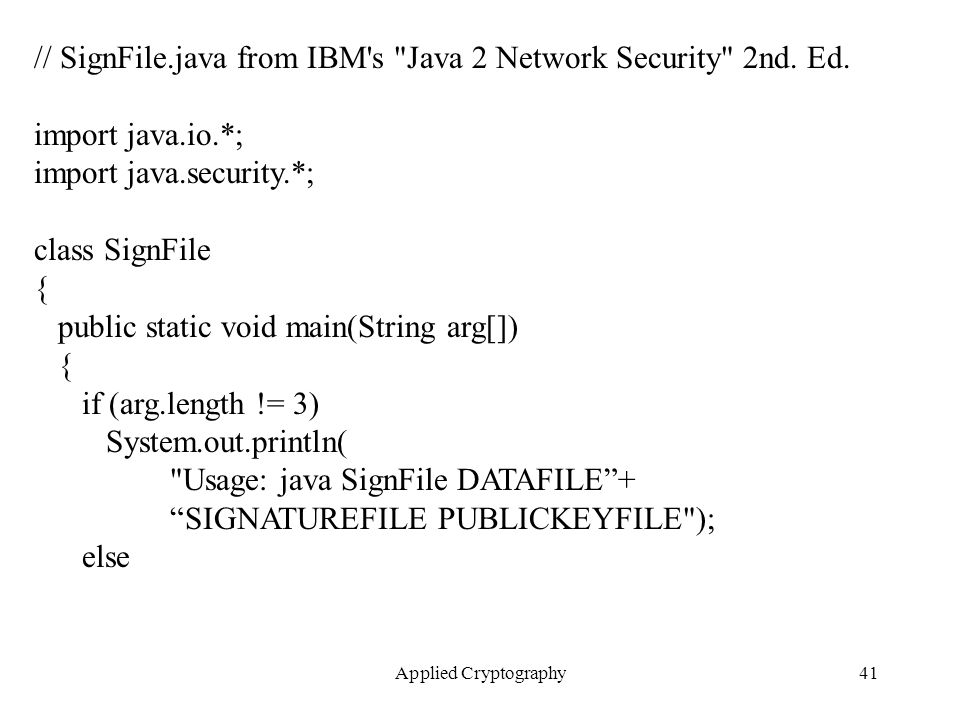

41. Applied Cryptography41 // SignFile.java from IBM's "Java 2 Network Security" 2nd. Ed. import java.io.*; import java.security.*; class SignFile { public static void main(String arg[]) { if (arg.length != 3) System.out.println( "Usage: java SignFile DATAFILE”+ “SIGNATUREFILE PUBLICKEYFILE"); else

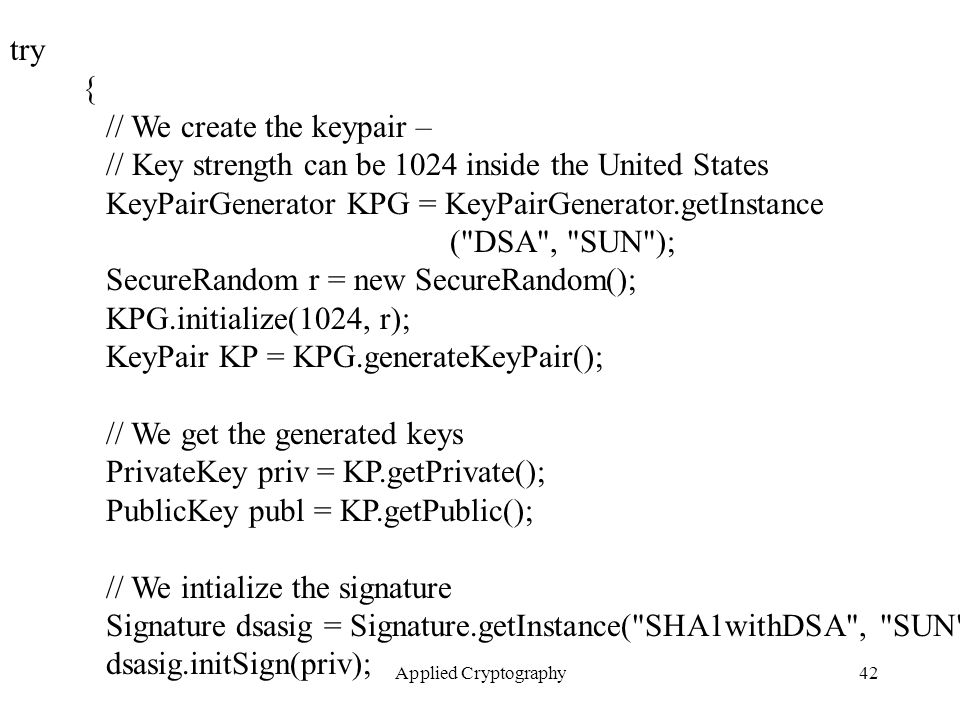

42. Applied Cryptography42 try { // We create the keypair – // Key strength can be 1024 inside the United States KeyPairGenerator KPG = KeyPairGenerator.getInstance ("DSA", "SUN"); SecureRandom r = new SecureRandom(); KPG.initialize(1024, r); KeyPair KP = KPG.generateKeyPair(); // We get the generated keys PrivateKey priv = KP.getPrivate(); PublicKey publ = KP.getPublic(); // We intialize the signature Signature dsasig = Signature.getInstance("SHA1withDSA", "SUN"); dsasig.initSign(priv);

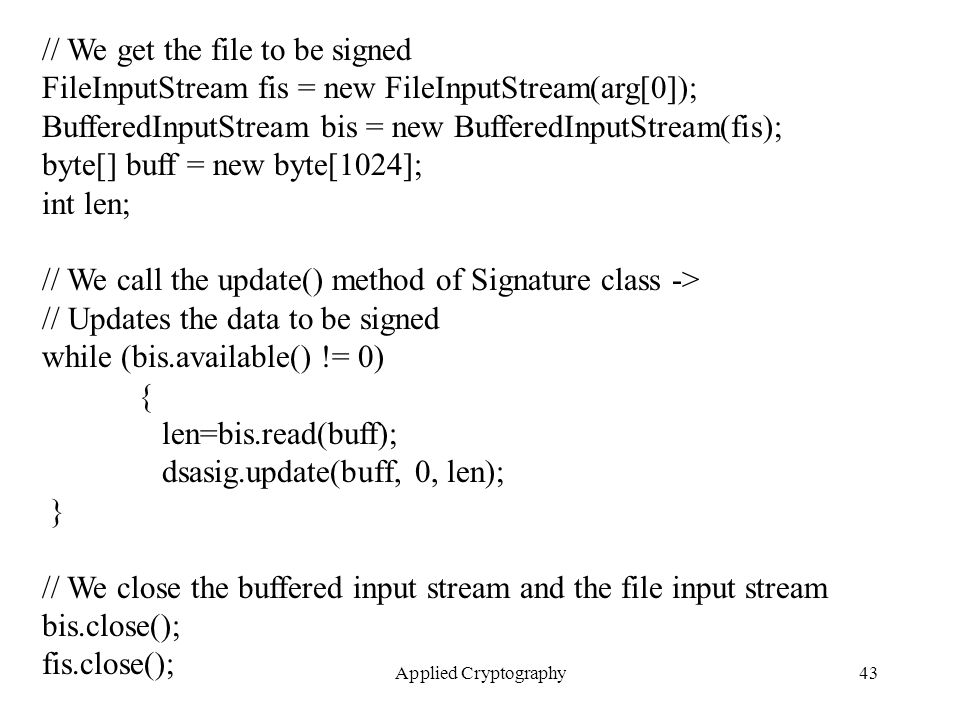

43. Applied Cryptography43 // We get the file to be signed FileInputStream fis = new FileInputStream(arg[0]); BufferedInputStream bis = new BufferedInputStream(fis); byte[] buff = new byte[1024]; int len; // We call the update() method of Signature class -> // Updates the data to be signed while (bis.available() != 0) { len=bis.read(buff); dsasig.update(buff, 0, len); } // We close the buffered input stream and the file input stream bis.close(); fis.close();

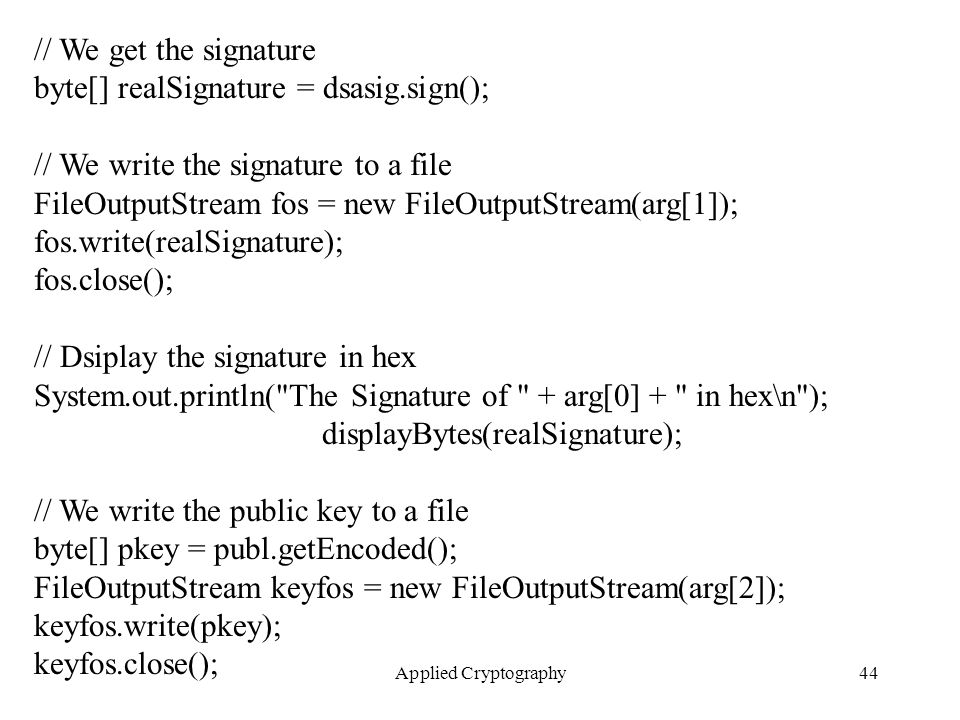

44. Applied Cryptography44 // We get the signature byte[] realSignature = dsasig.sign(); // We write the signature to a file FileOutputStream fos = new FileOutputStream(arg[1]); fos.write(realSignature); fos.close(); // Dsiplay the signature in hex System.out.println("The Signature of " + arg[0] + " in hex\n"); displayBytes(realSignature); // We write the public key to a file byte[] pkey = publ.getEncoded(); FileOutputStream keyfos = new FileOutputStream(arg[2]); keyfos.write(pkey); keyfos.close();

45. Applied Cryptography45 // Display the public key in hex System.out.println("The DSA public key in hex\n"); displayBytes(pkey); } catch (Exception e) { System.out.println("Caught Exception: " + e); }

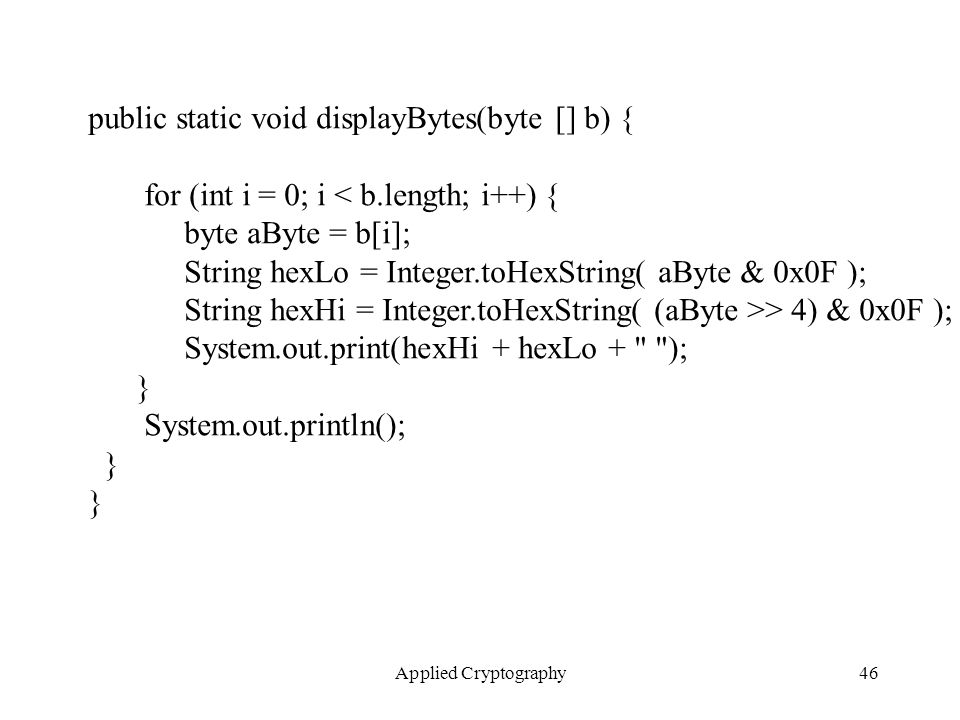

46. Applied Cryptography46 public static void displayBytes(byte [] b) { for (int i = 0; i < b.length; i++) { byte aByte = b[i]; String hexLo = Integer.toHexString( aByte & 0x0F ); String hexHi = Integer.toHexString( (aByte >> 4) & 0x0F ); System.out.print(hexHi + hexLo + " "); } System.out.println(); }

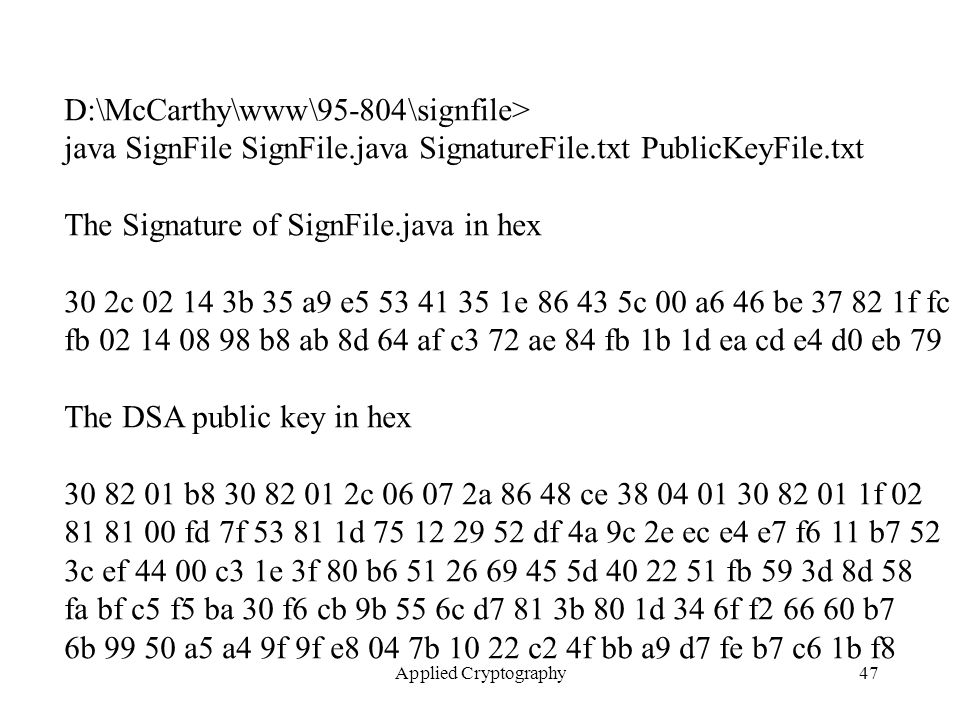

47. Applied Cryptography47 D:\McCarthy\www\95-804\signfile> java SignFile SignFile.java SignatureFile.txt PublicKeyFile.txt The Signature of SignFile.java in hex 30 2c 02 14 3b 35 a9 e5 53 41 35 1e 86 43 5c 00 a6 46 be 37 82 1f fc fb 02 14 08 98 b8 ab 8d 64 af c3 72 ae 84 fb 1b 1d ea cd e4 d0 eb 79 The DSA public key in hex 30 82 01 b8 30 82 01 2c 06 07 2a 86 48 ce 38 04 01 30 82 01 1f 02 81 81 00 fd 7f 53 81 1d 75 12 29 52 df 4a 9c 2e ec e4 e7 f6 11 b7 52 3c ef 44 00 c3 1e 3f 80 b6 51 26 69 45 5d 40 22 51 fb 59 3d 8d 58 fa bf c5 f5 ba 30 f6 cb 9b 55 6c d7 81 3b 80 1d 34 6f f2 66 60 b7 6b 99 50 a5 a4 9f 9f e8 04 7b 10 22 c2 4f bb a9 d7 fe b7 c6 1b f8

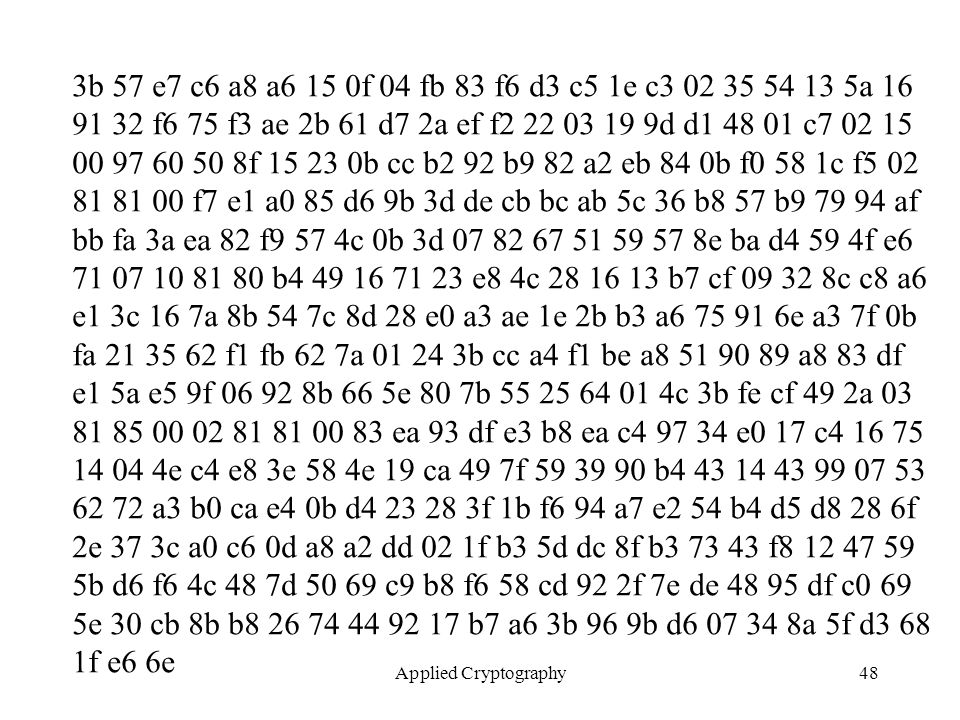

48. Applied Cryptography48 3b 57 e7 c6 a8 a6 15 0f 04 fb 83 f6 d3 c5 1e c3 02 35 54 13 5a 16 91 32 f6 75 f3 ae 2b 61 d7 2a ef f2 22 03 19 9d d1 48 01 c7 02 15 00 97 60 50 8f 15 23 0b cc b2 92 b9 82 a2 eb 84 0b f0 58 1c f5 02 81 81 00 f7 e1 a0 85 d6 9b 3d de cb bc ab 5c 36 b8 57 b9 79 94 af bb fa 3a ea 82 f9 57 4c 0b 3d 07 82 67 51 59 57 8e ba d4 59 4f e6 71 07 10 81 80 b4 49 16 71 23 e8 4c 28 16 13 b7 cf 09 32 8c c8 a6 e1 3c 16 7a 8b 54 7c 8d 28 e0 a3 ae 1e 2b b3 a6 75 91 6e a3 7f 0b fa 21 35 62 f1 fb 62 7a 01 24 3b cc a4 f1 be a8 51 90 89 a8 83 df e1 5a e5 9f 06 92 8b 66 5e 80 7b 55 25 64 01 4c 3b fe cf 49 2a 03 81 85 00 02 81 81 00 83 ea 93 df e3 b8 ea c4 97 34 e0 17 c4 16 75 14 04 4e c4 e8 3e 58 4e 19 ca 49 7f 59 39 90 b4 43 14 43 99 07 53 62 72 a3 b0 ca e4 0b d4 23 28 3f 1b f6 94 a7 e2 54 b4 d5 d8 28 6f 2e 37 3c a0 c6 0d a8 a2 dd 02 1f b3 5d dc 8f b3 73 43 f8 12 47 59 5b d6 f6 4c 48 7d 50 69 c9 b8 f6 58 cd 92 2f 7e de 48 95 df c0 69 5e 30 cb 8b b8 26 74 44 92 17 b7 a6 3b 96 9b d6 07 34 8a 5f d3 68 1f e6 6e

49. Applied Cryptography49 Working With DSA We want to verify the signature on an Ascii or binary file Read the public key of the signer Read the signature Read the file and verify that the signature was created by the holder of the associated private key and that the file was not altered Verifying

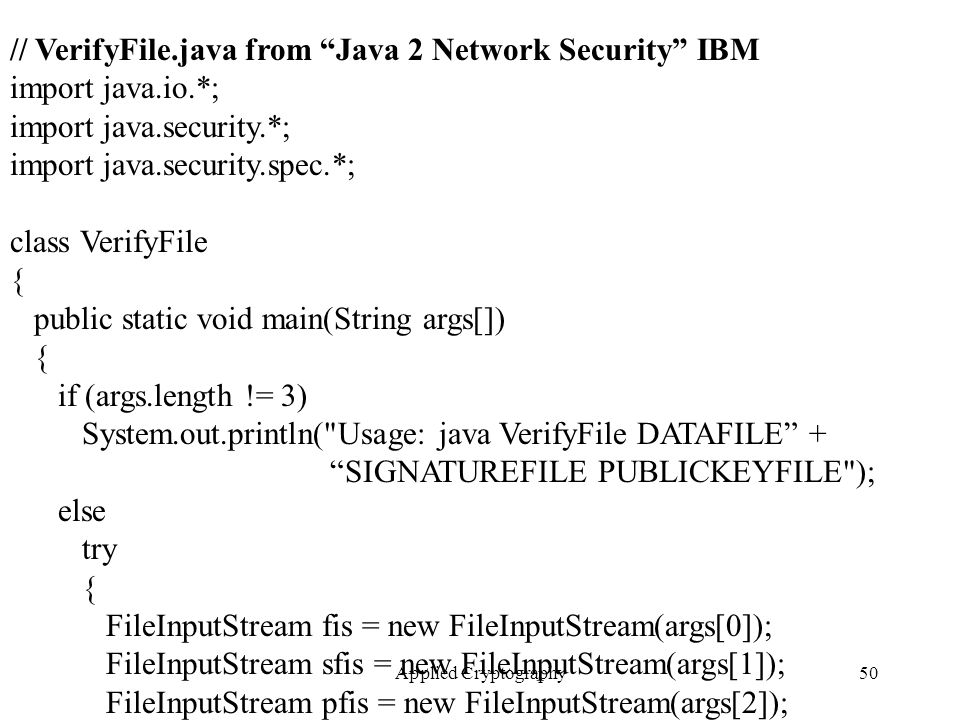

50. Applied Cryptography50 // VerifyFile.java from “Java 2 Network Security” IBM import java.io.*; import java.security.*; import java.security.spec.*; class VerifyFile { public static void main(String args[]) { if (args.length != 3) System.out.println("Usage: java VerifyFile DATAFILE” + “SIGNATUREFILE PUBLICKEYFILE"); else try { FileInputStream fis = new FileInputStream(args[0]); FileInputStream sfis = new FileInputStream(args[1]); FileInputStream pfis = new FileInputStream(args[2]);

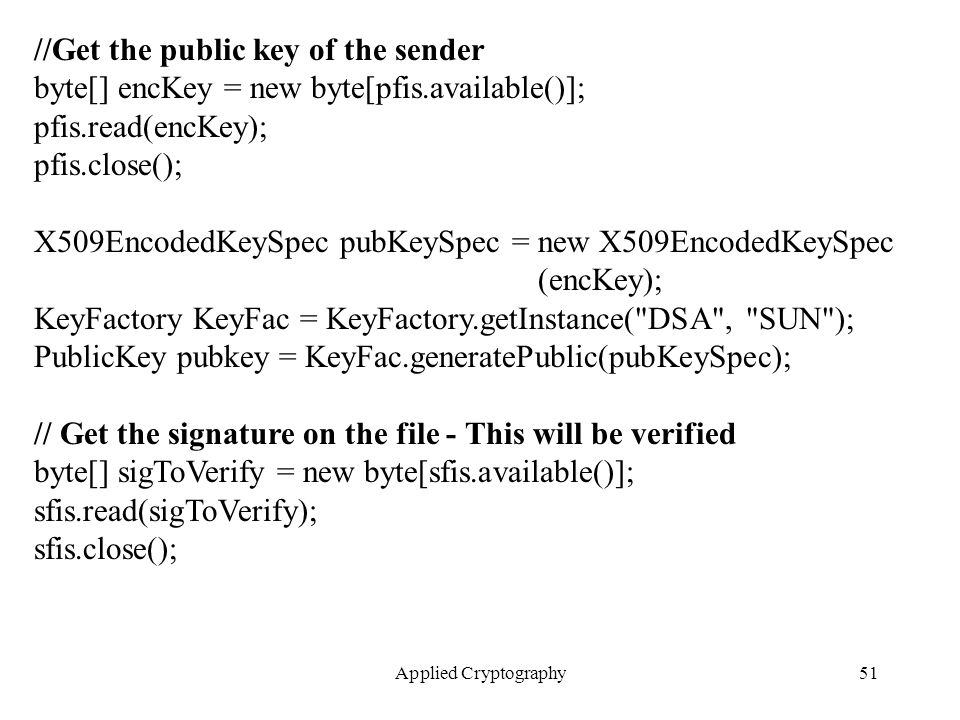

51. Applied Cryptography51 //Get the public key of the sender byte[] encKey = new byte[pfis.available()]; pfis.read(encKey); pfis.close(); X509EncodedKeySpec pubKeySpec = new X509EncodedKeySpec (encKey); KeyFactory KeyFac = KeyFactory.getInstance("DSA", "SUN"); PublicKey pubkey = KeyFac.generatePublic(pubKeySpec); // Get the signature on the file - This will be verified byte[] sigToVerify = new byte[sfis.available()]; sfis.read(sigToVerify); sfis.close();

52. Applied Cryptography52 // Initialize the signature - update() method used to update the // data to be verified Signature dsasig = Signature.getInstance("SHA1withDSA", "SUN"); dsasig.initVerify(pubkey); BufferedInputStream buf = new BufferedInputStream(fis); byte[] buff = new byte[1024]; int len; while(buf.available() != 0) { len = buf.read(buff); dsasig.update(buff, 0, len); } buf.close(); fis.close();

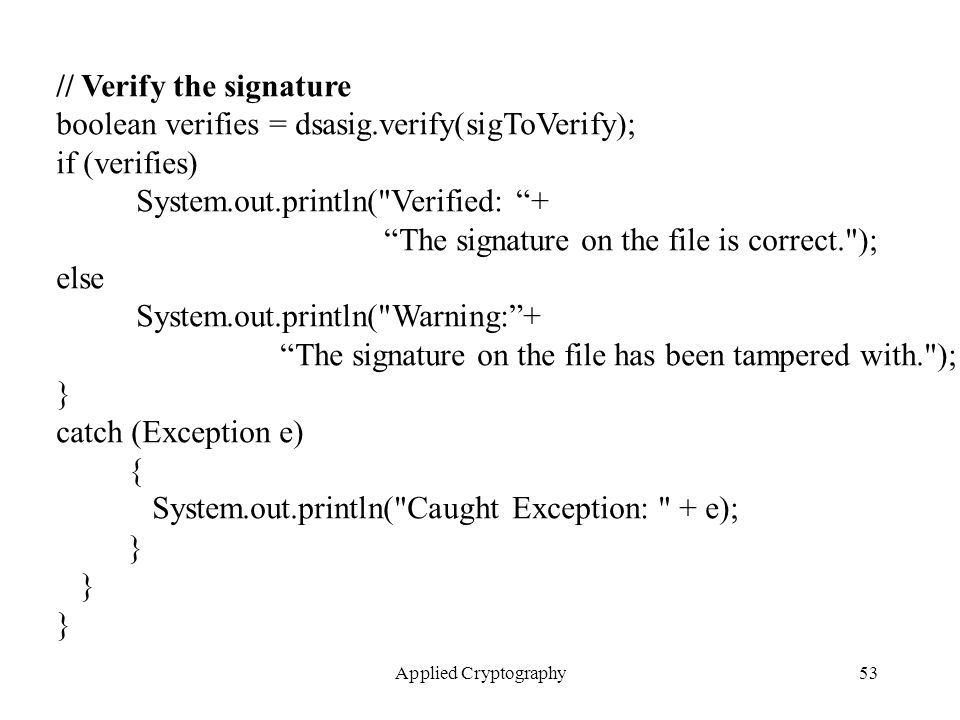

53. Applied Cryptography53 // Verify the signature boolean verifies = dsasig.verify(sigToVerify); if (verifies) System.out.println("Verified: “+ “The signature on the file is correct."); else System.out.println("Warning:”+ “The signature on the file has been tampered with."); } catch (Exception e) { System.out.println("Caught Exception: " + e); }

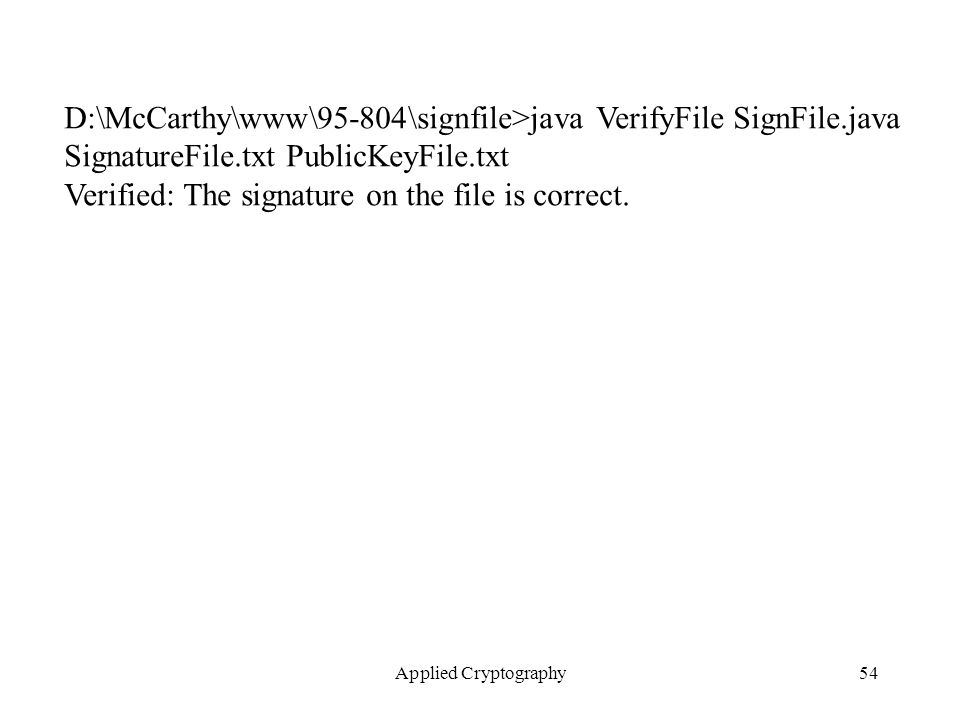

54. Applied Cryptography54 D:\McCarthy\www\95-804\signfile>java VerifyFile SignFile.java SignatureFile.txt PublicKeyFile.txt Verified: The signature on the file is correct.

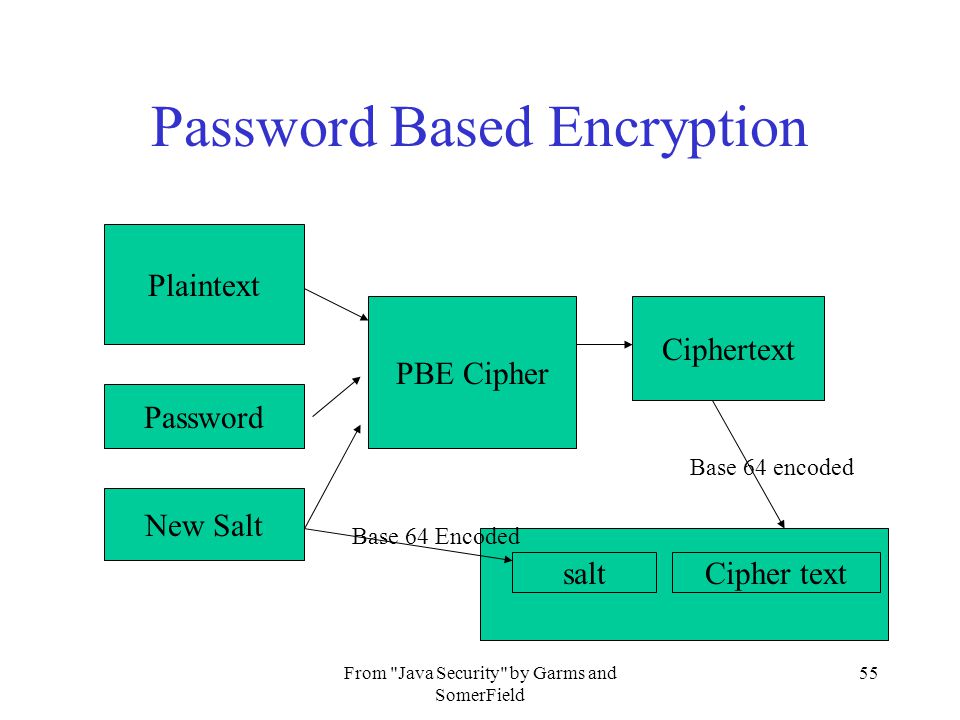

55. From "Java Security" by Garms and SomerField 55 Password Based Encryption Plaintext Password New Salt PBE Cipher Ciphertext saltCipher text Base 64 encoded Base 64 Encoded

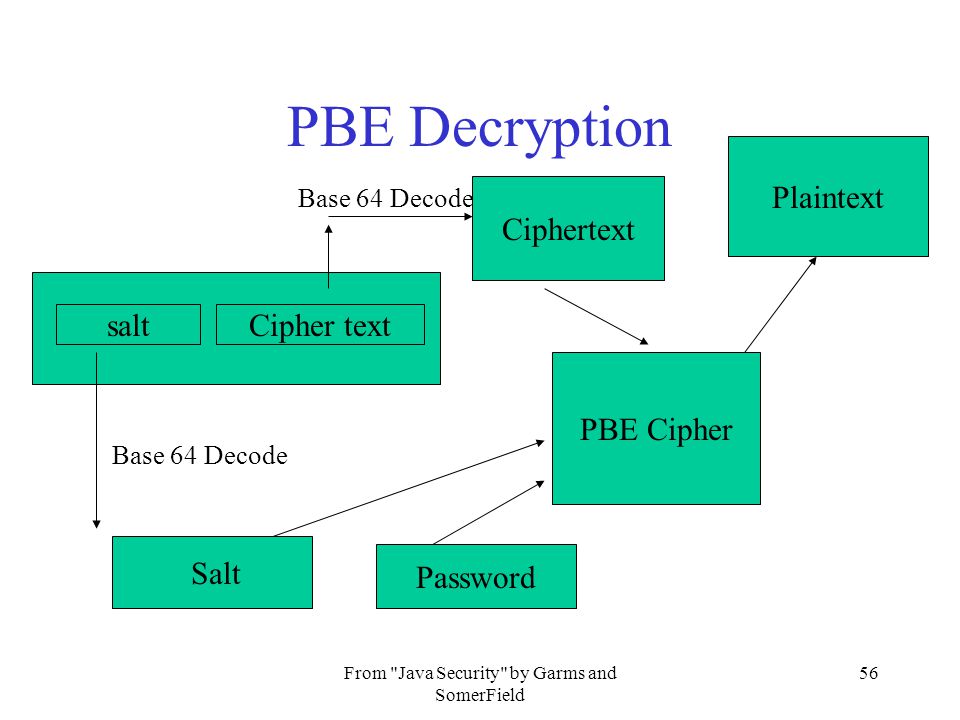

56. From "Java Security" by Garms and SomerField 56 PBE Decryption Plaintext Password Salt PBE Cipher Ciphertext saltCipher text Base 64 Decode

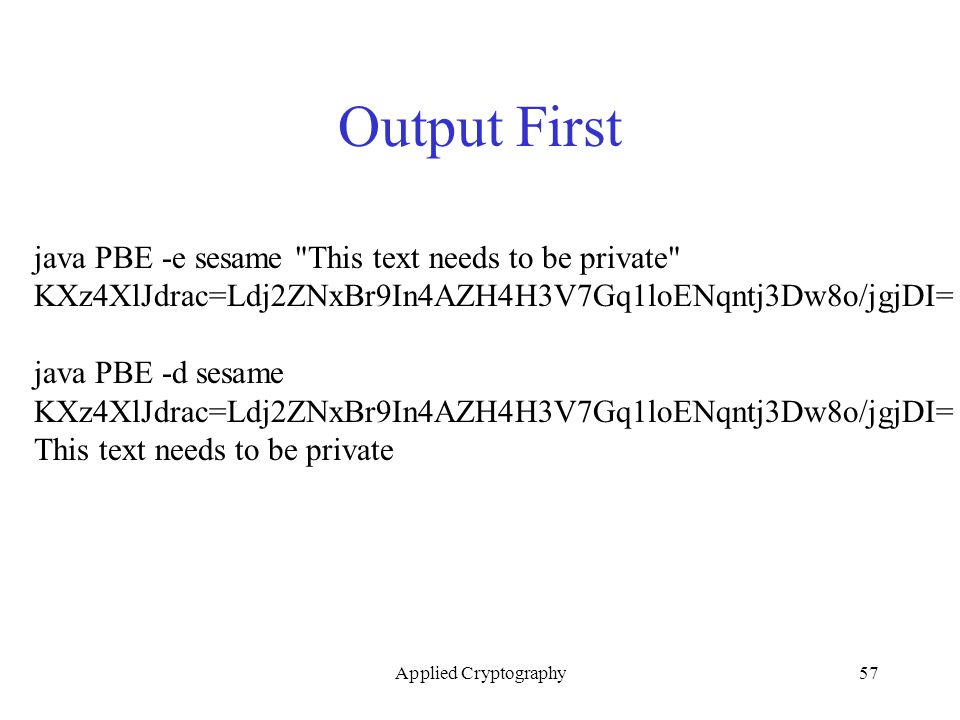

57. Applied Cryptography57 Output First java PBE -e sesame "This text needs to be private" KXz4XlJdrac=Ldj2ZNxBr9In4AZH4H3V7Gq1loENqntj3Dw8o/jgjDI= java PBE -d sesame KXz4XlJdrac=Ldj2ZNxBr9In4AZH4H3V7Gq1loENqntj3Dw8o/jgjDI= This text needs to be private

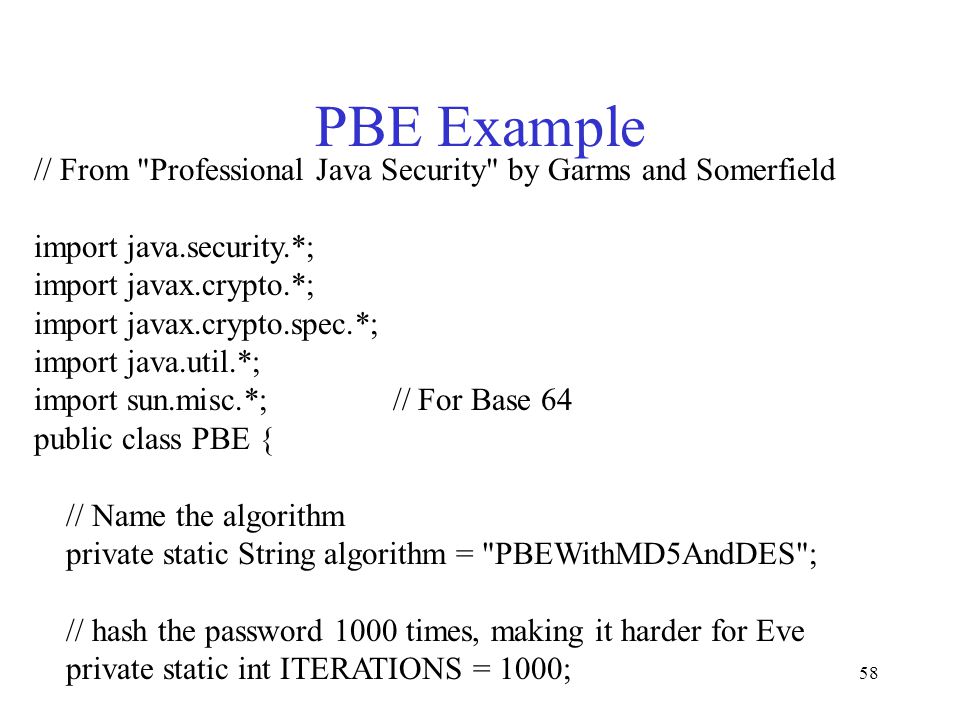

58. 58 PBE Example // From "Professional Java Security" by Garms and Somerfield import java.security.*; import javax.crypto.*; import javax.crypto.spec.*; import java.util.*; import sun.misc.*; // For Base 64 public class PBE { // Name the algorithm private static String algorithm = "PBEWithMD5AndDES"; // hash the password 1000 times, making it harder for Eve private static int ITERATIONS = 1000;

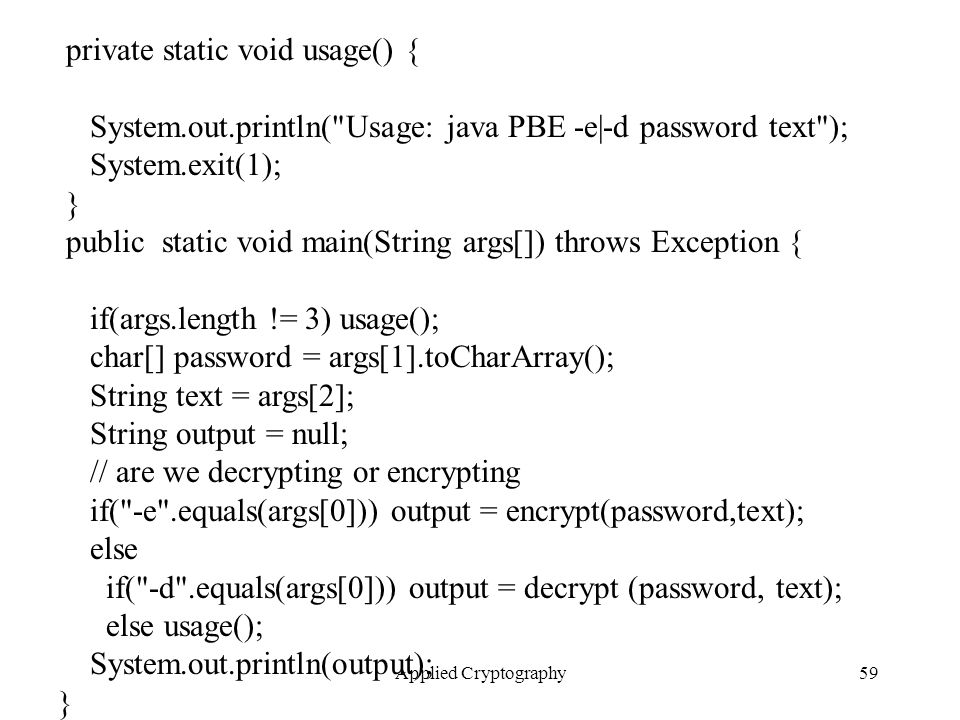

59. Applied Cryptography59 private static void usage() { System.out.println("Usage: java PBE -e|-d password text"); System.exit(1); } public static void main(String args[]) throws Exception { if(args.length != 3) usage(); char[] password = args[1].toCharArray(); String text = args[2]; String output = null; // are we decrypting or encrypting if("-e".equals(args[0])) output = encrypt(password,text); else if("-d".equals(args[0])) output = decrypt (password, text); else usage(); System.out.println(output); }

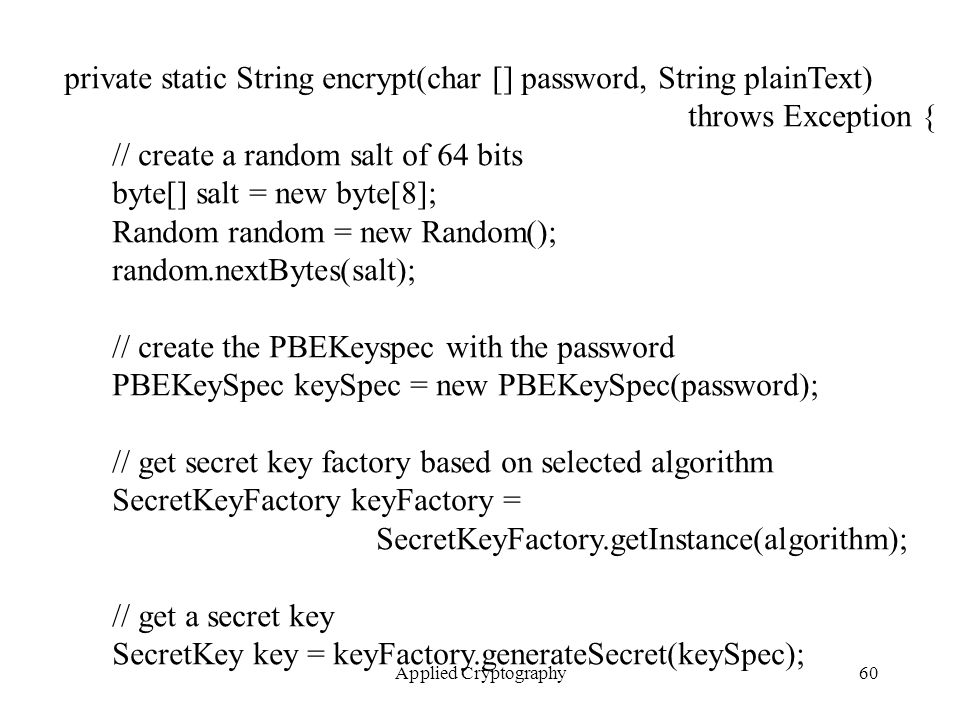

60. Applied Cryptography60 private static String encrypt(char [] password, String plainText) throws Exception { // create a random salt of 64 bits byte[] salt = new byte[8]; Random random = new Random(); random.nextBytes(salt); // create the PBEKeyspec with the password PBEKeySpec keySpec = new PBEKeySpec(password); // get secret key factory based on selected algorithm SecretKeyFactory keyFactory = SecretKeyFactory.getInstance(algorithm); // get a secret key SecretKey key = keyFactory.generateSecret(keySpec);

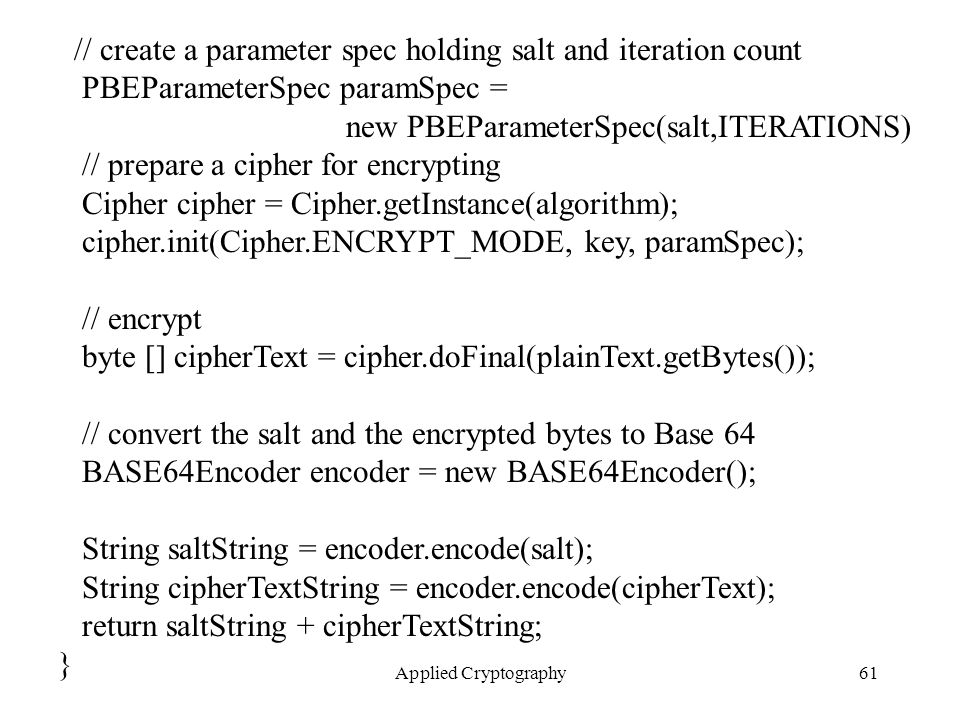

61. Applied Cryptography61 // create a parameter spec holding salt and iteration count PBEParameterSpec paramSpec = new PBEParameterSpec(salt,ITERATIONS) // prepare a cipher for encrypting Cipher cipher = Cipher.getInstance(algorithm); cipher.init(Cipher.ENCRYPT_MODE, key, paramSpec); // encrypt byte [] cipherText = cipher.doFinal(plainText.getBytes()); // convert the salt and the encrypted bytes to Base 64 BASE64Encoder encoder = new BASE64Encoder(); String saltString = encoder.encode(salt); String cipherTextString = encoder.encode(cipherText); return saltString + cipherTextString; }

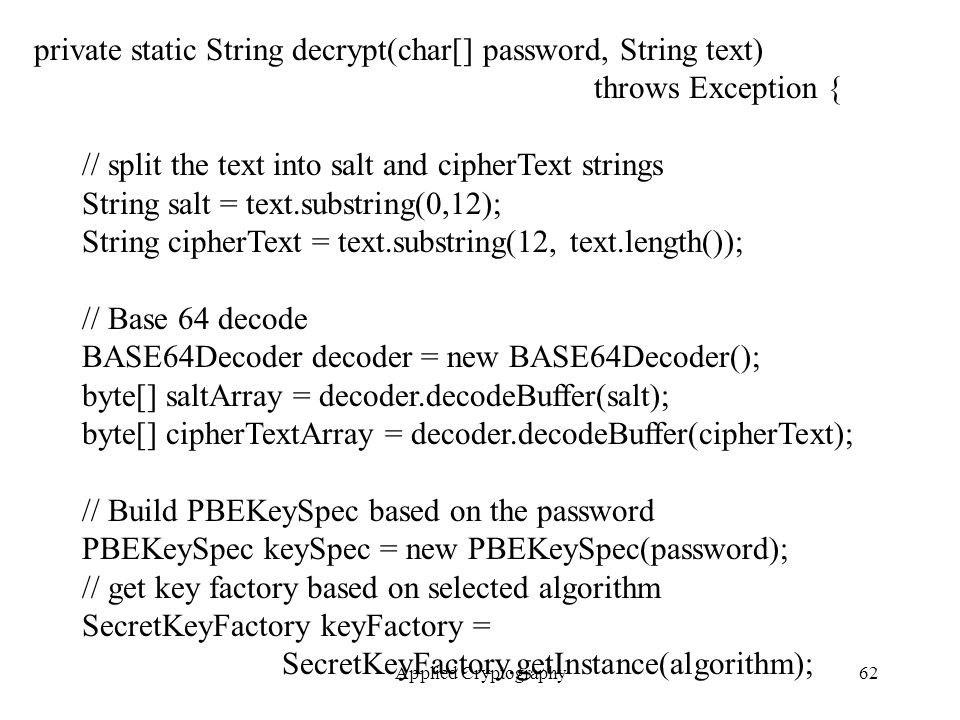

62. Applied Cryptography62 private static String decrypt(char[] password, String text) throws Exception { // split the text into salt and cipherText strings String salt = text.substring(0,12); String cipherText = text.substring(12, text.length()); // Base 64 decode BASE64Decoder decoder = new BASE64Decoder(); byte[] saltArray = decoder.decodeBuffer(salt); byte[] cipherTextArray = decoder.decodeBuffer(cipherText); // Build PBEKeySpec based on the password PBEKeySpec keySpec = new PBEKeySpec(password); // get key factory based on selected algorithm SecretKeyFactory keyFactory = SecretKeyFactory.getInstance(algorithm);

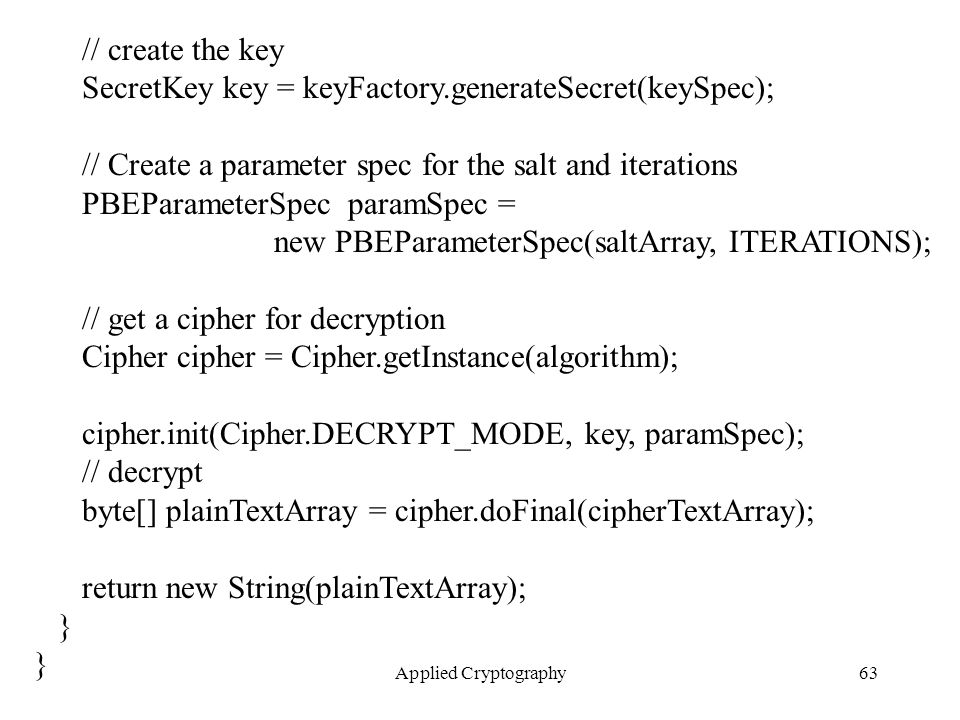

63. Applied Cryptography63 // create the key SecretKey key = keyFactory.generateSecret(keySpec); // Create a parameter spec for the salt and iterations PBEParameterSpec paramSpec = new PBEParameterSpec(saltArray, ITERATIONS); // get a cipher for decryption Cipher cipher = Cipher.getInstance(algorithm); cipher.init(Cipher.DECRYPT_MODE, key, paramSpec); // decrypt byte[] plainTextArray = cipher.doFinal(cipherTextArray); return new String(plainTextArray); }

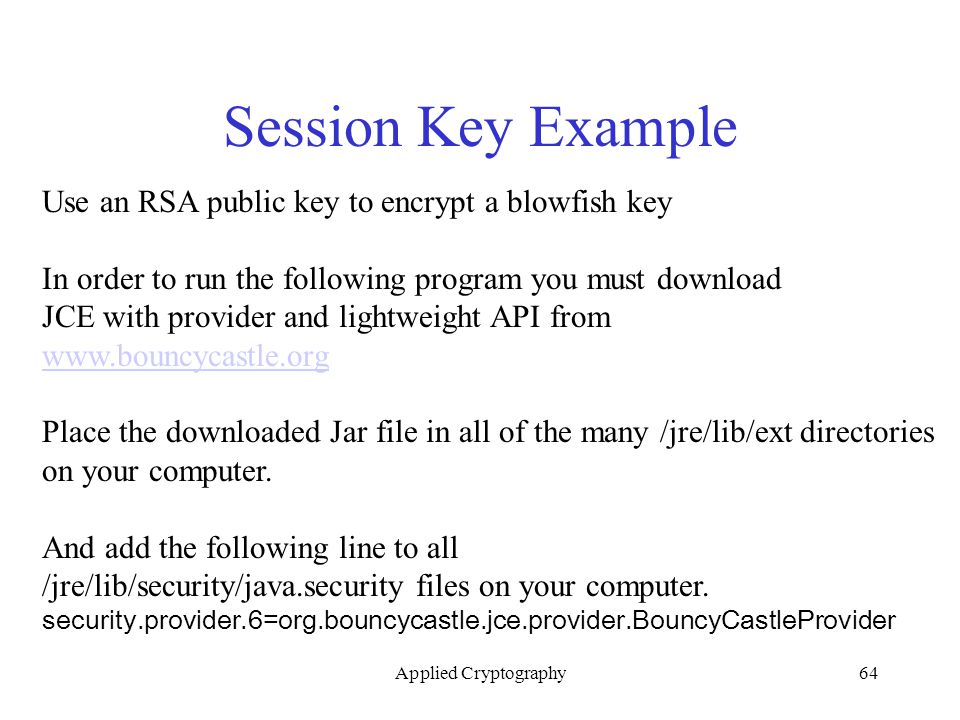

64. Applied Cryptography64 Session Key Example Use an RSA public key to encrypt a blowfish key In order to run the following program you must download JCE with provider and lightweight API from www.bouncycastle.org Place the downloaded Jar file in all of the many /jre/lib/ext directories on your computer. And add the following line to all /jre/lib/security/java.security files on your computer. security.provider.6=org.bouncycastle.jce.provider.BouncyCastleProvider

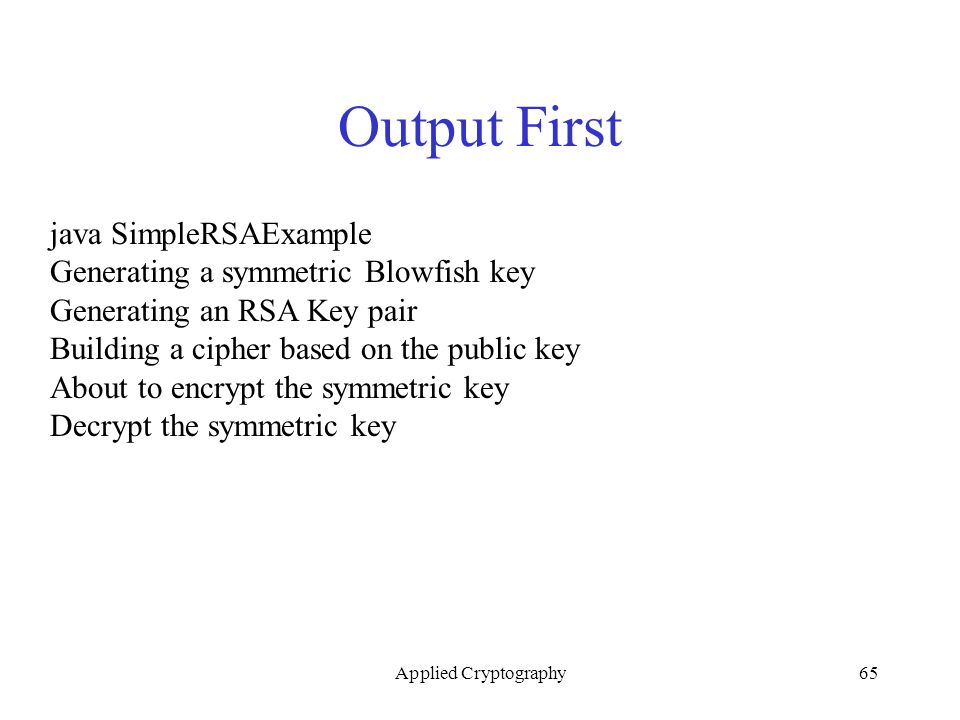

65. Applied Cryptography65 Output First java SimpleRSAExample Generating a symmetric Blowfish key Generating an RSA Key pair Building a cipher based on the public key About to encrypt the symmetric key Decrypt the symmetric key

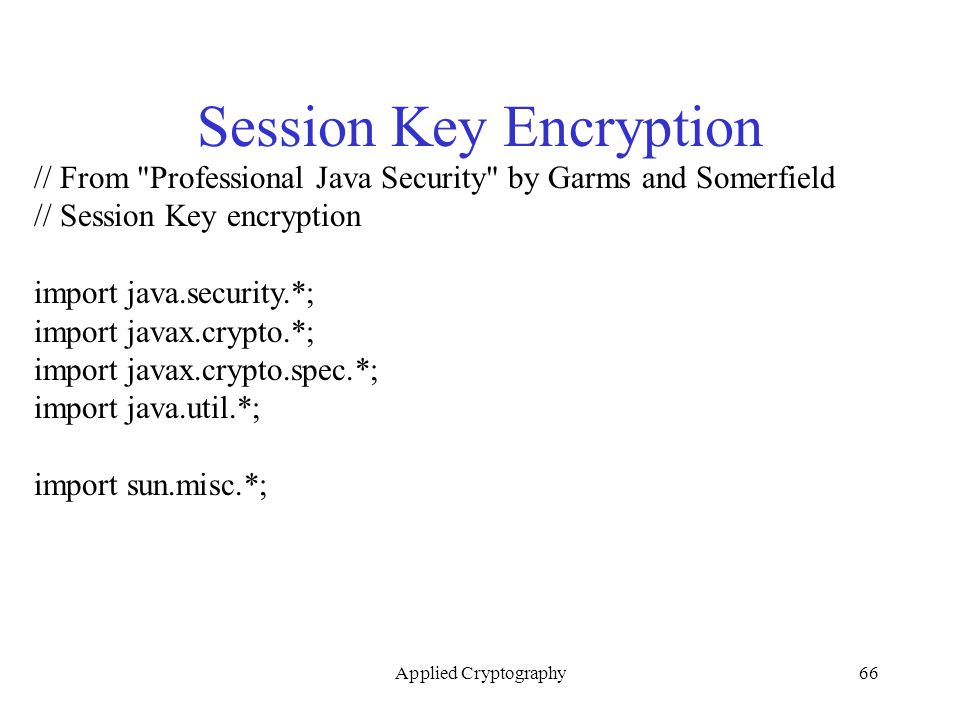

66. Applied Cryptography66 Session Key Encryption // From "Professional Java Security" by Garms and Somerfield // Session Key encryption import java.security.*; import javax.crypto.*; import javax.crypto.spec.*; import java.util.*; import sun.misc.*;

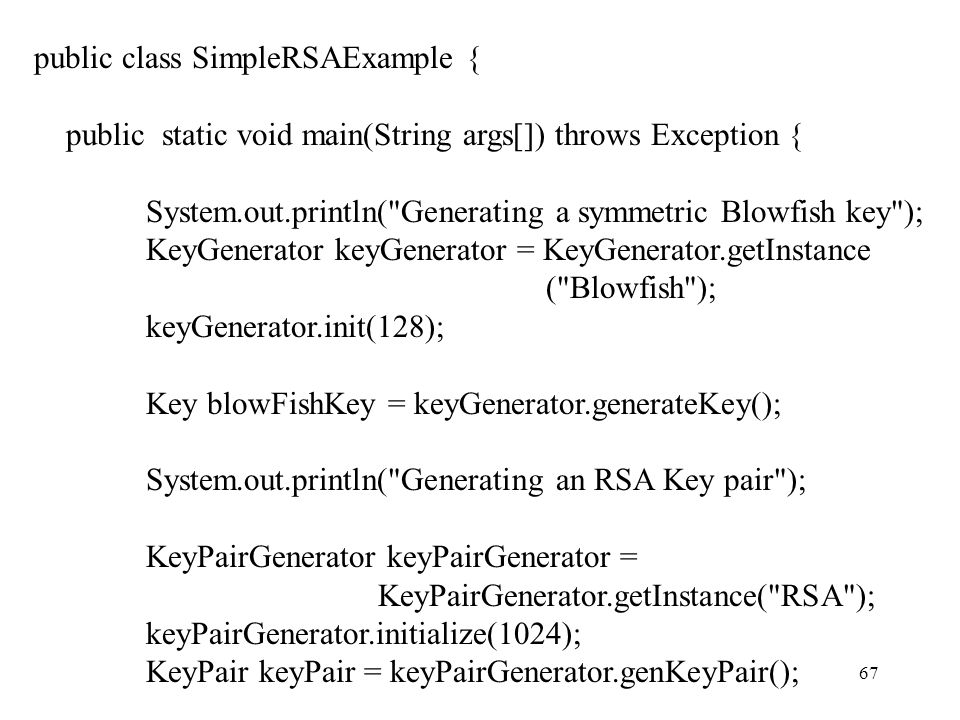

67. 67 public class SimpleRSAExample { public static void main(String args[]) throws Exception { System.out.println("Generating a symmetric Blowfish key"); KeyGenerator keyGenerator = KeyGenerator.getInstance ("Blowfish"); keyGenerator.init(128); Key blowFishKey = keyGenerator.generateKey(); System.out.println("Generating an RSA Key pair"); KeyPairGenerator keyPairGenerator = KeyPairGenerator.getInstance("RSA"); keyPairGenerator.initialize(1024); KeyPair keyPair = keyPairGenerator.genKeyPair();

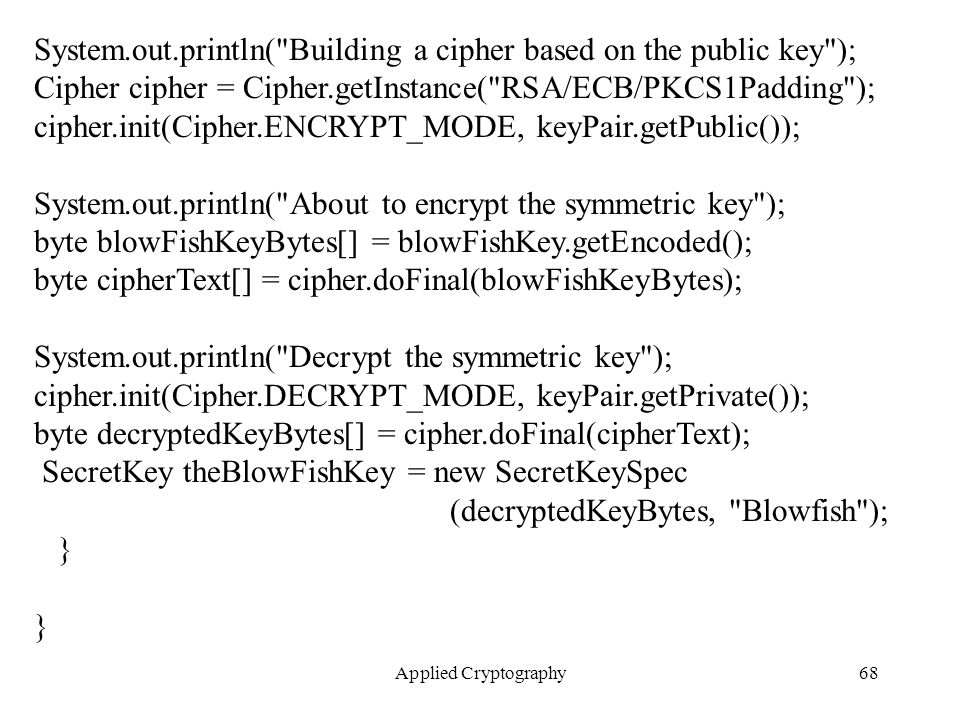

68. Applied Cryptography68 System.out.println("Building a cipher based on the public key"); Cipher cipher = Cipher.getInstance("RSA/ECB/PKCS1Padding"); cipher.init(Cipher.ENCRYPT_MODE, keyPair.getPublic()); System.out.println("About to encrypt the symmetric key"); byte blowFishKeyBytes[] = blowFishKey.getEncoded(); byte cipherText[] = cipher.doFinal(blowFishKeyBytes); System.out.println("Decrypt the symmetric key"); cipher.init(Cipher.DECRYPT_MODE, keyPair.getPrivate()); byte decryptedKeyBytes[] = cipher.doFinal(cipherText); SecretKey theBlowFishKey = new SecretKeySpec (decryptedKeyBytes, "Blowfish"); }

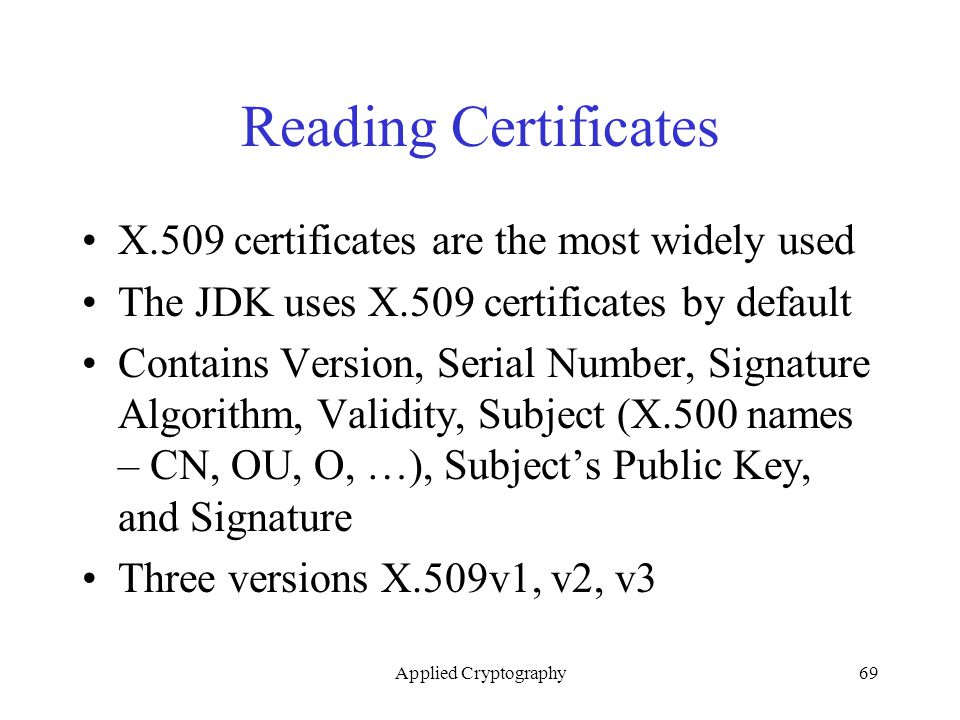

69. Applied Cryptography69 Reading Certificates X.509 certificates are the most widely used The JDK uses X.509 certificates by default Contains Version, Serial Number, Signature Algorithm, Validity, Subject (X.500 names – CN, OU, O, …), Subject’s Public Key, and Signature Three versions X.509v1, v2, v3

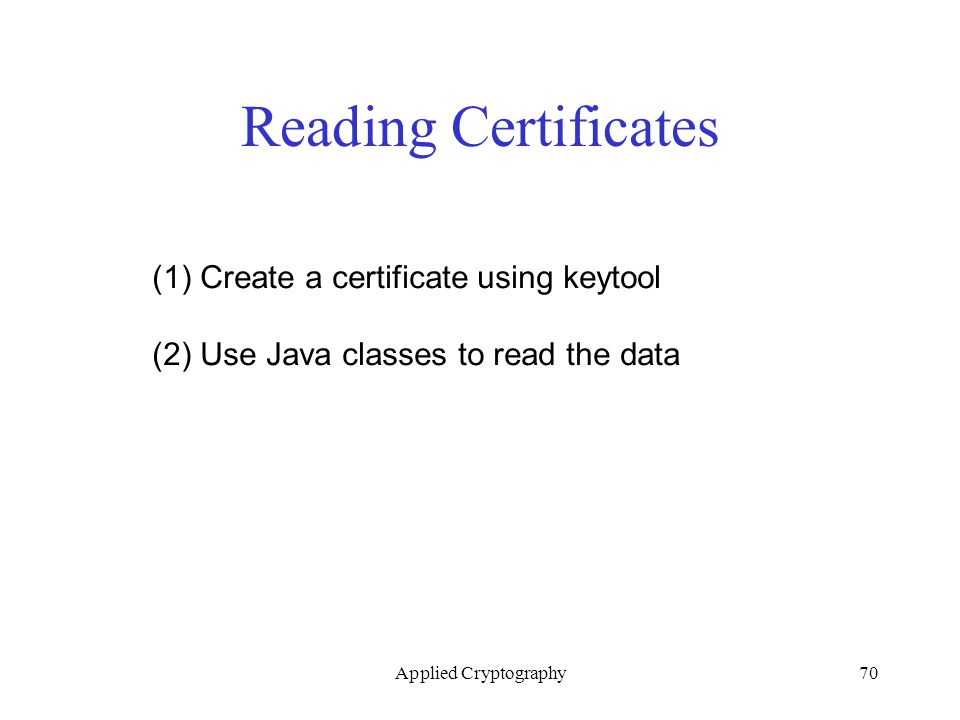

70. Applied Cryptography70 Reading Certificates (1) Create a certificate using keytool (2) Use Java classes to read the data

71. Applied Cryptography71 Use Keytool to Create Keys keytool -genkey -alias mjm -keyalg DSA -keystore coolkeys Enter keystore password: sesame What is your first and last name? [Unknown]: Mike McCarthy What is the name of your organizational unit? [Unknown]: Heinz School What is the name of your organization? [Unknown]: CMU What is the name of your City or Locality? [Unknown]: Pgh

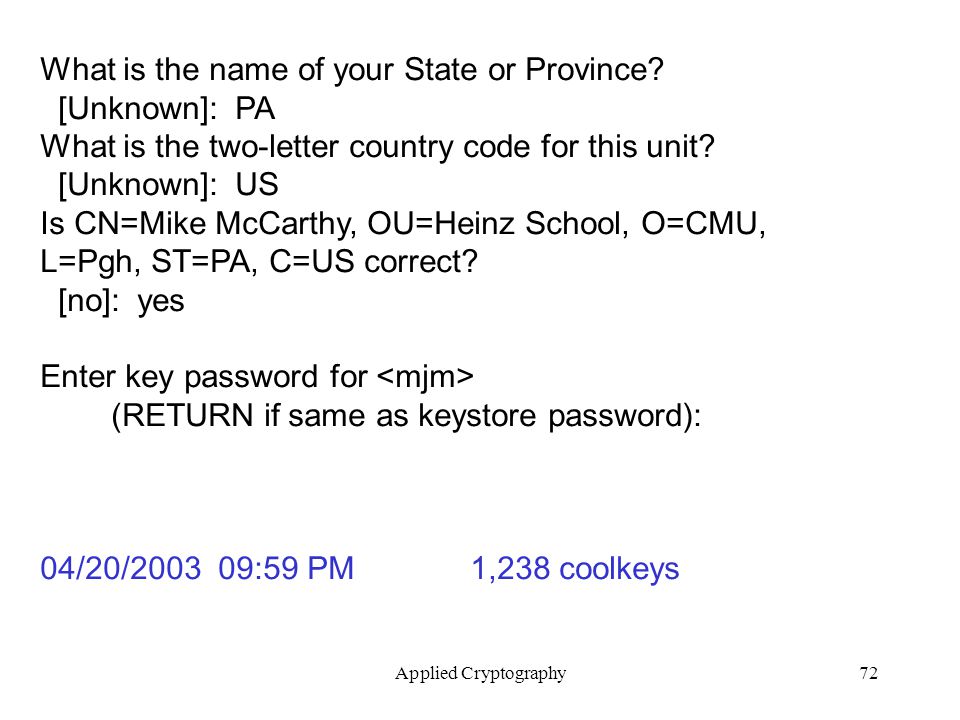

72. Applied Cryptography72 What is the name of your State or Province? [Unknown]: PA What is the two-letter country code for this unit? [Unknown]: US Is CN=Mike McCarthy, OU=Heinz School, O=CMU, L=Pgh, ST=PA, C=US correct? [no]: yes Enter key password for (RETURN if same as keystore password): 04/20/2003 09:59 PM 1,238 coolkeys

73. Applied Cryptography73 Use keytool to look at coolkeys keytool -v -list -keystore coolkeys Enter keystore password: sesame Keystore type: jks Keystore provider: SUN Your keystore contains 1 entry Alias name: mjm Creation date: Apr 20, 2003 Entry type: keyEntry Certificate chain length: 1 Certificate[1]:

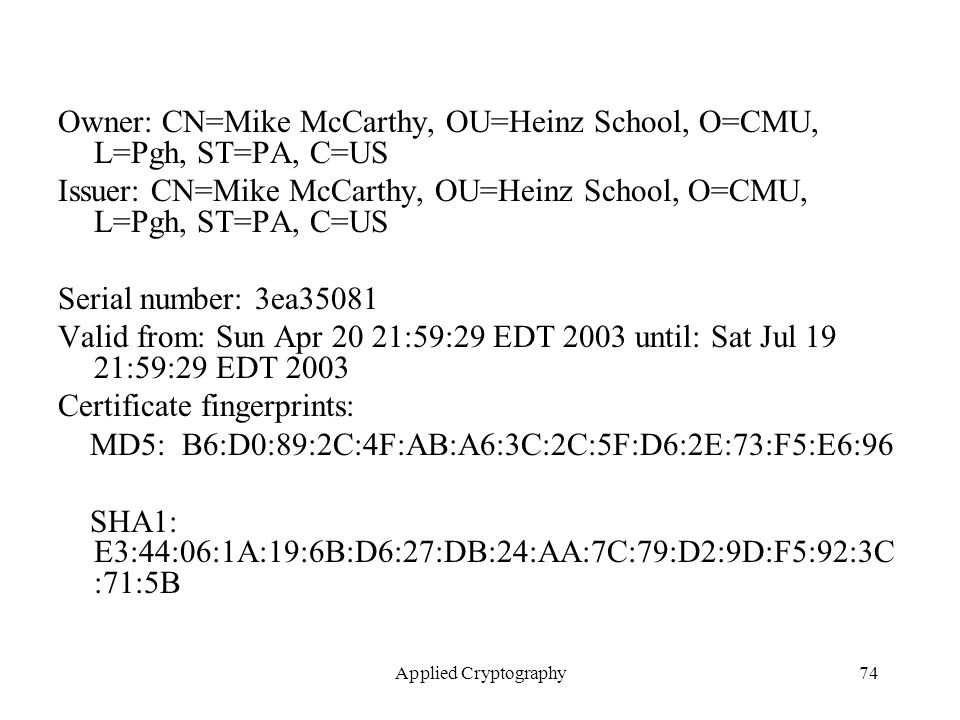

74. Applied Cryptography74 Owner: CN=Mike McCarthy, OU=Heinz School, O=CMU, L=Pgh, ST=PA, C=US Issuer: CN=Mike McCarthy, OU=Heinz School, O=CMU, L=Pgh, ST=PA, C=US Serial number: 3ea35081 Valid from: Sun Apr 20 21:59:29 EDT 2003 until: Sat Jul 19 21:59:29 EDT 2003 Certificate fingerprints: MD5: B6:D0:89:2C:4F:AB:A6:3C:2C:5F:D6:2E:73:F5:E6:96 SHA1: E3:44:06:1A:19:6B:D6:27:DB:24:AA:7C:79:D2:9D:F5:92:3C :71:5B

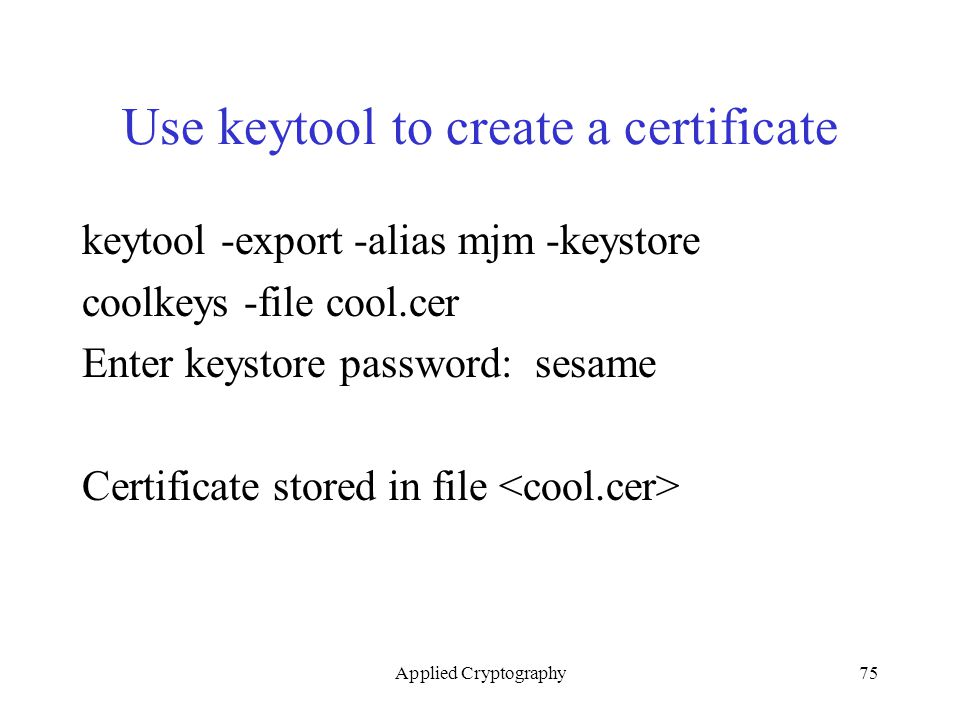

75. Applied Cryptography75 Use keytool to create a certificate keytool -export -alias mjm -keystore coolkeys -file cool.cer Enter keystore password: sesame Certificate stored in file

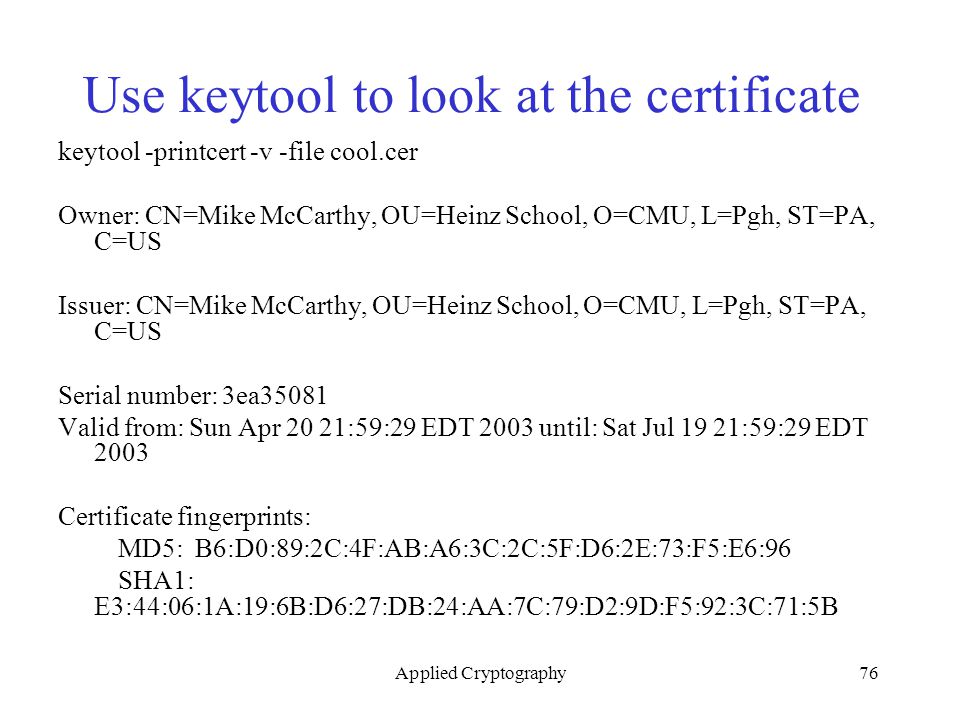

76. Applied Cryptography76 Use keytool to look at the certificate keytool -printcert -v -file cool.cer Owner: CN=Mike McCarthy, OU=Heinz School, O=CMU, L=Pgh, ST=PA, C=US Issuer: CN=Mike McCarthy, OU=Heinz School, O=CMU, L=Pgh, ST=PA, C=US Serial number: 3ea35081 Valid from: Sun Apr 20 21:59:29 EDT 2003 until: Sat Jul 19 21:59:29 EDT 2003 Certificate fingerprints: MD5: B6:D0:89:2C:4F:AB:A6:3C:2C:5F:D6:2E:73:F5:E6:96 SHA1: E3:44:06:1A:19:6B:D6:27:DB:24:AA:7C:79:D2:9D:F5:92:3C:71:5B

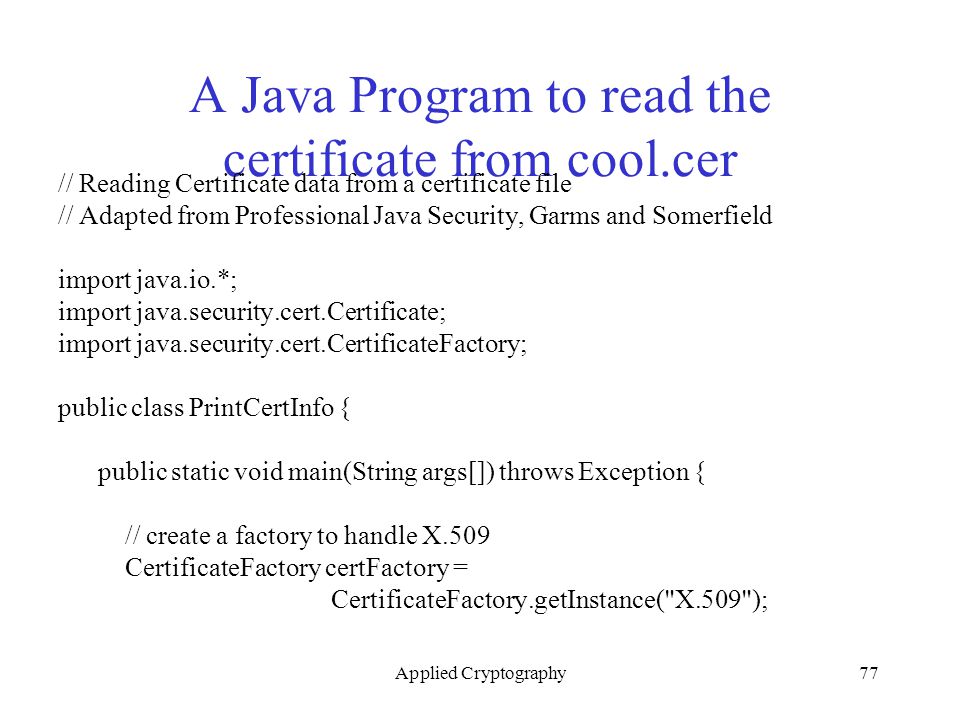

77. Applied Cryptography77 A Java Program to read the certificate from cool.cer // Reading Certificate data from a certificate file // Adapted from Professional Java Security, Garms and Somerfield import java.io.*; import java.security.cert.Certificate; import java.security.cert.CertificateFactory; public class PrintCertInfo { public static void main(String args[]) throws Exception { // create a factory to handle X.509 CertificateFactory certFactory = CertificateFactory.getInstance("X.509");

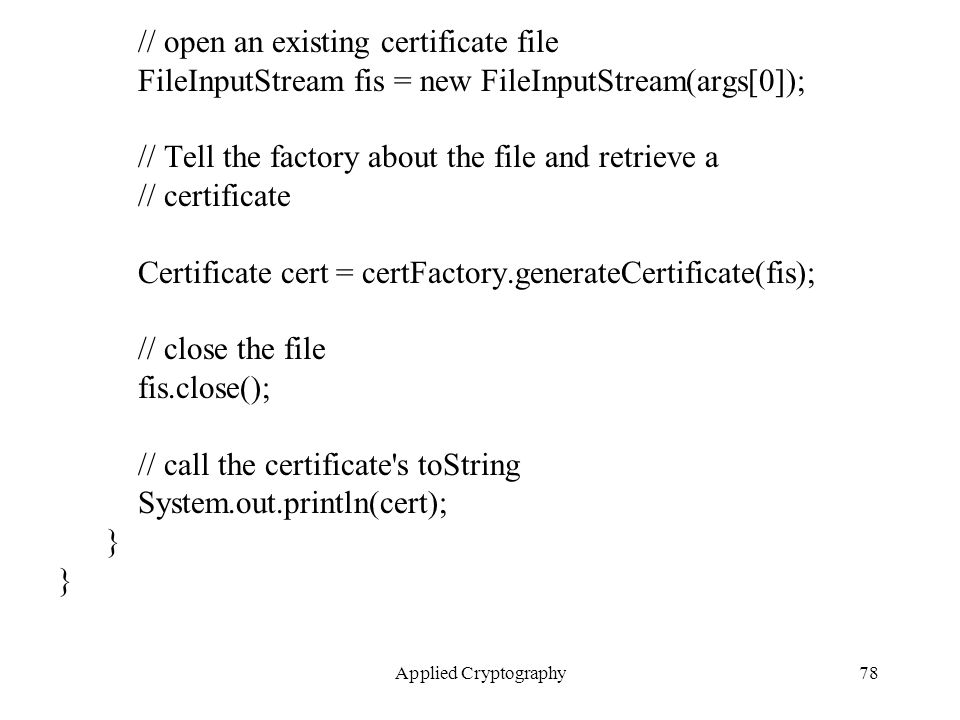

78. Applied Cryptography78 // open an existing certificate file FileInputStream fis = new FileInputStream(args[0]); // Tell the factory about the file and retrieve a // certificate Certificate cert = certFactory.generateCertificate(fis); // close the file fis.close(); // call the certificate's toString System.out.println(cert); }

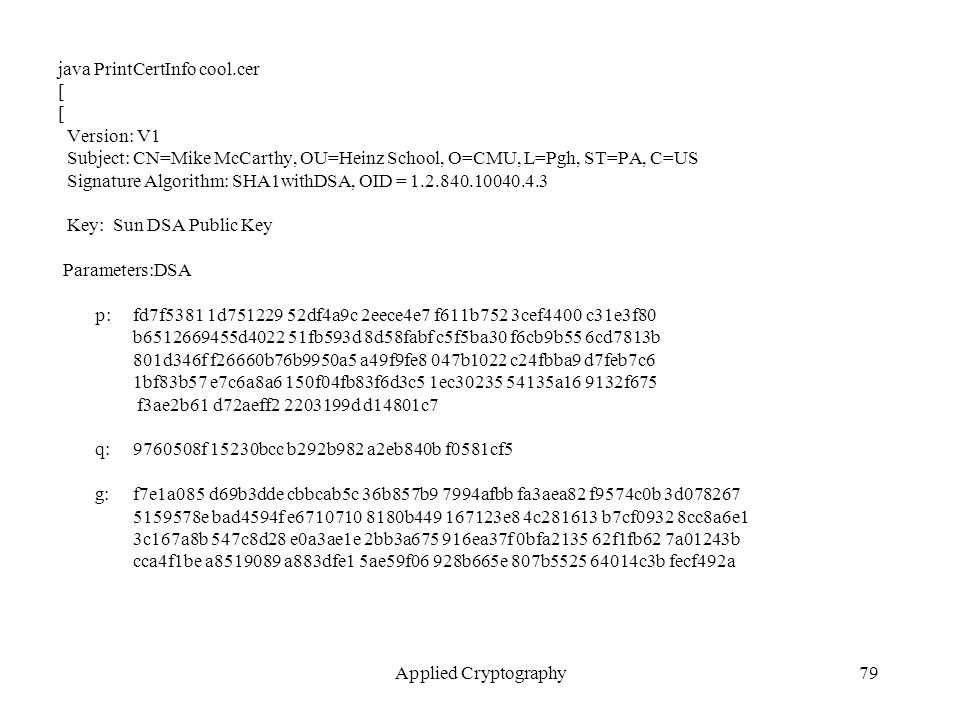

79. Applied Cryptography79 java PrintCertInfo cool.cer [ Version: V1 Subject: CN=Mike McCarthy, OU=Heinz School, O=CMU, L=Pgh, ST=PA, C=US Signature Algorithm: SHA1withDSA, OID = 1.2.840.10040.4.3 Key: Sun DSA Public Key Parameters:DSA p: fd7f5381 1d751229 52df4a9c 2eece4e7 f611b752 3cef4400 c31e3f80 b6512669455d4022 51fb593d 8d58fabf c5f5ba30 f6cb9b55 6cd7813b 801d346f f26660b76b9950a5 a49f9fe8 047b1022 c24fbba9 d7feb7c6 1bf83b57 e7c6a8a6 150f04fb83f6d3c5 1ec30235 54135a16 9132f675 f3ae2b61 d72aeff2 2203199d d14801c7 q: 9760508f 15230bcc b292b982 a2eb840b f0581cf5 g: f7e1a085 d69b3dde cbbcab5c 36b857b9 7994afbb fa3aea82 f9574c0b 3d078267 5159578e bad4594f e6710710 8180b449 167123e8 4c281613 b7cf0932 8cc8a6e1 3c167a8b 547c8d28 e0a3ae1e 2bb3a675 916ea37f 0bfa2135 62f1fb62 7a01243b cca4f1be a8519089 a883dfe1 5ae59f06 928b665e 807b5525 64014c3b fecf492a

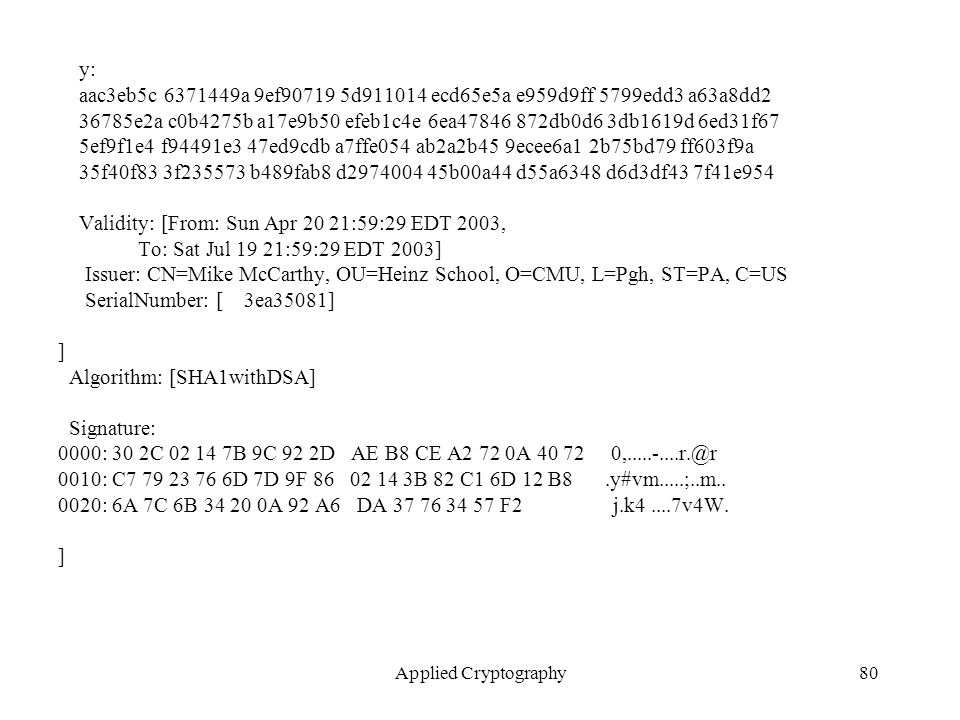

80. Applied Cryptography80 y: aac3eb5c 6371449a 9ef90719 5d911014 ecd65e5a e959d9ff 5799edd3 a63a8dd2 36785e2a c0b4275b a17e9b50 efeb1c4e 6ea47846 872db0d6 3db1619d 6ed31f67 5ef9f1e4 f94491e3 47ed9cdb a7ffe054 ab2a2b45 9ecee6a1 2b75bd79 ff603f9a 35f40f83 3f235573 b489fab8 d2974004 45b00a44 d55a6348 d6d3df43 7f41e954 Validity: [From: Sun Apr 20 21:59:29 EDT 2003, To: Sat Jul 19 21:59:29 EDT 2003] Issuer: CN=Mike McCarthy, OU=Heinz School, O=CMU, L=Pgh, ST=PA, C=US SerialNumber: [ 3ea35081] ] Algorithm: [SHA1withDSA] Signature: 0000: 30 2C 02 14 7B 9C 92 2D AE B8 CE A2 72 0A 40 72 0,.....-....r.@r 0010: C7 79 23 76 6D 7D 9F 86 02 14 3B 82 C1 6D 12 B8.y#vm.....;..m.. 0020: 6A 7C 6B 34 20 0A 92 A6 DA 37 76 34 57 F2 j.k4....7v4W. ]

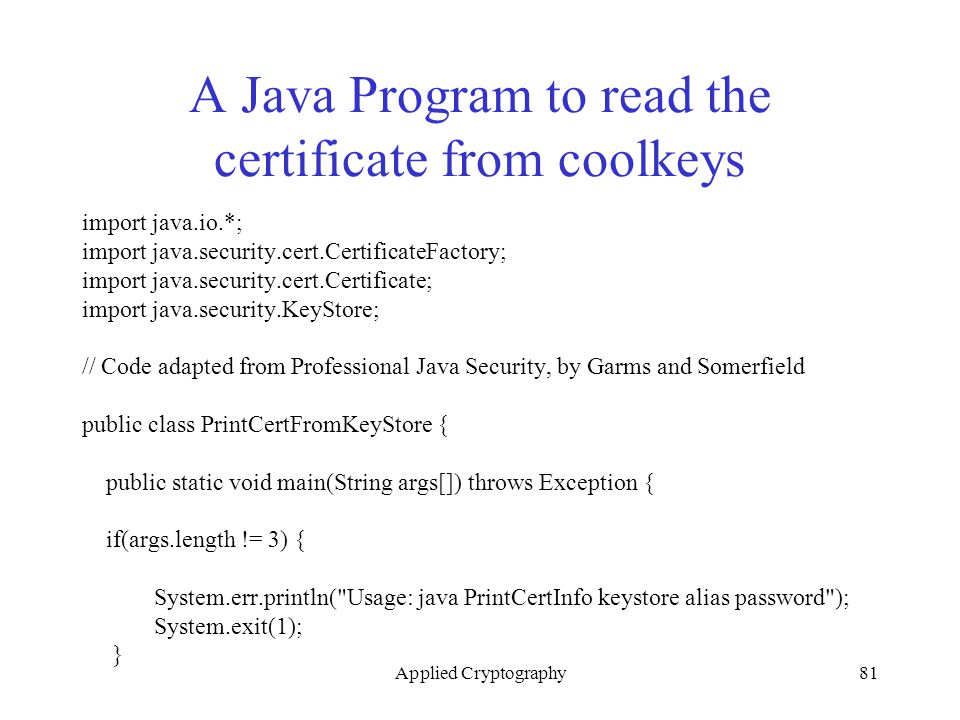

81. Applied Cryptography81 A Java Program to read the certificate from coolkeys import java.io.*; import java.security.cert.CertificateFactory; import java.security.cert.Certificate; import java.security.KeyStore; // Code adapted from Professional Java Security, by Garms and Somerfield public class PrintCertFromKeyStore { public static void main(String args[]) throws Exception { if(args.length != 3) { System.err.println("Usage: java PrintCertInfo keystore alias password"); System.exit(1); }

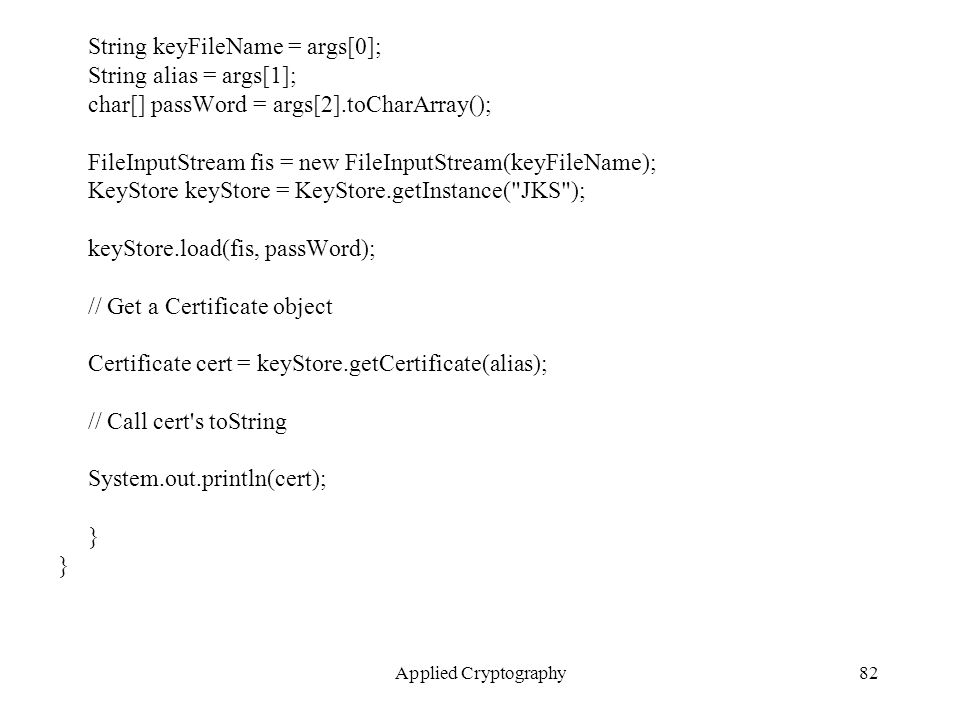

82. Applied Cryptography82 String keyFileName = args[0]; String alias = args[1]; char[] passWord = args[2].toCharArray(); FileInputStream fis = new FileInputStream(keyFileName); KeyStore keyStore = KeyStore.getInstance("JKS"); keyStore.load(fis, passWord); // Get a Certificate object Certificate cert = keyStore.getCertificate(alias); // Call cert's toString System.out.println(cert); }

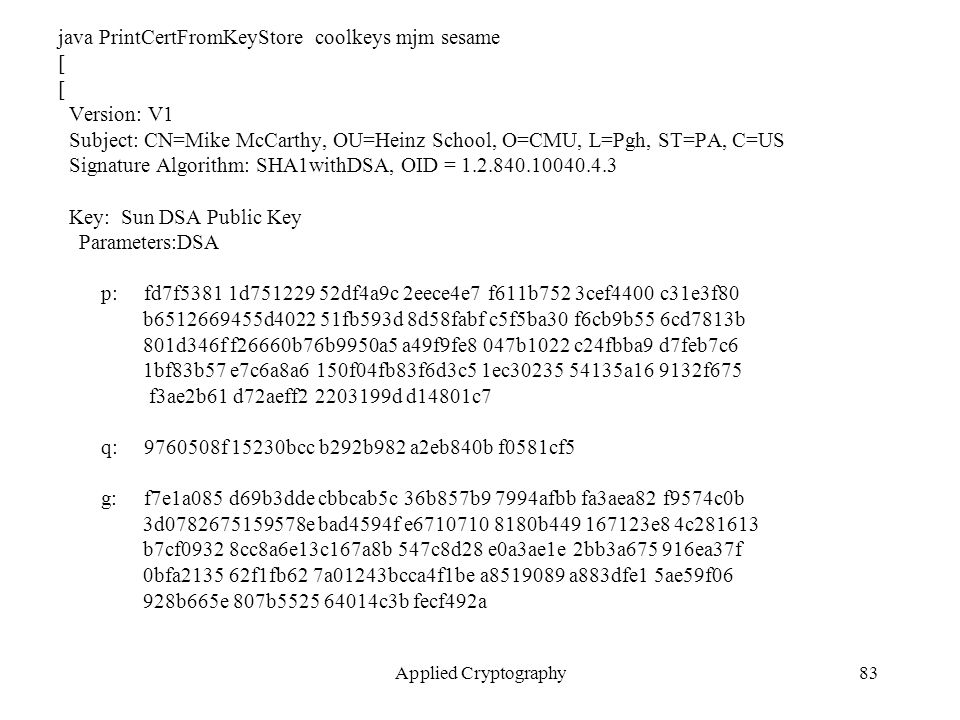

83. Applied Cryptography83 java PrintCertFromKeyStore coolkeys mjm sesame [ Version: V1 Subject: CN=Mike McCarthy, OU=Heinz School, O=CMU, L=Pgh, ST=PA, C=US Signature Algorithm: SHA1withDSA, OID = 1.2.840.10040.4.3 Key: Sun DSA Public Key Parameters:DSA p: fd7f5381 1d751229 52df4a9c 2eece4e7 f611b752 3cef4400 c31e3f80 b6512669455d4022 51fb593d 8d58fabf c5f5ba30 f6cb9b55 6cd7813b 801d346f f26660b76b9950a5 a49f9fe8 047b1022 c24fbba9 d7feb7c6 1bf83b57 e7c6a8a6 150f04fb83f6d3c5 1ec30235 54135a16 9132f675 f3ae2b61 d72aeff2 2203199d d14801c7 q: 9760508f 15230bcc b292b982 a2eb840b f0581cf5 g: f7e1a085 d69b3dde cbbcab5c 36b857b9 7994afbb fa3aea82 f9574c0b 3d0782675159578e bad4594f e6710710 8180b449 167123e8 4c281613 b7cf0932 8cc8a6e13c167a8b 547c8d28 e0a3ae1e 2bb3a675 916ea37f 0bfa2135 62f1fb62 7a01243bcca4f1be a8519089 a883dfe1 5ae59f06 928b665e 807b5525 64014c3b fecf492a

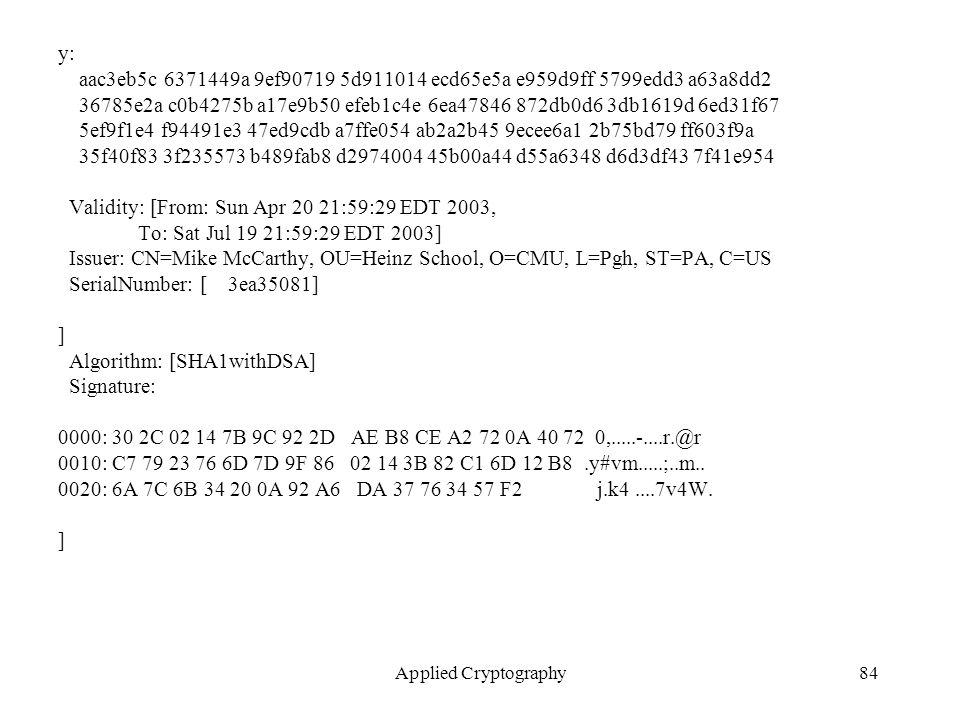

84. Applied Cryptography84 y: aac3eb5c 6371449a 9ef90719 5d911014 ecd65e5a e959d9ff 5799edd3 a63a8dd2 36785e2a c0b4275b a17e9b50 efeb1c4e 6ea47846 872db0d6 3db1619d 6ed31f67 5ef9f1e4 f94491e3 47ed9cdb a7ffe054 ab2a2b45 9ecee6a1 2b75bd79 ff603f9a 35f40f83 3f235573 b489fab8 d2974004 45b00a44 d55a6348 d6d3df43 7f41e954 Validity: [From: Sun Apr 20 21:59:29 EDT 2003, To: Sat Jul 19 21:59:29 EDT 2003] Issuer: CN=Mike McCarthy, OU=Heinz School, O=CMU, L=Pgh, ST=PA, C=US SerialNumber: [ 3ea35081] ] Algorithm: [SHA1withDSA] Signature: 0000: 30 2C 02 14 7B 9C 92 2D AE B8 CE A2 72 0A 40 72 0,.....-....r.@r 0010: C7 79 23 76 6D 7D 9F 86 02 14 3B 82 C1 6D 12 B8.y#vm.....;..m.. 0020: 6A 7C 6B 34 20 0A 92 A6 DA 37 76 34 57 F2 j.k4....7v4W. ]

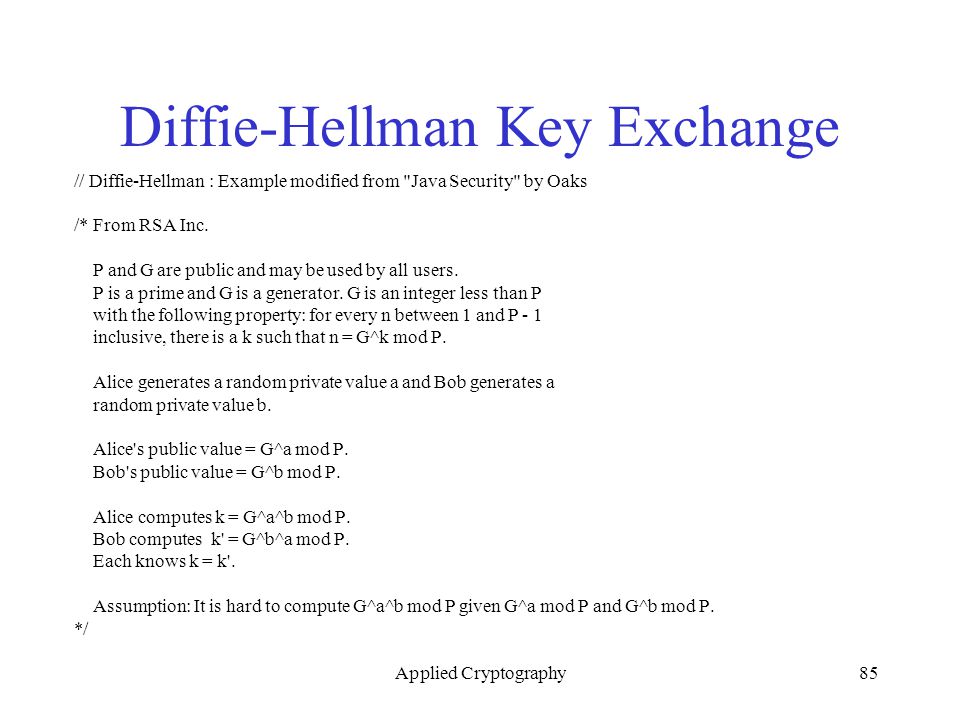

85. Applied Cryptography85 Diffie-Hellman Key Exchange // Diffie-Hellman : Example modified from "Java Security" by Oaks /* From RSA Inc. P and G are public and may be used by all users. P is a prime and G is a generator. G is an integer less than P with the following property: for every n between 1 and P - 1 inclusive, there is a k such that n = G^k mod P. Alice generates a random private value a and Bob generates a random private value b. Alice's public value = G^a mod P. Bob's public value = G^b mod P. Alice computes k = G^a^b mod P. Bob computes k' = G^b^a mod P. Each knows k = k'. Assumption: It is hard to compute G^a^b mod P given G^a mod P and G^b mod P. */

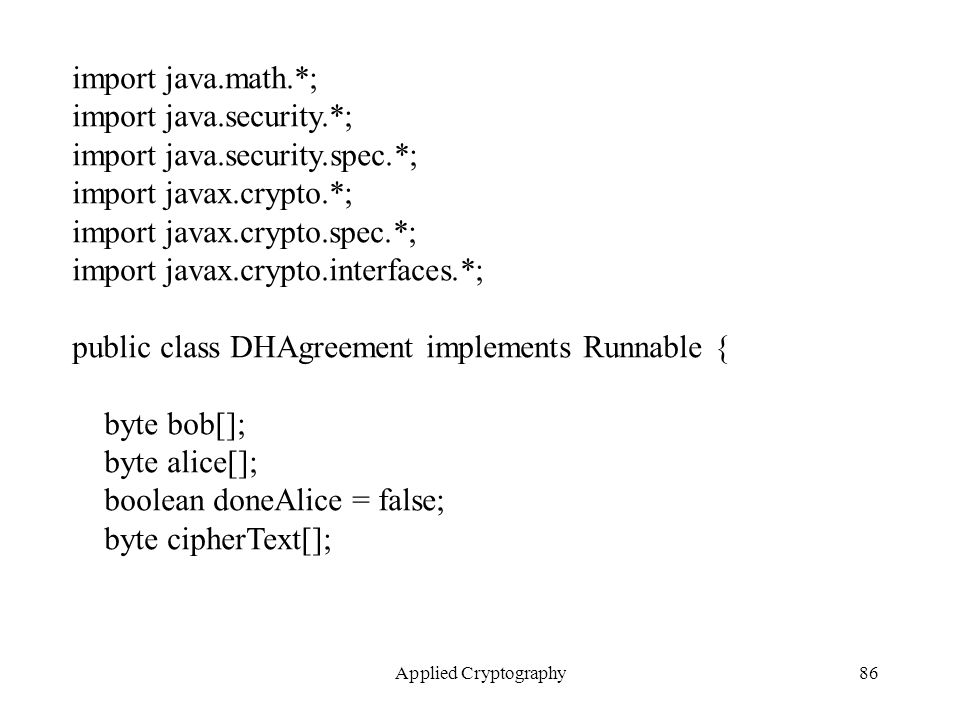

86. Applied Cryptography86 import java.math.*; import java.security.*; import java.security.spec.*; import javax.crypto.*; import javax.crypto.spec.*; import javax.crypto.interfaces.*; public class DHAgreement implements Runnable { byte bob[]; byte alice[]; boolean doneAlice = false; byte cipherText[];

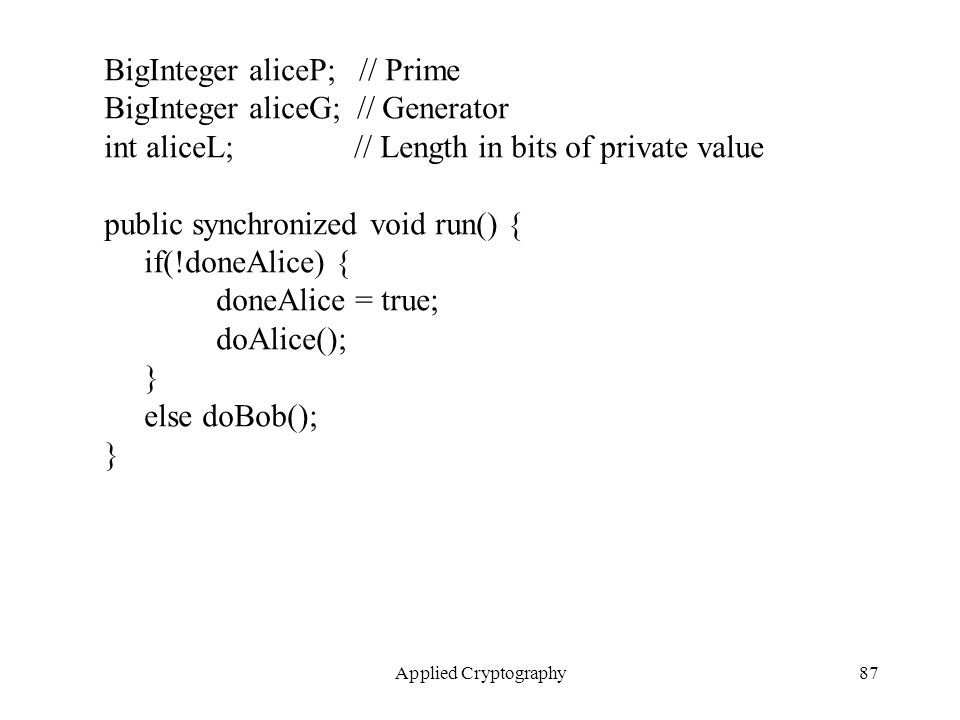

87. Applied Cryptography87 BigInteger aliceP; // Prime BigInteger aliceG; // Generator int aliceL; // Length in bits of private value public synchronized void run() { if(!doneAlice) { doneAlice = true; doAlice(); } else doBob(); }

88. Applied Cryptography88 public synchronized void doAlice() { try { // Create a pair of keys for Alice KeyPairGenerator kpg = KeyPairGenerator.getInstance("DH"); kpg.initialize(512); // may be set to 1024 but DH Key // construction is costly KeyPair kp = kpg.generateKeyPair(); DHParameterSpec dhSpec = ((DHPublicKey) kp.getPublic()).getParams(); aliceG = dhSpec.getG(); aliceP = dhSpec.getP(); aliceL = dhSpec.getL(); alice = kp.getPublic().getEncoded();

89. Applied Cryptography89 // tell at most one thread waiting for a condition to change notify(); KeyAgreement ka = KeyAgreement.getInstance("DH"); ka.init(kp.getPrivate()); while(bob == null) { wait(); // wait for notification } KeyFactory kf = KeyFactory.getInstance("DH"); X509EncodedKeySpec x509Spec = new X509EncodedKeySpec(bob); PublicKey pk = kf.generatePublic(x509Spec); ka.doPhase(pk,true);

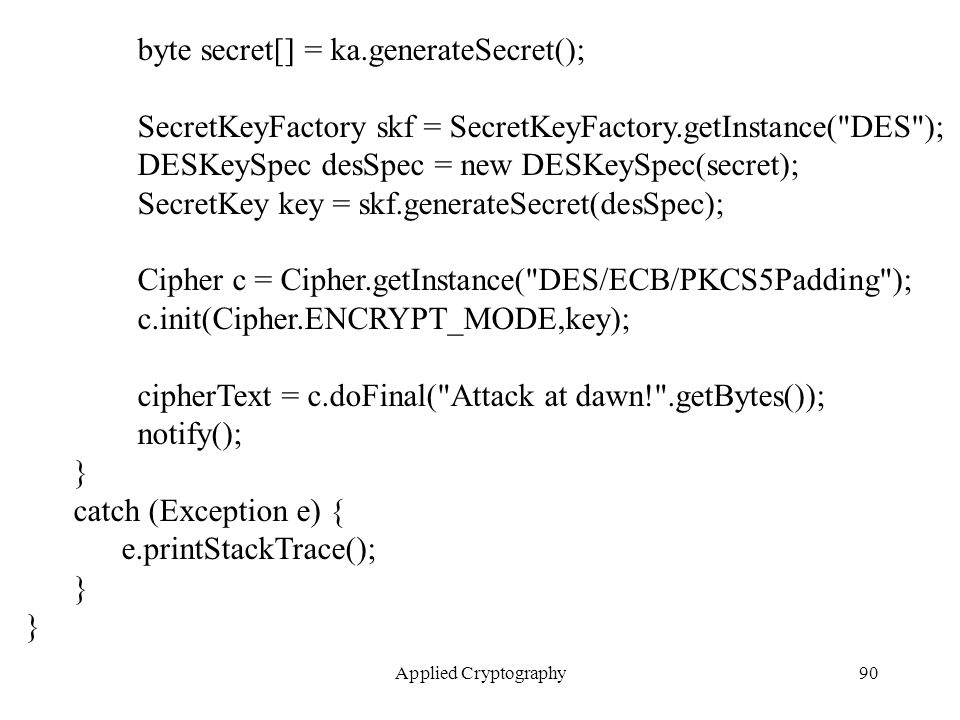

90. Applied Cryptography90 byte secret[] = ka.generateSecret(); SecretKeyFactory skf = SecretKeyFactory.getInstance("DES"); DESKeySpec desSpec = new DESKeySpec(secret); SecretKey key = skf.generateSecret(desSpec); Cipher c = Cipher.getInstance("DES/ECB/PKCS5Padding"); c.init(Cipher.ENCRYPT_MODE,key); cipherText = c.doFinal("Attack at dawn!".getBytes()); notify(); } catch (Exception e) { e.printStackTrace(); }

91. Applied Cryptography91 public synchronized void doBob() { try { while(alice == null) { wait(); } KeyPairGenerator kpg = KeyPairGenerator.getInstance("DH"); DHParameterSpec dhSpec = new DHParameterSpec(aliceP, aliceG, aliceL); kpg.initialize(dhSpec); KeyPair kp = kpg.generateKeyPair(); bob = kp.getPublic().getEncoded(); // tell at most one thread waiting for a condition to change notify();

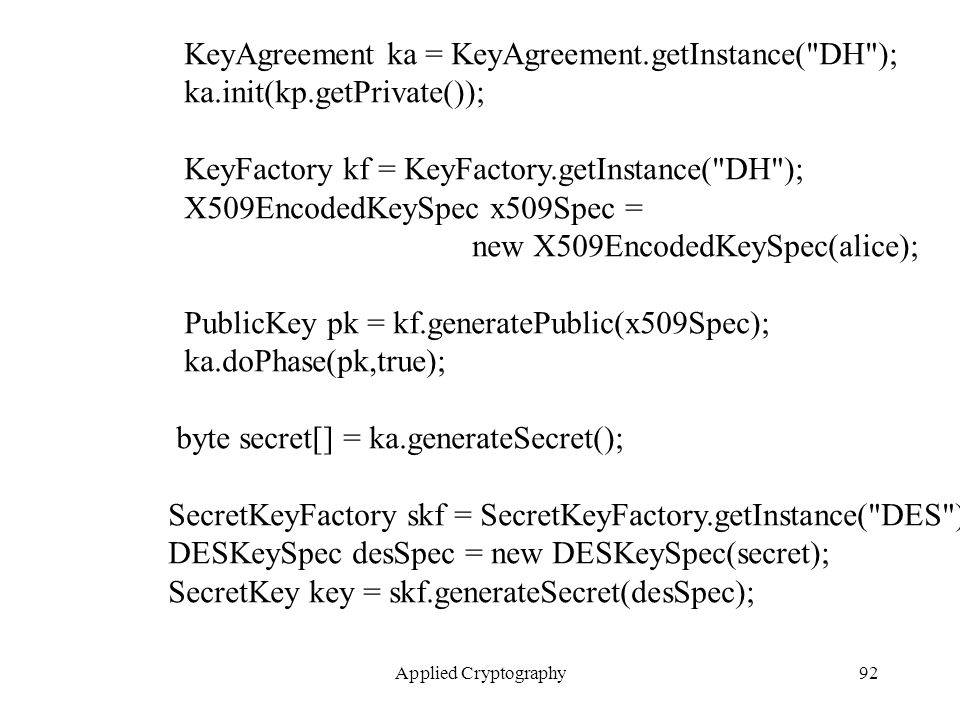

92. Applied Cryptography92 KeyAgreement ka = KeyAgreement.getInstance("DH"); ka.init(kp.getPrivate()); KeyFactory kf = KeyFactory.getInstance("DH"); X509EncodedKeySpec x509Spec = new X509EncodedKeySpec(alice); PublicKey pk = kf.generatePublic(x509Spec); ka.doPhase(pk,true); byte secret[] = ka.generateSecret(); SecretKeyFactory skf = SecretKeyFactory.getInstance("DES"); DESKeySpec desSpec = new DESKeySpec(secret); SecretKey key = skf.generateSecret(desSpec);

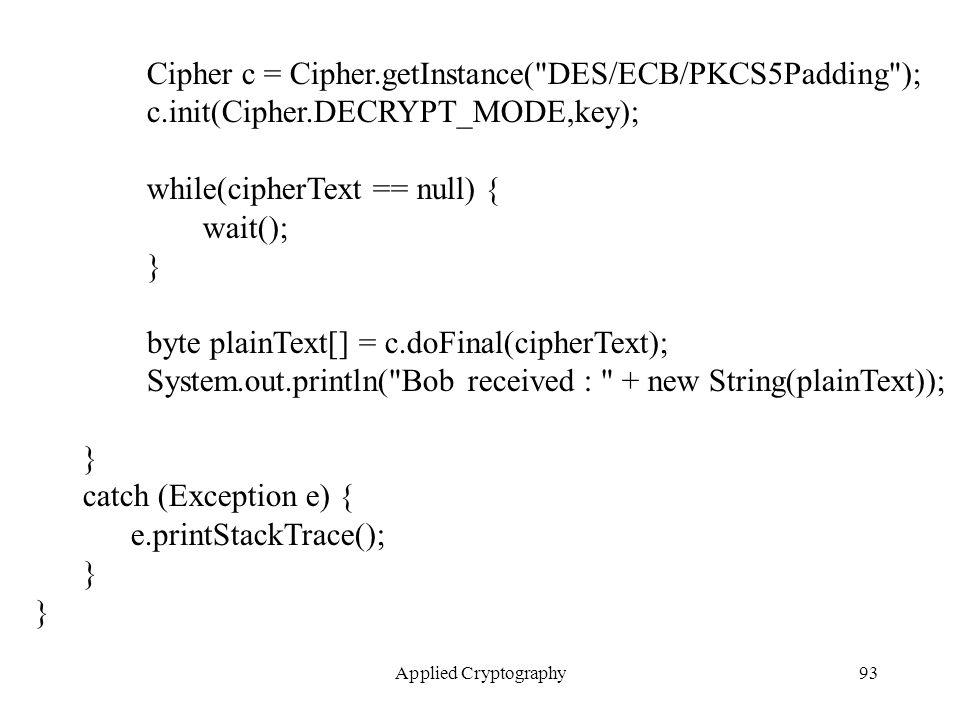

93. Applied Cryptography93 Cipher c = Cipher.getInstance("DES/ECB/PKCS5Padding"); c.init(Cipher.DECRYPT_MODE,key); while(cipherText == null) { wait(); } byte plainText[] = c.doFinal(cipherText); System.out.println("Bob received : " + new String(plainText)); } catch (Exception e) { e.printStackTrace(); }

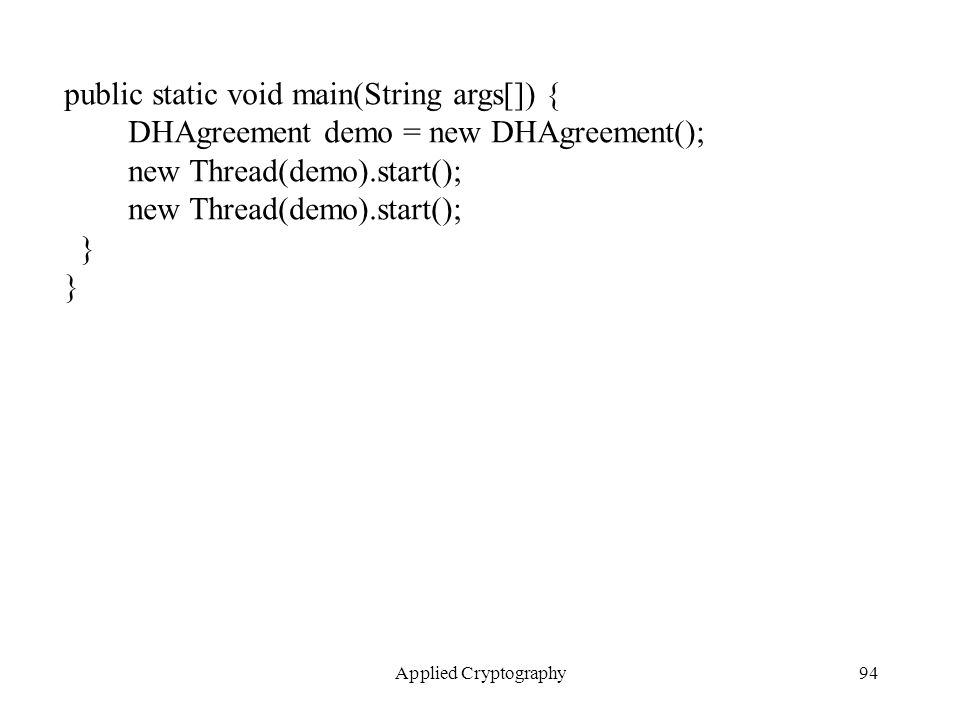

94. Applied Cryptography94 public static void main(String args[]) { DHAgreement demo = new DHAgreement(); new Thread(demo).start(); }
