1 constitutional isomers:
stereoisomers: conformational isomers: (note – many slides from Soderberg text) intro

2 Stereoisomers 3.3

3 Definitions stereoisomers: different arrangement of atoms in space enantiomers: mirror images diastereomers: not mirror images (eg. cis/trans alkene) chiral: not superimposible on mirror image, no plane of symmetry asymmetric center: tetrahedral atoms with 4 different subs stereocenter: exchange two bonds, get different stereoisomer (eg. alkene)

4 enantiomers: mirror images
not superimposable 3.3

5 two enantiomers of thalidomide
thalidomide is chiral 3.3

6 more examples of enantiomers
all are chiral if it has an asymmetric center, it is almost certainly chiral (exception – meso) 3.3

7 achiral molecules (no stereocenters!)
wedges don’t necessarily mean a stereocenter, and vice-versa! 3.3

8 other atoms can be stereocenters
Don’t worry about threo / erythro definition 3.3

9 3.3

10 stereocenters? asymmetric centers? chiral?

11 The Cahn-Ingold-Prelog system
3.4

12 3.4

13 3.4

14 what if H is drawn pointing back?
(effective stereoisomer) what if H is drawn pointing back? 3.4

15 commercial thalidomide sold as racemic mixture
3.5

16 proteins recognize stereochemistry!
3.5

17 other examples of enantiomers with different biological activity
but enantiomers have identical physical properties! (except optical rotation, next)

18 determining stereochemistry: optical activity
l in dm c in g/mL 3.6

19 enantiomers have equal but opposite specific rotations
racemic mixtures: optically inactive

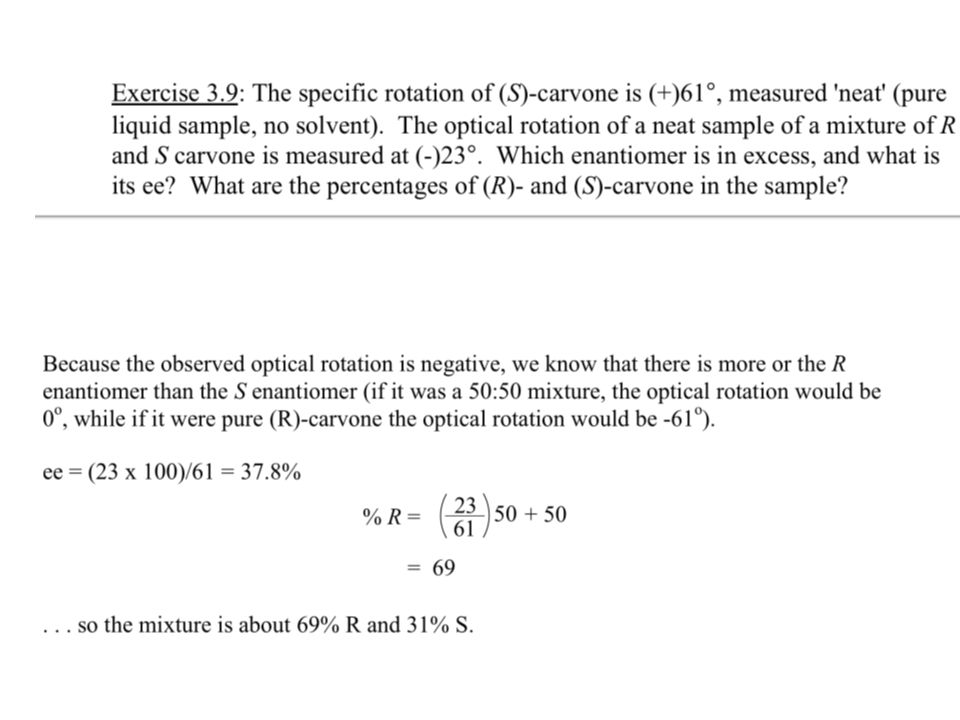

20 enantiomeric excess eg. if you have 75% R and 25% S, ee = 50%

21

22 molecules with more than one stereocenter
(mirror images) 3.7A

23 notice: diastereomers are not mirror images

24 enantiomers: all asymmetric centers different
diastereomers have different physical properties different optical rotation at least one, but not all asymmetric centers different

25 n = # asymmetric centers + # asymmetric alkene groups
cis/trans alkenes are diastereomers – but not source of chirality! (show model) 2n stereoisomers n = # asymmetric centers + # asymmetric alkene groups eg. n = 3 8 total stereoisomers (including this one) R,R,E what is the enantiomer of this molecule?

26 3.7A

27 Naming chiral compounds

28 meso compounds rings – look for mirror plane! 3.7B

29 Fischer and Haworth projections
(looking down from above) 3.8

30 ways of drawing open chain form of glucose:
3.8

31 determining R/S on Fischers
convenient to compare sugars: 3.8

32 Haworth projections (used for sugars in cyclic form) (not in Bruice)
3.8

33 Determining the absolute configuration of (-)-glyceraldehyde
(+)-tartaric acid – configuration determined by x-ray crystallography bonds to asymmetric center not broken – (-) GA must be S!

34 stereochemistry and organic reactions
(don’t worry about stereospecific vs. stereoselective)

35

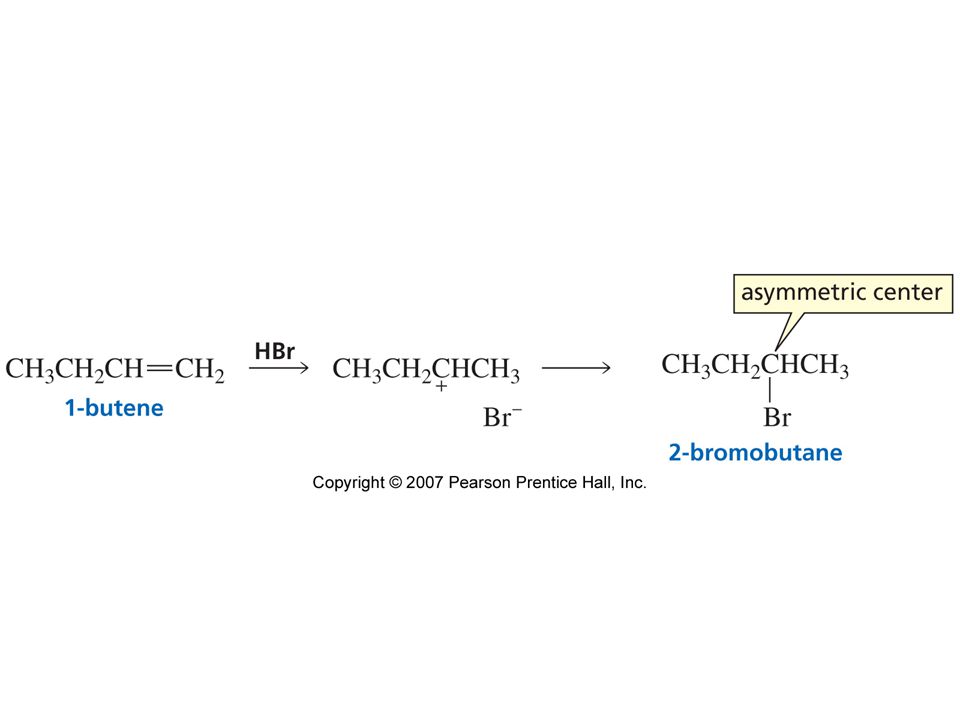

36 racemic mix of enantiomers

37

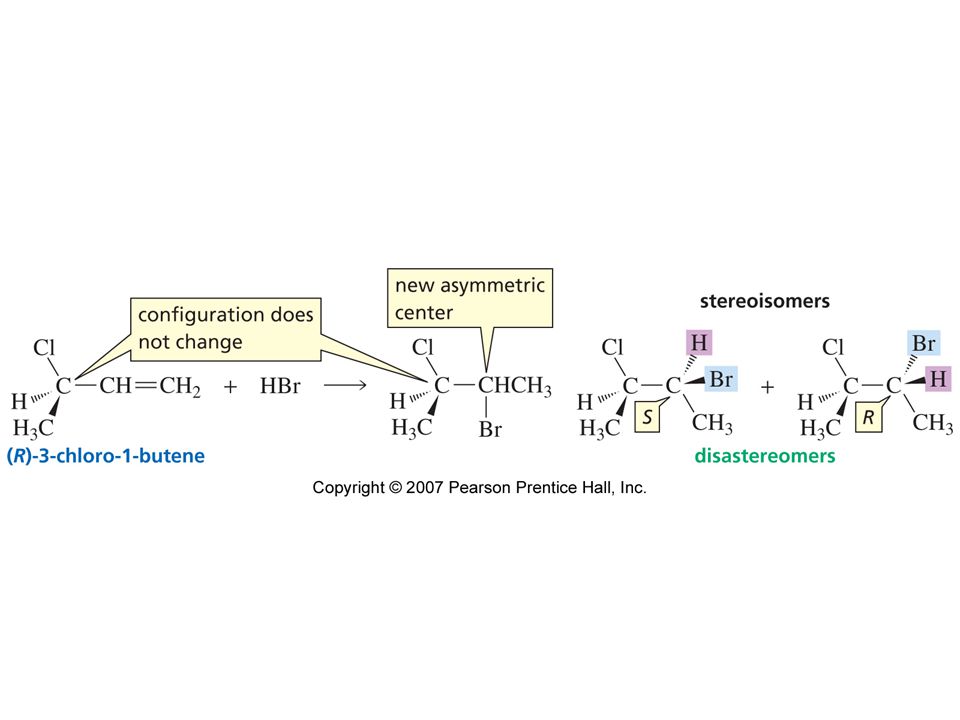

38 2 new centers formed – 4 isomers formed

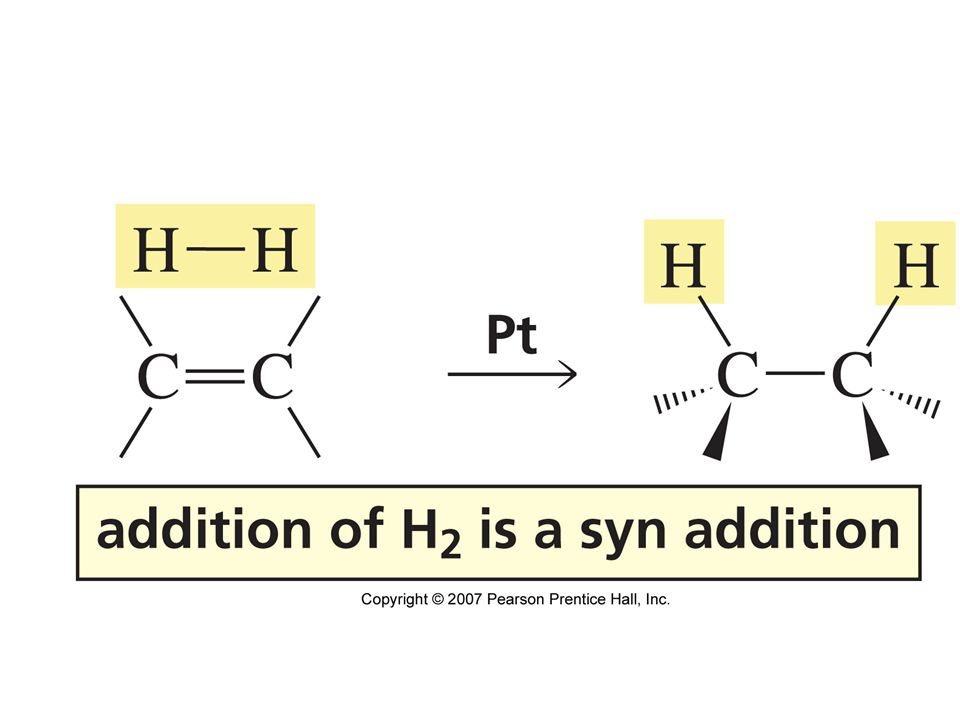

39

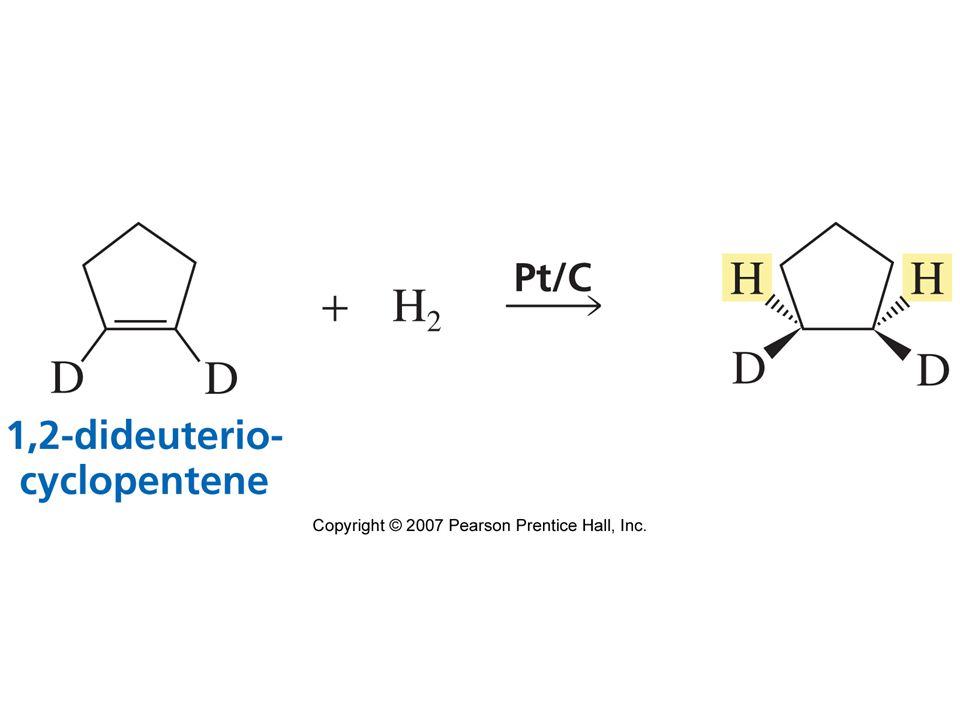

40

41

42

43

44

45

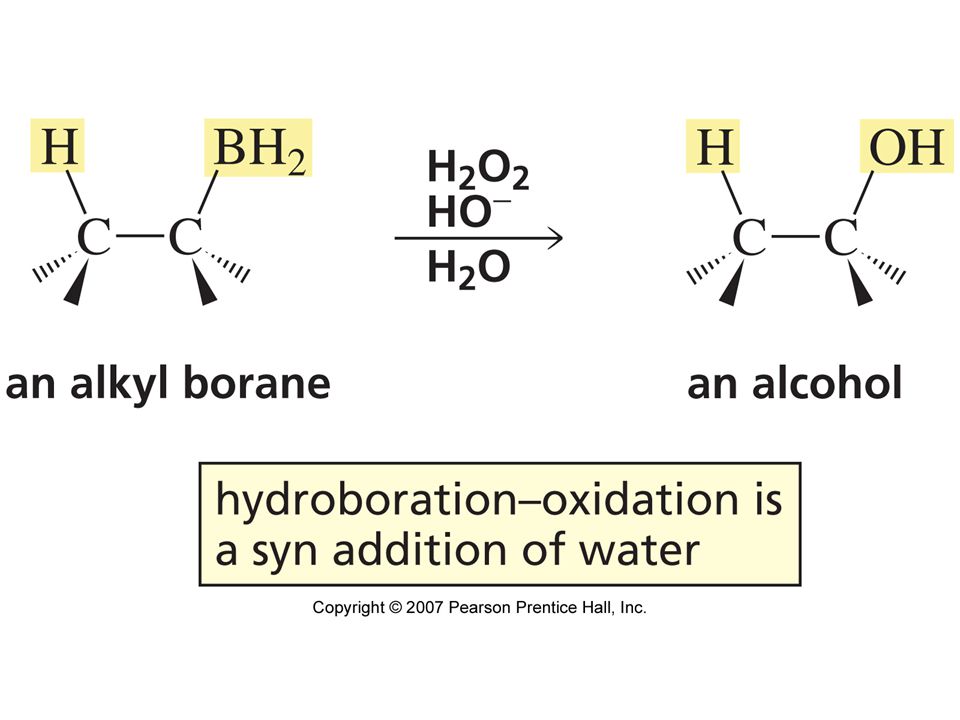

46

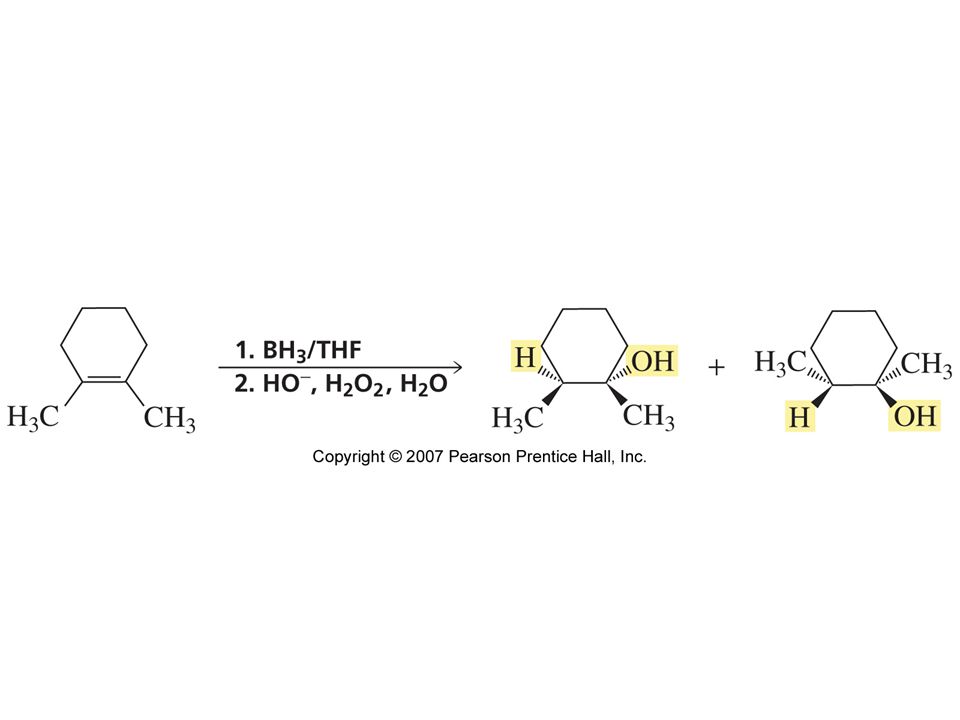

47

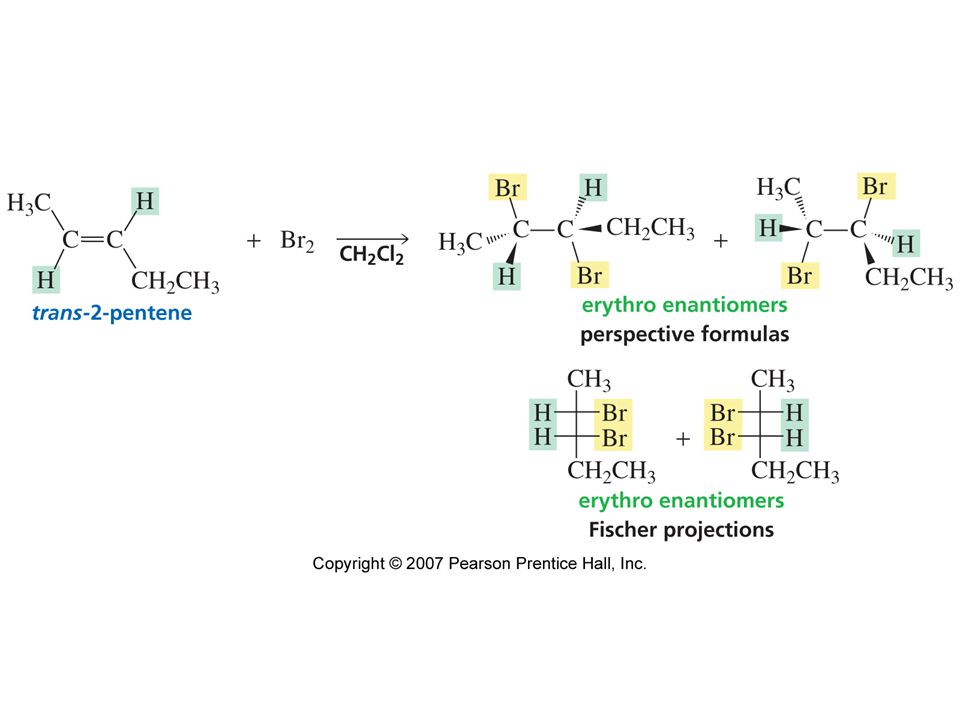

48 anti addition

49

50

51 enzymatic reactions are stereospecific
water adds with stereospecificity (enzyme reactions are stereospecific)

52 substrate stereoselectivity:
3.9
