Basic Digital Design Discussion D5.4 Appendix F

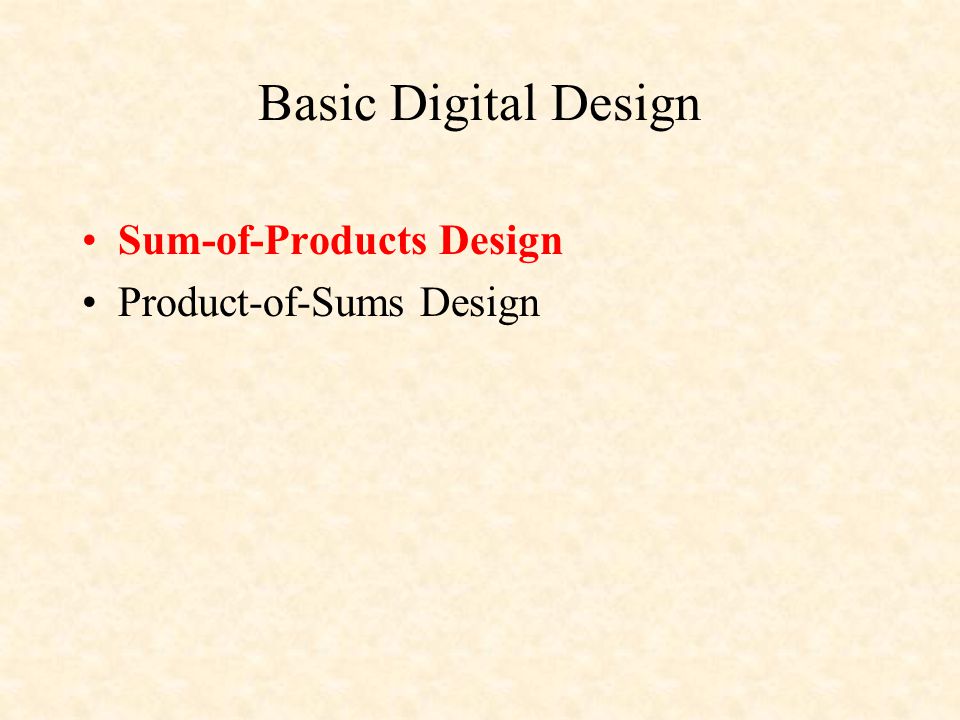

Basic Digital Design Sum-of-Products Design Product-of-Sums Design

Sum of Products Design Exclusive-OR Gate z = x ^ y x y z 0 0 0 0 1 1 1 0 1 1 1 0 XOR x y z

Sum of Products Design x y minterms 0 0 m0 = ~x & ~y 0 1 m1 = ~x & y 1 0 m2 = x & ~y 1 1 m3 = x & y

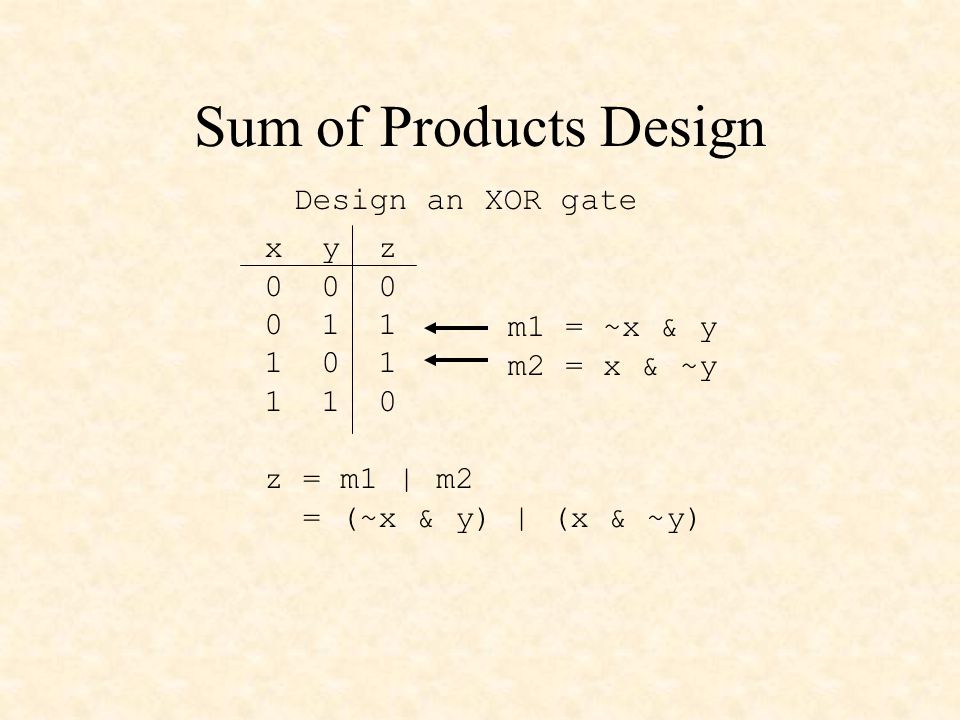

Sum of Products Design x y z 0 0 0 0 1 1 1 0 1 1 1 0 Design an XOR gate m1 = ~x & y m2 = x & ~y z = m1 | m2 = (~x & y) | (x & ~y)

Sum of Products: Exclusive-OR

Precedence of Logical Operators All ~ operations are done first All & operations are done next All | operations are done last z = (~x & y) | (x & ~y) = ~x & y | x & ~y

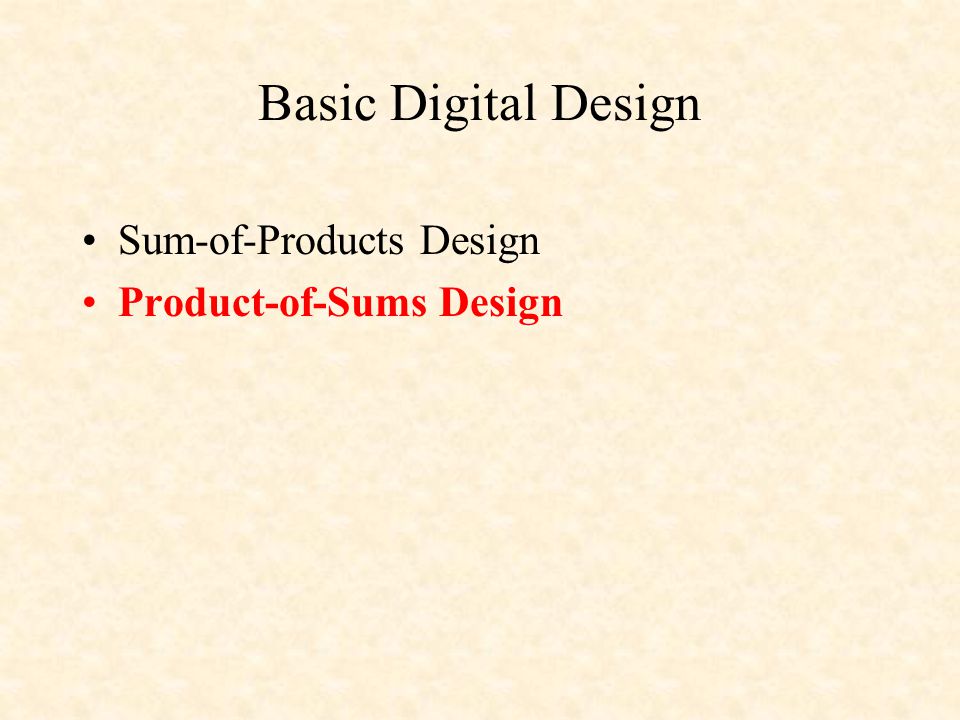

Basic Digital Design Sum-of-Products Design Product-of-Sums Design

Product of Sums Design Maxterms: A maxterm is NOT a minterm maxterm M0 = NOT minterm m0 M0 = ~m0 = ~(~x & ~y) = ~~(~~x | ~~y) = x | y

Product of Sums Design x y minterms maxterms 0 0 m0 = ~x & ~y M0 = ~m0 = x | y 0 1 m1 = ~x & y M1 = ~m1 = x | ~y 1 0 m2 = x & ~y M2 = ~m2 = ~x | y 1 1 m3 = x & y M3 = ~m3 = ~x | ~y

Product of Sums Design x y z 0 0 0 0 1 1 1 0 1 1 1 0 Design an XOR gate z is NOT minterm m0 AND it is NOT minterm m3

Product of Sums Design x y z 0 0 0 0 1 1 1 0 1 1 1 0 Design an XOR gate M0 = x | y M3 = ~x | ~y z = M0 & M3 = (x | y) & (~x | ~y)

Product of Sums: Exclusive-OR
