Priority Queues  Queues: first-in first-out in printer schedule  Disadvantage: short job, important job need to wait  Priority queue is a data structure that allows at least two operations  enqueue insert  dequeue deleteMin

Simple Implementation  1. Linked list insert O(1) deleteMin O(N)  2. Keep list Sorted. insert O(N) deleteMin O(1)  3. BST O(logN) average running time for both operation delete the minimum make right subtree heavy

Binary Heap  Heap is a binary tree that is completely filled, with the possible exception of the bottom level, which is filled from left to right.  number of notes: 2^h to 2^ (h+1) – 1  height h is log N

Array implementation  A BC DE FG HIJ ABCDEFGHIJ 12345876910 For node i Left child 2i Right child: 2i+1 Parent: i/2

Heap-Order Property  The smallest element should be at the root  Any node should be smaller than all of its descendants  By this property, the minimum element can always be found at the root.  This property allows operations to be performed quickly

Basic Heap operations  Ensure that heap-order property is maintained  Insert(X): create a hole in next available location, if X can placed in the hole, then we are done, otherwise, slide the element in hole’s parent node into the hole, thus, bubbling up the hole towards the root until X can be placed in hole.

Insert 14 2116 2431 1968 2632 13 65 31 21 14 General Strategy is known as percolate up

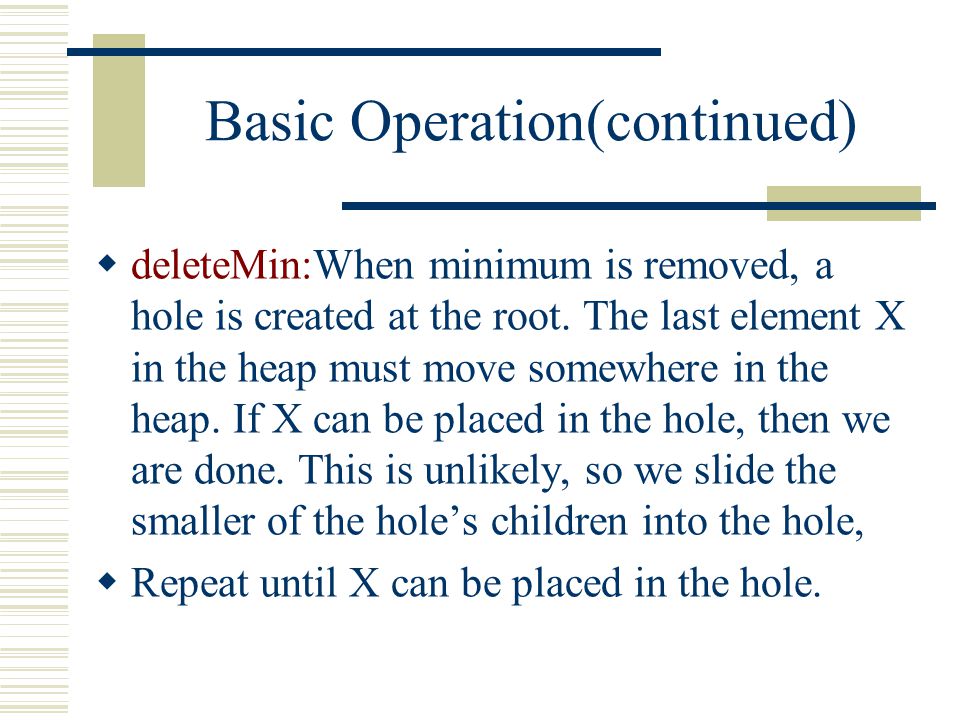

Basic Operation(continued)  deleteMin:When minimum is removed, a hole is created at the root. The last element X in the heap must move somewhere in the heap. If X can be placed in the hole, then we are done. This is unlikely, so we slide the smaller of the hole’s children into the hole,  Repeat until X can be placed in the hole.

DeleteMin 13  This strategy is known as percolate down 16 24 1968 2632 13 65 31 21 14 31 14 21 31

Other Heap operations  DecreaseKey: lowers the value of the item at position p by a positive amount b. Since this might violate heap order, it must be fixed by a percolate up.  This operation could be useful to system administrators

Continue  incresaeKey(p,b) : increases the value of the item at position p by a positive amount b.  This is done with percolate down.  Many schedulers automatically drop the priority of a process that is consuming excessive CPU time.

Continue  Remove(p): removes the node at position p from the heap.  This is done by first performing decreaseKey(p, BIG integer) and then performing deleteMin.  When a process is terminated by a user(instead of finishing normally), it must be removed from the priority queue

Continue  BuildHeap: takes as input N items and places them into an empty heap.  This can be done within N successive inserts.  Each insert take O(1) average and O(logN) worst-case.  Total time would be O(N) average and O(NlogN) worst-case

Continue BuildHeap  Algorithm: Place the N items into the tree in any order, maintaining the structure property.  for each node from the node at size/2 to the root, do percolate down.  That creates a Heap-order tree.  Running time: O(N) ( proof omitted)

Application of Priority Queues  Selection problem 1. Sort the array O(N^2) 2. Sort first k elements, then process remaining one by one. O(N k) worst case O(N^2) 3. Read N elements and buildHeap. Then deleteMin k times O(N) for construct the heap O(logN) for deleteMin, there are k deleteMin total O(N+klogN) if k = [N/2], Θ(NlogN)

 4. Read first k element to build Heap. O(k)  the time to process each remaining:  O(1) + O(logk)  Total time is  O(k + (N-k) logk) = O(Nlogk)  If k = [N/2], O(NlogN)

Heap Sort  Read N items and build Heap maintaining Heap- Order property  deleteMin N times and record the element in another array.  Copying the array back  Running time O(NlogN)  Disadvantage: Need memory for another array

A clever way to avoid using a second array 16 19 1868 2632 13 65 31 21 14 31 14 21 31 1419162621186865313213 14161921186865263231
