1. Lectures 19-20 Wave Optics-1 Chapter 22
PHYSICS 270
Dennis Papadopoulos
March 26-29, 2010

2. Chapter 22. Wave Optics
Light is an electromagnetic wave(!!!).The interference of light waves produces the colors reflected from a CD, the iridescence of bird feathers, and the technology underlying supermarket checkout scanners and optical computers.
Chapter Goal: To understand and apply the wave model of light.

3. Wave Optics Topics: Light and Optics The Interference of Light
The Diffraction Grating
Single-Slit Diffraction
Circular-Aperture Diffraction
Interferometers

4. What is the nature of
Light ?

5. Models of Light
The wave model: under many circumstances, light exhibits the same behavior as sound or water waves. The study of light as a wave is called wave optics.
The ray model: The properties of prisms, mirrors, and lenses are best understood in terms of light rays. The ray model is the basis of ray optics.
The photon model: In the quantum world, light behaves like neither a wave nor a particle. Instead, light consists of photons that have both wave-like and particle-like properties. This is the quantum theory of light.

8. The invention of radio?
Hertz proves that light is really an electromagnetic wave.
Waves could be generated in one circuit, and electric pulses with the same frequency could be induced in an antenna some distance away.
These electromagnetic waves could be reflected, and refracted, focused, polarized, and made to interfere—just like light!

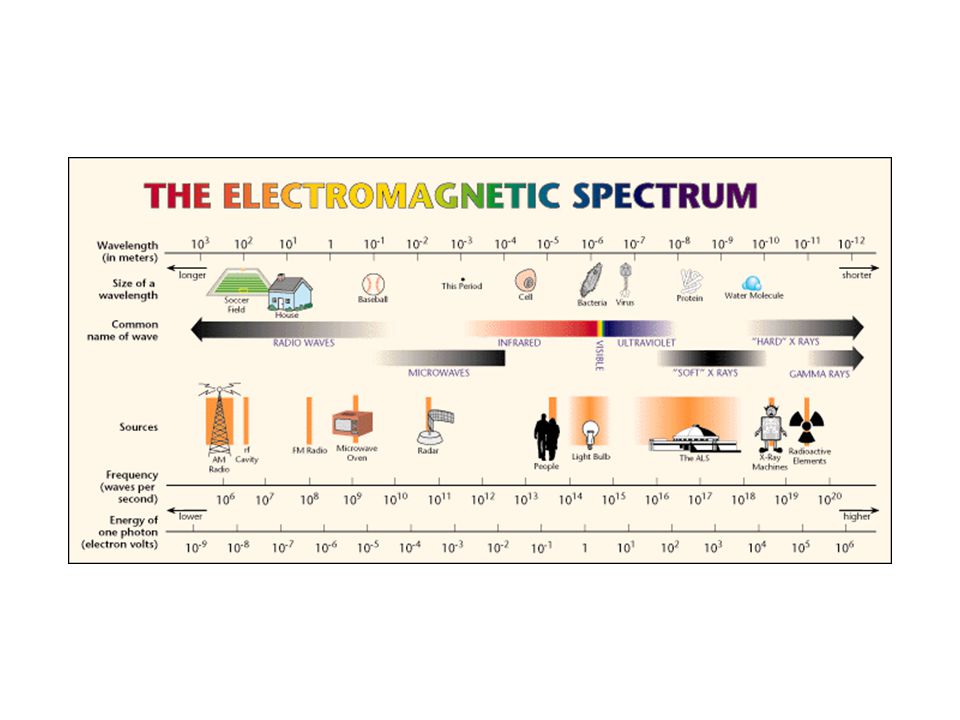

10. Everything is a wave
“Okay…what you have to realize is…to first order…everything is a simple harmonic oscillator. Once you’ve got that, it’s all downhill from there.”

11. Waves 101 Part 1: Oscillations
An oscillation is a time-varying disturbance.
Phasor Representation
oscillation y A
f=wt x

12. Travelling Waves
wave
A wave is a time-varying disturbance that also propagates in space.

13. Waves vs.Particles Interference waves can interfere (add or cancel).
Consequences are that:
1+1 not always 2 , refraction (bend corners), diffraction (spread out of hole), reflection..
waves are not localized and can be polarized
particles 1+1 makes 2, localized

14. The Mathematics of Interferencey x

15. Interference Standing Waves waves can interfere (add or cancel)
Vector addition of phasors

16. Interference in Waves

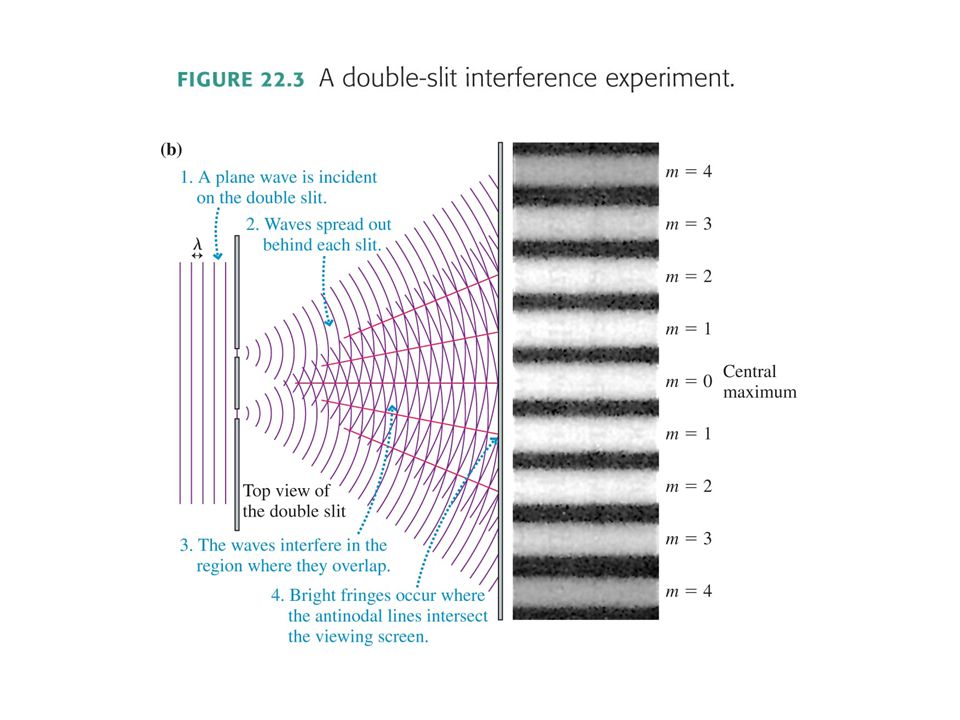

18. The Physics of Two Slit Interference
ml/2
I=0
I=4A2 ml l
ml/4
I=2A2

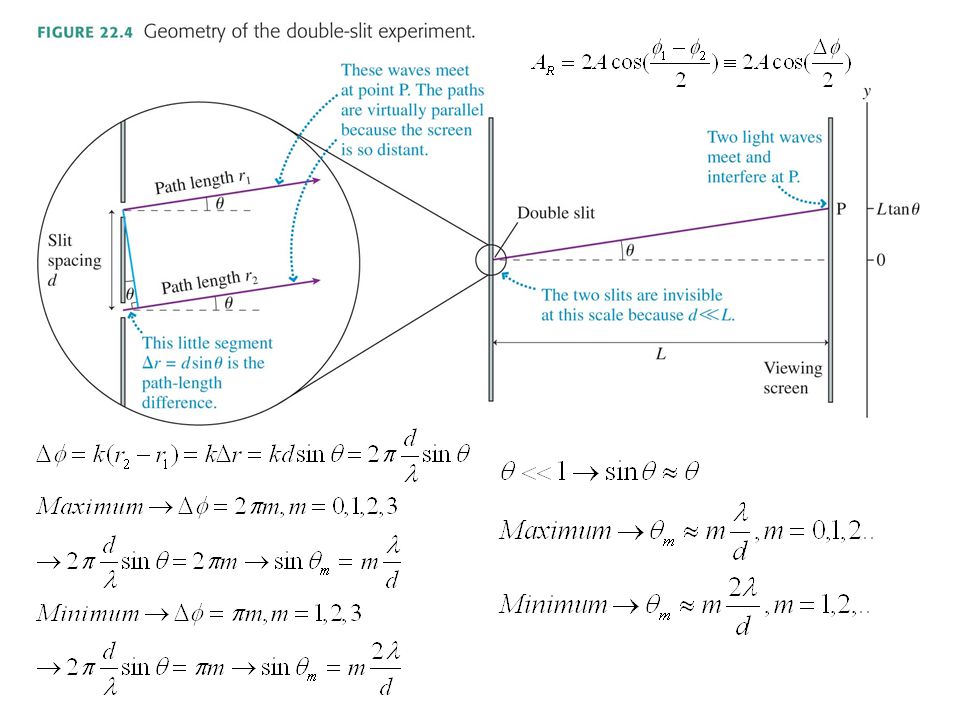

20. Positions of bright fringes
L>>d
Positions of bright fringes
Positions of dark fringes
Dark fringes exactly halfway between bright fringes

21. Double Slit experiment for light
Minima
Maxima

22. Analyzing Double-Slit Interference
The mth bright fringe emerging from the double slit is at an angle
where θm is in radians, and we have used the small-angle approximation. The y-position on the screen of the mth fringe is
while dark fringes are located at positions

23. Question 1
Question 2
Light of wavelength l1 illuminates a double slit, and interference fringes are observed on a screen behind the slits. When the wavelength is changed to l2, the fringes get closer together. How large is l2 relative to l1? X
l2 is smaller than l1.
l2 is larger than l1.
Cannot be determined from this information
Suppose the viewing screen in the figure is moved closer to the double slit. What happens to the interference fringes?
On a plain sheet of paper write
Your name
Date
Your answers to the questions
They fade out and disappear.
They get out of focus.
They get brighter and closer together.
They get brighter and farther apart.
They get brighter but otherwise do not change. X
ym=m(lL/d)

24. Double slit intensity pattern
If there was no interference intensity for two slits  2I1
I1 light intensity of single slit

25. The Diffraction Grating
Suppose we were to replace the double slit with an opaque screen that has N closely spaced slits. When illuminated from one side, each of these slits becomes the source
of a light wave that diffracts, or spreads out, behind the slit. Such a multi-slit device is called a diffraction grating. Bright fringes will occur at angles θm, such that
The y-positions of these fringes will occur at

26. m is the order of diffraction

27. Atotal= NA=10A
Itot=(NA)2=N2I1=100I1
Key dependence N2

28. Dispersive effect – Light with longer wavelength diffracts more
Interference pattern is mostly dark but with a small number of very bright and very narrow lines. Why ? L
NI1
Dispersive effect – Light with longer wavelength diffracts more

29. Spectral analysis or
Spectroscopy
Transmission Grating -> Many parallel slits

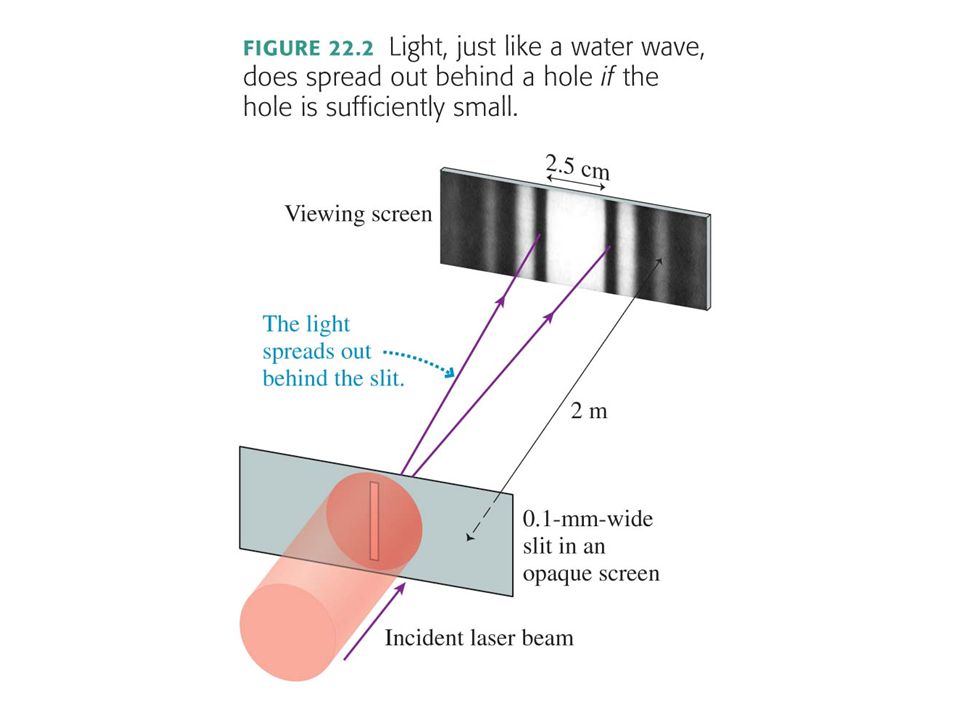

30. Single Slit Diffraction

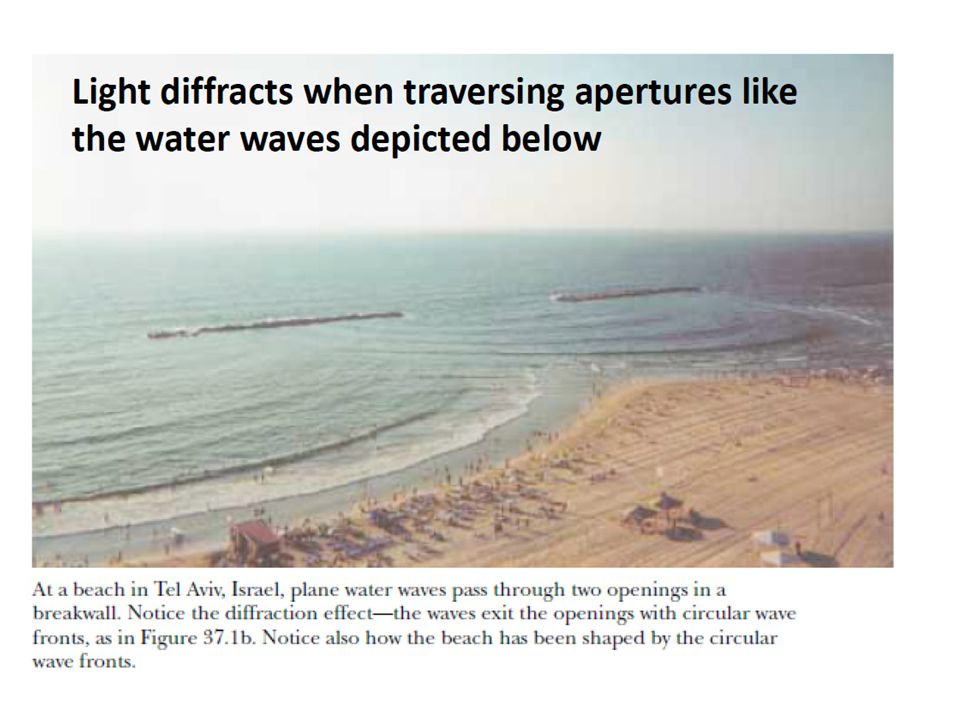

Like water wave passing through a barrier
Point sources vs. extended sources
Huygen’s Principle

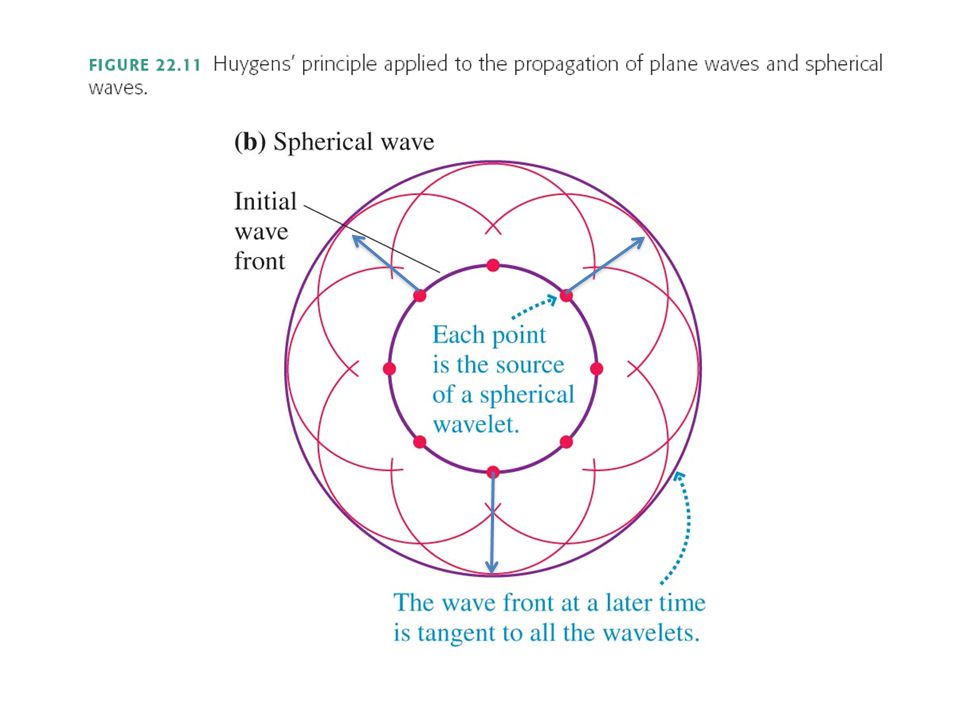

31. Each point of a wavefront is the source of a spherical wavelet that spreads out at the wave speed
At a later time the shape of the waveform is the tangent to all the wavelets

33. Single Slit Diffraction
a<l

34. Pair wavelets with extra distance traveled l/2
etc

36. White light passes through a diffraction grating and forms rainbow patterns on a screen behind the grating. For each rainbow,
the red side is farthest from the center of the screen, the violet side is closest to the center.
the red side is closest to the center of the screen, the violet side is farthest from the center.
the red side is on the left, the violet side on the right.
the red side is on the right, the violet side on the left.
STT22.3
Answer: A

37. White light passes through a diffraction grating and forms rainbow patterns on a screen behind the grating. For each rainbow,
the red side is farthest from the center of the  screen, the violet side is closest to the center.
the red side is closest to the center of the screen,  the violet side is farthest from the center.
the red side is on the left, the violet side on  the right.
the red side is on the right, the violet side on  the left.
STT22.3
