Freeze-Out in a Hybrid Model Freeze-out Workshop, 6.5.09 Goethe-Universität Frankfurt Hannah Petersen.

Similar presentations


Presentation on theme: "Freeze-Out in a Hybrid Model Freeze-out Workshop, 6.5.09 Goethe-Universität Frankfurt Hannah Petersen."— Presentation transcript:

1 Freeze-Out in a Hybrid Model Freeze-out Workshop, 6.5.09 Goethe-Universität Frankfurt Hannah Petersen

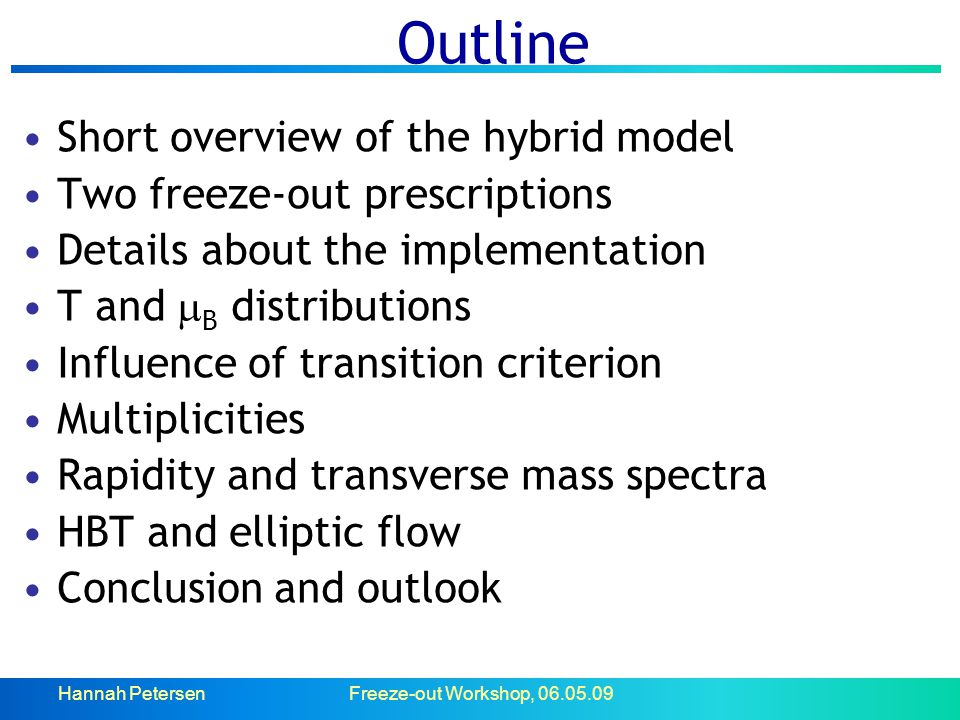

2 Freeze-out Workshop, 06.05.09 Outline Short overview of the hybrid model Two freeze-out prescriptions Details about the implementation T and  B distributions Influence of transition criterion Multiplicities Rapidity and transverse mass spectra HBT and elliptic flow Conclusion and outlook

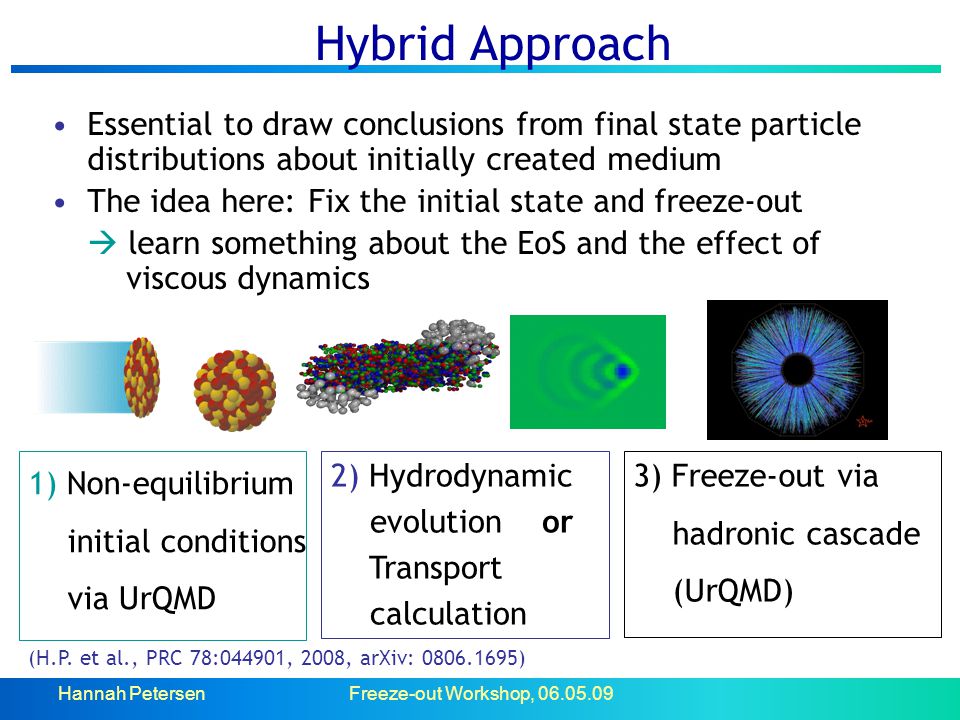

3 Hannah PetersenFreeze-out Workshop, 06.05.09 Hybrid Approach Essential to draw conclusions from final state particle distributions about initially created medium The idea here: Fix the initial state and freeze-out  learn something about the EoS and the effect of viscous dynamics 1) Non-equilibrium initial conditions via UrQMD 2) Hydrodynamic evolution or Transport calculation 3) Freeze-out via hadronic cascade (UrQMD) (H.P. et al., PRC 78:044901, 2008, arXiv: 0806.1695)

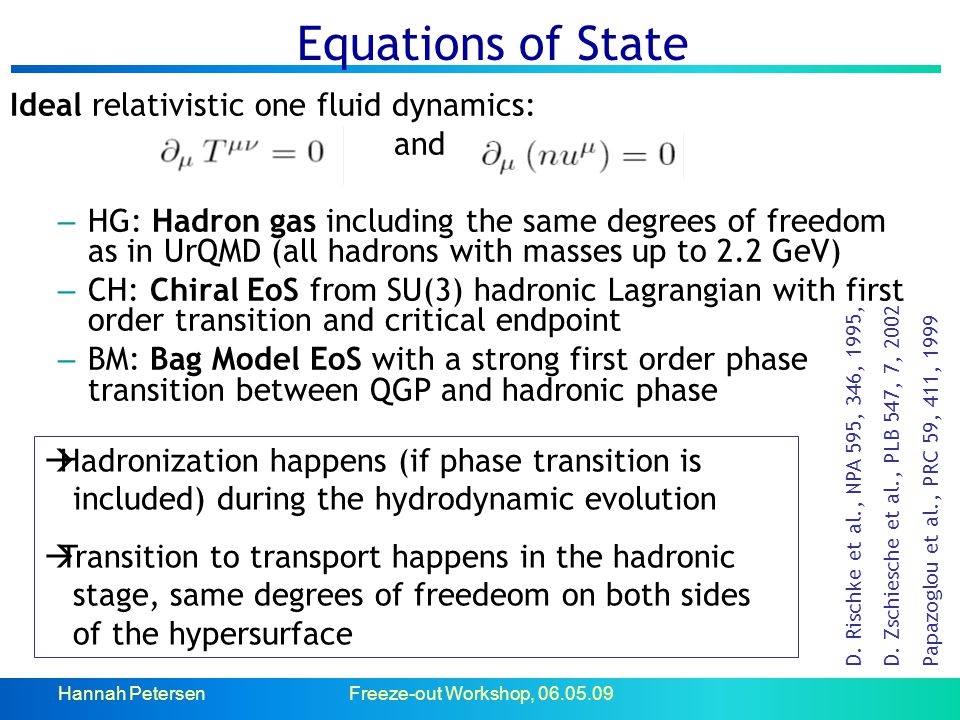

4 Hannah PetersenFreeze-out Workshop, 06.05.09 Equations of State Ideal relativistic one fluid dynamics: and – HG: Hadron gas including the same degrees of freedom as in UrQMD (all hadrons with masses up to 2.2 GeV) – CH: Chiral EoS from SU(3) hadronic Lagrangian with first order transition and critical endpoint – BM: Bag Model EoS with a strong first order phase transition between QGP and hadronic phase D. Rischke et al., NPA 595, 346, 1995, D. Zschiesche et al., PLB 547, 7, 2002 Papazoglou et al., PRC 59, 411, 1999  Hadronization happens (if phase transition is included) during the hydrodynamic evolution  Transition to transport happens in the hadronic stage, same degrees of freedeom on both sides of the hypersurface

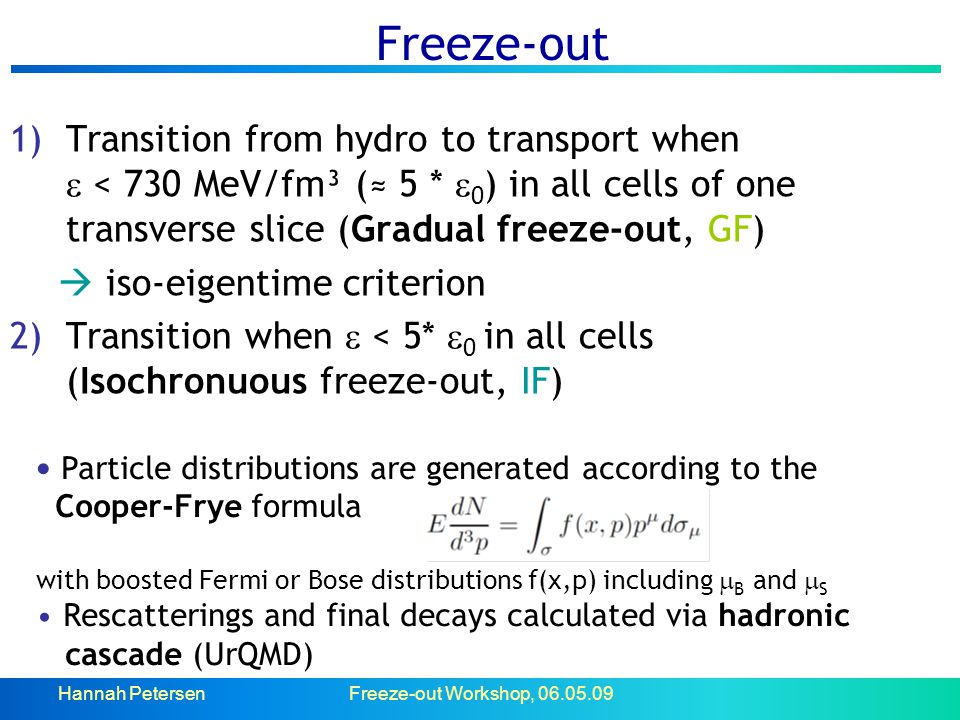

5 Hannah PetersenFreeze-out Workshop, 06.05.09 Freeze-out 1)Transition from hydro to transport when  < 730 MeV/fm³ (≈ 5 *  0 ) in all cells of one transverse slice (Gradual freeze-out, GF)  iso-eigentime criterion 2)Transition when  < 5*  0 in all cells (Isochronuous freeze-out, IF) Particle distributions are generated according to the Cooper-Frye formula with boosted Fermi or Bose distributions f(x,p) including  B and  S Rescatterings and final decays calculated via hadronic cascade (UrQMD)

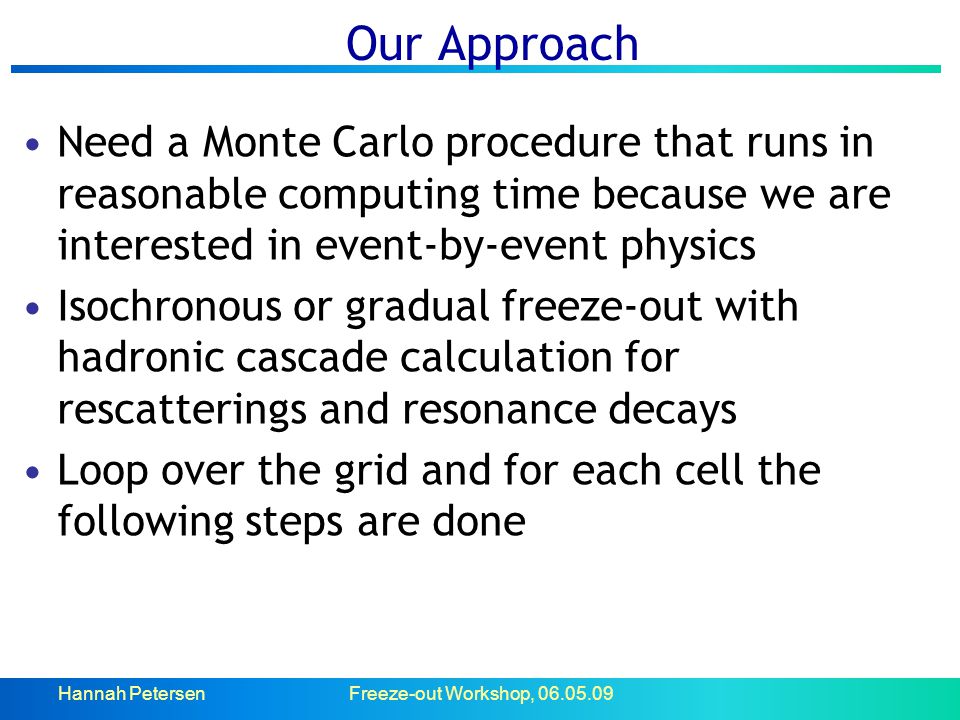

6 Hannah PetersenFreeze-out Workshop, 06.05.09 Our Approach Need a Monte Carlo procedure that runs in reasonable computing time because we are interested in event-by-event physics Isochronous or gradual freeze-out with hadronic cascade calculation for rescatterings and resonance decays Loop over the grid and for each cell the following steps are done

7 Hannah PetersenFreeze-out Workshop, 06.05.09 Steps for the Particle Production 1)Numbers of each particle species in the cell 2)Sum to get the total particle number 3)Particle production according to Poisson distribution 4)Particle type chosen according to probabilities 5)Isospin randomly assigned, charge conservation 6)Generate four-momenta 7)Particle vector information is transferred back to UrQMD

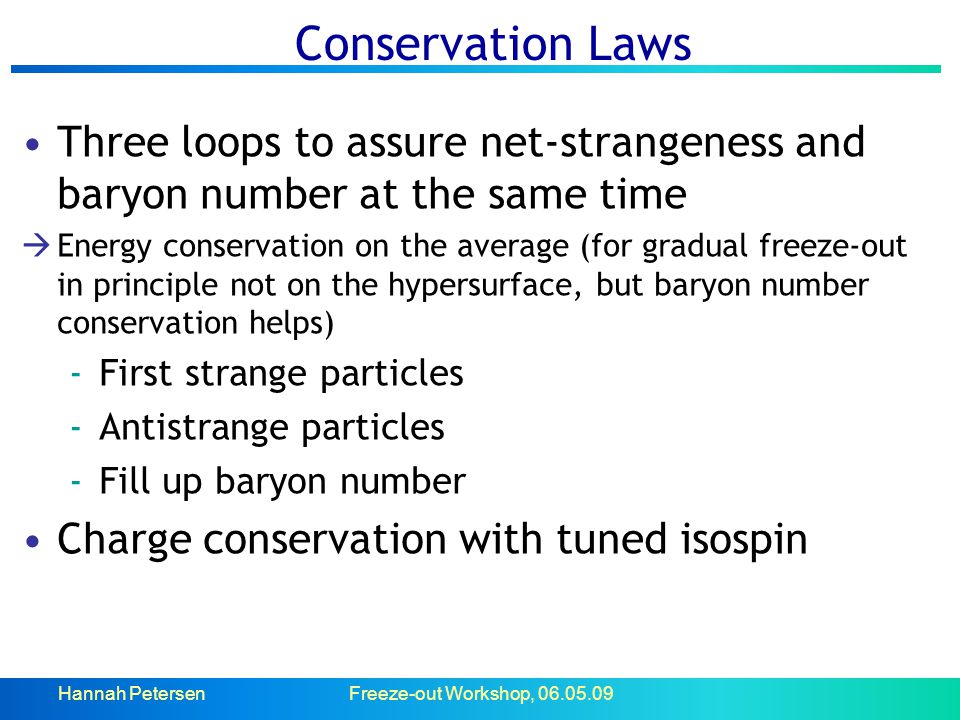

8 Hannah PetersenFreeze-out Workshop, 06.05.09 Conservation Laws Three loops to assure net-strangeness and baryon number at the same time  Energy conservation on the average (for gradual freeze-out in principle not on the hypersurface, but baryon number conservation helps) -First strange particles -Antistrange particles -Fill up baryon number Charge conservation with tuned isospin

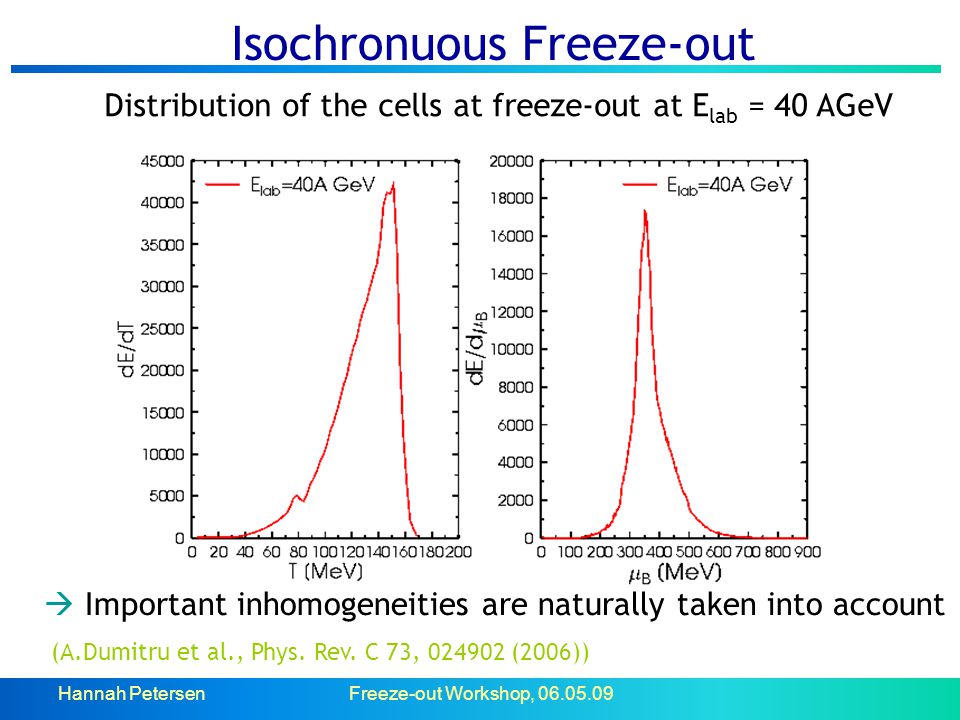

9 Hannah PetersenFreeze-out Workshop, 06.05.09 Isochronuous Freeze-out Distribution of the cells at freeze-out at E lab = 40 AGeV  Important inhomogeneities are naturally taken into account (A.Dumitru et al., Phys. Rev. C 73, 024902 (2006))

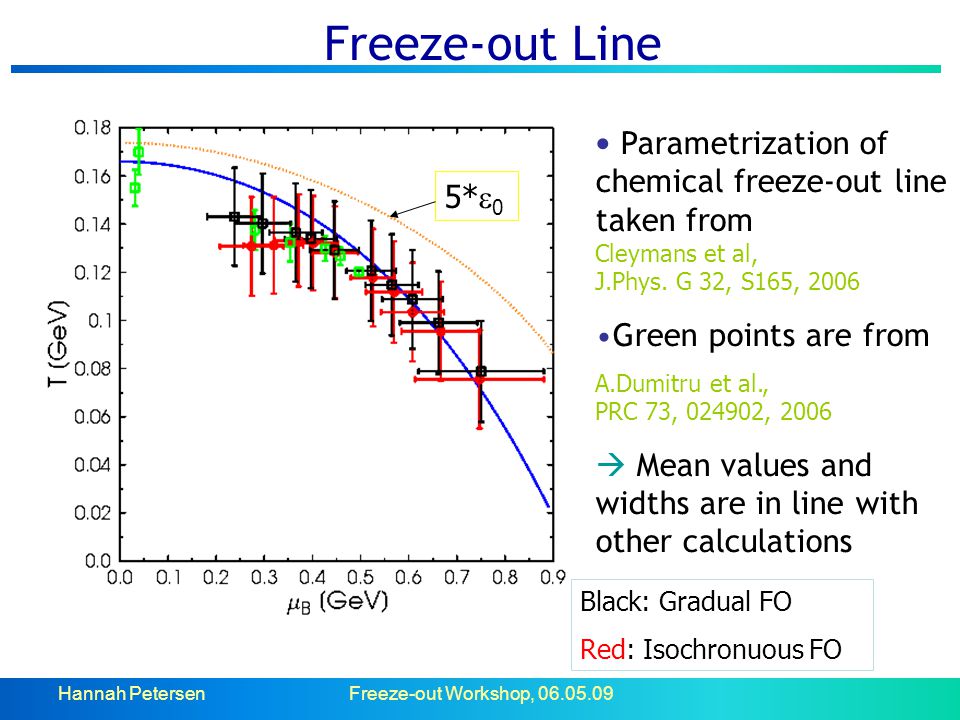

10 Hannah PetersenFreeze-out Workshop, 06.05.09 Freeze-out Line Parametrization of chemical freeze-out line taken from Cleymans et al, J.Phys. G 32, S165, 2006 Green points are from A.Dumitru et al., PRC 73, 024902, 2006  Mean values and widths are in line with other calculations 5*  0 Black: Gradual FO Red: Isochronuous FO

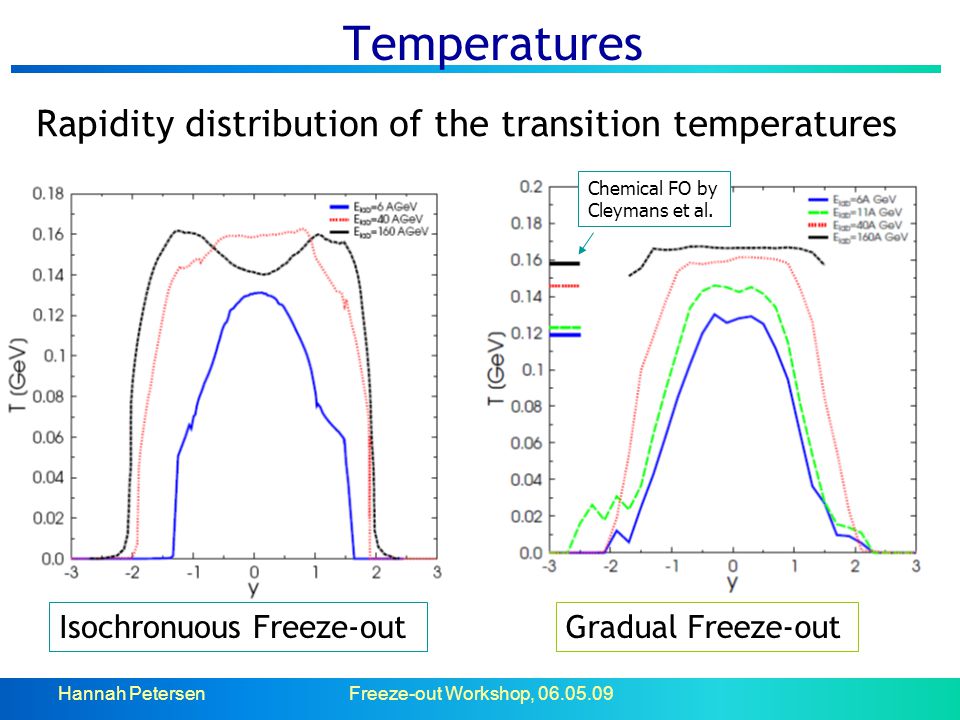

11 Hannah PetersenFreeze-out Workshop, 06.05.09 Temperatures Chemical FO by Cleymans et al. Rapidity distribution of the transition temperatures Isochronuous Freeze-outGradual Freeze-out

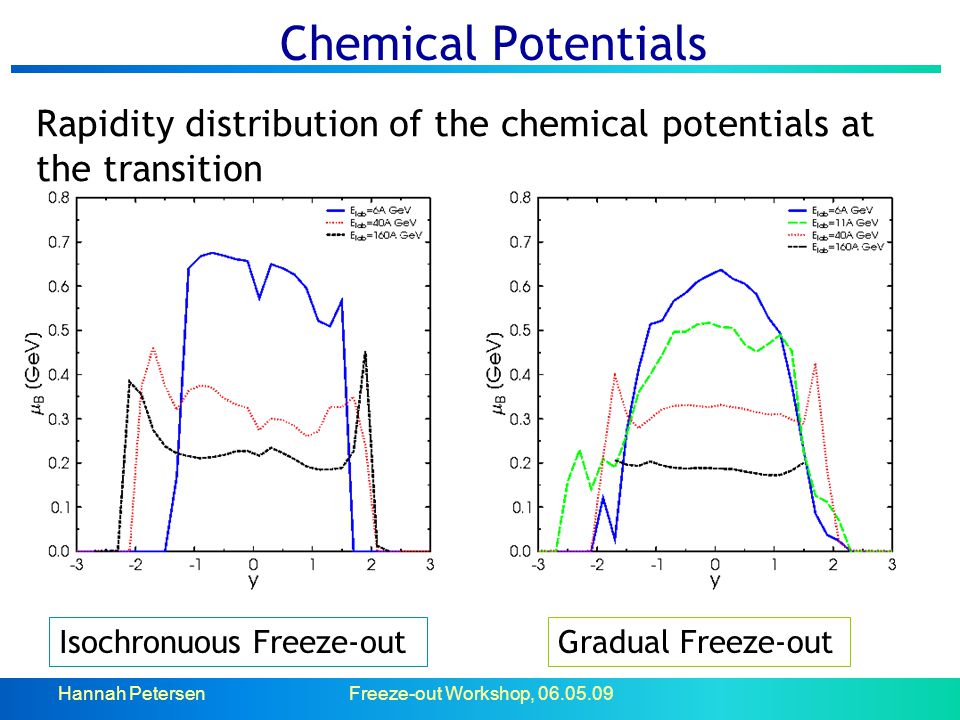

12 Hannah PetersenFreeze-out Workshop, 06.05.09 Chemical Potentials Rapidity distribution of the chemical potentials at the transition Isochronuous Freeze-outGradual Freeze-out

13 Hannah PetersenFreeze-out Workshop, 06.05.09 Transition Times Transition times along beam direction for the gradual freeze-out At lower energies outer layers freeze-out first At higher energies transition begins in the center  Mimics iso-eigentime criterion

14 Hannah PetersenFreeze-out Workshop, 06.05.09 Isochronuous Freeze-out Full symbols: 40 AGeV Open symbols: 11 AGeV

15 Hannah PetersenFreeze-out Workshop, 06.05.09 Final State Interactions

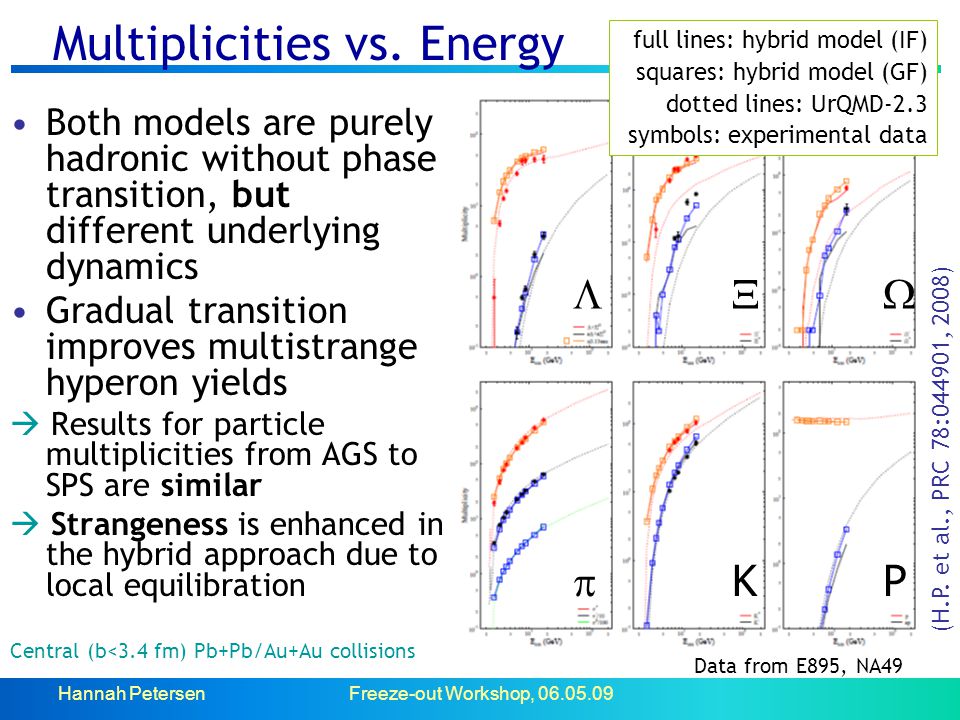

16 Hannah PetersenFreeze-out Workshop, 06.05.09 Multiplicities vs. Energy full lines: hybrid model (IF) squares: hybrid model (GF) dotted lines: UrQMD-2.3 symbols: experimental data   KP Central (b<3.4 fm) Pb+Pb/Au+Au collisions (H.P. et al., PRC 78:044901, 2008) Both models are purely hadronic without phase transition, but different underlying dynamics Gradual transition improves multistrange hyperon yields  Results for particle multiplicities from AGS to SPS are similar  Strangeness is enhanced in the hybrid approach due to local equilibration Data from E895, NA49

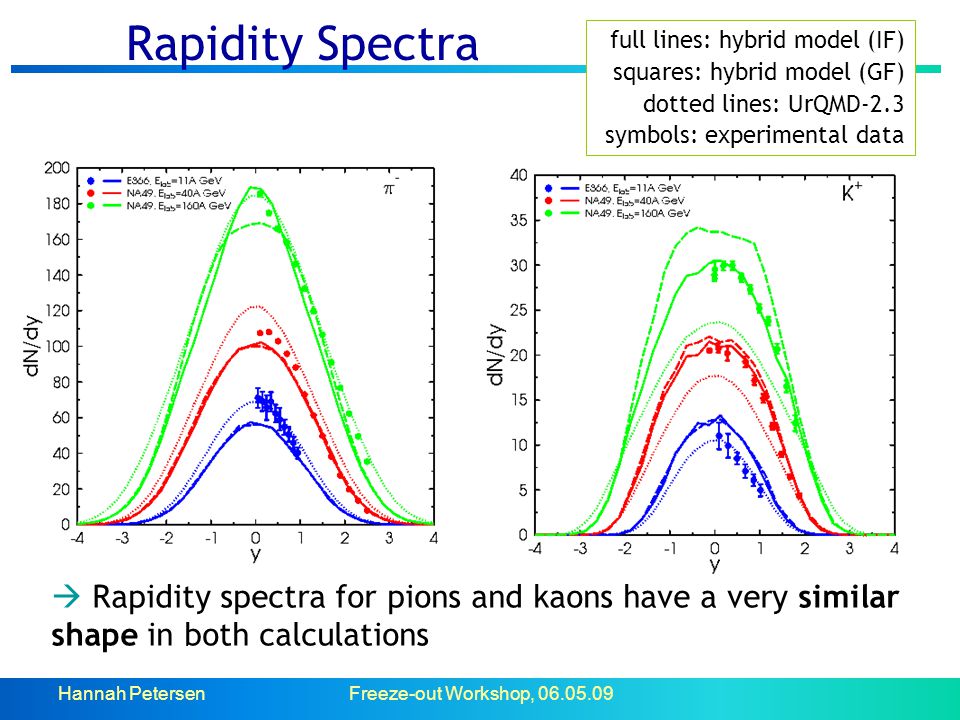

17 Hannah PetersenFreeze-out Workshop, 06.05.09 Rapidity Spectra  Rapidity spectra for pions and kaons have a very similar shape in both calculations full lines: hybrid model (IF) squares: hybrid model (GF) dotted lines: UrQMD-2.3 symbols: experimental data

18 Hannah PetersenFreeze-out Workshop, 06.05.09 m T Spectra Blue: pions Green: protons Red: kaons m T spectra are very similar at lower energies (11,40 AGeV) is higher in hydro calculation at E lab =160 AGeV 11 AGeV 40 AGeV 160 AGeV Central (b<3.4 fm) Pb+Pb/Au+Au collisions Full line: hybrid model (IF) Dashed line: hybrid model (GF) Dotted line: UrQMD-2.3 (H.P. et al., PRC 78:044901, 2008)

19 Hannah PetersenFreeze-out Workshop, 06.05.09 Excitation Function (H.P. et al., arXiv: 0902.4866, JPG in print) Data from E866, NA49 Hadronic hydro calculation with different freeze-out scenarios  Freeze-out treatment is important Dynamics (viscosity) and equation of state are crucial input

20 Hannah PetersenFreeze-out Workshop, 06.05.09 R O /R S Ratio Hydro phase leads to smaller ratios Hydro to transport transition does not matter, if final rescattering is taken into account EoS dependence is visible, but not as strong as previuosly predicted (factor of 5) (Q. Li, H.P. et al., PLB 674, 111, 2009) Data from NA49

21 Hannah PetersenFreeze-out Workshop, 06.05.09 Elliptic Flow Smaller mean free path in the hot and dense phase leads to higher elliptic flow At lower energies: hybrid approach reproduces the pure UrQMD result Gradual freeze-out leads to a better description of the data (H.P. et.al., arXiv:0901.3821, PRC in print) Data from E895, E877, NA49, Ceres, Phenix, Phobos, Star

22 Hannah PetersenFreeze-out Workshop, 06.05.09 Conclusions and Outlook Hadronization is done during the hydrodynamic evolution according to equation of state Two prescriptions of the transition from hydro to transport have been developed Gradual freeze-out leads overall to a better description of experimental data Improve hypersurface (Schlei-Code) and test sensitivity on criteria Couple freeze-out routine to parton cascade Dynamical coupling of transport and hydro approach

23 Backup

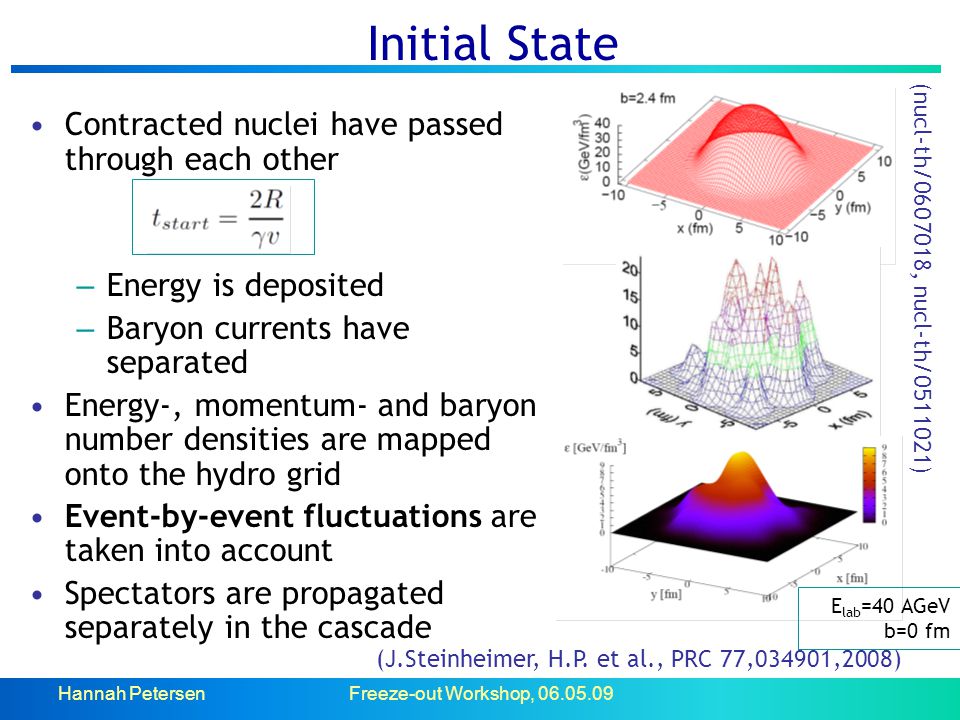

24 Hannah PetersenFreeze-out Workshop, 06.05.09 Initial State Contracted nuclei have passed through each other – Energy is deposited – Baryon currents have separated Energy-, momentum- and baryon number densities are mapped onto the hydro grid Event-by-event fluctuations are taken into account Spectators are propagated separately in the cascade (J.Steinheimer, H.P. et al., PRC 77,034901,2008) (nucl-th/0607018, nucl-th/0511021) E lab =40 AGeV b=0 fm

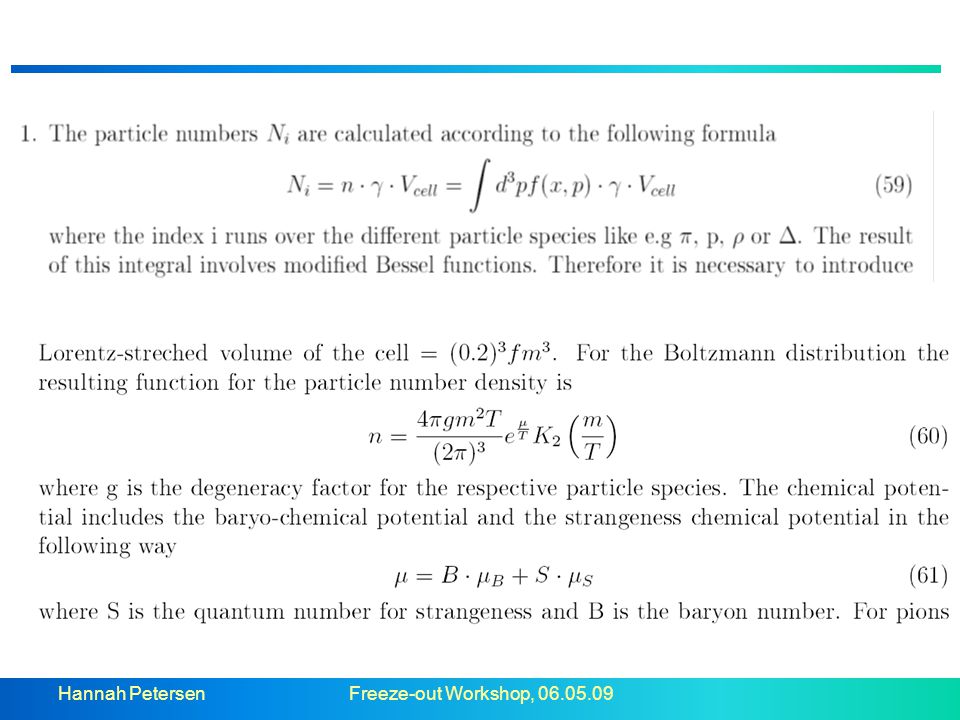

25 Hannah PetersenFreeze-out Workshop, 06.05.09
