1. 1 PATH: Page Access Tracking Hardware to Improve Memory Management Reza Azimi, Livio Soares, Michael Stumm, Tom Walsh, and Angela Demke Brown University of Toronto, Canada

2. 2 Page Access Tracking Challenge  Storage Management Research Many sophisticated algorithms Most require accurate knowledge about memory access trace Adopted mostly for file systems or databases Not straightforward for virtual memory  Problem: Limited Page Access Tracking Hard to measure either Reuse Distance or Temporal Locality  Conventional Access Tracking Mechanisms Monitoring page faults  Most page accesses are missed. Scanning Page Table bits  High scanning overhead => low scanning frequency

3. 3 Page Access Tracking Challenge (cont’d)  Access Tracking with Performance Counters Statistical Data Sampling:  Favours only hot pages  Hard to track reuse distance or temporal locality  Recording TLB misses - High overhead  TLB’s are small (TLB miss is very frequent)  TLB miss handling is performance-critical  Hardware Approach [Zhou et al. ASPLOS’04] + Effective for its purpose (but inflexible) - Impractical hardware resource requirements  ~ 1 MB of hardware buffer per 1GB of physical memory!  Software Approach [Yang et al. OSDI’06] Dividing pages into active and inactive sets Page-protecting members of the inactive set - Overhead can still be too high

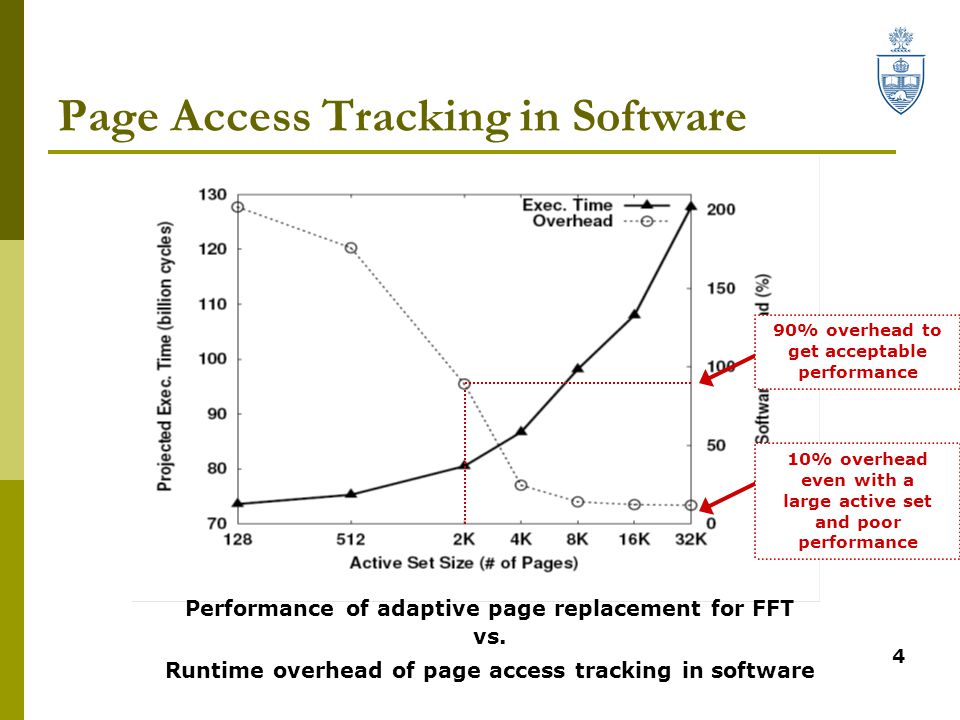

4. 4 Page Access Tracking in Software Performance of adaptive page replacement for FFT vs. Runtime overhead of page access tracking in software 10% overhead even with a large active set and poor performance 90% overhead to get acceptable performance

5. 5 Page Access Tracking Hardware (PATH)  Advantages Extra hardware resources required are small (around 10KB) Off the common path Scalable (does not grow with physical memory) TLB CPU Core VADDR LOOKUP MISS Page Tables VADDR Page Access Buffer Overflow Interrupt MISS Page Access Log

6. 6 Information Provided by PATH  Raw Form  Abstraction: Precise LRU Stack  Abstraction: Miss Rate Curve (MRC) TLB CPU Core VADDR LOOKUP MISS Page Tables VADDR Page Access Buffer Overflow Interrupt MISS Page Access Log

7. 7 Basic Abstraction: LRU Stack  Accessed and updated for each entry on the Page Access Log  Implementation: Lookup:  Page Table-like Structure  O(1) lookup time Update  Doubly linked list  A few pointers are updated for each page access

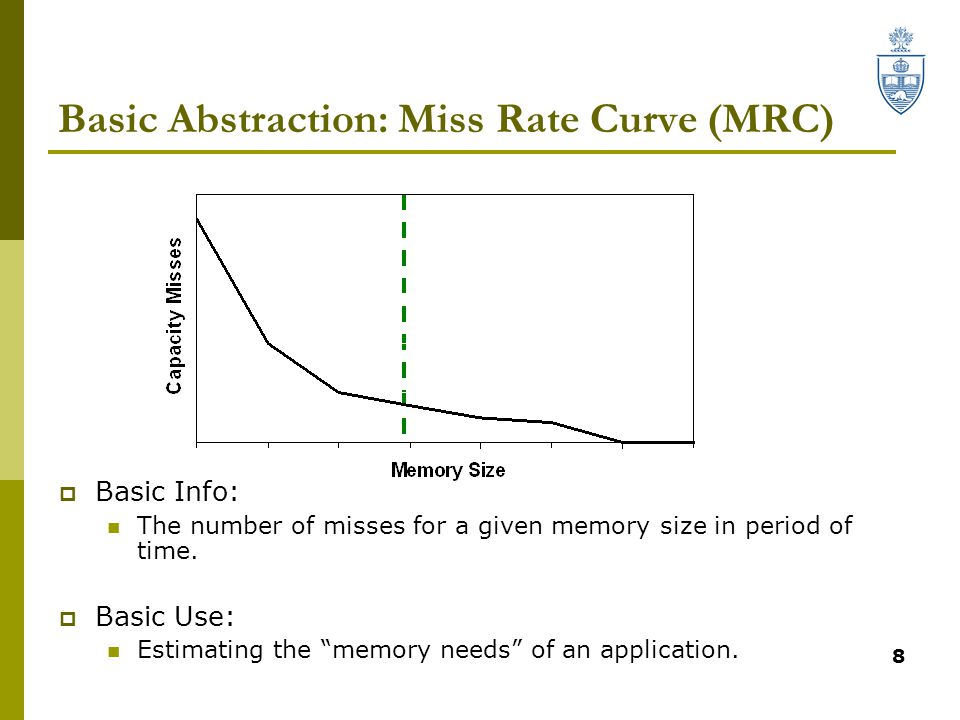

8. 8 Basic Abstraction: Miss Rate Curve (MRC)  Basic Info: The number of misses for a given memory size in period of time.  Basic Use: Estimating the “memory needs” of an application.

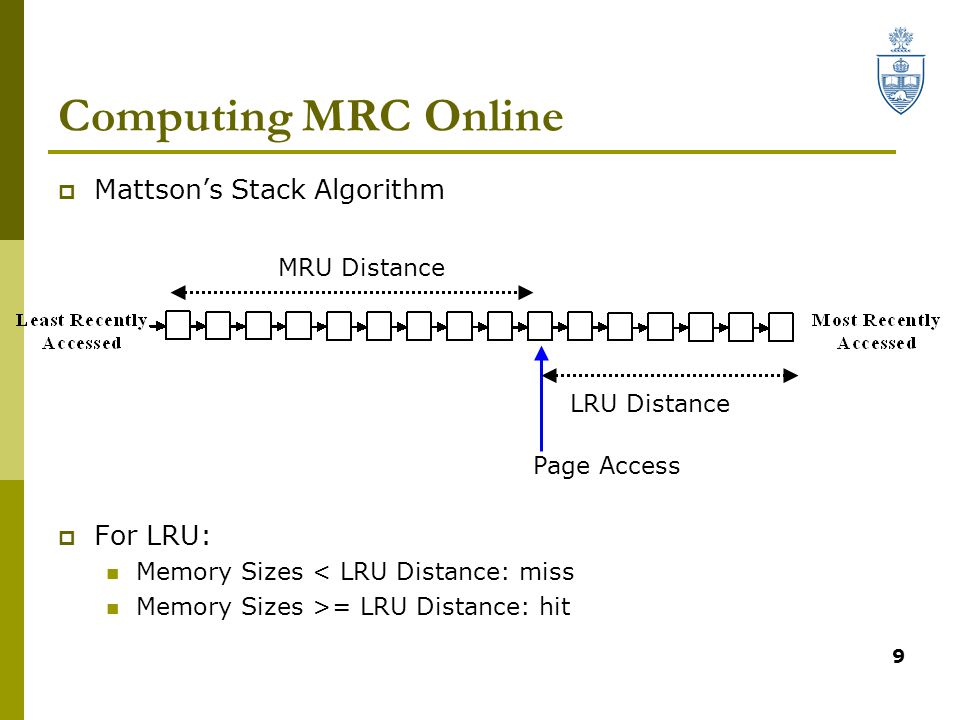

9. 9 Computing MRC Online  Mattson’s Stack Algorithm  For LRU: Memory Sizes < LRU Distance: miss Memory Sizes >= LRU Distance: hit LRU Distance MRU Distance Page Access

10. 10 Runtime Overhead Tradeoff  The larger the Page Access Buffer (active set) The more page accesses are filtered + The less run-time overhead - The less accurate page access trace TLB CPU Core VADDR LOOKUP MISS Page Tables VADDR Page Access Buffer Overflow Interrupt MISS Page Access Log

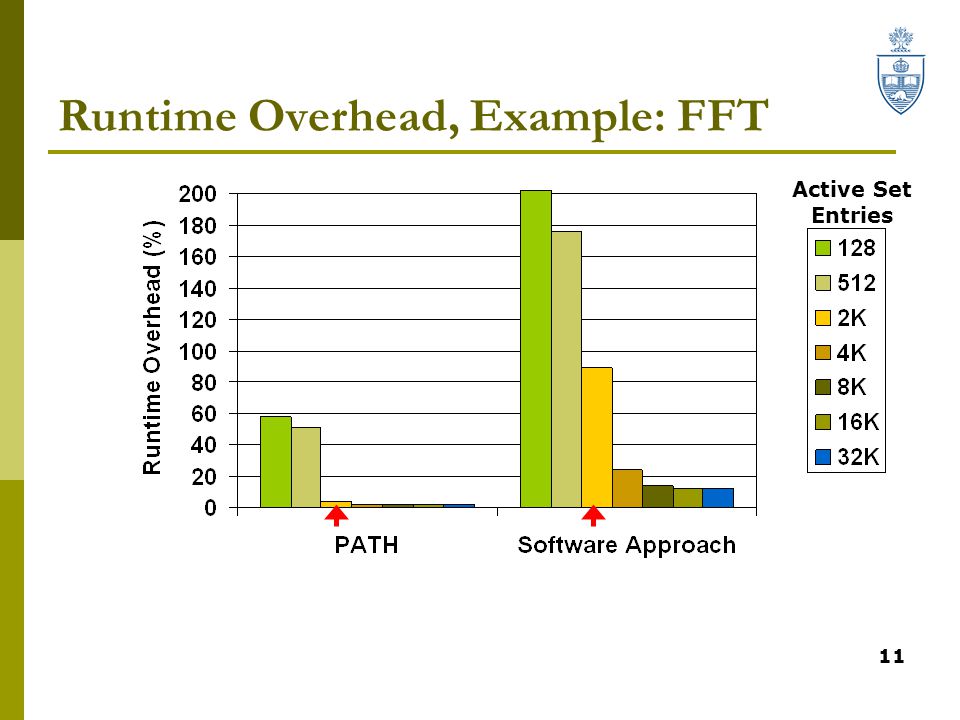

11. 11 Runtime Overhead, Example: FFT Active Set Entries

12. 12 Runtime Overhead, Example: LU-non. Active Set Entries

13. 13 Runtime Overhead  Summary Overall, a 2K Entry Page Access Buffer seems to be the best point in the tradeoff between performance and runtime overhead. PATH’s overhead is less than 6% across a wide variety of applications. PATH’s overhead is negligible in most cases.

14. 14 Case 1: Adaptive Page Replacement  Region-based Page Replacement Use different replacement policies for different regions in the virtual address space Rationale: each region is likely to contain a data structure with a fairly stable access pattern  Low Inter-Reference Set (LIRS) Handles sequential and looping patterns Requires tracking page accesses Originally developed for file system caching Easily enabled by the PATH-generated information

15. 15 Region-based Replacement Using MRC for comparison:

16. 16 Region-based Replacement (cont’d)  Dividing Memory among Regions Minimize total miss rate by giving memory to the regions that have more “benefit-per-page”.

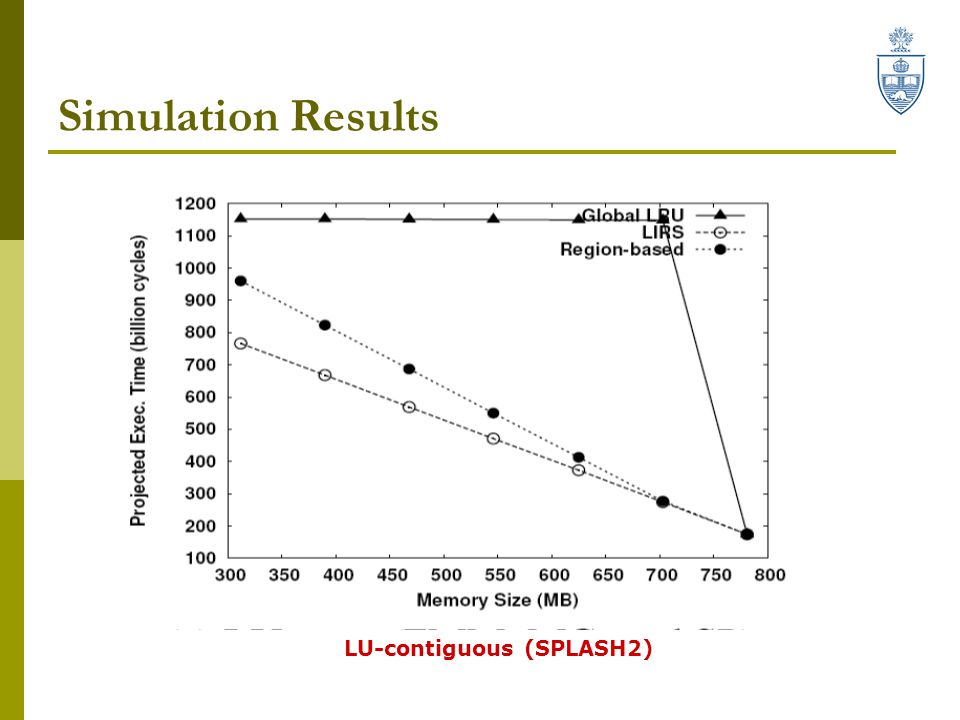

17. 17 Simulation Results LU-contiguous (SPLASH2)

18. 18 Simulation Results BT (NAS Benchmark)

19. 19 Case 2: Prefetching  Spatial Locality-based Prefetch pages spatially-adjacent to the faulted page. Advantages  Simple and easy to implement  Effective for many cases Major drawback  Oblivious to non-spatial access patterns  Temporal Locality-based Prefetch pages that are regularly accessed together. Use PATH to track temporal locality of pages.

20. 20 Temporal Locality-based Prefetching  Page Proximity Graph (PPG) Each page is a node There exists an edge from p to q if q is regularly accessed shortly after p (temporal locality)  PPG Update: Add a page q to p’s proximity set if q appears in the LRU stack in close proximity to p repeatedly.  Basic prefetching scheme: Breadth-First traversal starting from the faulted page.

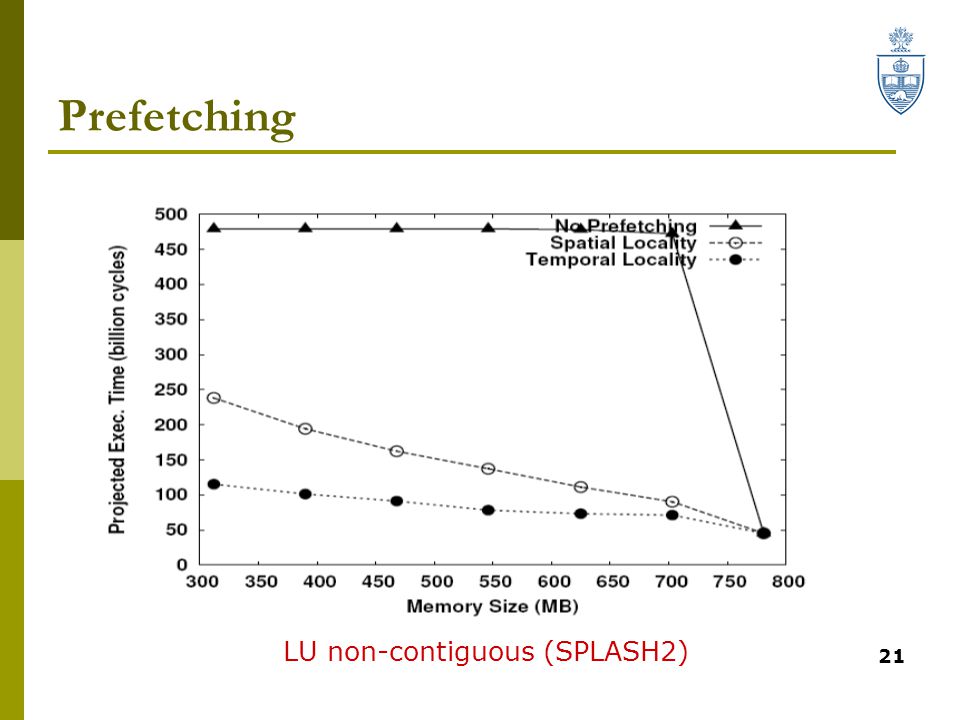

21. 21 Prefetching LU non-contiguous (SPLASH2)

22. 22 Conclusions  Page Access Tracking Hardware Small (10KBytes in size) Low-overhead Generic  Cases Studied Adaptive Page Replacement Process Memory Allocation (See Paper) Prefetching  Significant performance improvement can be achieved by tracking page accesses.

23. 23 Future Directions  Other case studies NUMA page placement Super-page management  Per-thread page access tracking Augmenting page accesses with thread info  Multiprocessor issues Combining traces collected on multiple CPUs
