1. Processes 1 CS502 Spring 2006 Processes Week 2 – CS 502

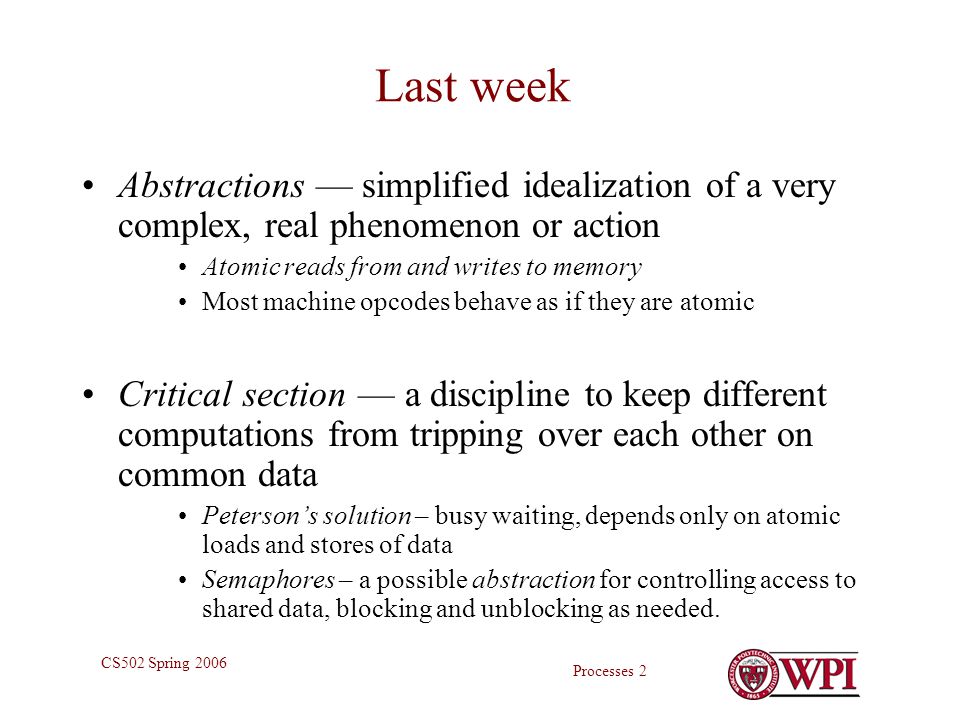

2. Processes 2 CS502 Spring 2006 Last week Abstractions — simplified idealization of a very complex, real phenomenon or action Atomic reads from and writes to memory Most machine opcodes behave as if they are atomic Critical section — a discipline to keep different computations from tripping over each other on common data Peterson’s solution – busy waiting, depends only on atomic loads and stores of data Semaphores – a possible abstraction for controlling access to shared data, blocking and unblocking as needed.

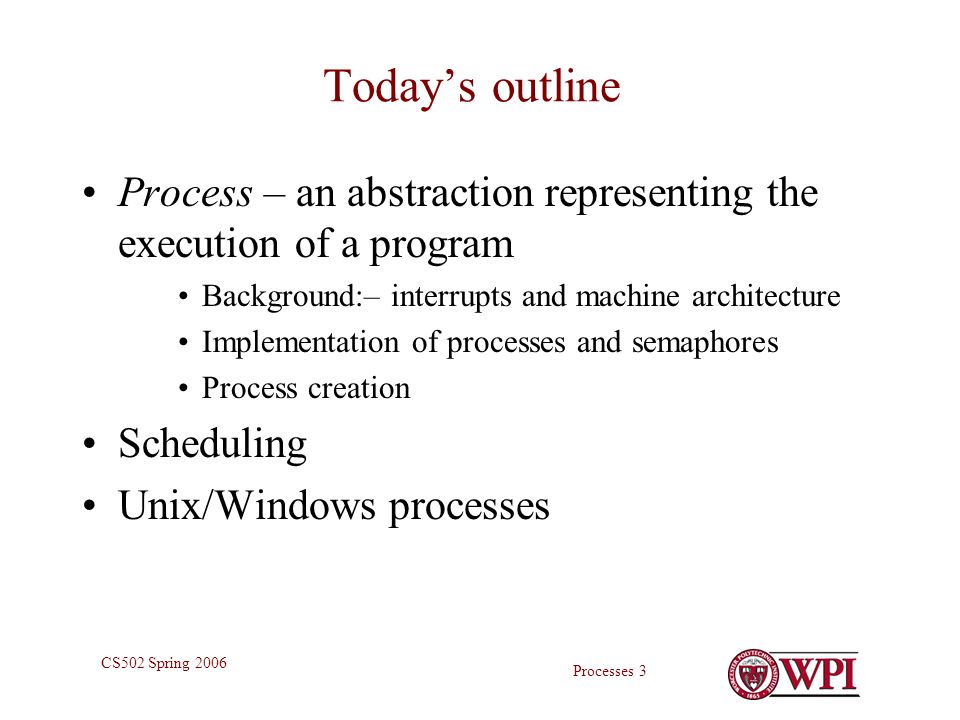

3. Processes 3 CS502 Spring 2006 Today’s outline Process – an abstraction representing the execution of a program Background:– interrupts and machine architecture Implementation of processes and semaphores Process creation Scheduling Unix/Windows processes

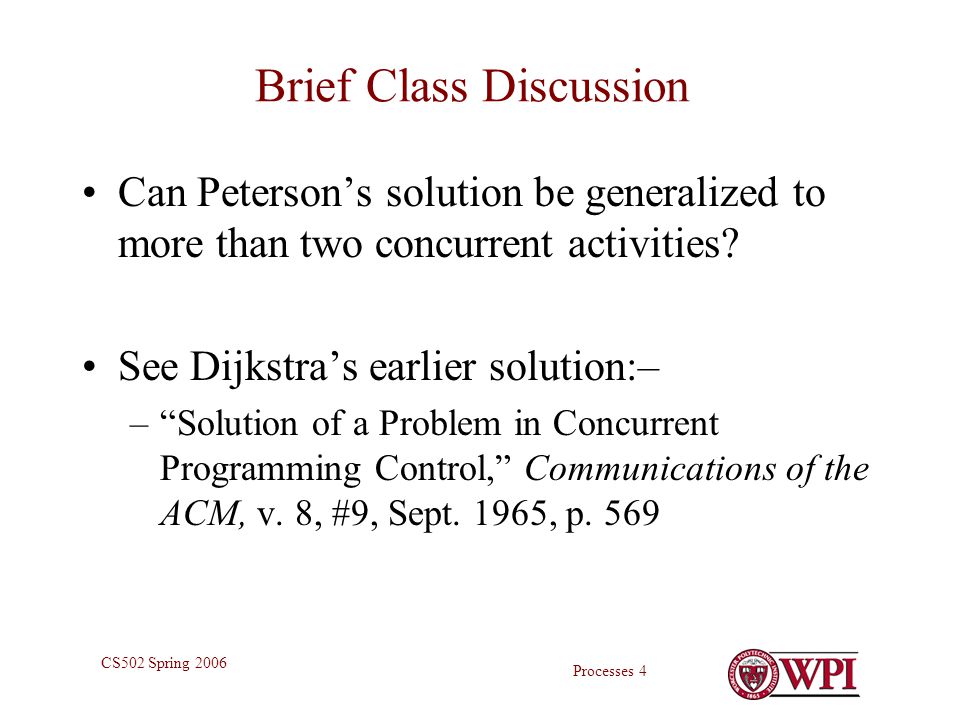

4. Processes 4 CS502 Spring 2006 Brief Class Discussion Can Peterson’s solution be generalized to more than two concurrent activities? See Dijkstra’s earlier solution:– –“Solution of a Problem in Concurrent Programming Control,” Communications of the ACM, v. 8, #9, Sept. 1965, p. 569

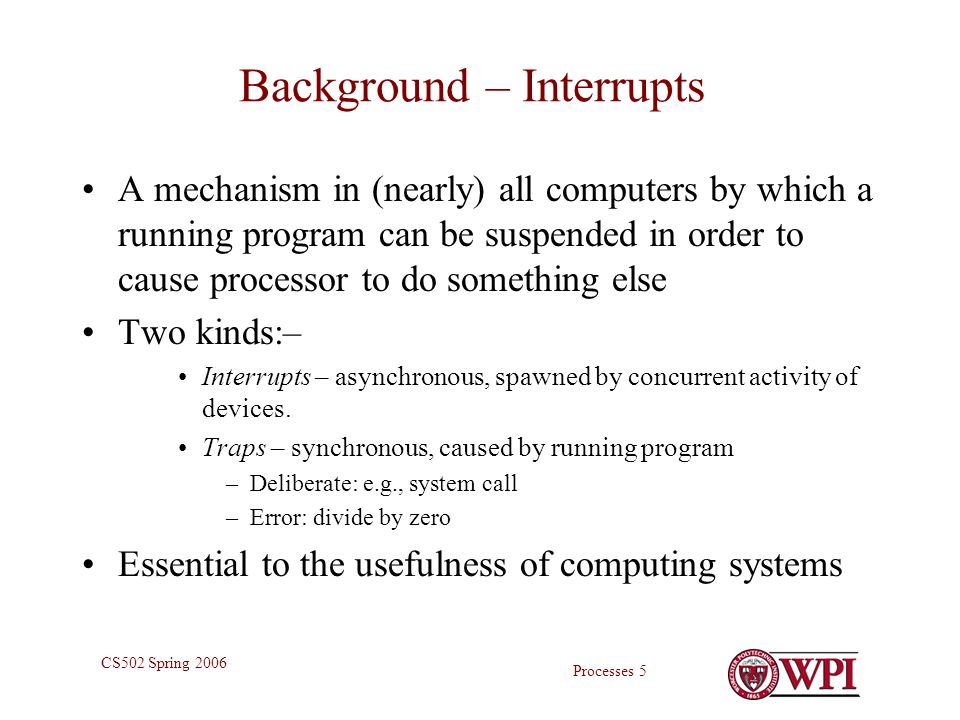

5. Processes 5 CS502 Spring 2006 Background – Interrupts A mechanism in (nearly) all computers by which a running program can be suspended in order to cause processor to do something else Two kinds:– Interrupts – asynchronous, spawned by concurrent activity of devices. Traps – synchronous, caused by running program –Deliberate: e.g., system call –Error: divide by zero Essential to the usefulness of computing systems

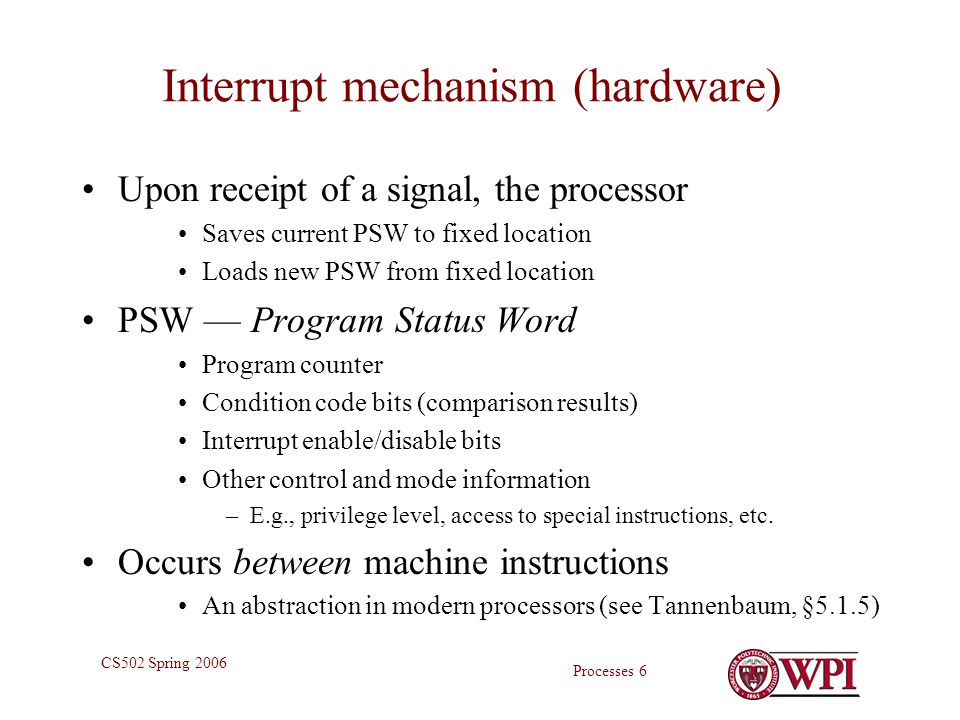

6. Processes 6 CS502 Spring 2006 Interrupt mechanism (hardware) Upon receipt of a signal, the processor Saves current PSW to fixed location Loads new PSW from fixed location PSW — Program Status Word Program counter Condition code bits (comparison results) Interrupt enable/disable bits Other control and mode information –E.g., privilege level, access to special instructions, etc. Occurs between machine instructions An abstraction in modern processors (see Tannenbaum, §5.1.5)

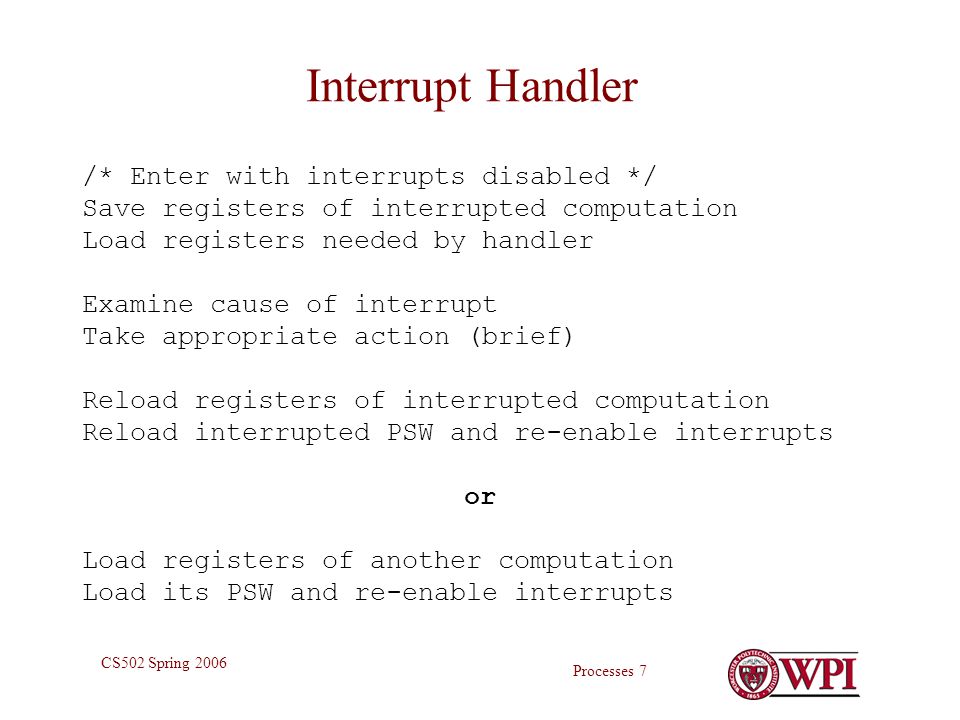

7. Processes 7 CS502 Spring 2006 Interrupt Handler /* Enter with interrupts disabled */ Save registers of interrupted computation Load registers needed by handler Examine cause of interrupt Take appropriate action (brief) Reload registers of interrupted computation Reload interrupted PSW and re-enable interrupts or Load registers of another computation Load its PSW and re-enable interrupts

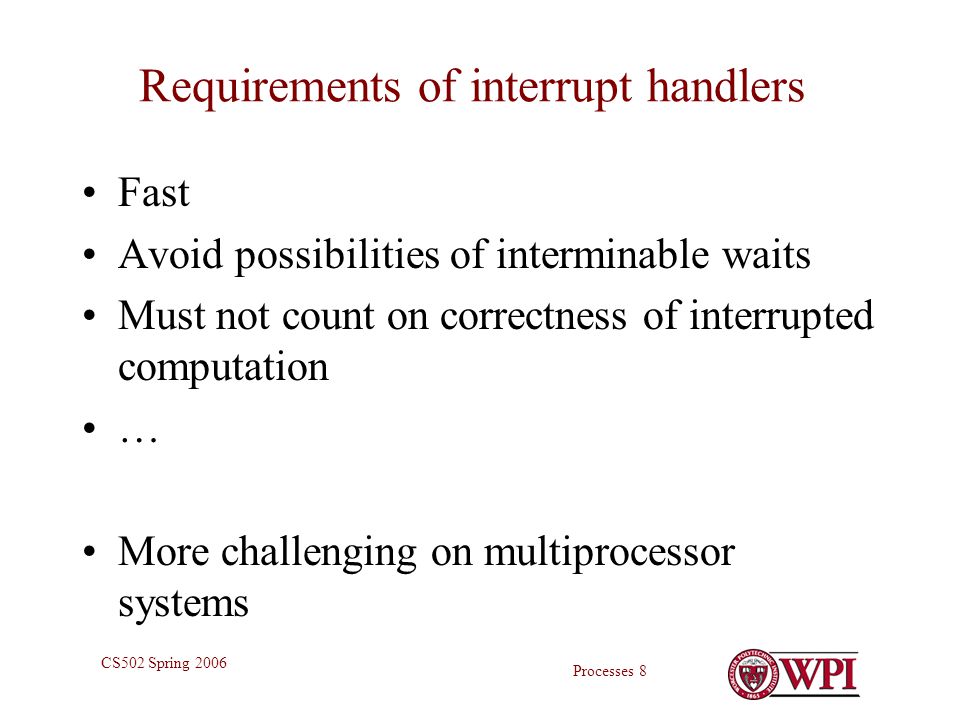

8. Processes 8 CS502 Spring 2006 Requirements of interrupt handlers Fast Avoid possibilities of interminable waits Must not count on correctness of interrupted computation … More challenging on multiprocessor systems

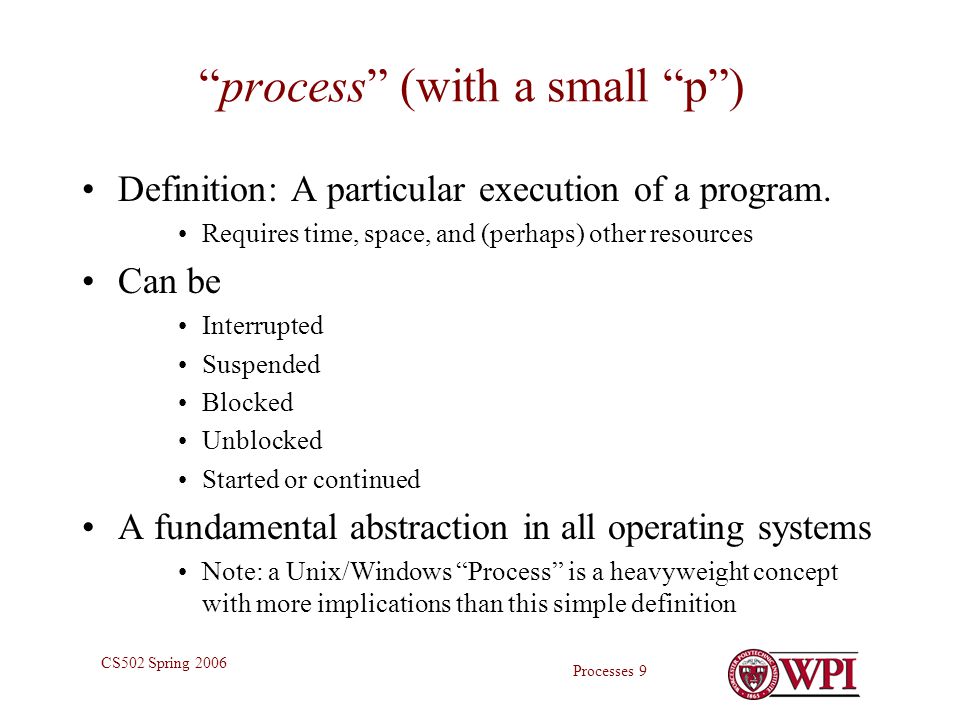

9. Processes 9 CS502 Spring 2006 “process” (with a small “p”) Definition: A particular execution of a program. Requires time, space, and (perhaps) other resources Can be Interrupted Suspended Blocked Unblocked Started or continued A fundamental abstraction in all operating systems Note: a Unix/Windows “Process” is a heavyweight concept with more implications than this simple definition

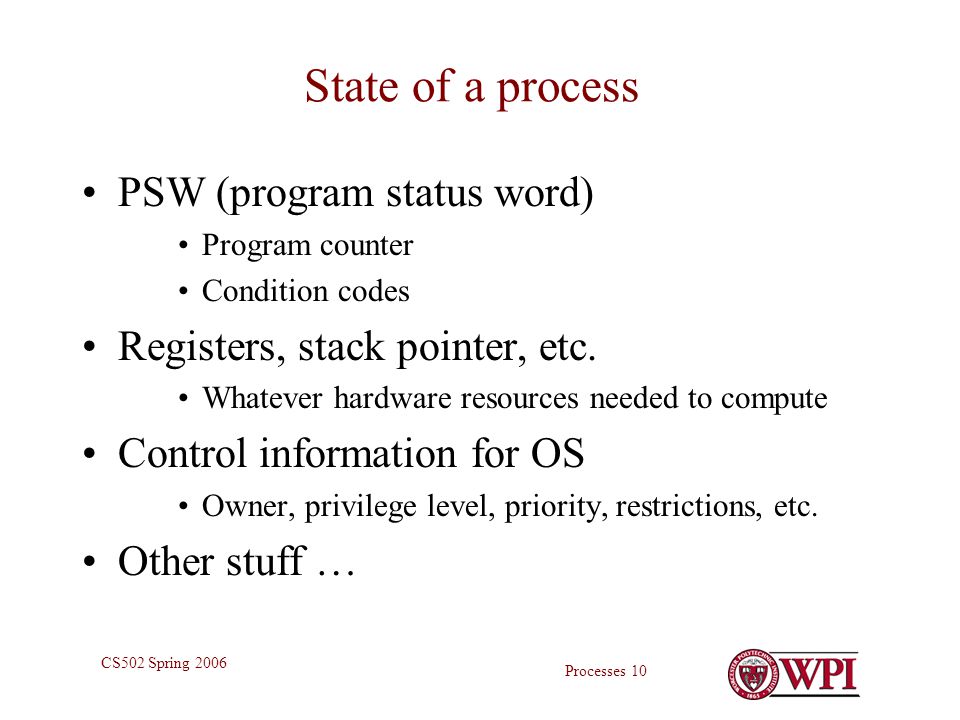

10. Processes 10 CS502 Spring 2006 State of a process PSW (program status word) Program counter Condition codes Registers, stack pointer, etc. Whatever hardware resources needed to compute Control information for OS Owner, privilege level, priority, restrictions, etc. Other stuff …

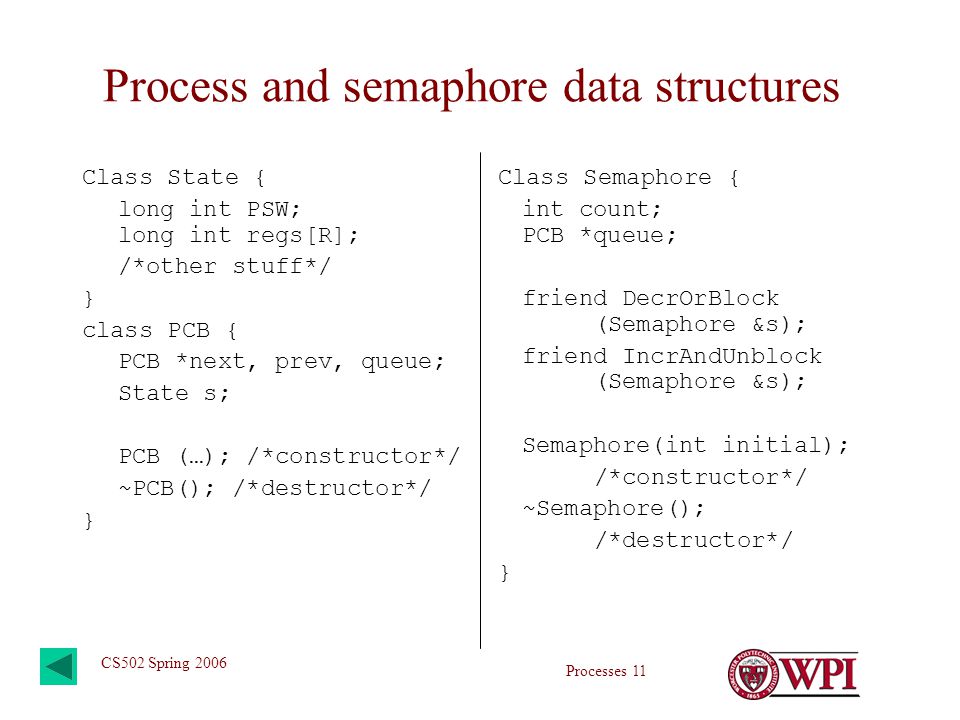

11. Processes 11 CS502 Spring 2006 Process and semaphore data structures Class State { long int PSW; long int regs[R]; /*other stuff*/ } class PCB { PCB *next, prev, queue; State s; PCB (…); /*constructor*/ ~PCB(); /*destructor*/ } Class Semaphore { int count; PCB *queue; friend DecrOrBlock (Semaphore &s); friend IncrAndUnblock (Semaphore &s); Semaphore(int initial); /*constructor*/ ~Semaphore(); /*destructor*/ }

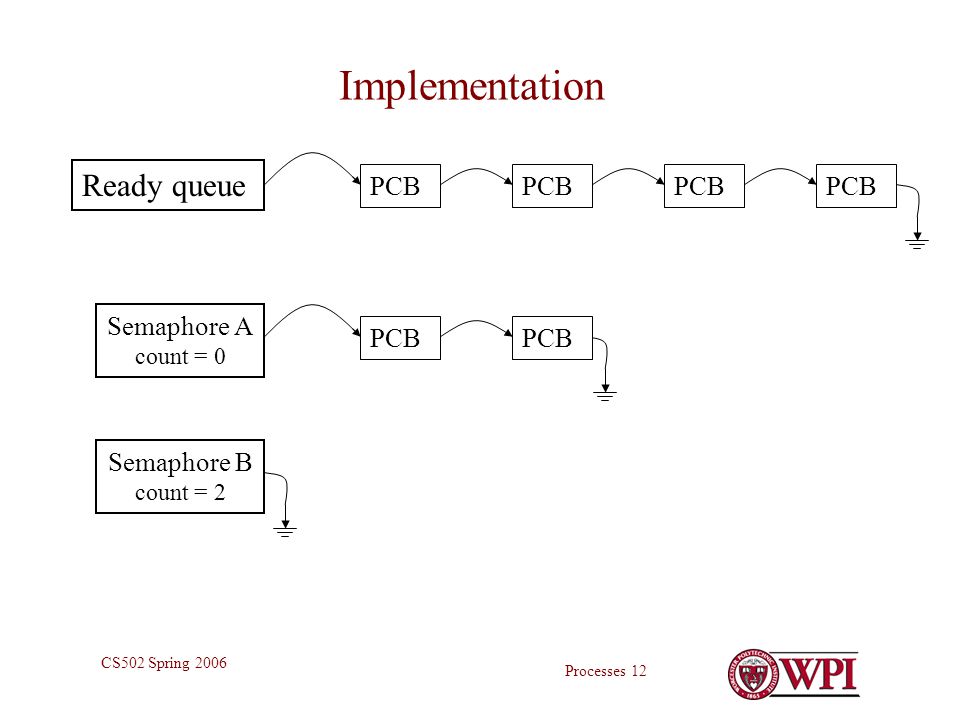

12. Processes 12 CS502 Spring 2006 Implementation Ready queue PCB Semaphore A count = 0 PCB Semaphore B count = 2

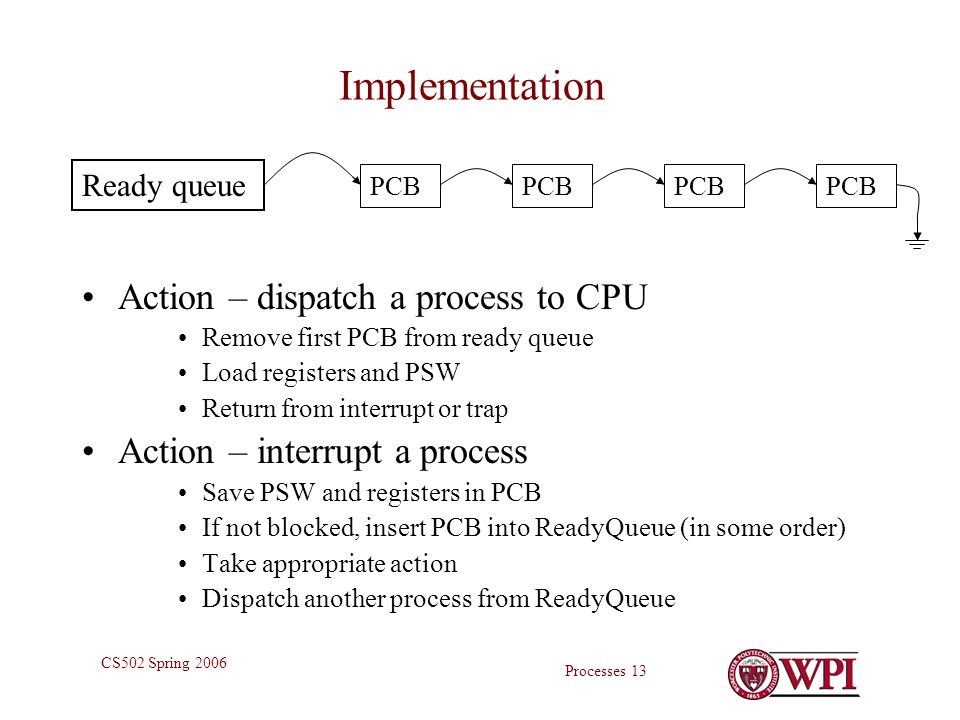

13. Processes 13 CS502 Spring 2006 Implementation Action – dispatch a process to CPU Remove first PCB from ready queue Load registers and PSW Return from interrupt or trap Action – interrupt a process Save PSW and registers in PCB If not blocked, insert PCB into ReadyQueue (in some order) Take appropriate action Dispatch another process from ReadyQueue Ready queue PCB

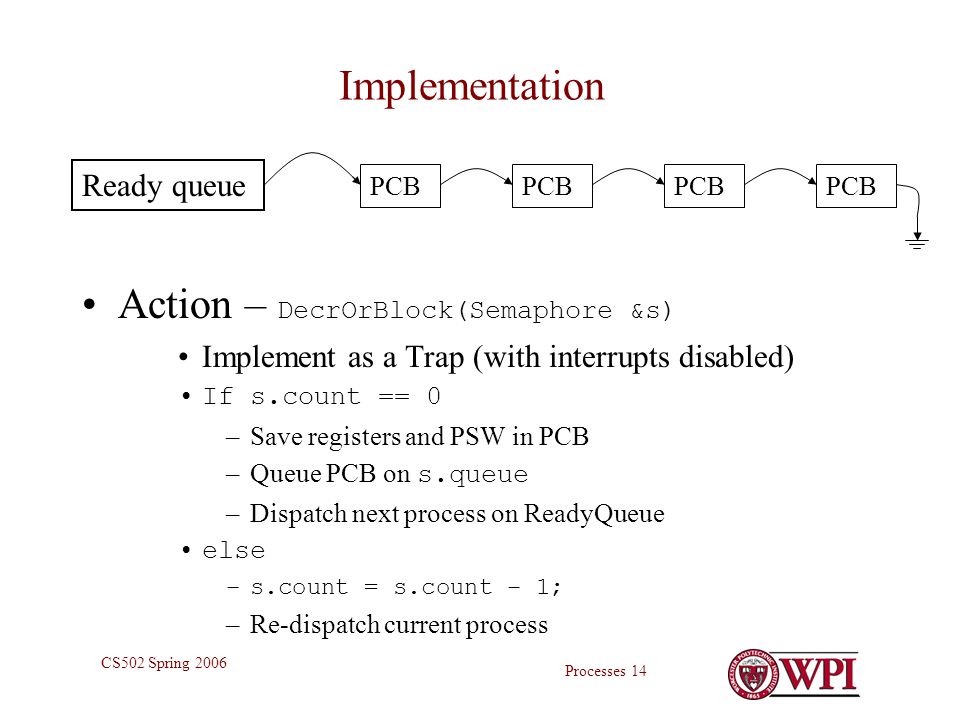

14. Processes 14 CS502 Spring 2006 Implementation Action – DecrOrBlock(Semaphore &s) Implement as a Trap (with interrupts disabled) If s.count == 0 –Save registers and PSW in PCB –Queue PCB on s.queue –Dispatch next process on ReadyQueue else –s.count = s.count – 1; –Re-dispatch current process Ready queue PCB

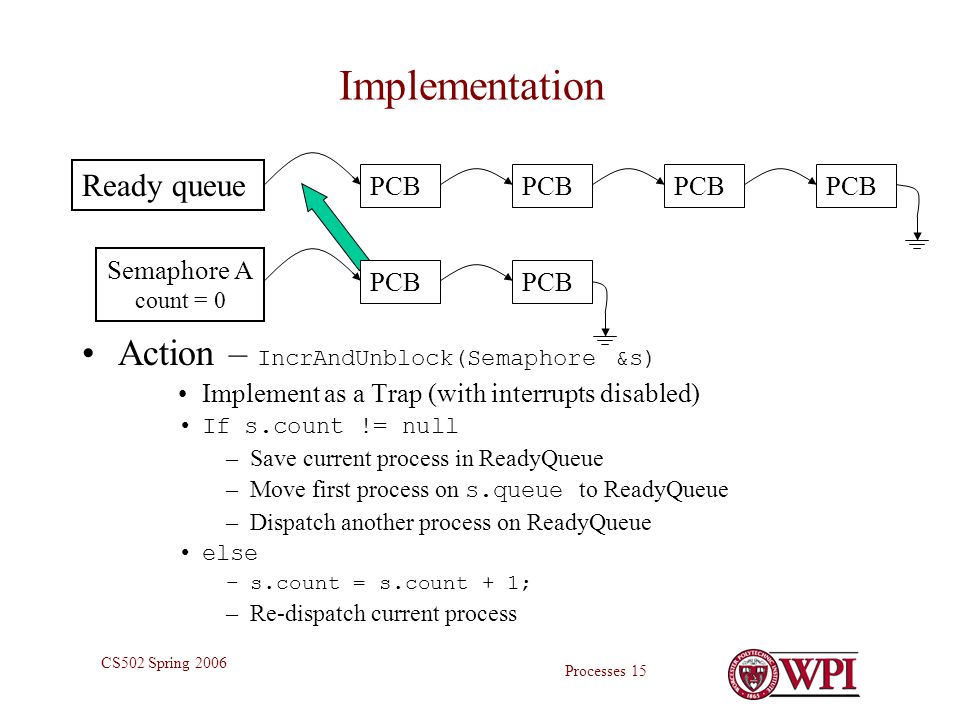

15. Processes 15 CS502 Spring 2006 Implementation Action – IncrAndUnblock(Semaphore &s) Implement as a Trap (with interrupts disabled) If s.count != null –Save current process in ReadyQueue –Move first process on s.queue to ReadyQueue –Dispatch another process on ReadyQueue else –s.count = s.count + 1; –Re-dispatch current process Ready queue PCB Semaphore A count = 0 PCB

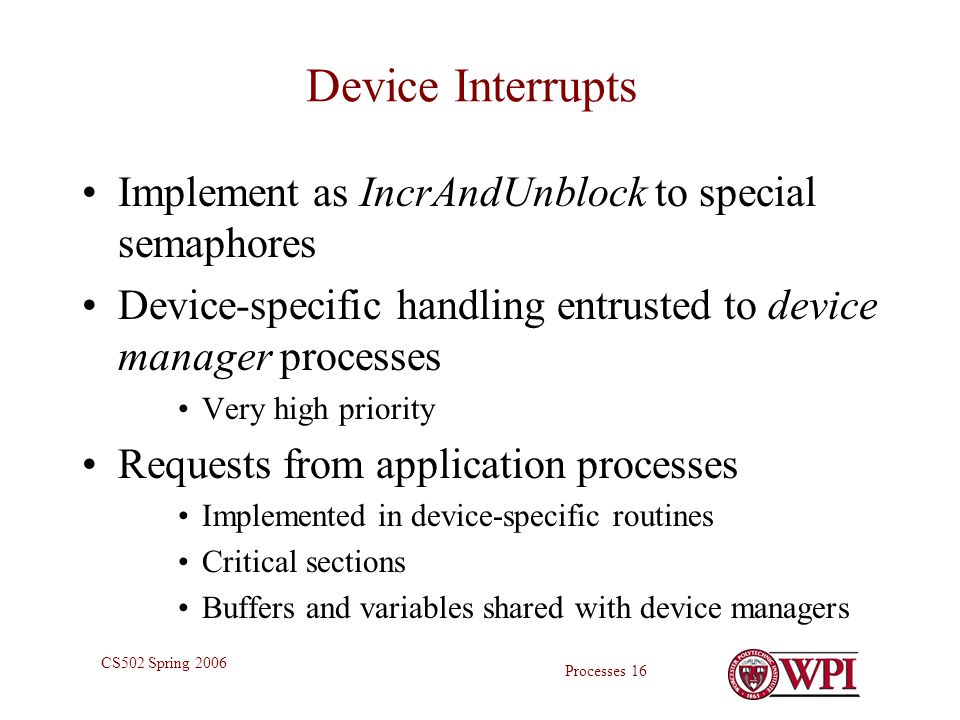

16. Processes 16 CS502 Spring 2006 Device Interrupts Implement as IncrAndUnblock to special semaphores Device-specific handling entrusted to device manager processes Very high priority Requests from application processes Implemented in device-specific routines Critical sections Buffers and variables shared with device managers

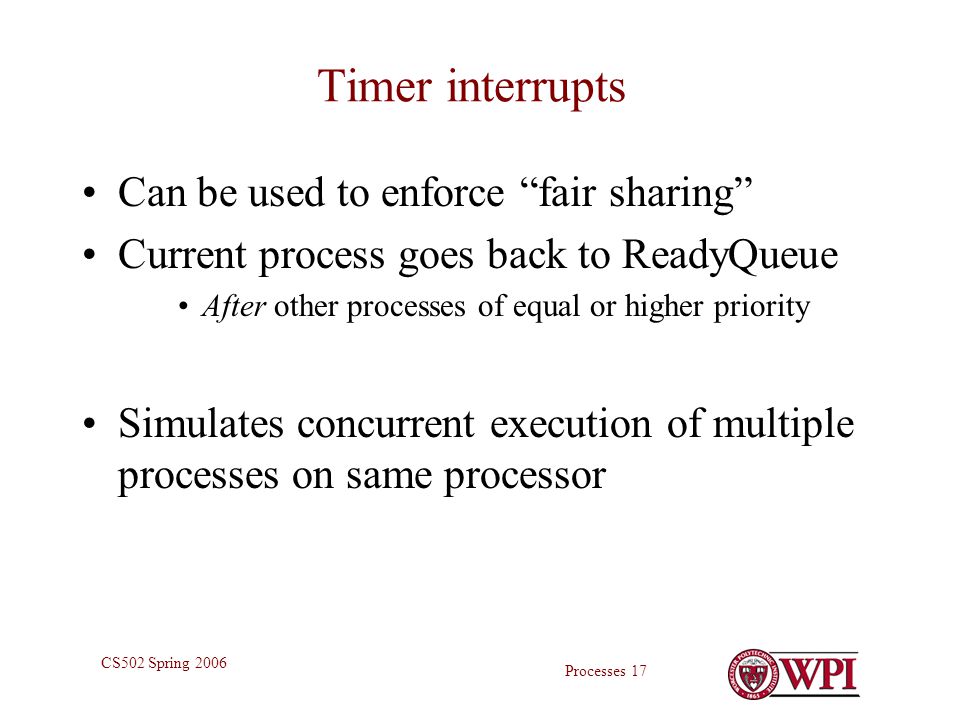

17. Processes 17 CS502 Spring 2006 Timer interrupts Can be used to enforce “fair sharing” Current process goes back to ReadyQueue After other processes of equal or higher priority Simulates concurrent execution of multiple processes on same processor

18. Processes 18 CS502 Spring 2006 Definition Context Switch — the act of switching from one process to another E.g., upon interrupt or block Not a big deal in simple systems and processors Very big deal in large systems such Unix and Windows Pentium 4

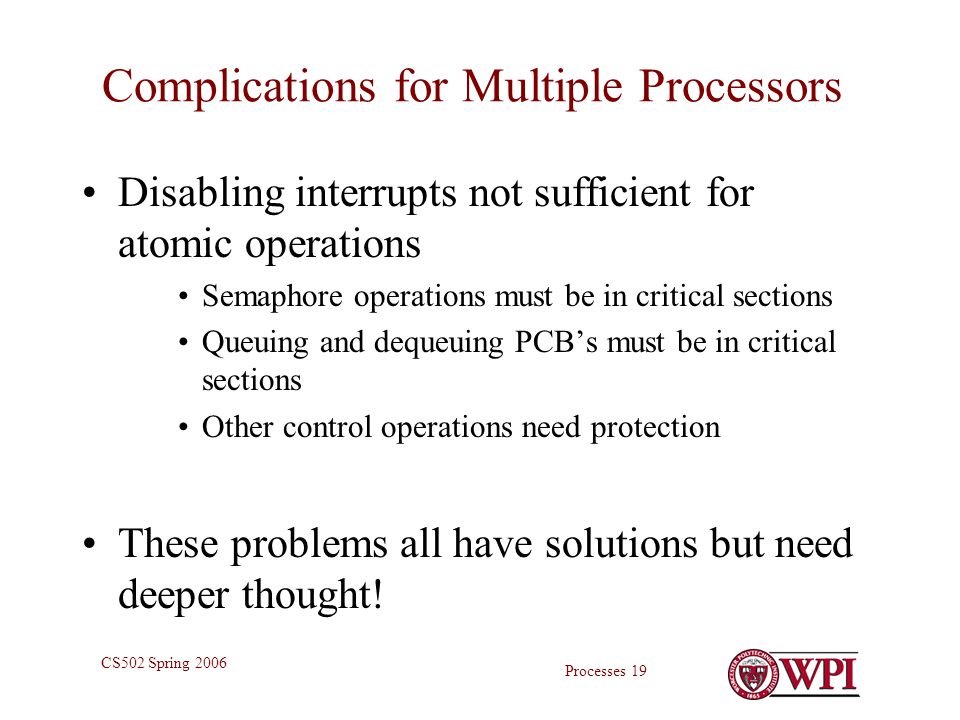

19. Processes 19 CS502 Spring 2006 Complications for Multiple Processors Disabling interrupts not sufficient for atomic operations Semaphore operations must be in critical sections Queuing and dequeuing PCB’s must be in critical sections Other control operations need protection These problems all have solutions but need deeper thought!

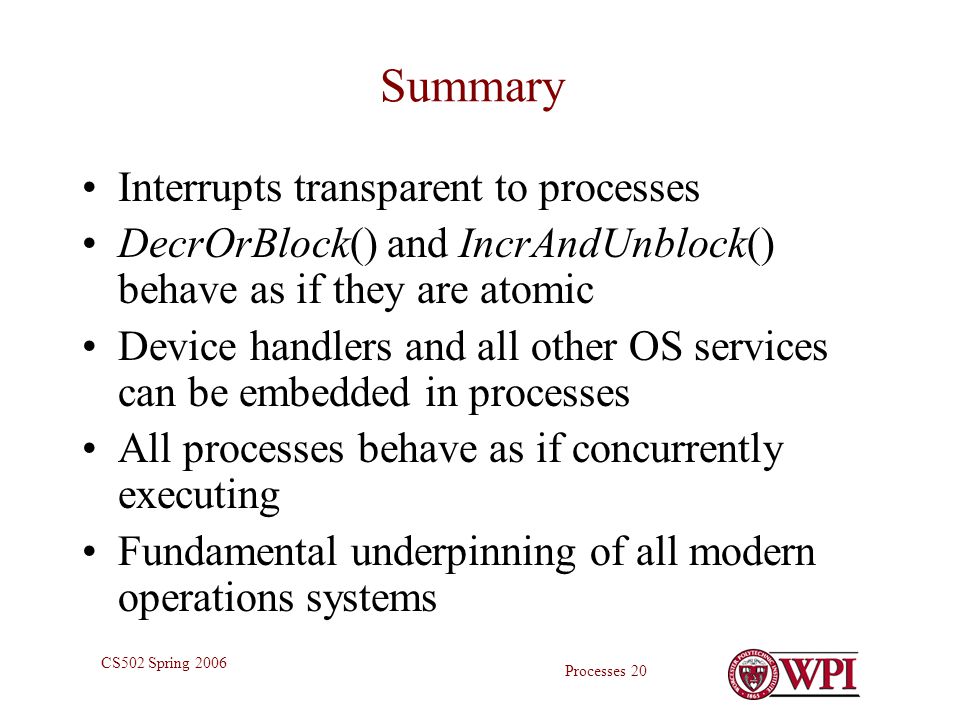

20. Processes 20 CS502 Spring 2006 Summary Interrupts transparent to processes DecrOrBlock() and IncrAndUnblock() behave as if they are atomic Device handlers and all other OS services can be embedded in processes All processes behave as if concurrently executing Fundamental underpinning of all modern operations systems
