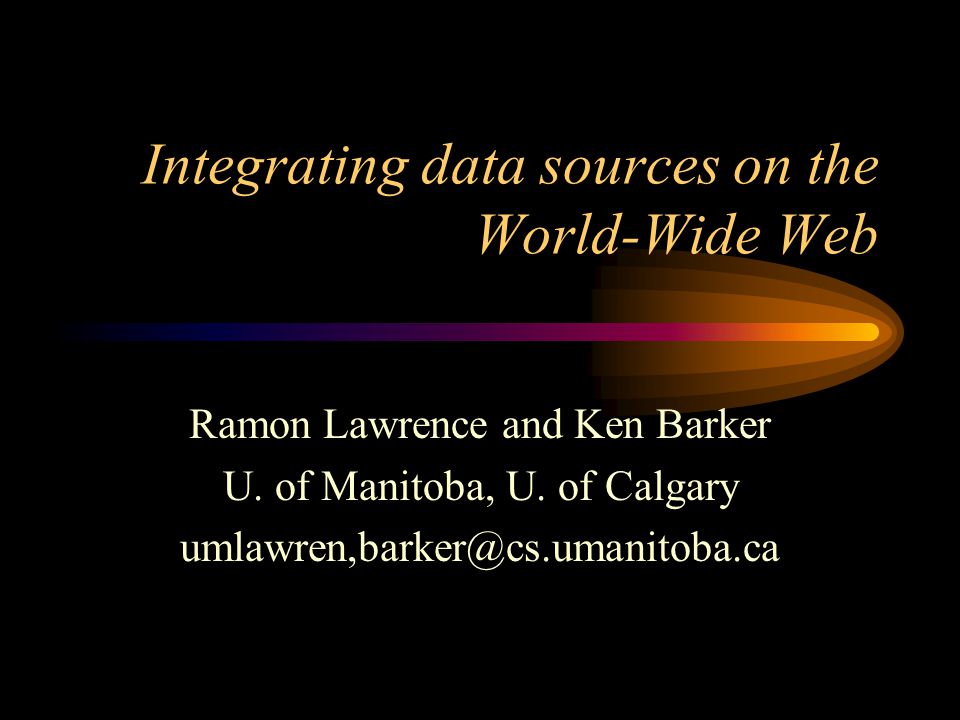

1. Integrating data sources on the World-Wide Web Ramon Lawrence and Ken Barker U. of Manitoba, U. of Calgary umlawren,barker@cs.umanitoba.ca

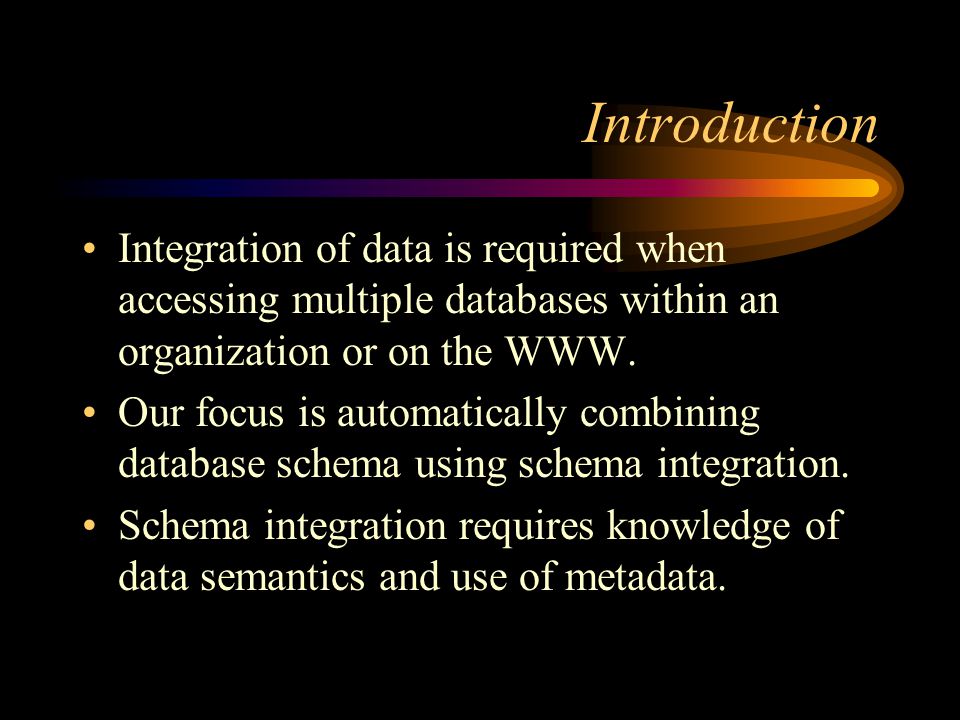

2. Introduction Integration of data is required when accessing multiple databases within an organization or on the WWW. Our focus is automatically combining database schema using schema integration. Schema integration requires knowledge of data semantics and use of metadata.

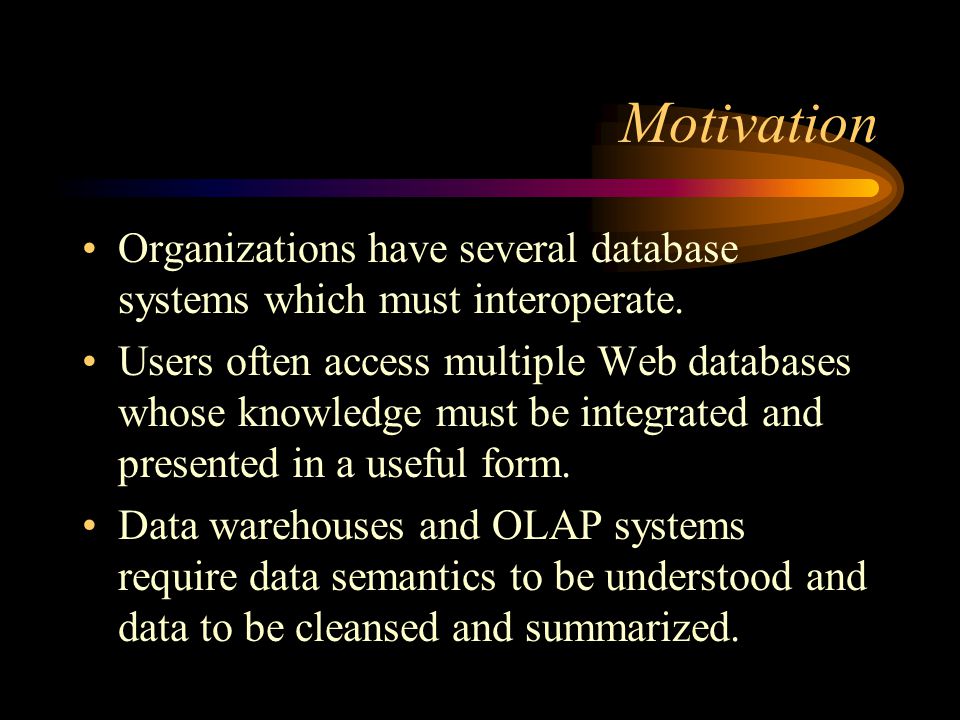

3. Motivation Organizations have several database systems which must interoperate. Users often access multiple Web databases whose knowledge must be integrated and presented in a useful form. Data warehouses and OLAP systems require data semantics to be understood and data to be cleansed and summarized.

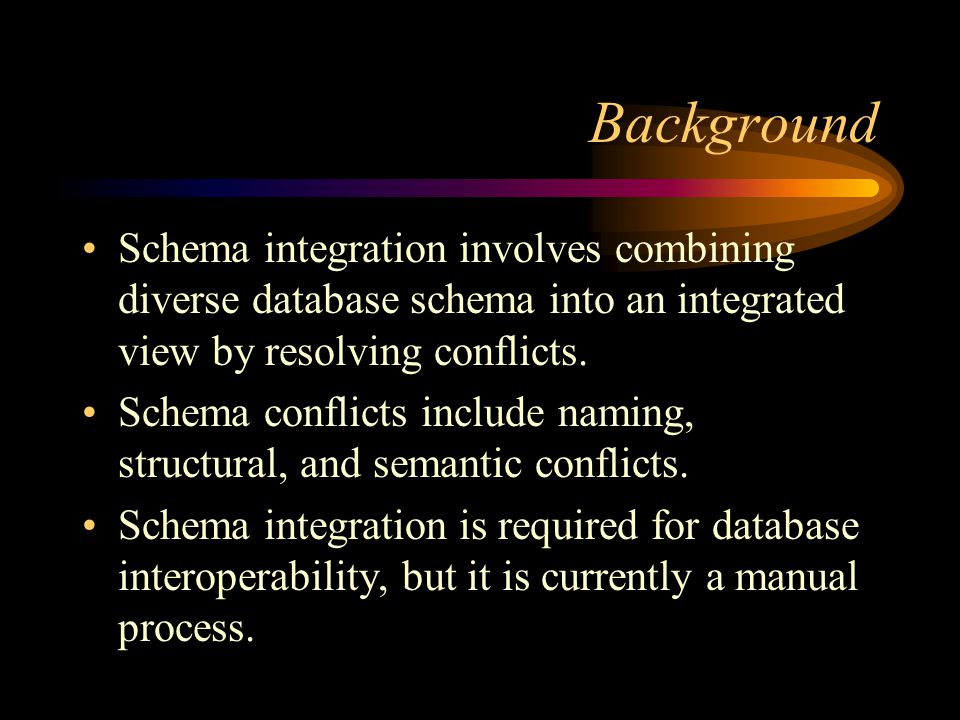

4. Background Schema integration involves combining diverse database schema into an integrated view by resolving conflicts. Schema conflicts include naming, structural, and semantic conflicts. Schema integration is required for database interoperability, but it is currently a manual process.

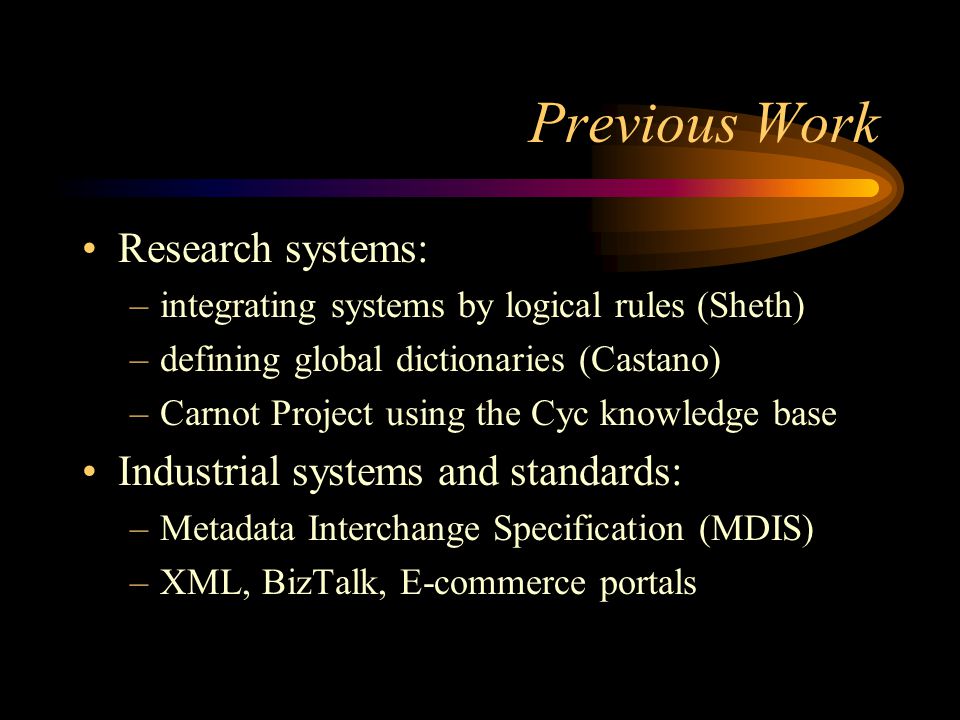

5. Previous Work Research systems: –integrating systems by logical rules (Sheth) –defining global dictionaries (Castano) –Carnot Project using the Cyc knowledge base Industrial systems and standards: –Metadata Interchange Specification (MDIS) –XML, BizTalk, E-commerce portals

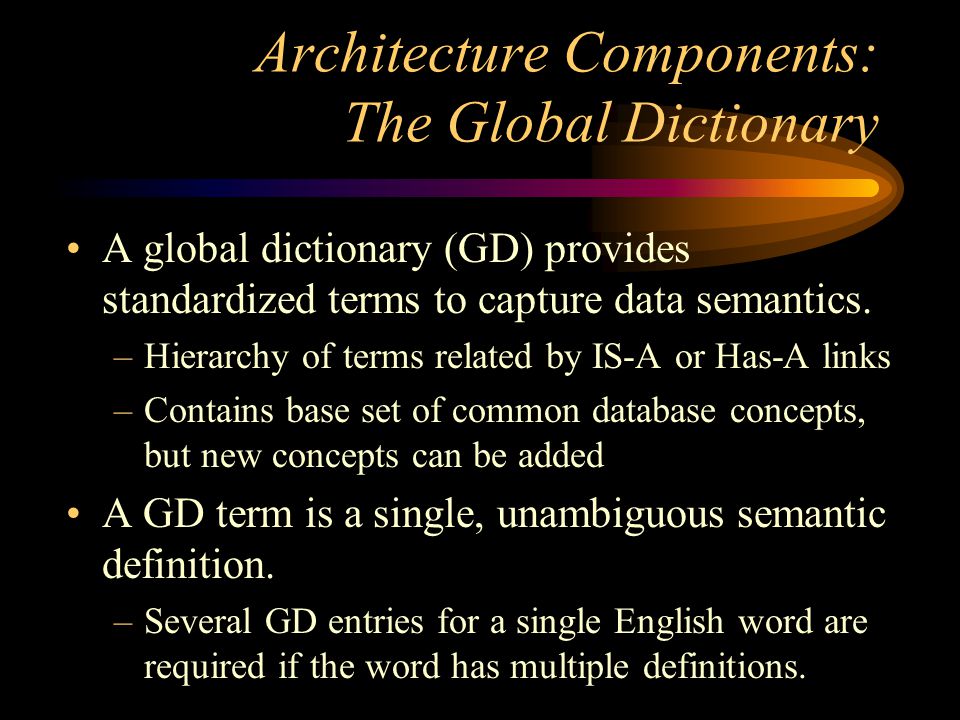

6. Architecture Components: The Global Dictionary A global dictionary (GD) provides standardized terms to capture data semantics. –Hierarchy of terms related by IS-A or Has-A links –Contains base set of common database concepts, but new concepts can be added A GD term is a single, unambiguous semantic definition. –Several GD entries for a single English word are required if the word has multiple definitions.

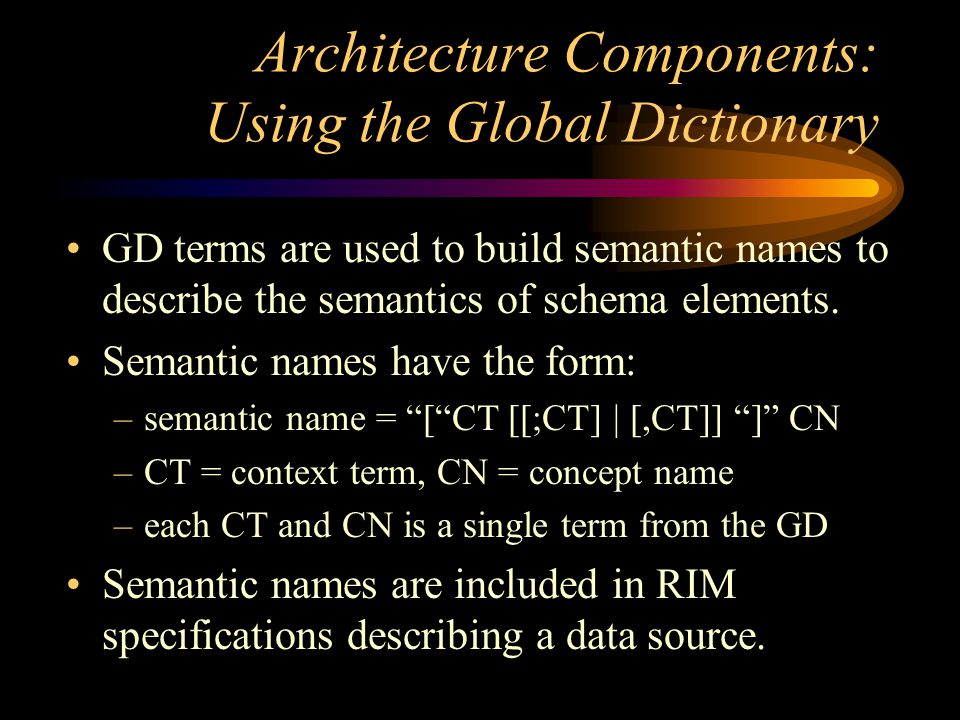

7. Architecture Components: Using the Global Dictionary GD terms are used to build semantic names to describe the semantics of schema elements. Semantic names have the form: –semantic name = “[“CT [[;CT] | [,CT]] “]” CN –CT = context term, CN = concept name –each CT and CN is a single term from the GD Semantic names are included in RIM specifications describing a data source.

8. Architecture Components: The Relational Integration Model Database metadata and semantic names are combined into Relational Integration Model (RIM) Specifications (RIM Specs) –contains information on a relational schema –organized into database, table, and field levels –stores semantic names to describe and integrate schema elements

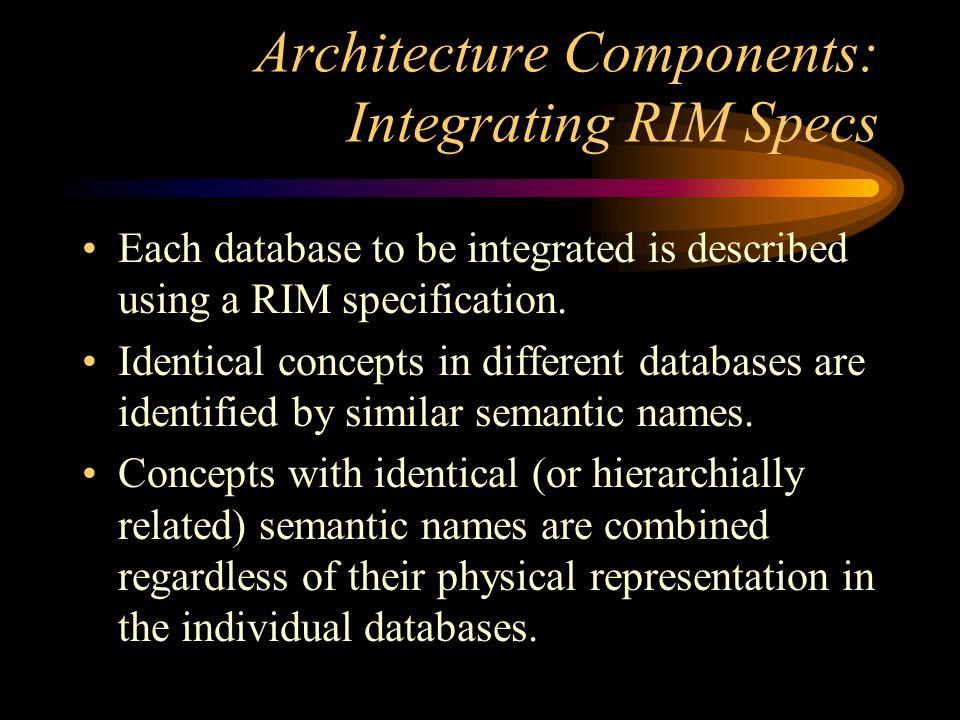

9. Architecture Components: Integrating RIM Specs Each database to be integrated is described using a RIM specification. Identical concepts in different databases are identified by similar semantic names. Concepts with identical (or hierarchially related) semantic names are combined regardless of their physical representation in the individual databases.

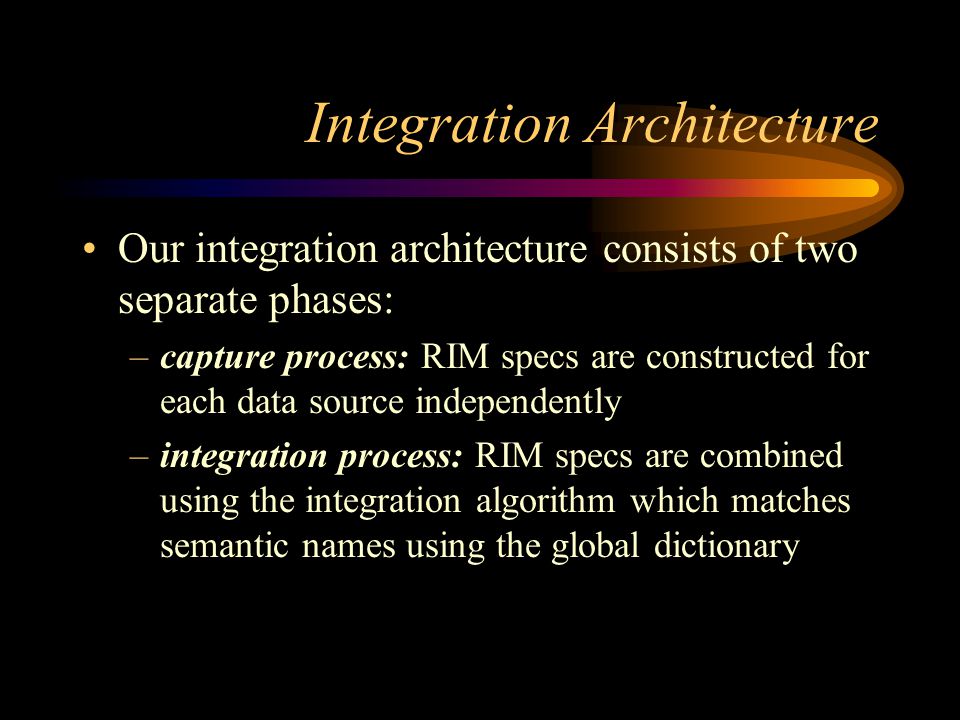

10. Integration Architecture Our integration architecture consists of two separate phases: –capture process: RIM specs are constructed for each data source independently –integration process: RIM specs are combined using the integration algorithm which matches semantic names using the global dictionary

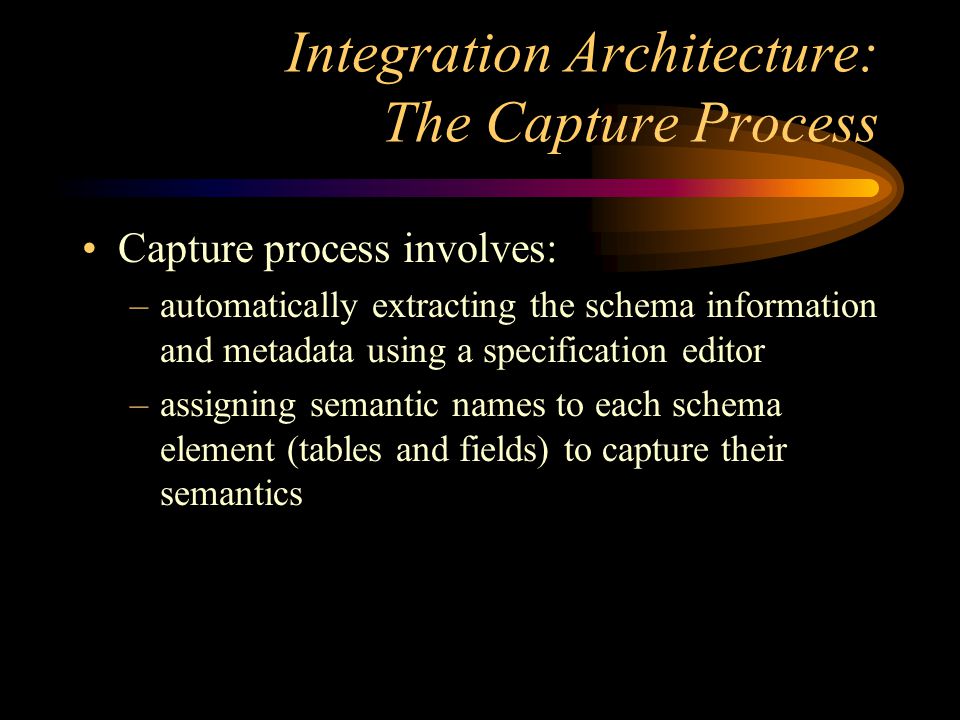

11. Integration Architecture: The Capture Process Capture process involves: –automatically extracting the schema information and metadata using a specification editor –assigning semantic names to each schema element (tables and fields) to capture their semantics

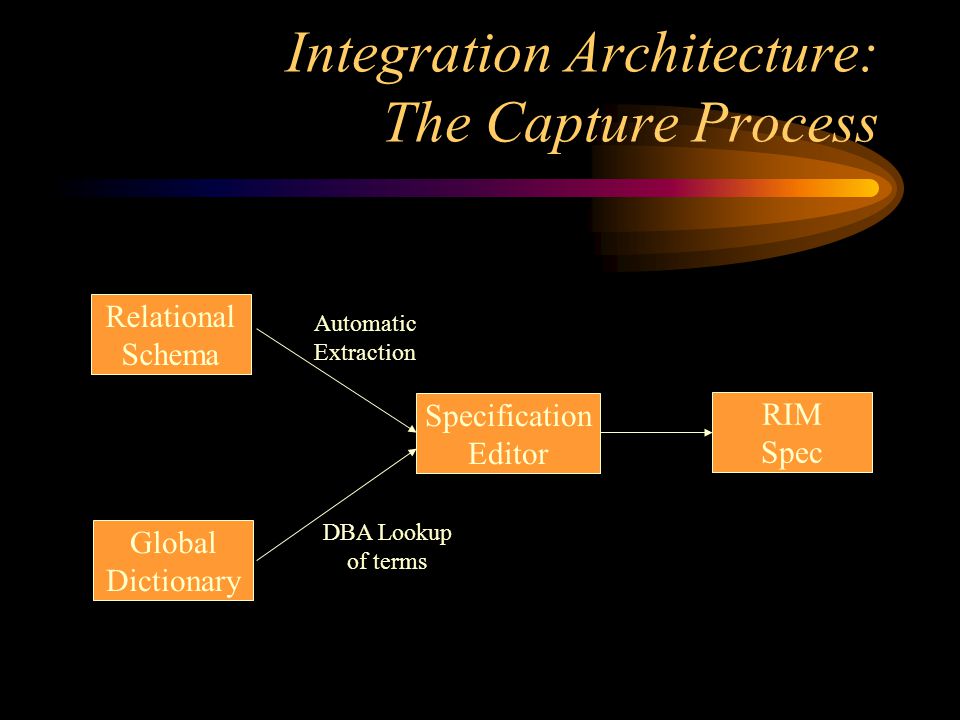

12. Integration Architecture: The Capture Process Relational Schema Global Dictionary RIM Spec Specification Editor Automatic Extraction DBA Lookup of terms

13. Integration Architecture: The Integration Process Integration process involves: –automatically identifying identical concepts by matching semantic names –constructing a global view of database concepts consisting of a hierarchy of concept terms –resolving structural differences during query generation and submission (e.g. a concept may be represented as a table in one database and a field (attribute) in another)

14. Integration Architecture: The Integration Process Client RDBMS Integration Site Subtransactions Client …………. RDBMS …….. RIM spec

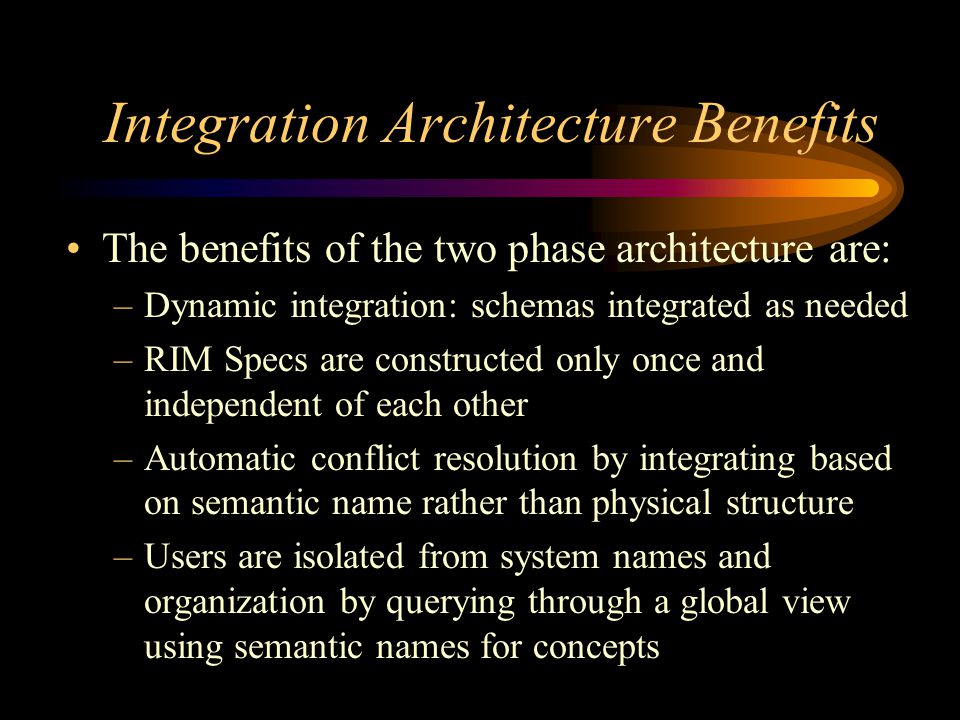

15. Integration Architecture Benefits The benefits of the two phase architecture are: –Dynamic integration: schemas integrated as needed –RIM Specs are constructed only once and independent of each other –Automatic conflict resolution by integrating based on semantic name rather than physical structure –Users are isolated from system names and organization by querying through a global view using semantic names for concepts

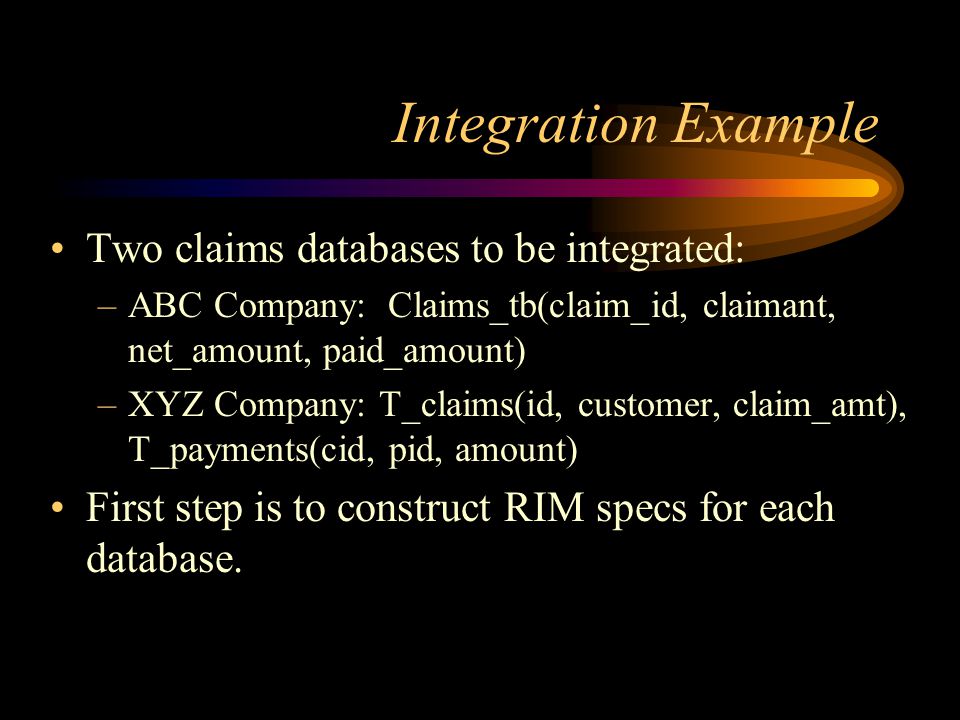

16. Integration Example Two claims databases to be integrated: –ABC Company: Claims_tb(claim_id, claimant, net_amount, paid_amount) –XYZ Company: T_claims(id, customer, claim_amt), T_payments(cid, pid, amount) First step is to construct RIM specs for each database.

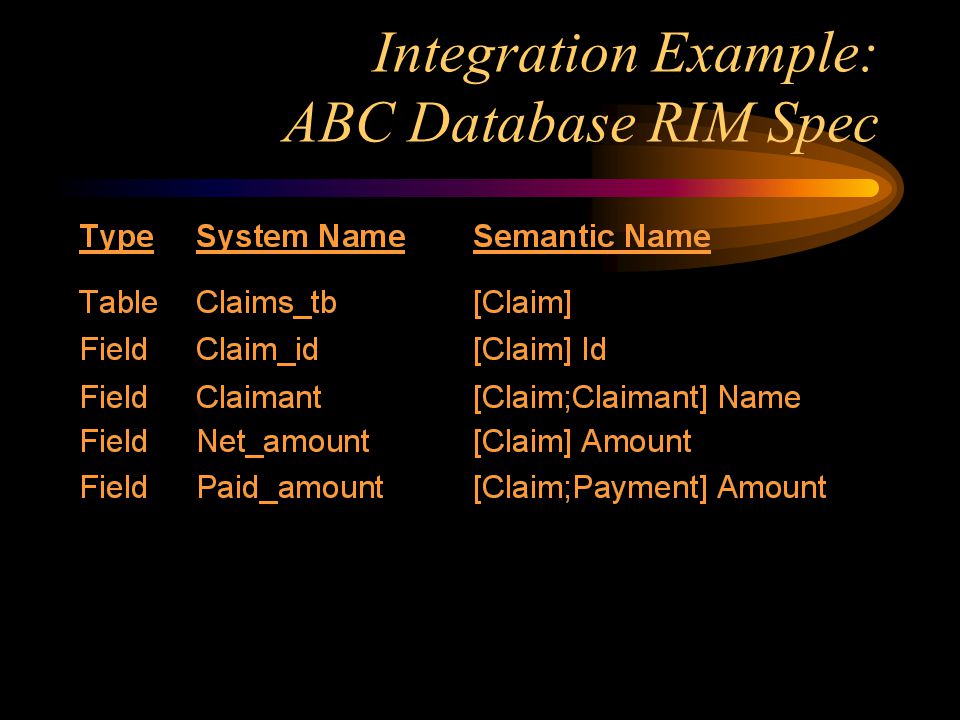

17. Integration Example: ABC Database RIM Spec

18. Integration Example: XYZ Database RIM Spec

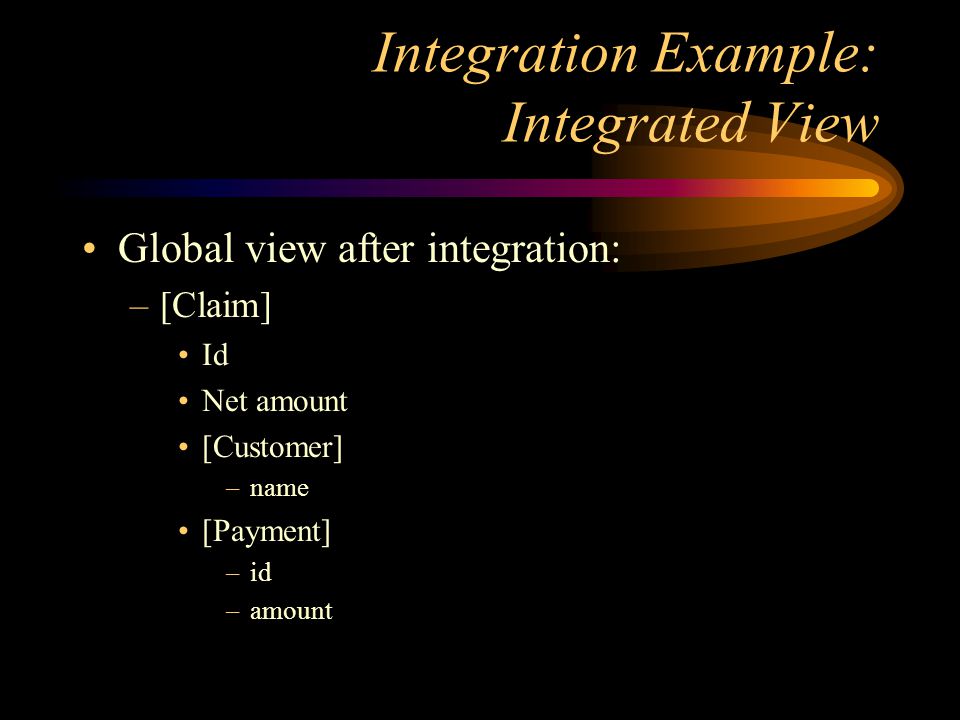

19. Integration Example: Integrated View Global view after integration: –[Claim] Id Net amount [Customer] –name [Payment] –id –amount

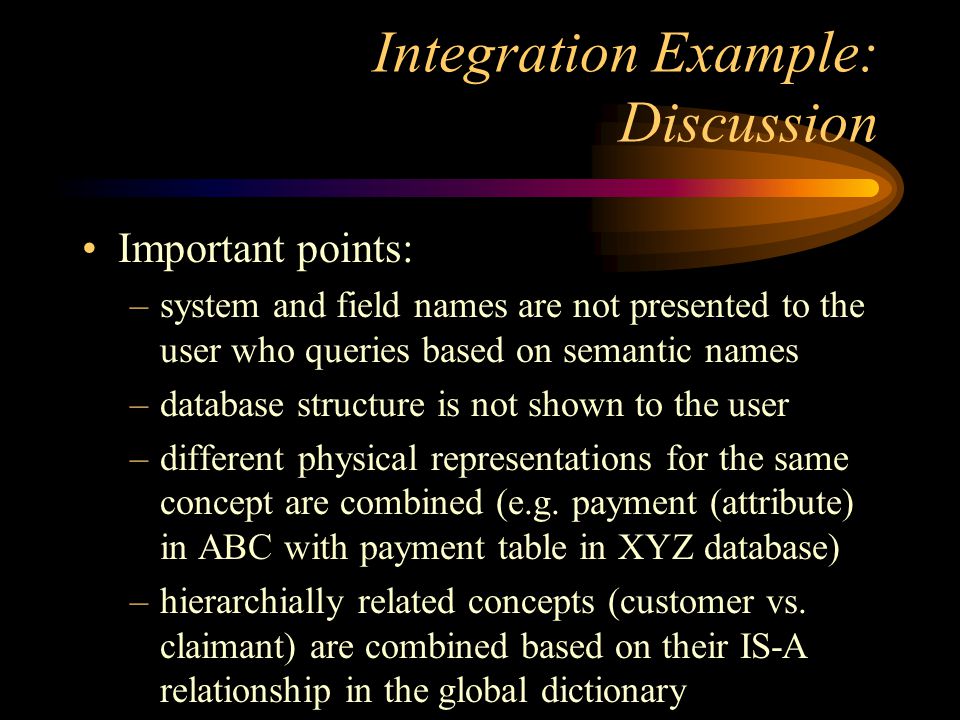

20. Integration Example: Discussion Important points: –system and field names are not presented to the user who queries based on semantic names –database structure is not shown to the user –different physical representations for the same concept are combined (e.g. payment (attribute) in ABC with payment table in XYZ database) –hierarchially related concepts (customer vs. claimant) are combined based on their IS-A relationship in the global dictionary

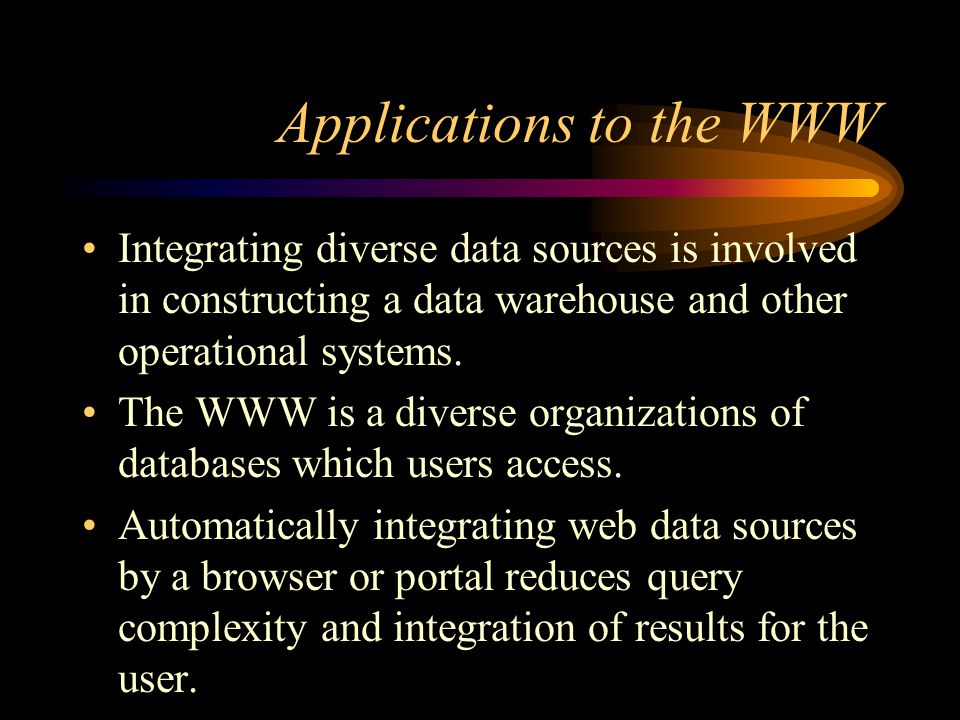

21. Applications to the WWW Integrating diverse data sources is involved in constructing a data warehouse and other operational systems. The WWW is a diverse organizations of databases which users access. Automatically integrating web data sources by a browser or portal reduces query complexity and integration of results for the user.

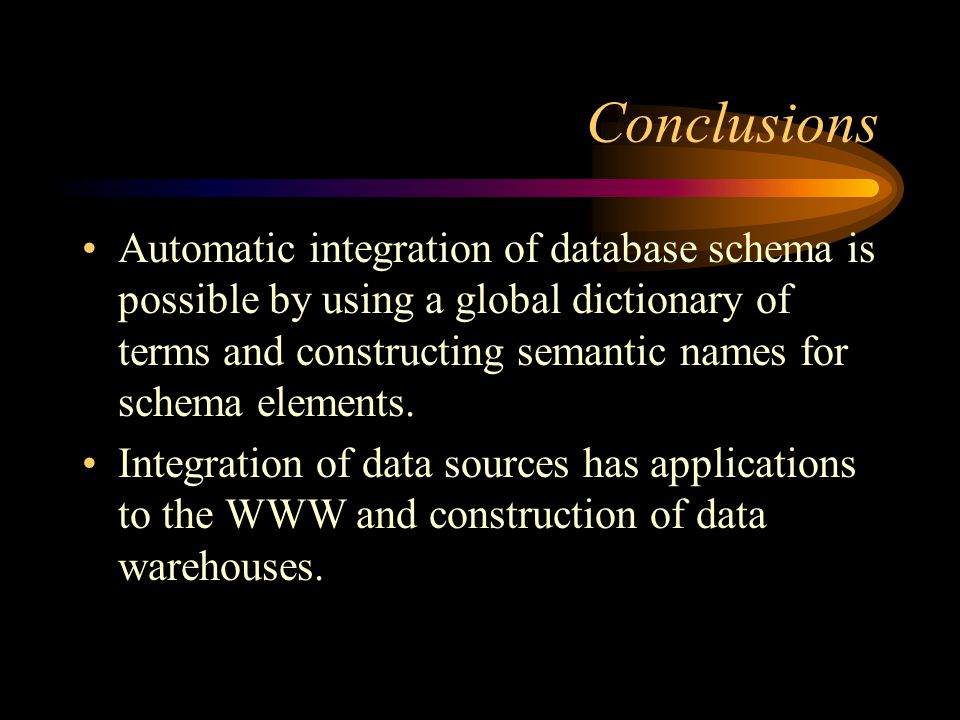

22. Conclusions Automatic integration of database schema is possible by using a global dictionary of terms and constructing semantic names for schema elements. Integration of data sources has applications to the WWW and construction of data warehouses.

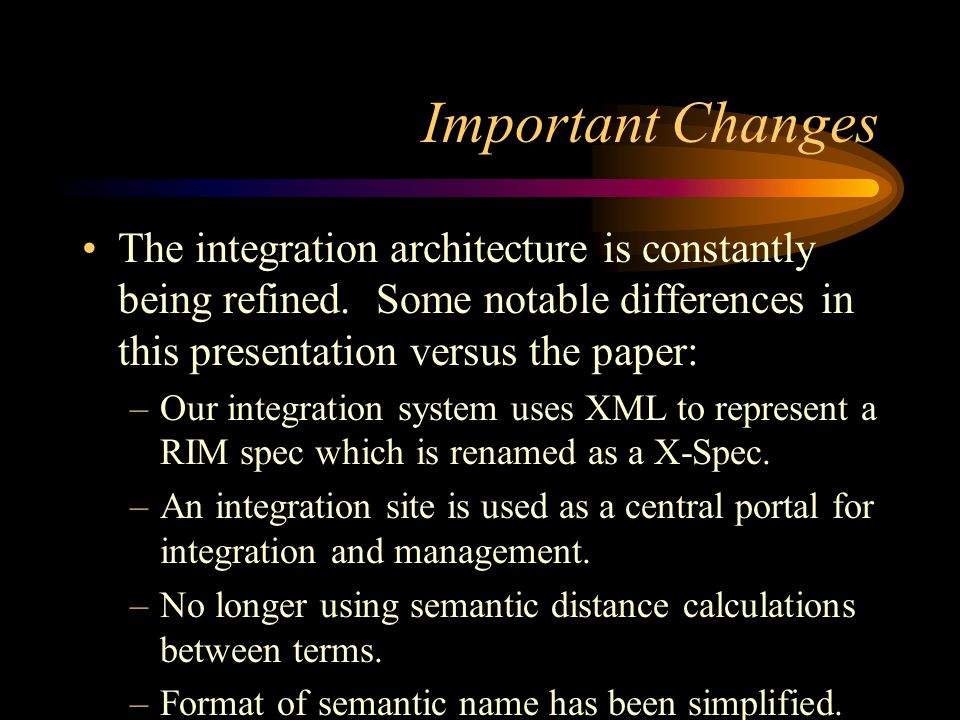

23. Important Changes The integration architecture is constantly being refined. Some notable differences in this presentation versus the paper: –Our integration system uses XML to represent a RIM spec which is renamed as a X-Spec. –An integration site is used as a central portal for integration and management. –No longer using semantic distance calculations between terms. –Format of semantic name has been simplified.

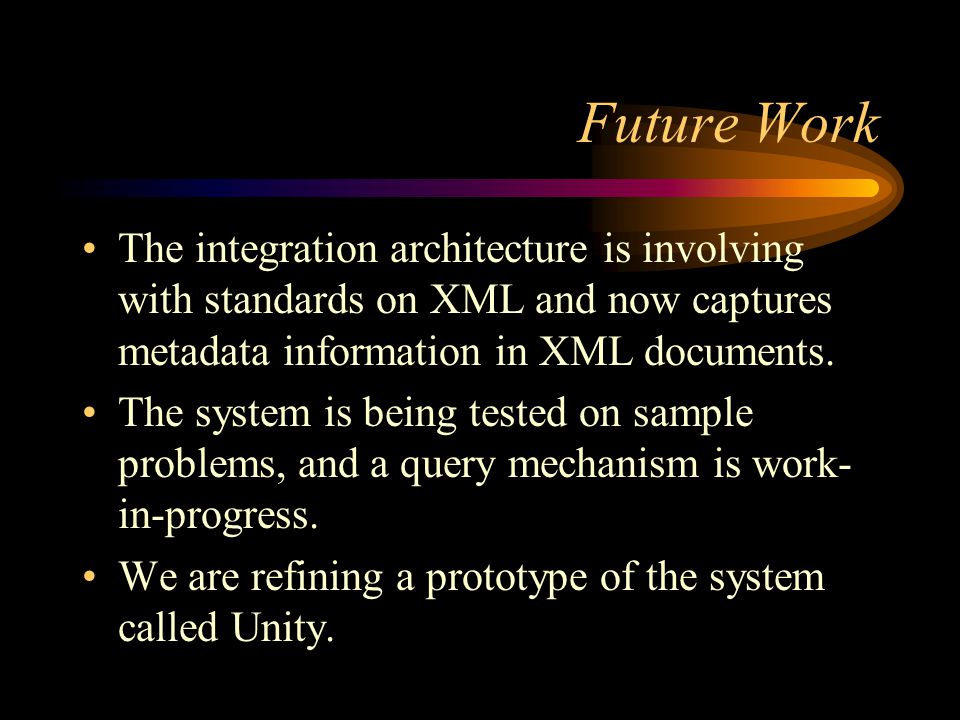

24. Future Work The integration architecture is involving with standards on XML and now captures metadata information in XML documents. The system is being tested on sample problems, and a query mechanism is work- in-progress. We are refining a prototype of the system called Unity.
