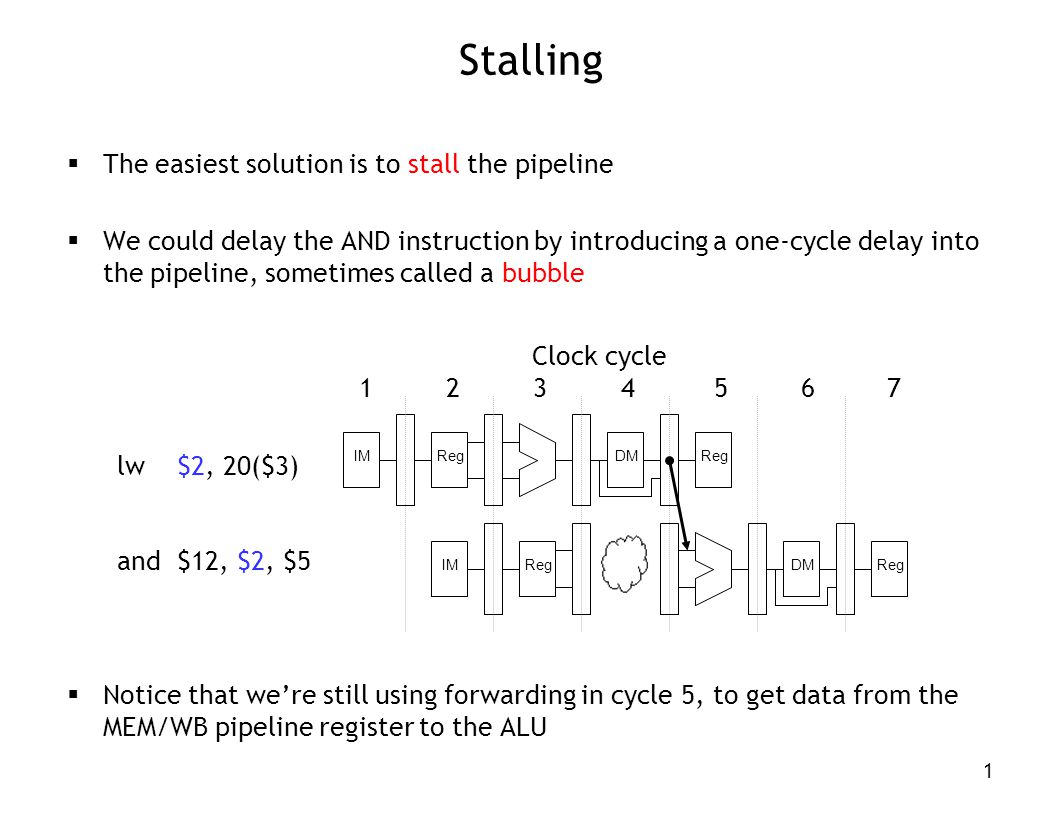

1. 1 Stalling  The easiest solution is to stall the pipeline  We could delay the AND instruction by introducing a one-cycle delay into the pipeline, sometimes called a bubble  Notice that we’re still using forwarding in cycle 5, to get data from the MEM/WB pipeline register to the ALU DM Reg IM DM Reg IM lw$2, 20($3) and$12, $2, $5 Clock cycle 1234567

2. 2 Stalling and forwarding  Without forwarding, we’d have to stall for two cycles to wait for the LW instruction’s writeback stage  In general, you can always stall to avoid hazards—but dependencies are very common in real code, and stalling often can reduce performance by a significant amount DM Reg IM DM Reg IM lw$2, 20($3) and$12, $2, $5 Clock cycle 12345678

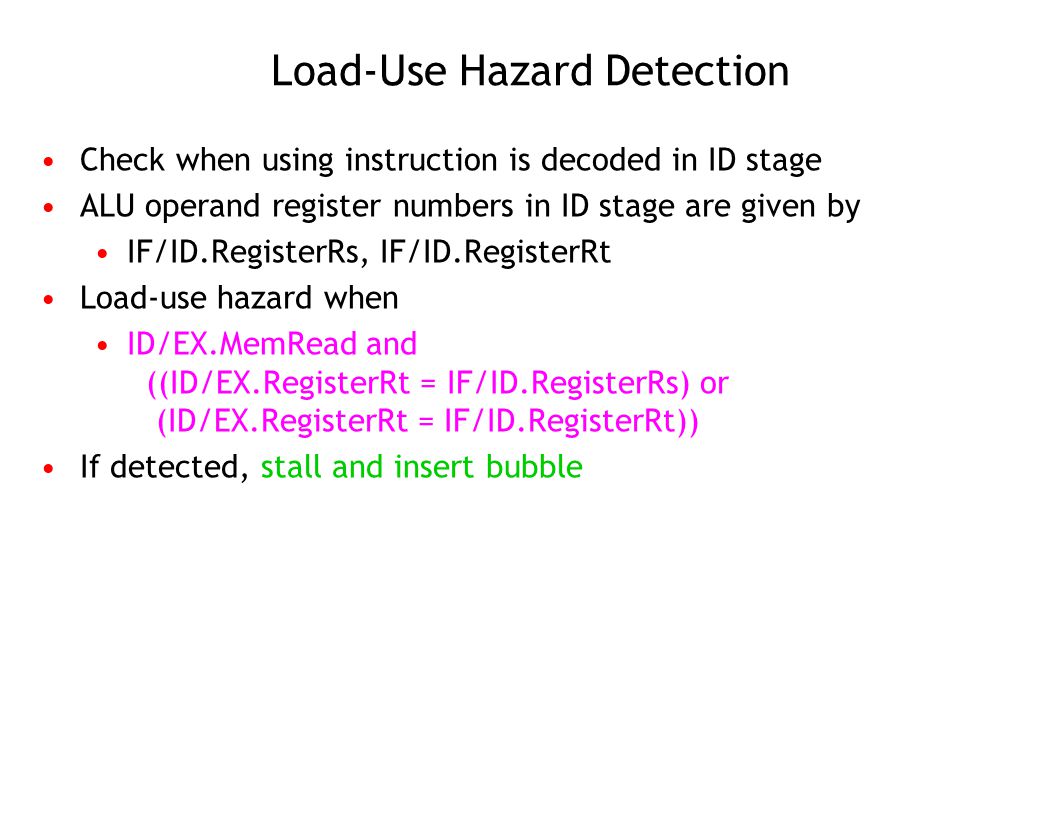

3. Load-Use Hazard Detection Check when using instruction is decoded in ID stage ALU operand register numbers in ID stage are given by IF/ID.RegisterRs, IF/ID.RegisterRt Load-use hazard when ID/EX.MemRead and ((ID/EX.RegisterRt = IF/ID.RegisterRs) or (ID/EX.RegisterRt = IF/ID.RegisterRt)) If detected, stall and insert bubble

4. How to Stall the Pipeline Force control values in ID/EX register to 0 EX, MEM and WB do nop (no-operation) Prevent update of PC and IF/ID register Using instruction is decoded again Following instruction is fetched again 1-cycle stall allows MEM to read data for lw Can subsequently forward to EX stage

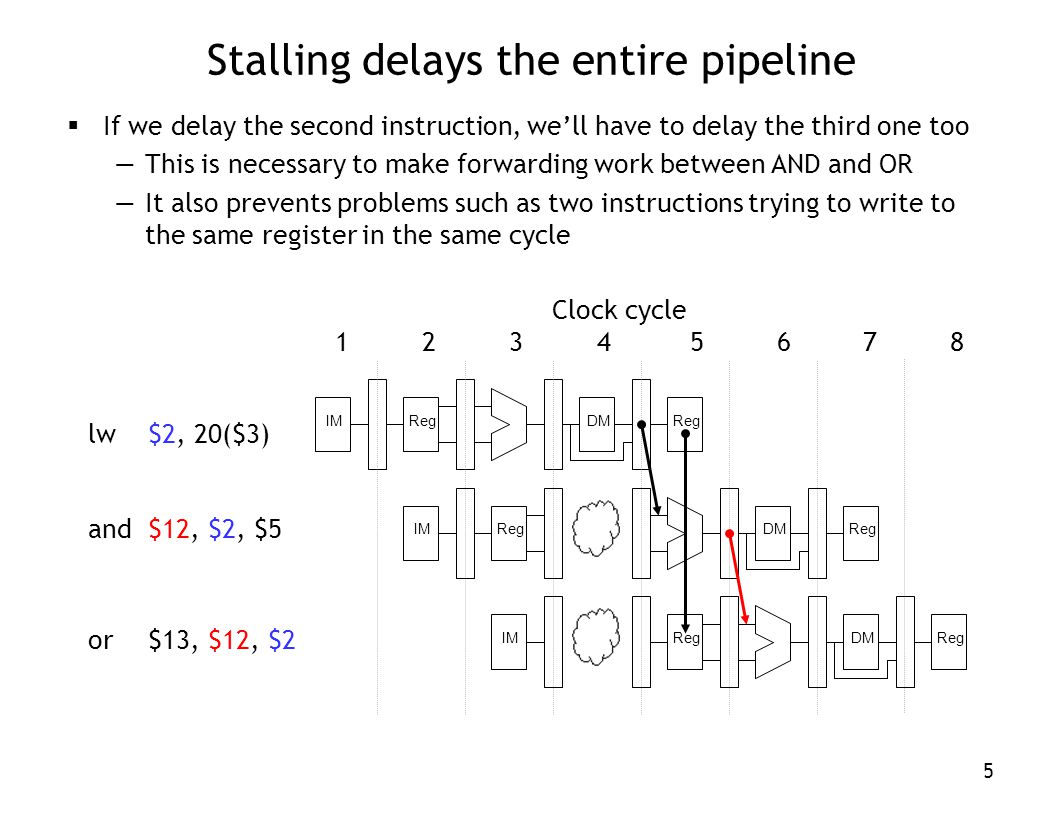

5. 5 Stalling delays the entire pipeline  If we delay the second instruction, we’ll have to delay the third one too —This is necessary to make forwarding work between AND and OR —It also prevents problems such as two instructions trying to write to the same register in the same cycle DM Reg IM DM Reg IM DMReg IM lw$2, 20($3) and$12, $2, $5 or$13, $12, $2 Clock cycle 12345678

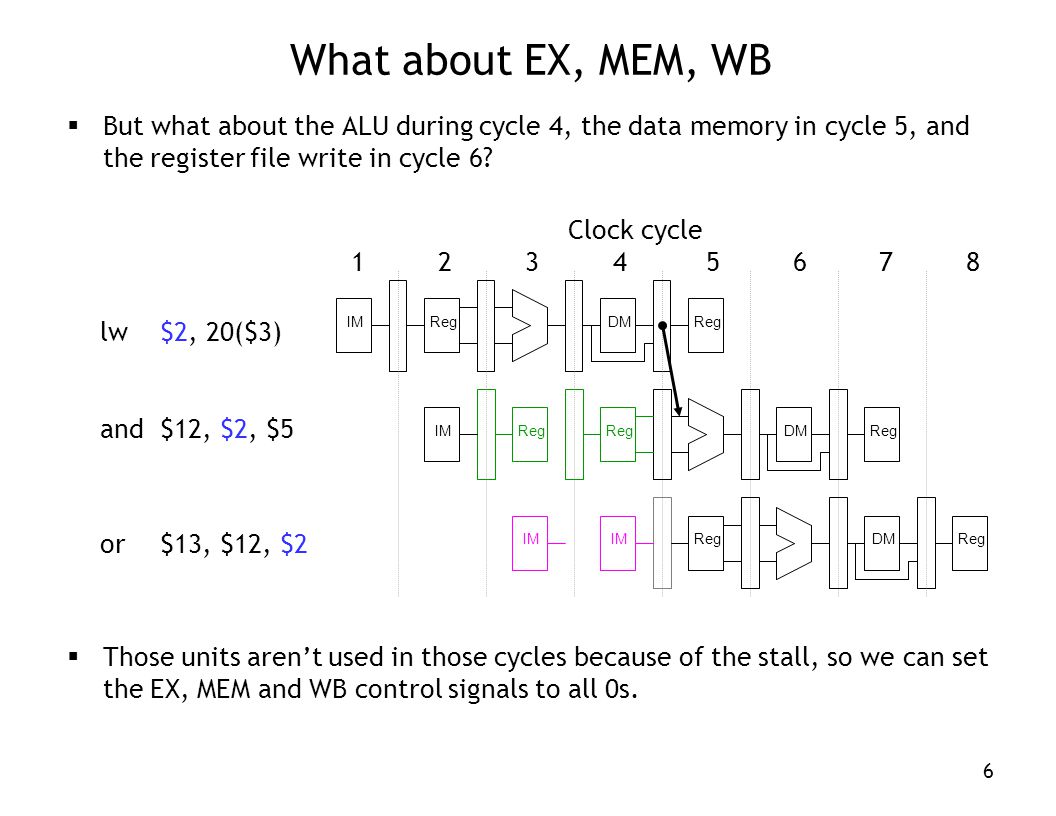

6. 6  But what about the ALU during cycle 4, the data memory in cycle 5, and the register file write in cycle 6?  Those units aren’t used in those cycles because of the stall, so we can set the EX, MEM and WB control signals to all 0s. Reg What about EX, MEM, WB DM Reg IM RegIM lw$2, 20($3) and$12, $2, $5 or$13, $12, $2 DMReg IM DM Reg Clock cycle 12345678

7. 7 Detecting Stalls, cont.  When should stalls be detected? EX stage (of the instruction causing the stall) Reg DM Reg IM RegIM lw$2, 20($3) and$12, $2, $5 DM Reg id/exif/id ex/mem mem\wb id/ex if/id ex/mem mem\wb if/id  What is the stall condition? if (ID/EX.MemRead = 1 and (ID/EX.rt = IF/ID.rs or ID/EX.rt = IF/ID.rt)) then stall

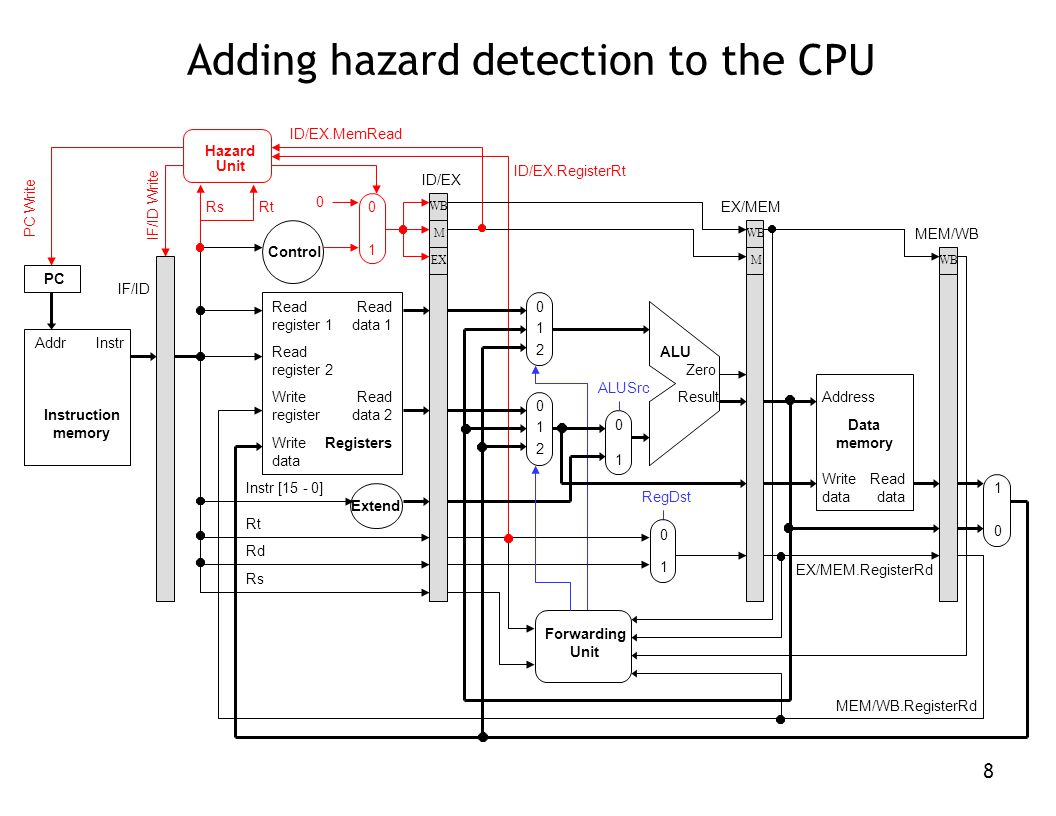

8. 8 Adding hazard detection to the CPU

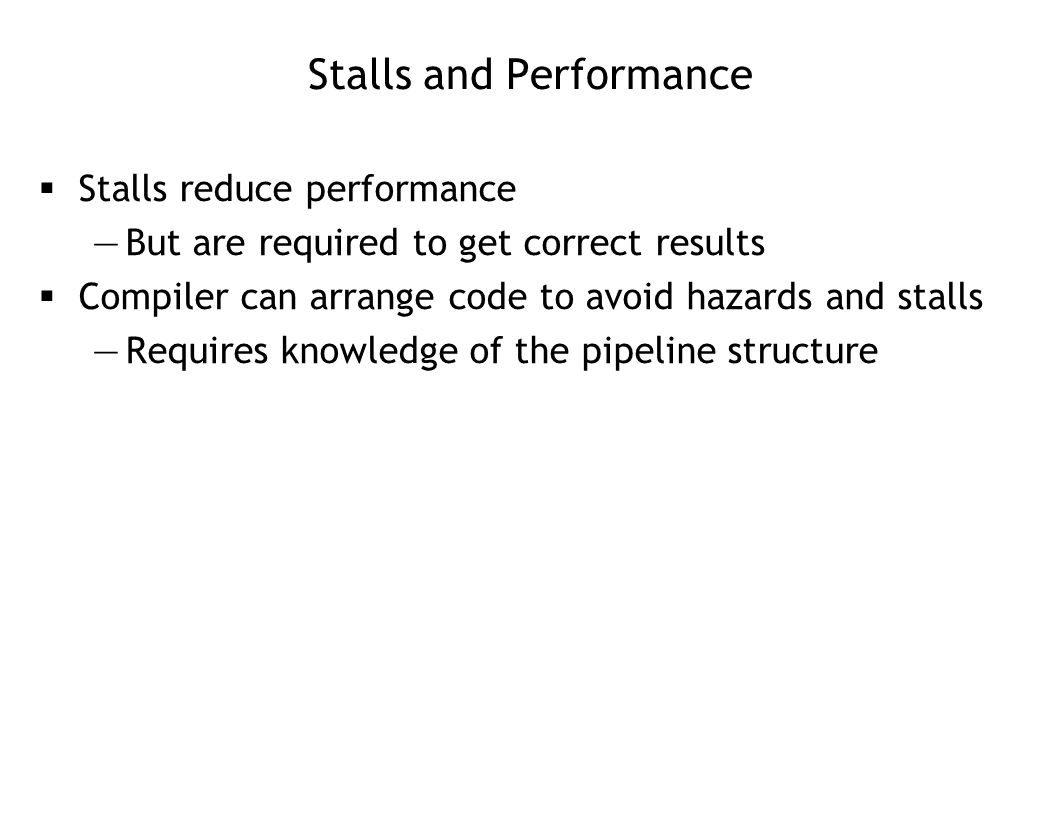

9. Stalls and Performance  Stalls reduce performance —But are required to get correct results  Compiler can arrange code to avoid hazards and stalls —Requires knowledge of the pipeline structure

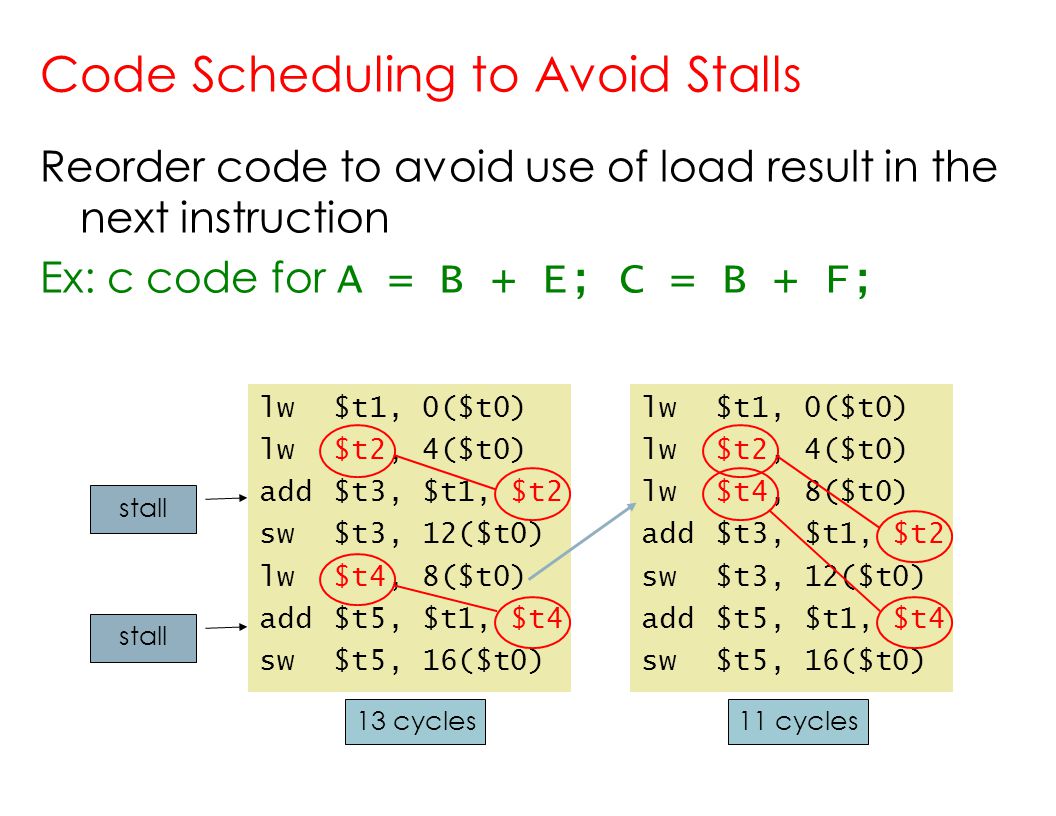

10. Code Scheduling to Avoid Stalls Reorder code to avoid use of load result in the next instruction Ex: c code for A = B + E; C = B + F; lw$t1, 0($t0) lw$t2, 4($t0) add$t3, $t1, $t2 sw$t3, 12($t0) lw$t4, 8($t0) add$t5, $t1, $t4 sw$t5, 16($t0) stall lw$t1, 0($t0) lw$t2, 4($t0) lw$t4, 8($t0) add$t3, $t1, $t2 sw$t3, 12($t0) add$t5, $t1, $t4 sw$t5, 16($t0) 11 cycles13 cycles

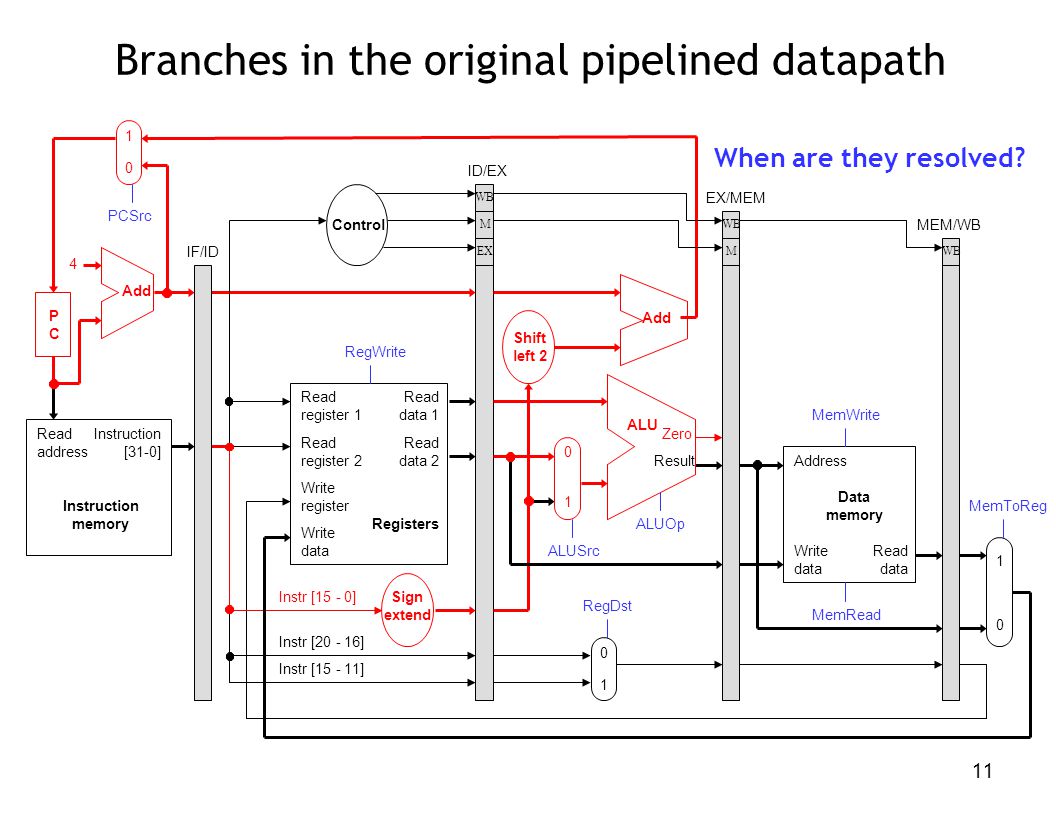

11. 11 Branches in the original pipelined datapath Read address Instruction memory Instruction [31-0] Address Write data Data memory Read data MemWrite MemRead 1010 MemToReg 4 Shift left 2 PCPC Add 1010 PCSrc Sign extend ALUSrc Result Zero ALU ALUOp Instr [15 - 0] RegDst Read register 1 Read register 2 Write register Write data Read data 2 Read data 1 Registers RegWrite Add Instr [15 - 11] Instr [20 - 16] 0101 0 1 IF/ID ID/EX EX/MEM MEM/WB EX M WB Control M WB When are they resolved?

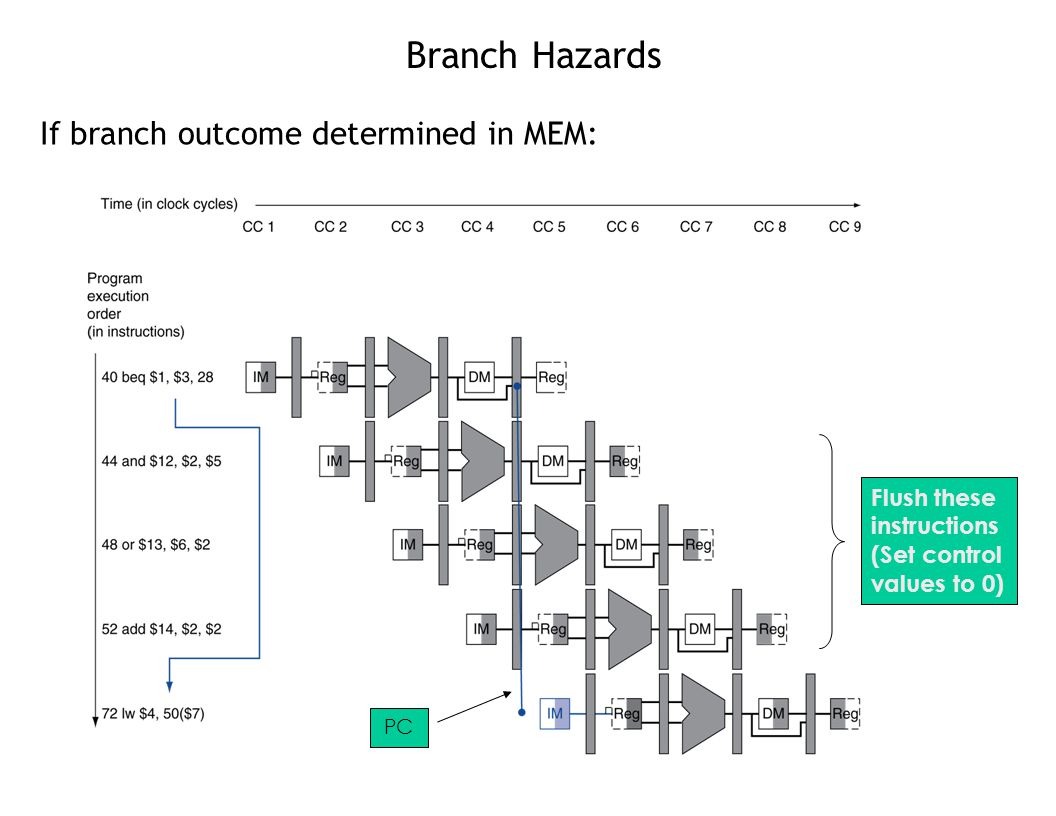

12. Branch Hazards If branch outcome determined in MEM: PC Flush these instructions (Set control values to 0)

13. Reducing Branch Delay Move hardware to determine outcome to ID stage —Target address adder —Register comparator Example: branch taken 36: sub $10, $4, $8 40: beq $1, $3, 7 44: and $12, $2, $5 48: or $13, $2, $6 52: add $14, $4, $2 56: slt $15, $6, $7... 72: lw $4, 50($7)

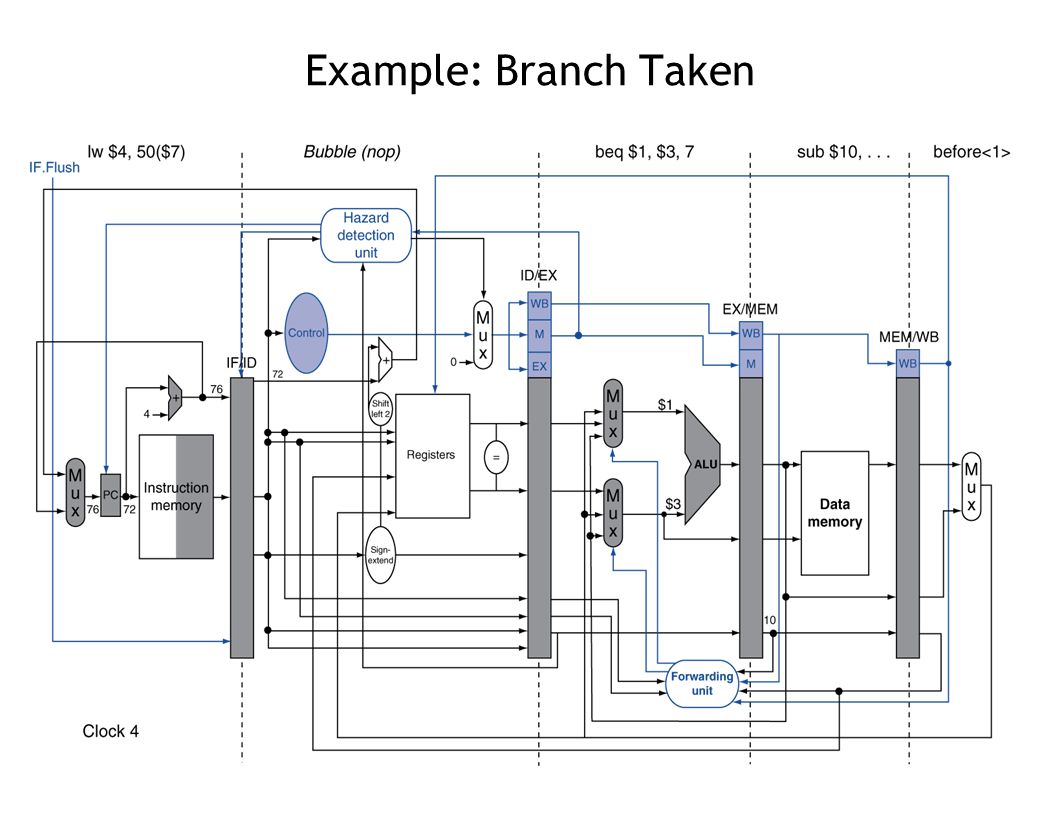

14. Example: Branch Taken

16. Data Hazards for Branches If a comparison register is a destination of 2 nd or 3 rd preceding ALU instruction … IFIDEXMEMWB IFIDEXMEMWB IFIDEXMEMWB IFIDEXMEMWB add $4, $5, $6 add $1, $2, $3 beq $1, $4, target Can resolve using forwarding

17. Data Hazards for Branches If a comparison register is a destination of preceding ALU instruction or 2 nd preceding load instruction Need 1 stall cycle beq stalled IFIDEXMEMWB IFIDEXMEMWB IFID EXMEMWB add $4, $5, $6 lw $1, addr beq $1, $4, target

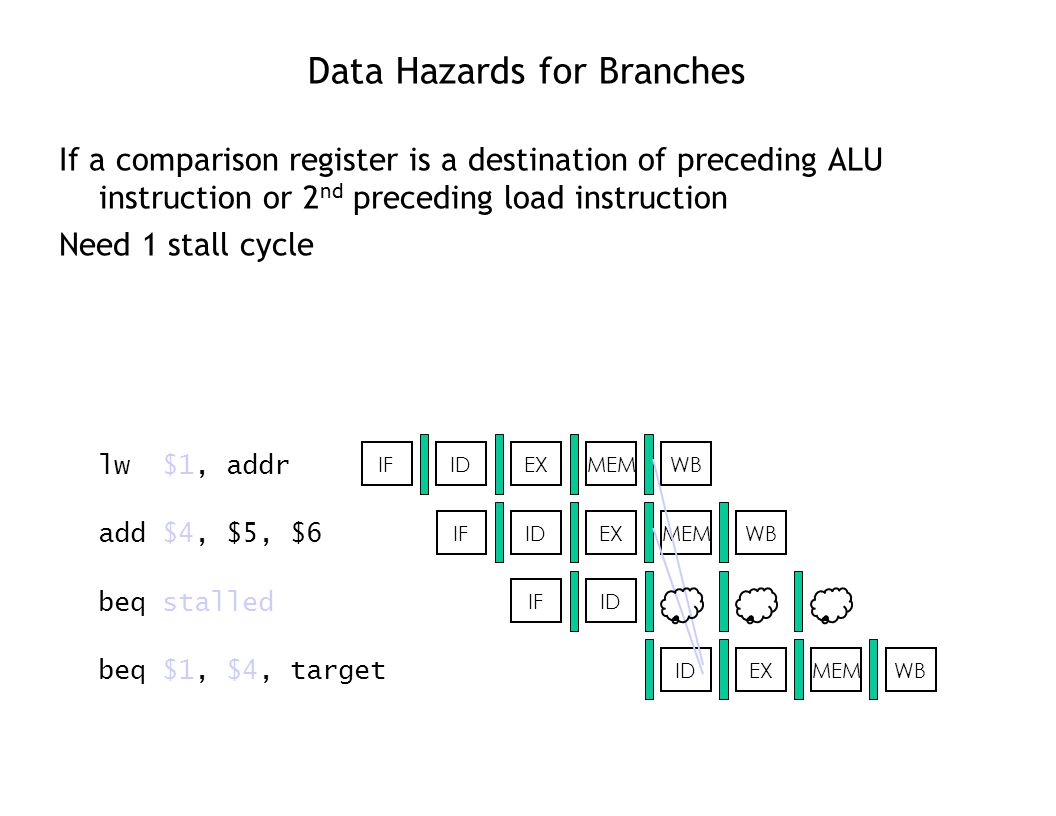

18. Data Hazards for Branches If a comparison register is a destination of immediately preceding load instruction —Need 2 stall cycles beq stalled IFIDEXMEMWB IFID EXMEMWB beq stalled lw $1, addr beq $1, $0, target

19. Branch Prediction Longer pipelines can’t readily determine branch outcome early Stall penalty becomes unacceptable Predict (i.e., guess) outcome of branch Only stall if prediction is wrong Simplest prediction strategy predict branches not taken Works well for loops if the loop tests are done at the start. Fetch instruction after branch, with no delay

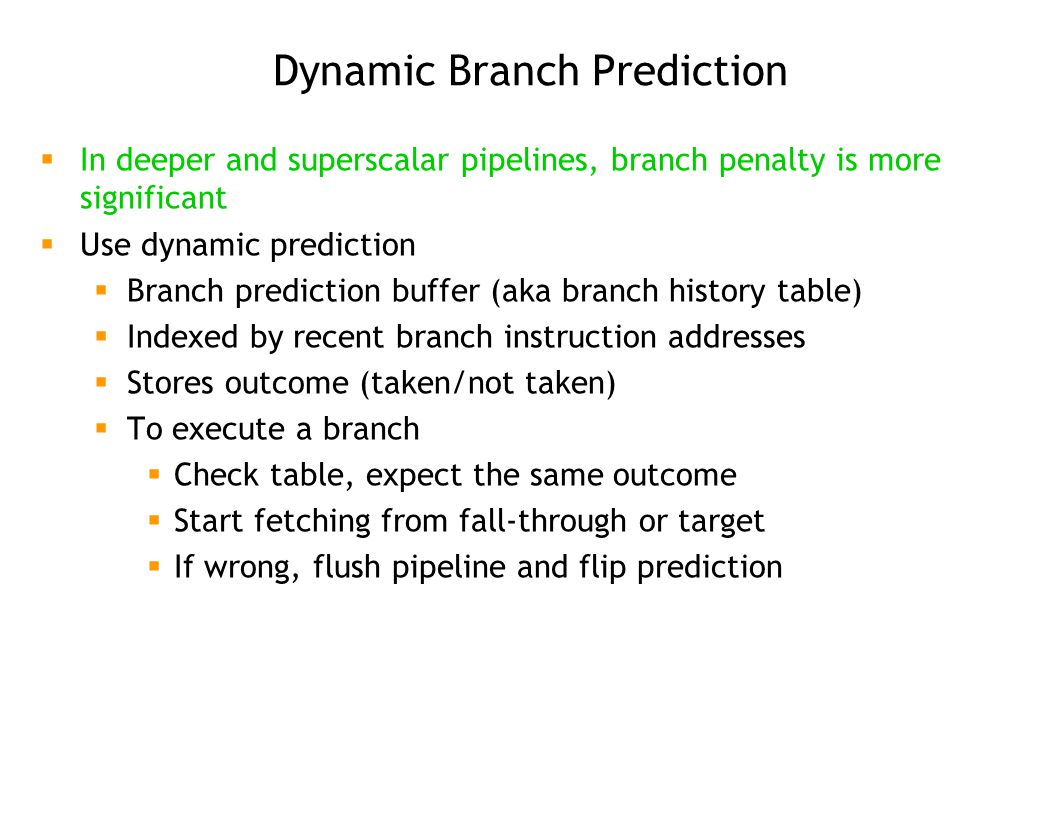

20. Dynamic Branch Prediction  In deeper and superscalar pipelines, branch penalty is more significant  Use dynamic prediction  Branch prediction buffer (aka branch history table)  Indexed by recent branch instruction addresses  Stores outcome (taken/not taken)  To execute a branch  Check table, expect the same outcome  Start fetching from fall-through or target  If wrong, flush pipeline and flip prediction

21. 1-Bit Predictor: Shortcoming Inner loop branches mispredicted twice! outer: … … inner: … … beq …, …, inner … beq …, …, outer  Mispredict as taken on last iteration of inner loop  Then mispredict as not taken on first iteration of inner loop next time around

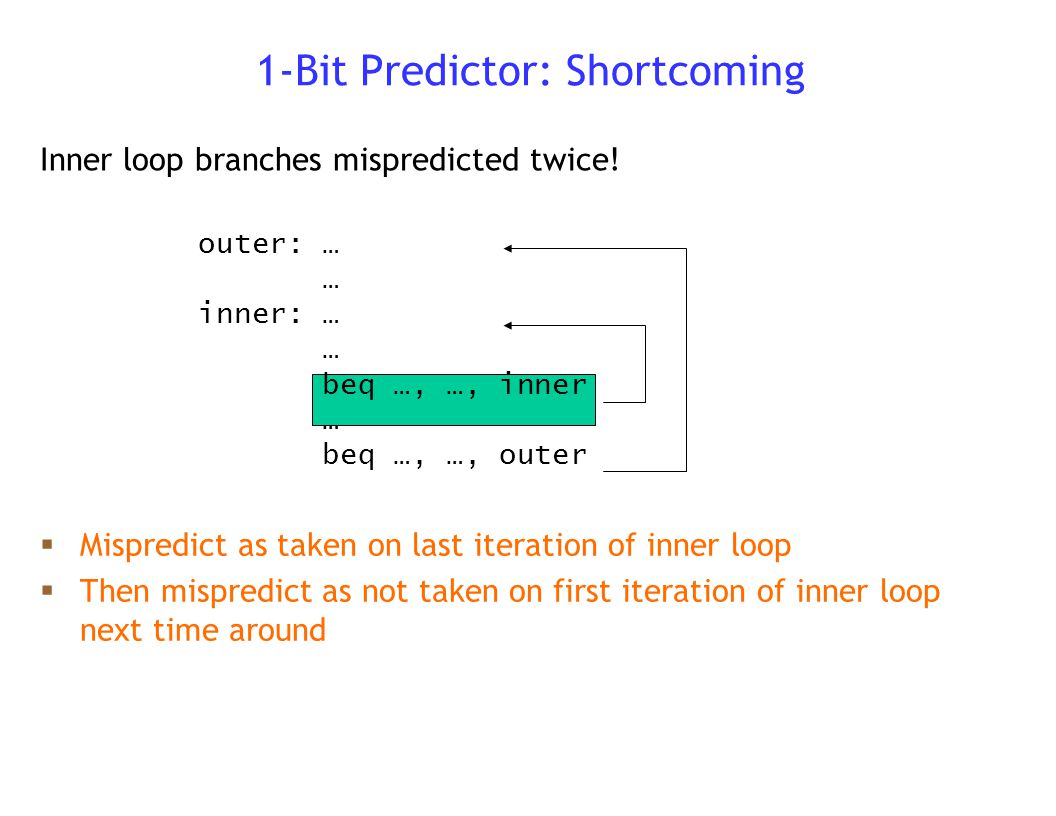

22. 2-Bit Predictor Only change prediction on two successive mispredictions

23. Calculating the Branch Target  Even with predictor, still need to calculate the target address  1-cycle penalty for a taken branch  Branch target buffer  Cache of target addresses  Indexed by PC when instruction fetched  If hit and instruction is branch predicted taken, can fetch target immediately

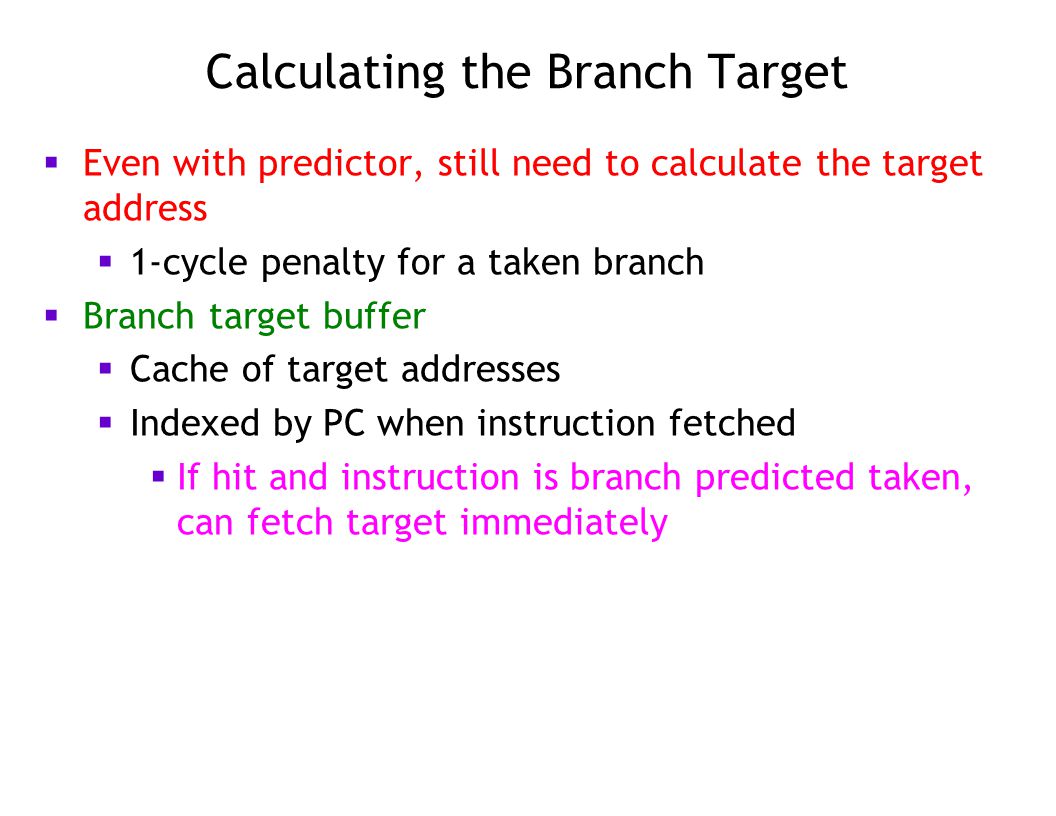

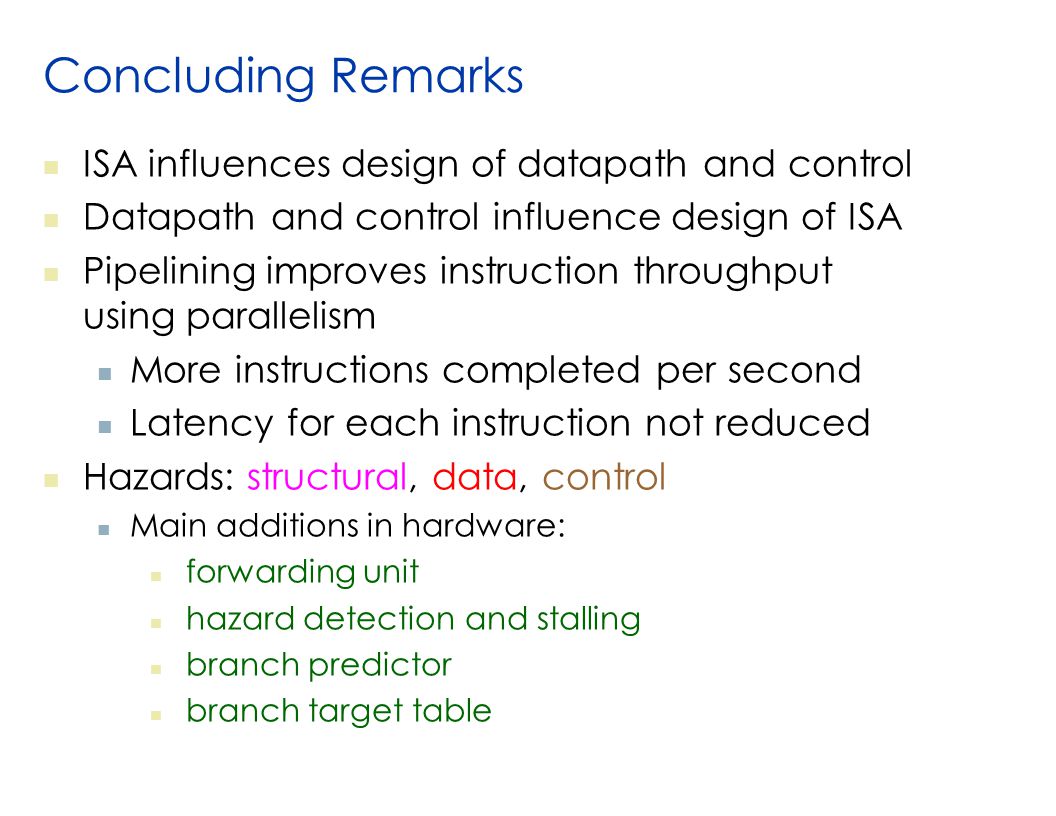

24. Concluding Remarks ISA influences design of datapath and control Datapath and control influence design of ISA Pipelining improves instruction throughput using parallelism More instructions completed per second Latency for each instruction not reduced Hazards: structural, data, control Main additions in hardware: forwarding unit hazard detection and stalling branch predictor branch target table
