1. CS3101-2, Lecture 5 CS3101-2 Programming Languages – C++ Lecture 5 Matthew P. Johnson Columbia University Fall 2003

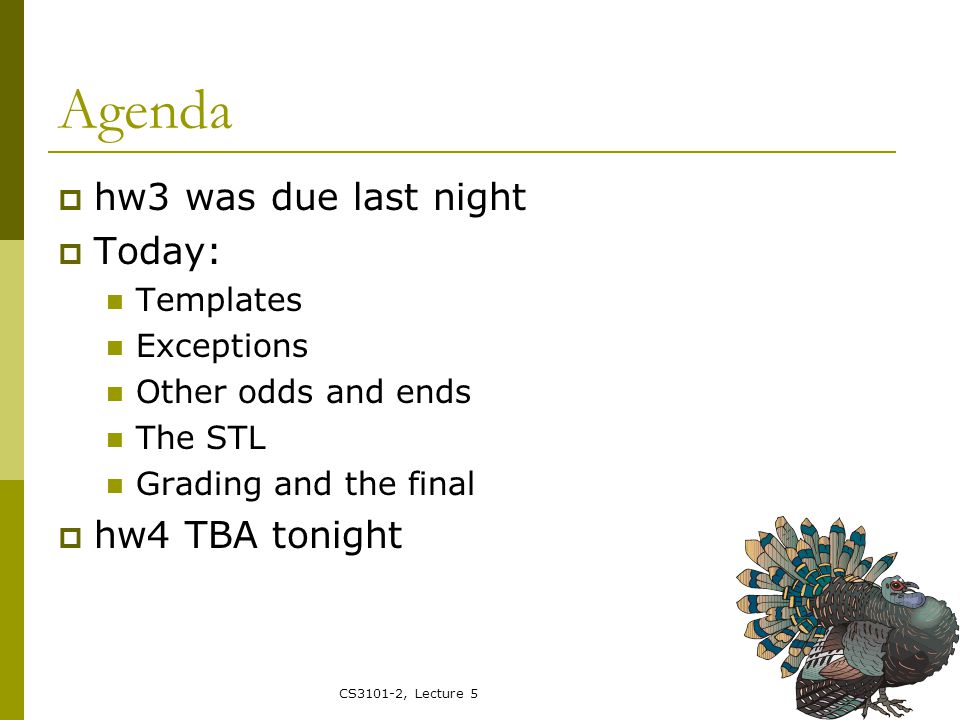

2. CS3101-2, Lecture 5 Agenda  hw3 was due last night  Today: Templates Exceptions Other odds and ends The STL Grading and the final  hw4 TBA tonight

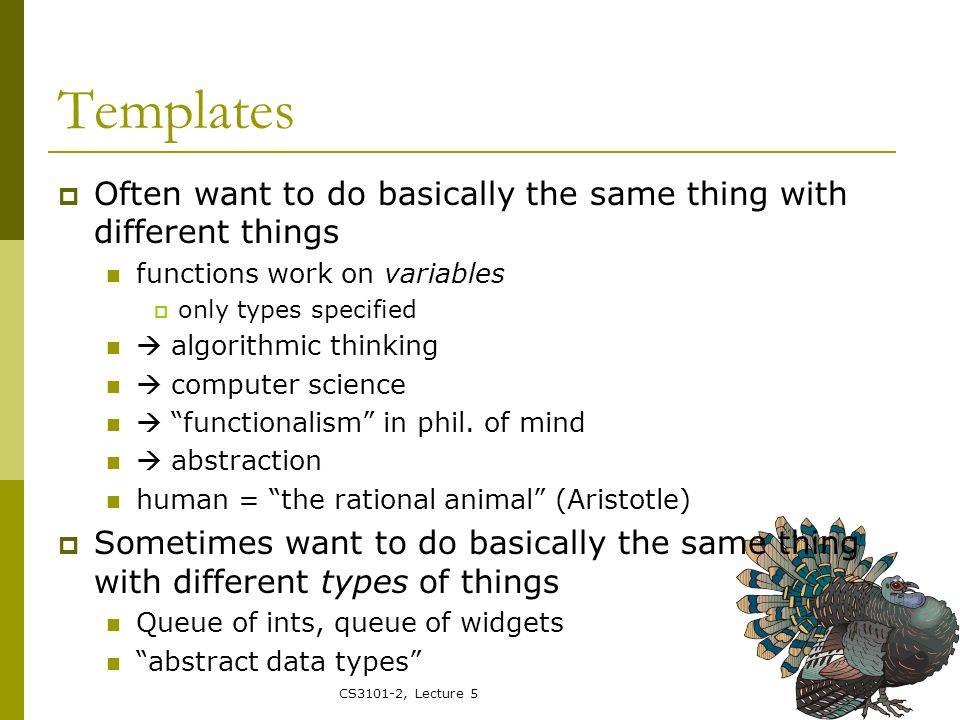

3. CS3101-2, Lecture 5 Templates  Often want to do basically the same thing with different things functions work on variables  only types specified  algorithmic thinking  computer science  “functionalism” in phil. of mind  abstraction human = “the rational animal” (Aristotle)  Sometimes want to do basically the same thing with different types of things Queue of ints, queue of widgets “abstract data types”

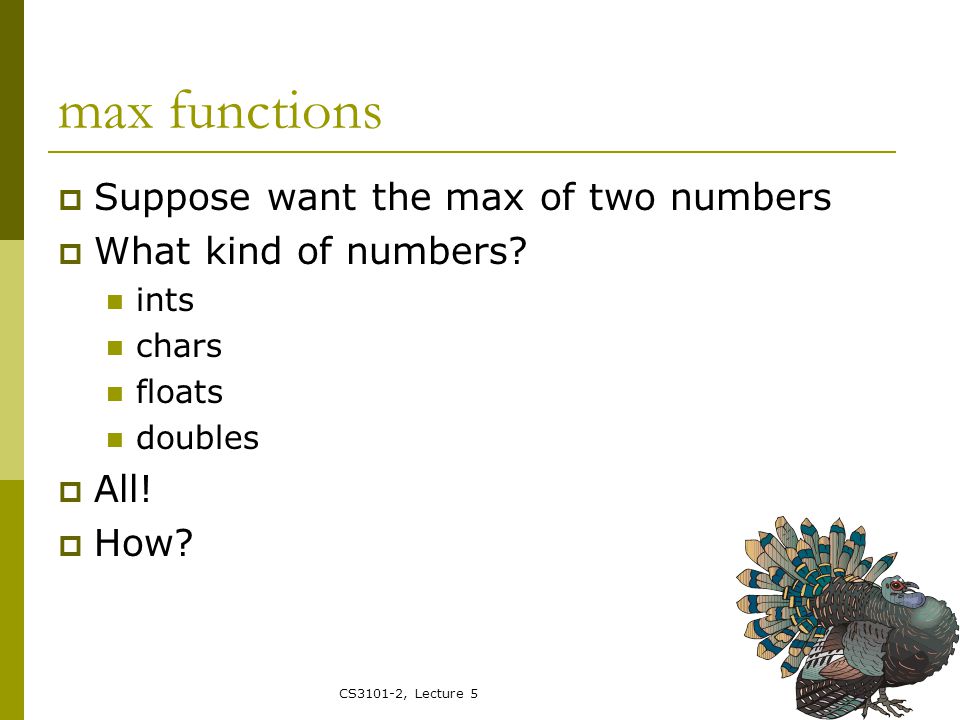

4. CS3101-2, Lecture 5 max functions  Suppose want the max of two numbers  What kind of numbers? ints chars floats doubles  All!  How?

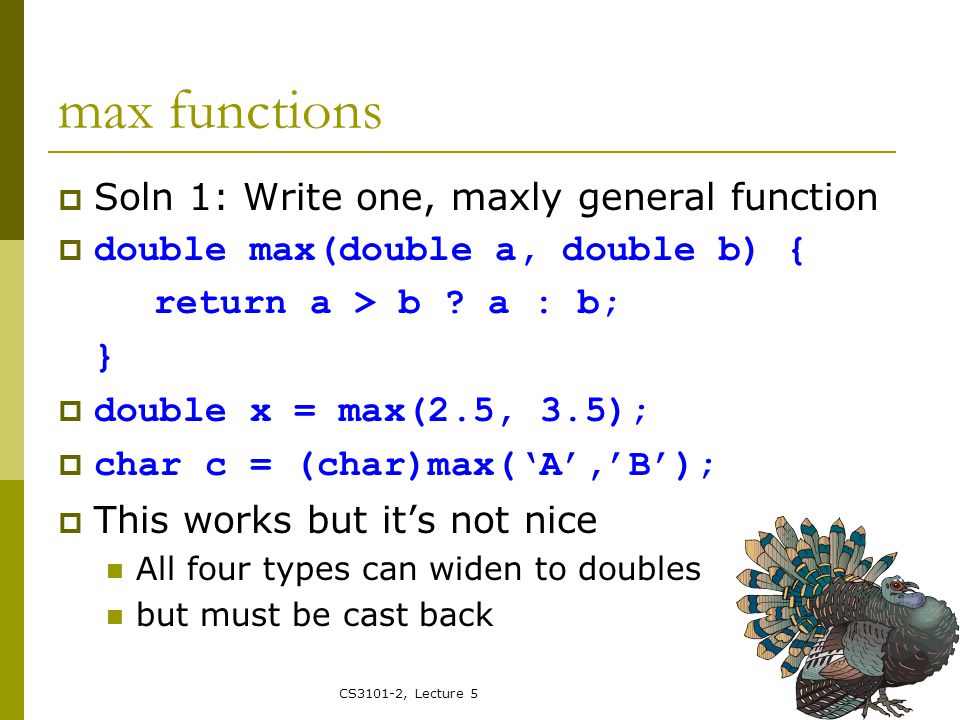

5. CS3101-2, Lecture 5 max functions  Soln 1: Write one, maxly general function  double max(double a, double b) { return a > b ? a : b; }  double x = max(2.5, 3.5);  char c = (char)max(‘A’,’B’);  This works but it’s not nice All four types can widen to doubles but must be cast back

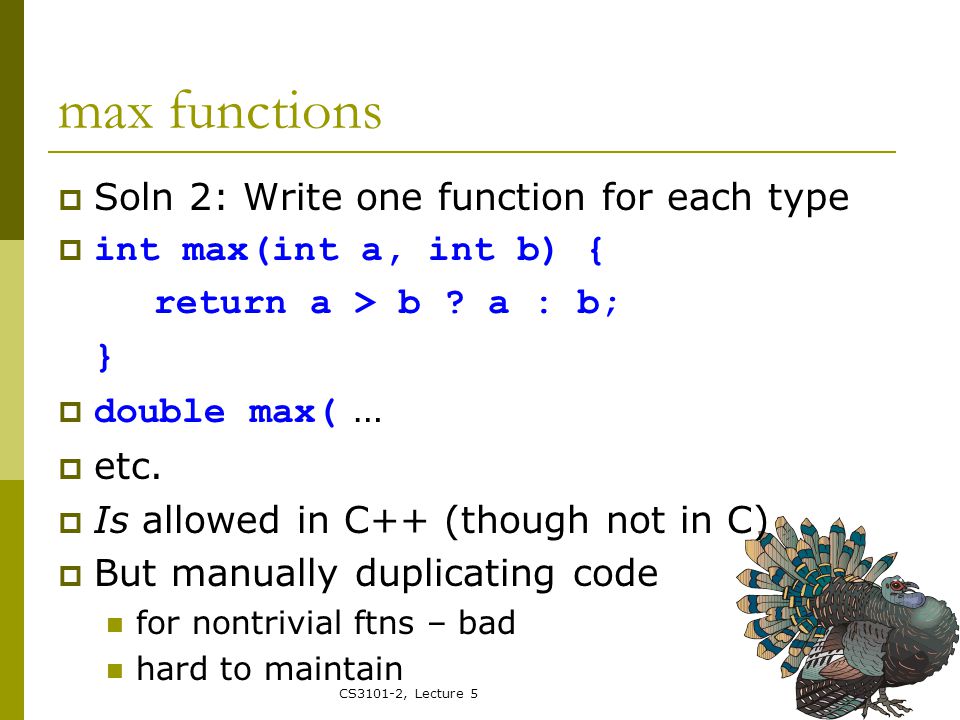

6. CS3101-2, Lecture 5 max functions  Soln 2: Write one function for each type  int max(int a, int b) { return a > b ? a : b; }  double max( …  etc.  Is allowed in C++ (though not in C)  But manually duplicating code for nontrivial ftns – bad hard to maintain

7. CS3101-2, Lecture 5 max functions  Soln 3: Use the C preprocessor macros  #define max(a,b) (a > b ? a : b)  C source code is preprocessed #include s replaced with header files #ifndef, etc. macro calls replaced with macro content  int c = max(2,3);   int c = (2 > 3 ? 2 : 3);  Works too, but complications, e.g.: z = max(x++, y++)  z = (x++ > y++ ? x++ : y++) x, y inc-ed twice  Need many parens – sq(a+b), etc.

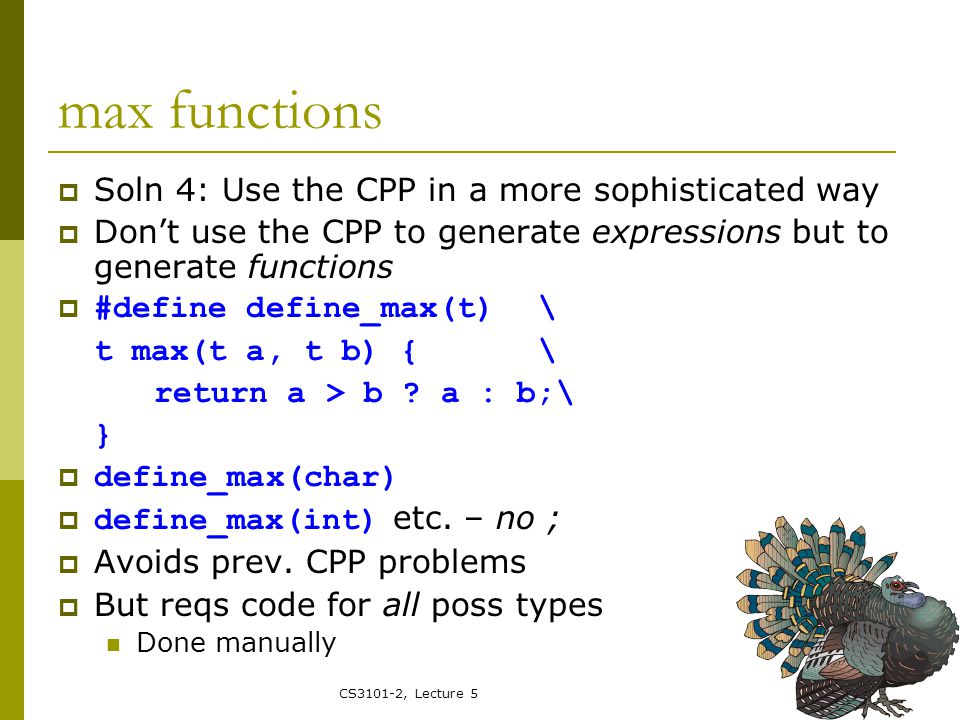

8. CS3101-2, Lecture 5 max functions  Soln 4: Use the CPP in a more sophisticated way  Don’t use the CPP to generate expressions but to generate functions  #define define_max(t)\ t max(t a, t b) {\ return a > b ? a : b;\ }  define_max(char)  define_max(int) etc. – no ;  Avoids prev. CPP problems  But reqs code for all poss types Done manually

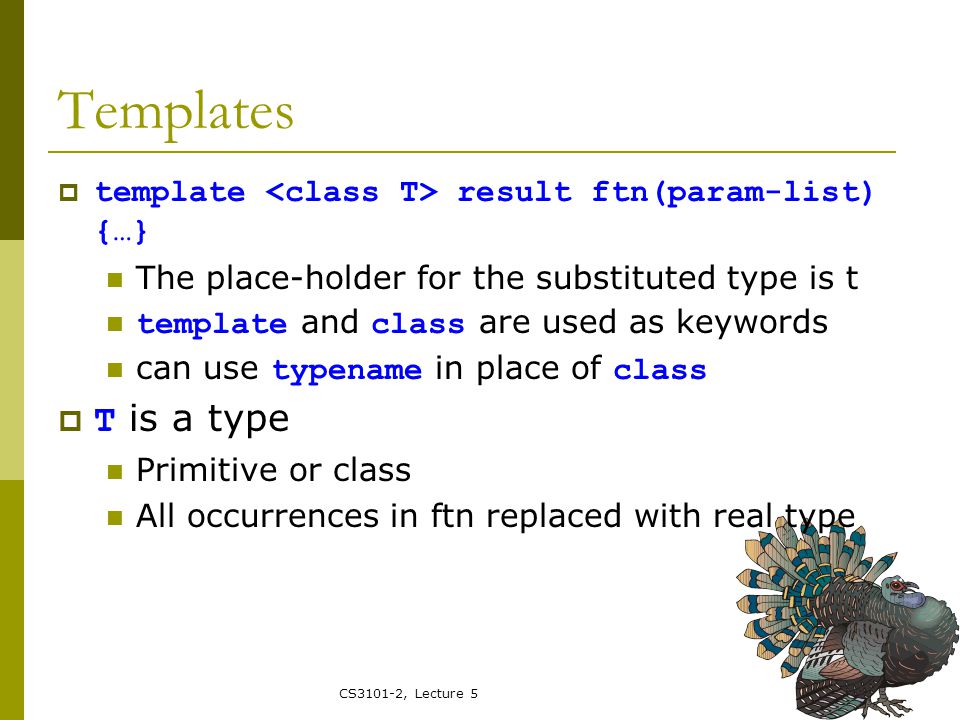

9. CS3101-2, Lecture 5 Templates  template result ftn(param-list) {…} The place-holder for the substituted type is t template and class are used as keywords can use typename in place of class  T is a type Primitive or class All occurrences in ftn replaced with real type

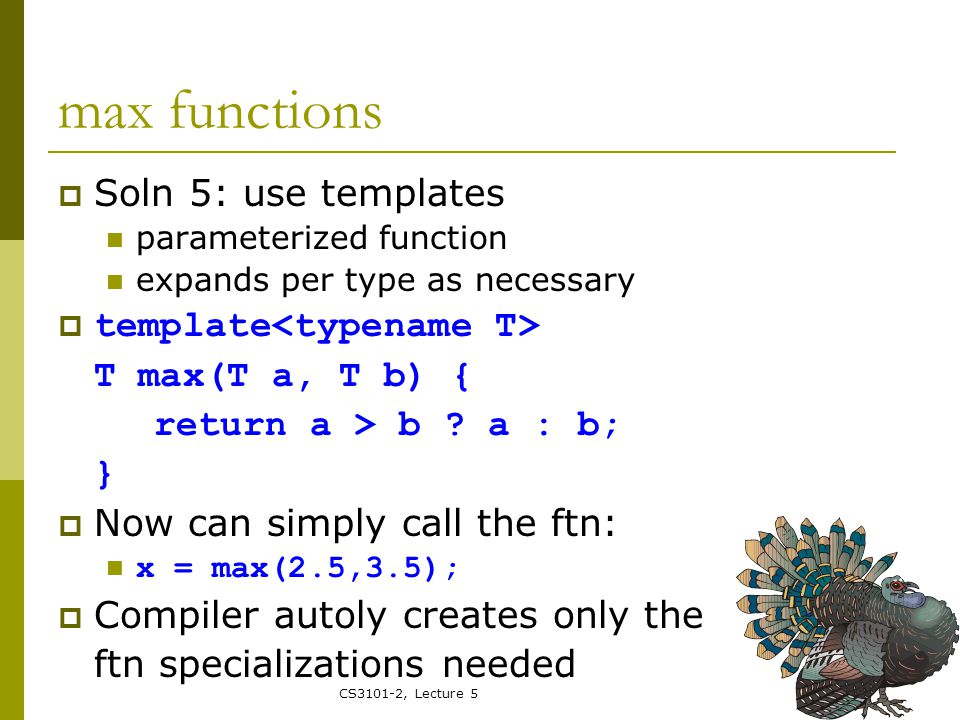

10. CS3101-2, Lecture 5 max functions  Soln 5: use templates parameterized function expands per type as necessary  template T max(T a, T b) { return a > b ? a : b; }  Now can simply call the ftn: x = max(2.5,3.5);  Compiler autoly creates only the ftn specializations needed

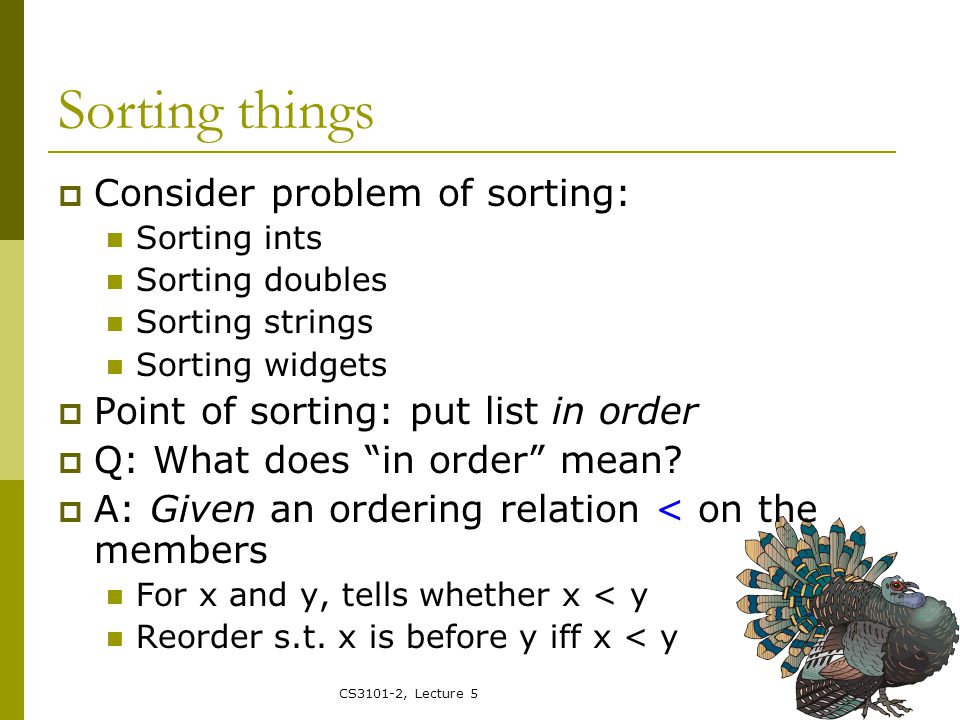

11. CS3101-2, Lecture 5 Sorting things  Consider problem of sorting: Sorting ints Sorting doubles Sorting strings Sorting widgets  Point of sorting: put list in order  Q: What does “in order” mean?  A: Given an ordering relation < on the members For x and y, tells whether x < y Reorder s.t. x is before y iff x < y

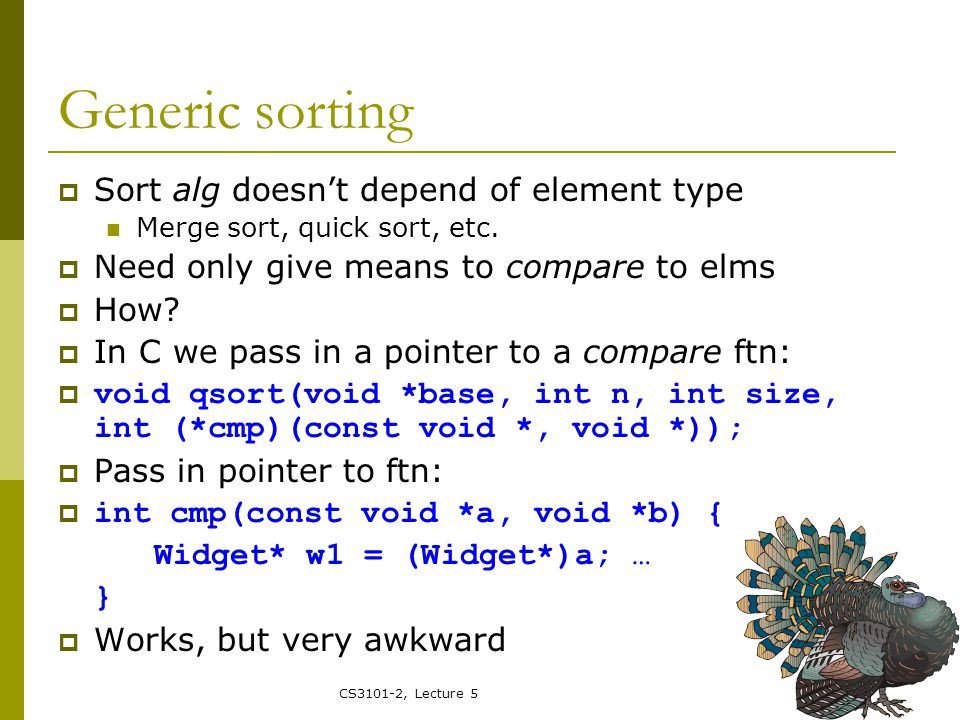

12. CS3101-2, Lecture 5 Generic sorting  Sort alg doesn’t depend of element type Merge sort, quick sort, etc.  Need only give means to compare to elms  How?  In C we pass in a pointer to a compare ftn:  void qsort(void *base, int n, int size, int (*cmp)(const void *, void *));  Pass in pointer to ftn:  int cmp(const void *a, void *b) { Widget* w1 = (Widget*)a; … }  Works, but very awkward

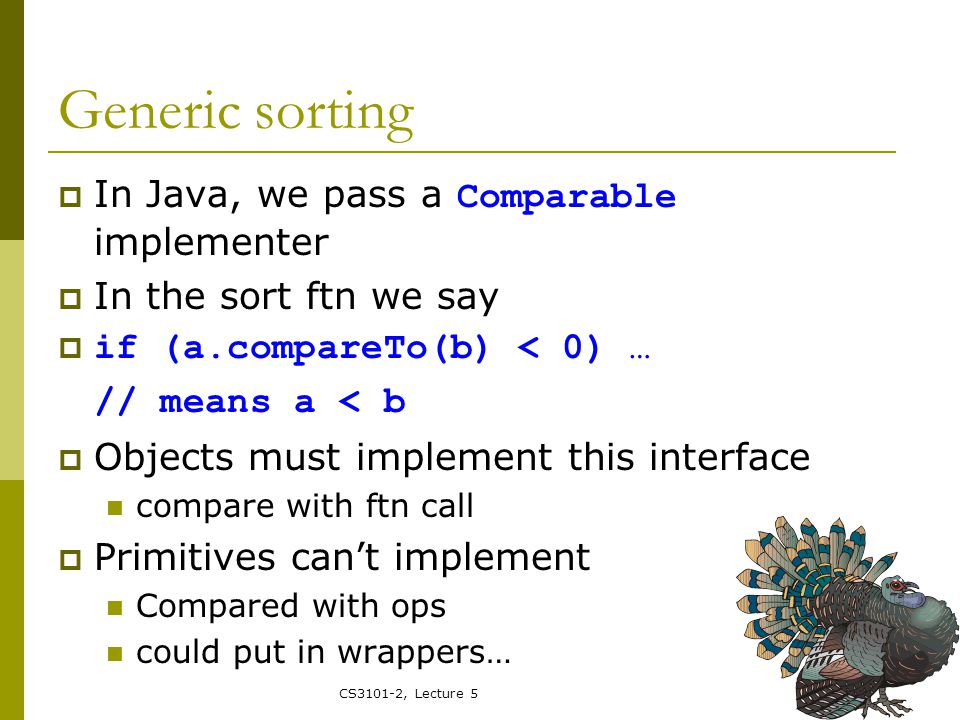

13. CS3101-2, Lecture 5 Generic sorting  In Java, we pass a Comparable implementer  In the sort ftn we say  if (a.compareTo(b) < 0) … // means a < b  Objects must implement this interface compare with ftn call  Primitives can’t implement Compared with ops could put in wrappers…

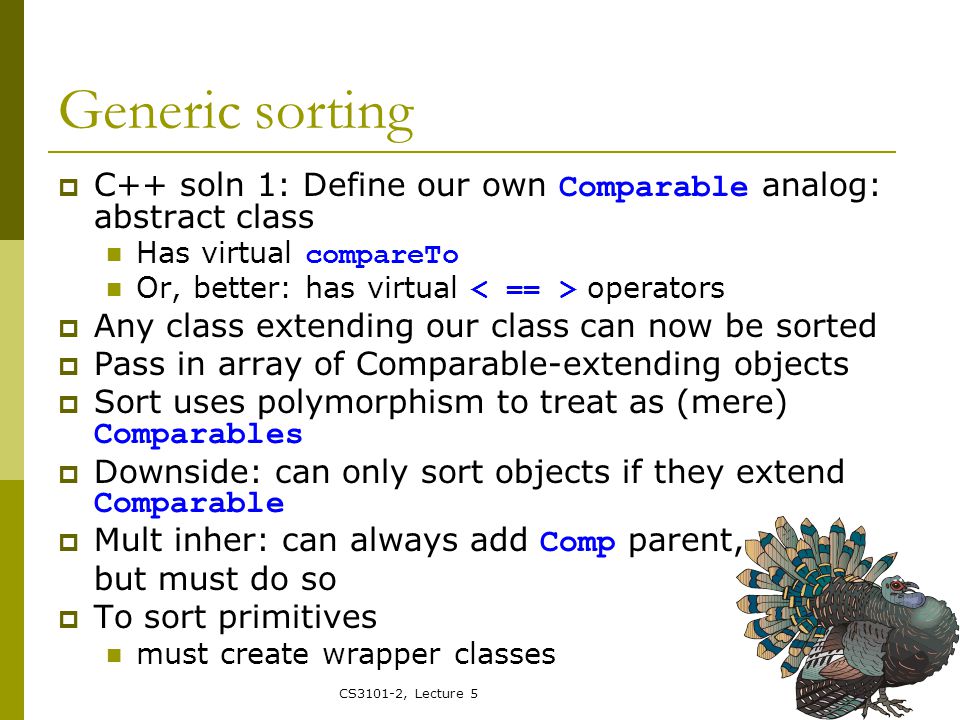

14. CS3101-2, Lecture 5 Generic sorting  C++ soln 1: Define our own Comparable analog: abstract class Has virtual compareTo Or, better: has virtual operators  Any class extending our class can now be sorted  Pass in array of Comparable-extending objects  Sort uses polymorphism to treat as (mere) Comparables  Downside: can only sort objects if they extend Comparable  Mult inher: can always add Comp parent, but must do so  To sort primitives must create wrapper classes

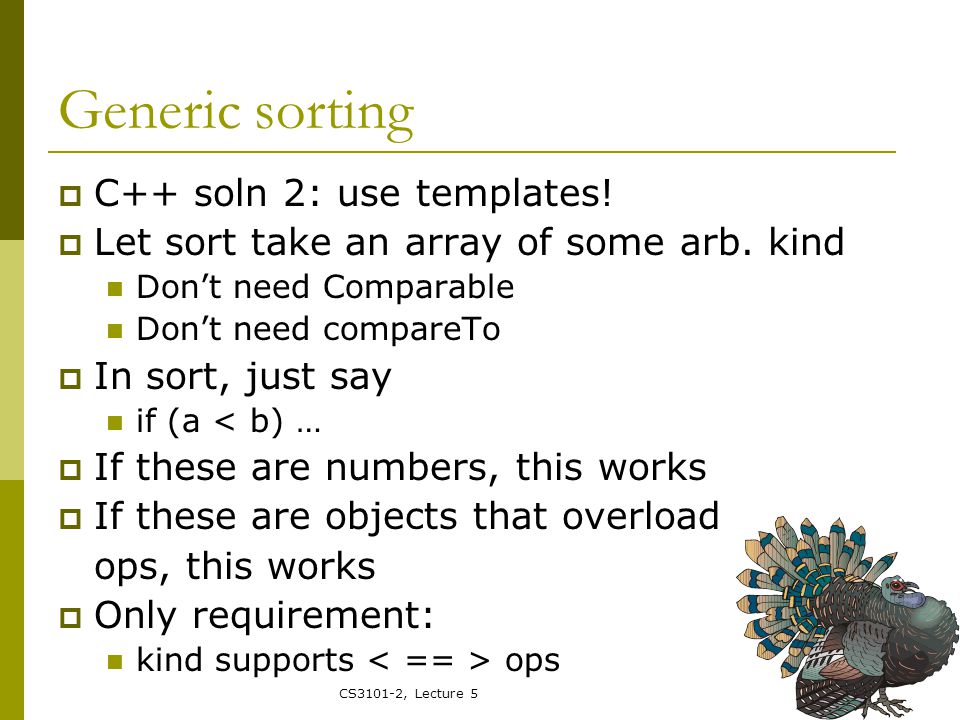

15. CS3101-2, Lecture 5 Generic sorting  C++ soln 2: use templates!  Let sort take an array of some arb. kind Don’t need Comparable Don’t need compareTo  In sort, just say if (a < b) …  If these are numbers, this works  If these are objects that overload ops, this works  Only requirement: kind supports ops

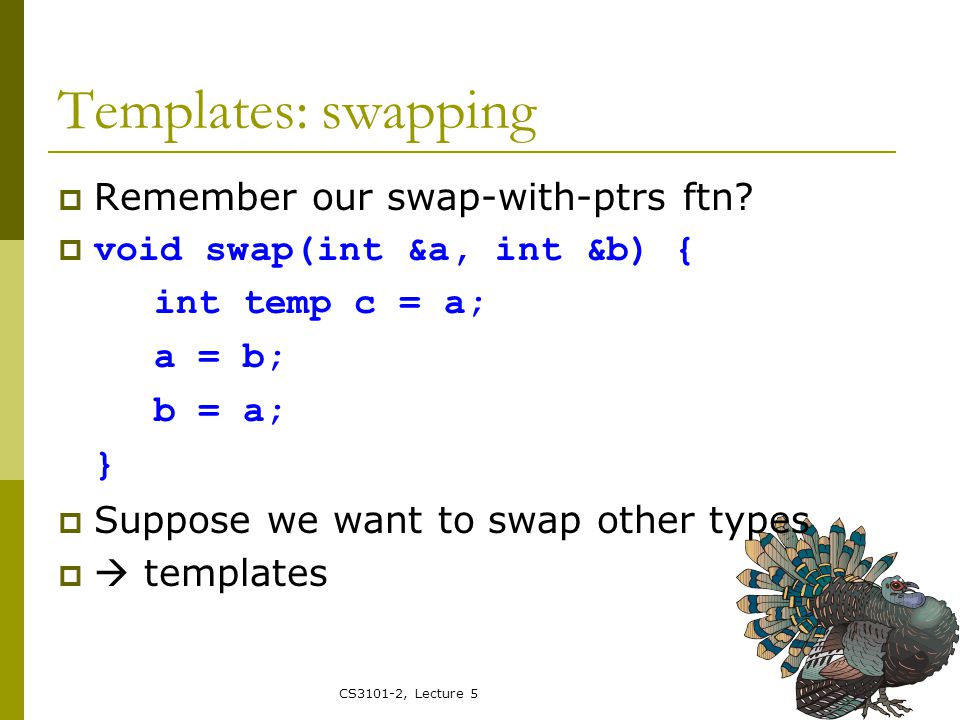

16. CS3101-2, Lecture 5 Templates: swapping  Remember our swap-with-ptrs ftn?  void swap(int &a, int &b) { int temp c = a; a = b; b = a; }  Suppose we want to swap other types   templates

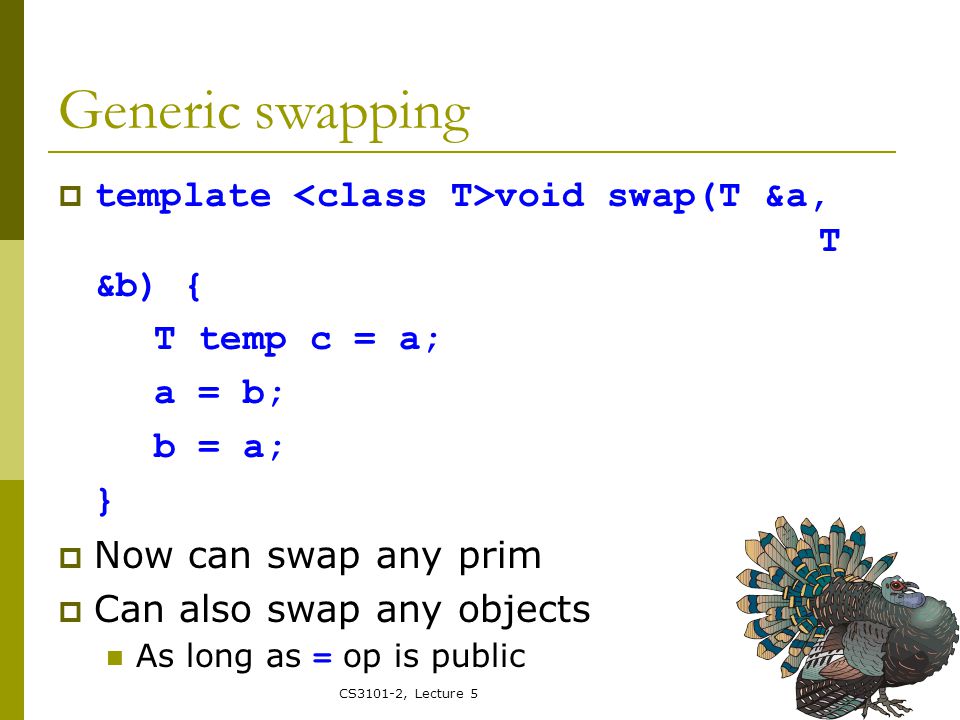

17. CS3101-2, Lecture 5 Generic swapping  template void swap(T &a, T &b) { T temp c = a; a = b; b = a; }  Now can swap any prim  Can also swap any objects As long as = op is public

18. CS3101-2, Lecture 5 Fancier swapping  Remember our fancier swap ftn?  void swap(int &a, int &b) { a ^= b ^= a ^= b; }  Fancier template function:  template void swap(T &a, T &b) { a ^= b ^= a ^= b; }  Now can swap ints, chars, longs  But: cannot swap objects Unless their ^= is overloaded – unlikely

19. CS3101-2, Lecture 5 Template specialization  string s,t … max(s,t); works  But max(“hi”,”there”) doesn’t:  if (“hi” < “there”) … compares two pointers - where the char[] s start Not what we mean  Soln: create a specialization special version for this case We check for spec. before template  char *max(char *a, char *b) { return strcmp(a,b) > 0 ? a : b; }

20. CS3101-2, Lecture 5 Class templates  Couple weeks ago: wrote a stack class supported only integers  We’ll abstract element type away “Abstract data types”  Only changes to declar: 1. prepend on class dfn: template class className {…} 2.Replace int  T  For ftn implems, we 1. prepend the same 2. replace className with className 3. Replace int  T  template void Stack ::push(const T elm){}  To instantiate:  Stack strStack;

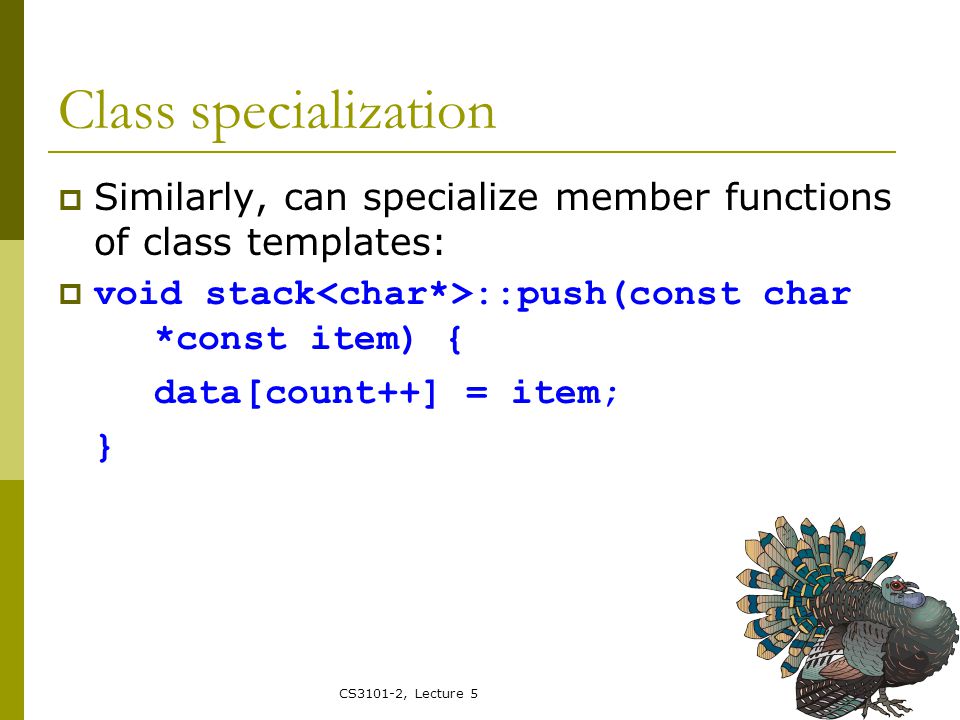

21. CS3101-2, Lecture 5 Class specialization  Similarly, can specialize member functions of class templates:  void stack ::push(const char *const item) { data[count++] = item; }

22. CS3101-2, Lecture 5 Templates & statics  Review: static data members one inst shared by all class insts  What about statics in templates classes?  Q: Could one inst be shared by all insts?  A: No – consider:  template class C { static T mem; … } mem couldn’t me shared by all insts shared by all insts  But: for C, mem shared by all C insts

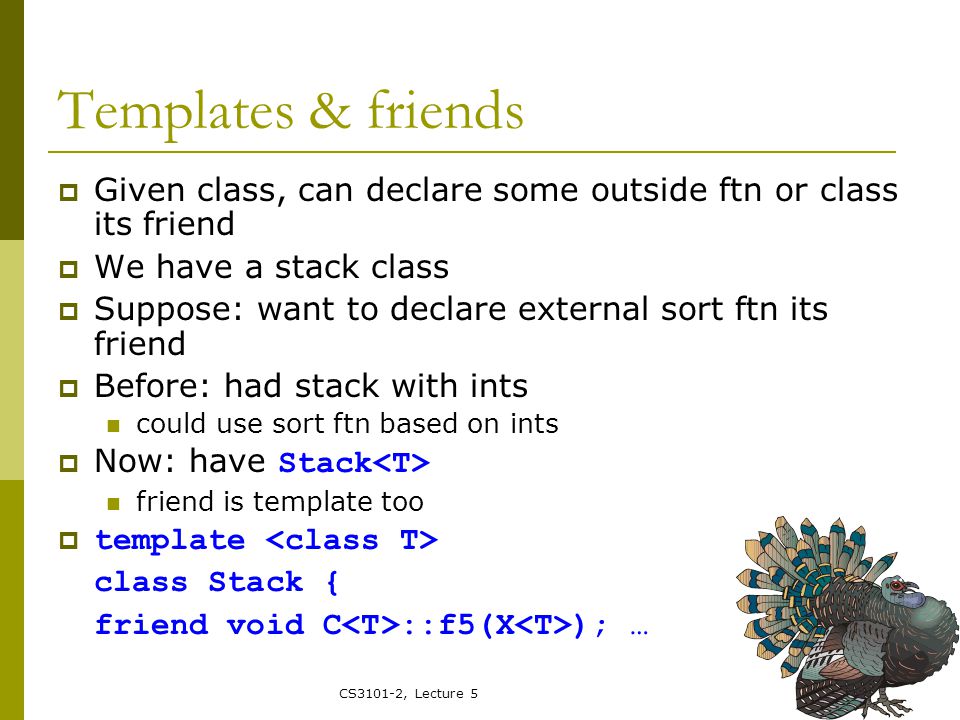

23. CS3101-2, Lecture 5 Templates & friends  Given class, can declare some outside ftn or class its friend  We have a stack class  Suppose: want to declare external sort ftn its friend  Before: had stack with ints could use sort ftn based on ints  Now: have Stack friend is template too  template class Stack { friend void C ::f5(X ); …

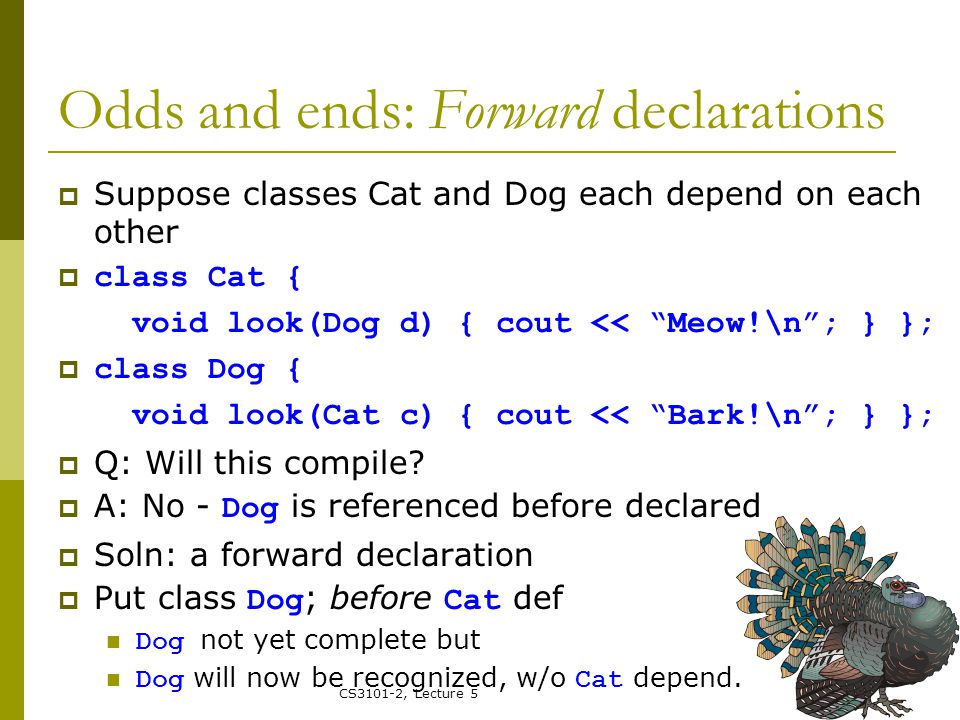

24. CS3101-2, Lecture 5 Odds and ends: Forward declarations  Suppose classes Cat and Dog each depend on each other  class Cat { void look(Dog d) { cout << “Meow!\n”; } };  class Dog { void look(Cat c) { cout << “Bark!\n”; } };  Q: Will this compile?  A: No - Dog is referenced before declared  Soln: a forward declaration  Put class Dog ; before Cat def Dog not yet complete but Dog will now be recognized, w/o Cat depend.

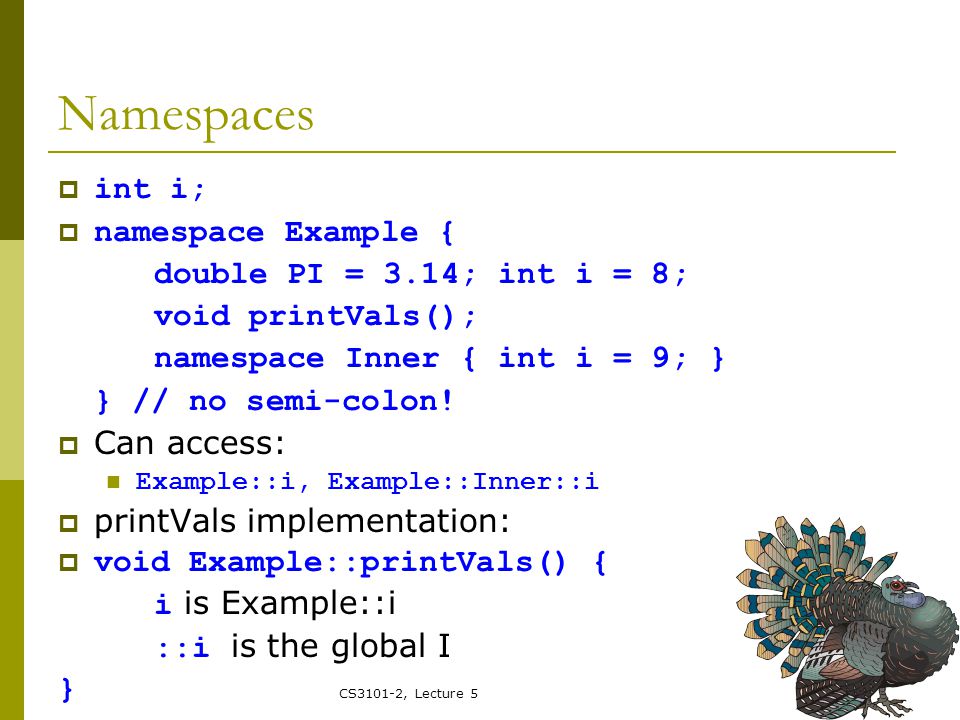

25. CS3101-2, Lecture 5 Namespaces  int i;  namespace Example { double PI = 3.14; int i = 8; void printVals(); namespace Inner { int i = 9; } } // no semi-colon!  Can access: Example::i, Example::Inner::i  printVals implementation:  void Example::printVals() { i is Example::i ::i is the global I }

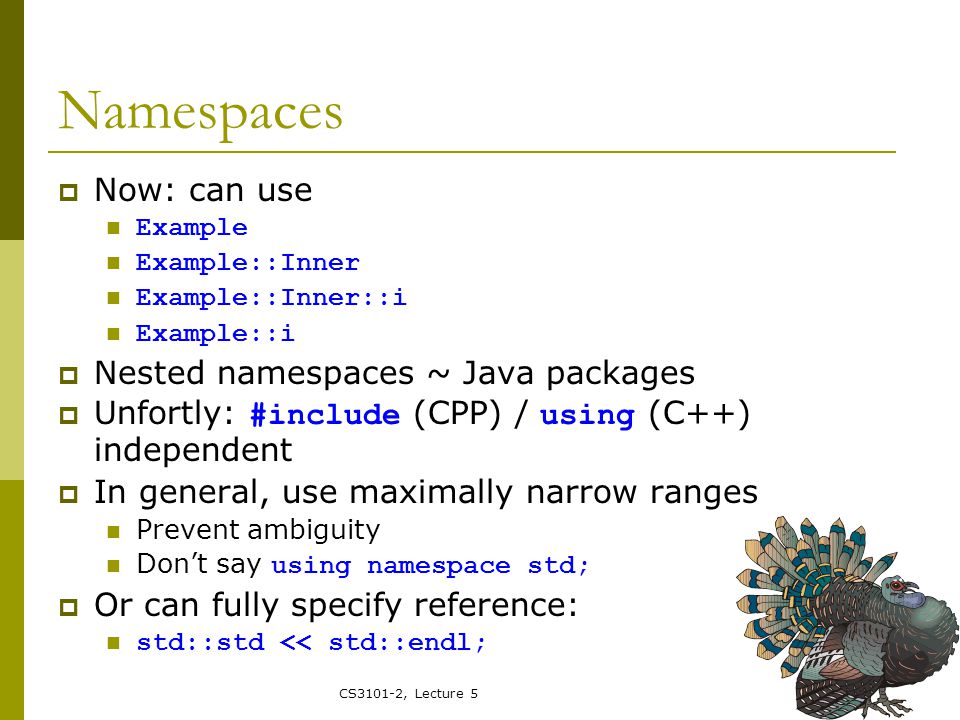

26. CS3101-2, Lecture 5 Namespaces  Now: can use Example Example::Inner Example::Inner::i Example::i  Nested namespaces ~ Java packages  Unfortly: #include (CPP) / using (C++) independent  In general, use maximally narrow ranges Prevent ambiguity Don’t say using namespace std;  Or can fully specify reference: std::std << std::endl;

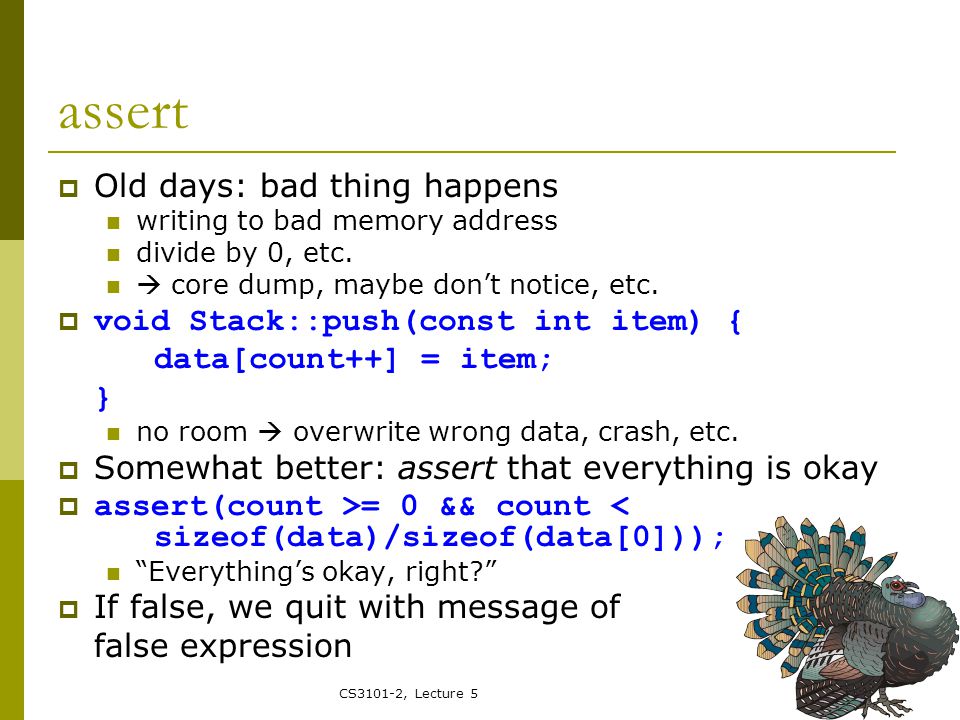

27. CS3101-2, Lecture 5 assert  Old days: bad thing happens writing to bad memory address divide by 0, etc.  core dump, maybe don’t notice, etc.  void Stack::push(const int item) { data[count++] = item; } no room  overwrite wrong data, crash, etc.  Somewhat better: assert that everything is okay  assert(count >= 0 && count < sizeof(data)/sizeof(data[0])); “Everything’s okay, right?”  If false, we quit with message of false expression

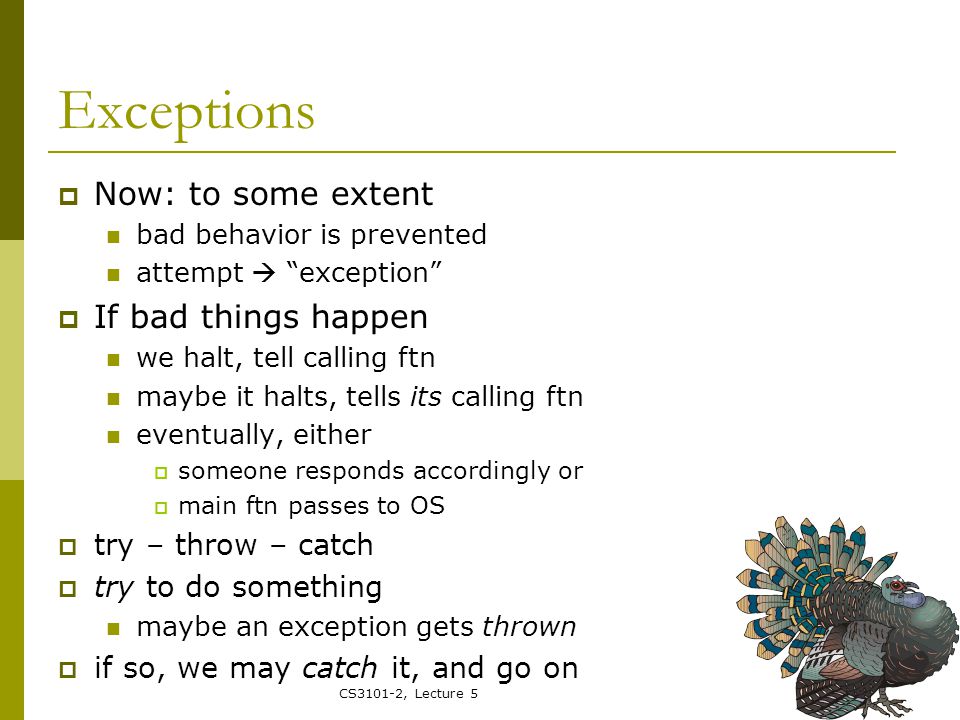

28. CS3101-2, Lecture 5 Exceptions  Now: to some extent bad behavior is prevented attempt  “exception”  If bad things happen we halt, tell calling ftn maybe it halts, tells its calling ftn eventually, either  someone responds accordingly or  main ftn passes to OS  try – throw – catch  try to do something maybe an exception gets thrown  if so, we may catch it, and go on

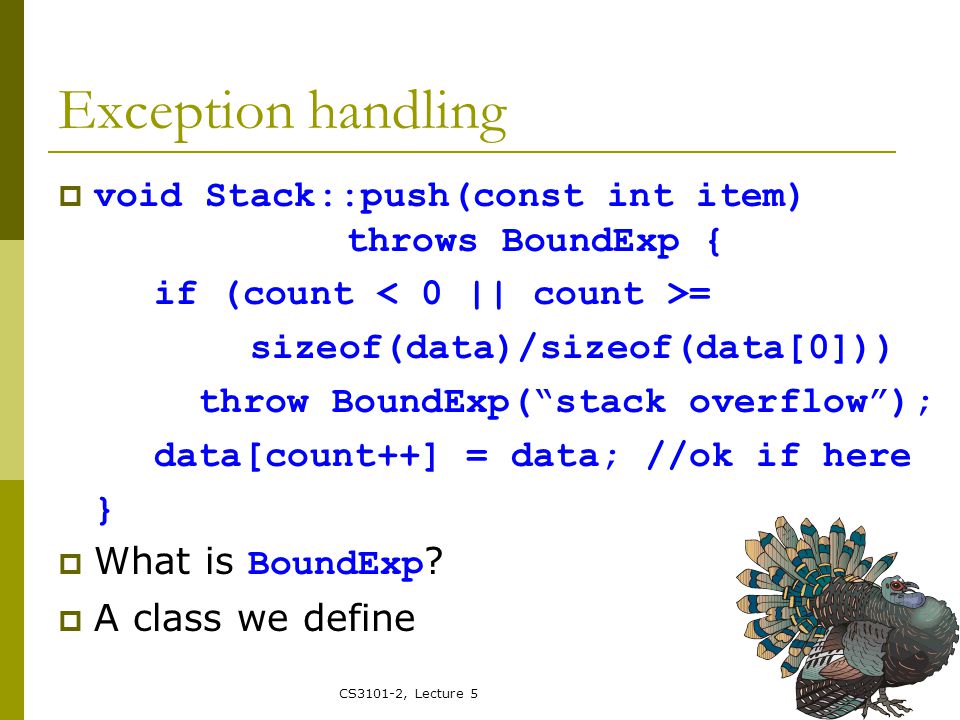

29. CS3101-2, Lecture 5 Exception handling  void Stack::push(const int item) throws BoundExp { if (count = sizeof(data)/sizeof(data[0])) throw BoundExp(“stack overflow”); data[count++] = data; //ok if here }  What is BoundExp ?  A class we define

30. CS3101-2, Lecture 5 Our exception  class BoundExp: exception { public: BoundExp(const string &s) exception(s) {} };  NB: It’s just a class Its parent is exception but needn’t be  Exception has what() maybe other info

31. CS3101-2, Lecture 5 Throwing and catching  try { Stack s; … s.push(25); … } catch (BoundExp &exp) { cout << “Error: “ << exp.what() << ‘\n’; } catch (ExpType2 &exp) { // can catch mult kinds // only catch <= 1 … } catch (…) { // … is a wildcard! cout << “Unknown exception caught.\n”; }

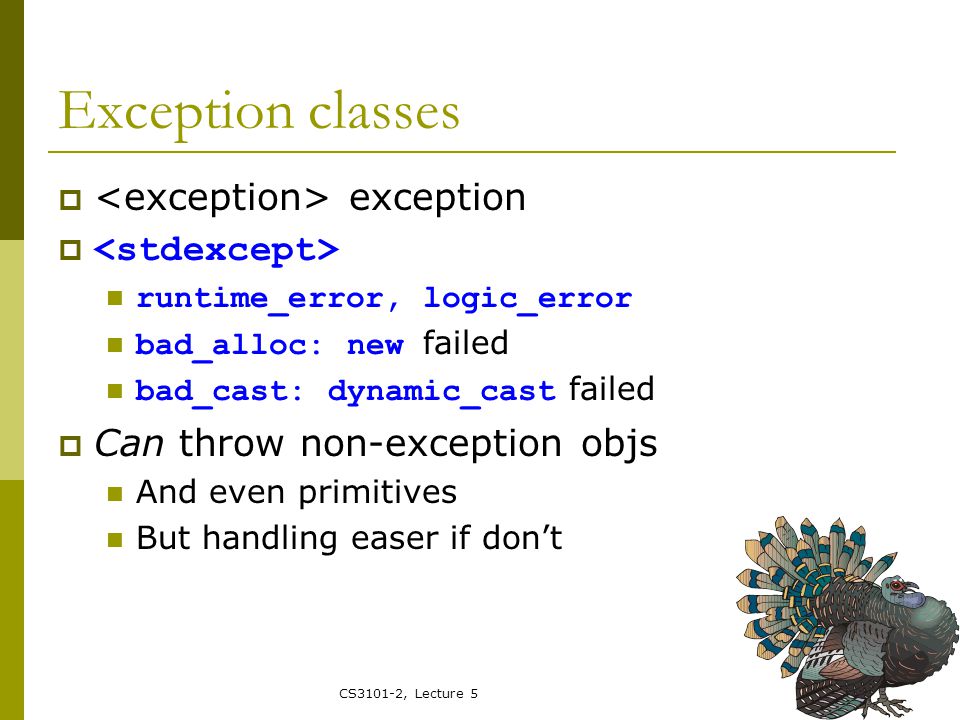

32. CS3101-2, Lecture 5 Exception classes  exception  runtime_error, logic_error bad_alloc: new failed bad_cast: dynamic_cast failed  Can throw non-exception objs And even primitives But handling easer if don’t

33. CS3101-2, Lecture 5 STL  Ceteris paribus, libraries are good Hard, subtle problems  many mistakes don’t re-invent the wheel  Unless we’re wheel artists better to commodify the wheel Use an “off-the-shelf” wheel like everyone else  The standard wheel is reliable and efficient STL == Starbucks of programming  Lots of important algorithms, data structures in CS  Barring good reason use std versions

34. CS3101-2, Lecture 5 Standard Template Library  Many template classes, functions  Abstract data types  Three general categories: 1. Containers 2. Iterators 3. Algorithms  Three kinds of containers: 1. Sequences 2. Associative 3. Adapted

35. CS3101-2, Lecture 5 STL: “first-class” containers  Sequences:  vector: Dynamic-array-backed const-time random-access const-time insert/delete at back  deque: double-ended queue fast random-access - how? fast insert/delete at front and back  list: doubly-linked list fast insert/delete anywhere  Associative:  set: non-sequential, unique  multiset: non-sequential, non-unique  map: maps from keys to unique values  multimap: maps to non-unique values

36. CS3101-2, Lecture 5 STL: containers  Container adapters: use “first-class” containers by composition  stack: LIFO  queue: FIFO  priority_queue  Near-containers:  arrays  string  bitset  valarray

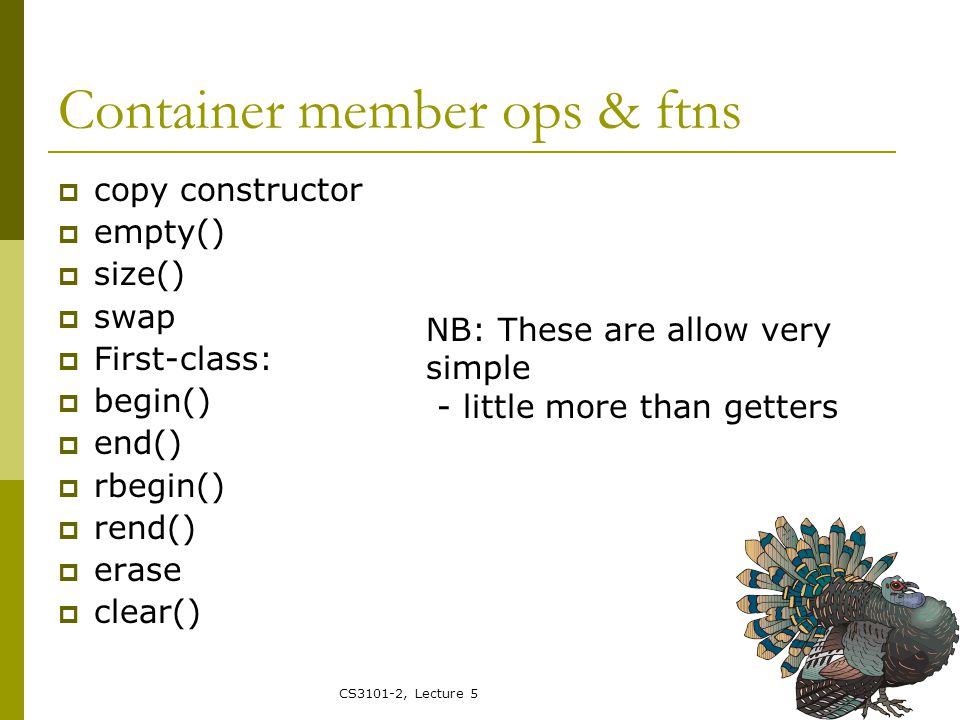

37. CS3101-2, Lecture 5 Container member ops & ftns  copy constructor  empty()  size()  swap  First-class:  begin()  end()  rbegin()  rend()  erase  clear() NB: These are allow very simple - little more than getters

38. CS3101-2, Lecture 5 STL Iterators  Standard way to traverse through container: iteration  Abstraction of both “index” and “pointer” just: means of iterating forward, back, etc.  Iterator direction types: 1. Forward iterator 2. Reverse iterator  both supported by vector, list, etc. 3. Random-access iterator  supported by vector  Also: its can be const or not

39. CS3101-2, Lecture 5 Types of iterators  I/O iterators are “one-pass” can only move in one direction can only traverse once – p++  Other types: bidirectional: p++, p-- random-access: p + i, p - i, p[i] *(p+i), p1 < p2  vector: random-access  deque: random-access  list: bidirectional  set/multiset: bidirectional  map/multimap: bidirectional

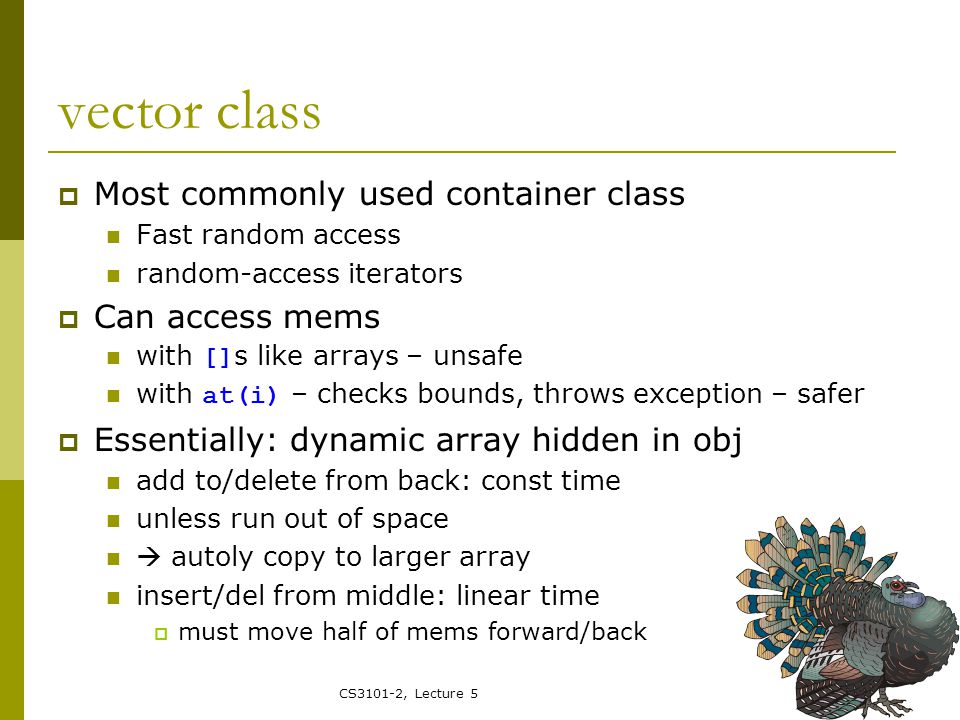

40. CS3101-2, Lecture 5 vector class  Most commonly used container class Fast random access random-access iterators  Can access mems with [] s like arrays – unsafe with at(i) – checks bounds, throws exception – safer  Essentially: dynamic array hidden in obj add to/delete from back: const time unless run out of space  autoly copy to larger array insert/del from middle: linear time  must move half of mems forward/back

41. CS3101-2, Lecture 5 Vectors  Similar to Java’s Vector in that: dynamic-array-backed list same complexities  Different in that: takes insts of specified type  vector nums;  vector vals(20); size-20 vector of doubles  vector objs; takes Base objects  vector ptrs; takes Base* s or Extended* s

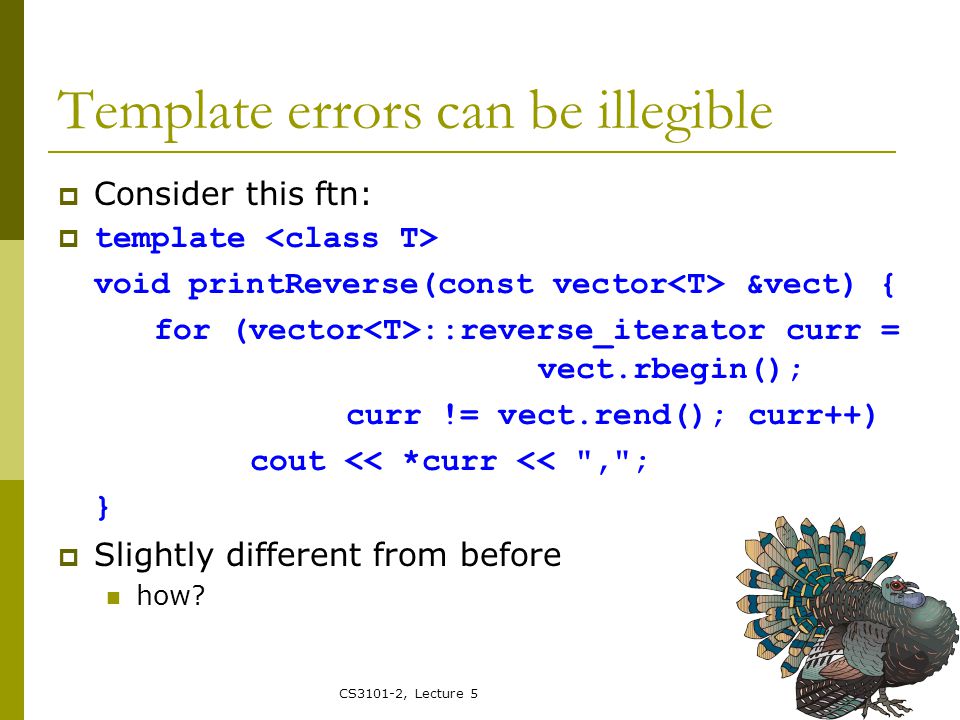

42. CS3101-2, Lecture 5 Template errors can be illegible  Consider this ftn:  template void printReverse(const vector &vect) { for (vector ::reverse_iterator curr = vect.rbegin(); curr != vect.rend(); curr++) cout << *curr << ","; }  Slightly different from before how?

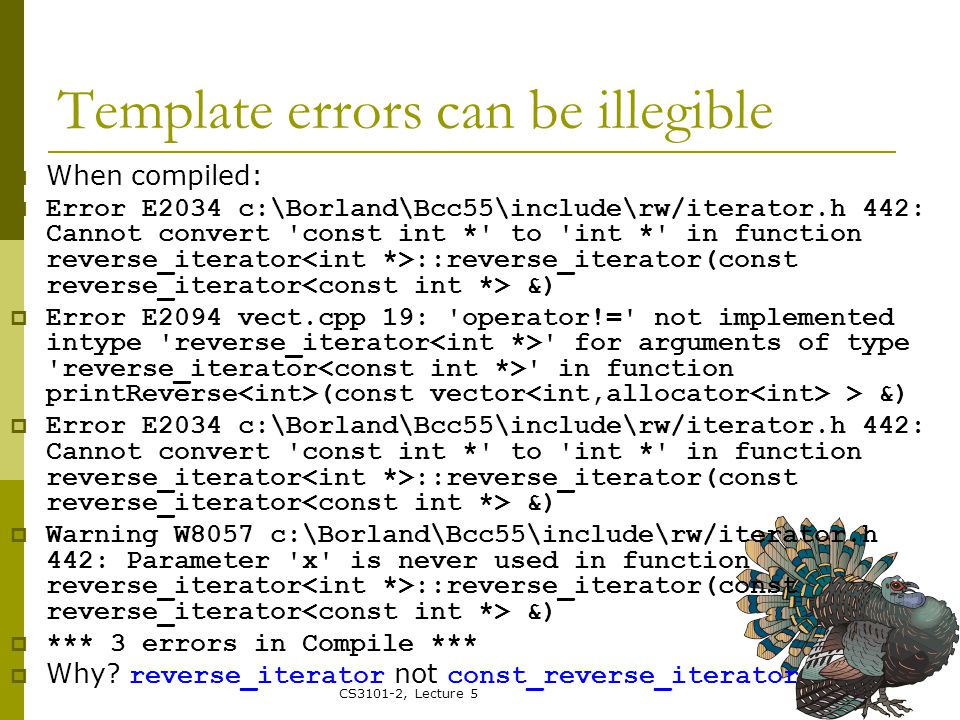

43. CS3101-2, Lecture 5 Template errors can be illegible  When compiled:  Error E2034 c:\Borland\Bcc55\include\rw/iterator.h 442: Cannot convert 'const int *' to 'int *' in function reverse_iterator ::reverse_iterator(const reverse_iterator &)  Error E2094 vect.cpp 19: 'operator!=' not implemented intype 'reverse_iterator ' for arguments of type 'reverse_iterator ' in function printReverse (const vector > &)  Error E2034 c:\Borland\Bcc55\include\rw/iterator.h 442: Cannot convert 'const int *' to 'int *' in function reverse_iterator ::reverse_iterator(const reverse_iterator &)  Warning W8057 c:\Borland\Bcc55\include\rw/iterator.h 442: Parameter 'x' is never used in function reverse_iterator ::reverse_iterator(const reverse_iterator &)  *** 3 errors in Compile ***  Why? reverse_iterator not const_reverse_iterator

44. CS3101-2, Lecture 5 Vectors e.g. – vect.cpp  template ostream& op &vect) { out << "("; for (int i = 0; i < vect.size(); i++) out << vect[i] << ","; out << ")"; return out; }  template void printReverse(const vector &vect) { cout << "("; for (vector ::const_reverse_iterator curr = vect.rbegin(); curr != vect.rend(); curr++) cout << *curr << ","; cout << ")"; }

45. CS3101-2, Lecture 5 Vectors e.g. – vect.cpp  void main() { srand(time(NULL)); vector ints; cout << "Initial size == " << ints.size() << "\nInitial capacity == " << ints.capacity(); for (int i = 0; i < 5; i++) ints.push_back(rand() % 20); cout << "\nNow, size == " << ints.size() << "\nCapacity == " << ints.capacity(); cout << "\nvector: " << ints; cout << "\nvector reversed: "; printReverse(ints);

46. CS3101-2, Lecture 5 Vectors e.g. – vect.cpp  try { ints.at(100) = 20; } catch (out_of_range oor) { cout << "\nTried to set mem 100,"; cout << "\nbut caught exception: " << oor.what(); } sort(ints.begin(), ints.end()); cout << "\nAfter sort, vect: “ << ints; }}

47. CS3101-2, Lecture 5 Vectors e.g. – vect.cpp  Initial size == 0 Initial capacity == 0 Now, size == 5 Capacity == 256 vector: (7,3,16,14,17,) vector reversed: (17,14,16,3,7,)  Tried to set mem 100 to 20,  but caught exception: index out of range in function: vector:: at(size_t) index: 100 is greater than max_index: 5  After sort, vector: (3,7,14,16,17,)

48. CS3101-2, Lecture 5 STL interators – iterio.cpp  Access set of values from one place  Usually, place is a container  But: input stream may be construed as a place  #include #include  using namespace std;  void main() { cout << “Enter two nums: “; istream_iterator intIn(cin); int x = *intIn; intIn++; x += *intIn; ostream_iterator intOut(cout); cout << “The sum is: “; *intOut = x; cout << endl; }

49. CS3101-2, Lecture 5 I/O iterators – ioiter.cpp  Code:  int x = *intIn; intIn++; x += *intIn;  Output:  C:\3101-2\lec5>ioiter Enter two nums: 5 6 The sum is: 11  But if code:  int x = *intIn; /*intIn++;*/ x += *intIn;  Then output:  C:\3101-2\lec5>ioiter Enter two nums: 5 6 The sum is: 10

50. CS3101-2, Lecture 5 copy function – vect2.cpp  Another way to print container: use copy function  if (!vect.empty()) { ostream_iterator out(cout, " "); copy(vect.begin(), vect.end(), out); }  copy(src begin it, src end it, dest it); src begin it: vect.begin() src end it: vect.end()  dest it: ostream_iterator out(cout, " ") it’s an ostream_iterator it’s wrapping around cout it’s outputting T s it’s printing “ “ between the T s

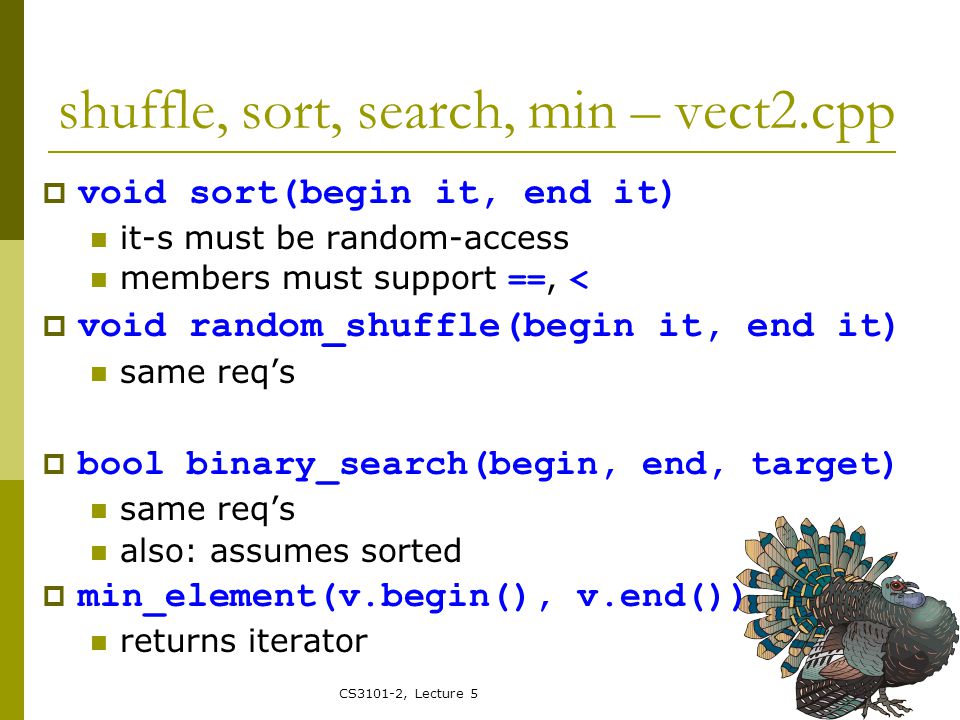

51. CS3101-2, Lecture 5 shuffle, sort, search, min – vect2.cpp  void sort(begin it, end it) it-s must be random-access members must support ==, <  void random_shuffle(begin it, end it) same req’s  bool binary_search(begin, end, target) same req’s also: assumes sorted  min_element(v.begin(), v.end()) returns iterator

52. CS3101-2, Lecture 5 shuffle, sort, search, min – vect3.cpp  All ftns translate automatically to strings  transform ftn – vect4.cpp  transform(begin it, end it, dest it, ftn)  transform(v.begin(), v.end(), v.begin(), square); cout << "\nAfter squaring, vector: " << v << endl;

53. CS3101-2, Lecture 5 for_each ftn – vect4.cpp  Another way to print container: use for_each function  for_each(begin it, end it, ftn)  Our subroutine:  template void print(T val) { cout << val << "/"; }  if (!vect.empty()) { for_each(vect.begin(), vect.end(), print ); }  NB: print is a function pointer

54. CS3101-2, Lecture 5 Other containers  list: doubly linked list insert/delete anywhere: const time access: linear time bidirectional iterators  deque: double-ended queue insert/delete at front/back: const time insert/delete in middle: linear time access: constant time random-access iterators

55. CS3101-2, Lecture 5 strings as containers  Can traverse strings in the usual way:  for (int i = 0; i < i.length(); i++) cout << s[i];  Also:  for (char::iterator curr = s.begin(); curr != s.end(); curr++) cout << *curr;

56. CS3101-2, Lecture 5 STL Algorithms -  binary_search  sort  count: count(list.begin(), list:end(), val, num);  equal: compares containers  for_each: applies ftn to each element  copy: copies container  reverse  min/max  Some in

57. CS3101-2, Lecture 5 Other algorithms  Set-theoretic: set_union set_intersection set_difference set_symmetric_difference  Sorting: sort_heap stable_sort  And many more…

58. CS3101-2, Lecture 5 Algorithms in STL  Important observation: STL class live in own headers -,, but  STL algs live in places like and  To sort, we pass access (it) to our obj to the sort ftn  We don’t call obj.sort()  Why?  The STL doesn’t use inheritance!  Why not?  virtual functions are slow(er)  No inher  would have to dup. ftns  No inher  no encapsulation   algorithms on their own

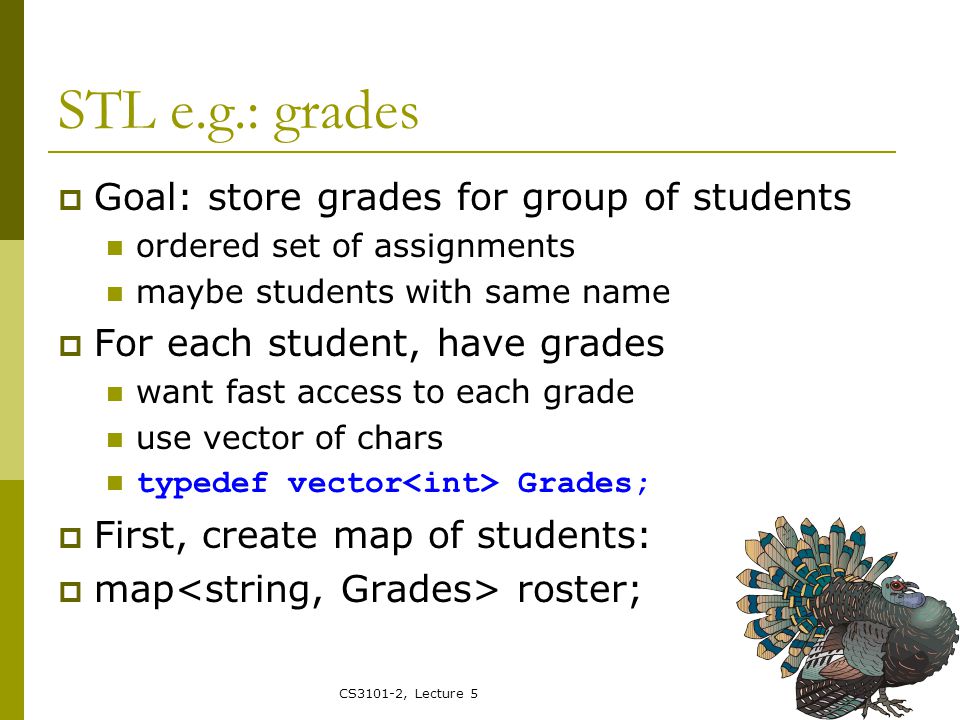

59. CS3101-2, Lecture 5 STL e.g.: grades  Goal: store grades for group of students ordered set of assignments maybe students with same name  For each student, have grades want fast access to each grade use vector of chars typedef vector Grades;  First, create map of students:  map roster;

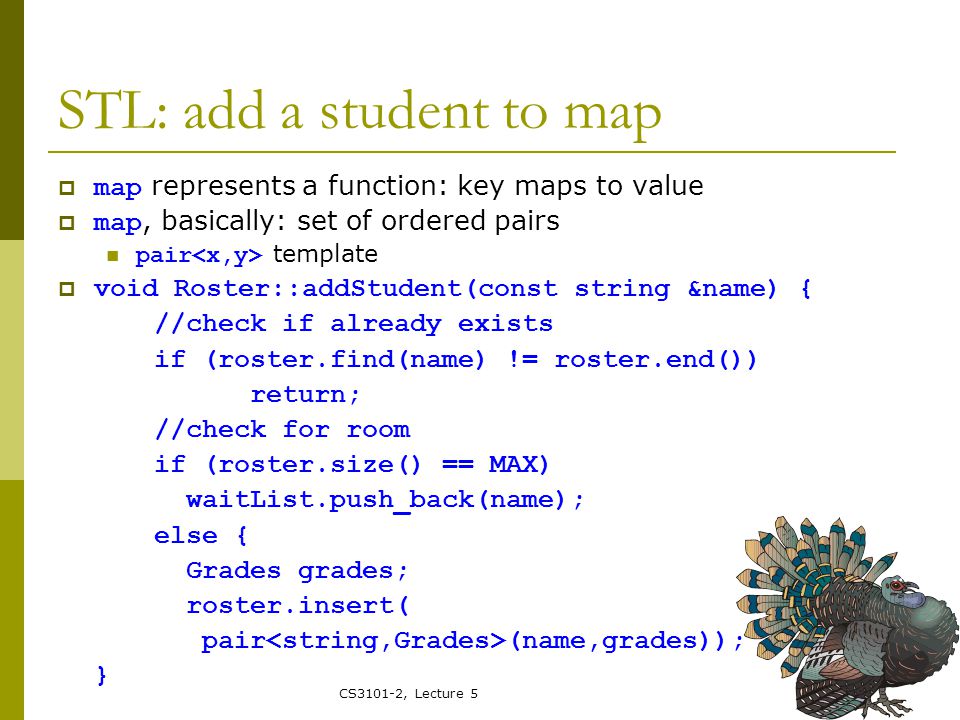

60. CS3101-2, Lecture 5 STL: add a student to map  map represents a function: key maps to value  map, basically: set of ordered pairs pair template  void Roster::addStudent(const string &name) { //check if already exists if (roster.find(name) != roster.end()) return; //check for room if (roster.size() == MAX) waitList.push_back(name); else { Grades grades; roster.insert( pair (name,grades)); }

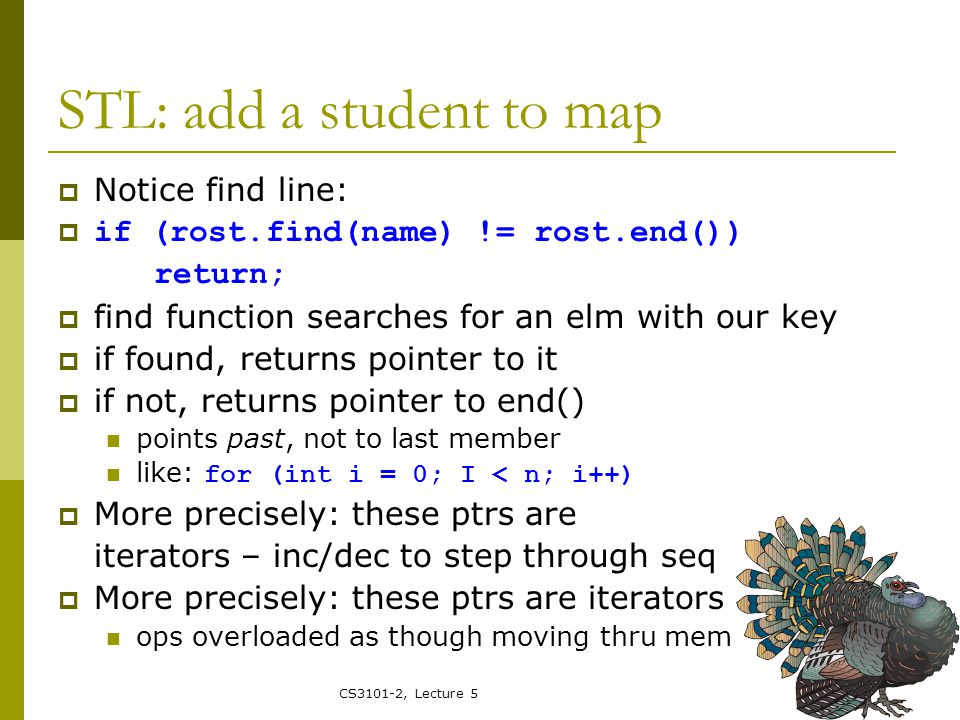

61. CS3101-2, Lecture 5 STL: add a student to map  Notice find line:  if (rost.find(name) != rost.end()) return;  find function searches for an elm with our key  if found, returns pointer to it  if not, returns pointer to end() points past, not to last member like: for (int i = 0; I < n; i++)  More precisely: these ptrs are iterators – inc/dec to step through seq  More precisely: these ptrs are iterators ops overloaded as though moving thru mem

62. CS3101-2, Lecture 5 STL: add a student to map  Notice insert line:  roster.insert( pair (name,grades));  Dissection:  Add a member to a roster  The member is a pair of two things member ftns: first(), second()  The things are string and Grades  pair (x,y) is a constr call: passes x and y to constr for type pair

63. CS3101-2, Lecture 5 STL: drop a student  void Roster::dropStudent(String &name) { if (roster.find(name) == roster.end()) return; roster.erase(name); if (waitList.size() > 0) { string wait = waitList.pop_front(); waitList.pop(); Grades grades; roster.insert( pair (name,grades)); } }

64. CS3101-2, Lecture 5 STL: set a grade  void Roster::setGrade(const &string name, const int assign, const char grade) { map stud = roster.find(name); if (stud == roster.end()) { cerr << “not found\n”; return; } if (stud->second().size() <= assign) stud->second().resize(assign+1); stud->second[assign] = grade; }

65. CS3101-2, Lecture 5 STL: print grades  void Roster::print() { … }  Already saw many print/<< functions…  That’s all we’ll cover of STL  Many more classes, algs in STL  Much more to C++ itself  But: you now know enough About the most import. Features To learn remaining details on own

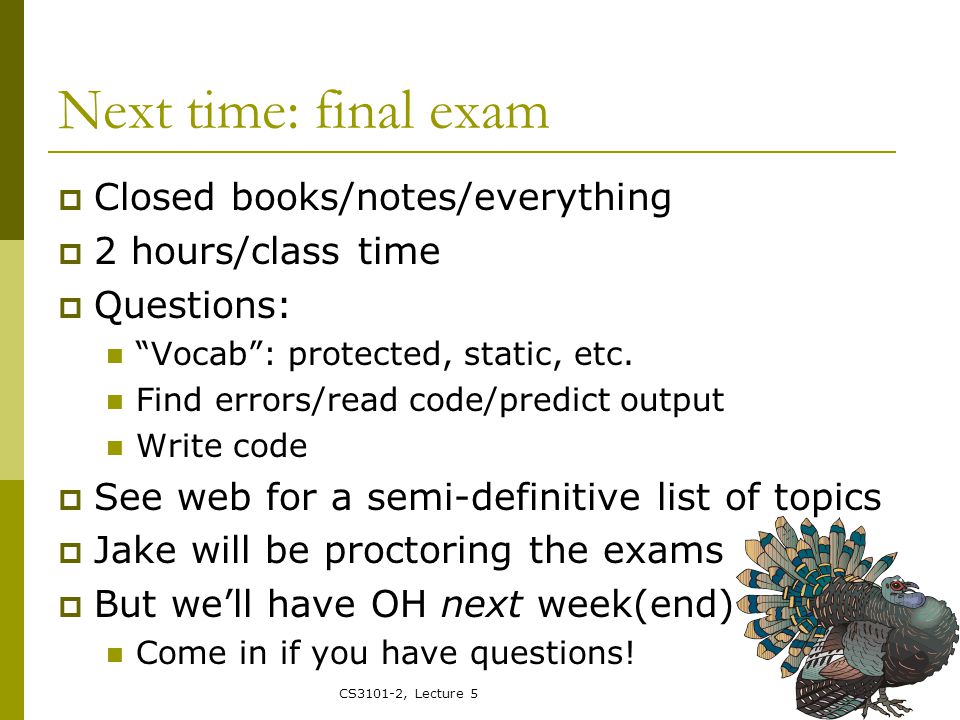

66. CS3101-2, Lecture 5 Next time: final exam  Closed books/notes/everything  2 hours/class time  Questions: “Vocab”: protected, static, etc. Find errors/read code/predict output Write code  See web for a semi-definitive list of topics  Jake will be proctoring the exams  But we’ll have OH next week(end) Come in if you have questions!

67. CS3101-2, Lecture 5 Grading  Final will be hard/challenging Ave score probably near 70% Final grades are curved  Rule of thumb: mean ~ stdev Mean ~ B/B- +-stdev ~ one letter grade See mean/stdevs on web to estimate your grade

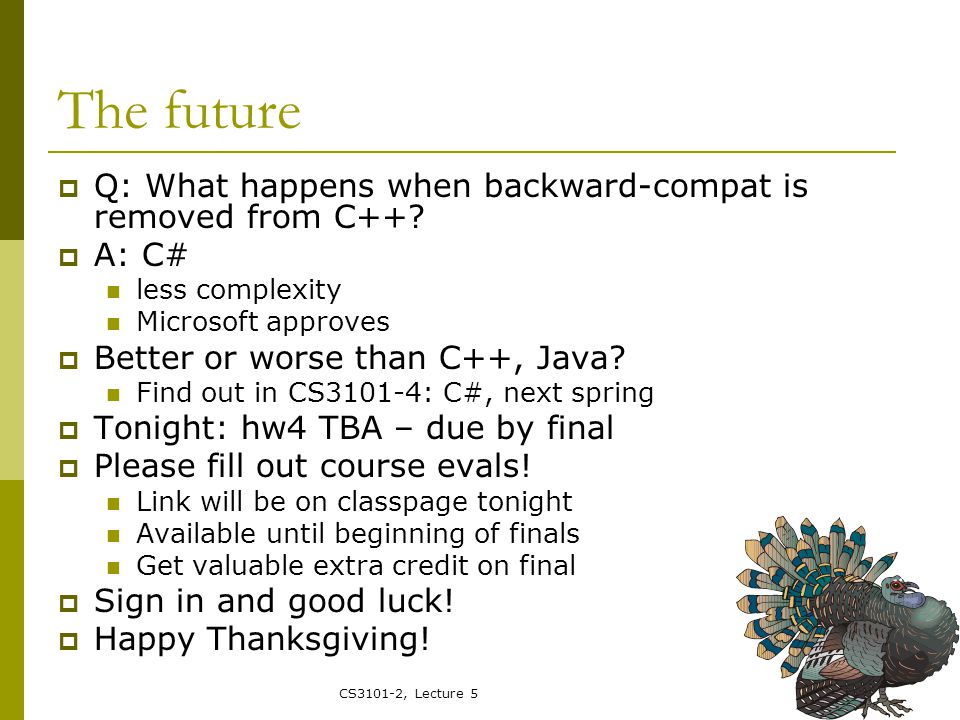

68. CS3101-2, Lecture 5 The future  Q: What happens when backward-compat is removed from C++?  A: C# less complexity Microsoft approves  Better or worse than C++, Java? Find out in CS3101-4: C#, next spring  Tonight: hw4 TBA – due by final  Please fill out course evals! Link will be on classpage tonight Available until beginning of finals Get valuable extra credit on final  Sign in and good luck!  Happy Thanksgiving!
