1. Brooks and Subsumption

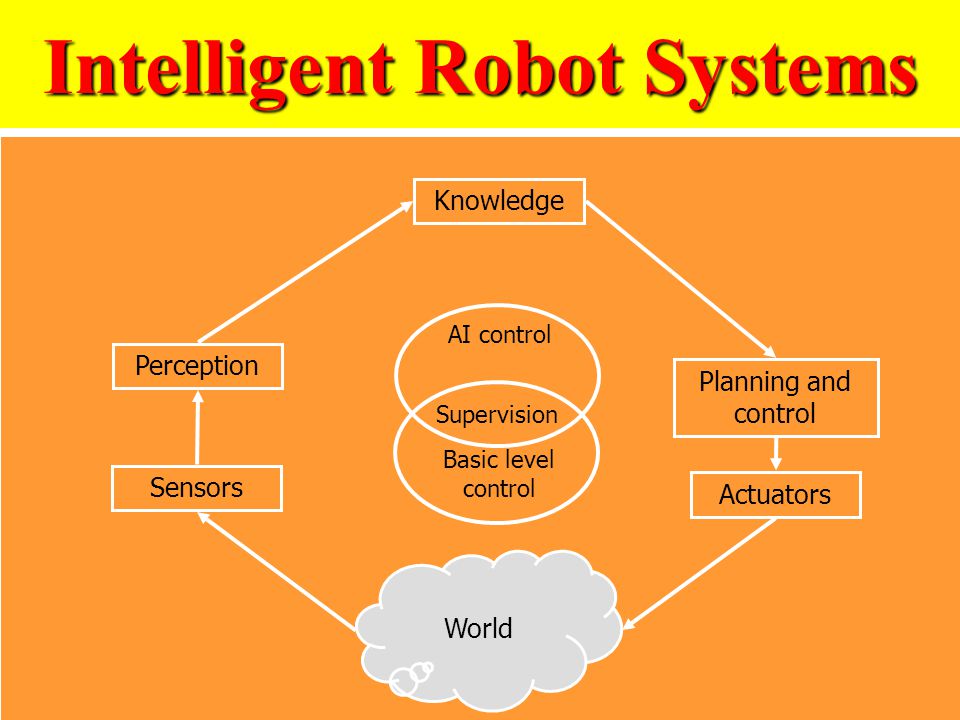

2. Intelligent Robot Systems Knowledge Actuators Planning and control Perception Sensors World Basic level control AI control Supervision

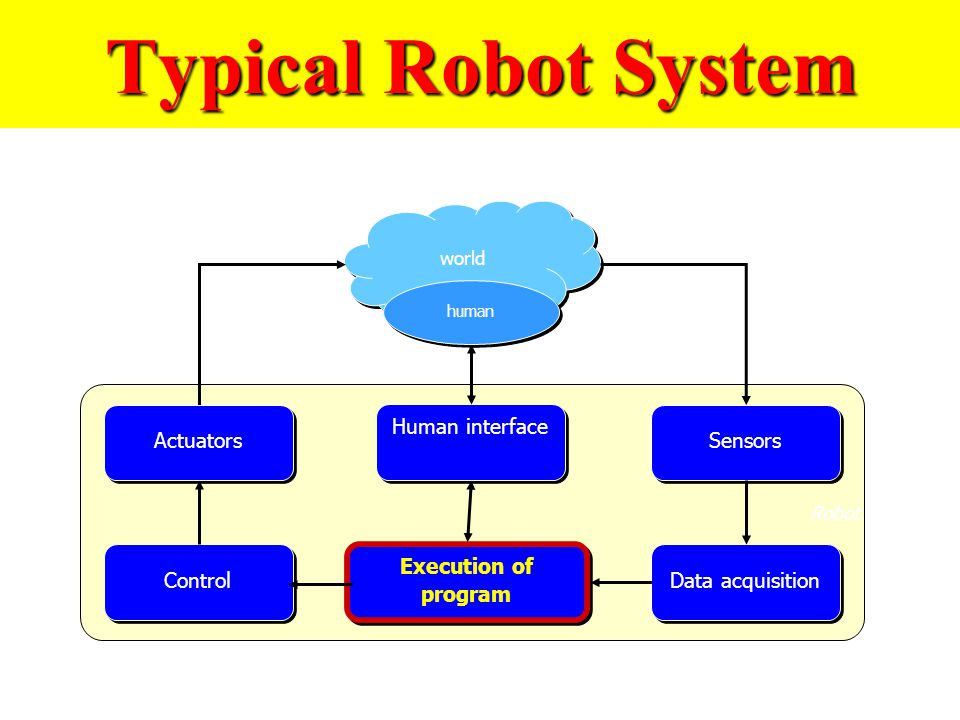

3. Typical Robot System Execution of program Sensors Actuators world Human interface human Control Data acquisition Robot

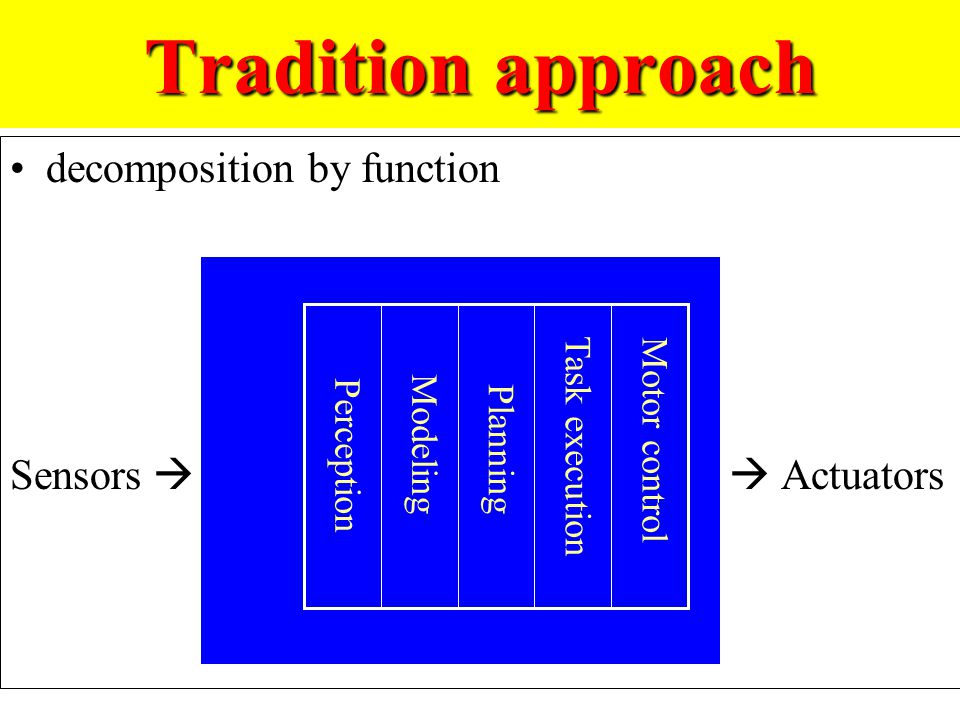

4. Tradition approach decomposition by function Sensors   Actuators Motor control Task execution Planning Modeling Perception

5. Traditional AI model R. Brooks, “Cambrian Intelligence”

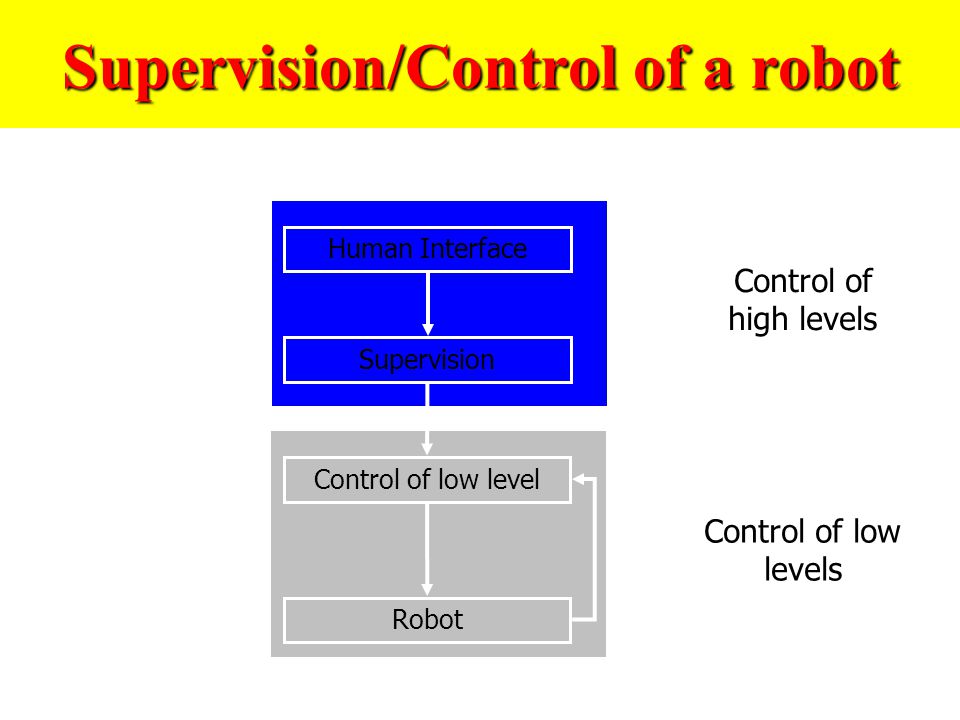

6. Supervision/Control of a robot Human Interface Supervision Control of low level Robot Control of high levels Control of low levels

7. Hierarchical Architecture

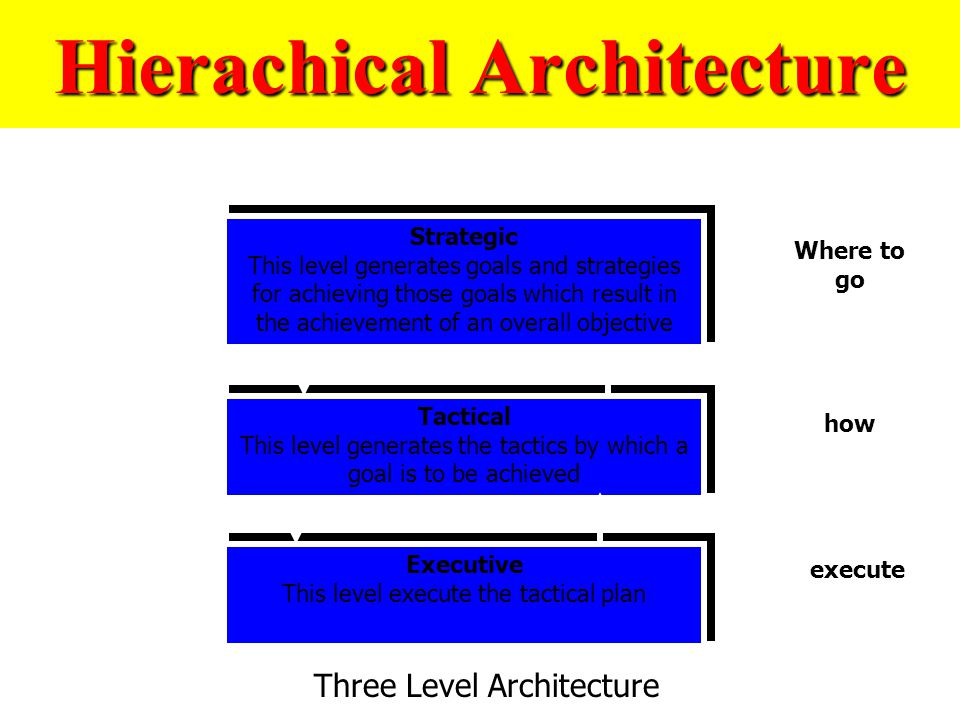

8. Hierachical Architecture Strategic This level generates goals and strategies for achieving those goals which result in the achievement of an overall objective Tactical This level generates the tactics by which a goal is to be achieved Executive This level execute the tactical plan Three Level Architecture Where to go how execute

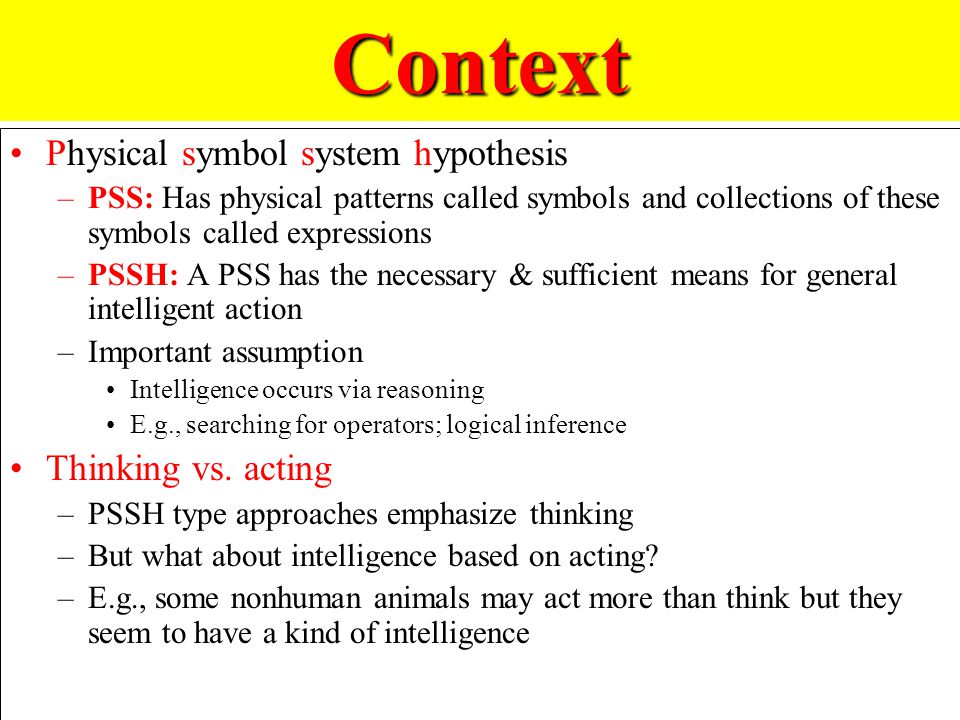

9. Context Physical symbol system hypothesis –PSS: Has physical patterns called symbols and collections of these symbols called expressions –PSSH: A PSS has the necessary & sufficient means for general intelligent action –Important assumption Intelligence occurs via reasoning E.g., searching for operators; logical inference Thinking vs. acting –PSSH type approaches emphasize thinking –But what about intelligence based on acting? –E.g., some nonhuman animals may act more than think but they seem to have a kind of intelligence

10. Reactive Robotics Subsumption architectures for walking machines Rodney Brooks, Connell The Brooks School Behavioral Robotics Brooks, R. A. (1999). Cambrian Intelligence: The Early History of the New AI. Cambridge, MA MIT Press.

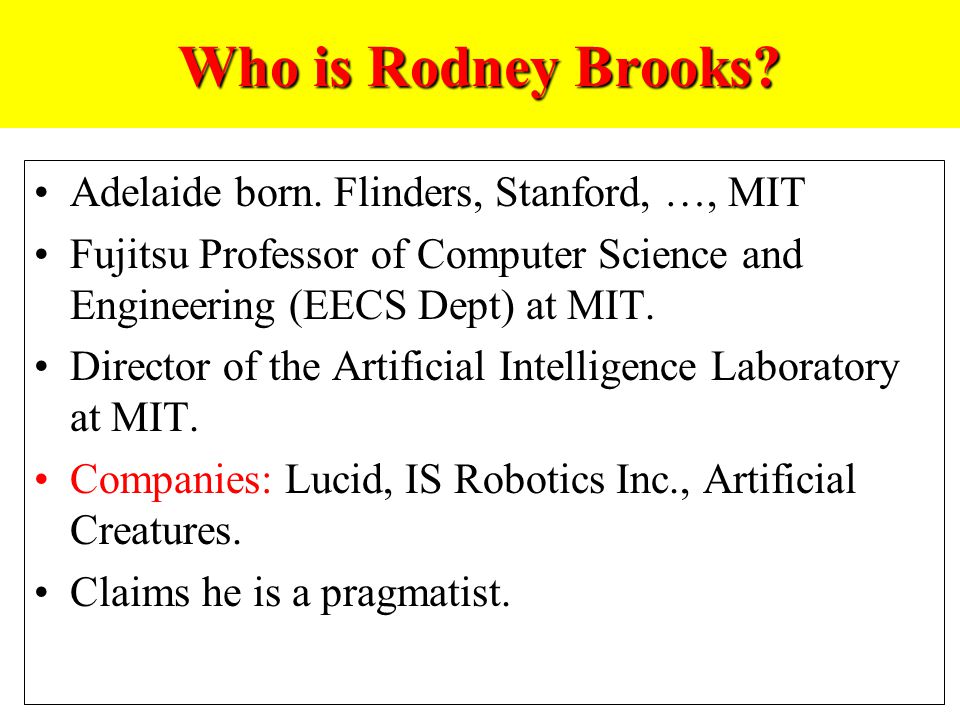

11. Who is Rodney Brooks? Adelaide born. Flinders, Stanford, …, MIT Fujitsu Professor of Computer Science and Engineering (EECS Dept) at MIT. Director of the Artificial Intelligence Laboratory at MIT. Companies: Lucid, IS Robotics Inc., Artificial Creatures. Claims he is a pragmatist.

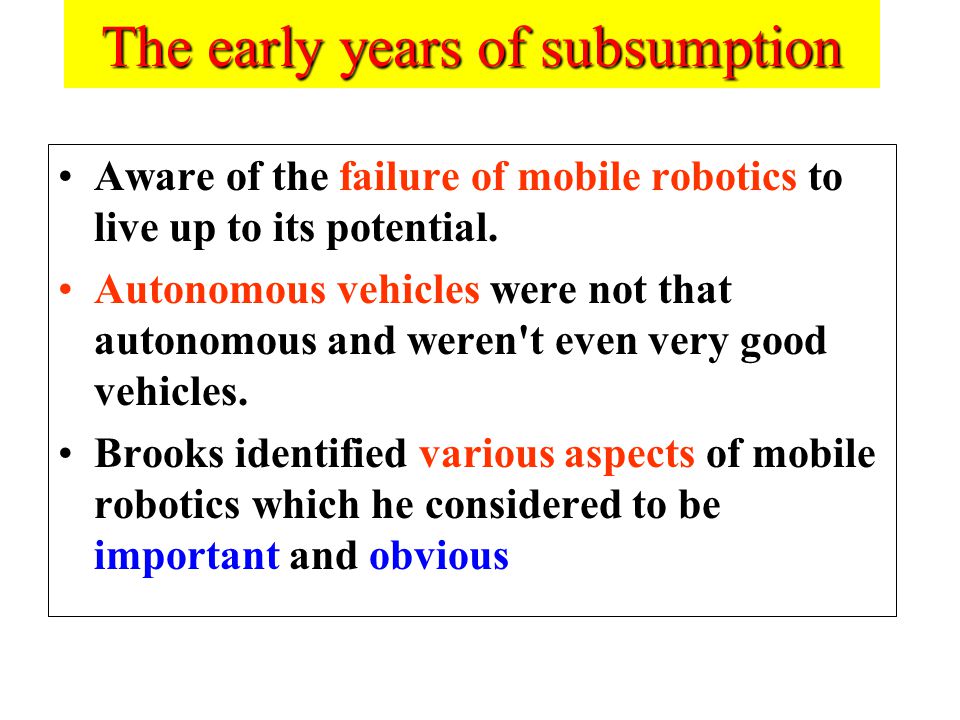

12. The early years of subsumption Aware of the failure of mobile robotics to live up to its potential. Autonomous vehicles were not that autonomous and weren't even very good vehicles. Brooks identified various aspects of mobile robotics which he considered to be important and obvious

13. Key Topics of Behaviour-based Approach Situatedness Embodiment (animal or insect) Intelligence Emergence

14. Situatedness A situated automaton is a finite-state machine whose inputs are provided by sensors connected to the environment, and whose outputs are connected to effectors. The world is its own best model Traditional AI, working in symbolic abstracted domain. Problem solvers which are not participating in the world as agents. Dealing with model world - no real connection to external world.

15. Alternative approach, to use a mobile robot which uses the world as its own model, referring to information from sensors rather than internal world model. Representations are developed which capture relationships of entities to robot. Situated agent must respond in timely fashion to inputs; but much information from the world. Why situatedness is better for mobile robot behaviors?

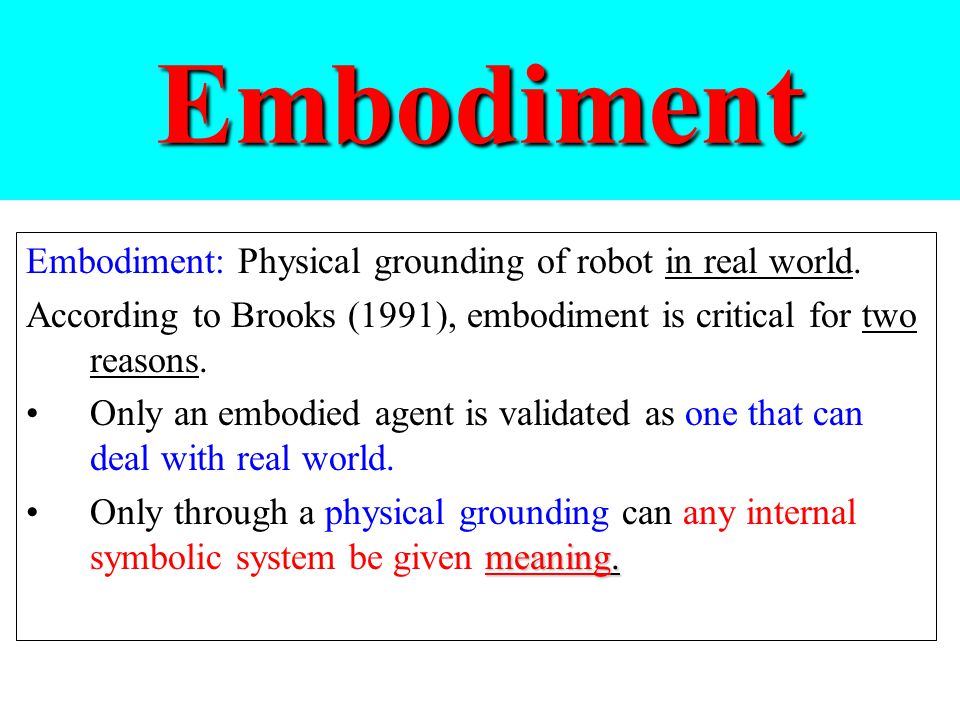

16. Embodiment Embodiment: Physical grounding of robot in real world. According to Brooks (1991), embodiment is critical for two reasons. Only an embodied agent is validated as one that can deal with real world. meaning.Only through a physical grounding can any internal symbolic system be given meaning.

17. Emergence Intelligence emerges from interaction of components of the system. Behaviour-based approach - intelligence emerges from interaction of simple modules. e.g. Obstacle avoidance, goal finding, wall following modules. Sensors Actuators Level 3 Level 2 Level 1 Level 0

18. Main ideas No central model maintained of world No central locus of control No separation into perceptual system, central system and actuation system Behavioural competence improved by adding one more behaviour specific network to existing network. –Crude analogy to evolutionary development No hierarchical development Layers or behaviors run in parallel Main Ideas of Behavior-based Approach

19. Model of Brooks: the perceptual and action subsystems are all there really is: A. Brooks, “Cambrian Intelligence” Cognition is only in the eye of an observer

20. Brooks Criticizes traditional robotics Intelligence is determined by the dynamics of interaction with the world = he says Some activities we think of as intelligent have only been taking place for a small fraction of our evolutionary lineage. ‘Simple’ behaviors to do with perception and mobility took much longer to evolve. Would make sense to begin by looking at simpler animals. - looking at dynamics of interaction of robot with its environment.

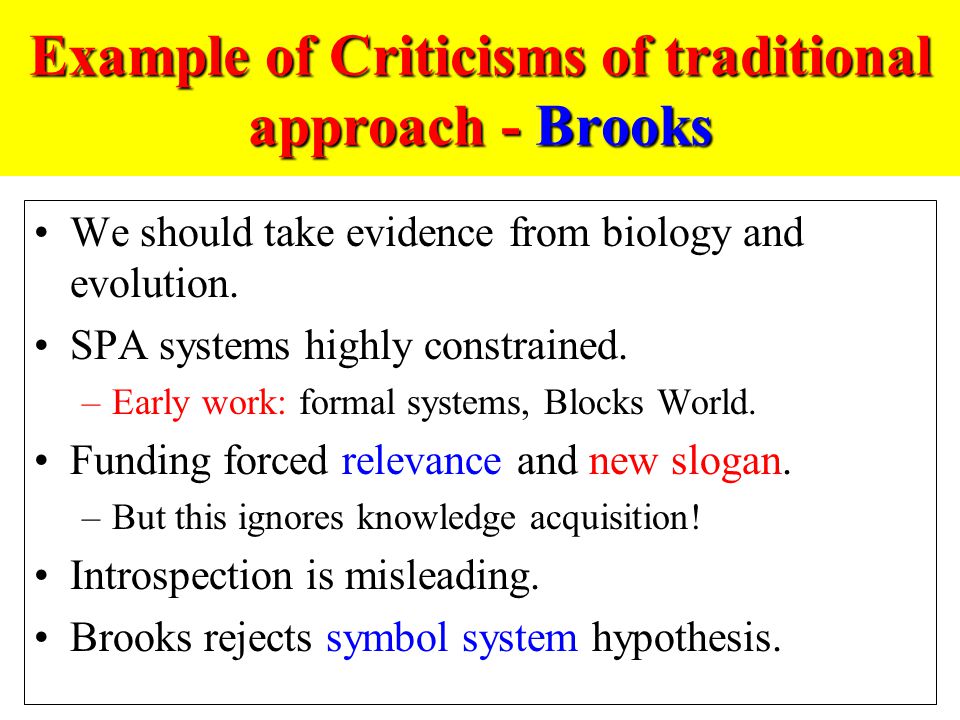

21. Example of Criticisms of traditional approach - Brooks We should take evidence from biology and evolution. SPA systems highly constrained. –Early work: formal systems, Blocks World. Funding forced relevance and new slogan. –But this ignores knowledge acquisition! Introspection is misleading. Brooks rejects symbol system hypothesis.

22. Key Brooksian Ideas Situatedness and embodiment, as discussed. Approximate evolution –Incremental additions improve performance –Layers –Each layer Corresponds to new behavior Relies upon existing layers Has minimal interaction with other layers Is short connection between perception & actuation Advantages of this paradigm.

23. Brook's General Robot Requirements He identified a number of requirements of a control system for an intelligent autonomous mobile robot. Multiple Goals: –Some conflict, context dependent Multiple Sensors: –All have errors, inconsistencies and contradiction. Robustness: –The robot must by fault-tolerant. Extensible: –You have to be able to build on whatever you built

24. Subsumption architecture - the Brooks’ approach –levels of competence example competences –layers of control subsumption –structure of layers –extensions –finite state machines

25. What were the weaknesse of traditional approaches? Can’t account for large aspects of Intelligence Reliant on representation Rapidly changing boundary conditions Hard to map sensor values to physical quantities Not robust Relatively slow response Hard to extend Hard to test

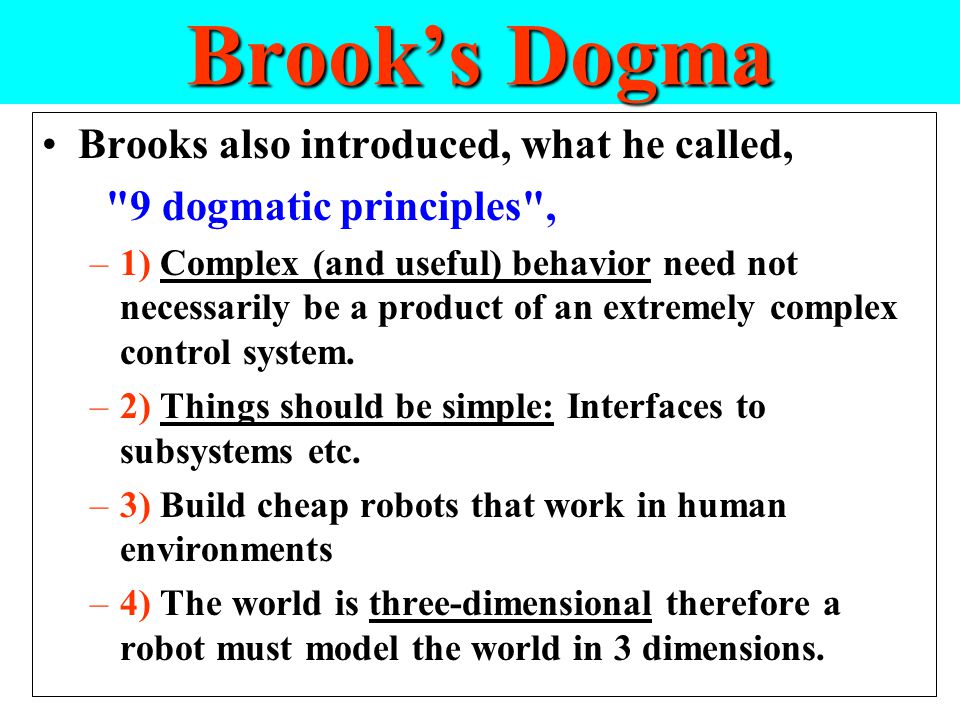

26. Brook’s Dogma Brooks also introduced, what he called, "9 dogmatic principles", –1) Complex (and useful) behavior need not necessarily be a product of an extremely complex control system. –2) Things should be simple: Interfaces to subsystems etc. –3) Build cheap robots that work in human environments –4) The world is three-dimensional therefore a robot must model the world in 3 dimensions.

27. Dogma (cont) 5) Absolute coordinate systems for a robot are the source of large cumulative errors. 6) The worlds where mobile robots will do useful work are not constructed of exact simple polyhedra. 7) Visual data is useful for high level tasks. Sonar may only be good for low level tasks where rich environmental descriptions are unnecessary. 8) The robot must be able to perform when one or more of its sensors fails or starts giving erroneous readings.

28. Dogma (cont) 9) "We are interested in building "artificial beings" –--robots that survive for days, weeks and months, without human assistance, in a dynamic complex environment. –Such robots must be self-sustaining

29. Solution: Subsumption Brooks and his group eventually came up with a computational architecture. Model arrived at by continually refining attempts to program a robot to reactively avoid collisions in a people-populated environment. Not intended as a realistic model of how neurological systems work. The model is called "subsumption architecture”. Its purpose is to program –intelligent, –situated, –embodied agents.

30. new architecture: subsumption Introduced in Brooks’ seminal 1986 paper Consists of layered behaviors, –from simple to complex, –with simple interfaces Layers can “override” each other Each layer has a control program that is capable of working at the speed of environmental change Each layer now can do: – the appropriate model building, –sensor fusion, –etc. 1. No central model of world. 3. No separation into perception, central processing, and actuation. 3. Layering increases capabilities. 4. No hierarchical arrangement. 5. Messages on input ports when needed. 6. Behaviors run in parallel.

31. Basic Architecture of an autonomous agent SensorsCognitionEffectors Vision, range, touch Decides actions and Carry out actions commands effectors Subsumption Architecture Control Problem for an autonomous robot Traditional Approach: – functional decomposition A new approach – decomposition by activity

32. Motivation To achieve cooperation and coordination among different robots and self governance with human like performance in a common work space.

33. Key Problems for Subsumption-based mobile robots.  Cooperation  Coordination  Learning  Vision  Localization

34. Subsumption Architecture 1. Reactive robotics approach, which Brooks calls “behavioral robotics.” 2. The central idea of Brooks’ approach is that more sophisticated robot competencies should be built on top of simpler ones. Instead of all robot inputs feeding into a sensory perception unit, which creates a “world model” of the robot’s environment, which feeds into a planning module, Brooks has argued that: – robot perception and action should be closely linked, –complex behaviors can be built from the interactions of simple ones. Example: – a robot that must walk should first learn to stand. –Then later behaviors can “exploit” earlier ones: a task which causes a legged robot to move its legs can make use of the knowledge embedded in the behavior that allows the robot to simply stand.

35. Subsumption Architecture: Massiveness Brooks has proposed that future unmanned interplanetary missions should be performed by hundreds—or thousands— of simple, insect-like robots that act in teams to accomplish work, rather than a large and complicated monolithic device. Individual robots could be considered expendable without jeopardizing the success of the entire mission, whereas if a single large robot had a failure, the mission would be over. Homework (not this year): Read: Rodney Brooks’s paper on “Fast, Cheap, and Out of Control”

36. Behavior-based Robotics in 1984 Groups at MIT and SRI independently began rethinking how to organise intelligence (around 1984). Requirements: –Reactive to dynamic environment –Operate on human time scales –Robustness to uncertainty/unpredictability They implemented simple systems with similar features.

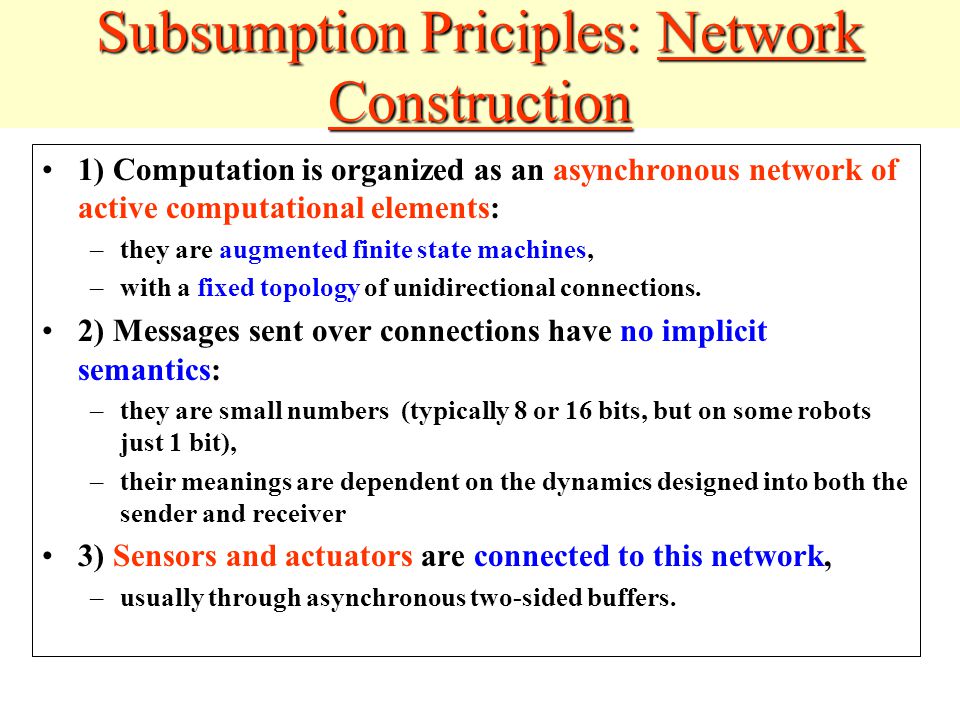

37. Subsumption Priciples: Network Construction 1) Computation is organized as an asynchronous network of active computational elements: –they are augmented finite state machines, –with a fixed topology of unidirectional connections. 2) Messages sent over connections have no implicit semantics: –they are small numbers (typically 8 or 16 bits, but on some robots just 1 bit), –their meanings are dependent on the dynamics designed into both the sender and receiver 3) Sensors and actuators are connected to this network, –usually through asynchronous two-sided buffers.

38. Subsumption Architecture: Incrementally build network of state machines Incremental method for building robots Network of finite state machines links sensors to actions Internal timers Control system built in layers Model:Model: Message passing augmented finite state machines

39. Finite State Machines In Brooks’ original work, each module was implemented as a finite state machine –augmented with some instance variables A finite state machine has –a set of states a start state; (one or more stop states) –a set of symbols –a set of transitions For example –an FSM for a light switch offon switch An FSM can be implemented in C –using a state variable and switch statement

40. Let us look again to more limitations of Conventional Approaches Perception takes too long Perception is not a solved problem, nor will it be solved in the near future. Modeling/planning component assumes complete models are available Overall system cannot respond in real-time Most robots built this way have failed –(or run very slowly)

41. And the response of the Behavior-based Approach Decompose overall control system into a layered set of reactive behaviors Each behavior represents a complete mapping from sensors to motor commands Low-level behaviors (e.g. avoid) can run in real- time since they use little computation High-level behaviors are invoked only when necessary Requires arbitration strategy to choose among (or combine) conflicting behaviors

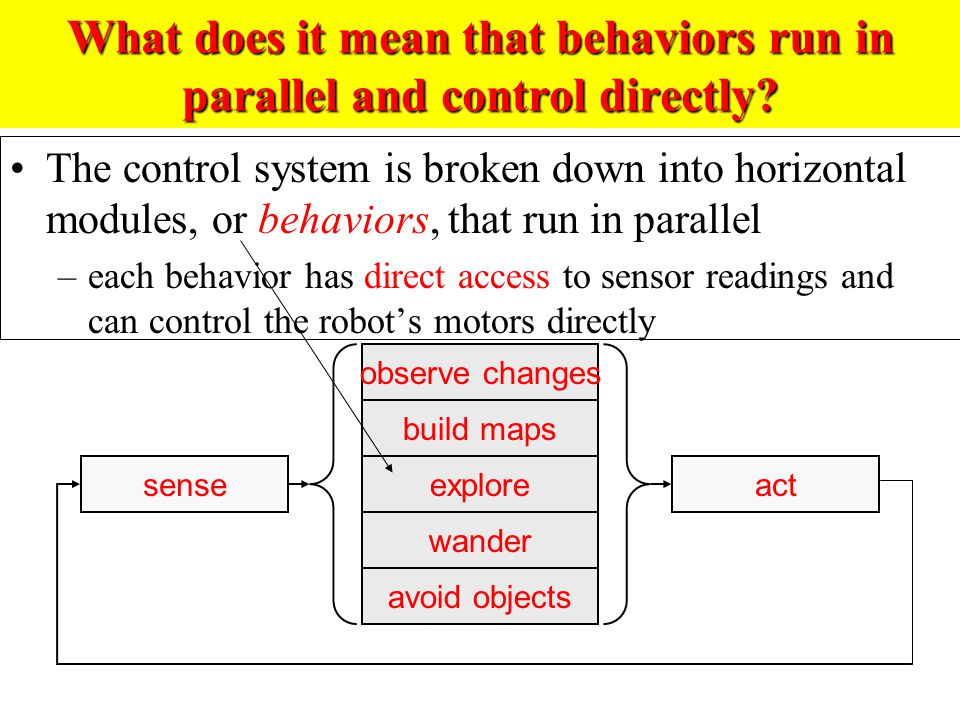

42. What does it mean that behaviors run in parallel and control directly? The control system is broken down into horizontal modules, or behaviors, that run in parallel –each behavior has direct access to sensor readings and can control the robot’s motors directly sense observe changes build maps explore wander avoid objects act

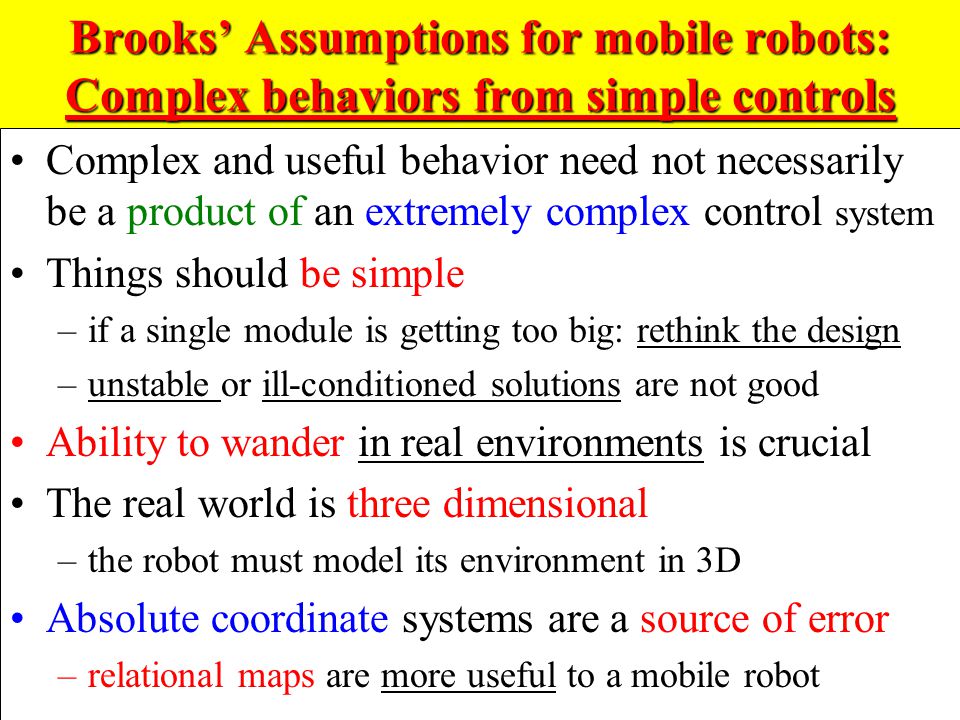

43. Brooks’ Assumptions for mobile robots: Complex behaviors from simple controls Complex and useful behavior need not necessarily be a product of an extremely complex control system Things should be simple –if a single module is getting too big: rethink the design –unstable or ill-conditioned solutions are not good Ability to wander in real environments is crucial The real world is three dimensional –the robot must model its environment in 3D Absolute coordinate systems are a source of error –relational maps are more useful to a mobile robot

44. The real world is not constructed of exact shapes –models may be useful, but should not be used alone Sonar data, while easy to collect, do not lead to rich descriptions of the world –visual data is much better For robustness, the robot must be able to function when one or more of its sensors fails or starts giving erroneous readings –recovery should be quick (self-calibrating) Robots should be autonomous and self-sustaining (able to survive weeks without human assistance) Brooks’ Assumptions for mobile robots: sensors integration and autonomy -

45. how much / how do we represent the world internally ? Just what we need. Subsumption paradigm Motor Schemas Subsumption composes simple reactions (behaviors) by letting one take control at an appropriate time. World state is computed in order to perform a specific task. Robot Architecture

46. Larger example -- Genghis 1) Standing by tuning the parameters of two behaviors: the leg “swing” and the leg “lift” 2) Simple walking: one leg at a time 3) Force Balancing: incorporated force sensors on the legs 4) Obstacle traversal: the legs should lift much higher if need be 5) Anticipation: handles touch sensors (whiskers) to detect obstacles 6) Pitch stabilization: uses an inclinometer to stabilize fore/aft pitch 7) Prowling: uses infrared sensors to start walking when a human approaches 8) Steering: uses the difference in two IR sensors to follow 57 FSM’s wired together !

47. Brooks’ Approach –Don’t use logic-based description of percepts –Don’t apply search operators or logical inference or planning operators Goal formalized, but not generalized –Arrive at a next action, not operator sequence –Apply that operator sequence to world (detail) Respond based on contingencies & interaction

48. Levels for the Genghis Robot Level1: standup –2 modules per leg; control alpha (advance) & beta (balance) motor Level2: simple walk –does not compensate for rough terrain Level3: force balancing –Compensates for rough terrain Level4: leg lifting Level5: whiskers Level6: pitch stabilization Level7: steered prowling

49. Layers and modules Each layer consists of a number of modules Modules –Module is a hardware component CPU + memory + specialized hardware + program Modules connect to other h/w components via physical wires Connections are fixed by design; not dynamic Connections between modules are low bandwidth Modules within a layer –Interconnect with data inputs & outputs –Modules are asynchronous No centralized clock No central memory

50. Module Conflict resolution on a path from sensors to actuators Example of suppression

51. A Behavior-based Architecture for Box Pushing Global reward Local Rewards on all levels

52. Connections between layers Layer0 is lowest –Layer1 is next –Etc. Layers are designed to have separate goals –Lower layers deal with more important goals –E.g., important = survival Connections across layers –Layer1 connects to Layer0; layer2 layer 1 etc. –Connections always from higher level to lower level –Lower layer cannot detect this connection –Connections are fixed by design (not dynamic) Established by physical wires

53. Suppression and Inhibition in modules These connections across layers are of two types –Suppression: Input lines When layer1 sends a message on this connection, layer1 input replaces layer0 output –Inhibition: Output lines When layer1 sends a message on this connection, layer1 causes the layer0 output to be stopped (for an interval) No output replacement Modules are callable sub-functions (or procedures) –Can’t make a procedure call and invoke a module –Can send a message to a module if you have a wire from one module to another module –Connections are for message passing (within layers) and suppression/inhibition (across layers)

54. Explanation of the layers for a mobile robot Explanation of the layers for a mobile robot Avoid contact with objects (moving or static) Wander aimlessly around without hitting things. “Explore” the world by seeing places in the distance which look reachable and heading for them. Build a map of the environment and plan routes from one place to another Notice changes in the “static” environment Reason about the world in terms of identifiable objects and perform tasks related to certain objects. Formulate and execute plans which involves changing the world in some desirable way Reason about the behavior of the objects in the world and modify plans accordingly

55. Emergent Behaviors in a Subsumption Architecture If the sensory inputs satisfy a precondition specific to that module, then a certain behavior program, also specific to that module, is executed One behavior module can subsume another behavior Complex behaviors can emerge from the interaction of a relatively simple reactive machine with complex environment

56. Advantages of Subsumption Architecture Robustness Reactive and real-time response Flexible: multi-goal, easy to extend The robot interacts with the real world, not symbols No explicit representation of goals needed No central control unit needed No mapping from sensor values to physical quantities needed

57. our approach How many layers can be built? How complex can a behavior be? Can higher level functions such as learning be achieved by this approach? Questions concerning limits of Subsumption Architecture

58. Subsumption Architecture is a novel idea about mobile robots in history. 1.It brings some brand new ideas to all kind of robotics, not only mobiles. 2.It breaks the traditional solely sequencing mode to a parallel mode. 3.To some extent, it has actually affected the standard control architecture today. …. it affected also the AI…..

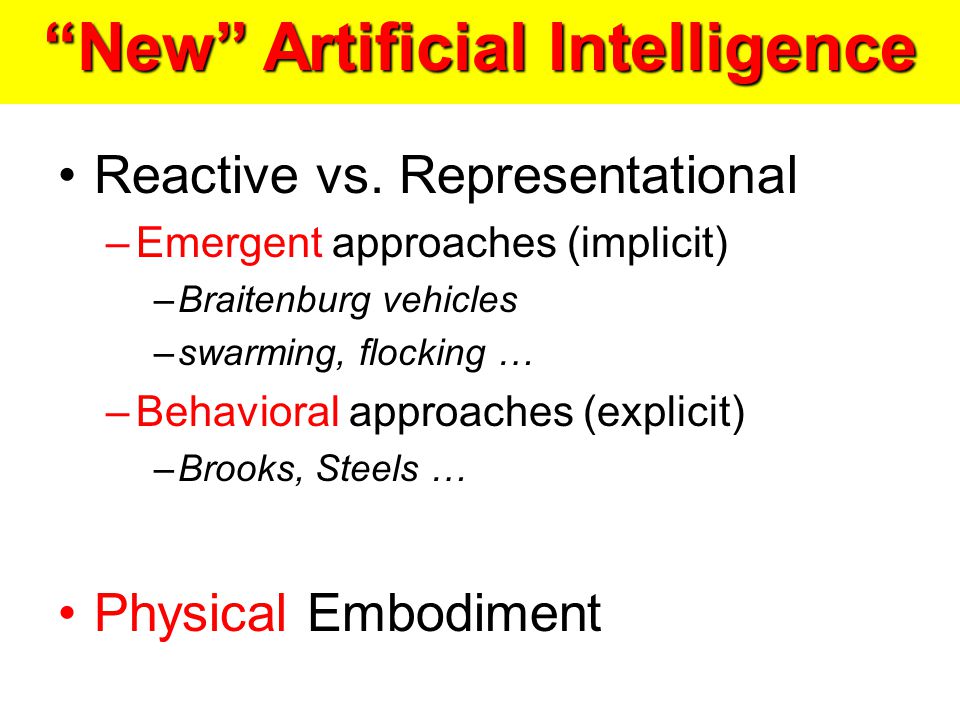

59. “New” Artificial Intelligence Reactive vs. Representational –Emergent approaches (implicit) –Braitenburg vehicles –swarming, flocking … –Behavioral approaches (explicit) –Brooks, Steels … Physical Embodiment

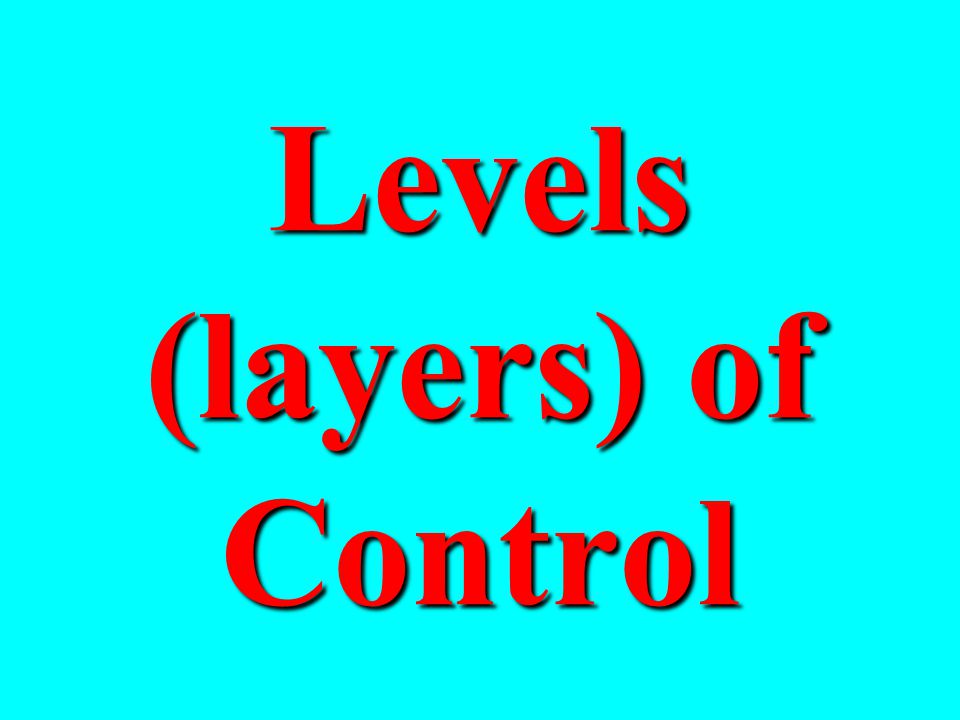

60. Levels (layers) of Control

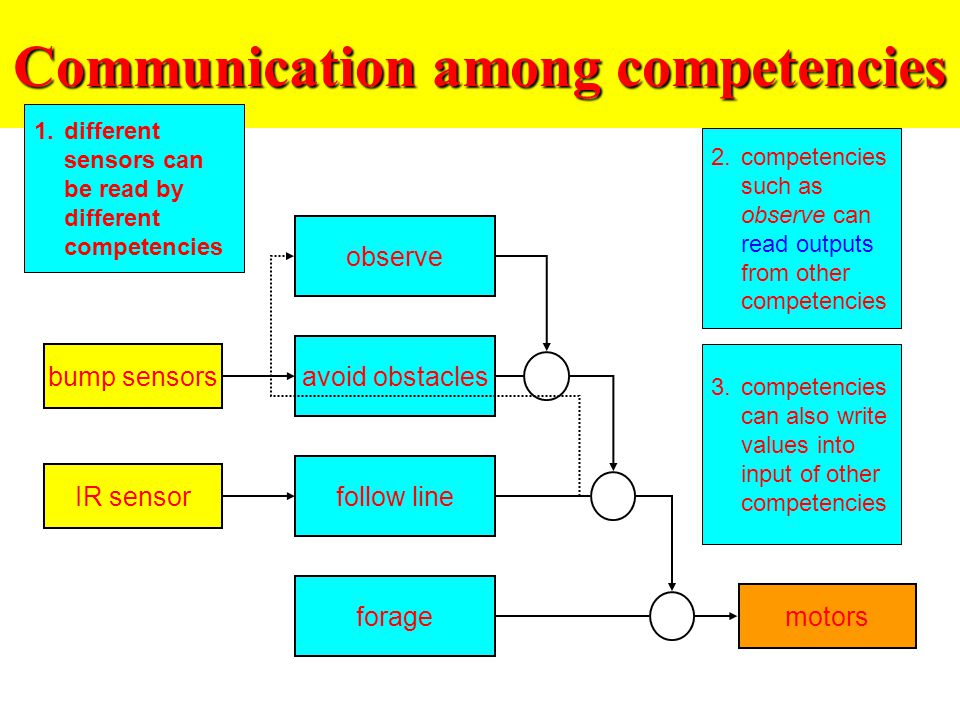

61. Communication among competencies forage S motors follow line S IR sensor avoid obstacles S bump sensors observe 1.different sensors can be read by different competencies 2.competencies such as observe can read outputs from other competencies 3.competencies can also write values into input of other competencies

62. Augmented Finite State Machine Finite State Machine R R R Sensor I S

63. Layers are composed of modules An example of module is shown below: S 10 1 3 Inputs Outputs Suppressor Inhibitor Behavioral module Suppression and Inhibition

64. More general behavior interactions: More general behavior interactions: suppression and inhibition can be on both inputs and outputs arbitrates among layers in an ad-hoc way AFSK of a simple three-layered robot from Brooks

65. feelforce robot sonar collide runaway motor robot halt command Layer 0 force Dock Find Wander Operate Avoid Highest priority Lowest priority Other examples of Subsumption Architectures

66. feelforce robot sonar collide runaway motor robot halt command force wander avoid heading S 15 Layer0+Layer1 We can suppress runaway behavior Layer 1

67. Another extension: Layer 0 turn

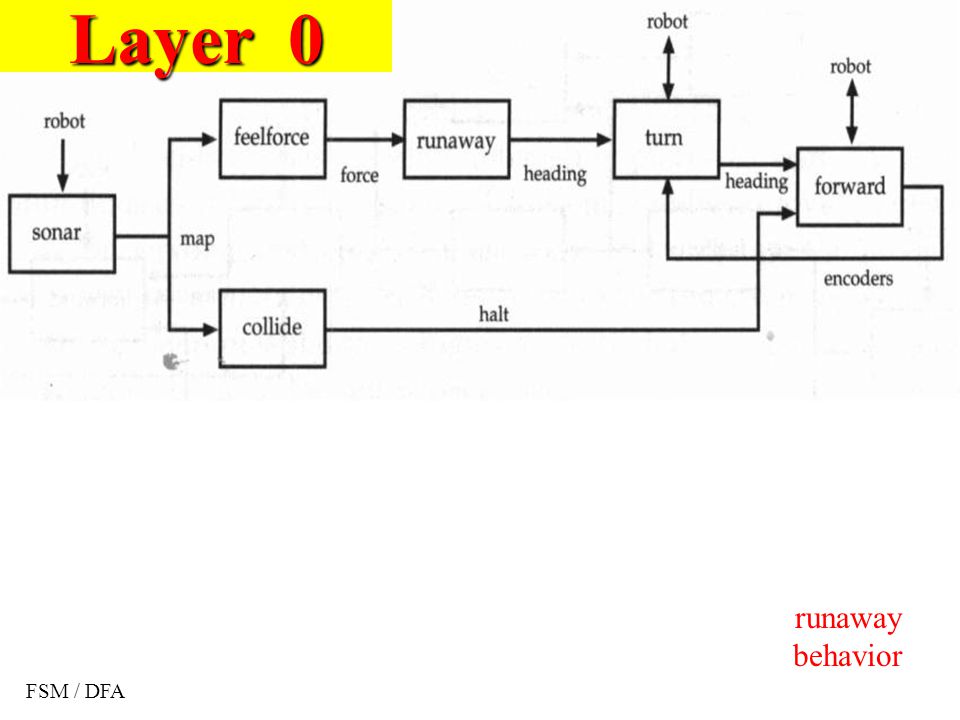

68. Subsumption Architecture runaway behavior FSM / DFA Layer 0

69. Layer 1 added wander behavior

70. Il livello 2 Layer 2 added navigate behavior wander behavior runaway behavior

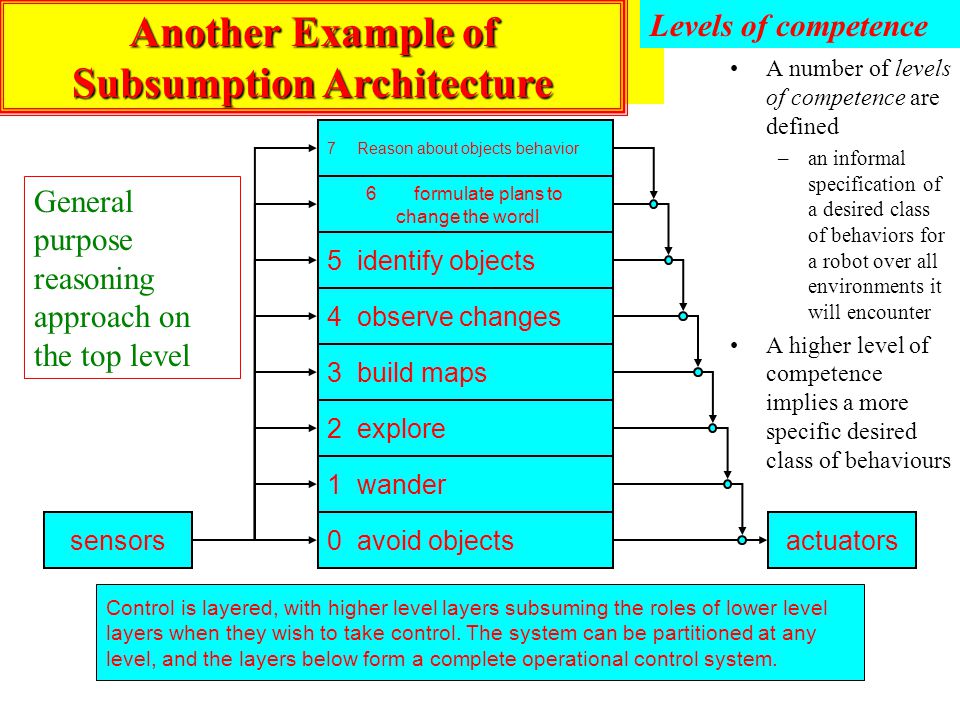

71. Another Example of Subsumption Architecture Mapping robot

72. Subsumption sensors0avoid objectsactuators1wander2explore3build maps4observe changes5identify objects 6formulate plans to change the wordl 7Reason about objects behavior Control is layered, with higher level layers subsuming the roles of lower level layers when they wish to take control. The system can be partitioned at any level, and the layers below form a complete operational control system. Another Example of Subsumption Architecture General purpose reasoning approach on the top level Levels of competence A number of levels of competence are defined –an informal specification of a desired class of behaviors for a robot over all environments it will encounter A higher level of competence implies a more specific desired class of behaviours

73. Example Competencies in more detail 0avoid contact with (stationary or moving) obstacles 1wander aimlessly around without hitting things 2 explore the world by seeing places in the distance that look reachable and heading for them 3build a map of the environment and plan routes from one place to another 4notice (observe) changes in the “static” environment 5reason about the world in terms of identifiable objects and perform tasks related to certain objects 6formulate and execute plans that involve changing the state of the world in some desirable way 7reason about the behaviour of objects in the world and modify plans accordingly

74. Step-by-step building of Layers of Control The key idea of levels of competence is that layers of a control system can be built to correspond to each level –a control system can be built to achieve level zero competence (avoid obstacles) it is programmed, debugged and then fixed in operation –another layer is then added (first-level control) it is able to examine data from the level-0 system it is able to inject output, to suppress the level-0 output level-0 is unaware of the suppression and continues to run

75. Structure of Layers How is each level built? –does each have to be structured in horizontal manner? This is true to a certain extent, but the key difference is that not all desired perceptions need to be processed by each competence –different decompositions can be used for different sensor-set task-set pairs Layers can be built on a set of small processors –each one sends (small) messages to others –no message acknowledgement is required –there is no need for central control (or synchronisation)

76. subsumption details Each layer has one function, conceptually Lower layers tend to be more “reactive” –closed loop controls –inputs tightly coupled to outputs Higher layers are more “deliberative” –do higher-level sensor fusion & modeling –keep more state –planning further in the future Layers can fake the inputs or outputs of other layers

77. subsumption advantages (according to Brooks) Provides a way to incrementally build and test a complex mobile robot control system Supports parallel computation in a straightforward, intuitive way Avoids centralized control; relies on self-centered and autonomous modules Leads to more emergent behavior -- “Complex (and useful) behavior may simply be the reflection of a complex environment” – Compare with SPA - intelligence is entirely in the design of the planner (the programmer)

78. subsumption successes Early efforts were a dramatic success, zipping around like R2D2 instead of pondering their plans “Pinnacle” was Herbert, who found soda cans in an office Criticism of Subsumption Herbert didn’t work very repeatably No subsumption-based robot since Herbert -- or is there? Is “classical subsumption” still in use? –Cog is based on subsumption? –Brooks’ publications, however, mainly describe imitation of human cognitive models and do not explicitly mention “subsumption” –But, these models also stress non-monolithic control; subsumption might be there implicitly

79. 1.More complex behaviors? This approach won’t necessarily lead to system capable of more complex behaviors. A new controller is needed for each task. 2. Is it an evolution? –The experimenter is deciding on what modules to add, and what environment and task the robot should be exposed to. - not the same as evolution. –But in terms of evolution, new behaviors and new mental structures are learnt in response to the environment, not added by an experimenter. – Similarly, in the development of an individual, new representational structures are developed in response to the environment, not added by an experimenter. Criticism of Subsumption

80. 3. It would be more impressive if the robot learnt new behavior modules in response to the environment. –This possibility is discussed by Brooks (1991), but not yet successfully tackled. 4. Emphasis in this approach on reacting to the environment. –And it is the case that apparently quite sophisticated behaviors can result from simple reaction to the environment. –But representations are needed for more complex tasks. e.g. ‘Find an empty can and bring it back to the starting point’ requires the formation of an internal representation corresponding to a map. Need to provide an account of the development of representations. Criticism of Subsumption

81. Other Reactive Approaches

82. Two other reactive approaches that are popular Potential field methods –a potential field is a concept from physics two examples are the gravitational field –you do not need to be told which way to fall –planets do not need to plan how to move around the sun and electromagnetic fields –mobile phones, television, radio, etc. e.g. obstacles exert hypothetical repulsive forces on the robot Motor schema navigation –multiple, concurrent schema generate separate behaviors which are summed to produce output schema are dynamically created/destroyed as needed

83. “Embedding not intelligence, but capabilities, in everyday objects is one crucial part of the solution.” --Pattie Maes

84. Reactive vs. Algorithmic Control Algorithmic Control: robot’s program is fundamentally a series of steps or actions to be taken in a predetermined order. –Most effective when the robot’s world and its interactions with it are well- structured Manipulator arms in factories typically use algorithmic control with great success –Loses its appeal when the robot must deal with unexpected situations –When it is extended to deal with error situations, the algorithmic method becomes a complicated tree of branching decisions that is hard to design and debug Reactive Control: robot’s program is organized around a collection of separate mini- programs, all running at once and able to take control of the robot as they see fit –For a very simple, minimal HandyBug program, there might be –a touch sensor process, which monitored the robot’s touch sensors and caused the robot to back up and turn when it hit something –a periodic turn process, that caused the robot to take a turn every now and then –and a wander process, that caused the robot simply to move Reactive control excels in complex situations with many unpredictable interactions

85. Behaviour-based Robotics Idea of building autonomous mobile robots. New approach, where robots operate in the world, and use ‘…highly reactive architectures, with no reasoning systems, no manipulable representations, no symbols, and totally decentralized computation’ (Brooks, 1991) ‘…I wish to build completely autonomous mobile agents that co-exist in the world with humans, and are seen by those humans as intelligent beings in their own right. I will call such agents Creatures...’ (Brooks, 1991) Brooks, R. (1991) Intelligence without Representation Artificial Intelligence, 47, 139-159.

86. See “Elephants don’t play chess”, (1990 paper by Brooks) Brooks, Rodney A. (1990) “Elephants don’t play chess”. In Pattie Maes (Ed) Designing autonomous Agents, Cambridge, Mass: MIT Press. Because elephants don’t play chess, no reason to assume they are not intelligent. Emphasis on kind of behaviour exemplified by elephants, rather than on more abstract human behaviours (e.g. games, speech recognition, problem solving).

87. A Creature must cope appropriately and in a timely fashion with changes in its dynamic environment. A Creature should be robust with respect to its environment: minor changes in the properties of the world should not lead to total collapse of the Creature’s behaviour; rather one should only expect a gradual change in the capabilities of the Creature as the environment changes more and more. A Creature should be able to maintain multiple goals and, depending on the circumstances it finds itself in, change which particular goals it is actively pursuing; thus it can both adapt to surroundings and capitalize on fortuitous circumstances. A Creature should do something in the world: it should have some purpose in being.

88. Set of principles (Brooks, 1991) The goal is to study complete integrated intelligent autonomous agents. The agents should be embodied as mobile robots situated in unmodified worlds found round laboratory. (embodiment). Robots should operate under different environmental conditions - e.g. in different lighting conditions, when sensors and actuators drift in calibration (situatedness). Robots should operate on timescales commensurate with timescales used by humans (situatedness).

89. Hybrid Control Architectures

90. Robot Architecture how much / how do we represent the world internally ? As much as possible. 4 SPA architecture Sense -- plan -- act : design of Shakey and the Stanford Cart Some tasks do require a deliberative approach, i.e., reasoning about the world. Current robots incorporate both reaction and reasoning. (sometimes termed hybrid systems)

91. Standard Approach - 1 perceptioncognitionaction world

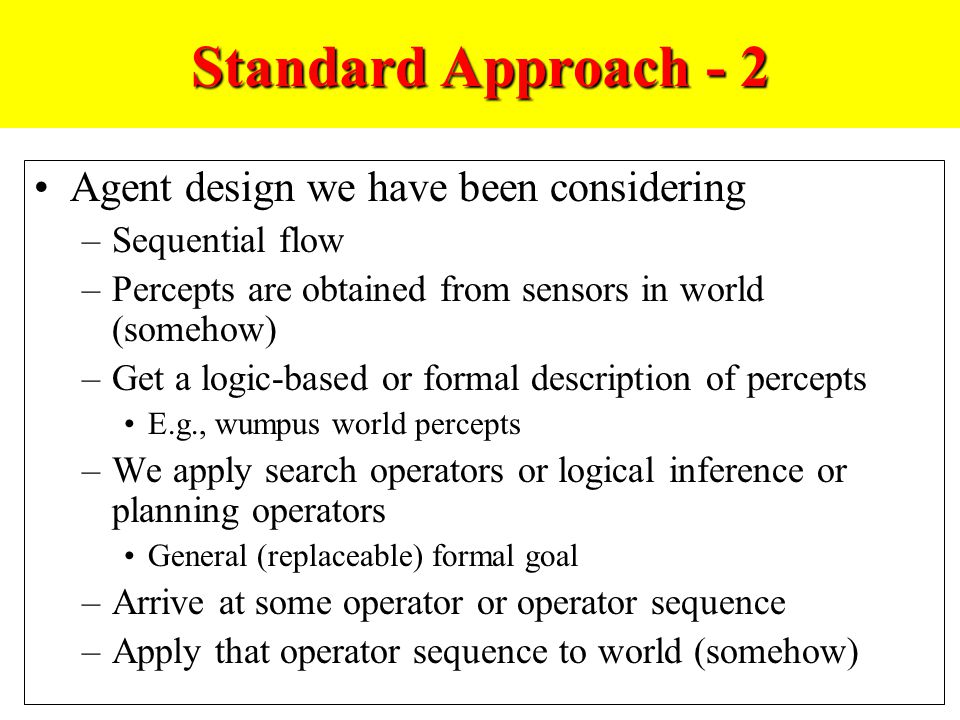

92. Standard Approach - 2 Agent design we have been considering –Sequential flow –Percepts are obtained from sensors in world (somehow) –Get a logic-based or formal description of percepts E.g., wumpus world percepts –We apply search operators or logical inference or planning operators General (replaceable) formal goal –Arrive at some operator or operator sequence –Apply that operator sequence to world (somehow)

93. Taxonomy of Control Architectures: hybrid A variety of different approaches have been tried for implementing the sense-plan-act control cycle These approaches can be categorised as –model-based –reactive –hybrid model based reactive hybrid behavior based Three-Layer Architecture is an example of hybrid system

94. Examples of Hybrid Approaches The SSS three-layer architecture –the servo-subsumption-symbolic architecture combines Brooks’ architecture with a lower-level servo control level and a higher-level symbolic system [Connell] subsumption symbolic servo sensors actuators Fuzzy logic and neural network controllers –fuzzy logic rule-base(s), neural network(s) and combinations of both take inputs from sensors and process the data to generate output to actuators

95. Learning Approaches Traditional learning techniques –rather than attempt to predefine and predict a symbolic model of the ‘real-world’, the robot learns how to operate and how to behave by supervised learning –desired output is known for each set of input settings (e.g. ANN’s) reinforcement learning –learning by trial and error through performance feedback Evolutionary algorithms –using genetic algorithms to find good network weights –significant problems with evolving real solutions in reasonable time on current mobile robot hardware

96. Control Problems for an autonomous robot Rapidly changing boundary conditions Real-time response Information collected over noisy channels

97. The Control Cycle A fundamental methodology derived in the early days of robotics from engineering principles is the sense-think-act cycle –the principle is to continuously attempt to minimise the error between the actual state and the desired state based on control theory sense compute (think) act

98. Model Based A symbolic internal ‘world-model’ is maintained –the sub-tasks are decomposed into functional layers –similar to ‘classical’ artificial intelligence approach sense perception modelling planning task execution motor control act

99. Problems with Models An adequate, accurate and up-to-date model must be maintained at all times –this is very difficult in practice! –suppose, for example, the sensors detect an object that we have not got a symbol for (a novel object) A model-based system is extremely brittle –if one of the functional layers fails (e.g. hardware problems, software bugs), then the whole system fails Significant processing power is required –maintaining the model takes time, so slow responses!? Despite much effort, little progress was made!

100. Reactive Controllers In order to try to overcome the shortcomings of model-based robots, modern approaches have centred predominantly on simple reactive systems with minimal amounts of computation –‘model-free systems’ More correctly, the models are simple and implicit –the systems do not use symbolic models but, for example, a rule-set which tells a robot how to react to a corner when following a wall may be considered to be a simple, implicit model fragment it implicitly encodes assumptions about the environment

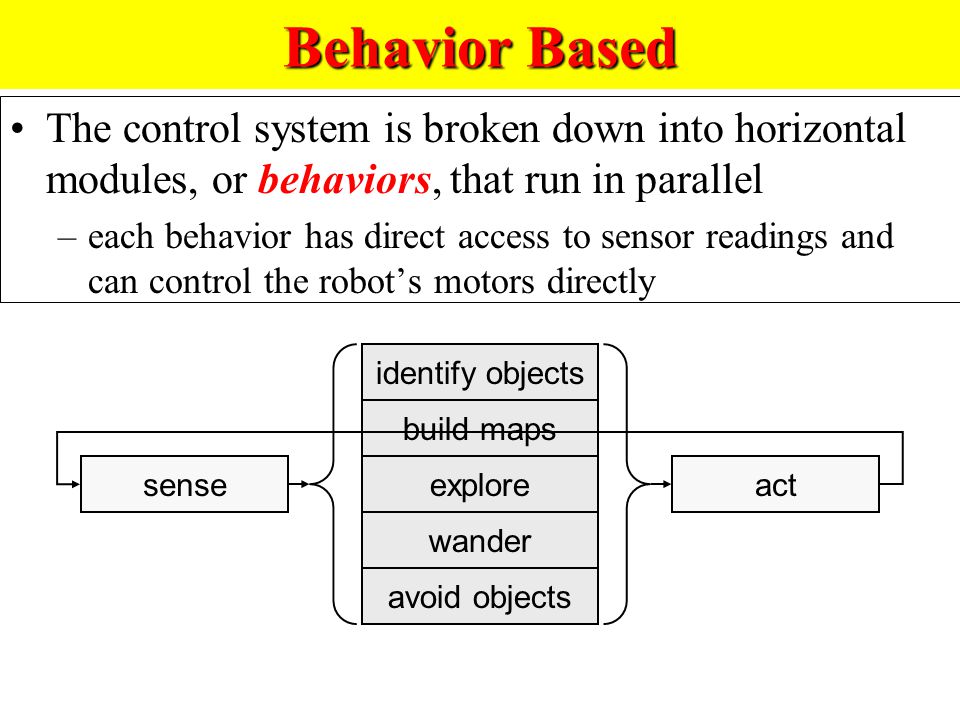

101. Behavior Based The control system is broken down into horizontal modules, or behaviors, that run in parallel –each behavior has direct access to sensor readings and can control the robot’s motors directly sense identify objects build maps explore wander avoid objects act

102. Three-layer architectures (TLA)

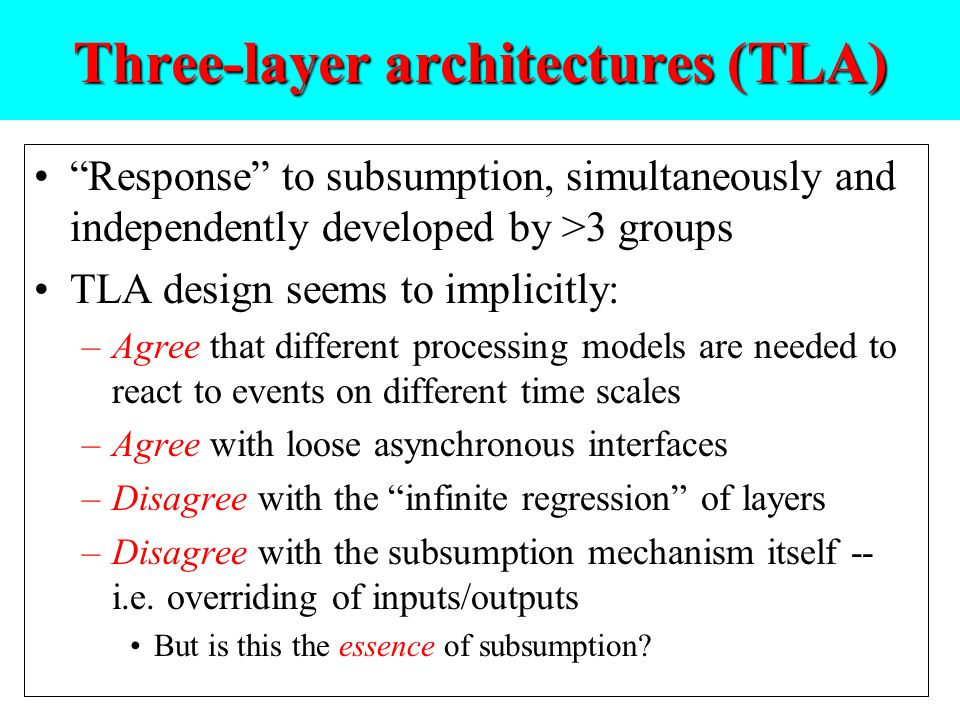

103. “Response” to subsumption, simultaneously and independently developed by >3 groups TLA design seems to implicitly: –Agree that different processing models are needed to react to events on different time scales –Agree with loose asynchronous interfaces –Disagree with the “infinite regression” of layers –Disagree with the subsumption mechanism itself -- i.e. overriding of inputs/outputs But is this the essence of subsumption?

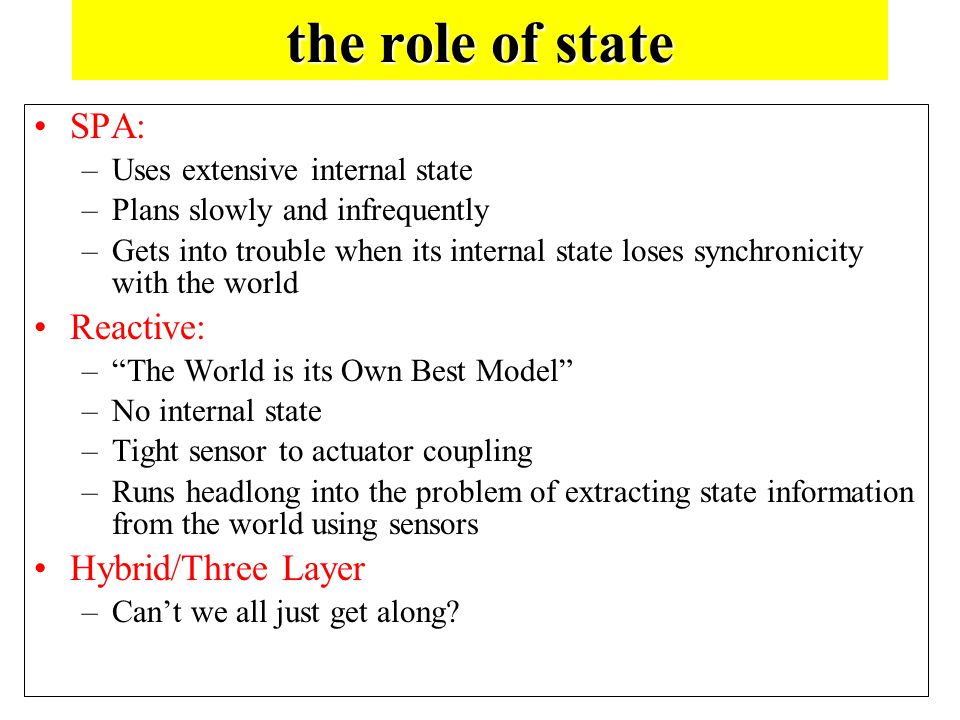

104. the role of state SPA: –Uses extensive internal state –Plans slowly and infrequently –Gets into trouble when its internal state loses synchronicity with the world Reactive: –“The World is its Own Best Model” –No internal state –Tight sensor to actuator coupling –Runs headlong into the problem of extracting state information from the world using sensors Hybrid/Three Layer –Can’t we all just get along?

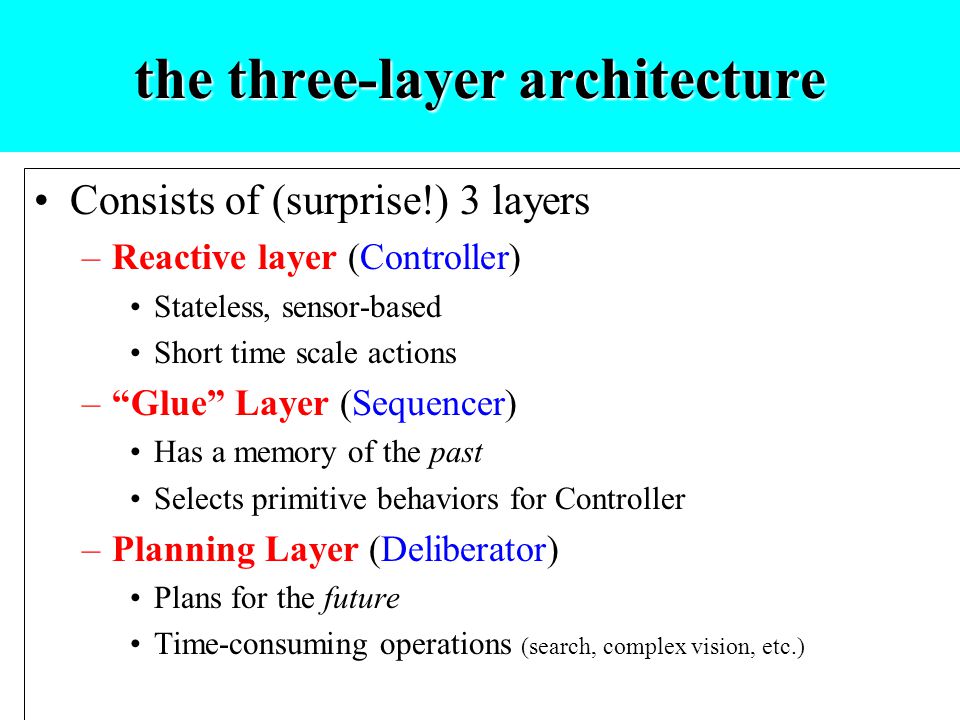

105. the three-layer architecture Consists of (surprise!) 3 layers –Reactive layer (Controller) Stateless, sensor-based Short time scale actions –“Glue” Layer (Sequencer) Has a memory of the past Selects primitive behaviors for Controller –Planning Layer (Deliberator) Plans for the future Time-consuming operations (search, complex vision, etc.)

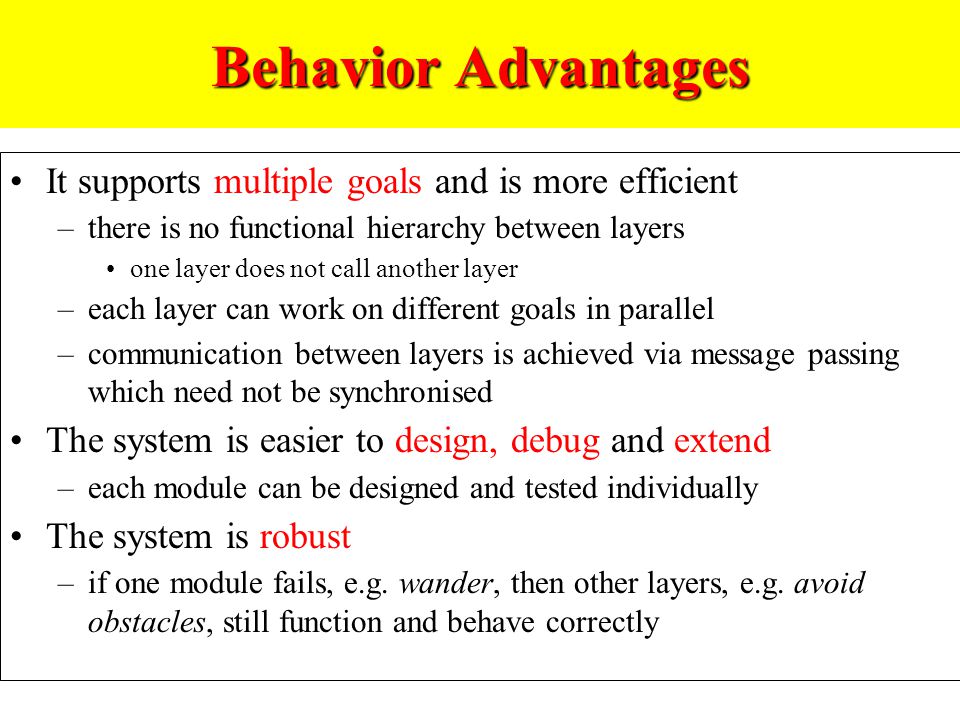

106. Behavior Advantages It supports multiple goals and is more efficient –there is no functional hierarchy between layers one layer does not call another layer –each layer can work on different goals in parallel –communication between layers is achieved via message passing which need not be synchronised The system is easier to design, debug and extend –each module can be designed and tested individually The system is robust –if one module fails, e.g. wander, then other layers, e.g. avoid obstacles, still function and behave correctly

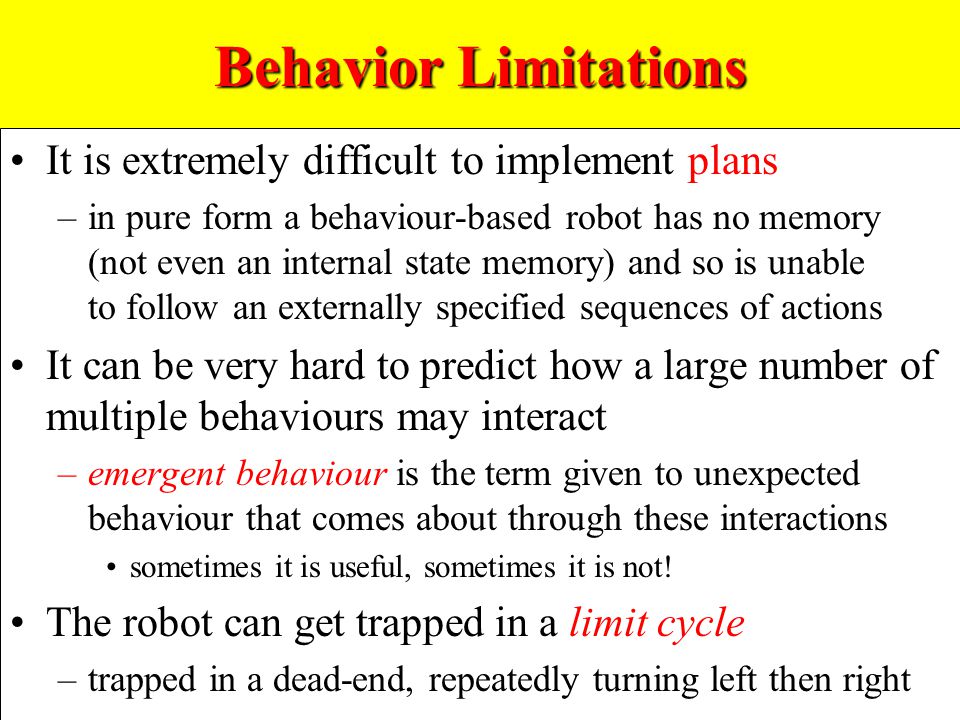

107. Behavior Limitations It is extremely difficult to implement plans –in pure form a behaviour-based robot has no memory (not even an internal state memory) and so is unable to follow an externally specified sequences of actions It can be very hard to predict how a large number of multiple behaviours may interact –emergent behaviour is the term given to unexpected behaviour that comes about through these interactions sometimes it is useful, sometimes it is not! The robot can get trapped in a limit cycle –trapped in a dead-end, repeatedly turning left then right

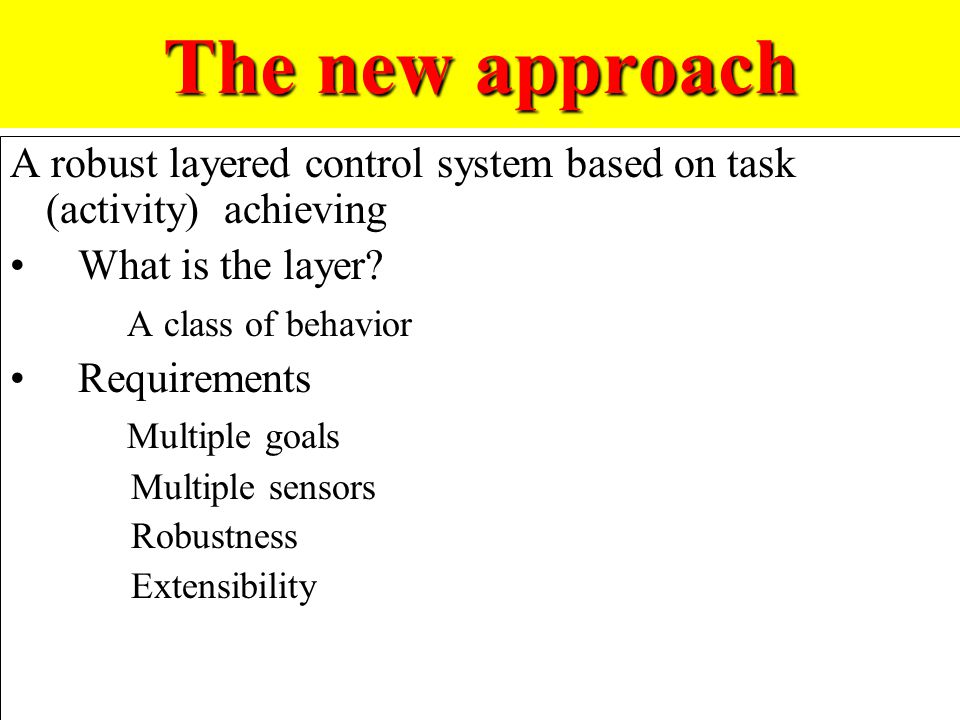

108. The new approach A robust layered control system based on task (activity) achieving What is the layer? A class of behavior Requirements Multiple goals Multiple sensors Robustness Extensibility

109. Conclusions & Implications A kind intelligent action can be generated without –Specific logical representation –Logical reasoning or search Intelligence without [typical] representation Can planning, and other traditional AI goals be met?

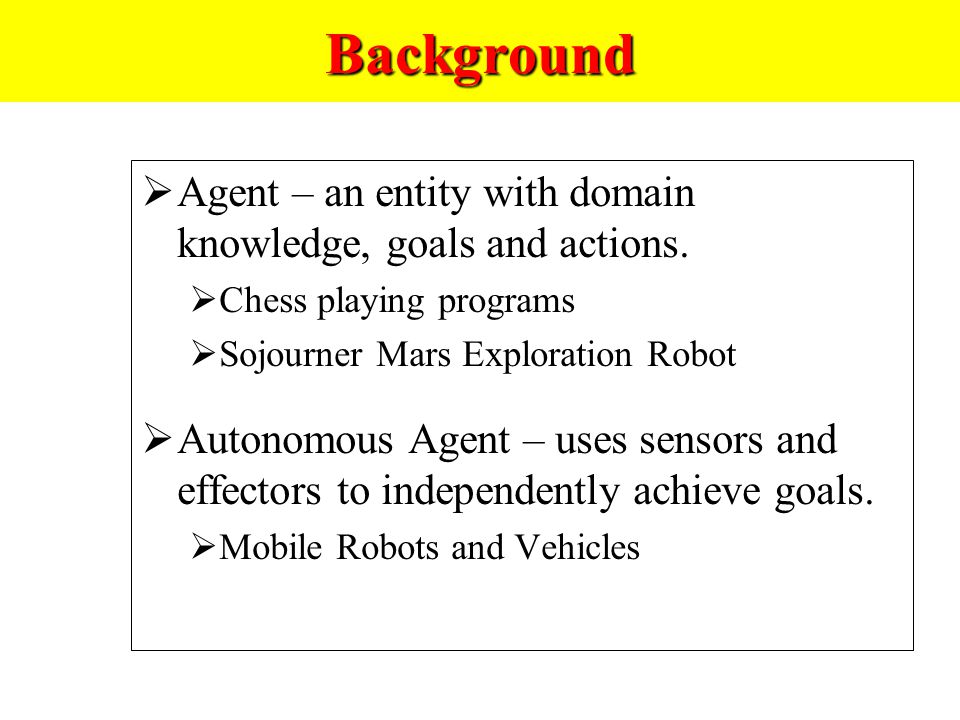

110. Background  Agent – an entity with domain knowledge, goals and actions.  Chess playing programs  Sojourner Mars Exploration Robot  Autonomous Agent – uses sensors and effectors to independently achieve goals.  Mobile Robots and Vehicles

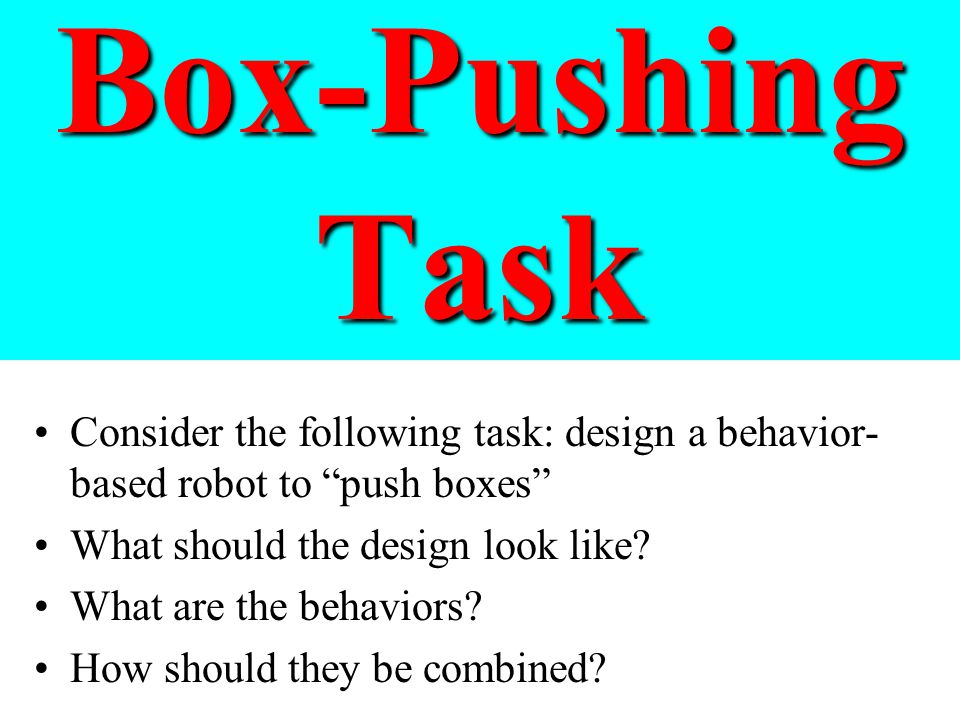

111. Box-Pushing Task Consider the following task: design a behavior- based robot to “push boxes” What should the design look like? What are the behaviors? How should they be combined?

112. Behaviors for Box-Pushing Task FINDER: –Goal: Locate an object that might be a box –Strategy: Wander around till the sonars detect an object –Priority: Lowest (default behavior) PUSHER: –Goal: Push an object –Strategy: Move forward while bumped and not stuck –Priority: Override FINDER when active UNWEDGER: –Goal: Recover from stalled situations where PUSHER failed –Strategy: Turn and move forward to open space –Priority: Highest (override all other behaviors)

113. Control Flow Among Behaviors

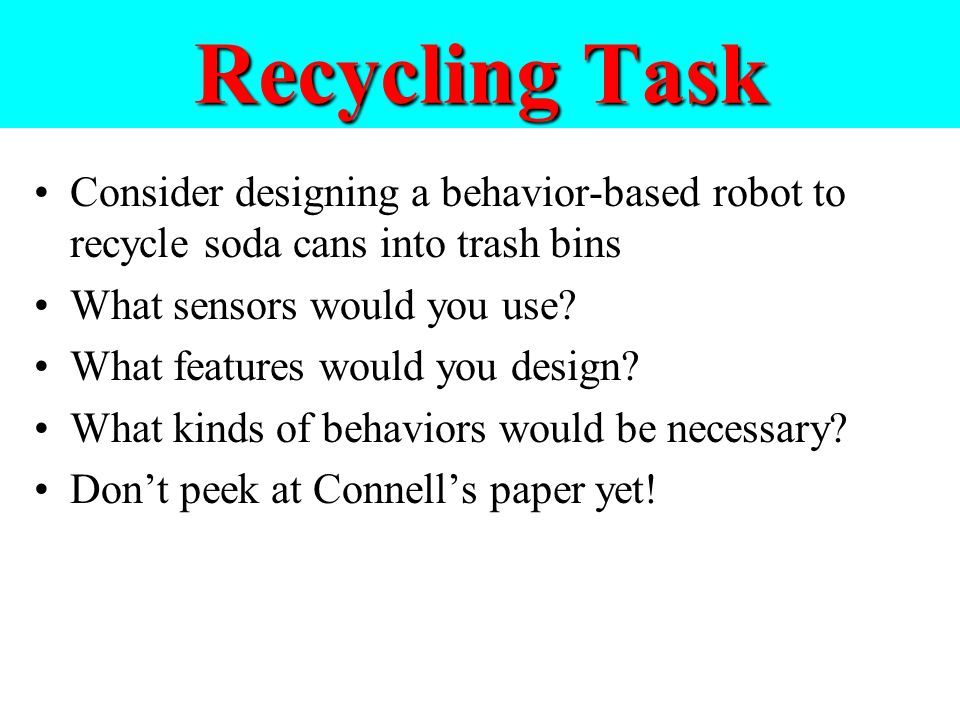

114. Recycling Task Consider designing a behavior-based robot to recycle soda cans into trash bins What sensors would you use? What features would you design? What kinds of behaviors would be necessary? Don’t peek at Connell’s paper yet!

115. Behaviors for Recycling Find soda cans Pick up a soda can Navigate the environment Avoid obstacles Find trash cans Head for home

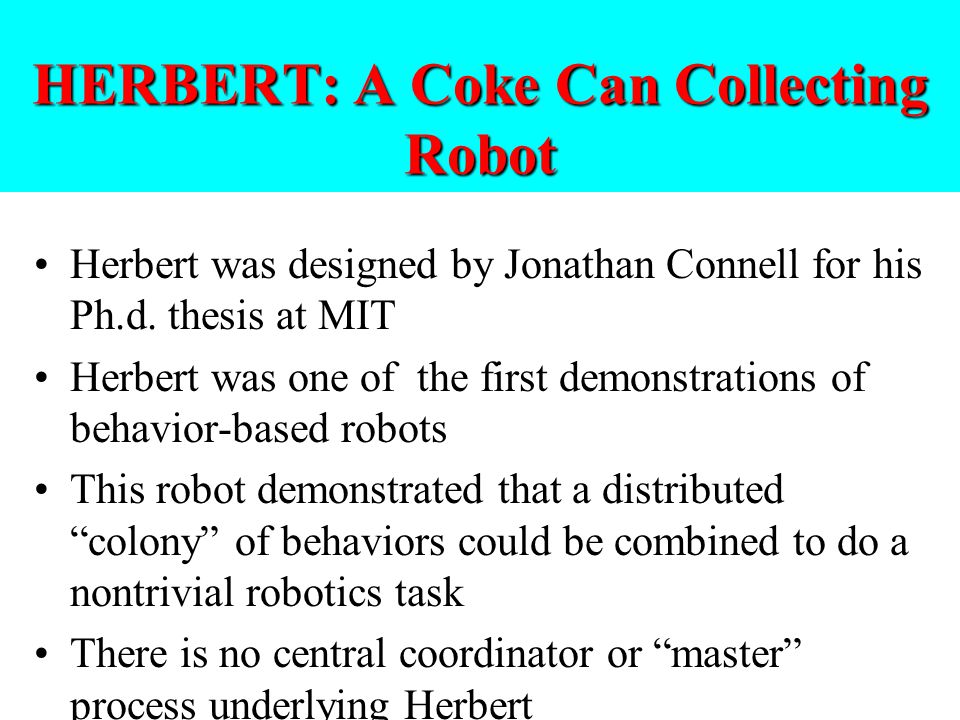

116. HERBERT: A Coke Can Collecting Robot Herbert was designed by Jonathan Connell for his Ph.d. thesis at MIT Herbert was one of the first demonstrations of behavior-based robots This robot demonstrated that a distributed “colony” of behaviors could be combined to do a nontrivial robotics task There is no central coordinator or “master” process underlying Herbert

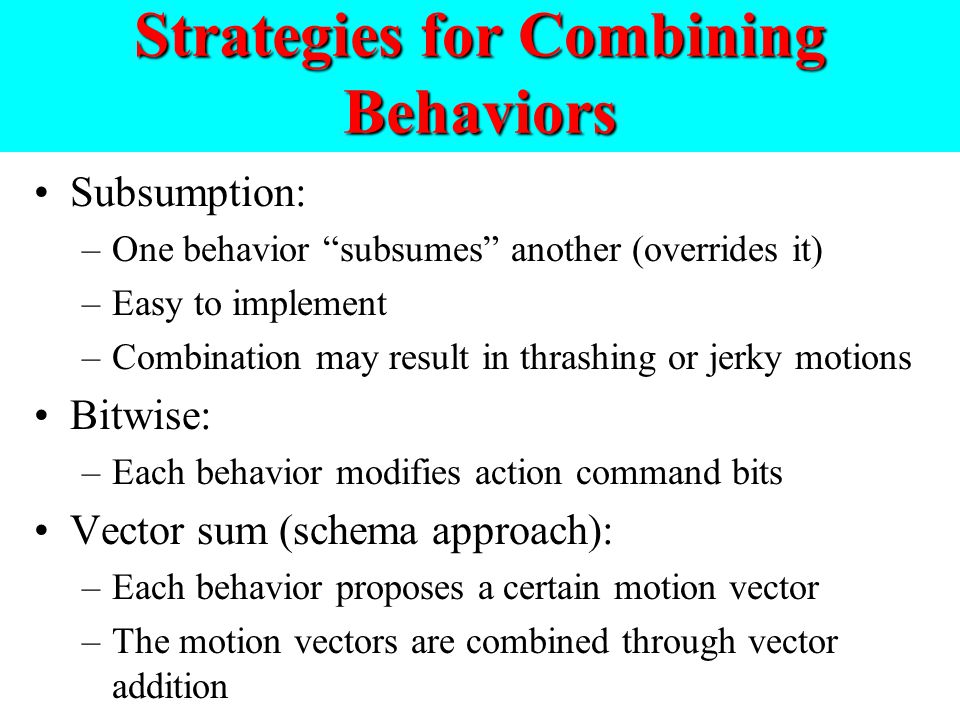

117. Strategies for Combining Behaviors Subsumption: –One behavior “subsumes” another (overrides it) –Easy to implement –Combination may result in thrashing or jerky motions Bitwise: –Each behavior modifies action command bits Vector sum (schema approach): –Each behavior proposes a certain motion vector –The motion vectors are combined through vector addition –The resultant vector is the direction of motion of the robot –Smooth combination of behaviors

118. Conflicting Behaviors “Find box” “Avoid” “Wall”

119. Bitwise Combination of Behaviors 11001001 Turn fast Turn left Turn right Turn med. Trans. fast Forward Back Trans. slow ACTION COMMAND = 1 BYTE Each behavior modifies certain fields of the action command logical BIT & and logical BIT OR.

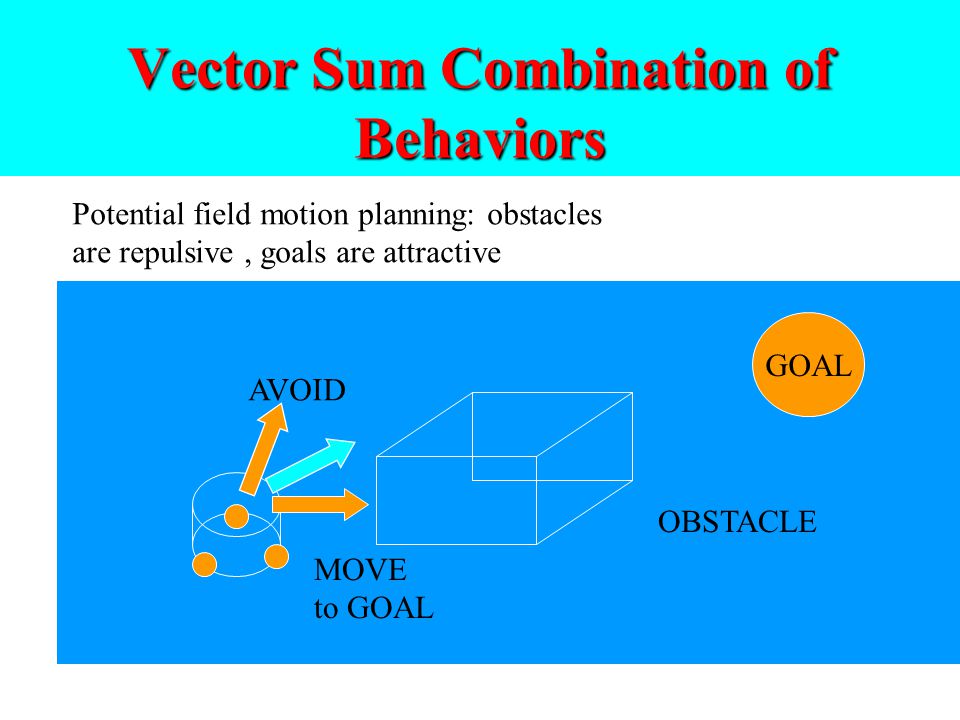

120. Vector Sum Combination of Behaviors GOAL OBSTACLE AVOID MOVE to GOAL Potential field motion planning: obstacles are repulsive, goals are attractive

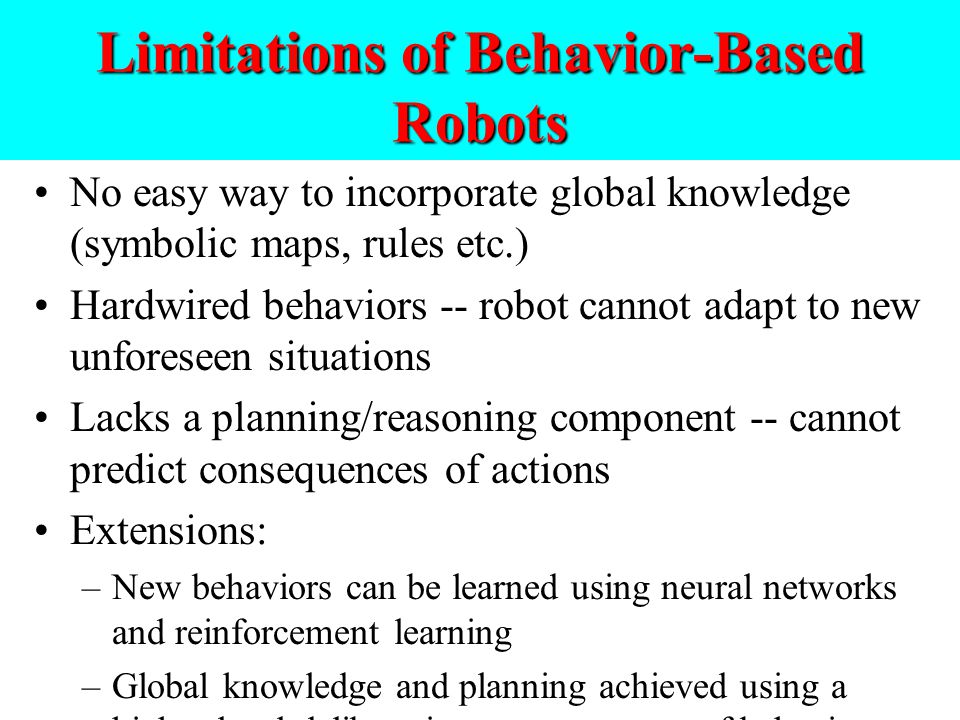

121. Limitations of Behavior-Based Robots No easy way to incorporate global knowledge (symbolic maps, rules etc.) Hardwired behaviors -- robot cannot adapt to new unforeseen situations Lacks a planning/reasoning component -- cannot predict consequences of actions Extensions: –New behaviors can be learned using neural networks and reinforcement learning –Global knowledge and planning achieved using a higher level deliberative system on top of behavior- based system

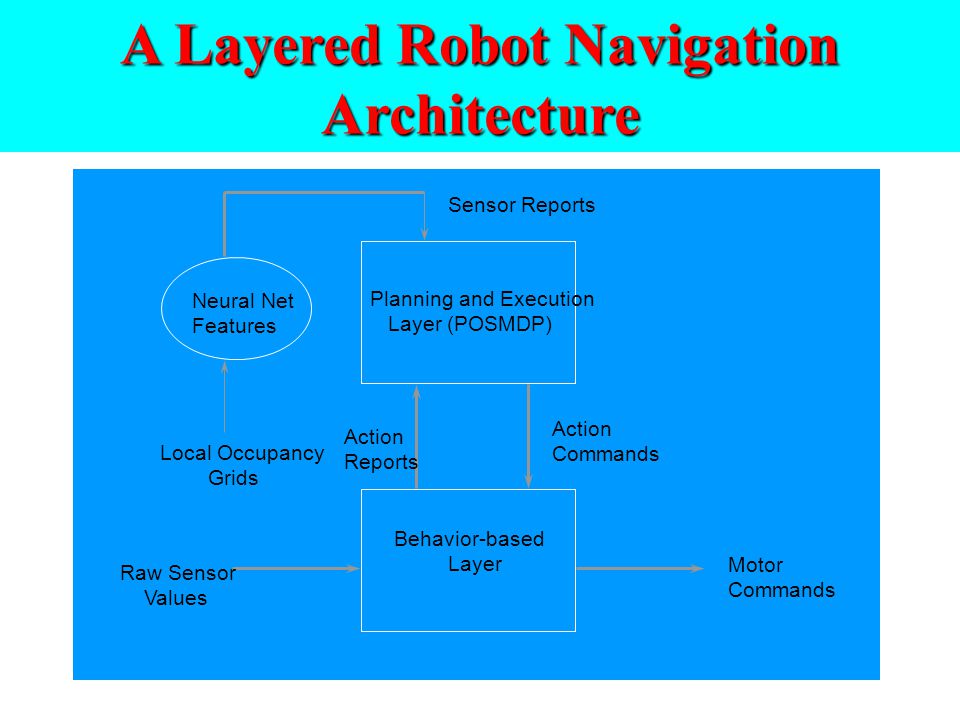

122. A Layered Robot Navigation Architecture Planning and Execution Layer (POSMDP) Neural Net Features Behavior-based Layer Sensor Reports Action Reports Action Commands Local Occupancy Grids Raw Sensor Values Motor Commands

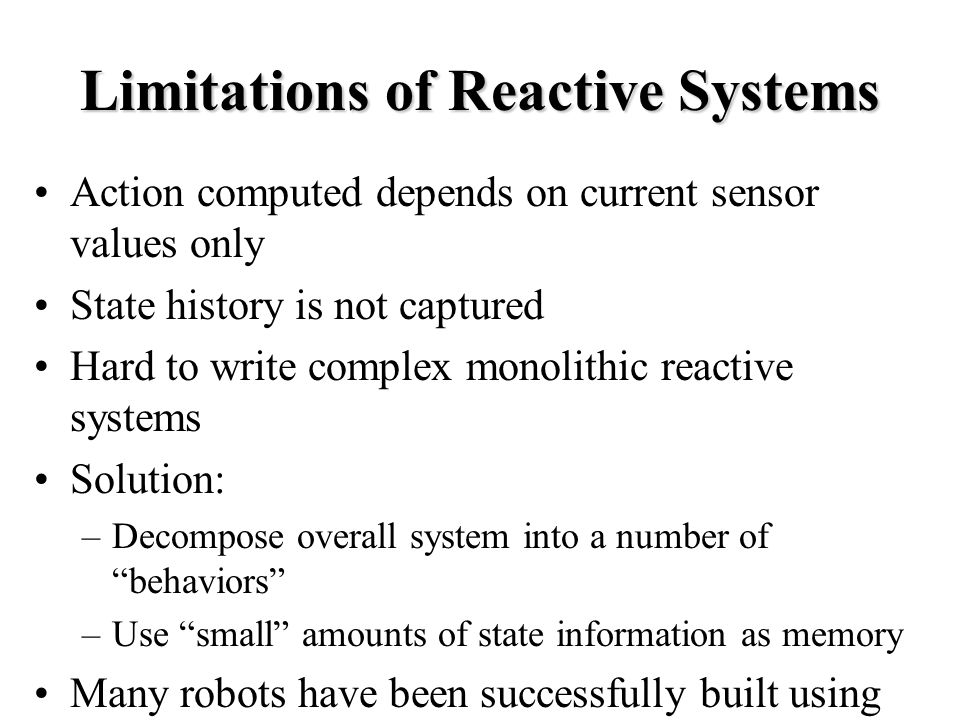

123. Limitations of Reactive Systems Action computed depends on current sensor values only State history is not captured Hard to write complex monolithic reactive systems Solution: –Decompose overall system into a number of “behaviors” –Use “small” amounts of state information as memory Many robots have been successfully built using this approach

124. Hybrid Architecture symbolic sensors actuators Control values

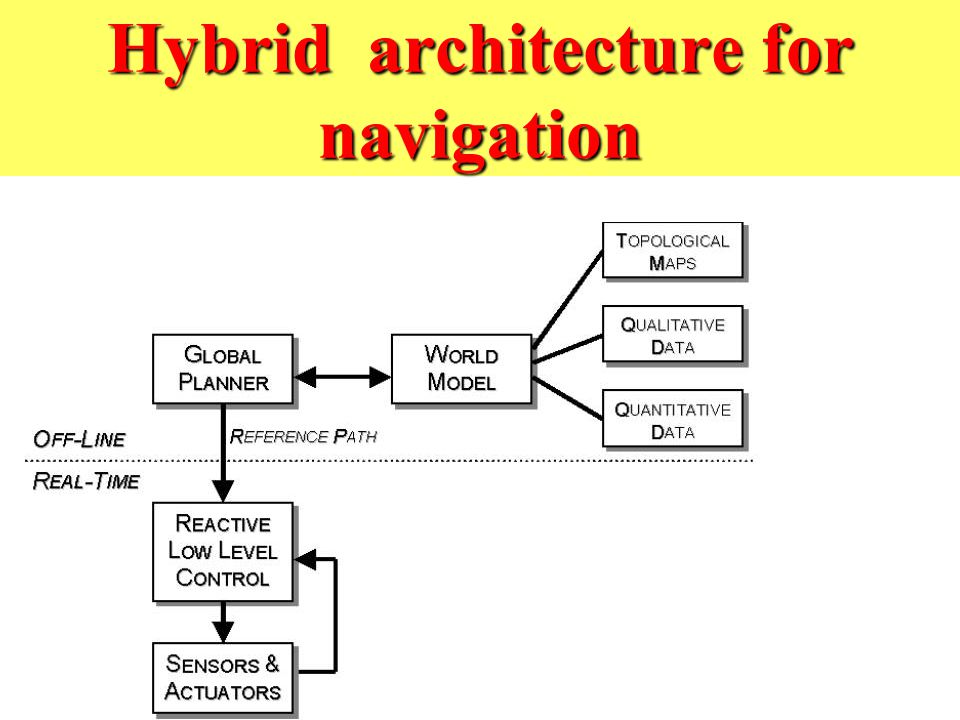

125. Hybrid architecture for navigation

126. Future Work Short Term –Galloping of Legged Robots –Humanoid Robots for Soccer Long Term –Creation of highly skilled Robots –Search and Rescue Operations

127. Research Problems

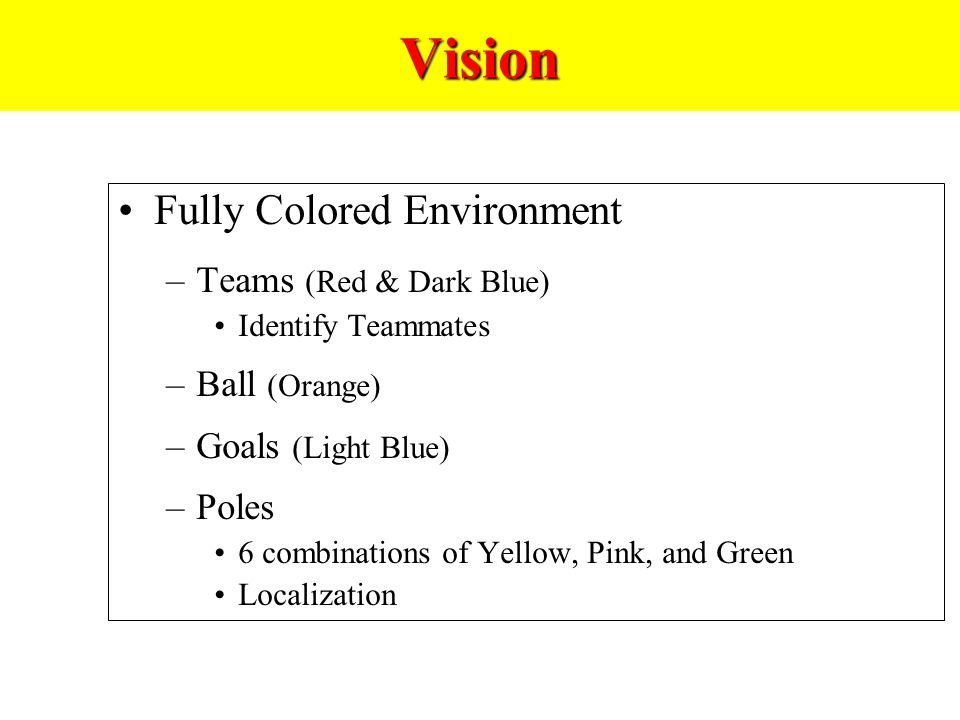

128. Vision Fully Colored Environment –Teams (Red & Dark Blue) Identify Teammates –Ball (Orange) –Goals (Light Blue) –Poles 6 combinations of Yellow, Pink, and Green Localization

129. Vision YUV color model –Y represents luminance –U and V represents chromacity Color classification algorithm –20 images used for training –Convergence in less than one hour –High accuracy

130. Localization Bayesian Probabilistic Localization –Bayes’ Theorem: P(S i |O) = P(S i ) P(O|Si).  j P(S j ) P(O|S j ) –Movement Algorithm P(S i |M) =  j P(S j ) P(S j  S i |M)

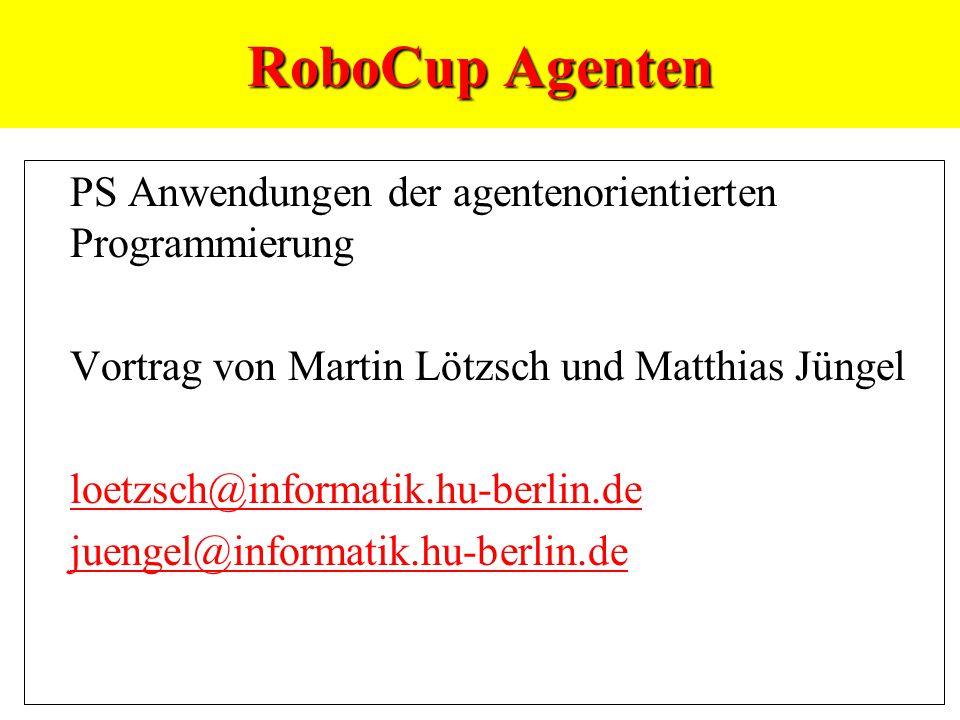

131. RoboCup Agenten PS Anwendungen der agentenorientierten Programmierung Vortrag von Martin Lötzsch und Matthias Jüngel loetzsch@informatik.hu-berlin.de juengel@informatik.hu-berlin.de

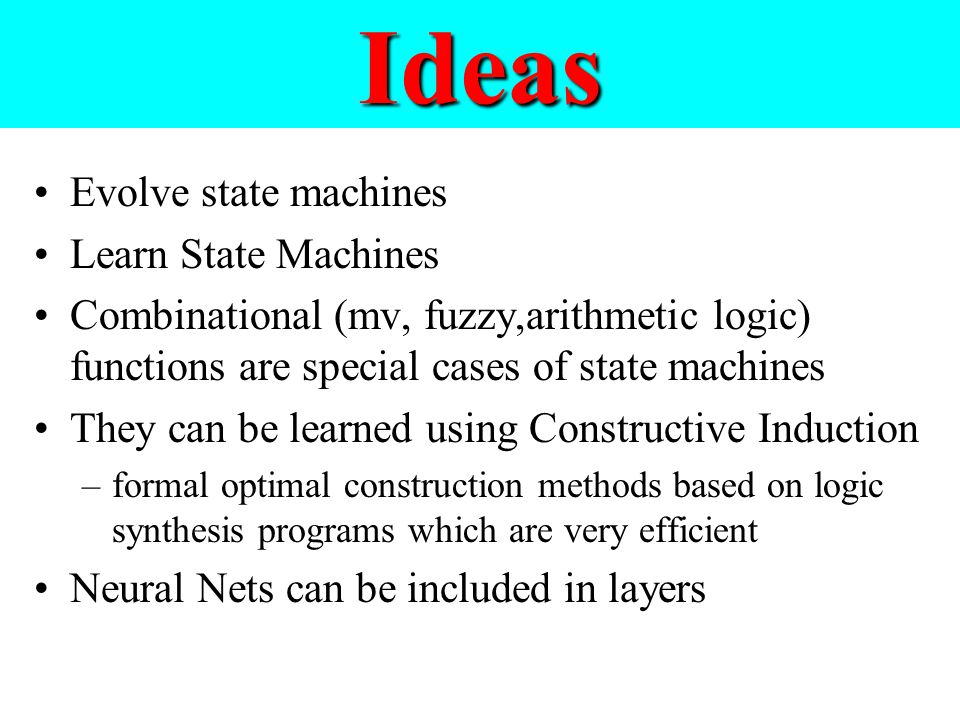

132. Ideas Evolve state machines Learn State Machines Combinational (mv, fuzzy,arithmetic logic) functions are special cases of state machines They can be learned using Constructive Induction –formal optimal construction methods based on logic synthesis programs which are very efficient Neural Nets can be included in layers

133. Questions ?

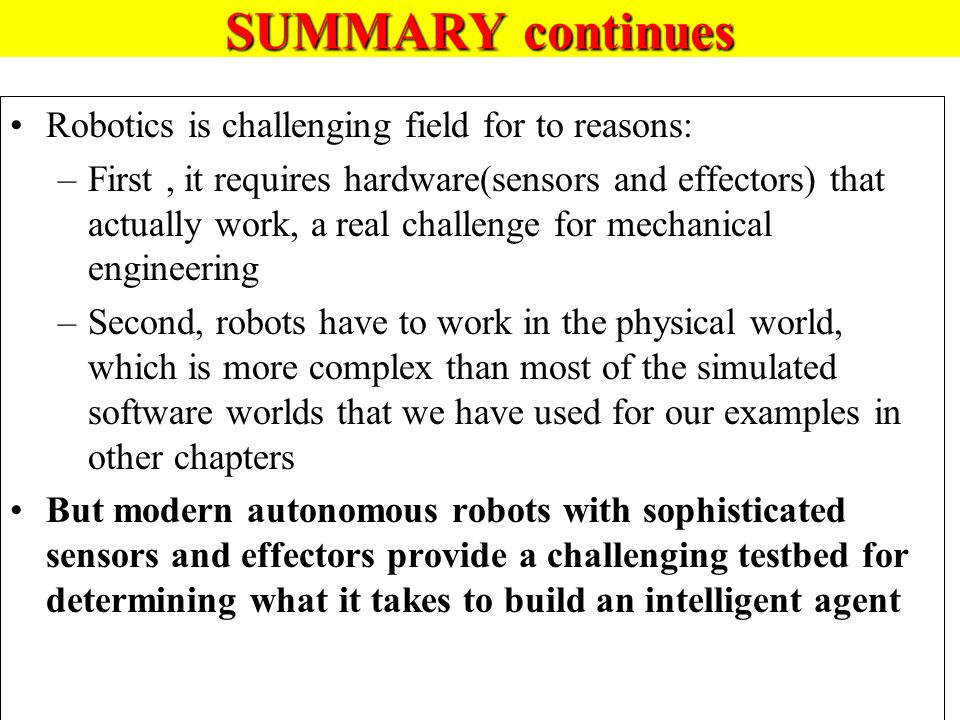

134. SUMMARY continues Robotics is challenging field for to reasons: –First, it requires hardware(sensors and effectors) that actually work, a real challenge for mechanical engineering –Second, robots have to work in the physical world, which is more complex than most of the simulated software worlds that we have used for our examples in other chapters But modern autonomous robots with sophisticated sensors and effectors provide a challenging testbed for determining what it takes to build an intelligent agent

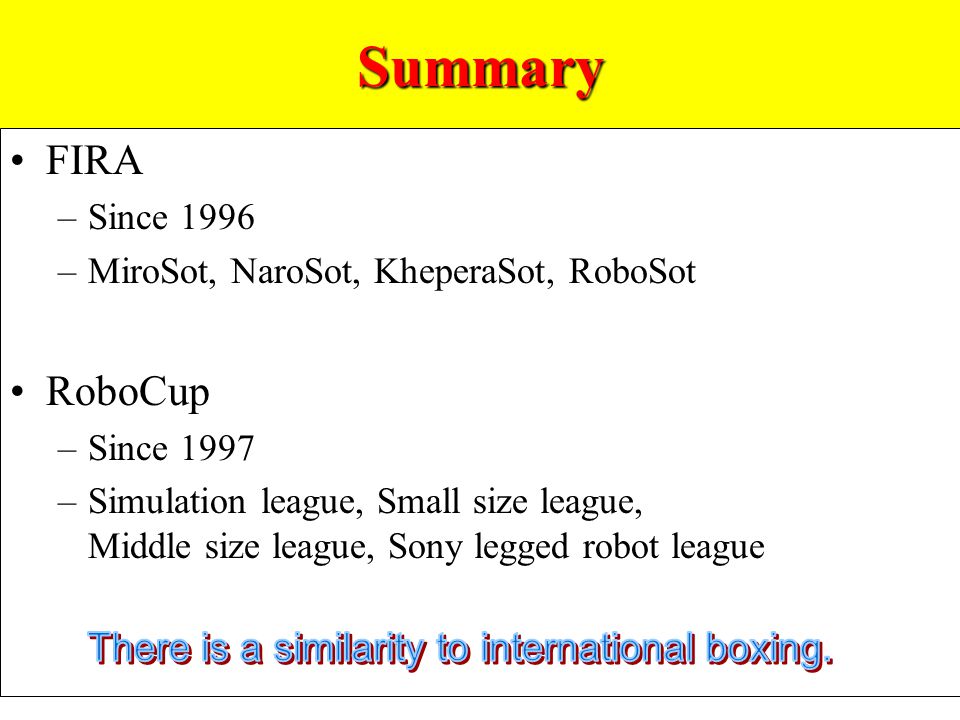

135. Summary FIRA –Since 1996 –MiroSot, NaroSot, KheperaSot, RoboSot RoboCup –Since 1997 –Simulation league, Small size league, Middle size league, Sony legged robot league

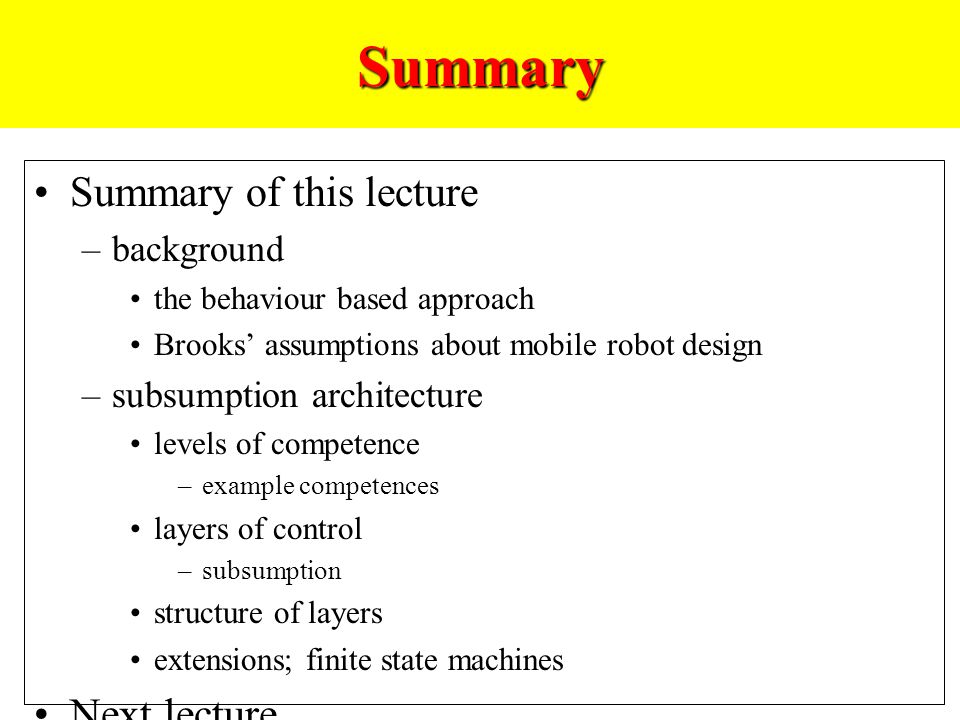

136. Summary Summary of this lecture –background the behaviour based approach Brooks’ assumptions about mobile robot design –subsumption architecture levels of competence –example competences layers of control –subsumption structure of layers extensions; finite state machines Next lecture –Brooks’ subsumption architecture: practice

137. 7. SUMMARY The Physical World Industry applications Body with rigid links connected to each other by joints Sensors like vision, force, tactile, sonar The problem of moving a complex-shaped object( i.e., the robot and anything it is carrying) through a space with complex-shaped obstacles is a difficult one. The mathematical notation of configuration space provides a framework for analysis. Cell decomposition and skeletonization methods can be used to navigate through the configuration space. Both reduce a high dimensional, continuous space to a discrete graph- search problem. Some aspects of the world, such as the exact location of a bolt in the robot’s hand, will always be unknown. Fine-motion planning deals with this uncertainty by creating a sensor- based plan that will work regardless of exact initial conditions. Uncertainty applies to sensors at the large scale as well. In the landmark model, a robot uses certain well-known landmarks in the environment to determine where it is, even in the face of uncertainty. If a map of the environment is not available, then the robot will have to plan its navigation as it goes. Online algorithms do this. They do not always choose the shortest route, but we can analyze how far off they will be.
