1. Alex Sherman (Akamai Technologies, Columbia University) Phil Lisiecki (Akamai Technologies) Andy Berkheimer (Akamai Technologies) Joel Wein (Akamai Technologies, Polytechnic University) ACMS: The Akamai Configuration Management System

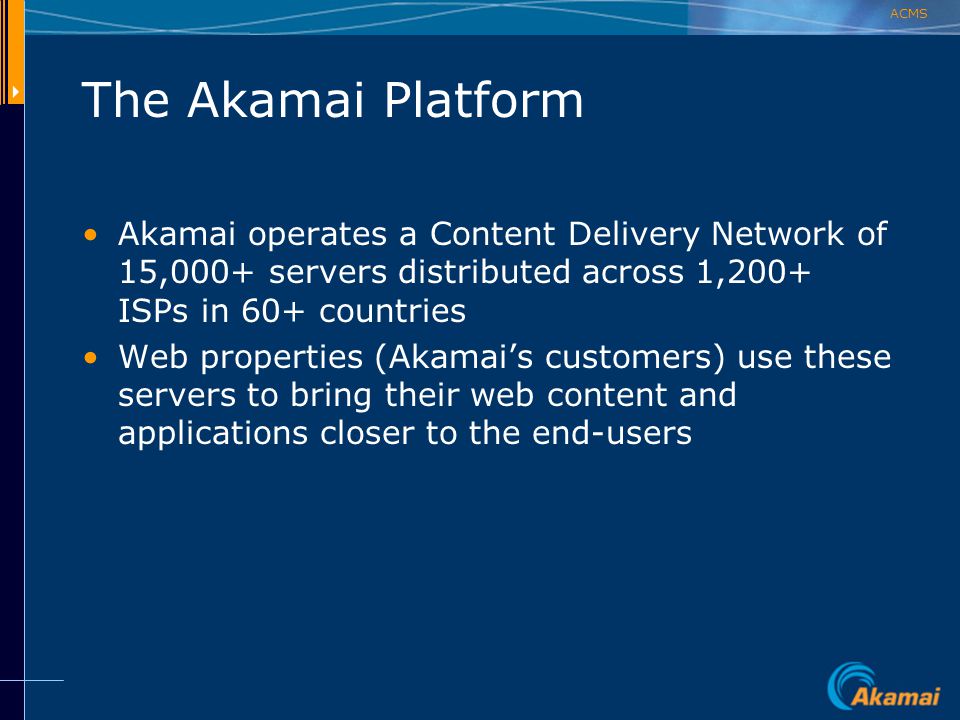

2. ACMS The Akamai Platform Akamai operates a Content Delivery Network of 15,000+ servers distributed across 1,200+ ISPs in 60+ countries Web properties (Akamai’s customers) use these servers to bring their web content and applications closer to the end-users

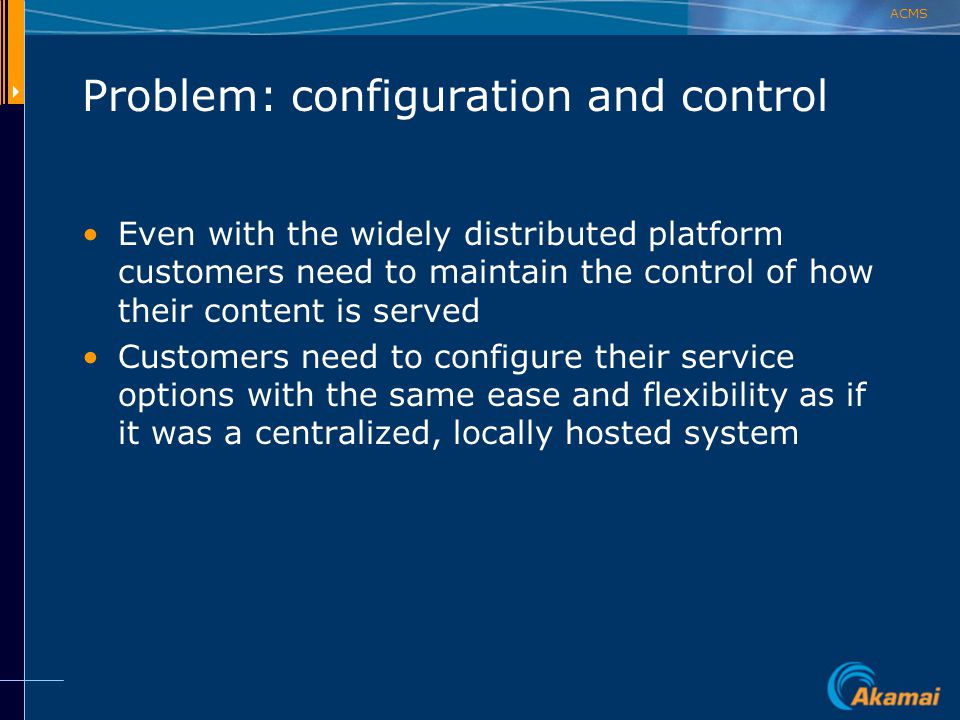

3. ACMS Problem: configuration and control Even with the widely distributed platform customers need to maintain the control of how their content is served Customers need to configure their service options with the same ease and flexibility as if it was a centralized, locally hosted system

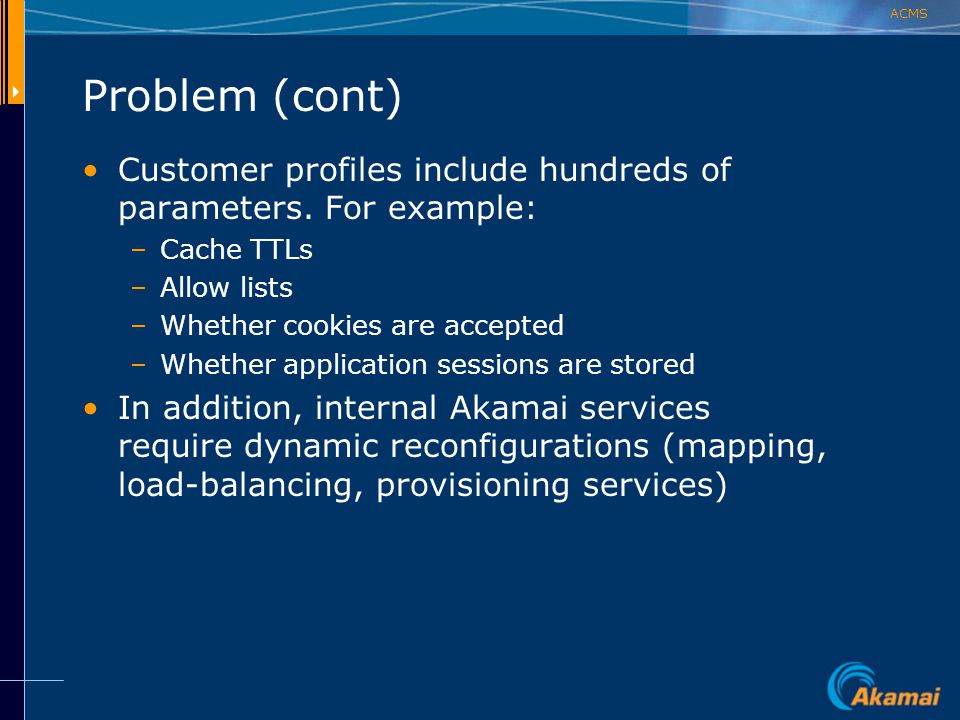

4. ACMS Problem (cont) Customer profiles include hundreds of parameters. For example: –Cache TTLs –Allow lists –Whether cookies are accepted –Whether application sessions are stored In addition, internal Akamai services require dynamic reconfigurations (mapping, load-balancing, provisioning services)

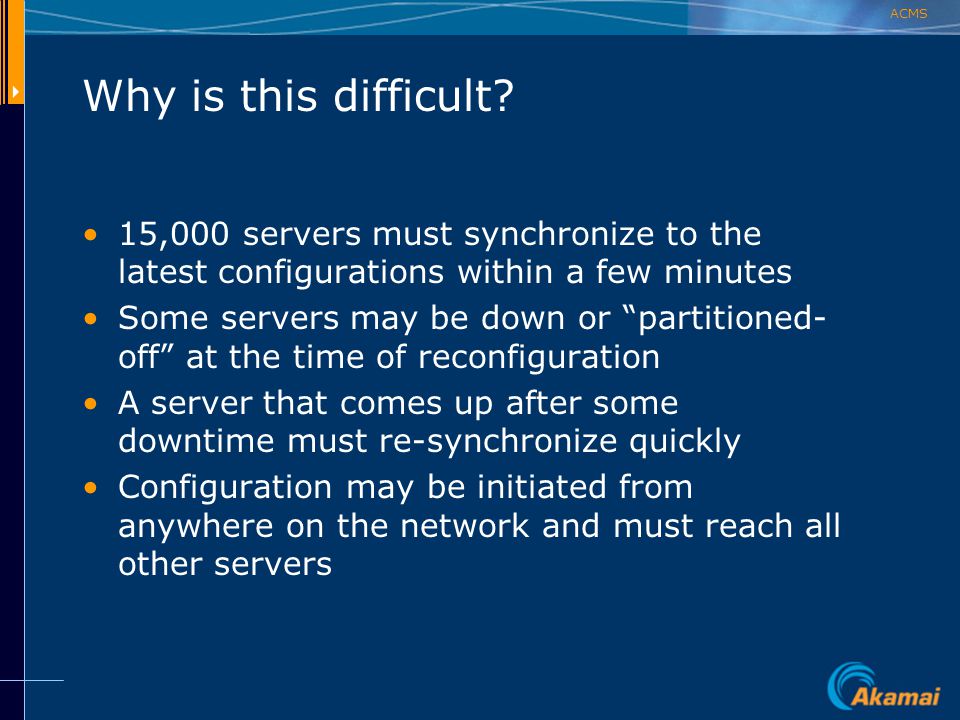

5. ACMS Why is this difficult? 15,000 servers must synchronize to the latest configurations within a few minutes Some servers may be down or “partitioned- off” at the time of reconfiguration A server that comes up after some downtime must re-synchronize quickly Configuration may be initiated from anywhere on the network and must reach all other servers

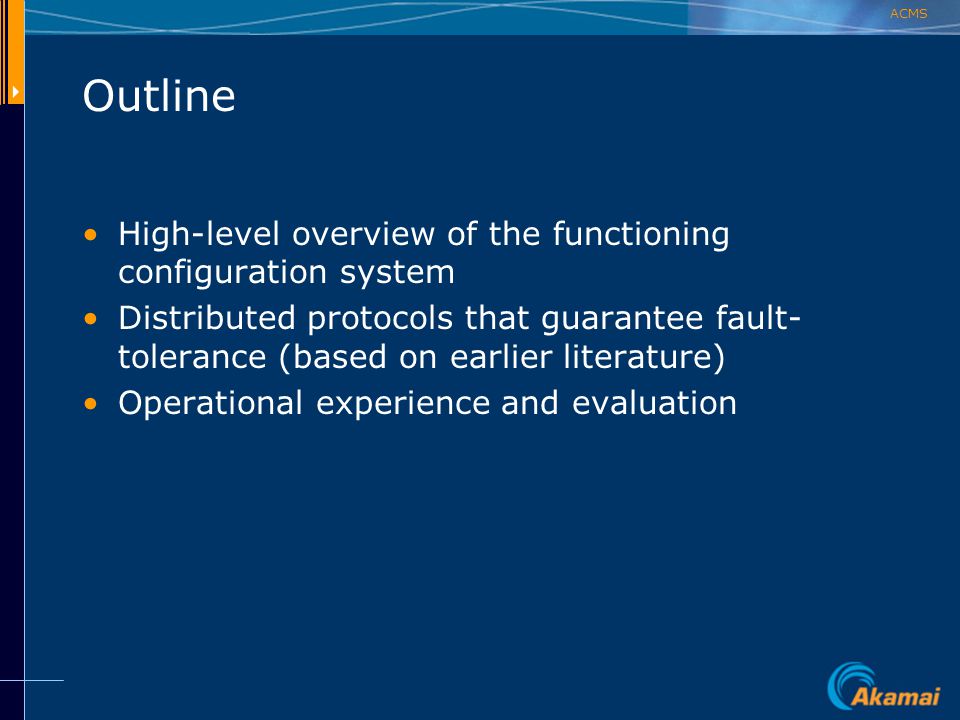

6. ACMS Outline High-level overview of the functioning configuration system Distributed protocols that guarantee fault- tolerance (based on earlier literature) Operational experience and evaluation

7. ACMS Assumptions Configuration files may vary in size from a few hundred bytes to 100MB Submissions may originate from anywhere on the Internet Configuration files are submitted in their entirety (no diffs)

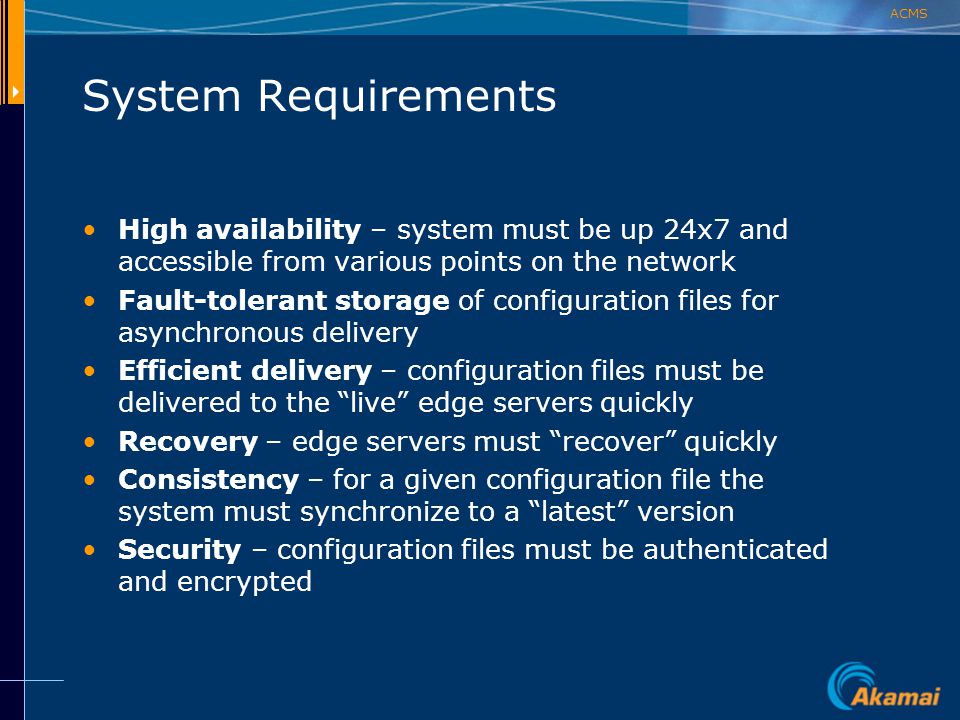

8. ACMS System Requirements High availability – system must be up 24x7 and accessible from various points on the network Fault-tolerant storage of configuration files for asynchronous delivery Efficient delivery – configuration files must be delivered to the “live” edge servers quickly Recovery – edge servers must “recover” quickly Consistency – for a given configuration file the system must synchronize to a “latest” version Security – configuration files must be authenticated and encrypted

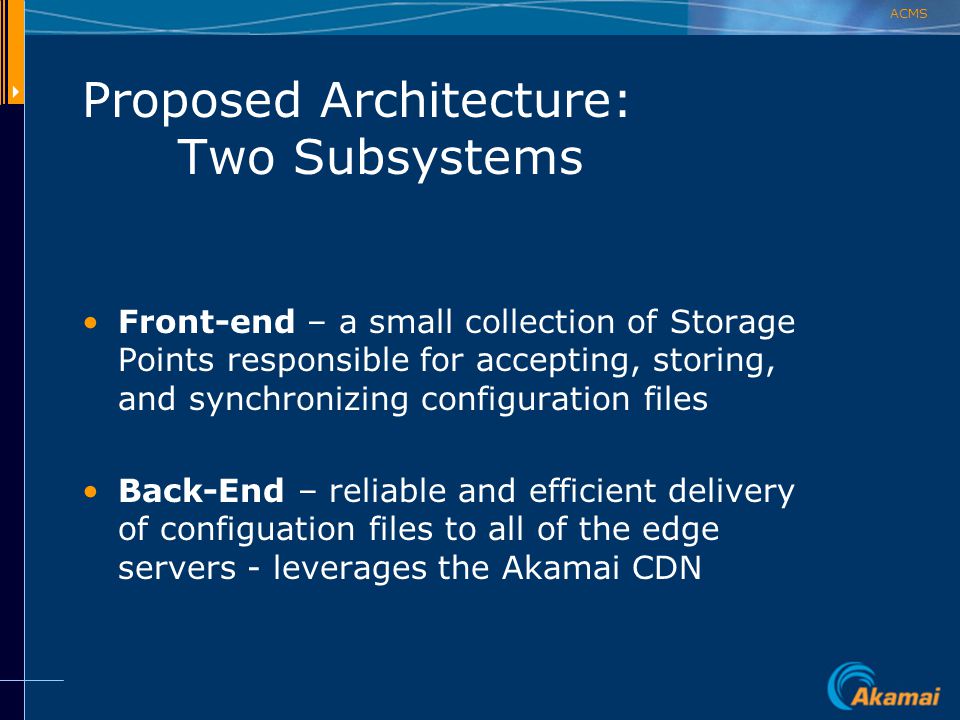

9. ACMS Proposed Architecture: Two Subsystems Front-end – a small collection of Storage Points responsible for accepting, storing, and synchronizing configuration files Back-End – reliable and efficient delivery of configuation files to all of the edge servers - leverages the Akamai CDN

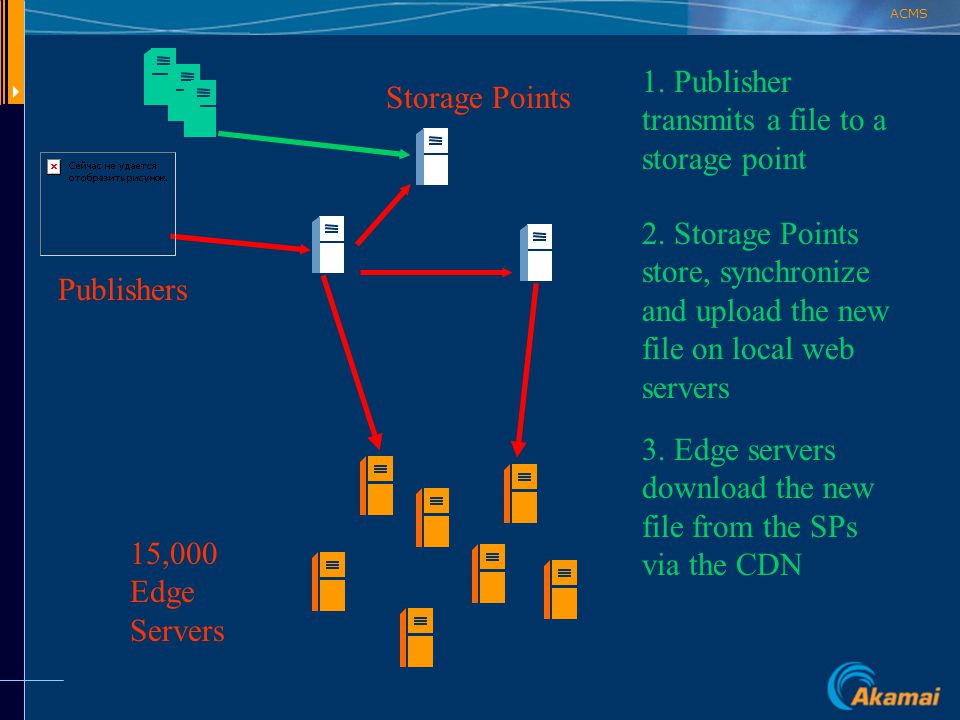

10. ACMS 15,000 Edge Servers Storage Points Publishers 2. Storage Points store, synchronize and upload the new file on local web servers 1. Publisher transmits a file to a storage point 3. Edge servers download the new file from the SPs via the CDN

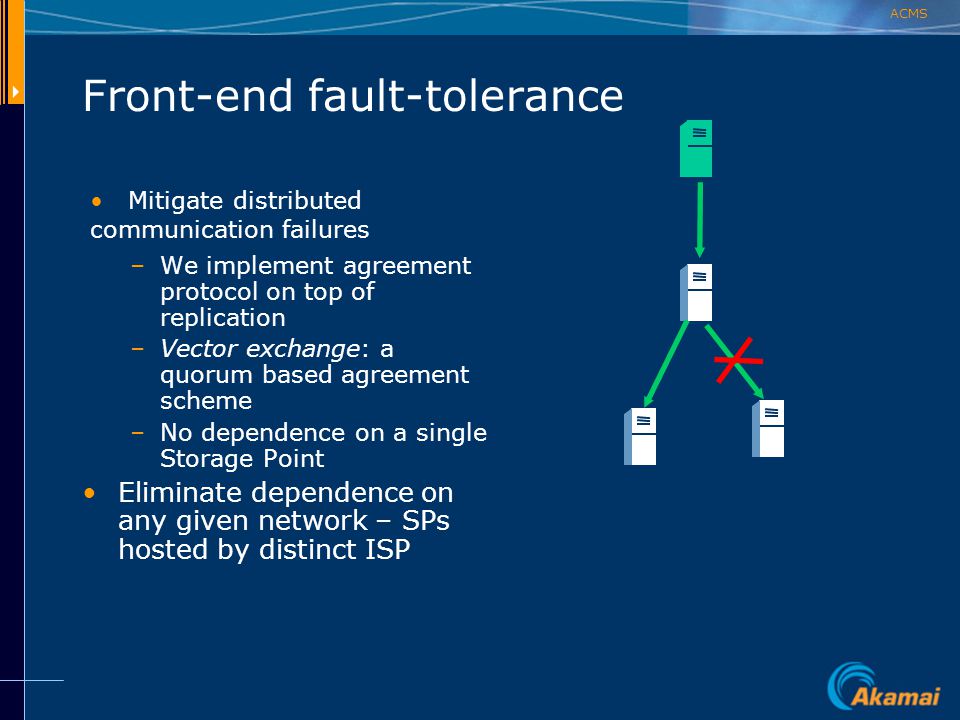

11. ACMS Front-end fault-tolerance –We implement agreement protocol on top of replication –Vector exchange: a quorum based agreement scheme –No dependence on a single Storage Point Eliminate dependence on any given network – SPs hosted by distinct ISP Mitigate distributed communication failures

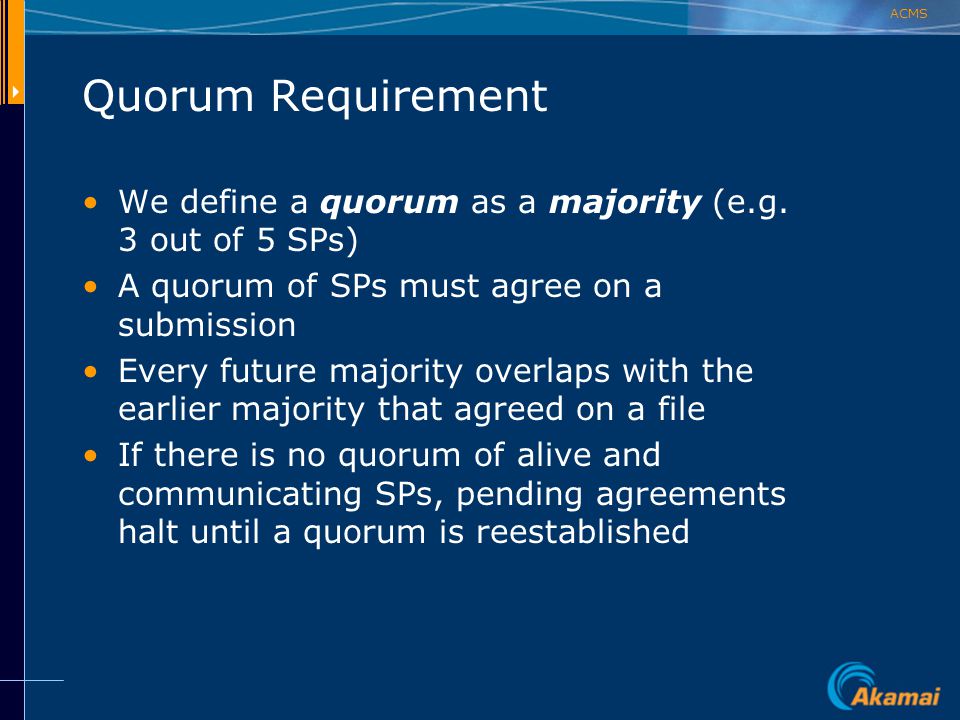

12. ACMS Quorum Requirement We define a quorum as a majority (e.g. 3 out of 5 SPs) A quorum of SPs must agree on a submission Every future majority overlaps with the earlier majority that agreed on a file If there is no quorum of alive and communicating SPs, pending agreements halt until a quorum is reestablished

13. ACMS Accepting a file A publisher contacts an accepting SP The accepting SP replicates a temporary file to a majority of SPs If replication succeeds the accepting SP initiates an agreement algorithm called Vector Exchange Upon success the accepting SP “accepts” and all SPs upload the new file

14. ACMS Vector Exchange (based on vector clocks) For each agreement SPs exchange a bit vector. Each bit corresponds to “commitment” status of a corresponding SP. Once a majority of bits are set we say that “agreement” takes place When any SP “learns” of an agreement it can upload the submission

15. ACMS Vector Exchange: an example: “A” initiates and broadcasts a vector: A:1 B:0 C:0 D:0 E:0 “C” sets its own bit and re- broadcasts: A:1 B:0 C:1 D:0 E:0 “D” sets its bit and rebroadcats A:1 B:0 C:1 D:1 E:0 Any SP learns of the “agreement” when it sees a majority of bits set. A B C D E

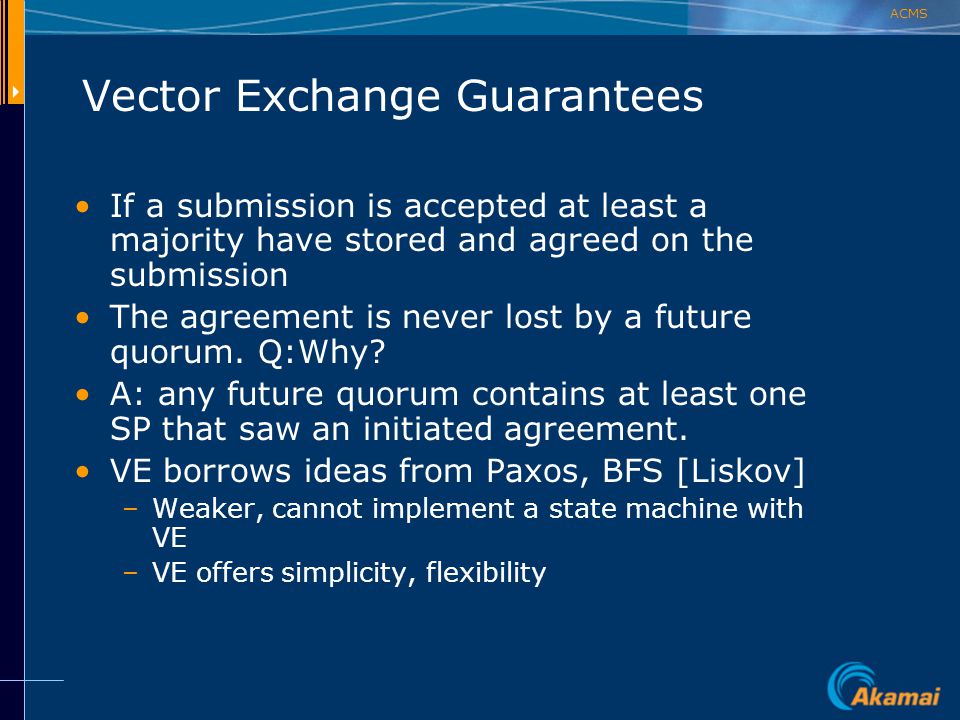

16. ACMS Vector Exchange Guarantees If a submission is accepted at least a majority have stored and agreed on the submission The agreement is never lost by a future quorum. Q:Why? A: any future quorum contains at least one SP that saw an initiated agreement. VE borrows ideas from Paxos, BFS [Liskov] –Weaker, cannot implement a state machine with VE –VE offers simplicity, flexibility

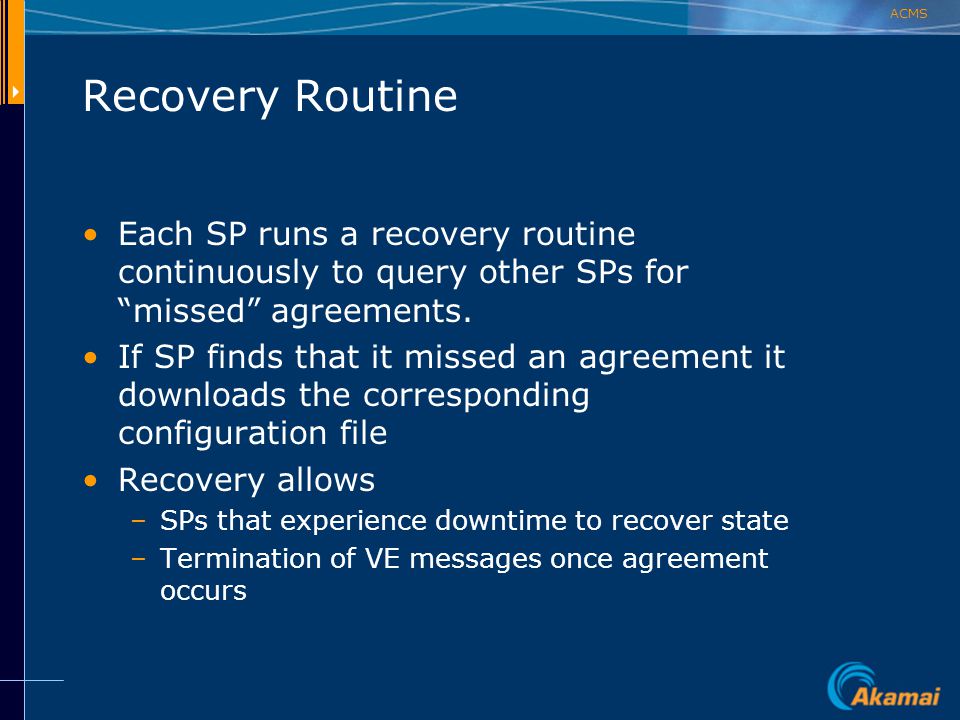

17. ACMS Recovery Routine Each SP runs a recovery routine continuously to query other SPs for “missed” agreements. If SP finds that it missed an agreement it downloads the corresponding configuration file Recovery allows –SPs that experience downtime to recover state –Termination of VE messages once agreement occurs

18. ACMS Recovery Optimization: Snapshots Snapshot is a hierarchical index structure that describes latest versions of all accepted files Each SP updates its own snapshot when it learns of agreements As part of the recovery process an SP queries snapshots on other SPs Side-effect: snapshots are also used by the edge servers (back-end) to detect changes.

19. ACMS Back-end: Delivery Processes on edge servers subscribe to specific configurations via their local Receiver process Receivers periodically query the snapshots on the SPs to learn of any updates. If the updates match any subscriptions the Receivers download the files via HTTP IMS requests. Edge Server Receiver SP

20. ACMS Delivery (continued) Delivery is accelerated via the CDN –Local Akamai caches –Hierarchical download –Optimized overlay routing Delivery scales with the growth of the CDN Akamai caches use a short TTL (on the order of 30 seconds) for the configuration files

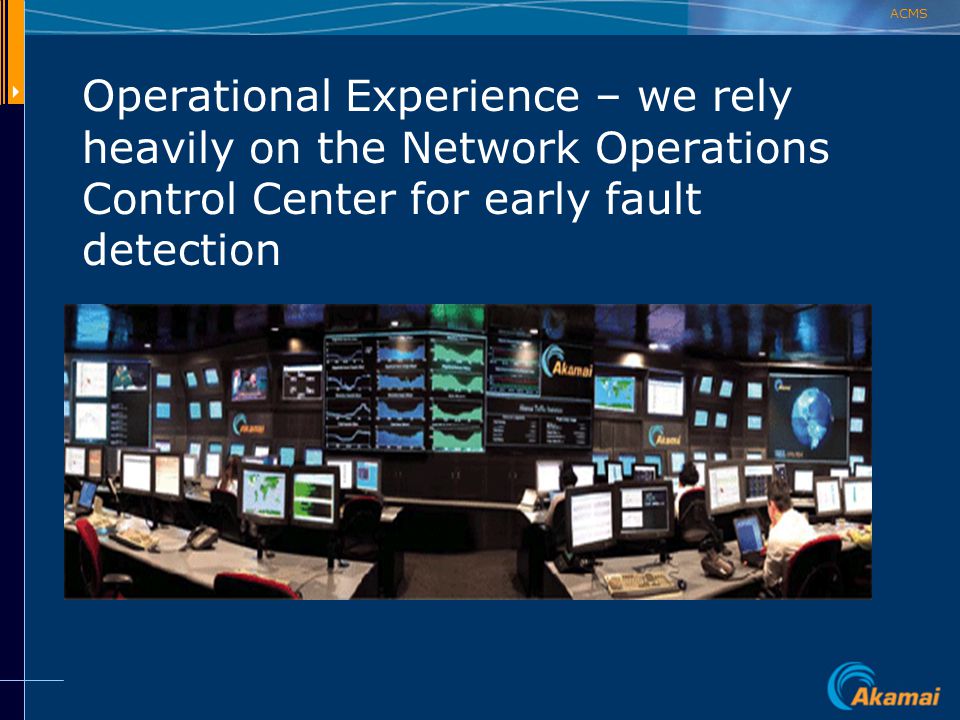

21. ACMS Operational Experience – we rely heavily on the Network Operations Control Center for early fault detection

22. ACMS Operational Experience (continued) Quorum Assumption –36 instances of SP disconnected from quorum for more than 10 minutes due to network outages during Jan-Sep of 2004 –In all instances there was an operating quorum of other SPs –Shorter network outages do occur (e.g. two several minute outages between a pair of SPs over a 6 day period) Permanent Storage – files may get corrupted –NOCC recorded 3 instances of file corruption on the SPs over a 6 months period – we use md5 hash when writing state files

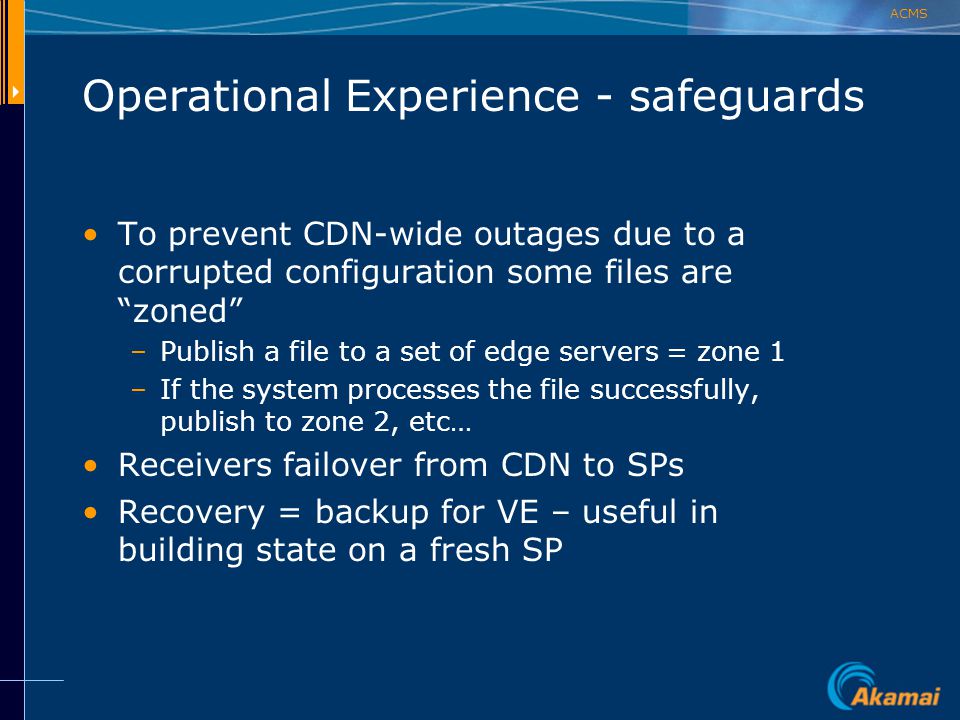

23. ACMS Operational Experience - safeguards To prevent CDN-wide outages due to a corrupted configuration some files are “zoned” –Publish a file to a set of edge servers = zone 1 –If the system processes the file successfully, publish to zone 2, etc… Receivers failover from CDN to SPs Recovery = backup for VE – useful in building state on a fresh SP

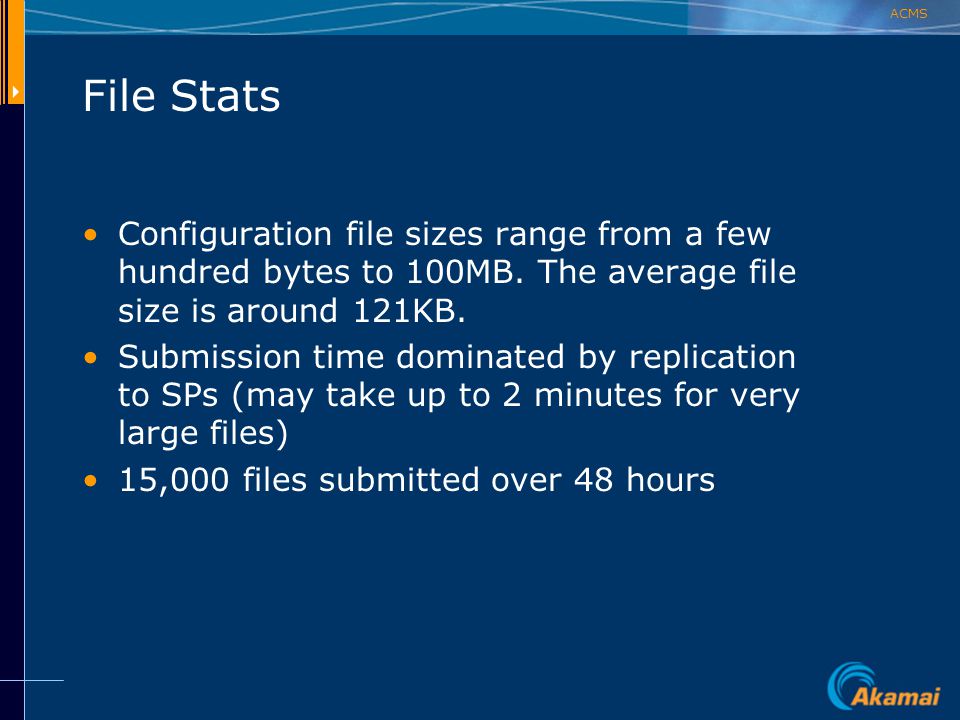

24. ACMS File Stats Configuration file sizes range from a few hundred bytes to 100MB. The average file size is around 121KB. Submission time dominated by replication to SPs (may take up to 2 minutes for very large files) 15,000 files submitted over 48 hours

25. ACMS Propagation Time Randomly sampled 250 edge servers to measure propagation time. 55 seconds on avg. Dominated by cache TTL and polling intervals

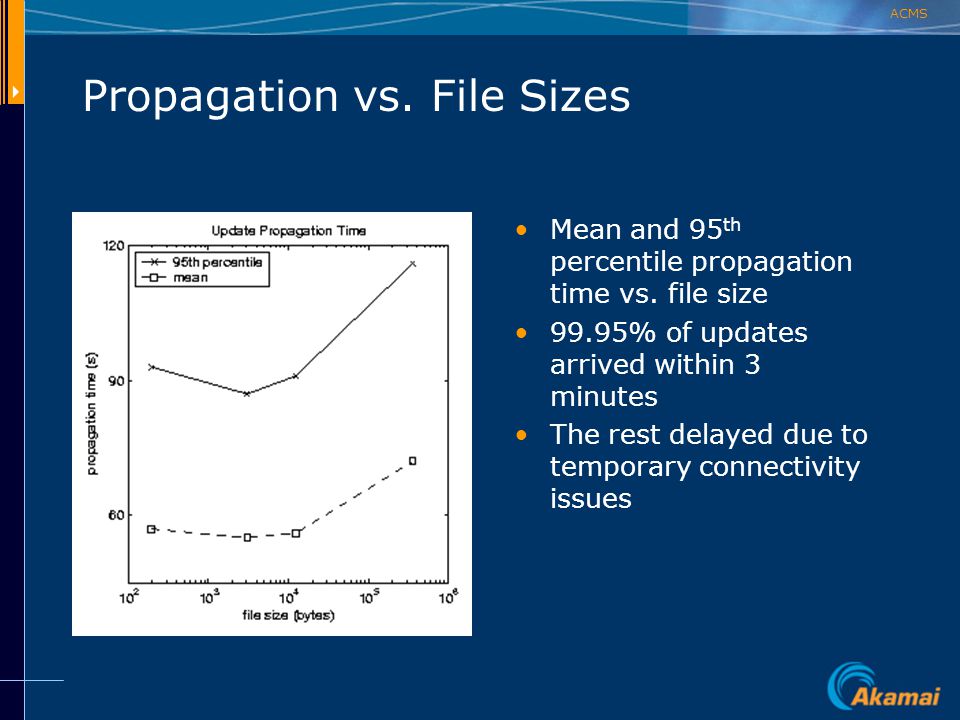

26. ACMS Propagation vs. File Sizes Mean and 95 th percentile propagation time vs. file size 99.95% of updates arrived within 3 minutes The rest delayed due to temporary connectivity issues

27. ACMS Tail of Propagation Another random sample of 300 edge servers over a 4 day period Measured propagation of small files (under 20KB) 99.8% of the time file is received within 2 minutes 99.96% of the time file is received within 4 minutes

28. ACMS Scalability Front-end scalability is dominated by replication –With 5 SPs and 121KB avg. file size, Vector Exchange overhead is 0.4% of bandwidth –With 15 SPs, overhead is 1.2% –For larger footprint can use hashing to pick a set of SPs for each configuration file Back-end scalability –Cacheability grows as the CDN penetrates more ISPs –Reachability of edge machines inside remote ISPs improves with more alternate paths

29. ACMS Conclusion ACMS uses a set of distributed algorithms that ensure high level of fault-tolerance Quorum based system allows operators to ignore transient faults, and gives them more time to react to significant Storage Point failures ACMS is a core subsystem of the Akamai CDN that customers rely on to administer content
