2. 1 School of Computing Science Simon Fraser University CMPT 771/471: Internet Architecture & Protocols Introduction Instructor: Dr. Mohamed Hefeeda

3. 2 Course Objectives  Understand  principles of designing and operating computer networks  structure and protocols of the Internet  services that can/cannot be offered by the Internet  Know how to  analytically analyze performance of a system/protocol  implement network protocols and applications  And, more importantly, …  Have fun!

4. 3 Course Info  Most of the course will be lectures given by the instructor  Last 2-3 weeks, each student presents a paper on one of the current hot topics  Course web page http://nsl.cs.sfu.ca/teaching/08/771/ Or access it from my web page: http://www.cs.sfu.ca/~mhefeeda

5. 4 Course Info: Textbooks and References  Kurose and Rose, Computer Networking: A top- down Approach Featuring the Internet, 2005  Background materials  Chapters 6 and 7: Wireless and Multimedia Networking  Hassan and Jain, High Performance TCP/IP Networking, 2004  Several chapters on analyzing TCP/IP in different environments  Stallings, High-speed Networks and Internets: Performance and Quality of Service, 2002  Three chapters on (basics of) probability and queuing  Papers: will be posted on the course web page

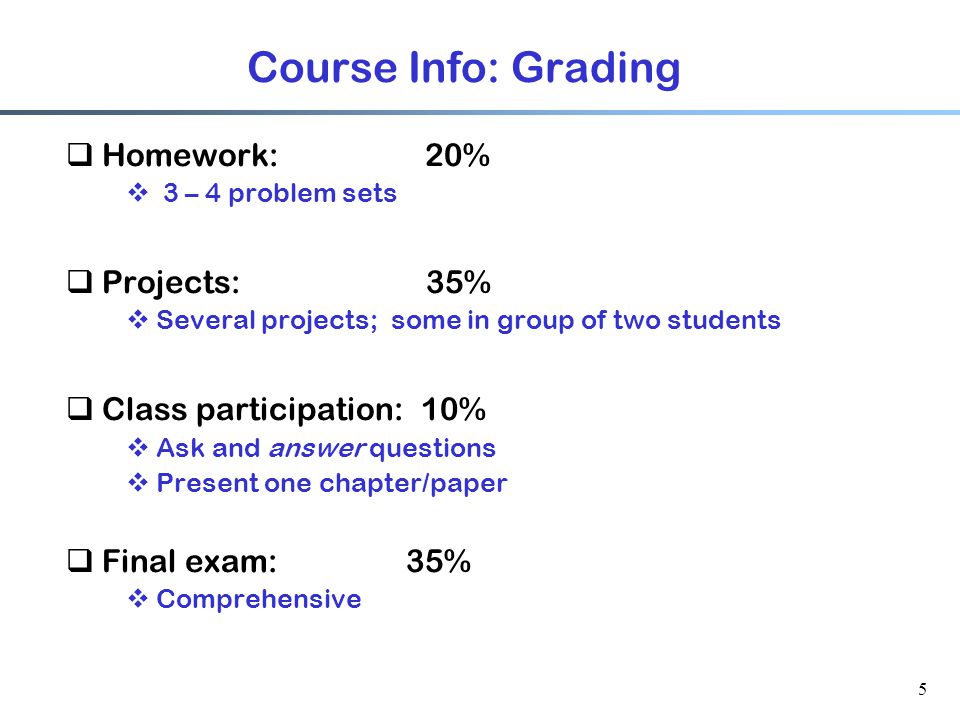

6. 5 Course Info: Grading  Homework: 20%  3 – 4 problem sets  Projects: 35%  Several projects; some in group of two students  Class participation: 10%  Ask and answer questions  Present one chapter/paper  Final exam: 35%  Comprehensive

7. 6 Course Info: Topics  Internet Architecture and Services  TCP/IP Protocol Suit  Inter- and Intra-domain Routing Protocols  Introduction to Performance Modeling and Evaluation  TCP/IP Performance Modeling in Different Environments  Quality of Service Support in the Internet  Wireless Networks  Multimedia Networking  Overlays and Peer-to-Peer Computing

8. 7 Basic Networking Concepts

9. 8 Review of Basic Networking Concepts  Internet structure  Protocol layering and encapsulation  Internet services and socket programming  Network Layer  Network types: Circuit switching, Packet switching  Addressing, Forwarding, Routing  Transport layer  Reliability and congestion control  TCP, UDP  Link Layer  Multiple Access Protocols  Ethernet

10. 9 The Internet  Millions of hosts (end systems)  Inter-connected, running network apps  Diverse communication links  fiber, copper, radio, satellite  Routers  forward packets  Internet: “network of networks”  loosely hierarchical  Public, versus private intranet local ISP company network regional ISP router workstation server mobile

11. 10 Internet structure: network of networks  roughly hierarchical  at center: “tier-1” ISPs (e.g., MCI, Sprint, AT&T, Cable and Wireless), national/international coverage  treat each other as equals Tier 1 ISP Tier-1 providers interconnect (peer) privately NAP Tier-1 providers also interconnect at public network access points (NAPs)

12. 11 Tier-1 ISP: e.g., Sprint Sprint US backbone network Seattle Atlanta Chicago Roachdale Stockton San Jose Anaheim Fort Worth Orlando Kansas City Cheyenne New York Pennsauken Relay Wash. DC Tacoma DS3 (45 Mbps) OC3 (155 Mbps) OC12 (622 Mbps) OC48 (2.4 Gbps) … to/from customers peering to/from backbone ….…. … … … POP: point-of-presence

13. 12 Internet structure: Tier-2 ISPs  “Tier-2” ISPs: smaller (often regional) ISPs  Connect to one or more tier-1 ISPs, possibly other tier-2 ISPs Tier 1 ISP NAP Tier-2 ISP Tier-2 ISP pays tier-1 ISP for connectivity to rest of Internet Tier-2 ISP is customer of tier-1 provider Tier-2 ISPs also peer privately with each other, interconnect at NAP

14. 13 Internet structure: Tier-3 ISPs  “Tier-3” ISPs and local ISPs  last hop (“access”) network (closest to end systems) Tier 1 ISP NAP Tier-2 ISP local ISP local ISP local ISP local ISP local ISP Tier 3 ISP local ISP local ISP local ISP Local and tier- 3 ISPs are customers of higher tier ISPs connecting them to rest of Internet

15. 14 Internet structure: packet journey  a packet passes through many networks! Tier 1 ISP NAP Tier-2 ISP local ISP local ISP local ISP local ISP local ISP Tier 3 ISP local ISP local ISP local ISP

16. 15 Review of Basic Networking Concepts  Internet structure  Protocol layering and encapsulation  Internet services and socket programming  Network Layer  Network types: Circuit switching, Packet switching  Addressing, Forwarding, Routing  Transport layer  Reliability and congestion control  TCP, UDP  Link Layer  Multiple Access Protocols  Ethernet

17. 16 Protocol Layers Networks are complex!  many “pieces”:  hosts  routers  links of various media  applications  protocols  hardware, software Question: Is there any hope of organizing structure of network? Or at least our discussion of networks?

18. 17 ticket (purchase) baggage (check) gates (load) runway (takeoff) airplane routing departure airport arrival airport intermediate air-traffic control centers airplane routing ticket (complain) baggage (claim gates (unload) runway (land) airplane routing ticket baggage gate takeoff/landing airplane routing Layering of Airline Functionality Layers: each layer implements a service  via its own internal-layer actions  relying on services provided by layer below

19. 18 Why layering? Dealing with complex systems:  explicit structure allows identifying complex relationships among system’s pieces  modularization eases maintenance, updating of system  change of implementation of layer’s service transparent to rest of system  e.g., change in gate procedure doesn’t affect rest of system  What is the downside of layering?

20. 19 Internet protocol stack  application: supporting network applications  FTP, SMTP, HTTP  transport: host-host data transfer  TCP, UDP  network: routing of datagrams from source to destination  IP, routing protocols  link: data transfer between neighboring network elements  PPP, Ethernet  physical: bits “on the wire” application transport network link physical

21. 20 datagram frame HtHt HnHn HlHl M HtHt HnHn M segment HtHt M message M HtHt HnHn HlHl M HtHt HnHn M HtHt M M application transport network link physical application transport network link physical link physical network link physical HtHt HnHn HlHl M HtHt HnHn M HtHt HnHn HlHl M HtHt HnHn M HtHt HnHn HlHl M HtHt HnHn HlHl M source destination router switch Encapsulation

22. 21 Review of Basic Networking Concepts  Internet structure  Protocol layering and encapsulation  Internet services and socket programming  Network Layer  Network types: Circuit switching, Packet switching  Addressing, Forwarding, Routing  Transport layer  Reliability and congestion control  TCP, UDP  Link Layer  Multiple Access Protocols  Ethernet

23. 22 Internet Services  View the Internet as a communication infrastructure that provides services to apps  Web, email, games, e-commerce, file sharing, …  Two communication services  Connectionless unreliable  Connection-oriented reliable

24. 23 Internet Services  Connection-oriented  Prepare for data transfer ahead of time  establish connection  set up state in the two communicating hosts  Usually comes with reliability, flow and congestion control  TCP: Transmission Control Protocol  Connectionless  No connection set up, simply send  Faster, less overhead  No reliability, flow control, or congestion control  UDP: User Datagram Protocol How can we access these services?

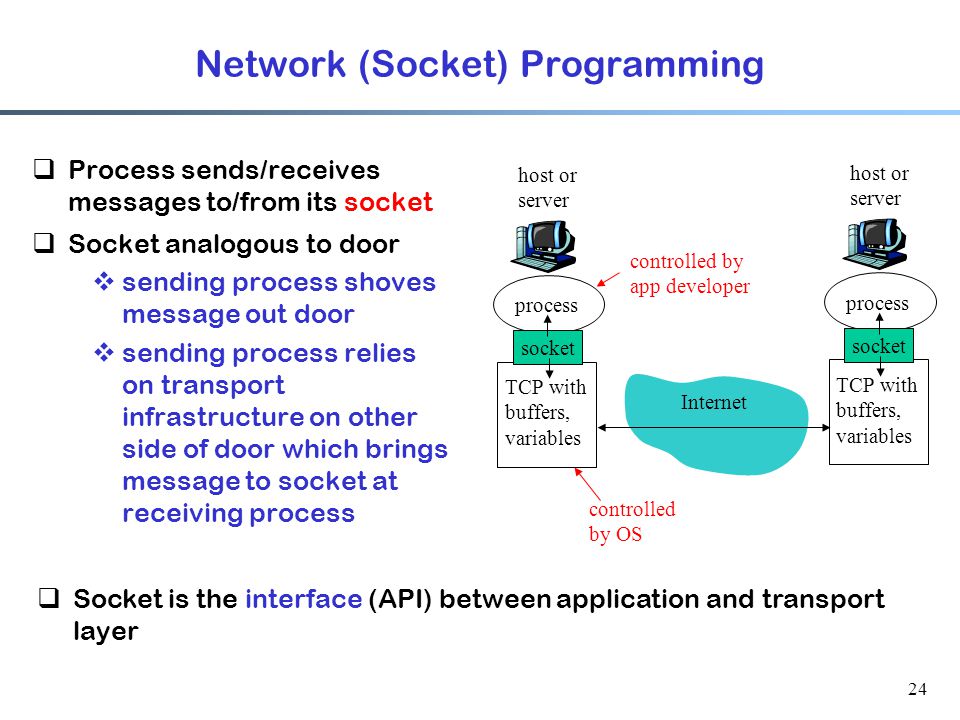

25. 24 Network (Socket) Programming  Process sends/receives messages to/from its socket  Socket analogous to door  sending process shoves message out door  sending process relies on transport infrastructure on other side of door which brings message to socket at receiving process process TCP with buffers, variables socket host or server process TCP with buffers, variables socket host or server Internet controlled by OS controlled by app developer  Socket is the interface (API) between application and transport layer
