1. SIGMOD 99 http://www-db.ics.uci.edu Efficient Concurrency Control in Multidimensional Access Methods Kaushik Chakrabarti Sharad Mehrotra University of Illinois at Urbana Champaign University of California at Irvine Presented at ACM SIGMOD Conference June 1, 1999

2. SIGMOD 99 http://www-db.ics.uci.edu Outline of talk Introduction Background Phantom protection in Generalized Search Trees –Define granules –Describe lock protocols Experiments Conclusion

3. SIGMOD 99 http://www-db.ics.uci.edu Introduction Increasing number of applications deal with multidimensional data Examples: spatial (CAD, GIS), spatio-temporal (moving objects, weather) DBMS should allow applications to: (1) define their own data types and operations (2) define multidimensional access methods (AMs) for those data types for efficient query processing OR technology solves (1) Generalized Search Trees (GiSTs) addresses (2)

4. SIGMOD 99 http://www-db.ics.uci.edu Introduction For successful integration, we need to support concurrent accesses via GiST Concurrency control problems: (1) Preserve consistency of data structure (2) Prevent phantom anomalies (1) has been addressed in Kornacker, Mohan and Hellerstein, SIGMOD97 This paper addresses the problem of phantom protection in GiSTs

5. SIGMOD 99 http://www-db.ics.uci.edu Phantom Definition : –T1 reads a set of items satisfying some –T2 creates data items that satisfy T1’s and commits –T1 repeats its scan with the same, gets a different set of items Serializability  No phantoms

6. SIGMOD 99 http://www-db.ics.uci.edu Example

7. SIGMOD 99 http://www-db.ics.uci.edu Solution Predicate locks: costly Granular locks: efficient

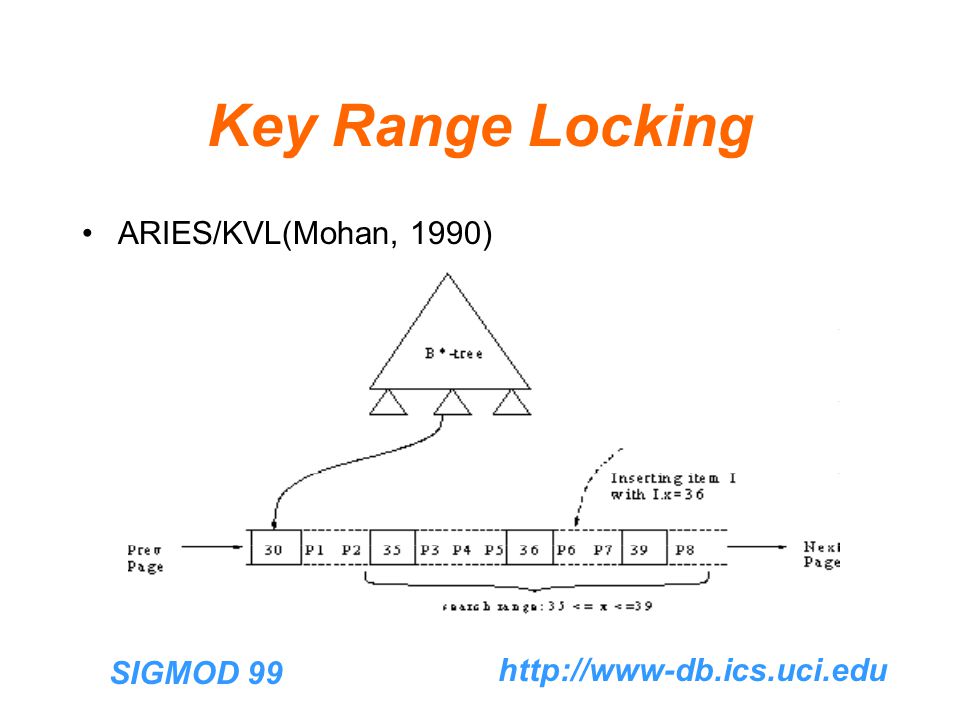

8. SIGMOD 99 http://www-db.ics.uci.edu Key Range Locking ARIES/KVL(Mohan, 1990)

9. SIGMOD 99 http://www-db.ics.uci.edu Phantoms in Spatial/Spatio-temporal Databases Compute average rainfall over all locations a 2-d region where the locations are indexed using a GiST Get all objects in a given region from a moving objects database where the objects are indexed using a GiST

10. SIGMOD 99 http://www-db.ics.uci.edu Solutions Adapting KRL: too costly. Predicate locking based strategy by Kornacker, Mohan and Hellerstein, SIGMOD97. Our granular locking based approach for phantom protection in R-trees, ICDE98. Does not work well when applied to GiSTs (details in paper)

11. SIGMOD 99 http://www-db.ics.uci.edu Granular Locking in GiST Solution involves –Define the granules –Define the lock protocol for the operations Challenges –“nice’’ granules –handling overlap among granules –handling “loss of lock’’ problem –high concurrency and low lock overhead

12. SIGMOD 99 http://www-db.ics.uci.edu GiST Keys can be arbitrary predicates An AM can be implemented by specifying some extension methods which dictate the tree operations

13. SIGMOD 99 http://www-db.ics.uci.edu Granules in GiST Leaf Granules : One per leaf node Non-leaf granules : One per non-leaf node Lock name: Lock Coverage: defined by Granule Predicate (GP) –GP(N) = BP(N) if N is root = BP(N)  GP(P) otherwise, P=parent(N)

14. SIGMOD 99 http://www-db.ics.uci.edu

15. SIGMOD 99 http://www-db.ics.uci.edu Locks

16. SIGMOD 99 http://www-db.ics.uci.edu Overlap between granules Correctness: p  p’  lset(p)  lset(p’)  NULL Problem does not arise in KRL Policies –Overlap-for-Search & Cover-for-Insert (OSCI) –Cover-for-Search & Overlap-for-Insert (CSOI)

17. SIGMOD 99 http://www-db.ics.uci.edu Loss of lock coverage

18. SIGMOD 99 http://www-db.ics.uci.edu Search Protocol Get commit duration S lock on the granule corresponding to each index node visited Correctness: –GP(T)  Q is satisfiable   i  (Consistent(BP(P i ), Q), P i is ancestor of T Note –No object locks –No extra cost except that of acquiring the lock (no extra checks)

19. SIGMOD 99 http://www-db.ics.uci.edu Insert Protocol Correctness: –full coverage –prevent phantoms due to loss of lock coverage

20. SIGMOD 99 http://www-db.ics.uci.edu Insert Protocol Case 1: No growth, No split –commit duration IX lock on g (target granule) –commit duration X lock on O Case 2: Growth, No split –2 locks as before –short duration IX lock on lowest unchanged node (LU-node)

21. SIGMOD 99 http://www-db.ics.uci.edu Example

22. SIGMOD 99 http://www-db.ics.uci.edu Insert Protocol Case 3: No growth, Split –instant duration SIX on g –commit duration IX on whichever contains O after split; X on O –instant duration SIX on each ancestor that splits Case 4: Growth, Split –lock requirements of Cases 2 and 3

23. SIGMOD 99 http://www-db.ics.uci.edu Deletion Protocol Problem: g does not cover O after deletion  commit duration lock on LU-node We do: –logical deletion (IX on target granule, X on object) –defer physical deletion till transaction commits

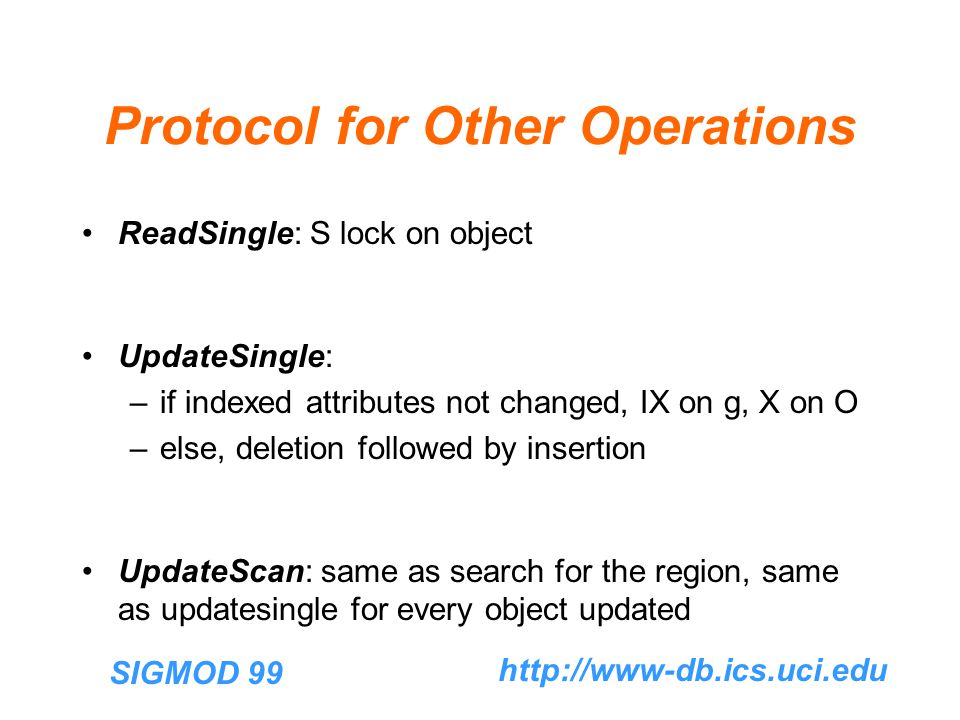

24. SIGMOD 99 http://www-db.ics.uci.edu Protocol for Other Operations ReadSingle: S lock on object UpdateSingle: –if indexed attributes not changed, IX on g, X on O –else, deletion followed by insertion UpdateScan: same as search for the region, same as updatesingle for every object updated

25. SIGMOD 99 http://www-db.ics.uci.edu Empirical Evaluation Data sets: –2-d spatial data: 62,556 2-d points from Sequoia 2000 benchmark –3-d feature data: First 3 Fourier coefficients from 480,471 Fourier vectors

26. SIGMOD 99 http://www-db.ics.uci.edu Measurements & Parameters Performance: Throughput (tps) Concurrency: Conflict ratio Overhead: #locks, # pred. Checks Parameters: MPL, transaction size, write probability, query size, external think time (fixed 3sec), restart delay (fixed 3sec)

27. SIGMOD 99 http://www-db.ics.uci.edu Implementation

28. SIGMOD 99 http://www-db.ics.uci.edu Performance 2-d data3-d data

29. SIGMOD 99 http://www-db.ics.uci.edu Performance/Concurrency Under various loadsConflict ratio

30. SIGMOD 99 http://www-db.ics.uci.edu Overhead SearchInsert

31. SIGMOD 99 http://www-db.ics.uci.edu Conclusions GL is significantly more efficient than PL We expect the performance gap to increase with better implementation (mainly LM) Dimensionality curse is a problem in GL Can be integrated with a consistency protocol for complete solution to concurrency control in multidimensional AMs
