1. Scheduling Reusable Instructions for Power Reduction J.S. Hu, N. Vijaykrishnan, S. Kim, M. Kandemir, and M.J. Irwin Proceedings of the Design, Automation and Test in Europe Conference and Exhibition, Volume: 1 Pages:148 - 153, Feb. 2004

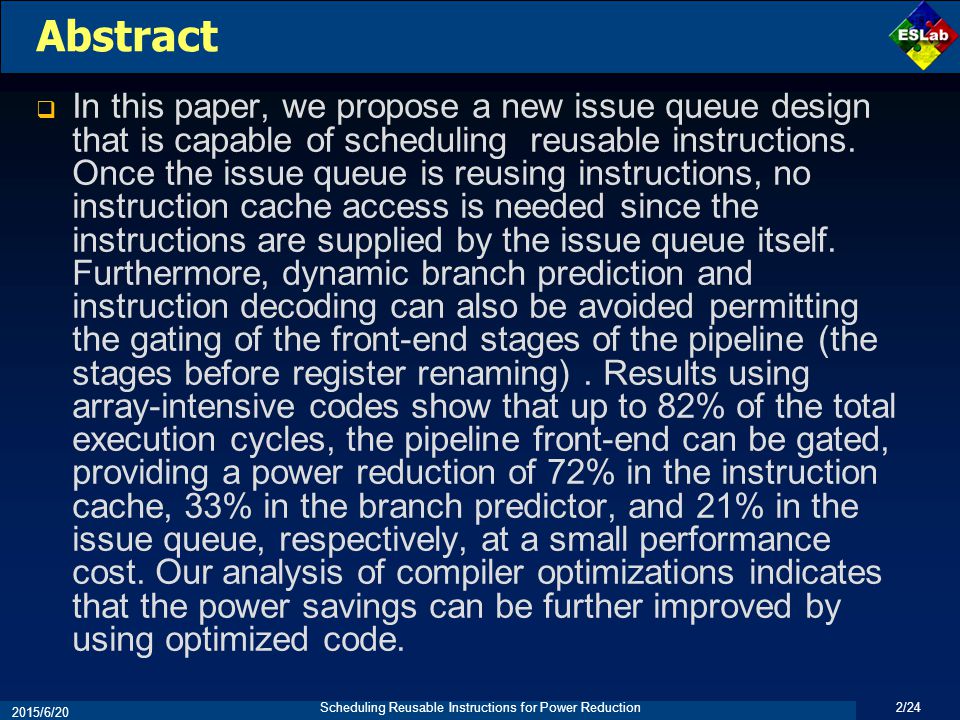

2. Scheduling Reusable Instructions for Power Reduction 2/24 2015/6/20 Abstract  In this paper, we propose a new issue queue design that is capable of scheduling reusable instructions. Once the issue queue is reusing instructions, no instruction cache access is needed since the instructions are supplied by the issue queue itself. Furthermore, dynamic branch prediction and instruction decoding can also be avoided permitting the gating of the front-end stages of the pipeline (the stages before register renaming). Results using array-intensive codes show that up to 82% of the total execution cycles, the pipeline front-end can be gated, providing a power reduction of 72% in the instruction cache, 33% in the branch predictor, and 21% in the issue queue, respectively, at a small performance cost. Our analysis of compiler optimizations indicates that the power savings can be further improved by using optimized code.

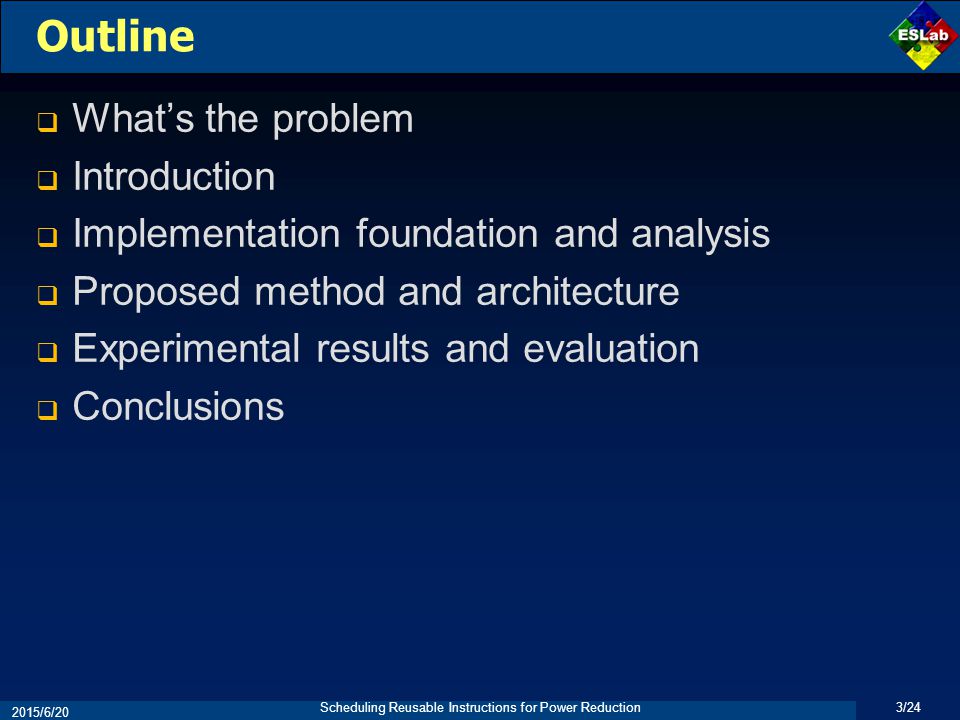

3. Scheduling Reusable Instructions for Power Reduction 3/24 2015/6/20 Outline  What’s the problem  Introduction  Implementation foundation and analysis  Proposed method and architecture  Experimental results and evaluation  Conclusions

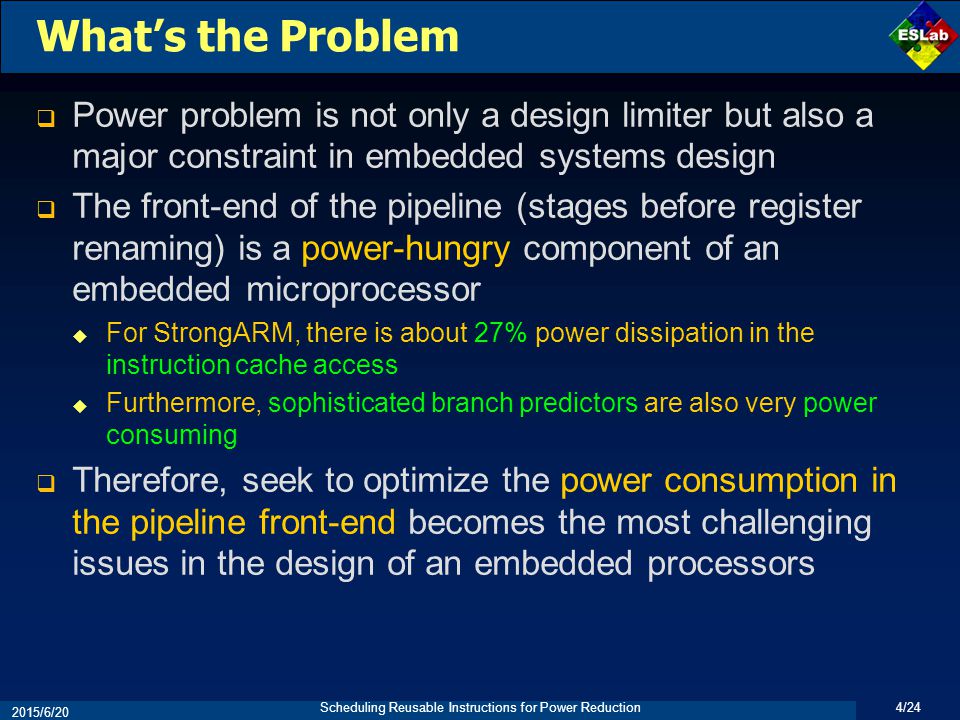

4. Scheduling Reusable Instructions for Power Reduction 4/24 2015/6/20 What’s the Problem  Power problem is not only a design limiter but also a major constraint in embedded systems design  The front-end of the pipeline (stages before register renaming) is a power-hungry component of an embedded microprocessor  For StrongARM, there is about 27% power dissipation in the instruction cache access  Furthermore, sophisticated branch predictors are also very power consuming  Therefore, seek to optimize the power consumption in the pipeline front-end becomes the most challenging issues in the design of an embedded processors

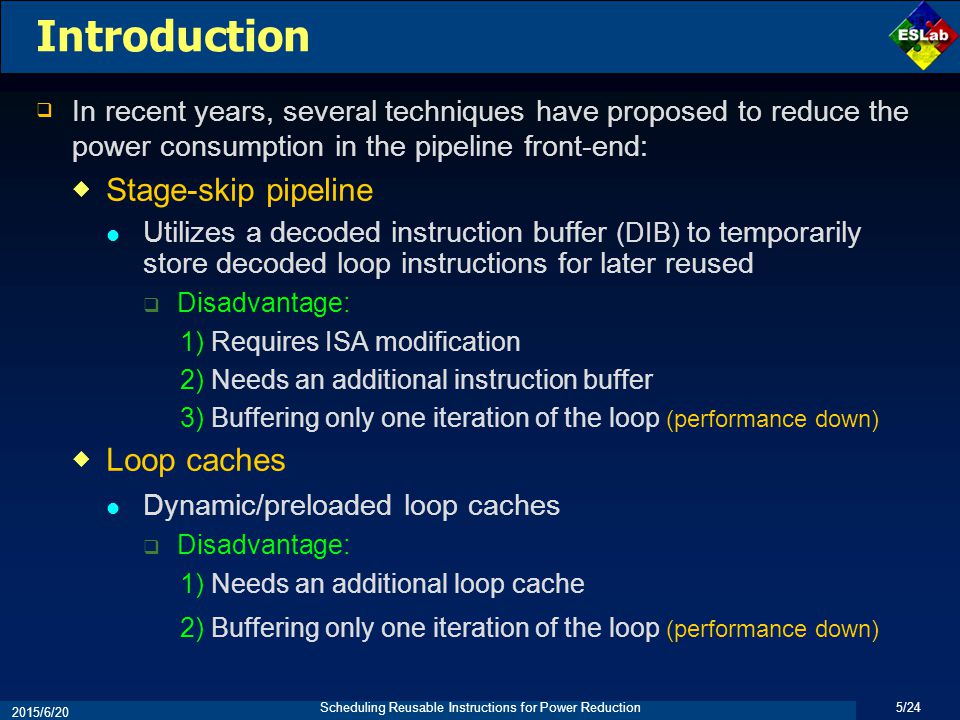

5. Scheduling Reusable Instructions for Power Reduction 5/24 2015/6/20 Introduction  In recent years, several techniques have proposed to reduce the power consumption in the pipeline front-end:  Stage-skip pipeline Utilizes a decoded instruction buffer (DIB) to temporarily store decoded loop instructions for later reused  Disadvantage: 1) Requires ISA modification 2) Needs an additional instruction buffer 3) Buffering only one iteration of the loop (performance down)  Loop caches Dynamic/preloaded loop caches  Disadvantage: 1) Needs an additional loop cache 2) Buffering only one iteration of the loop (performance down)

6. Scheduling Reusable Instructions for Power Reduction 6/24 2015/6/20 Introduction (cont.)  Filter cache Use smaller level zero cache to capture tight spatial / temporal locality in cache access  The proposed approach  New issue queue design based on superscalar architecture Scheduling reusable loop instructions within the issue queue  No need of an additional instruction buffer  Utilize the existing issue queue resources  Automatically unroll loops in the issue queue  No ISA modification  Be able to gate the front-end of pipeline  Address the power problem in the front-end of the pipeline

7. Scheduling Reusable Instructions for Power Reduction 7/24 2015/6/20 The Baseline Datapath Base on MIPS Core (a) The Baseline Datapath Model of the MIPS R10000 (b) The Pipeline Stages of the Baseline Superscalar Microprocessor

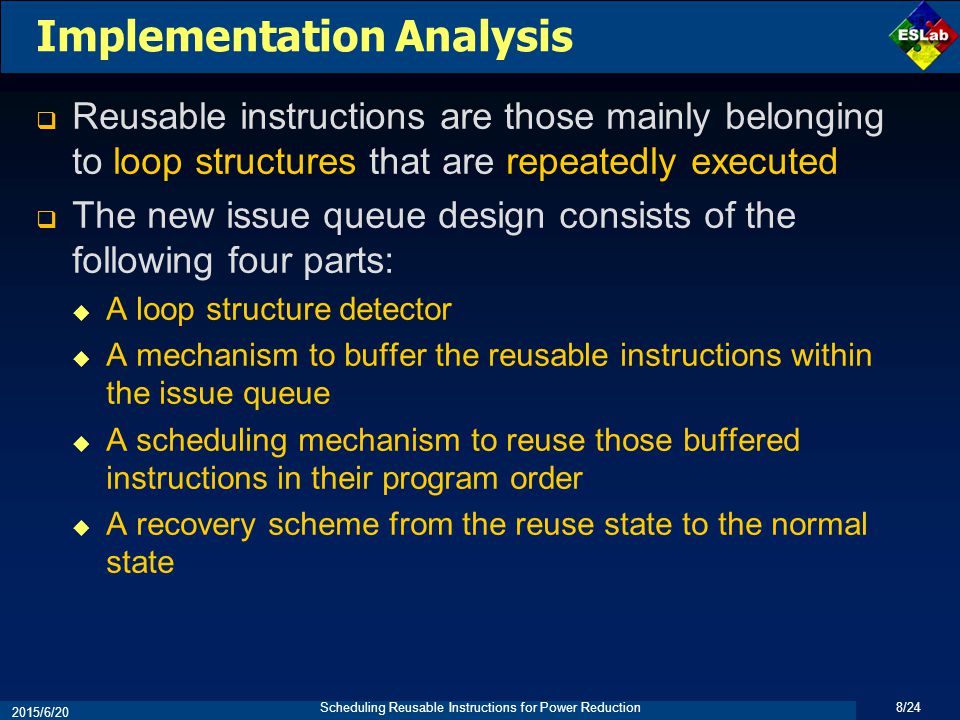

8. Scheduling Reusable Instructions for Power Reduction 8/24 2015/6/20 Implementation Analysis  Reusable instructions are those mainly belonging to loop structures that are repeatedly executed  The new issue queue design consists of the following four parts:  A loop structure detector  A mechanism to buffer the reusable instructions within the issue queue  A scheduling mechanism to reuse those buffered instructions in their program order  A recovery scheme from the reuse state to the normal state

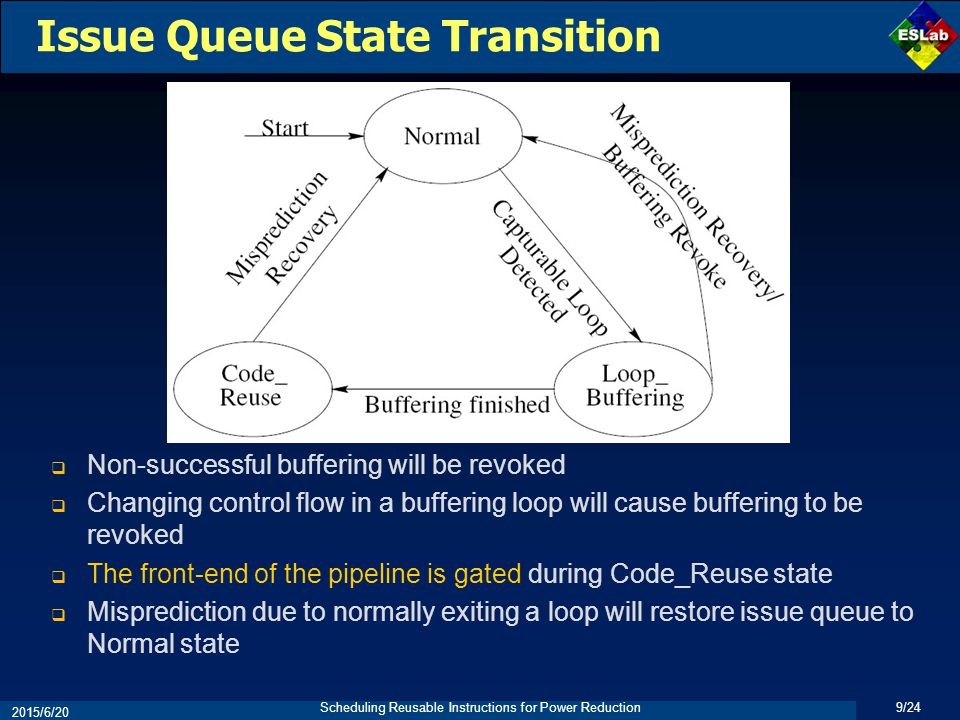

9. Scheduling Reusable Instructions for Power Reduction 9/24 2015/6/20 Issue Queue State Transition  Non-successful buffering will be revoked  Changing control flow in a buffering loop will cause buffering to be revoked  The front-end of the pipeline is gated during Code_Reuse state  Misprediction due to normally exiting a loop will restore issue queue to Normal state

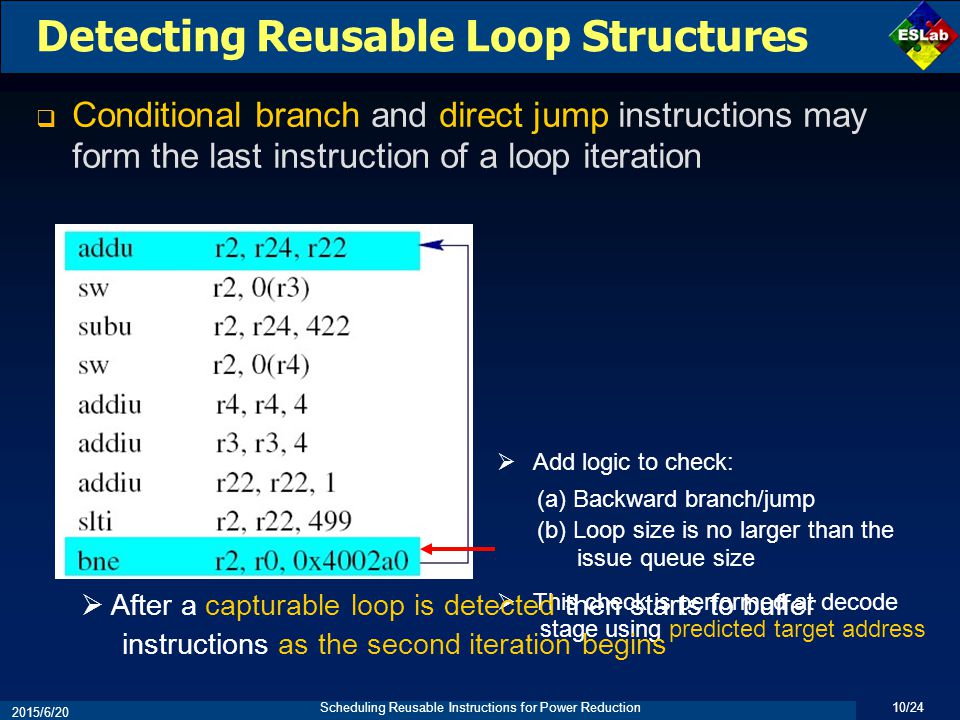

10. Scheduling Reusable Instructions for Power Reduction 10/24 2015/6/20 Detecting Reusable Loop Structures  Conditional branch and direct jump instructions may form the last instruction of a loop iteration  Add logic to check: (a) Backward branch/jump (b) Loop size is no larger than the issue queue size  This check is performed at decode stage using predicted target address  After a capturable loop is detected then starts to buffer instructions as the second iteration begins

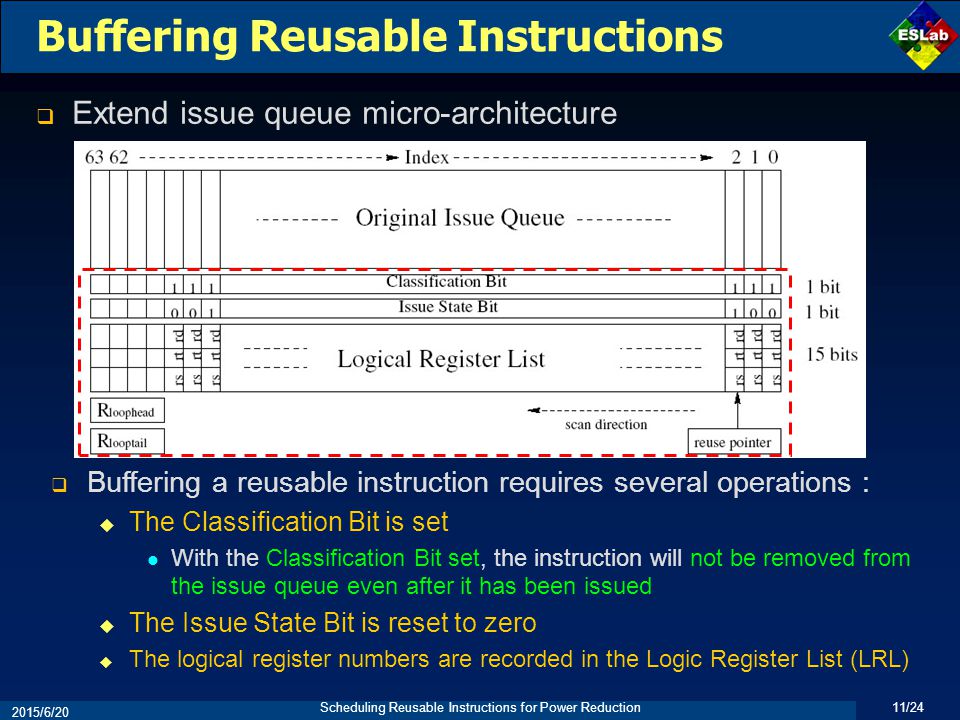

11. Scheduling Reusable Instructions for Power Reduction 11/24 2015/6/20 Buffering Reusable Instructions  Extend issue queue micro-architecture  Buffering a reusable instruction requires several operations :  The Classification Bit is set With the Classification Bit set, the instruction will not be removed from the issue queue even after it has been issued  The Issue State Bit is reset to zero  The logical register numbers are recorded in the Logic Register List (LRL)

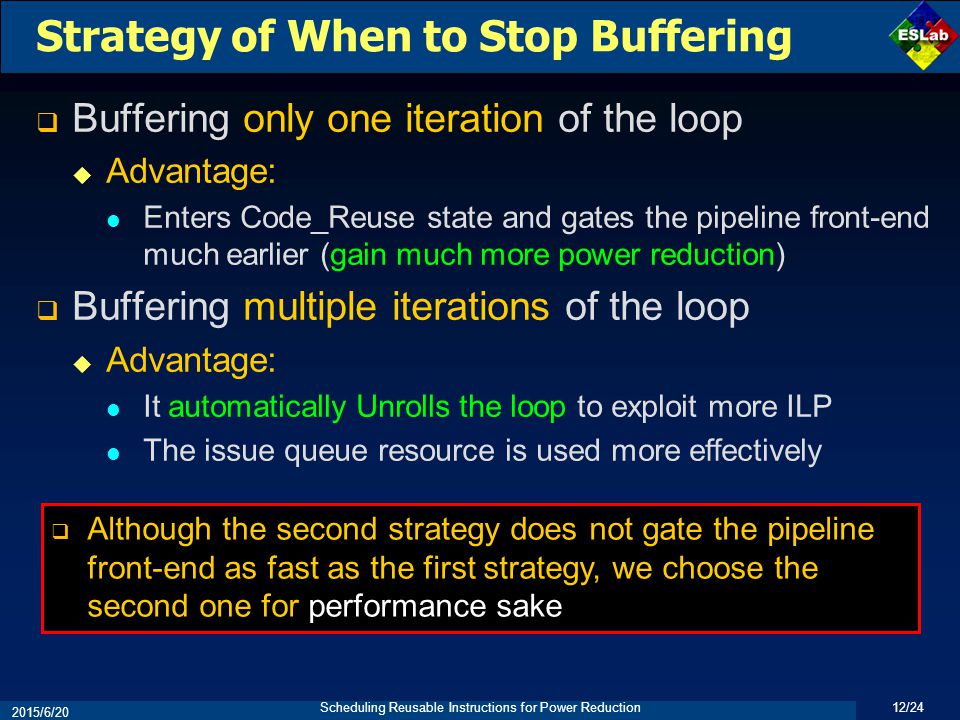

12. Scheduling Reusable Instructions for Power Reduction 12/24 2015/6/20 Strategy of When to Stop Buffering  Buffering only one iteration of the loop  Advantage: Enters Code_Reuse state and gates the pipeline front-end much earlier (gain much more power reduction)  Buffering multiple iterations of the loop  Advantage: It automatically Unrolls the loop to exploit more ILP The issue queue resource is used more effectively  Although the second strategy does not gate the pipeline front-end as fast as the first strategy, we choose the second one for performance sake

13. Scheduling Reusable Instructions for Power Reduction 13/24 2015/6/20 Optimizing Loop Buffering Strategy  During Loop_Buffering state, if  An inner loop is detected  The execution exits the current loop  A procedure call within a loop causes the issue queue to use up before the loop end is met The current loop is identified as a non-bufferable loop  Example of an non-bufferable loop  Use Non-bufferable loop table (NBLT) to store non-bufferable loops  If a detected loop appears in NBLT, no buffering is attempted for this loop. With this optimization, the issue queue can eliminate most of the buffering of non-bufferable loops

14. Scheduling Reusable Instructions for Power Reduction 14/24 2015/6/20 Reusing Buffered Instructions  During Code_Reuse state, instruction cache access and instruction decoding is disable  Needs a mechanism to reuse the buffered instructions already in the issue queue  Thus, the instructions are supplied by the issue queue itself

15. Scheduling Reusable Instructions for Power Reduction 15/24 2015/6/20 Reusing Buffered Instructions (cont.)  Utilizes a reuse pointer to scan for instructions to be reused  Check the issue state bits of the first n instructions starting from the reuse pointer, if they are set, the logical register numbers are sent for register- renaming to reuse those inst. and the reuse pointer then advanced by n to scan instructions for the next cycle  Renamed instructions update their corresponding entries (e.g., register information) in the issue queue

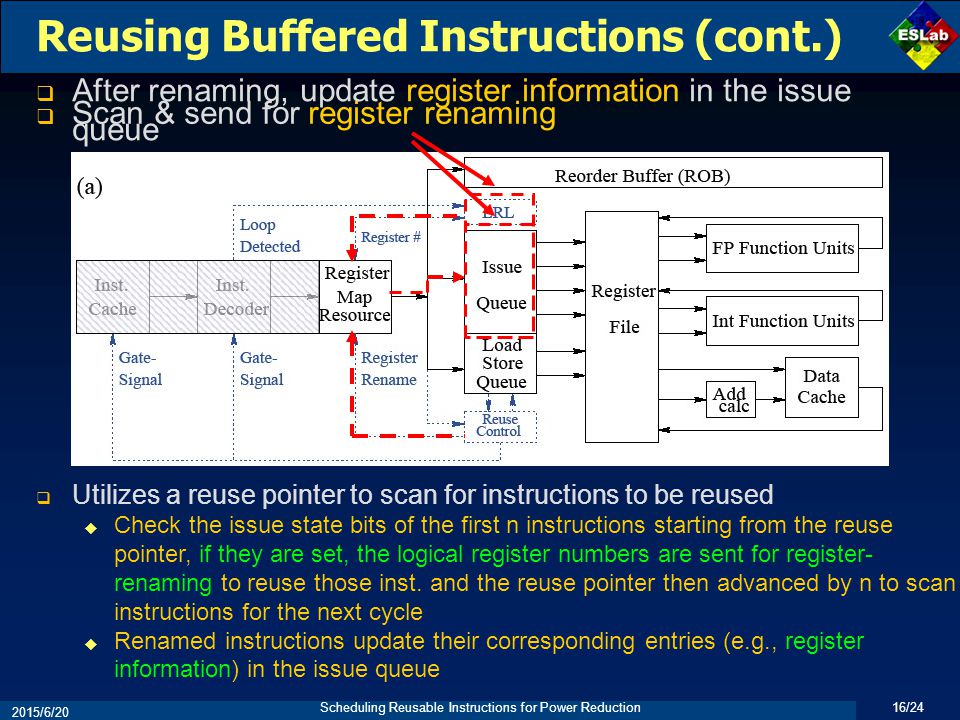

16. Scheduling Reusable Instructions for Power Reduction 16/24 2015/6/20 Reusing Buffered Instructions (cont.)  Utilizes a reuse pointer to scan for instructions to be reused  Check the issue state bits of the first n instructions starting from the reuse pointer, if they are set, the logical register numbers are sent for register- renaming to reuse those inst. and the reuse pointer then advanced by n to scan instructions for the next cycle  Renamed instructions update their corresponding entries (e.g., register information) in the issue queue  Scan & send for register renaming  After renaming, update register information in the issue queue

17. Scheduling Reusable Instructions for Power Reduction 17/24 2015/6/20 Reusing Buffered Instructions (cont.)  Reuse pointer is automatically reset to the position of the first buffered instruction after the last buffered instruction is reused  This process is repeat until a branch misprediction is detected Misprediction due to normally exiting a loop will restore issue queue to Normal state  During Code_Reuse state, dynamic branch prediction is disable  Branch instructions are statically predicted The static prediction works well since the branches within loops are normally highly-biased for one direction  The static prediction is still verified after the branch completes  If the static prediction is detected to be incorrect ( Misprediction) during this verification, the issue queue will exit Code_Reuse state and restore to Normal state

18. Scheduling Reusable Instructions for Power Reduction 18/24 2015/6/20 Restoring Normal State  Recovery process of revoking the current buffering state  Check the classification bit and issue state bit of all instructions, if they are set, it is immediately removed from the issue queue  The remaining instruction’s classification bit are then cleared  Recovery process due to misprediction in the Loop_Buffering state  Besides above process, Instructions newer than this branch are removed from the issue queue and ROB  Recovery process due to misprediction in the Code_Reuse state  Check the classification bit and issue state bit of all instructions, if they are set, it is immediately removed from the issue queue  The remaining instruction’s classification bit are then cleared  Instructions newer than this branch are removed from the issue queue and ROB  The gating signal is reset

19. Scheduling Reusable Instructions for Power Reduction 19/24 2015/6/20 Results - Rate of Gated Front End  On the average, the pipeline front-end gated rate increase from 42% to 82% as the issue queue size increase  However, increasing issue queue size does’t always improve the gated rate (e.g. tsf and wss)  Larger issue queue will buffer more iteration and delay the pipeline gating

20. Scheduling Reusable Instructions for Power Reduction 20/24 2015/6/20 Results - Power Savings in Front End  On the average, a power reduction of  35% - 72% in ICache  19% - 33% in branch predictor  12% - 21% in issue queue (due to partial update)  with < 2% overhead. (due to supporting logic) as the issue queue size increase

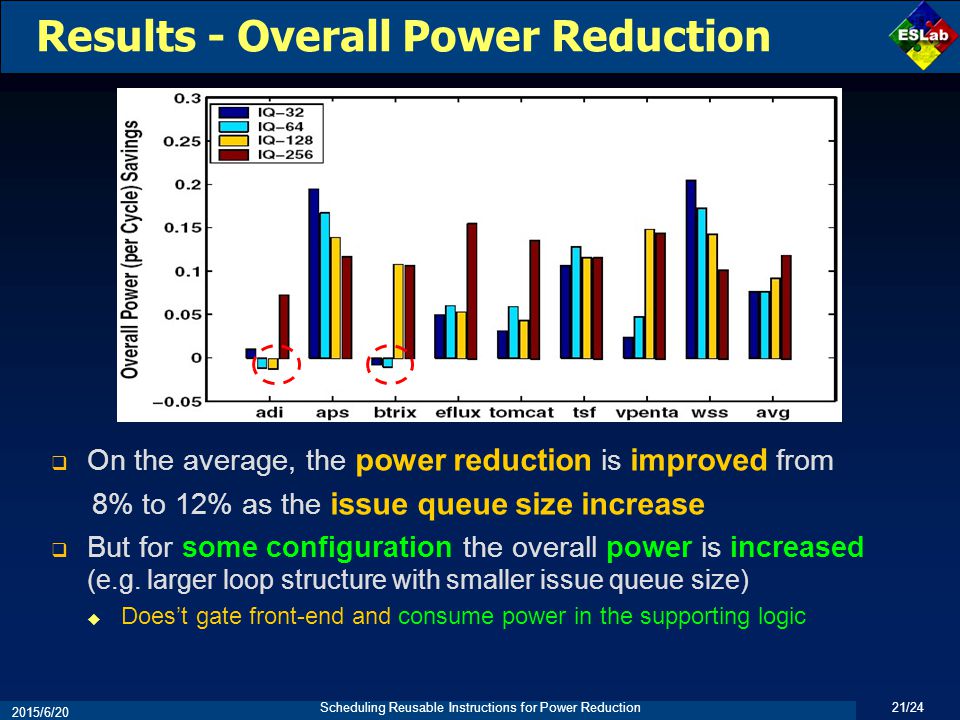

21. Scheduling Reusable Instructions for Power Reduction 21/24 2015/6/20 Results - Overall Power Reduction  On the average, the power reduction is improved from 8% to 12% as the issue queue size increase  But for some configuration the overall power is increased (e.g. larger loop structure with smaller issue queue size)  Does’t gate front-end and consume power in the supporting logic

22. Scheduling Reusable Instructions for Power Reduction 22/24 2015/6/20 Results - Performance Loss  Average performance loss ranges from 0.2% to 4% as the issue queue size increase  Due to the non-fully utilized issue queue as we buffering integer number of iterations of the loops

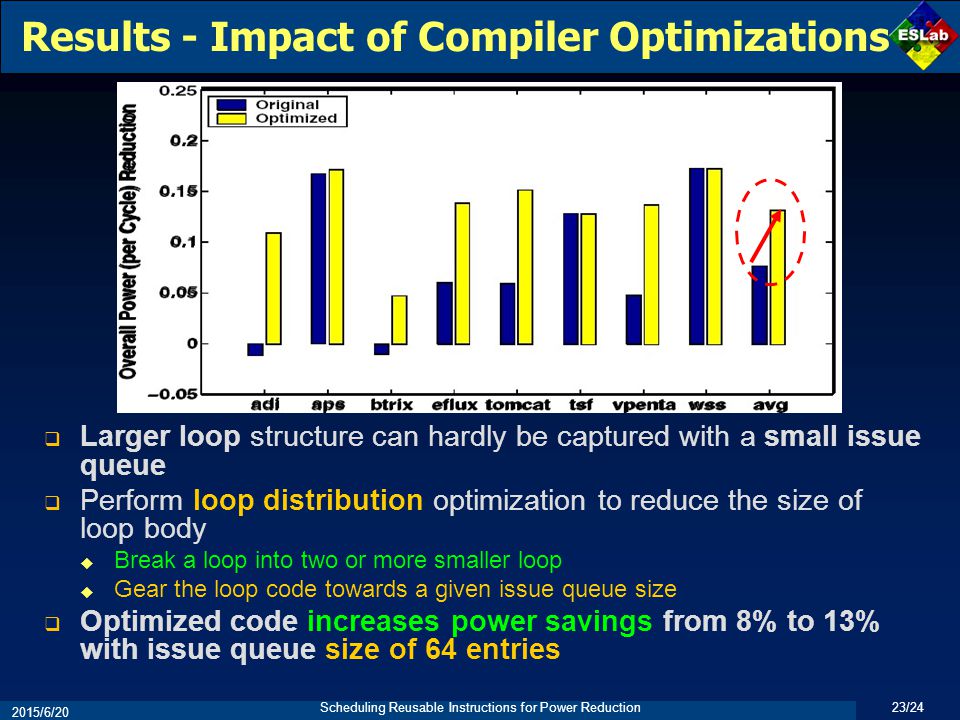

23. Scheduling Reusable Instructions for Power Reduction 23/24 2015/6/20 Results - Impact of Compiler Optimizations  Larger loop structure can hardly be captured with a small issue queue  Perform loop distribution optimization to reduce the size of loop body  Break a loop into two or more smaller loop  Gear the loop code towards a given issue queue size  Optimized code increases power savings from 8% to 13% with issue queue size of 64 entries

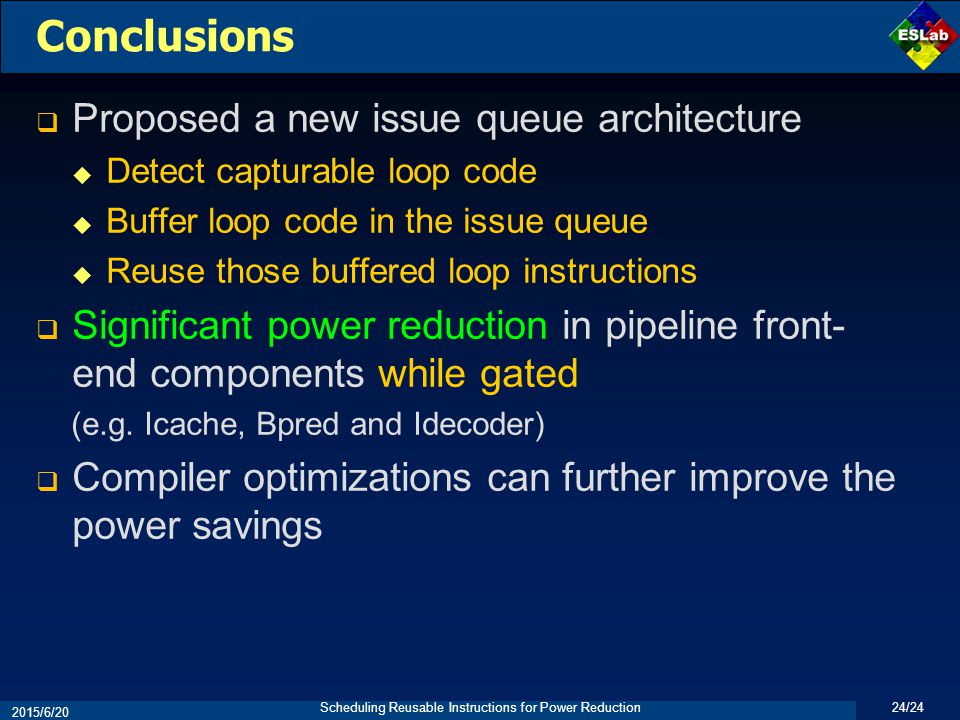

24. Scheduling Reusable Instructions for Power Reduction 24/24 2015/6/20 Conclusions  Proposed a new issue queue architecture  Detect capturable loop code  Buffer loop code in the issue queue  Reuse those buffered loop instructions  Significant power reduction in pipeline front- end components while gated (e.g. Icache, Bpred and Idecoder)  Compiler optimizations can further improve the power savings
