1 Conceptual Data Modeling, E-R Diagrams

2 Outline  Purpose and importance of conceptual data modeling  Entity-Relationship Model Entity  Attributes Relationships

3 SDLC Revisited – Data Modeling is an Analysis Activity Project Identification and Selection Project Initiation and Planning Analysis Physical Design Implementation Maintenance Logical Design Purpose –thorough analysis of the business domain Deliverable – system specifications Database activity – conceptual data modeling

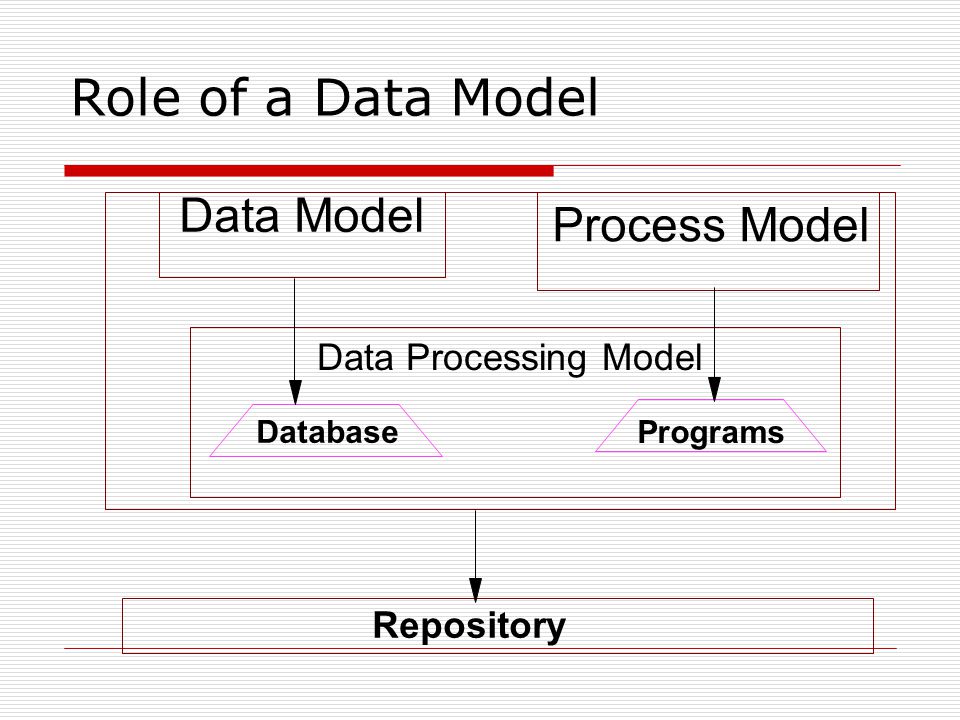

4 Role of a Data Model Data Model Process Model Database Programs Repository Data Processing Model

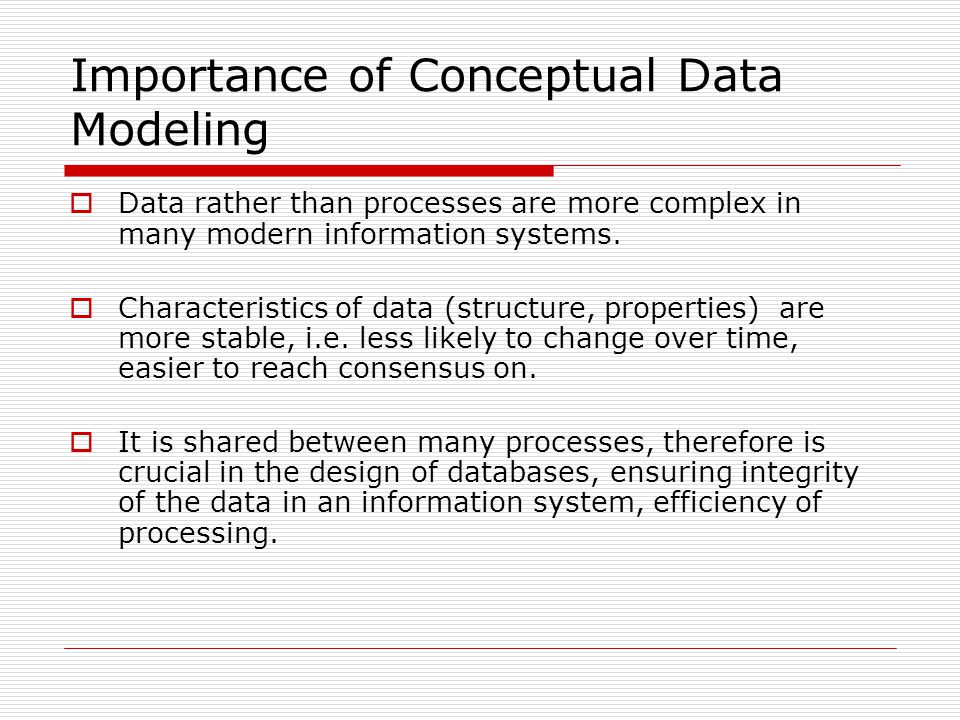

5 Importance of Conceptual Data Modeling  Data rather than processes are more complex in many modern information systems.  Characteristics of data (structure, properties) are more stable, i.e. less likely to change over time, easier to reach consensus on.  It is shared between many processes, therefore is crucial in the design of databases, ensuring integrity of the data in an information system, efficiency of processing.

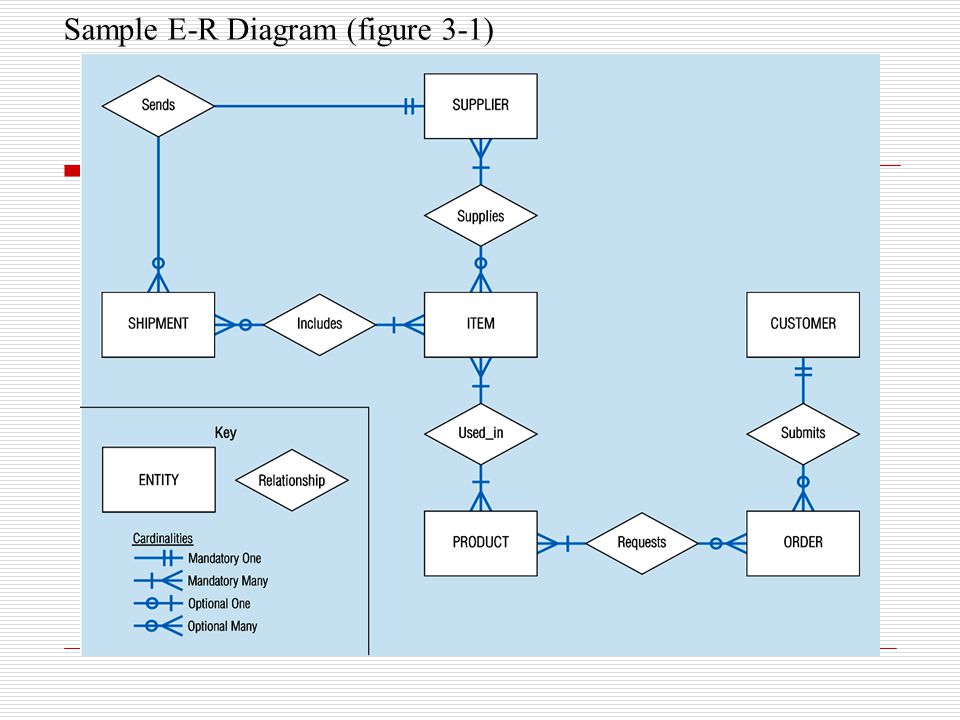

6 Sample E-R Diagram (figure 3-1)

7 Business Rules  Policies and rules about the operation of a business that a data model represents Govern how data is stored and handled. E.g. “a section of a course has between 15 and 35 students”  Must be expressed in terms familiar to end users, clear and concise.  Not all business rules are related to data

8 A Good Business Rule is:  Declarative – what, not how  Precise – clear, agreed-upon meaning  Atomic – one statement  Consistent – internally and externally  Expressible – structured, natural language  Distinct – non-redundant  Business-oriented – understood by business people

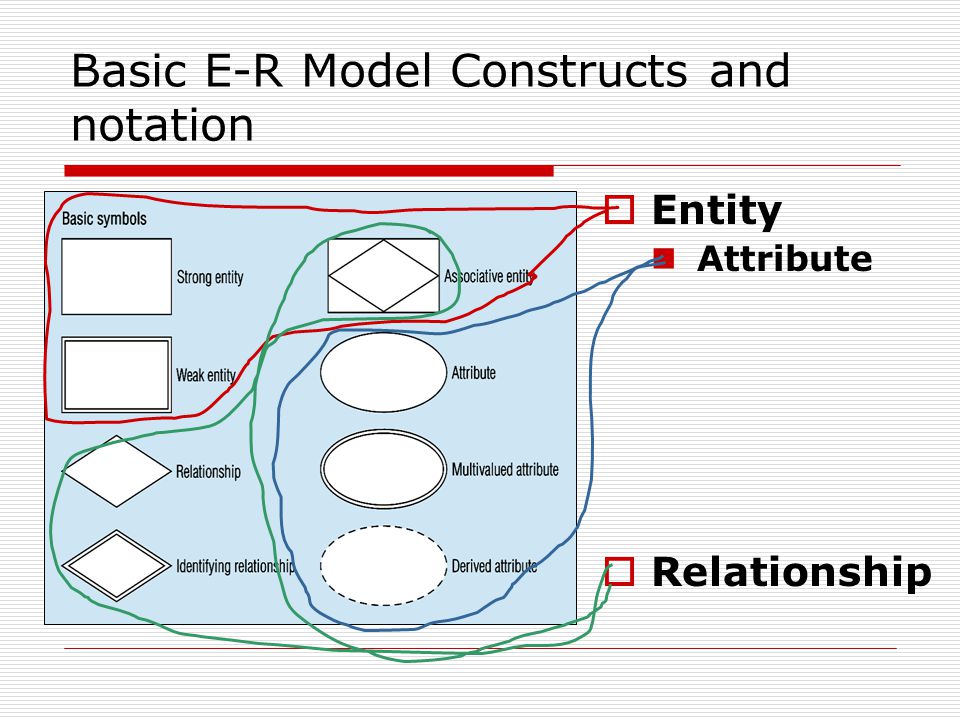

9 Basic E-R Model Constructs and notation  Entity Attribute  Relationship

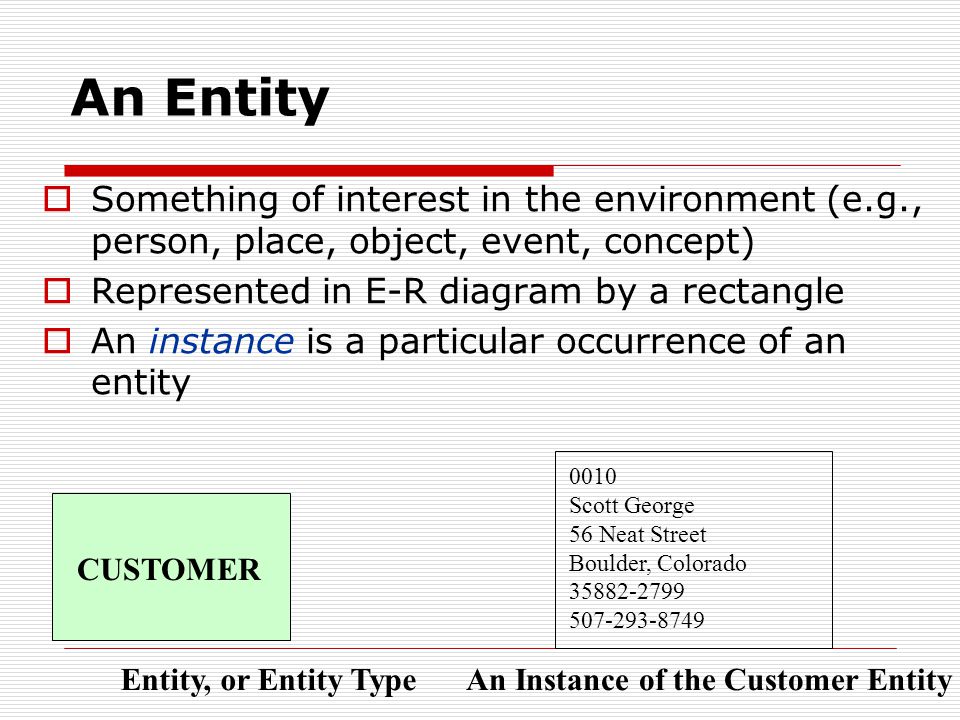

10 An Entity  Something of interest in the environment (e.g., person, place, object, event, concept)  Represented in E-R diagram by a rectangle  An instance is a particular occurrence of an entity CUSTOMER Entity, or Entity Type 0010 Scott George 56 Neat Street Boulder, Colorado 35882-2799 507-293-8749 An Instance of the Customer Entity

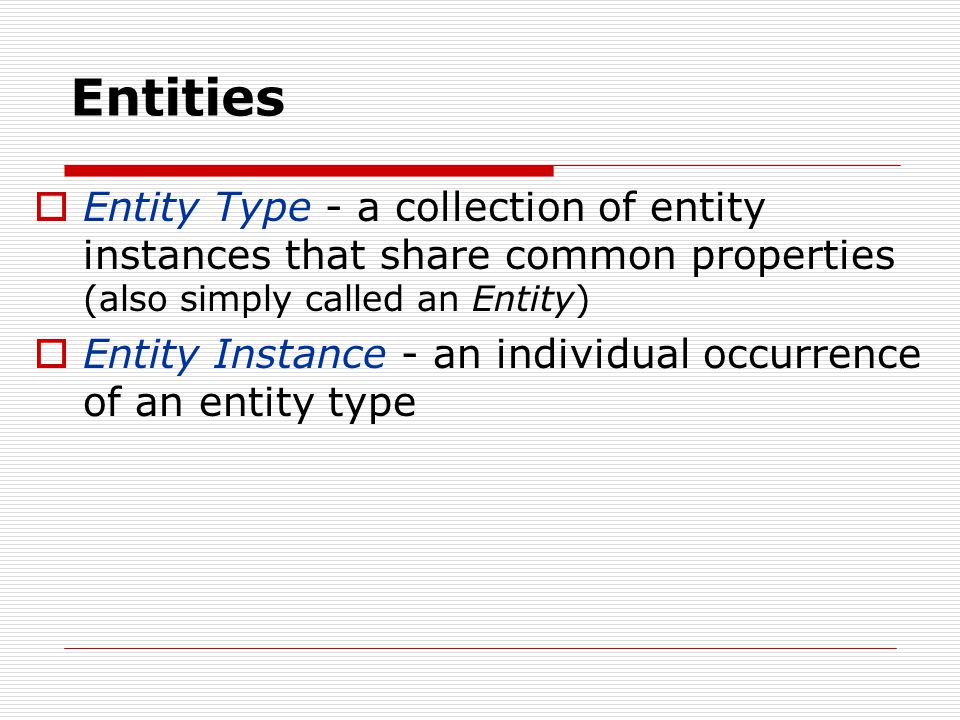

11 Entities  Entity Type - a collection of entity instances that share common properties (also simply called an Entity)  Entity Instance - an individual occurrence of an entity type

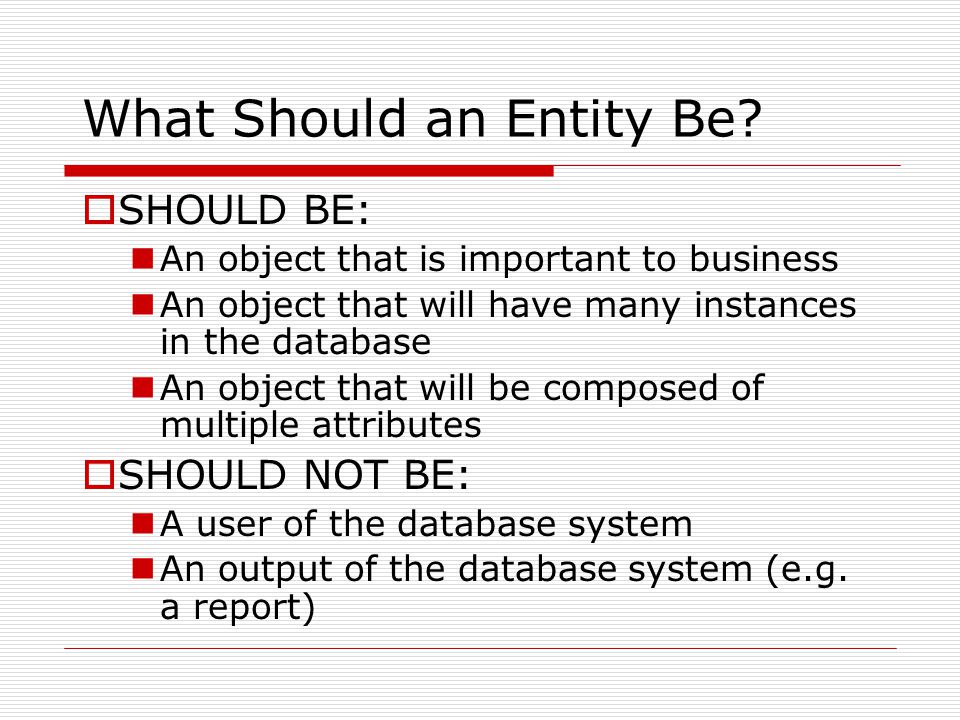

12 What Should an Entity Be?  SHOULD BE: An object that is important to business An object that will have many instances in the database An object that will be composed of multiple attributes  SHOULD NOT BE: A user of the database system An output of the database system (e.g. a report)

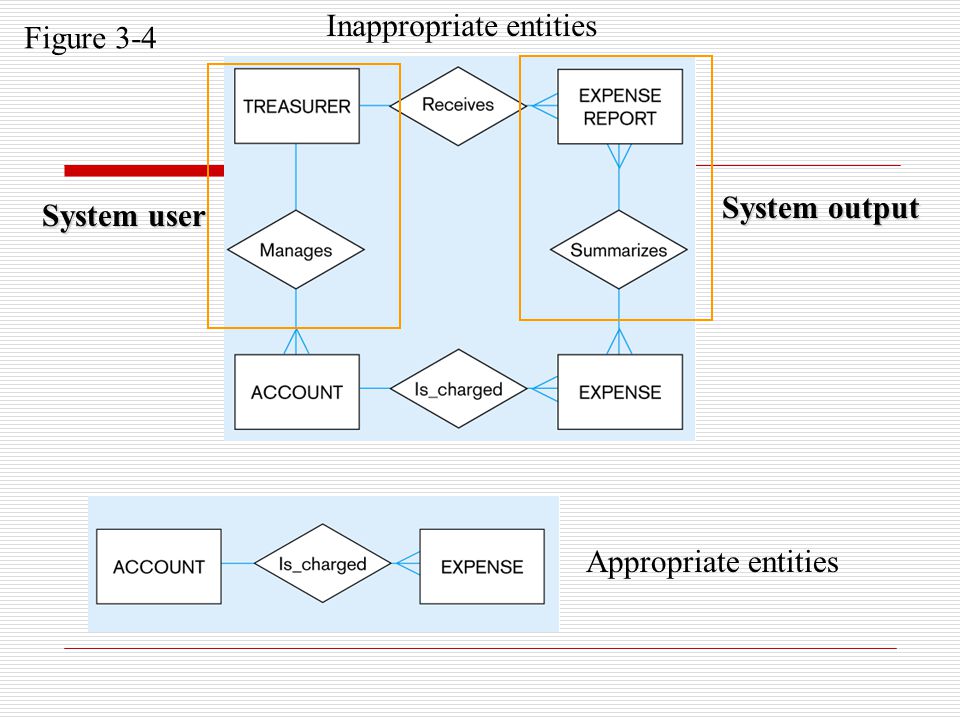

13 Inappropriate entities System user System output Appropriate entities Figure 3-4

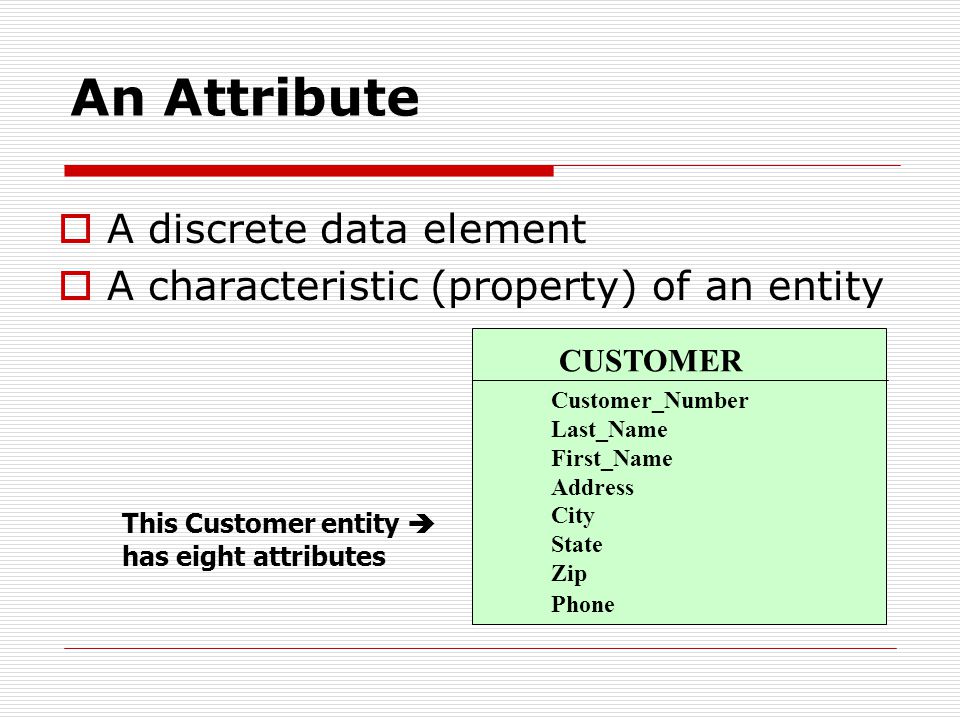

14 An Attribute  A discrete data element  A characteristic (property) of an entity CUSTOMER Customer_Number Last_Name First_Name Address City State Zip Phone This Customer entity  has eight attributes

15 Types of Attributes  Simple vs. Composite Simple - most basic level Composite – decomposable into a group of related attributes  ex: address (street, city, state, zip)  Single Valued vs. Multi Valued – Single - only one value per entity instance (e.g., last name, date of birth) Mulitvalued- multiple values per entity instance (e.g., degrees, clubs, skills)  Stored vs Derived (e.g. DateOfBirth vs Age )  Identifier attribute (key) (e.g. SSN of a person)

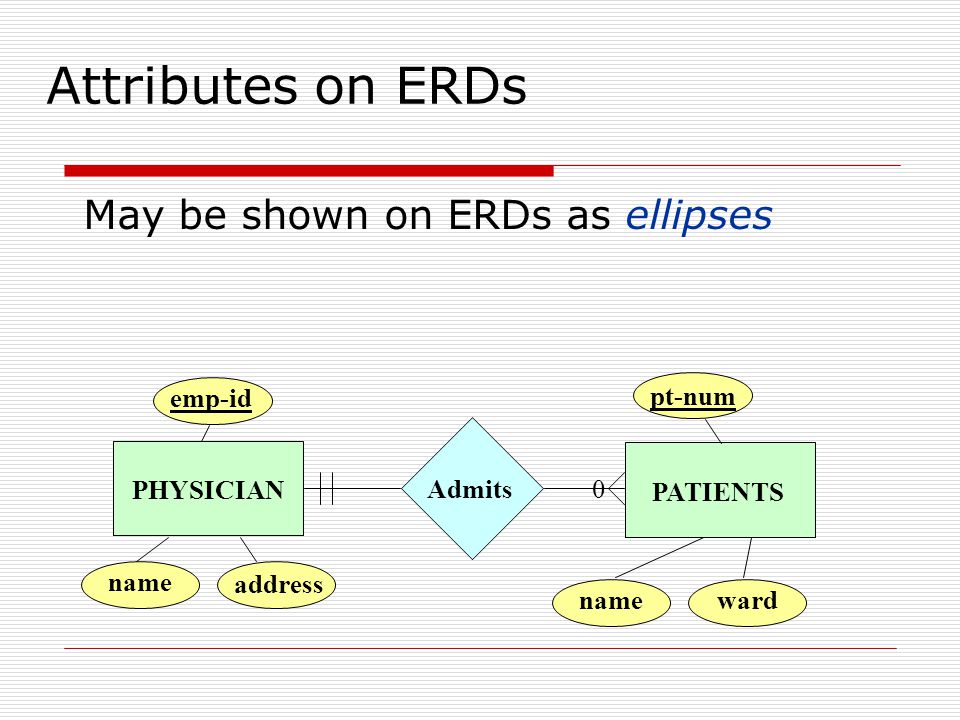

16 Attributes on ERDs May be shown on ERDs as ellipses PHYSICIAN PATIENTS Admits 0 emp-id name address pt-num nameward

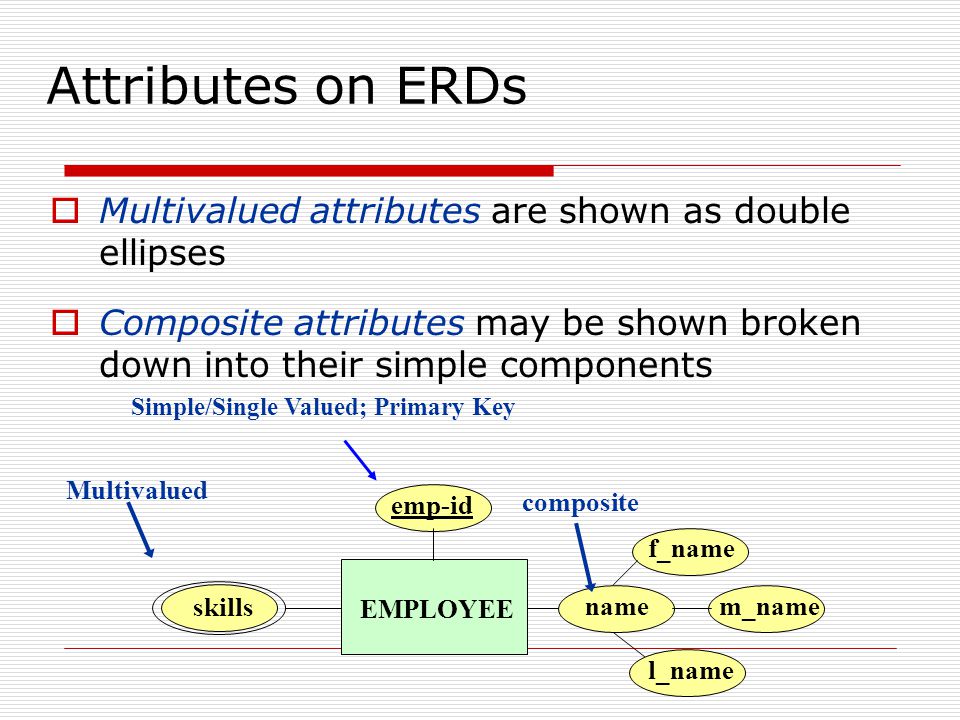

17 Attributes on ERDs  Multivalued attributes are shown as double ellipses EMPLOYEE emp-id name skills f_name l_name m_name Multivalued composite  Composite attributes may be shown broken down into their simple components Simple/Single Valued; Primary Key

18 Identifiers/Primary Key  Every instance of an entity must be uniquely identified (to unambiguously distinguish them)  An identifier can be one or more attributes called a composite identifier (e.g., first name, middle name, and last name)  Create an identifier if there is no obvious identifying attribute (e.g., part number)  Underline identifiers in diagrams

19 Identifiers  Must be unique  Should not change value over time  Guaranteed to have a valid value  No intelligent identifiers (e.g. containing locations or people that might change)  Consider substituting single-attribute identifiers for composite identifiers to simplify design and enhance performance CUSTOMER Customer_Number Last_Name First_Name Address City State Zip Phone

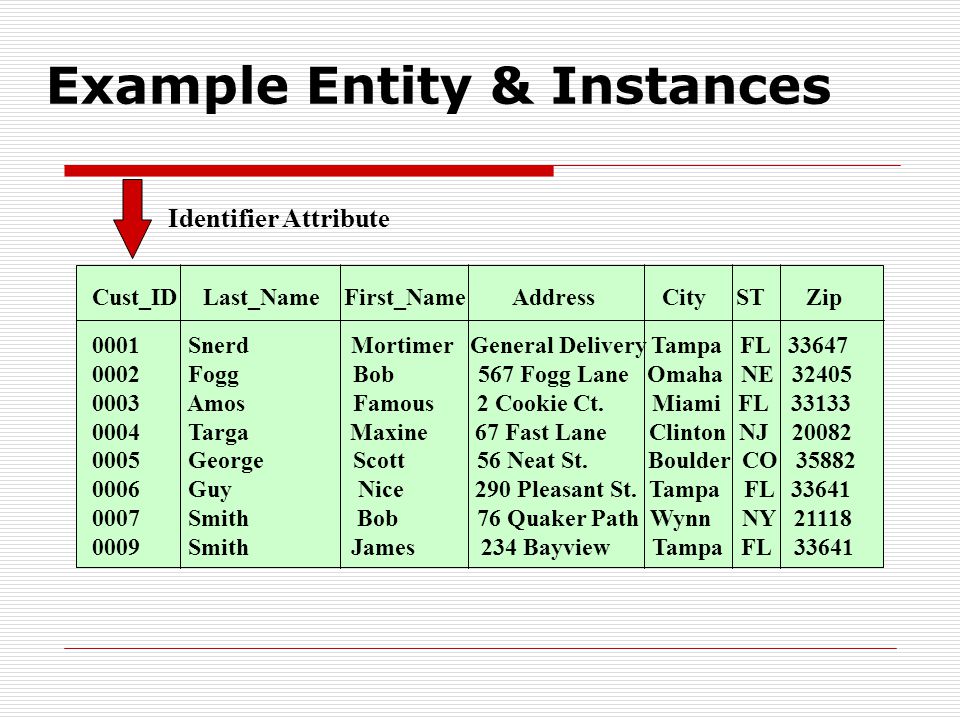

20 Example Entity & Instances Cust_ID Last_Name First_Name Address City ST Zip 0001 Snerd Mortimer General Delivery Tampa FL 33647 0002 Fogg Bob 567 Fogg Lane Omaha NE 32405 0003 Amos Famous 2 Cookie Ct. Miami FL 33133 0004 Targa Maxine 67 Fast Lane Clinton NJ 20082 0005 George Scott 56 Neat St. Boulder CO 35882 0006 Guy Nice 290 Pleasant St. Tampa FL 33641 0007 Smith Bob 76 Quaker Path Wynn NY 21118 0009 Smith James 234 Bayview Tampa FL 33641 Identifier Attribute

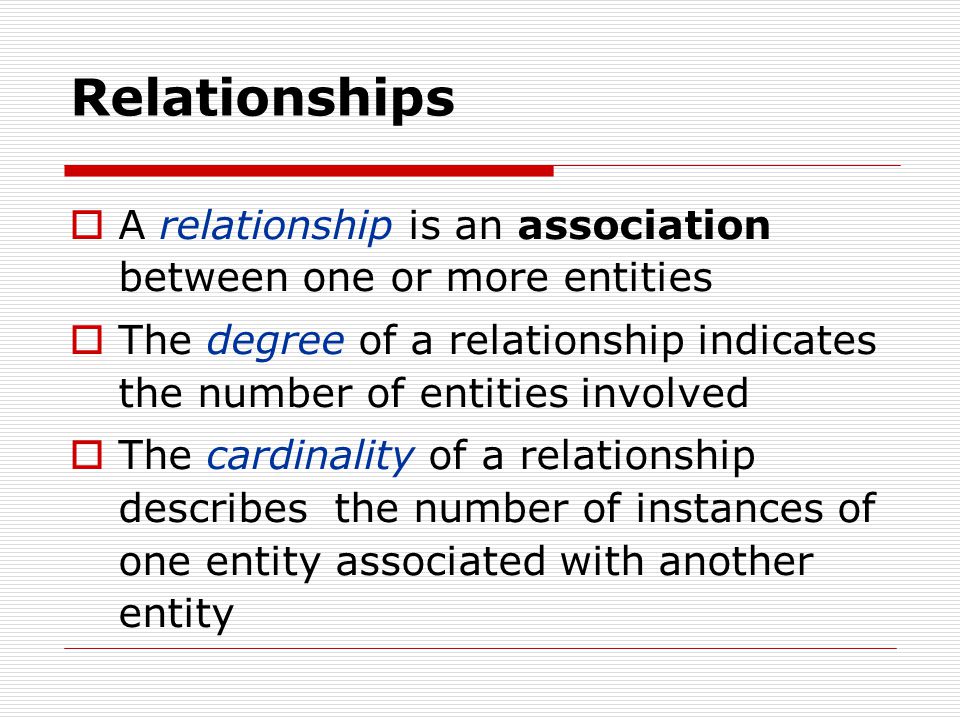

21 Relationships  A relationship is an association between one or more entities  The degree of a relationship indicates the number of entities involved  The cardinality of a relationship describes the number of instances of one entity associated with another entity

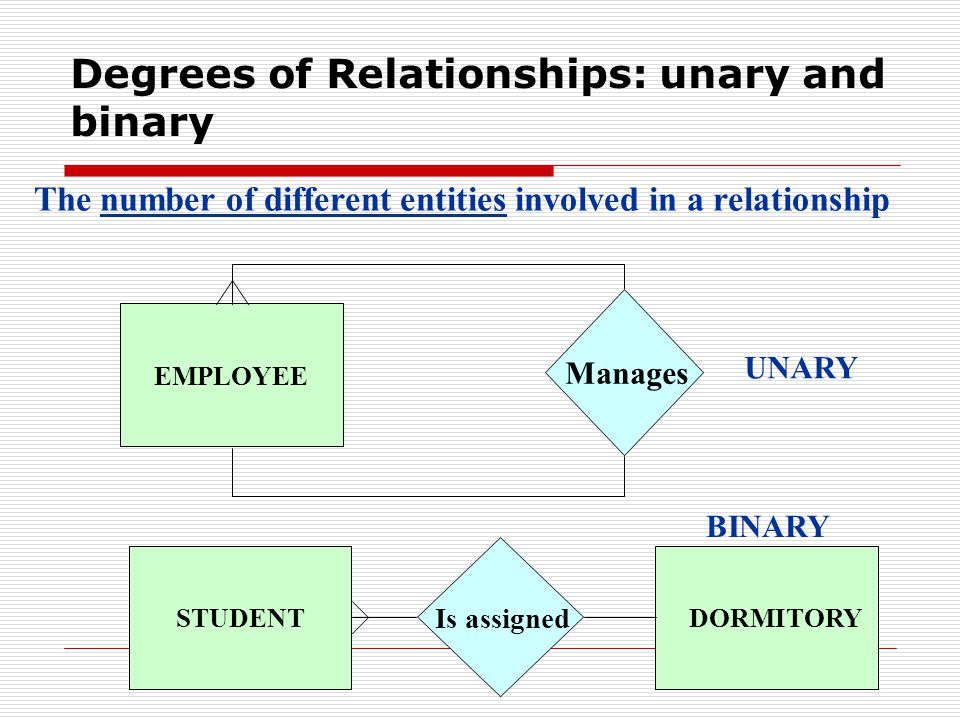

22 Degrees of Relationships: unary and binary The number of different entities involved in a relationship EMPLOYEE Manages UNARY STUDENT DORMITORY Is assigned BINARY

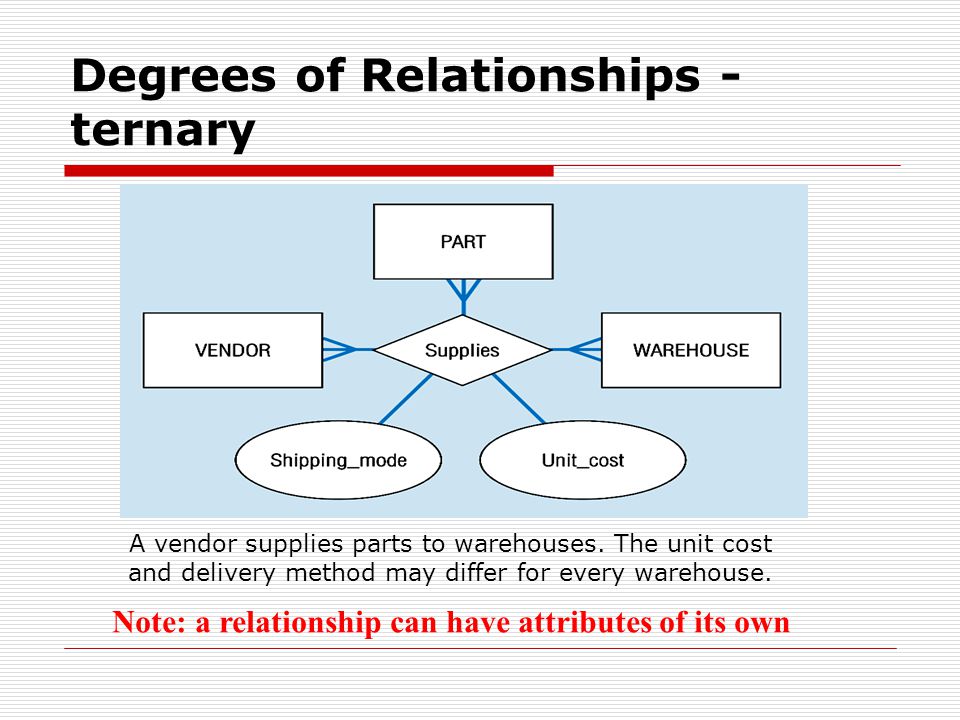

23 Note: a relationship can have attributes of its own Degrees of Relationships - ternary A vendor supplies parts to warehouses. The unit cost and delivery method may differ for every warehouse.

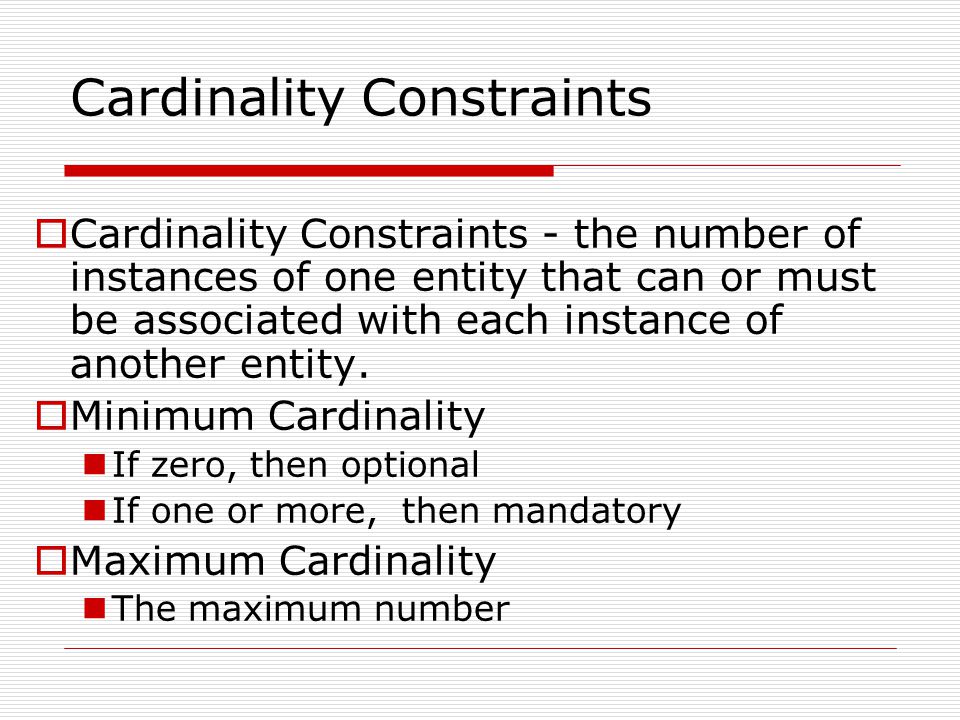

24 Cardinality Constraints  Cardinality Constraints - the number of instances of one entity that can or must be associated with each instance of another entity.  Minimum Cardinality If zero, then optional If one or more, then mandatory  Maximum Cardinality The maximum number

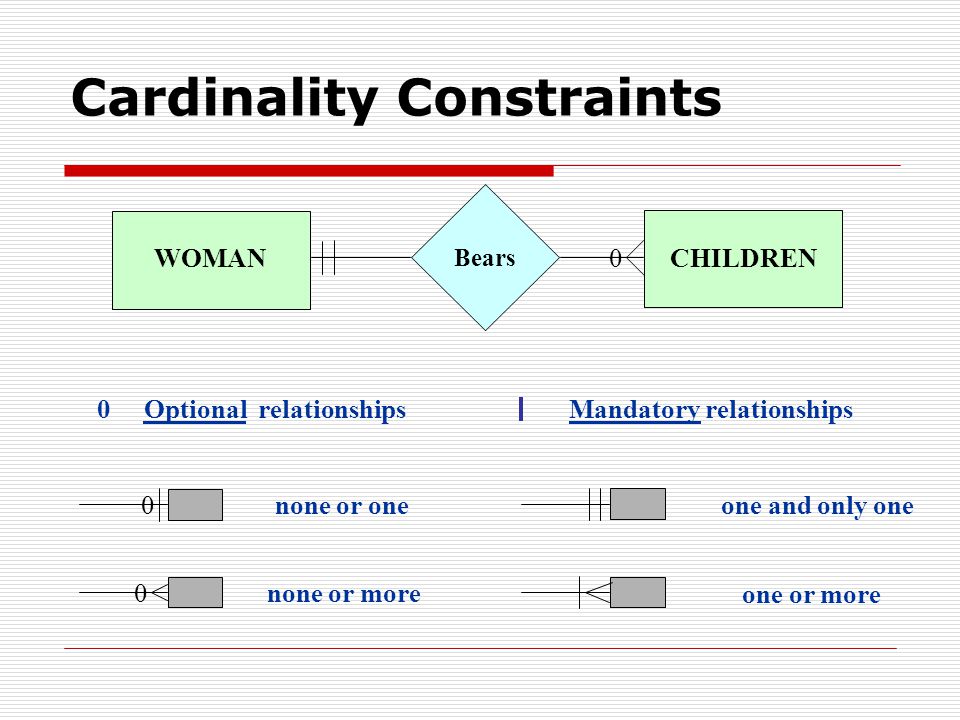

25 Cardinality Constraints 0 Optional relationships none or one 0 0none or more Mandatory relationships one and only one one or more WOMAN CHILDREN Bears 0

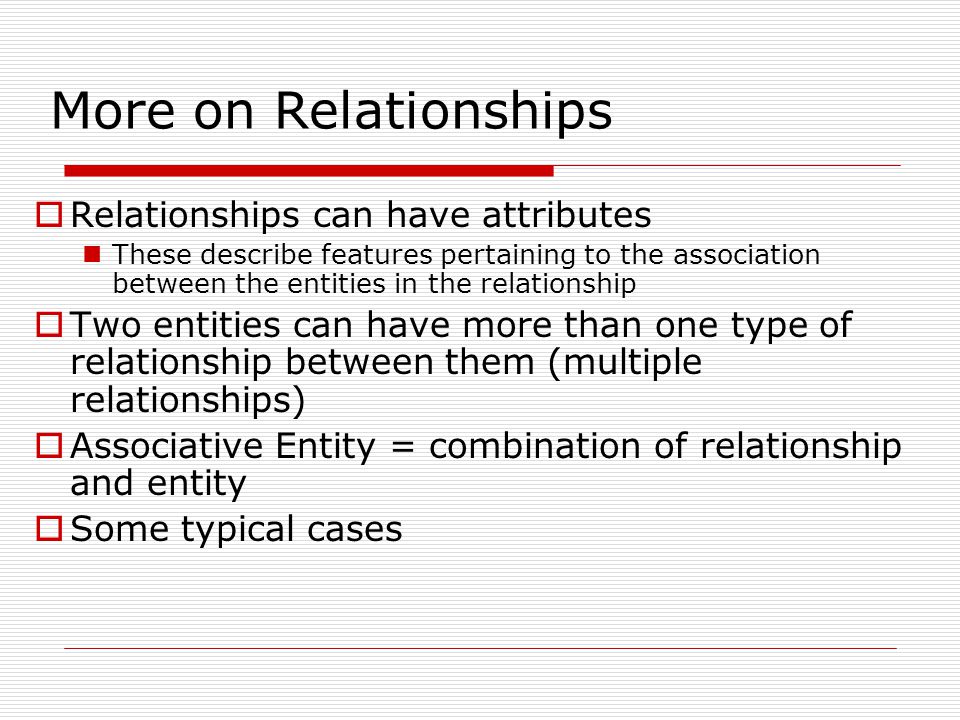

26 More on Relationships  Relationships can have attributes These describe features pertaining to the association between the entities in the relationship  Two entities can have more than one type of relationship between them (multiple relationships)  Associative Entity = combination of relationship and entity  Some typical cases

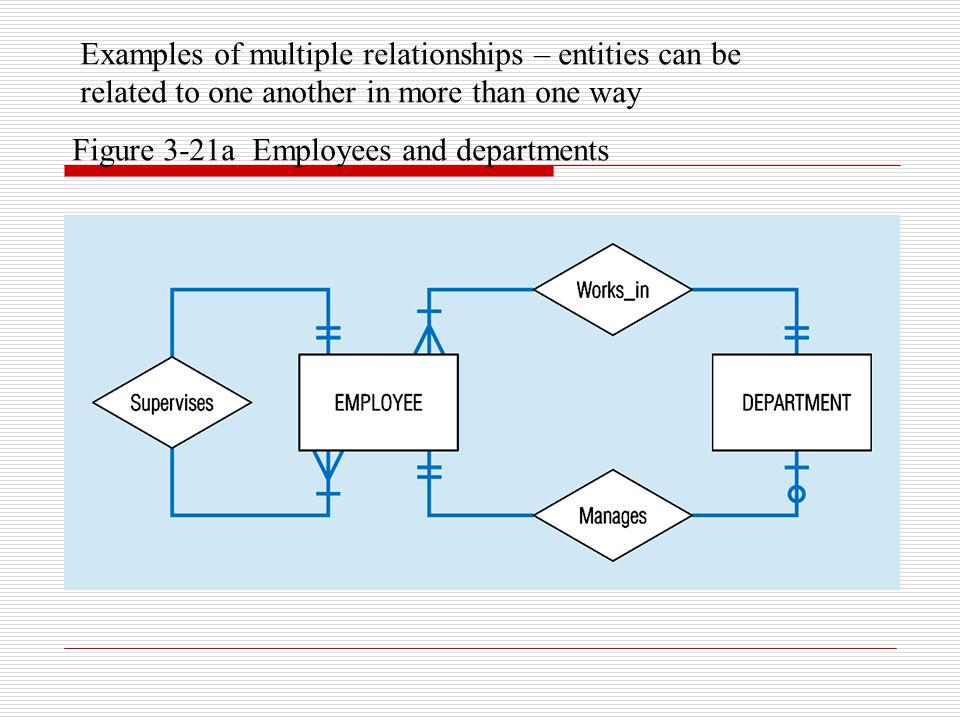

27 Examples of multiple relationships – entities can be related to one another in more than one way Figure 3-21a Employees and departments

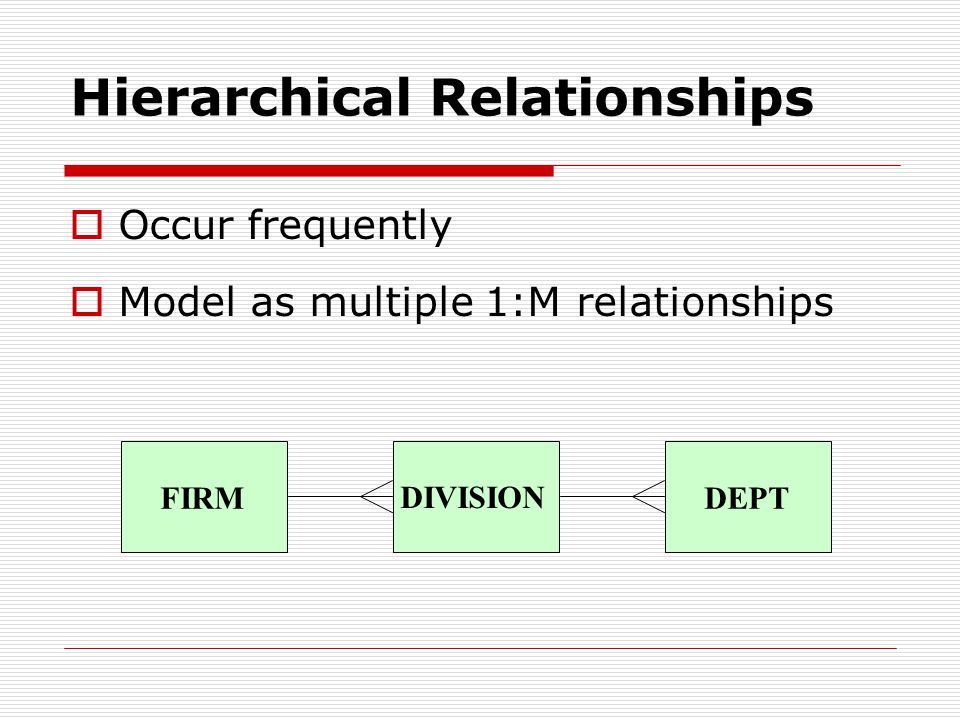

28 Hierarchical Relationships  Occur frequently  Model as multiple 1:M relationships FIRM DIVISION DEPT

29 Time stamping

30 Figure 3-21a Employees and departments Entities can be related to one another in more than one way

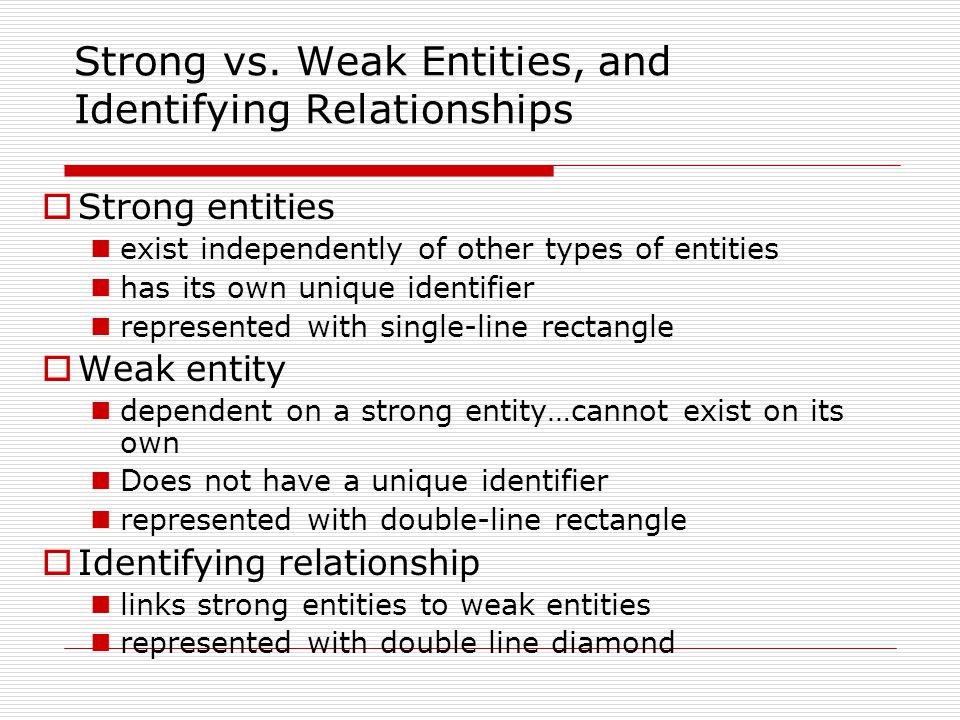

31 Strong vs. Weak Entities, and Identifying Relationships  Strong entities exist independently of other types of entities has its own unique identifier represented with single-line rectangle  Weak entity dependent on a strong entity…cannot exist on its own Does not have a unique identifier represented with double-line rectangle  Identifying relationship links strong entities to weak entities represented with double line diamond

32 Associative Entities  Associative entities provide details of a many-to-many association.  It’s an entity – it has attributes  AND it’s a relationship – it links entities together  When should a relationship with attributes instead be an associative entity ? Guidelines: All relationships for the associative entity should be many The associative entity could have meaning independent of the other entities The associative entity preferably has a unique identifier, and should also have other attributes The associative may be participating in other relationships other than the entities of the associated relationship Ternary relationships should be converted to associative entities

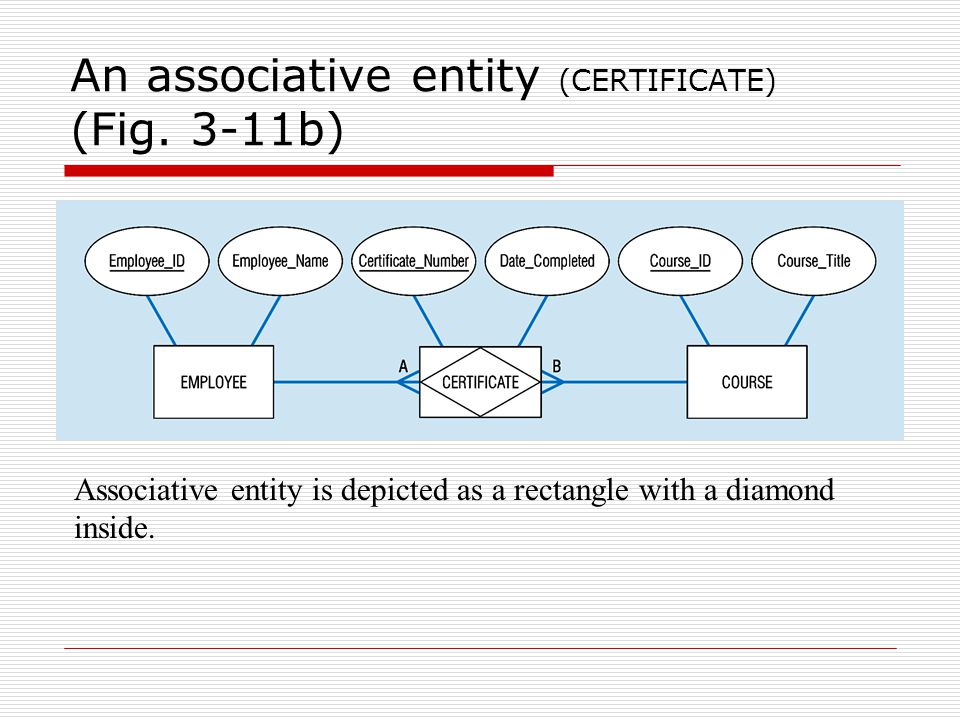

33 Associative entity is depicted as a rectangle with a diamond inside. An associative entity (CERTIFICATE) (Fig. 3-11b)

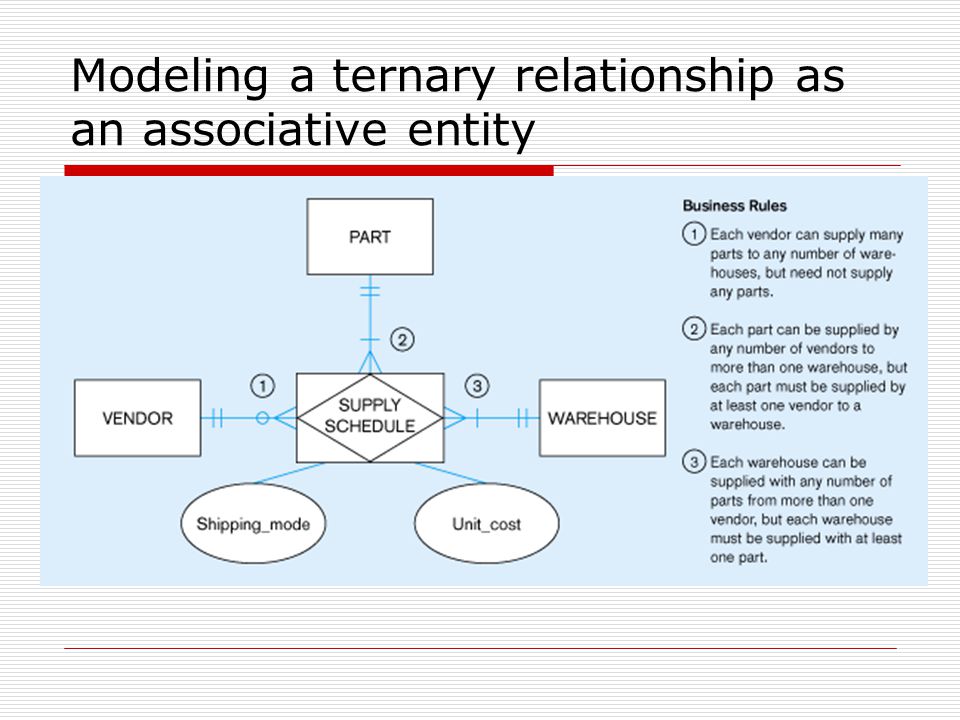

34 Modeling a ternary relationship as an associative entity
