1. SCAN: A Structural Clustering Algorithm for Networks
Xiaowei Xu, Nurcan Yuruk, Zhidan Feng, and Thomas Schweiger
KDD’07

2. An Introduction to DBSCAN
DBSCAN is a density-based algorithm.
Density = number of points within a specified radius (Eps)
A point is a core point if it has more than a specified number of points (MinPts) within Eps
These are points that are at the interior of a cluster
A border point has fewer than MinPts within Eps, but is in the neighborhood of a core point
A noise point is any point that is not a core point or a border point.

3. DBSCAN: Core, Border, and Noise Points

4. DBSCAN Algorithm Eliminate noise points
Perform clustering on the remaining points

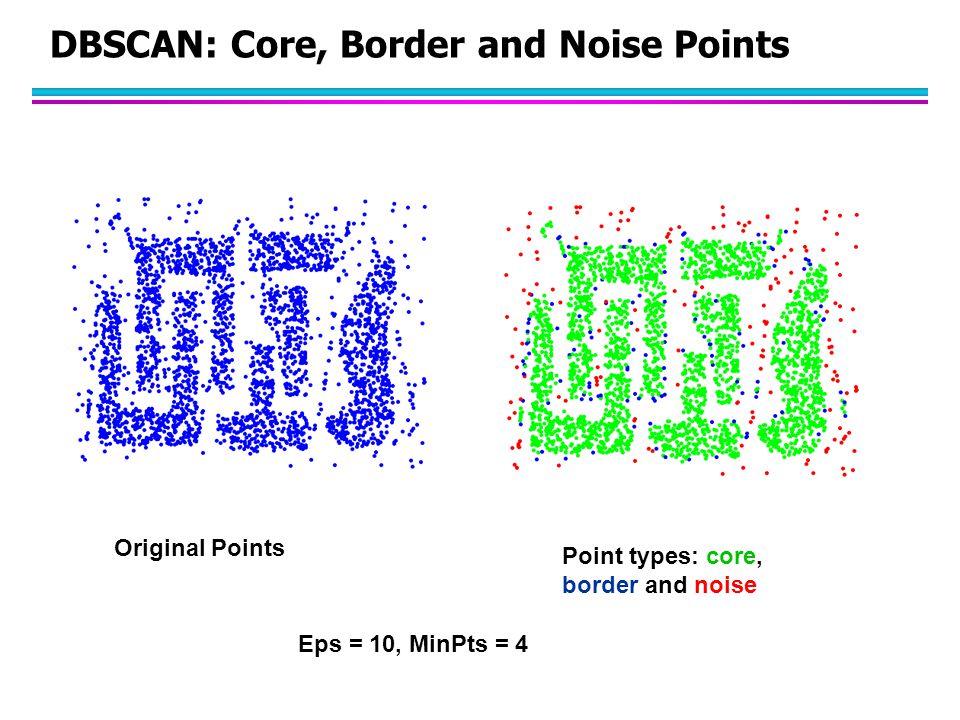

5. DBSCAN: Core, Border and Noise Points
Original Points
Point types: core, border and noise
Eps = 10, MinPts = 4

6. When DBSCAN Works Well Original Points Clusters Resistant to Noise
Can handle clusters of different shapes and sizes

7. DBSCAN: Determining EPS and MinPts
Idea is that for points in a cluster, their kth nearest neighbors are at roughly the same distance
Noise points have the kth nearest neighbor at farther distance
So, plot sorted distance of every point to its kth nearest neighbor

8. Network Clustering Problem
Networks made up of the mutual relationships of data elements usually have an underlying structure. Because relationships are complex, it is difficult to discover these structures. How can the structure be made clear?
Stated another way, given simply information of who associates with whom, could one identify clusters of individuals with common interests or special relationships (families, cliques, terrorist cells). 8

9. An Example of Networks How many clusters? What size should they be?
What is the best partitioning?
Should some points be differentiated? 9

10. A Social Network Model
Individuals in a tight social group, or clique, know many of the same people, regardless of the size of the group.
Individuals who are hubs know many people in different groups but belong to no single group. Politicians, for example bridge multiple groups.
Individuals who are outliers reside at the margins of society. Hermits, for example, know few people and belong to no group.

11. The Neighborhood of a Vertex
Define () as the immediate neighborhood of a vertex (i.e. the set of people that an individual knows ).

12. Structure Similarity
The desired features tend to be captured by a measure we call Structural Similarity
Structural similarity is large for members of a clique and small for hubs and outliers.

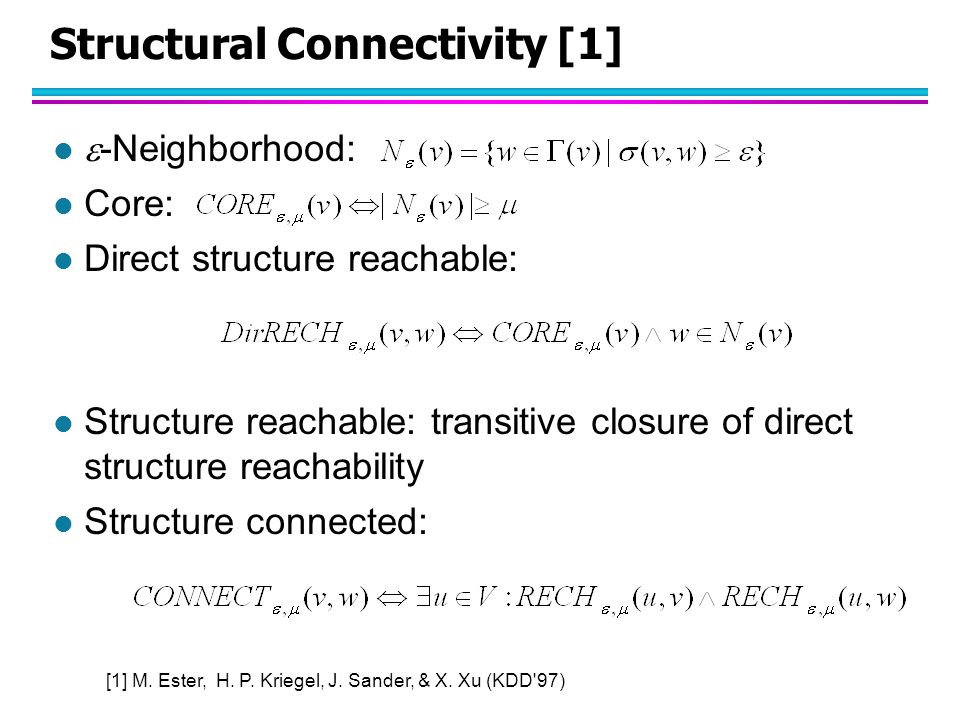

13. Structural Connectivity [1]
-Neighborhood:
Core:
Direct structure reachable:
Structure reachable: transitive closure of direct structure reachability
Structure connected:
[1] M. Ester, H. P. Kriegel, J. Sander, & X. Xu (KDD'97)

14. Structure-Connected Clusters
Structure-connected cluster C
Connectivity:
Maximality:
Hubs:
Not belong to any cluster
Bridge to many clusters
Outliers:
Connect to less clusters
hub
outlier

15. Algorithm 13 9 10 11 7 8 12 6 4 1 5 2 3
 = 2
 = 0.7

16. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7 6 11 8 12 10 9
0.63 13

17. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7 6
0.67 11 8
0.82 12 10
0.75 9 13

18. Algorithm 13 9 10 11 7 8 12 6 4 1 5 2 3
 = 2
 = 0.7

19. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7 6 11 8 12 10 9
0.67 13

20. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7 6
0.73 11 8 12
0.73
0.73 10 9 13

21. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7 6 11 8 12 10 9 13

22. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7
0.51 6 11 8 12 10 9 13

23. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7 6 11
0.68 8 12 10 9 13

24. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7 6 11 8 12
0.51 10 9 13

25. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7 6 11 8 12 10 9 13

26. Algorithm 2 3
 = 2
 = 0.7 5 1
0.51 4 7
0.68 6 11
0.51 8 12 10 9 13

27. Algorithm 2 3
 = 2
 = 0.7 5 1 4 7 6 11 8 12 10 9 13

28. Running Time Running time = O(|E|) For sparse networks = O(|V|)
[2] A. Clauset, M. E. J. Newman, & C. Moore, Phys. Rev. E 70, (2004).

29. Conclusion We propose a novel network clustering algorithm:
It is fast O(|E|), for scale free networks: O(|V|)
It can find clusters, as well as hubs and outliers
