1. Asynchronous FSMs and Verilog

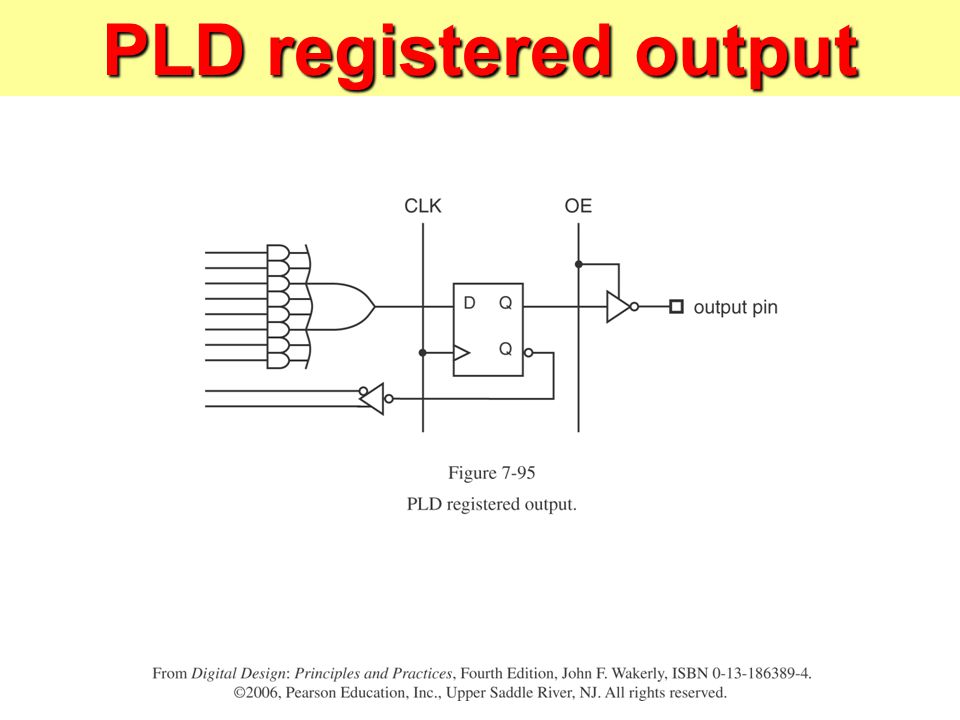

2. PLD registered output

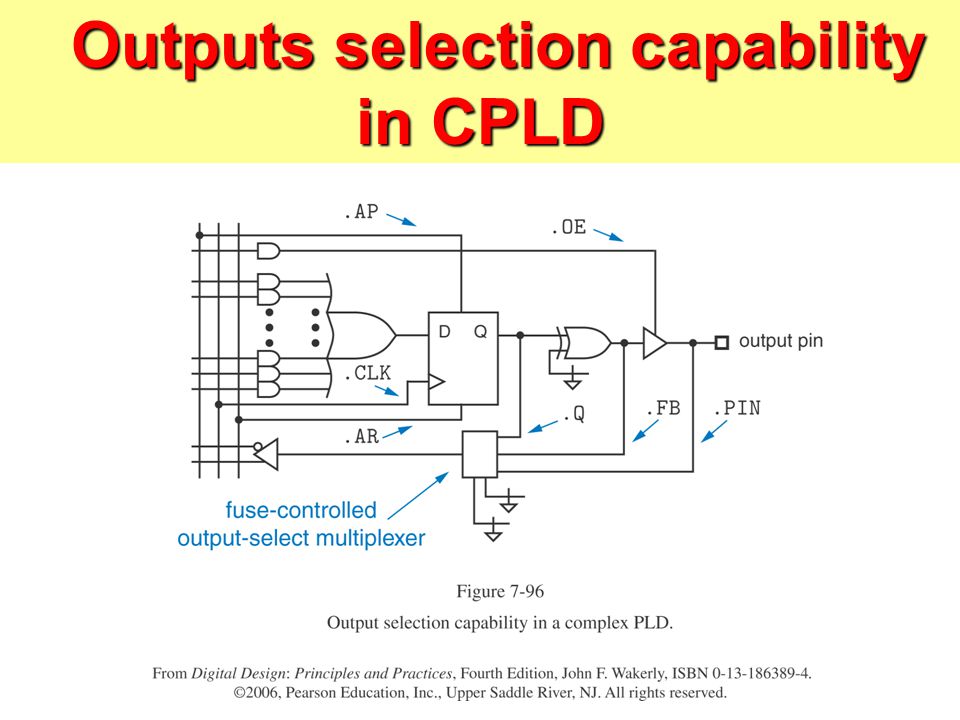

3. Outputs selection capability in CPLD Outputs selection capability in CPLD

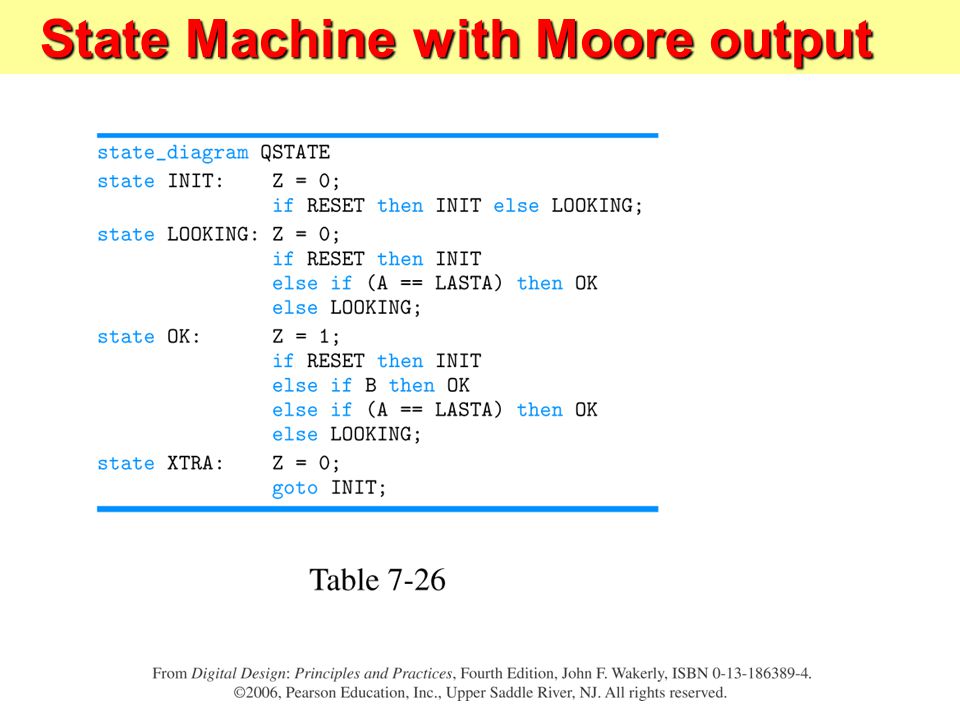

4. State Machine with Moore output State Machine with Moore output

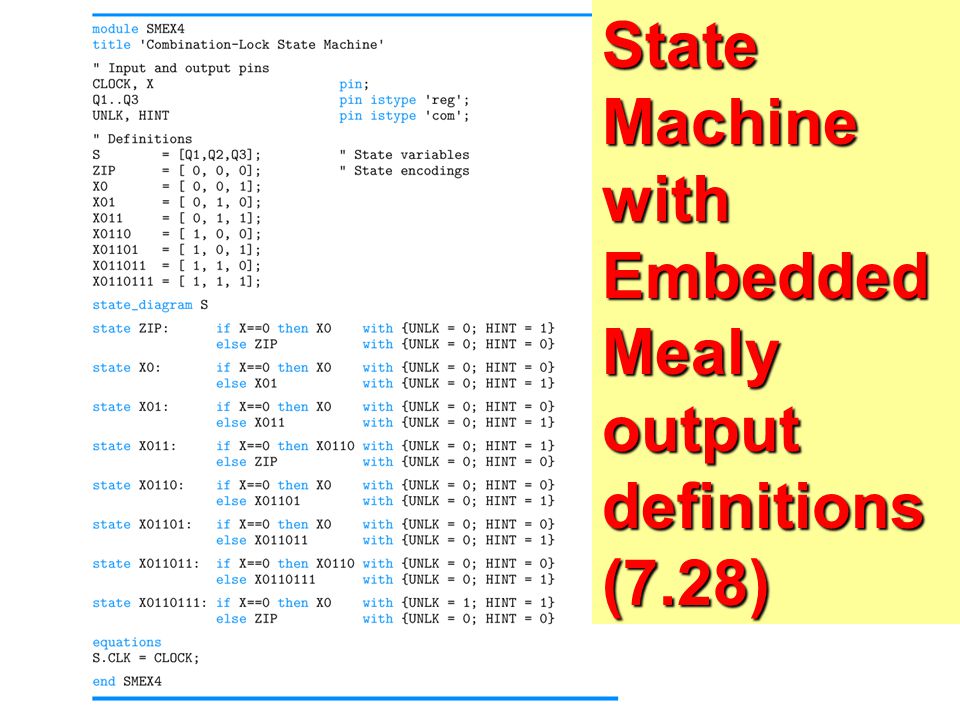

5. State Machine with Embedded Mealy output definitions (7.28)

6. Table 7.29. FSM with pipelined output definitions

7. Test Vectors

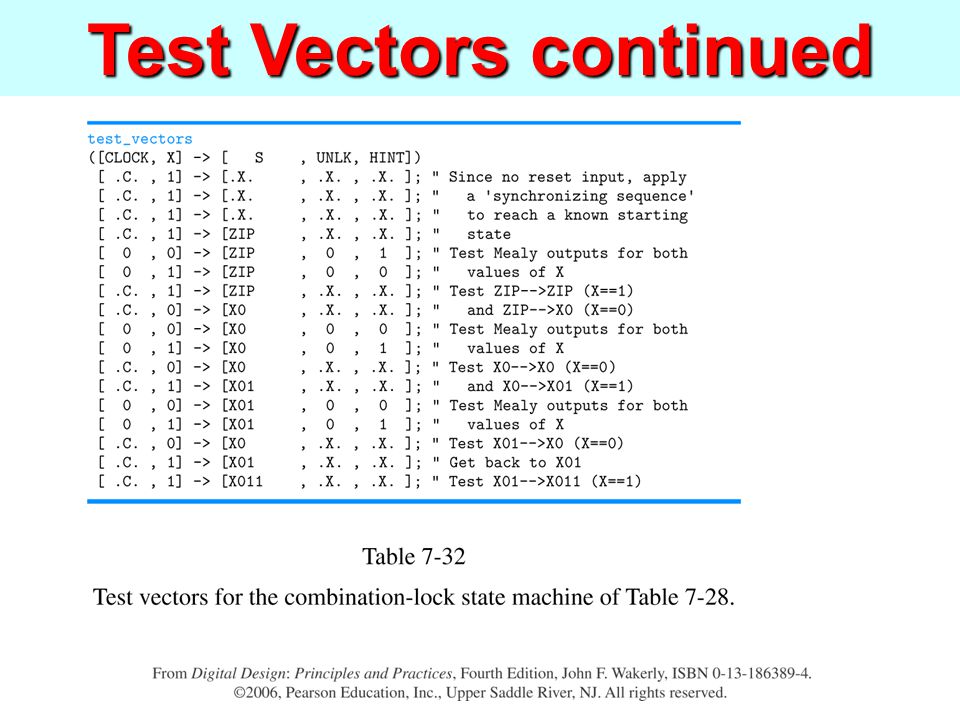

8. Test Vectors continued

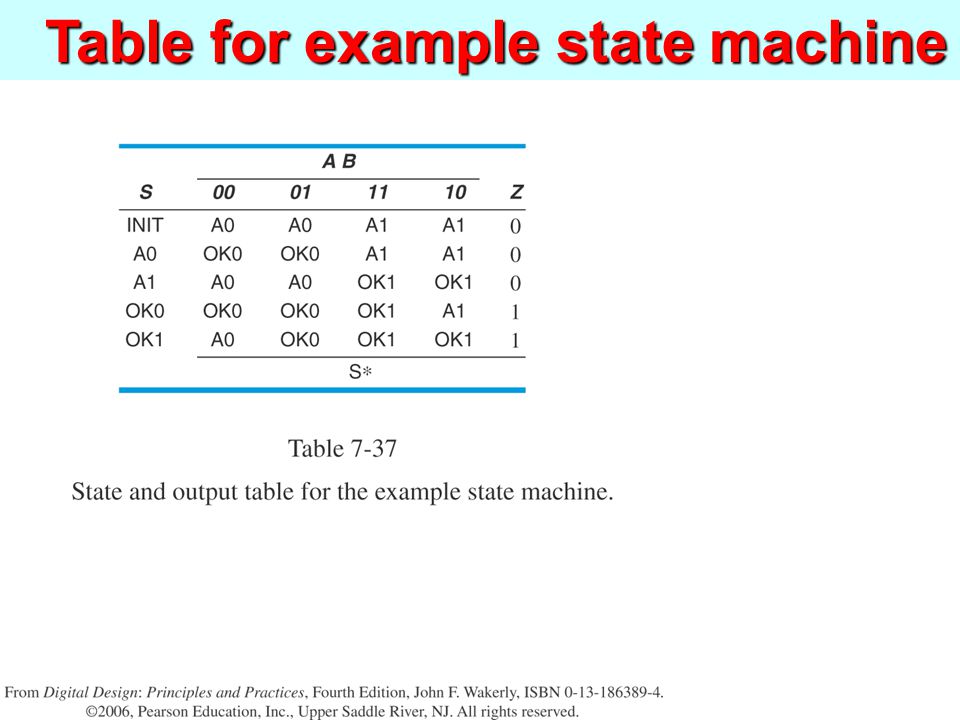

9. Table for example state machine Table for example state machine

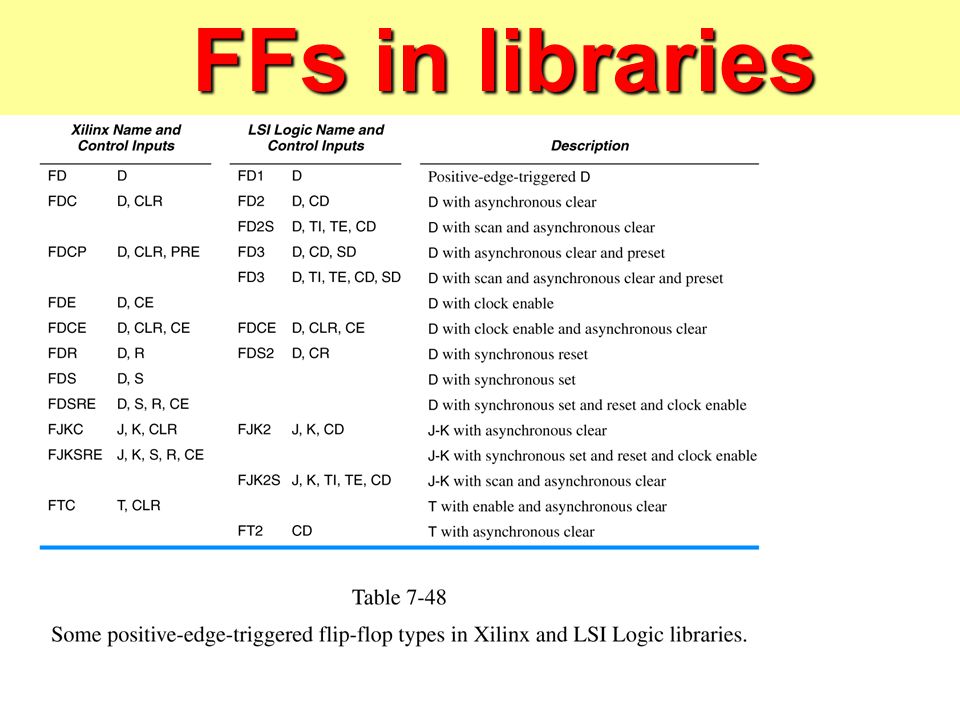

10. FFs in libraries FFs in libraries

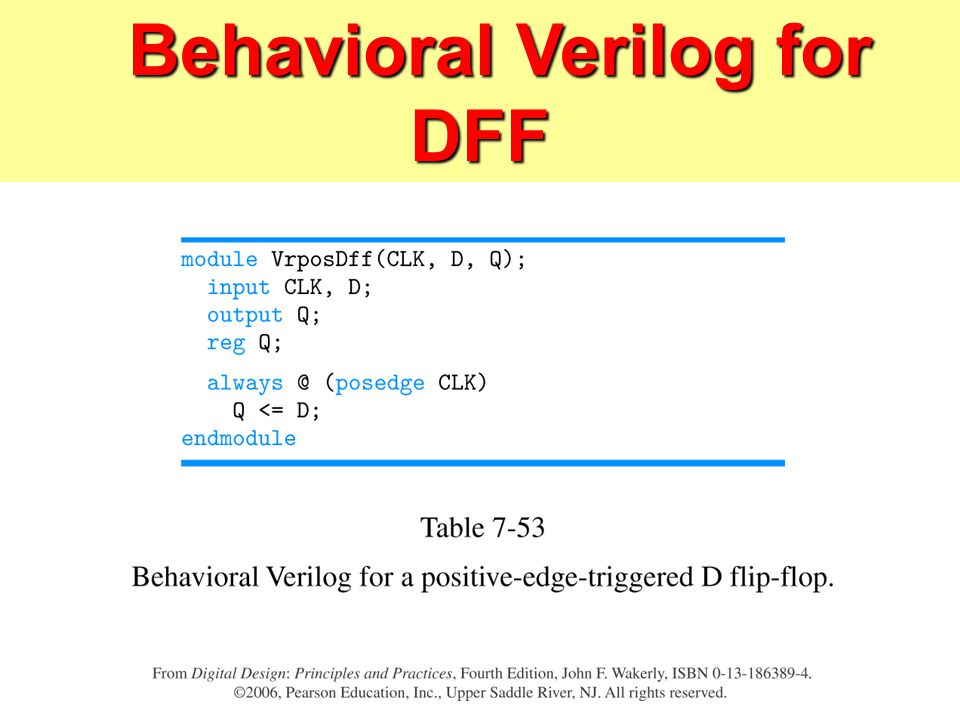

11. Behavioral Verilog for DFF Behavioral Verilog for DFF

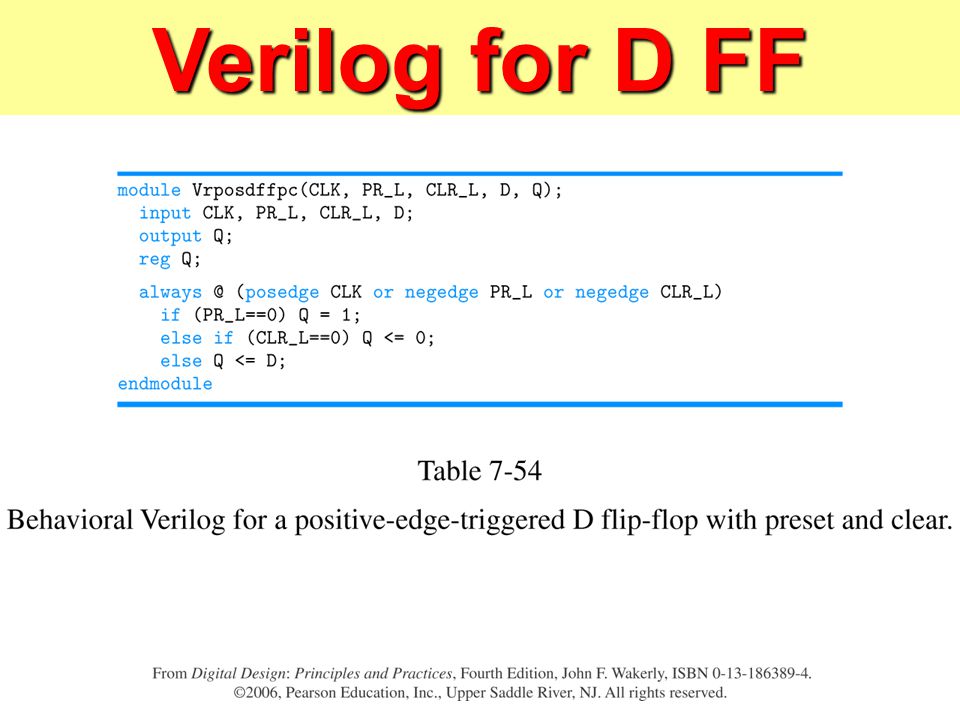

12. Verilog for D FF

13. Verilog for D FF Verilog for D FF

14. Clock generation within a test bench Clock generation within a test bench

15. Moore FSM implied by Verilog coding style

16. Table for example FSM Table for example FSM

17. Table 7.58. Verilog Program for FSM example

18. Synchronous and Asynchronous reset for FSMs in Verilog

19. Verilog code for pipelined output

20. Verilog FSM with pipelined outputs

21. Table 7.61. Simplified Verilog FSM design

22. Table 7.62. Alternative Verilog for ones-counting machine

23. Ones-Counting Machine

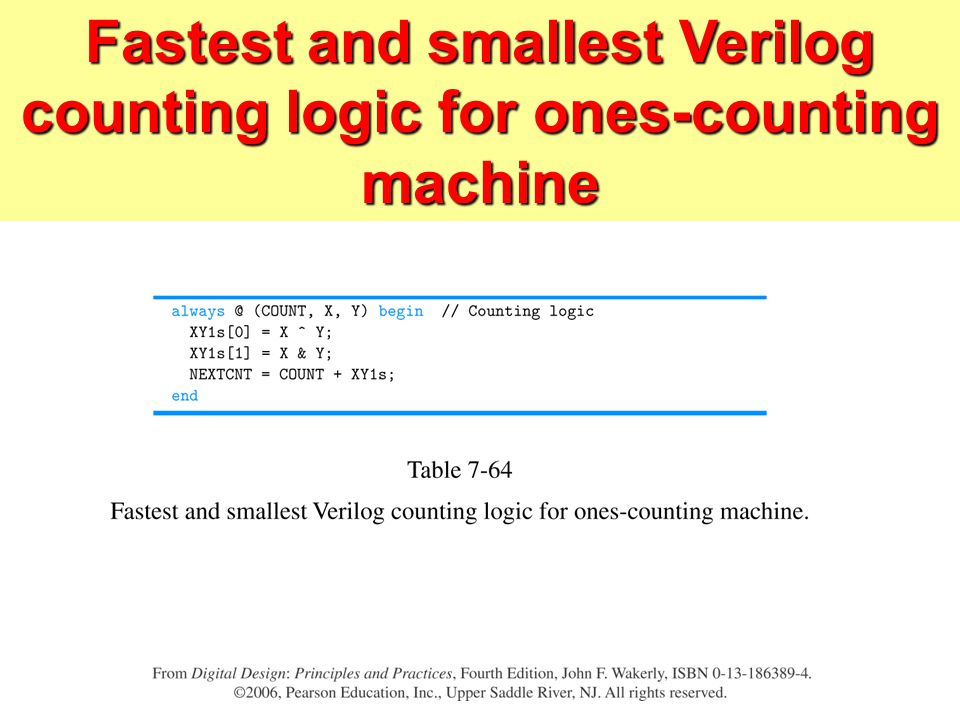

24. Fastest and smallest Verilog counting logic for ones-counting machine

25. Memory for lock machine Memory for lock machine

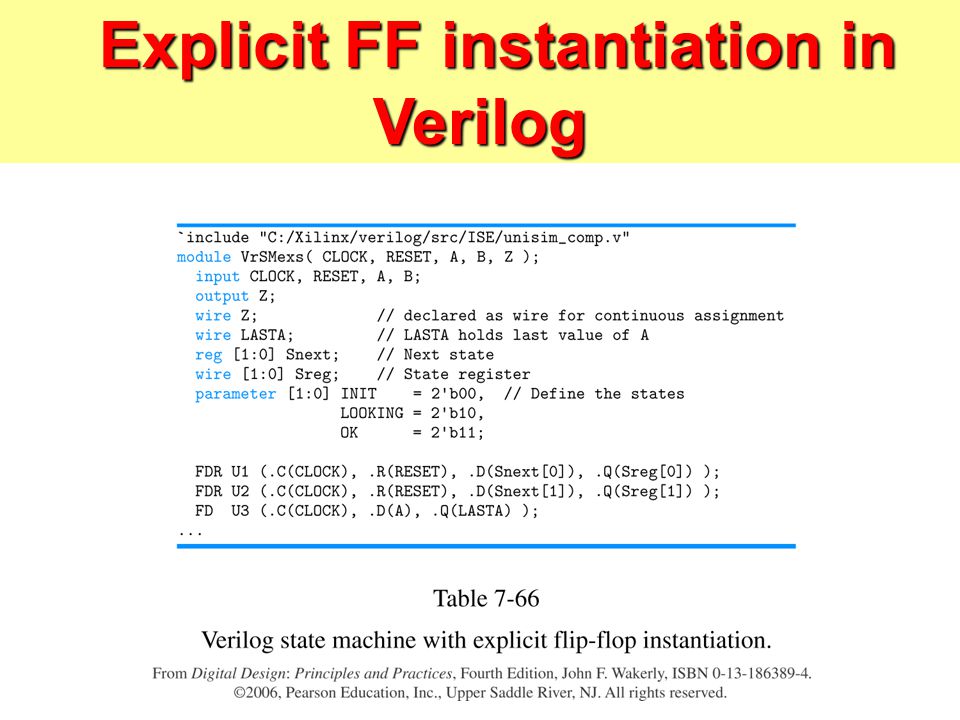

26. Explicit FF instantiation in Verilog Explicit FF instantiation in Verilog

27. One-Hot encoding

28. Table 7.68. Test Bench for FSM of Table 7.58 (with synchronous reset added) or Table 7.60, 7.61, 7.66 or 7.57

29. SR latch
