1. Genetic recombination during reverse transcription
• All recombination occurs between coencapsidated genomes at the time of reverse transcription
• The copy choice model postulates a mechanism during (-) strand DNA synthesis

2. Strand displacement assimilation model proposes that recombination occurs during (+) strand DNA synthesis

3. Domain and subunit relationships of RTs from different retroviruses
Integrase is encoded at the 3’ end of the pol gene
Mature protein is made by protease mediated processing of the Gag-Pol precursor

4. Retroviral DNA Integration
6 bp target site is duplicated on either side of proviral DNA
Viral DNA is shortened by 2 bp at each end

5. Retroviral DNA Integration
• Integrase (IN) is the enzyme that catalyzes integration of the reverse transcribed viral DNA into the host genome
• Viral DNA is shortened by 2 bp from each end and a short (4-6 bp) duplication of host DNA flanks the provirus at either end.
• Proviral ends of all retroviruses comprise the same dinucleotide: 5’-TG----CA-3’
• This dinucleotide is found in an inverted repeat characteristic of the virus
• The inverted repeat, conserved terminal dinucleotide sequence and flanking direct repeats of host DNA are characteristic of features of bacterial insertion sequences
• These similarities suggest common mechanisms of retroviral DNA integration and DNA transposition

6. Steps in retroviral DNA integration
The two ends of viral DNA are recognized, nicked and then joined covalently to host DNA in random locations at staggered nicks also introduced by Integrase
Endonucleolytic nicking and removal of 2 nt and formation of a new 3’ recessed end
Joining of 3’ ends to phosphates at the target site
Gapped intermediate
Gaps are repaired

7. • Most retrotransposons are distinguished from retroviruses by lack of an extracellular phase
• They have no env gene, thus virus like particles formed in vivo are noninfectious

8. Retrovirus assembly
• Association of Gag molecules with the plasma membrane and with the RNA molecules initiates assembly at the inner surface of the plasma membrane
• A minor fraction of Gag translation products carry the retroviral enzymes, PR, RT and IN at their C-termini
• Assembly continues by incorporation of additional molecules of Gag
• Fusion of the membrane around the budding particle releases the immature noninfectious particle
• Cleavage of Gag and Gag-Pol polyproteins by the viral protease produces infectious particles

9. Retrovirus assembly

10. Phylogenetic relationships among retroviruses

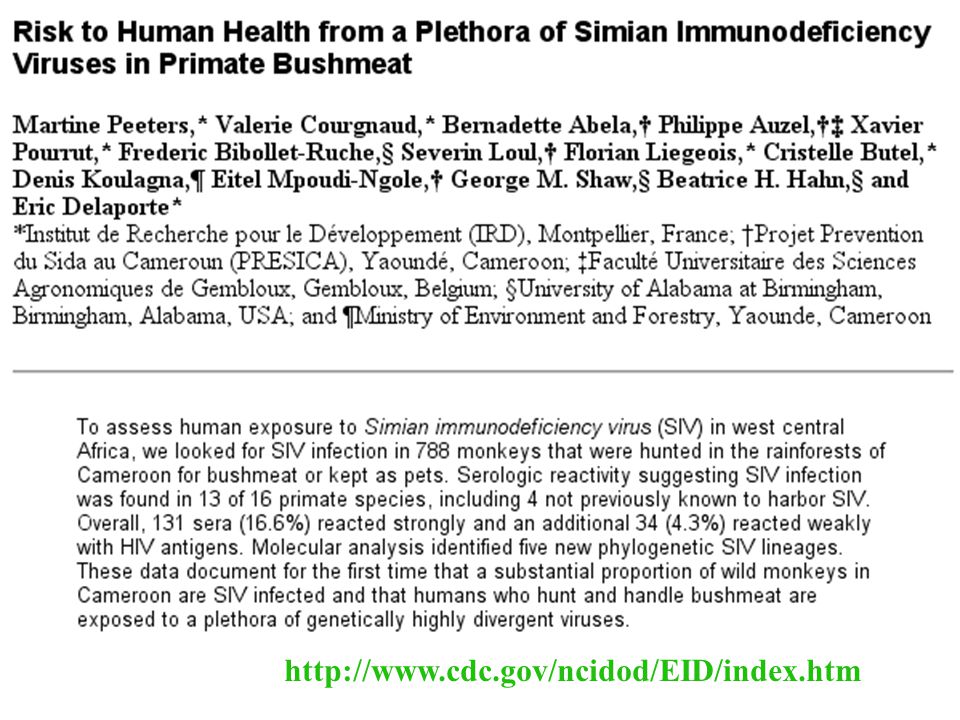

11. The Origin of HIV “HIV-1 probably originated from SIVcpz in chimpanzees less than 100 years ago. HIV-2, a virus still largely confined in Western Africa, probably originated from SIVsm in Mangabes”.

13. Similarities and differences between Lentiviruses
Nucleic acid homology, organization
Transmission (sex, blood, milk)
Macrophage often a target cell
Lentivirus never cleared
Slow pathogenesis / Long time to disease
Vaccines hard
Diseases : no cancers; not endogenous; immune system dysregulation; immune complexes; neurological
Differences
Many silent infections vs. high penetrance of AIDS
CD4 lymphocytes in addition to macrophages
Examples of lentiviruses infecting a different host, under different conditions, and producing a new disease.

14. Oncogenic retroviruses
• Cancer is a genetic disease- oncogenesis consists of the processes that result in growth of cells in which mutations have accumulated
• Viruses are a contributing factor in about 20% of all human cancers
• Growth properties and morphologies of cultured cells could be changed upon infection with certain viruses- cells become transformed
• Cells become immortal in an early step in oncogenesis-they continue to grow and divide even though the body has sufficient numbers of these cells
They lose contact inhibition and the need to adhere to a surface
They look different, more rounded

15. Avian cells transformed with two strains of the Rous sarcoma virus:
• Transformed cells grow to high densities, they grow on top of untransformed cells forming clumps or foci
• They lose the need to adhere to a surface, can grow in agar
• They are more rounded and look different from normal cells

16. The phases of a eukaryotic cell cycle:
Errors in the signaling pathways that regulate cell cycle progression can lead to cancer

17. Oncogenic viruses
• Oncogenesis is the result of genetic changes that alter the expression or function of proteins that play critical roles in the control of cell growth and division
•Oncogenic viruses cause cancer by inducing changes that affect cell growth and division
• Cancer arises from a combination of dominant gain of function mutations in proto- oncogenes and recessive loss of function mutations in tumor suppressor genes

18. • Oncogenic viruses were discovered by Ellerman and Bang in 1908 who showed that avian leukemia can be transmitted by filtered extracts of leukemic cells
• In 1911 Peyton Rous showed that solid tumors can be produced in chicken using cell free extracts

19. Oncogenic retroviruses are classified into two groups:
1) Transducing oncogenic retroviruses:
- highly carcinogenic, cause malignancies in 100% of the infected animals in a matter of days
- cause cancer because their genomes contain transduced cellular genes that become oncogenes
-virally transduced versions of cellular genes are called v-oncogenes, their cellular counterparts are called c-oncogenes or proto-oncogenes
2) Nontransducing oncogenic retroviruses:
-less carcinogenic
-do not encode cell derived oncogenes
-activate transcription of proto-oncogenes by integration of the provirus close to these genes in the host genome

21. Properties of viral transforming genes
• Results with Rous sarcoma virus showed that transformation and viral replication are distinct processes
• With the exception of RSV, these viruses are all replication defective
• Defective transducing viruses can be propagated in mixed infections with replication-competent helper viruses
• In many transducing retroviruses, the viral and cellular protein coding sequences are fused
• In most cases, the captured oncogenes have undergone additional changes that contribute to their transforming potential

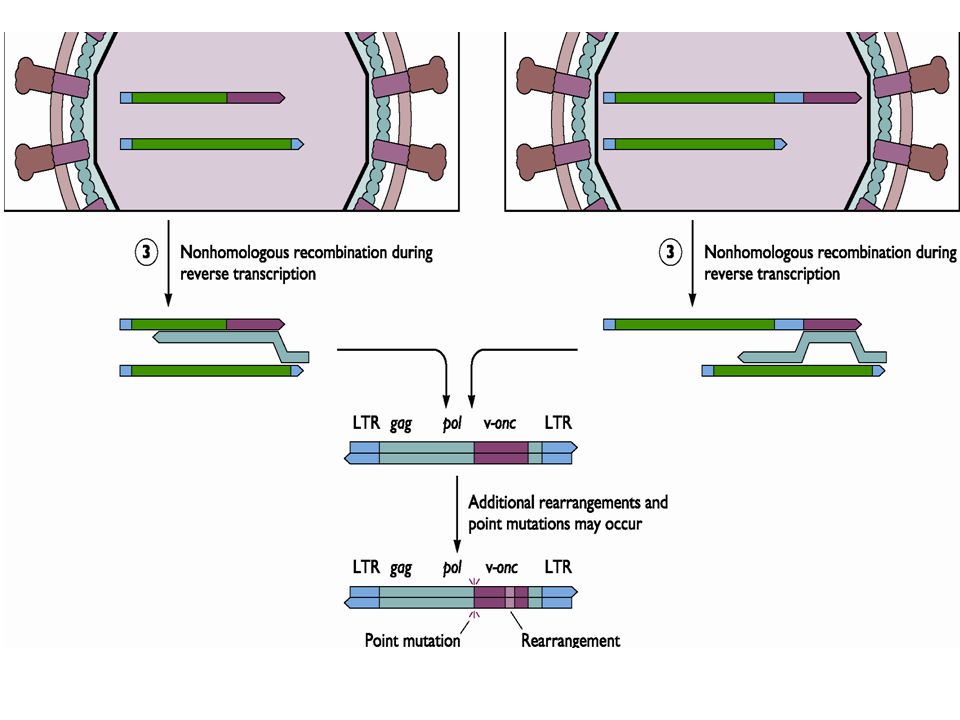

22. Possible mechanisms of oncogene capture by retroviruses

24. Mechanisms of transformation by oncogenes
• The discovery that the transforming gene of RSV was a transduced cellular gene led to identification of cellular proto-oncogenes and the pathways in which they function
• Mutations introduced into these genes during or following capture into retroviral genomes lead to constitutive activation of signaling
• Viral transformation can be the result of either constitutive activation of cytoplasmic signal transduction cascades or disruption of nuclear pathways that negatively regulate cell cycle progression

25. Family Flaviviridae

26. Family Flaviviridae
Hepatitis C virus
IRES

27. 3’ ends of flavivirus RNAs are not polyadenylated

28. HCV first identified in 1989
Blood-borne infection is often subclinical, despite persistent and progressive inflammation and fibrosis of the liver, resulting in liver cirrhosis, hepatic failure and hepatocellular carcinoma
It is estimated that HCV has infected more than 170 million people globally -- nearly five times more than HIV-infected individuals

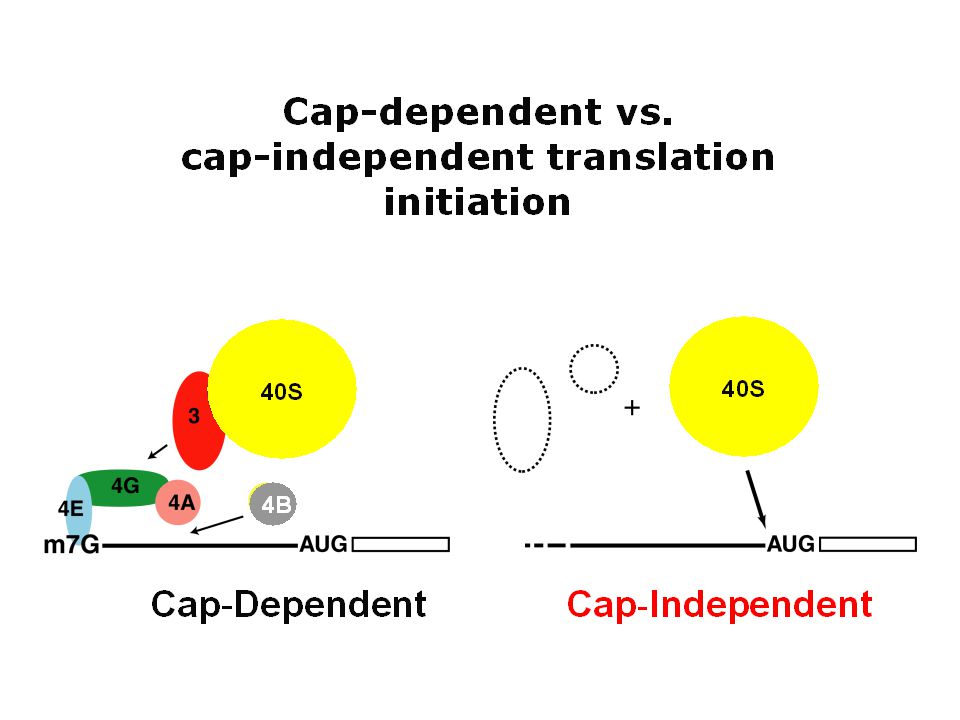

36. Complex of the 40S subunit with the hepatitis C virus IRES
HCV IRES binds directly to the 40S subunit
Binding of HCV IRES induces a conformational change in the 40S subunit of the ribosome
