1 1 IP VPN Nikolay Scarbnik

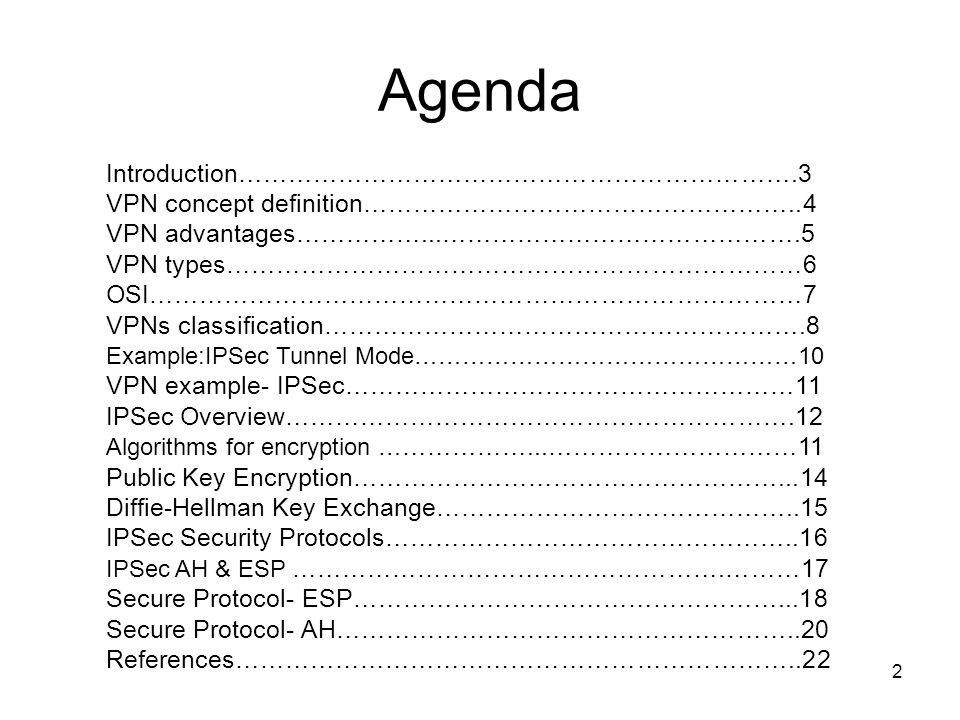

2 2 Agenda Introduction………………………………………………………….3 VPN concept definition……………………………………………..4 VPN advantages……………...…………………………………….5 VPN types……………………………………………………………6 OSI……………………………………………………………………7 VPNs classification………………………………………………….8 Example:IPSec Tunnel Mode…………………………………………10 VPN example- IPSec………………………………………………11 IPSec Overview…………………………………………………….12 Algorithms for encryption … ……………...…………………………11 Public Key Encryption……………………………………………...14 Diffie-Hellman Key Exchange……………………………………..15 IPSec Security Protocols…………………………………………..16 IPSec AH & ESP …………………………………………….………17 Secure Protocol- ESP……………………………………………...18 Secure Protocol- AH………………………………………………..20 References…………………………………………………………..22

3 3 Introduction This project describes VPNs, or Virtual Private Networks. I’ll try to briefly describe the main components, technologies and advantages. The audience is expected to have some basic knowledge the TCP/IP protocols, as well as general security concepts.

4 4 VPN concept definition VPN- Virtual Private Network. The VPN concept is all about combining several separated Private Networks using public infrastructure. Virtual- because it’s dynamic connection over public infrastructure. Private- data security is preserved. Network- connects several LANs or single computers to a mainframe/LAN

5 5 VPN advantages Cost saving. Accessibility& secure connection. Application transparent.

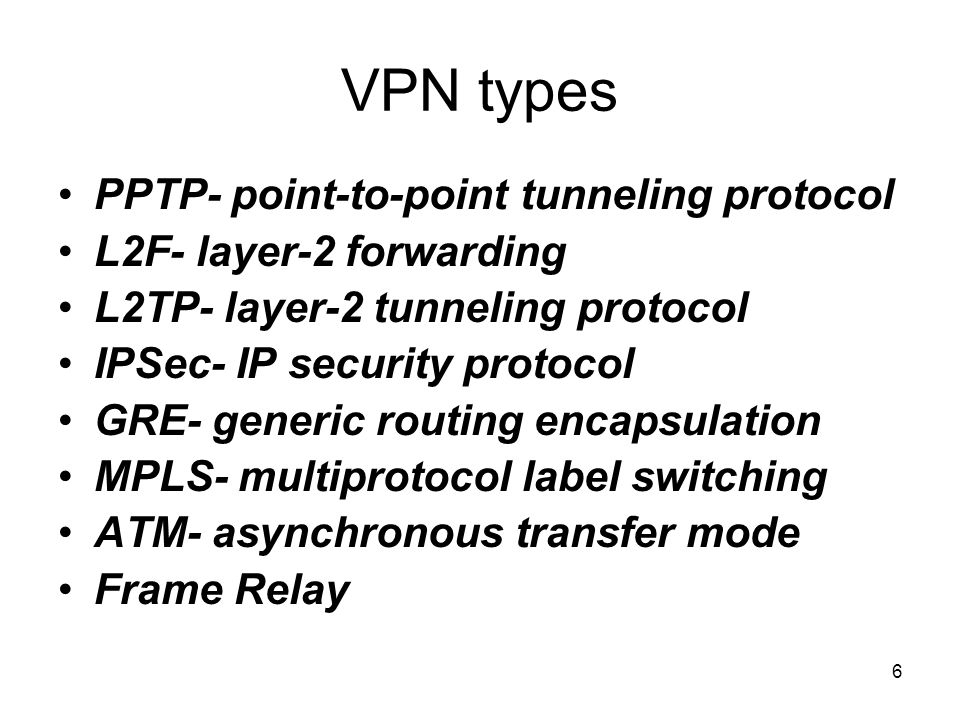

6 6 VPN types PPTP- point-to-point tunneling protocol L2F- layer-2 forwarding L2TP- layer-2 tunneling protocol IPSec- IP security protocol GRE- generic routing encapsulation MPLS- multiprotocol label switching ATM- asynchronous transfer mode Frame Relay

7 7 7 Layers Model VPN uses the 2’nd or the 3’d layer of the OSI model.

8 8 VPNs classification Layer 2 VPN P2P over VC ATM Frame Relay Layer 3 VPN P2P, Any2Any GREMPLSIPSec

9 9 VPNs classification ATM Site-to-site VPNs Static Frame Relay GREMPLS Remote access VPNs Dynamic IPSecLT2P

10 10 Example:IPSec Tunnel Mode

11 11 VPN example- IPSec Whats IPSec? IPSecs goal is to secure IP packets (IPv6/v4). What is it good for? IPSec provides authentication, integrity, access control, and confidentiality.

12 12 IPSec Overview Fundamental components of IPSec : Algorithms for encryption Key management ISAKMP, IKE, SKEME Security protocols Authentication header (AH) and encapsulation security payload (ESP)

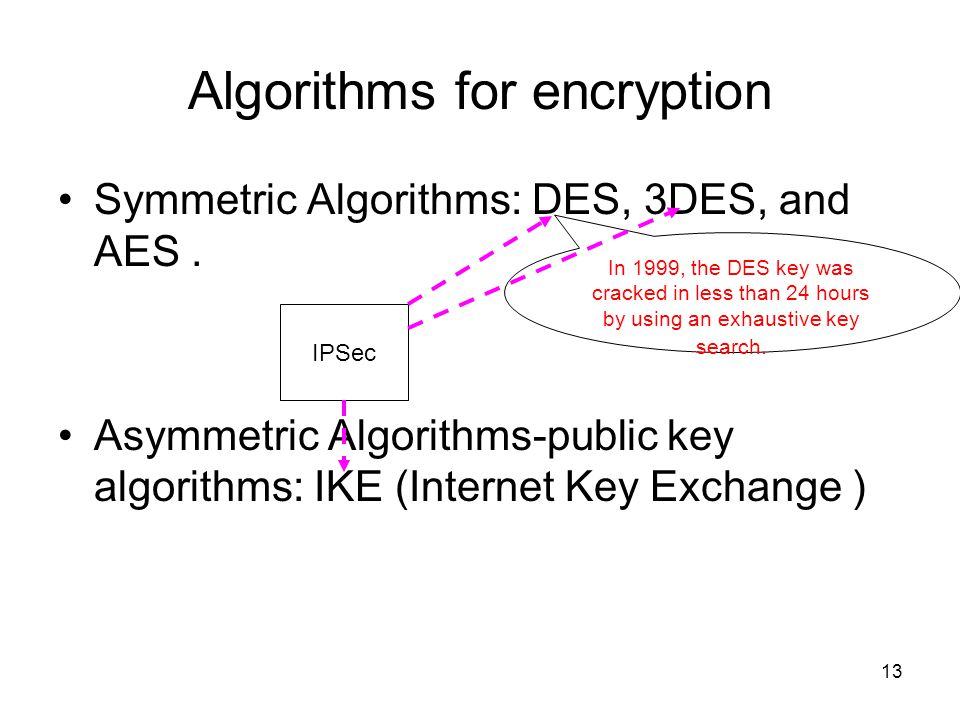

13 13 Algorithms for encryption Symmetric Algorithms: DES, 3DES, and AES. Asymmetric Algorithms-public key algorithms: IKE (Internet Key Exchange ) In 1999, the DES key was cracked in less than 24 hours by using an exhaustive key search. IPSec

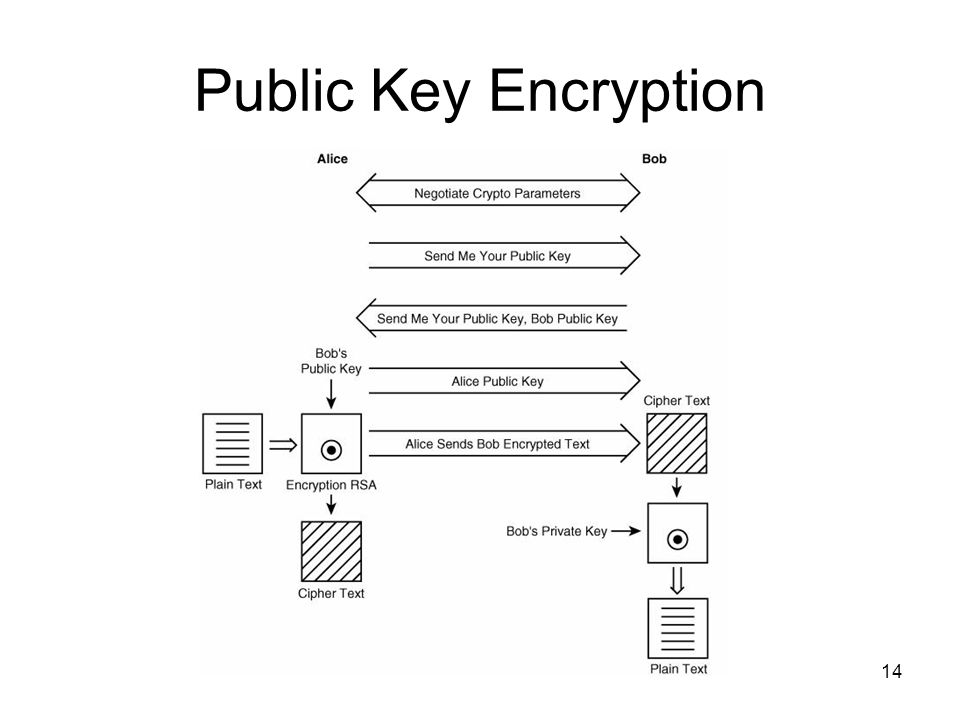

14 14 Public Key Encryption

15 15 Diffie-Hellman Key Exchange

16 16 IPSec Security Protocols Encapsulating security payload (ESP) Authentication header (AH) >> IP datagram security <<

17 17 IPSec AH & ESP Packet in IPSec Transport Mode IP Packet in IPSec Tunnel Mode

18 18 Secure Protocol- ESP IP Packet Protected by ESP

19 19 Secure Protocol- ESP IP Packet Protected by ESP in Transport Mode IP Packet Protected by ESP in Tunnel Mode

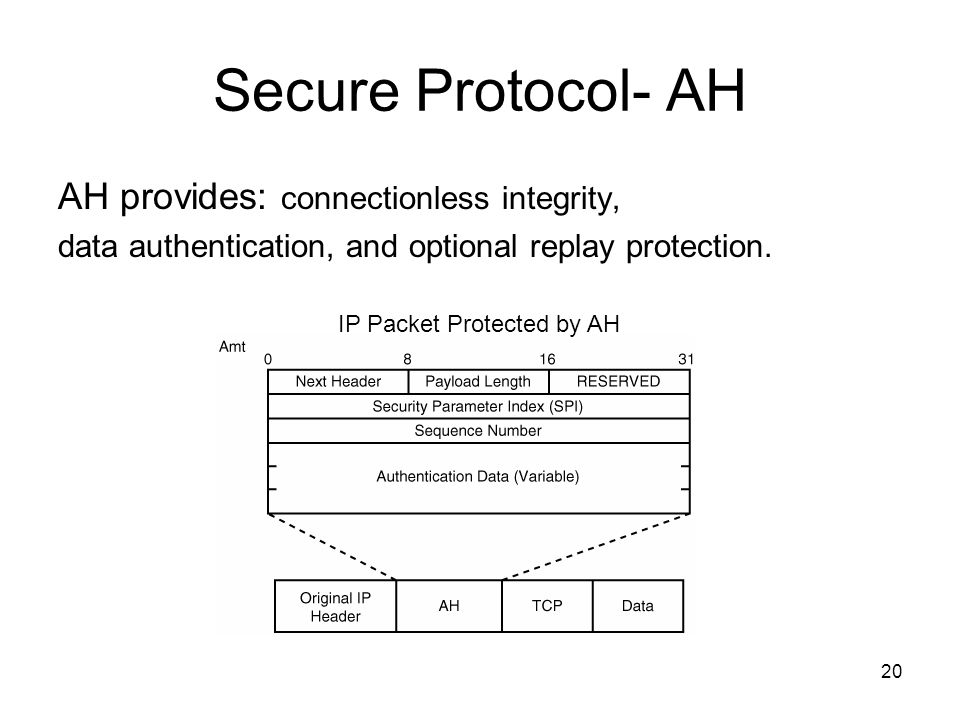

20 20 Secure Protocol- AH AH provides: connectionless integrity, data authentication, and optional replay protection. IP Packet Protected by AH

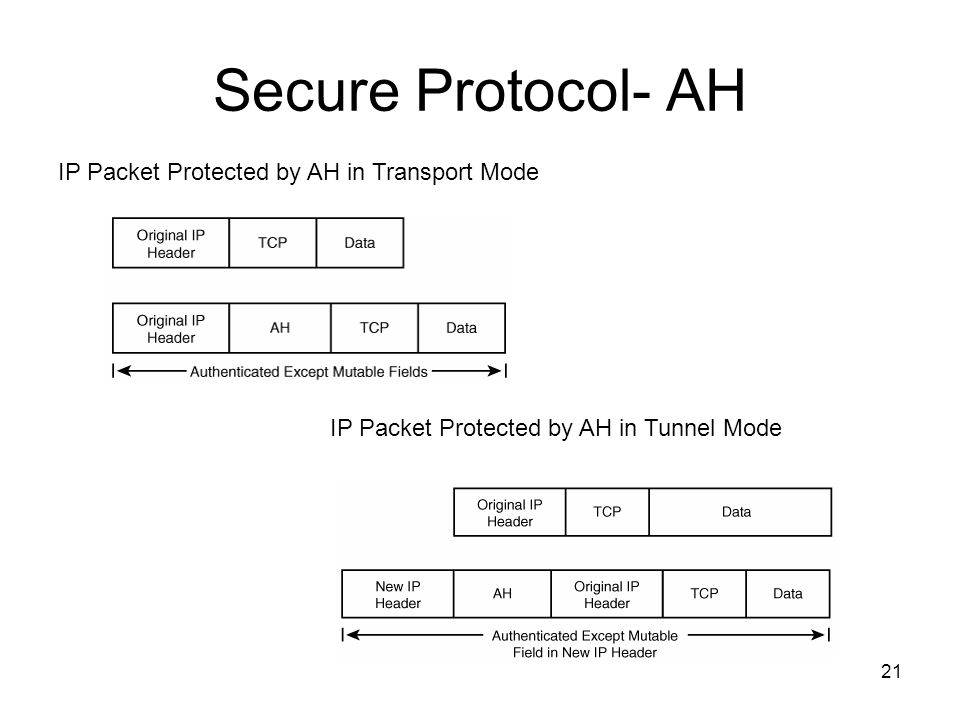

21 21 Secure Protocol- AH IP Packet Protected by AH in Transport Mode IP Packet Protected by AH in Tunnel Mode

22 22 References http://www.iec.org/ http://www.raduniversity.com/2004/vpn/ Cisco Press IPSec VPN Design Cisco - Safe VPN - IPSec In Depth
