1 NUINT04 - Italy Arie Bodek, University of Rochester Un-Ki Yang, University of Chicago Update on low Q2 Corrections to LO-GRV98 PDFs Work in 2004: Note this is a Pseudo Leading Order Model 1.Vector PDFs: Extrat the low Q2 corrections to d and u valence quarks separately now by including all inelastic electron-hydrogen, electron-deuterium (including Jlab), photo-production on hydrogen and photo-production on deuterium in the fits (all fits include the c-cbar photon-gluon fusion contribution at high energy - this cross section is zero in leading order) 2.Compare to photo-production and Jlab electro-production Data in Resonance region (data not included in fit yet) 3.Compare to neutrino CCCFR-Fe, CDHS-Fe, CHORUS-Pb differential cross section (without c-cbar boson-fusion in yet - to be added next since it is high energy data) assume V=A 4.We aave a model for Axial low Q2 PDFs, but need to compare to low energy neutrino data to get exact parameters - next.

2
2 For applications to Neutrino Oscillations at Low Energy (down to Q2=0) the best approach is to use a LO PDF analysis (including a more sophisticated target mass analysis) and include the missing QCD higher order terms in the form of Empirical Higher Twist Corrections. Reason: For Q2>1 both Current Algebra exact sum rules (e.g. Adler sum rule) and QCD sum rules (e.g. momentum sum rule) are satisfied. This is why duality works in the resonance region (so use NNLO QCD analysis) For Q2<1, QCD corrections diverge, and all QCD sum rules (e.g momentum sum rule) break down, and duality breaks down in the resonance region. In contrast, Current Algebra Sum rules e,g, Adle sum rule which is related to the Number of (U minus D) Valence quarks) are valid.

3

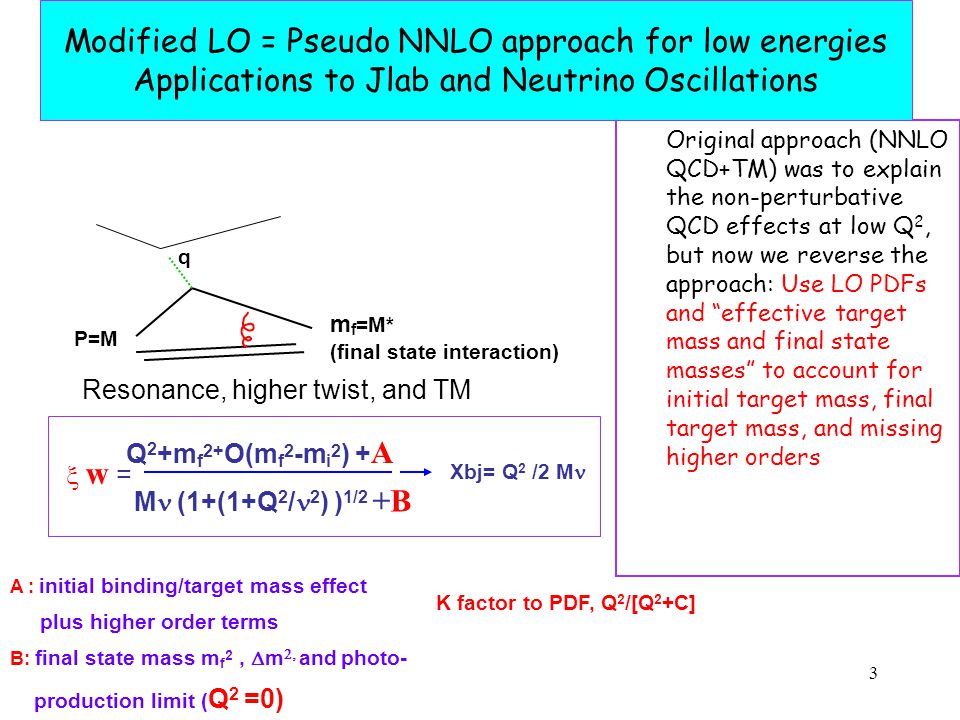

3 Original approach (NNLO QCD+TM) was to explain the non-perturbative QCD effects at low Q 2, but now we reverse the approach: Use LO PDFs and “effective target mass and final state masses” to account for initial target mass, final target mass, and missing higher orders Modified LO = Pseudo NNLO approach for low energies Applications to Jlab and Neutrino Oscillations P=M q m f =M* (final state interaction) Resonance, higher twist, and TM w = Q 2 +m f 2+ O(m f 2 -m i 2 ) + A M (1+(1+Q 2 / 2 ) ) 1/2 +B Xbj= Q 2 /2 M K factor to PDF, Q 2 /[Q 2 +C] A : initial binding/target mass effect plus higher order terms B: final state mass m f 2, m and photo- production limit ( Q 2 =0)

4
4 Initial quark mass m I and final mass,m F =m * bound in a proton of mass M Summary: INCLUDE quark initial Pt) Get scaling (not x=Q 2 /2M ) for a general parton Model Is the correct variable which is Invariant in any frame : q3 and P in opposite directions P= P 0 + P 3,M P F = P I 0,P I 3,m I P F = P F 0,P F 3,m F =m * q=q3,q0 Most General Case: (Derivation in Appendix) ‘ w = [Q’ 2 +B] / [ M (1+(1+Q 2 / 2 ) ) 1/2 +A] (with A=0, B=0) where2Q’ 2 = [Q 2 + m F 2 - m I 2 ] + { ( Q 2 +m F 2 - m I 2 ) 2 + 4Q 2 (m I 2 +P 2 t) } 1/2 Bodek-Yang: Add B and A to account for effects of additional m 2 from NLO and NNLO (up to infinite order) QCD effects. For case w with P 2 t =0 see R. Barbieri et al Phys. Lett. 64B, 1717 (1976) and Nucl. Phys. B117, 50 (1976) Special cases: (1) Bjorken x, x BJ =Q 2 /2M , -> x For m F 2 = m I 2 =0 and High 2, (2) Numerator m F 2 : Slow Rescaling as in charm production (3) Denominator : Target mass term =Nachtman Variable =Light Cone Variable =Georgi Politzer Target Mass var. ( all the same )

5
5 http://web.pas.rochester.edu/~icpark/MINERvA/

6
6 Correct for Nuclear Effects measured in e/ muon expt. Comparison of Fe/D F2 data In resonance region (JLAB) Versus DIS SLAC/NMC data In TM (C. Keppel 2002).

7
7

8
8

9
9

10
10

11
11

12
12

13
13 Note: All data has been radiatively corrected. Neutrino Experiments MUST apply radiative corrections - Tables can be provided (no consistent PDF type analysis can be done without radiative corrections - e.g. Bardin) ------------------------------------------------------ Work in Progress: Now working on the axial structure functions and next plan to work on resonance fits. Next: JUPITER at Jlab (Bodek,Keppel) will provided electron-Carbon (also e-H and e-D and other nuclei such as e-Fe) in resonance region. Next: MINERvA at FNAL (McFarland, Morfin) will provide Neutrino-Carbon data at low energies.

14
14 Comparison of LO+HT to neutrino data on Iron [CCFR] (not used in this fit V=A) Last year’s fits Apply nuclear corrections using e/m scattering data. (Next slide) Calculate F 2 and xF 3 from the modified PDFs with w Use R=Rworld fit to get 2xF 1 from F 2 Implement charm mass effect through w slow rescaling algorithm, for F 2 2xF 1, and XF 3 The modified GRV98 LO PDFs with a new scaling variable, w describe CCFR diff. Cross sect. (E =30–300 GeV) well (except at the lowest x) E = 55 GeV is shown Construction w PDFs GRV98 modified ---- GRV98 (x,Q 2 ) unmodified Left neutrino, Right antineutrino

15

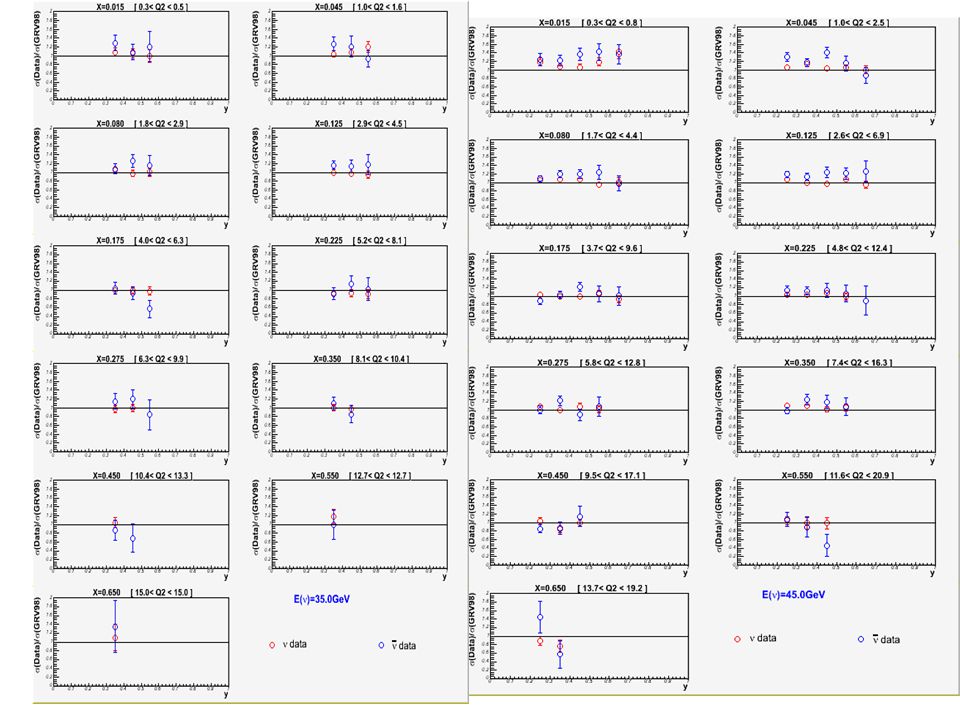

15 Compare Last Year to this Year (this year also use R1998 instead of R world) V=A, lowest x no c-cbar contribution w PDFs GRV98 modified Very low X needs work ---- GRV98 (x,Q 2 ) unmodified (maybe PDF f(x) needed) Left neutrino, Right antineutrino Last year

16
16

17
17

18
18

19

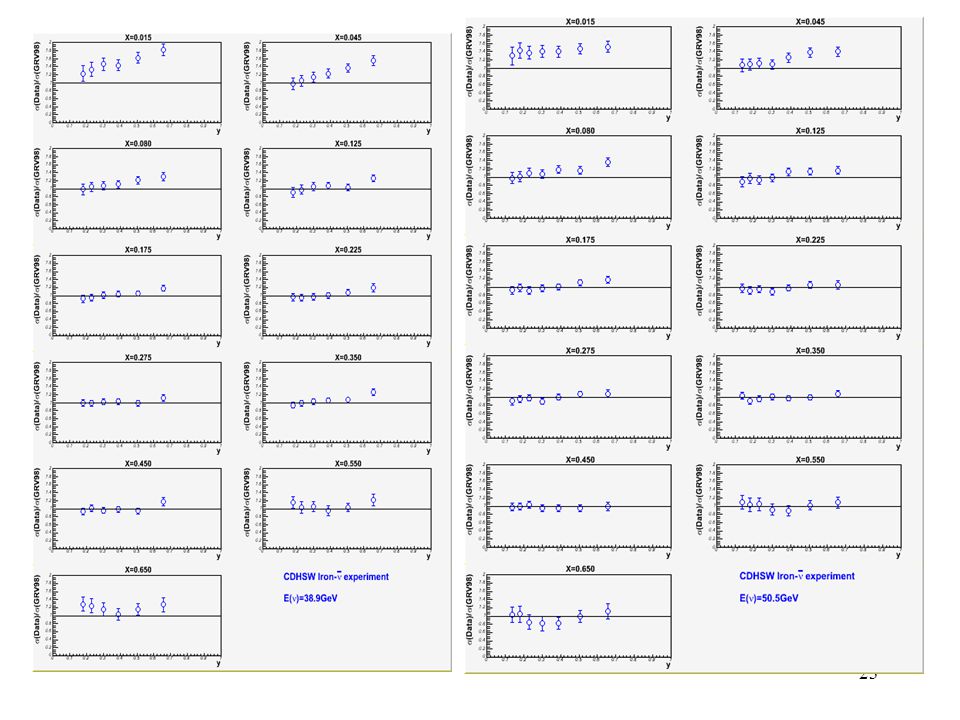

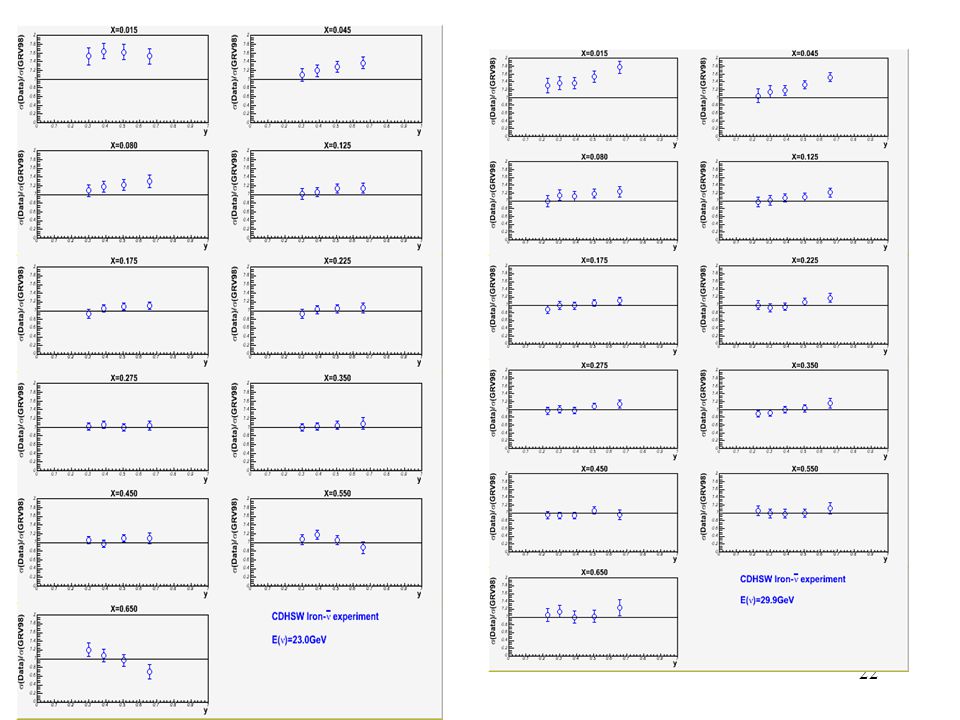

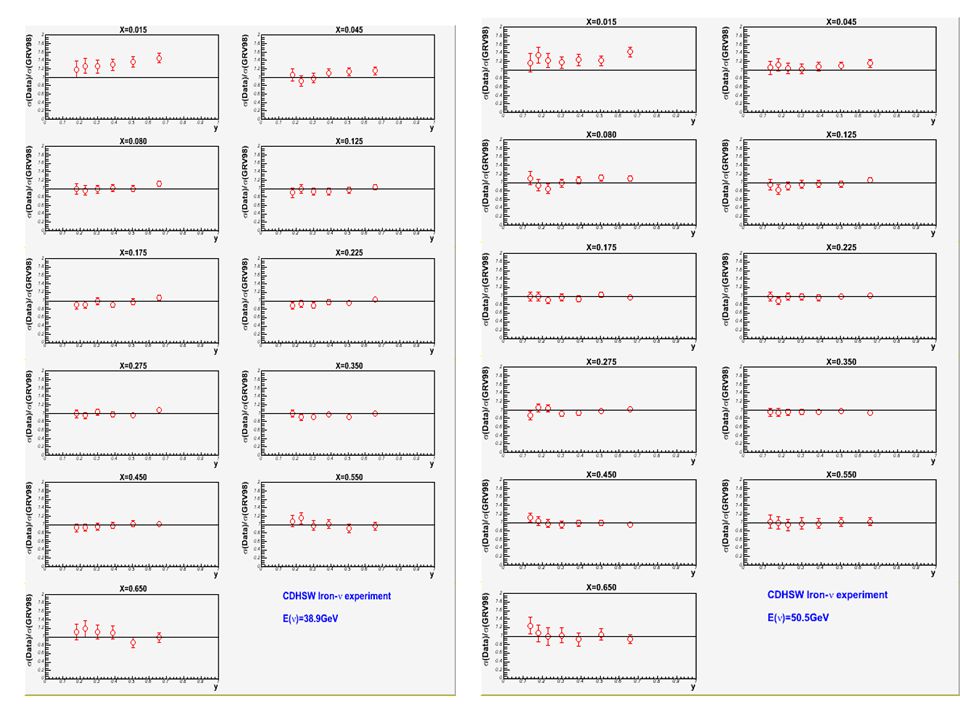

19 End CCFR neutrino and antineutrino Begin CDHS Neutrino Note, further studies needed. Are the data reliable at low x (rad corrections, resolution, flux). If R is smaller than R 1998 (nuclear shadowing) (waiting for Jlab data). What about c-cbar contribution (currently being calculated). Or make sure that differential cross section code has no bugs. With that caveat we show some data versus model. We we will be better agreement between data and model if R is smaller than R 1998, and if we include c-cbar NLO terms. However, Is the axial F2 larger? Whatabout shadowing for axial versus vector especially for iron and lead. All under investigation

20
20

21
21

22
22

23
23

24
24

25
25

26
26 Extra comparisons

27

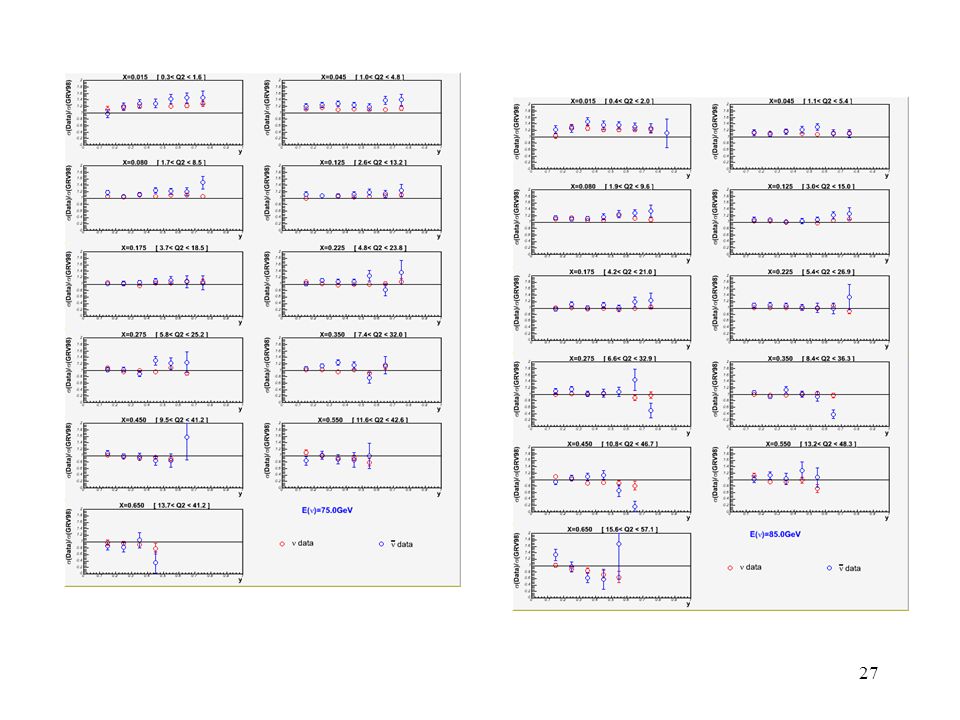

27

28
28

29
29

30
30

31
31

32
32 End CCFR neutrino and antineutrino Begin CDHS Neutrino
