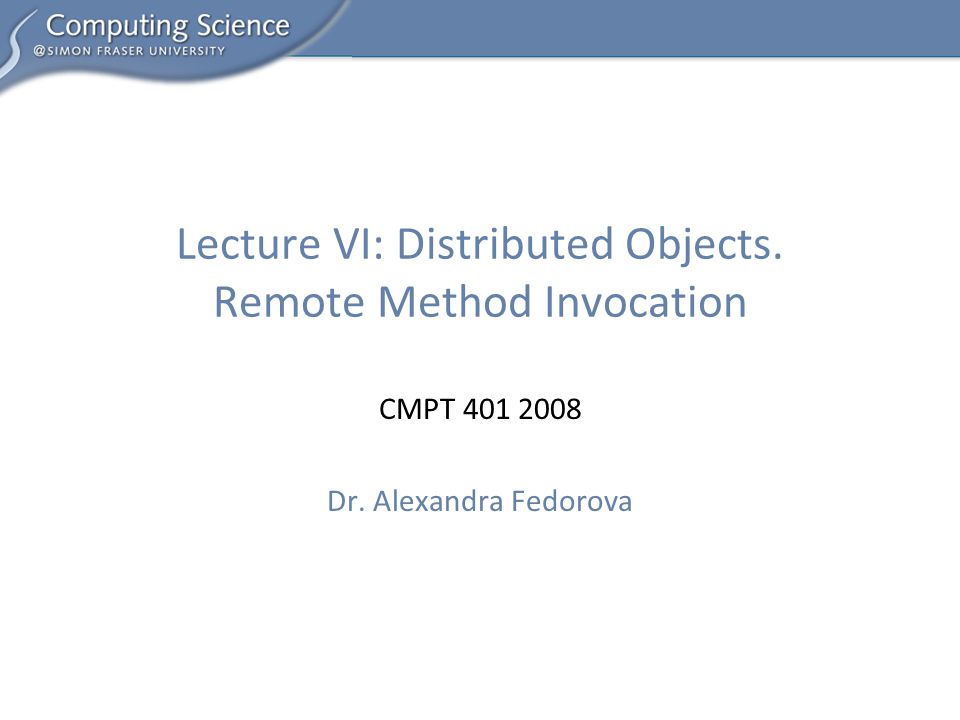

1 CMPT 401 2008 Dr. Alexandra Fedorova Lecture VI: Distributed Objects. Remote Method Invocation

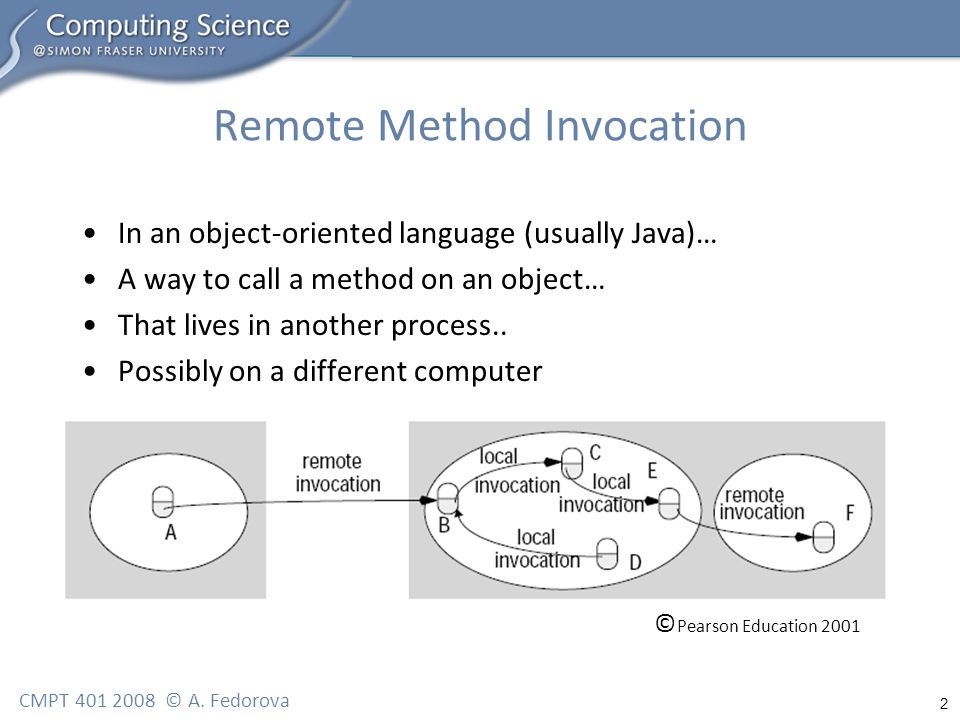

2 2 CMPT 401 2008 © A. Fedorova Remote Method Invocation In an object-oriented language (usually Java)… A way to call a method on an object… That lives in another process.. Possibly on a different computer © Pearson Education 2001

3 3 CMPT 401 2008 © A. Fedorova Object-Oriented Jargon Buster: Object Real-world objects have: –State –Behavior Objects in a programming language are similar: –Their state is represented by attributes –Their behavior is represented by methods

4 4 CMPT 401 2008 © A. Fedorova Example: Bicycle Object class Bicycle { private int cadence = 0; private int speed = 0; private int gear = 1; void changeCadence(int newValue) { cadence = newValue; } void changeGear(int newValue) { gear = newValue; } void brake(int decrement) { speed = speed - decrement; } Object definition is described in a class attributes method

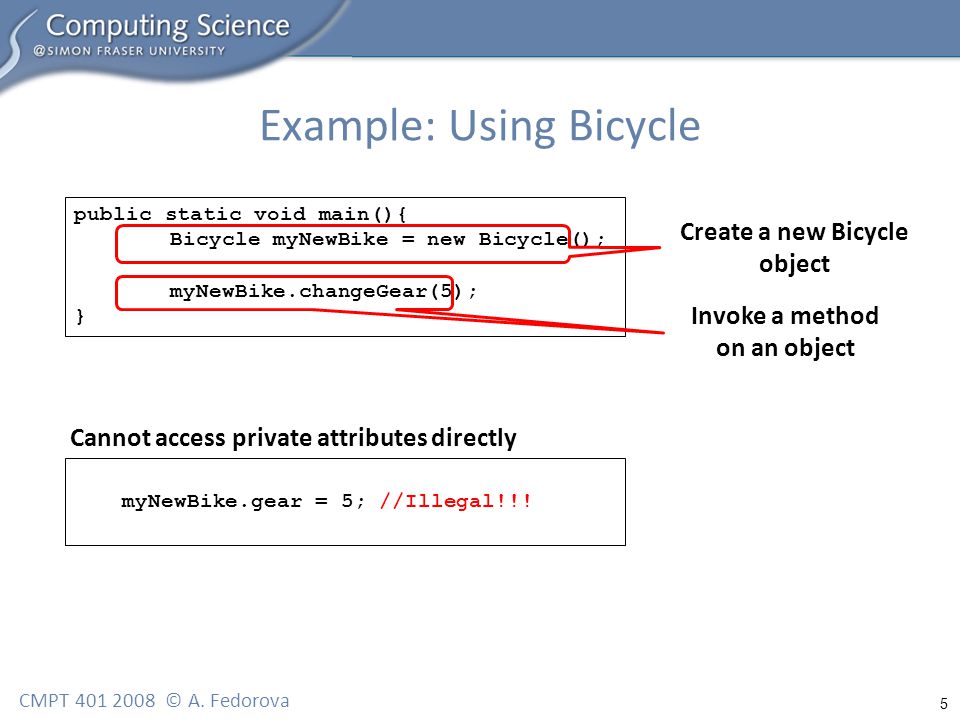

5 5 CMPT 401 2008 © A. Fedorova Example: Using Bicycle public static void main(){ Bicycle myNewBike = new Bicycle(); myNewBike.changeGear(5); } Create a new Bicycle object Invoke a method on an object Cannot access private attributes directly myNewBike.gear = 5; //Illegal!!!

6 6 CMPT 401 2008 © A. Fedorova Object-Oriented Jargon Buster: Interface public interface MotorBike{ void kickStart(); void squeezeClutch(); void turnThrottle(int degrees); } A definition of methods, Just signatures, no implementation

7 7 CMPT 401 2008 © A. Fedorova Implementing the Interface class Bicycle implements MotorBike{... private boolean engineStarted; private boolean clutchLeverSqueezed; private int throttleSettingDegrees;... public void kickStart(){ engineStarted = true; } public void squeezeClutch(){ clutchLeverSqueezed = true; } public void setThrottle(int degrees){ throttleSettingDegrees = degrees; } This class must provide implement methods in this interface some additional variables for the new methods implementation of the interface

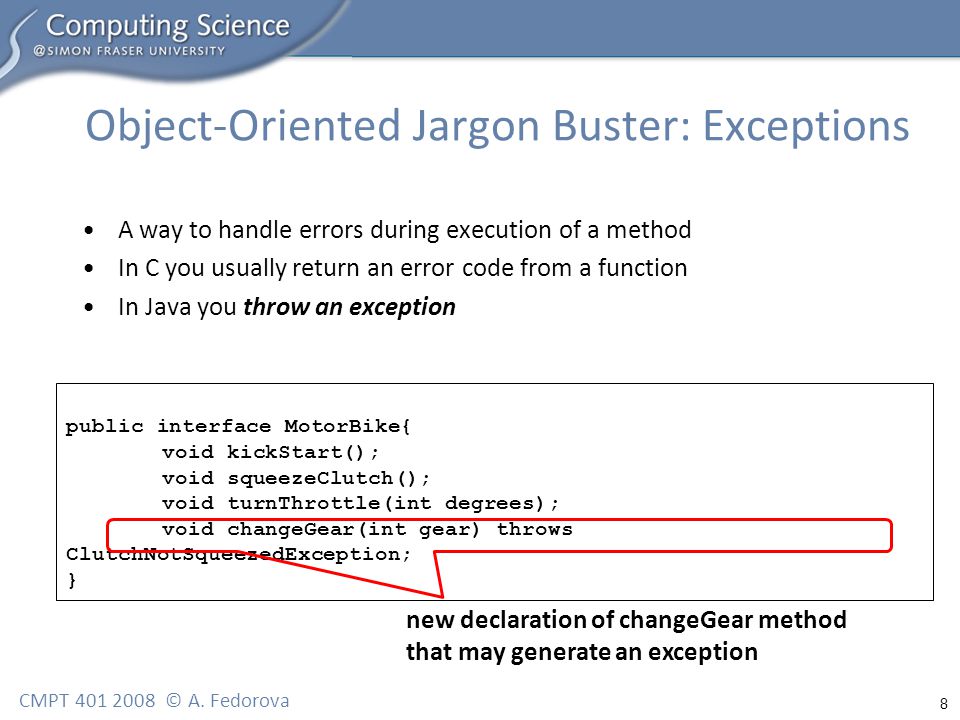

8 8 CMPT 401 2008 © A. Fedorova Object-Oriented Jargon Buster: Exceptions A way to handle errors during execution of a method In C you usually return an error code from a function In Java you throw an exception public interface MotorBike{ void kickStart(); void squeezeClutch(); void turnThrottle(int degrees); void changeGear(int gear) throws ClutchNotSqueezedException; } new declaration of changeGear method that may generate an exception

9 9 CMPT 401 2008 © A. Fedorova Throwing an Exception class Bicycle implements MotorBike{... public void changeGear(int newGear) throws ClutchNotSqueezed Exception{ if(!clutchLeverSqueezed) throw new ClutchNotSqueezedException(); else gear = newGear; } new implementation of changeGear that may generate an exception Can’t change gears unless clutch is squeezed Create an Exception object that may contain information about the error

10 10 CMPT 401 2008 © A. Fedorova Catching An Exception As you saw, is a method may throw an exception, this is specified in the method’s signature The code calling that method must be written to handle that exception public static void main(){ MotorBike myDirtBike = new MotorBike(); try{ myDirtBike.changeGear(5); } catch(ClutchNotSqueezedException cnse) { System.out.println(“Can’t change gears unless you squeeze the clutch!”); } wrap code that might throw exception in try- catch clause code that handles the exception

11 11 CMPT 401 2008 © A. Fedorova A Remote Object © Pearson Education 2001 A remote object will advertise and implement a remote interface Remote invocation can only invoke methods in the remote interface

12 12 CMPT 401 2008 © A. Fedorova A Remote Object in Java Must declare a remote interface – that is the interface that extends the interface Remote Each method in a remote interface must be declared to throw a RemoteException public interface BankAccount extends java.rmi.Remote { public void deposit(float amount) throws java.rmi.RemoteException; public void withdraw(float amount) throws OverdrawnException, java.rmi.RemoteException; public float getBalance() throws java.rmi.RemoteException; } extends interface Remote throws Remote exception

13 13 CMPT 401 2008 © A. Fedorova A Bird Eye’s View of RMI Client program knows the interface Server program implements the interface Client invokes remote methods described by the interface using the RMI system

14 14 CMPT 401 2008 © A. Fedorova Implementation and Proxy The actual implementation of the interface lives on the server There is a proxy implementation on the client The client invokes the proxy implementation The proxy implementation communicates with the actual implementation and returns the result to the client proxy creates location transparency

15 15 CMPT 401 2008 © A. Fedorova RMI System Stub and Skeleton Layer: intercepts calls from client and redirects to Remote Reference Layer Remote Reference Layer interprets references to remote objects, knows what to do with them. Passes messages to the Transport Layer Transport Layer sends messages using request-reply protocol

16 16 CMPT 401 2008 © A. Fedorova Stub and Skeleton Layer The skeleton: –Reads the parameters for the method call from the link –Makes the call to the remote service implementation object –Accepts the return value –Writes the return value back to the stub. ClientServer stub skeleton actual implementation The stub: –Marshalls call parameters –Sends them to the server –Unmarshalls return parameters –Returns them to the client program

17 17 CMPT 401 2008 © A. Fedorova Remote Reference Layer (RRL) Client RRL: –knows if the remote object (still) exists –knows where to locate server holding the remote object –called by the stub Server RRL: –knows if the local object exists –knows where to locate the local implementation –calls the skeleton

18 18 CMPT 401 2008 © A. Fedorova Transport Layer Manages connection between Java Virtual Machines Used over the network and on the local host There is a messaging protocol implemented over TCP/IP Java Runtime Environment – code that enables JVM to run

19 19 CMPT 401 2008 © A. Fedorova Components of the Transport Layer Messaging protocol provides at-most-once semantics Any layer can be switched by an alternative: e.g., TCP/IP with UDP/IP Sun and IBM are working on next version of RMI that will use IIOP, the open protocol used in CORBA Bea Weblogic and Ninja RMI use their proprietary messaging protocols TCP/IP Messaging protocol (e.g., Java Remote Method Protocol – JRMP) UDP/IP IIOP BEA Weblogic protocol Ninja RMI protocol

20 20 CMPT 401 2008 © A. Fedorova Local vs. Remote Objects Remote objects are defined using a Remote interface definition Local objects are defined using a Class definition Why is there a difference? A class usually has a constructor, so you can construct an object described by a class in a local memory using the constructor An interface does not have a constructor, which is the right thing for the remote object You should not be able to create a remote object in a local memory, so you are not given a constructor

21 21 CMPT 401 2008 © A. Fedorova Creation of Remote Object Server creates an instance of remote object Client wants to invoke a method on that remote object But first it must obtain a reference to the remote object How does the client obtain the remote reference? ClientServer remote object instance remote object reference

22 22 CMPT 401 2008 © A. Fedorova Remote Object References Naming and Directory Service [well known DNS name and port] rmiregistry Server 1. Create an object instance 2. Export to RMI registry 3. Create a service that listens for invocations on that object 4. Register object under public name

23 23 CMPT 401 2008 © A. Fedorova Server Creates and Registers Remote Object import java.rmi.Naming; public class BankServer { public BankServer() { try { BankAccount b = new BankAccountImpl(); Naming.rebind("rmi://localhost:1099/ BankService", c); } catch (Exception e) { System.out.println("Trouble: " + e); } public static void main(String args[]) { new CalculatorServer(); } BankAccountImpl implements BankAccount interface Create a BankAccount object Register object under public name

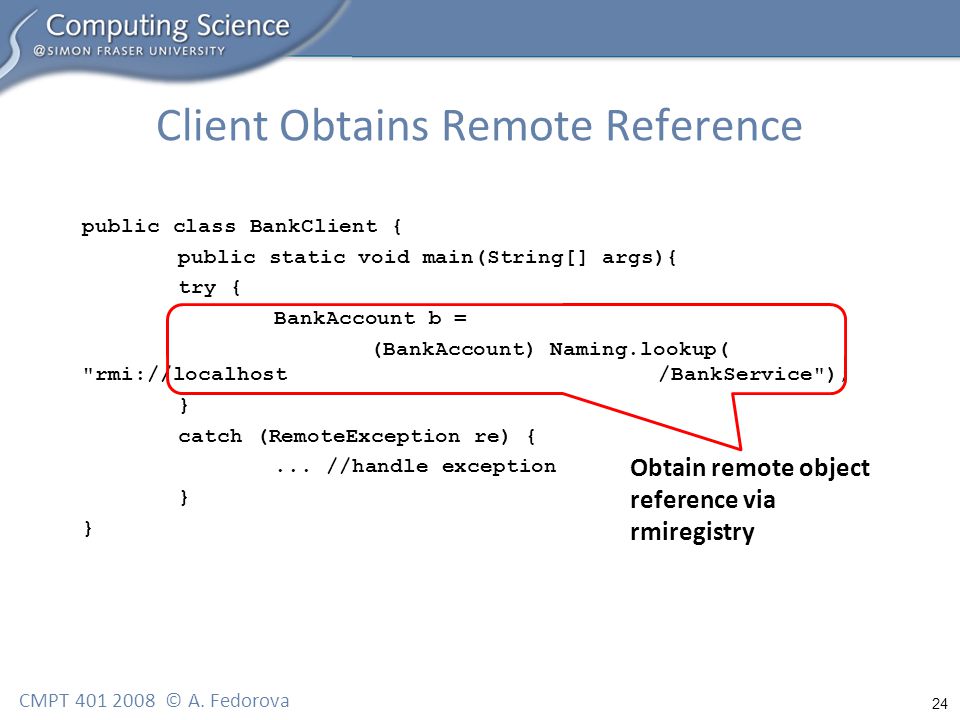

24 24 CMPT 401 2008 © A. Fedorova Client Obtains Remote Reference public class BankClient { public static void main(String[] args){ try { BankAccount b = (BankAccount) Naming.lookup( "rmi://localhost /BankService"); } catch (RemoteException re) {... //handle exception } Obtain remote object reference via rmiregistry

25 25 CMPT 401 2008 © A. Fedorova The Entire RMI Program Written by the programmer –BankAccount.java – Remote interface –BankAccountImpl.java – Implementation of remote interface on the server –BankServer.java – The server that creates an instance of BankAccountImpl and binds it –BankClient.java – The client that obtainsremote object reference and invokes remote methods on it Generated by rmic compiler ( rmic BankAccountImpl.java) –BankAccount_Stub.class –BankAccount_Skel.class

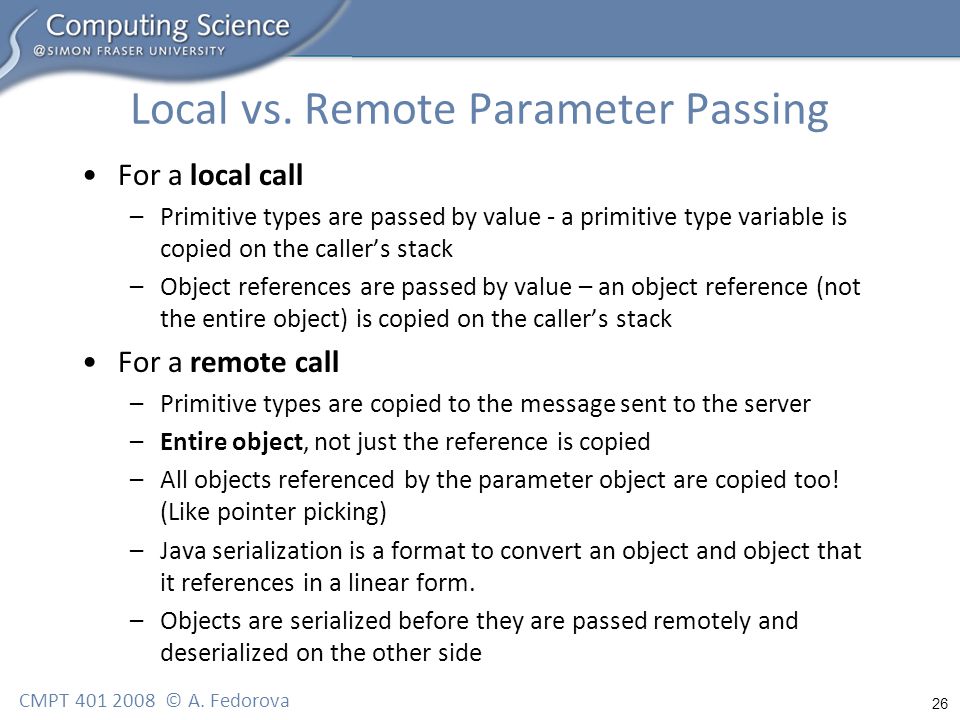

26 26 CMPT 401 2008 © A. Fedorova Local vs. Remote Parameter Passing For a local call –Primitive types are passed by value - a primitive type variable is copied on the caller’s stack –Object references are passed by value – an object reference (not the entire object) is copied on the caller’s stack For a remote call –Primitive types are copied to the message sent to the server –Entire object, not just the reference is copied –All objects referenced by the parameter object are copied too! (Like pointer picking) –Java serialization is a format to convert an object and object that it references in a linear form. –Objects are serialized before they are passed remotely and deserialized on the other side

27 27 CMPT 401 2008 © A. Fedorova There’s More to RMI System What do you need a web server for? Sometimes a client passes or a server returns an object whose class definition is not available locally In that case, the definition is downloaded from the web server

28 28 CMPT 401 2008 © A. Fedorova Distributed Garbage Collection In C you have to explicitly deallocate memory that is no longer used In Java, unused objects are garbage collected: local JVM automatically destroys objects that are not referenced by anyone Garbage collection must also work with RMI Java RMI system implements a distributed garbage collector

29 29 CMPT 401 2008 © A. Fedorova Distributed Garbage Collection (cont) RMI Remote Layer on the server counts the number of remote references to each remote object it exports When there are no more local and remote references to the object, the object is destroyed The client should tell the server when it no longer uses the object But what if it does not?

30 30 CMPT 401 2008 © A. Fedorova Distributed Garbage Collection (cont) Each remote reference has an associated “lease” time Client RMI layer must renew the lease on the reference if the reference is still in use on the client When all leases expire, the server can destroy the object Client must be prepared to deal with “disappeared” objects

31 31 CMPT 401 2008 © A. Fedorova Is RMI Transparent?

32 32 CMPT 401 2008 © A. Fedorova RMI is Transparent Hides details for argument marshalling/unmarshalling Hides client/server communication details Garbage collection works in a distributed manner

33 33 CMPT 401 2008 © A. Fedorova RMI is Not Transparent Call invocation semantics –Local invocation has “exactly-once” semantics –RMI has “at-most-once” semantics –If RMI had “at-least-once” semantics, programmer would need to be sure that remote operations are idempotent RMI is subject to partial failures –Server, registry or network can fail independently of the client –RMI-specific failure mode is exposed to the programmer (must catch RemoteException ) Latency of RMI is higher than that of local invocation –Should the programmer be allowed to set a timeout or abort an RMI that’s taking too long?

34 34 CMPT 401 2008 © A. Fedorova Summary Java RMI is language-specific abstraction for communication in a distributed system A Java program can invoke a method on an object located in another JVM on another host Remote objects are registered with a global naming service Client can obtain a remote reference by name RMI exposes “remoteness” to the programmer

35 35 CMPT 401 2008 © A. Fedorova Debate RPC vs. RMI RPC and RMI took different approaches to implementing remote function calls RPC tried to make it completely transparent RMI exposed “remoteness” to the programmer Which of the two approaches is the right one?
