2
Online Dictionary and Thesaurus Presented by: M. Khalid Akhtar
3

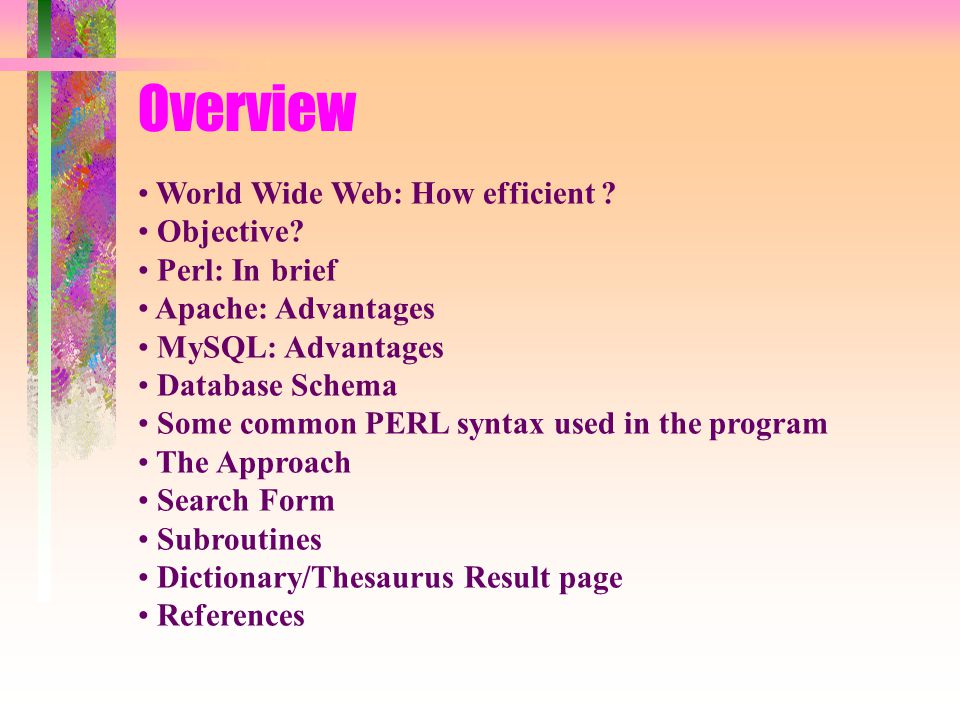

Overview World Wide Web: How efficient ? Objective? Perl: In brief Apache: Advantages MySQL: Advantages Database Schema Some common PERL syntax used in the program The Approach Search Form Subroutines Dictionary/Thesaurus Result page References
4
Time consuming! Difficult to find information! Stale/Missing links/web pages!! Irritating advertisements/banners Sometimes special software required to view information! World Wide Web: How Efficient ?
5
Objective: Create an Online Dictionary and Thesaurus Using: HTML Perl & CGI Scripts MySql Database Apache Web Server
6
Perl: In brief Perl has Advanced Language Features Highly portable Higher level constructs than UNIX Shell scripts More functionality than awk/sed Strong support for pattern matching Strong CGI support Strong HTML parsing capability Strong support for writing Web agents
7
Apache: Advantages The main advantage of using the Apache web server is speed. Using the mod_perl module, Apache can return CGI requests on average 2-3 times faster than web servers that do not have mod_perl technology. It takes advantage of powerful API interface. Its FREE !! Apache web server is compiled with Processor-Specific Optimization to take advantage of the power of the new processor generation, giving it 5-30% more performance than any other Web Server. Apache provides a robust and commercial grade reference implementation of the HTTP protocol.
8
MySQL: Advantages MySQL is extremely good: For logging. When you open many connections; It connects very fast. When SELECT and INSERT are used at the same time. When updates are not combined with selects that take a long time. When most selects/updates use unique keys. When many tables are used without long conflicting locks. When you have big tables (MySQL uses a very compact table format).
9

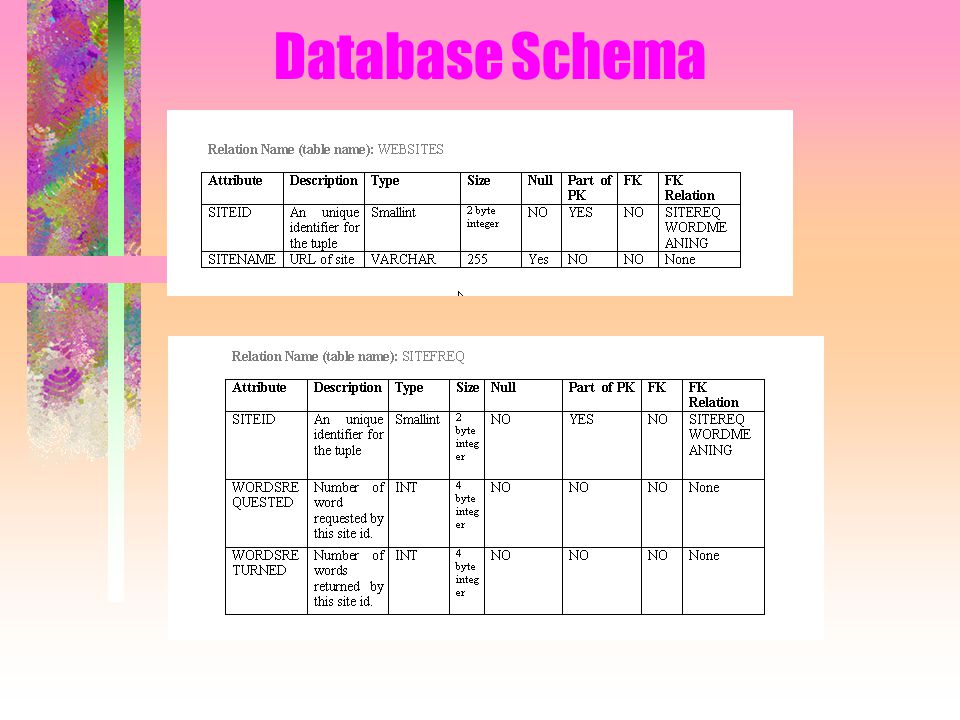

Database Schema
10
Database Schema contd...
13
SITEID # SITENAME WEBSITES WORDID # MEANING1 MEANING2 MEANING3 : MEANING5 SITEID # WORDMEANING Database Schema Legends # - Foreign Key Red Fields - Primary Key WORDID # WORD WORDS SITEID # WORDSREQUESTED WORDSRETURNED SITEREQ WORDID # CONCEPT SITEID # CONCEPTDETAIL1 CONCEPTDETAIL2 : CONCEPTDETAIL9 WORDCONCEPTS Database Schema contd...
14
Some common PERL syntax used in the program... To connect to MySQL: $dbh = DBI->connect("DBI:mysql:$dbname", $user) or die "Can't connect: ". DBI->errstr; To store values in an ARRAY: push @siteids, $siteId; To process ARRAY elements: foreach $siteId (@siteids) { : }
15
The Approach Perl modules: seachword.pl dbInterface.pl seachword.pl: Is the driving progam. Once invoked, queries the database for submitted word’s dictionary meaning or thesaurus concepts, using routines from dbInterface.pl.
16
The Approach Contd … Spawns user agents to fetch meanings/concepts from WebSites. Inserts meanings/concepts in the database. Updates frequency stats. Displays result in the browser. Prints the search form in the Internet browser to allow new searches.
17
Search Form
18
Subroutines: Check the meaning first in local database using: dbGetWordMeaning($dbh, $word) dbGetWordId($dbh, $word) dbGetSiteIdByFreq($dbh, $word) if (length $word != 0) { # First fetch the meaning from the database @meanings=&dbGetWordMeaning($dbh, $word); if ($#meanings < 0) { # Get the meaning from dictionary.com if (&parse_dictionary_com($word)) { # Fetch the meaning from the database @meanings=&dbGetWordMeaning($dbh, $word); }
19
Subroutine contd... if ($#meanings < 0) { # Get the meaning from dictionary.com if (&parse_dictionary_com($word)) { # Fetch the meaning from the database @meanings=&dbGetWordMeaning($dbh, $word); }
20
Subroutine contd... if ($#meanings < 0) { # Get the meaning from dictionary.com if (&parse_dictionary_com($word)) { # Fetch the meaning from the database @meanings=&dbGetWordMeaning($dbh, $word); } dbInsertWordMeaning($dbh, $siteId, $word, @meanings); dbUpdateSiteFreq($dbh, $siteId, 1); &dbUpdateSiteFreq($dbh, $siteId, 0); dbUpdateSiteFreq($dbh, $siteId, 0);
21
The result page: Dictonary
22
The result page: Thesaurus
23
References 1.Advanced PERL Programming by Sriram Srinivasan 2.CGI Programming with PERL by Scott Guelich, Shishir Gundavaram and Gunther Birznieks 3.The Complete HTML Reference by Thomas A. Powell 4.PERL in Nutshell by Stephen Spainhour, Nathan Patwardhan 5.Apache Web-Server by Lars Eilebrecht 6.Apache Server Unleashed by Richard Bowen, Ken A. L. Coar, Rich Bowen, Patrik Grip-Jansson, Matthew Marlowe, Mohan ChinnapanRichard BowenKen A. L. CoarRich BowenPatrik Grip-JanssonMatthew Marlowe, Mohan Chinnapan 7.http://www.apache.orghttp://www.apache.org 8.http://addy.com/dc/html/writing_cgi_scripts.htmlhttp://addy.com/dc/html/writing_cgi_scripts.html 9. http://www.cs.tcd.ie/research_groups/aig/iag/toplevel2.htmlhttp://www.cs.tcd.ie/research_groups/aig/iag/toplevel2.html 10.http://www.mysql.comhttp://www.mysql.com
24
Questions !
