1. 1 Mathematical, Information and Computational Sciences Mathematical, Information and Computational Sciences Program - An Introduction – 3 rd Doe/NSF Meeting on LHC and Global Computing “Infostructure” www.science.doe.gov/ASCR/ February 7, 2003 Walter M. Polansky walt.polansky@science.doe.gov

2. 2 Mathematical, Information and Computational Sciences Supports fundamental research in applied mathematics, computer science, and computer networking; Integrates the results of fundamental research into software tools that scientists can adapt to meet high performance computational and simulation needs; Establishes partnerships to field-test these software tools with users as well as to identify needs for future fundamental research; Operates High Performance Computing and Network Facilities- NERSC, ESnet, and Advanced Computing Research Testbeds. Features

3. 3 Mathematical, Information and Computational Sciences Distributed Resources, Distributed Expertise Major User Facilities Institutions supported by SC DOE Multiprogram Laboratories DOE Program-Dedicated Laboratories DOE Specific-Mission Laboratories Pacific Northwest National Laboratory Ames Laboratory Argonne National Laboratory BrookhavenNationalLaboratory Oak Ridge National Laboratory Los Alamos National Laboratory Lawrence Livermore National Laboratory Lawrence Berkeley National Laboratory Sandia National Laboratories FermiNationalAcceleratorLaboratory PrincetonPlasmaPhysicsLaboratory Thomas Jefferson National Accelerator Facility National Renewable Energy Laboratory StanfordLinearAcceleratorCenter Idaho National Engineering and Environmental Laboratory

4. 4 Mathematical, Information and Computational Sciences Simulation Capability Needs FY2004-05 Timeframe Application Simulation Need Sustained Computational Capability Needed (Tflops) Significance Climate Science Calculate chemical balances in atmosphere, including clouds, rivers, and vegetation. > 50 Provides U.S. policymakers with leadership data to support policy decisions. Properly represent and predict extreme weather conditions in changing climate. Magnetic Fusion Energy Optimize balance between self-heating of plasma and heat leakage caused by electromagnetic turbulence. > 50Underpins U.S. decisions about future international fusion collaborations. Integrated simulations of burning plasma crucial for quantifying prospects for commercial fusion. Combustion Science Understand interactions between combustion and turbulent fluctuations in burning fluid. > 50Understand detonation dynamics (e.g. engine knock) in combustion systems. Solve the “soot “ problem in diesel engines. Environmental Molecular Science Reliably predict chemical and physical properties of radioactive substances. > 100Develop innovative technologies to remediate contaminated soils and groundwater. AstrophysicsRealistically simulate the explosion of a supernova for first time. >> 100Measure size and age of Universe and rate of expansion of Universe. Gain insight into inertial fusion processes.

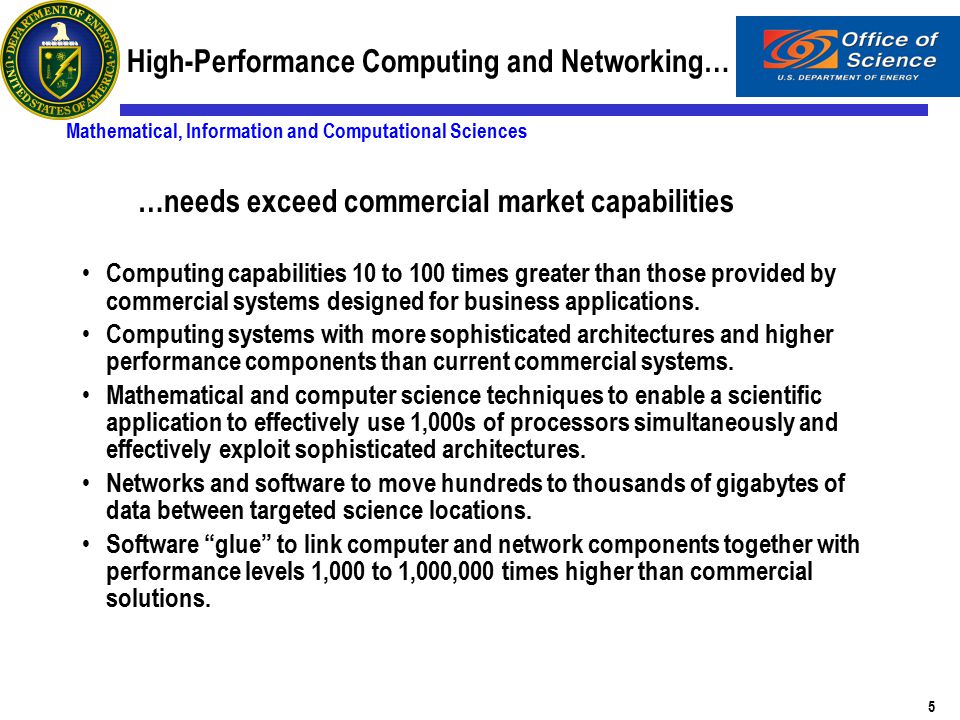

5. 5 Mathematical, Information and Computational Sciences High-Performance Computing and Networking… Computing capabilities 10 to 100 times greater than those provided by commercial systems designed for business applications. Computing systems with more sophisticated architectures and higher performance components than current commercial systems. Mathematical and computer science techniques to enable a scientific application to effectively use 1,000s of processors simultaneously and effectively exploit sophisticated architectures. Networks and software to move hundreds to thousands of gigabytes of data between targeted science locations. Software “glue” to link computer and network components together with performance levels 1,000 to 1,000,000 times higher than commercial solutions. …needs exceed commercial market capabilities

6. 6 Mathematical, Information and Computational Sciences Program Execution Basic Research …simulation…distributed teams, of complex systems remote access to facilities Energy Sciences Network (ESnet) Advanced Computing Research Testbeds National Energy Research Scientific Computing Center (NERSC) Materials Chemistry Combustion Accelerator HEP Nuclear Fusion Climate Astrophysics Biology Applied Mathematics Computer Science Scientific Application Pilots Collaboratory Tools Collaboratory Pilots BES, BER, FES, HEP, NP Integrated Software Infrastructure Centers Teams-mathematicians, computer scientists, application scientists, and software engineers High Performance Computing and Network Facilities for Science Research to enable… Grid enabling research Networking Nanoscience

7. 7 Mathematical, Information and Computational Sciences Budgets $ in millions FY2003 Request- $163.557 FY2004 Request- $170.490

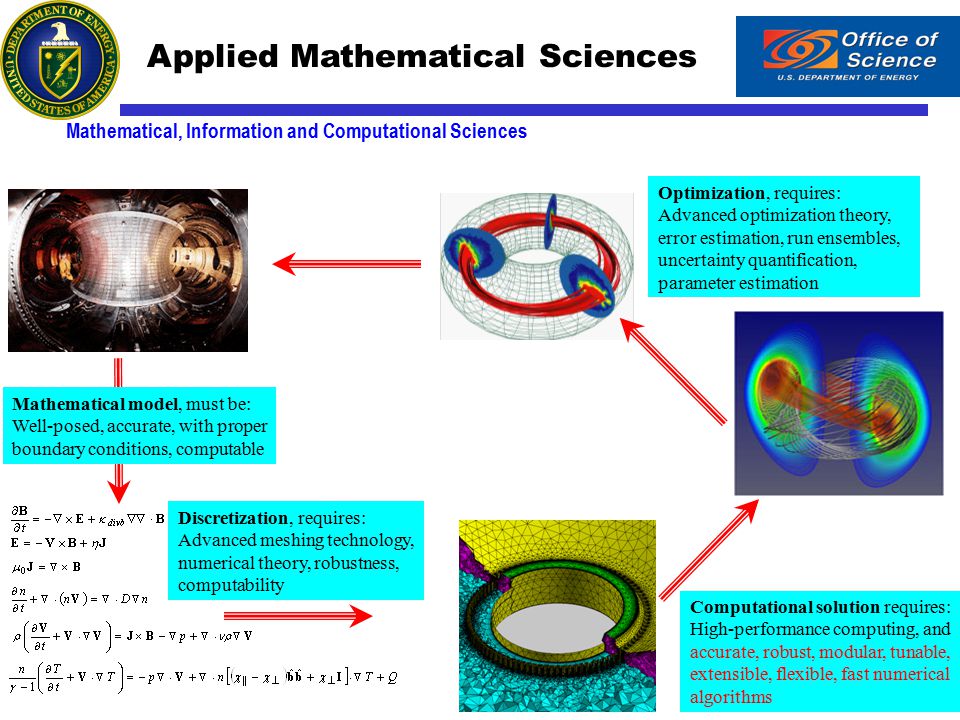

8. 8 Mathematical, Information and Computational Sciences Mathematical model, must be: Well-posed, accurate, with proper boundary conditions, computable Discretization, requires: Advanced meshing technology, numerical theory, robustness, computability Computational solution requires: High-performance computing, and accurate, robust, modular, tunable, extensible, flexible, fast numerical algorithms Optimization, requires: Advanced optimization theory, error estimation, run ensembles, uncertainty quantification, parameter estimation Applied Mathematical Sciences

9. 9 Mathematical, Information and Computational Sciences Applied Mathematical Sciences Objectives Advance our understanding of science and technology by supporting research in basic applied mathematics and in computational research that facilitates the use of the latest high-performance computer systems. Applied Mathematics Research: Linear Algebra Fluid Dynamics Differential Eqs. Optimization Robust High-Performance Numerical Libraries Adaptive Mesh Refinement (AMR) Sustained Teraflop/s simulations Level Set / Fast Marching Methods Investment in Education Computational Sciences Graduate Fellowship Ultrascalable Algorithms (up to millions of PEs) Mathematical Microscopy These opportunities will be explored through Genomes to Life (with BER) Comp. Nanoscience (with BES) Fusion Energy (FESAC-ASCAC workshop) Ongoing Projects Research Opportunities Accomplishments Grid Generation Predictability Analysis & Uncertainty Quantification Automated Reasoning Advanced Numerical Algorithms: PETSc Aztec TAO ADIFOR / ADIC Hypre CHOMBO SuperLU PICO

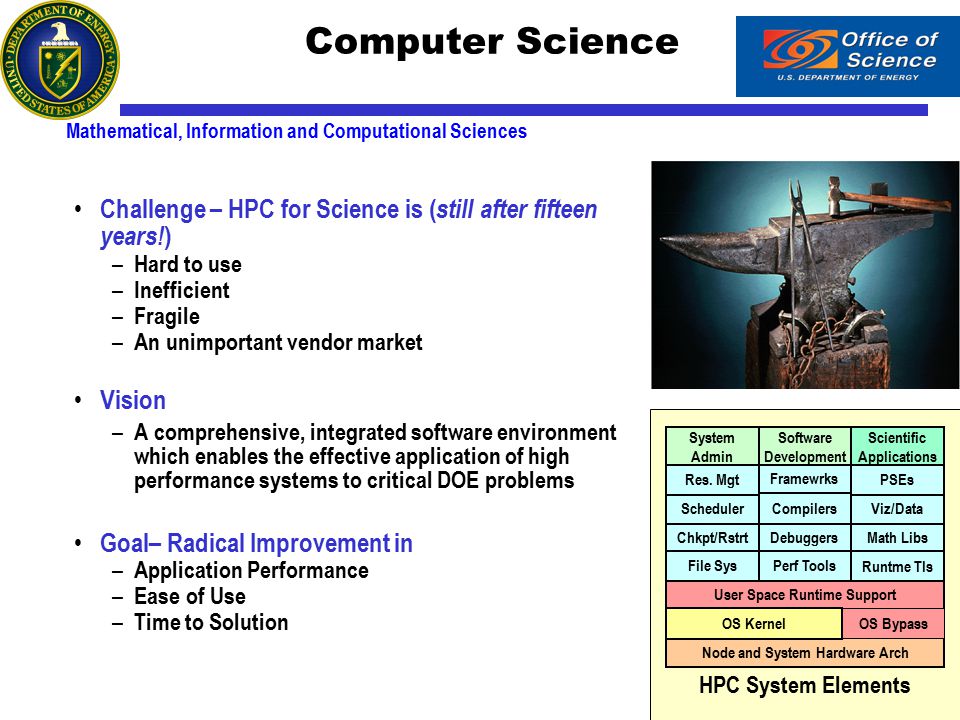

10. 10 Mathematical, Information and Computational Sciences Computer Science Challenge – HPC for Science is ( still after fifteen years! ) – Hard to use – Inefficient – Fragile – An unimportant vendor market Vision – A comprehensive, integrated software environment which enables the effective application of high performance systems to critical DOE problems Goal– Radical Improvement in – Application Performance – Ease of Use – Time to Solution Node and System Hardware Arch User Space Runtime Support OS Kernel OS Bypass Scientific Applications System Admin Software Development Chkpt/RstrtMath LibsDebuggers Viz/DataScheduler PSEsRes. MgtFramewrks Compilers Perf ToolsFile Sys Runtme Tls HPC System Elements

11. 11 Mathematical, Information and Computational Sciences Goals and Objectives To develop secure and scalable high-performance networks to support wide area distributed high-end applications. To accelerate the adoption of emerging network technologies into production networks through testing and advanced deployment. To provide leadership in the research and development of advanced networks services that have direct impact on DOE science mission. Recent Accomplishments High-performance TCP for high-speed (Gbits/sec) data transfer widely adopted in the Internet community. Scalable network performance monitoring toolkit for end-to-end network performance predictions and network diagnosis (Net100, Netlogger, Pathchar, NCDS, etc) HIPPI 64 - High-speed interconnects for interconnecting supercomputers and high- speed storage systems High-Performance Network Research

12. 12 Mathematical, Information and Computational Sciences National Collaboratories The nature of how large scale science is done is changing – Distributed data, computing, people, instruments – Instruments integrated with large-scale computing – Human resources are seldom collocated with the resources needed for their science Additional drivers – Large and international collaborations – Management of unique national user facilities – Large multi-laboratory science and engineering projects

13. 13 Mathematical, Information and Computational Sciences Scientific Discovery through Advanced Computing An Integrated Program Throughout the Office of Science BES, BER FES, HENP $20.7M MICS- $45.4M Software Infrastructure SCIENTIFICSCIENTIFIC CODESCODES SIMULATIONSIMULATION OPERATINGOPERATING SYSTEMSYSTEM Data Analysis & Visualization Scientific Data Management Problem-solving Environments Programming Environments DATAGRIDSDATAGRIDS COLLABORATORIESCOLLABORATORIES MATHEMATICSMATHEMATICS COMPUTING SYSTEMS SOFTWARE

14. 14 Mathematical, Information and Computational Sciences Genomes to Life Computational & Systems Biology Clean Energy - Increased biology-based energy sources; major new bioenergy industry. Reduced Carbon Dioxide in the Atmosphere – Advance understanding of earth’s carbon cycle; Identify mechanisms to enhance carbon capture. Stabilize atmospheric carbon dioxide to counter global warming. Cleanup of the Environment – Develop cost-effective ways for environmental cleanup. Expected savings- billions in waste cleanup/disposal costs. A Partnership with Biological and Environmental Research

15. 15 Mathematical, Information and Computational Sciences Computational Nanoscience FY 2004 ASCR-BES partnership will focus on providing the computational tools needed for nanoscale science. - $3M (SciDAC Activity) A Partnership with Basic Energy Sciences May 2002- “Theory and Modeling in Nanoscience” workshop convened by BES and ASCR Advisory Committees

16. 16 Mathematical, Information and Computational Sciences UltraScale Simulation Planning activity Deliver leadership class computers for science. Extend the SciDAC model to couple applications scientists, mathematicians, and computational and computer scientists with computer architects, engineers, and semiconductor researchers. Structure partnerships with domestic computer vendors to ensure that leadership class computers are produced with science needs as an explicit design criterion. Build the science case, e.g. http://www.ultrasim.info

17. 17 Mathematical, Information and Computational Sciences National Energy Research Scientific Computing Center NERSC - Provides capability resources, expert consulting, and professional user friendly services to computational scientists on projects within the missions of the Department of Energy Began in 1974 at LLNL as computing resource for magnetic fusion researchers Transferred to LBNL in 1996; moved to Oakland in 2000 Provides open computing environment for nearly 2,400 users A nominal 5.0 Teraflop MPP facility Allocates compute resources competitively

18. 18 Mathematical, Information and Computational Sciences Advanced network capabilities and services to enable seamless collaborations for DOE and its researchers Energy Sciences Network ESnet Nationwide high-performance research network Advanced network services to support science in DOE Extensive structure of domestic and international interconnects Advanced Technology Research Coordination with other Federal Agencies and Internet II
