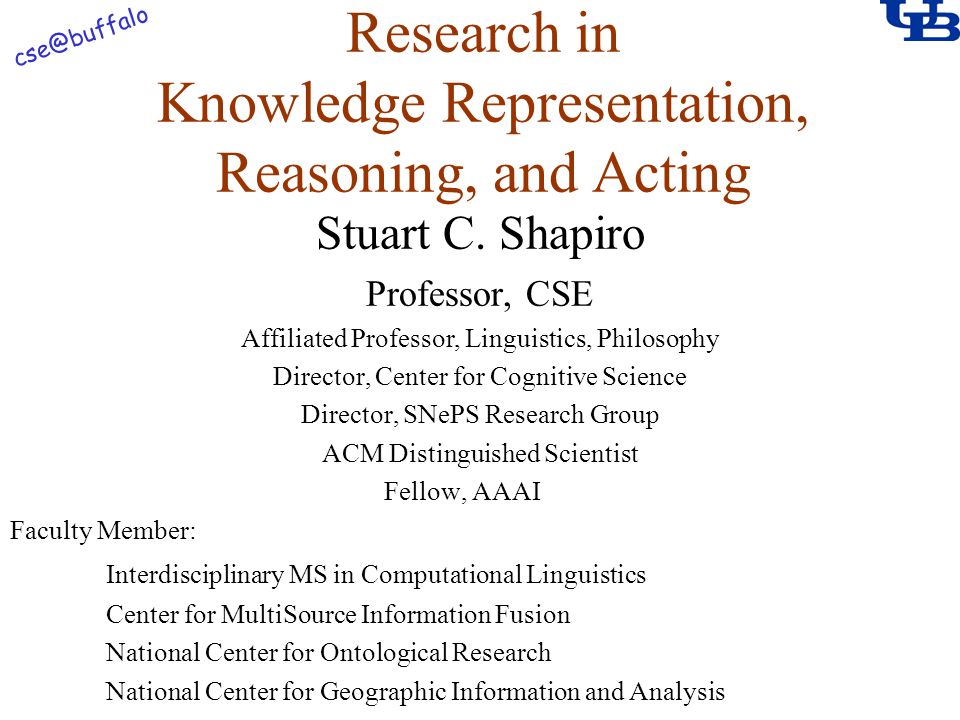

1. cse@buffalo Research in Knowledge Representation, Reasoning, and Acting Stuart C. Shapiro Professor, CSE Affiliated Professor, Linguistics, Philosophy Director, Center for Cognitive Science Director, SNePS Research Group ACM Distinguished Scientist Fellow, AAAI Faculty Member: Interdisciplinary MS in Computational Linguistics Center for MultiSource Information Fusion National Center for Ontological Research National Center for Geographic Information and Analysis

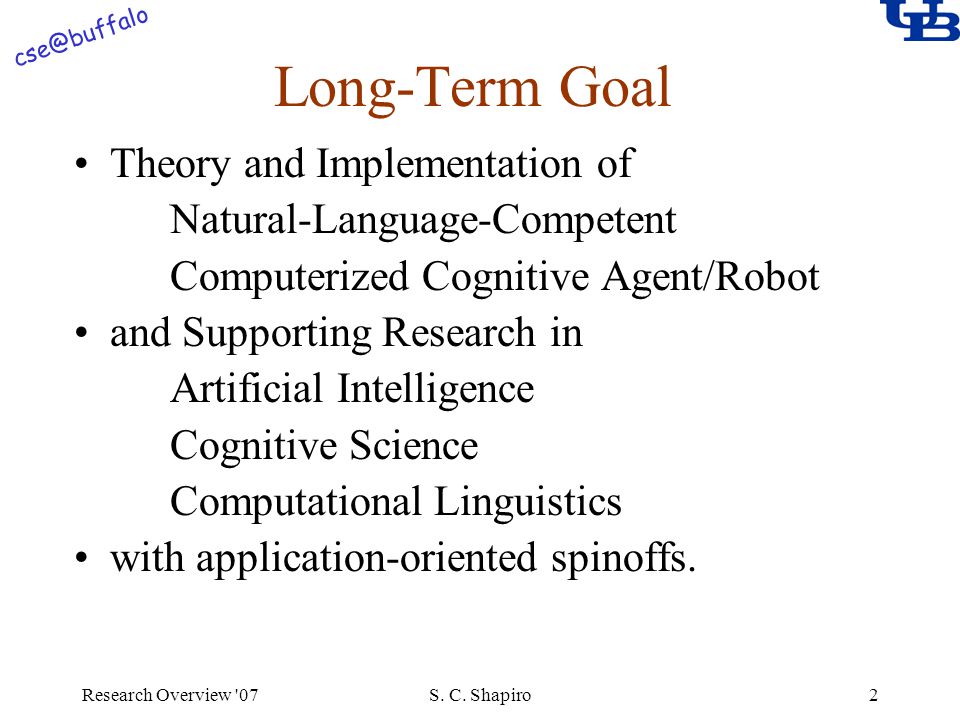

2. cse@buffalo Research Overview '07S. C. Shapiro2 Long-Term Goal Theory and Implementation of Natural-Language-Competent Computerized Cognitive Agent/Robot and Supporting Research in Artificial Intelligence Cognitive Science Computational Linguistics with application-oriented spinoffs.

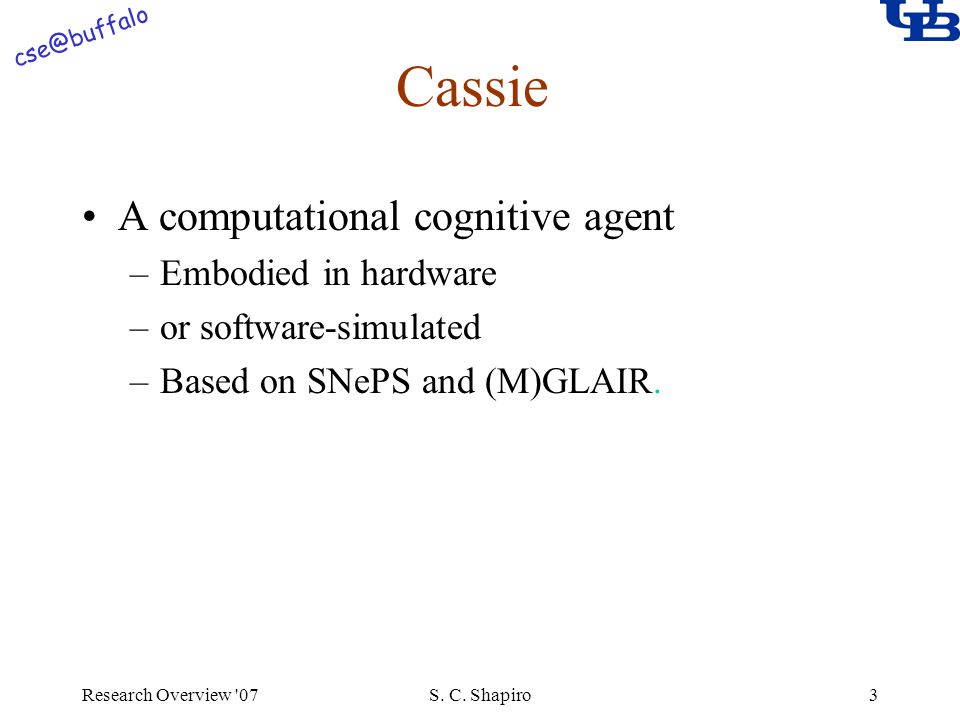

3. cse@buffalo Research Overview '07S. C. Shapiro3 Cassie A computational cognitive agent –Embodied in hardware –or software-simulated –Based on SNePS and (M)GLAIR.

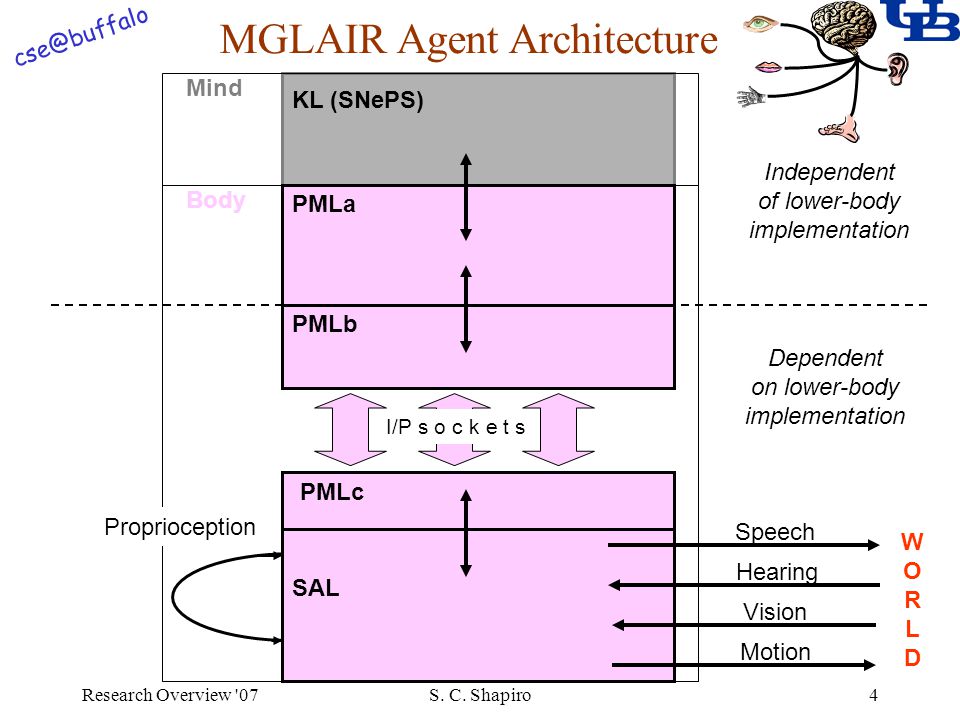

4. cse@buffalo Research Overview '07S. C. Shapiro4 KL (SNePS) PMLa PMLb PMLc SAL Mind Body Independent of lower-body implementation Hearing Vision Motion Speech WORLDWORLD I/P s o c k e t s MGLAIR Agent Architecture Dependent on lower-body implementation Proprioception

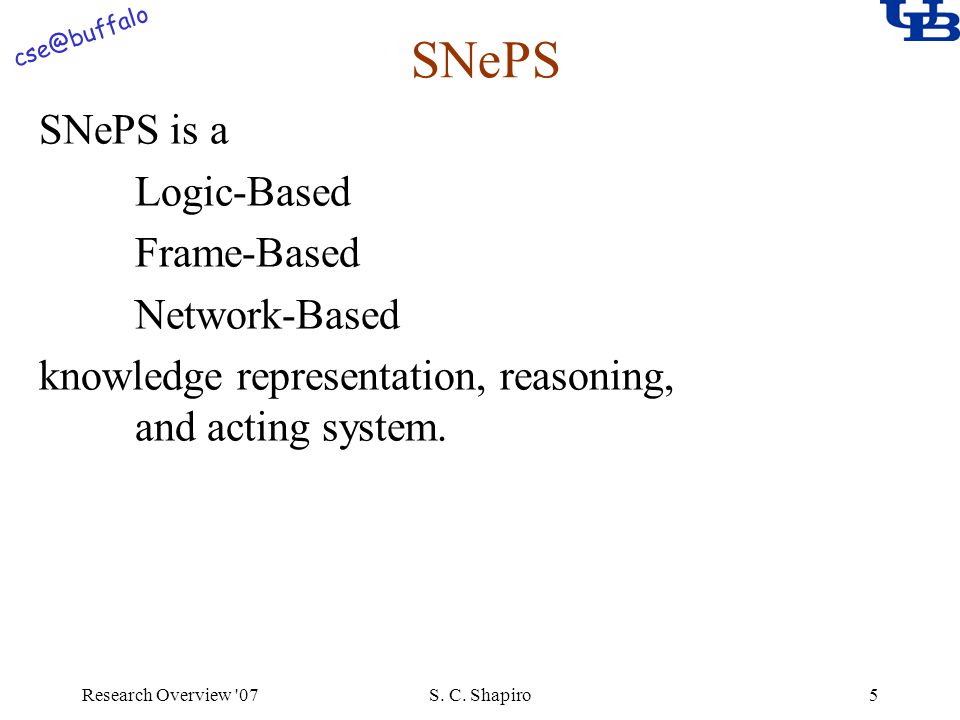

5. cse@buffalo Research Overview '07S. C. Shapiro5 SNePS SNePS is a Logic-Based Frame-Based Network-Based knowledge representation, reasoning, and acting system.

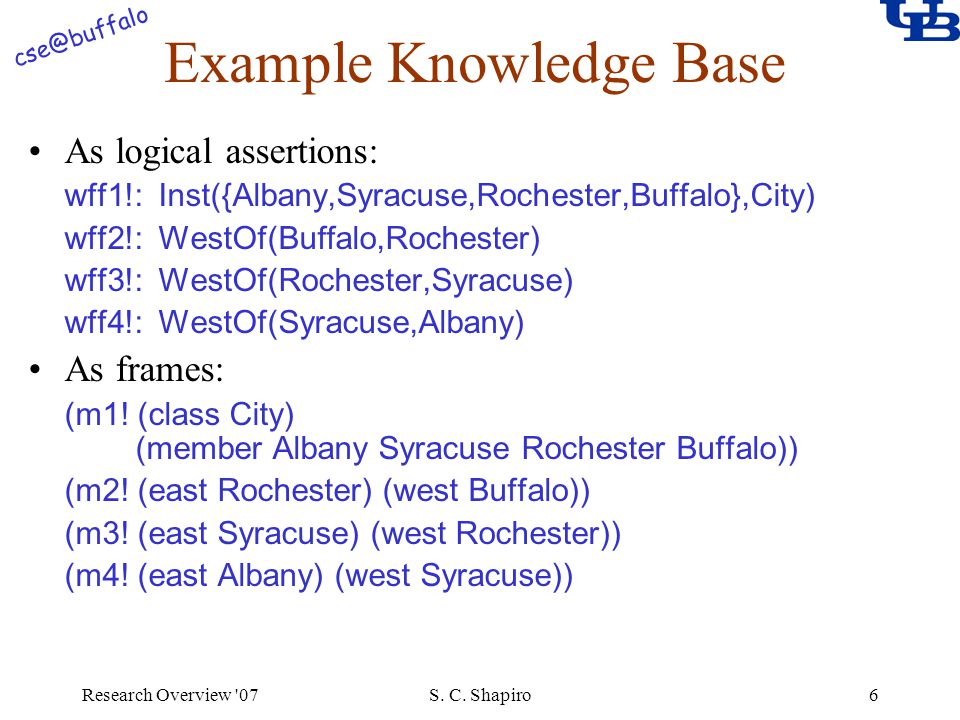

6. cse@buffalo Research Overview '07S. C. Shapiro6 Example Knowledge Base As logical assertions: wff1!: Inst({Albany,Syracuse,Rochester,Buffalo},City) wff2!: WestOf(Buffalo,Rochester) wff3!: WestOf(Rochester,Syracuse) wff4!: WestOf(Syracuse,Albany) As frames: (m1! (class City) (member Albany Syracuse Rochester Buffalo)) (m2! (east Rochester) (west Buffalo)) (m3! (east Syracuse) (west Rochester)) (m4! (east Albany) (west Syracuse))

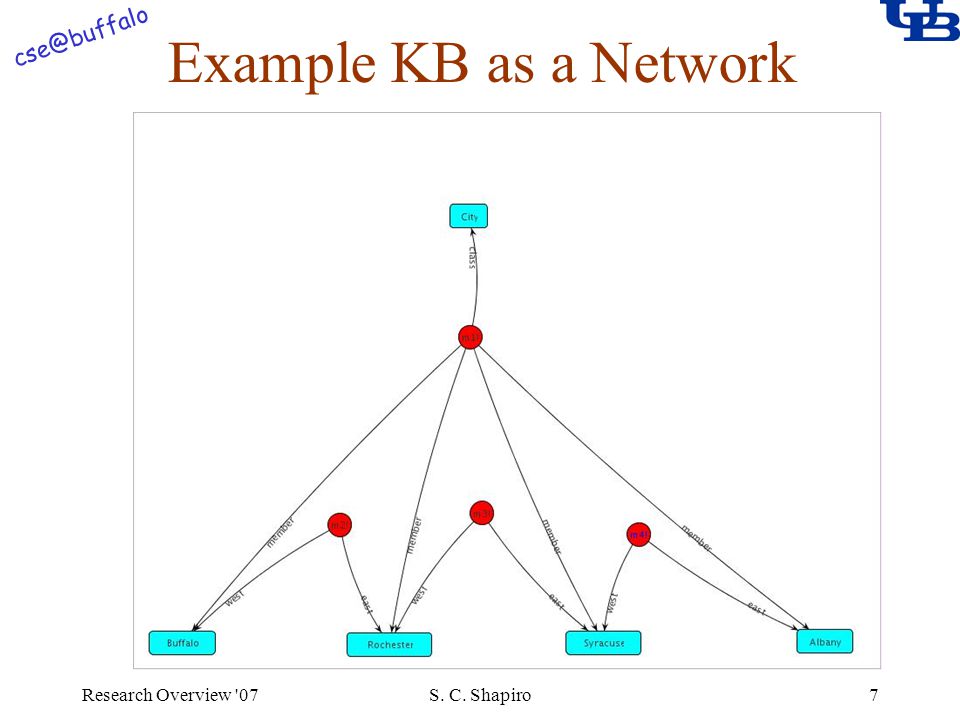

7. cse@buffalo Research Overview '07S. C. Shapiro7 Example KB as a Network

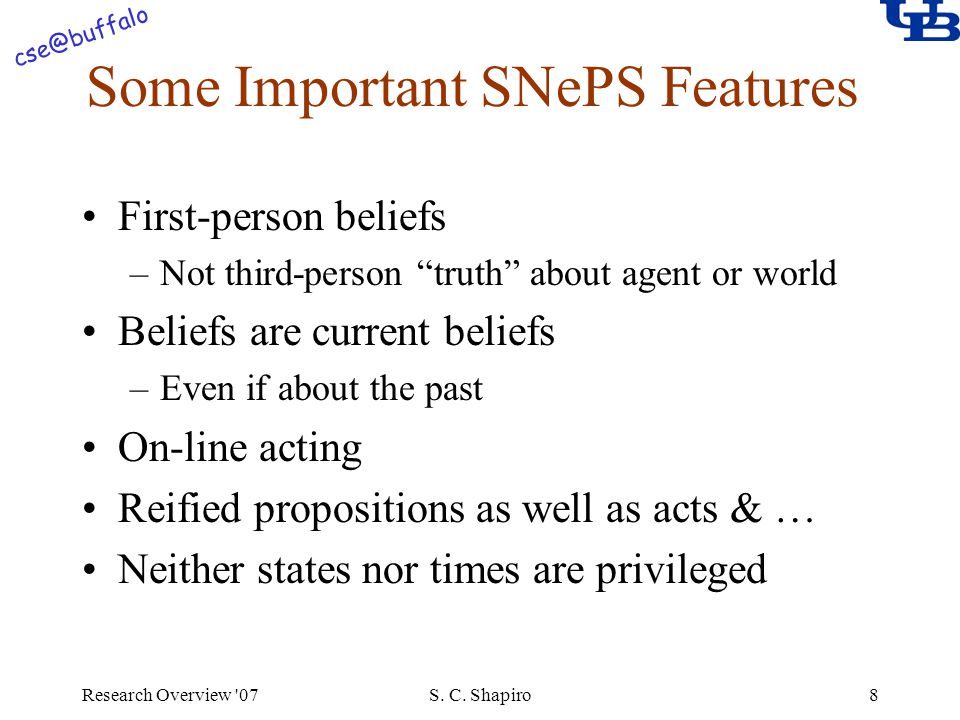

8. cse@buffalo Research Overview '07S. C. Shapiro8 Some Important SNePS Features First-person beliefs –Not third-person “truth” about agent or world Beliefs are current beliefs –Even if about the past On-line acting Reified propositions as well as acts & … Neither states nor times are privileged

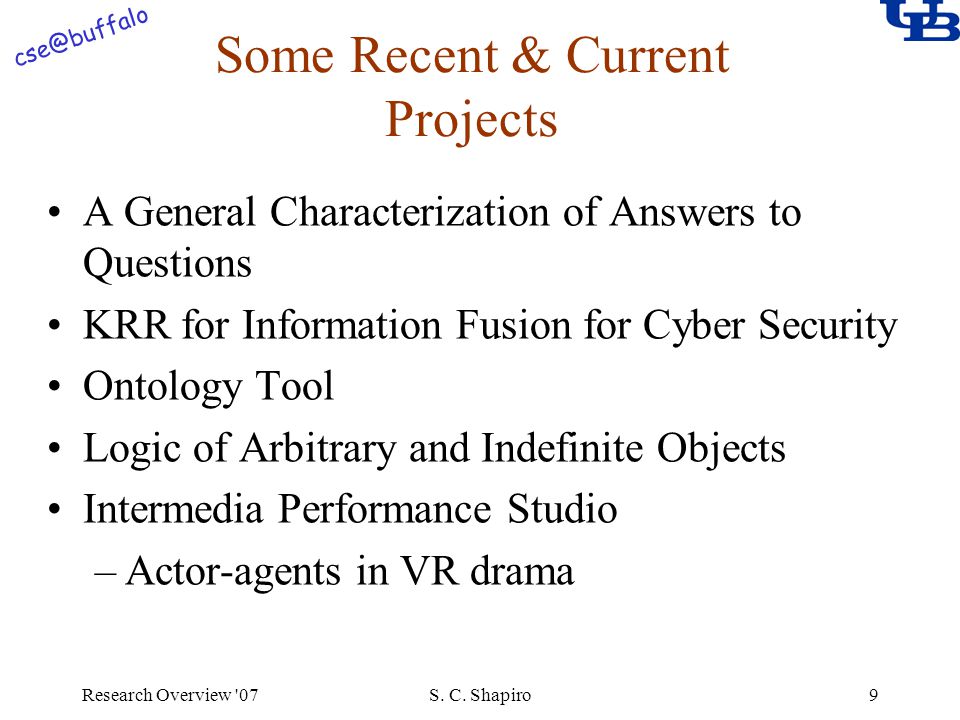

9. cse@buffalo Research Overview '07S. C. Shapiro9 Some Recent & Current Projects A General Characterization of Answers to Questions KRR for Information Fusion for Cyber Security Ontology Tool Logic of Arbitrary and Indefinite Objects Intermedia Performance Studio –Actor-agents in VR drama

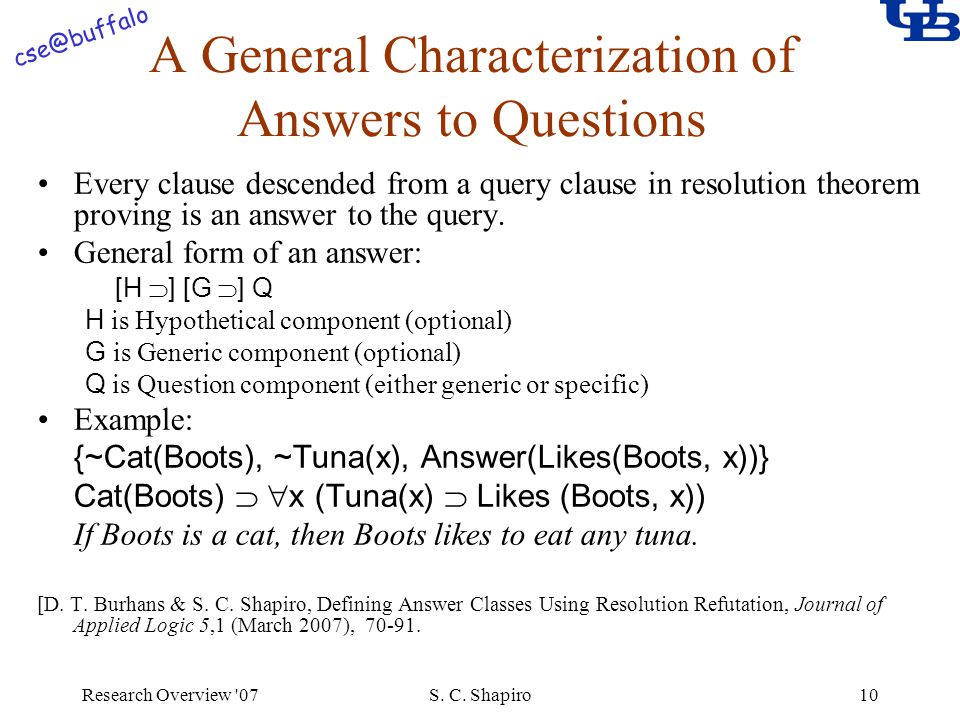

10. cse@buffalo Research Overview '07S. C. Shapiro10 A General Characterization of Answers to Questions Every clause descended from a query clause in resolution theorem proving is an answer to the query. General form of an answer: [H  ] [G  ] Q H is Hypothetical component (optional) G is Generic component (optional) Q is Question component (either generic or specific) Example: {~Cat(Boots), ~Tuna(x), Answer(Likes(Boots, x))} Cat(Boots)   x (Tuna(x)  Likes (Boots, x)) If Boots is a cat, then Boots likes to eat any tuna. [D. T. Burhans & S. C. Shapiro, Defining Answer Classes Using Resolution Refutation, Journal of Applied Logic 5,1 (March 2007), 70-91.

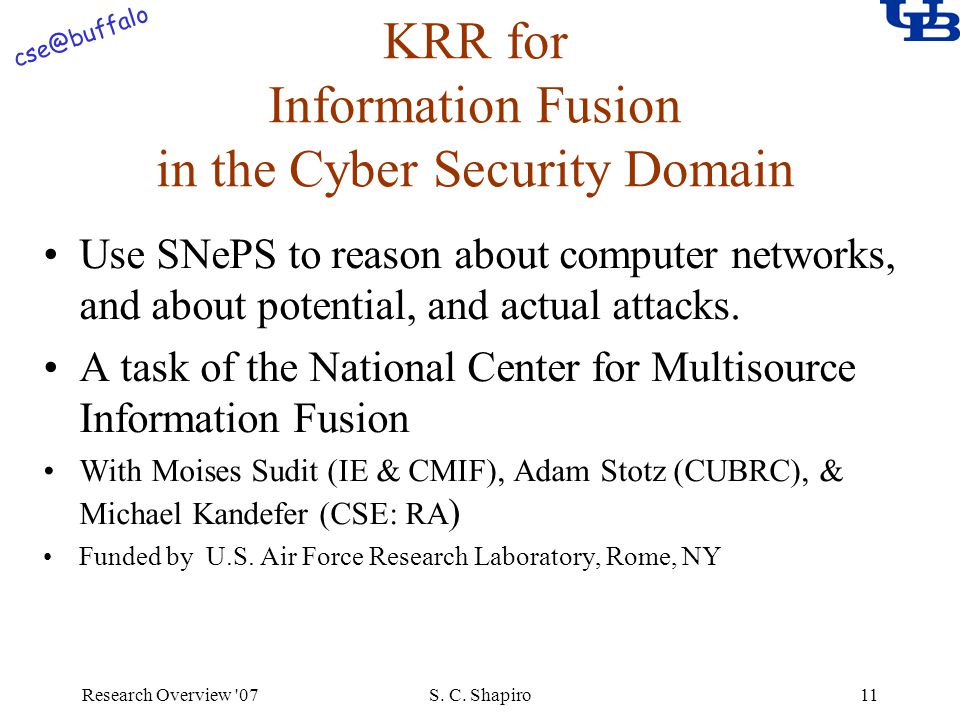

11. cse@buffalo Research Overview '07S. C. Shapiro11 KRR for Information Fusion in the Cyber Security Domain Use SNePS to reason about computer networks, and about potential, and actual attacks. A task of the National Center for Multisource Information Fusion With Moises Sudit (IE & CMIF), Adam Stotz (CUBRC), & Michael Kandefer (CSE: RA ) Funded by U.S. Air Force Research Laboratory, Rome, NY

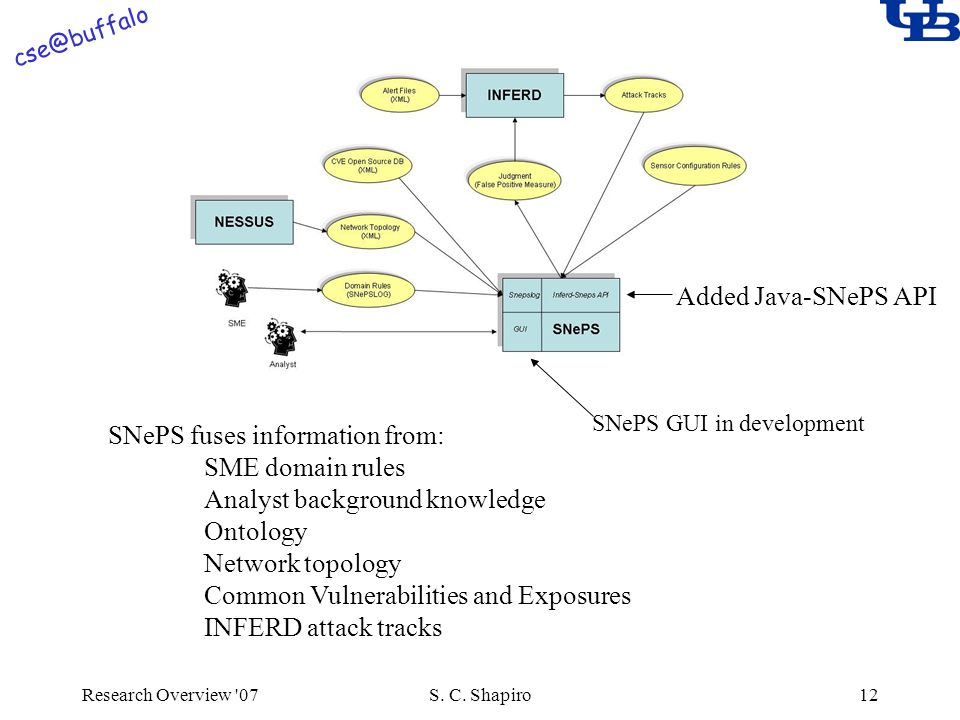

12. cse@buffalo Research Overview '07S. C. Shapiro12 SNePS fuses information from: SME domain rules Analyst background knowledge Ontology Network topology Common Vulnerabilities and Exposures INFERD attack tracks Added Java-SNePS API SNePS GUI in development

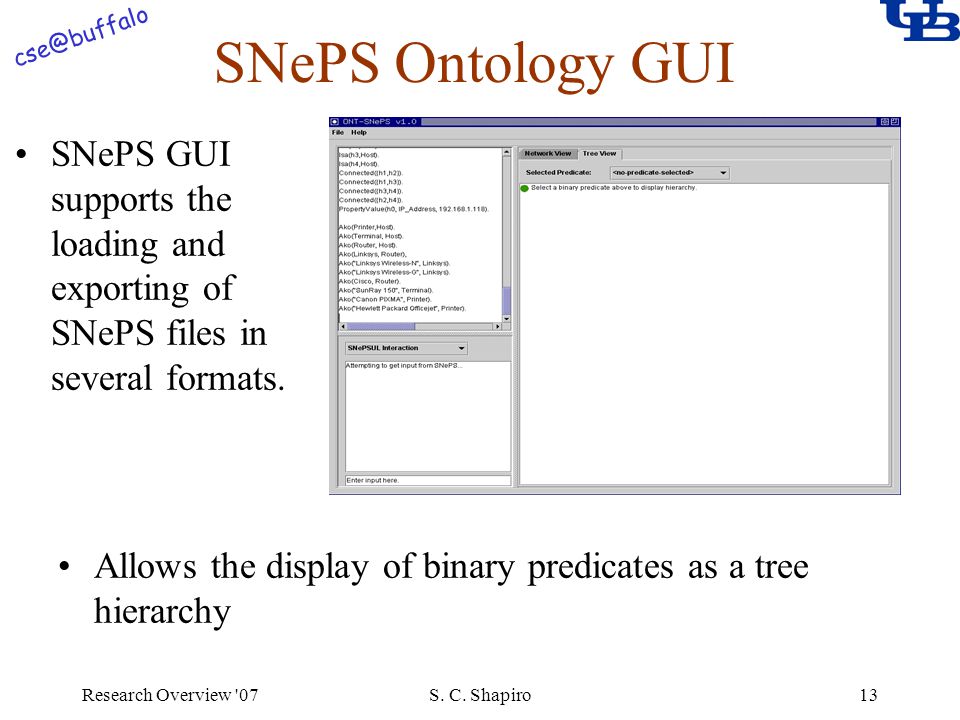

13. cse@buffalo Research Overview '07S. C. Shapiro13 Allows the display of binary predicates as a tree hierarchy SNePS Ontology GUI SNePS GUI supports the loading and exporting of SNePS files in several formats.

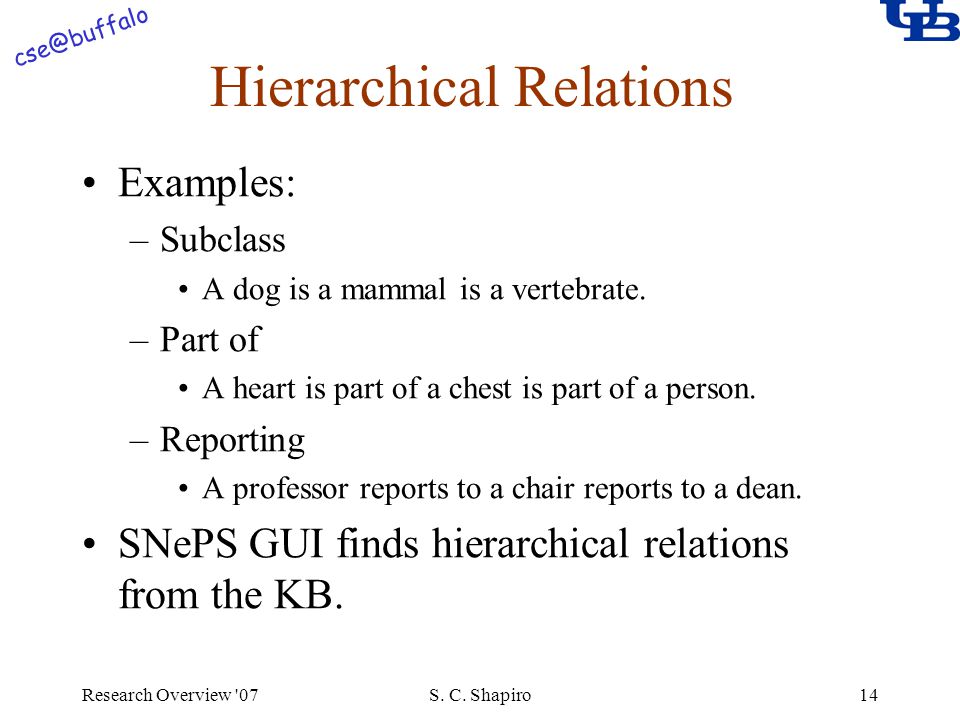

14. cse@buffalo Research Overview '07S. C. Shapiro14 Hierarchical Relations Examples: –Subclass A dog is a mammal is a vertebrate. –Part of A heart is part of a chest is part of a person. –Reporting A professor reports to a chair reports to a dean. SNePS GUI finds hierarchical relations from the KB.

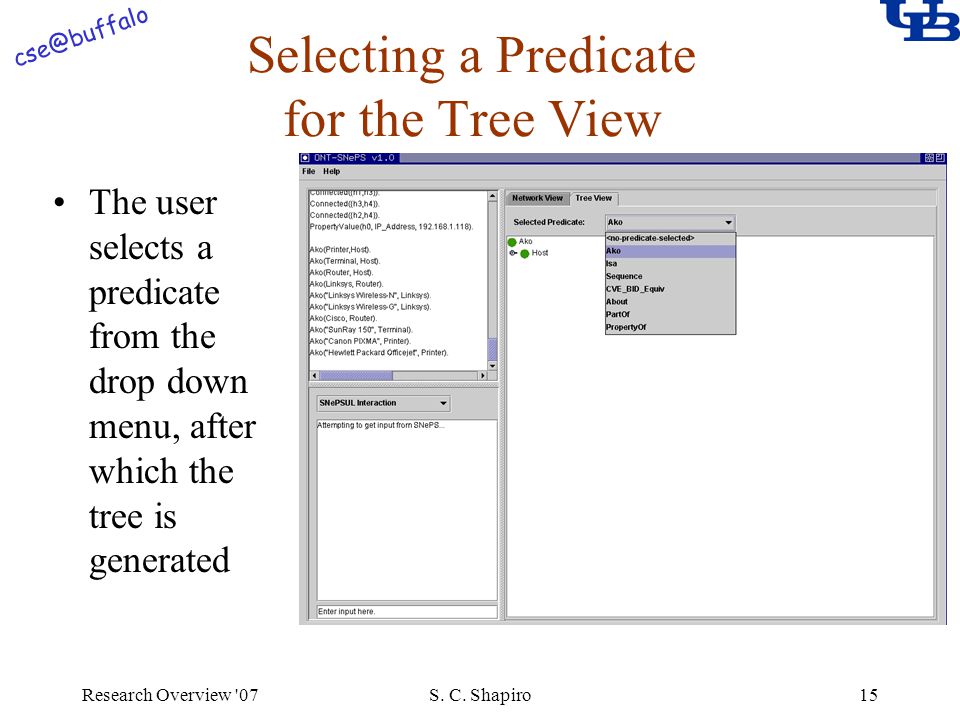

15. cse@buffalo Research Overview '07S. C. Shapiro15 The user selects a predicate from the drop down menu, after which the tree is generated Selecting a Predicate for the Tree View

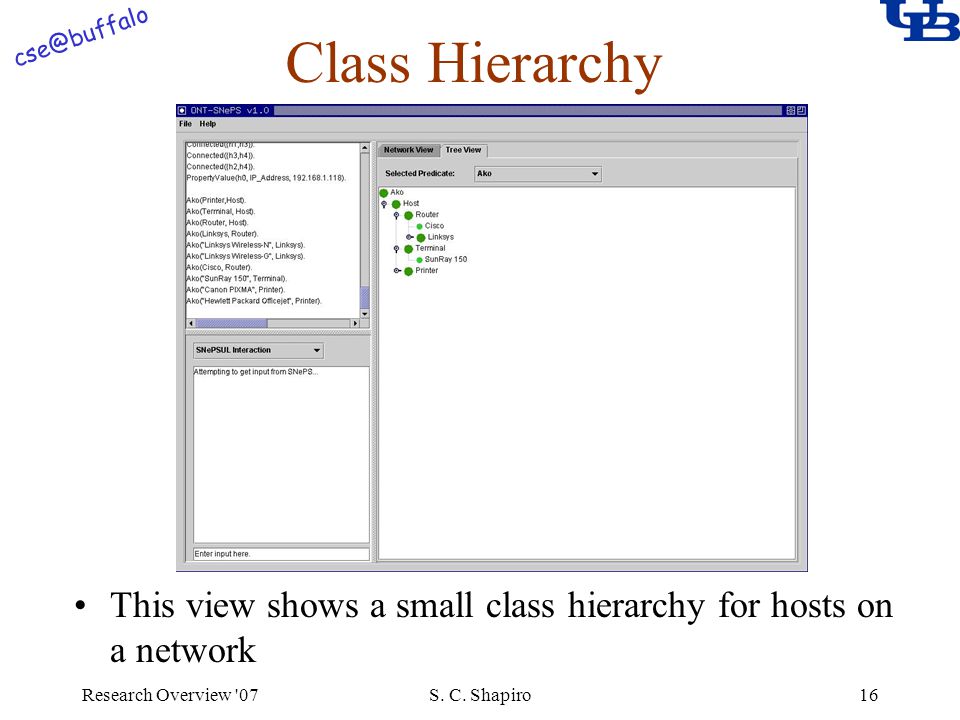

16. cse@buffalo Research Overview '07S. C. Shapiro16 This view shows a small class hierarchy for hosts on a network Class Hierarchy

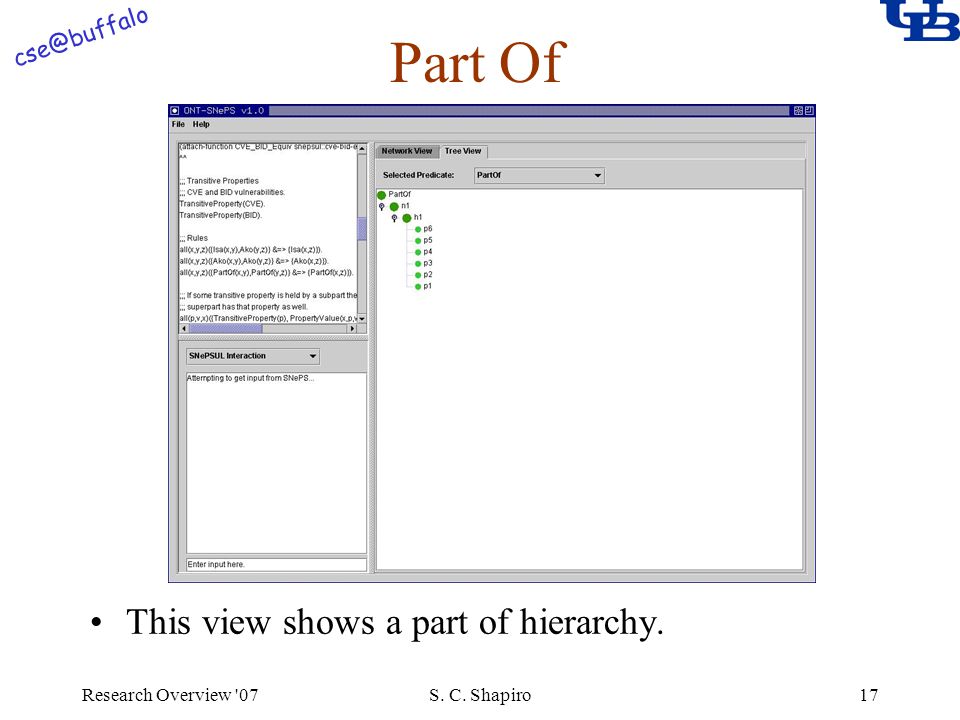

17. cse@buffalo Research Overview '07S. C. Shapiro17 This view shows a part of hierarchy. Part Of

18. cse@buffalo Research Overview '07S. C. Shapiro18 Shows the network representation (drawn using the JUNG network visualization tool) of a SNePS belief base User can zoom, move nodes, and save images as JIMI supported file types (jpg, bmp, png) Tooltips provide information about the propositions expressed by the nodes in the network Ex. This view shows assertions about the connectivity of various hosts (h0-h4) Network View

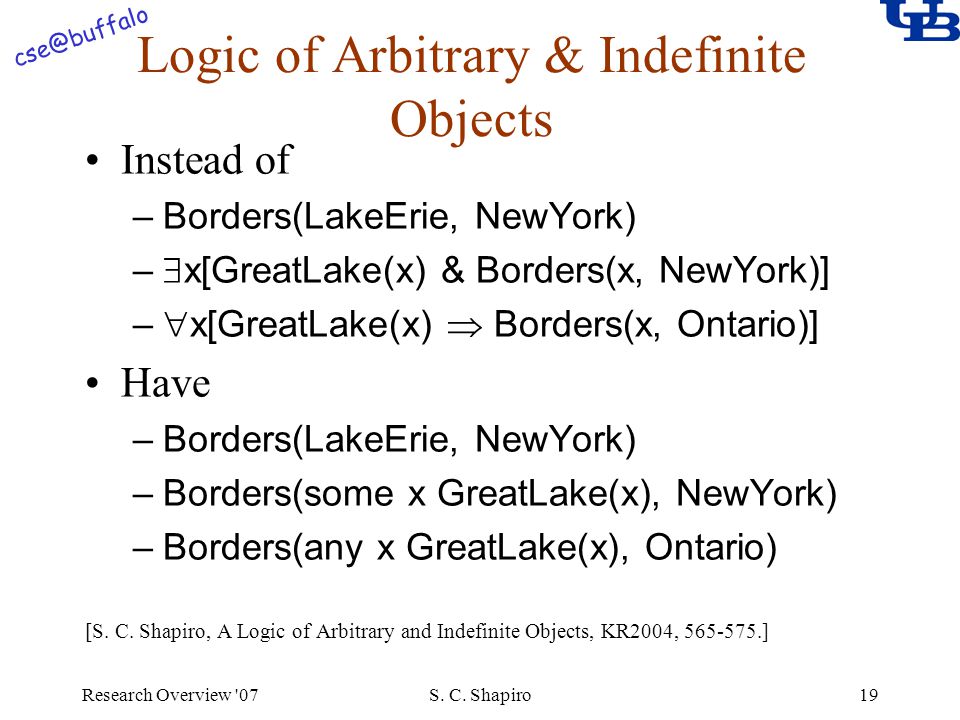

19. cse@buffalo Research Overview '07S. C. Shapiro19 Logic of Arbitrary & Indefinite Objects Instead of –Borders(LakeErie, NewYork) –  x[GreatLake(x) & Borders(x, NewYork)] –  x[GreatLake(x)  Borders(x, Ontario)] Have –Borders(LakeErie, NewYork) –Borders(some x GreatLake(x), NewYork) –Borders(any x GreatLake(x), Ontario) [S. C. Shapiro, A Logic of Arbitrary and Indefinite Objects, KR2004, 565-575.]

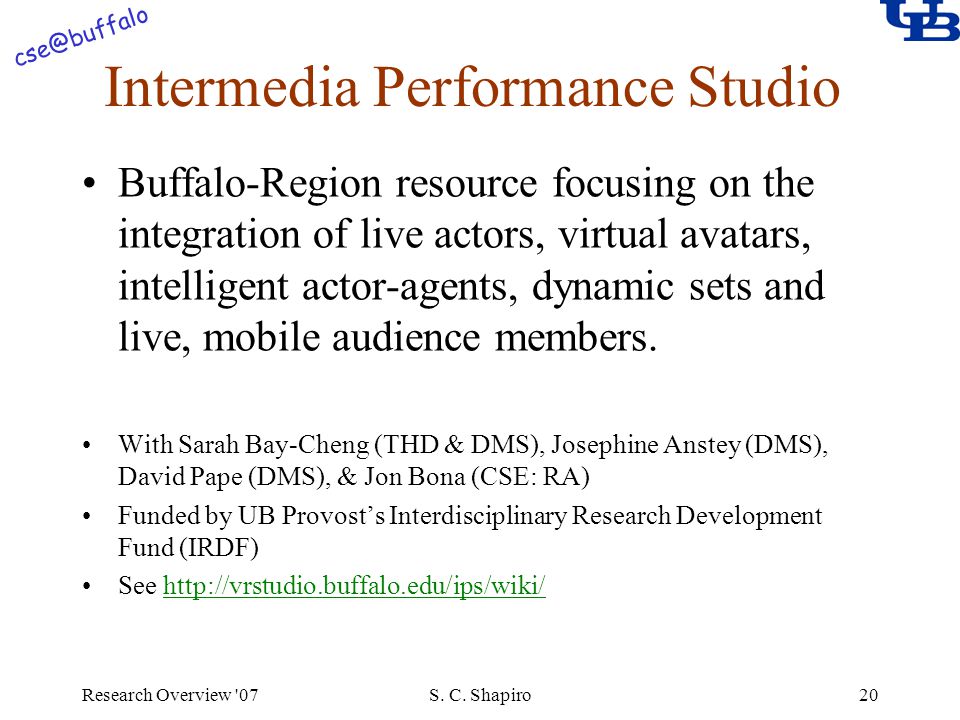

20. cse@buffalo Research Overview '07S. C. Shapiro20 Intermedia Performance Studio Buffalo-Region resource focusing on the integration of live actors, virtual avatars, intelligent actor-agents, dynamic sets and live, mobile audience members. With Sarah Bay-Cheng (THD & DMS), Josephine Anstey (DMS), David Pape (DMS), & Jon Bona (CSE: RA) Funded by UB Provost’s Interdisciplinary Research Development Fund (IRDF) See http://vrstudio.buffalo.edu/ips/wiki/http://vrstudio.buffalo.edu/ips/wiki/

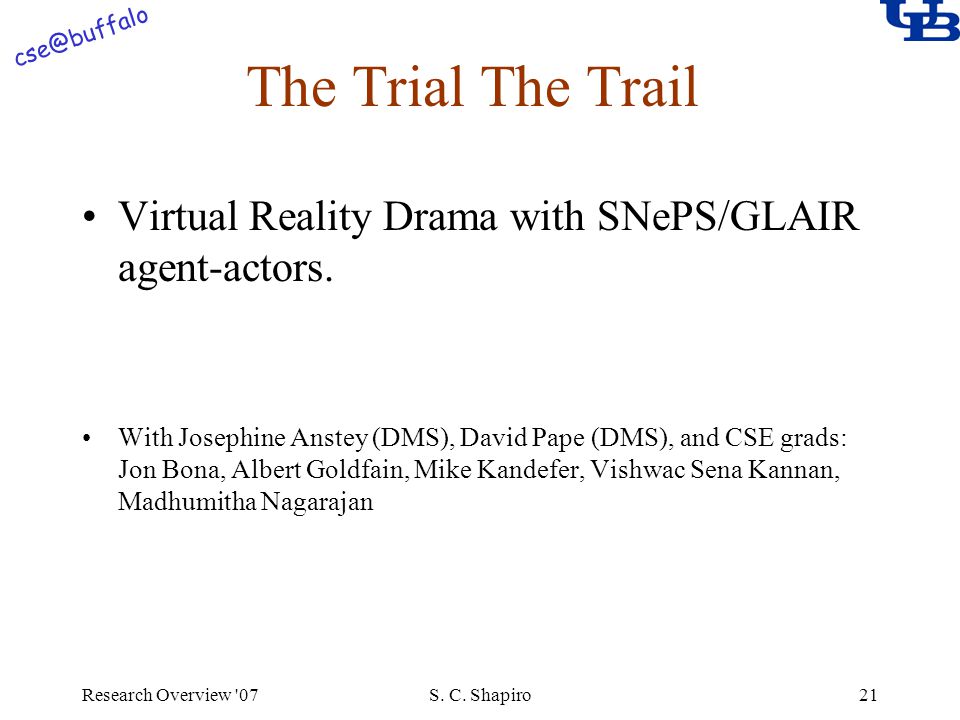

21. cse@buffalo Research Overview '07S. C. Shapiro21 The Trial The Trail Virtual Reality Drama with SNePS/GLAIR agent-actors. With Josephine Anstey (DMS), David Pape (DMS), and CSE grads: Jon Bona, Albert Goldfain, Mike Kandefer, Vishwac Sena Kannan, Madhumitha Nagarajan

22. cse@buffalo Research Overview '07S. C. Shapiro22 Bad guy agents hassling a human participant The Trial The Trail

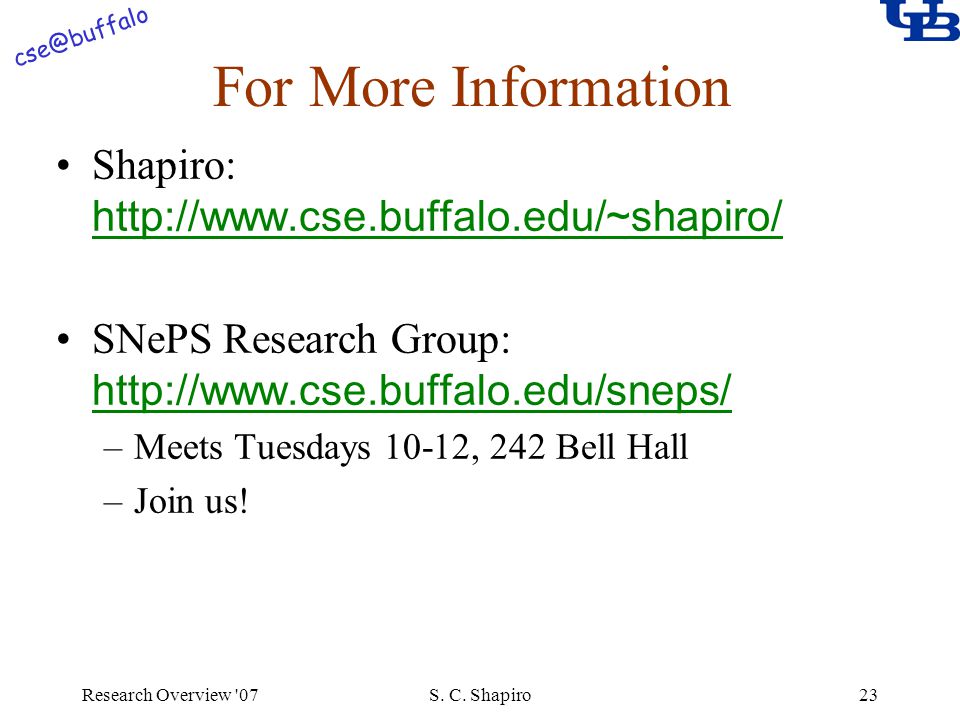

23. cse@buffalo Research Overview '07S. C. Shapiro23 For More Information Shapiro: http://www.cse.buffalo.edu/~shapiro/ http://www.cse.buffalo.edu/~shapiro/ SNePS Research Group: http://www.cse.buffalo.edu/sneps/ http://www.cse.buffalo.edu/sneps/ –Meets Tuesdays 10-12, 242 Bell Hall –Join us!
