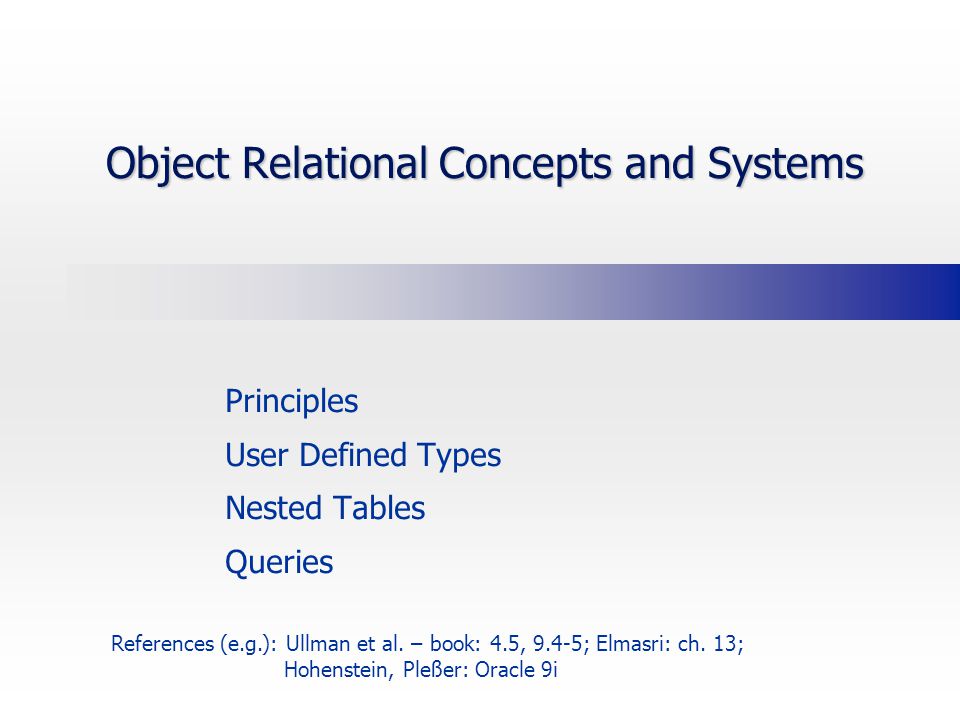

1 Object Relational Concepts and Systems Principles User Defined Types Nested Tables Queries References (e.g.): Ullman et al. – book: 4.5, 9.4-5; Elmasri: ch. 13; Hohenstein, Pleßer: Oracle 9i

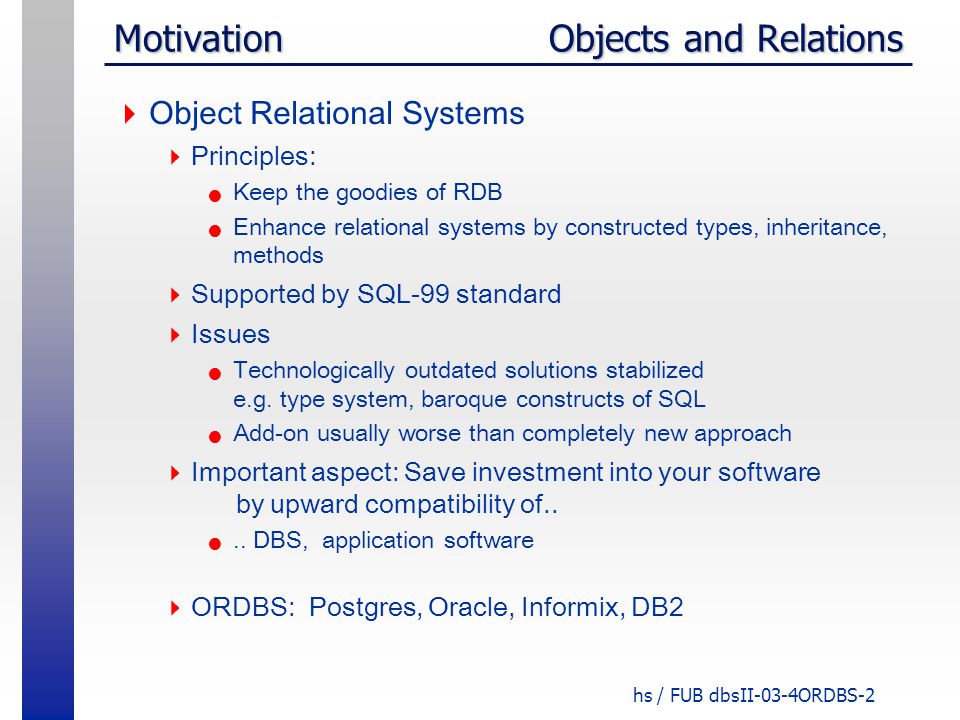

2 hs / FUB dbsII-03-4ORDBS-2 MotivationObjects and Relations  Object Relational Systems  Principles: Keep the goodies of RDB Enhance relational systems by constructed types, inheritance, methods  Supported by SQL-99 standard  Issues Technologically outdated solutions stabilized e.g. type system, baroque constructs of SQL Add-on usually worse than completely new approach  Important aspect: Save investment into your software by upward compatibility of.... DBS, application software  ORDBS: Postgres, Oracle, Informix, DB2

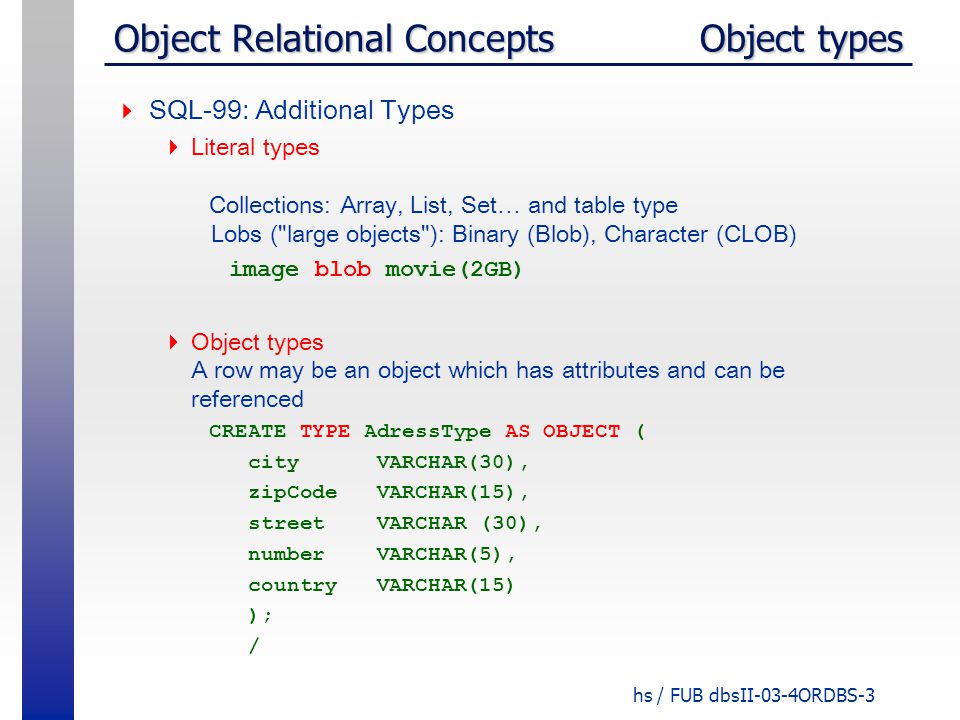

3 hs / FUB dbsII-03-4ORDBS-3 Object Relational ConceptsObject types  SQL-99: Additional Types  Literal types Collections: Array, List, Set… and table type Lobs ("large objects"): Binary (Blob), Character (CLOB) image blob movie(2GB)  Object types A row may be an object which has attributes and can be referenced CREATE TYPE AdressType AS OBJECT ( city VARCHAR(30), zipCode VARCHAR(15), street VARCHAR (30), number VARCHAR(5), country VARCHAR(15) ); /

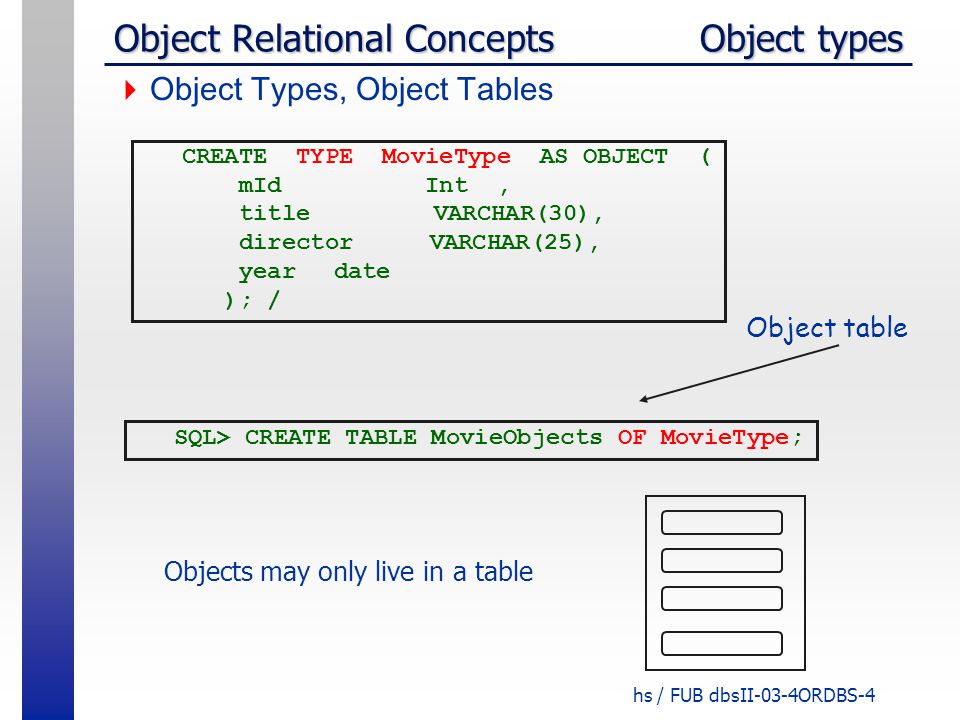

4 hs / FUB dbsII-03-4ORDBS-4 Object Relational ConceptsObject types  Object Types, Object Tables CREATE TYPE MovieType AS OBJECT ( mId Int, title VARCHAR(30), director VARCHAR(25), yeardate ); / SQL> CREATE TABLE MovieObjects OF MovieType; Object table Objects may only live in a table

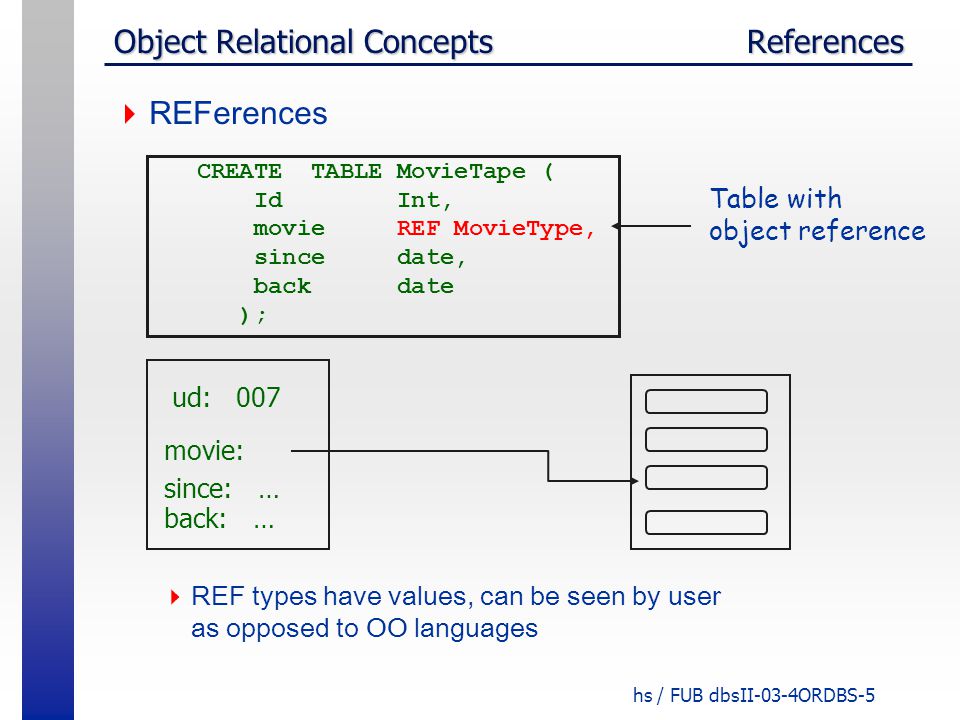

5 hs / FUB dbsII-03-4ORDBS-5 Object Relational ConceptsReferences  REFerences  REF types have values, can be seen by user as opposed to OO languages CREATE TABLE MovieTape ( Id Int, movie REF MovieType, since date, back date ); Table with object reference ud: 007 since: … back: … movie:

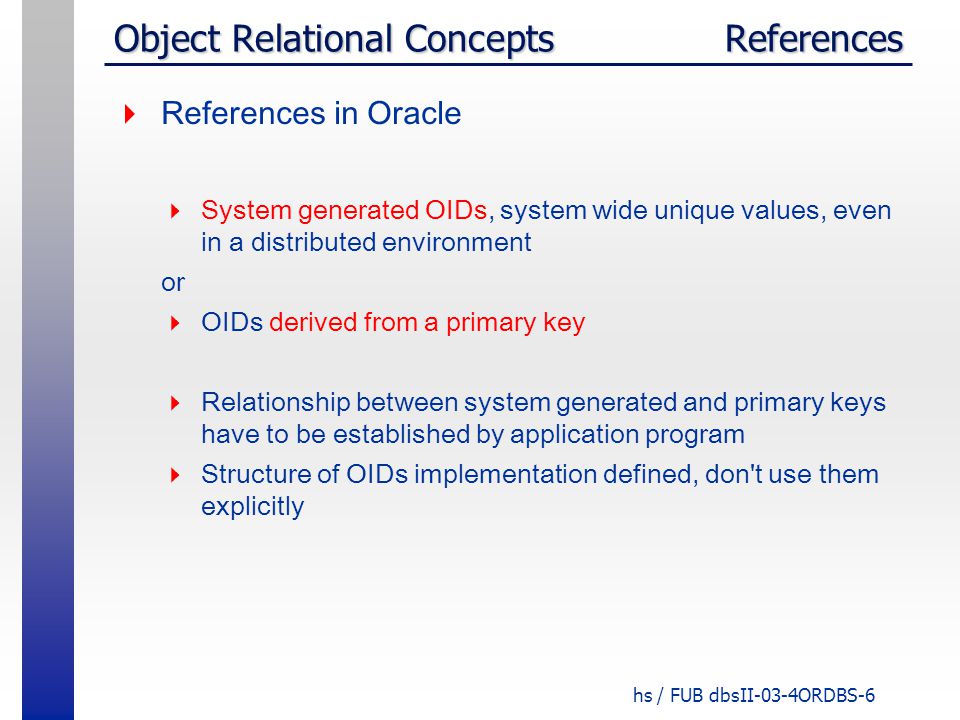

6 hs / FUB dbsII-03-4ORDBS-6 Object Relational ConceptsReferences  References in Oracle  System generated OIDs, system wide unique values, even in a distributed environment or  OIDs derived from a primary key  Relationship between system generated and primary keys have to be established by application program  Structure of OIDs implementation defined, don't use them explicitly

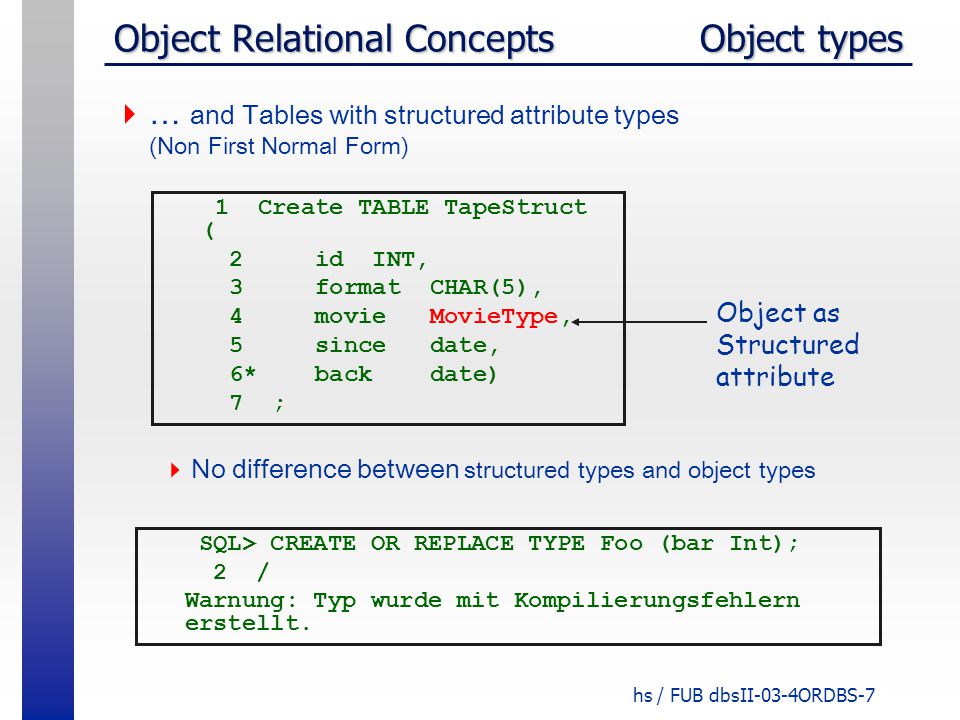

7 hs / FUB dbsII-03-4ORDBS-7 Object Relational ConceptsObject types  … and Tables with structured attribute types (Non First Normal Form)  No difference between structured types and object types 1 Create TABLE TapeStruct ( 2 id INT, 3 format CHAR(5), 4 movie MovieType, 5 since date, 6* back date) 7 ; Object as Structured attribute SQL> CREATE OR REPLACE TYPE Foo (bar Int); 2 / Warnung: Typ wurde mit Kompilierungsfehlern erstellt.

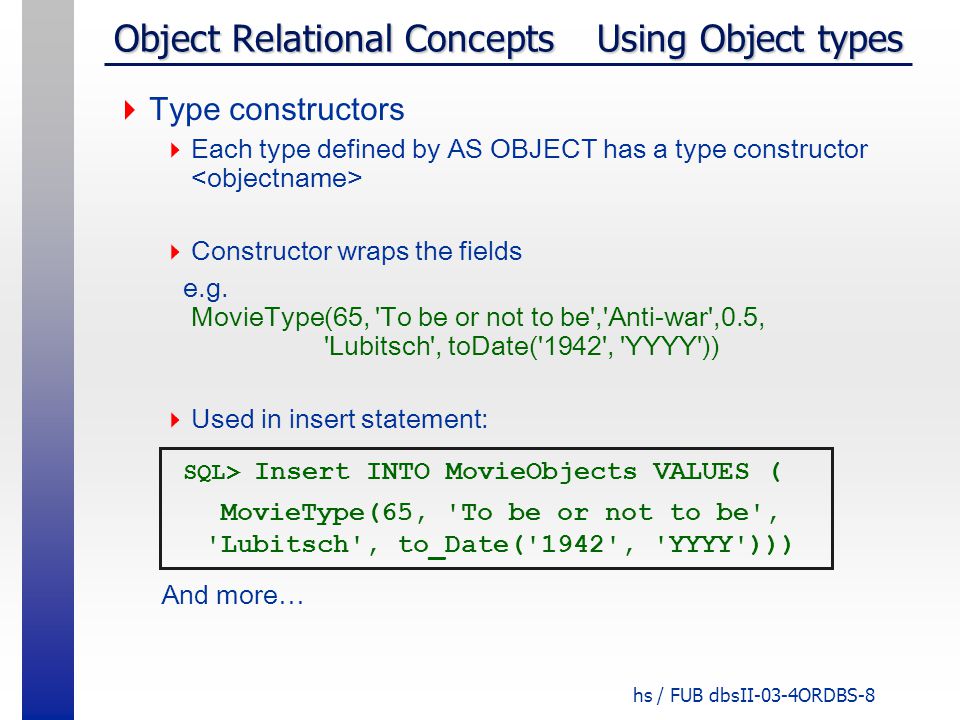

8 hs / FUB dbsII-03-4ORDBS-8 Object Relational ConceptsUsing Object types  Type constructors  Each type defined by AS OBJECT has a type constructor  Constructor wraps the fields e.g. MovieType(65, 'To be or not to be','Anti-war',0.5, 'Lubitsch', toDate('1942', 'YYYY'))  Used in insert statement: And more… SQL> Insert INTO MovieObjects VALUES ( MovieType(65, 'To be or not to be', 'Lubitsch', to_Date('1942', 'YYYY')))

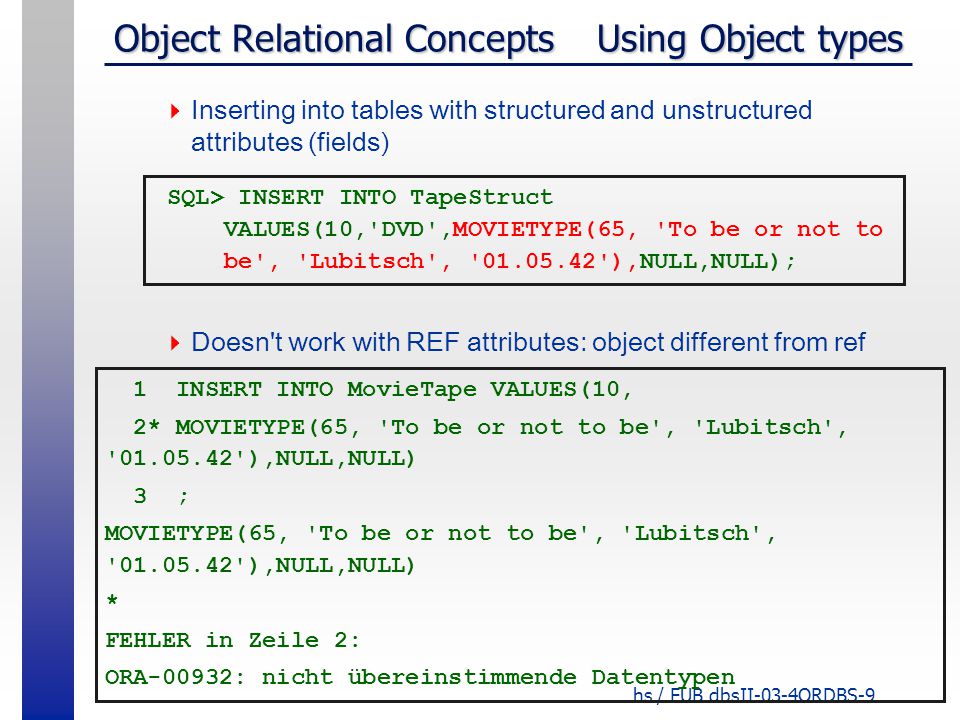

9 hs / FUB dbsII-03-4ORDBS-9 Object Relational ConceptsUsing Object types  Inserting into tables with structured and unstructured attributes (fields)  Doesn't work with REF attributes: object different from ref SQL> INSERT INTO TapeStruct VALUES(10,'DVD',MOVIETYPE(65, 'To be or not to be', 'Lubitsch', '01.05.42'),NULL,NULL); 1 INSERT INTO MovieTape VALUES(10, 2* MOVIETYPE(65, 'To be or not to be', 'Lubitsch', '01.05.42'),NULL,NULL) 3 ; MOVIETYPE(65, 'To be or not to be', 'Lubitsch', '01.05.42'),NULL,NULL) * FEHLER in Zeile 2: ORA-00932: nicht übereinstimmende Datentypen

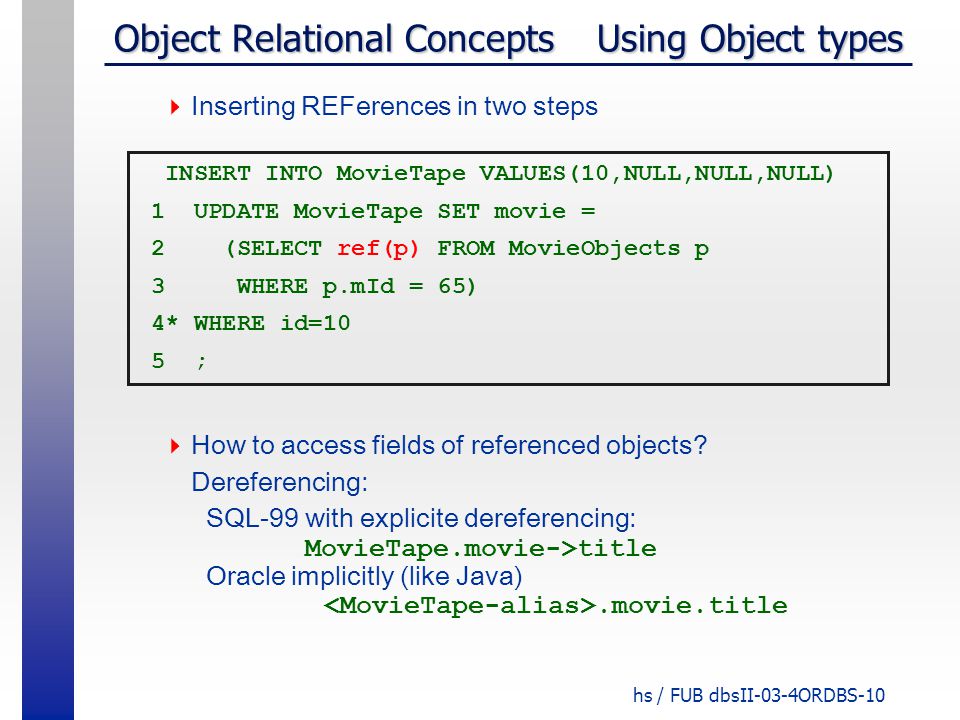

10 hs / FUB dbsII-03-4ORDBS-10 Object Relational ConceptsUsing Object types  Inserting REFerences in two steps  How to access fields of referenced objects? Dereferencing: SQL-99 with explicite dereferencing: MovieTape.movie->title Oracle implicitly (like Java).movie.title INSERT INTO MovieTape VALUES(10,NULL,NULL,NULL) 1 UPDATE MovieTape SET movie = 2 (SELECT ref(p) FROM MovieObjects p 3 WHERE p.mId = 65) 4* WHERE id=10 5 ;

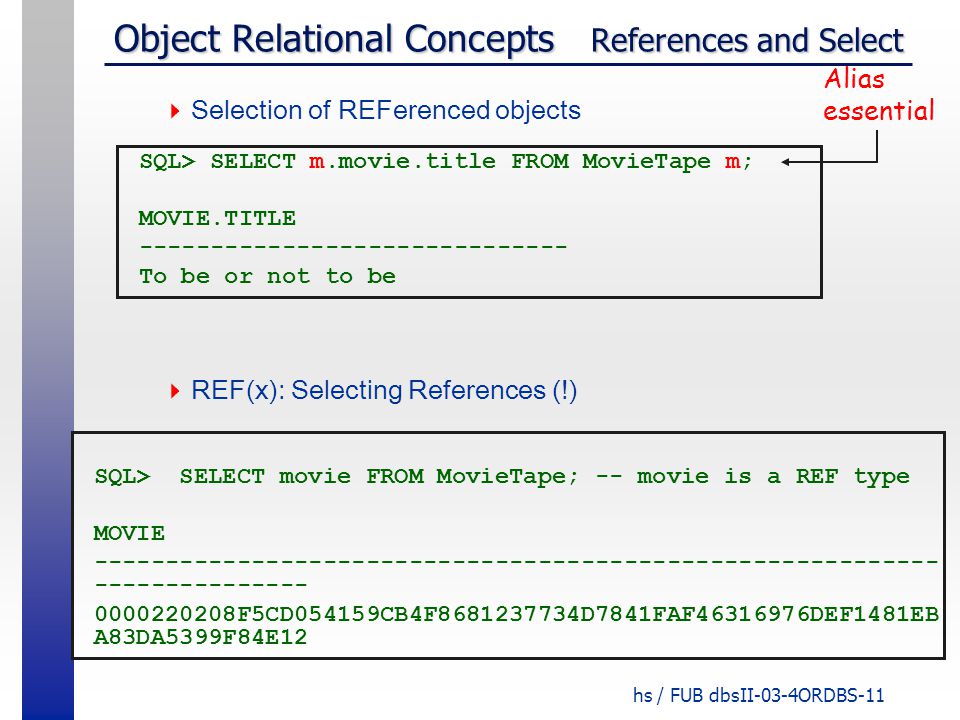

11 hs / FUB dbsII-03-4ORDBS-11 Object Relational Concepts References and Select  Selection of REFerenced objects  REF(x): Selecting References (!) SQL> SELECT m.movie.title FROM MovieTape m; MOVIE.TITLE ------------------------------ To be or not to be Alias essential SQL> SELECT movie FROM MovieTape; -- movie is a REF type MOVIE ----------------------------------------------------------- --------------- 0000220208F5CD054159CB4F8681237734D7841FAF46316976DEF1481EB A83DA5399F84E12

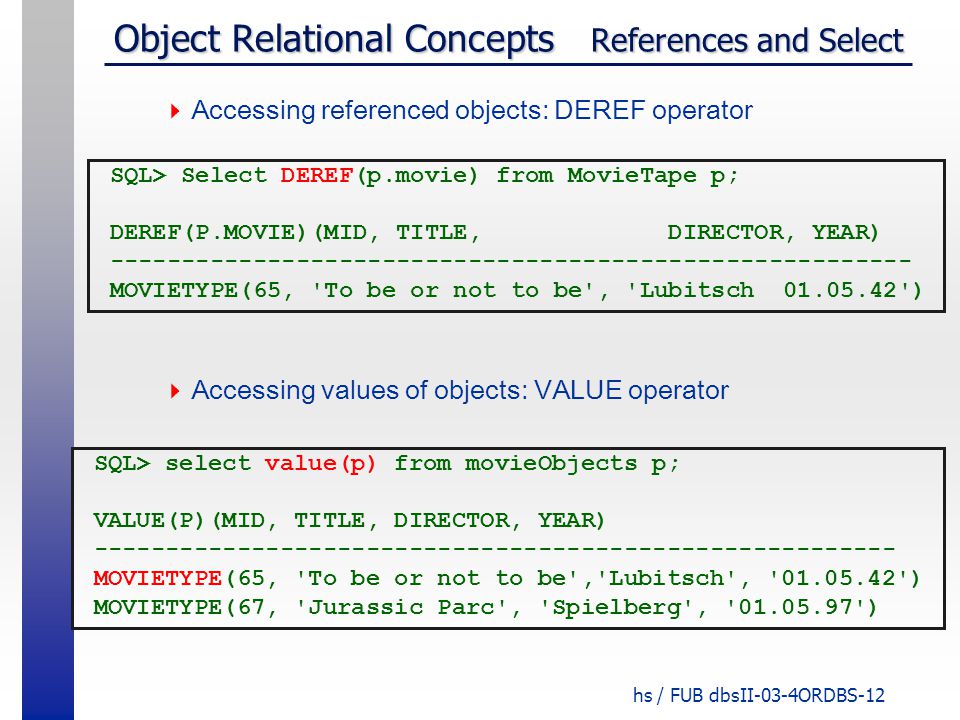

12 hs / FUB dbsII-03-4ORDBS-12 Object Relational Concepts References and Select  Accessing referenced objects: DEREF operator  Accessing values of objects: VALUE operator SQL> Select DEREF(p.movie) from MovieTape p; DEREF(P.MOVIE)(MID, TITLE, DIRECTOR, YEAR) -------------------------------------------------------- MOVIETYPE(65, 'To be or not to be', 'Lubitsch 01.05.42') SQL> select value(p) from movieObjects p; VALUE(P)(MID, TITLE, DIRECTOR, YEAR) -------------------------------------------------------- MOVIETYPE(65, 'To be or not to be','Lubitsch', '01.05.42') MOVIETYPE(67, 'Jurassic Parc', 'Spielberg', '01.05.97')

13 hs / FUB dbsII-03-4ORDBS-13 Object Relational ConceptsSelect  Emulation of table select  Means: object tables may be queried like ordinary tables  But relational tables are different from object tables – even if no oo features are used select * from MovieObjects; MID TITLE DIRECTOR YEAR --- ------------------- ------------- -------- 65 To be or not to be Lubitsch 01.05.42 67 Jurassic Parc Spielberg 01.05.97

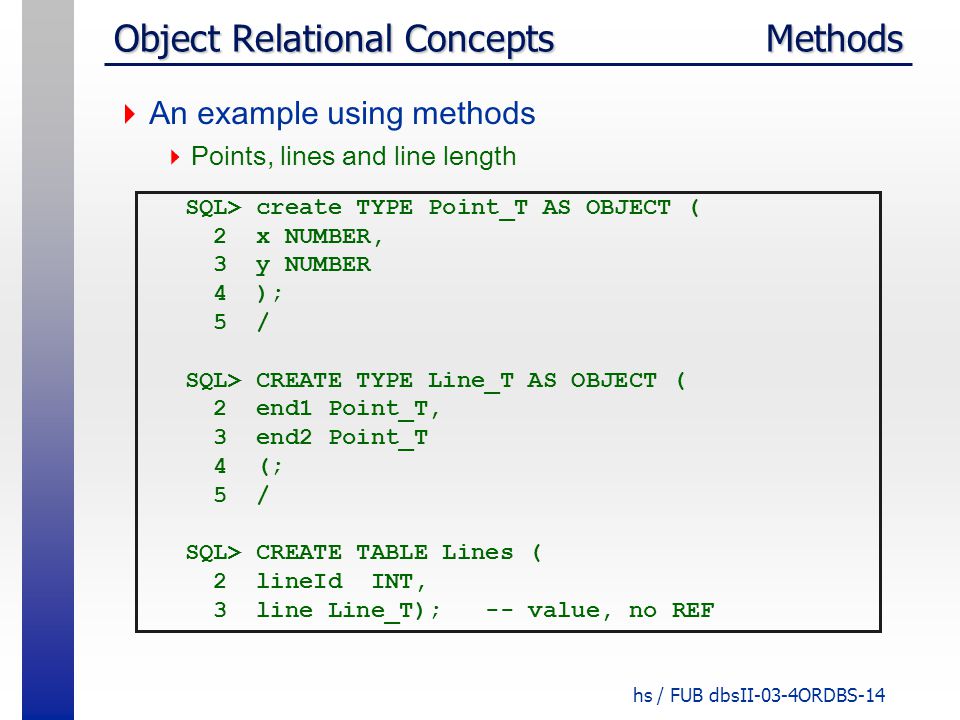

14 hs / FUB dbsII-03-4ORDBS-14 Object Relational ConceptsMethods  An example using methods  Points, lines and line length SQL> create TYPE Point_T AS OBJECT ( 2 x NUMBER, 3 y NUMBER 4 ); 5 / SQL> CREATE TYPE Line_T AS OBJECT ( 2 end1 Point_T, 3 end2 Point_T 4 (; 5 / SQL> CREATE TABLE Lines ( 2 lineId INT, 3 line Line_T); -- value, no REF

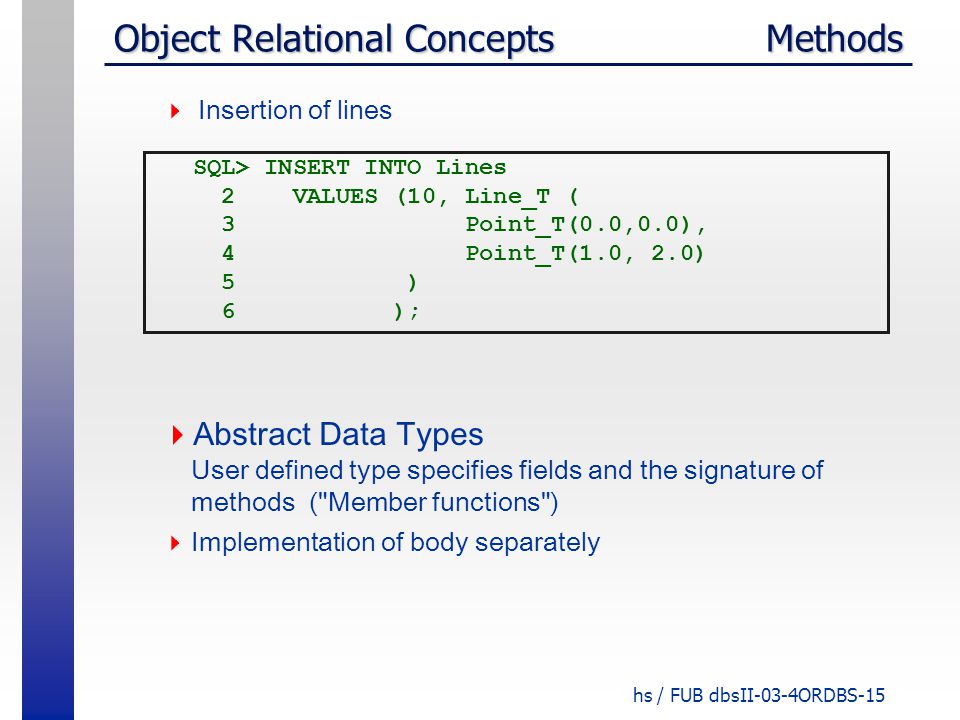

15 hs / FUB dbsII-03-4ORDBS-15 Object Relational ConceptsMethods  Insertion of lines  Abstract Data Types User defined type specifies fields and the signature of methods ("Member functions")  Implementation of body separately SQL> INSERT INTO Lines 2 VALUES (10, Line_T ( 3 Point_T(0.0,0.0), 4 Point_T(1.0, 2.0) 5 ) 6 );

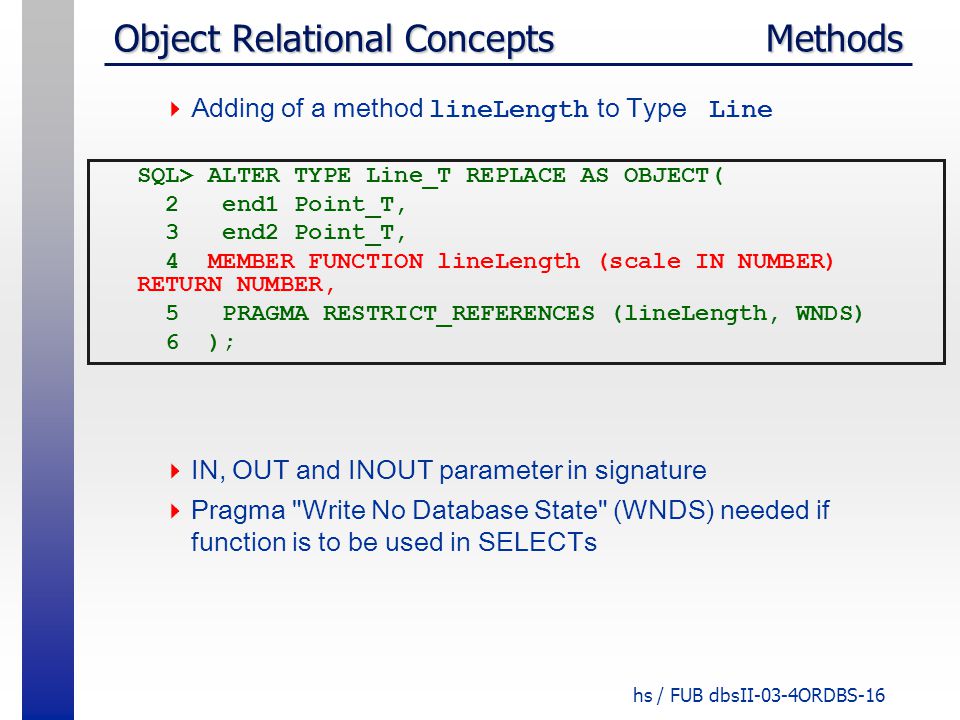

16 hs / FUB dbsII-03-4ORDBS-16 Object Relational ConceptsMethods  Adding of a method lineLength to Type Line  IN, OUT and INOUT parameter in signature  Pragma "Write No Database State" (WNDS) needed if function is to be used in SELECTs SQL> ALTER TYPE Line_T REPLACE AS OBJECT( 2 end1 Point_T, 3 end2 Point_T, 4 MEMBER FUNCTION lineLength (scale IN NUMBER) RETURN NUMBER, 5 PRAGMA RESTRICT_REFERENCES (lineLength, WNDS) 6 );

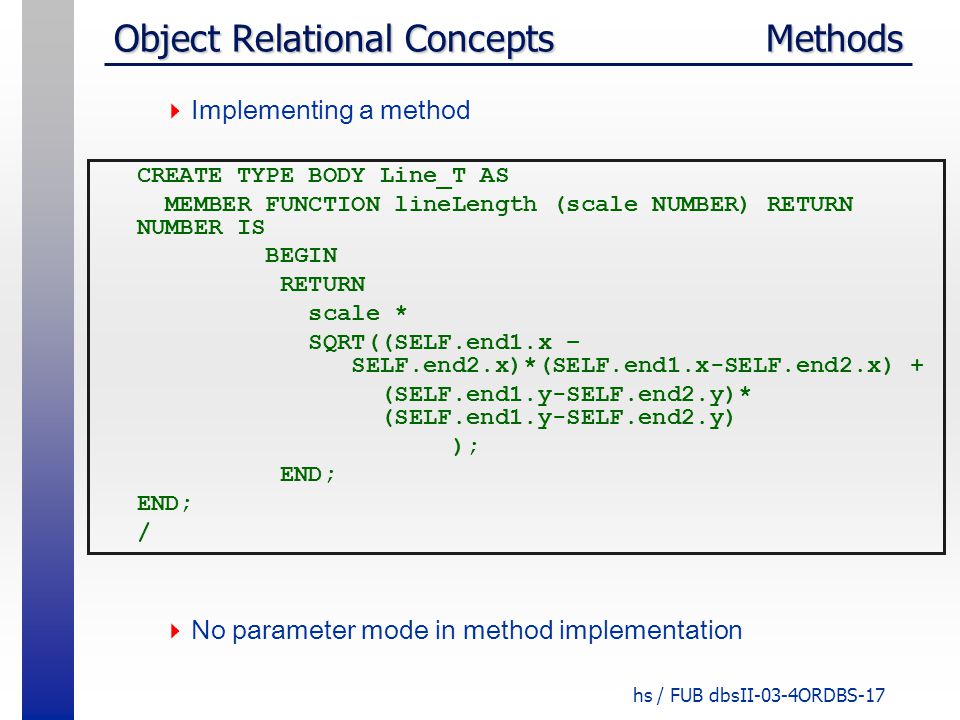

17 hs / FUB dbsII-03-4ORDBS-17 Object Relational ConceptsMethods  Implementing a method  No parameter mode in method implementation CREATE TYPE BODY Line_T AS MEMBER FUNCTION lineLength (scale NUMBER) RETURN NUMBER IS BEGIN RETURN scale * SQRT((SELF.end1.x – SELF.end2.x)*(SELF.end1.x-SELF.end2.x) + (SELF.end1.y-SELF.end2.y)* (SELF.end1.y-SELF.end2.y) ); END; /

18 hs / FUB dbsII-03-4ORDBS-18 Object Relational ConceptsMethods  Selection with user-defined methods SELECT lineId, l.line.lineLength(1.0) FROM Lines l; LINEID L.LINE.LINELENGTH(1.0) ------ ---------------------- 10 2,23606798 30,282842712 SELECT l.line.end1, l.line.end2 FROM Lines l WHERE l.line.lineLength(1) > 1.5; LINE.END1(X, Y) LINE.END2(X, Y) ----------------------------------------------- POINT_T(0, 0) POINT_T(1, 2)

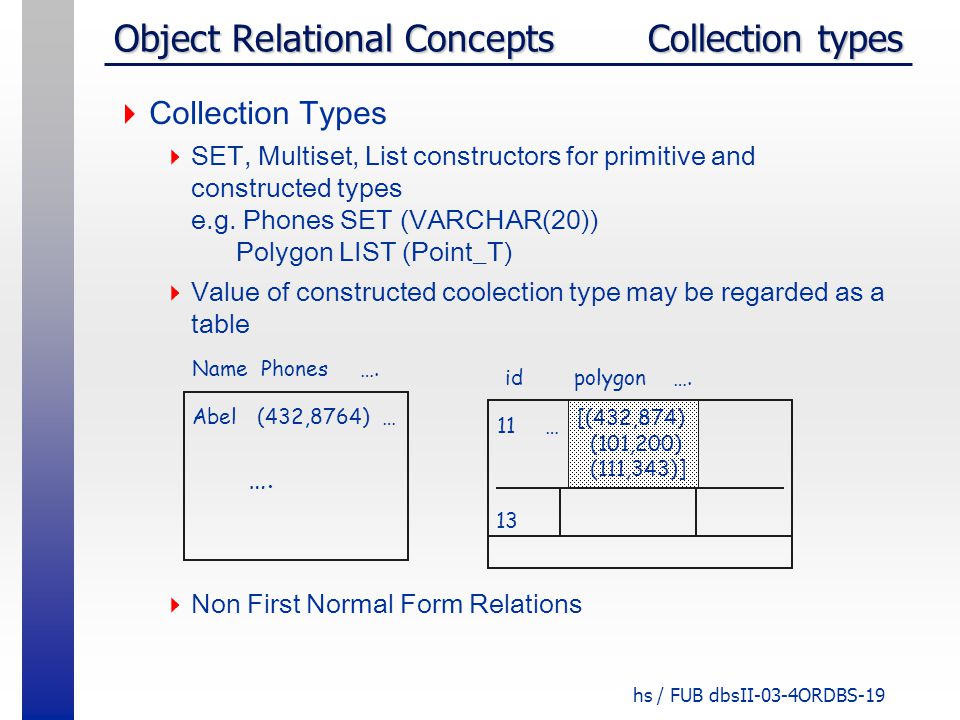

19 hs / FUB dbsII-03-4ORDBS-19 Object Relational ConceptsCollection types  Collection Types  SET, Multiset, List constructors for primitive and constructed types e.g. Phones SET (VARCHAR(20)) Polygon LIST (Point_T)  Value of constructed coolection type may be regarded as a table  Non First Normal Form Relations Name Phones …. Abel (432,8764) … …. id polygon …. 11… [(432,874) (101,200) (111,343)] 13

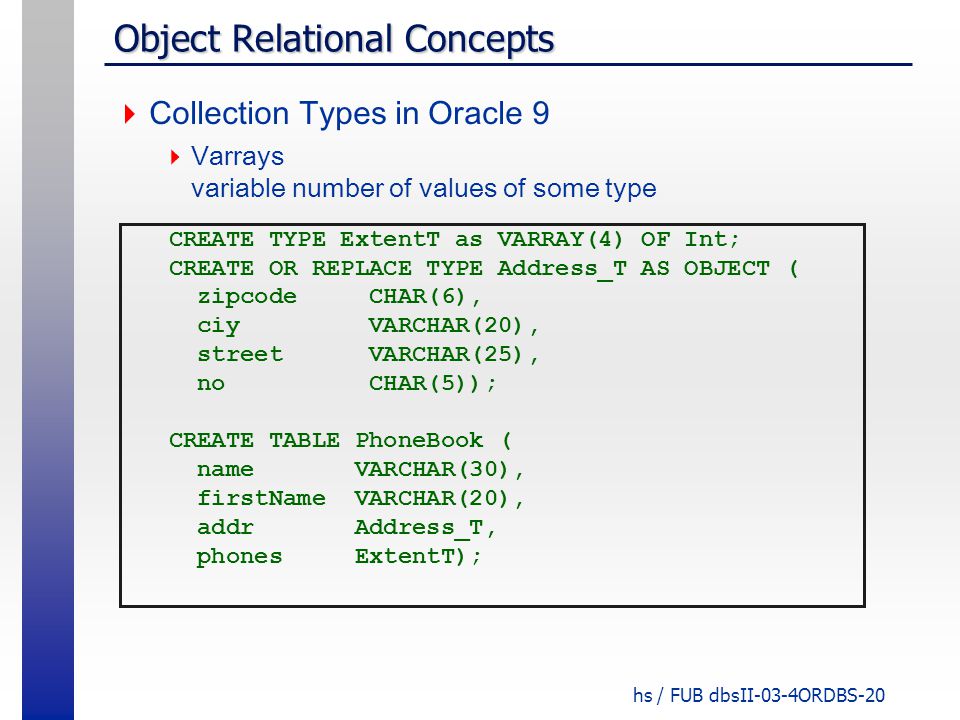

20 hs / FUB dbsII-03-4ORDBS-20 Object Relational Concepts  Collection Types in Oracle 9  Varrays variable number of values of some type CREATE TYPE ExtentT as VARRAY(4) OF Int; CREATE OR REPLACE TYPE Address_T AS OBJECT ( zipcode CHAR(6), ciy VARCHAR(20), street VARCHAR(25), no CHAR(5)); CREATE TABLE PhoneBook ( name VARCHAR(30), firstName VARCHAR(20), addr Address_T, phones ExtentT);

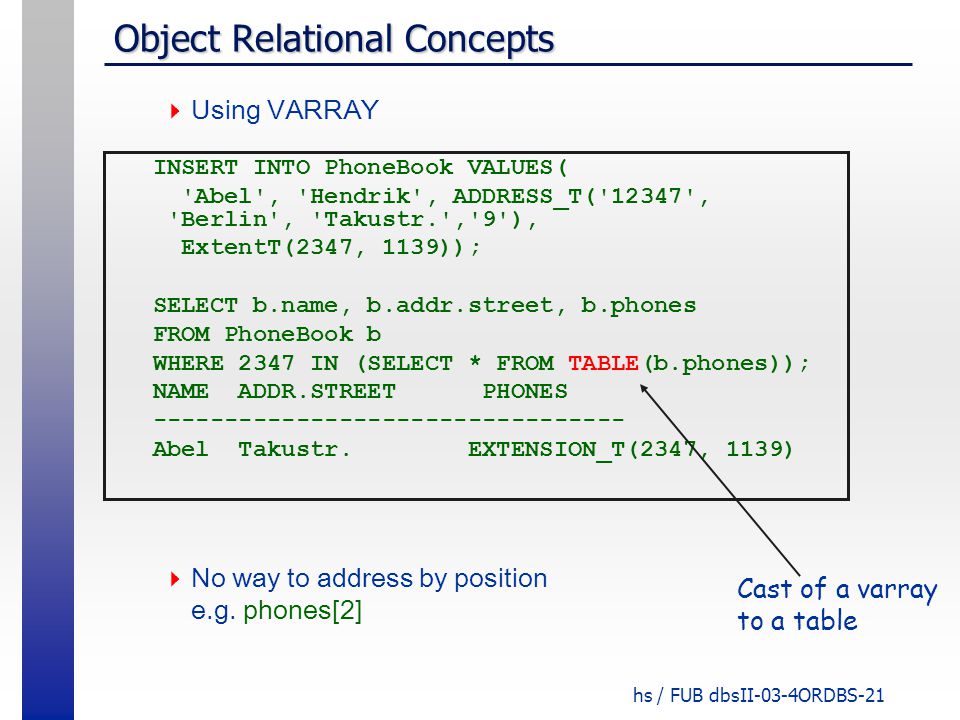

21 hs / FUB dbsII-03-4ORDBS-21 Object Relational Concepts  Using VARRAY  No way to address by position e.g. phones[2] INSERT INTO PhoneBook VALUES( 'Abel', 'Hendrik', ADDRESS_T('12347', 'Berlin', 'Takustr.','9'), ExtentT(2347, 1139)); SELECT b.name, b.addr.street, b.phones FROM PhoneBook b WHERE 2347 IN (SELECT * FROM TABLE(b.phones)); NAME ADDR.STREET PHONES --------------------------------- Abel Takustr. EXTENSION_T(2347, 1139) Cast of a varray to a table

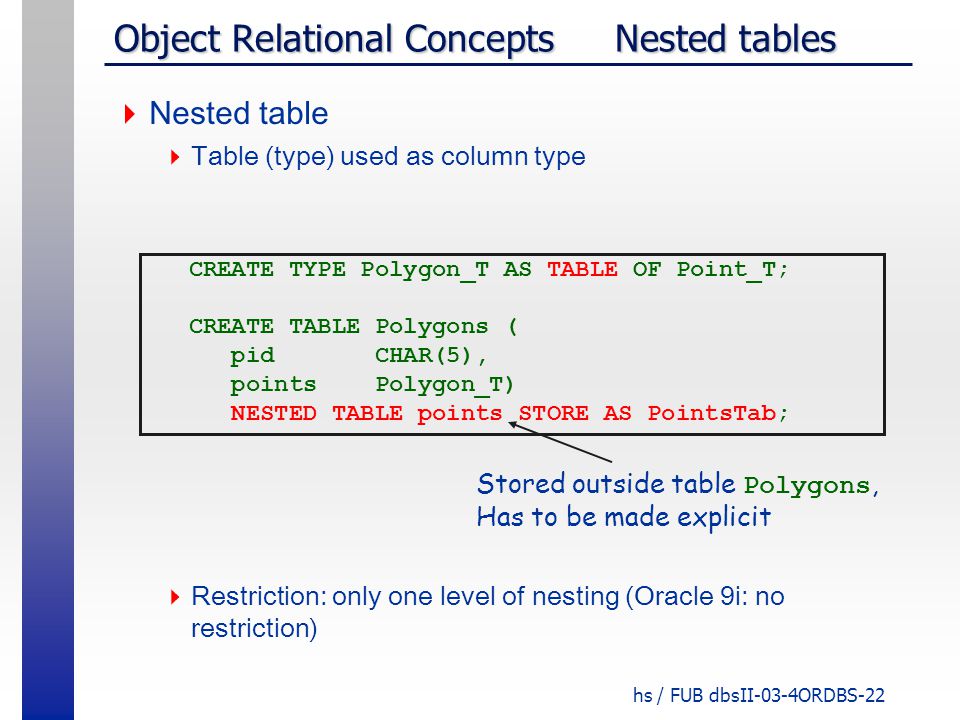

22 hs / FUB dbsII-03-4ORDBS-22 Object Relational Concepts Nested tables  Nested table  Table (type) used as column type  Restriction: only one level of nesting (Oracle 9i: no restriction) CREATE TYPE Polygon_T AS TABLE OF Point_T; CREATE TABLE Polygons ( pid CHAR(5), points Polygon_T) NESTED TABLE points STORE AS PointsTab; Stored outside table Polygons, Has to be made explicit

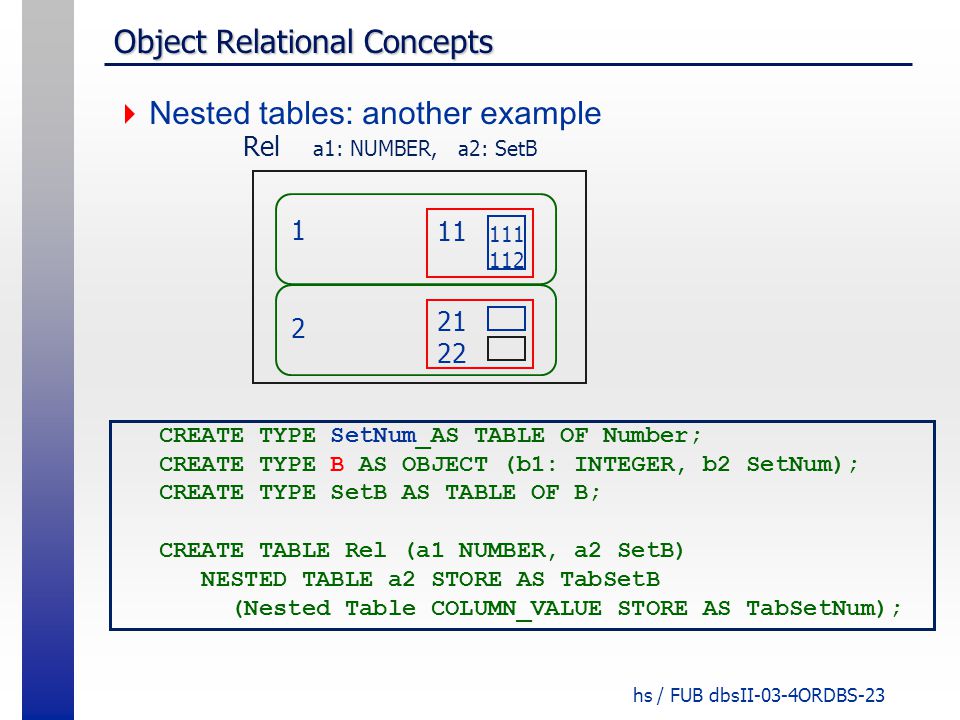

23 hs / FUB dbsII-03-4ORDBS-23 Object Relational Concepts  Nested tables: another example CREATE TYPE SetNum_AS TABLE OF Number; CREATE TYPE B AS OBJECT (b1: INTEGER, b2 SetNum); CREATE TYPE SetB AS TABLE OF B; CREATE TABLE Rel (a1 NUMBER, a2 SetB) NESTED TABLE a2 STORE AS TabSetB (Nested Table COLUMN_VALUE STORE AS TabSetNum); 1 2 21 22 11 111 112 Rel a1: NUMBER, a2: SetB

24 hs / FUB dbsII-03-4ORDBS-24 Object Relational Concepts  Nested Tables: insertion  Insert values of 'inner table' as a list of constructed values (here of type Point_T ) INSERT INTO Polygons VALUES( 'squ01', Polygon_T(Point_T(0.0, 0.0), Point_T(0.0, 1.0), Point_T(1.0, 0.0), Point_T(1.0, 1.0) ) );

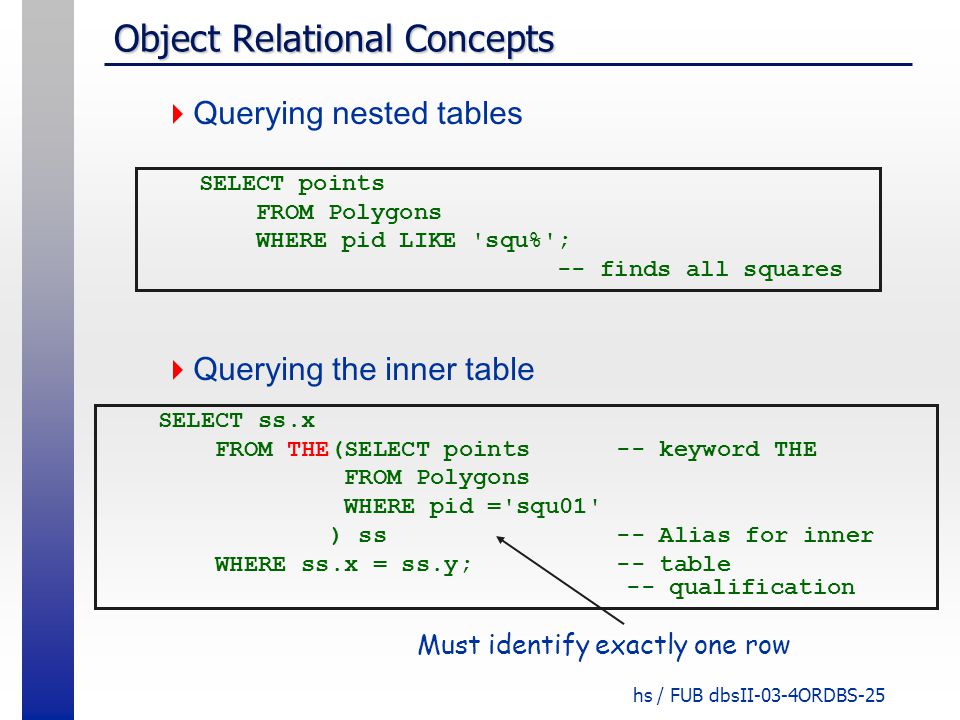

25 hs / FUB dbsII-03-4ORDBS-25 Object Relational Concepts  Querying nested tables  Querying the inner table SELECT points FROM Polygons WHERE pid LIKE 'squ%'; -- finds all squares SELECT ss.x FROM THE(SELECT points -- keyword THE FROM Polygons WHERE pid ='squ01' ) ss -- Alias for inner WHERE ss.x = ss.y; -- table -- qualification Must identify exactly one row

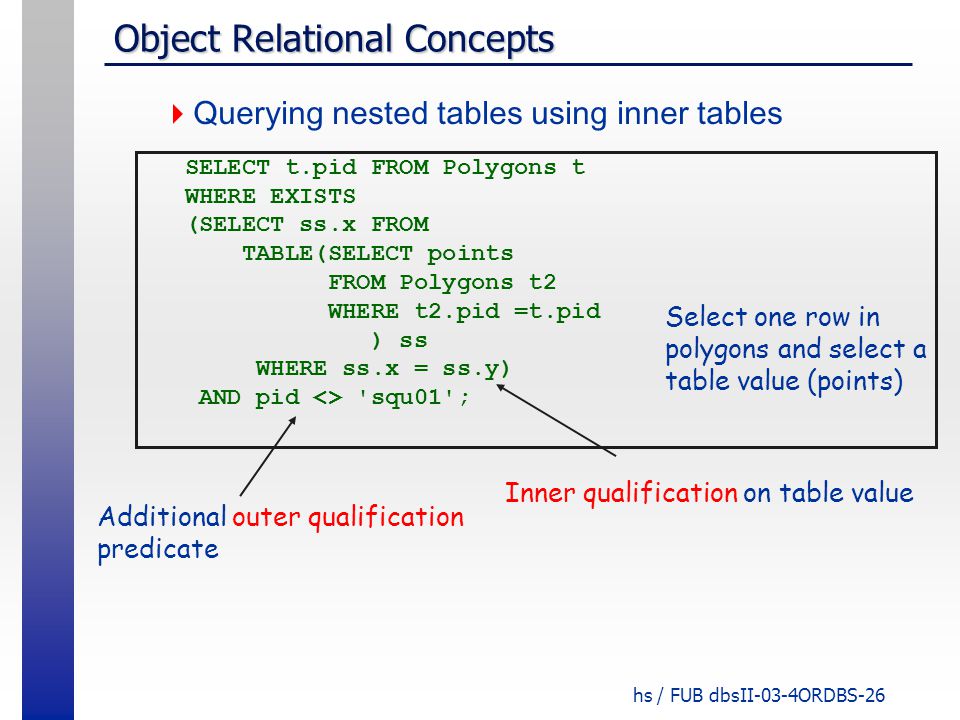

26 hs / FUB dbsII-03-4ORDBS-26 Object Relational Concepts  Querying nested tables using inner tables SELECT t.pid FROM Polygons t WHERE EXISTS (SELECT ss.x FROM TABLE(SELECT points FROM Polygons t2 WHERE t2.pid =t.pid ) ss WHERE ss.x = ss.y) AND pid <> 'squ01'; Inner qualification on table value Select one row in polygons and select a table value (points) Additional outer qualification predicate

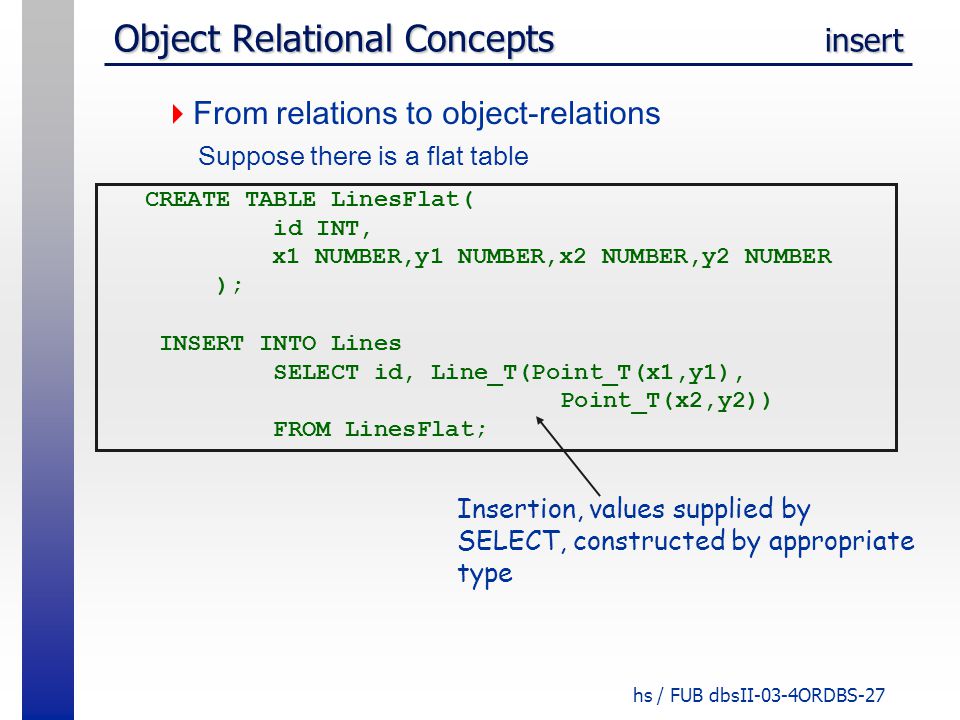

27 hs / FUB dbsII-03-4ORDBS-27 Object Relational Concepts insert  From relations to object-relations Suppose there is a flat table CREATE TABLE LinesFlat( id INT, x1 NUMBER,y1 NUMBER,x2 NUMBER,y2 NUMBER ); INSERT INTO Lines SELECT id, Line_T(Point_T(x1,y1), Point_T(x2,y2)) FROM LinesFlat; Insertion, values supplied by SELECT, constructed by appropriate type

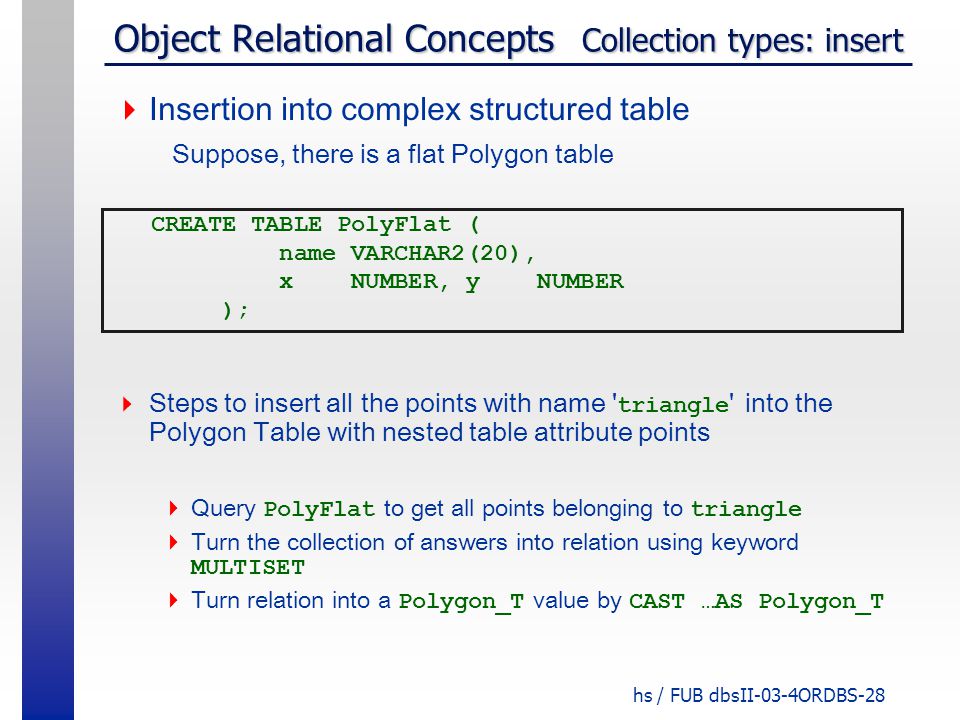

28 hs / FUB dbsII-03-4ORDBS-28 Object Relational Concepts Collection types: insert  Insertion into complex structured table Suppose, there is a flat Polygon table  Steps to insert all the points with name ' triangle ' into the Polygon Table with nested table attribute points  Query PolyFlat to get all points belonging to triangle  Turn the collection of answers into relation using keyword MULTISET  Turn relation into a Polygon_T value by CAST …AS Polygon_T CREATE TABLE PolyFlat ( name VARCHAR2(20), x NUMBER, y NUMBER );

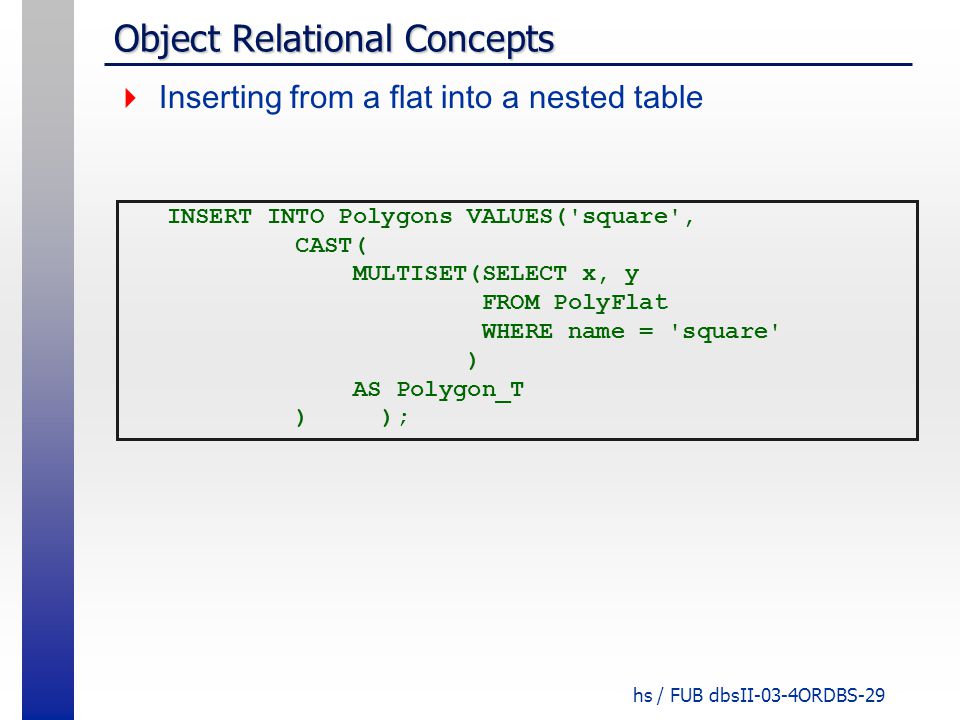

29 hs / FUB dbsII-03-4ORDBS-29 Object Relational Concepts  Inserting from a flat into a nested table INSERT INTO Polygons VALUES('square', CAST( MULTISET(SELECT x, y FROM PolyFlat WHERE name = 'square' ) AS Polygon_T ) );

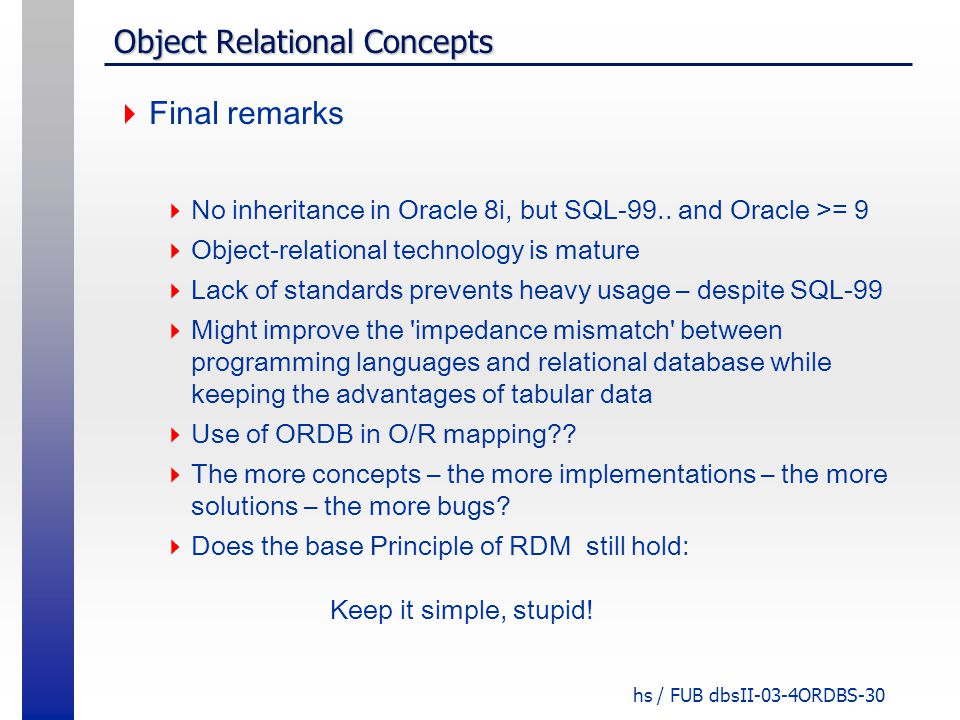

30 hs / FUB dbsII-03-4ORDBS-30 Object Relational Concepts  Final remarks  No inheritance in Oracle 8i, but SQL-99.. and Oracle >= 9  Object-relational technology is mature  Lack of standards prevents heavy usage – despite SQL-99  Might improve the 'impedance mismatch' between programming languages and relational database while keeping the advantages of tabular data  Use of ORDB in O/R mapping??  The more concepts – the more implementations – the more solutions – the more bugs?  Does the base Principle of RDM still hold: Keep it simple, stupid!
