1. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering CSCE 531 Compiler Construction Ch.7: Code Generation Spring 2008 Marco Valtorta mgv@cse.sc.edu

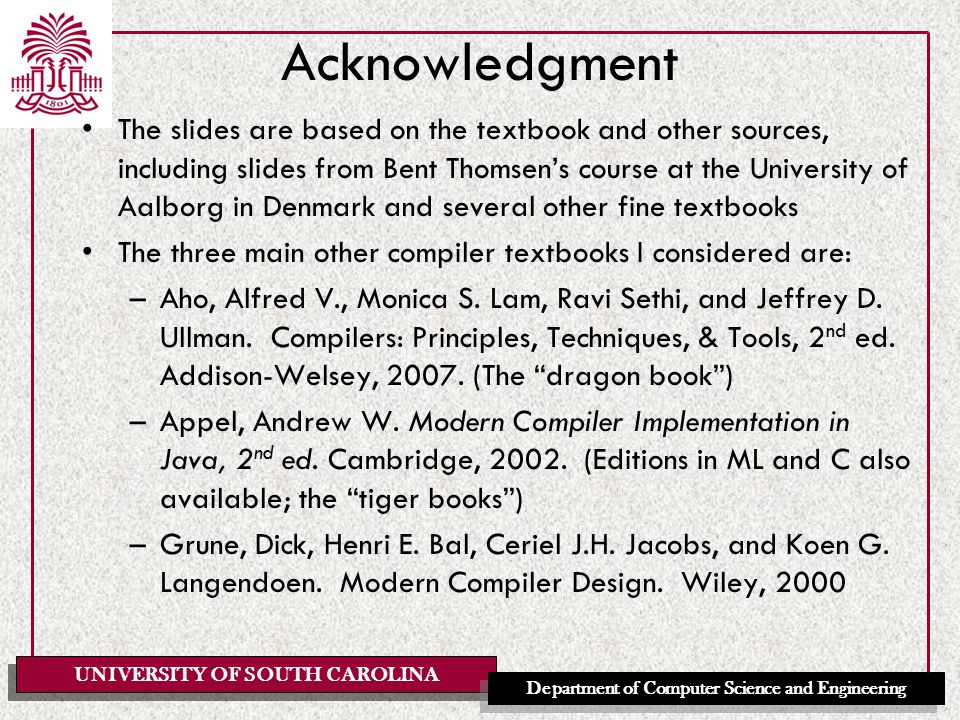

2. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Acknowledgment The slides are based on the textbook and other sources, including slides from Bent Thomsen’s course at the University of Aalborg in Denmark and several other fine textbooks The three main other compiler textbooks I considered are: –Aho, Alfred V., Monica S. Lam, Ravi Sethi, and Jeffrey D. Ullman. Compilers: Principles, Techniques, & Tools, 2 nd ed. Addison-Welsey, 2007. (The “dragon book”) –Appel, Andrew W. Modern Compiler Implementation in Java, 2 nd ed. Cambridge, 2002. (Editions in ML and C also available; the “tiger books”) –Grune, Dick, Henri E. Bal, Ceriel J.H. Jacobs, and Koen G. Langendoen. Modern Compiler Design. Wiley, 2000

3. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering What This Lecture is About A compiler translates a program from a high-level language into an equivalent program in a low-level language. TAM Program Triangle Program Compile Run Result

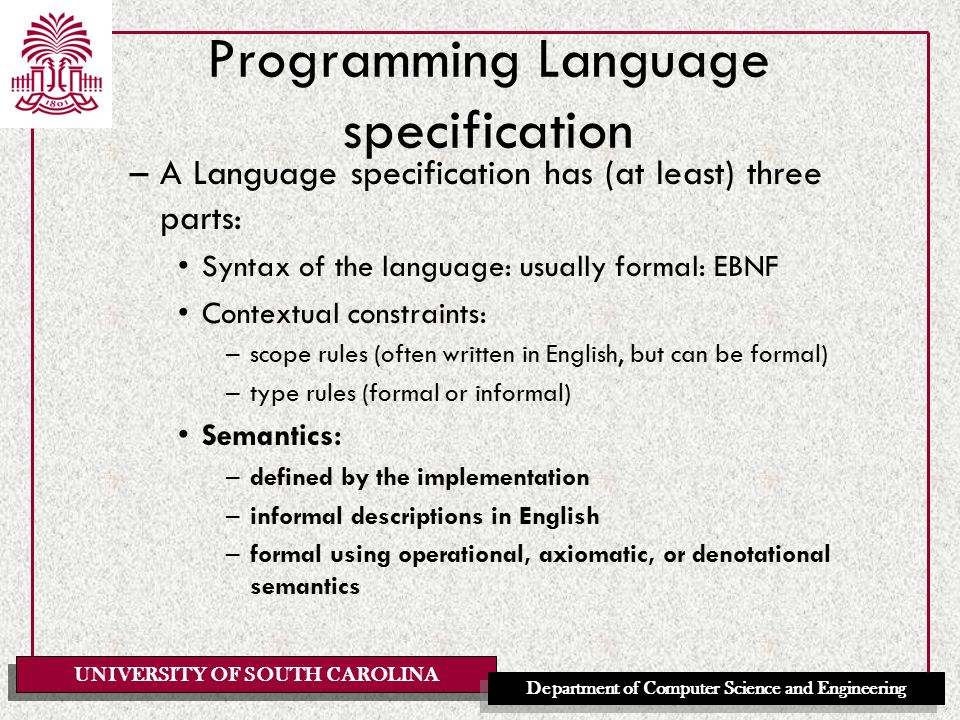

4. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Programming Language specification –A Language specification has (at least) three parts: Syntax of the language: usually formal: EBNF Contextual constraints: –scope rules (often written in English, but can be formal) –type rules (formal or informal) Semantics: –defined by the implementation –informal descriptions in English –formal using operational, axiomatic, or denotational semantics

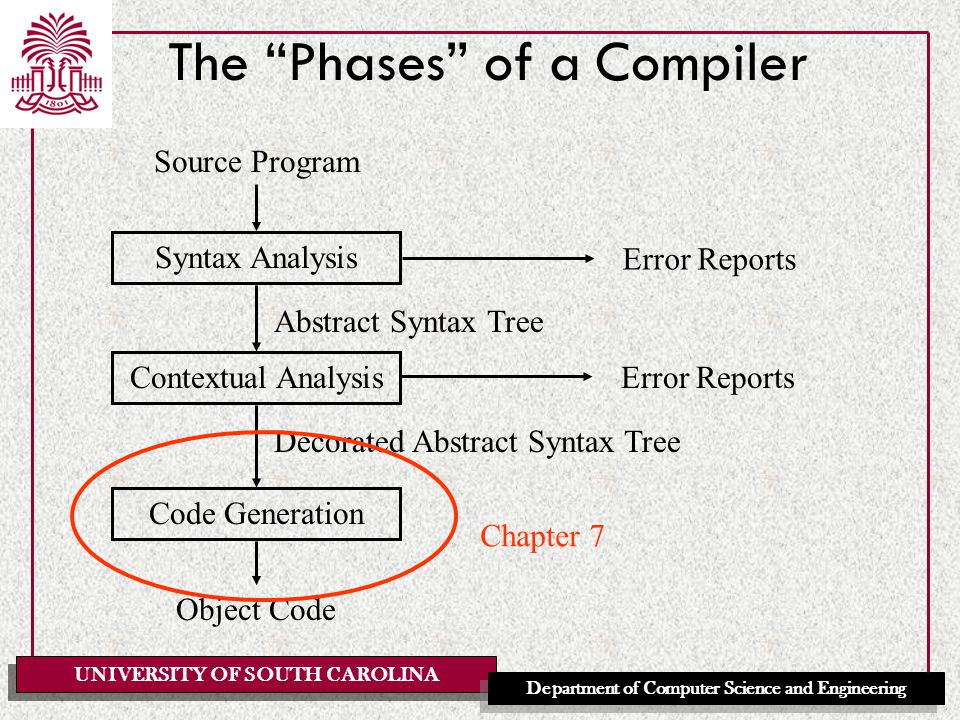

5. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering The “Phases” of a Compiler Syntax Analysis Contextual Analysis Code Generation Source Program Abstract Syntax Tree Decorated Abstract Syntax Tree Object Code Error Reports Chapter 7

6. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Multi Pass Compiler Compiler Driver Syntactic Analyzer calls Contextual AnalyzerCode Generator calls Dependency diagram of a typical Multi Pass Compiler: A multi pass compiler makes several passes over the program. The output of a preceding phase is stored in a data structure and used by subsequent phases. input Source Text output AST input output Decorated AST input output Object Code Chapter 7

7. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Issues in Code Generation Code Selection: Deciding which sequence of target machine instructions will be used to implement each phrase in the source language. Storage Allocation Deciding the storage address for each variable in the source program. (static allocation, stack allocation etc.) Register Allocation (for register-based machines) How to use registers efficiently to store intermediate results. We use a stack based machine. This is not an issue for us

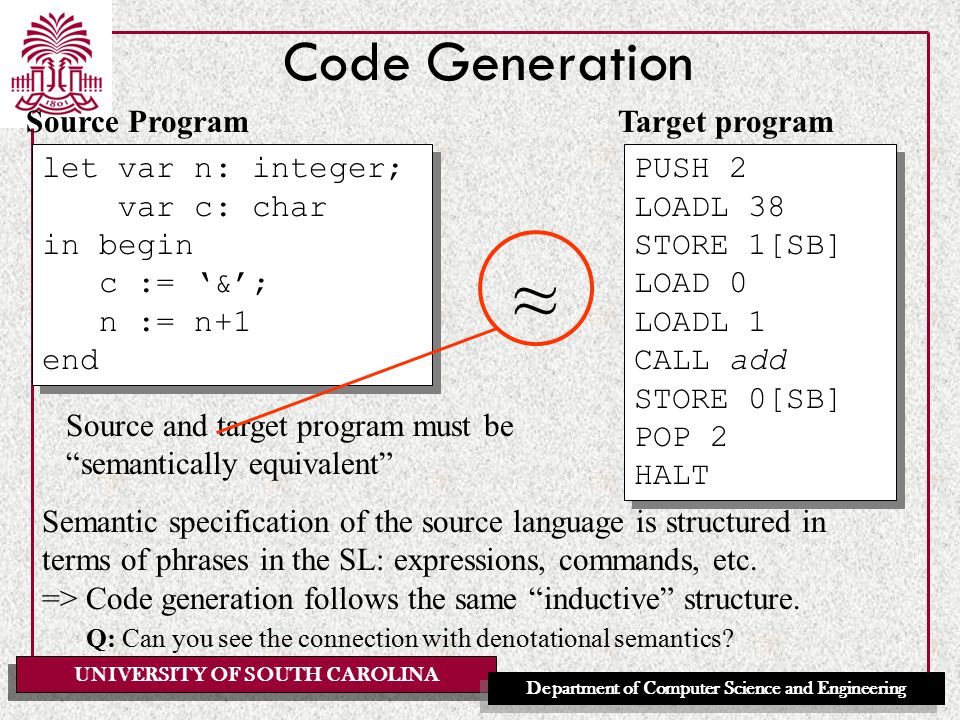

8. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Generation Source Program let var n: integer; var c: char in begin c := ‘&’; n := n+1 end PUSH 2 LOADL 38 STORE 1[SB] LOAD 0 LOADL 1 CALL add STORE 0[SB] POP 2 HALT Target program ~ ~ Source and target program must be “semantically equivalent” Semantic specification of the source language is structured in terms of phrases in the SL: expressions, commands, etc. => Code generation follows the same “inductive” structure. Q: Can you see the connection with denotational semantics?

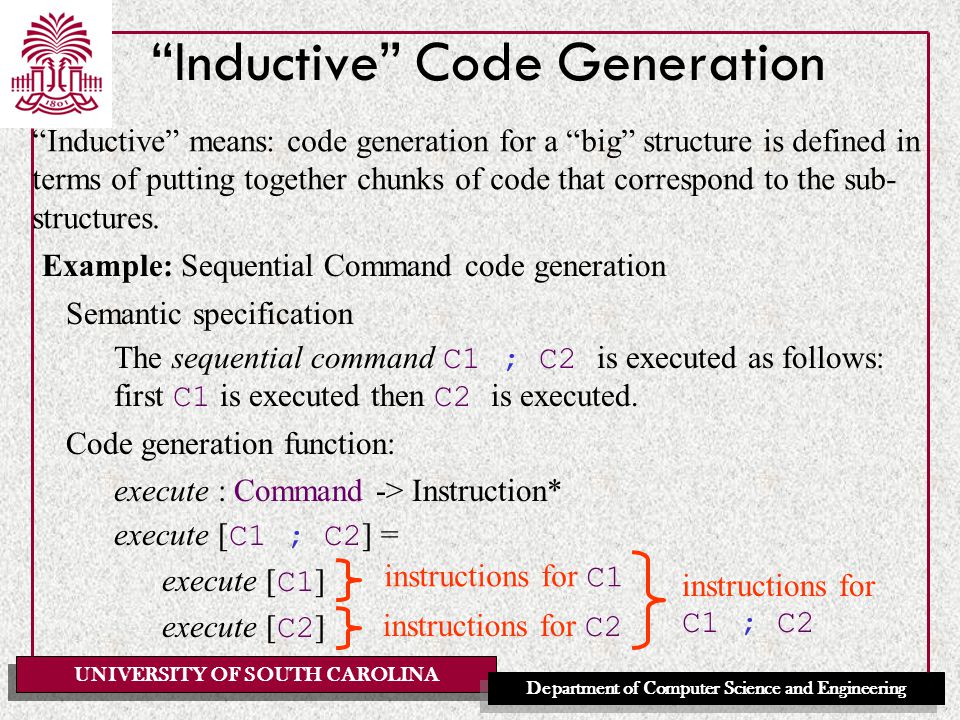

9. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering “Inductive” Code Generation “Inductive” means: code generation for a “big” structure is defined in terms of putting together chunks of code that correspond to the sub- structures. Example: Sequential Command code generation Semantic specification The sequential command C1 ; C2 is executed as follows: first C1 is executed then C2 is executed. Code generation function: execute : Command -> Instruction* execute [ C1 ; C2 ] = execute [ C1 ] execute [ C2 ] instructions for C1 instructions for C2 instructions for C1 ; C2

10. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering “Inductive” Code Generation Example: Assignment command code generation Code generation function: execute [ I := E ] = evaluate [ E ] STORE address [ I ] instructions for E yield value for E on top of the stack instruction to store result into variable These “pictures” of the code layout for a particular source language construct are called code templates. Inductive means: A code template specifies the object code to which a phrase is translated, in terms of the object code to which its subphrases are translated. These “pictures” of the code layout for a particular source language construct are called code templates. Inductive means: A code template specifies the object code to which a phrase is translated, in terms of the object code to which its subphrases are translated.

11. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering “Inductive” Code Generation Example: code generation for a larger phrase in terms of its subphrases execute [ f := f*n; n := n-1 ] execute [ f := f*n ] execute [ n := n-1 ] LOAD f LOAD n CALL mult STORE f LOAD n CALL pred STORE n

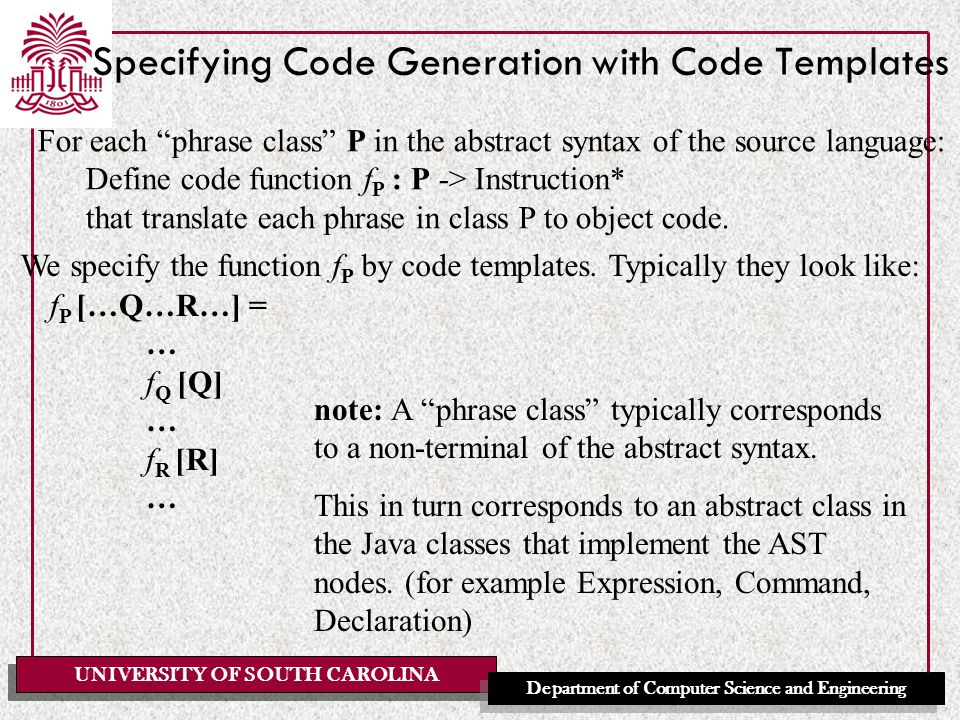

12. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Specifying Code Generation with Code Templates note: A “phrase class” typically corresponds to a non-terminal of the abstract syntax. This in turn corresponds to an abstract class in the Java classes that implement the AST nodes. (for example Expression, Command, Declaration) f P […Q…R…] = … f Q [Q] … f R [R] … We specify the function f P by code templates. Typically they look like: For each “phrase class” P in the abstract syntax of the source language: Define code function f P : P -> Instruction* that translate each phrase in class P to object code.

13. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Specifying Code Generation with Code Templates Example: Code templates specification for Mini Triangle RECAP: The mini triangle AST Program ::= Command Program Command ::= V-name := Expression AssignCmd | let Declaration in Command LetCmd... Expression ::= Integer-Literal IntegerExp | V-name VnameExp | Operator Expression UnaryExp | Expression Op Expression BinaryExp Declaration ::=... V-name::= Identifier SimpleVName Program ::= Command Program Command ::= V-name := Expression AssignCmd | let Declaration in Command LetCmd... Expression ::= Integer-Literal IntegerExp | V-name VnameExp | Operator Expression UnaryExp | Expression Op Expression BinaryExp Declaration ::=... V-name::= Identifier SimpleVName

14. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Specifying Code Generation with Code Templates The code generation functions for Mini Triangle Phrase Class Function Effect of the generated code Program Command Expres- sion V-name Decla- ration run P execute C evaluate E fetch V assign V elaborate D Run program P then halt. Starting and finishing with empty stack Execute Command C. May update variables but does not shrink or grow the stack. Evaluate E, net result is pushing the value of E on the stack. Push value of constant or variable on the stack. Pop value from stack and store in variable V Elaborate declaration, make space on the stack for constants and variables in the decl.

15. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Generation with Code Templates run [ C ] = execute [ C ] HALT The code generation functions for Mini Triangle Programs: Commands: execute [ V := E ] = evaluate [ E ] assign [ V ] execute [ I ( E ) ] = evaluate [ E ] CALL p where p is address of the routine named I

16. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Generation with Code Templates Commands: execute [ C1 ; C2 ] = execute [ C1 ] execute [ C2 ] execute [ if E then C1 else C2 ] = evaluate [ E ] JUMPIF(0) g execute [ C1 ] JUMP h g: execute [ C2 ] h: C1 C2 E g:g: h:h:

17. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Generation with Code Templates execute [ while E do C ] = JUMP h g: execute [ C ] h: evaluate[ E ] JUMPIF(1) g C E Commands: execute [ while E do C ] = g: evaluate [ E ] JUMPIF(0) h execute[ C ] JUMP g h: Alternative While Command code template: E C

18. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Generation with Code Templates execute [ repeat C until E ] = g: execute [ C ] h: evaluate[ E ] JUMPIF(0) g execute [ let D in C ] = elaborate[ D ] execute [ C ] POP(0) s if s>0 where s = amount of storage allocated by D Repeat Command code template: C E

19. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Generation with Code Templates evaluate [ IL ] =note: IL is an integer literal LOADL v where v = the integer value of IL evaluate [ V ] =note: V is variable name fetch[ V ] evaluate [ O E ] =note: O is a unary operator evaluate[ E ] CALL p where p = address of routine for O evaluate [ E1 O E2 ] =note: O is a binary operator evaluate[ E1 ] evaluate[ E2 ] CALL p where p = address of routine for O Expressions:

20. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Generation with Code Templates fetch [ V ] = LOAD d[SB] where d = address of V relative to SB assign [ V ] = STORE d[SB] where d = address of V relative to SB Variables: note: Mini triangle only needs static allocation (Q: why is that? )

21. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Generation with Code Templates elaborate [ const I ~ E ] = evaluate[ E ] elaborate [ var I : T ] = PUSH s where s = size of T elaborate [ D1 ; D2 ] = elaborate [ D1 ] elaborate [ D2 ] Declarations: THE END: these are all the code templates for Mini Triangle. Now let’s put them to use in an example.

22. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Example of Mini Triangle Code Generation execute [while i>0 do i:=i+2] = JUMP h g:LOAD i LOADL 2 CALL add STORE i h:LOAD i LOADL 0 CALL gt JUMPIF(1) g Note: Picture shows a few steps but not all evaluate [ i>0 ] execute [ i:=i+2 ] evaluate [ i+2 ]

23. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Special Case Code Templates There are often several ways to generate code for an expression, command, etc. The templates we defined work, but sometimes we can get more efficient code for special cases => special case code templates. Example: evaluate [ i+1 ] = LOAD i LOADL 1 CALL add what we get with the “general” code templates evaluate [ i+1 ] = LOAD i CALL succ more efficient code for the special case “ +1 ”

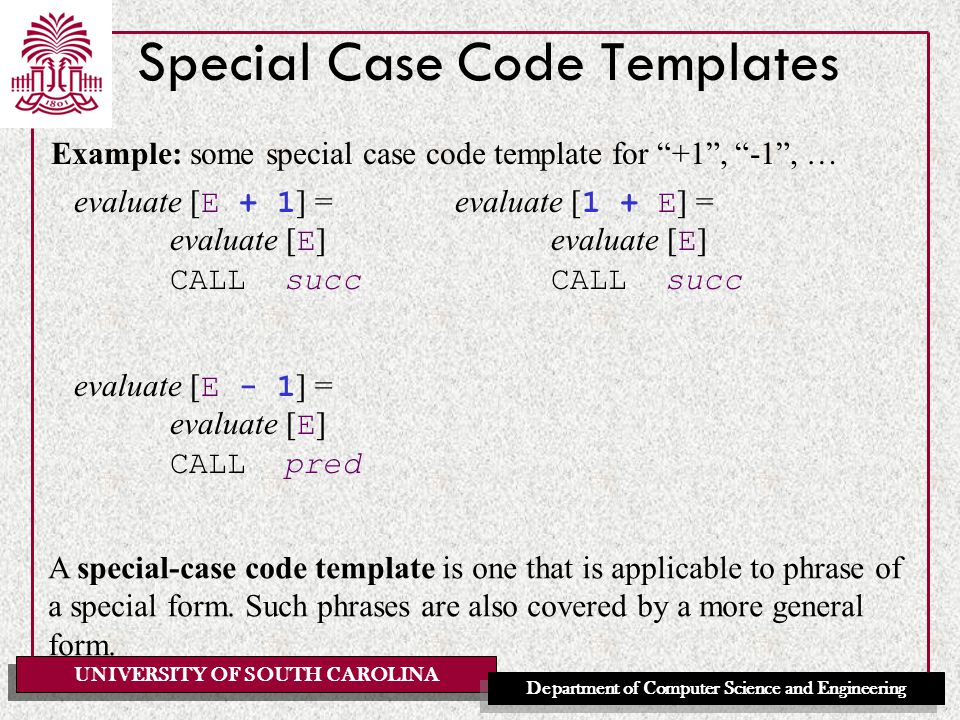

24. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Special Case Code Templates Example: some special case code template for “+1”, “-1”, … evaluate [ E + 1 ] = evaluate [ E ] CALL succ evaluate [ E - 1 ] = evaluate [ E ] CALL pred evaluate [ 1 + E ] = evaluate [ E ] CALL succ A special-case code template is one that is applicable to phrase of a special form. Such phrases are also covered by a more general form.

25. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Special Case Code Templates Example: “Inlining” known constants. execute [let const n~7; var i:Integer in i:=n*n] = LOADL 7 PUSH 1 LOAD n CALL mult STORE i POP(0) 2 execute [ i:=n*n ] elaborate [ var i:Integer ] elaborate [ const n~7 ] This is how the code looks like with no special case templates

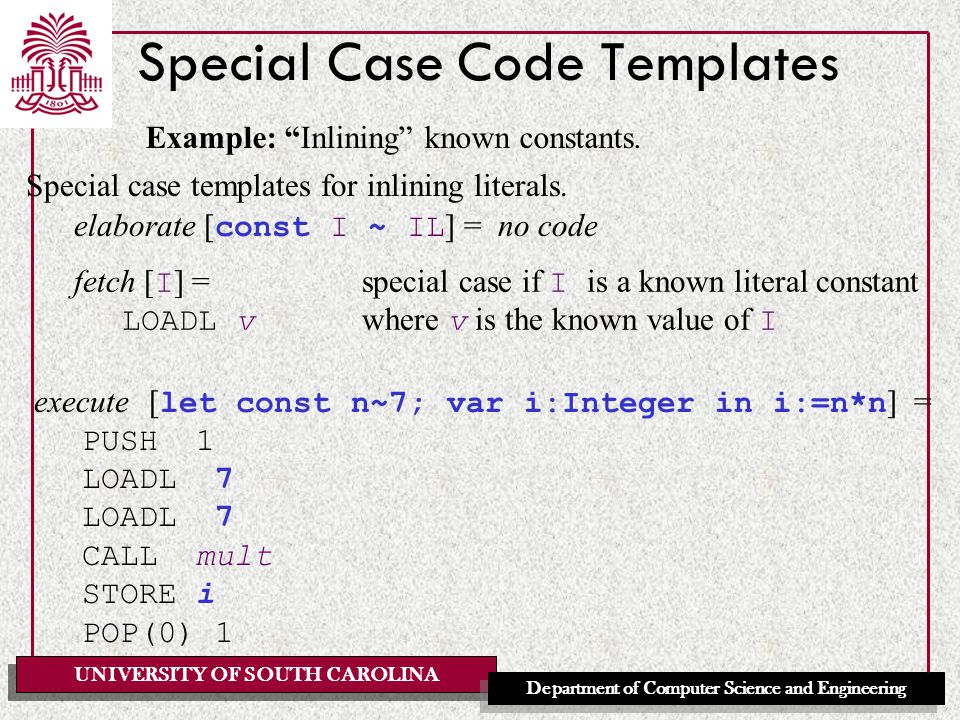

26. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Special Case Code Templates Example: “Inlining” known constants. elaborate [ const I ~ IL ] = no code Special case templates for inlining literals. fetch [ I ] =special case if I is a known literal constant LOADL v where v is the known value of I execute [ let const n~7; var i:Integer in i:=n*n ] = PUSH 1 LOADL 7 CALL mult STORE i POP(0) 1

27. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Generation Algorithm The code templates specify how code is to be generated => determines code generation algorithm. Generating code: traversal of the AST emitting instructions one by one. The code templates determine the order of the traversal and the instructions to be emitted. We will now look at how to implement a Mini Triangle code generator in Java.

28. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Representation of Object Program: Instructions public class Instruction { public byte op; // op-code 0..15 public byte r; // register field (0..15) public byte n; // length field (0..255) public short d; // operand f. (-32767..+32767) public static final byte // op-codes LOADop = 0, LOADAop = 1,... public static final byte // register numbers CBr = 0, CTr = 1, … SBr = 4, STr = 5, … public Instruction(byte op,byte n, byte r,short d) {... } }

29. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Representation of Object Program: Emitting Code public class Encoder { private Instruction[] code = new Instruction[1024]; private short nextInstrAddr = 0; private void emit(byte op,byte n, byte r,short d) { code[nextInstrAddr++]=new Instruction( op,n,r,d); }... lots of other stuff in here of course... }

30. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Developing a Code Generator “Visitor” generate code as specified by execute[C] generate code as specified by evaluate[E] Return “entity description” for the visited variable or constant name. generate code as specified by elaborate[D] return the size of the type ProgramvisitProgramgenerate code as specified by run[P] Commandvisit…Command Expressionvisit…Expression V-namevisit…Vname Declarationvisit…Declaration Type-Denvisit…TypeDen Phrase Class visitor methodBehavior of the visitor method

31. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Developing a Code Generator “Visitor” For variables we have two distinct code generation functions: fetch and assign. => Not implemented as visitor methods but as separate methods. public void encodeFetch(Vname name) {... as specified by fetch template... } public void encodeAssign(Vname name) {... as specified by assign template... }

32. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Developing a Code Generator “Visitor” public class Encoder implements Visitor {... /* Generating code for entire Program */ public Object visitProgram(Program prog, Object arg ) { prog.C.visit(this,arg); emit a halt instruction return null; } public class Encoder implements Visitor {... /* Generating code for entire Program */ public Object visitProgram(Program prog, Object arg ) { prog.C.visit(this,arg); emit a halt instruction return null; }

33. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Developing a Code Generator “Visitor” /* Generating code for commands */ public Object visitAssignCommand( AssignCommand com,Object arg) { com.E.visit(this,arg); encodeAssign(com.V); return null; } /* Generating code for commands */ public Object visitAssignCommand( AssignCommand com,Object arg) { com.E.visit(this,arg); encodeAssign(com.V); return null; } RECAP: execute [ V := E ] = evaluate [ E ] assign [ V ]

34. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Developing a Code Generator “Visitor” public Object visitCallCommand( CallCommand com,Object arg) { com.E.visit(this,arg); short p = address of primitive routine for name com.I emit(Instruction.CALLop, Instruction.SBr, Instruction.PBr, p); return null; } public Object visitCallCommand( CallCommand com,Object arg) { com.E.visit(this,arg); short p = address of primitive routine for name com.I emit(Instruction.CALLop, Instruction.SBr, Instruction.PBr, p); return null; } execute [ I ( E ) ] = evaluate [ E ] CALL p where p is address of the routine named I

35. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Developing a Code Generator “Visitor” public Object visitSequentialCommand( SequentialCommand com,Object arg) { com.C1.visit(this,arg); com.C2.visit(this,arg); return null; } public Object visitSequentialCommand( SequentialCommand com,Object arg) { com.C1.visit(this,arg); com.C2.visit(this,arg); return null; } execute [ C1 ; C2 ] = execute[ C1 ] execute[ C2 ] LetCommand, IfCommand, WhileCommand => later. - LetCommand is more complex: memory allocation and addresses - IfCommand and WhileCommand: complications with jumps

36. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Developing a Code Generator “Visitor” /* Expressions */ public Object visitIntegerExpression ( IntegerExpression expr,Object arg) { short v = valuation(expr.IL.spelling); emit(Instruction.LOADLop, 0, 0, v); return null; } public short valuation(String s) {... convert string to integer value... } /* Expressions */ public Object visitIntegerExpression ( IntegerExpression expr,Object arg) { short v = valuation(expr.IL.spelling); emit(Instruction.LOADLop, 0, 0, v); return null; } public short valuation(String s) {... convert string to integer value... } evaluate [ IL ] = LOADL v where v is the integer value of IL

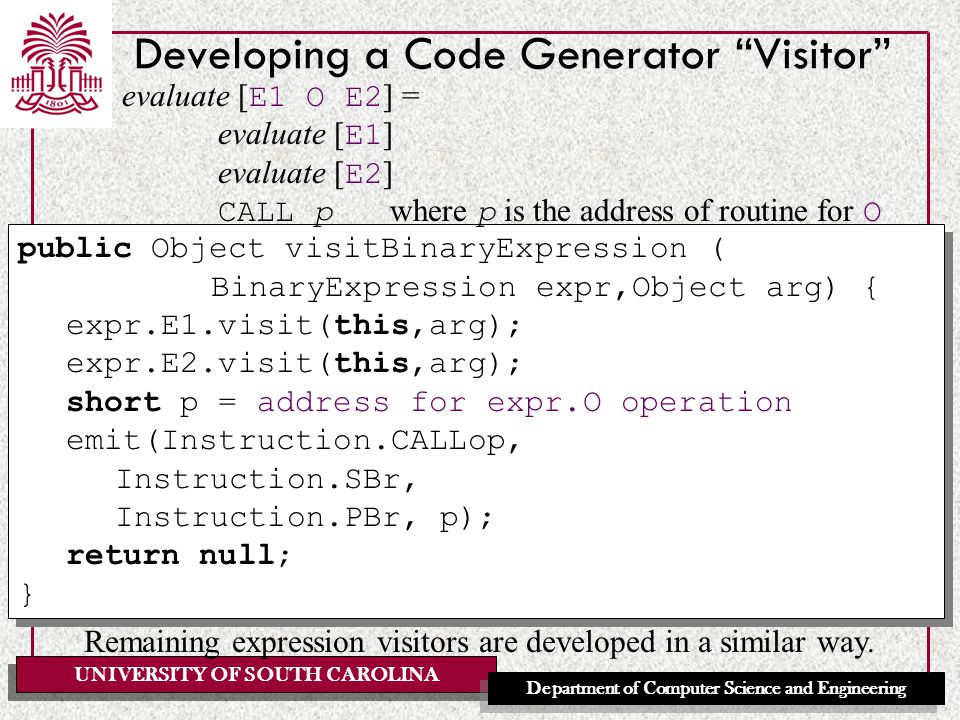

37. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Developing a Code Generator “Visitor” public Object visitBinaryExpression ( BinaryExpression expr,Object arg) { expr.E1.visit(this,arg); expr.E2.visit(this,arg); short p = address for expr.O operation emit(Instruction.CALLop, Instruction.SBr, Instruction.PBr, p); return null; } public Object visitBinaryExpression ( BinaryExpression expr,Object arg) { expr.E1.visit(this,arg); expr.E2.visit(this,arg); short p = address for expr.O operation emit(Instruction.CALLop, Instruction.SBr, Instruction.PBr, p); return null; } evaluate [ E1 O E2 ] = evaluate [ E1 ] evaluate [ E2 ] CALL p where p is the address of routine for O Remaining expression visitors are developed in a similar way.

38. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Controls Structures We have yet to discuss generation for IfCommand and WhileCommand execute [ while E do C ] = JUMP h g: execute [ C ] h: evaluate[ E ] JUMPIF(1) g A complication is the generation of the correct addresses for the jump instructions. We can determine the address of the instructions by incrementing a counter while emitting instructions. Backwards jumps are easy but forward jumps are harder. Q: why? C E

39. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Control Structures Backwards jumps are easy: The “address” of the target has already been generated and is known Forward jumps are harder: When the jump is generated the target is not yet generated so its address is not (yet) known. There is a solution which is known as backpatching 1) Emit jump with “dummy” address (e.g. simply 0). 2) Remember the address where the jump instruction occurred. 3) When the target label is reached, go back and patch the jump instruction.

40. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Backpatching Example public Object WhileCommand ( WhileCommand com,Object arg) { short j = nextInstrAddr; emit(Instruction.JUMPop, 0, Instruction.CBr,0); short g = nextInstrAddr; com.C.visit(this,arg); short h = nextInstrAddr; code[j].d = h; com.E.visit(this,arg); emit(Instruction.JUMPIFop, 1, Instruction.CBr,g); return null; } public Object WhileCommand ( WhileCommand com,Object arg) { short j = nextInstrAddr; emit(Instruction.JUMPop, 0, Instruction.CBr,0); short g = nextInstrAddr; com.C.visit(this,arg); short h = nextInstrAddr; code[j].d = h; com.E.visit(this,arg); emit(Instruction.JUMPIFop, 1, Instruction.CBr,g); return null; } execute [ while E do C ] = JUMP h g: execute [ C ] h: evaluate[ E ] JUMPIF(1) g dummy address backpatch

41. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Constants and Variables We have not yet discussed generation of LetCommand. This is the place in MiniTriangle where declarations are. execute [ let D in C ] = elaborate[ D ] execute [ C ] POP(0) s if s >0 where s = amount of storage allocated by D fetch [ V ] = LOAD d[SB] where d = address of V relative to SB assign [ V ] = STORE d[SB] where d = address of V relative to SB How to know these? Calculated during generation for elaborate[ D ]

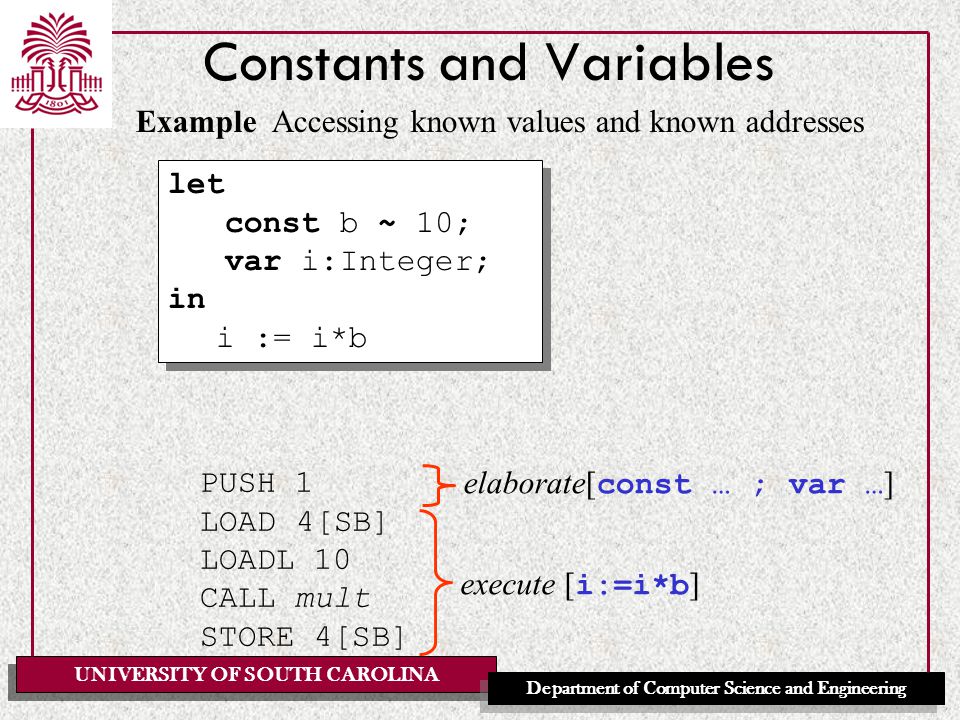

42. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Constants and Variables Example let const b ~ 10; var i:Integer; in i := i*b let const b ~ 10; var i:Integer; in i := i*b PUSH 1 LOAD4[SB] LOADL 10 CALL mult STORE 4[SB] execute [ i:=i*b ] elaborate[ const … ; var … ] Accessing known values and known addresses

43. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Constants and Variables Example let var x:Integer; in let const y ~ 365 + x in putint(y) let var x:Integer; in let const y ~ 365 + x in putint(y) Accessing an unknown value. Not all constants have values known (at compile time). Depends on variable x: value not known at compile time. When visiting declarations the code generator must decide whether to represent constants in memory or as a literal value => We have to remember the address or the value somehow.

44. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Constants and Variables Example let var x:Integer; in let const y ~ 365 + x in putint(y) let var x:Integer; in let const y ~ 365 + x in putint(y) Accessing an unknown value. PUSH 1 LOADL 365 LOAD 4[SB] CALL add STORE 5[SB] LOAD 5[SB] CALL putint execute [ putint(y) ] elaborate[ var x:Integer ] elaborate[ const y ~ 365 + x ]

45. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Constants and Variables Entity descriptions: When the code generator visits a declaration: 1) it decides whether to represent it as a known value or a known address 2) if its an address then emit code to reserve space. 3) make an entity description: an object that describes the variable or constant: its value or address, its size. 4) put a link in the AST that points to the entity description Example and picture on next slide

46. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Constants and Variables SequentialDeclaration ConstDecl let const b ~ 10; var i:Integer; in i := i*b let const b ~ 10; var i:Integer; in i := i*b VarDecl Int.Exp 10 Ident b i known value size = 1 value = 10 known address address = 4 size = 1 LetCommand Ident i i b RECAP: Applied occurrences of Identifiers point to their declaration

47. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Constants and Variables let var x:Integer; in let const y ~ 365 + x in putint(y) let var x:Integer; in let const y ~ 365 + x in putint(y) known address address = 4 size = 1 unknown value address = 5 size = 1 LetCommand VarDecl Ident x ConstDecl Ident y Note: There are also unknown addresses. More about these later. Q: When do unknown addresses occur?

48. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation let var a: Integer; var b: Boolean; var c: Integer; var d: Integer; in... let var a: Integer; var b: Boolean; var c: Integer; var d: Integer; in... Tam Address: a 0[SB] b 1[SB] c 2[SB] d 3[SB] Example 1: Global variables Note: In this example all globals have the same size: 1. This is not always the case.

49. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation let var a: Integer; in begin... let var b: Boolean; var c: Integer; in begin... end;... let var d: Integer; in begin... end;... end let var a: Integer; in begin... let var b: Boolean; var c: Integer; in begin... end;... let var d: Integer; in begin... end;... end Tam Address: a 0[SB] b 1[SB] c 2[SB] d 1[SB] Example 2: Static allocation with nested blocks: overlays Same address! Q: Why can b and d share the same address?

50. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation: In the Code Generator public abstract class RuntimeEntity { public short size;... } public class KnownValue extends RuntimeEntity { public short value;... } public class UnknownValue extends RuntimeEntity { public short address;... } public class KnownAddress extends RuntimeEntity { public short address;... } public abstract class RuntimeEntity { public short size;... } public class KnownValue extends RuntimeEntity { public short value;... } public class UnknownValue extends RuntimeEntity { public short address;... } public class KnownAddress extends RuntimeEntity { public short address;... } Entity Descriptions:

51. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation: In the Code Generator public abstract class AST { public RuntimeEntity entity; // mostly used for Decls... } public abstract class AST { public RuntimeEntity entity; // mostly used for Decls... } Entity Descriptions: Note: This is an addition to the AST class and requires recompilation of a lot of code if added late in the compiler implementation, but there seems to be no way around it!

52. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation: In the Code Generator public Object visit...Command(...Command com, Object arg) { short gs = shortValueOf(arg); generate code as specified by execute[com] return null; } public Object visit...Expression(...Expression expr, Object arg) { short gs = shortValueOf(arg); generate code as specified by evaluate[com] return new Short(size of expr result); } public Object visit...Declaration(...Declaration dec, Object arg) { short gs = shortValueOf(arg); generate code as specified by evaluate[com] return new Short(amount of extra allocated by dec); } public Object visit...Command(...Command com, Object arg) { short gs = shortValueOf(arg); generate code as specified by execute[com] return null; } public Object visit...Expression(...Expression expr, Object arg) { short gs = shortValueOf(arg); generate code as specified by evaluate[com] return new Short(size of expr result); } public Object visit...Declaration(...Declaration dec, Object arg) { short gs = shortValueOf(arg); generate code as specified by evaluate[com] return new Short(amount of extra allocated by dec); }

53. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation: In the Code Generator public void encode(Program prog) { prog.visit(this, new Short(0)); } public void encode(Program prog) { prog.visit(this, new Short(0)); } Amount of global storage already allocated. Initially = 0 The visitor is started …

54. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation: In the Code Generator public Object visitVarDeclaration( VarDeclaration decl, Object arg) { short gs = shortValueOf(arg); short s = shortValueOf(decl.T.visit(this, null)); decl.entity = new KnownAddress(s, gs); emit(Instruction.PUSHop, 0, 0, s); return new Short(s); } public Object visitVarDeclaration( VarDeclaration decl, Object arg) { short gs = shortValueOf(arg); short s = shortValueOf(decl.T.visit(this, null)); decl.entity = new KnownAddress(s, gs); emit(Instruction.PUSHop, 0, 0, s); return new Short(s); } Some concrete examples of visit methods elaborate [ var I : T ] = PUSH s where s = size of T Remember the address/size of the variable

55. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation: In the Code Generator public Object visitSequentialDeclaration( SequentialDeclaration decl, Object arg) { short gs = shortValueOf(arg); short s1 = shortValueOf(decl.D1.visit(this,arg)); short s2 = shortValueOf(decl.D2.visit(this, new Short(gs+s1))); return new Short(s1+s2); } public Object visitSequentialDeclaration( SequentialDeclaration decl, Object arg) { short gs = shortValueOf(arg); short s1 = shortValueOf(decl.D1.visit(this,arg)); short s2 = shortValueOf(decl.D2.visit(this, new Short(gs+s1))); return new Short(s1+s2); } elaborate [ D1 ; D2 ] = elaborate [D1] elaborate [ D2 ]

56. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation: In the Code Generator public Object visitLetCommand( LetCommand com, Object arg) { short gs = shortValueOf(arg); short s = shortValueOf(com.D.visit(this,arg)); com.C.visit(this,new Short(gs+s)); if (s > 0) emit(Instruction.POPop,0,0,s) return null; } public Object visitLetCommand( LetCommand com, Object arg) { short gs = shortValueOf(arg); short s = shortValueOf(com.D.visit(this,arg)); com.C.visit(this,new Short(gs+s)); if (s > 0) emit(Instruction.POPop,0,0,s) return null; } execute [ let D in C ] = elaborate[ D ] execute [ C ] POP(0) s if s >0 where s = amount of storage allocated by D

57. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Static Storage Allocation: In the Code Generator public void encodeFetch(Vname name, short s) { RuntimeEntity ent = VName.I.decl.entity; if (ent instanceof KnownValue) { short v = ((KnownValue)ent).value; emit(Instruction.LOADLop, 0, 0, v); } else { short d = (entity instanceof UnknownValue) ? ((UnknownValue)ent).address : ((KnownAddress)ent).address ; emit(Instruction.LOADop, 0, Instruction.SBr, d); } public void encodeFetch(Vname name, short s) { RuntimeEntity ent = VName.I.decl.entity; if (ent instanceof KnownValue) { short v = ((KnownValue)ent).value; emit(Instruction.LOADLop, 0, 0, v); } else { short d = (entity instanceof UnknownValue) ? ((UnknownValue)ent).address : ((KnownAddress)ent).address ; emit(Instruction.LOADop, 0, Instruction.SBr, d); } fetch [ I ] =special case if I is a known literal constant LOADL v where v is the known value of I fetch [ V ] = LOAD d[SB] where d = address of V relative to SB

58. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Stack Allocation, Procedures and Functions Now we will consider: 1) how procedures and functions are compiled 2) how to modify code generator to compute addresses when we use a stack allocation model (instead of static allocation)

59. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering RECAP: TAM Frame Layout Summary LB ST local variables and intermediate results dynamic link static link return address Local data, grows and shrinks during execution. Link data arguments Arguments for current procedure they were put here by the caller.

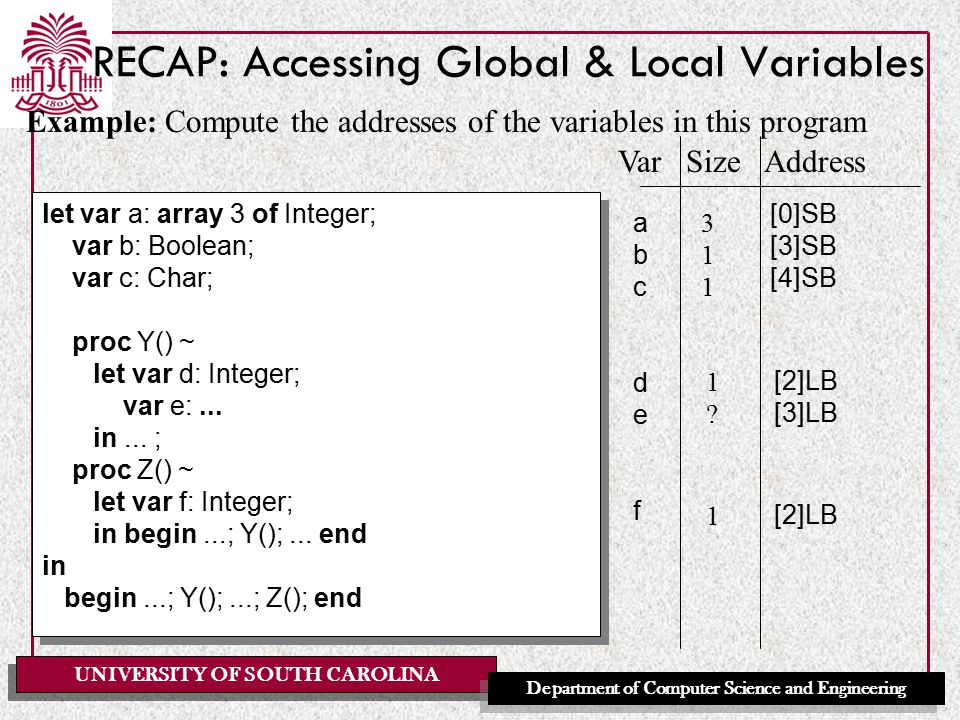

60. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering RECAP: Accessing Global & Local Variables Example: Compute the addresses of the variables in this program let var a: array 3 of Integer; var b: Boolean; var c: Char; proc Y() ~ let var d: Integer; var e:... in... ; proc Z() ~ let var f: Integer; in begin...; Y();... end in begin...; Y();...; Z(); end let var a: array 3 of Integer; var b: Boolean; var c: Char; proc Y() ~ let var d: Integer; var e:... in... ; proc Z() ~ let var f: Integer; in begin...; Y();... end in begin...; Y();...; Z(); end Var Size Address abcdefabcdef 3 1 1 [0]SB [3]SB [4]SB 1 ? 1 [2]LB [3]LB [2]LB

61. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering RECAP: TAM addressing schemas overview We now have a complete picture of the different kinds of addresses that are used for accessing variables and formal parameters stored on the stack. Type of variable Global Local Parameter Non-local, 1 level up Non-local, 2 levels up... Load instruction LOAD +offset[SB] LOAD +offset[LB] LOAD -offset[LB] LOAD +offset[L1] LOAD +offset[L2]

62. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering How To Characterize Addresses now? When we have a static allocation model only, an address can be characterized by a single positive integer (i.e. the offset from SB) Now we generalize this to stack allocation (for nested procedures) Q: How do we characterize an address for a variable/constant now? A: We need two numbers. - nesting level - offset (similar to static allocation) Q: How do we compute the addresses to use in an instruction that loads or stores a value from/to a variable?

63. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering How To Characterize Addresses Example: Compute the addresses of the variables in this program let var a: array 3 of Integer; var b: Boolean; proc foo() ~ let var d: Integer; var e:... proc bar() ~ let var f: Integer; in...bar body... in...foo body... ; in... global code... let var a: array 3 of Integer; var b: Boolean; proc foo() ~ let var d: Integer; var e:... proc bar() ~ let var f: Integer; in...bar body... in...foo body... ; in... global code... Var Size Addr Accessing abdefabdef 3 1 1 ? 1 (0,0) (0,3) (1,0) (1,1) (3,0) 0[SB] 3[SB] 0[LB] ? How to access depends on … where are you accessing from! accessing e from foo body => accessing e from bar body => 1[LB] 1[L1]

64. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering New Fetch / Assign Code Templates fetch [ I ] = LOADL(s) d[r] s = Size of the type of I d from address of I is (d, l) r determined by l and cl (current level) How to determine r l = 0 ==>r = SB l = cl==> r = LB otherwise==> r = L(cl-l)

65. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering How To Modify The Code Generator public class Frame { public byte level; public short size; } public class Frame { public byte level; public short size; } An info structure to pass as argument in the visitor (instead of “gs”) Before it was sufficient to pass the current size (gs) of the global frame since without procedures all storage is allocated at level 0. With subprograms we need to know the current level and the size of the frame.

66. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering How To Modify The Code Generator public class EntityAddress { public byte level; public short displacement; } public class EntityAddress { public byte level; public short displacement; } Different kind of “address” in entity descriptors public class UnknownValue extends RuntimeEntity { public EntityAddress address;... } public class KnownAddress extends RuntimeEntity { public EntityAddress address;... } public class UnknownValue extends RuntimeEntity { public EntityAddress address;... } public class KnownAddress extends RuntimeEntity { public EntityAddress address;... }

67. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering How To Modify The Code Generator Changes to code generator (visitor) Example: public Object visitVarDeclaration( VarDeclaration decl, Object arg) { Frame frame = (Frame)arg; short s = shortValueOf(decl.T.visit(this,null)); decl.entity = new KnownAddress(s,frame); emit(Instruction.PUSHop, 0, 0, s); return new Short(s); } public Object visitVarDeclaration( VarDeclaration decl, Object arg) { Frame frame = (Frame)arg; short s = shortValueOf(decl.T.visit(this,null)); decl.entity = new KnownAddress(s,frame); emit(Instruction.PUSHop, 0, 0, s); return new Short(s); } etc. Q: When will the level of a frame be changed? Q: When will the size be changed?

68. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Change of frame level and size In the visitor/encoding method for translating a procedure body, the frame level must be incremented by one and the frame size set to 3 (space for link data) Frame outerFrame … Frame localFrame = new Frame(outerFrame.level +1, 3); The encoder starts at frame level 0 and with no storage allocated: public void encoder(Program prog) { Frame globalFrame = new Frame(0,0); prog.visit(this, globalFrame); }

69. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Procedures and Functions We extend Mini Triangle with procedures: Declaration ::=... | proc Identifier ( ) ~ Command Command ::=... | Identifier ( ) Declaration ::=... | proc Identifier ( ) ~ Command Command ::=... | Identifier ( ) First, we will only consider global procedures (with no arguments).

70. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Template: Global Procedure elaborate [ proc I () ~ C ] = JUMP g e: execute [ C ] RETURN(0) 0 g: C execute [ I () ] = CALL(SB) e

71. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Template: Global Procedure Example: let var n: Integer; proc double() ~ n := n*2 in begin n := 9; double() end let var n: Integer; proc double() ~ n := n*2 in begin n := 9; double() end 0:PUSH1 1:JUMP7 2:LOAD0[SB] 3:LOADL2 4:CALLmult 5:STORE0[SB] 6:RETURN(0)0 7:LOADL9 8:STORE0[SB] 9:CALL(SB)2 10:POP(0)1 11:HALT n := n*2 var n: Integer proc double() ~ n := n*2 n := 9 double()

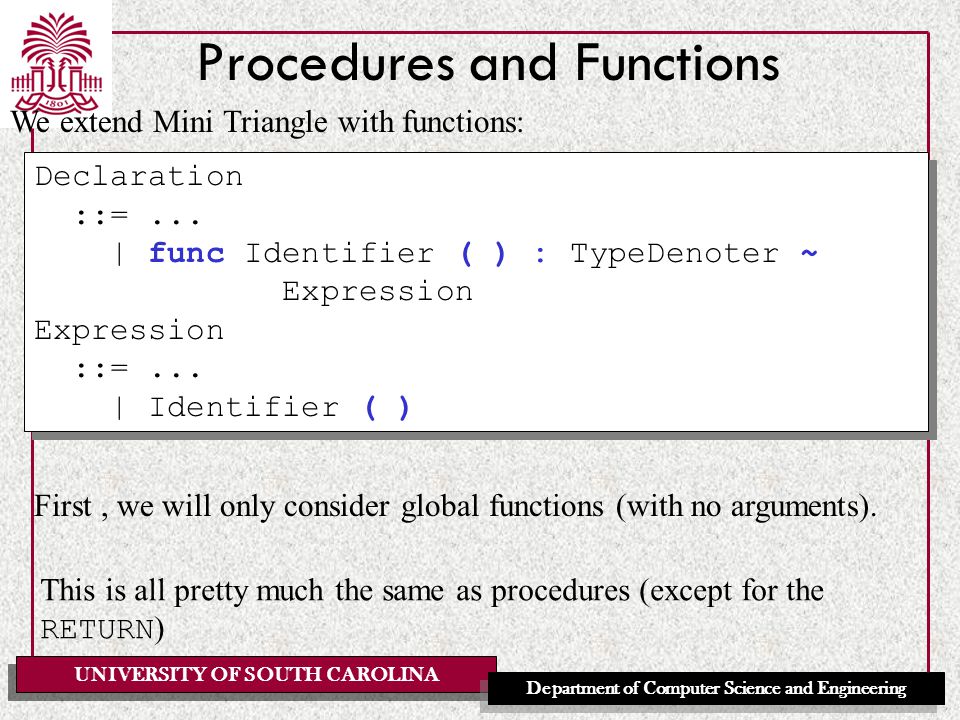

72. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Procedures and Functions We extend Mini Triangle with functions: Declaration ::=... | func Identifier ( ) : TypeDenoter ~ Expression ::=... | Identifier ( ) Declaration ::=... | func Identifier ( ) : TypeDenoter ~ Expression ::=... | Identifier ( ) First, we will only consider global functions (with no arguments). This is all pretty much the same as procedures (except for the RETURN )

73. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Template: Global Function elaborate [ func I () : T ~ E ] = JUMP g e: evaluate [ E ] RETURN(s) 0 g: C evaluate [ I () ] = CALL(SB) e where s is the size of T

74. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Nested Procedures and Functions Again, this is all pretty much the same except for static links. When calling a (nested) procedure we must tell the CALL where to find the static link. Revised code template: execute [ I () ] = CALL(r) e evaluate [ I () ] = CALL(r) e e from address of I is (d, l) r determined by l and cl (current level)

75. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Procedures and Functions: Parameters We extend Mini Triangle with... Declaration ::=... | proc Identifier (Formal) : TypeDenoter ~ Expression ::=... | Identifier (Actual) Formal ::= Identifier : TypeDenoter | var Identifier : TypeDenoter Actual ::= Expression | var VName Declaration ::=... | proc Identifier (Formal) : TypeDenoter ~ Expression ::=... | Identifier (Actual) Formal ::= Identifier : TypeDenoter | var Identifier : TypeDenoter Actual ::= Expression | var VName

76. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Procedures and Functions: Parameters Parameters are pushed right before calling a proc/func. They are addressed like locals, but with negative offsets (in TAM). LB ST local variables and intermediate results dynamic link static link return addres arguments let proc double(var n:Integer) ~ n := n*2 in... let proc double(var n:Integer) ~ n := n*2 in... UnknownAddress address = (1,-1)

77. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Templates Parameters elaborate [ proc I(FP) ~ C ] = JUMP g e: execute [ C ] RETURN(0) d g: execute [ I (AP) ] = passArgument [ AP ] CALL(r) e passArgument [ E ] = evaluate [ E ] passArgument [var V] = fetchAddress [ V ] where d is the size of FP Where (l,e) = address of routine bound to I, Cl = current routine level R = display-register(cl,l)

78. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code Templates Parameters An “UnknownAddress” extra case for fetch and assign fetch [V] =if V bound to unknown address LOAD d[r] where (d,l) = address where the LOADI(s) unknown address will be stored at runtime. s is the size of the type of V assign [ V ] = LOAD d[r] STOREI(s) where d = address where the unknown address will be stored a runtime.

79. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Runtime Entities Overview Known Unknown Value Address Routine const lucky ~ 888const foo ~ x + 10 value: 888 address: (level,offset) the address where value will be stored proc double() ~... address: (level,offset) of the routine (label e in template) A procedure or function parameter. address: (level,offset) address where closure object will be stored. var counter : Integer address: (level,offset) of the variable. A var parameter address: (level,offset) of the address where the pointer will be stored.

80. UNIVERSITY OF SOUTH CAROLINA Department of Computer Science and Engineering Code generation summary Create code templates inductively –There may be special case templates generating equivalent, but more efficient code Use visitors pattern to walk the AST recursively emitting code as you go along –Back patching is needed for forward jumps –It is necessary to keep track of frame level and allocated space That’s it folks! –At least for MiniTriangle on TAM
