1. Query Optimization R&G, Chapter 15 Lecture 17

2. Administrivia Homework 3 available from class website –Due date: Tuesday, March 20 by end of class period Homework 4 available today –Implement nested loops and hash join operators for (new!) minibase –Due date: April 10 (after Spring Break) Midterm 2 is 3/22, 2 weeks from today –In class, covers lectures 10-17 –Review will be held Tuesday 3/20 7-9 pm 306 Soda Hall Internships at Google this summer… –See http://www.postgresql.org/developer/summerofcodehttp://www.postgresql.org/developer/summerofcode –Booth at the UCB TechExpo this Thursday: –http://csba.berkeley.edu/tech_expo.htmlhttp://csba.berkeley.edu/tech_expo.html –Contact josh@postgresql.orgjosh@postgresql.org

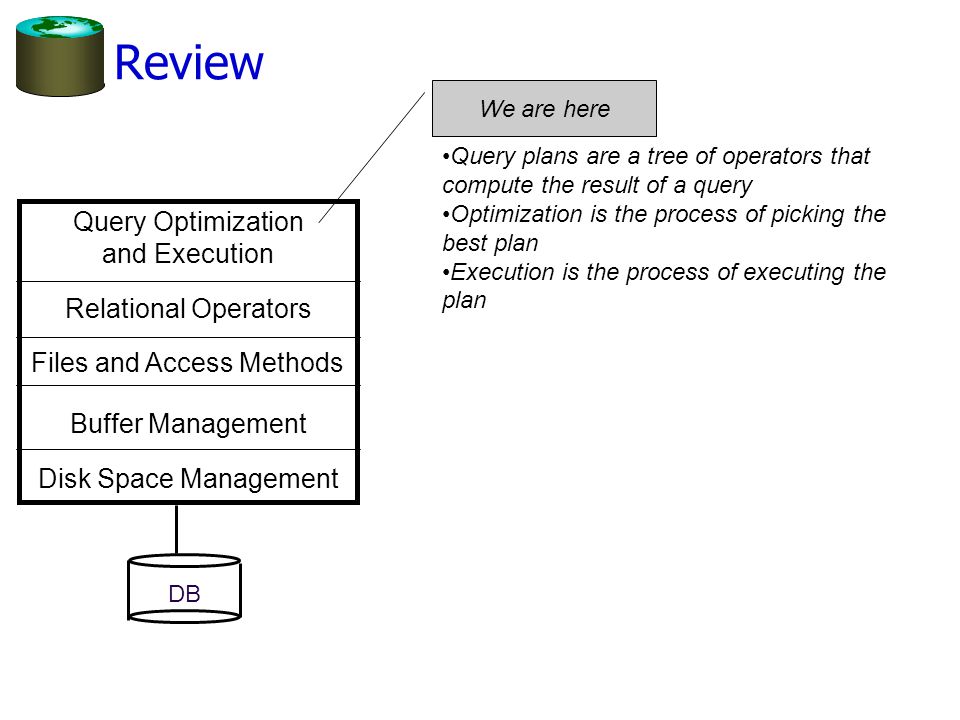

3. Review Query Optimization and Execution Relational Operators Files and Access Methods Buffer Management Disk Space Management DB We are here Query plans are a tree of operators that compute the result of a query Optimization is the process of picking the best plan Execution is the process of executing the plan

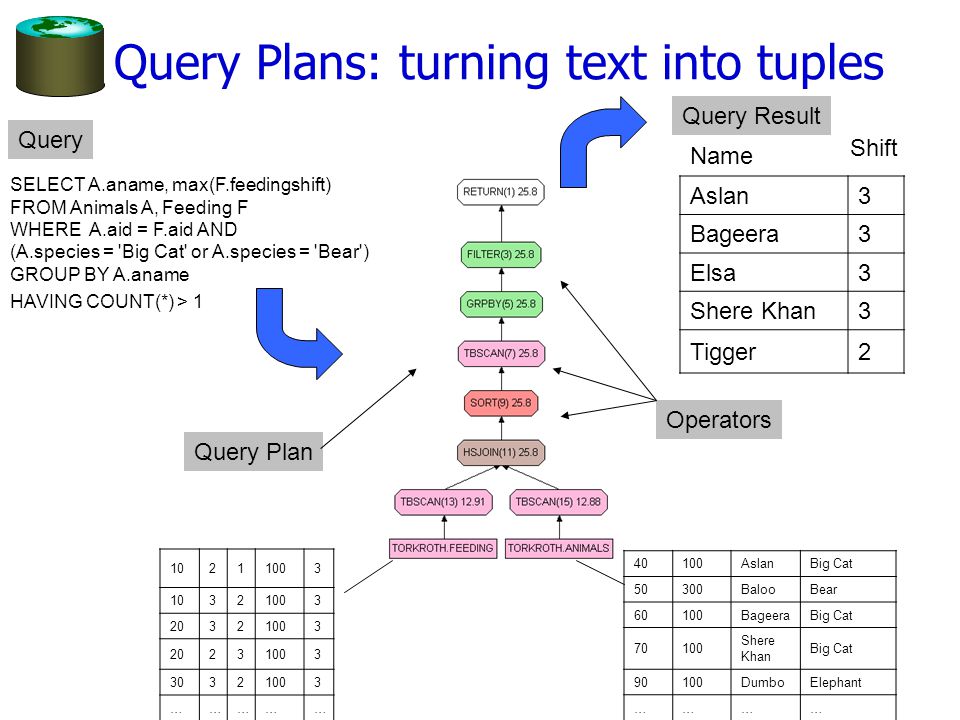

4. Query Plans: turning text into tuples SELECT A.aname, max(F.feedingshift) FROM Animals A, Feeding F WHERE A.aid = F.aid AND (A.species = 'Big Cat' or A.species = 'Bear') GROUP BY A.aname HAVING COUNT(*) > 1 Aslan3 Bageera3 Elsa3 Shere Khan3 Tigger2 Name Shift 10211003 10321003 20321003 20231003 30321003 …………… 40100AslanBig Cat 50300BalooBear 60100BageeraBig Cat 70100 Shere Khan Big Cat 90100DumboElephant ………… Operators Query Plan Query Result Query

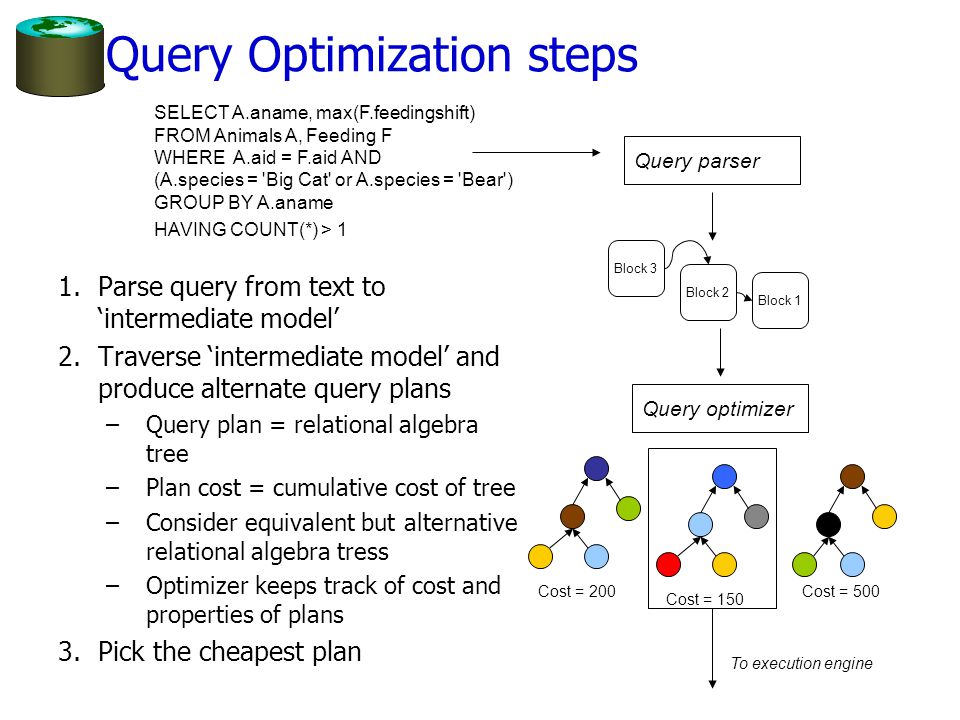

5. Query Optimization steps 1.Parse query from text to ‘intermediate model’ 2.Traverse ‘intermediate model’ and produce alternate query plans –Query plan = relational algebra tree –Plan cost = cumulative cost of tree –Consider equivalent but alternative relational algebra tress –Optimizer keeps track of cost and properties of plans 3.Pick the cheapest plan Query parser Query optimizer SELECT A.aname, max(F.feedingshift) FROM Animals A, Feeding F WHERE A.aid = F.aid AND (A.species = 'Big Cat' or A.species = 'Bear') GROUP BY A.aname HAVING COUNT(*) > 1 Block 2 Block 1 Block 3 Cost = 200 Cost = 150 Cost = 500 To execution engine

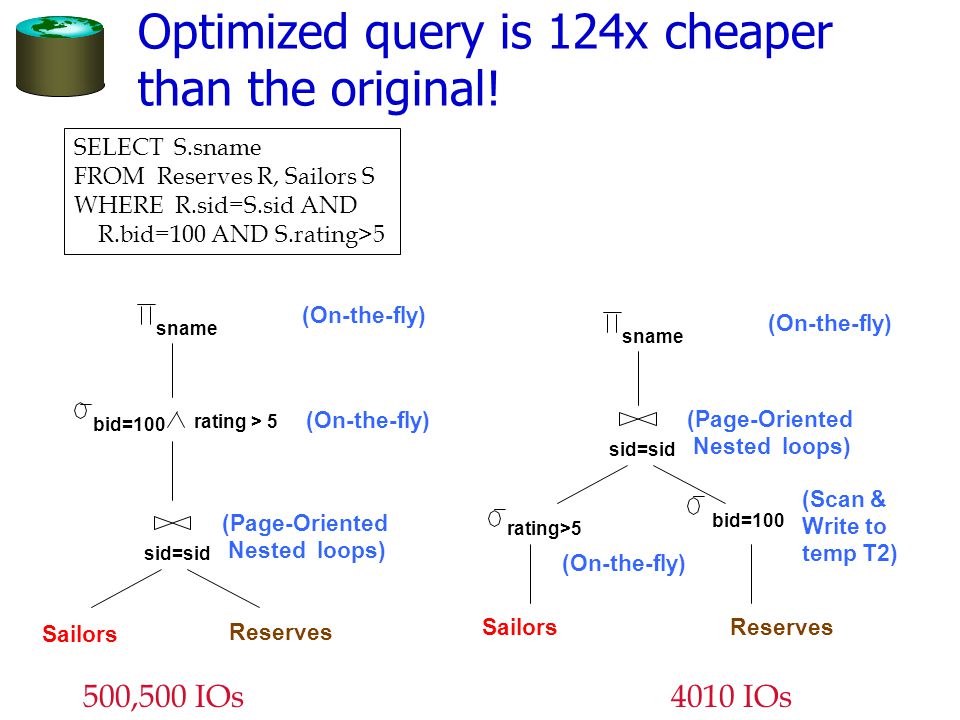

6. 500,500 IOs Optimized query is 124x cheaper than the original! Sailors Reserves sid=sid bid=100 rating > 5 sname (Page-Oriented Nested loops) (On-the-fly) ReservesSailors sid=sid bid=100 sname (Page-Oriented Nested loops) (On-the-fly) rating>5 (Scan & Write to temp T2) (On-the-fly) 4010 IOs SELECT S.sname FROM Reserves R, Sailors S WHERE R.sid=S.sid AND R.bid=100 AND S.rating>5

7. System R-Style Optimization Impact: – Most widely used currently; works well for < 10 joins. Cost estimation: –Plan cost = cumulative cost of plan tree –Cost = function(I/O, CPU) costs – Very inexact, but works ok in practice. – Statistics, maintained in system catalogs, used to estimate cost of operations and result sizes. Plan Space: Too large, must be pruned. – Many plans share common, “overpriced” subtrees ignore them all! – Only left-deep plans are considered. May cause optimizer to miss good plans – Avoid Cartesian products.

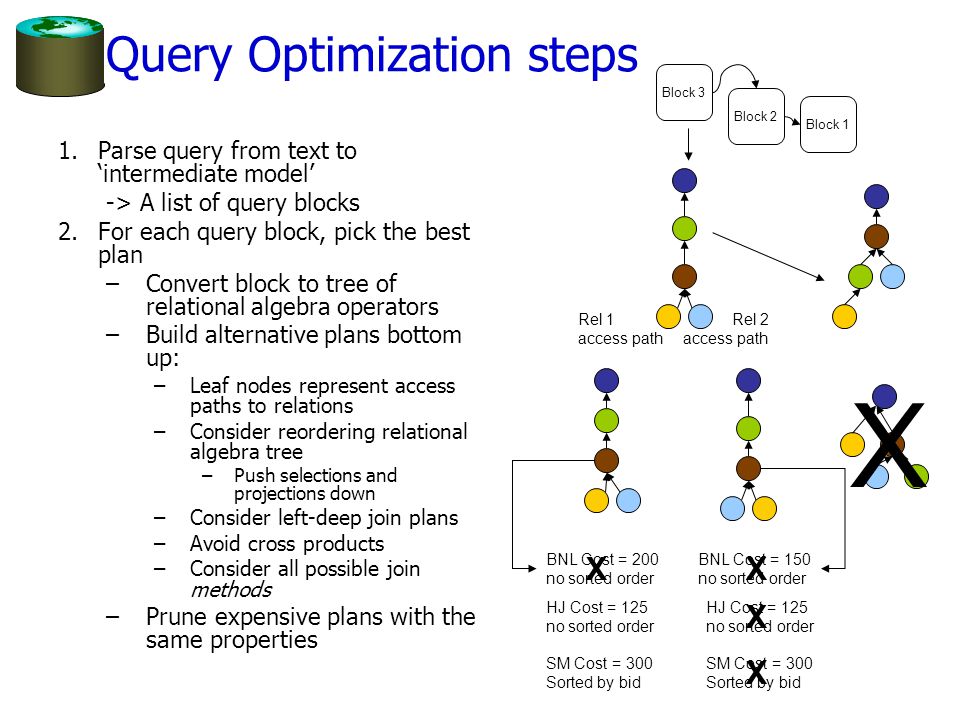

8. Query Optimization steps 1.Parse query from text to ‘intermediate model’ -> A list of query blocks 2.For each query block, pick the best plan –Convert block to tree of relational algebra operators –Build alternative plans bottom up: –Leaf nodes represent access paths to relations –Consider reordering relational algebra tree –Push selections and projections down –Consider left-deep join plans –Avoid cross products –Consider all possible join methods –Prune expensive plans with the same properties Block 2 Block 1 Block 3 BNL Cost = 200 no sorted order BNL Cost = 150 no sorted order X SM Cost = 300 Sorted by bid HJ Cost = 125 no sorted order SM Cost = 300 Sorted by bid HJ Cost = 125 no sorted order X X X X Rel 1 access path Rel 2 access path

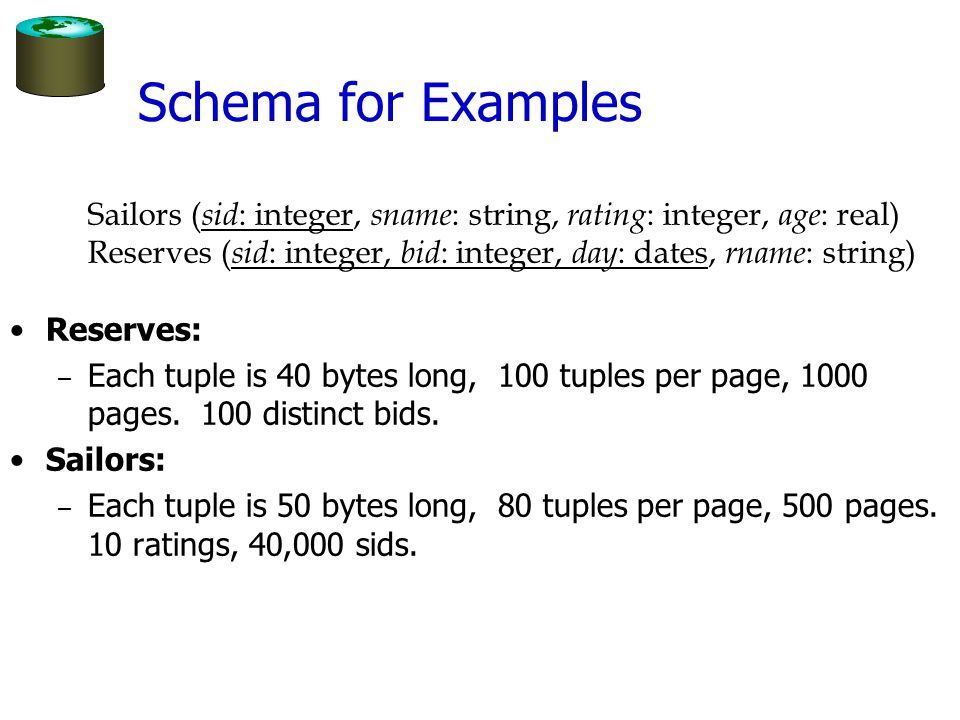

9. Schema for Examples Reserves: – Each tuple is 40 bytes long, 100 tuples per page, 1000 pages. 100 distinct bids. Sailors: – Each tuple is 50 bytes long, 80 tuples per page, 500 pages. 10 ratings, 40,000 sids. Sailors ( sid : integer, sname : string, rating : integer, age : real) Reserves ( sid : integer, bid : integer, day : dates, rname : string)

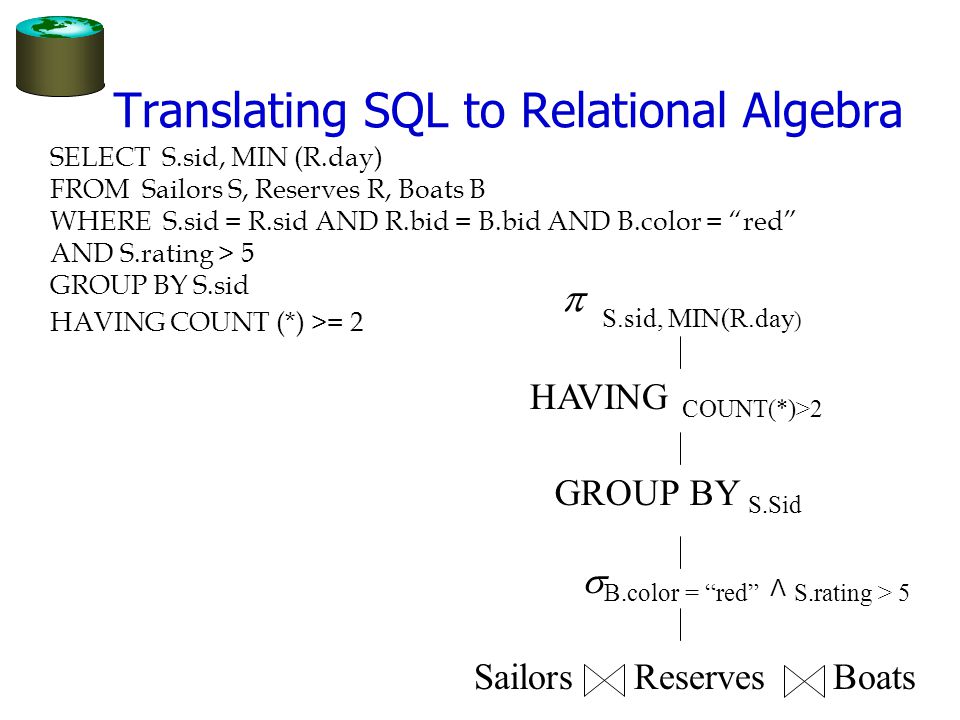

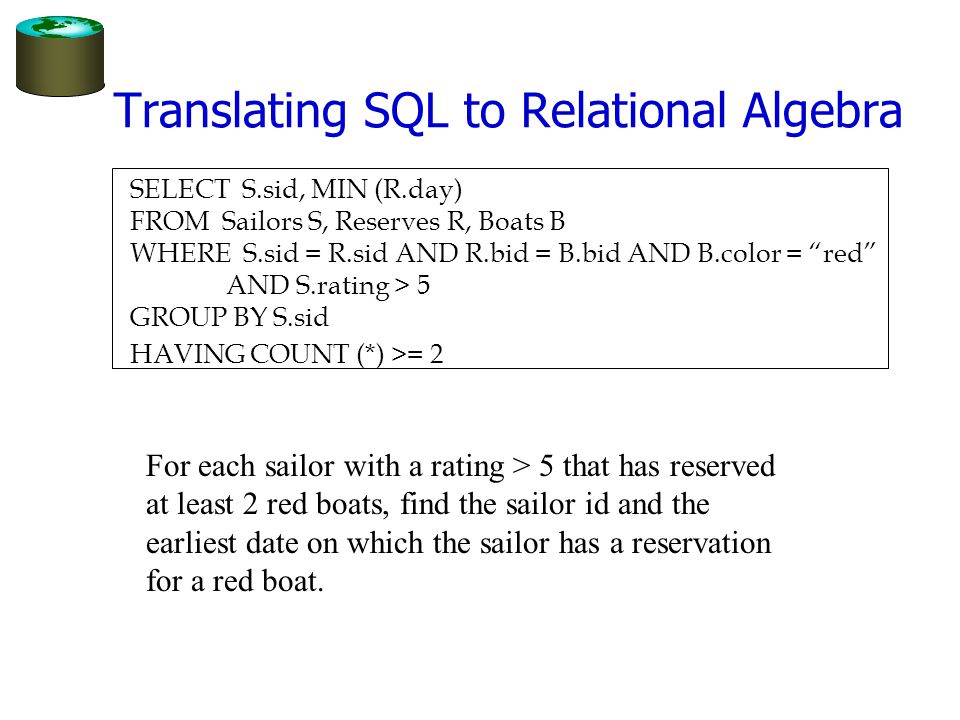

10. Translating SQL to Relational Algebra SELECT S.sid, MIN (R.day) FROM Sailors S, Reserves R, Boats B WHERE S.sid = R.sid AND R.bid = B.bid AND B.color = “red” AND S.rating > 5 GROUP BY S.sid HAVING COUNT (*) >= 2 For each sailor with a rating > 5 that has reserved at least 2 red boats, find the sailor id and the earliest date on which the sailor has a reservation for a red boat.

11. HAVING COUNT(*)>2  S.sid, MIN(R.day ) Translating SQL to Relational Algebra SELECT S.sid, MIN (R.day) FROM Sailors S, Reserves R, Boats B WHERE S.sid = R.sid AND R.bid = B.bid AND B.color = “red” AND S.rating > 5 GROUP BY S.sid HAVING COUNT (*) >= 2 Sailors Reserves Boats  B.color = “red” GROUP BY S.Sid V S.rating > 5

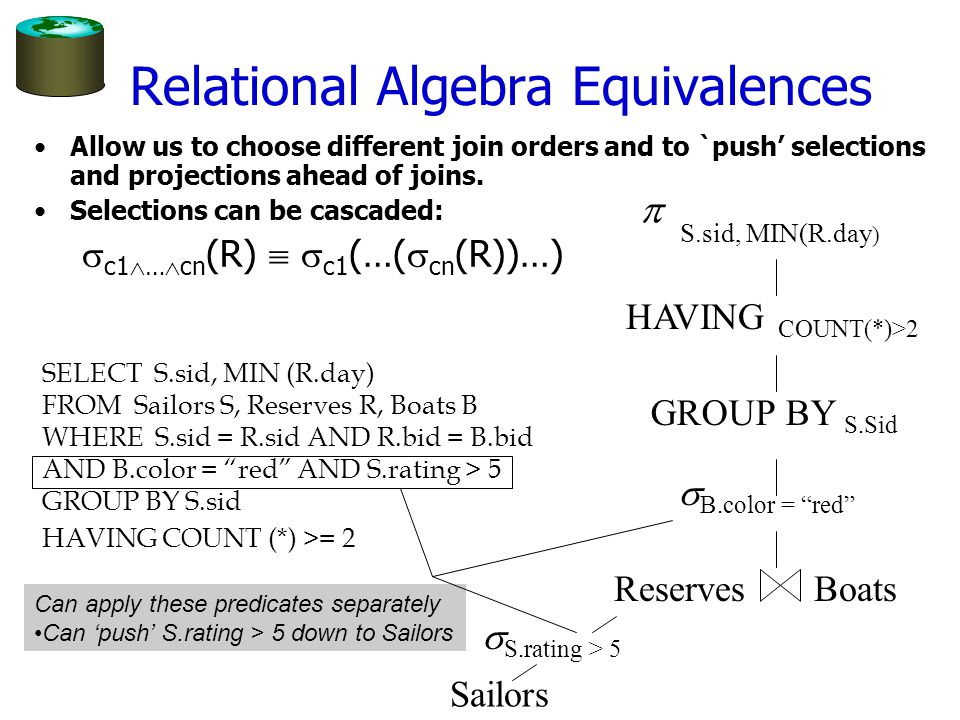

12. Allow us to choose different join orders and to `push’ selections and projections ahead of joins. Selections can be cascaded:  c1  …  cn (R)   c1 (…(  cn (R))…) Relational Algebra Equivalences SELECT S.sid, MIN (R.day) FROM Sailors S, Reserves R, Boats B WHERE S.sid = R.sid AND R.bid = B.bid AND B.color = “red” AND S.rating > 5 GROUP BY S.sid HAVING COUNT (*) >= 2 HAVING COUNT(*)>2  B.color = “red” GROUP BY S.Sid  S.sid, MIN(R.day ) Sailors Reserves Boats  S.rating > 5 Can apply these predicates separately Can ‘push’ S.rating > 5 down to Sailors

13. Selections can be commuted:  c1 (  c2 (R))   c2 (  c1 (R)) Relational Algebra Equivalences SELECT S.sid, MIN (R.day) FROM Sailors S, Reserves R, Boats B WHERE S.sid = R.sid AND R.bid = B.bid AND B.color = “red” AND S.rating > 5 GROUP BY S.sid HAVING COUNT (*) >= 2 HAVING COUNT(*)>2  S.Rating > 5 GROUP BY S.Sid  S.sid, MIN(R.day ) Boats Reserves Sailors  B.color = “red” Can apply these predicates in different order

14. Projections can be cascaded:  a1 (R)   a1 (…(  a1, …, an (R))…) Relational Algebra Equivalences SELECT S.sid, MIN (R.day) FROM Sailors S, Reserves R, Boats B WHERE S.sid = R.sid AND R.bid = B.bid AND B.color = “red” AND S.rating > 5 GROUP BY S.sid HAVING COUNT (*) >= 2 HAVING COUNT(*)>2  B.color = “red” GROUP BY S.Sid  S.sid, MIN(R.day ) Reserves Boats  S.rating > 5 Sailors  S.sid Can project S.sid to reduce size of tuples

15. Relational Algebra Equivalences Eager projection –Can cascade and “push” some projections thru selection –Can cascade and “push” some projections below one side of a join –Rule of thumb: can project anything not needed “downstream” HAVING COUNT(*)>2  B.color = “red” GROUP BY S.Sid Boats  S.rating > 5 Sailors  S.sid Reserves  R.sid, R.bid, R.day SELECT S.sid, MIN (R.day) FROM Sailors S, Reserves R, Boats B WHERE S.sid = R.sid AND R.bid = B.bid AND B.color = “red” AND S.rating > 5 GROUP BY S.sid HAVING COUNT (*) >= 2  ??  B.bid, B.color  ??  S.sid, R.day  S.sid, MIN(R.day )  ?? 

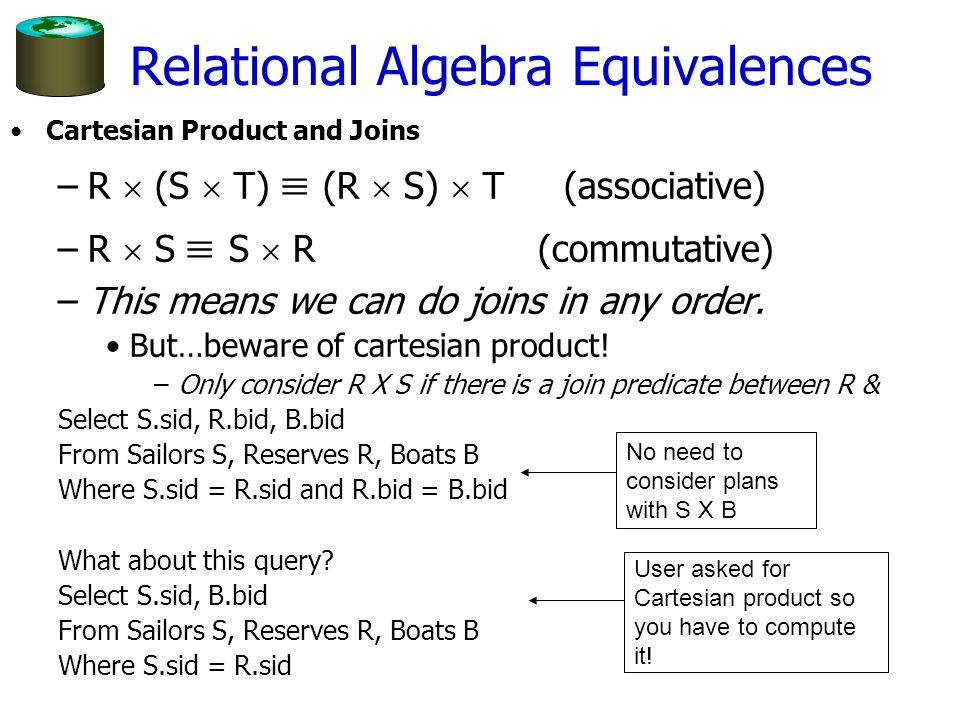

16. Cartesian Product and Joins –R  (S  T)  (R  S)  T (associative) –R  S  S  R (commutative) –This means we can do joins in any order. But…beware of cartesian product! –Only consider R X S if there is a join predicate between R & Select S.sid, R.bid, B.bid From Sailors S, Reserves R, Boats B Where S.sid = R.sid and R.bid = B.bid What about this query? Select S.sid, B.bid From Sailors S, Reserves R, Boats B Where S.sid = R.sid Relational Algebra Equivalences No need to consider plans with S X B User asked for Cartesian product so you have to compute it!

17. Cost Estimation For each plan considered, must estimate total cost: – Must estimate cost of each operation in plan tree. – Plan cost = cumulative cost of the operators – Operator cost is computed from: Input cardinalities. Cost of each operator –e.g. (sequential scan, index scan, joins, etc.) – Must estimate size of result for each operation in tree! It will contribute to the input cardinality for the next operator up the tree! Computed from cardinality of input relations + selecitivity of the predicates. For selections and joins, assume predicates are independent. –Q: Is “cost” the same as estimated “run time”?

18. Statistics and Catalogs Optimizer needs statistics about relations and their indexes to compute cardinality and selectivity estimates. System Catalogs contain metadata about tables and relations –Just another set of relations; you can query them like any other table! For optimizer, they typically contain: – # tuples (cardinality) and # pages (NPages) per rel’n. – # distinct key values (NKeys) for each index. – low/high key values (Low/High) for each index. – Index height (IHeight) for each tree index. – # index pages (INPages) for each index. Statistics must be kept up to date – Updating whenever data changes is too expensive; lots of approximation anyway, so slight inconsistency ok. – Updated periodically E.g. DB2: runstats on table feeding – Statistics out of date -> optimizer choosing very bad plans!

19. The optimizer relies on good statistics SELECT S.sname, R.bid FROM Sailors S, Reserves R WHERE S.sid = R.sid T1: Create table Sailors(…) T2: Create table Reserves(…) T3: Runstats on table Sailors T4: Runstats on table Reserves T5: Insert 100 pages of Sailors into Sailors T6: Runstats on Sailors T6: Insert 1000 pages of Reservations into Reserves T7: Run Query: Table Stats NameNumPages Sailors 1 Reserves 1 X 100 Assume 7 pages of memory and only BNL BNLJ: SailorsXReserves 100 + 100/5x1 = 120 Optimizer would incorrectly pick this plan! ReservesXSailors 1 + 1/5x100 = 101

20. Size Estimation and Reduction Factors Consider a query block: Maximum Cardinality = product of the cardinalities of relations in the FROM clause. Reduction factor (RF) associated with each predicate reflects the impact of the predicate in reducing result size. –Result cardinality = Max # tuples * product of all RF’s. RF usually called “selectivity” –only R&G seem to call it Reduction Factor SELECT attribute list FROM relation list WHERE pred1 AND... AND predk

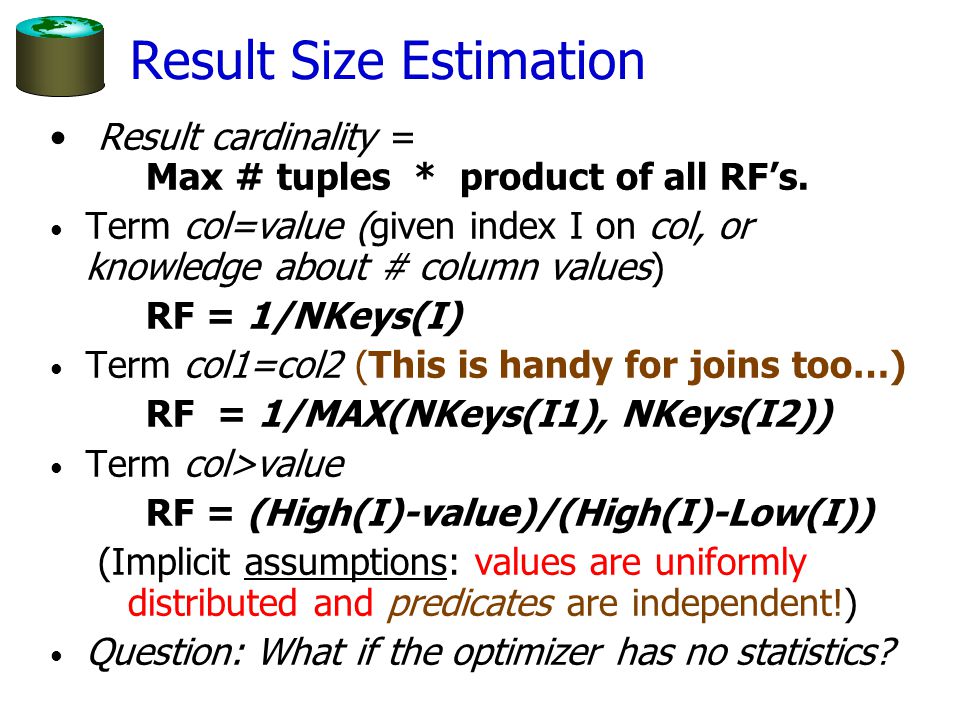

21. Result Size Estimation Result cardinality = Max # tuples * product of all RF’s. Term col=value (given index I on col, or knowledge about # column values) RF = 1/NKeys(I) Term col1=col2 (This is handy for joins too…) RF = 1/MAX(NKeys(I1), NKeys(I2)) Term col>value RF = (High(I)-value)/(High(I)-Low(I)) (Implicit assumptions: values are uniformly distributed and predicates are independent!) Question: What if the optimizer has no statistics?

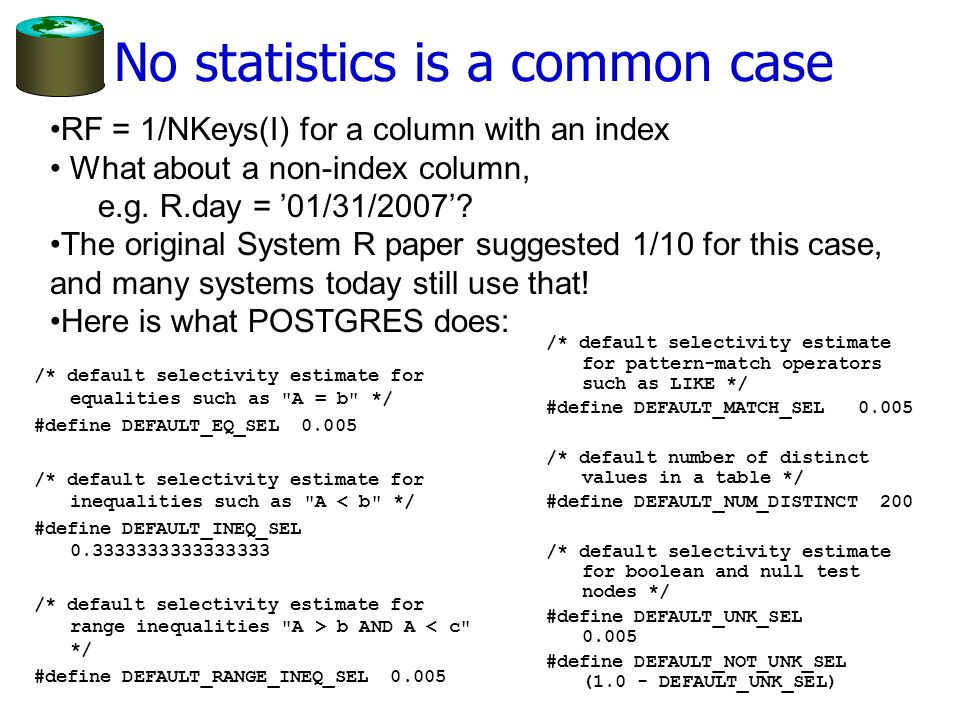

22. No statistics is a common case /* default selectivity estimate for equalities such as "A = b" */ #define DEFAULT_EQ_SEL 0.005 /* default selectivity estimate for inequalities such as "A < b" */ #define DEFAULT_INEQ_SEL 0.3333333333333333 /* default selectivity estimate for range inequalities "A > b AND A < c" */ #define DEFAULT_RANGE_INEQ_SEL 0.005 /* default selectivity estimate for pattern-match operators such as LIKE */ #define DEFAULT_MATCH_SEL 0.005 /* default number of distinct values in a table */ #define DEFAULT_NUM_DISTINCT 200 /* default selectivity estimate for boolean and null test nodes */ #define DEFAULT_UNK_SEL 0.005 #define DEFAULT_NOT_UNK_SEL (1.0 - DEFAULT_UNK_SEL) RF = 1/NKeys(I) for a column with an index What about a non-index column, e.g. R.day = ’01/31/2007’? The original System R paper suggested 1/10 for this case, and many systems today still use that! Here is what POSTGRES does:

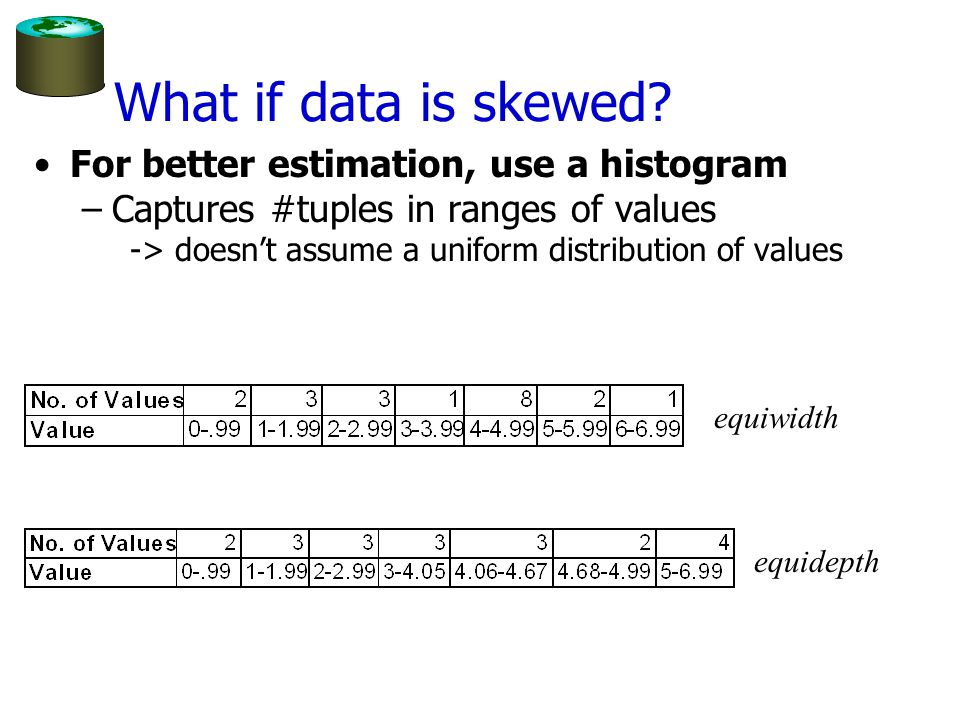

23. What if data is skewed? For better estimation, use a histogram –Captures #tuples in ranges of values -> doesn’t assume a uniform distribution of values equiwidth equidepth

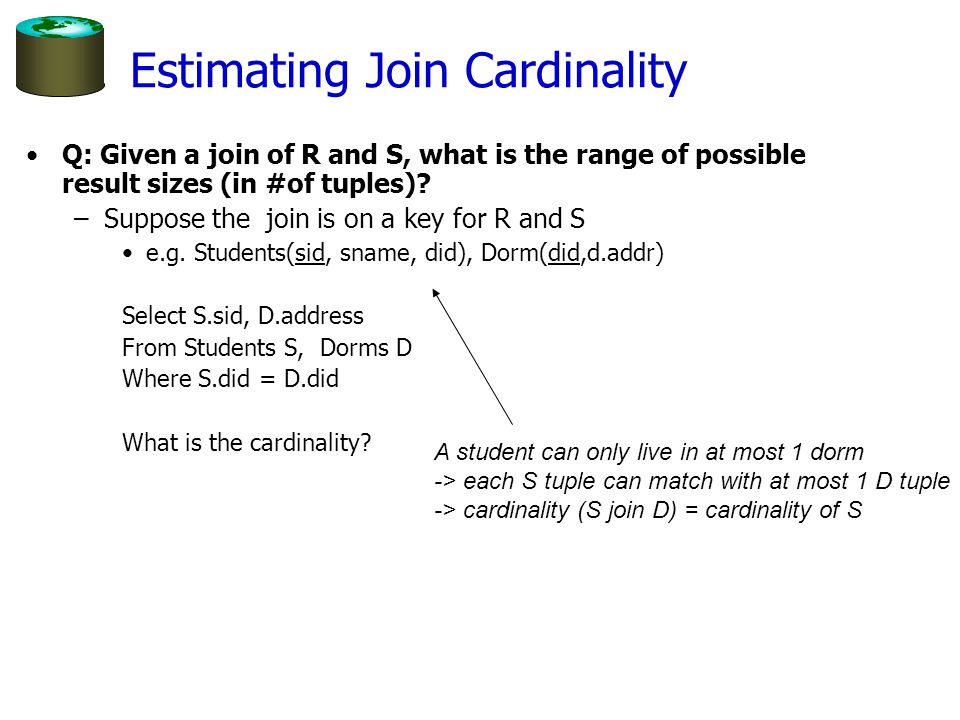

24. Estimating Join Cardinality Q: Given a join of R and S, what is the range of possible result sizes (in #of tuples)? –Suppose the join is on a key for R and S e.g. Students(sid, sname, did), Dorm(did,d.addr) Select S.sid, D.address From Students S, Dorms D Where S.did = D.did What is the cardinality? A student can only live in at most 1 dorm -> each S tuple can match with at most 1 D tuple -> cardinality (S join D) = cardinality of S

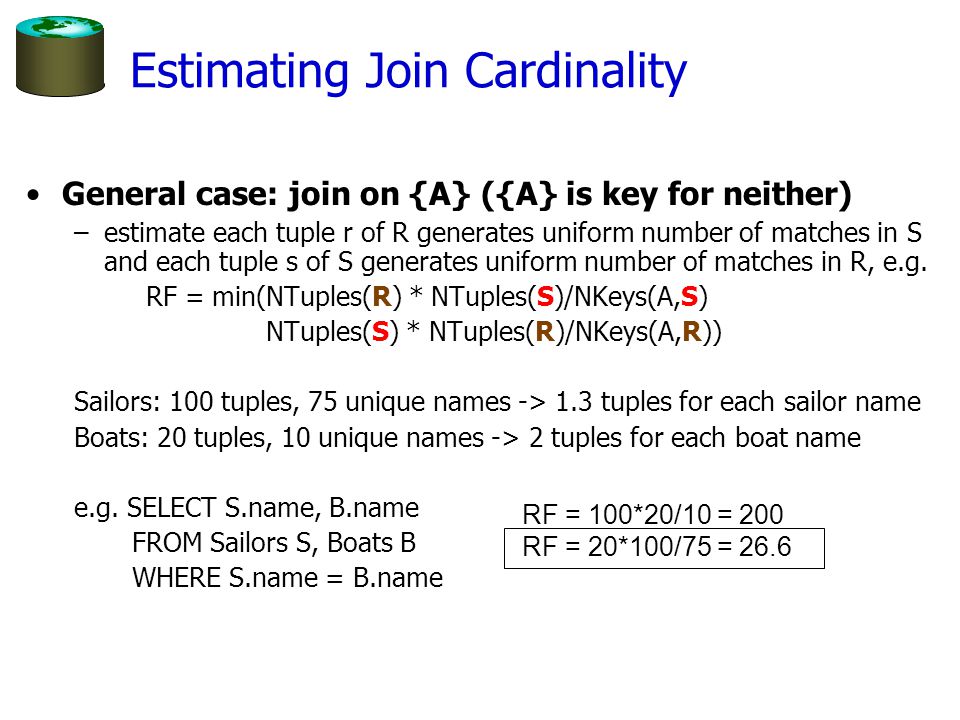

25. General case: join on {A} ({A} is key for neither) –estimate each tuple r of R generates uniform number of matches in S and each tuple s of S generates uniform number of matches in R, e.g. RF = min(NTuples(R) * NTuples(S)/NKeys(A,S) NTuples(S) * NTuples(R)/NKeys(A,R)) Sailors: 100 tuples, 75 unique names -> 1.3 tuples for each sailor name Boats: 20 tuples, 10 unique names -> 2 tuples for each boat name e.g. SELECT S.name, B.name FROM Sailors S, Boats B WHERE S.name = B.name Estimating Join Cardinality RF = 100*20/10 = 200 RF = 20*100/75 = 26.6

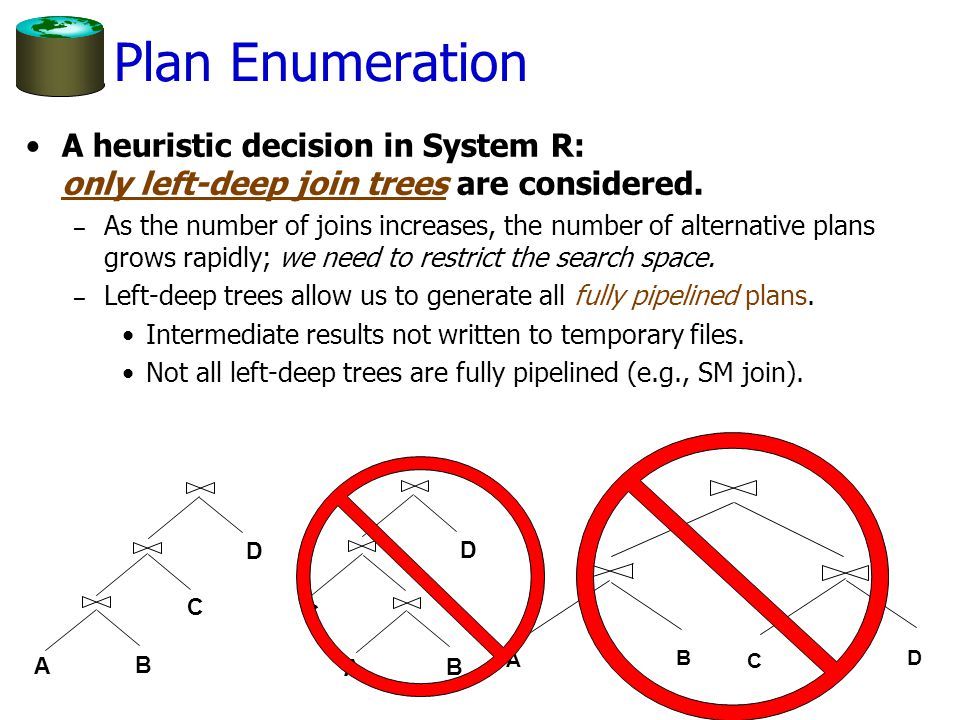

26. Plan Enumeration A heuristic decision in System R: only left-deep join trees are considered. – As the number of joins increases, the number of alternative plans grows rapidly; we need to restrict the search space. – Left-deep trees allow us to generate all fully pipelined plans. Intermediate results not written to temporary files. Not all left-deep trees are fully pipelined (e.g., SM join). B A C D B A C D C D B A

27. Enumeration of Left-Deep Plans Left-deep plans differ: –Order of relations –Access method for each relation, –Join method for each join. Enumerated using N passes (if N relations joined): – Pass 1: Find best 1-relation plan for each relation. – Pass 2: Find best way to join result of each 1-relation plan (as outer) to another relation. (All 2-relation plans.) – Pass N: Find best way to join result of a (N-1)-relation plan (as outer) to the N’th relation. (All N-relation plans.) For each subset of relations, retain only: – Cheapest plan overall, plus – Cheapest plan for each interesting order of the tuples.

28. A Note on “Interesting Orders” An intermediate result has an “interesting order” if it is sorted by any of: –ORDER BY attributes –GROUP BY attributes –Join attributes of yet-to-be-added (downstream) joins

29. Enumeration of Plans (Contd.) Avoid Cartesian products! –An N-1 way plan is not combined with an additional relation unless there is a join condition between them, or all predicates in WHERE have been used up. – i.e., consider a Cartesian product only if the user specified one! ORDER BY, GROUP BY, aggregates –handled as a final step, using either an `interestingly ordered’ plan or an additonal sort/hash operator. In spite of pruning plan space, System R approach is still exponential in the # of tables.
