1 Perceptual Organization A Mathematical Approach Based on scale and orientation Remco Duits

2 Perceptual Organization: The organization of local image fragments into the global structure

3 3 Part1: Scale Painting by Dali Objects exist at certain ranges of scale. It is not known a priory at what scale to look.

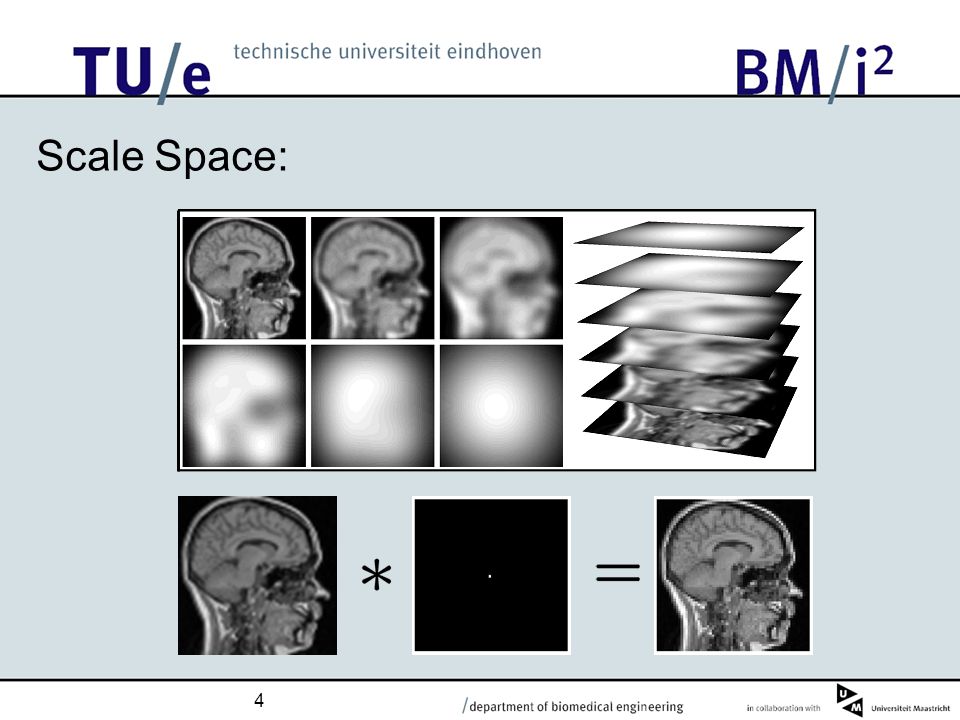

4 4 Scale Space:

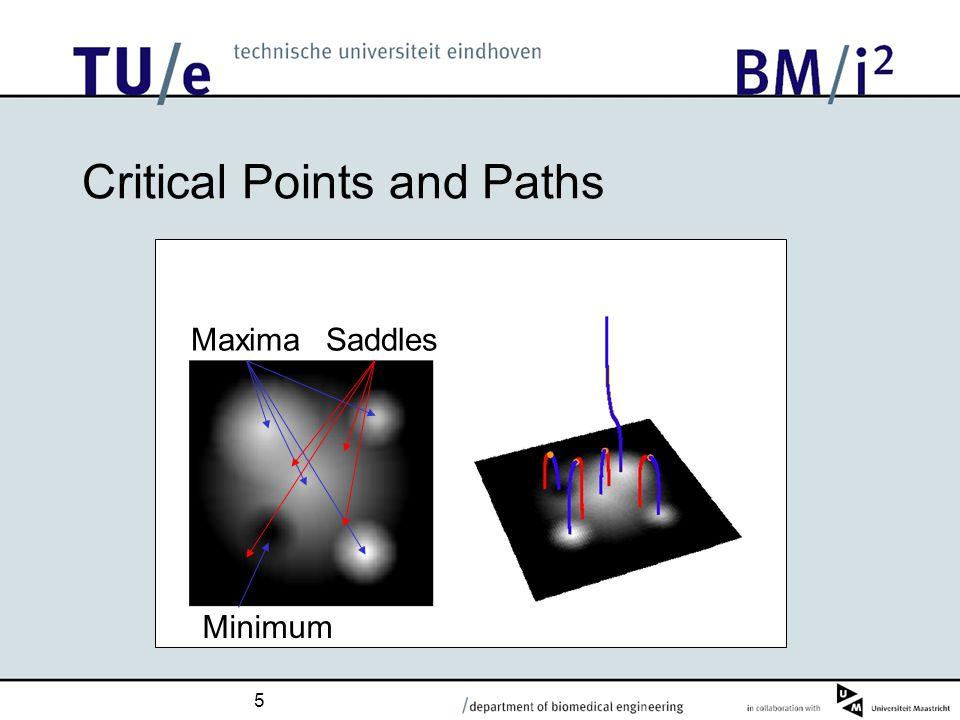

5 5 Critical Points and Paths Maxima Minimum Saddles

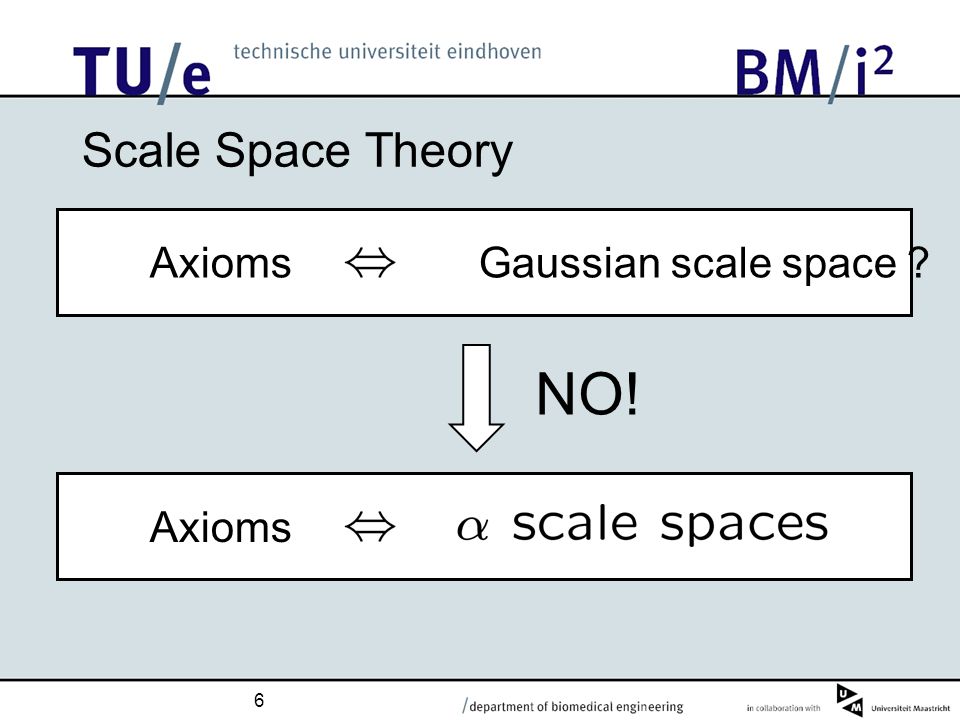

6 6 Scale Space Theory Axioms Gaussian scale space ? Axioms NO!

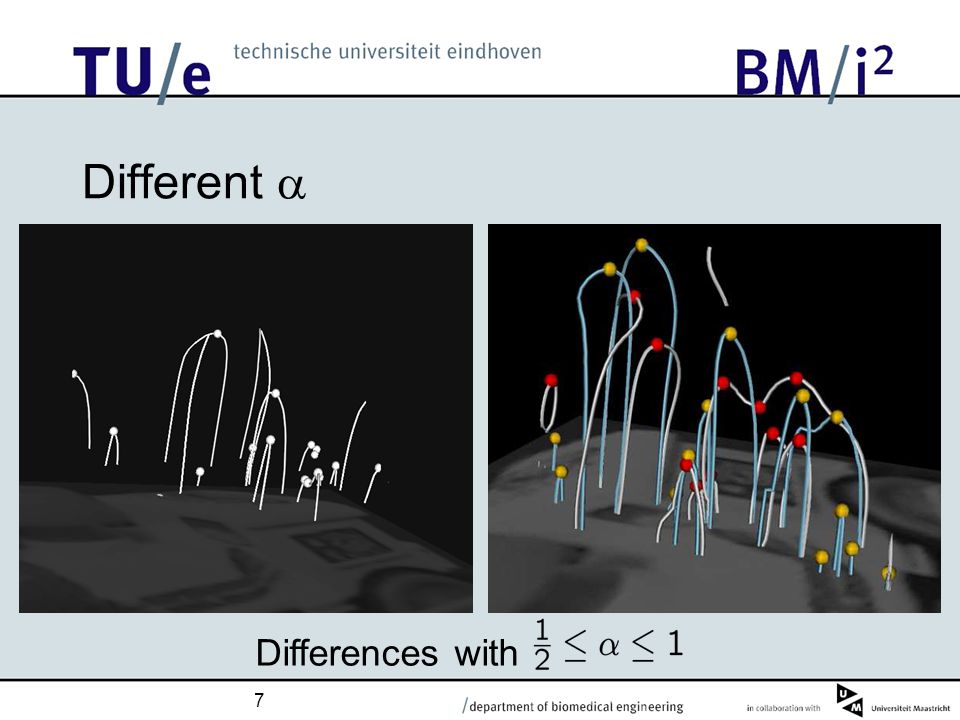

7 7 Differences with Different 

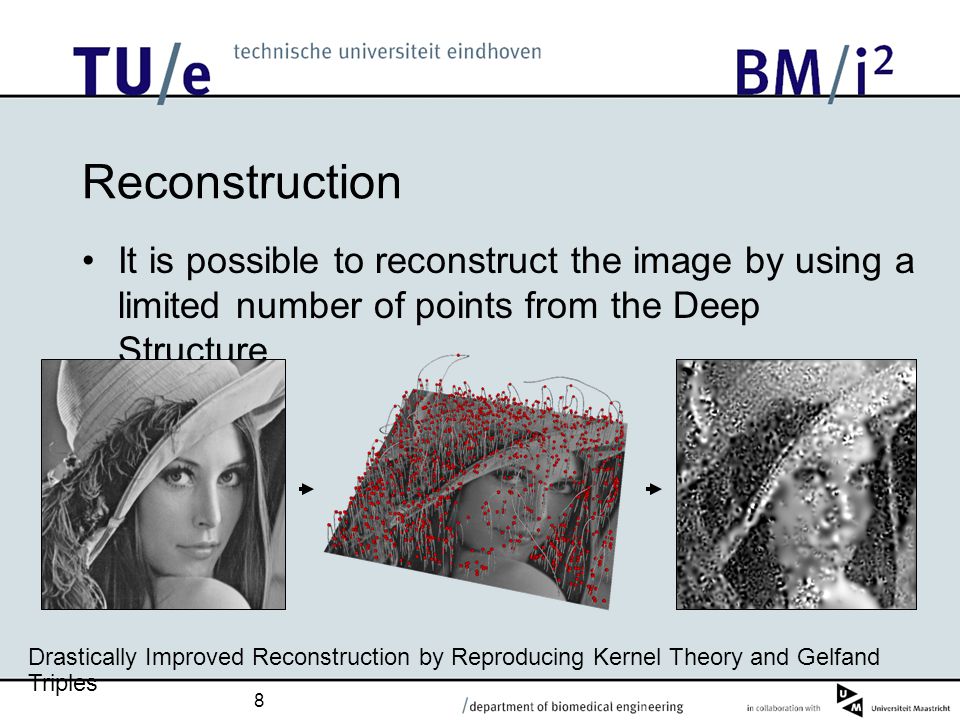

8 8 Reconstruction It is possible to reconstruct the image by using a limited number of points from the Deep Structure. Drastically Improved Reconstruction by Reproducing Kernel Theory and Gelfand Triples

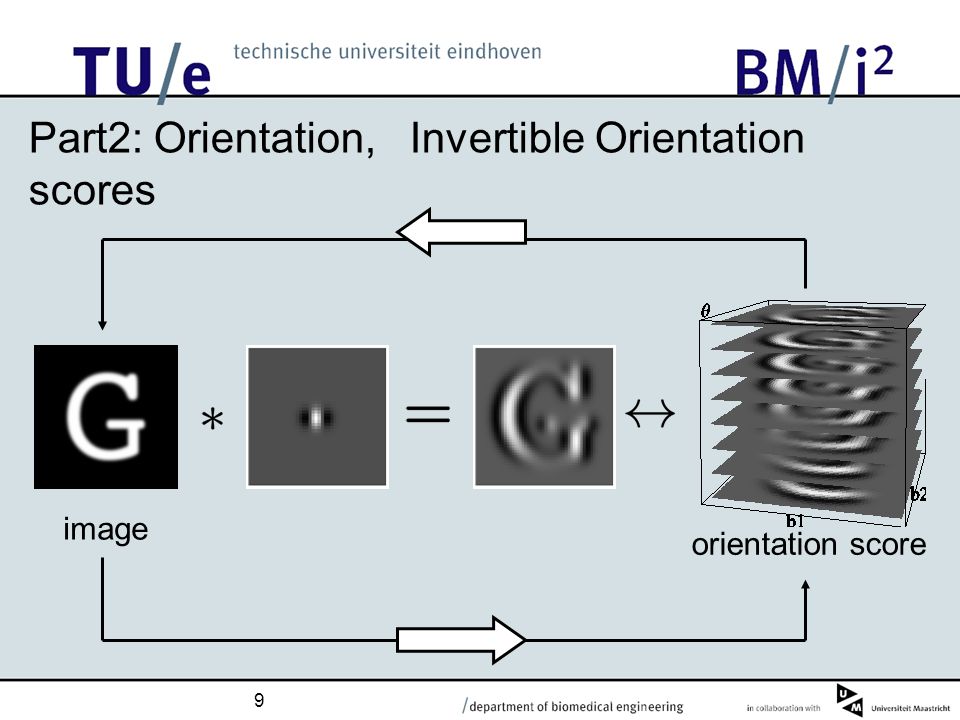

9 9 Part2: Orientation, Invertible Orientation scores image orientation score

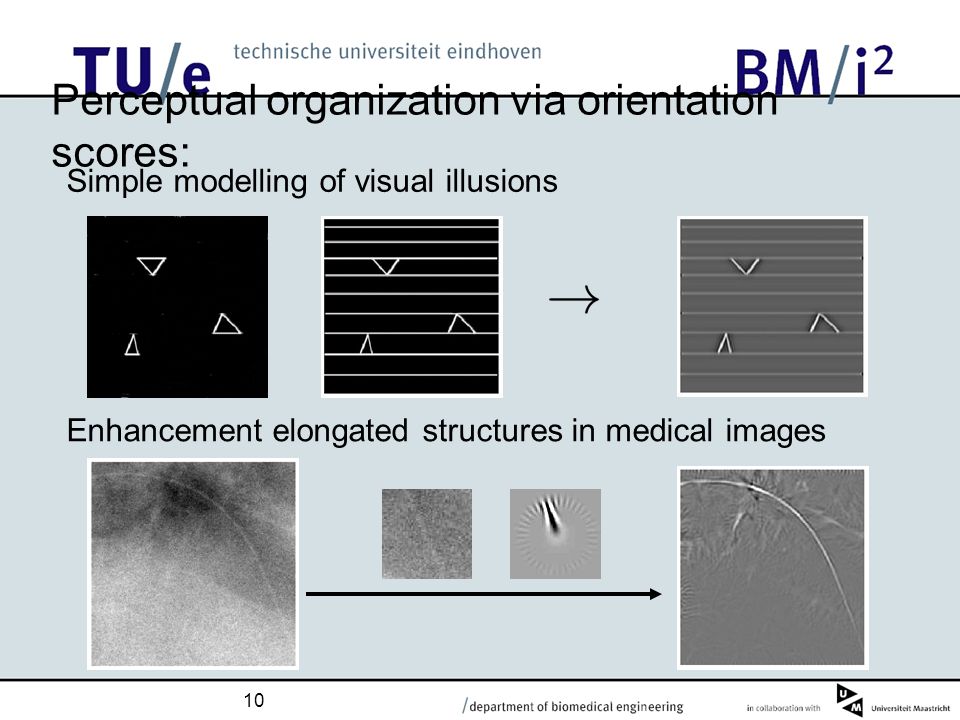

10 10 Perceptual organization via orientation scores: Simple modelling of visual illusions Enhancement elongated structures in medical images

11 11 Application Automatic Closure of Gaps: Collision probability of forward and backward process:

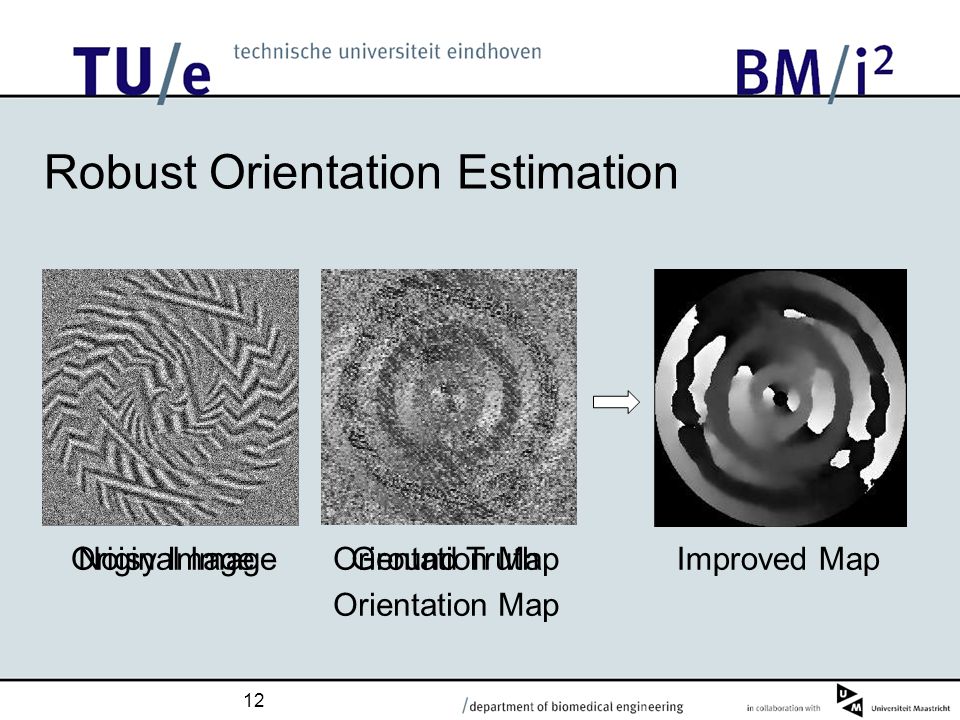

12 12 Original ImageNoisy ImageImproved MapGround Truth Orientation Map Robust Orientation Estimation

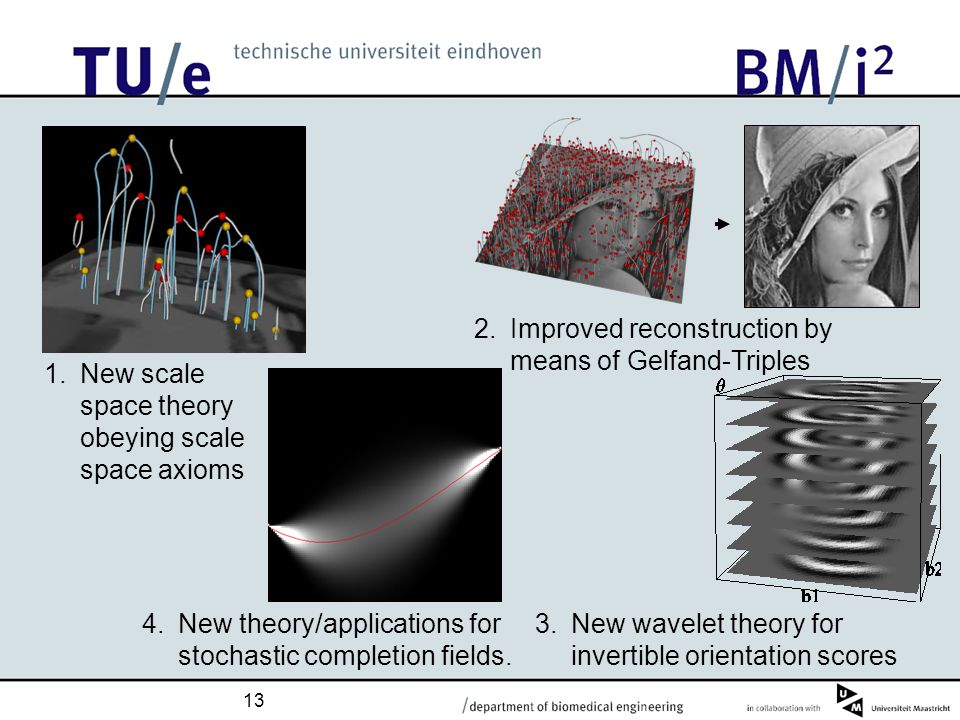

13 13 1.New scale space theory obeying scale space axioms 2.Improved reconstruction by means of Gelfand-Triples 3.New wavelet theory for invertible orientation scores 4.New theory/applications for stochastic completion fields.

14 14

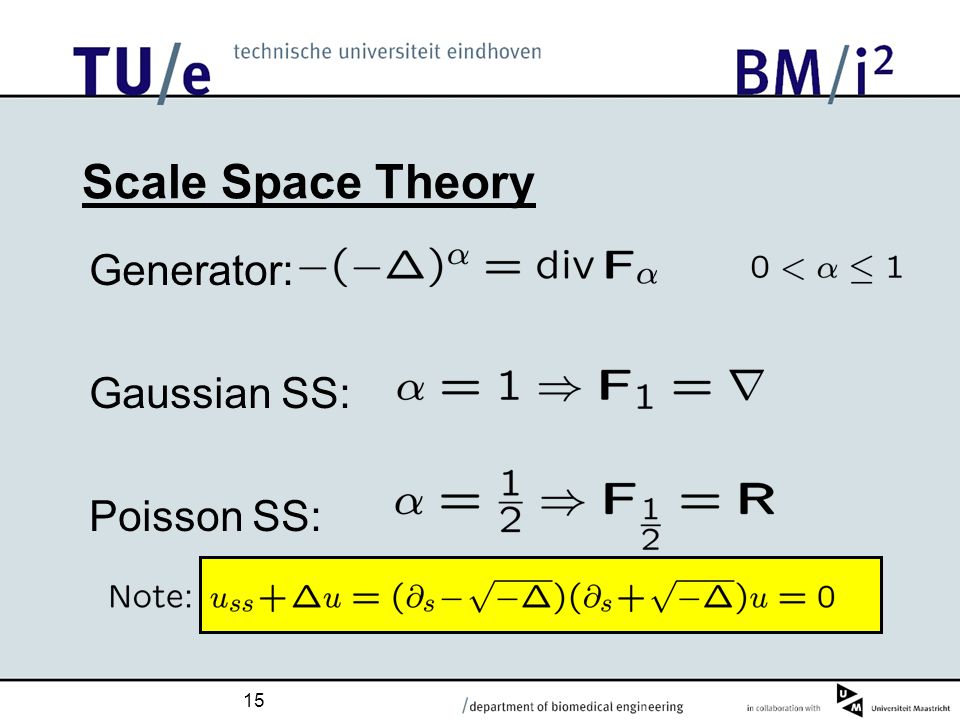

15 15 Scale Space Theory Generator: Gaussian SS: Poisson SS:

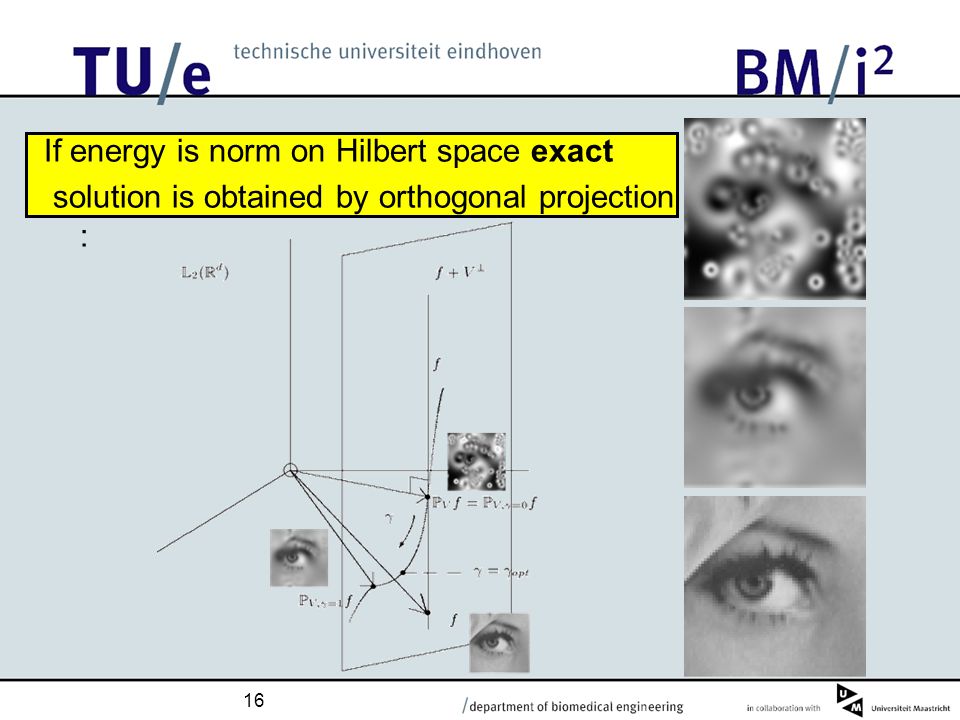

16 16 If energy is norm on Hilbert space exact solution is obtained by orthogonal projection :
