Presentation on theme: "Arrange the following in the order of current, starting with the lowest. (A) 7 coulombs in 3 seconds. (B) 10 Volts across 5 Ohms (C) 15 Volts across 7."— Presentation transcript:

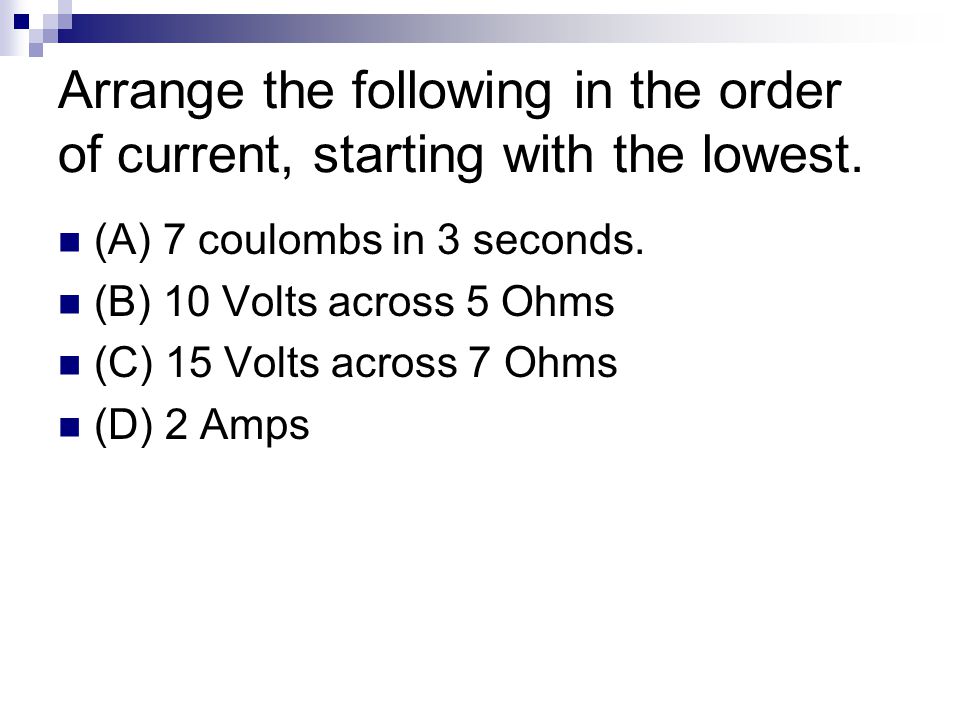

1 Arrange the following in the order of current, starting with the lowest. (A) 7 coulombs in 3 seconds. (B) 10 Volts across 5 Ohms (C) 15 Volts across 7 Ohms (D) 2 Amps

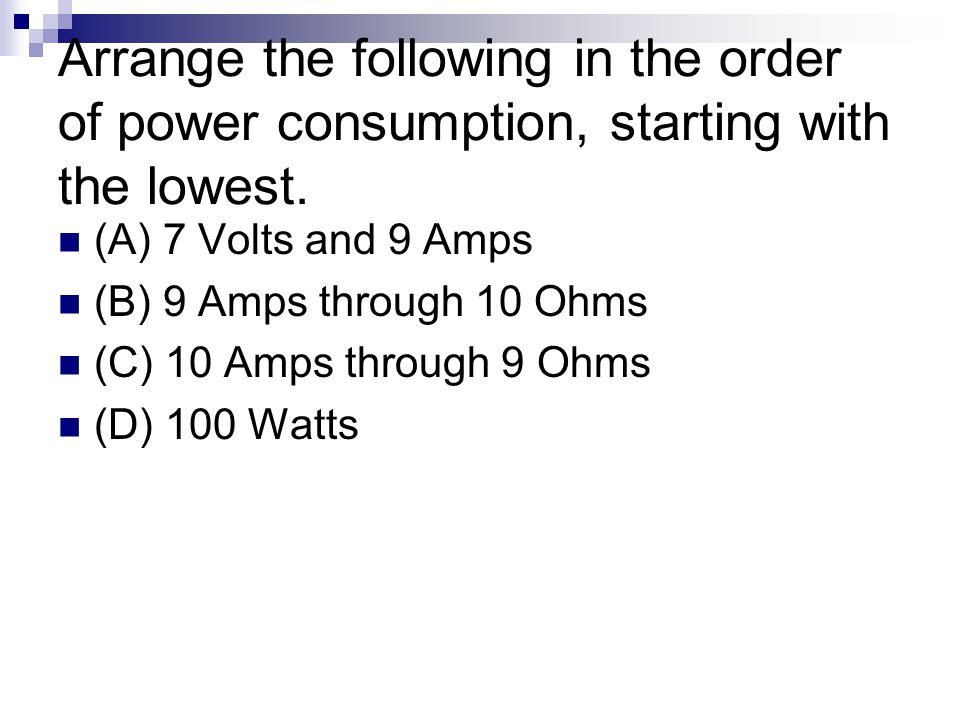

2 Arrange the following in the order of power consumption, starting with the lowest. (A) 7 Volts and 9 Amps (B) 9 Amps through 10 Ohms (C) 10 Amps through 9 Ohms (D) 100 Watts

3 Arrange the following in the order of resistance, starting with the lowest. (A) Copper, 100 m long, 0.5 cm dia (B) Copper, 50 m long, 0.25 cm dia (C) Copper, 100 m long, 0.25 cm dia (D) Copper, 50 m long, 0.5 cm dia

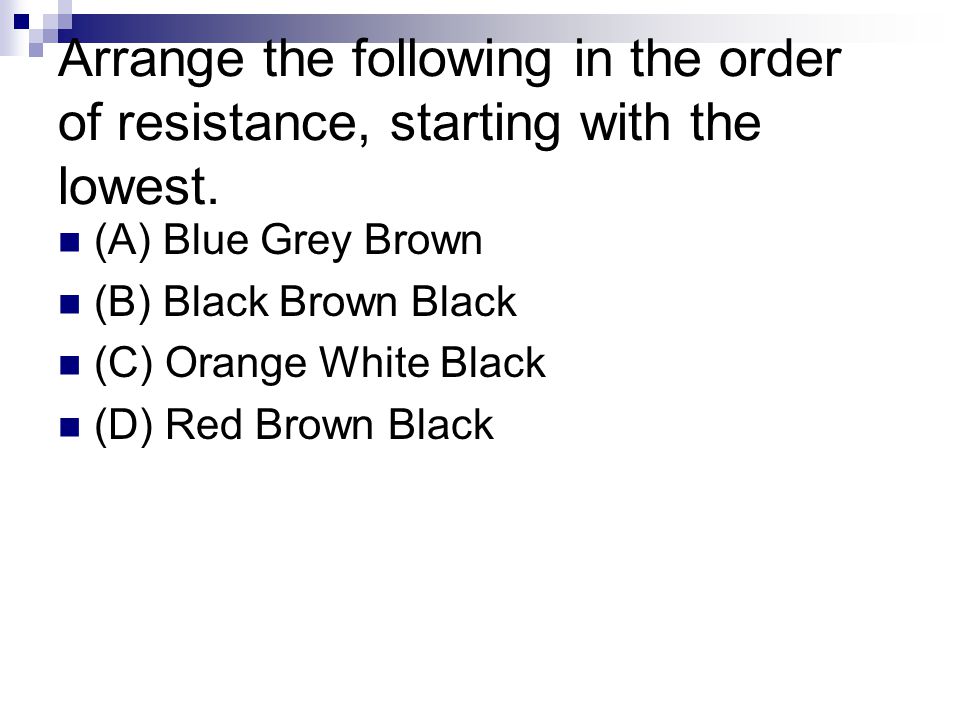

4 Arrange the following in the order of resistance, starting with the lowest. (A) Blue Grey Brown (B) Black Brown Black (C) Orange White Black (D) Red Brown Black

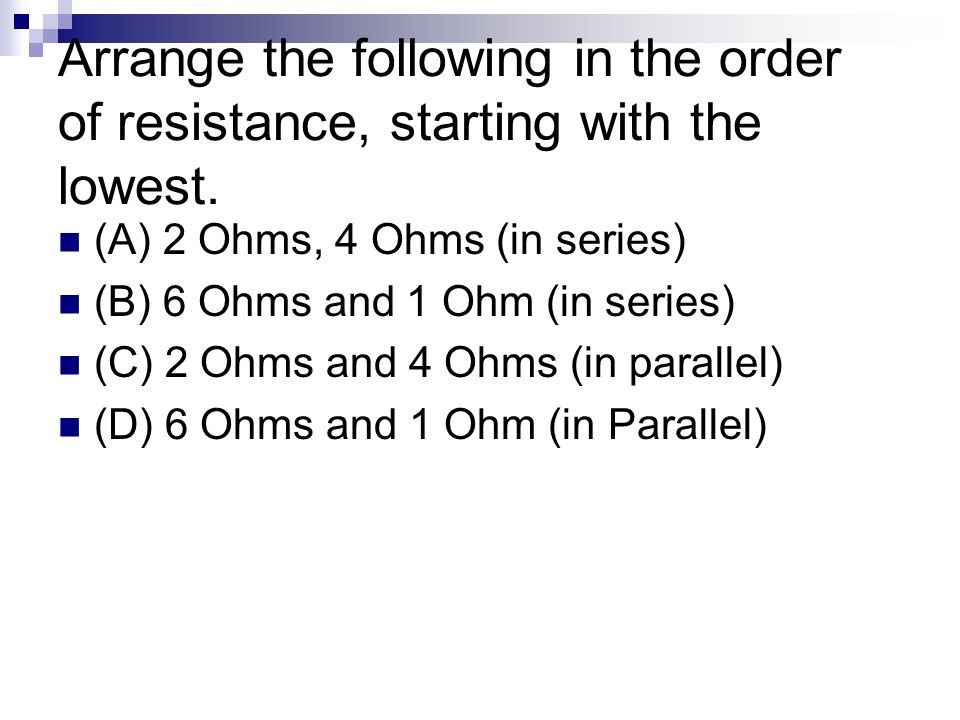

5 Arrange the following in the order of resistance, starting with the lowest. (A) 2 Ohms, 4 Ohms (in series) (B) 6 Ohms and 1 Ohm (in series) (C) 2 Ohms and 4 Ohms (in parallel) (D) 6 Ohms and 1 Ohm (in Parallel)
