1. Lawrence Livermore National Laboratory Visualization and Analysis Activities May 19, 2009 Hank Childs VisIt Architect Performance Measures x.x, x.x, and x.x

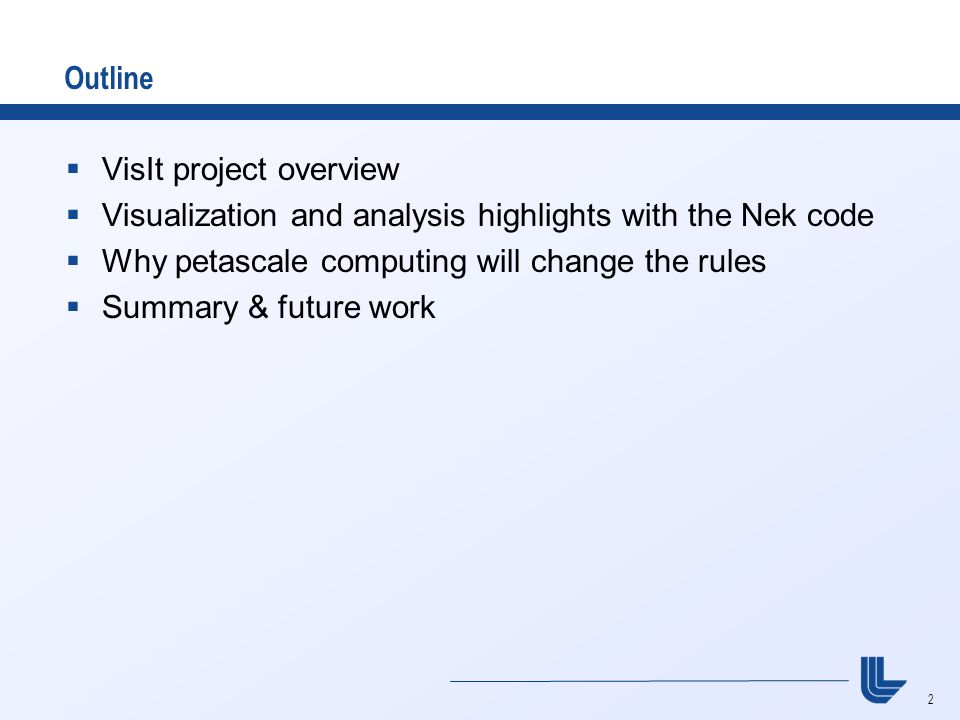

2. 2 Outline  VisIt project overview  Visualization and analysis highlights with the Nek code  Why petascale computing will change the rules  Summary & future work

3. 3 Outline  VisIt project overview  Visualization and analysis highlights with the Nek code  Why petascale computing will change the rules  Summary & future work

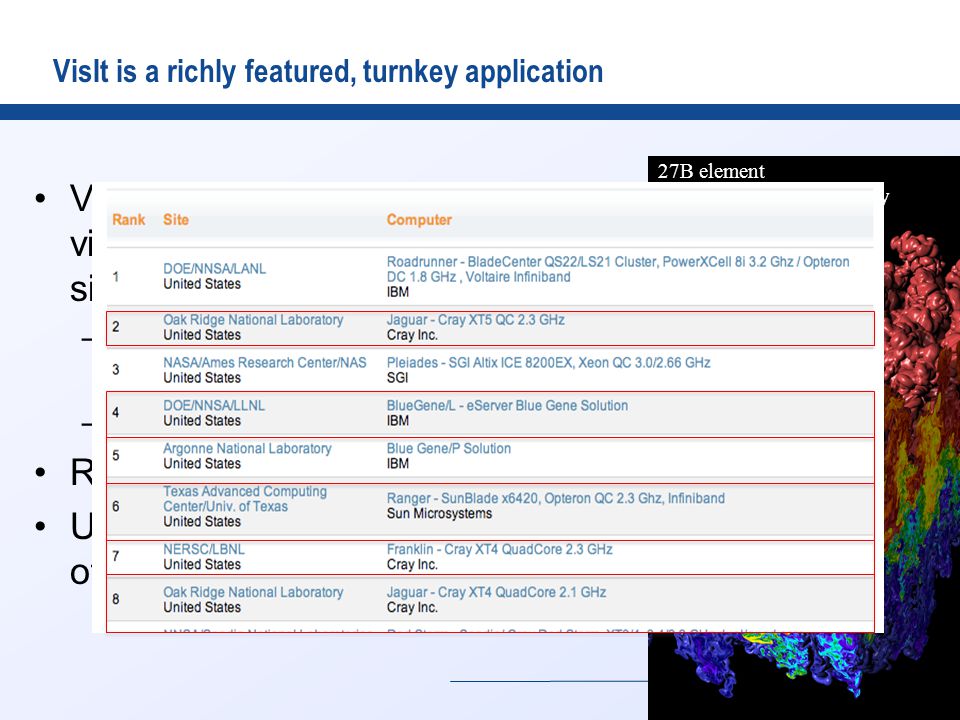

4. 4 4 VisIt is a richly featured, turnkey application VisIt is an open source, end user visualization and analysis tool for simulated and experimental data –Used by: physicists, engineers, code developers, vis experts –>100K downloads on web R&D 100 award in 2005 Used “heavily to exclusively” on 6 of world’s top 8 supercomputers 27B element Rayleigh-Taylor Instability (MIRANDA, BG/L)

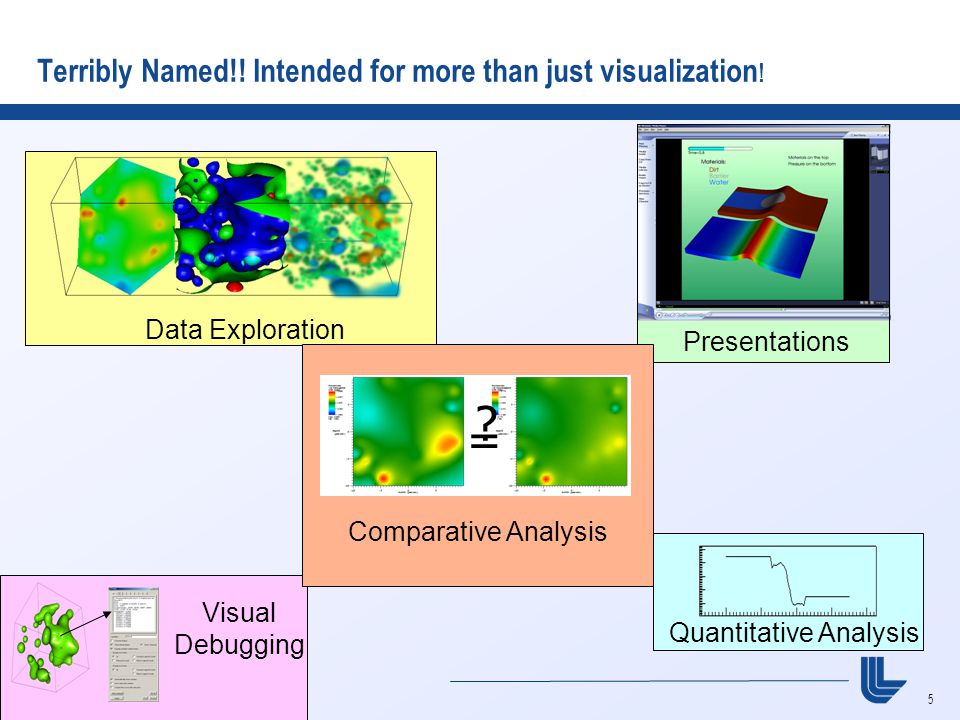

5. 5 Terribly Named!! Intended for more than just visualization ! Data Exploration Visual Debugging Quantitative Analysis Presentations = ? Comparative Analysis

6. 6 VisIt has a rich feature set that can impact many science areas.  Meshes: rectilinear, curvilinear, unstructured, point, AMR  Data: scalar, vector, tensor, material, species  Dimension: 1D, 2D, 3D, time varying  Rendering (~15): pseudocolor, volume rendering, hedgehogs, glyphs, mesh lines, etc…  Data manipulation (~40): slicing, contouring, clipping, thresholding, restrict to box, reflect, project, revolve, …  File formats (~85)  Derived quantities: >100 interoperable building blocks +,-,*,/, gradient, mesh quality, if-then-else, and, or, not  Many general features: position lights, make movie, etc  Queries (~50): ways to pull out quantitative information, debugging, comparative analysis

7. 7 VisIt employs a parallelized client-server architecture.  Client-server observations: Good for remote visualization Leverages available resources Scales well No need to move data  Additional design considerations: Plugins Multiple UIs: GUI (Qt), CLI (Python), more… remote machine Parallel vis resources User data localhost – Linux, Windows, Mac Graphics Hardware

8. 8 The VisIt team focuses on making a robust, usable product for end users.  Manuals 300 page user manual 200 page command line interface manual “Getting your data into VisIt” manual  Wiki for users (and developers)  Revision control, nightly regression testing, etc  Executables for all major platforms  Day long class, complete with exercises Slides from the VisIt class

9. 9 VisIt is a vibrant project with many participants.  Over 50 person-years of effort  Over one million lines of code  Partnership between: Department of Energy’s Office of Nuclear Energy, Office of Science, and National Nuclear Security Agency, and among others 2004-6 User community grows, including AWE & ASC Alliance schools Fall ‘06 VACET is funded Spring ‘08 AWE enters repo 2003 LLNL user community transitioned to VisIt 2005 2005 R&D100 2007 SciDAC Outreach Center enables Public SW repo 2007 Saudi Aramco funds LLNL to support VisIt Spring ‘07 GNEP funds LLNL to support GNEP codes at Argonne Summer‘07 Developers from LLNL, LBL, & ORNL Start dev in repo ‘07-’08 UC Davis & UUtah research done in VisIt repo 2000 Project started ‘07-’08 Partnership with CEA is developed 2008 Institutional support leverages effort from many labs Spring ‘09 More developers Entering repo all the time

10. 10 Outline  VisIt project overview  Visualization and analysis highlights with the Nek code  Why petascale computing will change the rules  Summary & future work

11. 11 Flow analysis for 217 pin simulation / 1 billion grid points 217 pin reactor cooling simulation. Run on ¼ of Argonne BG/P.

12. 12 Flow analysis for 217 pin simulation / 1 billion grid points

13. 13 Tracing particles through the channels (work in progress)

14. 14 Tracing particles through the channels (work in progress) Place 1000 particles in one channel Observe where particles come out Observe which channels the particles pass through

15. 15 Tracing particles through the channels (work in progress)  Two different “matrices” to describe flow from channel I to channel J Exit location versus travel time in channel Issues: pathlines vs streamlines, 12X vs A 12 White triangle shows current channel

16. 16 The algorithm for advecting particles is complex.  Two extremes: Partition data over processors and pass particles amongst processors  Parallel inefficiency! Partition seed points over processors and process necessary data for advection  Redundant I/O!  Hybrid solution: Master-slave approach that adapts between parallel inefficiencies and redundant I/O  SC09 submission

17. 17 The VisIt project provides outstanding leverage to this campaign.  The particle advection code represents 2+ man-years of effort from developers at UC Davis, Oak Ridge, Lawrence Berkeley, and Lawrence Livermore Efforts of VACET, a SciDAC center for visualization and analysis  The development time to adapt this algorithm for our custom analysis is on the order of weeks.  Further, VisIt represents 50+ man-years of effort, much of which is highly relevant to this campaign, including: Parallel infrastructure Visualization algorithms (contouring, etc) Parallel rendering Etc.

18. 18 Movie of 37 pin simulation

19. 19 Movie of “fish tank” simulation

20. 20 “Streamlines” to show movement within the fish tank

21. 21 Summary of activities  Activities are a mix of development and support Development  File format readers  New analysis capability  Bug fixes / usability  Tuning, tuning, tuning Support  Movies  “How do I …?”  Scripts

22. 22 Outline  VisIt project overview  Visualization and analysis highlights with the Nek code  Why petascale computing will change the rules  Summary & future work

23. 23 Petascale visualization and analysis will change the rules.  Michael Strayer ( U.S. DoE Office of Science ): “petascale is not business as usual” Especially true for visualization and analysis!  Large scale data creates two incredible challenges: scale and complexity  Scale is not “business as usual” Current trajectory for terascale postprocessing will be cost prohibitive at the petascale We will need “smart” techniques in production environments  More resolution leads to more and more complexity Will the “business as usual” techniques still suffice? Shortened out complexity portion of this talk: data anlaysis is key.

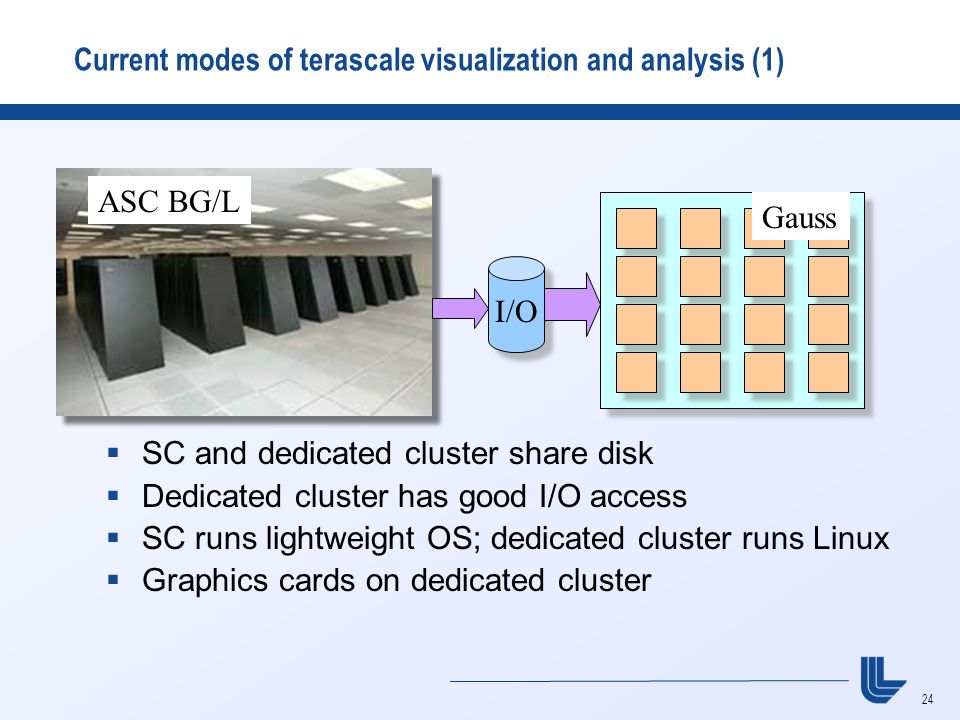

24. 24 I/O ASC BG/L Gauss  SC and dedicated cluster share disk  Dedicated cluster has good I/O access  SC runs lightweight OS; dedicated cluster runs Linux  Graphics cards on dedicated cluster Current modes of terascale visualization and analysis (1)

25. 25 I/O ASC Purple  Simulation, processing both done on purple  Simulation writes to disk, vis. job reads from disk  SC runs full OS (AIX)  No graphics cards ASC Purple Portion of purple for Vis & analysis Current modes of terascale visualization and analysis (2)

26. 26  Rayleigh Taylor instability by MIRANDA code  27 billion elements  Run on ASC BG/L  Visualized on gauss using VisIt These modes of processing have worked well at the terascale.

27. 27 Further observations about the “terascale” gameplan.  No need to move data. (Important!)  Not scaling up to huge numbers of cores.  Current algorithm used by major vis tools (VisIt, EnSight, ParaView): Read in all data from disk and keep in primary memory.

28. 28 Buying a dedicated vis. machine will be cost-prohibitive at the petascale. I/O ASC BG/L Gauss  Why is it so expensive? Visualization and analysis is:  I/O-intensive  Memory-intensive Compute has become cheap; memory and I/O are still expensive. ~600 TF 512 procs $1-$2M 4 years: 5 PF5000? procs $15M (!!!)

29. 29 Visualization performance is based on total memory and I/O.  Trend for next generation of supercomputers is weaker and weaker relative I/O  To maintain performance, we need more I/O So we will have to use more nodes to get more I/O  Recent series of hero runs for 1 trillion cell data set: 16K cores I/O = ~5 minutes, processing = ~10 seconds FLOPs MemoryI/O Terascale machine “Petascale machine” Vis is almost always >50% I/O and sometimes 98% I/O Amount of data to visualize is typically O(total mem) --> Relative I/O (ratio of total memory and I/O) is key

30. 30 Using a portion of the SC is also problematic at the petascale. I/O ASC Purple  Fundamentally, we are I/O-bound, not compute bound multi-core has limited value-added  To increase I/O, we will need to use more of the machine ASC Purple

31. 31 I/O ASC Purple  Additionally: Use cases are “bursty” – do we want the supercomputer sitting idle while someone studies results?  Can we afford to devote a large portion of the SC to visualization and analysis? Lightweight OS’s present challenges ASC Purple Using a portion of the SC is also problematic at the petascale.

32. 32 Anedoctal evidence: relative I/O is getting slower at LLNL. Machine nameMain memoryI/O rate ASC purple49.0TB140GB/s5.8min BGL-init32.0TB24GB/s22.2min BGL-cur69.0TB30GB/s38.3min Petascale machine ?? >40min Time to write memory to disk “I/O doesn’t pay the bills.”

33. 33 Part of the problem is HW (I/O & memory), but the rest is software.  Production visualization and analysis tools use “pure parallelism”.  Research has established “smart techniques”: viable, effective alternatives to pure parallelism Out of core processing In situ processing Multi-resolution techniques  Not going to dig in on these, but none is a panacea in isolation.  There are gaps here (production-readiness & more)  These techniques are difficult to implement. Petascale computing makes them cost effective.

34. 34 Summary of techniques  Pure parallelism can be used for anything, but it takes a lot of resources  Smart techniques can only be used situationally.  Strategy 1: Stick with pure parallelism and live with high machine costs.  Other strategies? Here are some assumptions:  We’re not going to buy massive dedicated clusters  We can fall back on the super computer, but only rarely

35. 35 Alternate strategy: smart techniques All visualization and analysis work Multi-res In situ Out-of-core Use P.P. for remaining ~5% on SC

36. 36 Outline  VisIt project overview  Visualization and analysis highlights with the Nek code  Why petascale computing will change the rules  Summary & future work

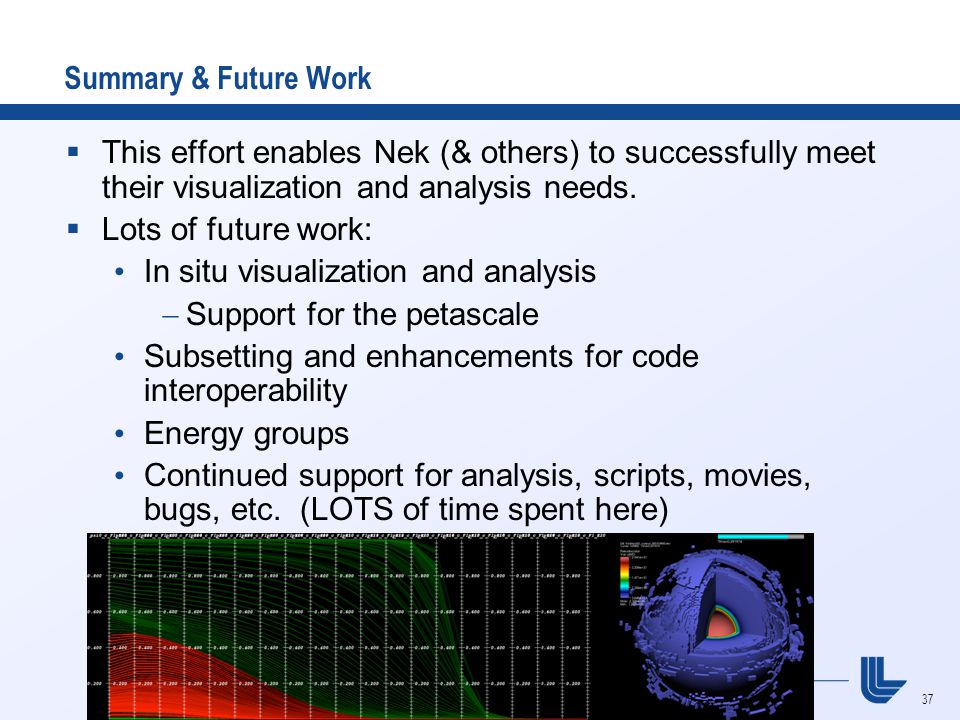

37. 37 Summary & Future Work  This effort enables Nek (& others) to successfully meet their visualization and analysis needs.  Lots of future work: In situ visualization and analysis  Support for the petascale Subsetting and enhancements for code interoperability Energy groups Continued support for analysis, scripts, movies, bugs, etc. (LOTS of time spent here)
