1. Infrared (IR) Spectroscopy
IR deals with the interaction of infrared radiation with matter. The IR spectrum of a compound can provide important information about its chemical nature and molecular structure.
Most commonly, the spectrum is obtained by measuring the absorption of IR radiation, although infrared emission and reflection are also used.
Widely applied in the analysis of organic materials, also useful for polyatomic inorganic molecules and for organometallic compounds.

2. Overview Electromagnetic radiation Vibrations
Principle of IR experiment
IR spectrum
Types of vibration
CGF/Fingerprint regions
IR activity of vibrations
Interpretation of IR spectra
Instrumentation
Sample preparation

3. Electromagnetic Radiation
The propagation of electromagnetic radiation in a vacuum is constant for all regions of the spectrum (= velocity of light):
c =  × 
1 Å = 10 –10 m 1 nm = 10 –9 m 1 m = 10 –6 m
Another unit commonly used is the wavenumber, which is linear with energy:
Work by Einstein, Planck and Bohr indicated that electromagnetic radiation can be
regarded as a stream of particles or quanta, for which the energy is given by the Bohr equation:

4. The Electromagnetic Spectrum

5. Infrared region LIMIT OF RED LIGHT: 800 nm, 0.8 m, 12500 cm-1
LIMIT OF RED LIGHT: 800 nm, 0.8 m, cm-1
NEAR INFRARED:  m, cm-1
MID INFRARED:  m, cm-1
FAR INFRARED: m, cm-1
Divisions arise because of different optical materials and instrumentation.

6. Molecular spectra
There are three basic types of optical spectra that we can observe for molecules:
Electronic or vibronic spectra (UV-visible-near IR)
(transitions between a specific vibrational and rotational level of one electronic state and a vibrational and rotational level of another electronic state)
Vibrational or vibrational-rotational spectra (IR region)
(transitions from the rotational levels of one vibrational level to the rotational levels of another vibrational level in the same electronic state)
Rotational spectra (microwave region)
(transitions between rotational levels of the same vibrational level of the same electronic state)

7. Vibrational spectra (I): Harmonic oscillator model
• Infrared radiation in the range from 10,000 – 100 cm –1 is absorbed and converted by an organic molecule into energy of molecular vibration
–> this absorption is quantized:
A simple harmonic oscillator is a mechanical system consisting of a point mass connected to a massless spring. The mass is under action of a restoring force proportional to the displacement of particle from its equilibrium position and the force constant f (also k in followings) of the spring.

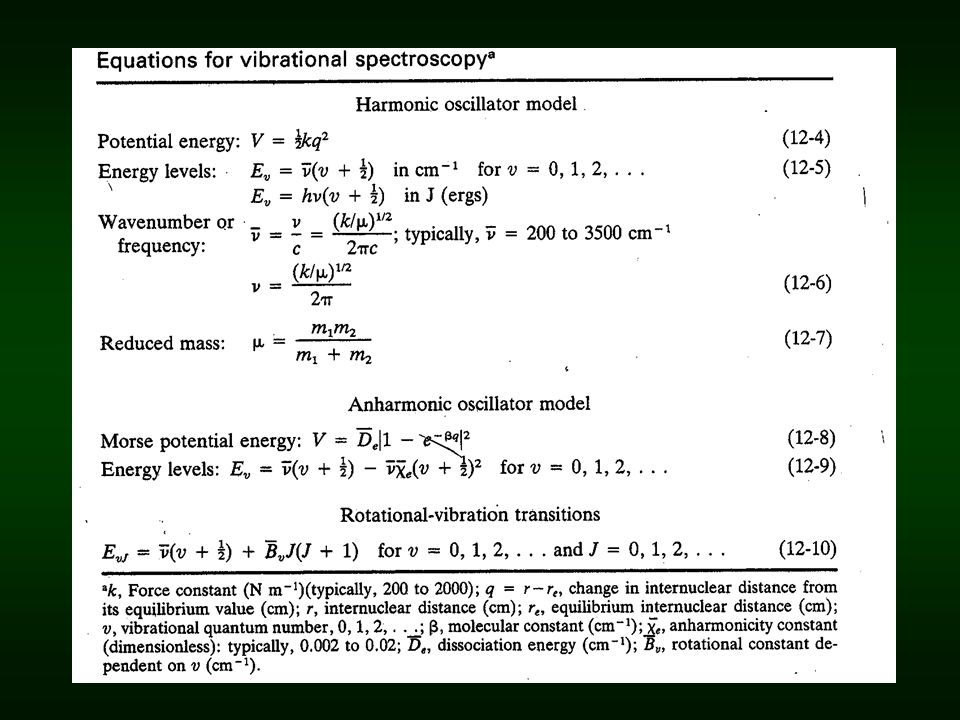

8. • The vibrational energy V(r) can be calculated using the (classical) model of the harmonic oscillator:
• Using this potential energy function in the Schrödinger equation, the vibrational frequency can be calculated:
The vibrational frequency is increasing with:
• increasing force constant f = increasing bond strength
• decreasing atomic mass
• Example: f cc > f c=c > f c-c

9. Vibrational spectra (II): Anharmonic oscillator model
The actual potential energy of vibrations fits the parabolic function fairly well only near the equilibrium internuclear distance. The Morse potential function more closely resembles the potential energy of vibrations in a molecule for all internuclear distances-anharmonic oscillator model.
Fig. 12-1

10. EVIB = ( En+1 – En ) =h× osc
• The energy difference between the transition from n to n+1 corresponds to the energy of the absorbed light quantum
• The difference between two adjacent energy levels gets smaller with increasing n until dissociation of the molecule occurs (Dissociation energy ED )
Note:
Weaker transitions called “overtones” are sometimes observed. These correspond to =2 or 3, and their frequencies are less than two or three times the fundamental frequency (=1) because of anharmonicity.
Typical energy spacings for vibrational levels are on the order of J. from the Bolzmann distribution, it can be shown that at room temperature typically 1% or less of the molecules are in excited states in the absence of external radiation. Thus most absorption transitions observed at room temperature are from the =0 to the =1 level.

12. Vibrational spectra (III): Rotation-vibration transitions
The vibrational spectra appear as bands rather than lines. When vibrational spectra of gaseous diatomic molecules are observed under high-resolution conditions, each band can be found to contain a large number of closely spaced components— band spectra. The structure observed is due to that a single vibrational energy change is accompanied by a number of rotational energy changes. The form of such a vibration-rotation spectrum can be predicted from the energy levels of a vibrating-rotating molecule.
–> “vibrational-rotational bands”
A vibrational absorption transition from  to +1 gives rise to three sets of lines called branches:
Lower-frequency P branch: =1, J=-1;
Higher-frequency R branch: =1, J=+1;
Q branch: branch: =1, J=0.

13. Spectrum of the Rotating Oscillator
• The selection rules allow only transitions with D = +1 and J = ±1 (the transition with J = 0 is normally not allowed except those with an odd number of electrons (e.g. NO)).

14. The IR absorption spectrum can be obtained with gas-phase or with condensed-phase molecules. For gas-phase molecules vibration-rotation spectra are observed, while in condensed phases, the rotational structure is lost.
For most routine analytical applications of infrared spectrometry, spectra are obtained with condensed-phase samples. Hence, the discuss here centers around the vibrational transitions observed with molecules present as pure liquid, as solutions, or in the solid state.

15. Molecular vibrations
• How many vibrations are possible (=fundamental vibrations)?
A molecule has as many degrees of freedom as the total degree of freedom of its individual atoms. Each atom has three degrees of freedom (corresponding to the Cartesian coordinates), thus in an N-atom molecule there will be 3N degree of freedom.
In molecules, movements of the atoms are constrained by interactions through chemical bonds.
Translation - the movement of the entire molecule while the positions of the atoms relative to each other remain fixed: 3 degrees of translational freedom.
Rotational transitions – interatomic distances remain constant but the entire molecule rotates with respect to three mutually perpendicular axes: 3 rotational freedom (nonlinear), 2 rotational freedom (linear).

16. Fundamental Vibrations
Vibrations – relative positions of the atoms change while the average position and orientation of the molecule remain fixed.
Fundamental Vibrations

17. Vibration Types • There are two different types of vibrational modes:
Vibrations can either involve a change in bond length (stretching) or bond angle (bending)

18. The bending vibrations are often subdivided into scissoring, rocking, wagging, and twisting.

19. Principle of IR experiments
E-vector in electromagnetic radiation has frequency 
Molecular vibrations involving change in dipole moment set up fluctuating electric field
Vibrational energies: fundamental (= one quantum)
Energy transferred to molecule by resonance when vibration frequency is the same as that of the electromagnetic radiation
IR  SAMPLE  SAMPLE*
(MOLECULE, GS) (VIB.)

20. Selection Rules
The energy associated with a quantum of light may be transferred to the molecule if work can be performed on the molecule in the form of displacement of charge.
Selection rule:
A molecule will absorb infrared radiation if the change in vibrational states is associated with a change in the dipole moment () of the molecule.
µ = qr
q: electrical charge, r: directed distance of that charge from some defined origin of coordinates from the molecule.
Dipole moment is greater when electronegativity difference between the atoms in a bond is greater. Some electronegativity values are:
H 2.2; C 2.55; N 3.04; O 3.44; F 3.98; P 2.19; S 2.58; Cl 3.16
• Vibrations which do not change the dipole moment are Infrared Inactive (homonuclear diatomics).

21. Why not 3N-6/3N-5 bands in IR spectrum?
• The theoretical number of fundamental vibrations (absorption frequencies) will seldom be observed
–> overtones (multiples of a given frequency), combination (sum of two other vibrations) or difference (the difference of two other vibrations) tones increase the number of bands
–> the following effects will reduce the number of theoretical bands:
• frequencies which fall outside the measured spectral region ( cm –1 )
• bands which are too weak
• bands are too close and coalesce
• occurrence of a degenerate band from several absorptions of the same frequency
• lack of change in molecular dipole

22. Infrared Spectrum of Carbon Dioxide

23. Vibrational Modes for a CH2 Group

24. Absorption Regions

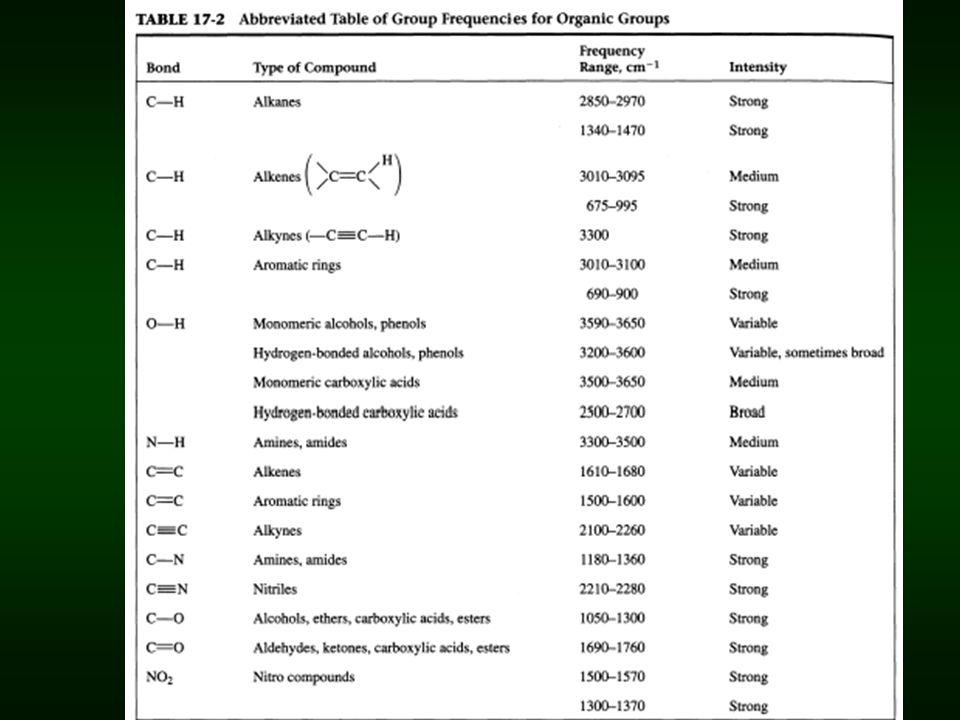

25. Group frequencies
With certain functional or structural groups, it has been found that their vibrational frequencies are nearly independent of the rest of the molecule – group frequencies.
Carbonyl group 1650 to 1740 cm-1 various aldehydes and ketones
For many groups involving only two atoms, the approximate frequency of the fundamental vibration can be calculated from a simple harmonic oscillator model.
Calculations show that for most groups of interest, characteristic frequencies of stretching vibrations should lie in the region 4000 to 1000 cm-1. In practical, the region from 4000 to 1300 cm-1 is often called the group frequency region.
The presence of various group vibrations in the IR spectrum is of great assistance in identifying the absorbing molecule.

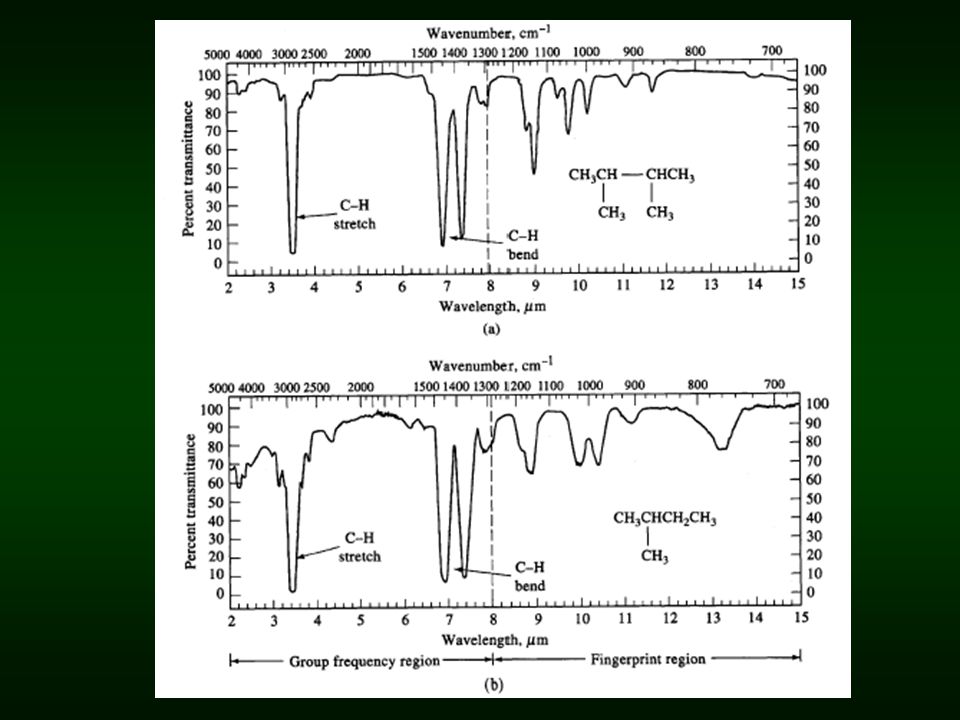

27. Fingerprint region
In the region from  1300 to 400 cm-1, vibrational frequencies are affected by the entire molecule, as the broader ranges for group absorptions in the figure below – fingerprint region.
Absorption in this fingerprint region is characteristic of the molecule as a whole. This region finds widespread use for identification purpose by comparison with library spectra.

29. Coupled Interactions
• When two bond oscillators share a common atom, they seldom behave as individual oscillators (unless the individual oscillation frequencies are widely different).
The frequency of the asymmetric stretching vibration in CO2 is at a shorter wavelength (higher frequency) than for a carbonyl group in aliphatic ketones (around 1715 cm–1 ).
–> there must be strong mechanical coupling or interaction!
Example: C–O stretching band in
Methanol: 1034 cm –1
Ethanol: 1053 cm –1
not an isolated stretching vibration, but rather a coupled symmetric stretching invloving C–C–O stretching

30. Requirements for Coupled Interactions
• The vibrations must be of the same symmetry
• The interaction is greatest, when the coupled groups absorb (individually) near the same frequency --- the same energies of isolated vibrations.
• Strong coupling between stretching vibrations requires a common atom between the two groups
• Coupling between bending and stretching vibrations can occur if the stretching bond forms one side of the changing angle.
• A common bond is required for coupling of bending vibrations.
• Coupling is negligible when groups are separated by one or more carbon atoms and the vibrations are mutually perpendicular.

31. Hydrogen Bonding
“A hydrogen bond exists when a hydrogen atom is bonded to two or more other atoms”
–> not an ordinary covalent bond, since the hydrogen atom has only one orbital (1s) to engage in covalent bonding
Typical H-bond: Hydrogen is attached to two very electronegative atoms, usually in a linear fashion and not symmetrically:
X–H••••••B
=> The s orbital of the proton can effectively overlap with the p or p orbital of the acceptor group.

32. Effect of Hydrogen Bonding
• Hydrogen bonding alters the force constant of both groups:
– the X–H stretching bands move to lower frequency
– the stretching frequency of the acceptor group (B) is also reduced, but to a lesser degree
– The X–H bending vibration usually shifts to a shorter wavelength

33. IR spectrum y axis is %T or A x axis is wavenumber (or wavelength)
Io  sample  I
 T = I/Io %T = 100 I/Io
T transmission / transmittance
 A = -log T
A absorbance (no units)
(Note A (but not T)  concentration)

34. Ordinate Scaling Absorbance spectrum of polystyrene
–> generally used for quantitative work
Transmittance spectrum of polystyrene
–> traditionally used for spectral interpretation

35. Abscissa Scaling
There is a substantial difference in “appearance”, whether the spectrum is linear in wavenumber (A, standard) or linear in wavelength (B): A B
(both spectra are
recorded with the same
sample)

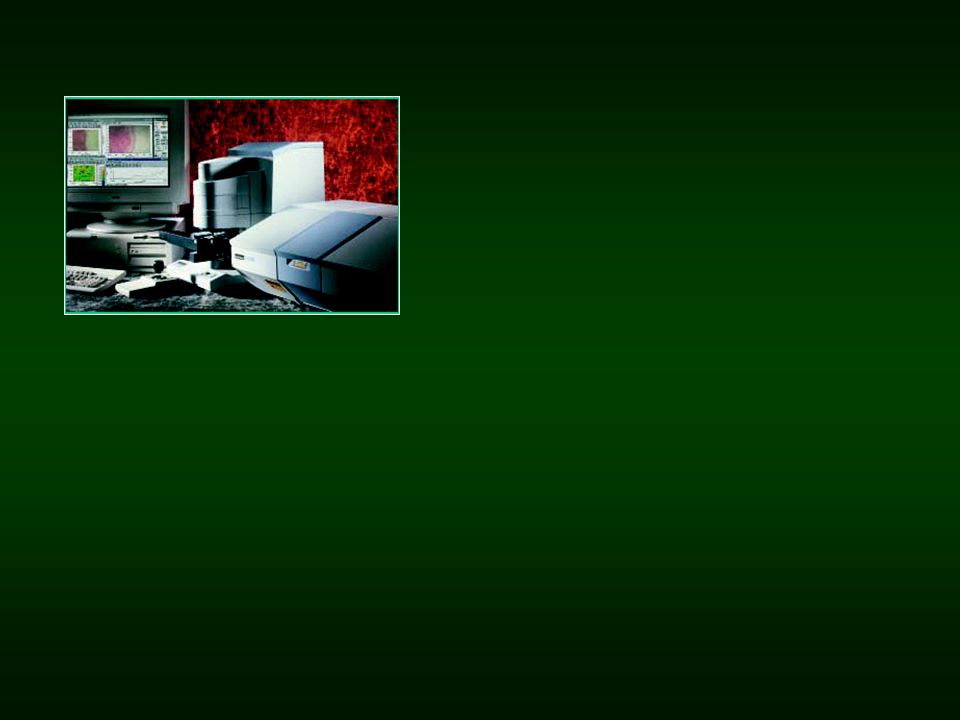

36. Instrumentation
Perkin ElmerTM
Spectrum One
BRUKE TENSORTM
Series

37. Dispersive instruments: with a monochromator to be used in the mid-IR region for spectral scanning and quantitative analysis.
Fourier transform IR (FTIR) systems: widely applied and quite popular in the far-IR and mid-IR spectrometry.
Nondispersive instruments: use filters for wavelength selection or an infrared-absorbing gas in the detection system for the analysis of gas at specific wavelength.

38. Simplified diagram of a double beam infrared spectrometer
Dispersive IR spectrophotometers
Modern dispersive IR spectrophotometers are invariably double-beam instruments, but many allow single-beam operation via a front-panel switch.
Simplified diagram of a double beam infrared spectrometer

39. Double-beam operation allows a stable 100% T baseline in the spectra.
Double-beam operation compensates for atmospheric absorption, for the wavelength dependence of the source spectra radiance, the optical efficiency of the mirrors and grating, and the detector instability, which are serious in the IR region.single-beam instruments not practical.

40. Dispersive spectrophotometers Designs
Null type instrument

41. Components of dispersive spectrophotometers
1. IR source
Nernst Glower
heated rare earth oxide rod (~1500 K)
1-50 µm
(mid- to far-IR)
Globar
heated SiC rod (~1500 K)
W filament lamp
1100 K µm
(Near-IR)
Hg arc lamp
plasma µm
(far-IR)
CO2 laser
stimulated emission lines
9-11 µm

42. 2. Detector / transducer Thermocouple
thermoelectric effect -dissimilar metal junction
cheap, slow, insensitive
Bolometer
Ni, Pt resistance thermometer (thermistor)
Highly sensitive <400 cm-1
Pyroelectric
Tri glycine sulfate piezoelectric material
fast and sensitive (mid IR)
Photoconducting
PbS, CdS, Pb Se light sensitive cells
fast and sensitive (near IR)

43. 3. Optical system

44. Reflection gratings ( made from various plastics): the groove spacing is greater (e.g. 120 grooves mm-1). To reduce the effect of overlapping orders and stray radiation, filters or a preceding prism are usually employed. Two or more gratings are often used with several filters to scan a wide region.
Mirrors but not lenses are used to focus and collimate the IR radiation. Generally made from Pyrex or another material with low coefficient of thermal expansion. Front surfaces coated with a vacuum-deposited thin metal film of Al, Ag, or Au.

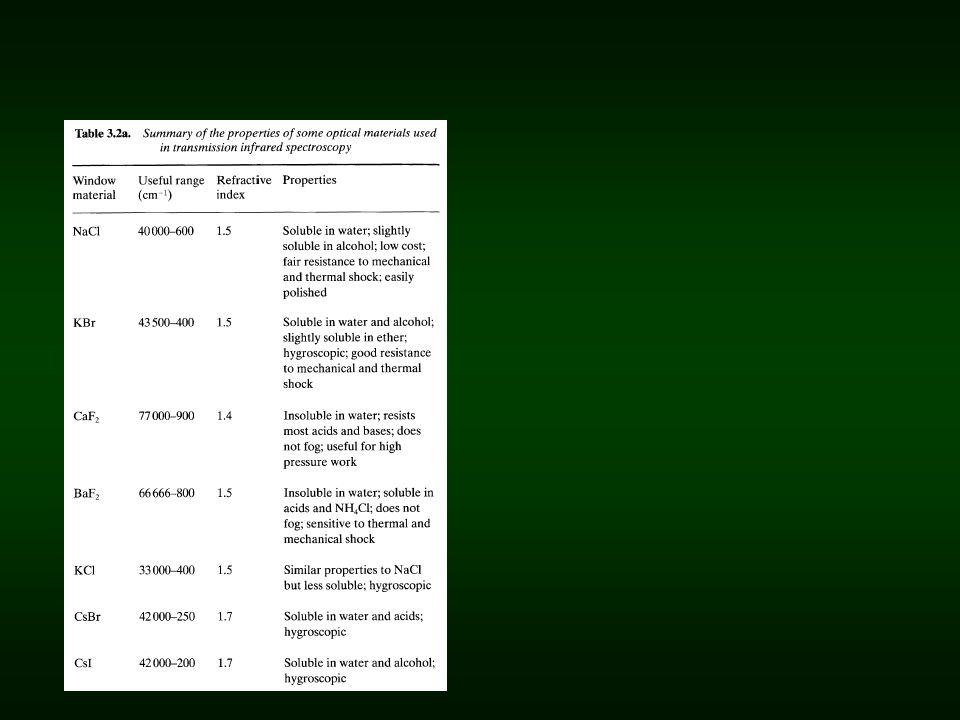

45. Windows are used for sample cells and to permit various compartment to be isolated from the environment.
 transparent to IR over the wavelength region
 inert to the various chemicals analyzed
 capable of being shaped, ground, and polished to the desired optical quality

46. Fourier Transform Infrared Spectrometer (FTIR)
The Fourier transform method provides an alternatives to the use of monochromators based on dispersion.
In conversional dispersive spectroscopy, frequencies are separated and only a small portion is detected at any particular instant, while the remainder is discarded. The immediate result is a frequency-domain spectrum.
Fourier transform infrared spectroscopy generates time-domain spectra as the immediately available data, in which the intensity is obtained as a function of time.
Direct observation of a time-domain spectrum is not immediately useful because it is not possible to deduce, by inspection, frequency-domain spectra from the corresponding time-domain waveform (Fourier transform is thus introduced).

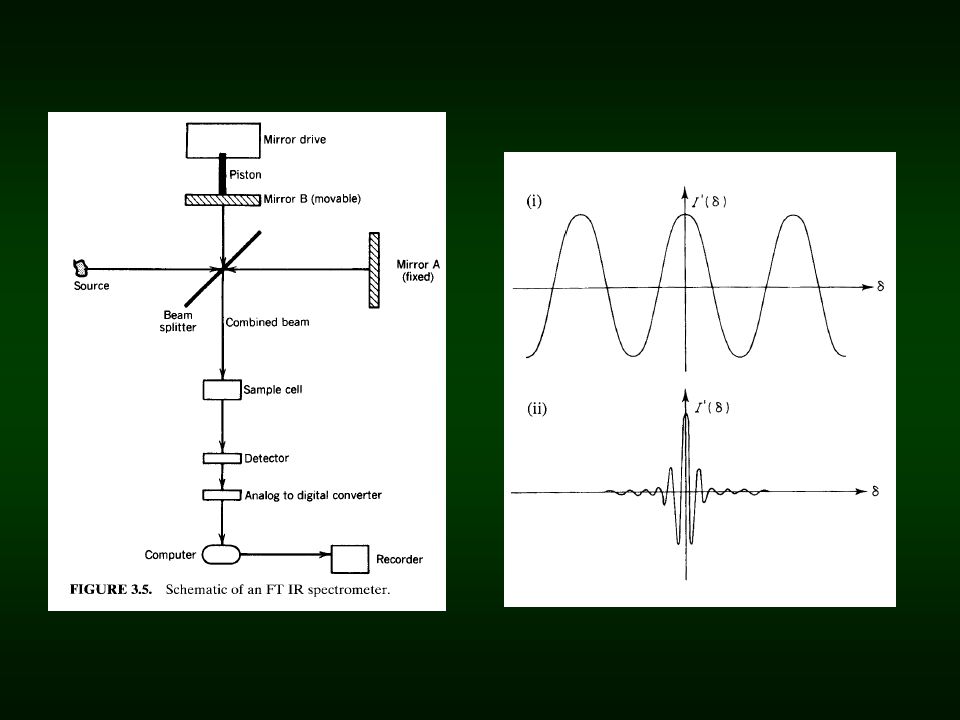

47. Single-beam FTIR Spectrometer
In one arm of the interferometer, the IR source radiation travels through the beam splitter to the fixed mirror back to the beam splitter through the sample and to the detector. In the other arm, the IR source radiation travels to the beam splitter to the movable mirror, back through the beam splitter to the sample and to the detector. The difference in pathlengths of the two beams is the retardation . An He-NE laser is used as a monochromatic reference source. The laser beam is sent through the interferometer in the opposite direction to that of the IR beam.

48. Double-beam FTIR Spectrometer

49. Interferometer Michelson interferometer
If moving mirror moves 1/4 l (1/2 l round-trip) waves are out of phase at beam-splitting mirror - no signal
If moving mirror moves 1/2 l (1 l round-trip) waves are in phase at beam-splitting mirror – signal
...

50. Interferograms

51. Difference in pathlength called retardation 
Plot d vs. signal - cosine wave with frequency proportional to light frequency but signal varies at much lower frequency
One full cycle when mirror moves distance l/2 (round-trip = l)
Frequency of signal:
Substituting l=c/n
If mirror velocity is 1.5 cm/s
Bolometer, pyroelectric, photoconducting IR detectors can "see“ changes on 10-4 s time scale!
VMM velocity of moving mirror

52. Computer needed to turn complex interferograms into spectra.

53. Measuring processes

54. Advantages of FTIR • very high resolution (< 0.1 cm –1 )
Two closely spaced lines only separated if one complete "beat" is recorded. As lines get closer together, d must increase.
Dn(cm-1) = 1/d
Mirror motion is 1/2 d
Resolution governed by distance movable mirror travels
• very high sensitivity (nanogram quantity)
can be coupled with GC analysis (–> measure IR spectra in gas-phase)
• High S/N ratios - high throughput
Few optics, no slits mean high intensity of light
• Rapid (<10 s)
• Reproducible and • Inexpensive

55. To improve S/N ratio
Usually to improve resolution decrease slit width but less light makes spectrum "noisier" - signal to noise ratio (S/N)
n # scans
S/N improves with more scans (noise is random, signal is not!)

56. Spectrum calibration
For routine instrument calibration, run the spectrum of polystyrene film (or indene) at resolution 2 cm-1. Band positions are available in the literature.
Higher resolution calibrations may be made from gas-phase spectra (e.g. HCl gas).

57. Sample preparation techniques
Infrared spectra may be obtained for gases, liquids or solids (neat or in solution)
The preparation of samples for infrared spectrometry is often the most challenging task in obtaining an IR spectrum. Since almost all substances absorb IR radiation at some wave length, and solvents must be carefully chosen for the wavelength region and the sample of interest.

58. Gas samples
A gas sample cell consists of a cylinder of glass or sometimes a metal. The cell is closed at both ends with an appropriate window materials (NaCl/KBr) and equipped with valves or stopcocks for introduction of the sample.
Long pathlength (10 cm) cells – used to study dilute (few molecules) or weakly absorbing samples.
Multipass cells – more compact and efficient instead of long-pathlength cells. Mirrors are used so that the beam makes several passes through the sample before exiting the cell. (Effective pathlength  10 m).
To resolve the rotational structure of the sample, the cells must be capable of being evacuated to measure the spectrum at reduced pressure.
For quantitative determinations with light molecules, the cell is sometimes pressurized in order to broaden the rotational structure and all simpler measurement.

59. Liquid samples
Pure or soluted in transparent solvent – not water (attacks windows)
The sample is most often in the form of liquid films (“sandwiched” between two NaCl plates)
Adjustable pathlength (0.015 to 1 mm) – by Teflon spacer

60. Regions of transparency for common infrared solvents.
The horizontal lines indicate regions where solvent transmits at least 25% of the incident radiation in a 1-mm cell.

61. Solid samples
• Spectra of solids are obtained as alkali halide discs (KBr), mulls (e.g. Nujol, a highly refined mixture of saturated hydrocarbons) and films (solvent or melt casting)
Alkali halide discs:
A milligram or less of the fine ground sample mixed with about 100 mg of dry KBr powder in a mortar or ball mill.
The mixture compressed in a die to form transparent disc.
Mulls
Grinding a few milligrams of the powdered sample with a mortar or with pulverizing equipment. A few drops of the mineral oil added (grinding continued to form a smooth paste).
The IR of the paste can be obtained as the liquid sample.

62. Main uses of IR spectroscopy:
1. Fundamental chemistry
Determination of molecular structure/geometry.
e.g.  Determination of bond lengths, bond angles of gaseous molecules
2.  Qualitative analysis – simple, fast, nondestructive
Monitoring trace gases: NDIR.Rapid, simultaneous analysis of GC, moisture, N in soil. Analysis of fragments left at the scene of a crime
Quantitative determination of hydrocarbons on filters, in air, or in water

63. Near-infrared and Far-infrared absorption
The techniques and applications of near-infrared (NIR) and far-infrared (FIR) spectrometry are quite different from those discussed above for conventional, mid-IR spectrometry.
Near-infrared:  m, cm-1
Mid-infrared:  m, cm-1
Far-infrared: m, cm-1

64. Near-infrared spectrometry
NIR shows some similarities to UV-visible spectrophotometry and some to mid-IR spectrometry. Indeed the spectrophotometers used in this region are often combined UV-visible-NIR ones.
The majority of the absorption bands observed are due to overtones (or combination) of fundamental bands that occur in the region 3 to 6 m, usually hydrogen-stretching vibrations.
NIR is most widely used for quantitative organic functional-group analysis. The NIR region has also been used for qualitative analyses and studies of hydrogen bonding, solute-solvent interactions, organometallic compounds, and inorganic compounds.

65. Far-infrared spectrometry
Almost all FIR studies are now carried out with FTIR spectrometers.
The far-IR region can provide unique information.
The fundamental vibrations of many organometallic and inorganic molecules fall in this region due to the heavy atoms and weak bonds in these molecules.
Lattice vibrations of crystalline materials occur in this region,
Electron valence/conduction band transition in semiconductors often correspond to far-IR wavelengths.

66. References:
J. Workman, A.W. Springsteen, “Applied Spectroscopy”, Academic Press, 1998.
J.M. Hollas, “Modern Spectroscopy”, John Wiley&Sons, 1996.
B. Stuart, W.O. George, D.J. Ando, “Modern Infrared Spectroscopy”, John Wiley&Sons, 1997.
N.N. Colthup, L.H. Daly, S.E. Wiberly, S.E. Wiberly, “Introduction to Infrared and Raman Spectroscopy”, Academic Press, 1997.
B. Schrader, D. Bougeard, “Infrared and Raman Spectroscopy: Methods and Applications”, John Wiley&Sons, 1995.

67. Infrared Spectrum of CCl4
