1. SM1205 Interactivity Topic 05: Properties and Events Part II Spring 2011SCM-CityU1

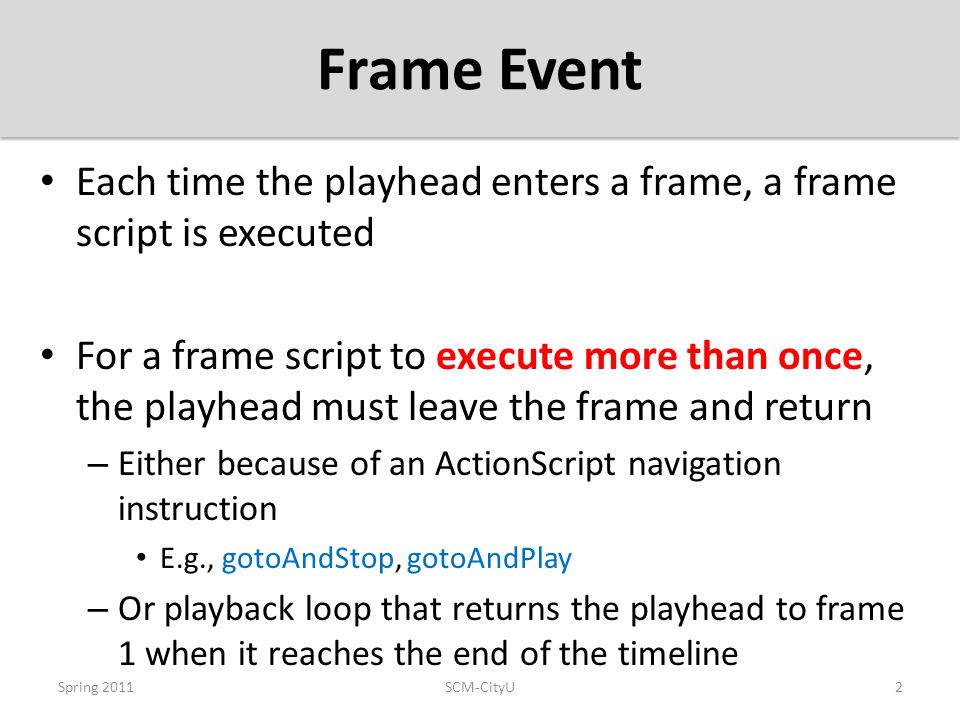

2. Frame Event Each time the playhead enters a frame, a frame script is executed For a frame script to execute more than once, the playhead must leave the frame and return – Either because of an ActionScript navigation instruction E.g., gotoAndStop, gotoAndPlay – Or playback loop that returns the playhead to frame 1 when it reaches the end of the timeline Spring 2011SCM-CityU2

3. Example Create a new FLA with 3 key frames – Each frame has the script shown below Spring 2011SCM-CityU3 var i:int = 0; trace("frame 1", i); i++; // i = i + 1; var i:int = 0; trace("frame 1", i); i++; // i = i + 1; trace("frame 2", i); i++; trace("frame 2", i); i++; trace("frame 3", i); i++; trace("frame 3", i); i++; Note: variables defined in a frame script (e.g., i in frame 1) can be accessed by the script at other frames (frames 2 and 3).

4. Enter Frame Event Case 1: every time the playhead is entering a new frame, a special event will happen, called enter frame event – Event type: Event.ENTER_FRAME Case 2: if the playhead is NOT moving, or there is only a single frame, this event is dispatched continuously – In conjunction with the frame rate I.e., 24 times per second by default Spring 2011SCM-CityU4

5. Example 1 With single frame (case 2) – Frame script executes only once – But event listener for ENTER_FRAME will be invoked continuously E.g., frameLoop will be called continuously Perfect for creating animation (by continuously changing symbol instance’s properties) Spring 2011SCM-CityU5 var i:int = 0; trace("init", i); stage.addEventListener( Event.ENTER_FRAME, frameLoop); function frameLoop(e:Event): void { trace("i =", i); i++; } var i:int = 0; trace("init", i); stage.addEventListener( Event.ENTER_FRAME, frameLoop); function frameLoop(e:Event): void { trace("i =", i); i++; }

6. Example 2 With multiple frames (case 1) Spring 2011SCM-CityU6 var i:int = 0; trace("frame 1", i); stage.addEventListener(Event.ENTER_FRAME, frameLoop); function frameLoop(e:Event): void { trace("enter frame", currentFrame, "i=", i); i++; } var i:int = 0; trace("frame 1", i); stage.addEventListener(Event.ENTER_FRAME, frameLoop); function frameLoop(e:Event): void { trace("enter frame", currentFrame, "i=", i); i++; } trace("frame 2", i); trace("frame 3", i);

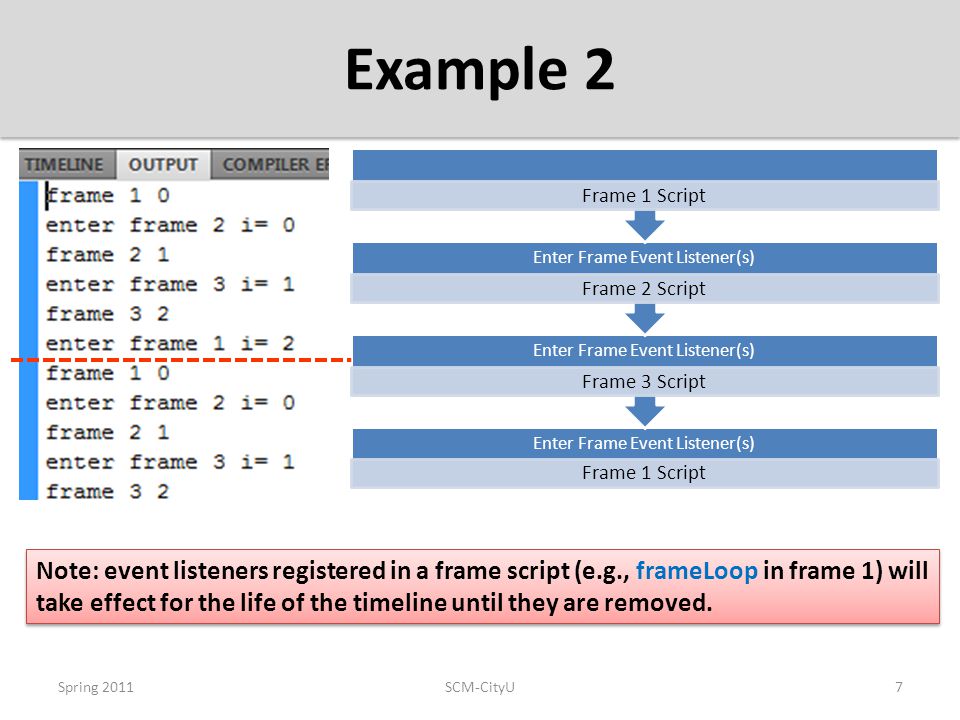

7. Example 2 Enter Frame Event Listener(s) Frame 1 Script Enter Frame Event Listener(s) Frame 3 Script Enter Frame Event Listener(s) Frame 2 Script Frame 1 Script Spring 2011SCM-CityU7 Note: event listeners registered in a frame script (e.g., frameLoop in frame 1) will take effect for the life of the timeline until they are removed.

8. Example 2 What if we put stop(); at the beginning of frame 1 script? – Reduce to case 2: if playhead is not moving… Spring 2011SCM-CityU8

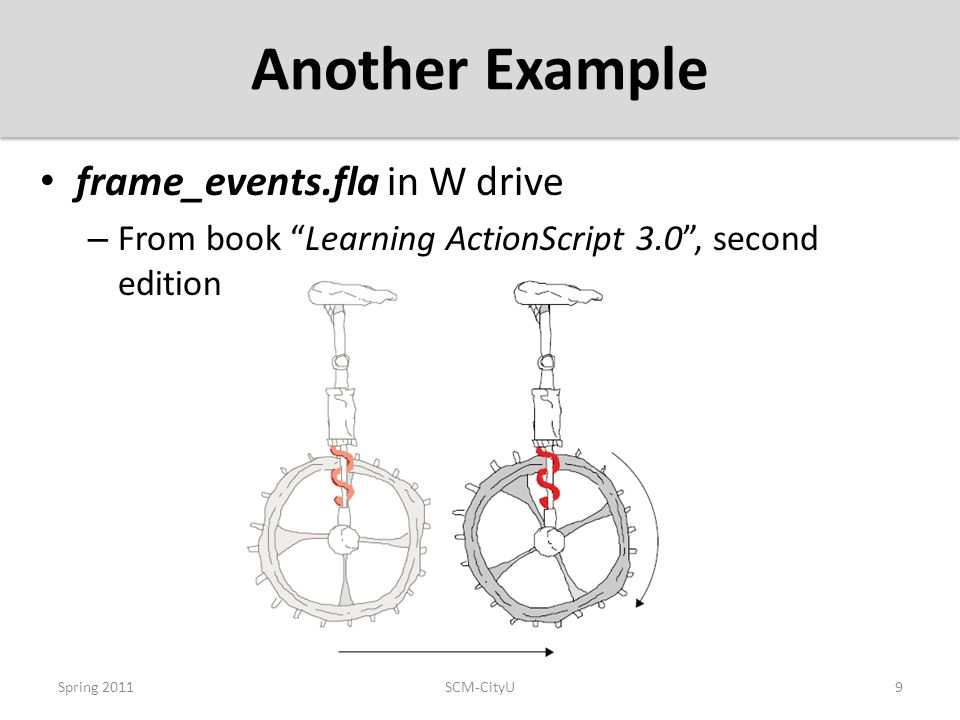

9. Another Example frame_events.fla in W drive – From book “Learning ActionScript 3.0”, second edition Spring 2011SCM-CityU9

10. Another Example Spring 2011SCM-CityU10 Name: cycle Name: wheel stage.addEventListener(Event.ENTER_FRAME,onFrameLoop); function onFrameLoop(evt:Event):void { cycle.x = stage.mouseX; cycle.wheel.rotation = stage.mouseX; } stage.addEventListener(Event.ENTER_FRAME,onFrameLoop); function onFrameLoop(evt:Event):void { cycle.x = stage.mouseX; cycle.wheel.rotation = stage.mouseX; }

11. Another Example This example also demonstrates how to remove event listeners – eventTarget.removeEventListener ( EventType, eventListener); eventTarget, EventType, eventListener should be compatible with those used for addEventListener Spring 2011SCM-CityU11 stage.addEventListener(MouseEvent.MOUSE_UP, removeFrameLoop); function removeFrameLoop(evt:MouseEvent):void { stage.removeEventListener(Event.ENTER_FRAME, onFrameLoop); stage.removeEventListener(MouseEvent.MOUSE_UP, removeFrameLoop); } stage.addEventListener(MouseEvent.MOUSE_UP, removeFrameLoop); function removeFrameLoop(evt:MouseEvent):void { stage.removeEventListener(Event.ENTER_FRAME, onFrameLoop); stage.removeEventListener(MouseEvent.MOUSE_UP, removeFrameLoop); }

12. SM1205 Interactivity Ping Pong Game Spring 2011SCM-CityU12

13. Today’s Example Pingpong-like game Spring 2011SCM-CityU13

14. Class Exercise Create a symbol instance similar to the one below and change its properties in ActionScript – Fill shape with gradient color using Paint Bucket Tool Spring 2011SCM-CityU14 Instance name: ball

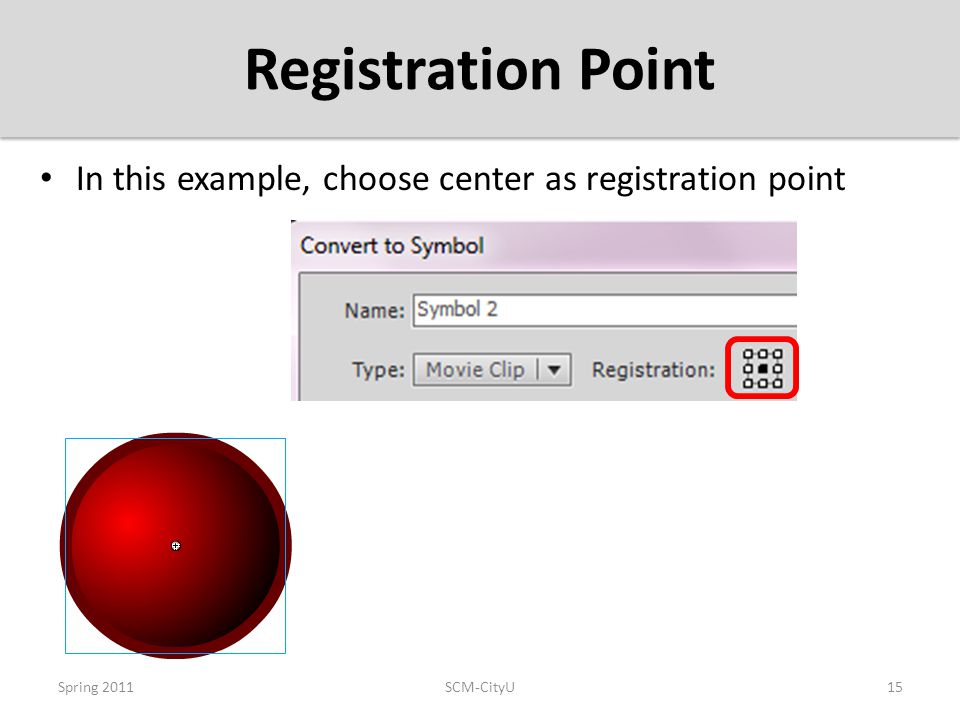

15. Registration Point In this example, choose center as registration point Spring 2011SCM-CityU15

16. Let’s Make Ball Moving Add event listener for ENTER_FRAME update ball’s position inside this listener Spring 2011SCM-CityU16 O X Y ball.x+=ball_speed_x; ball.y+=ball_speed_y;

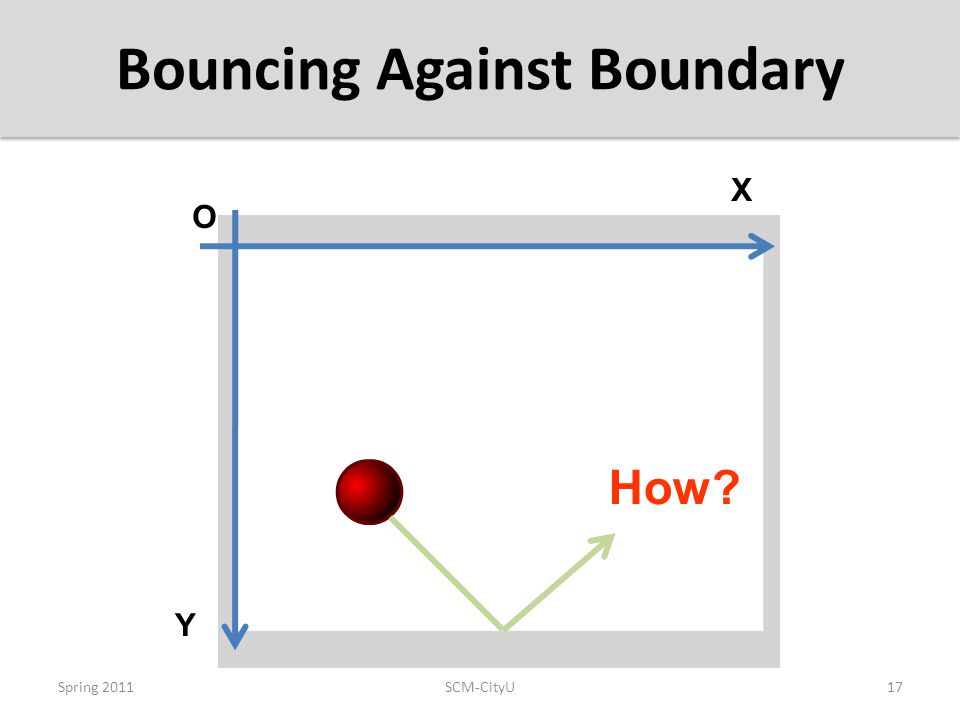

17. Bouncing Against Boundary Spring 2011SCM-CityU17 O X Y How?

18. Bouncing Against Boundary If ball.y is too large (i.e., > stage.stageHeight) – Set ball.y = stage.stageHeight; – And set ball_speed_y *= -1; // moving along negative y axis Class Exercise Spring 2011SCM-CityU18 O X Y y = stage.stageHeight... if (conditionA) { // process B }... if (conditionA) { // process B }... x = stage.stageWidth

19. O X Y Bouncing Against Boundary Since ball has its radius (i.e., r = ball.width / 2), it should bounce at y = stage.stageHeight - r; // for bottom border Class Exercise – Update and fix Spring 2011SCM-CityU19 y = stage.stageHeight - r

20. Bouncing Against Catcher Next step: add user interaction – User controls a horizontal bar, called catcher Spring 2011SCM-CityU20 Instance name: catcher

21. Keyboard Event Making the catcher move horizontally by pressing left or right key – stage is a variable you can always access Spring 2011SCM-CityU21 stage Hi buddy, some key has been pressed OK. Let me check if left or right key has been pressed

22. Keyboard Event KeyboardEvent provides event types for key down or up The info that be passed from stage to listener includes the key being pressed (keyCode) Spring 2011SCM-CityU22 stage.addEventListener(KeyboardEvent.KEY_DOWN, onBarControl); function onBarControl(e:KeyboardEvent):void { if ( e.keyCode==Keyboard.LEFT ) { trace("Left key pressed"); } stage.addEventListener(KeyboardEvent.KEY_DOWN, onBarControl); function onBarControl(e:KeyboardEvent):void { if ( e.keyCode==Keyboard.LEFT ) { trace("Left key pressed"); }

23. Class Exercise Change x property of catcher when left or right key is pressed – catcher.x -= catcher_speed; // for left key – catcher.x += catcher_speed; // for right key Catcher movement should stop if it hits the stage border – cather.x < catcher.width / 2; // for left border Spring 2011SCM-CityU23

24. When Ball Hits Catcher This is true only if – ball.y > catcher.y – r AND – ball.x > catcher.x – catcher.width / 2 AND – ball.x < catcher.x + catcher.width / 2 Class Exercise – Add code in frameLoop Spring 2011SCM-CityU24

25. Game Over When catcher fails to get the ball, the game is over – I.e., ball.y > stage.stageHeight – r is true Spring 2011SCM-CityU25

26. Game Over Idea: if game over is detected, go to the second key frame Let’s insert a key frame first Test movie! Spring 2011SCM-CityU26

27. Errors You will get error – TypeError: Error #1009: Cannot access a property or method of a null object reference. at PingPong_Try5_fla::MainTimeline/frameLoop() Why? – Symbol instances can be accessed only by the script of frames where symbol instances are defined E.g., ball and catcher are in Frame 1 but not Frame 2. Thus neither ball nor catcher can be used in the script for Frame 2 – However registered event listeners take effect for the life of animation before they are removed E.g., frameLoop will be called when entering Frame 2 Spring 2011SCM-CityU27

28. Solution First, stop animation at Frame 1 by inserting stop(); – frameLoop will be continuously executed Second, we need to remove unused event listeners at Frame 1 before jump to Frame 2 (for game over) – Removing event listeners is very simple. Just replace addEventListener with removeEventListener Spring 2011SCM-CityU28 stage.removeEventListener(Event.ENTER_FRAME, frameLoop); stage.removeEventListener(KeyboardEvent.KEY_DOWN, onBarControl); stage.removeEventListener(Event.ENTER_FRAME, frameLoop); stage.removeEventListener(KeyboardEvent.KEY_DOWN, onBarControl);

29. Function Return One remaining issue Spring 2011SCM-CityU29 function frameLoop(evt:Event):void {... if (ball.y > stage.stageHeight-r) { trace("game over"); stage.removeEventListener(Event.ENTER_FRAME, frameLoop); stage.removeEventListener(KeyboardEvent.KEY_DOWN, onBarControl); gotoAndStop(2); } // Remaining code possibly accesses symbol instances at frame 1 // However, those instances cannot be accessed at frame 2... } function frameLoop(evt:Event):void {... if (ball.y > stage.stageHeight-r) { trace("game over"); stage.removeEventListener(Event.ENTER_FRAME, frameLoop); stage.removeEventListener(KeyboardEvent.KEY_DOWN, onBarControl); gotoAndStop(2); } // Remaining code possibly accesses symbol instances at frame 1 // However, those instances cannot be accessed at frame 2... }

30. Function Return Spring 2011SCM-CityU30 function frameLoop(evt:Event):void {... if (ball.y > stage.stageHeight-r) { trace("game over"); stage.removeEventListener(Event.ENTER_FRAME, frameLoop); stage.removeEventListener(KeyboardEvent.KEY_DOWN, onBarControl); gotoAndStop(2); return; // directly exit the function } // Remaining code possibly accesses symbol instances at frame 1 // However, those instances cannot be accessed at frame 2... } function frameLoop(evt:Event):void {... if (ball.y > stage.stageHeight-r) { trace("game over"); stage.removeEventListener(Event.ENTER_FRAME, frameLoop); stage.removeEventListener(KeyboardEvent.KEY_DOWN, onBarControl); gotoAndStop(2); return; // directly exit the function } // Remaining code possibly accesses symbol instances at frame 1 // However, those instances cannot be accessed at frame 2... }

31. Function Return After calling “return”, it would directly exit the function and – Set the output as the returned value or void Spring 2011SCM-CityU31 function returnTest(): void { return; trace("this line will never execute"); } function returnTest2(): int { return 1; // set output = 1 and exit function return 2; } returnTest(); trace(returnTest2()); function returnTest(): void { return; trace("this line will never execute"); } function returnTest2(): int { return 1; // set output = 1 and exit function return 2; } returnTest(); trace(returnTest2());

32. Class Exercise Add some AS code at Frame 2 such that pressing any key will restart the game – I.e., go back to frame 1 Hints – Add an event listener to check if there is any key down event for stage (KeyboardEvent.KEY_DOWN) Similar to what we did at Frame 1 – gotoAndStop(1); Spring 2011SCM-CityU32
