Presentation is loading. Please wait.

Presentation is loading. Please wait.

Retained Austenite in TRIP-Assisted Steels role of transformation plasticity China Steel.

Similar presentations


Presentation on theme: "Retained Austenite in TRIP-Assisted Steels role of transformation plasticity China Steel."— Presentation transcript:

1 Retained Austenite in TRIP-Assisted Steels role of transformation plasticity China Steel

2 Shape deformations due to transformations

3 Fe-30.5Ni-0.32C wt% Forsik, 2004 Invariant-plane strain

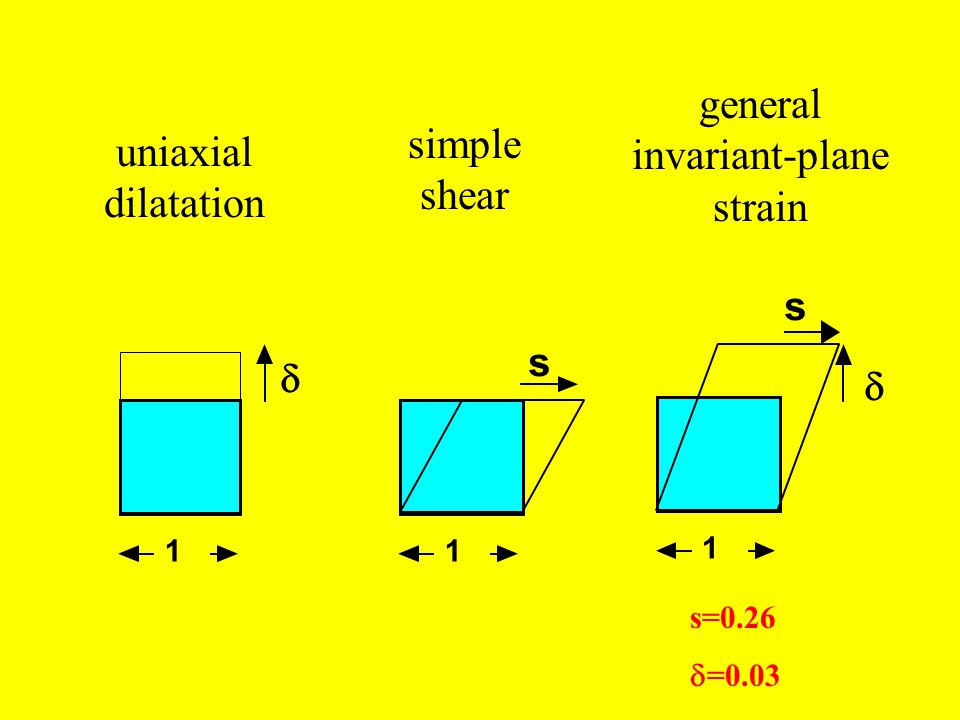

4  s 1 s 1  1 uniaxial dilatation simple shear general invariant-plane strain s=0.26  =0.03

5 Minimum requirement for martensitic transformation there must exist an invariant-line at  interface i.e., one set of dislocations which can glide conservatively can be more than one invariant-line

6 body-centred cubic cubic close-packed

7 (a) BAIN STRAIN (c) Body-centered tetragonal austenite (d) Body-centered cubic martensite a a a 1 2 3 b 3 b 1 b 2 (b)

8 [100] [001] o a a' b b' o b a,a' (a) (b)

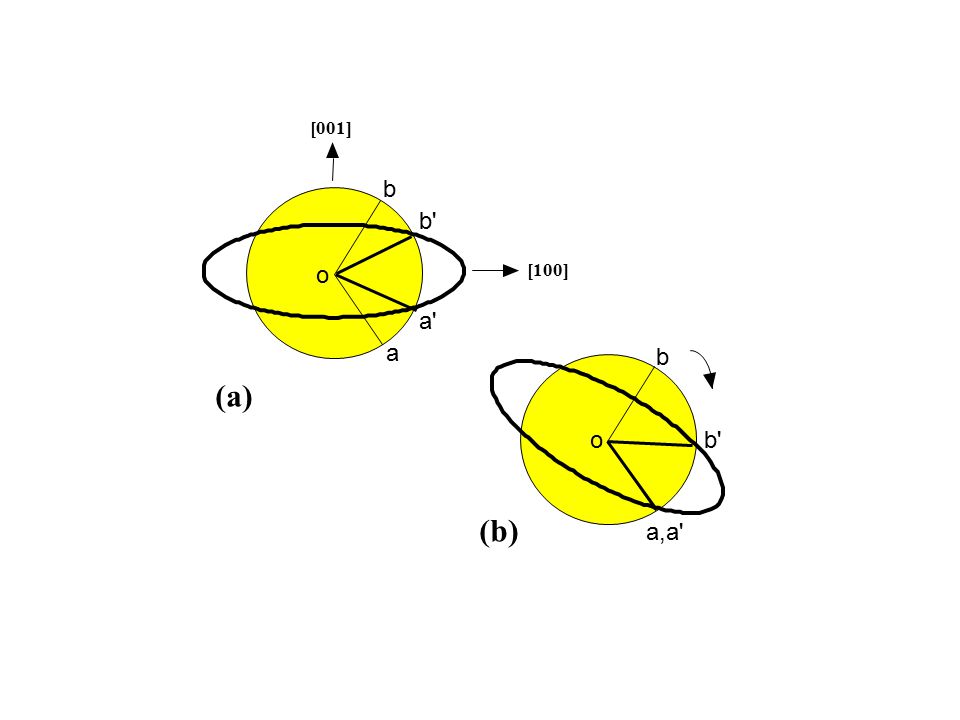

9 Austenite Martensite (wrong shape) Twinned Martensite Slipped Martensite Twin Boundary Observed shape, wrong structure RB P LATTICE -INVARIANT DEFORMATION Correct macroscopic shape, correct structure (a) (b)(c) w x y z w x z y x wz y x w z y x wz y P 1 2

10 Bhadeshia & Edmonds, (1980) Typical composition: Fe-0.15C-1.5Si- 1.5Mn wt% polycrystalline

11 Bhadeshia & Edmonds, (1980)   b

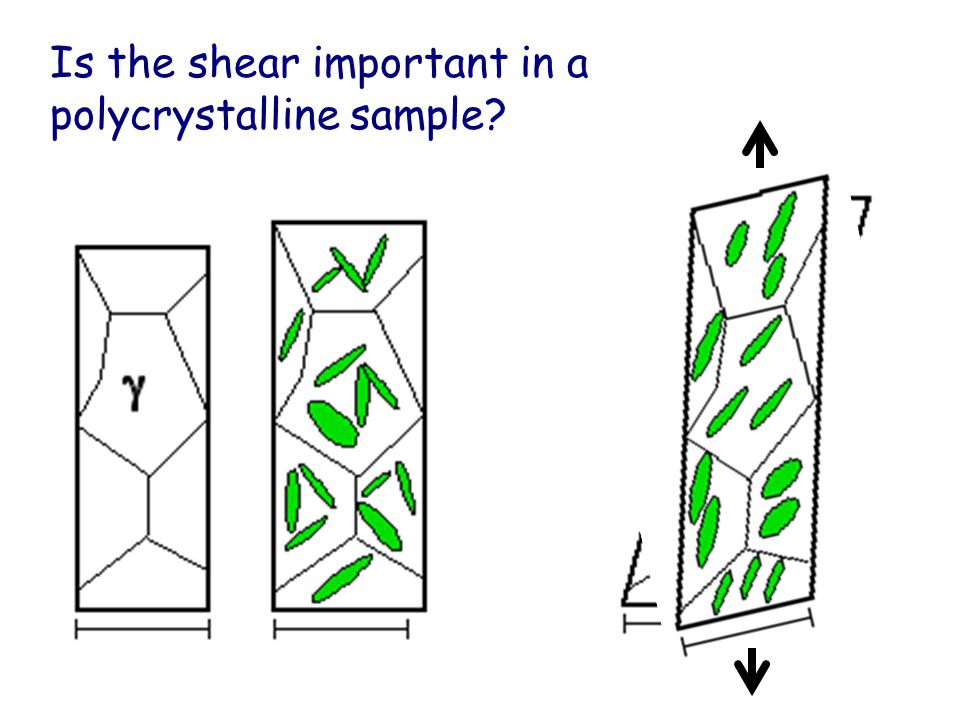

12 Is the shear important in a polycrystalline sample?

13 How can we bias the microstructure? By transforming under the influence of stress.

14  s 1 s 1  1 uniaxial dilatation simple shear general invariant-plane strain s=0.26  =0.03

15

16

17

18  50  m polycrystalline austenite Bhadeshia, 1982

19 What is the maximum tensile strain obtained from TRIP? ……in a fully austenitic sample which transforms completely into martensite.

20  s z3z3 z1z1

21 u v

22 Sakuma et al. (1991)

23 absorbed energy / kJ Yoshitake et al. (1996)

24 Retained Austenite in TRIP-Assisted Steels Slide 1 …..very small contribution to elongation.

25 Bhadeshia & Edmonds, (1980) Composite of soft and hard phase

26 Bhadeshia & Edmonds, (1980) strain in soft phase Strain in hard phase

27 Tomota (1976)

28 Bhadeshia & Edmonds, (1980)

29 low silicon high silicon Jacques et al. (2001) silicon causes scale

30 Summary Assistance from TRIP is less than 1.4% of total strain Emphasis could be shifted from retained austenite to studies of composite deformation Low silicon steels can perform well (Jacques)

31

32

33

34

35

36

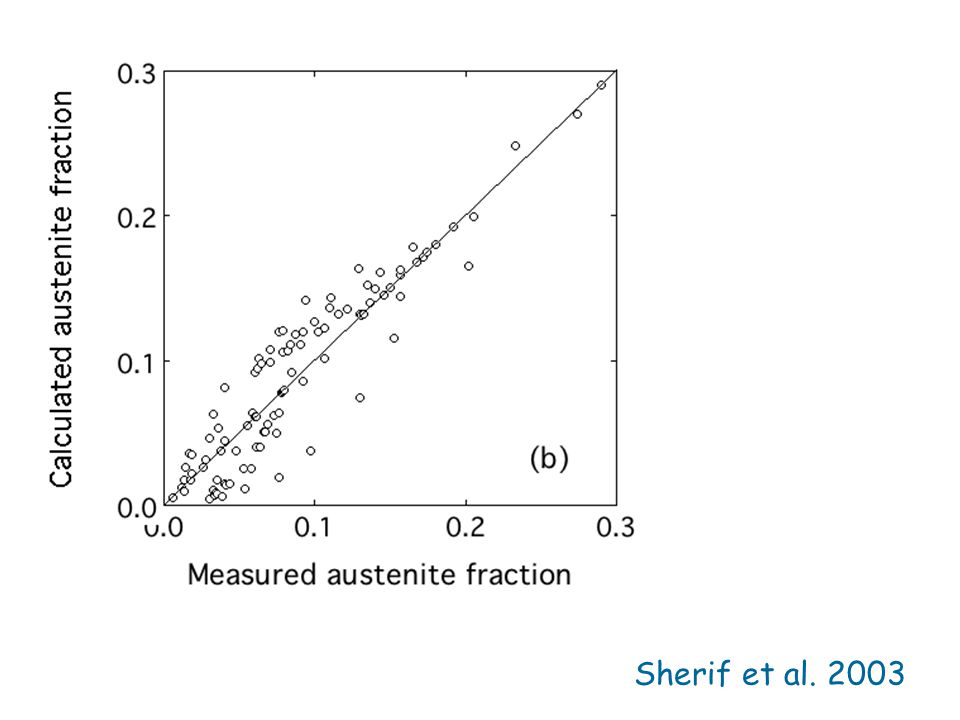

37 Sherif et al. 2003

38

39

40


Download ppt "Retained Austenite in TRIP-Assisted Steels role of transformation plasticity China Steel."

Similar presentations


Ads by Google
