1. 1 Tree Searching Strategies

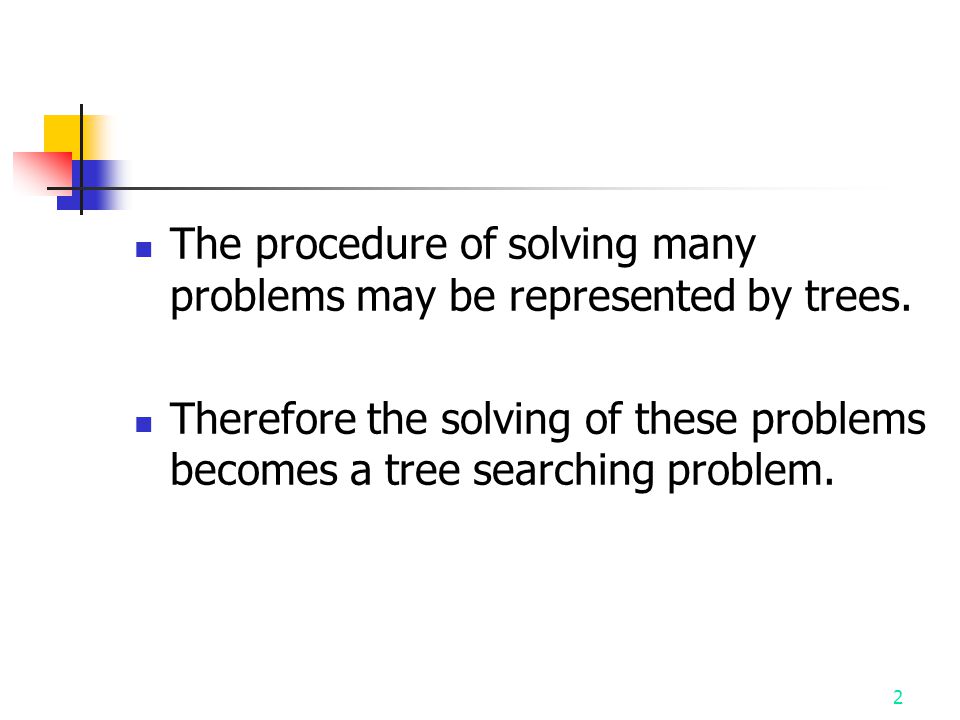

2. 2 The procedure of solving many problems may be represented by trees. Therefore the solving of these problems becomes a tree searching problem.

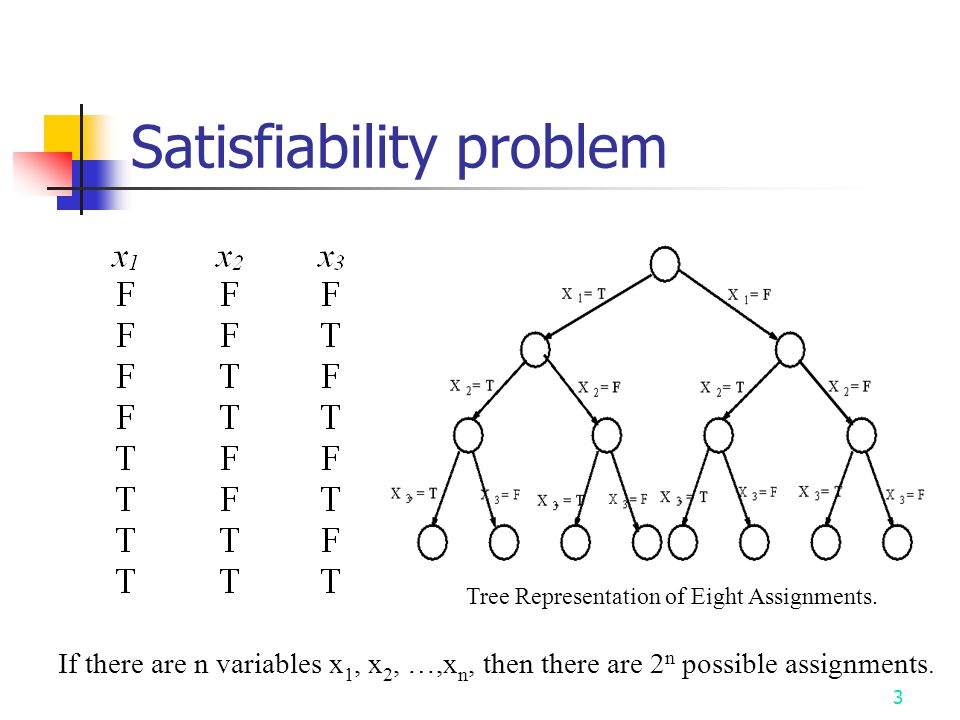

3. 3 Satisfiability problem Tree Representation of Eight Assignments. If there are n variables x 1, x 2, …,x n, then there are 2 n possible assignments.

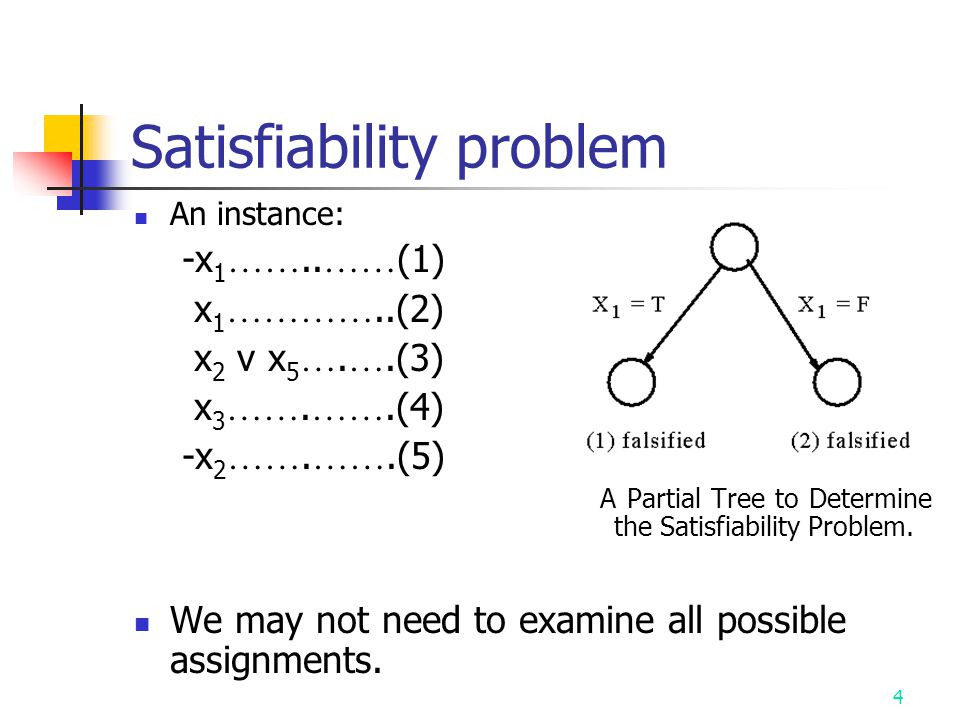

4. 4 Satisfiability problem An instance: -x 1 …….. …… (1) x 1 …………..(2) x 2 v x 5 …. ….(3) x 3 ……. …….(4) -x 2 ……. …….(5) A Partial Tree to Determine the Satisfiability Problem. We may not need to examine all possible assignments.

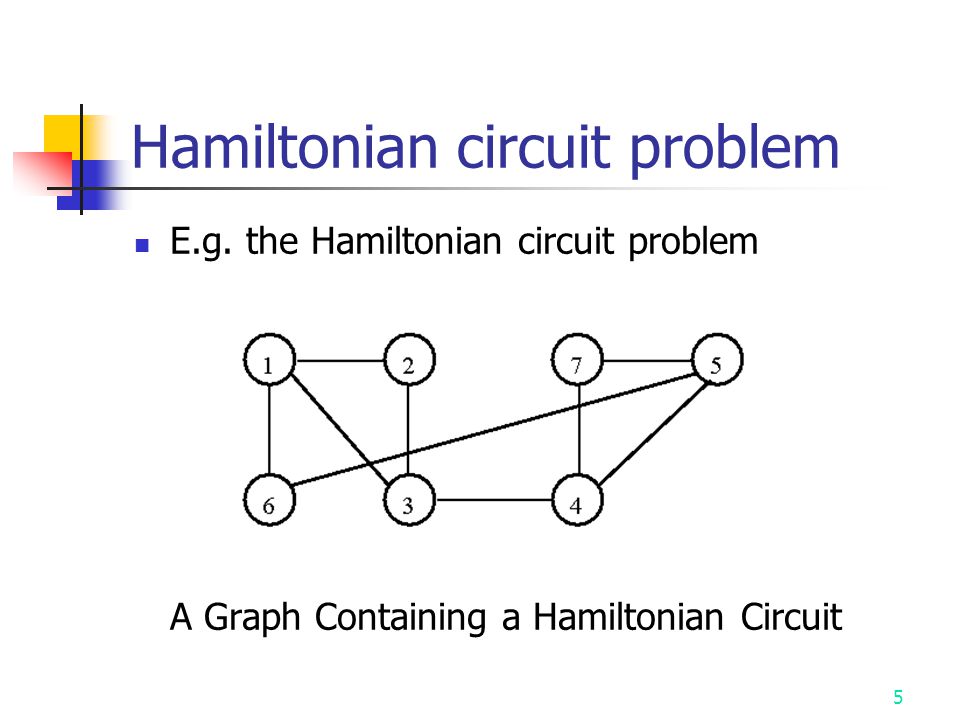

5. 5 Hamiltonian circuit problem E.g. the Hamiltonian circuit problem A Graph Containing a Hamiltonian Circuit

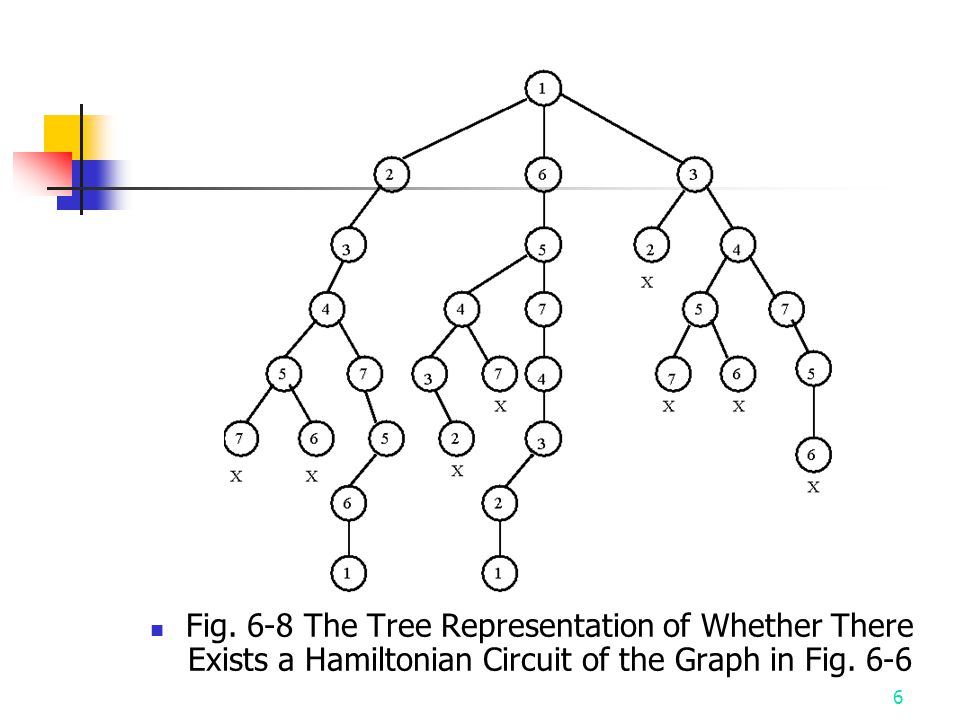

6. 6 Fig. 6-8 The Tree Representation of Whether There Exists a Hamiltonian Circuit of the Graph in Fig. 6-6

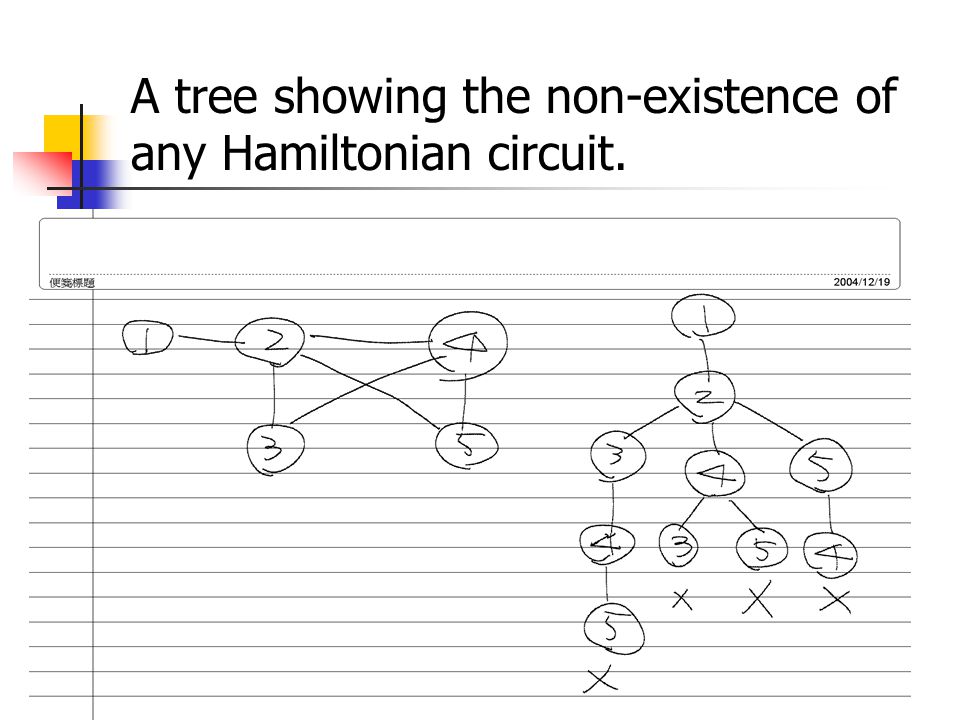

7. 7 A tree showing the non-existence of any Hamiltonian circuit.

8. 8 How to expand the tree ? Breadth-First Search Depth-First Search Hill Climbing Best-First Search Branch-and-Bound Strategy (for optimization problems)

9. 9 Breadth-First Search Scheme Step1 Step1: Form a one-element queue consisting of the root node. Step2 Step2: Test to see if the first element in the queue is a goal node. If it is, stop. Otherwise, go to step 3. Step3 Step3: Remove the first element from the queue. Add the first element ’ s descendants, if any, to the end of the queue. Step4 Step4: If the queue is empty, then signal failure. Otherwise, go to Step 2.

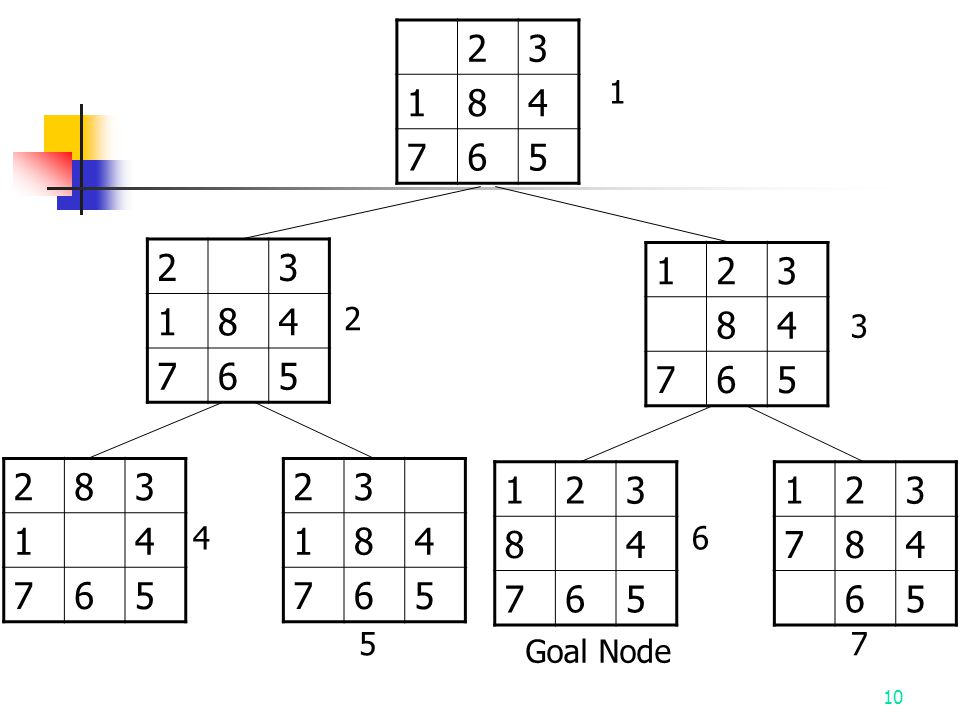

10. 10 23 184 765 23 184 765 123 84 765 283 14 765 23 184 765 123 784 65 123 84 765 1 2 3 4 5 6 7 Goal Node

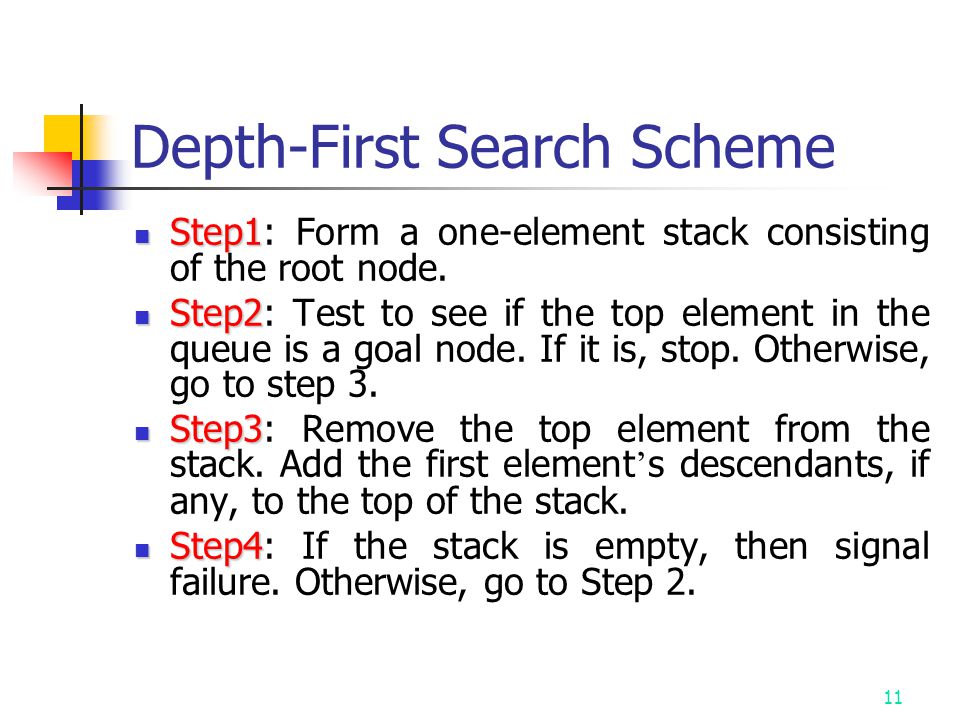

11. 11 Depth-First Search Scheme Step1 Step1: Form a one-element stack consisting of the root node. Step2 Step2: Test to see if the top element in the queue is a goal node. If it is, stop. Otherwise, go to step 3. Step3 Step3: Remove the top element from the stack. Add the first element ’ s descendants, if any, to the top of the stack. Step4 Step4: If the stack is empty, then signal failure. Otherwise, go to Step 2.

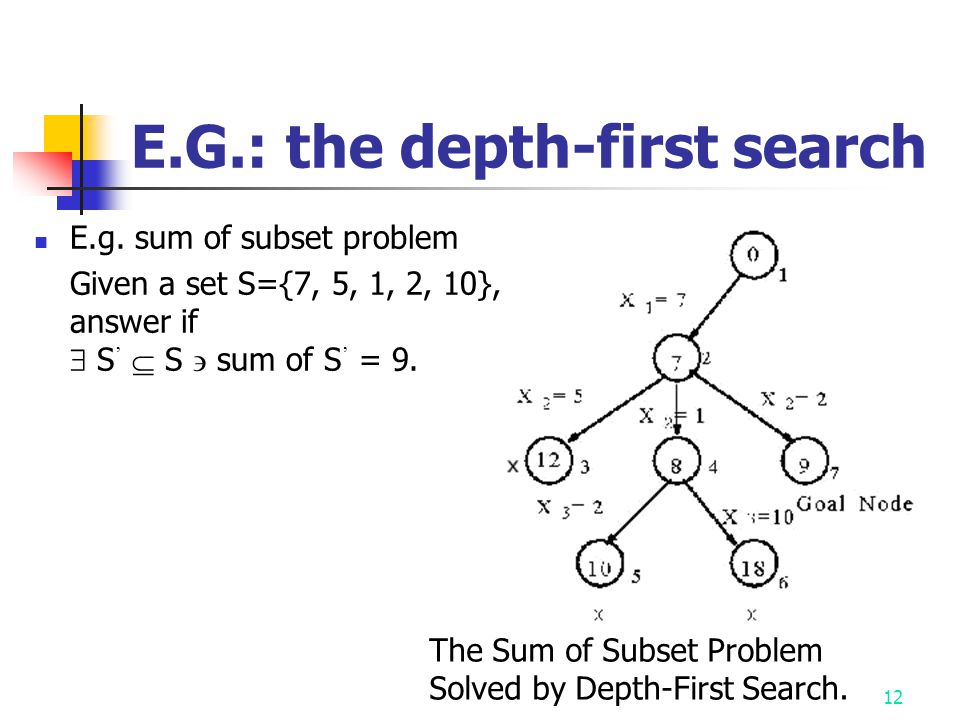

12. 12 E.G.: the depth-first search E.g. sum of subset problem Given a set S={7, 5, 1, 2, 10}, answer if  S ’  S  sum of S ’ = 9. The Sum of Subset Problem Solved by Depth-First Search.

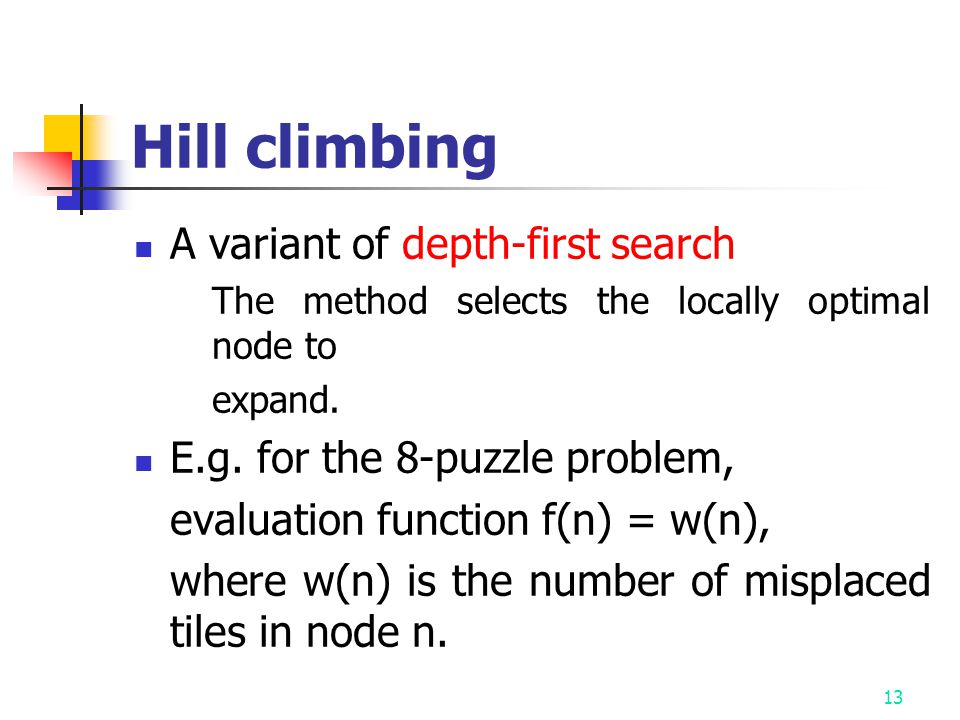

13. 13 Hill climbing A variant of depth-first search The method selects the locally optimal node to expand. E.g. for the 8-puzzle problem, evaluation function f(n) = w(n), where w(n) is the number of misplaced tiles in node n.

14. 14 Hill Climbing Search Scheme Step1 Step1: Form a one-element stack consisting of the root node. Step2 Step2: Test to see if the top element in the queue is a goal node. If it is, stop. Otherwise, go to step 3. Step3 Step3: Remove the top element from the stack. Add the first element ’ s descendants, if any, to the top of the stack according to order computed by the evaluation function. Step4 Step4: If the stack is empty, then signal failure. Otherwise, go to Step 2.

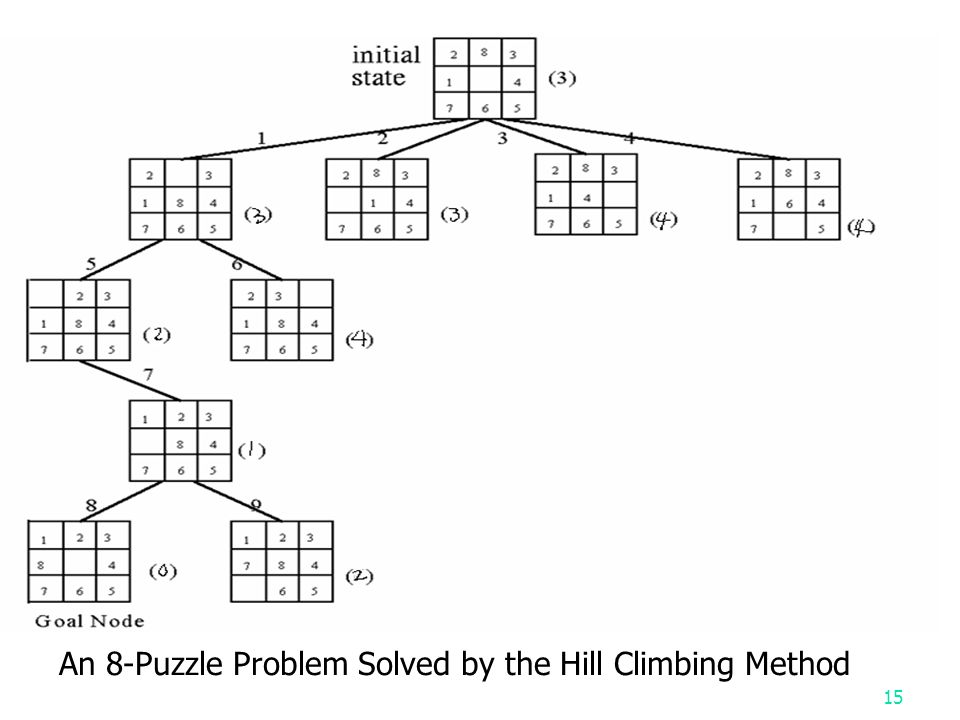

15. 15 An 8-Puzzle Problem Solved by the Hill Climbing Method

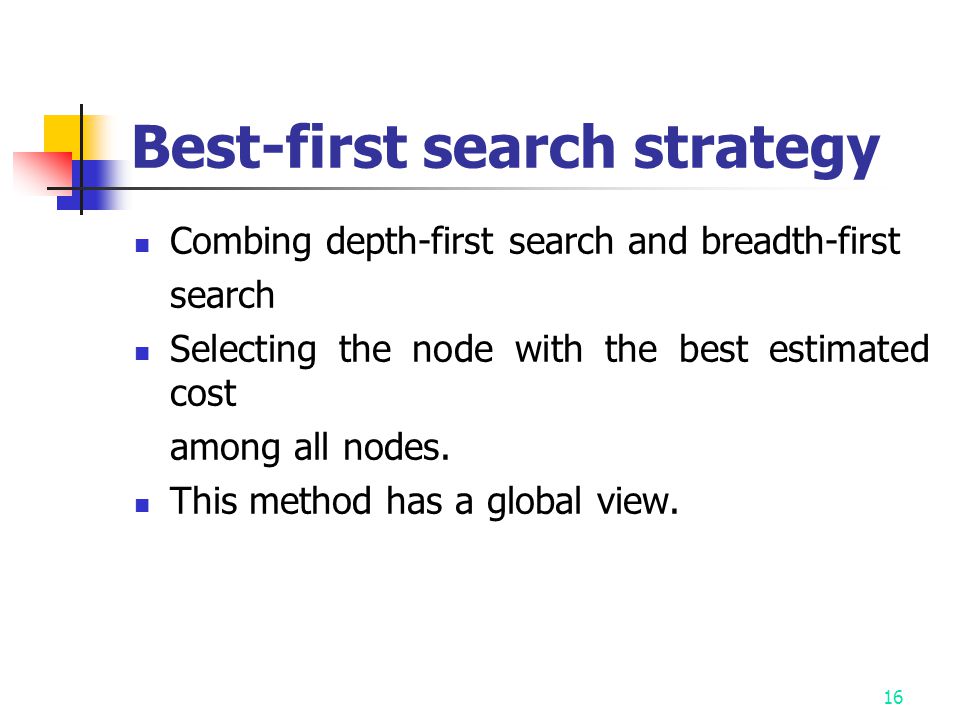

16. 16 Best-first search strategy Combing depth-first search and breadth-first search Selecting the node with the best estimated cost among all nodes. This method has a global view.

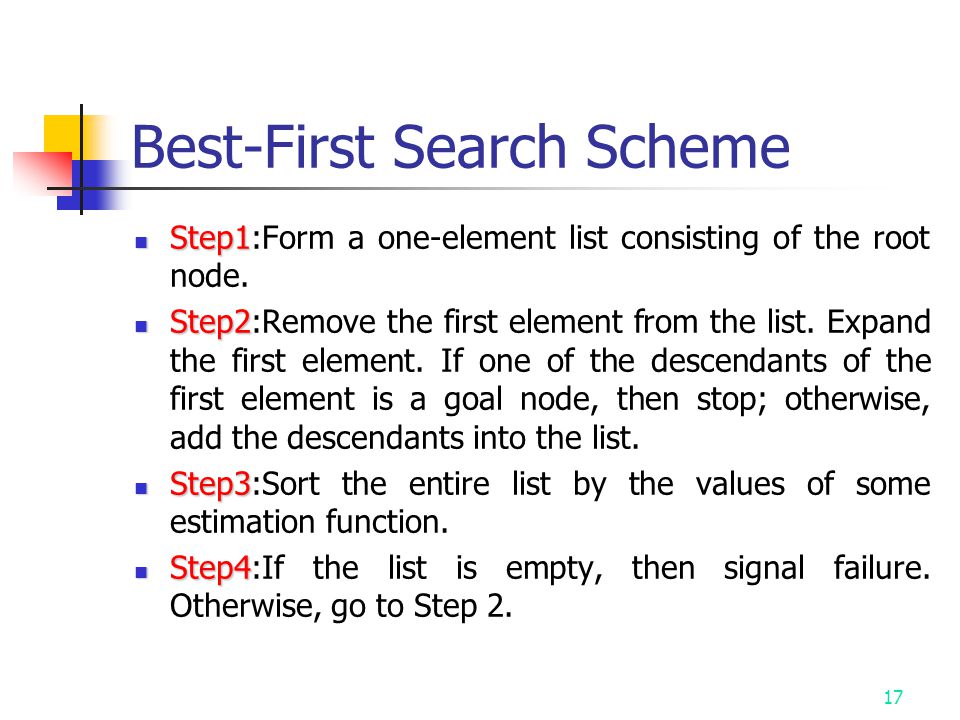

17. 17 Best-First Search Scheme Step1 Step1:Form a one-element list consisting of the root node. Step2 Step2:Remove the first element from the list. Expand the first element. If one of the descendants of the first element is a goal node, then stop; otherwise, add the descendants into the list. Step3 Step3:Sort the entire list by the values of some estimation function. Step4 Step4:If the list is empty, then signal failure. Otherwise, go to Step 2.

18. 18 An 8-Puzzle Problem Solved by the Best-First Search Scheme Goal Node

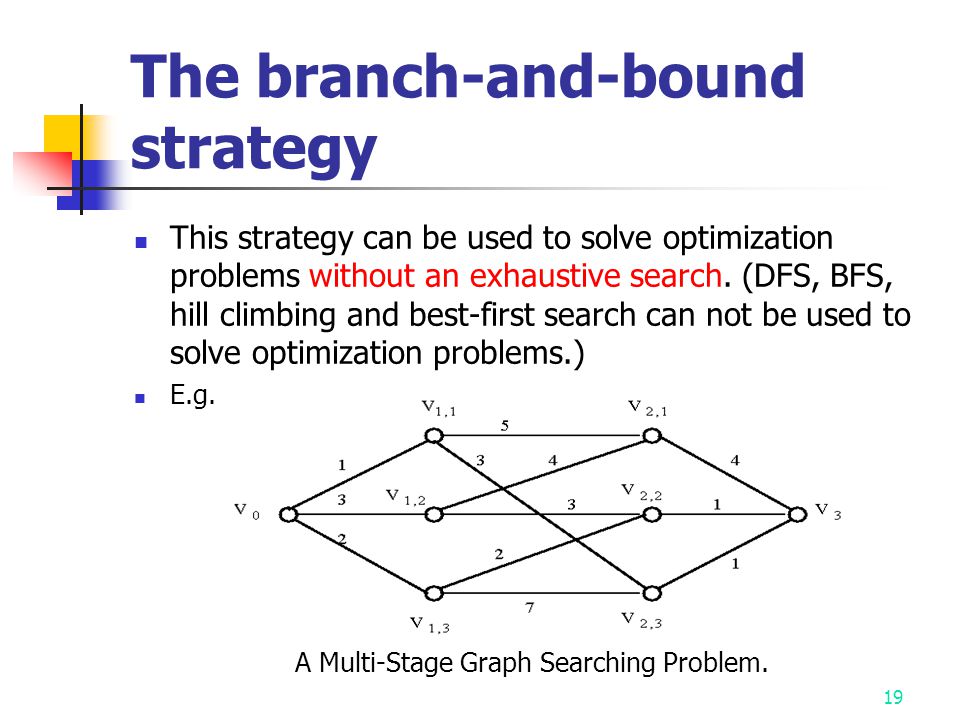

19. 19 The branch-and-bound strategy This strategy can be used to solve optimization problems without an exhaustive search. (DFS, BFS, hill climbing and best-first search can not be used to solve optimization problems.) E.g. A Multi-Stage Graph Searching Problem.

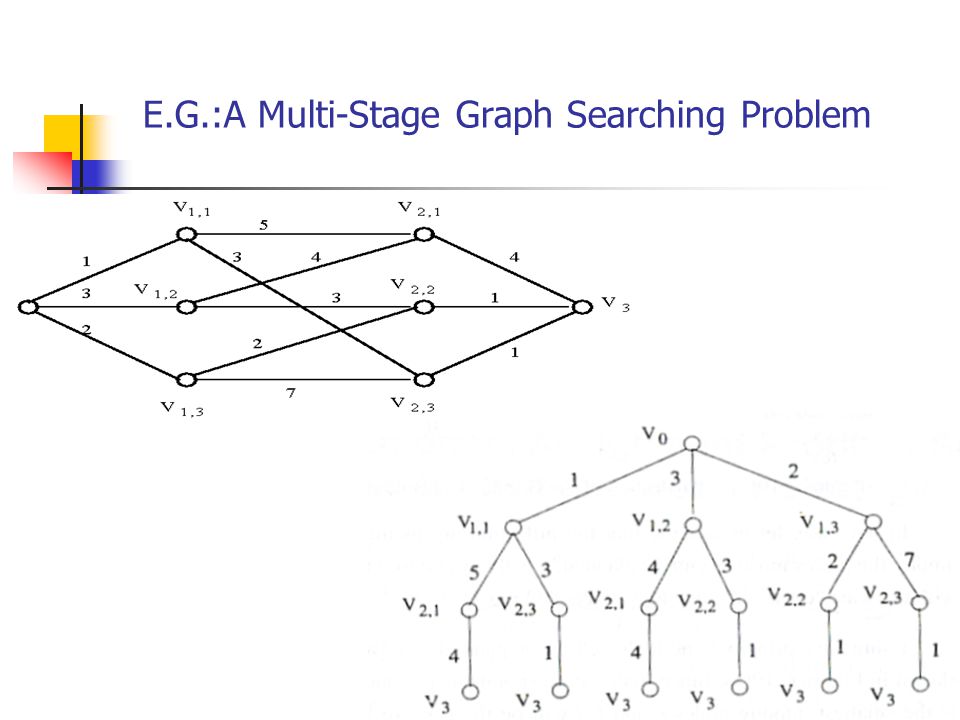

20. 20 E.G.:A Multi-Stage Graph Searching Problem

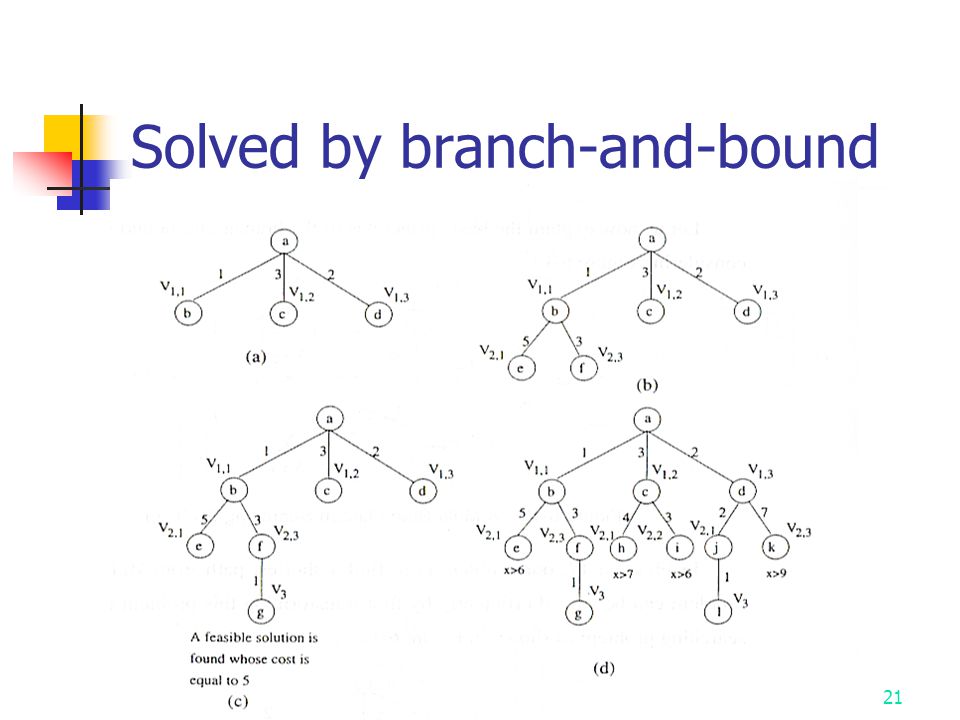

21. 21 Solved by branch-and-bound

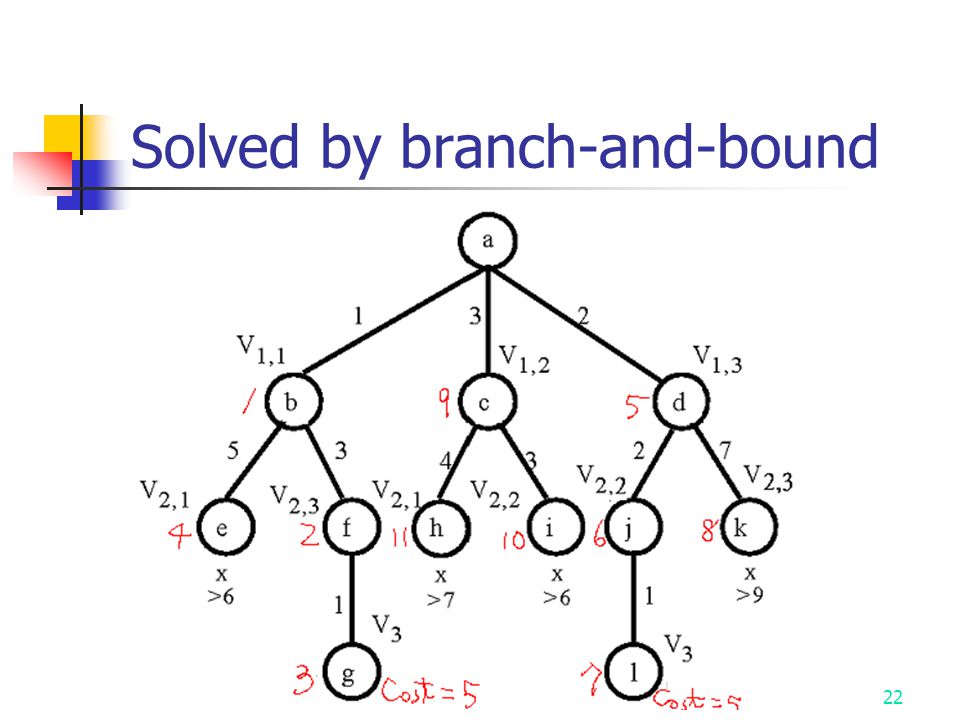

22. 22 Solved by branch-and-bound

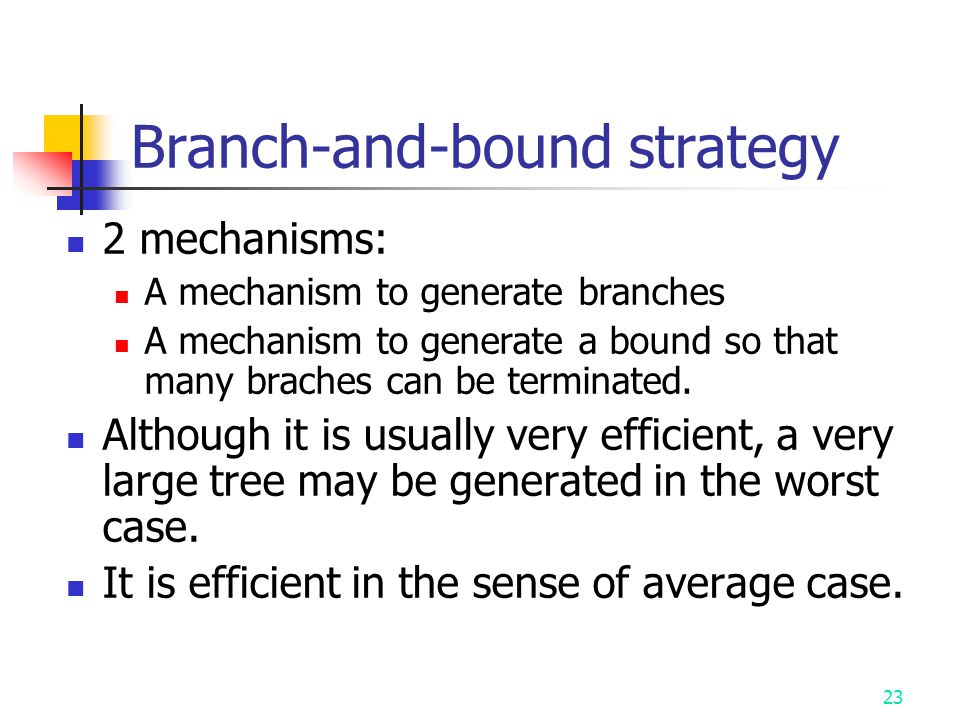

23. 23 Branch-and-bound strategy 2 mechanisms: A mechanism to generate branches A mechanism to generate a bound so that many braches can be terminated. Although it is usually very efficient, a very large tree may be generated in the worst case. It is efficient in the sense of average case.

24. 24 Exercise Use BFS, DFS, Hill-Climbing and Best-First Search schemes to solve the following 8-puzzle problem with the evaluation function being the number of misplaced tiles. 23 184 765 Initial State: Goal State: 123 784 65
